· SP6
· STRUCTURE : 335*255*320MM
· FORM FACTOR : M-ATXITX
· DRIVE BAYS : 5.25" CD ROM: 0
①3.5" HDD: 1+2.5" SSD: 2
②3.5" HDD: 0+2.5" SSD: 3
· CPU MAX L : 160MM
· I/O PANEL : USB3.0*2+HD
· PCI CARD SLOT : 4
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

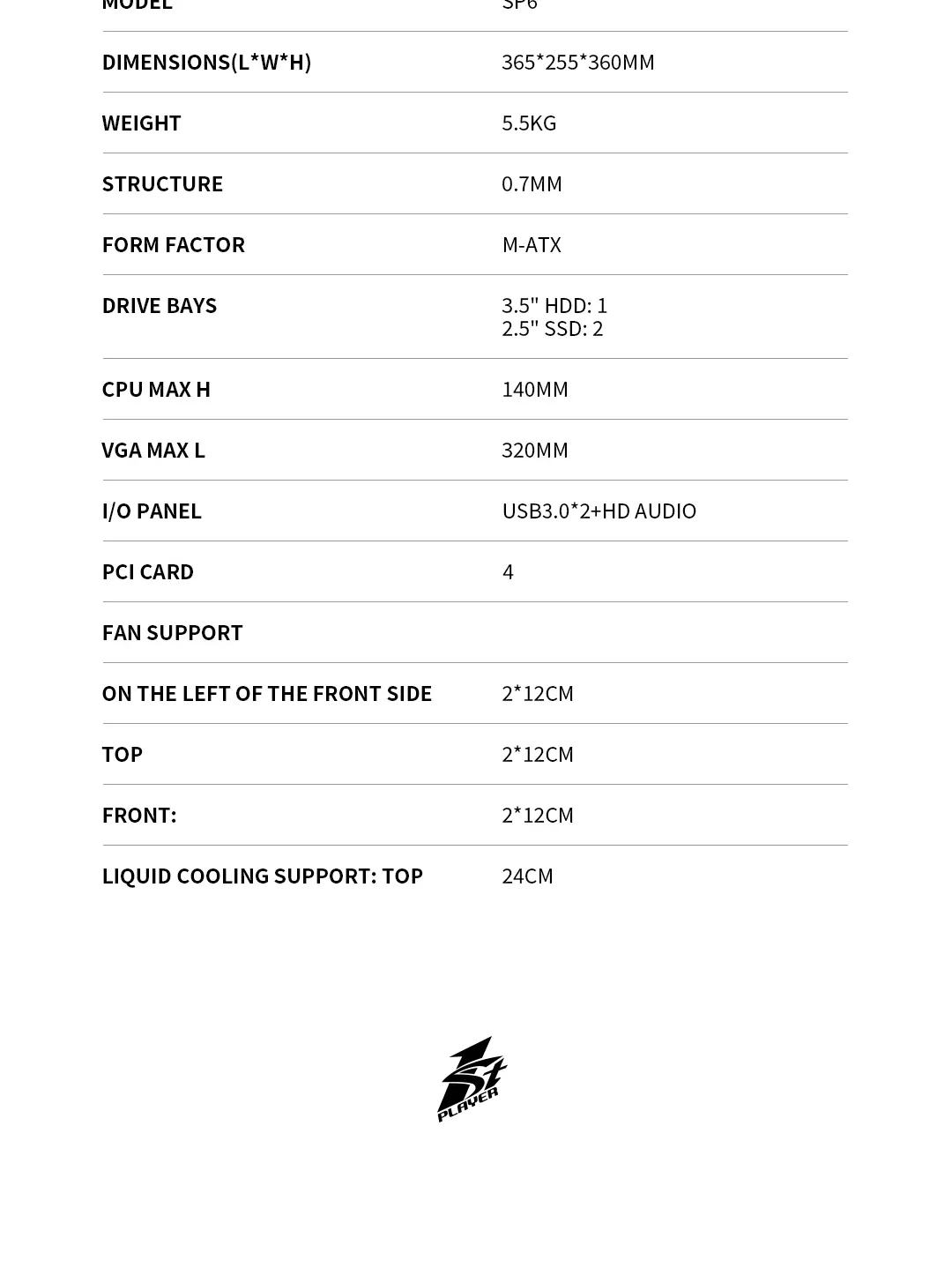

Model
SP6/SP6-G
Structure Dimensions(L*W*H)
335*255*320MM

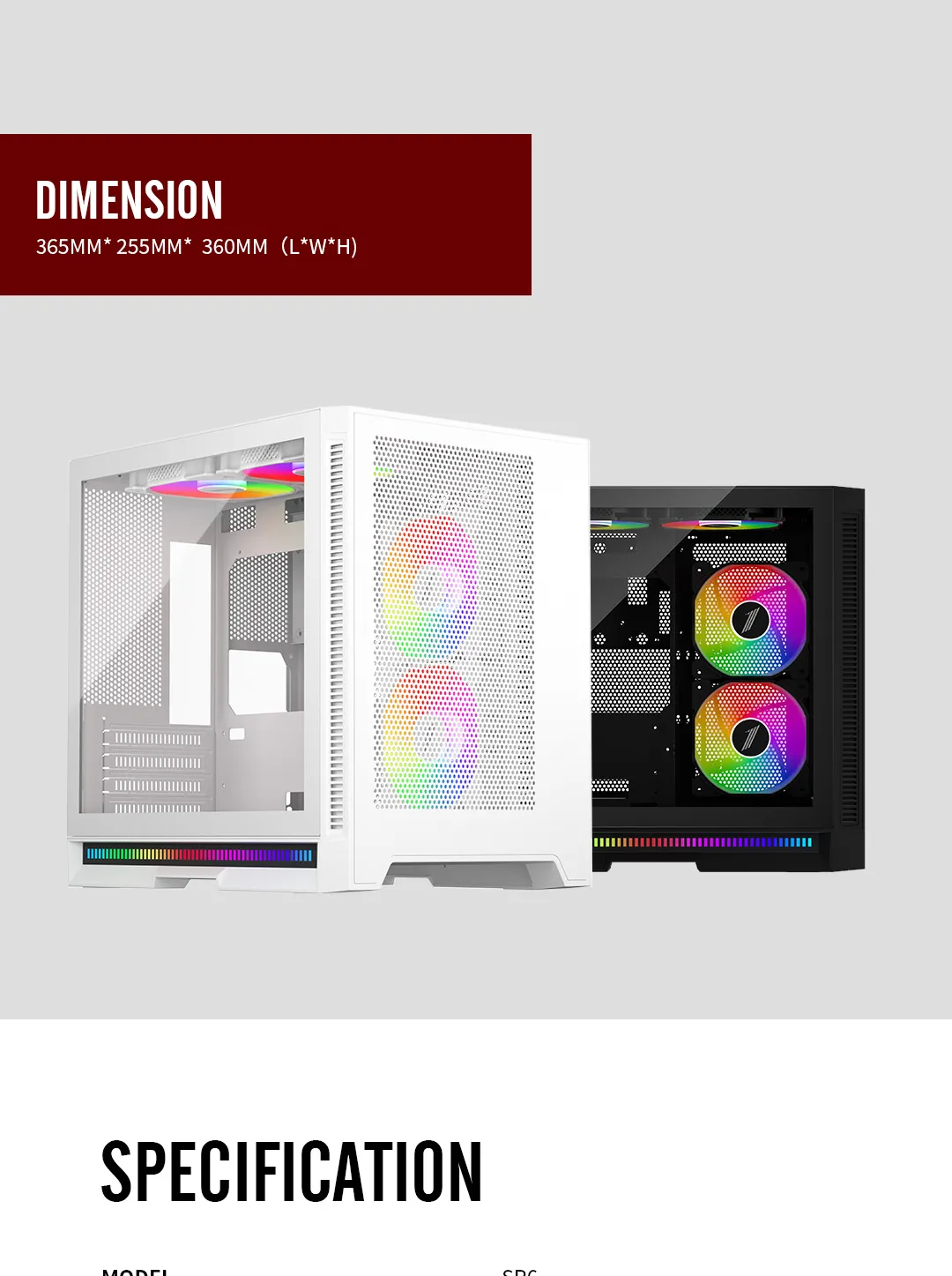

Product Dimensions(L*W*H)
365*255*360MM
Package Dimensions(L*W*H)
435*330*450MM

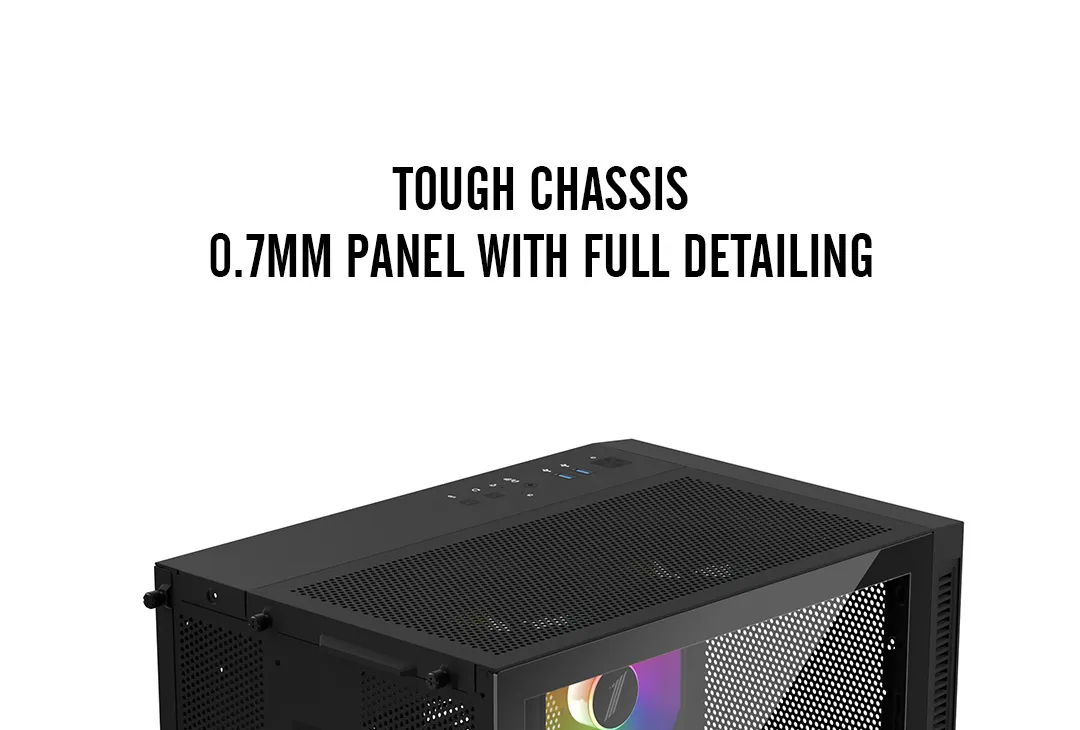

Structure Thickness
0.7MM
Materials
SPCC 0.7MM

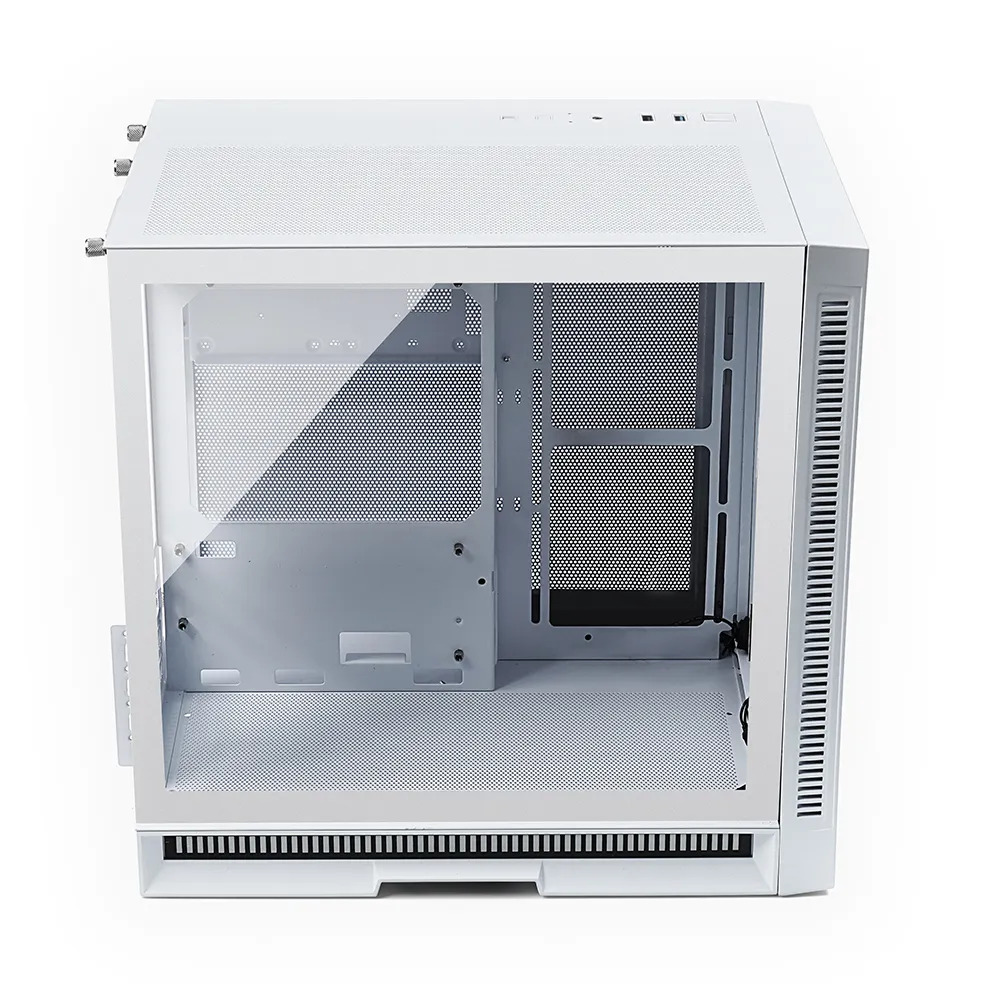

LEFT SIDE PANEL：TEMPERED GLASS
FRONT PANEL: EMOTION VIEW/
SPCC 0.7MM
LEFT SIDE PANEL：TEMPERED GLASS
Form Factor
M-ATX/ITX
5.25" CD ROM: 0
3.5" HDD: 1+2.5" SSD: 2
3.5" HDD: 0+2.5"SSD: 3
CPU MAX Height
140MM
VGA MAX Length
320MM

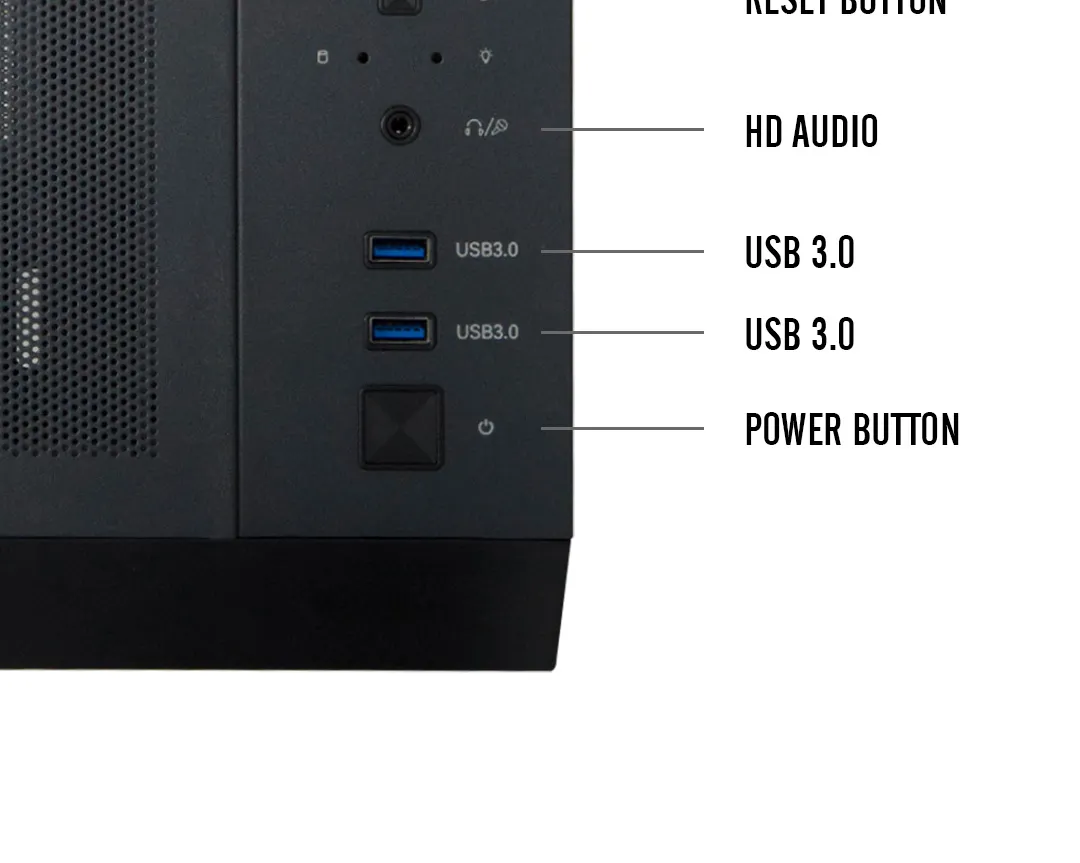

I/O Panel
USB3.0*2+HD AUDIO
PCI Card Slot
4

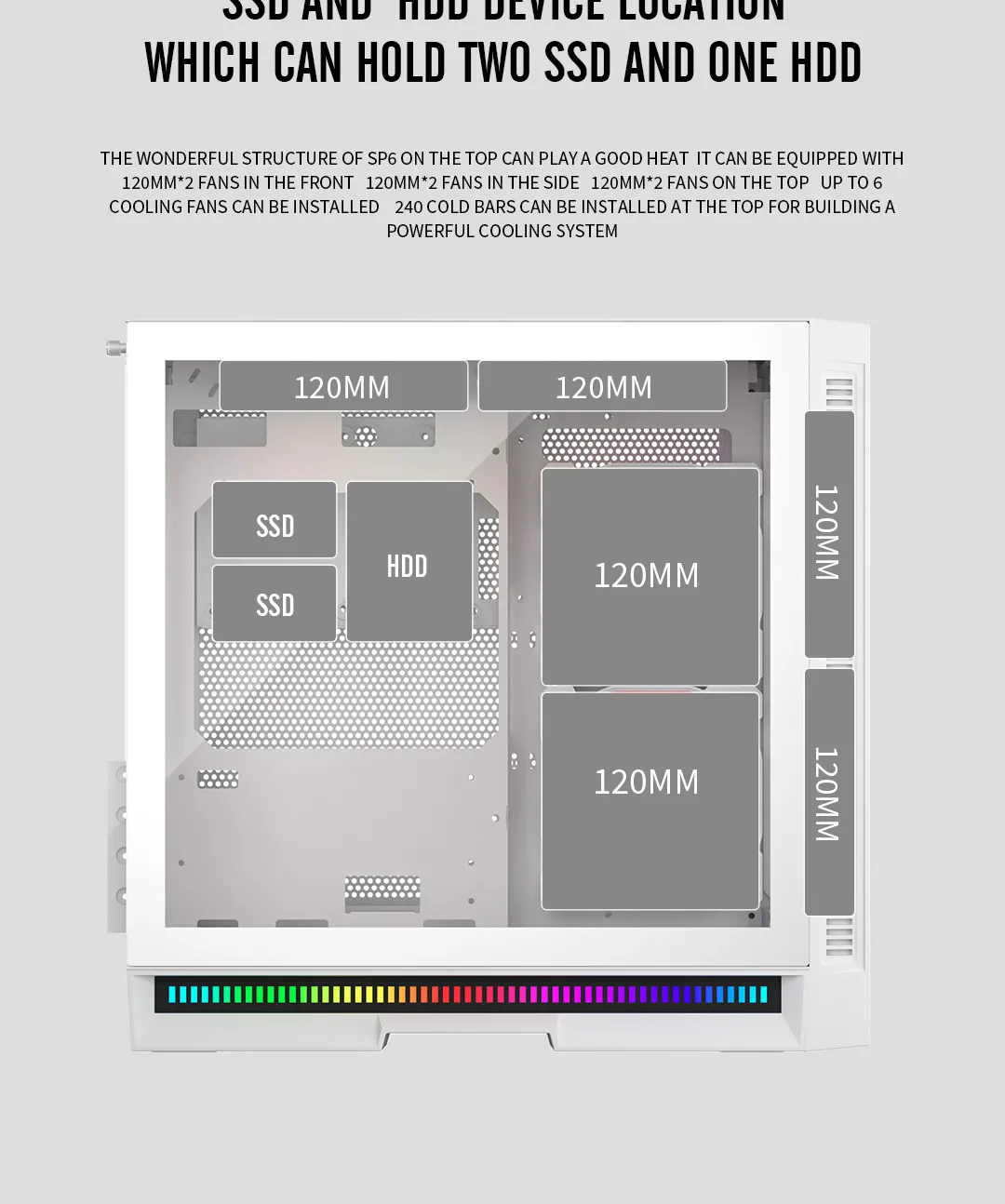

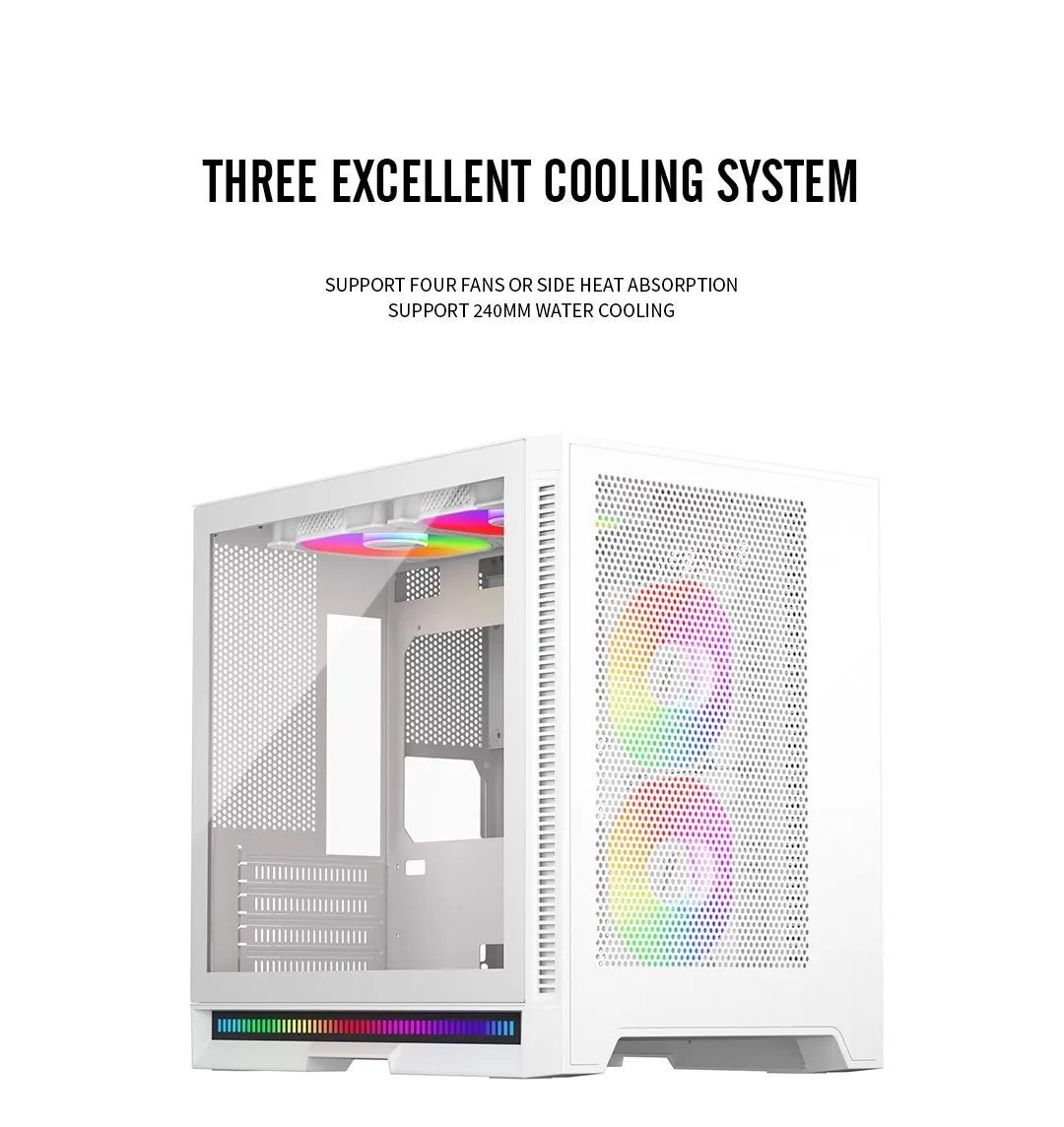

Fan Support
FRONT SIDE: 2*12CM

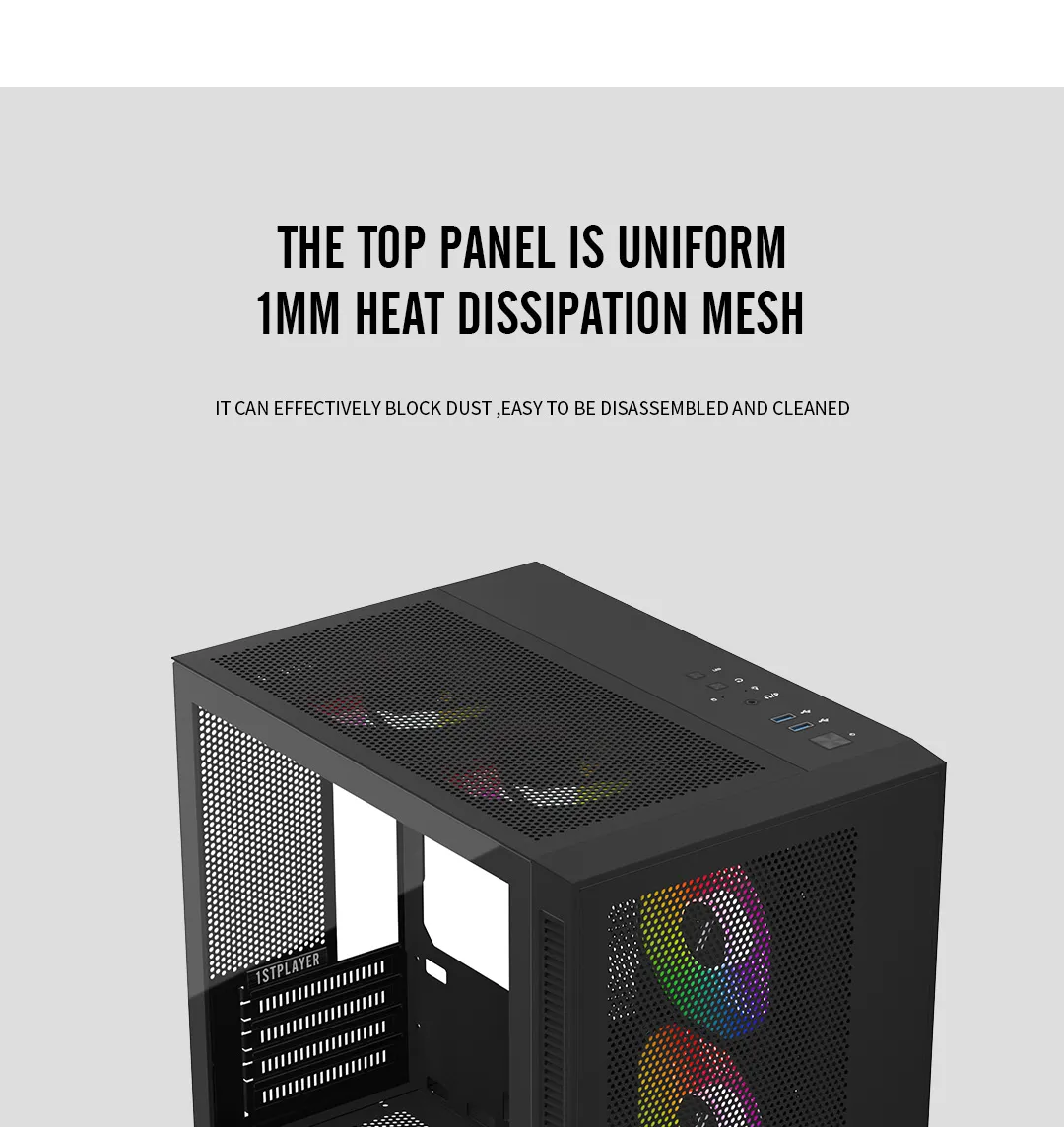

TOP: 2*12CM
/ON THE LEFT OF FRONT SIDE: 2*12CM
TOP: 2*12CM
Liquid Cooling Support
TOP: 24CM
Power Supply Support
BOTTOM MOUNT
Net Weight
N.W.: 5.5KG
G.W.: 6.5KG
