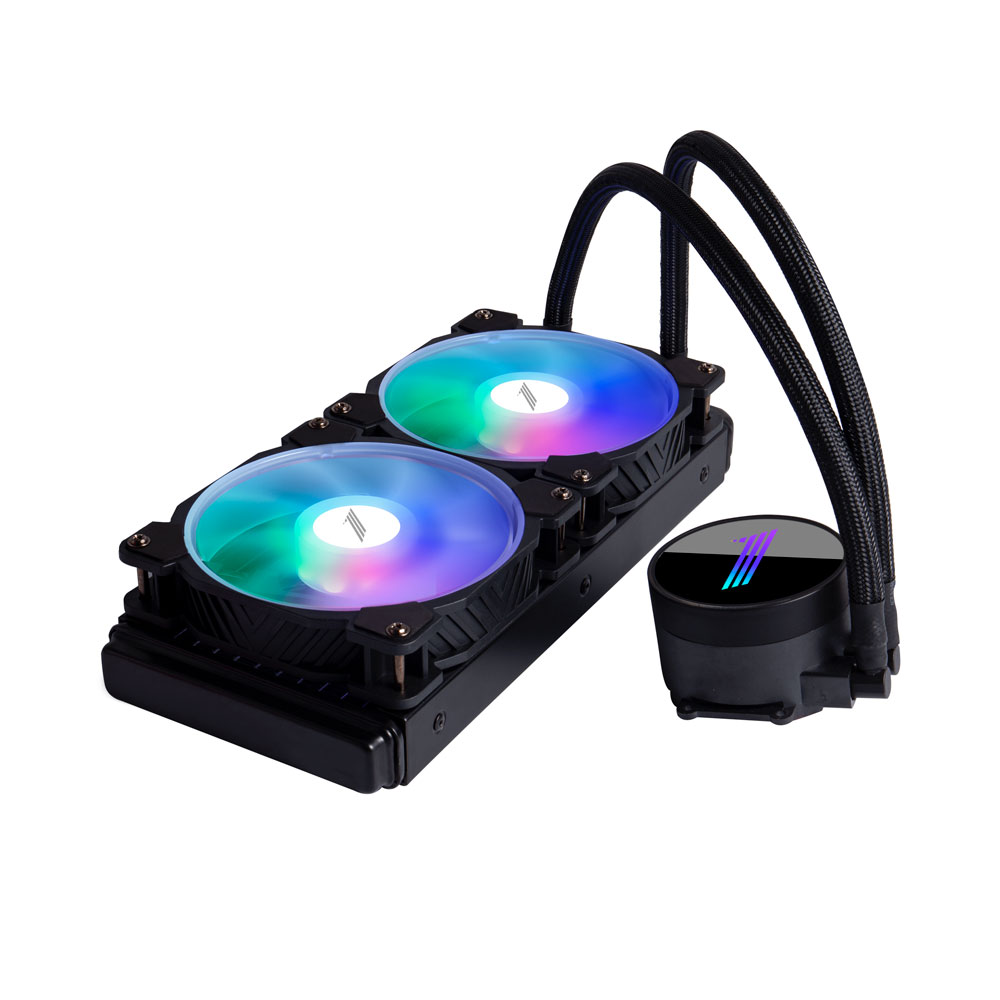

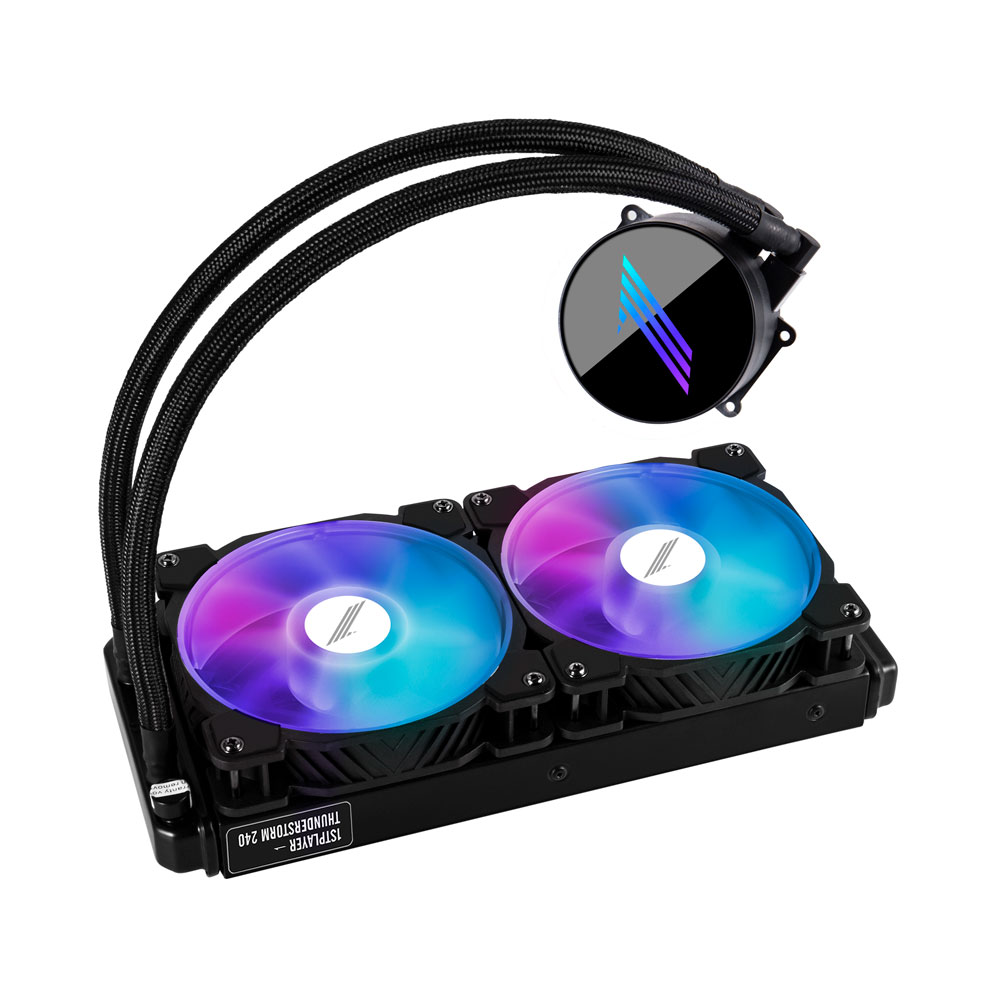

TS 240/360 Liquid Cooler

THUNDERSTORM

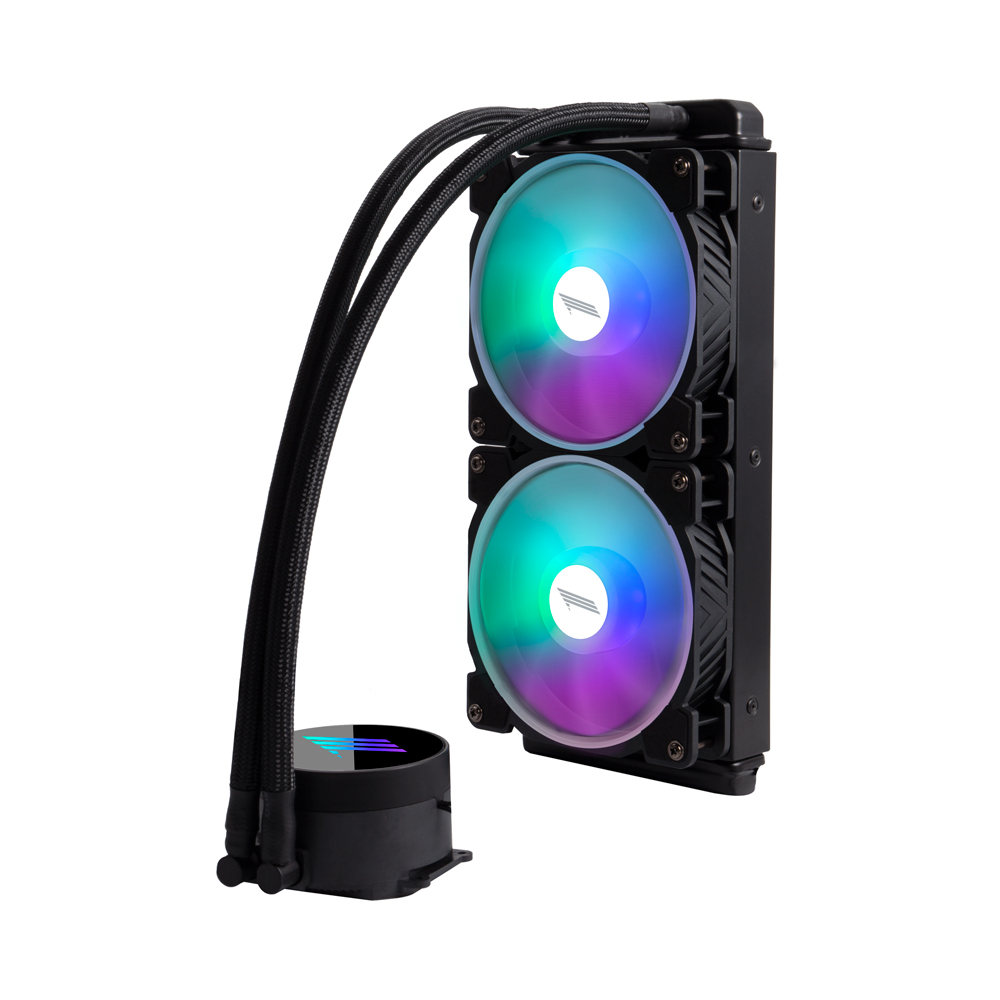

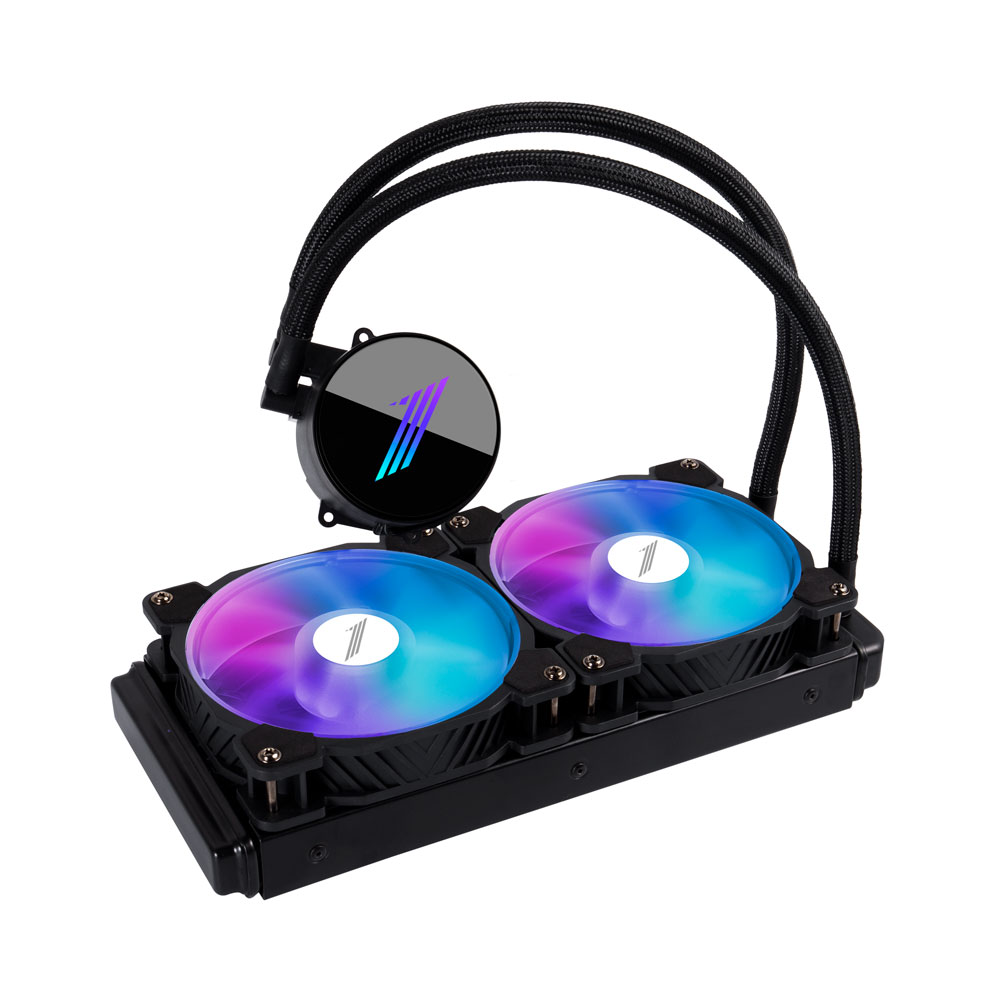

TS 240

· Long Life Bearing Water Pump (2400±10%RPM)/40,000hrs

· High Density Sigmoidal Fins Radiator

· Pure Copper Endothermic Block

· Temperature Controlled 9 Blades Fan (600-1500RPM) with  Noise Reduction Feature

· Support 5v RGB Sync with Motherboard (ARGB) On Pump Head & Cooling Fan

· Compatible with Intel (LGA 2066/2011/1151/1150/1155/1156) & AMD (AM4/AM3/AM2/FM2/FM1)




  • ARGB SYNC

  • Mirror Water
    Cooling

  • Multi-Platform
    Compatible Design

  • TS-240 Integrated
    Water Cooling

  • Long Life
    Bearing WaterPump

  • Temperature Controlled
    Silent 9 Blades Fan

Focus On The Beauty Of The Structure Pure Mirror Water Cooling System

Mirror Water Cooling with ARGB lighting effect(5V interface), the lighting effects such as breathing, color-by-color, etc. that come with the motherboard ARGB software can be fully displayed one by one.


2400 Rpm Silent Water Pump

The fixed-bearing water pump up to 2400RPM has a stable start and low noise, while taking into account the quiet and shockproof performance.


Six-Way Circulating Water Cooling, Two Waterway Design

The thin waterway design forms high-density fins, which absorb lots of heat. Different from the traditional single waterway design of the pump, TS240 can form a two waterway and cover the entire heat dissipation surface. Thee heat dissipation effect can reach 1~2 times of the unidirectional effect.


Anti-Flocculation

High Conductivity Coolant

The physical parameters of boiling point: 150℃, freezing point: -20℃ prevent the formation of flocculation after long-term use of the coolant, which will cause the cooling effect to drop and block the water channel


Thin Frame Soft Light

High Performance Fan

The cold row comes with a PWM (600-1500RPM) intelligent speed regulation fan, a thinner frame and a larger heat dissipation area, and a soft light fan with ARGB powerful and beautiful.


Model

TS240 / TS360

Scope of Application

Intel(LGA 775/115x/1366/2011)& AMD(AM4/FM2/FM1/AM3/AM2)

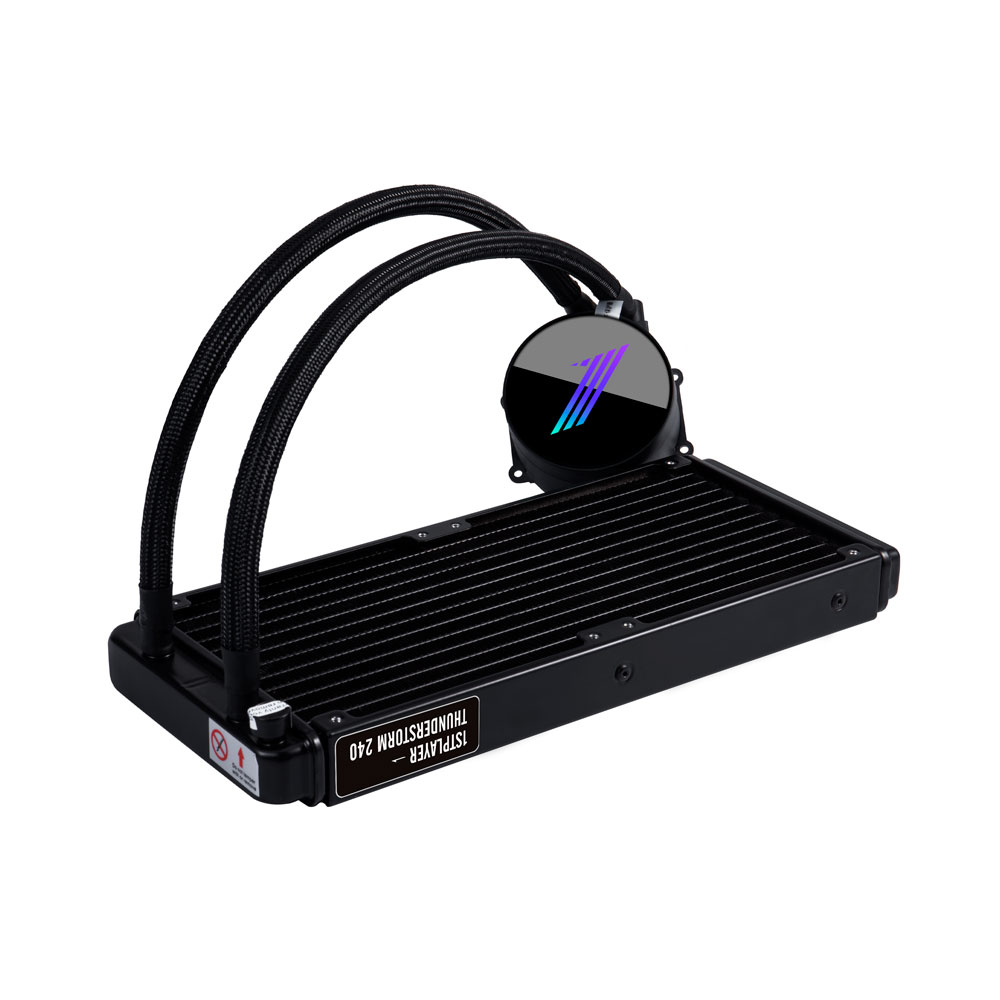

Radiator

Dimensions

274*120*27 mm(TS240) / 394*120*27 mm (TS360)

Material

Aluminum

Tube

Length

310mm(TS240)  / 390mm(TS360)
Pump

Dimensions

75*75*45mm

Speed

2400 RPM±10%

Noise

18.9dB(A)

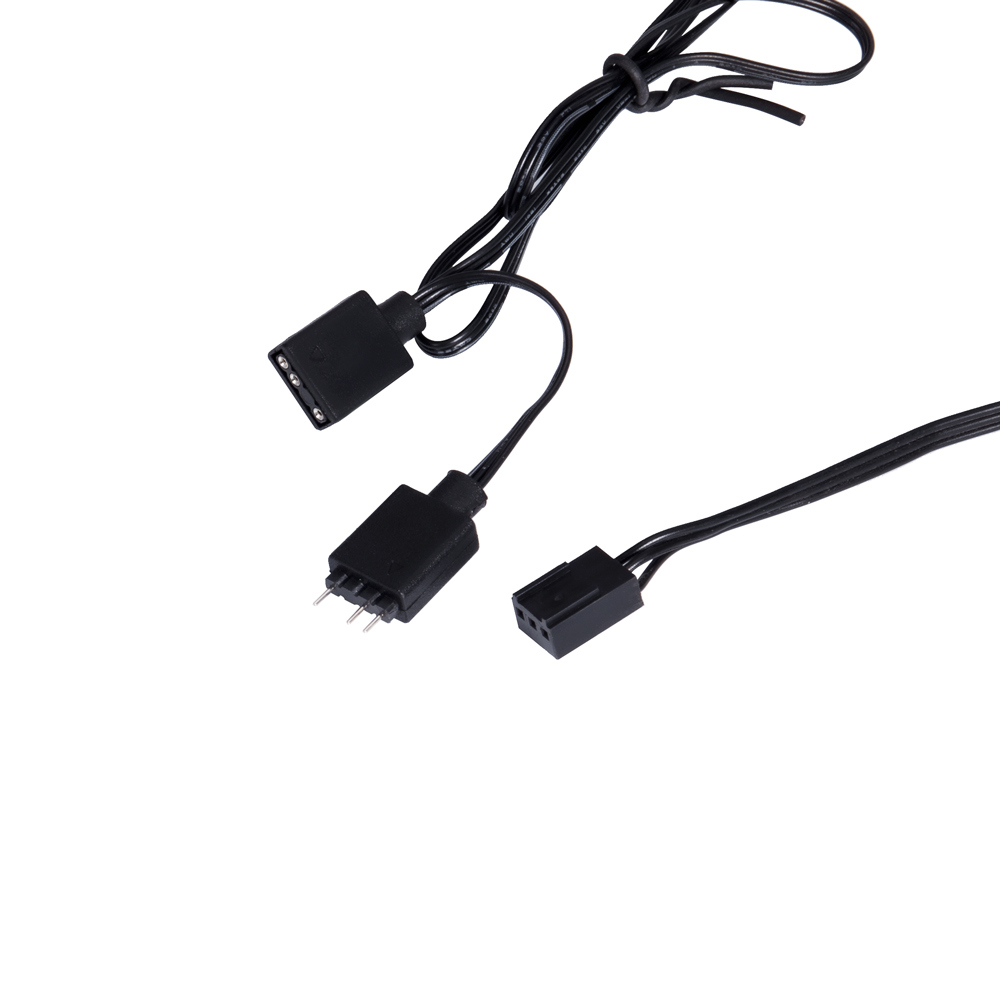

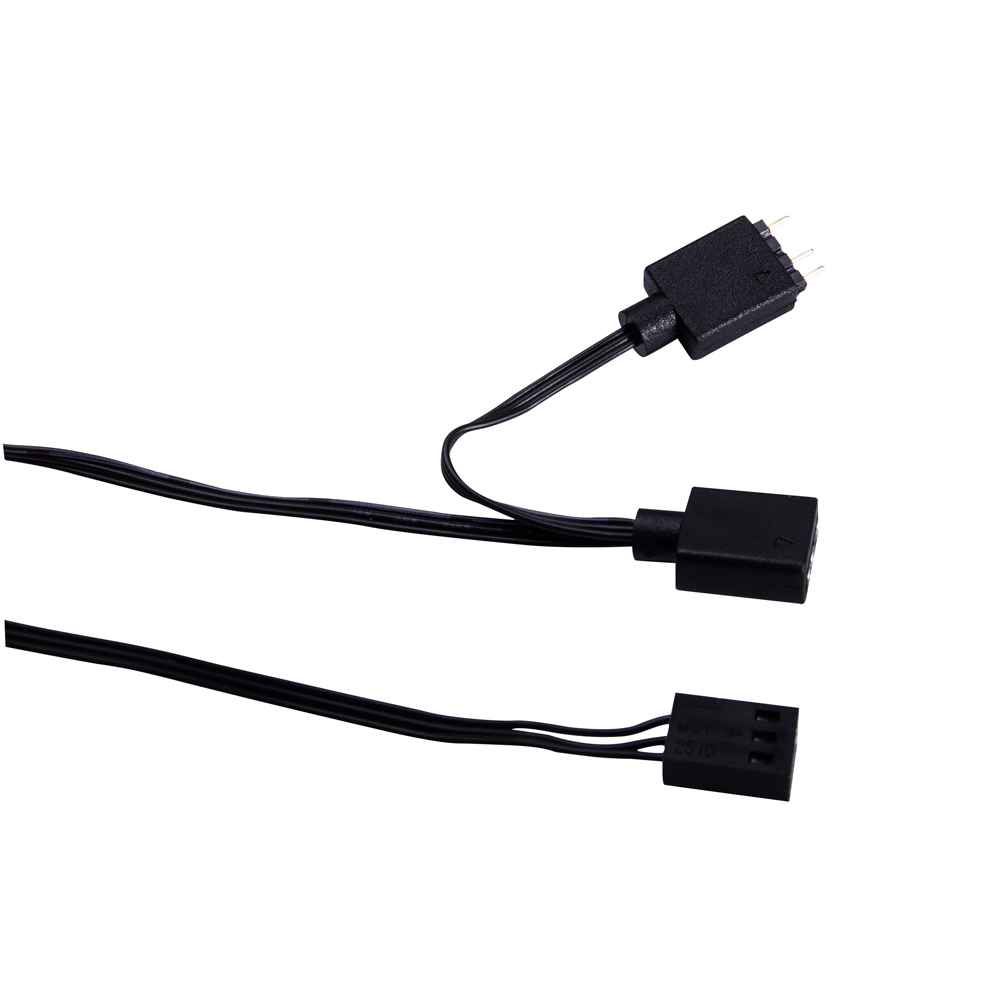

Connector

3Pin+ARGB

Rated Voltage

12V DC

Rated Current

0.21A

Power Consumption

2.52W

Fan


QTY

2 pcs / 3 pcs

Dimensions

120*120*25 mm

Speed

600-1500 RPM±10%

Airflow

69.34 CFM

Air Pressure

2.42 mmAq

Noise

≤30dB(A)

Connector

4 Pin+ARGB

Bearing Type

Hydro Bearing

Rated Voltage
12V DC
Rated Current
0.17 A
Power Consumption
2.04 W
LED

Type
ARGB LED
Connector
3 Pin(5V-ARGB)
Rated Voltage
5V DC
Power Consumption
2.72 W
