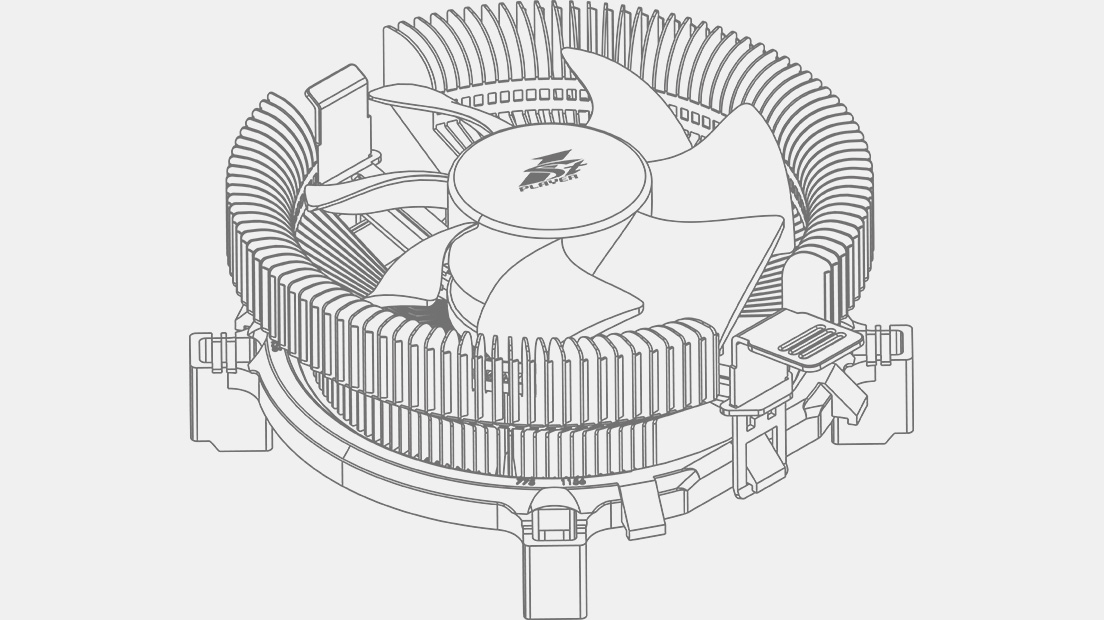

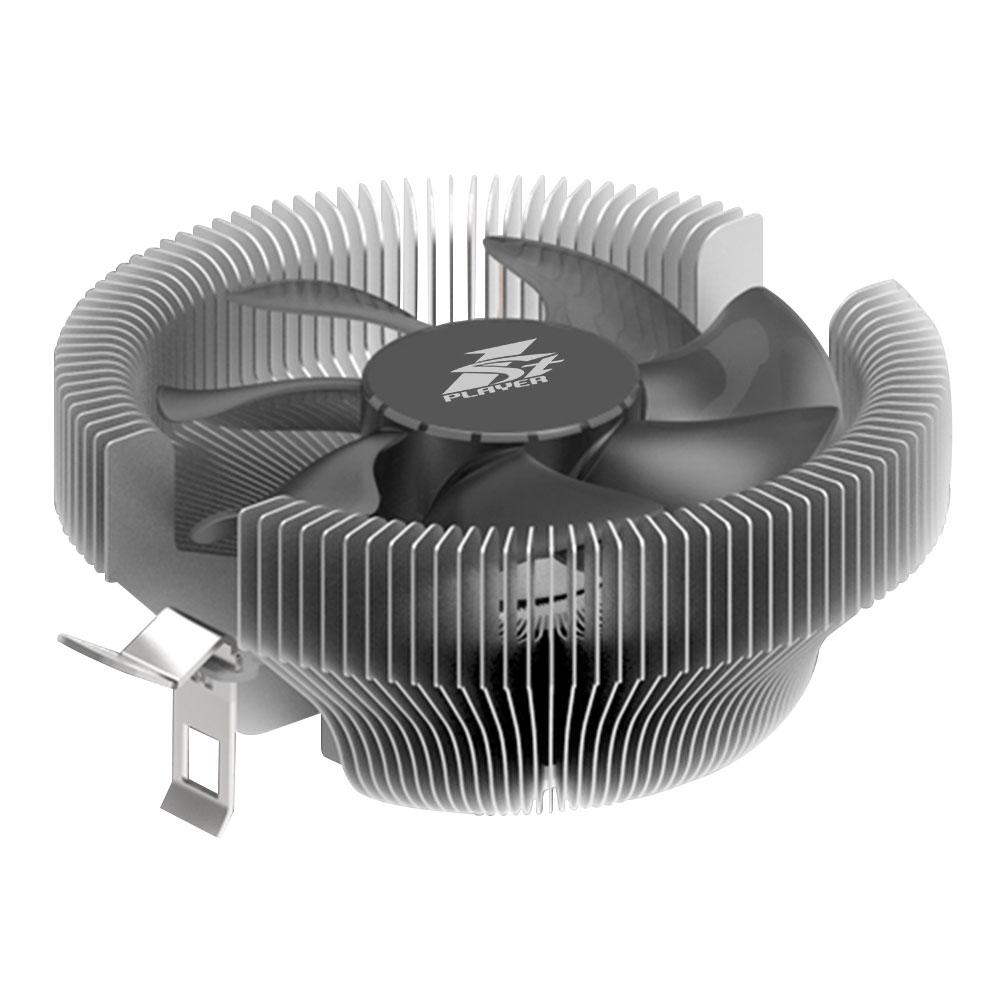

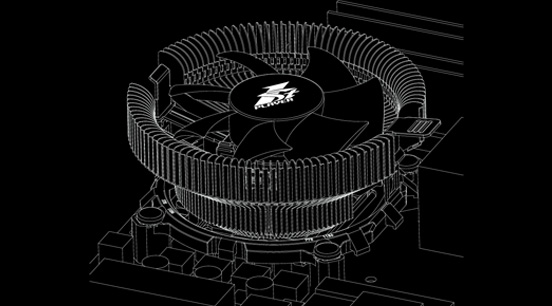

FD1

CPU Cooler

· Compatible with Intel and AMD platforms.

· 7.5 CM fan brings high CFM and low noise.

· High-density aluminum fins deliver marvelous heat dissipation.

· Compact type ideally designs for AIO PC and small case.




FD1

  • Intel&Amd

  • 12.4Cm Silent Fan

  • Marvellous
    Heat Dissipation

 Compatible with lntel and AMD platforms.

 7.5 CM fan brings high CFM and low noise.

High-density aluminum fins deliver marvelous heat dissipation.

Compact type ideally designs for AlO PC and small case.


Installation steps

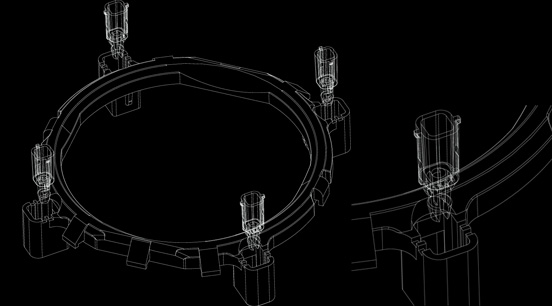

Insert the 4 clips into the proper holes on the platform mounting bracket.

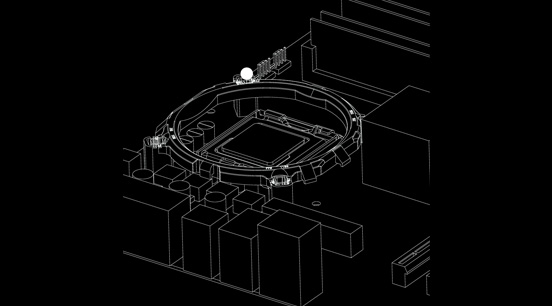

Install the mounting bracket safely on the motherboard.

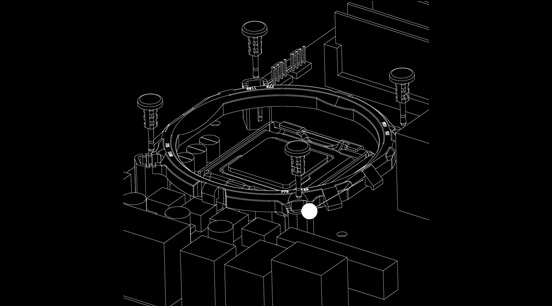

Press the 4 black push-pins into the clips.

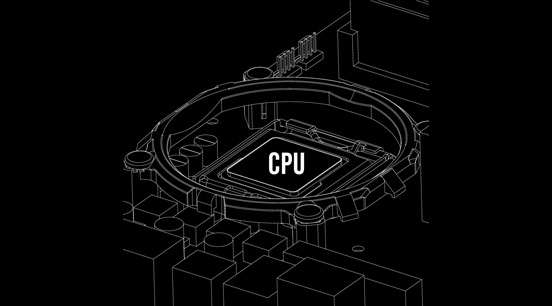

Evenly apply a thin layer of thermal grease to the surface of the CPu.

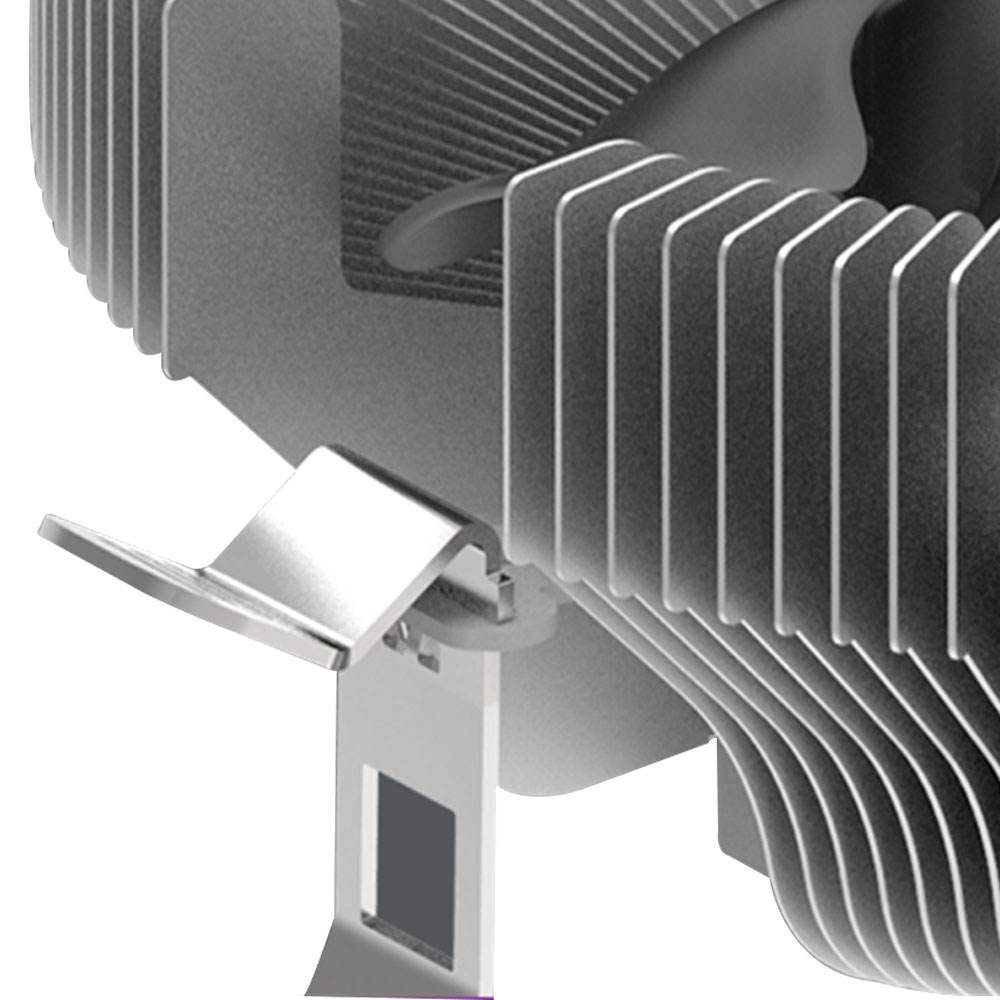

Clasp the hooks of cooler mounting bracket onto the notch onunderside of platform mounting bracket.

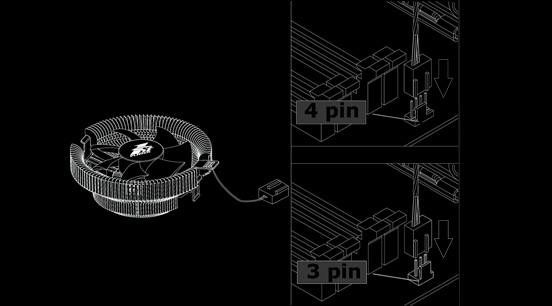

Connect the cooler cable to the 3PIN/4PIN connector located on the motherboard.


MODEL

FD1

DIMENSIONS(L*W*H) FAN

75*75*15MM

TOTAL

115*105*45MM

AIR FLOW

27.50CFM(ft3/min)

NOISE LEVEL

24.80dB(A)

RATED VOLTAGE

12V

POWER CONSUMPTION

2.88W±10%

SPEED

2000±10%R.P.M

AIR PRESSURE

1.92mm-H2O

POWER CONNECTOR

3PIN

RATED CURRENT

0.19A±10% MAX

WARRANTY

2 YEARS

SOCKET SUPPORT

INTEL LGA 1156/1155/1151/1150/775

AMD  AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
