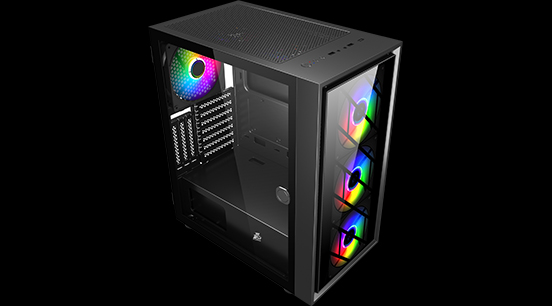

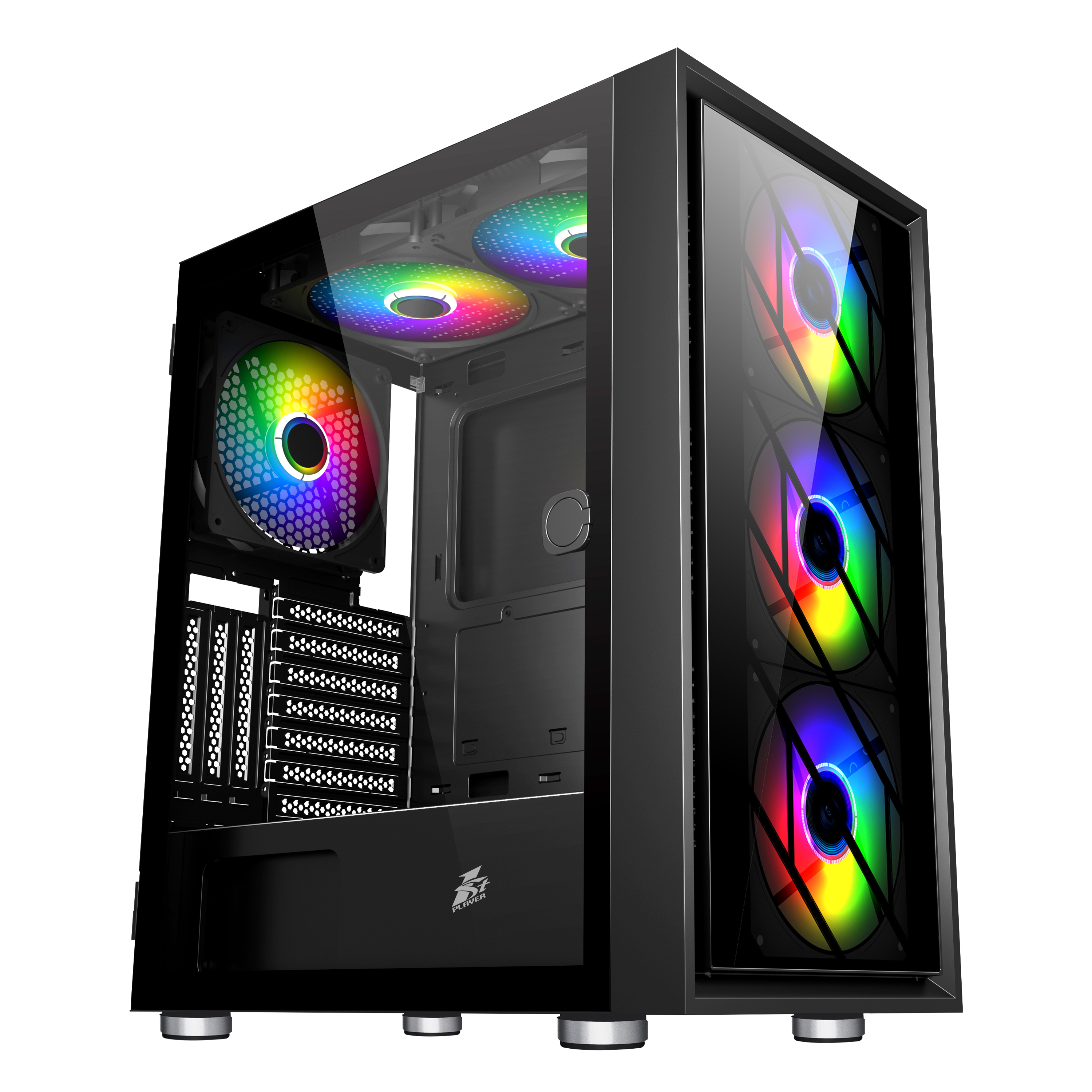

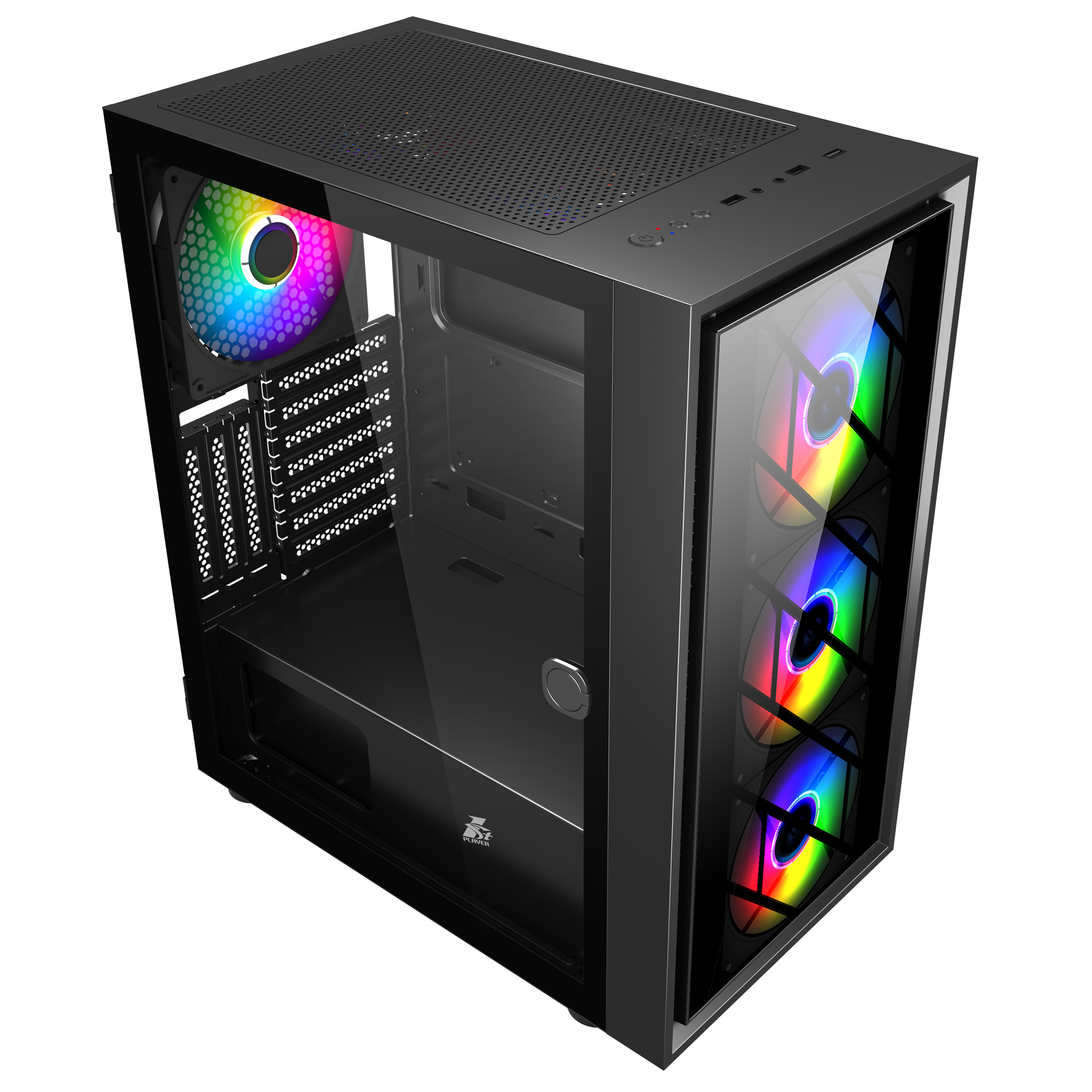

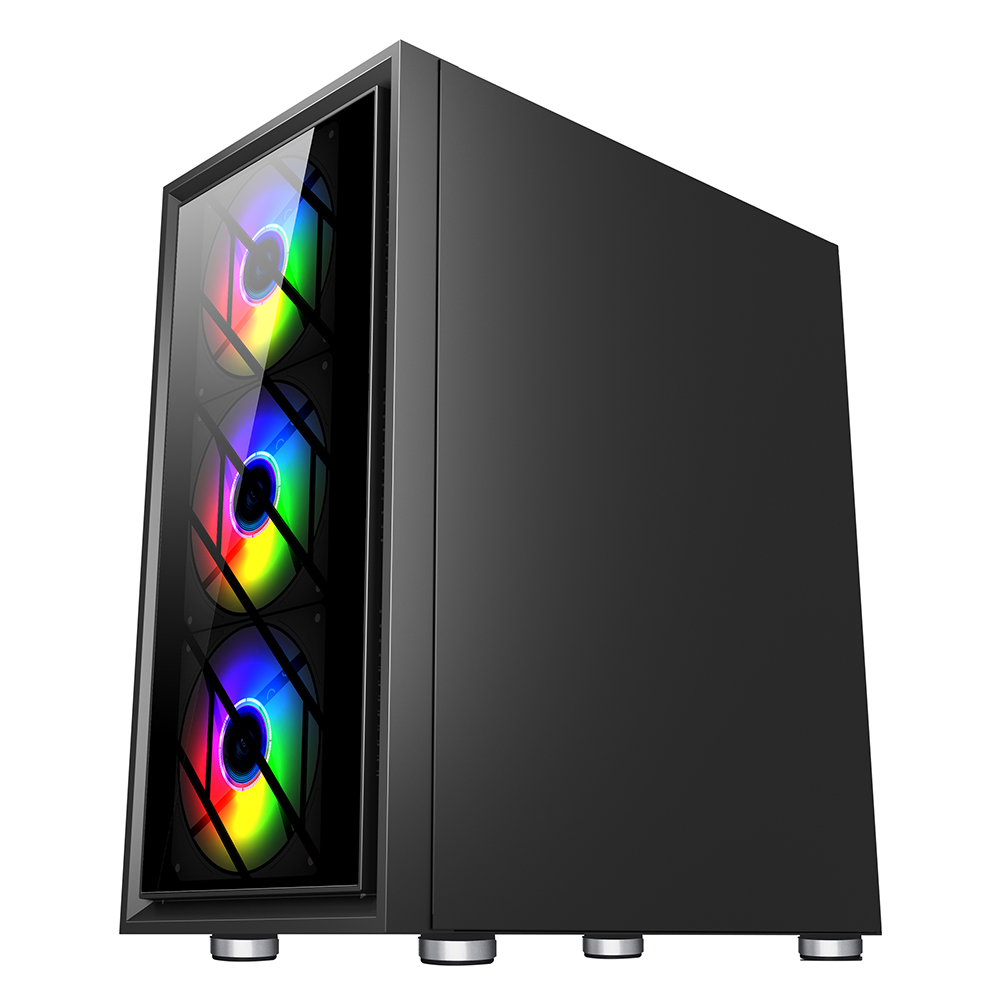

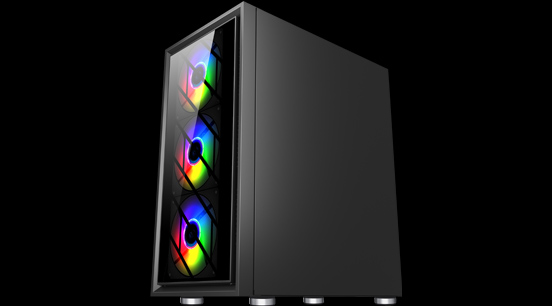

AR series ATX Case
· Liquid Cooling Support(Fans are Optional)
FRONT: 24/28/36 CM TOP: 24CM
· Fans Support: Up to 6 fans
· USB3.0*1+USB2.0*2+HD AUDIO
· 3.5" HDD：2 2.5" SSD：2

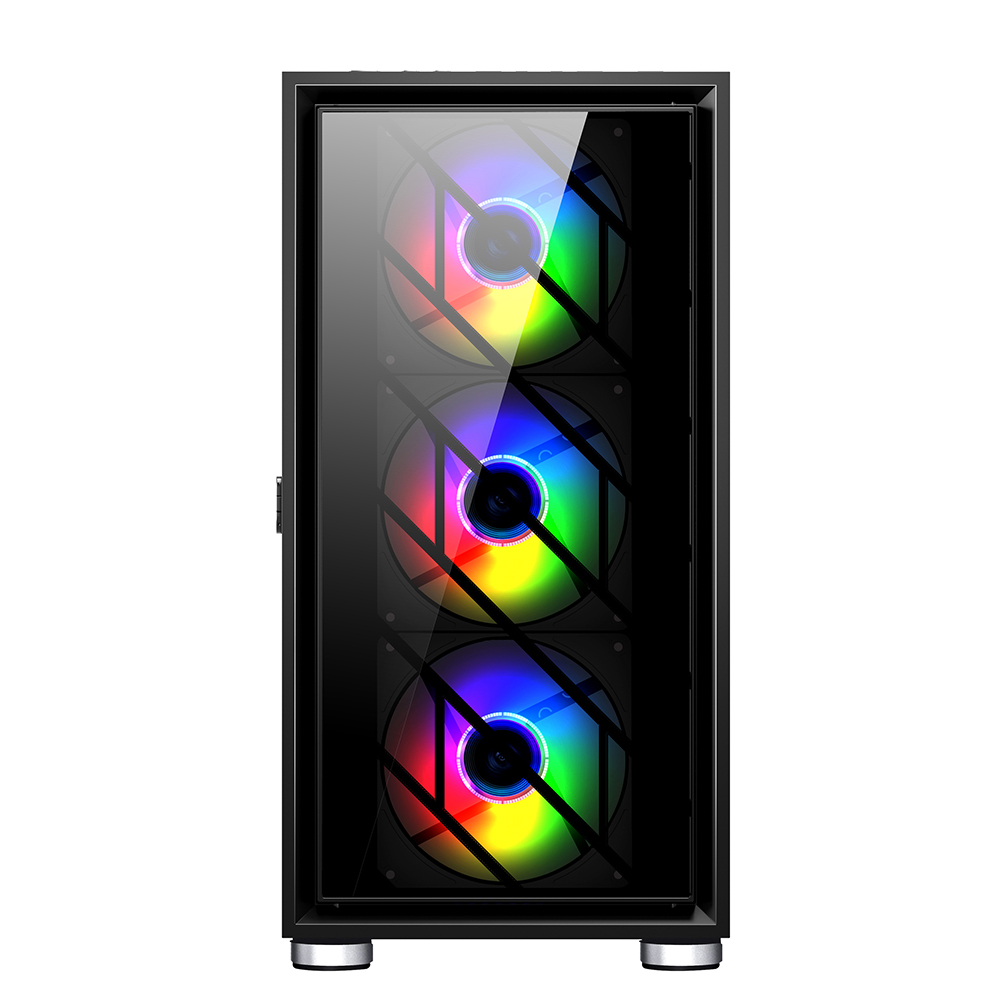

· Front panel&Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

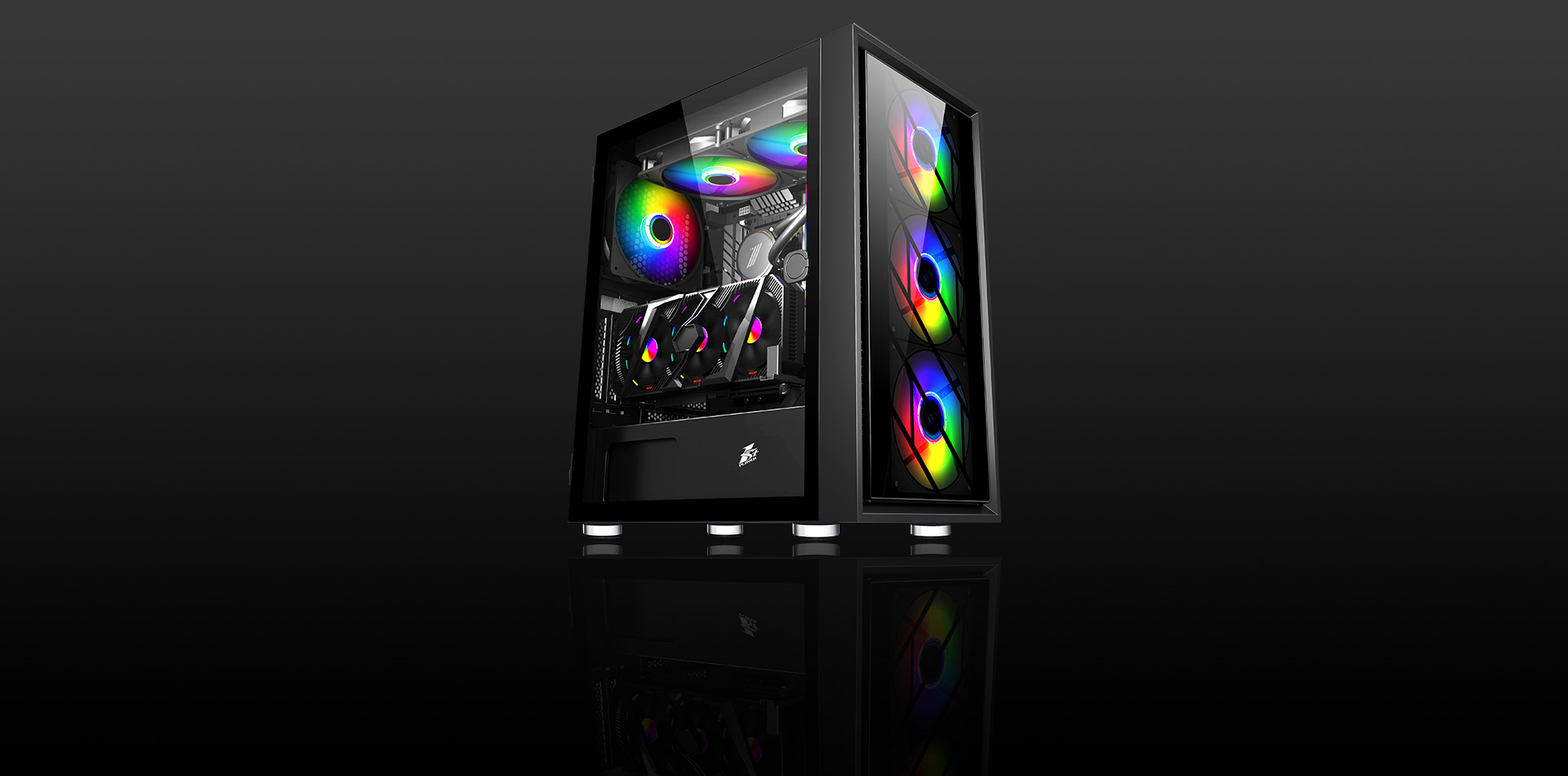

Support24cm / 36cm Liquid Cooling
Support 2OCM Case Fan
23CM Wide Body PC Case

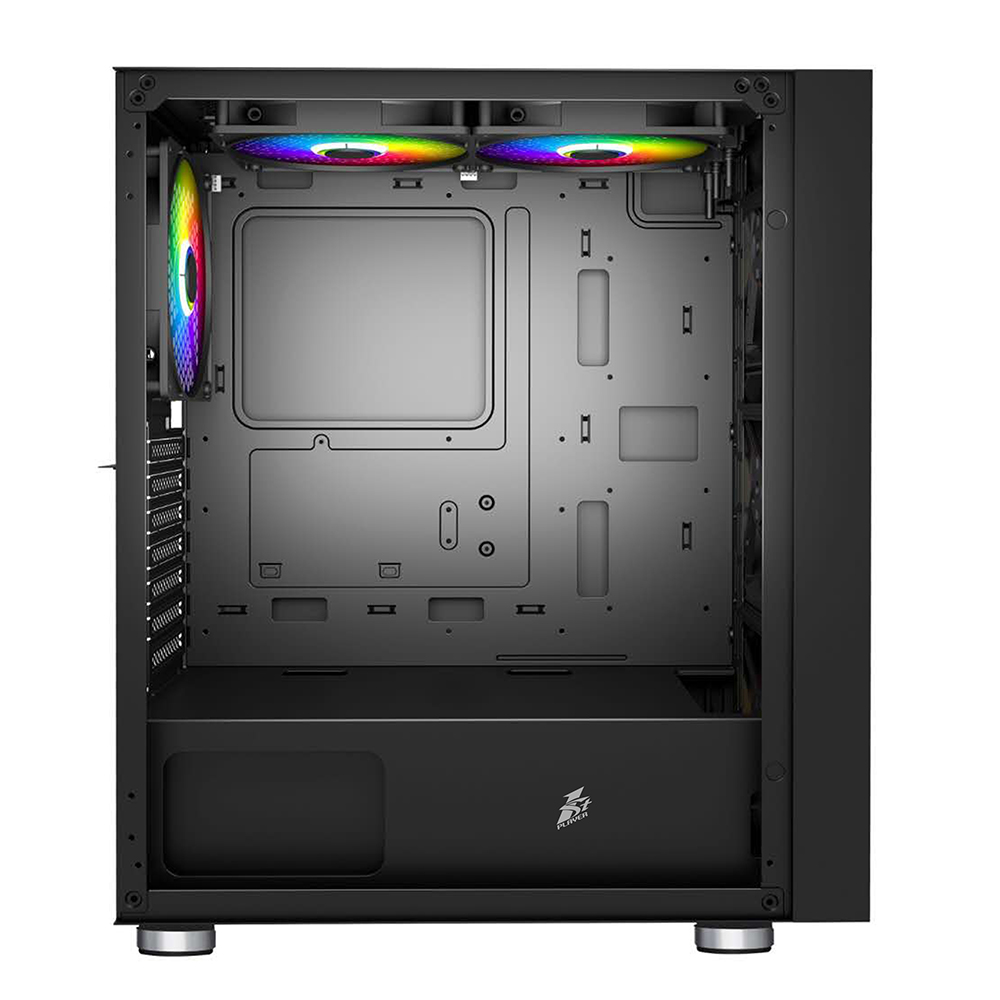

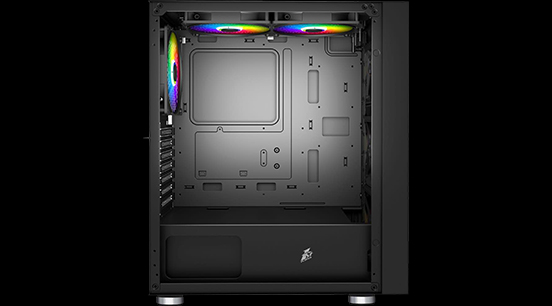

Hinged Style Side Panel
Support Vertical VGA Installation

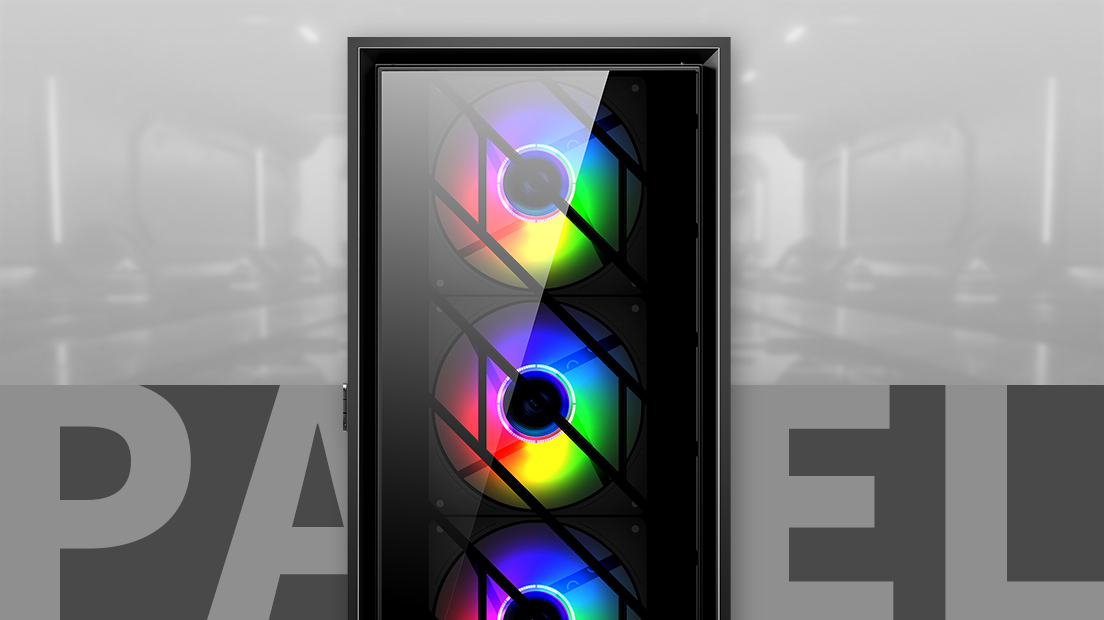

Tempered Glass Pannels
MODEL
AR-7G
STRUCTURE DIMENSIONS (L x W x H)
350 x 230 x 445 mm
PRODUCT DIMENSIONS (L x W x H)
390 x 230 x 460 mm
PACKAGE DIMENSIONS (L x W x H)
500 x 280 x 465 mm
STRUCTURE THICKNESS
0.6 mm
MATERIALS
SPCC 0.6 mm
Front / Left Panel: Tempered glass
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 2
2.5" SSD: 2
CPU MAX HEIGHT
VGA MAX LENGTH
I/O PANEL
PCI CARD SLOT
FAN SUPPORT
Front: 3 x 12 cm / 3 x 14 cm / 2 x 20 cm
Rear: 1 x 12 cm / 1 x 14 cm
Top: 2 x 12 cm / 2 x 14 cm
LIQUID COOLING SUPPORT
Front: 240 mm / 280 mm / 360 mm
Top: 240 mm
POWER SUPPLY SUPPORT
NET WEIGHT
