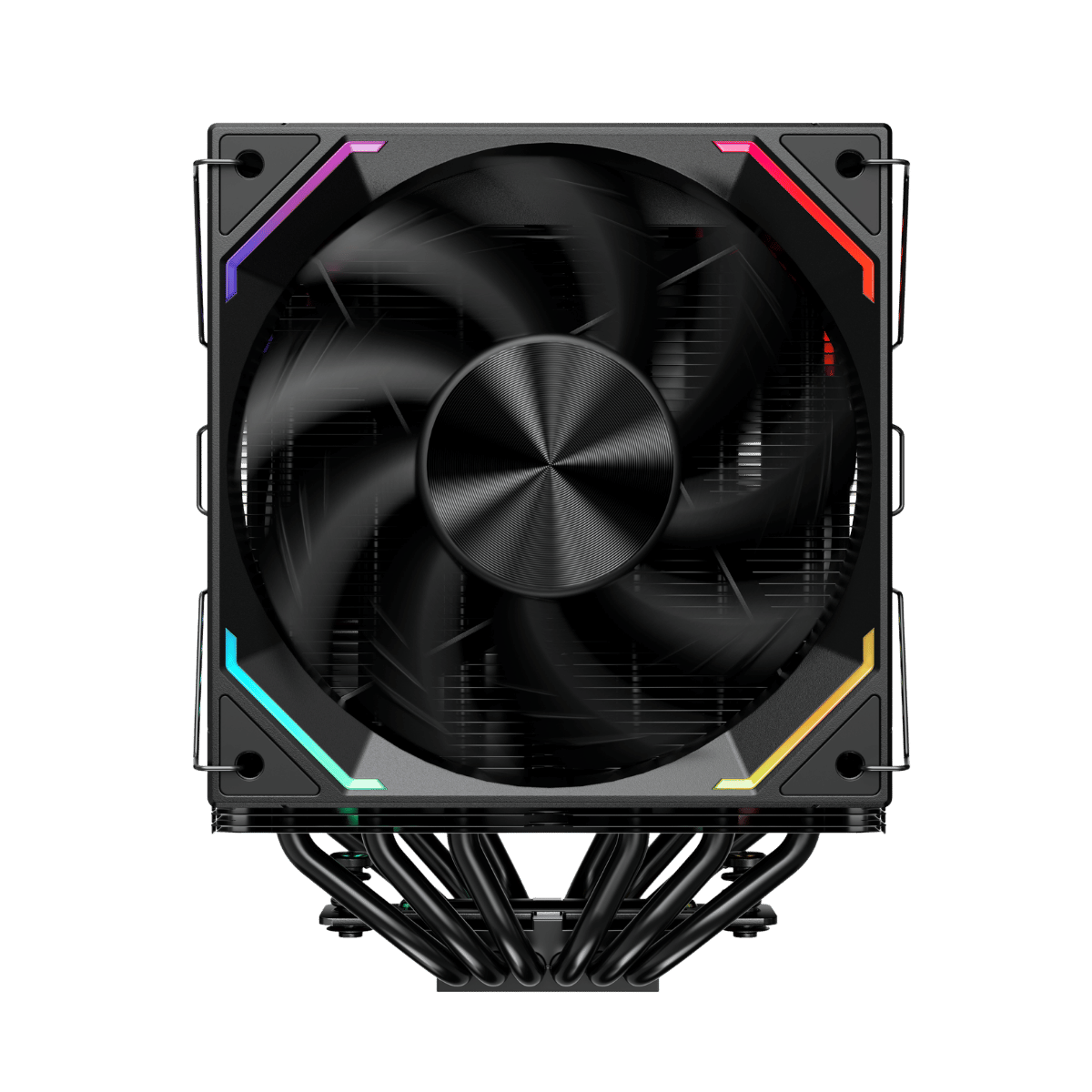

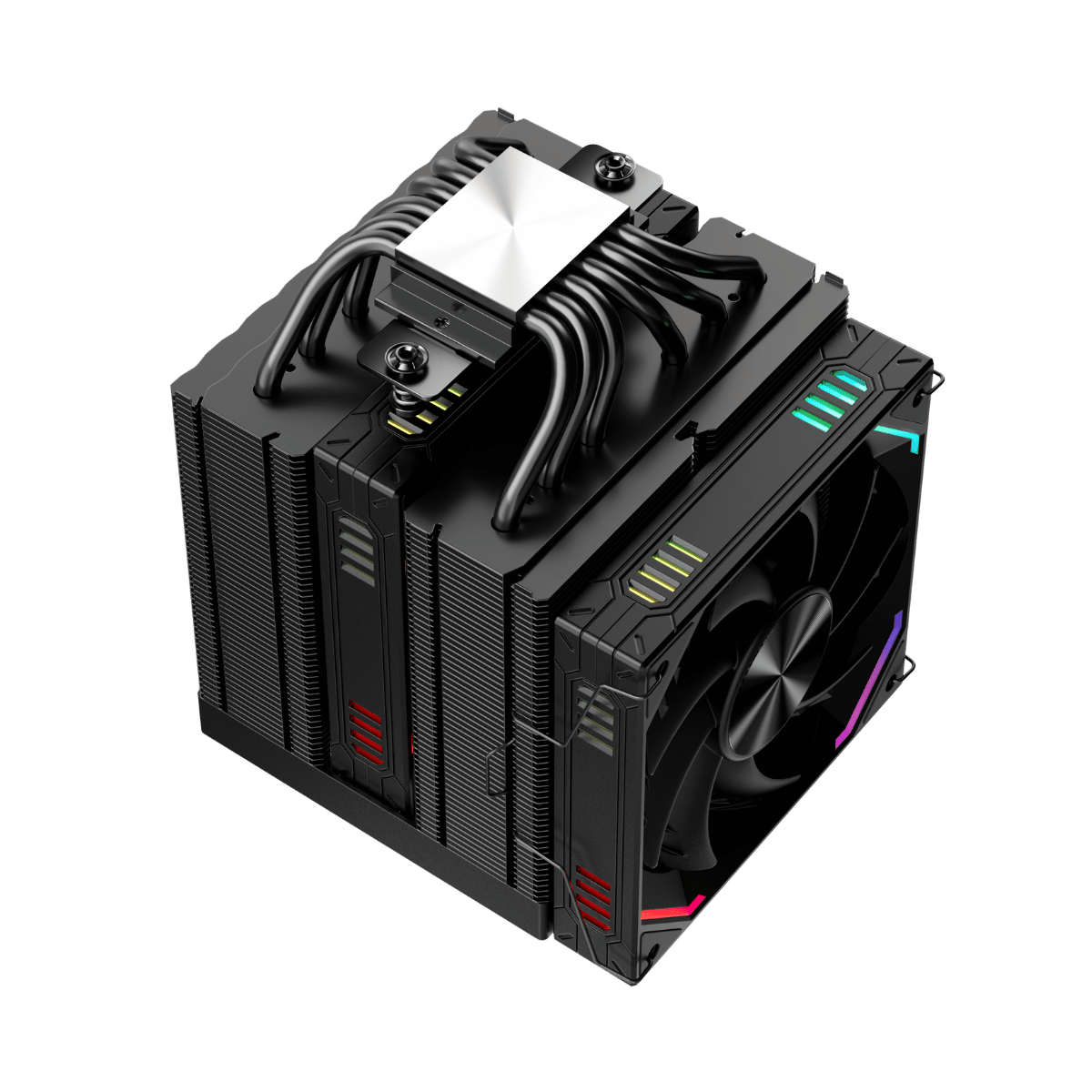

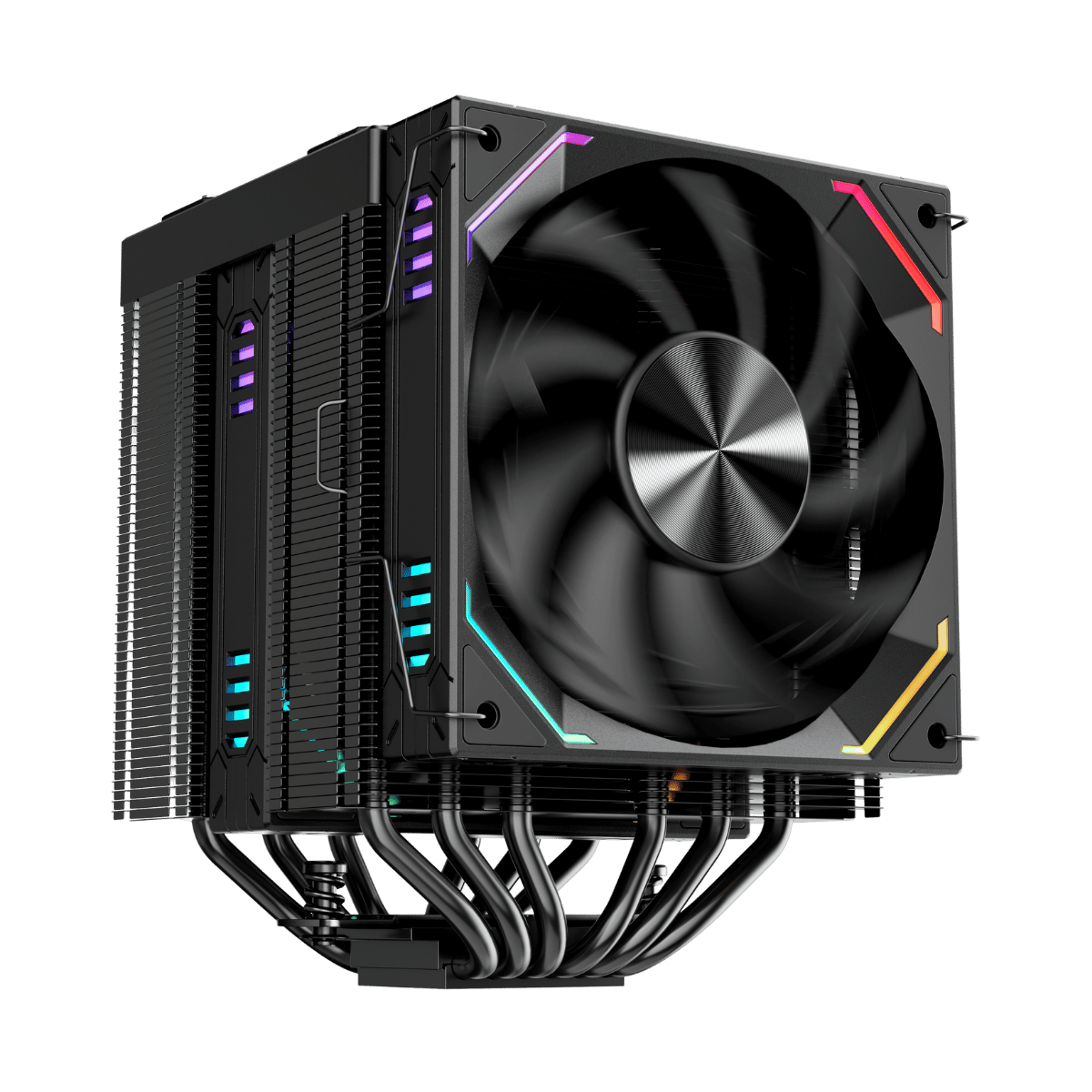

FT12DSL-6

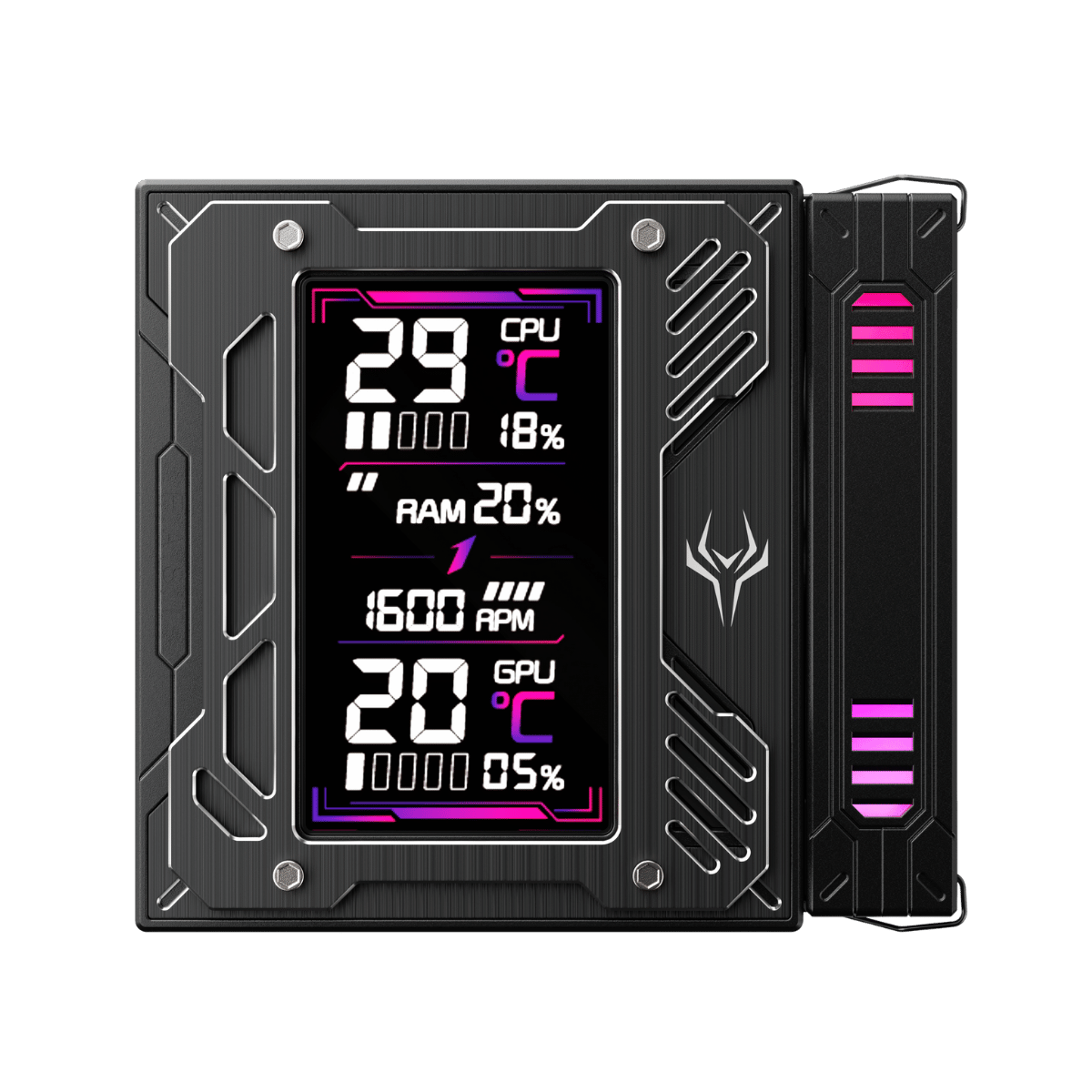

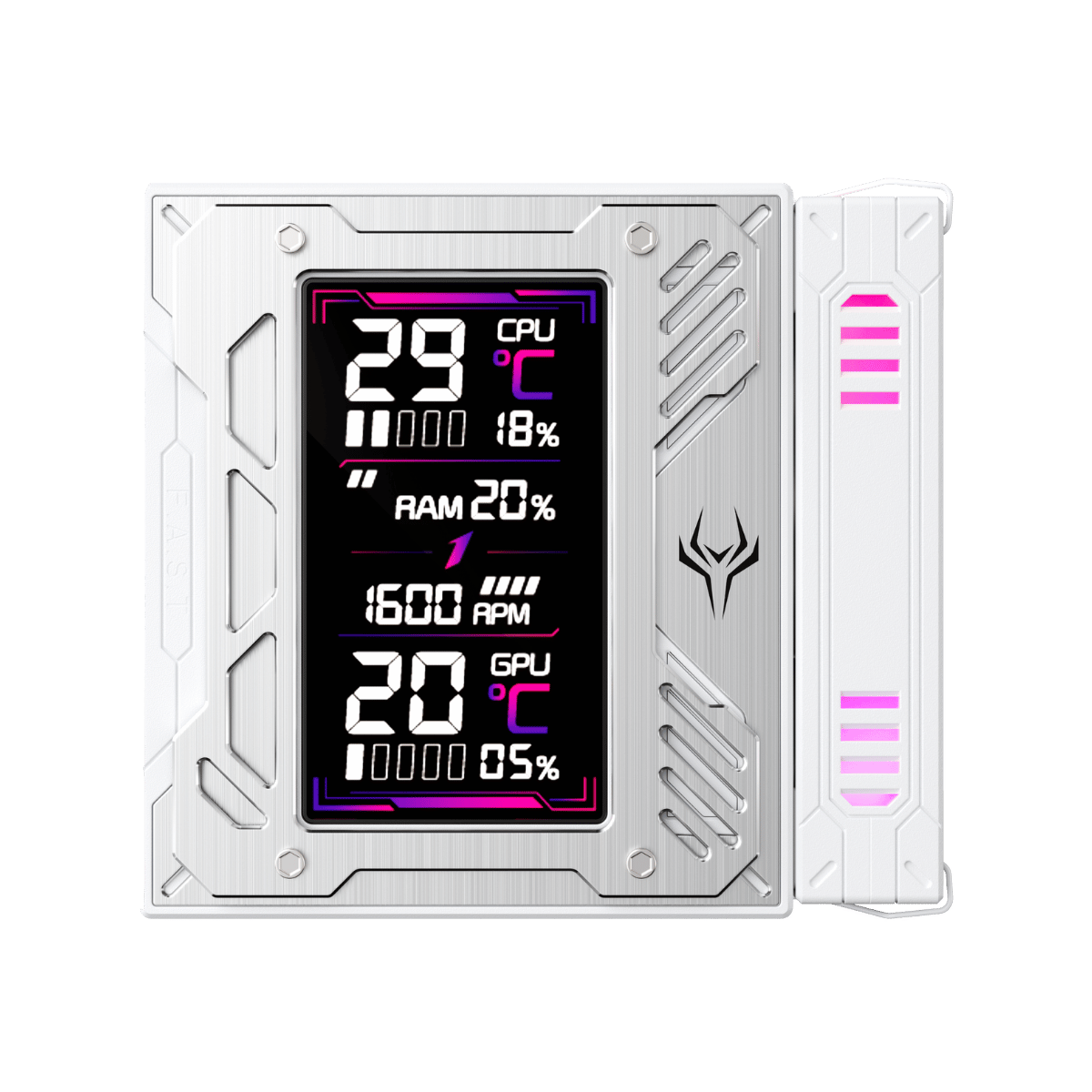

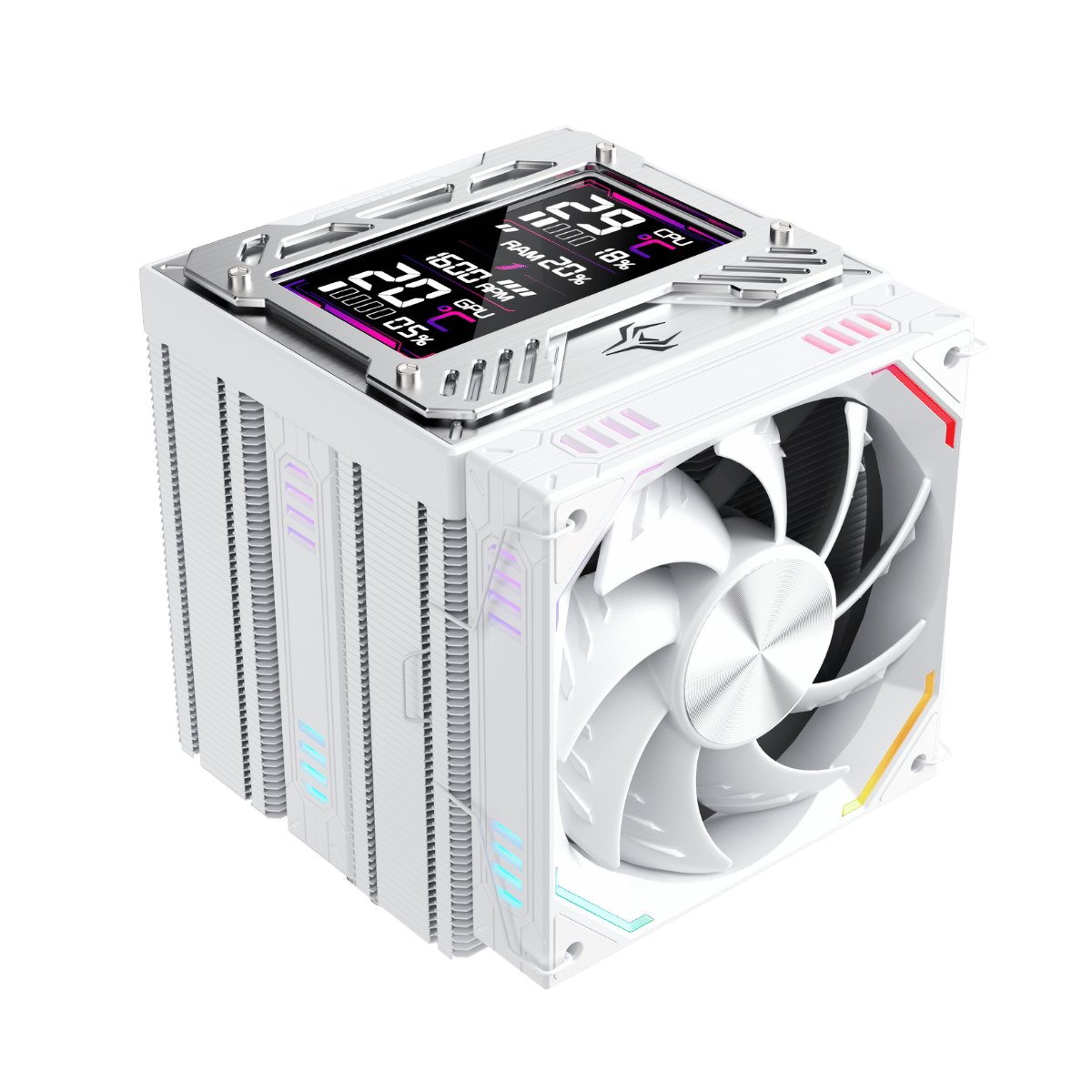

  • Integrated Display Screen: Real-time CPU/GPU temps & usage, fan speed, RAM usage

  • Nickel-Plated Copper Cold Plate: Smooth surface for reliable heat transfer and proven oxidation protection

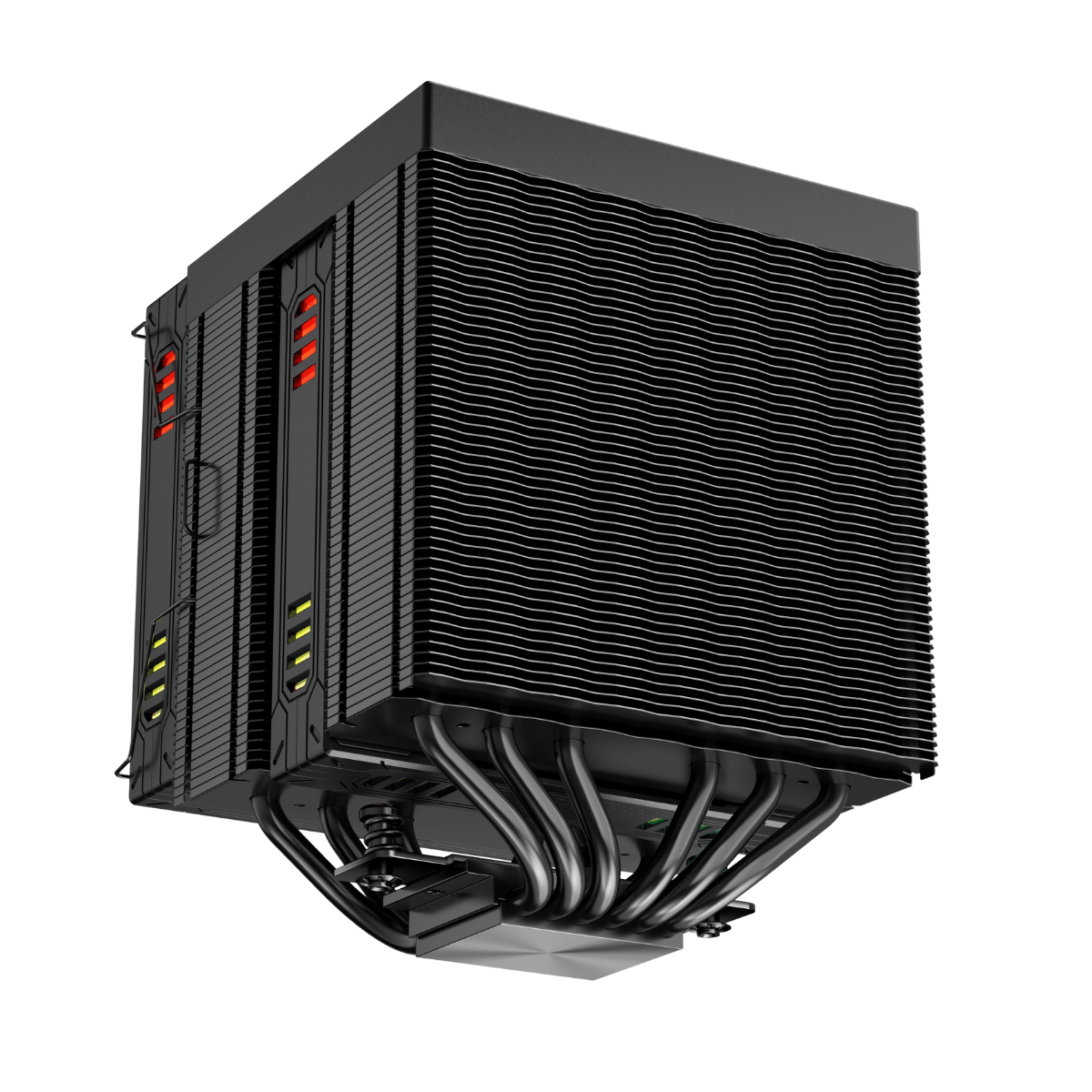

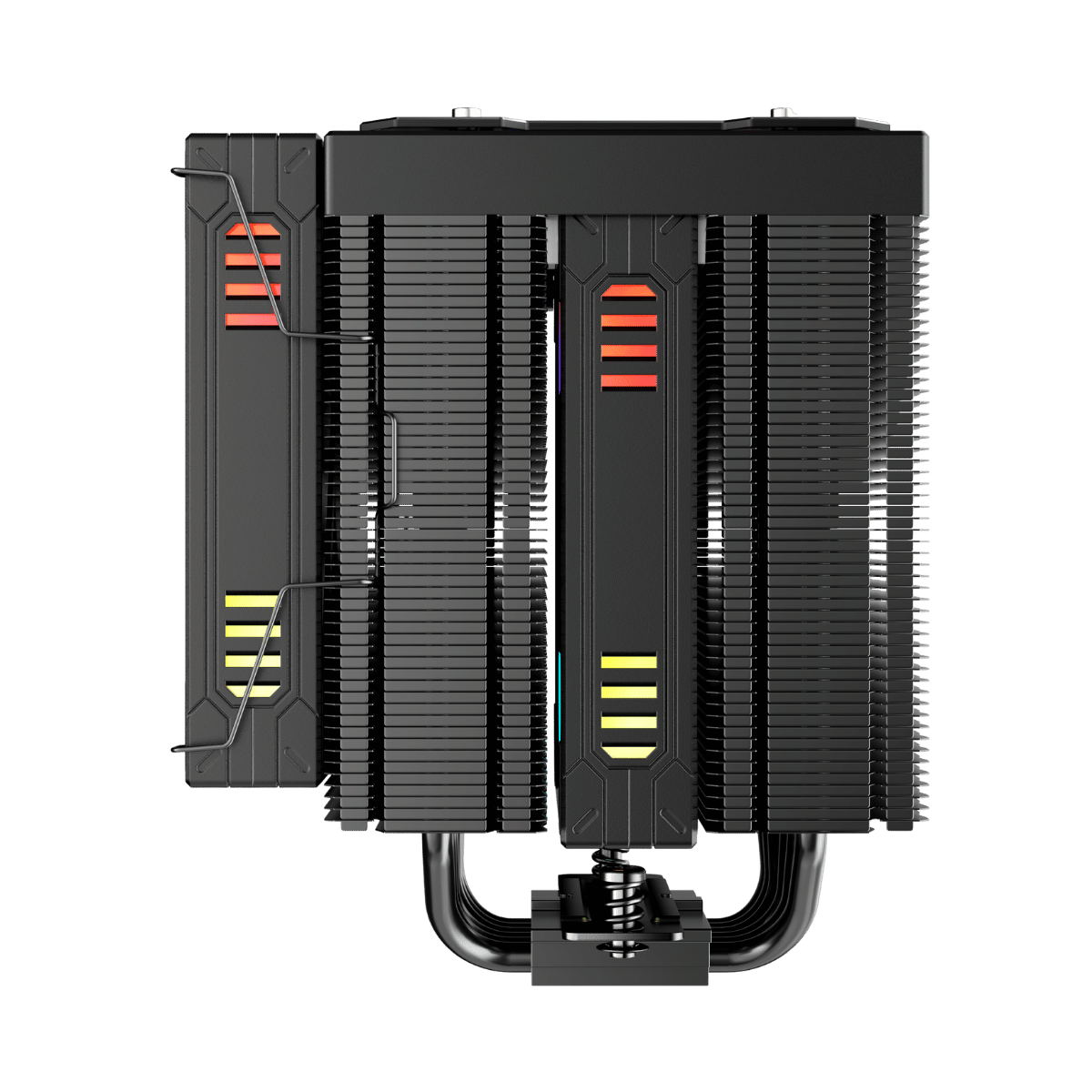

  • Six 6 mm Copper Heatpipes: Rapid heat transfer via dual- tower design for superior cooling

  • ARGB Sync Lighting: Vibrant, synchronized effects on fans and frame for immersive glow

  • Hydraulic Bearing Fans: Smooth, low-noise operation for sustained workloads

  • Anti-Turbulence Dimpled Blades: Smooth airflow, reduce noise, maintain peak cooling performance

  • 5-Year Warranty: Reliability you can trust

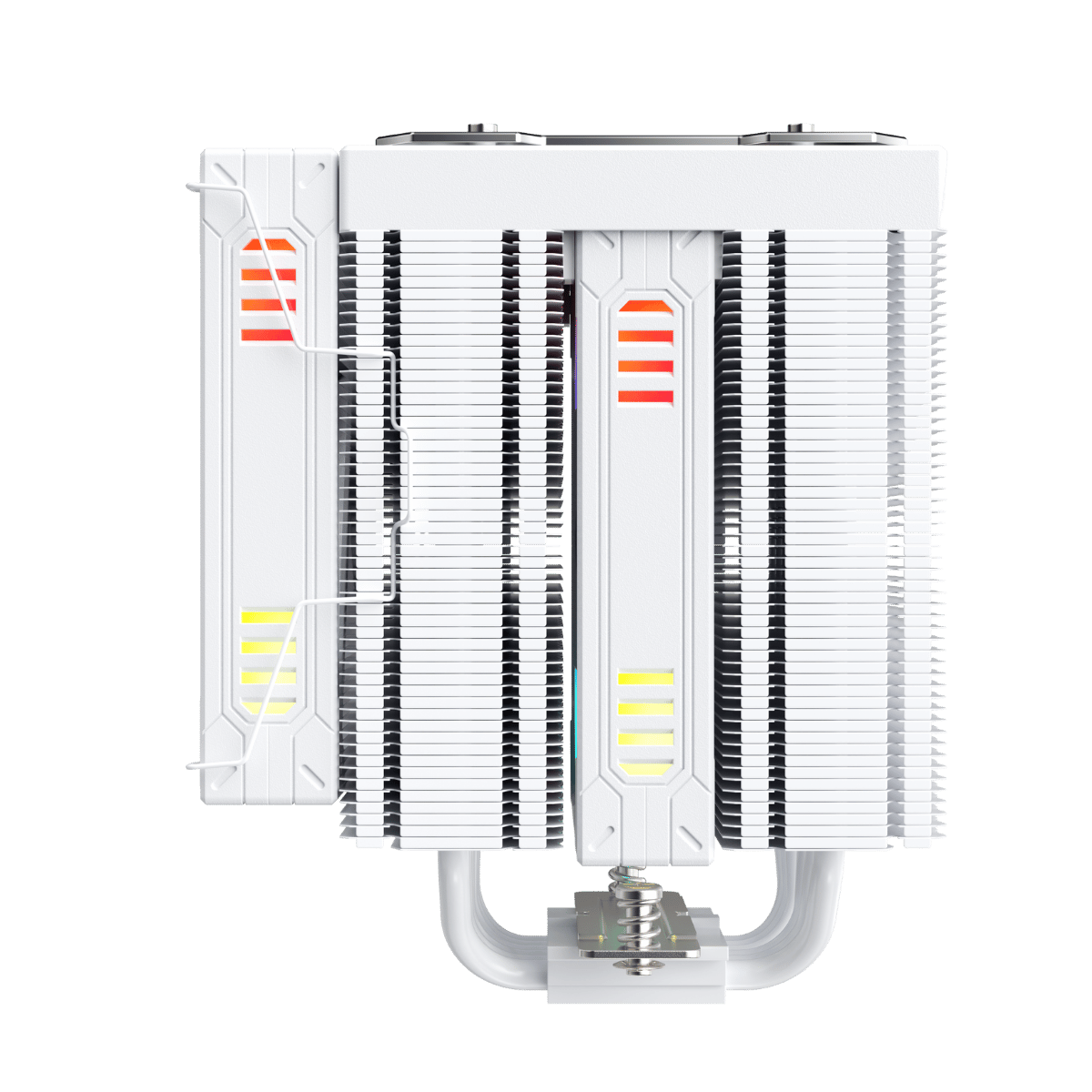

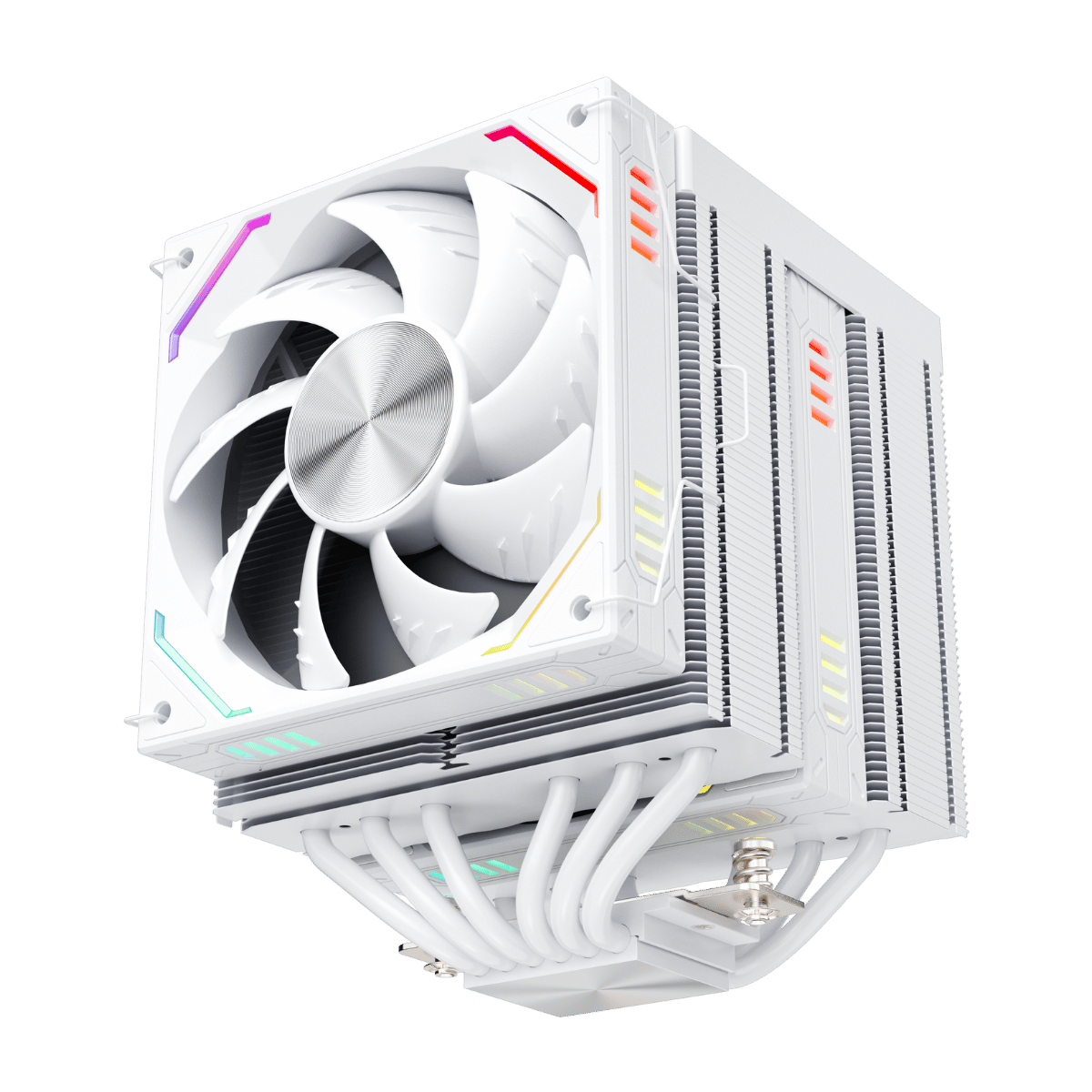

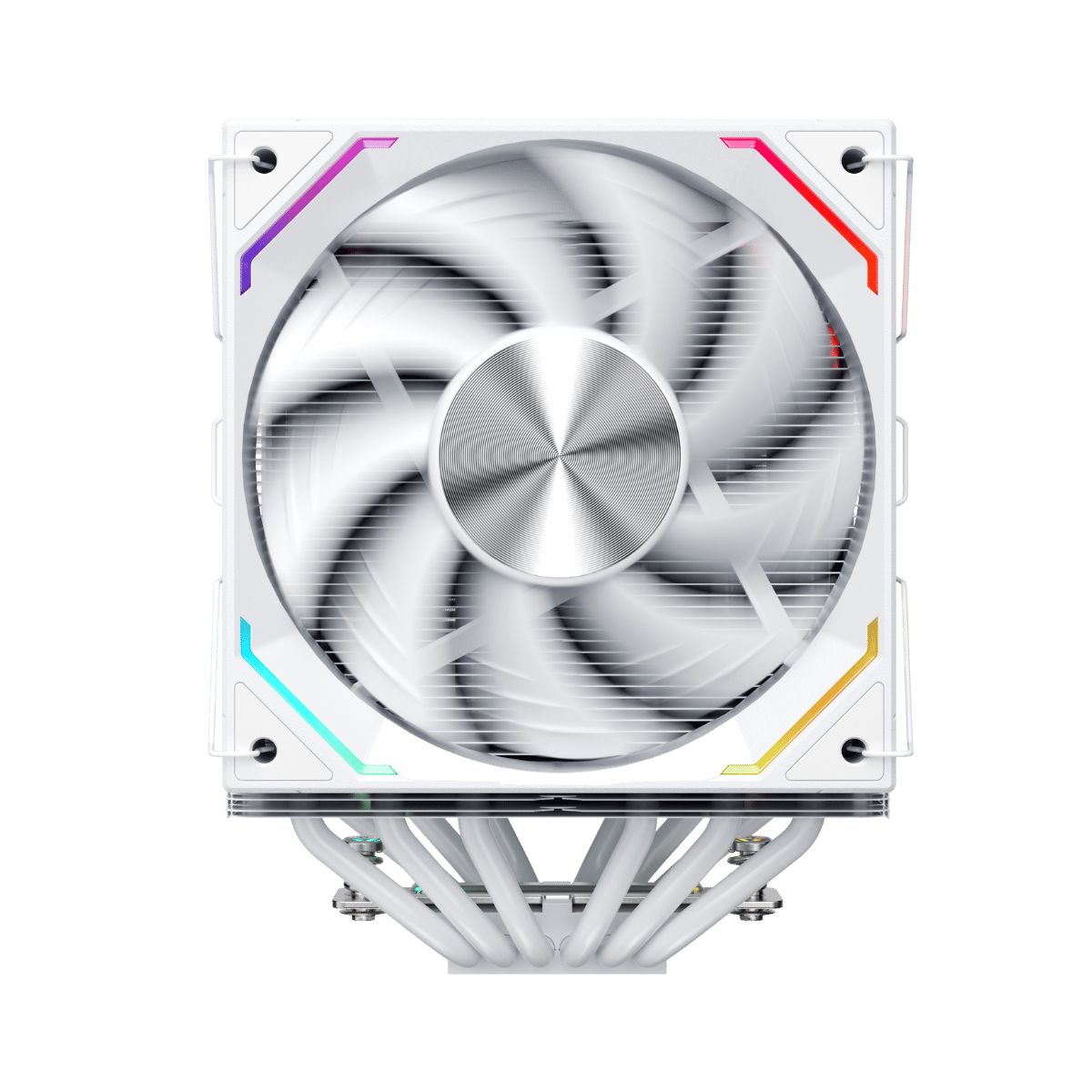

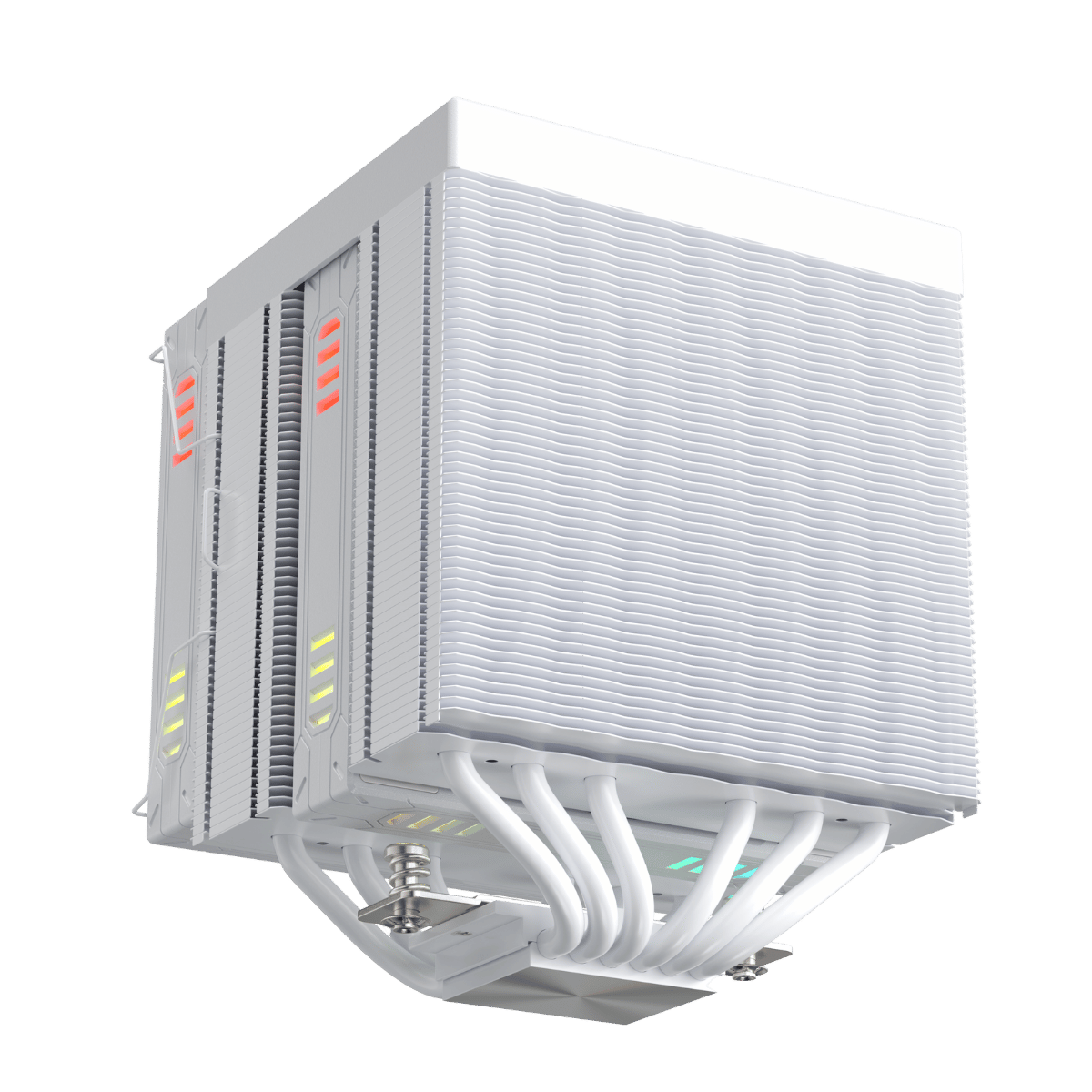

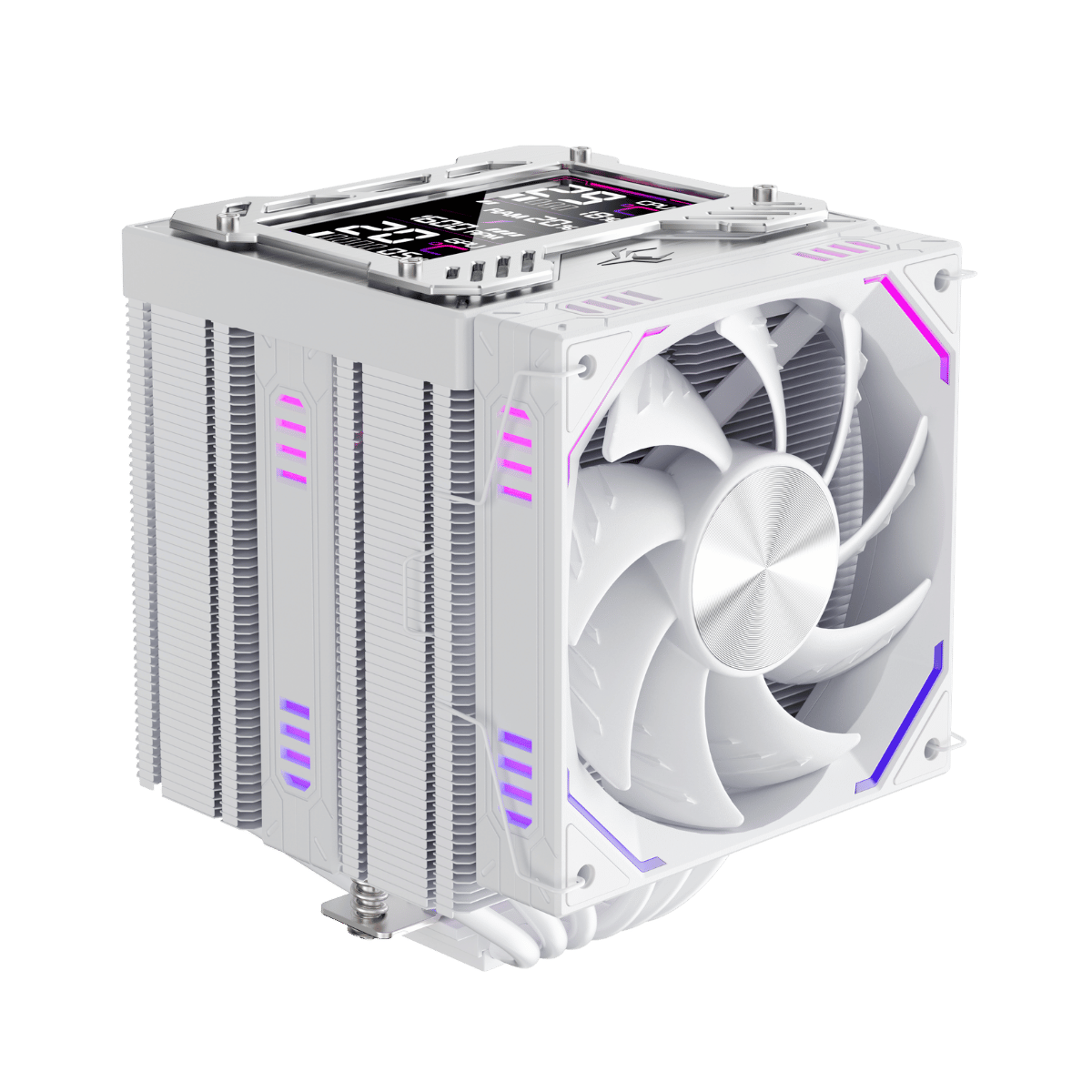

FT12DSL-6-WH


MODEL
FT12DSL-6
CONNECTOR
3-pin (ARGB) + 4-pin (PWM)
TDP
275 W
HEATPIPE CONFIGURATION
6 x 6 mm, dual-tower design
HEATPIPE MATERIAL

Copper

FAN DIMENSION (L x W x H)

120 x 120 x 25 mm
FAN RATED VOLTAGE
DC 12V
FAN RATED CURRENT
0.26 A ± 10%
FAN RATED POWER
3.12 W ± 10% (per fan, total 4.52 W for dual fans)
FAN LEAVES
9




CABLE LENGTH
500 mm ± 10 mm
CPU COOLER HEIGHT
168 mm
FAN BEARING
Hydraulic Bearing Fan
FAN MAX AIRFLOW
57.56 CFM
FAN STATIC PRESSURE
2.48 mm-H₂O
FAN SPEED

600 ± 20% ~ 2000 ± 10% RPM

FAN NOISE LEVEL

38.21 ±10% dB(A) @ 1000 mm
FAN LIFE SPAN
30,000 hrs
SUPPORTED CPU
Intel 1851 / 1700 / 1200 / 115x, AMD AM4 / AM5
WARRANTY
5 years
