CRYO

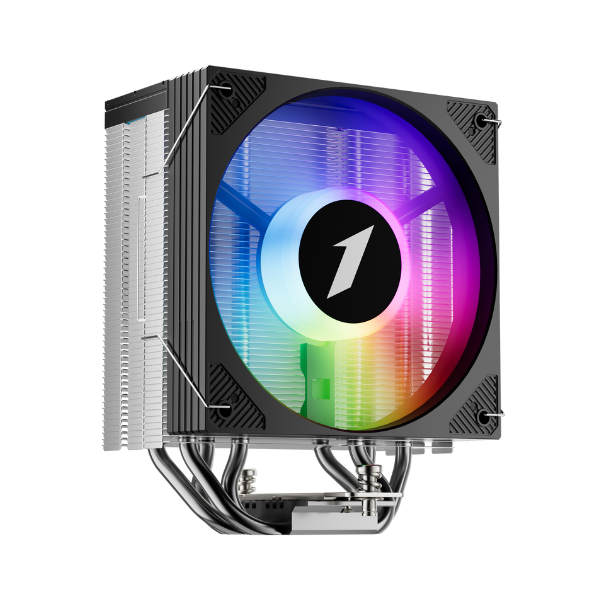

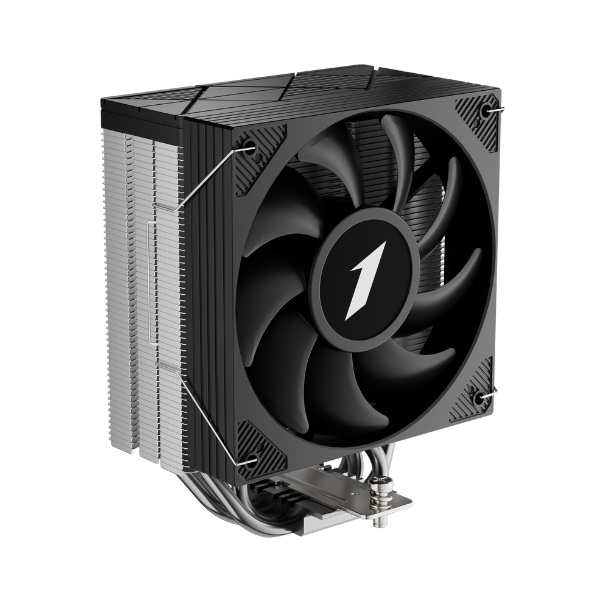

CPU Air Cooler

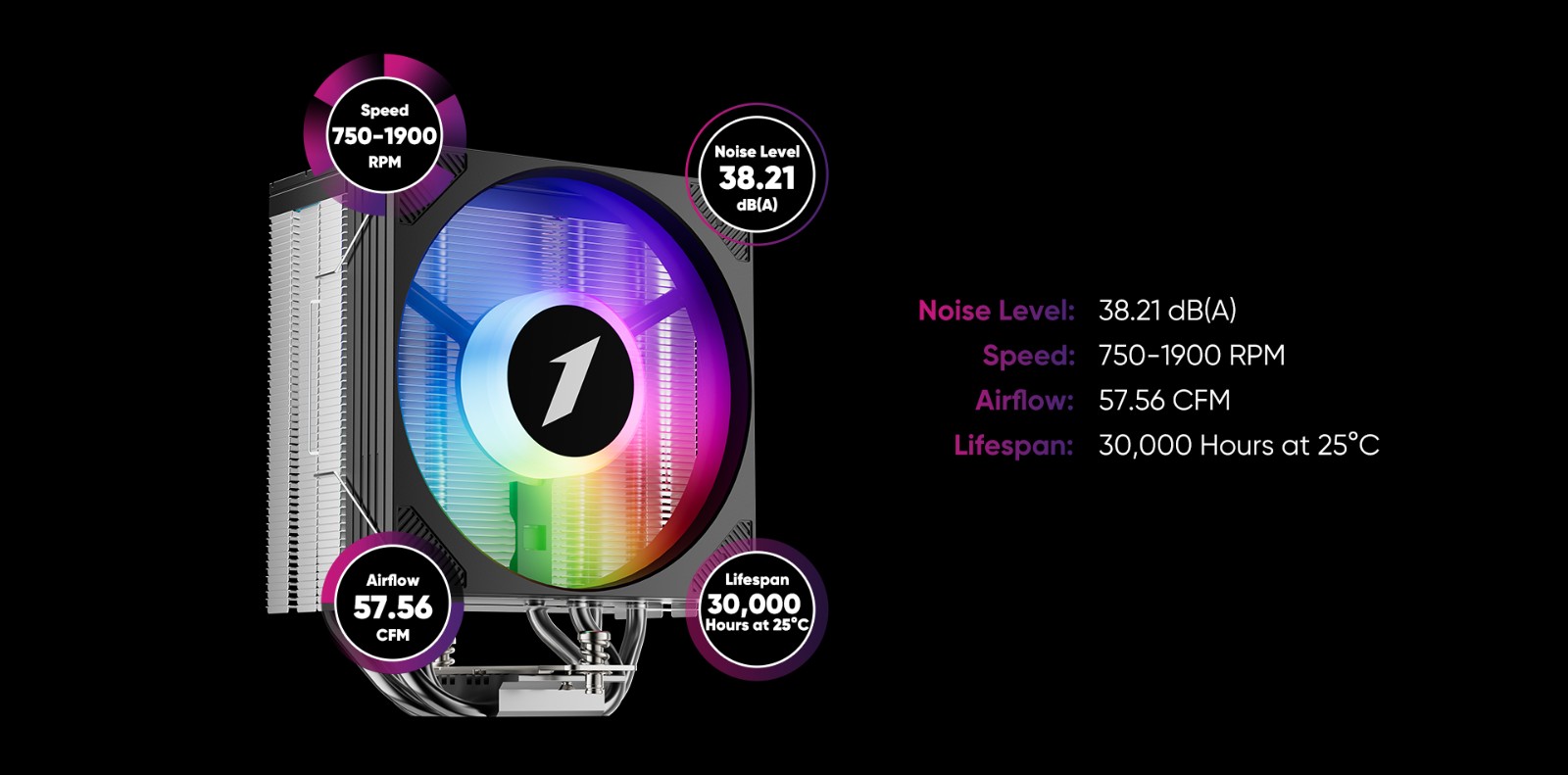

Durable hydraulic bearing fan engineered for long-lasting reliability with quiet 38.21 dB(A) operation

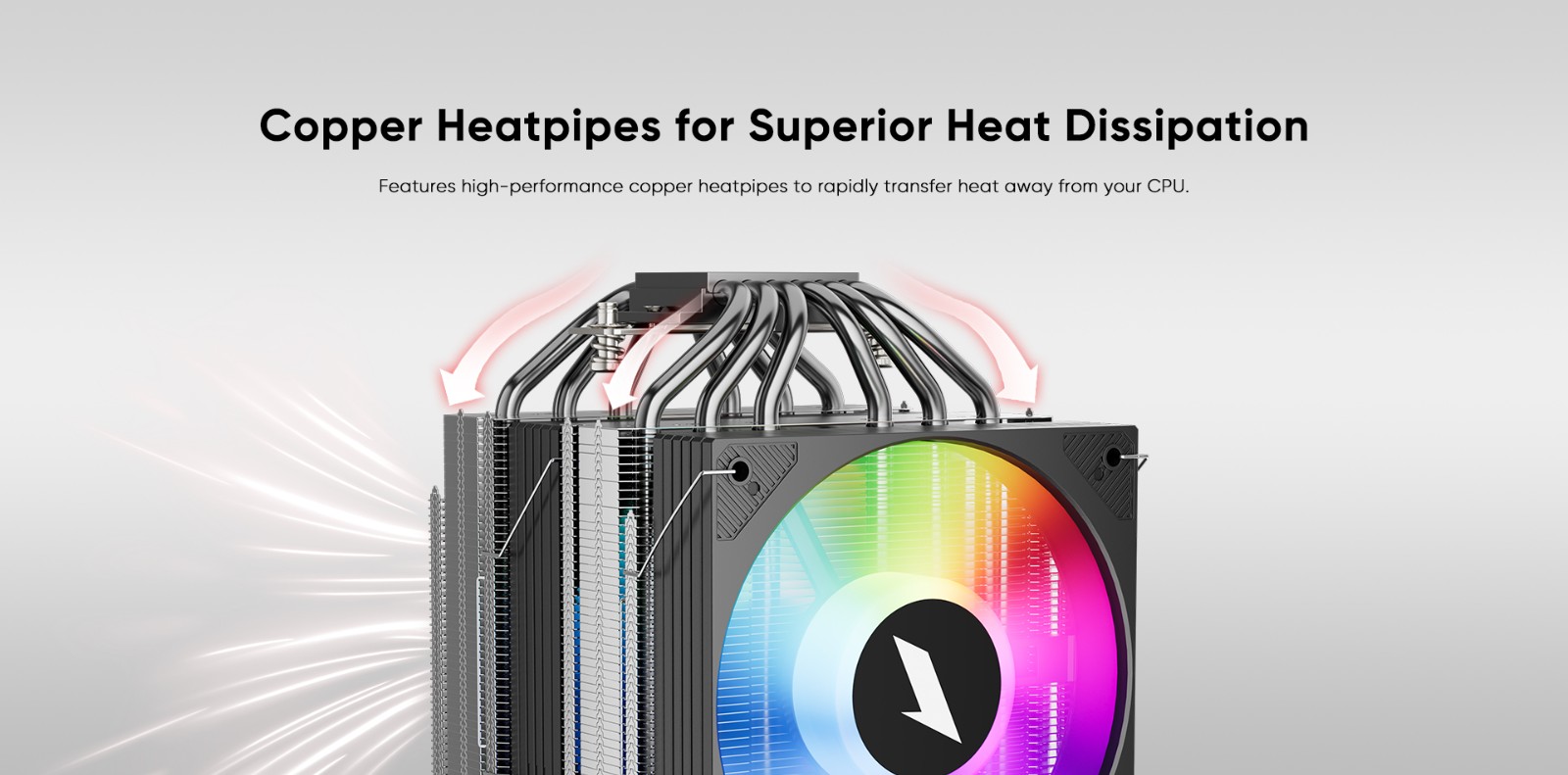

Advanced thermal design with dense fins and up to 4 x ∅6 copper heatpipes for maximum cooling capacity
5-year warranty for dependable long-term support

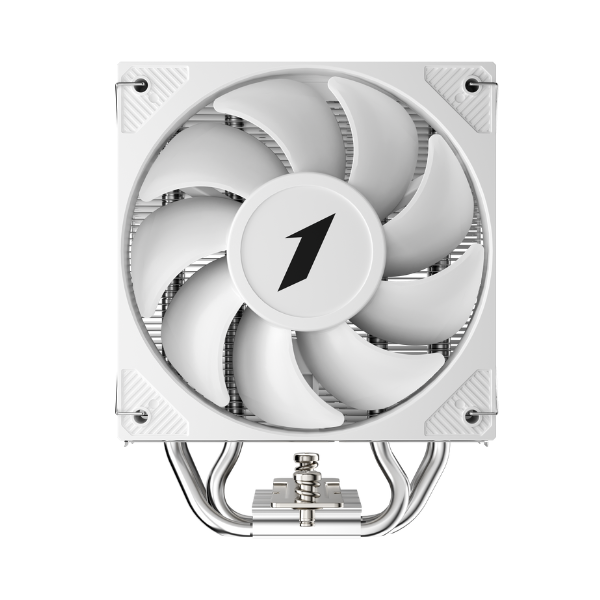

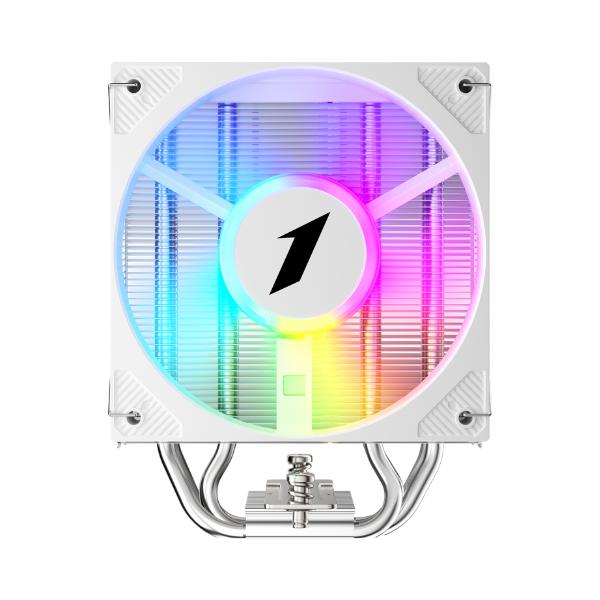

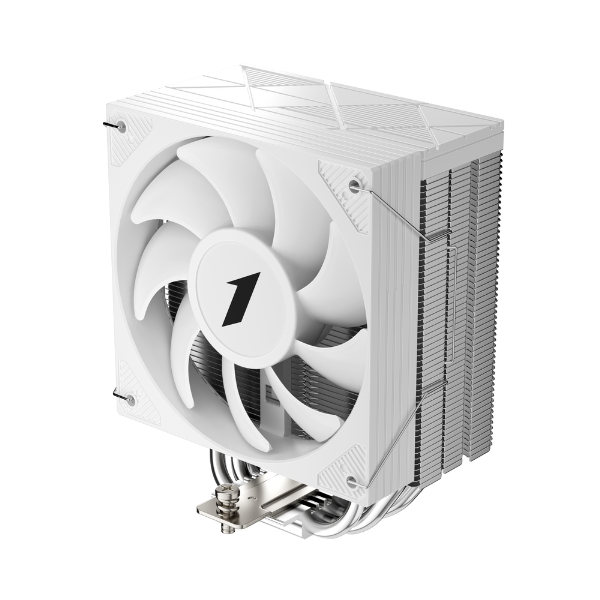

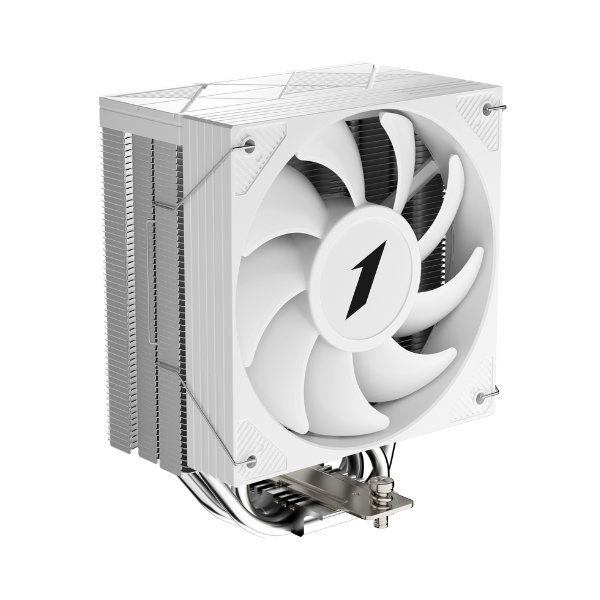

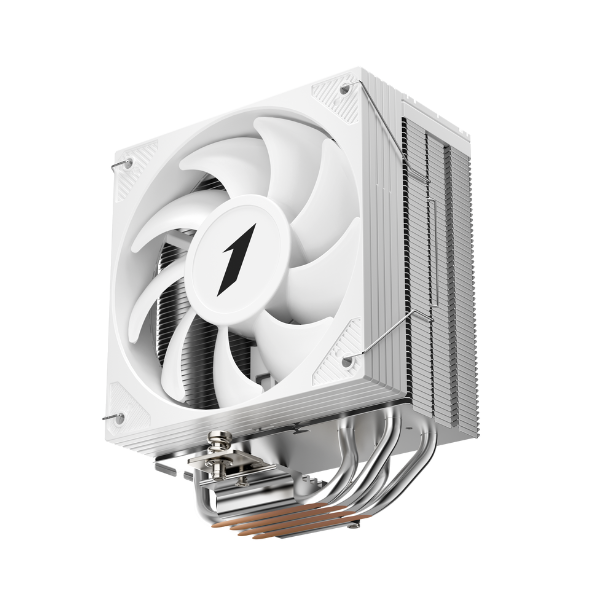

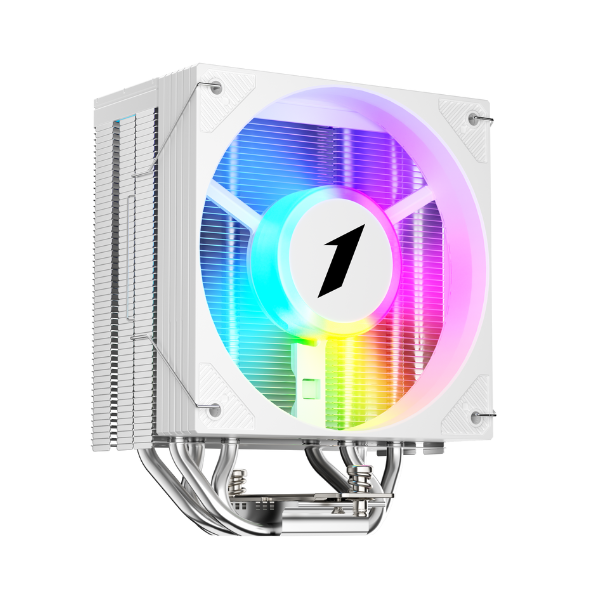

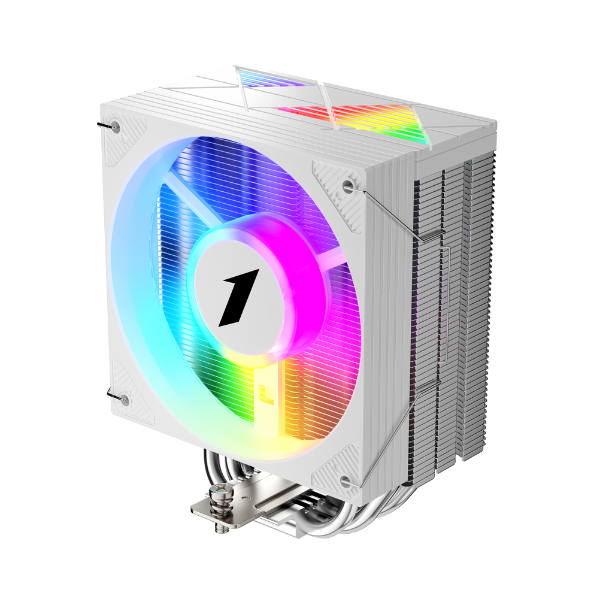

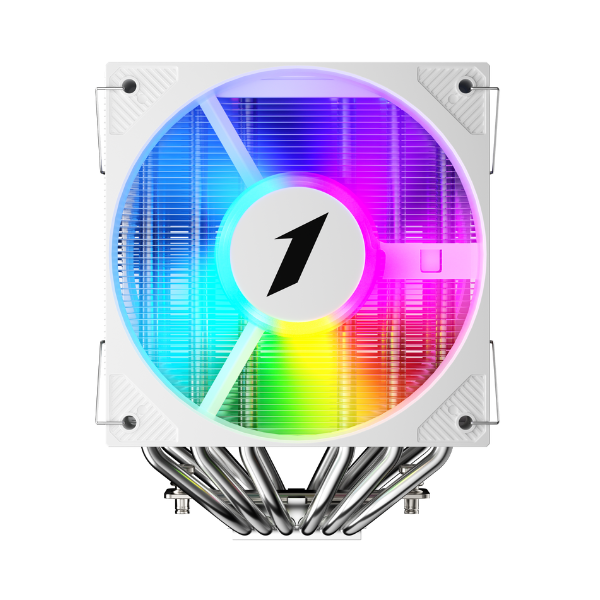

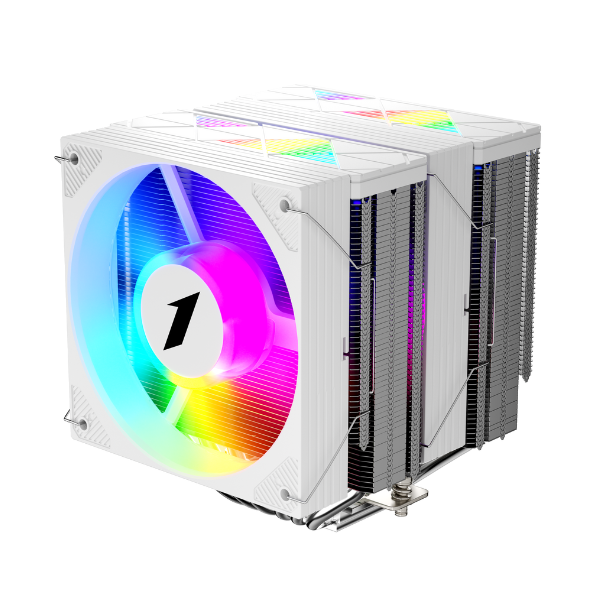

CY12 White

Overview
Tech Specs
User Manual

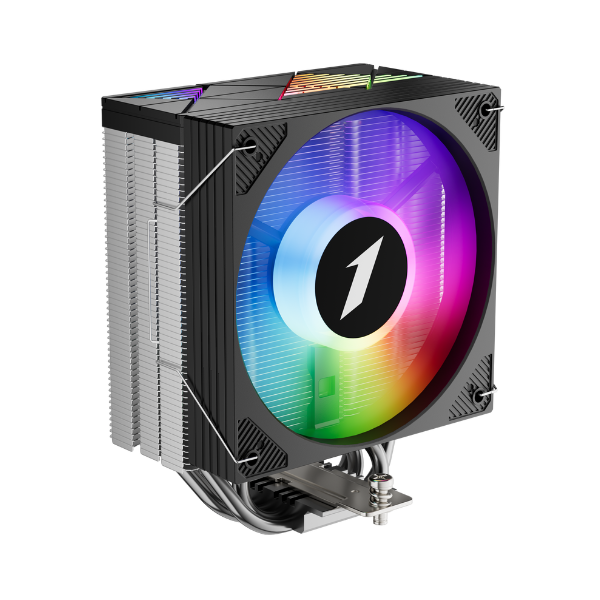

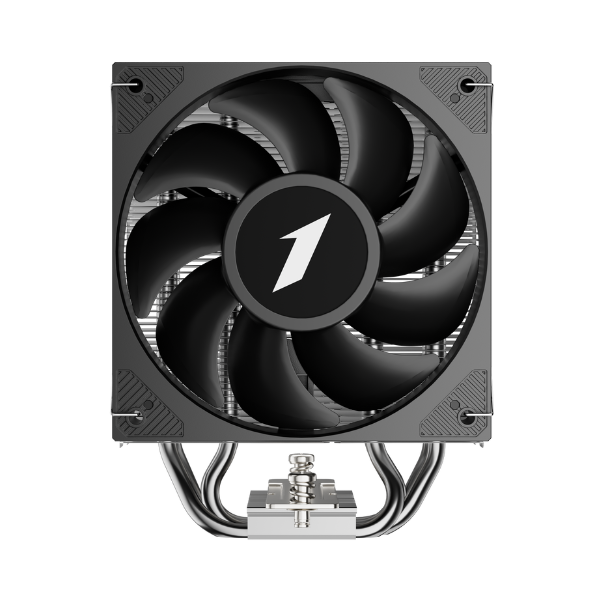

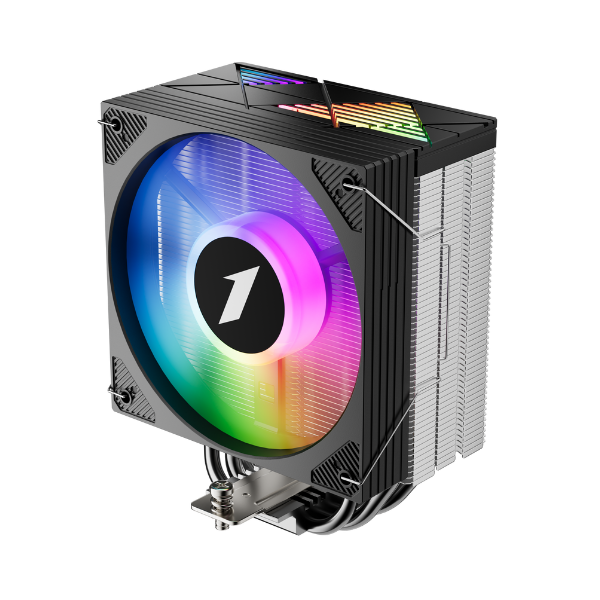

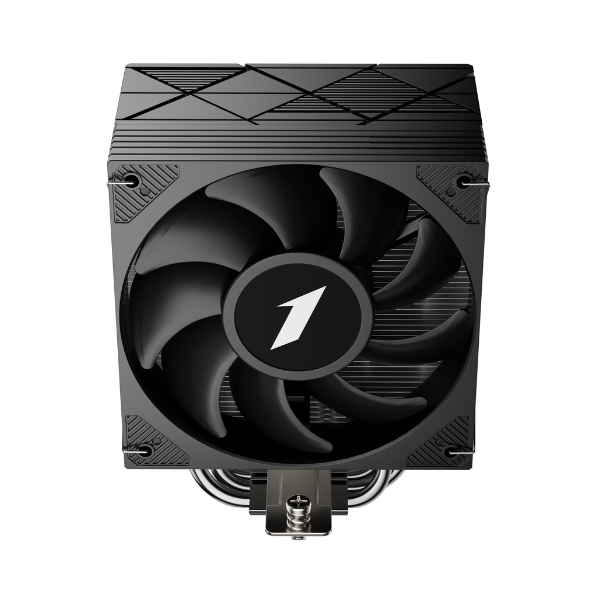

MODEL

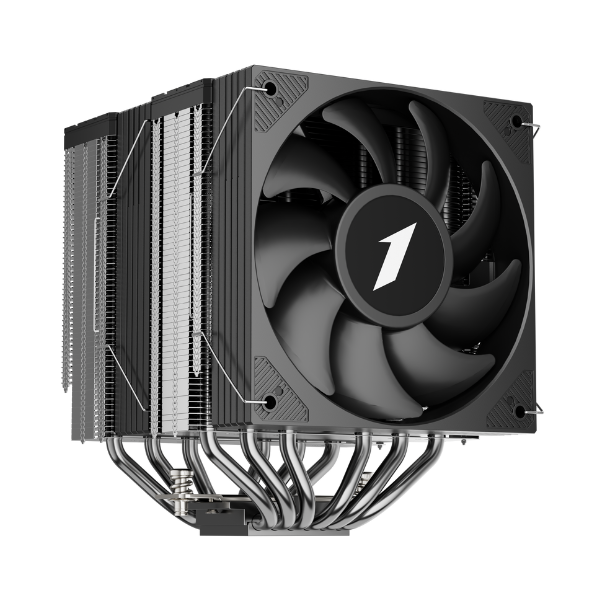

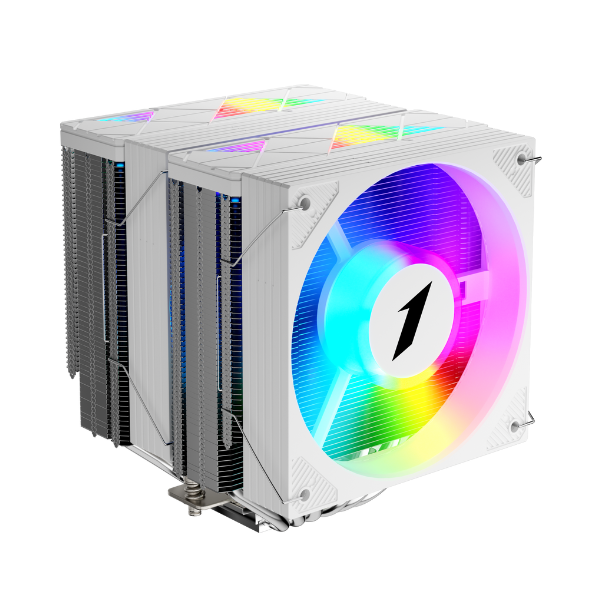

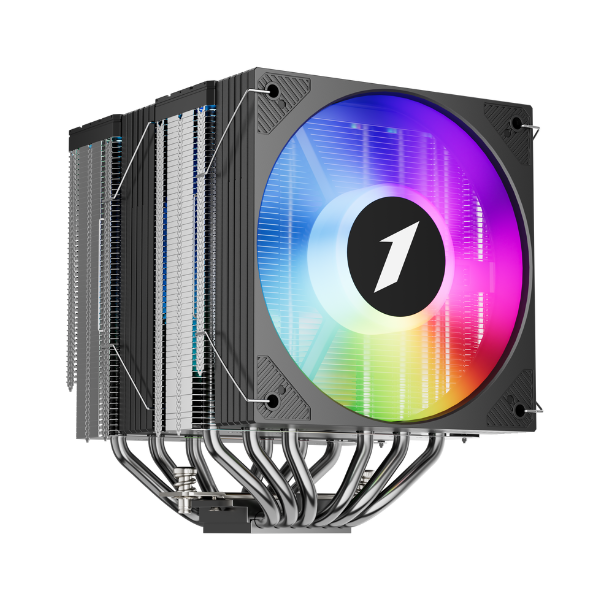

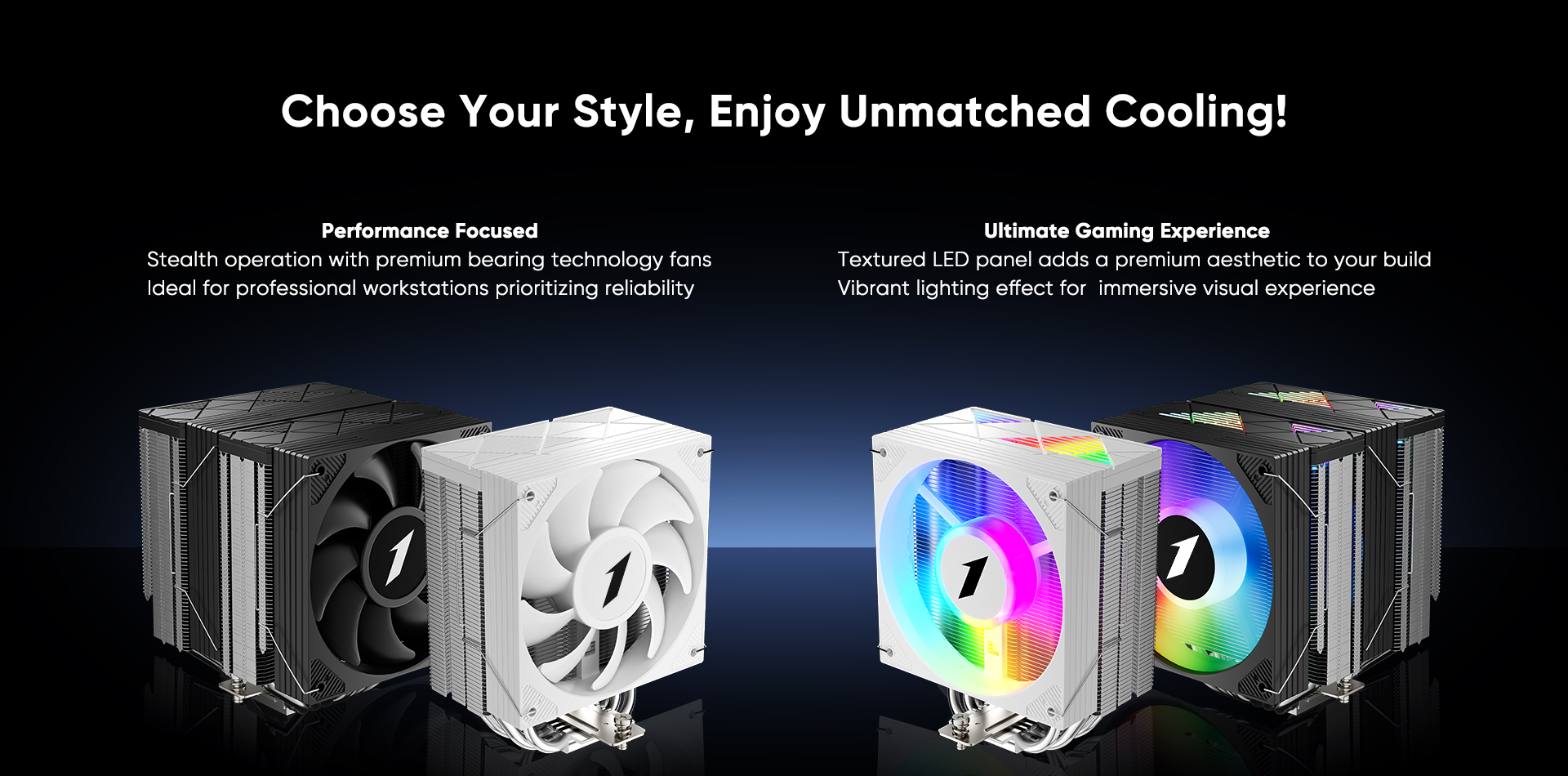

CY12 / CY12L / CY12D / CY12LD

ARGB LIGHTING

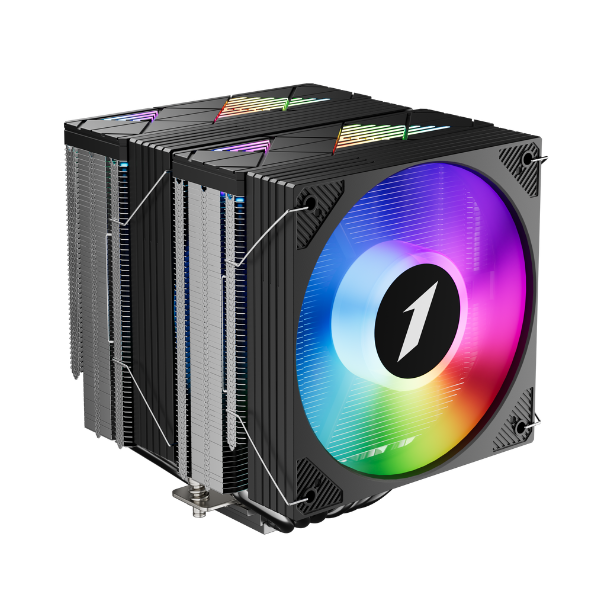

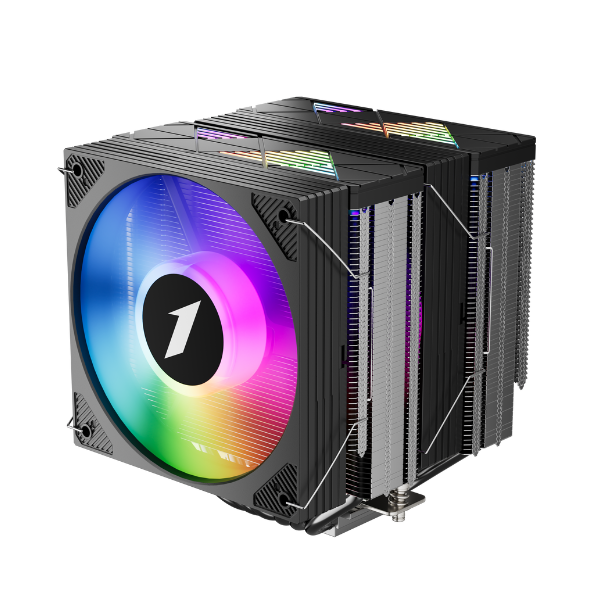

CY12 / CY12D: No CY12L / CY12LD: Yes

CONNECTOR

CY12 / CY12D: 4-pin (PWM) CY12L / CY12LD: 3-pin (ARGB) + 4-pin (PWM)

TDP

CY12 / CY12L: 225 CY12D / CY12LD: 275

HEATPIPE CONFIGURATION

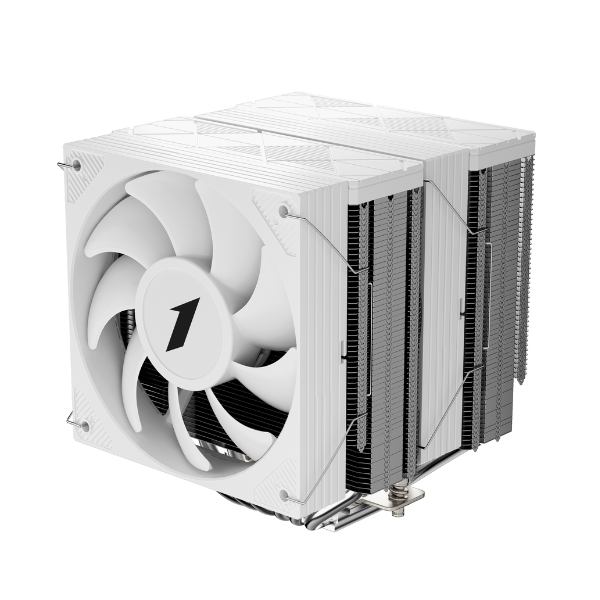

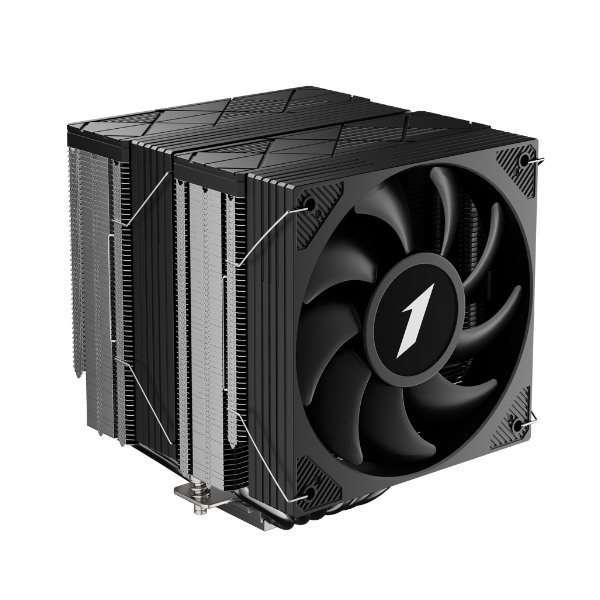

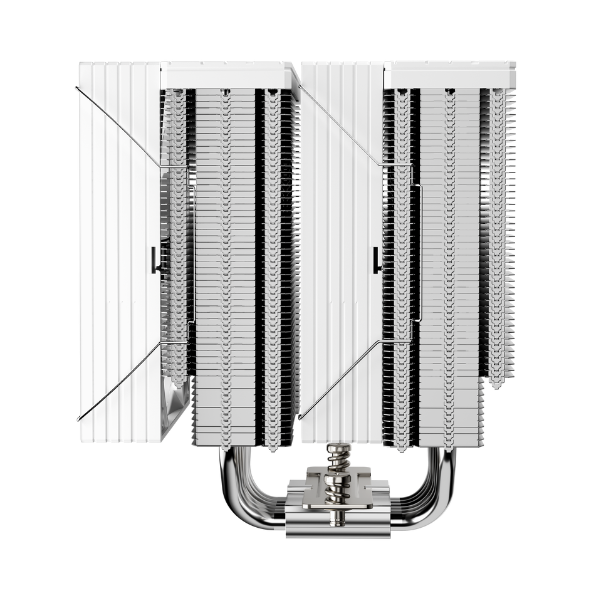

CY12 / CY12L: 4 x Ø6 mm CY12-D / CY12LD: 6 x Ø6 mm

HEATPIPE MATERIAL

Copper

FAN DIMENSION (L x W x H)

120 x 120 x 25 mm

FAN RATED VOLTAGE

DC 12V

FAN RATED CURRENT

0.17 A ± 10%

FAN RATED POWER

2.04 W ± 10%

FAN LEAVES

9

CABLE LENGTH

500 mm ± 10 mm

CPU COOLER HEIGHT

CY12 / CY12L: 155 mm CY12D / CY12LD: 160 mm

FAN BEARING

Hydraulic bearing

FAN MAX AIRFLOW

57.56 CFM

FAN STATIC PRESSURE

2.48 mm-H₂O

FAN SPEED

750-1900 ± 10% RPM

FAN NOISE LEVEL

38.21dB @ 1000 mm

FAN LIFE SPAN

30,000/hrs @ 25℃

NO. of POLE

4 (Poles)

SUPPORTED CPU

Intel 1851 / 1700 / 1200 / 115x, AMD AM4 / AM5

WARRANTY

5 years
