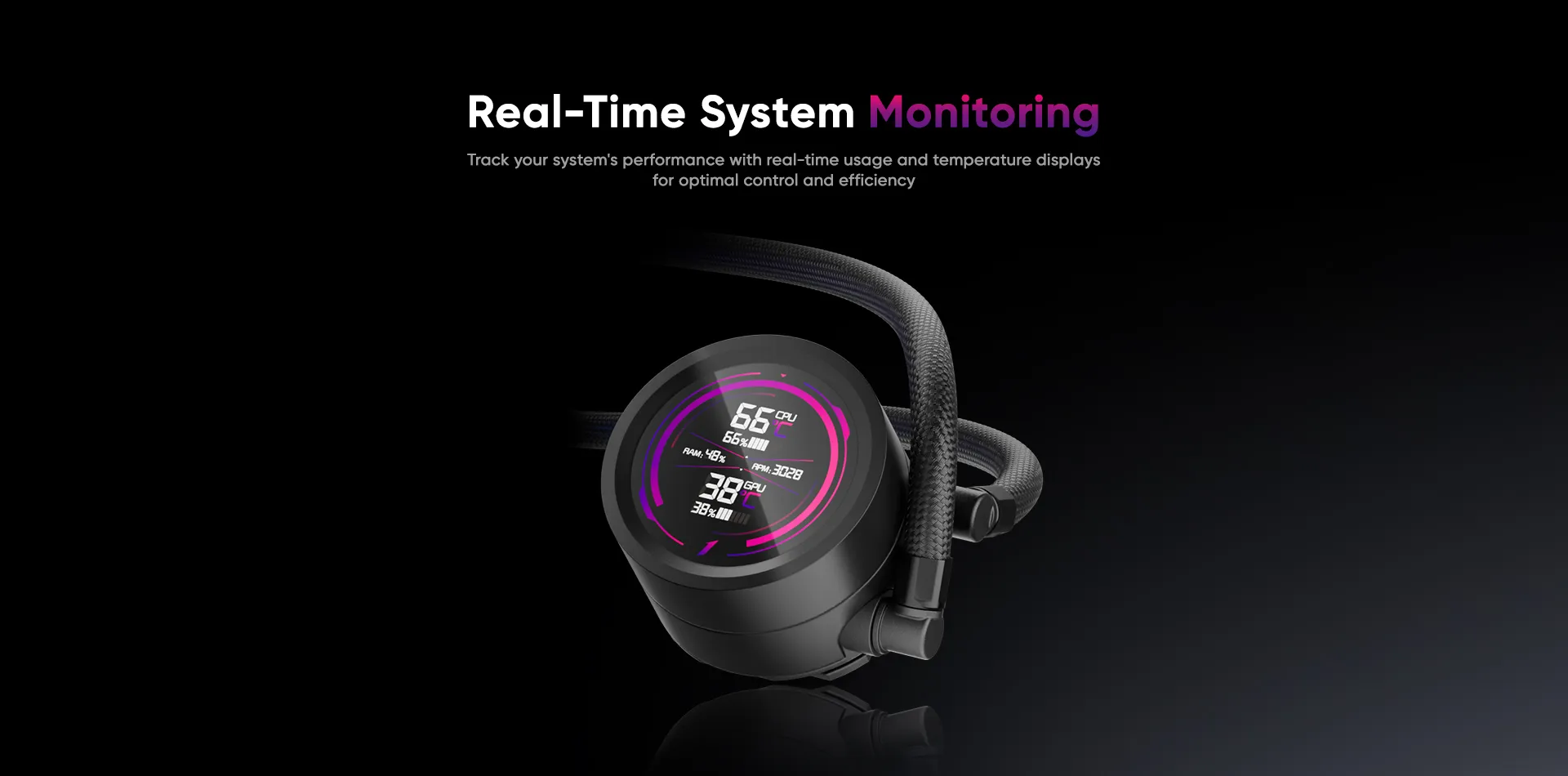

Real-time system usage and temperature display

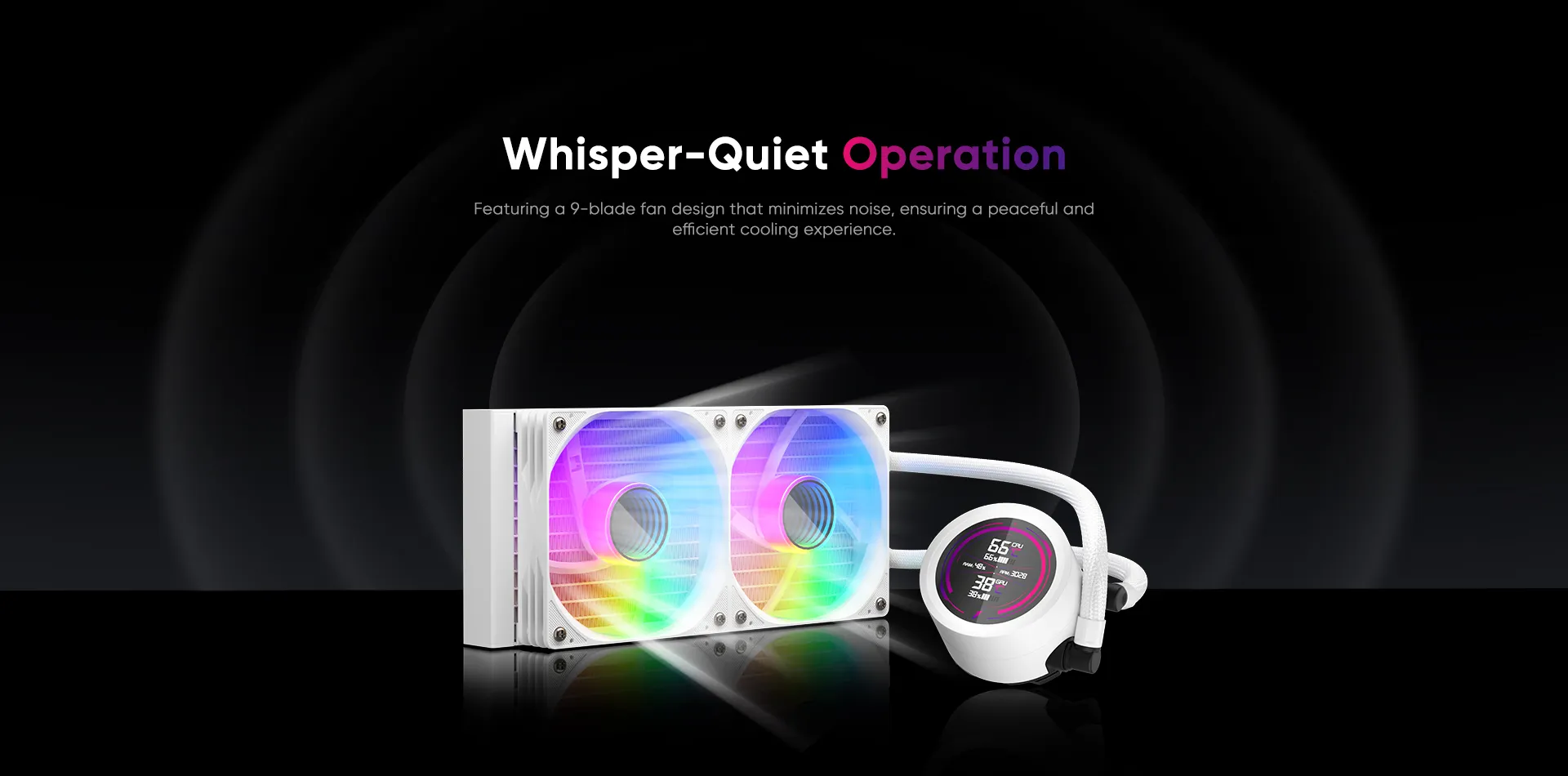

9-blade fan for low noise operation

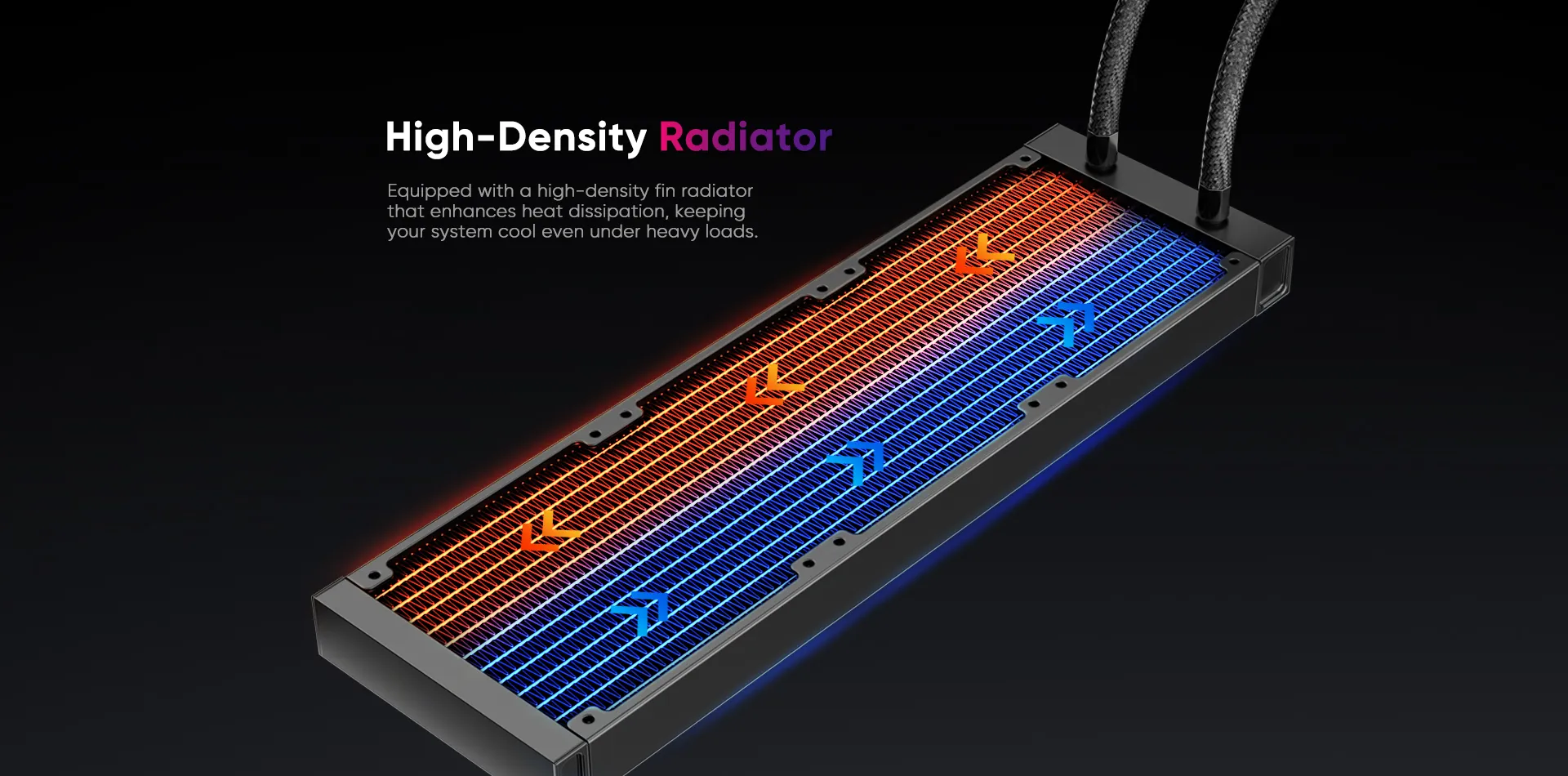

High-density fin radiator for effecient heat dissipation

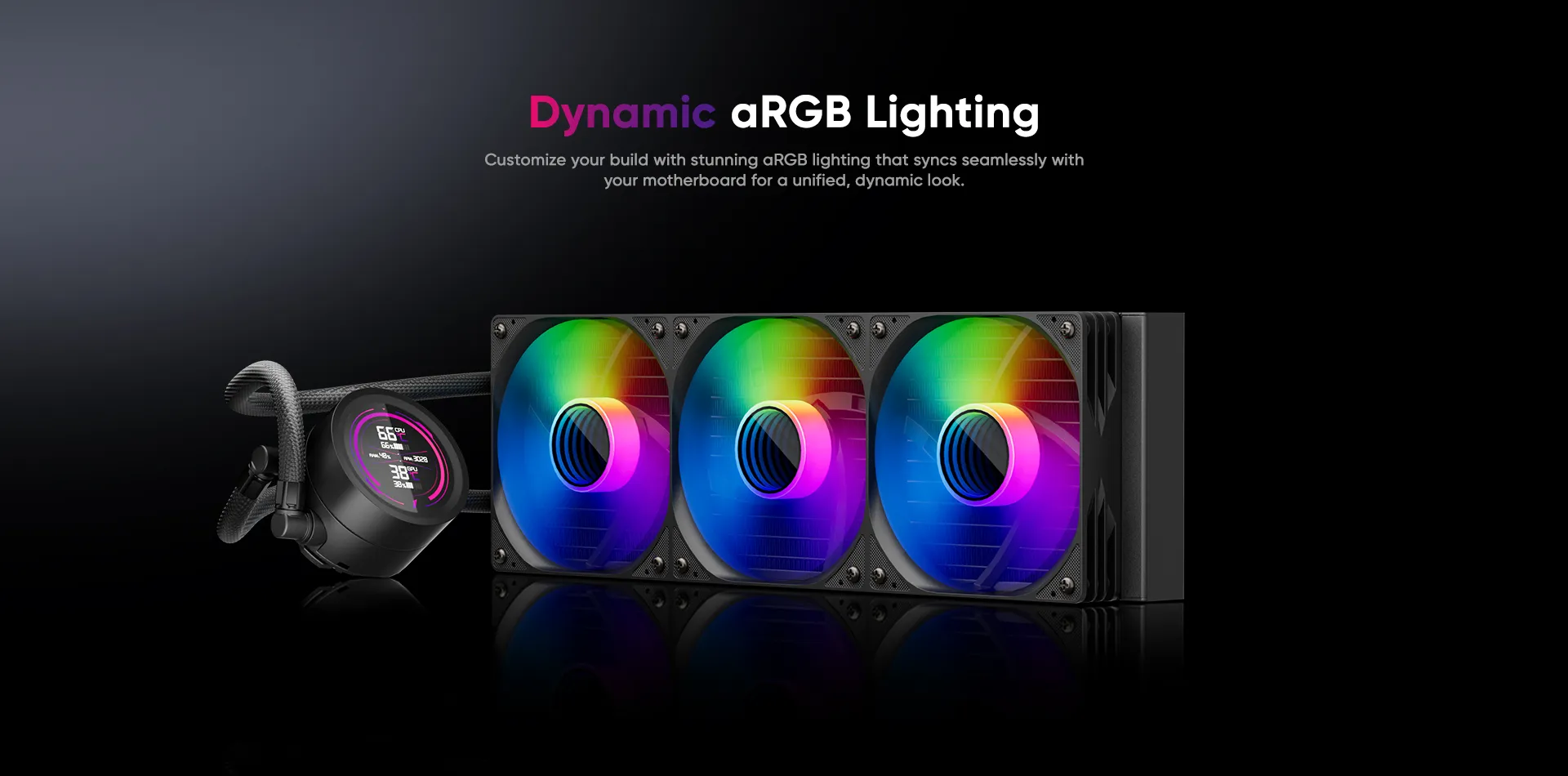

aRGB lighting that synchronizes with the motherboard

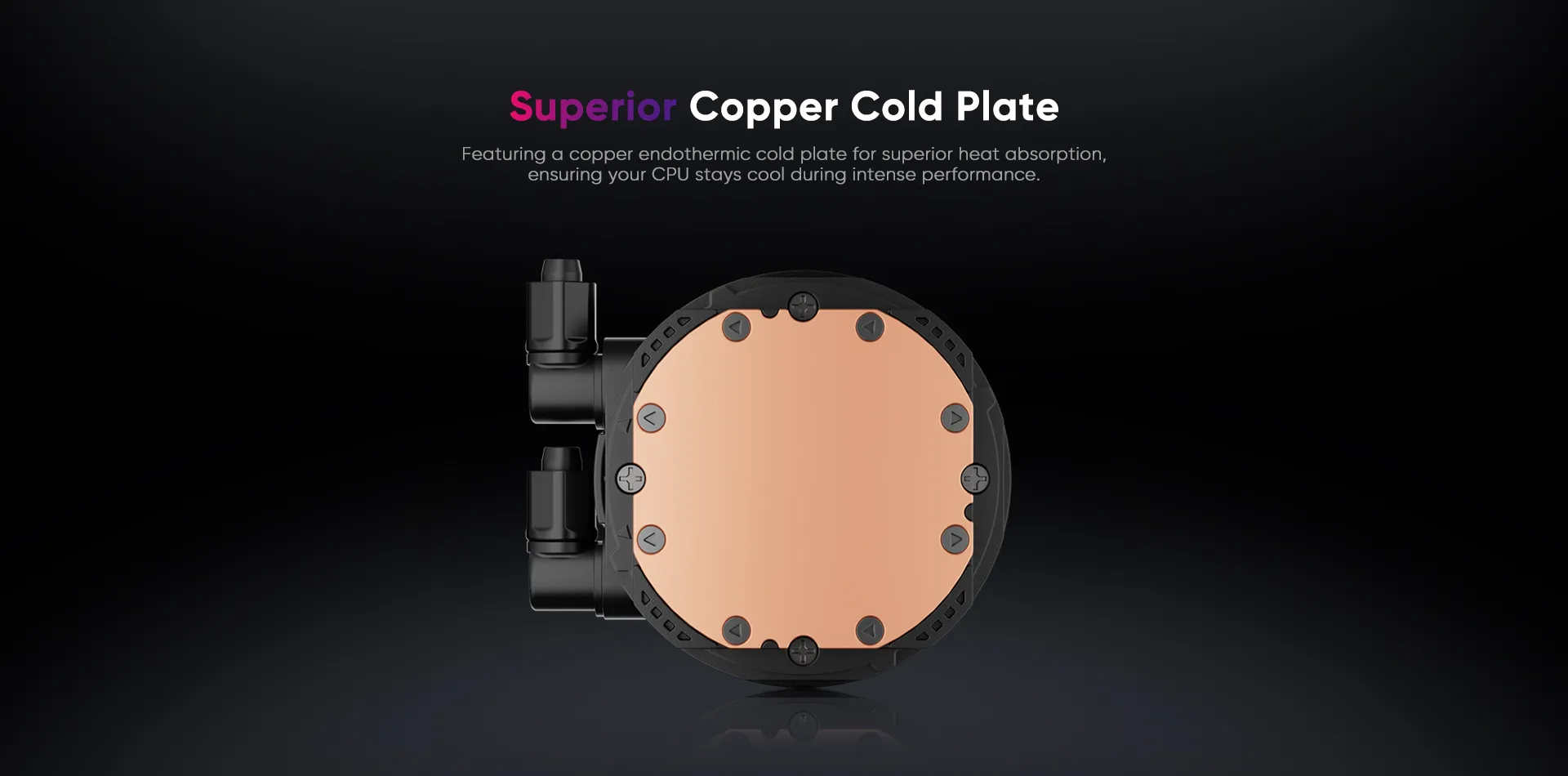

Copper endothermic cold plate for optimal heat absorption

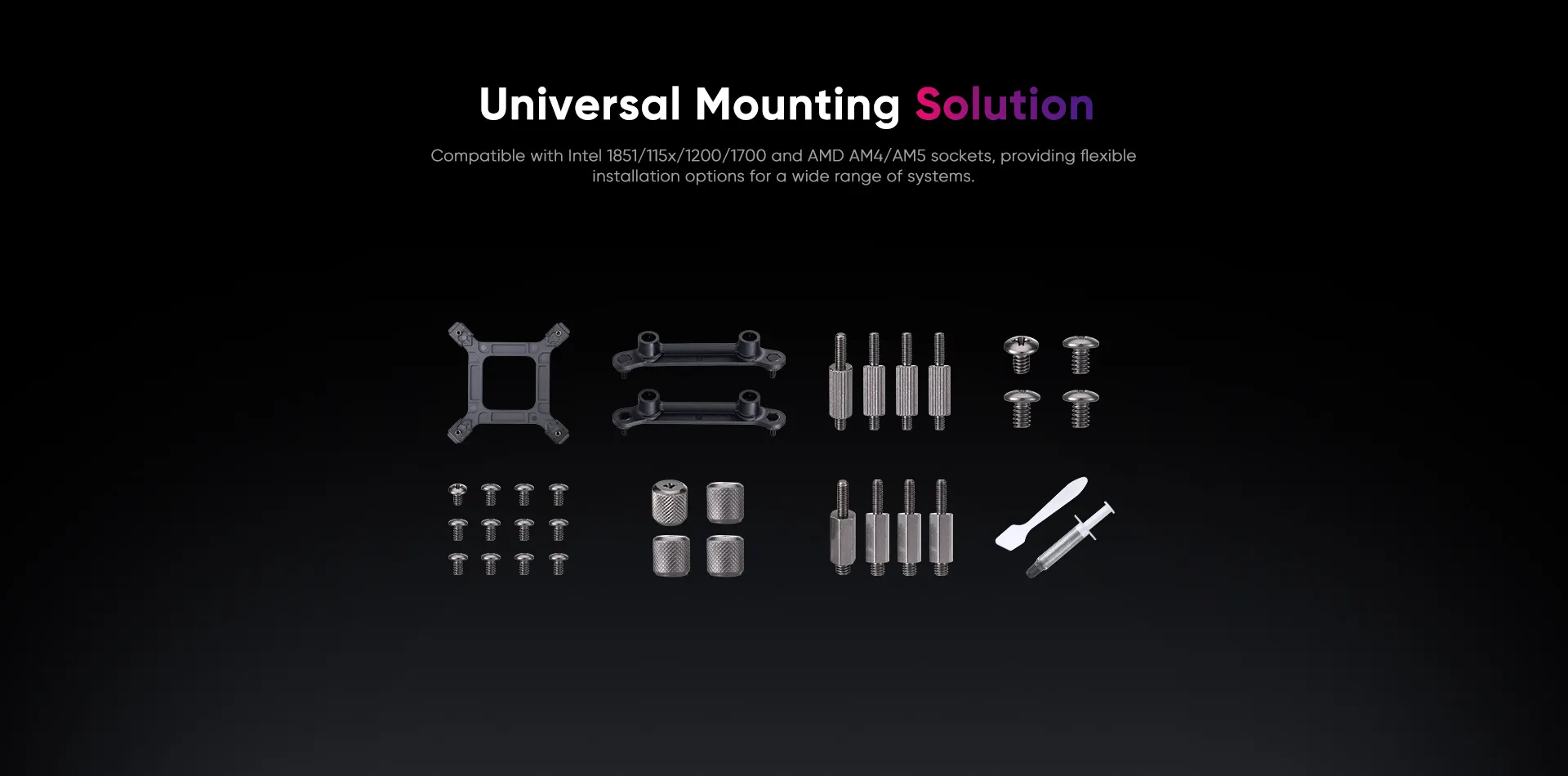

Compatible with Intel 1851/115x/1200/1700 and AMD AM4/AM5 sockets
White 240 mm
MODEL
TS4 240 / TS4 360
SUPPORTED SOCKETS
Intel: LGA 1851 / 1700 / 1200 / 115x AMD: AM5 / AM4
DIMENSIONS
TS4 240: 277 x 120 x 27 mm
TS4 360: 394 x 120 x 27 mm
MATERIAL
Aluminum
LENGTH
TS4 240: 330 mm
TS4 360: 400 mm
DIMENSIONS
85 x 70 x 47.5 mm
SPEED
800 ± 200 - 3000 RPM ± 10%
NOISE
18 dB(A)
CONNECTOR
RATED VOLTAGE
12V DC
RATED CURRENT
≤ 0.35 A
POWER CONSUMPTION
≤ 4.2 W
FAN
QTY
TS4 240: 2 pcs
TS4 360: 3 pcs
TS4 240: 240 x 120 x 25.4 mm
TS4 360: 394 × 120 × 27 mm
800 ± 200 - 1800 RPM ± 10%
AIRFLOW
77 CFM
2.2 mmAq
NOISE
TS4 240: ≤36 dB(A)
TS4 360: ≤38 dB(A）
CONNECTOR
4 pin (PWM)
BEARING TYPE
Hydraulic bearing
TS4 240: 0.65 A ± 10%
TS4 360: 1 A ± 10%
TS4 240: 7.8 W ± 10%
TS4 360: 12 W ± 10%
