Support GPU length up to 420 mm
Support CPU cooler height up to 165 mm
Support installing of up to 12 x 120 mm fans

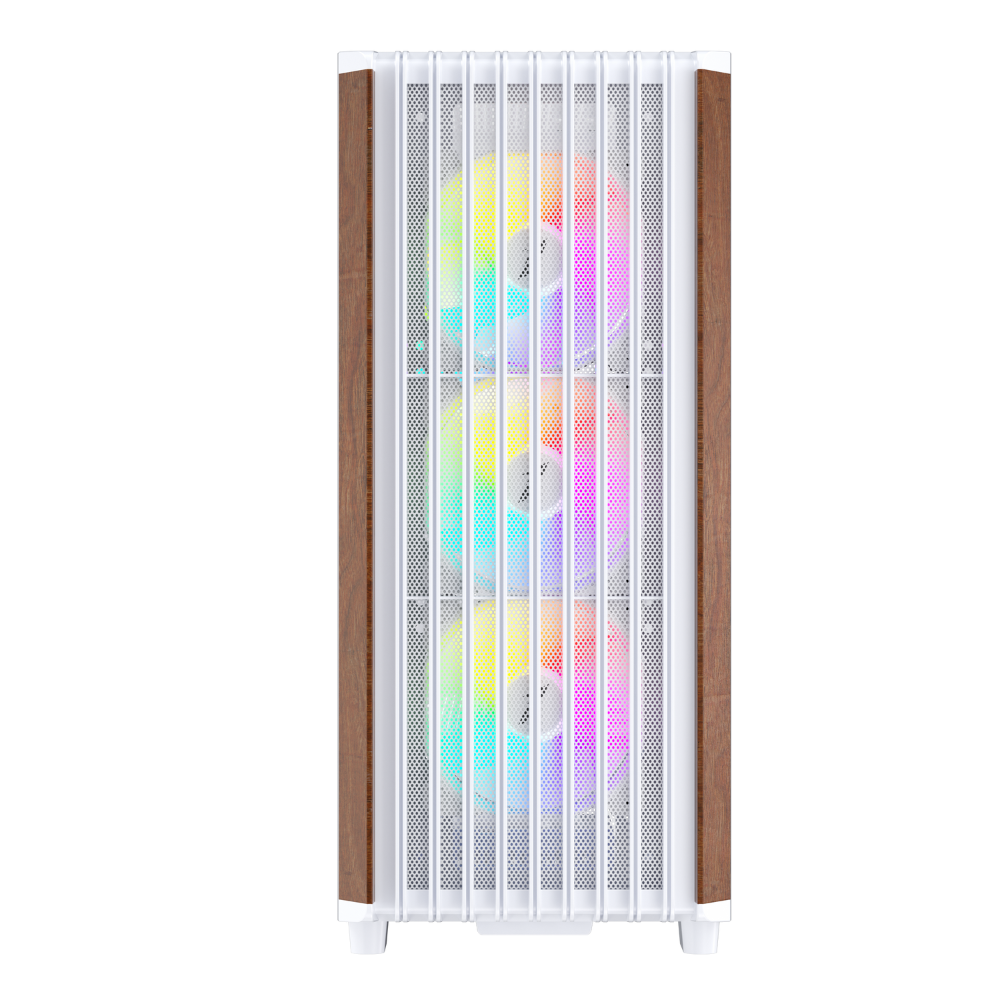

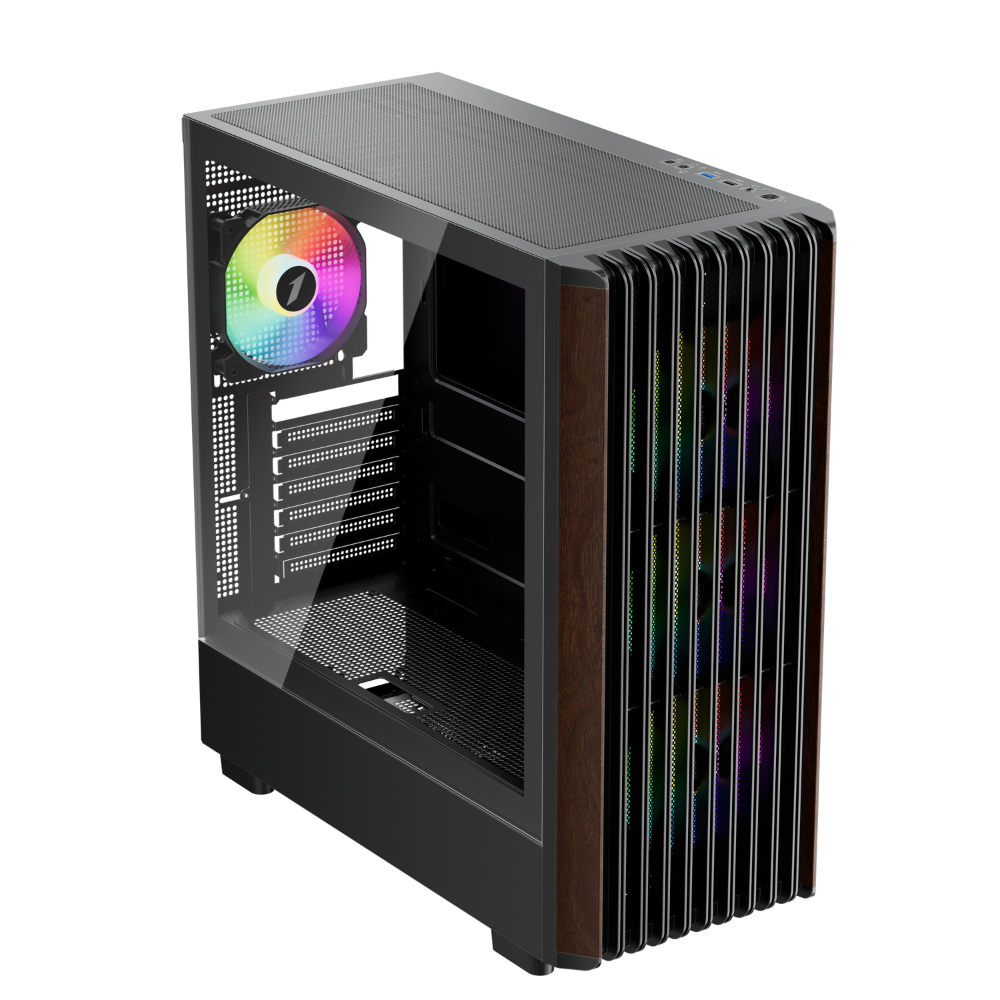

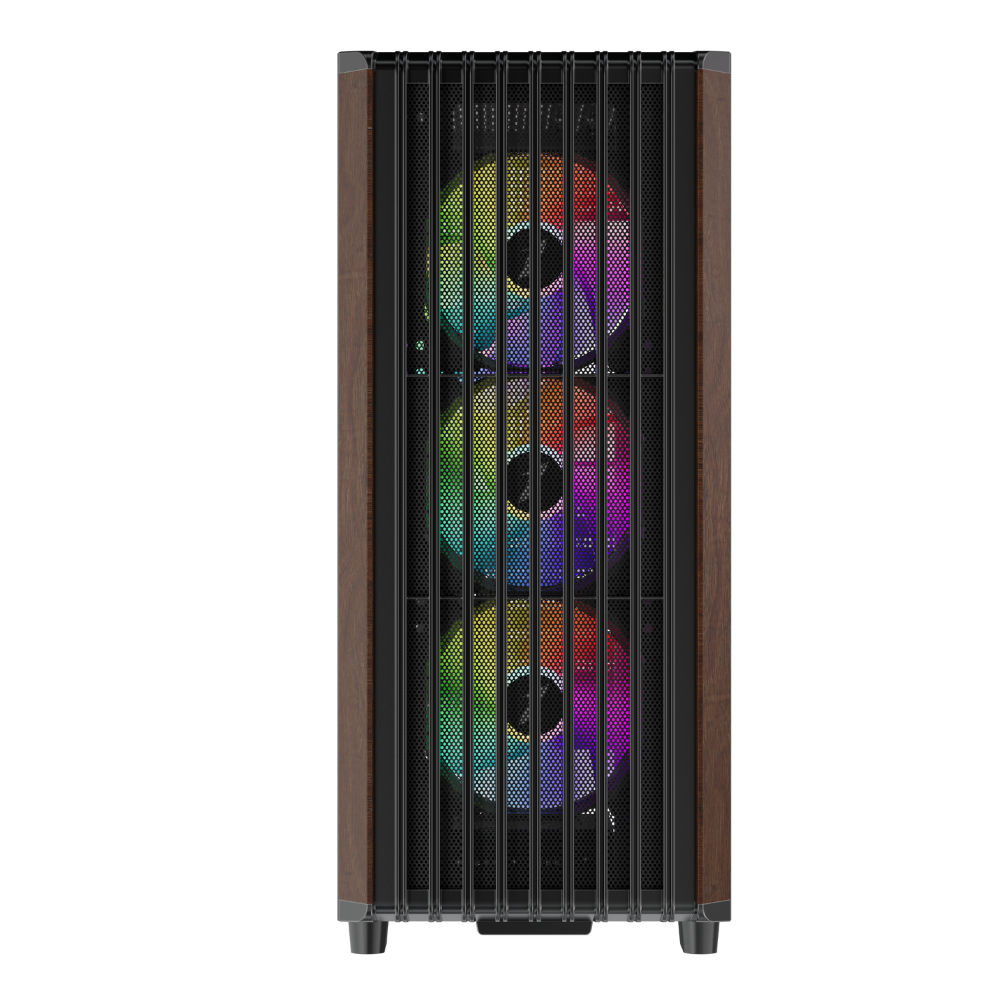

Stylish vertical slat front panel design enhances airflow while giving the case a unique, sophisticated look

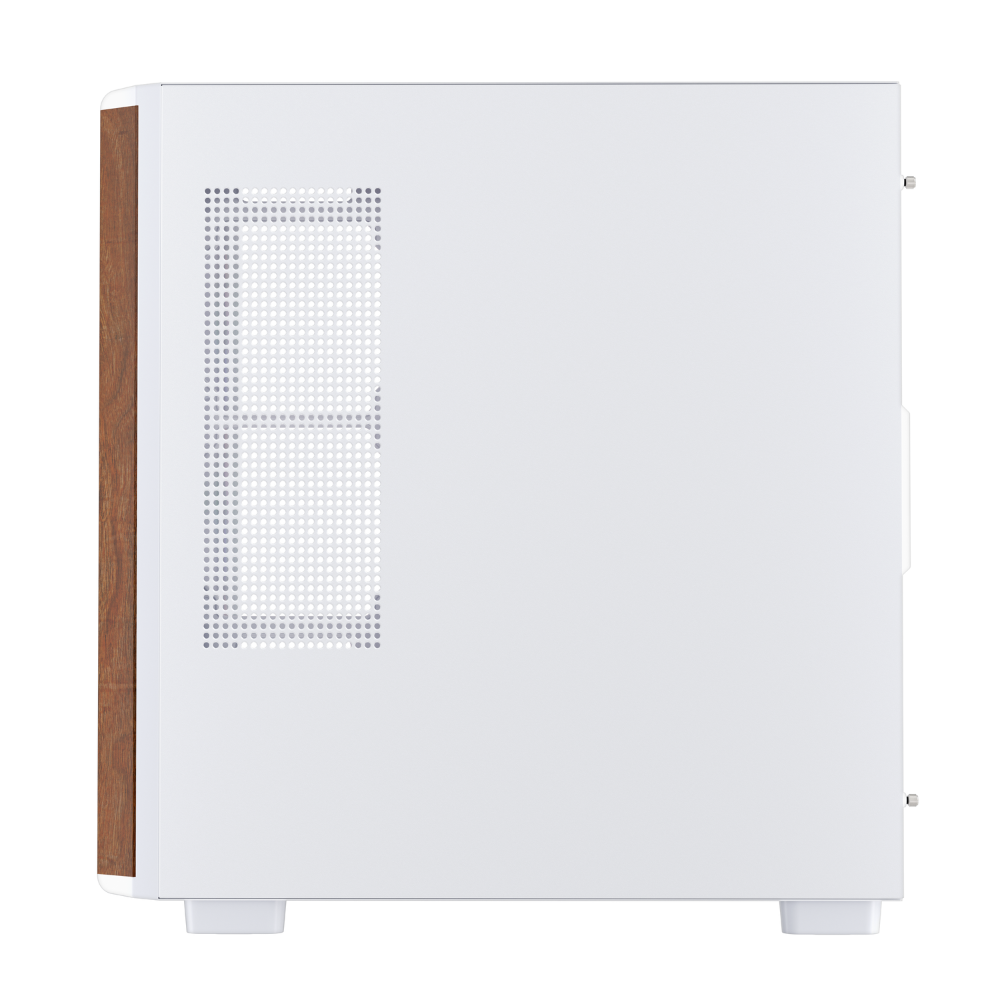

Elegant wood grain accents on the front panel add a premium, natural touch to the modern aesthetic

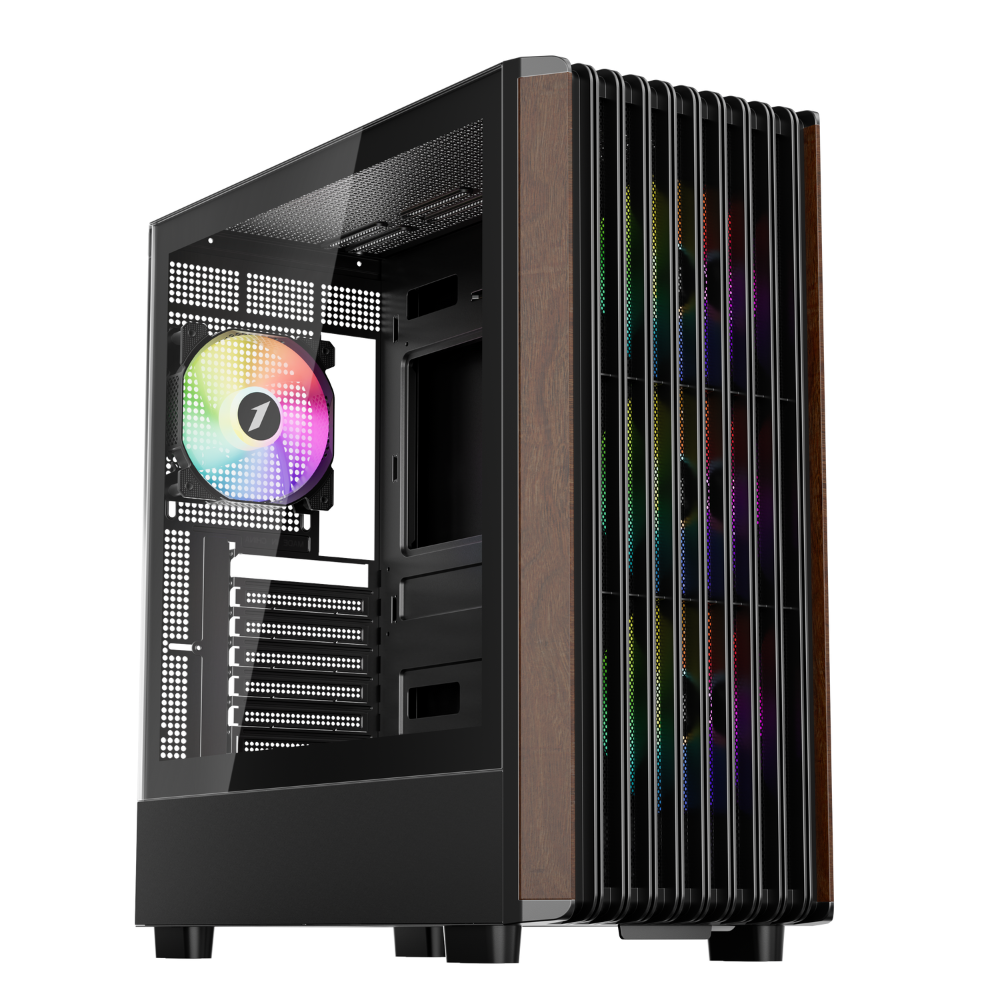

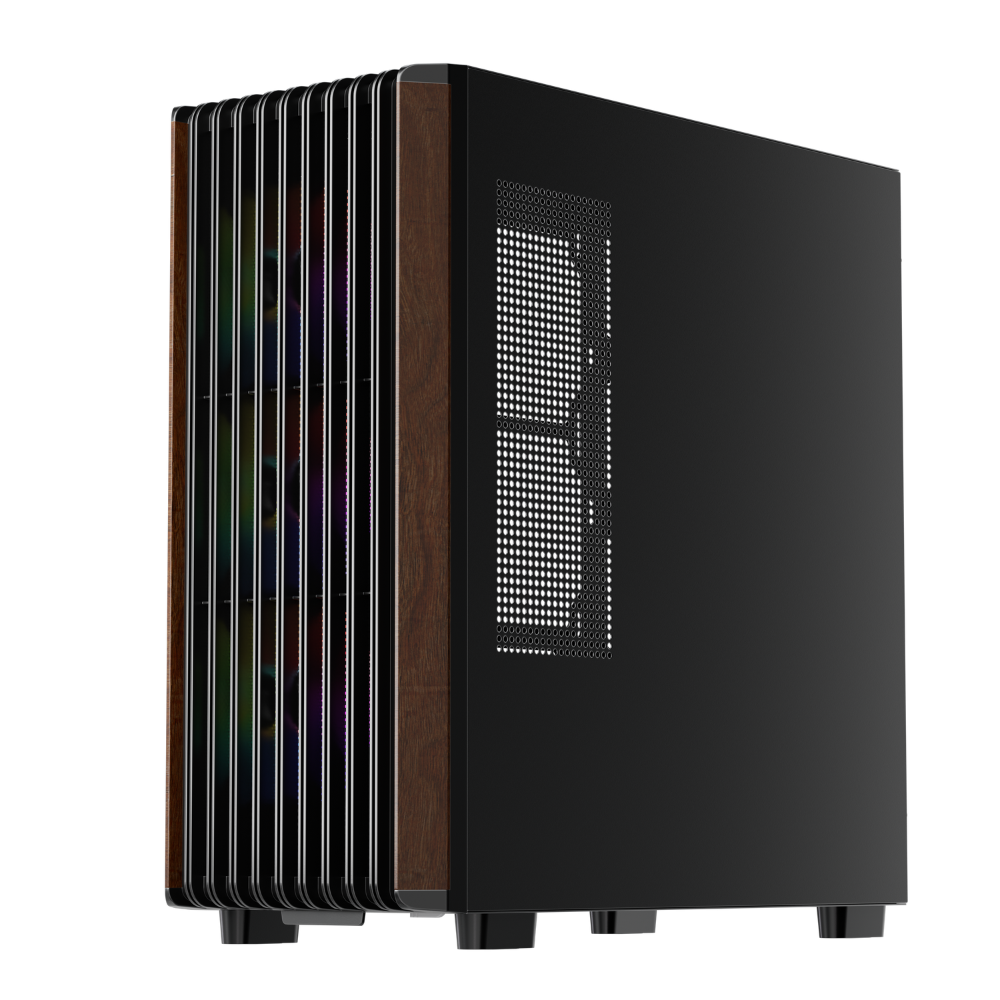

WD5 Black
MODEL
WD5
STRUCTURE DIMENSIONS (L x W x H)
435 x 215 x 475 mm
PRODUCT DIMENSIONS (L x W x H)
468 x 215 x 495 mm
PACKAGE DIMENSIONS (L x W x H)
550 x 270 x 530 mm
STRUCTURE THICKNESS
0.6 mm
MATERIALS
SPCC, tempered glass, plastic, wood
FORM FACTOR
ATX/M-ATX/ITX
3.5" HDD: 1 + 2.5" SSD: 1 or 3.5" HDD: 2 + 2.5" SSD: 0
CPU MAX HEIGHT
165 mm
GPU MAX LENGTH
420 mm

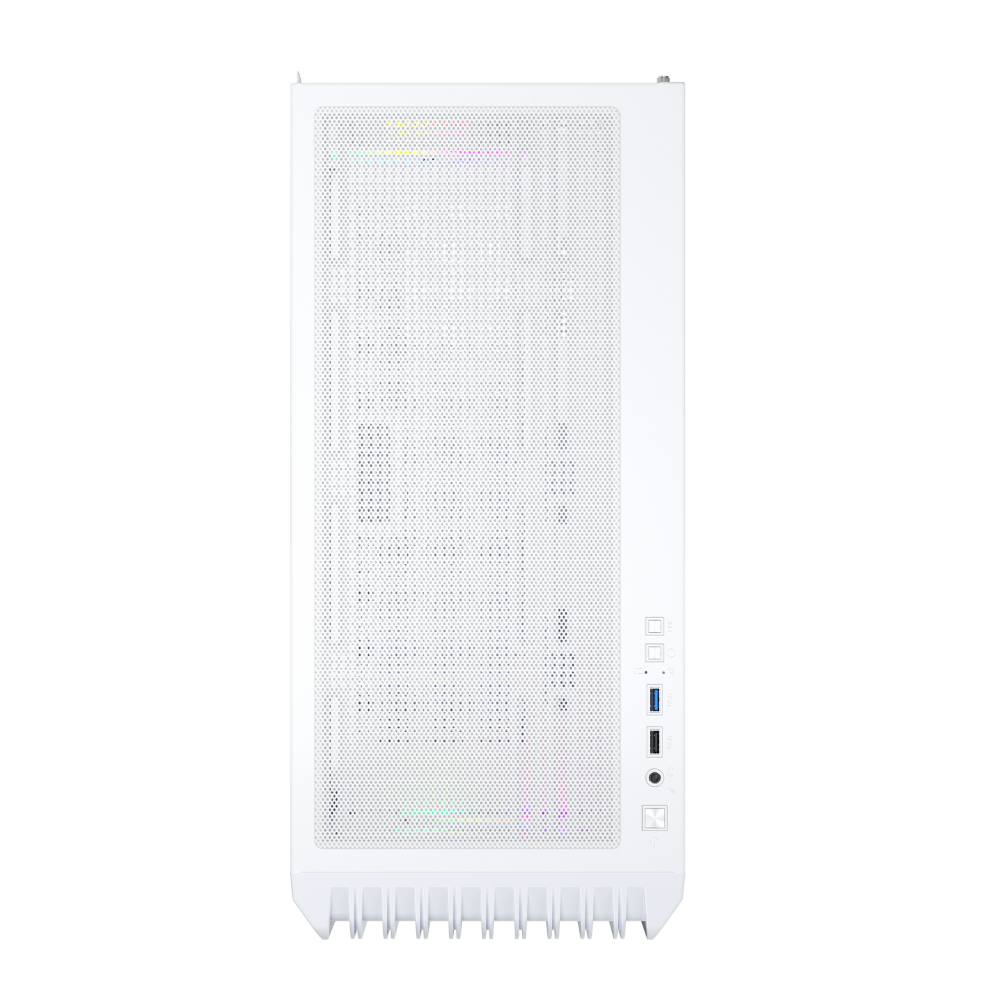

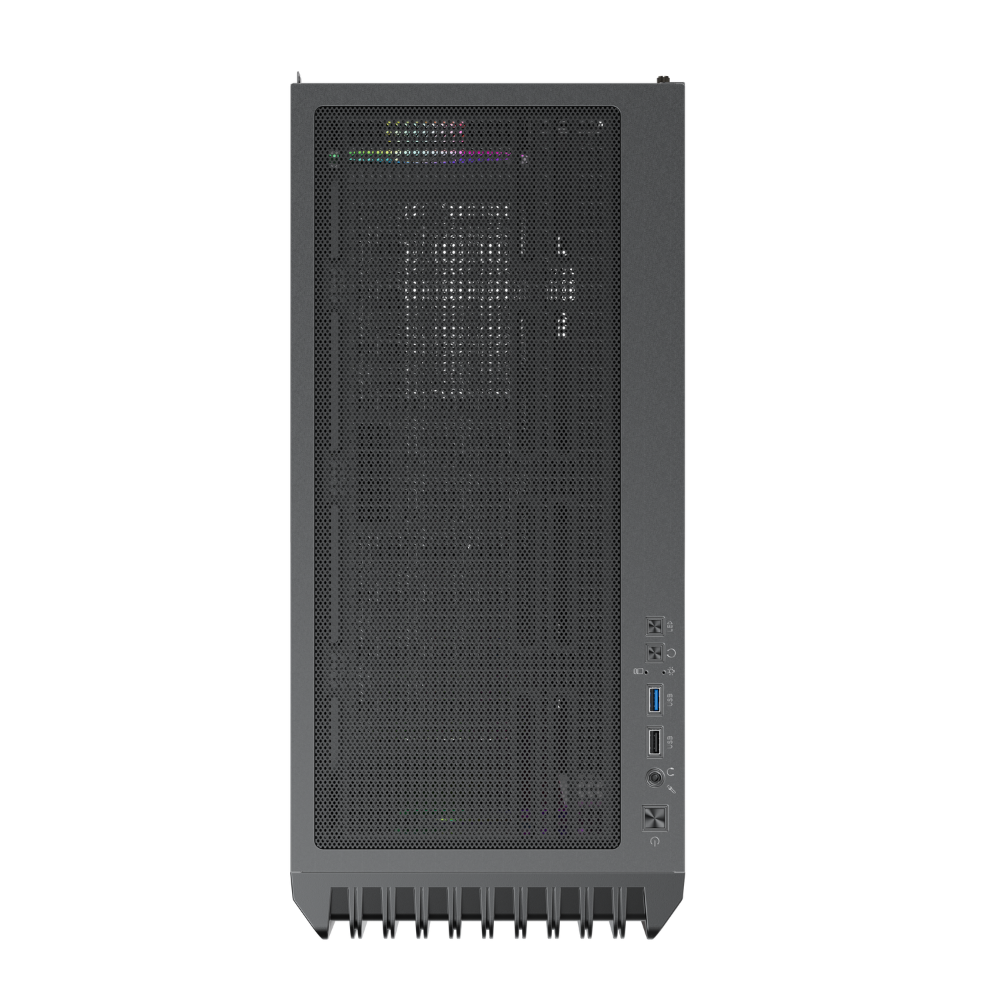

I/O PANEL
USB 2.0 x 1 + USB 3.0 x 1 + HD AUDIO
PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 12 cm, Side: 2 x 12 cm, Top: 3 x 12 cm
Rear: 1 x 12 cm, Bottom: 3 x 12 cm
LIQUID COOLING SUPPORT
Top: 36 cm
POWER SUPPLY SUPPORT
Bottom mount (200 mm)
WEIGHT
N.W.: kg
G.W.: kg
