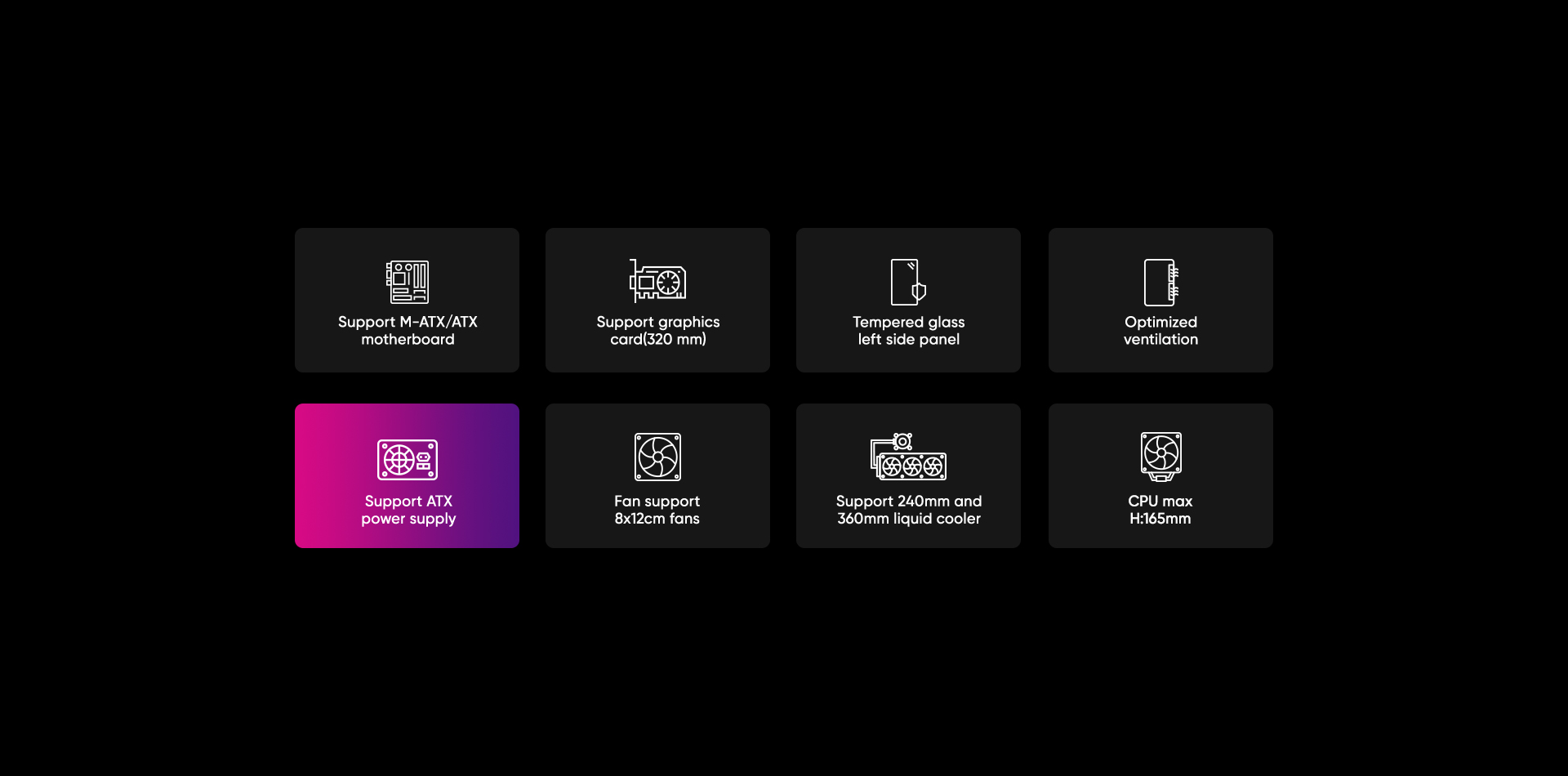

Support up to 8 fans
Support 360 mm radiator at the front and 240 mm radiator at the top
Support GPU length up to 320 mm
Support CPU cooler height up to 165 mm

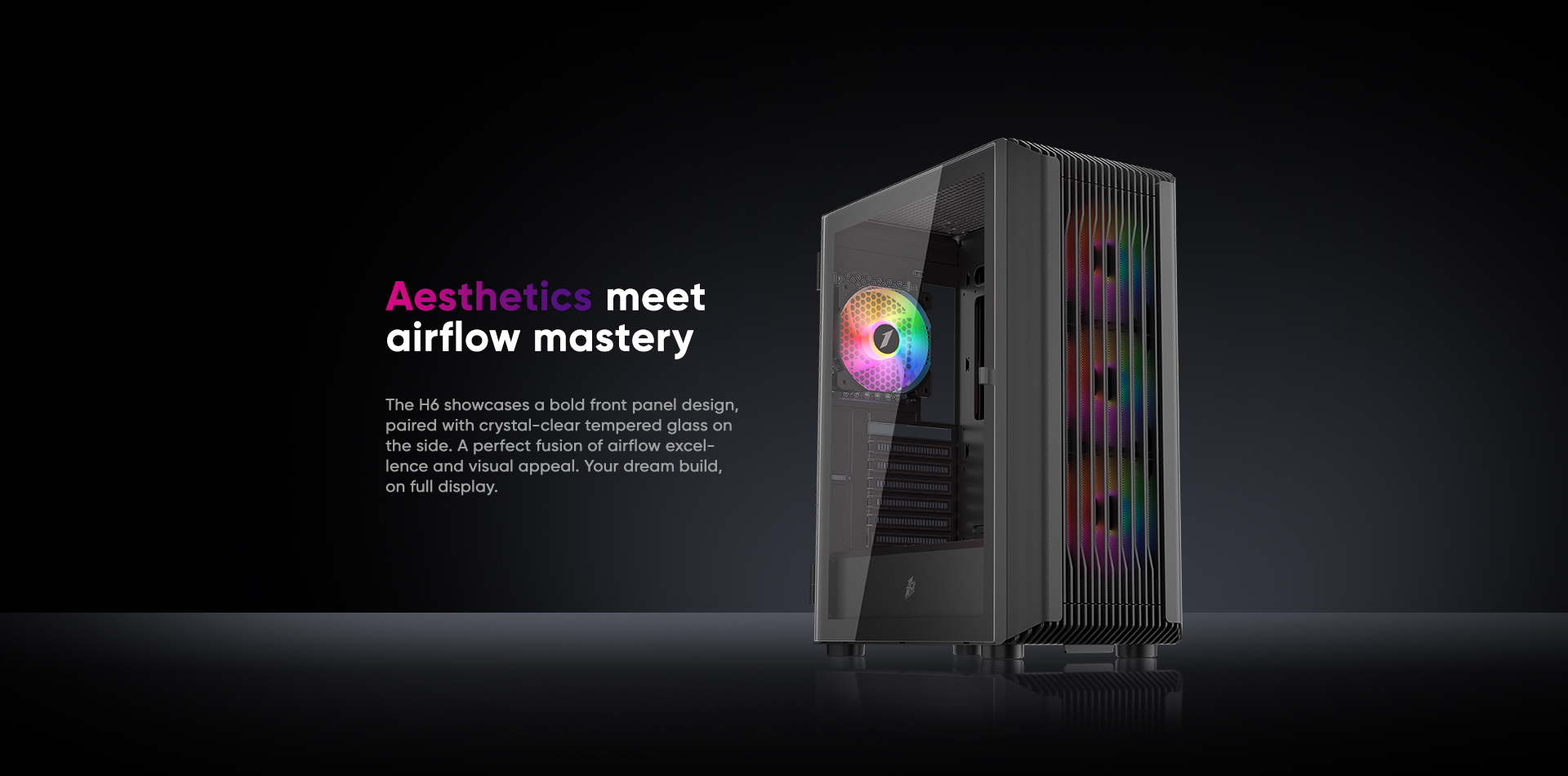

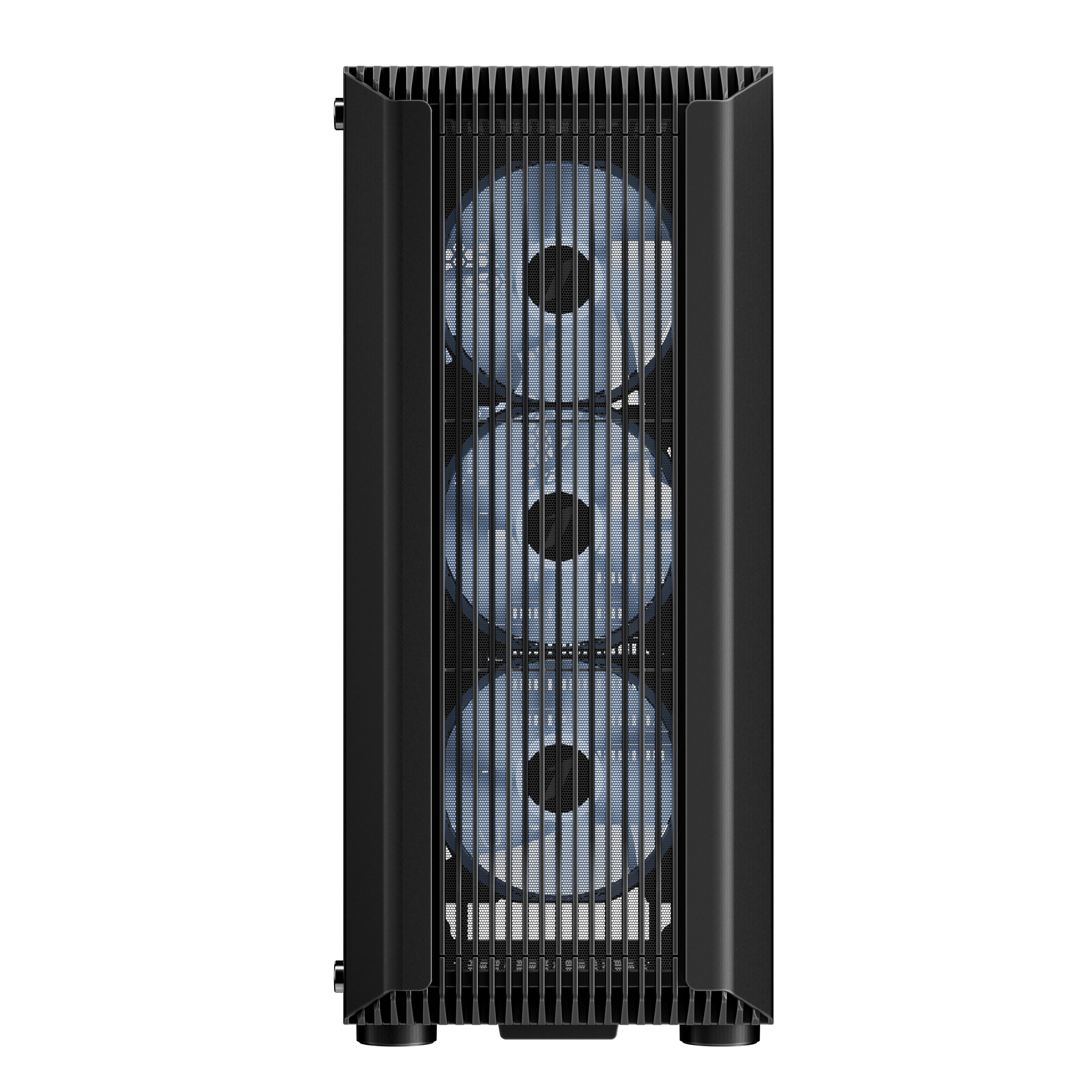

The front panel boasts vertical slats that maximize airflow and add a striking visual touch

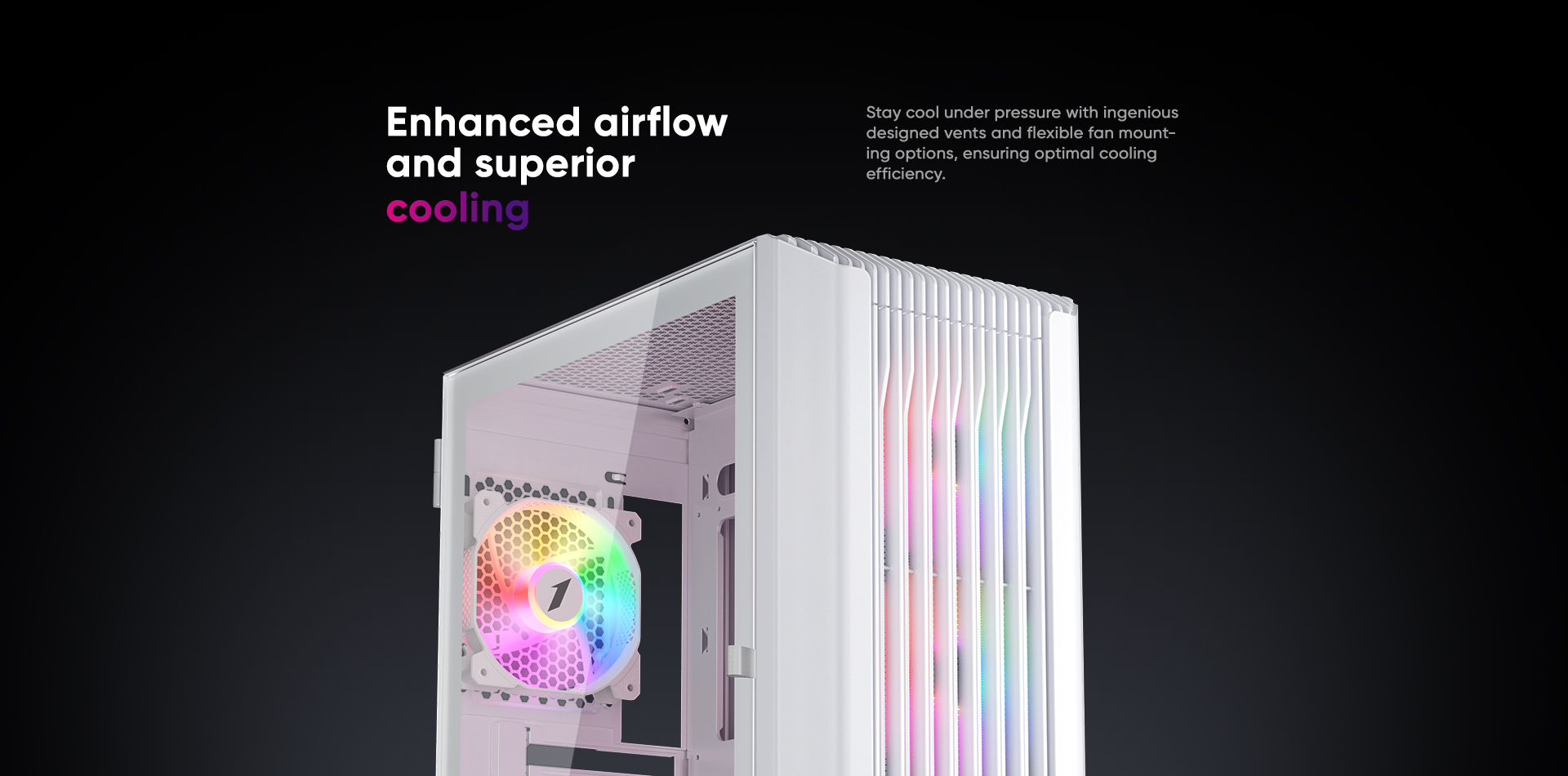

Cool under pressure: meticulously designed mesh panels ensure your hardware stays frosty during intense battles
*Computer parts are not included. Cooling fan may vary among different countries/regions.

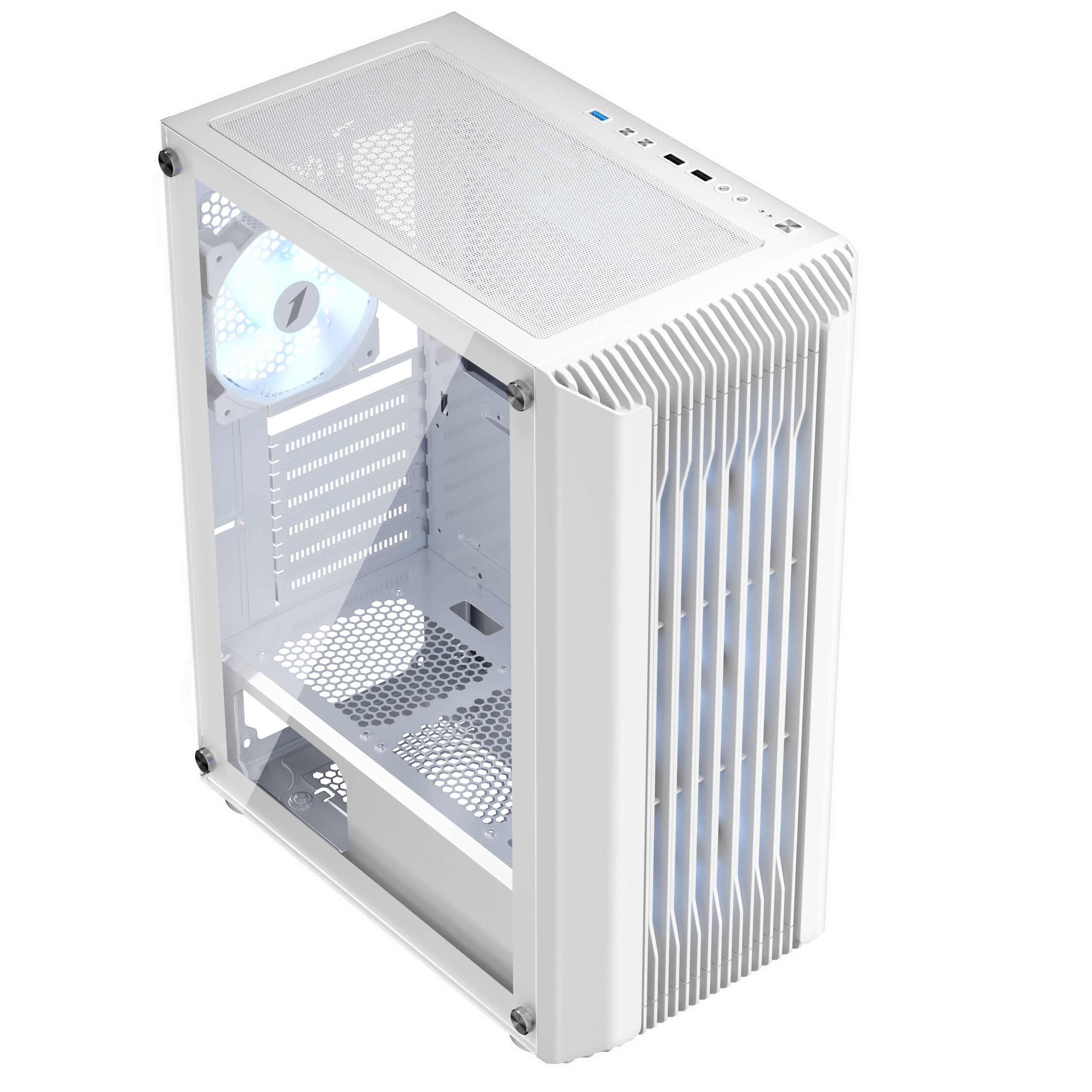

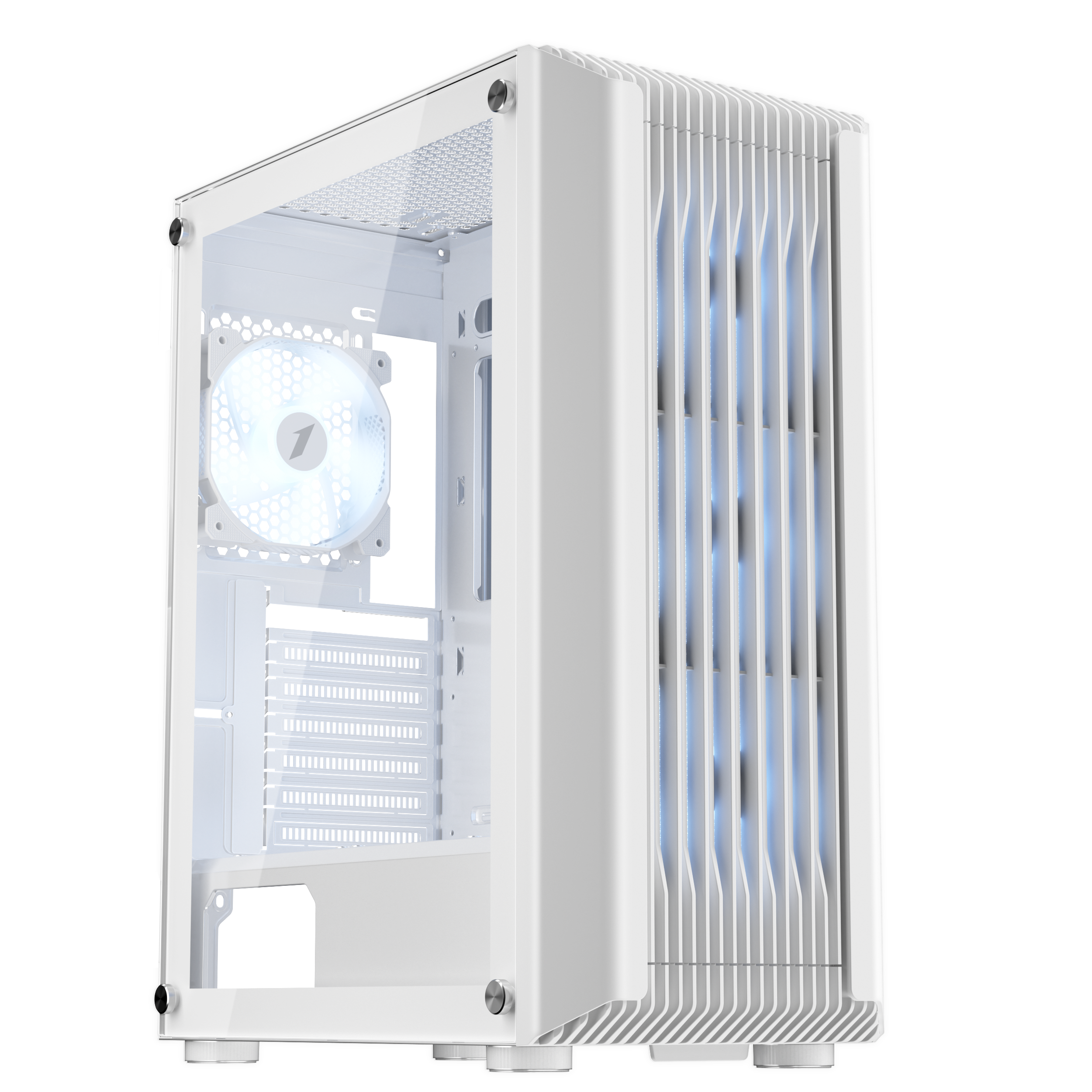

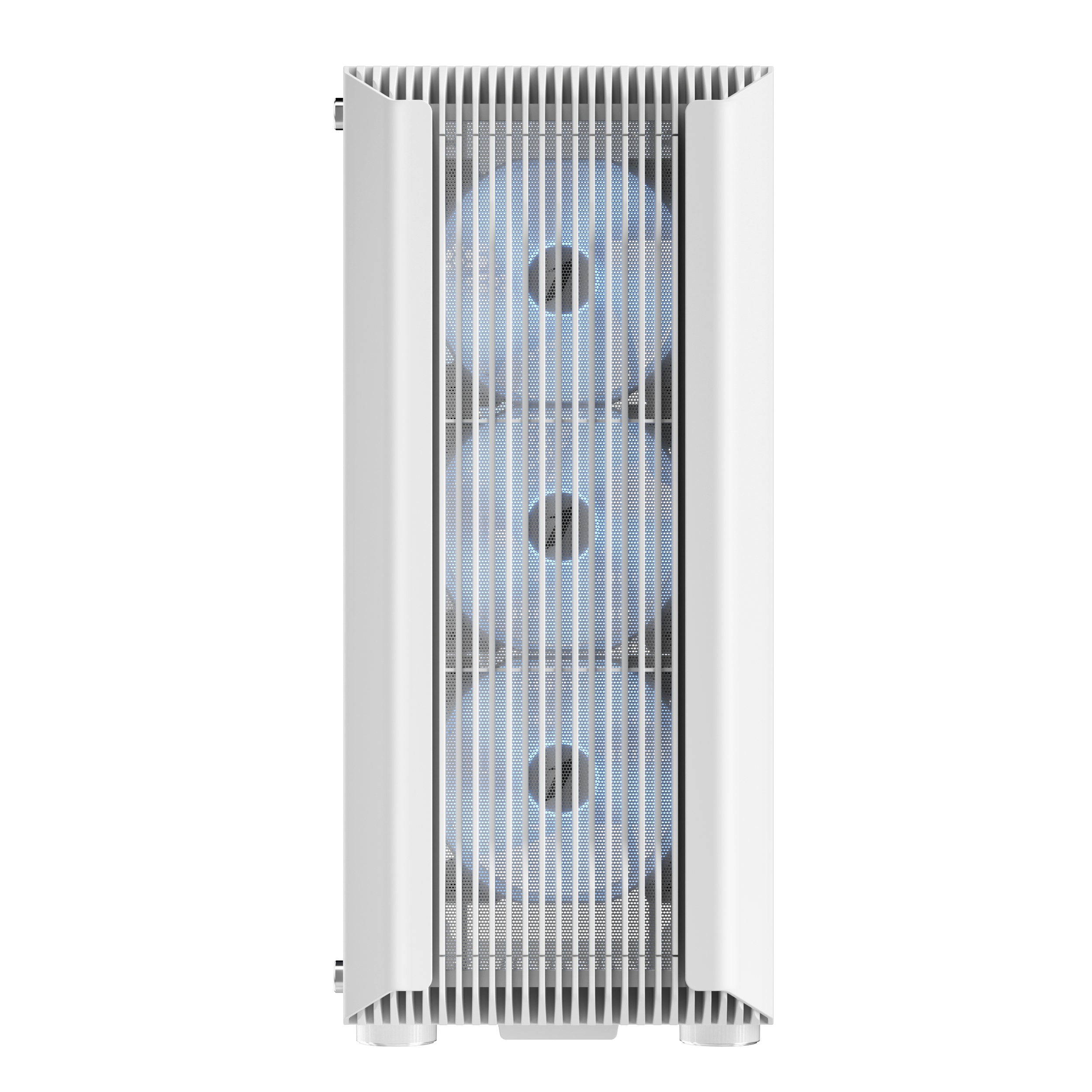

White

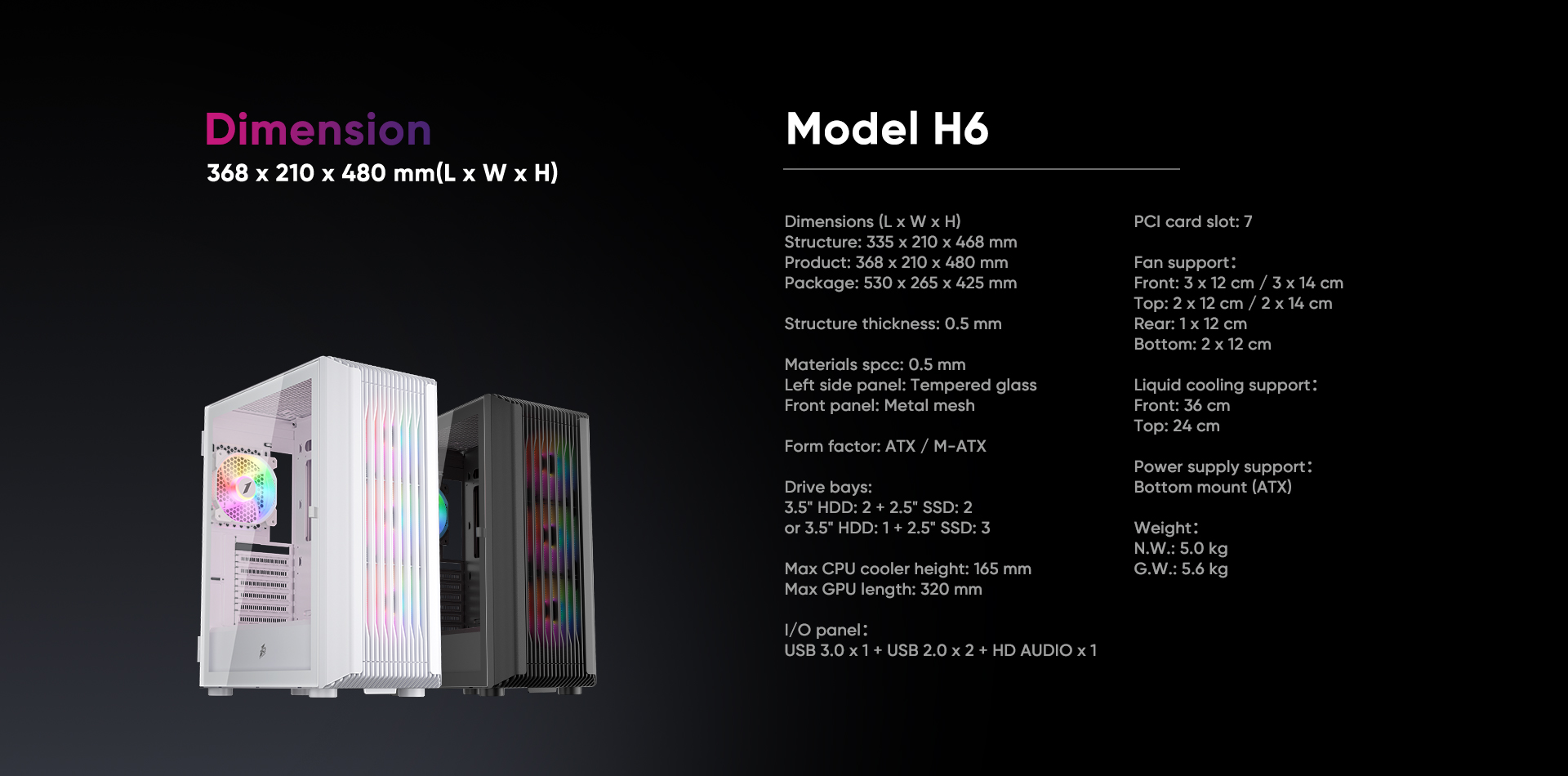

MODEL
H6
STRUCTURE DIMENSIONS (L x W x H)
335 x 210 x 468 mm
PRODUCT DIMENSIONS (L x W x H)
368 x 210 x 480 mm
PACKAGE DIMENSIONS (L x W x H)
530 x 265 x 425 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass, plastic
FORM FACTOR
ATX / M-ATX / Mini-ITX

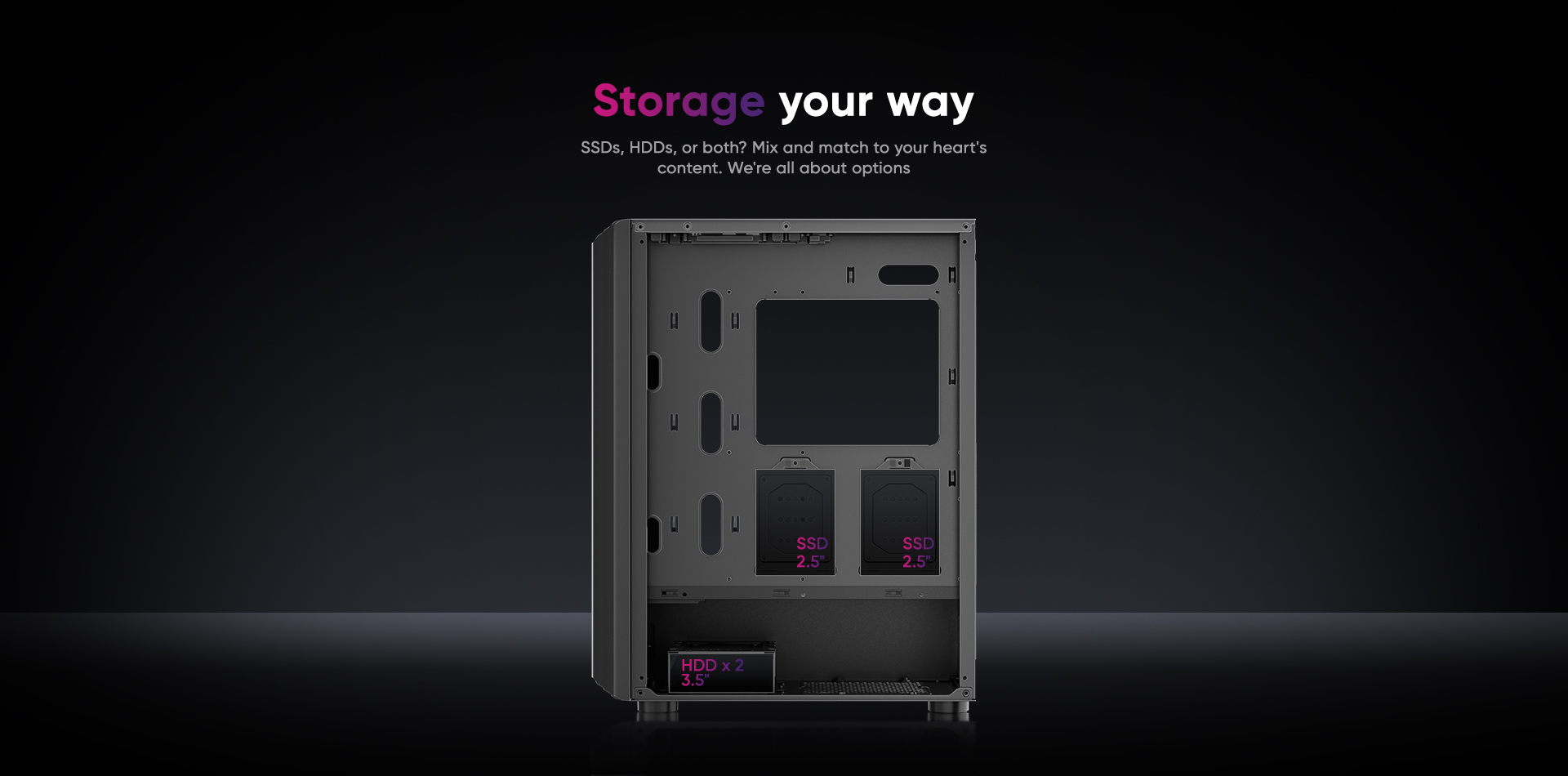

3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3

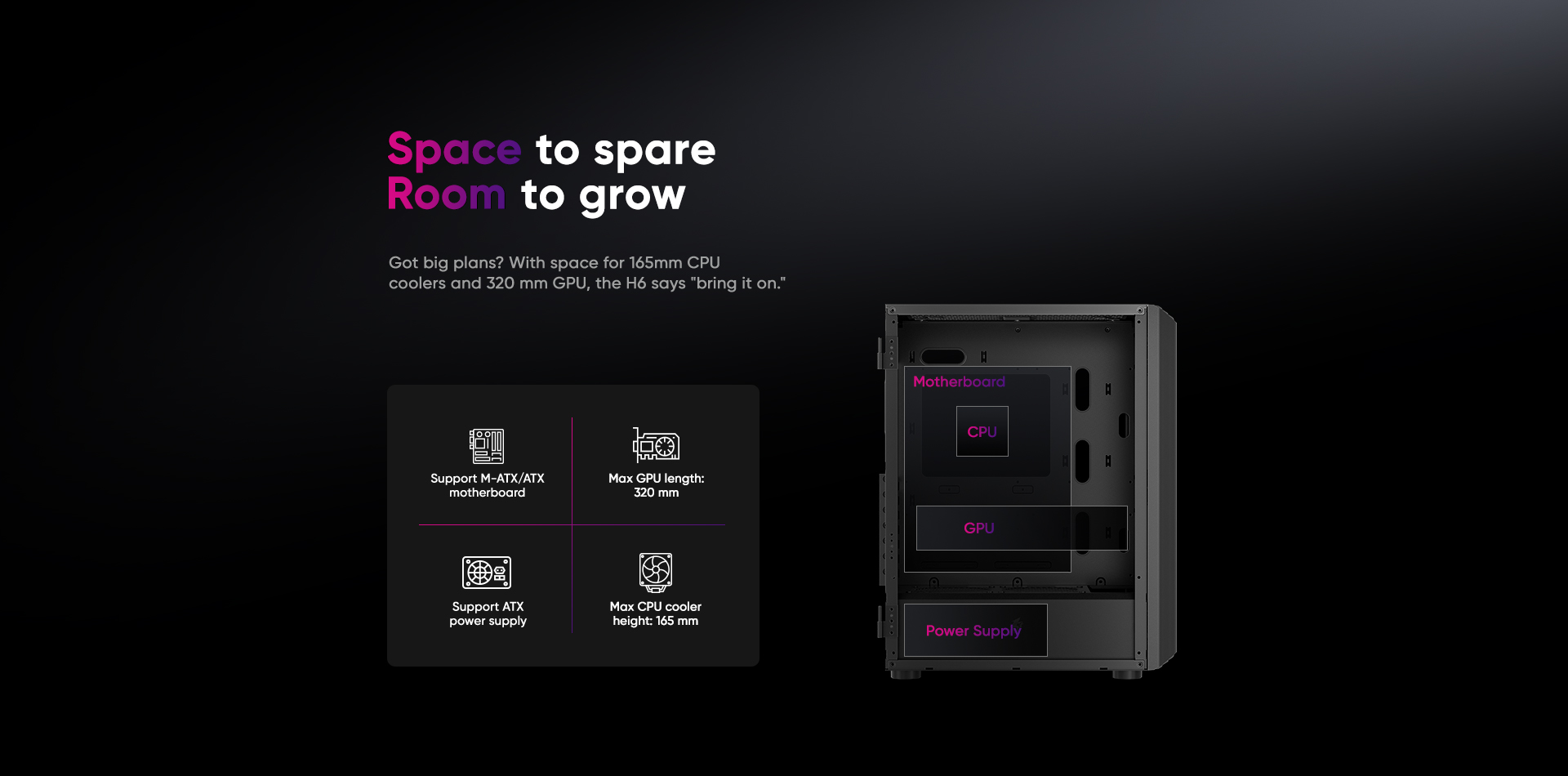

MAX CPU COOLER HEIGHT
165 mm
MAX GPU LENGTH
320 mm

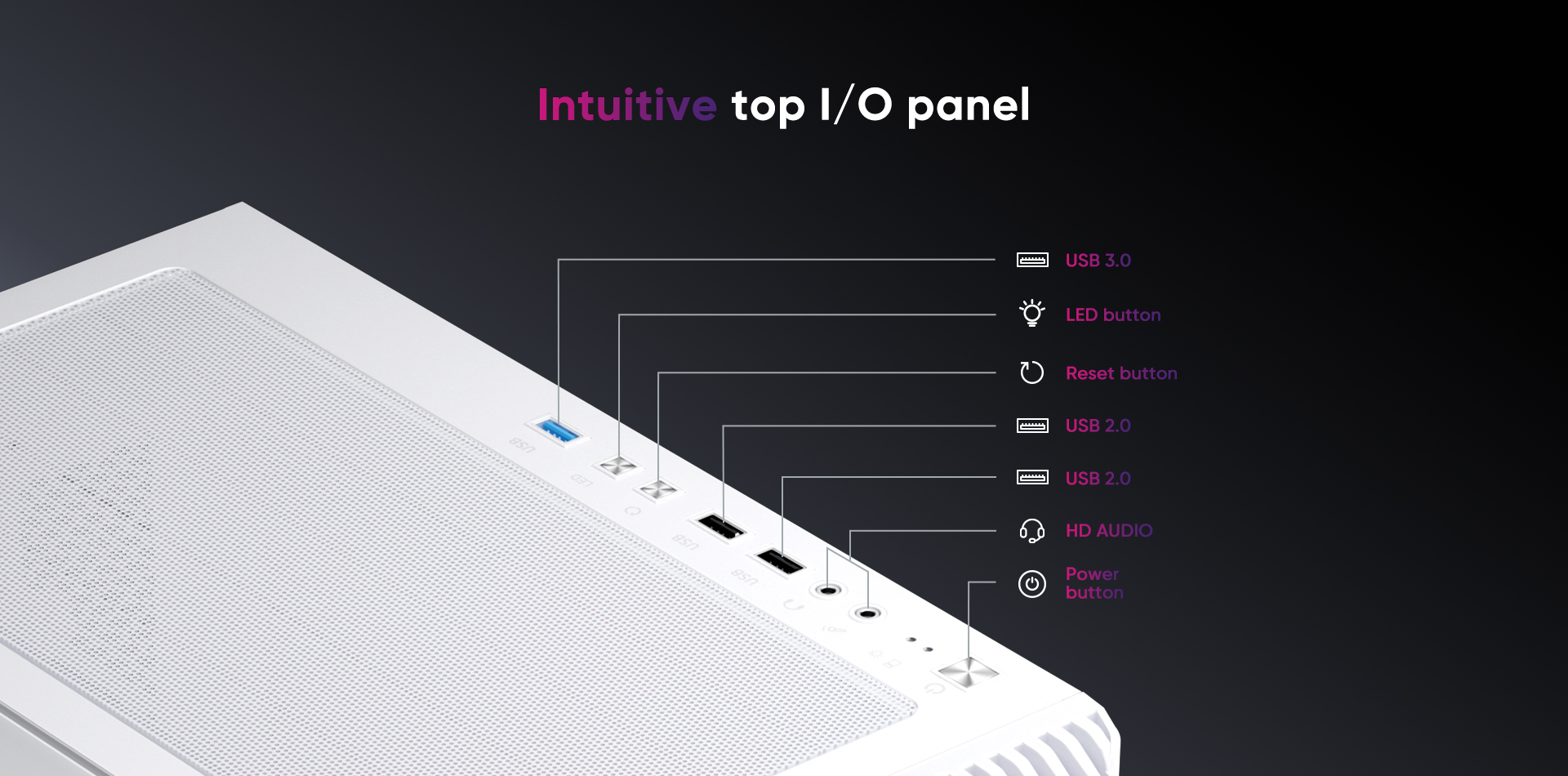

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
7

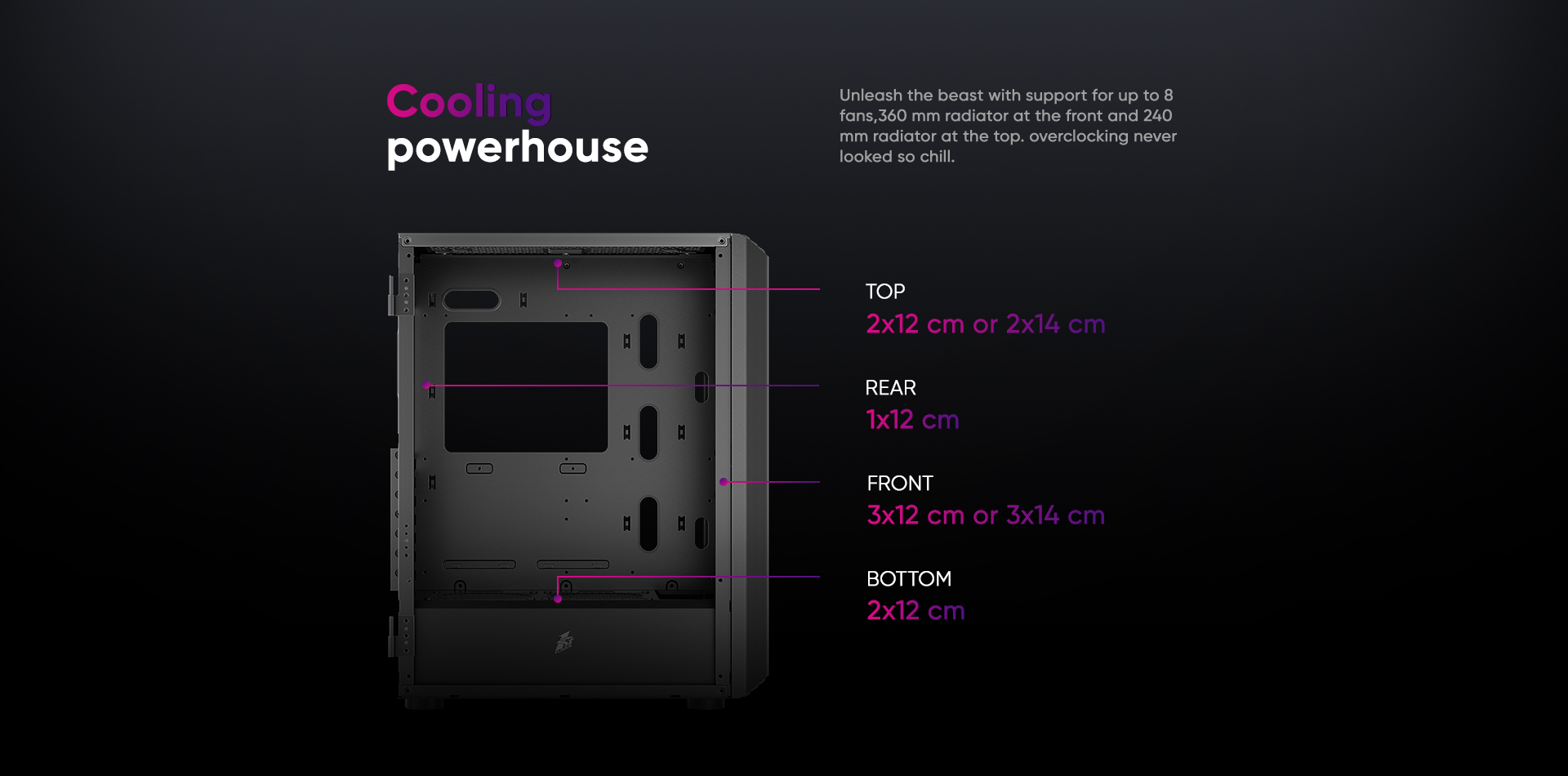

FAN SUPPORT
Front: 3 x 12 cm / 3 x 14 cm
Top: 2 x 12 cm / 2 x 14 cm
Rear: 1 x 12 cm, Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Front: 36 cm, Top: 24 cm
POWER SUPPLY SUPPORT
Bottom mounted ATX
WEIGHT
N.W.: 5 kg
G.W.: 5.6 kg
