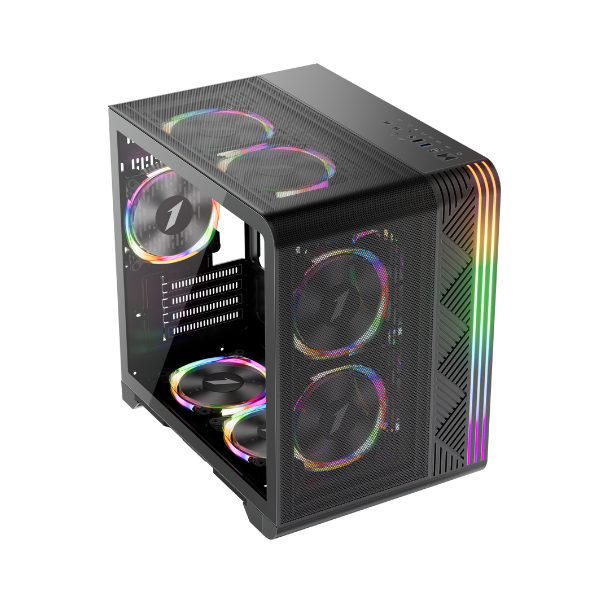

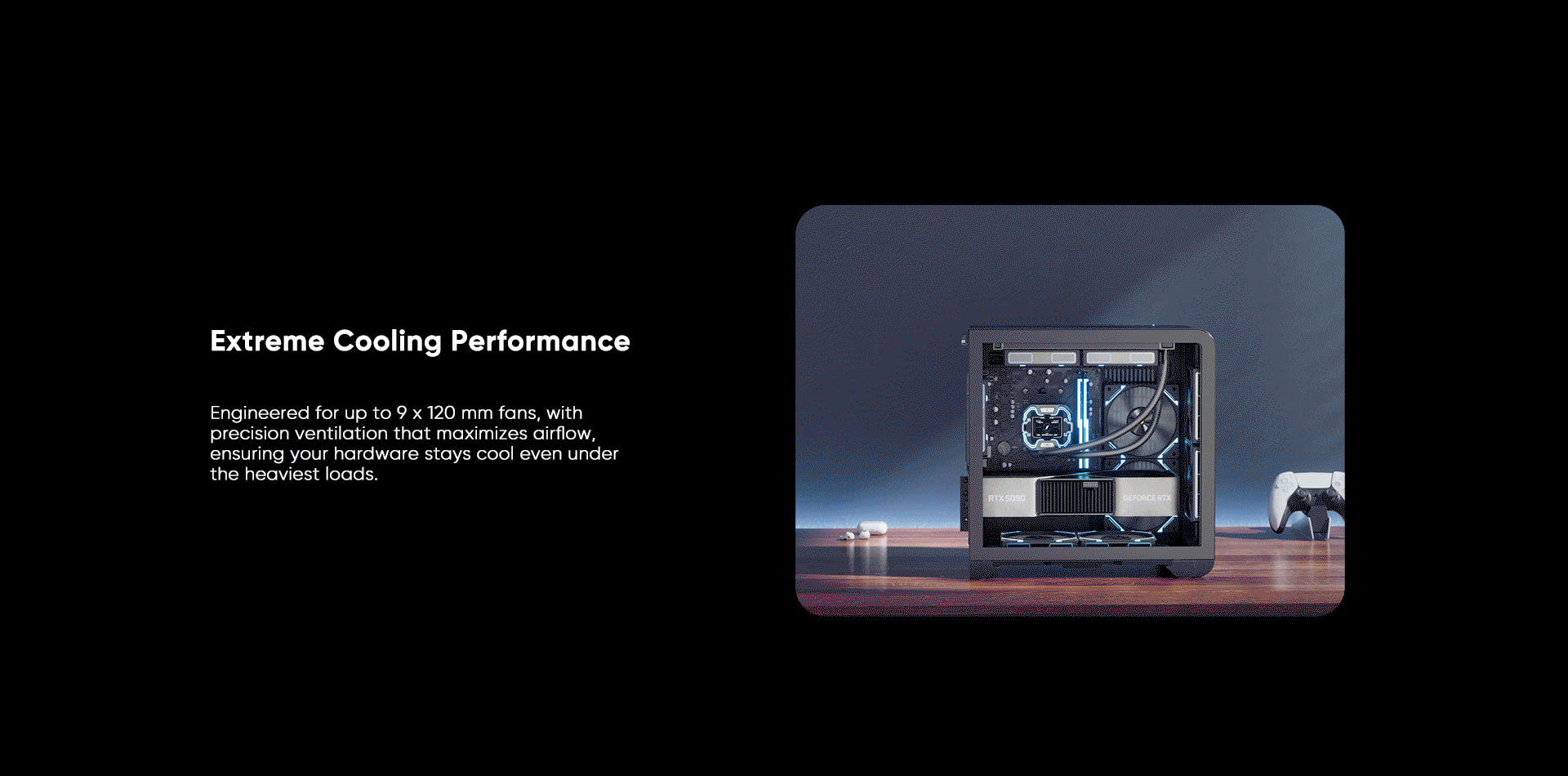

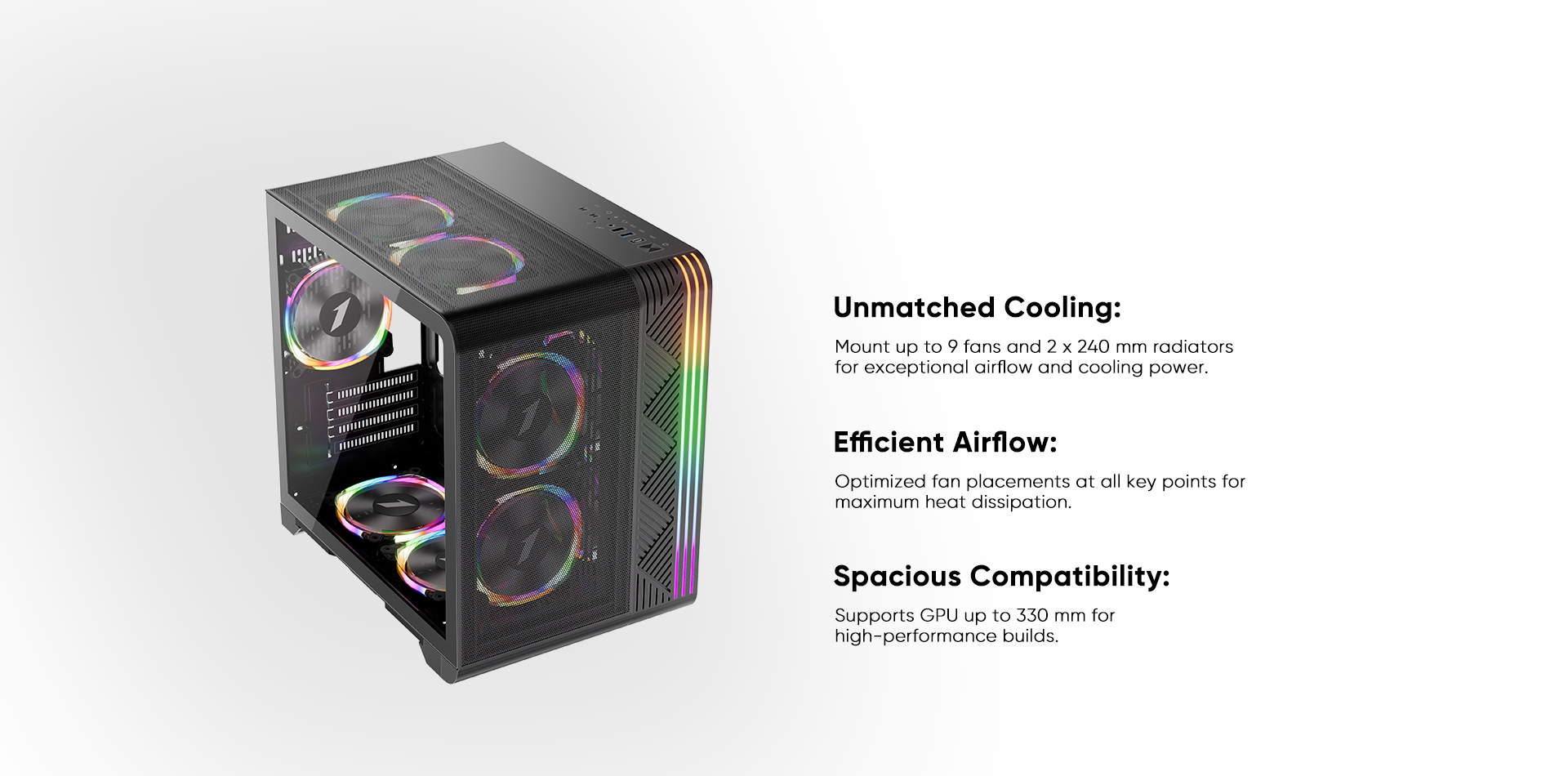

Support up to 9 fans
Support 240 mm radiator at the front

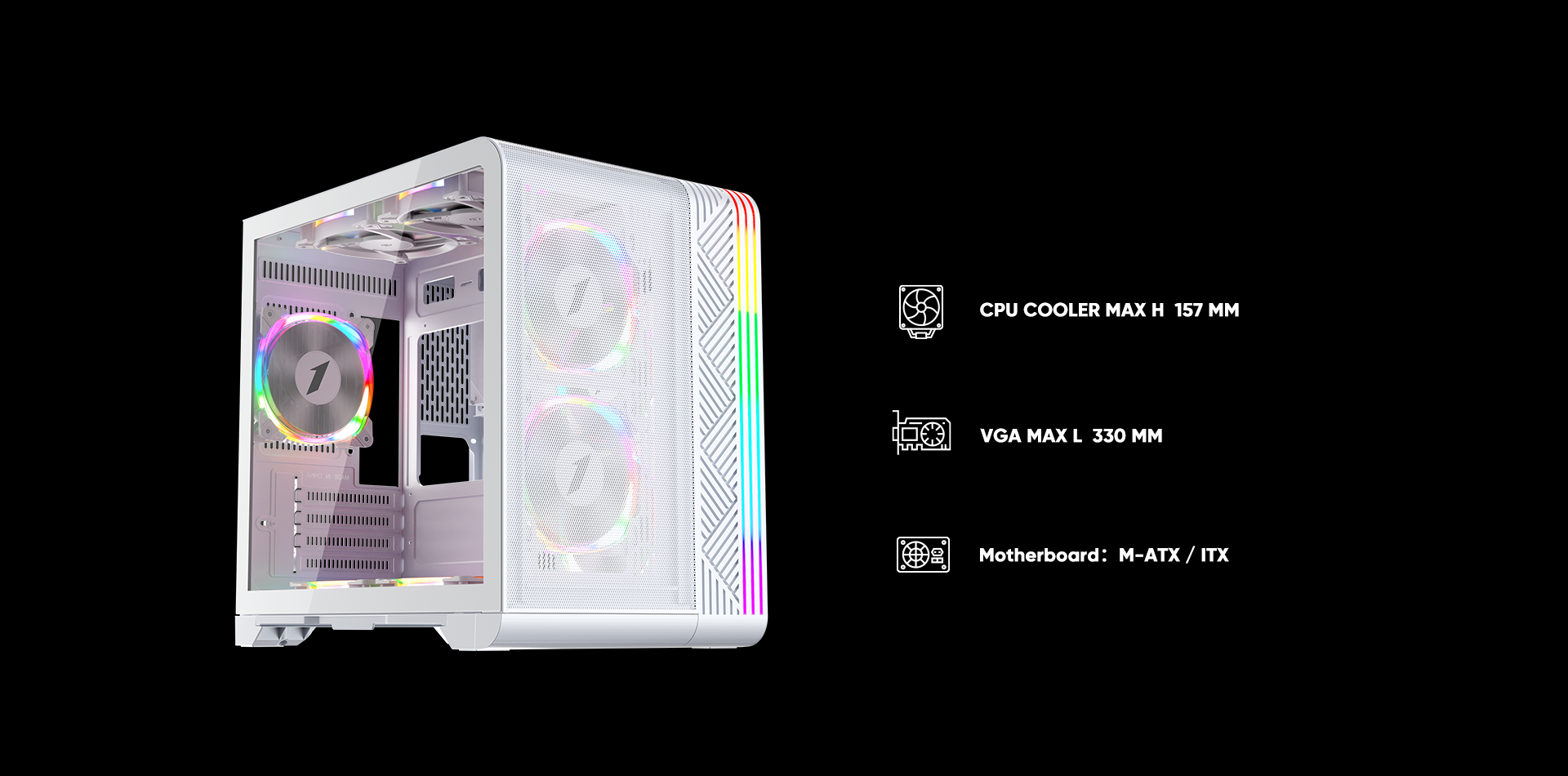

Support GPU length up to 330 mm
Support CPU cooler height up to 157 mm

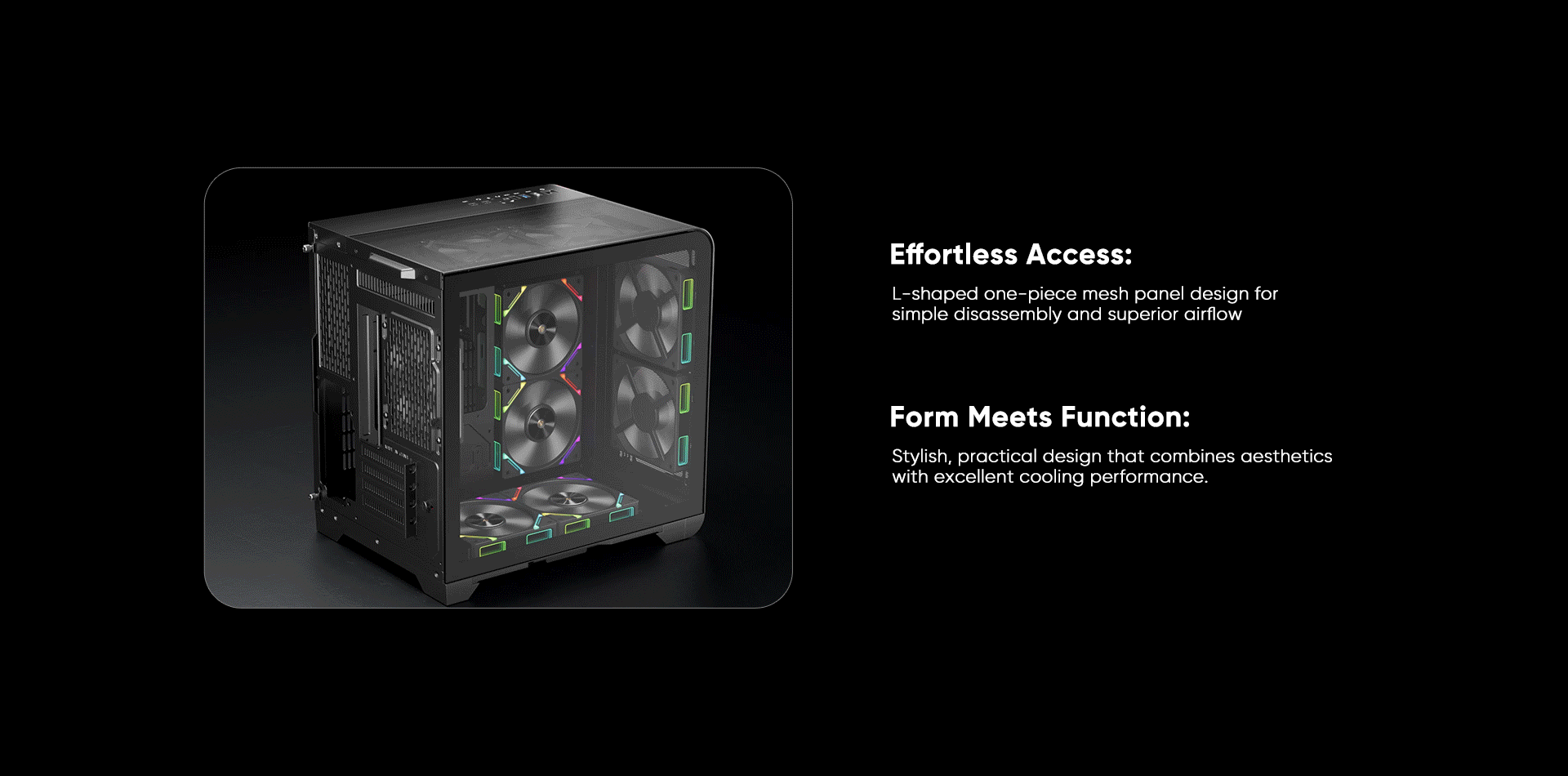

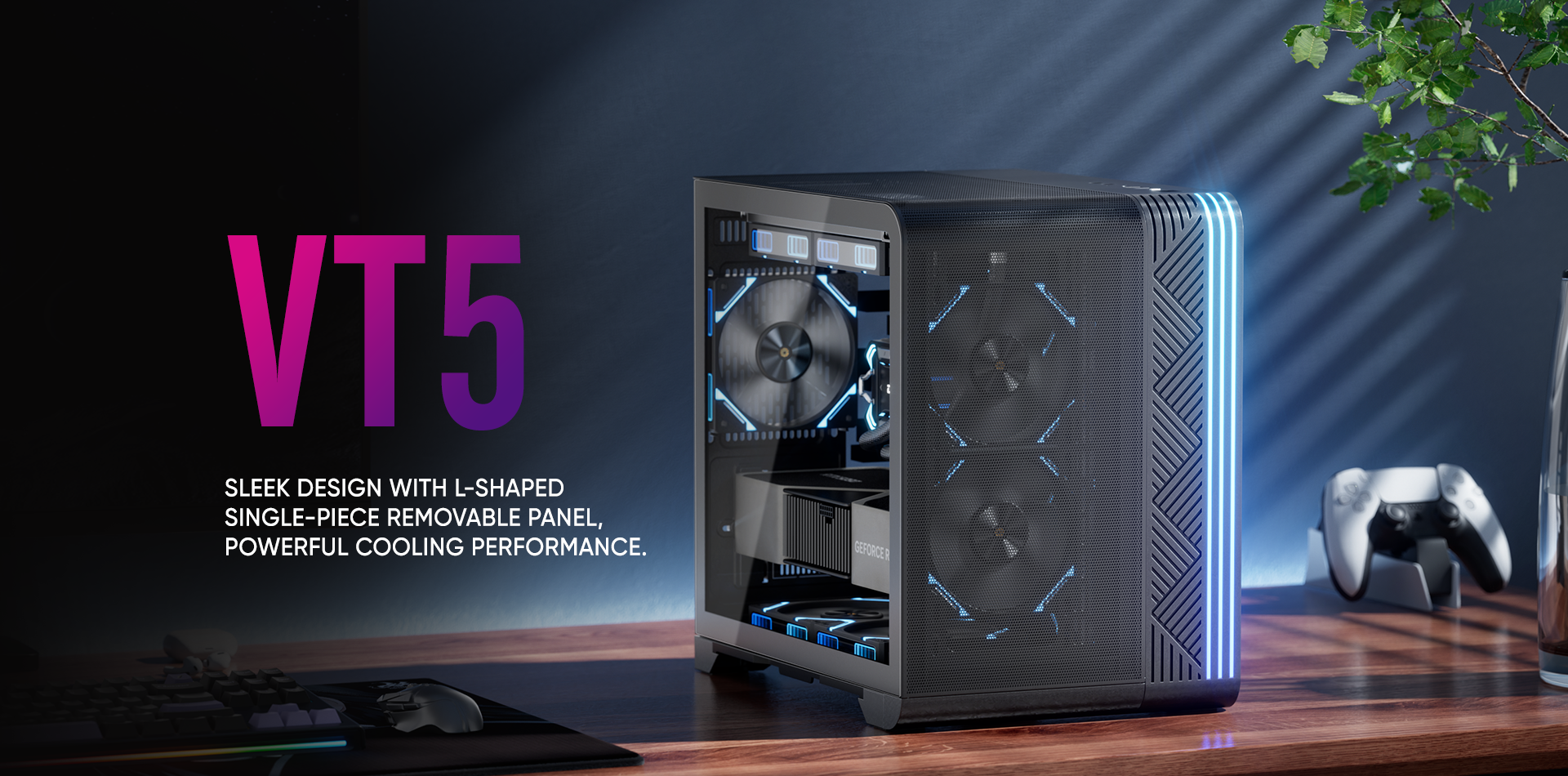

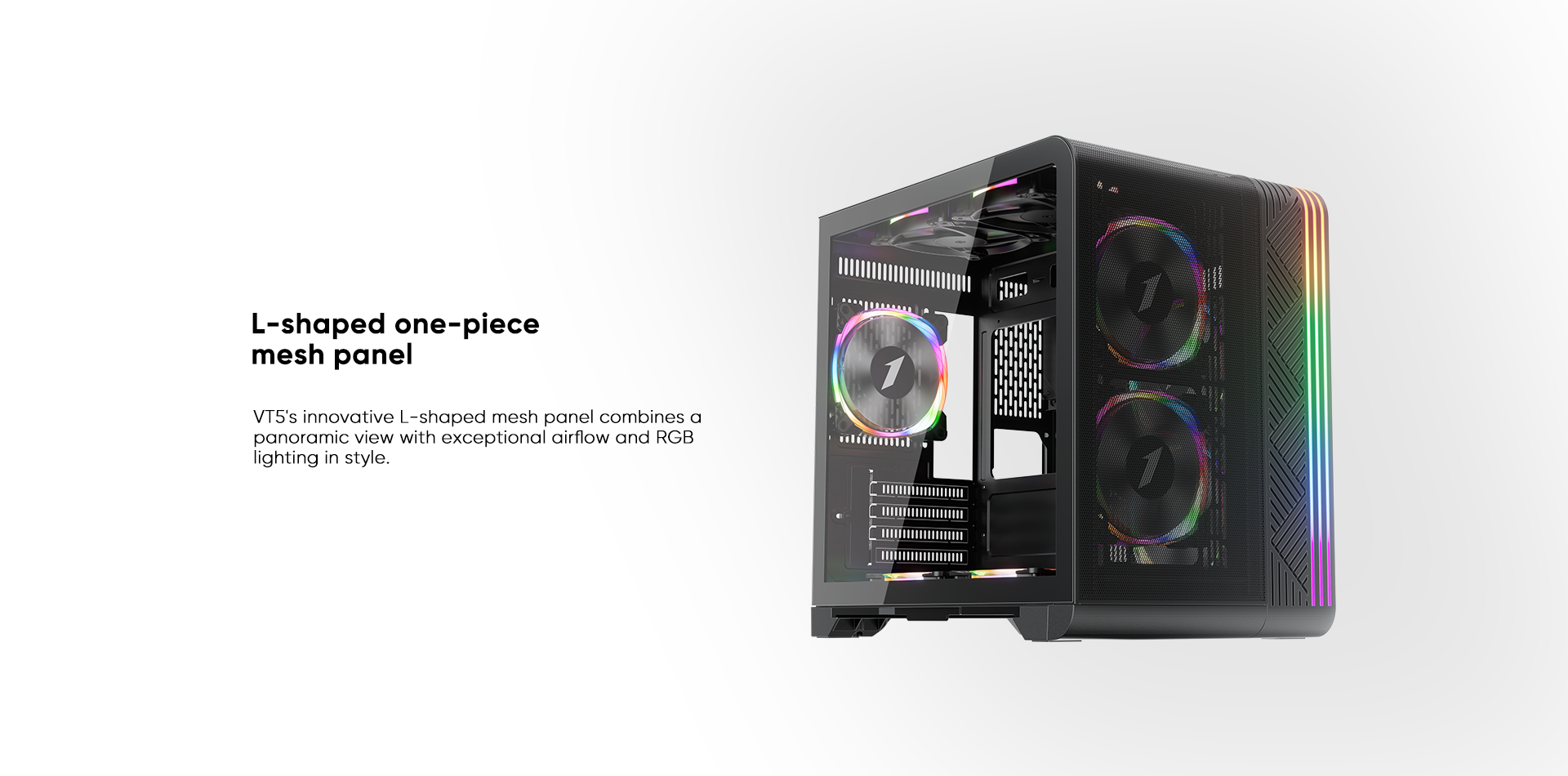

Seamlessly integrated front and top mesh panels for enhanced airflow, with easy single-piece removal for convenient fan installation and effortless maintenance.

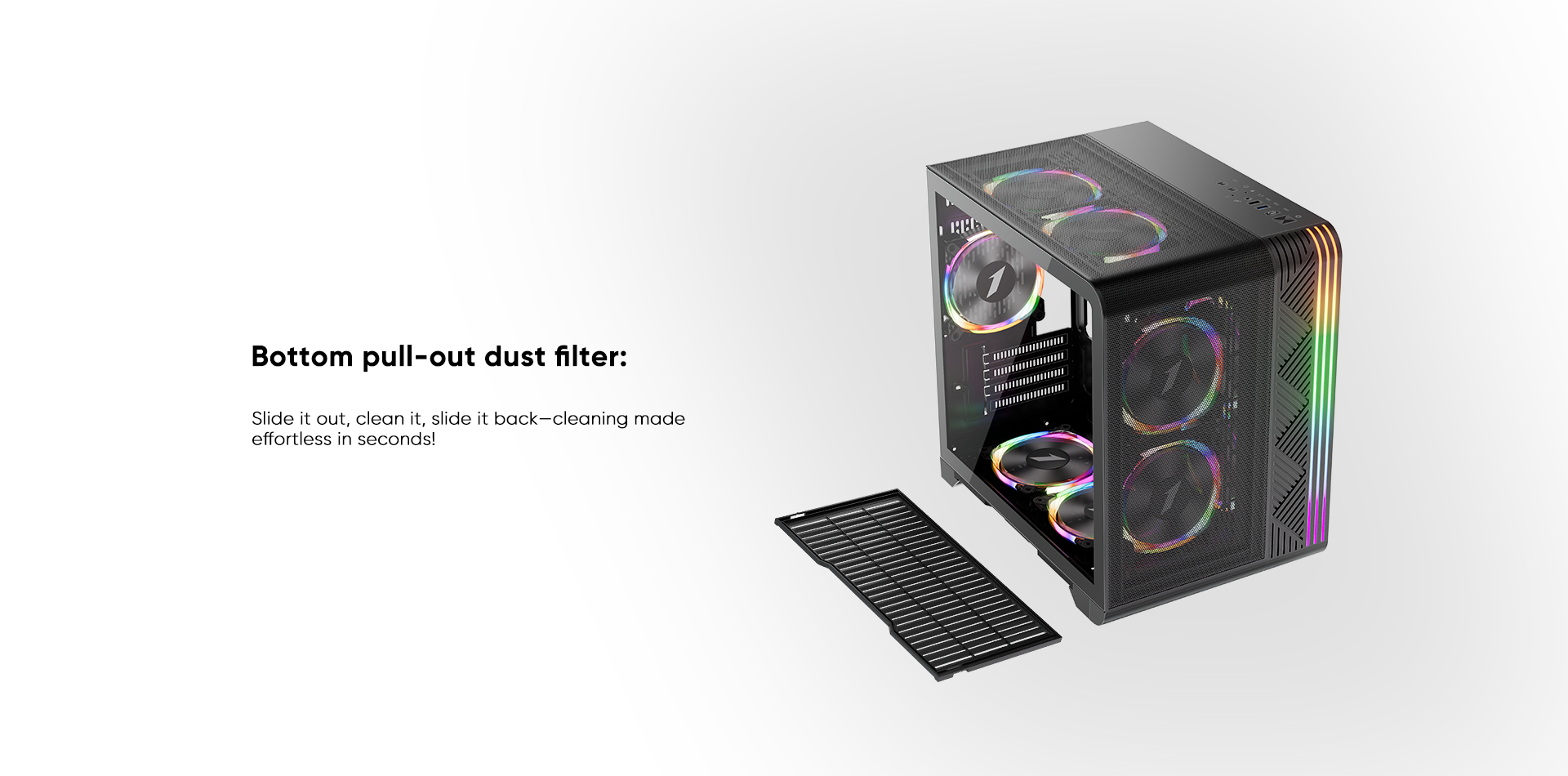

Pull-out dust filter at the bottom for easy cleaning and maintainance
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black
MODEL
VT5
STRUCTURE DIMENSIONS (L x W x H)
345 x 280 x 355 mm
PRODUCT DIMENSIONS (L x W x H)
375 x 280 x 380 mm
PACKAGE DIMENSIONS (L x W x H)
445 x 345 x 450 mm
STRUCTURE THICKNESS
0.6 mm
MATERIALS
SPCC, tempered glass, plastic
FORM FACTOR
M-ATX/ITX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 2 or 3.5" HDD: 0 + 2.5" SSD: 3
CPU MAX HEIGHT
157 mm
GPU MAX LENGTH
330 mm

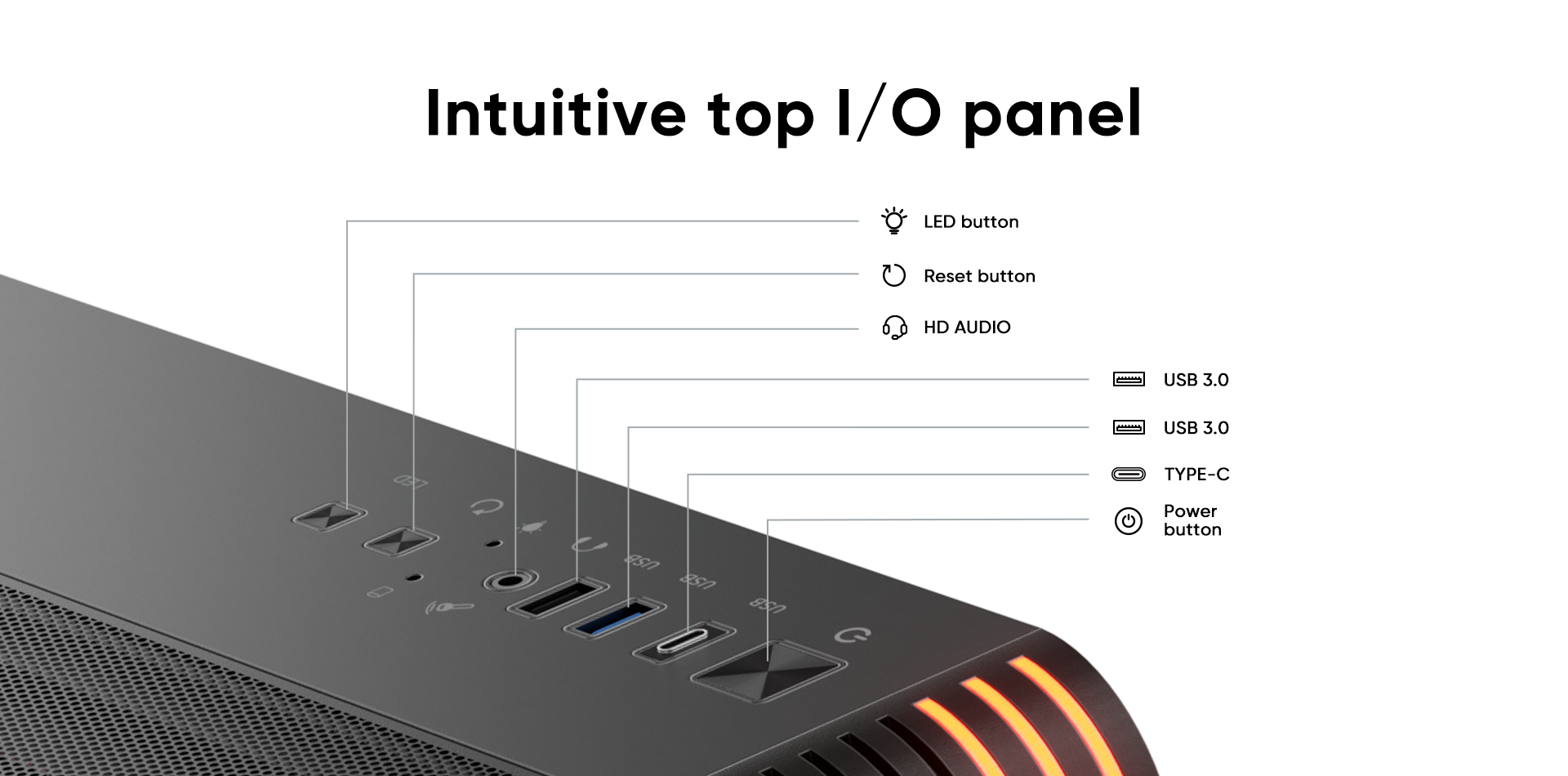

I/O PANEL
USB 3.0 x 2 + HD AUDIO
PCI CARD SLOT
4
FAN SUPPORT
Front: 2 x 12 cm, Side: 2 x 12 cm, Top: 2 x 12 cm
Rear: 1 x 12 cm, Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Front: 24 cm
POWER SUPPLY SUPPORT
Bottom mount (160 mm)
WEIGHT
N.W.: 4.87 kg
G.W.: 6.1 kg
