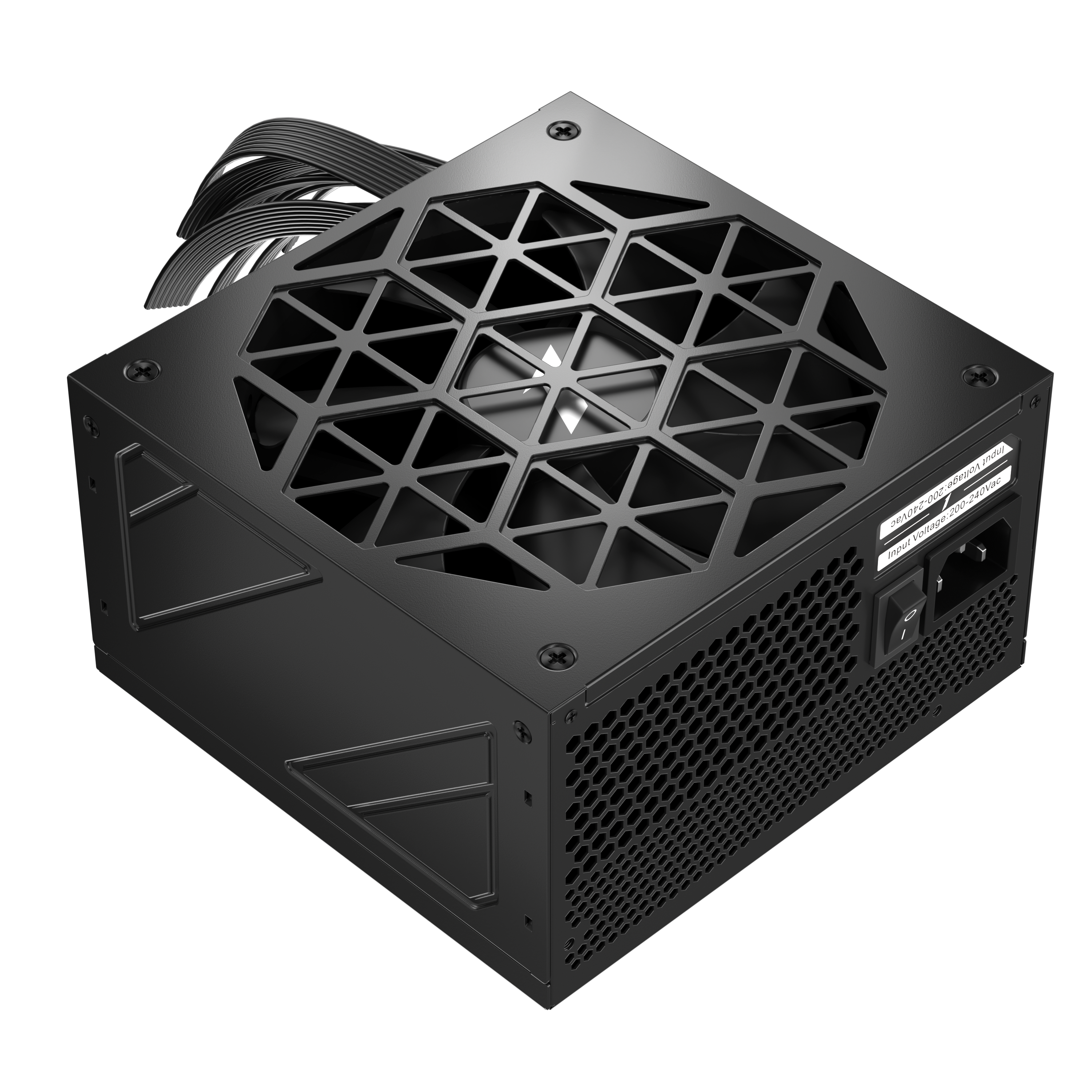

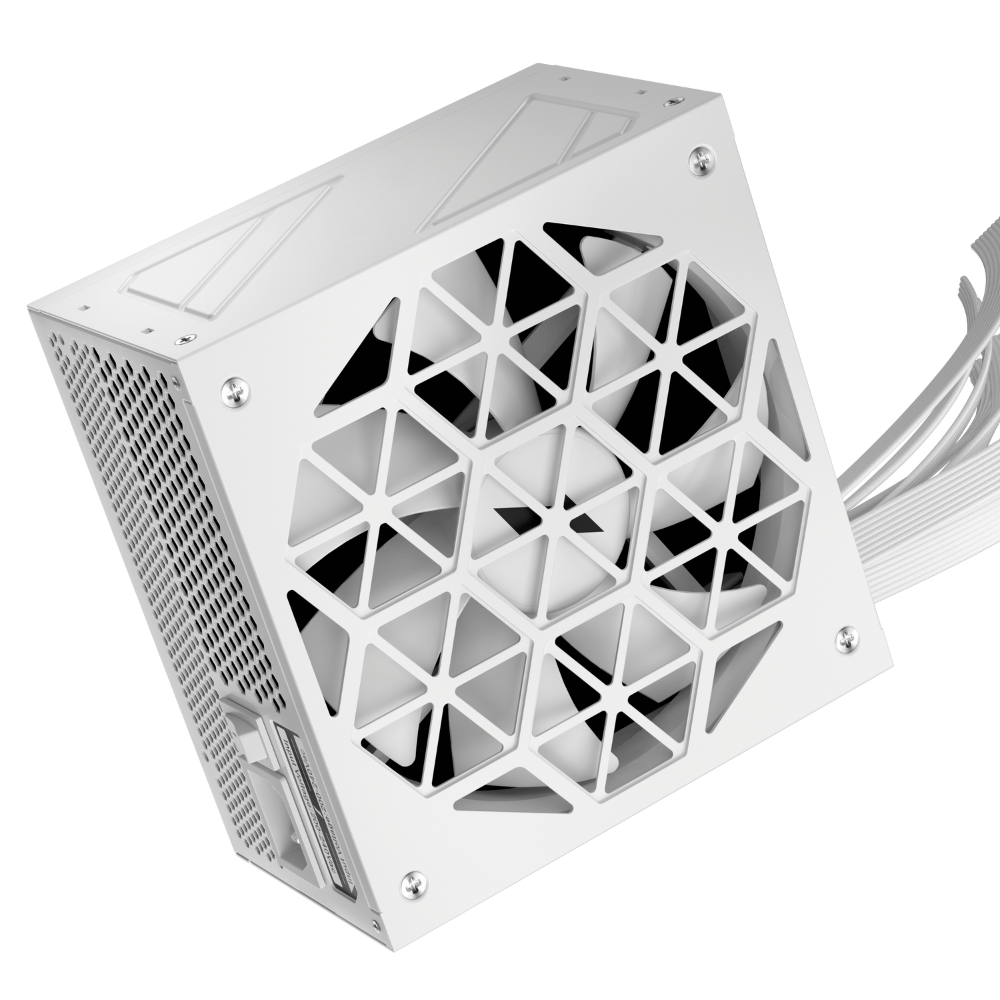

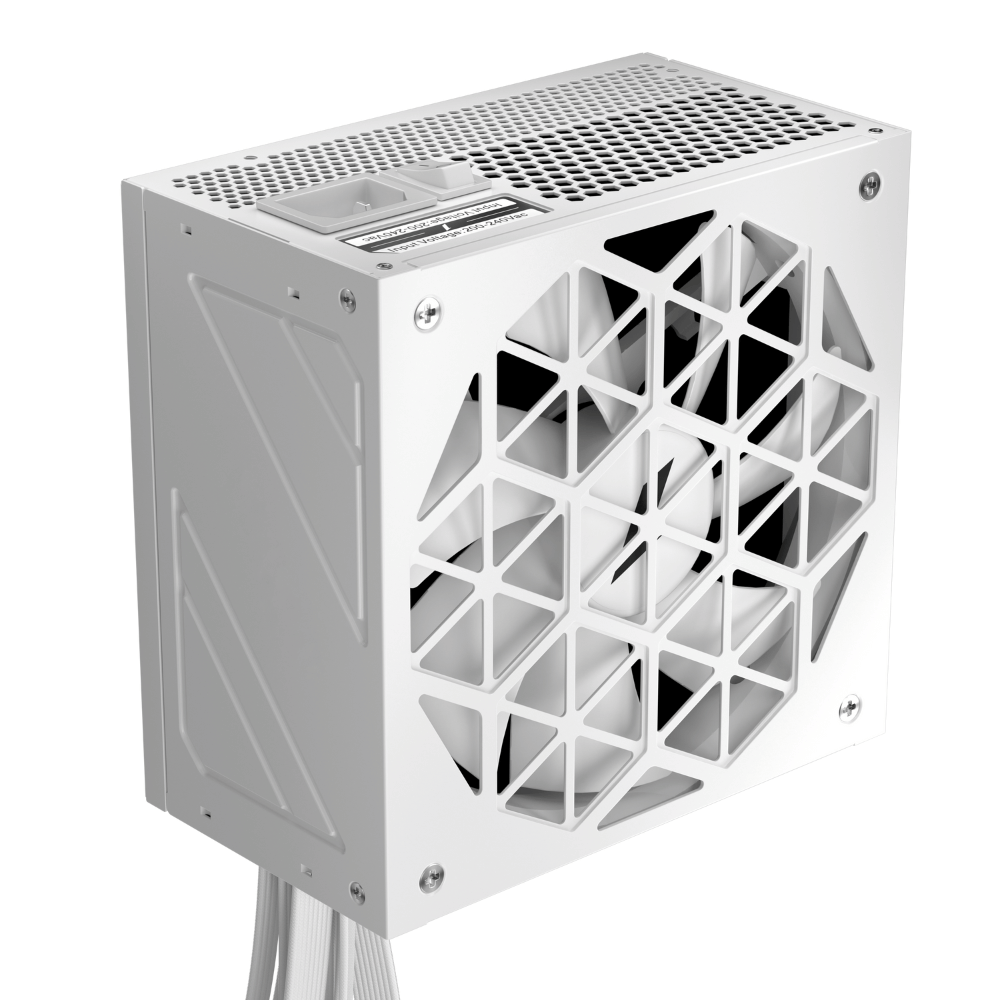

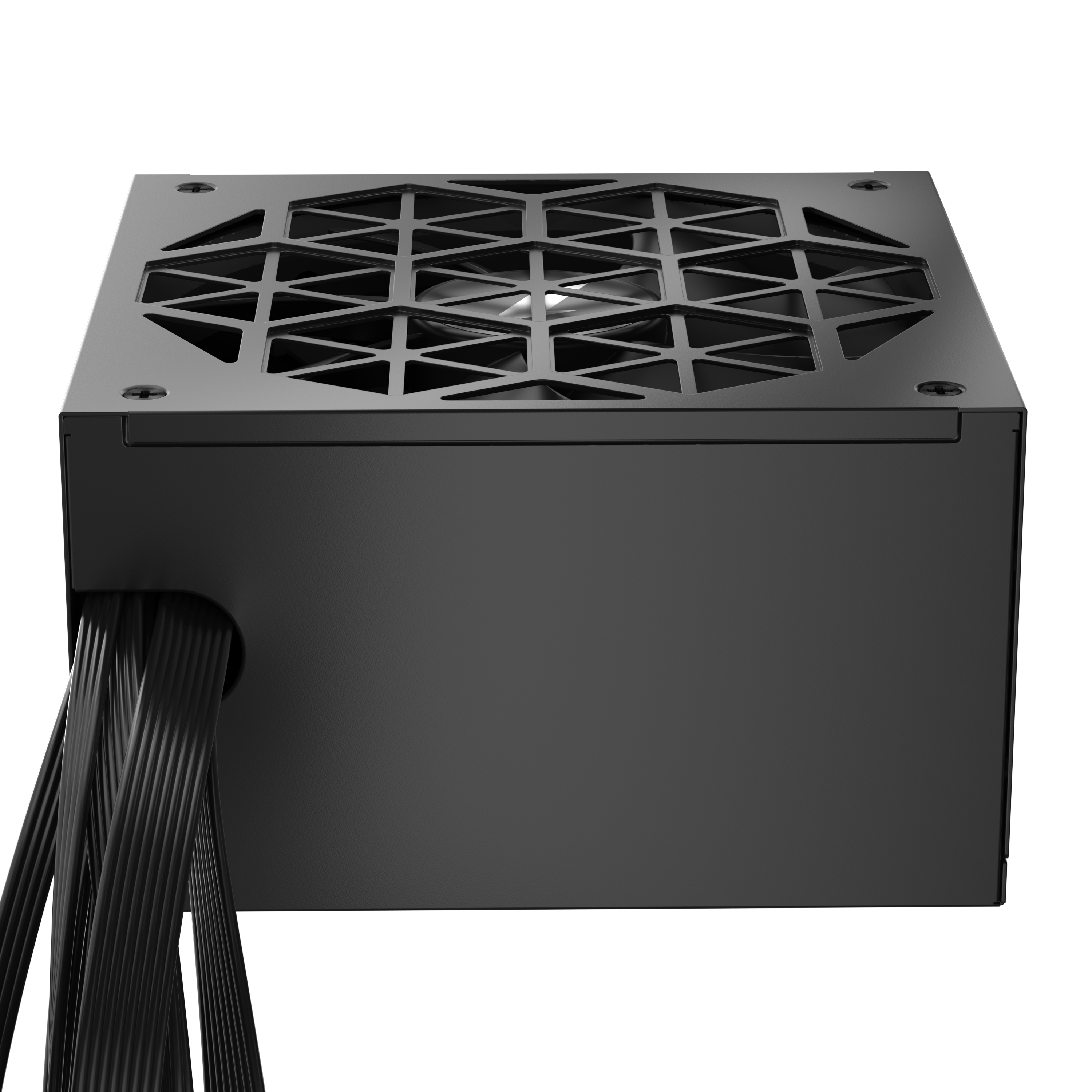

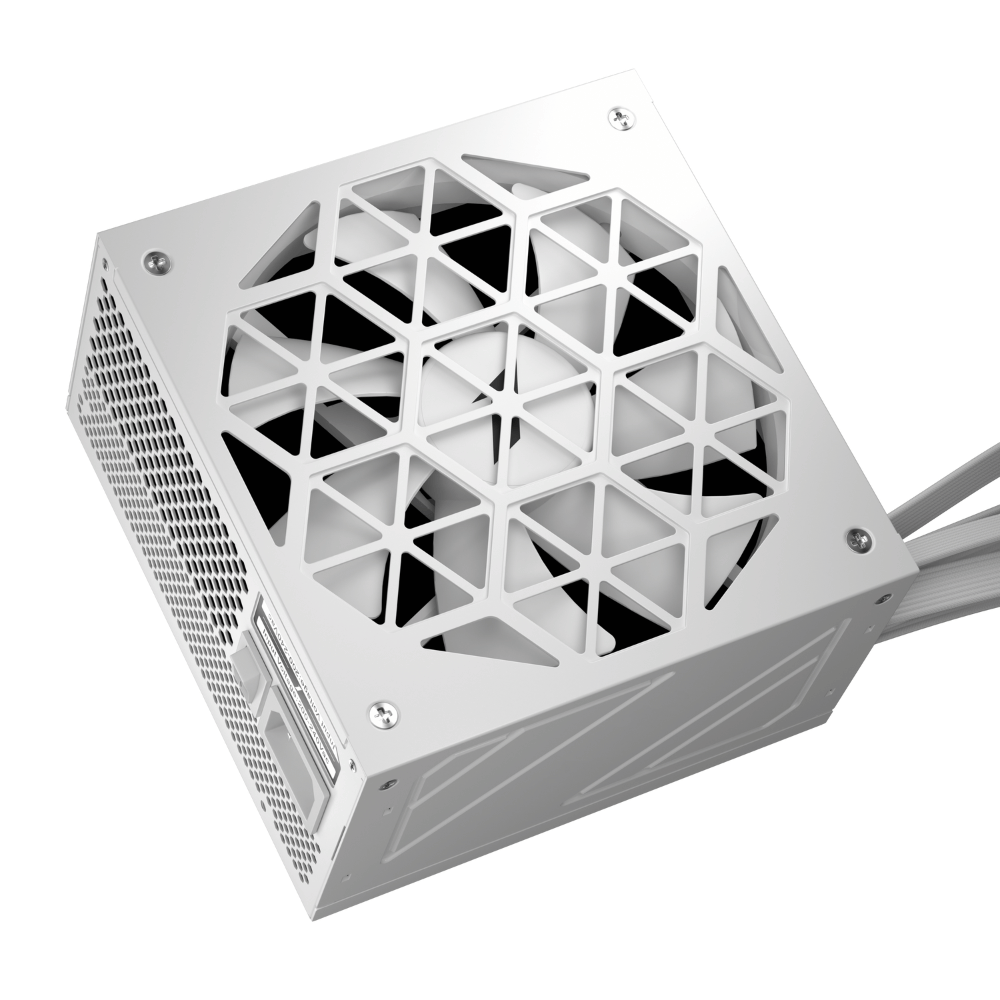

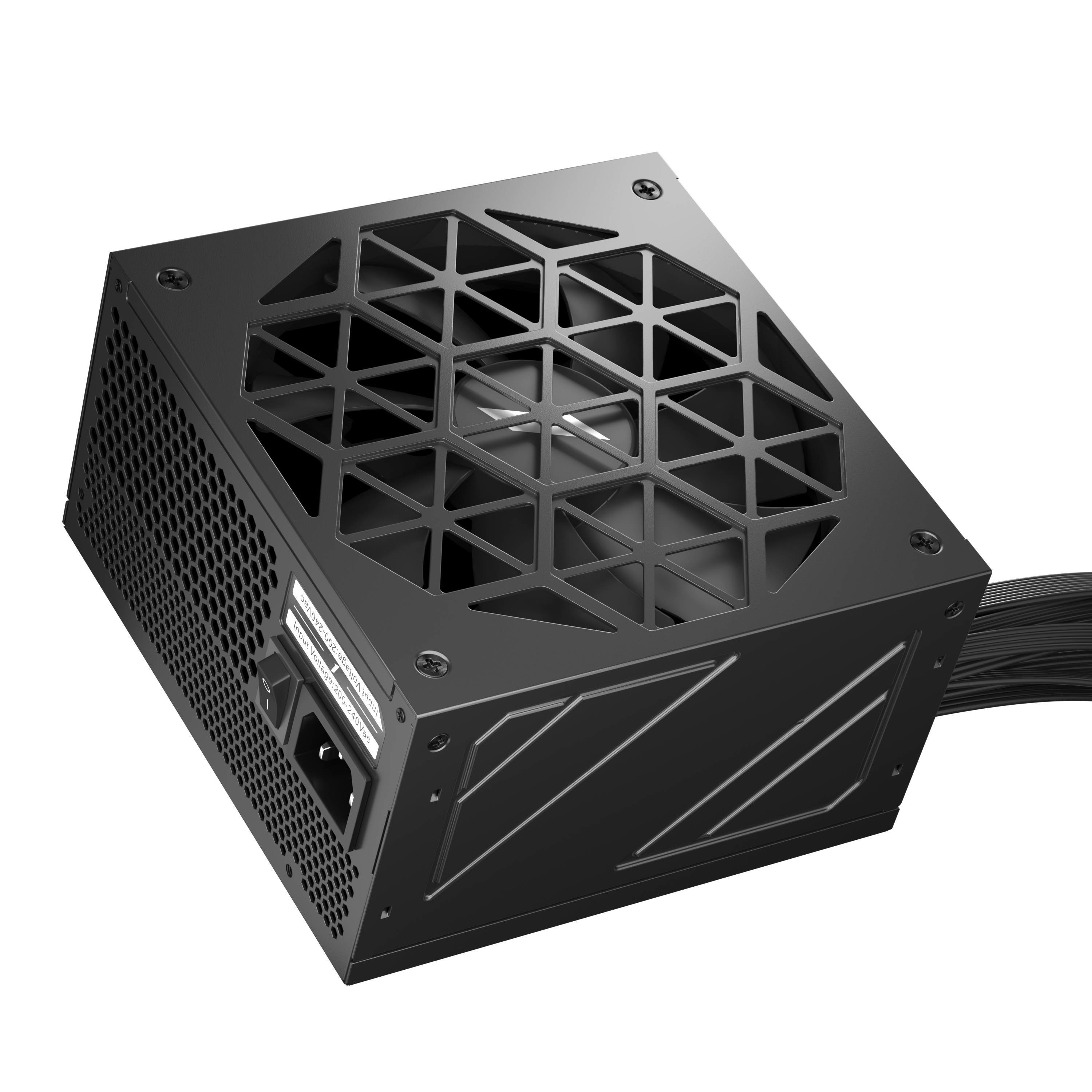

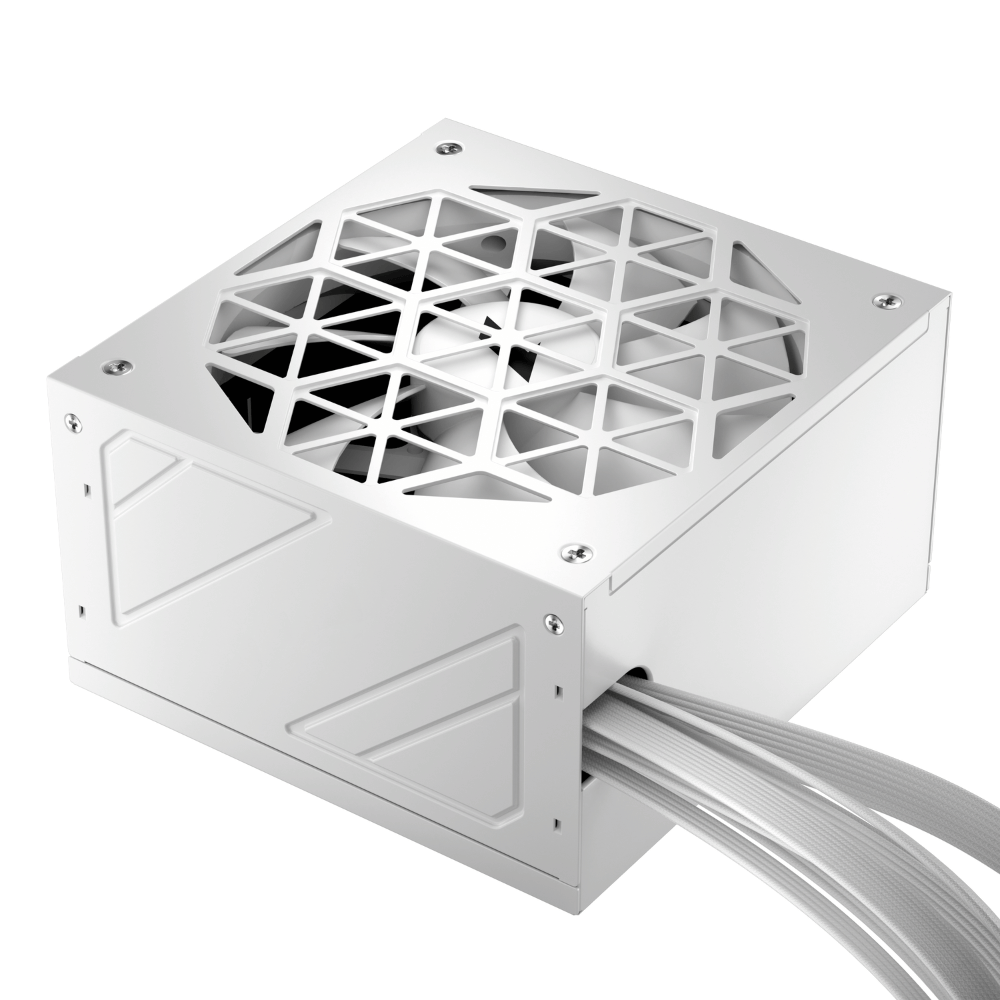

ACK 550W / 650W/750W

550W / 650W / 750W

MODEL

HA-550AC1 / HA-650AC1 / HA-750AC2

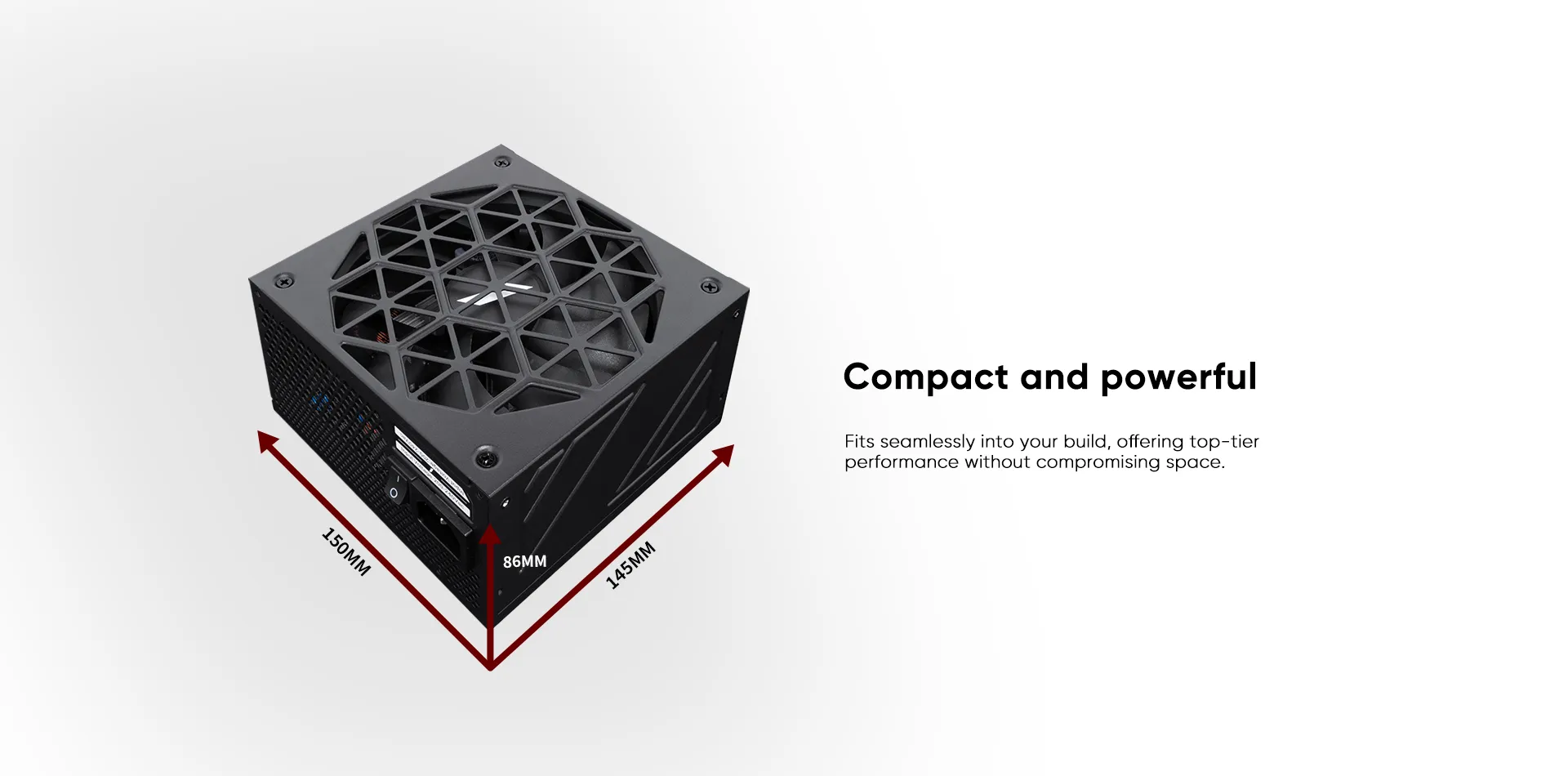

DIMENSIONS (L x W x H)

145 x 150 x 86 mm

MODULAR

Non-modular

CERTIFICATIONS

80 PLUS

WARRANTY

5 Years

INPUT VOLTAGE

200- 240V

INPUT CURRENT

6 A MAX / 6 A MAX / 10 A MAX

EFFICIENCY

87% at typical load / 87.5% at typical load / 88.5% at typical load

OUTPUT CAPACITY

550W / 650W / 750W

INPUT FREQUENCY

47-63 Hz /47-63 Hz / 50-60 Hz

PFC

Active PFC

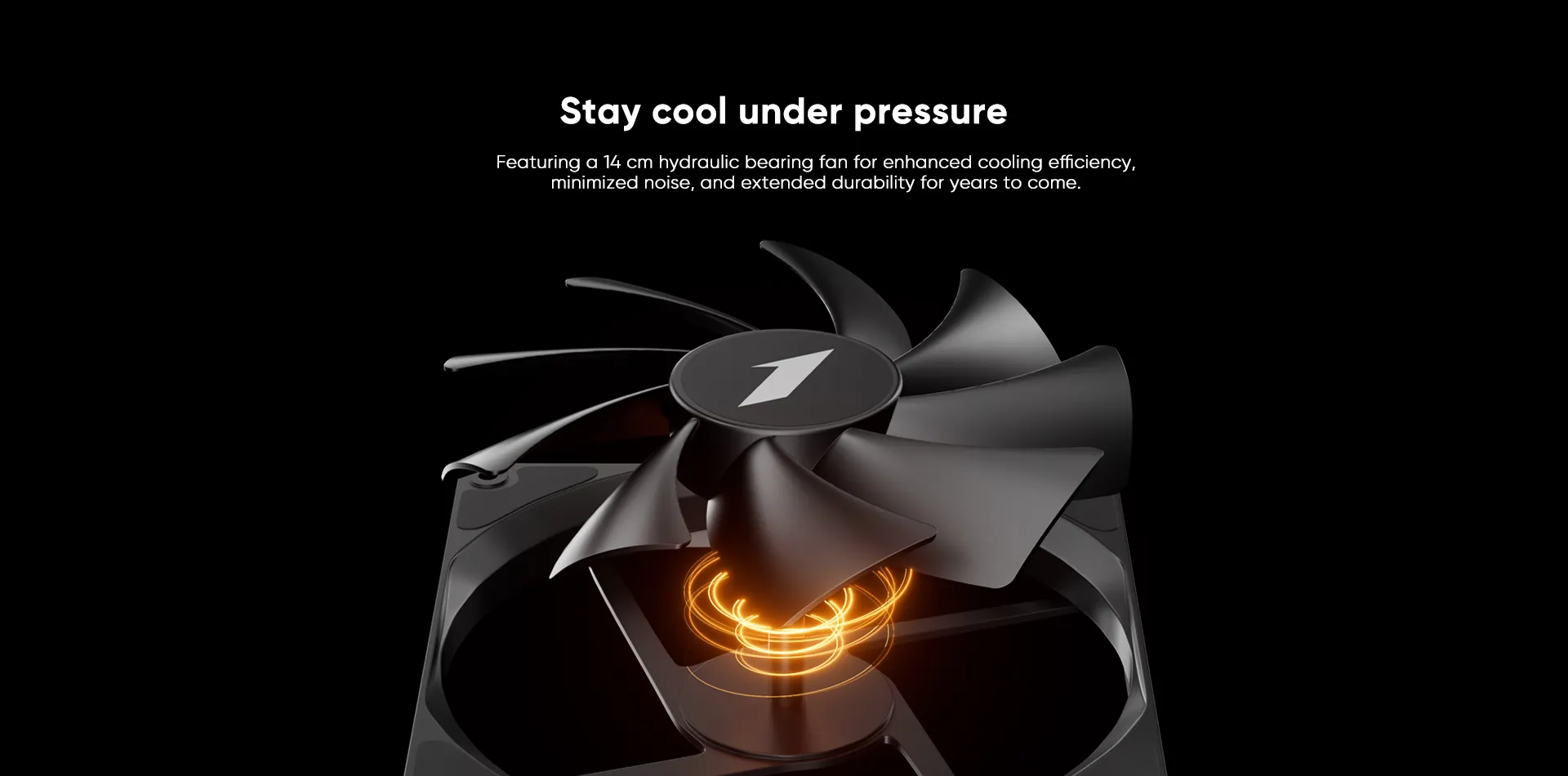

FAN SIZE

140 mm hydraulic bearing

PROTECTIONS

OVP, OPP, SCP

CIRCUIT STRUCTURE

Double forward topology

REGULATORY

EAC / CE / FCC / UKCA / RoHS
