Support up to 6 fans

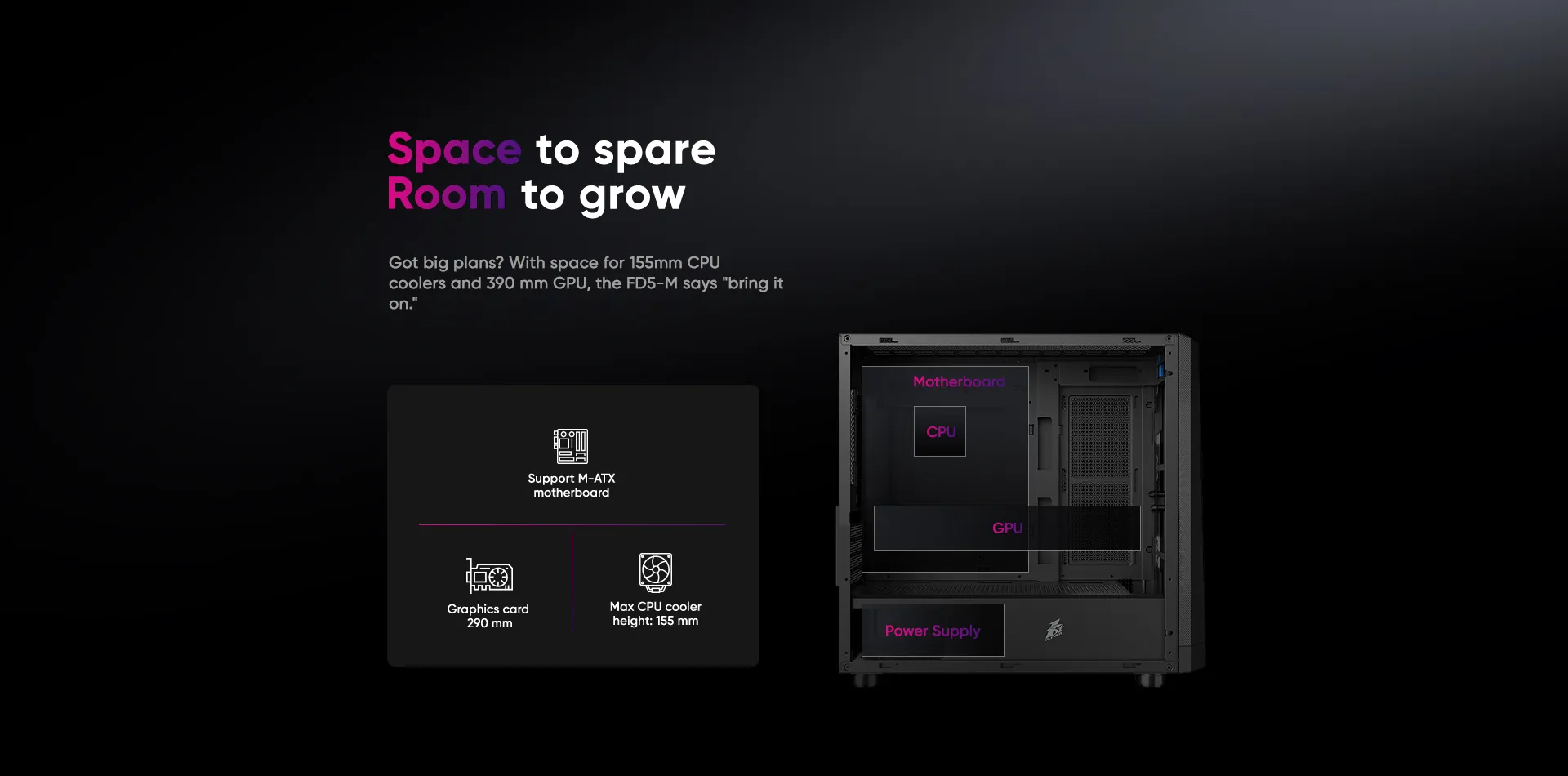

Support GPU length up to 390 mm
Support CPU cooler height up to 155 mm
Support 240 mm radiator at the top

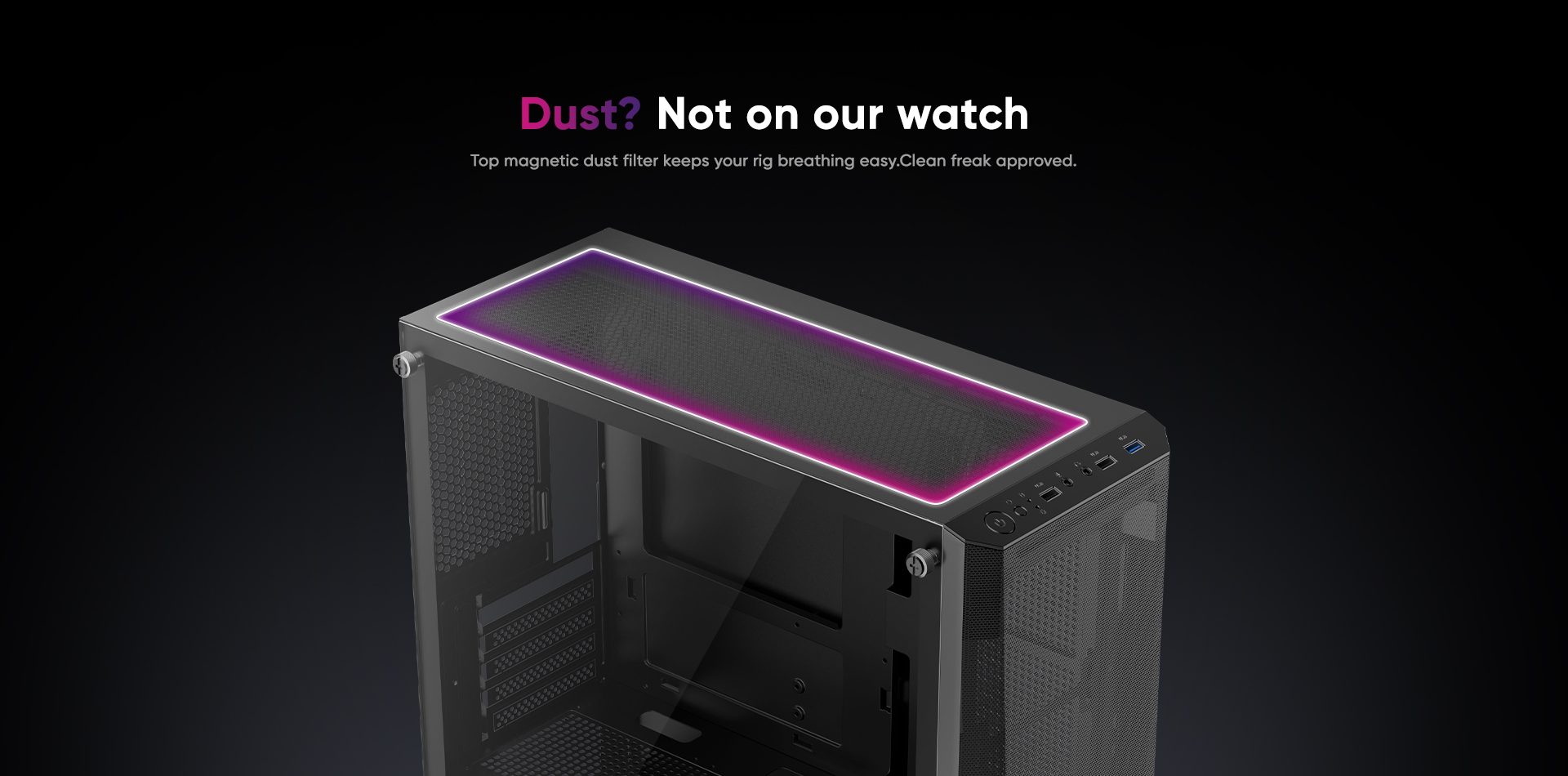

Easy-to-remove dust filter at the top and bottom for optimized airflow
*Computer parts are not included. Cooling fan may vary among different countries/regions.

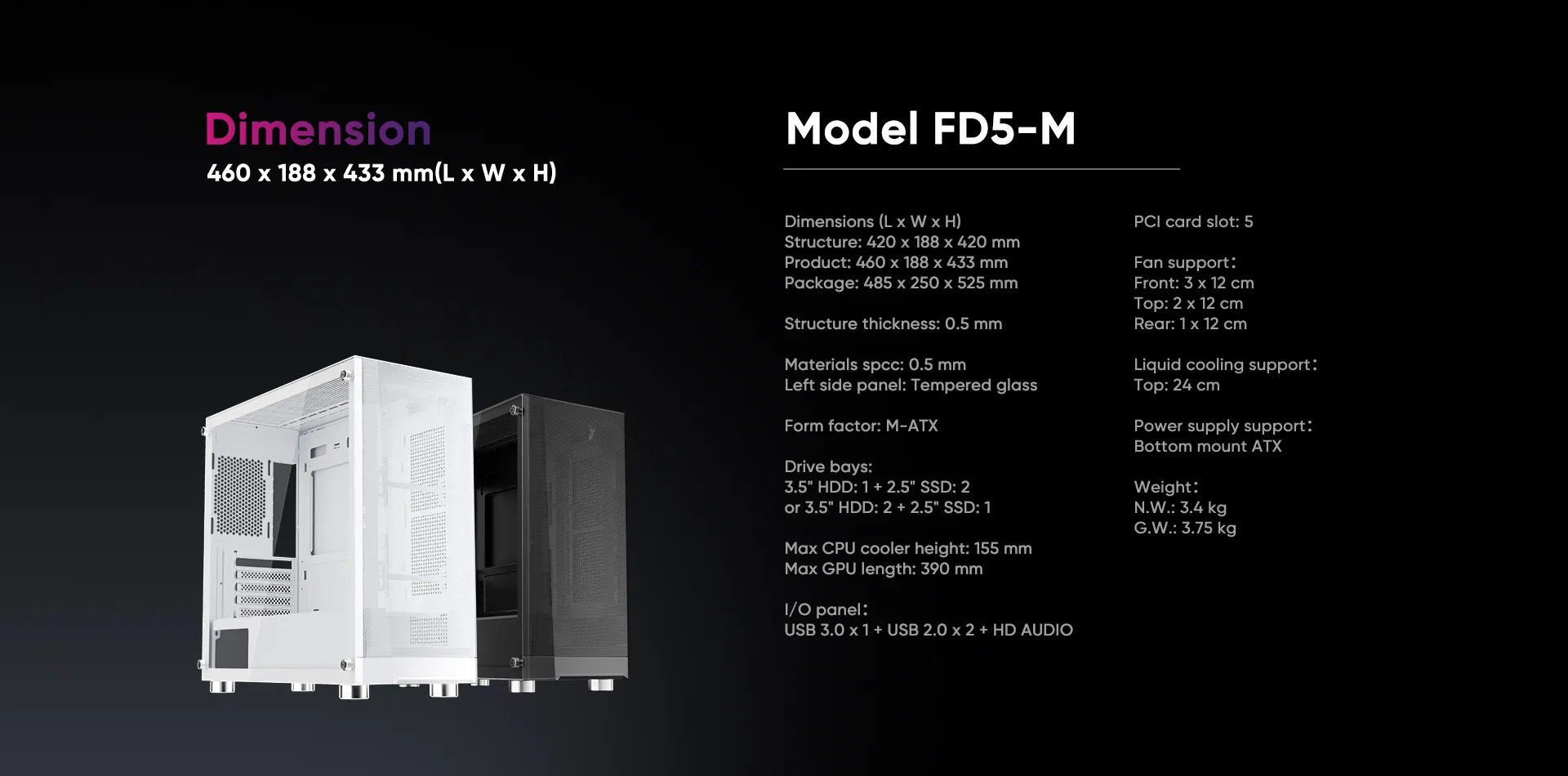

MODEL
FD5-M
STRUCTURE DIMENSIONS (L x W x H)
420 x 188 x 420 mm
PRODUCT DIMENSIONS (L x W x H)
460 x 188 x 433 mm
PACKAGE DIMENSIONS (L x W x H)
485 x 250 x 525 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm

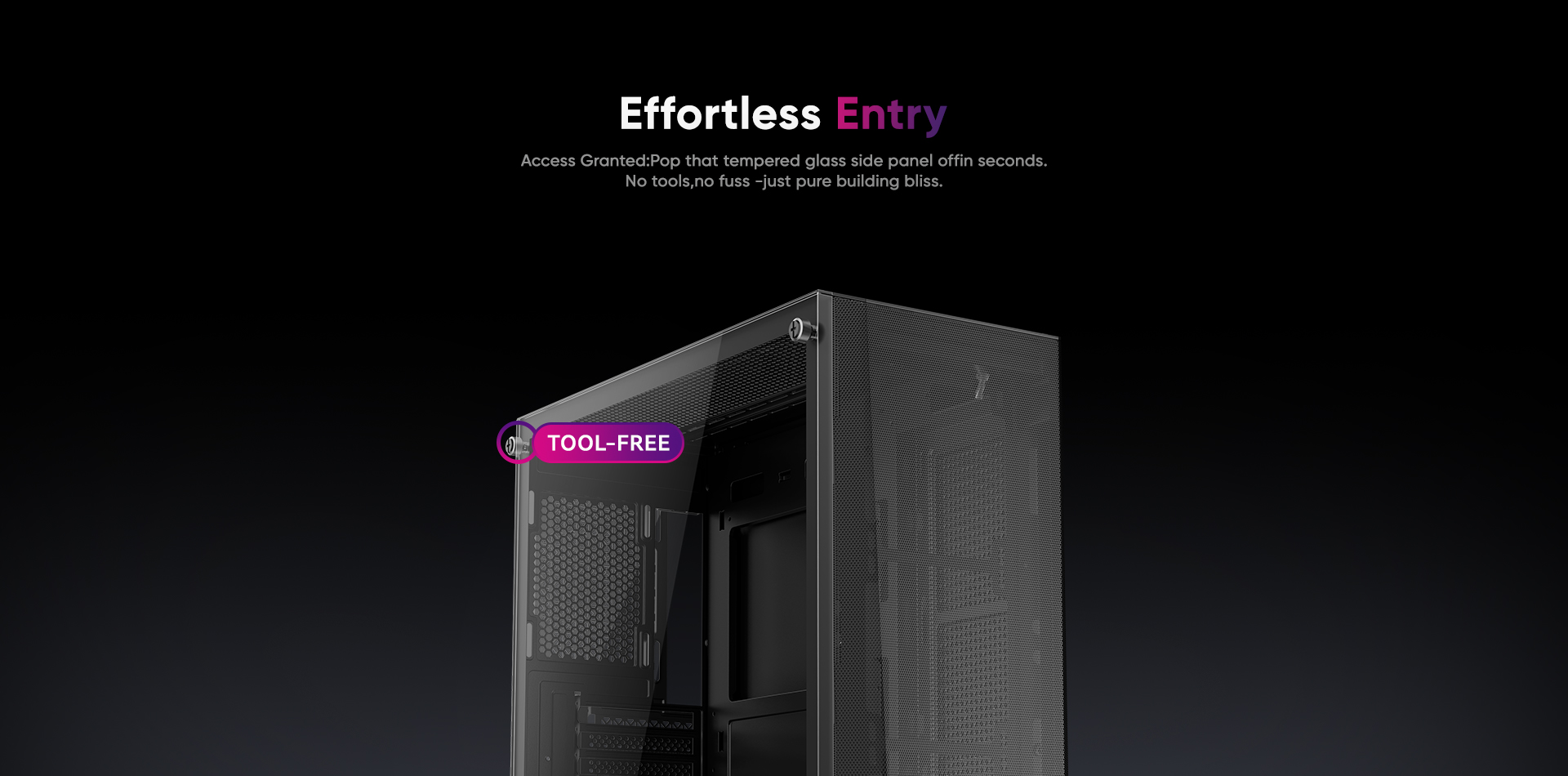

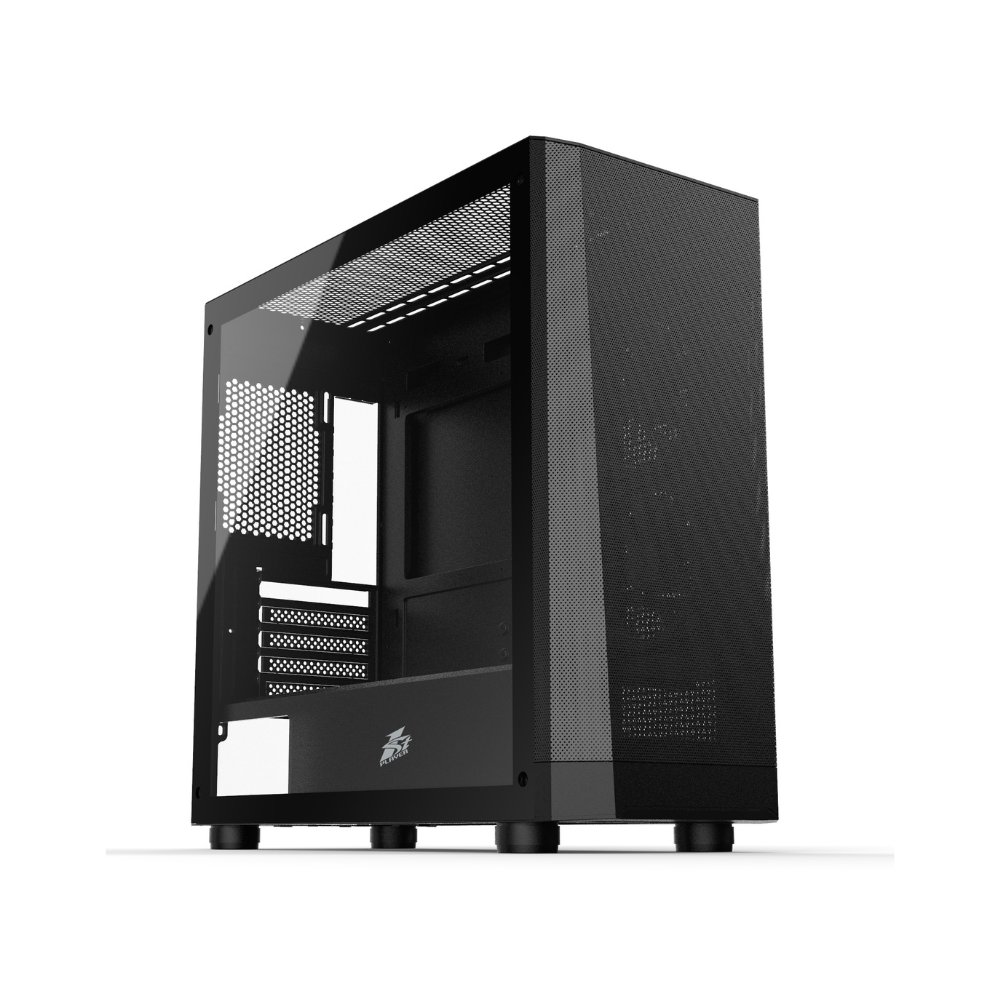

Left panel: Tempered glass
FORM FACTOR
M-ATX

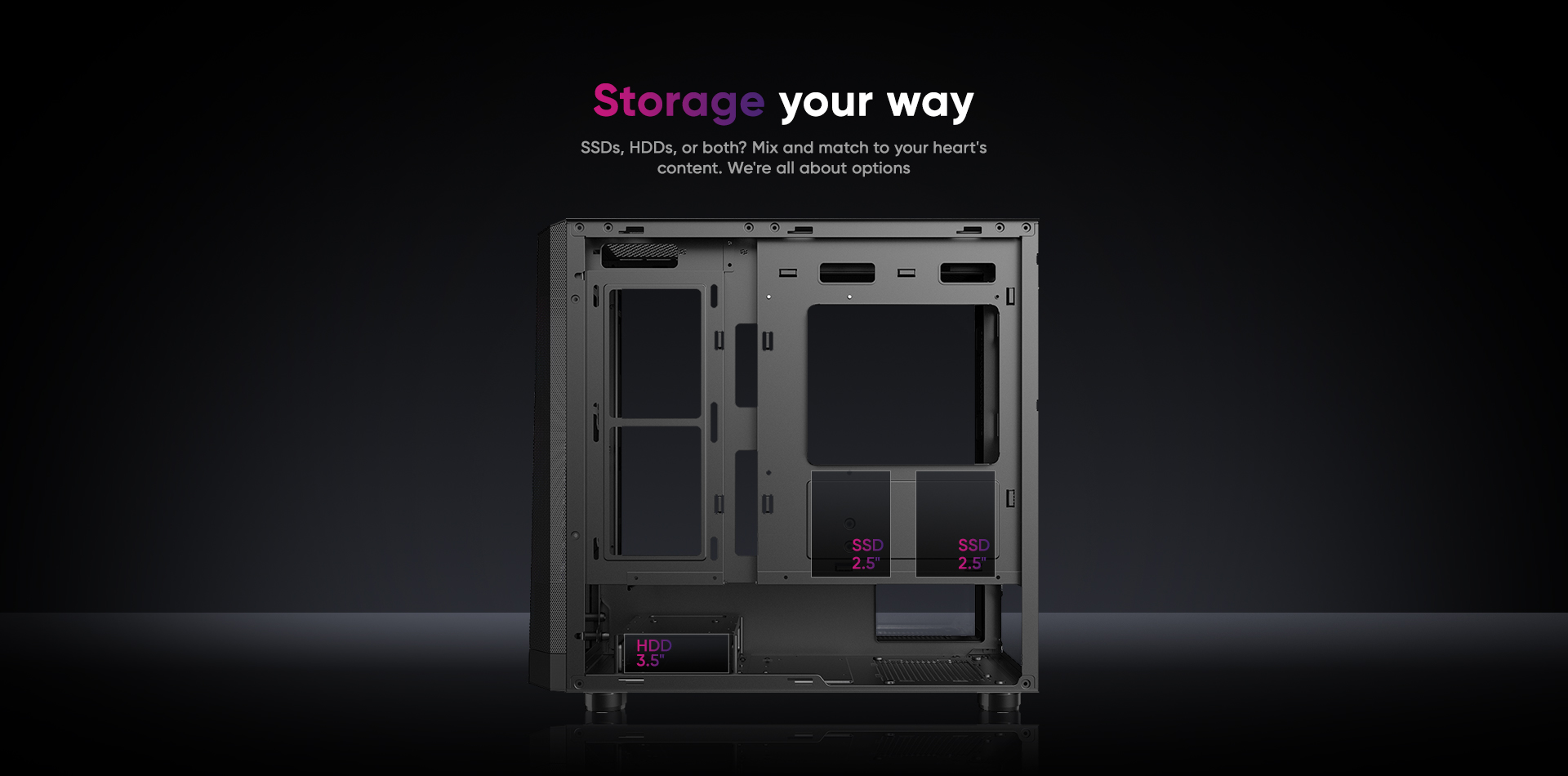

3.5" HDD: 1 + 2.5'' SSD: 2 or 3.5" HDD: 2 + 2.5'' SSD: 1
MAX CPU COOLER HEIGHT
155 mm
MAX GPU LENGTH
390 mm

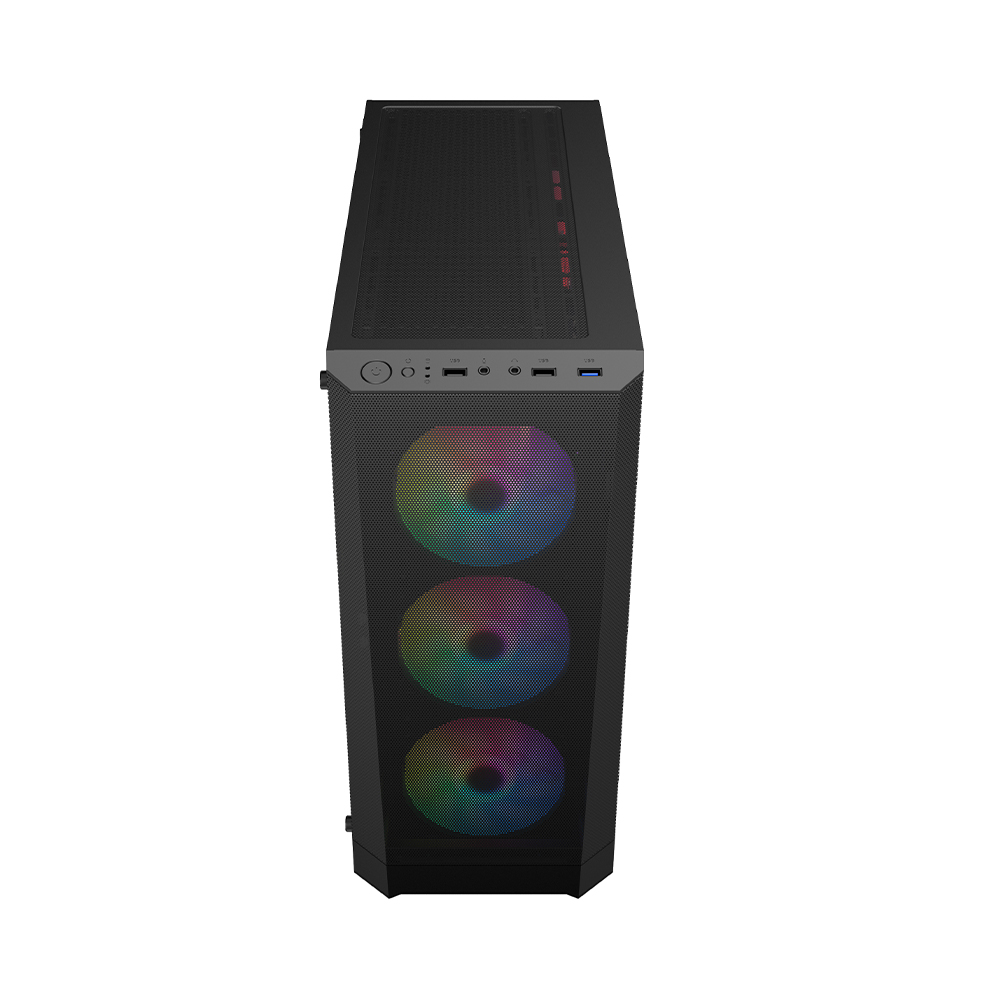

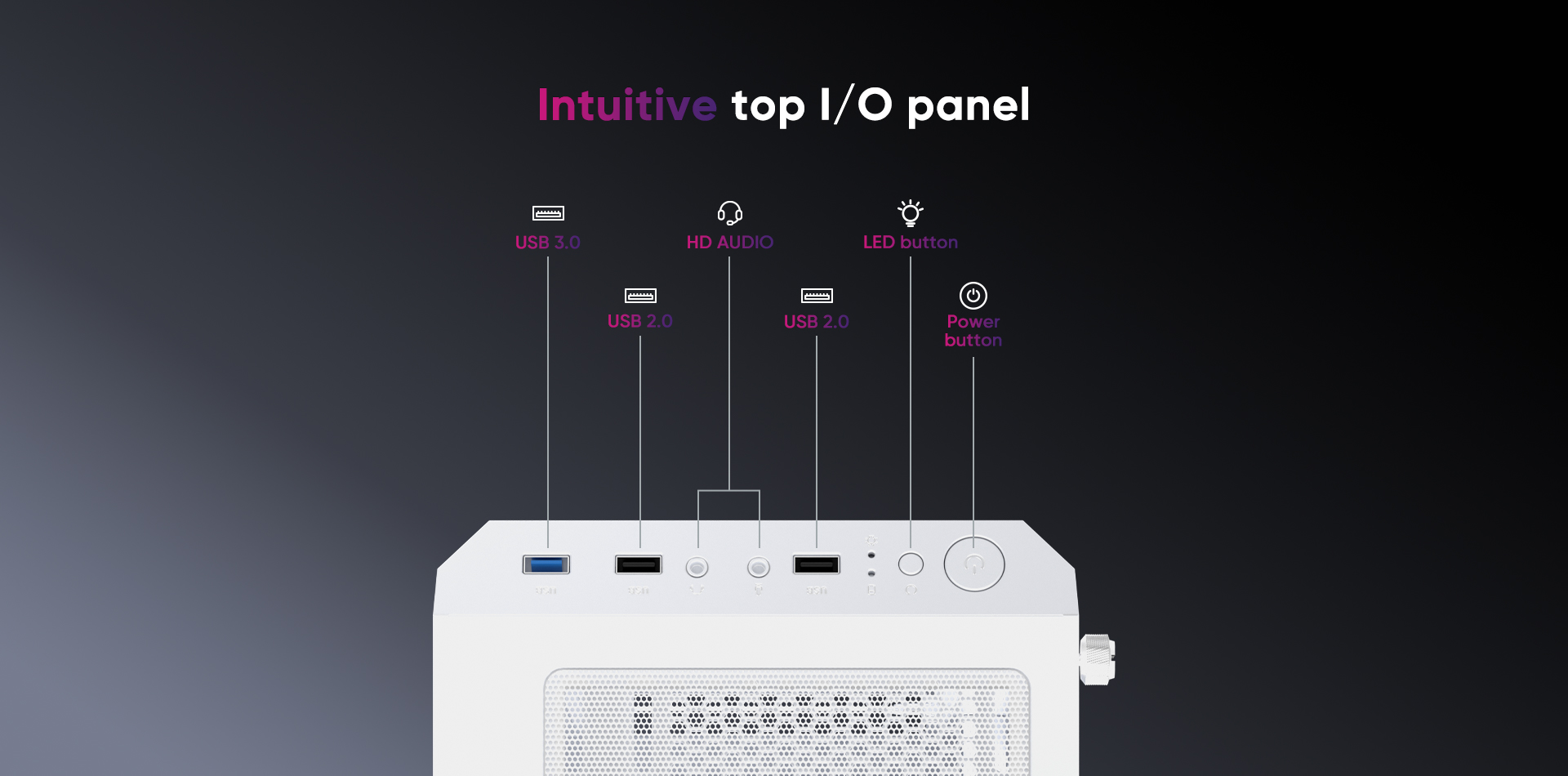

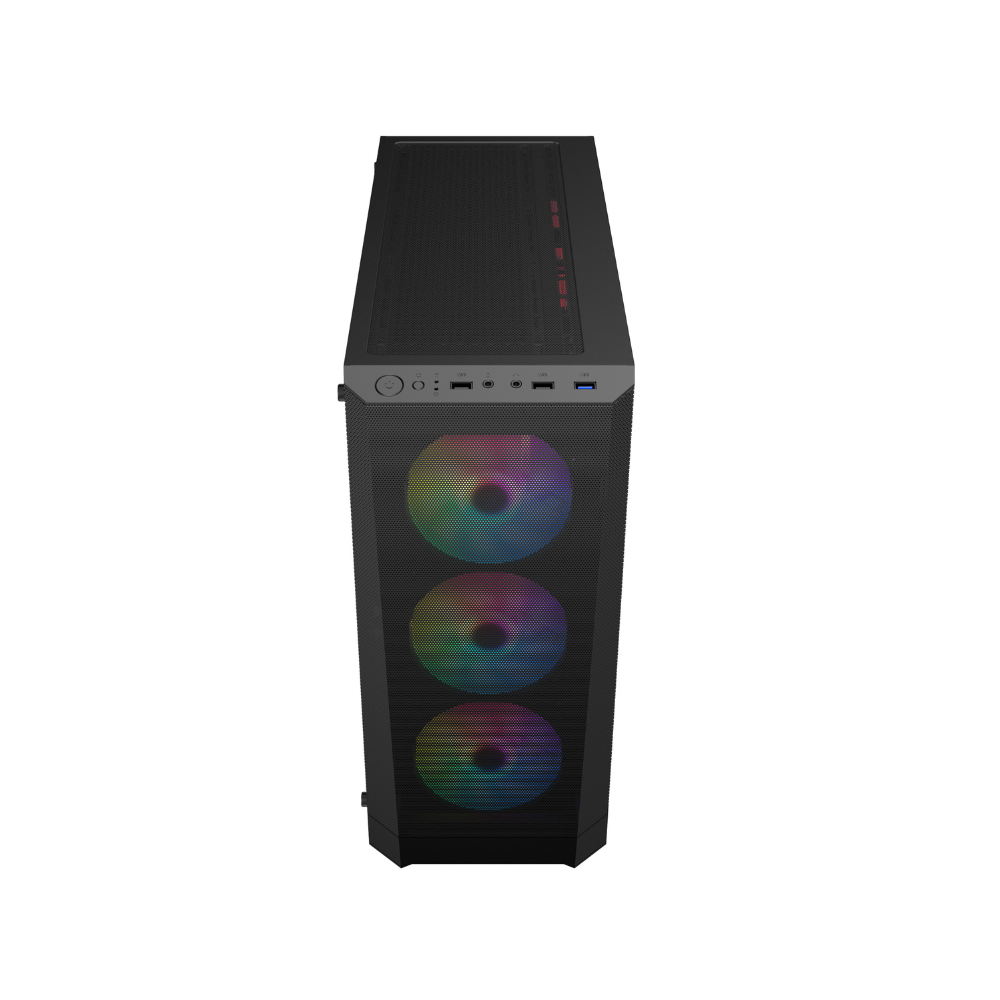

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD Audio
PCI CARD SLOT
5

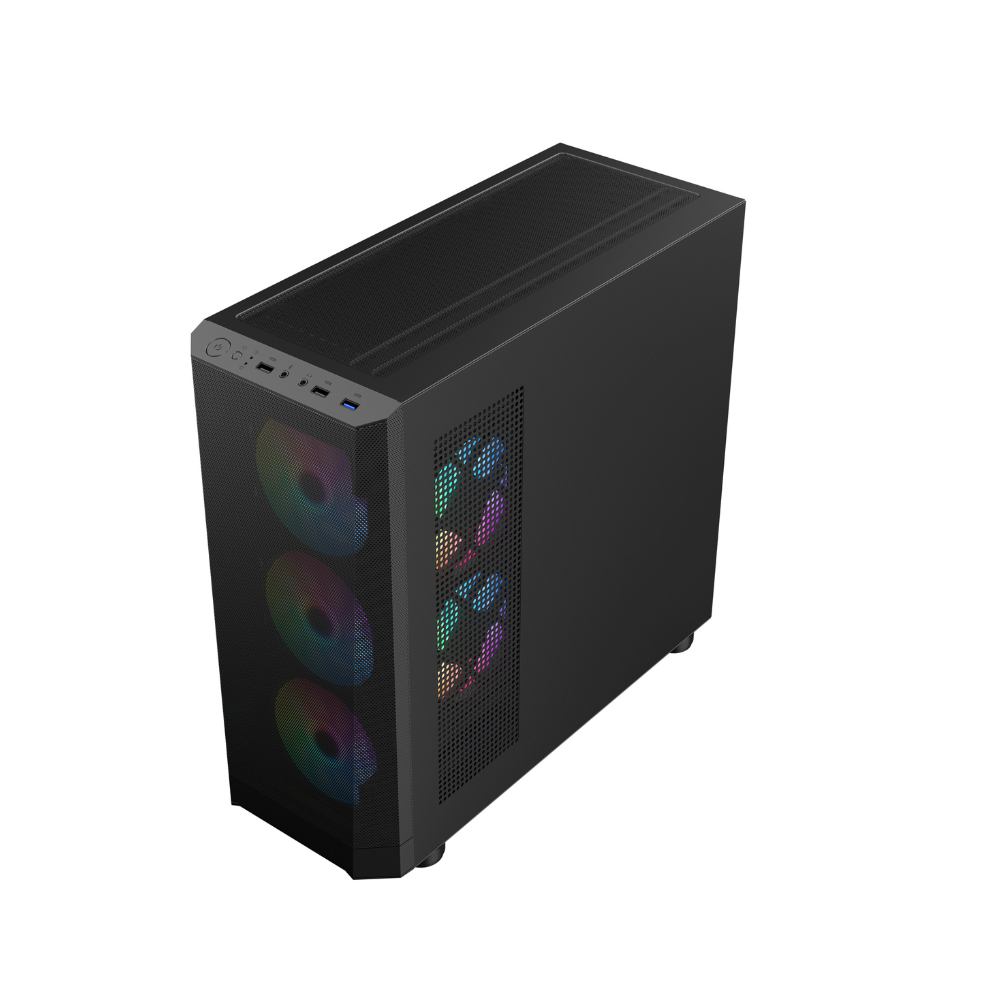

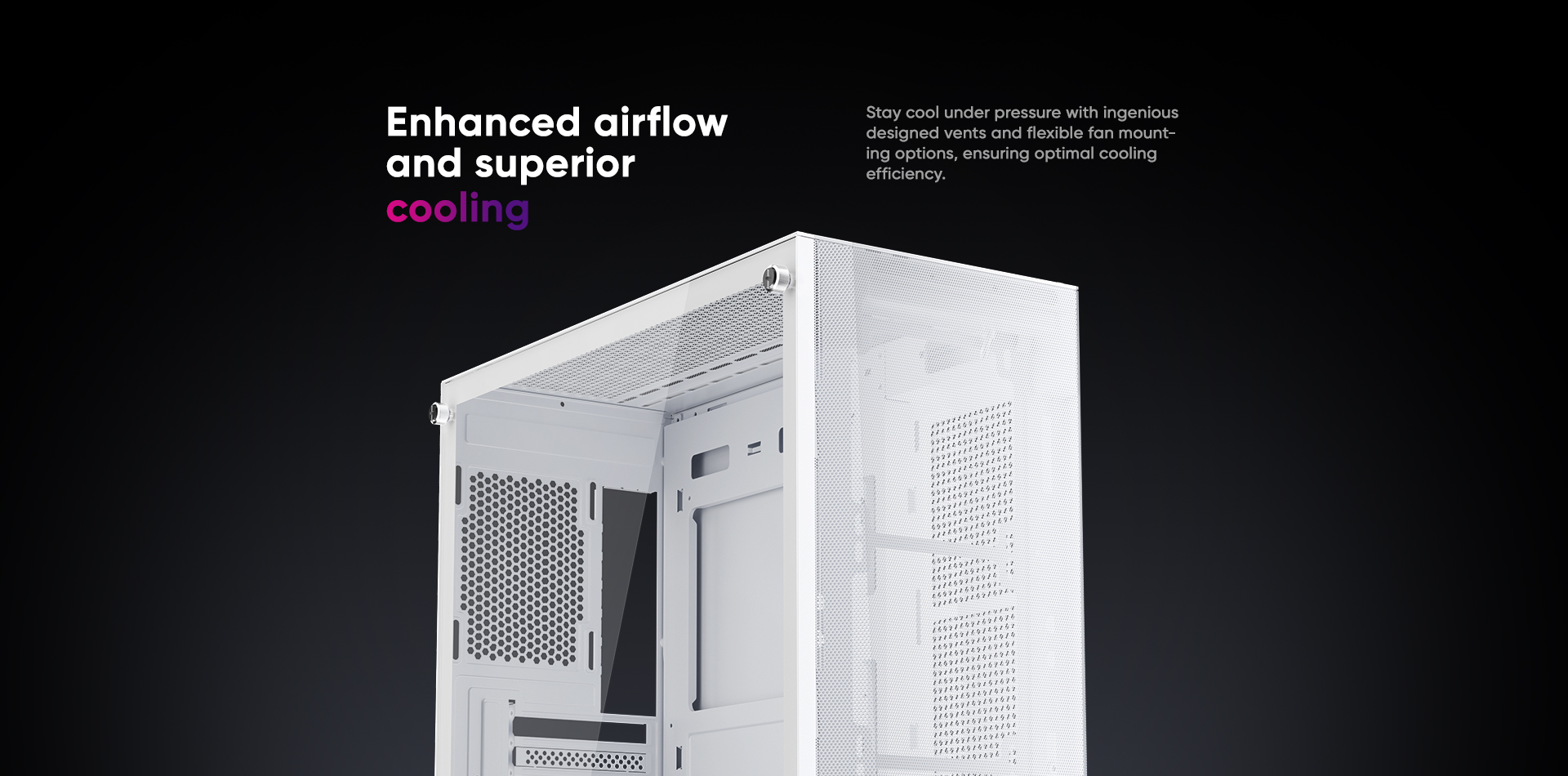

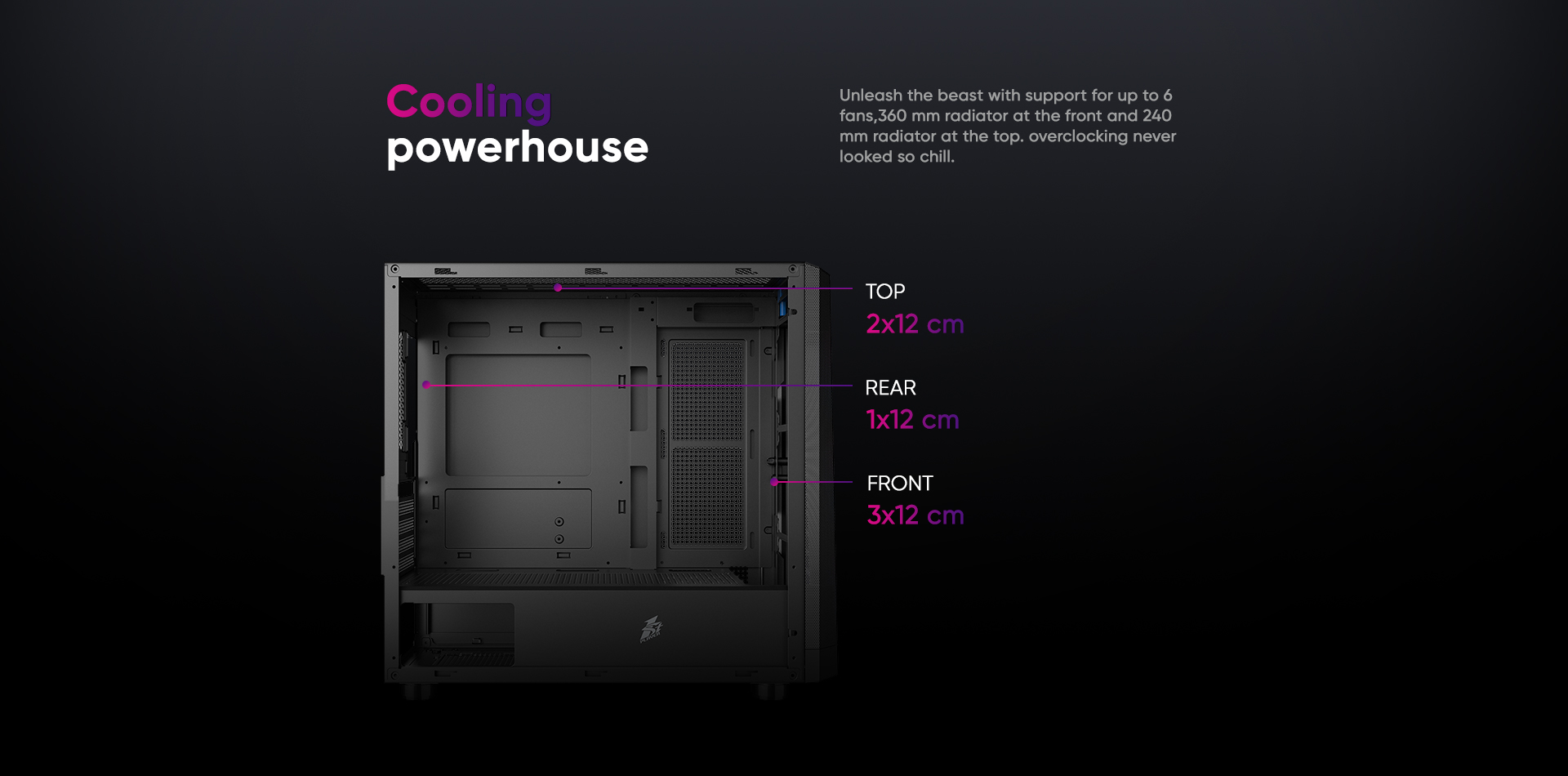

FAN SUPPORT

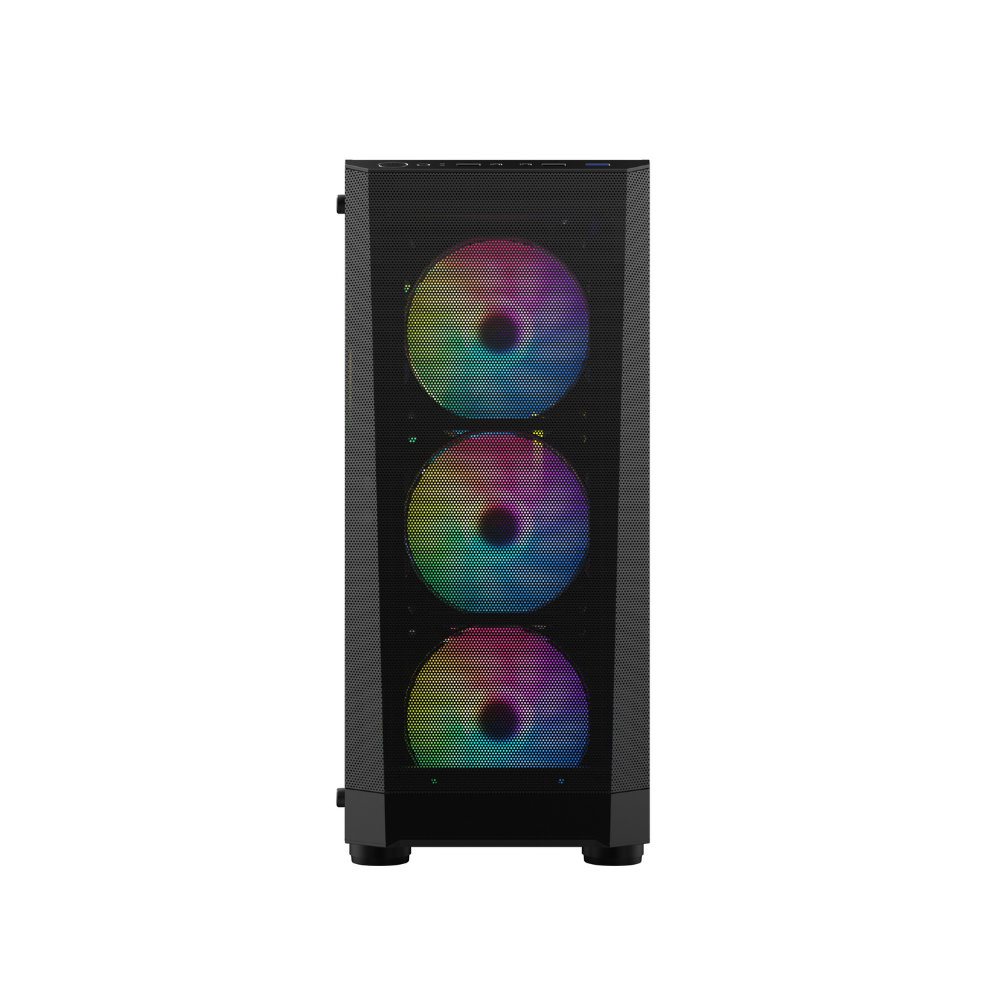

Front: 3 x 12 cm
Rear: 1 x 12 cm
Top: 2 x 12 cm
LIQUID COOLING SUPPORT
Top: 24 cm
POWER SUPPLY SUPPORT
Bottom mounted ATX
NET WEIGHT
N.W.: 3.4 kg
G.W.: 3.75 kg
