RT5

Power, Precision, Perfection

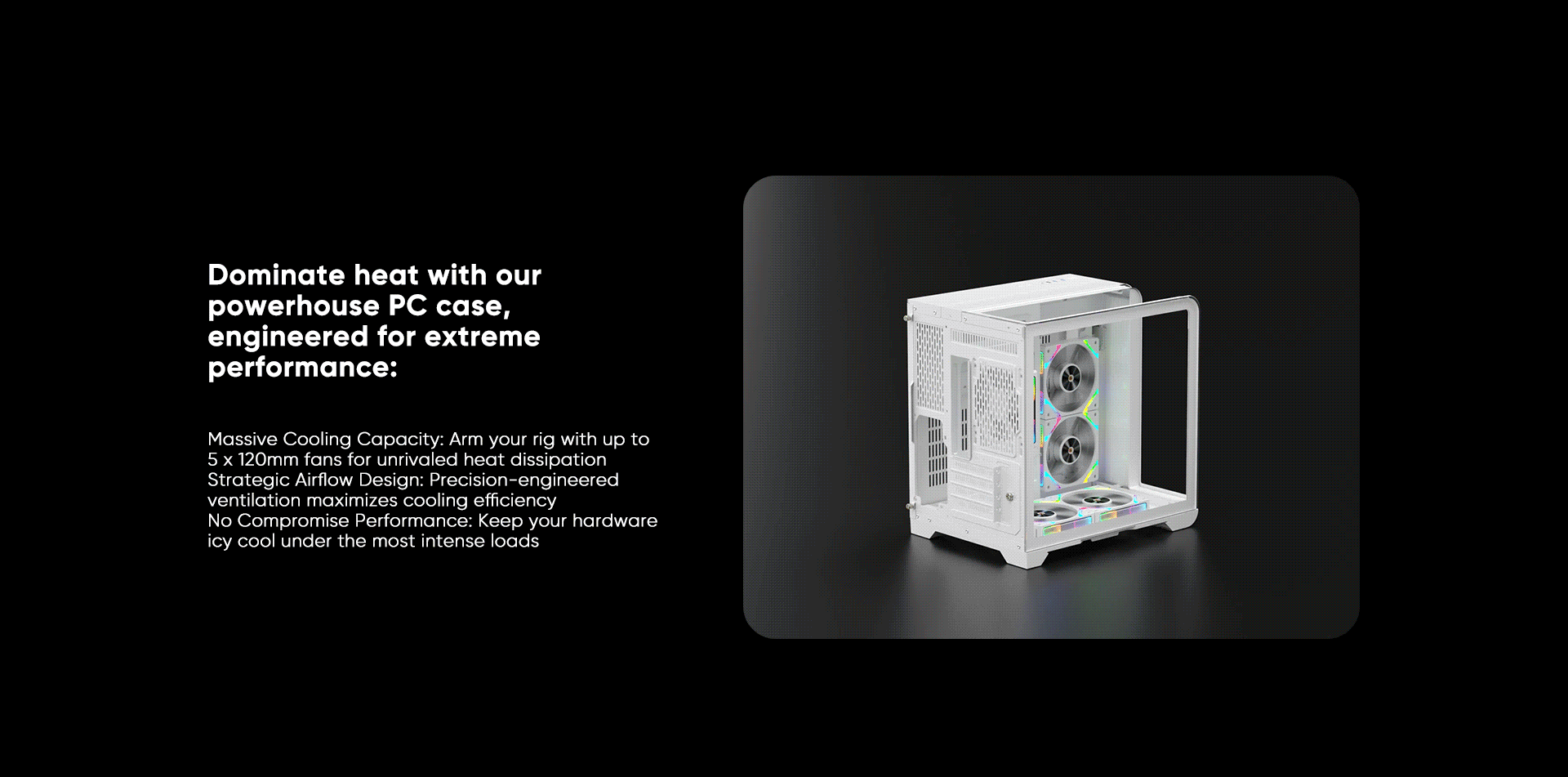

  • Support up to 5 fans

  • Support 240 mm radiator at the front

  • Support GPU length up to 330 mm

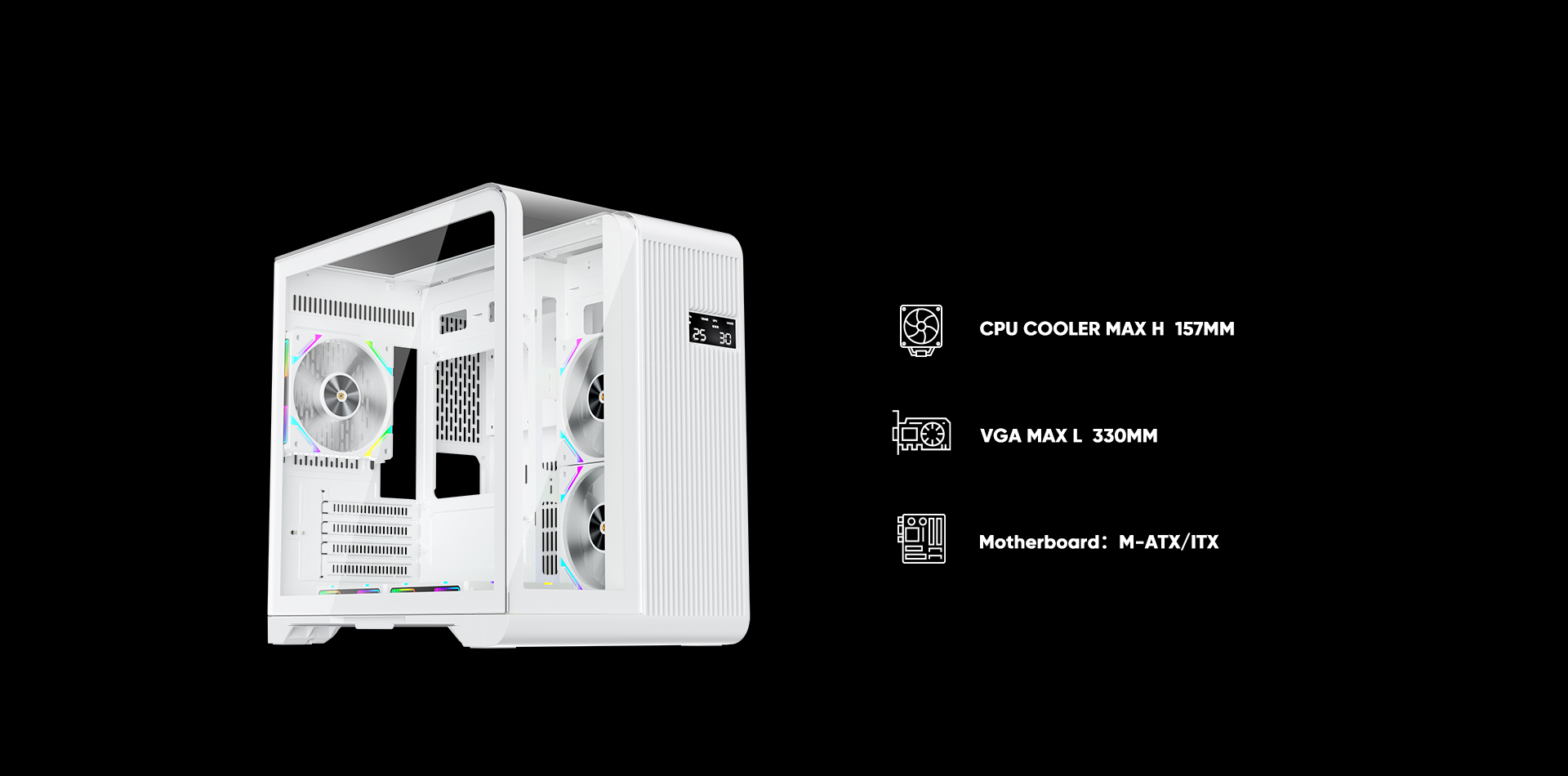

  • Support CPU cooler height up to 157 mm

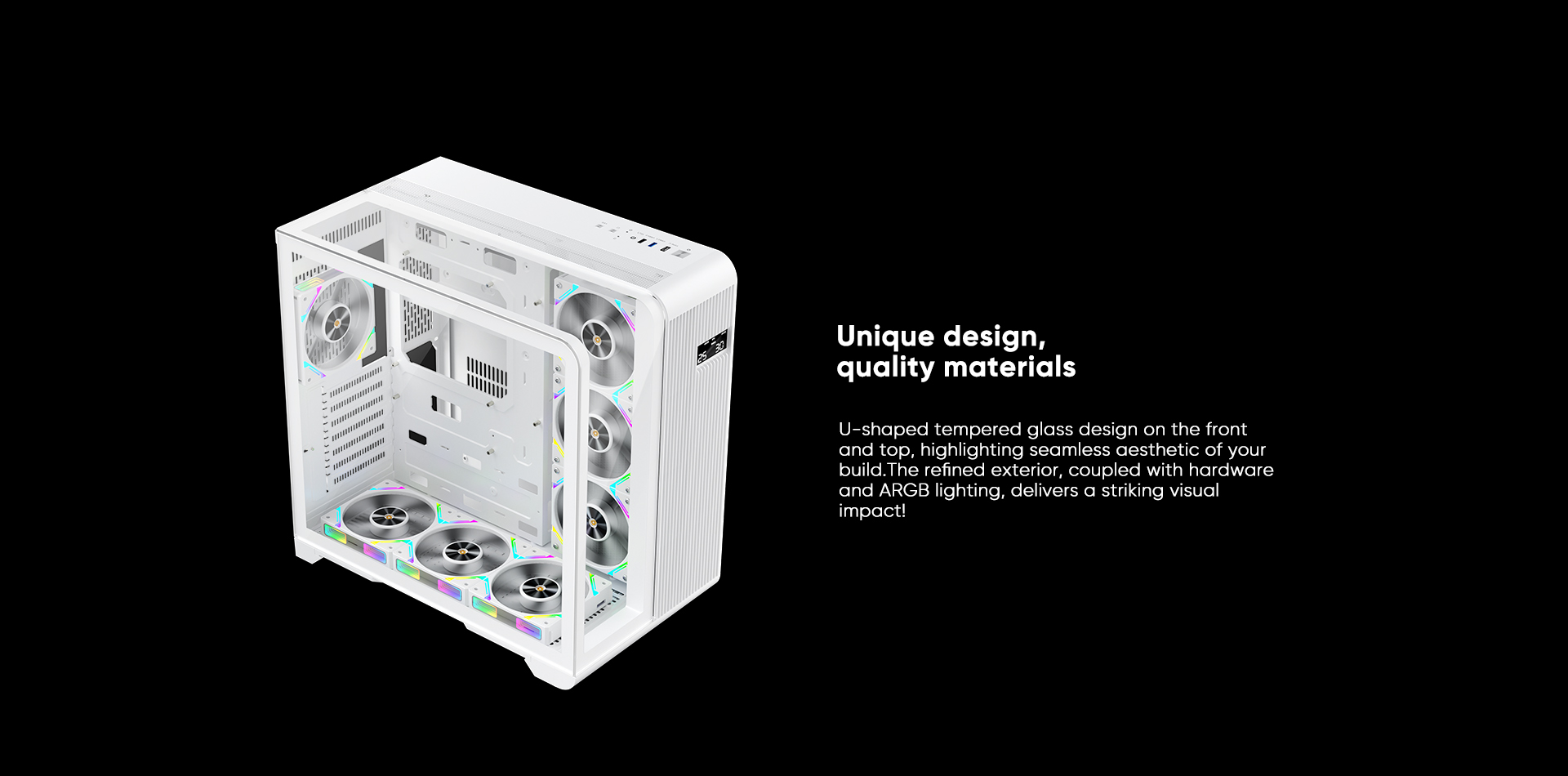

  • Front and top feature intergrated U-shaped tempered glass

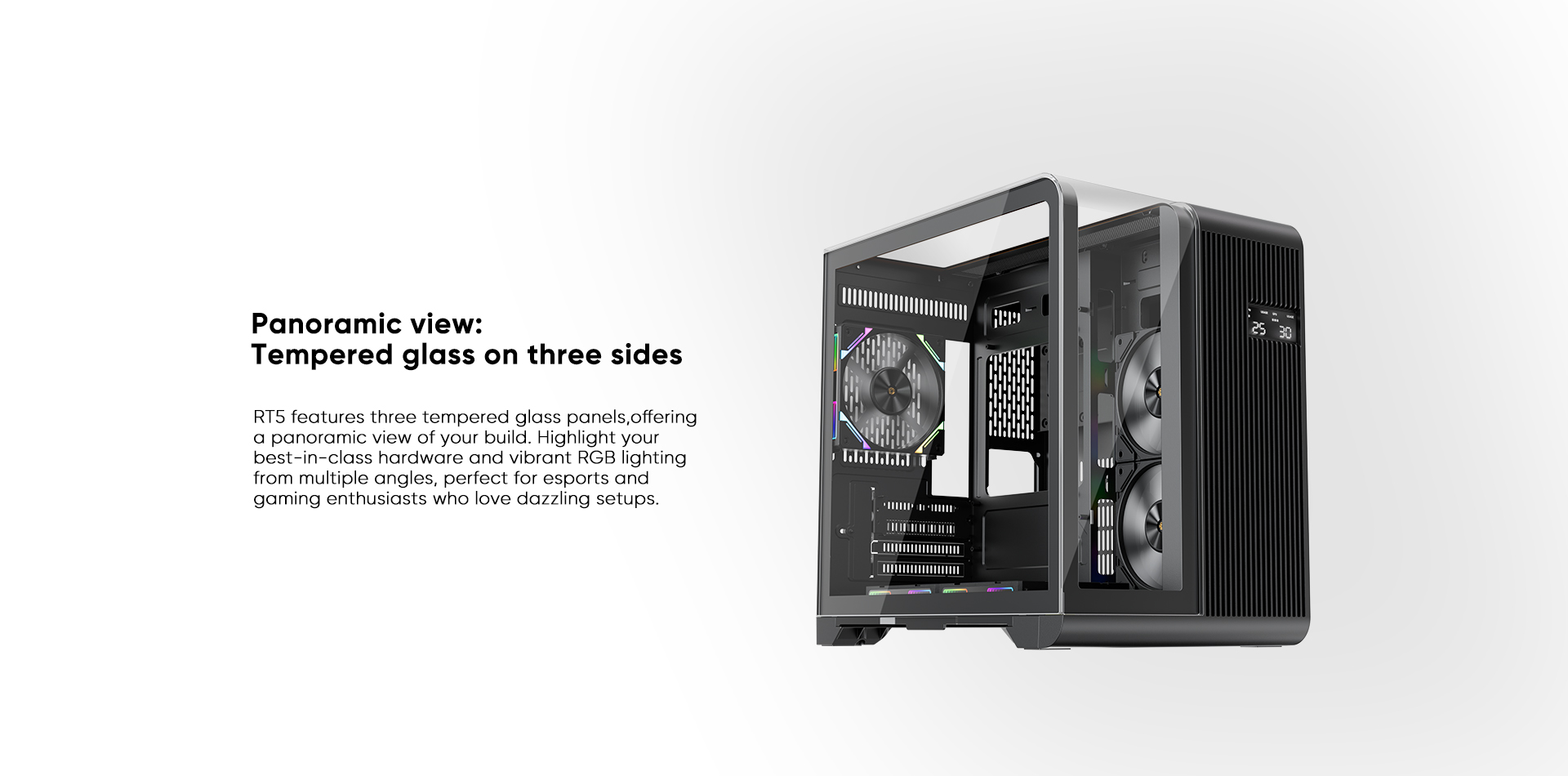

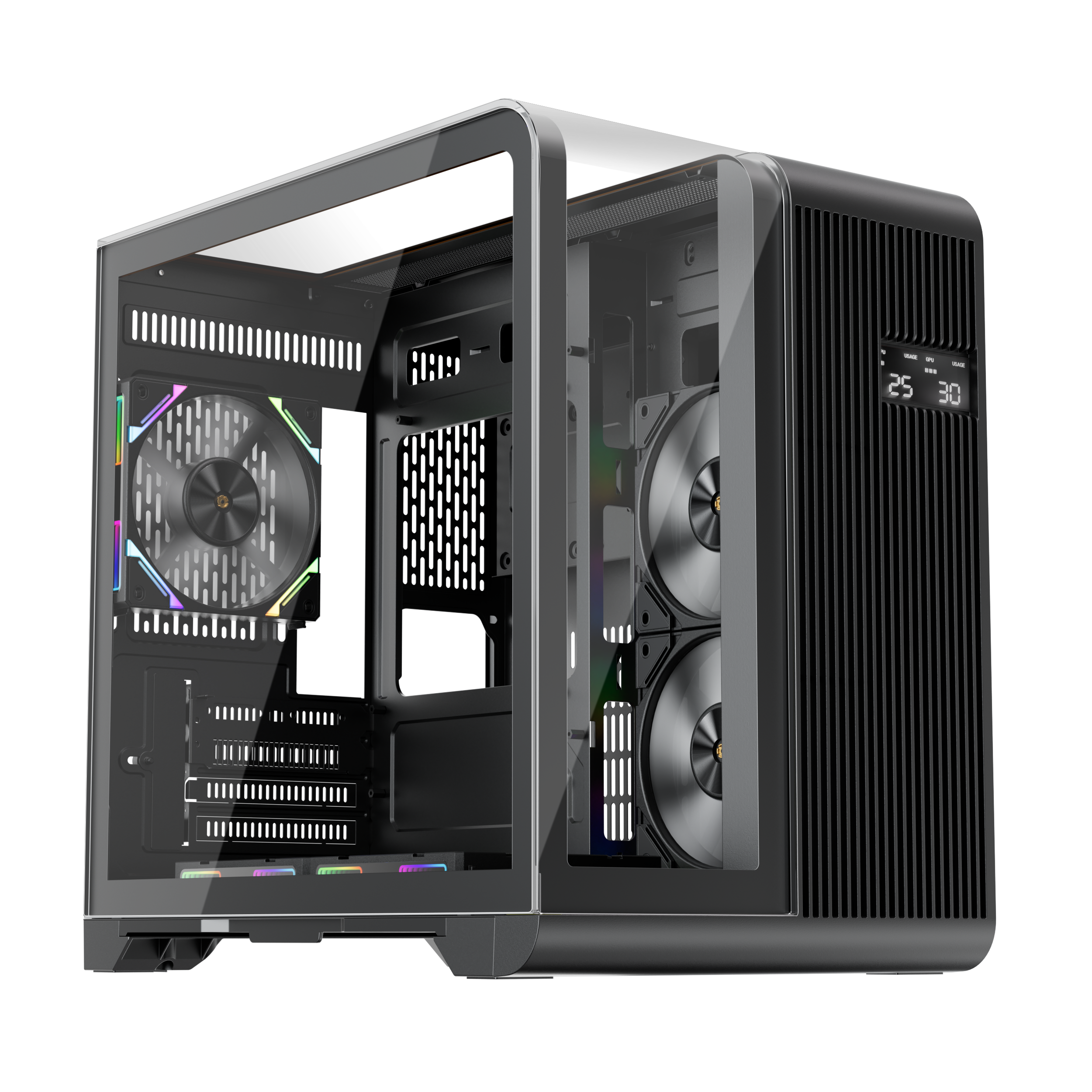

  • Tempered glass on three sides offers a multi-angle view of the interior

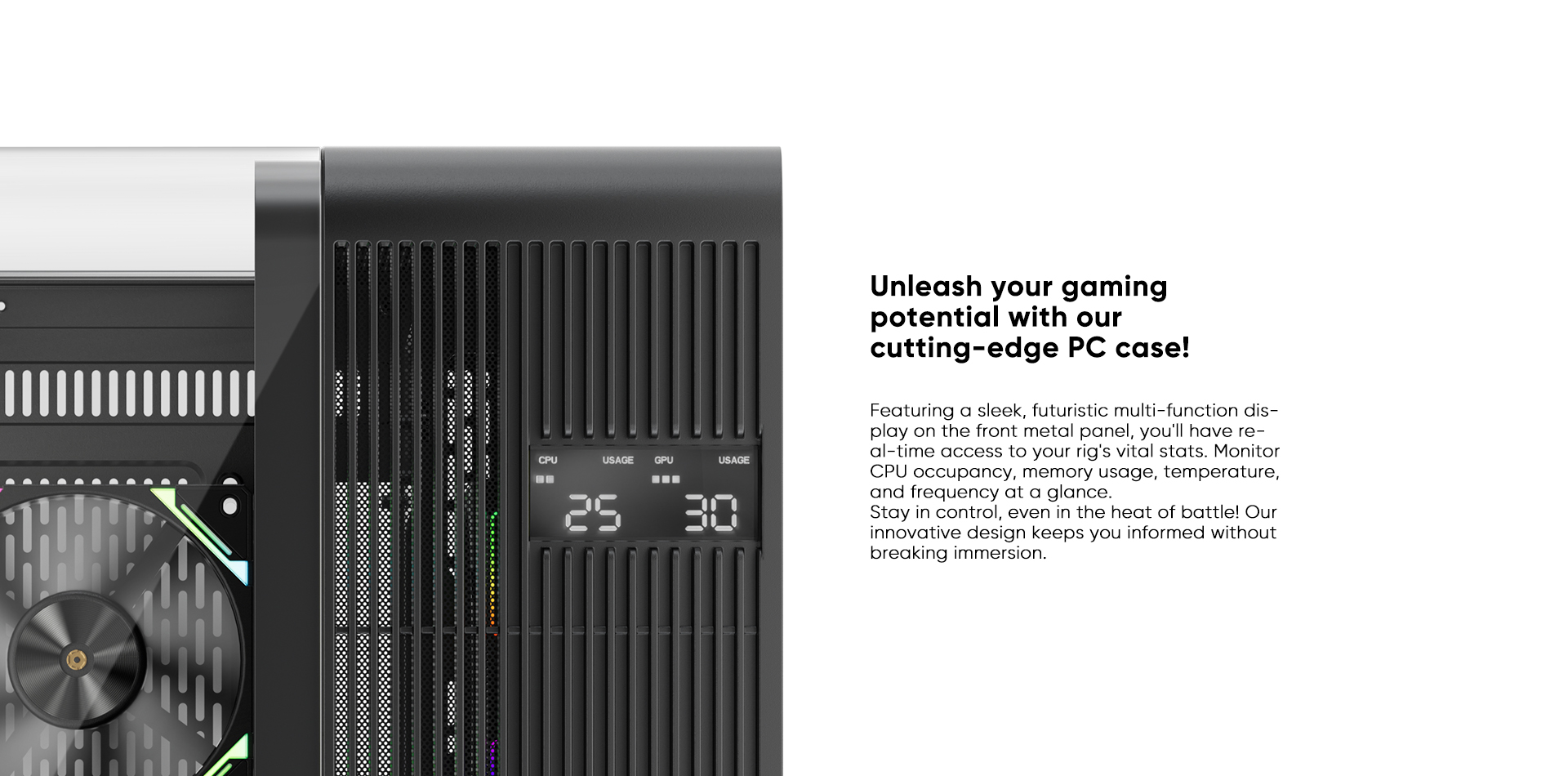

  • LED display monitors CPU, memory usage, temperature and frequency

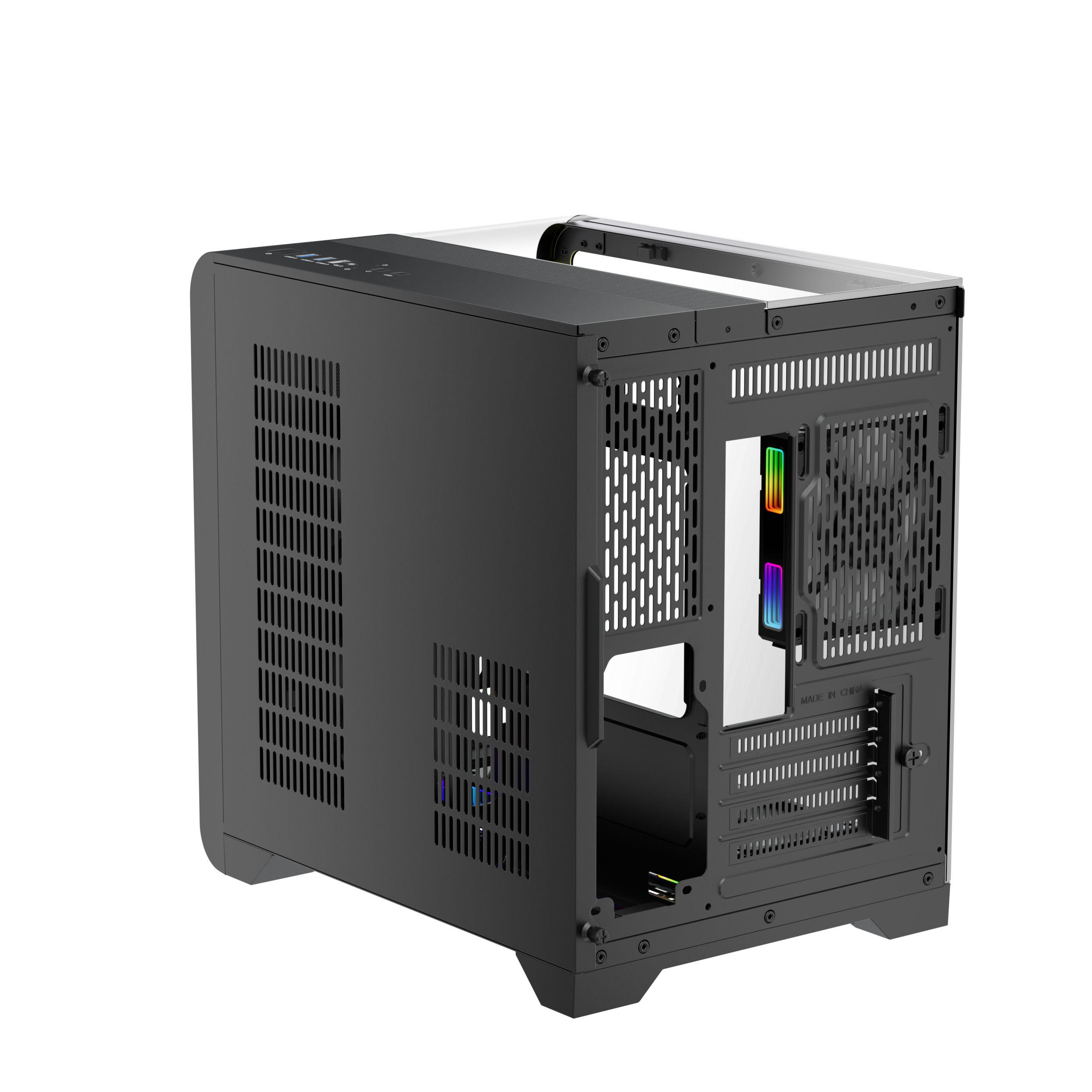

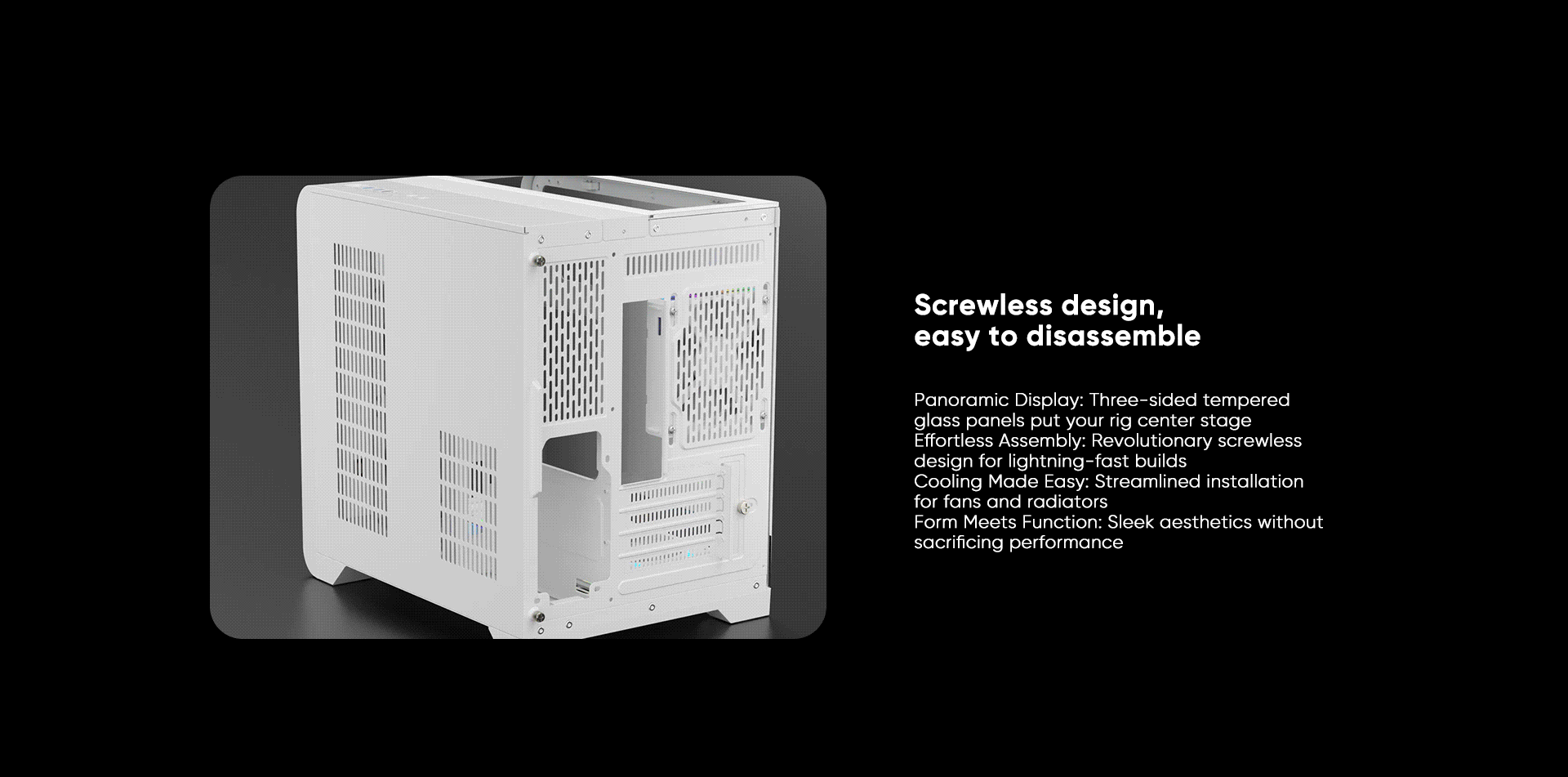

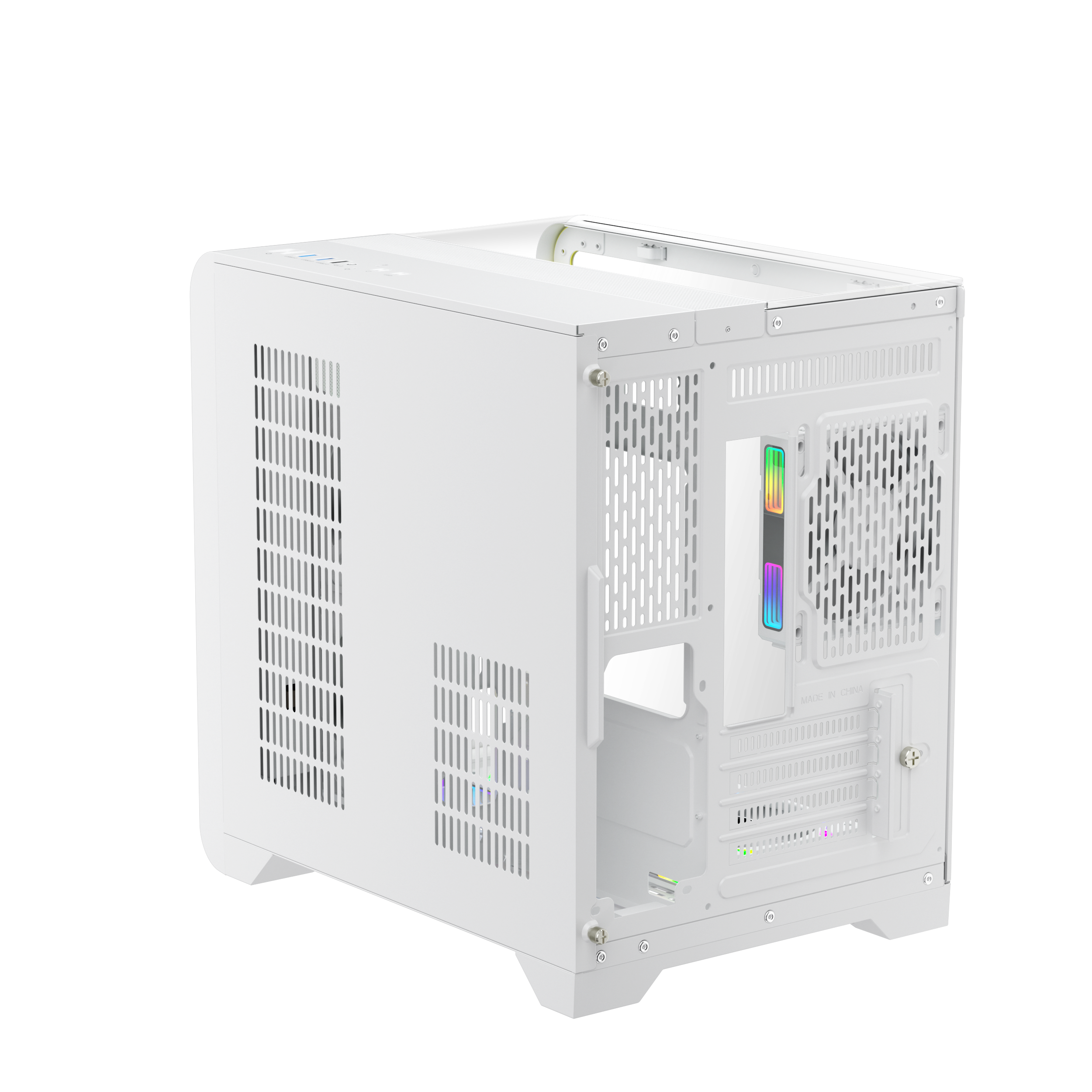

  • Bottom, rear and side ventilation ensures excellent cooling performance

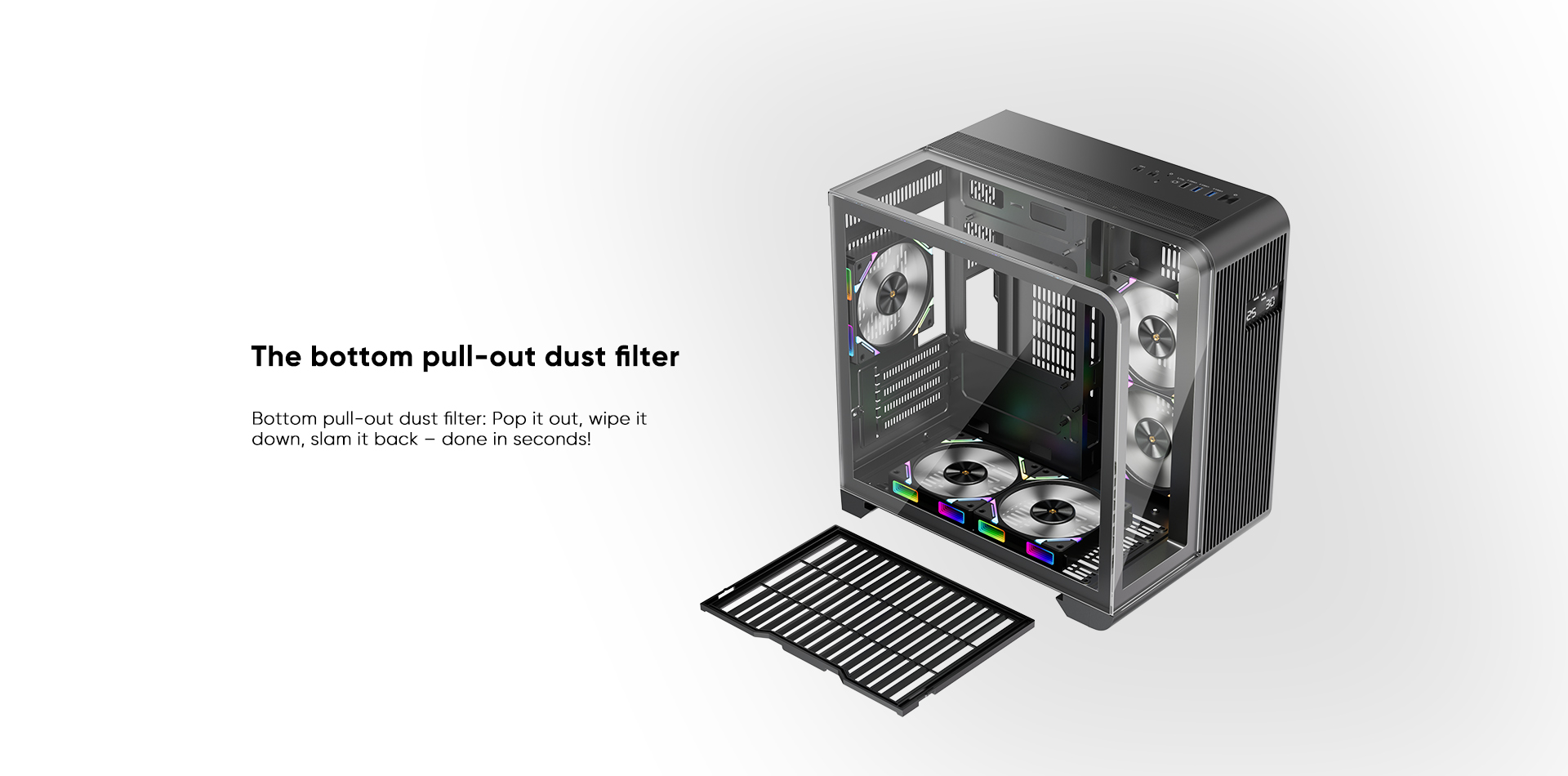

  • Pull-out dust filter at the bottom for easy cleaning and maintainance

*Computer parts are not included. Cooling fan may vary among different countries/regions.

*Driver installation is required for the performance monitoring display.

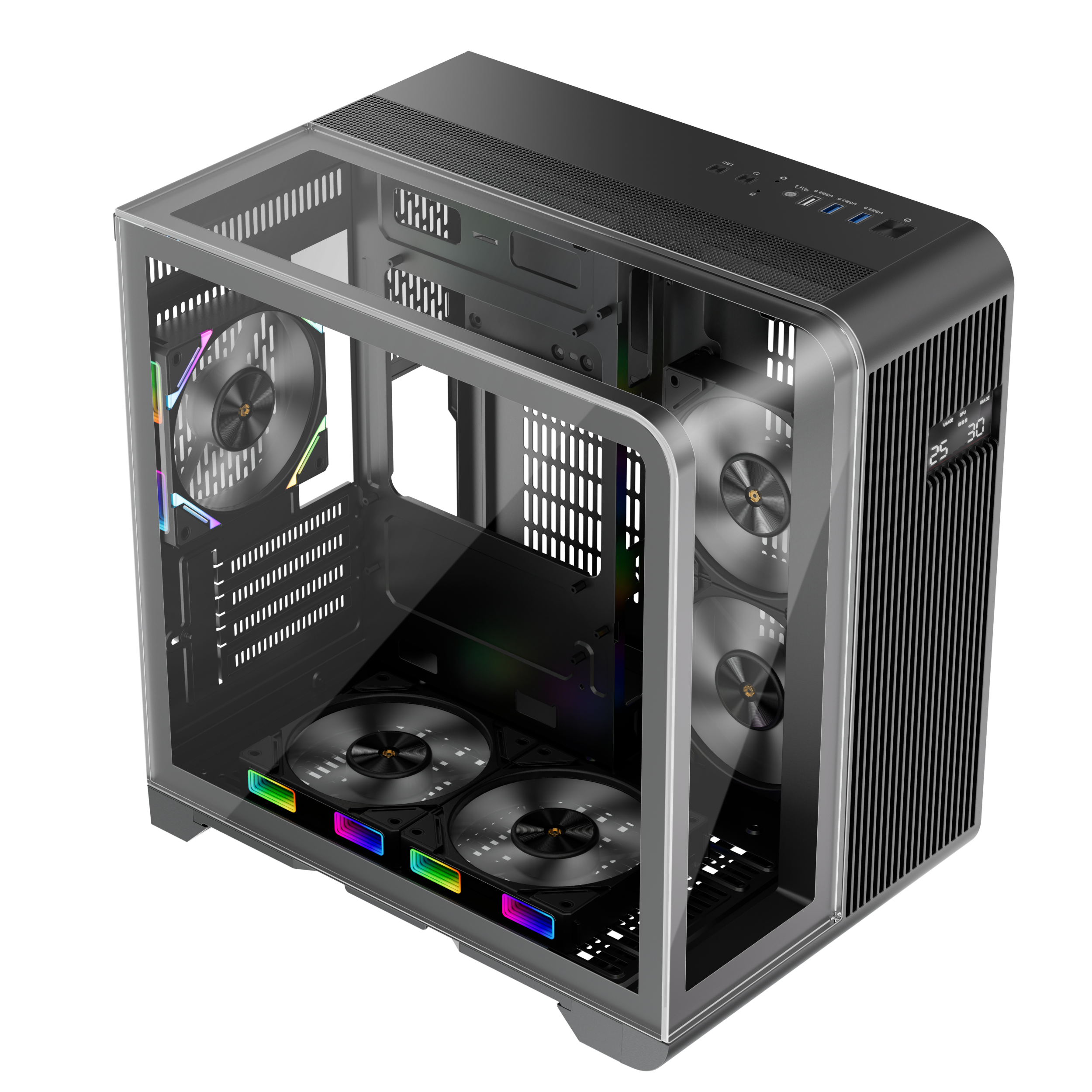

Black

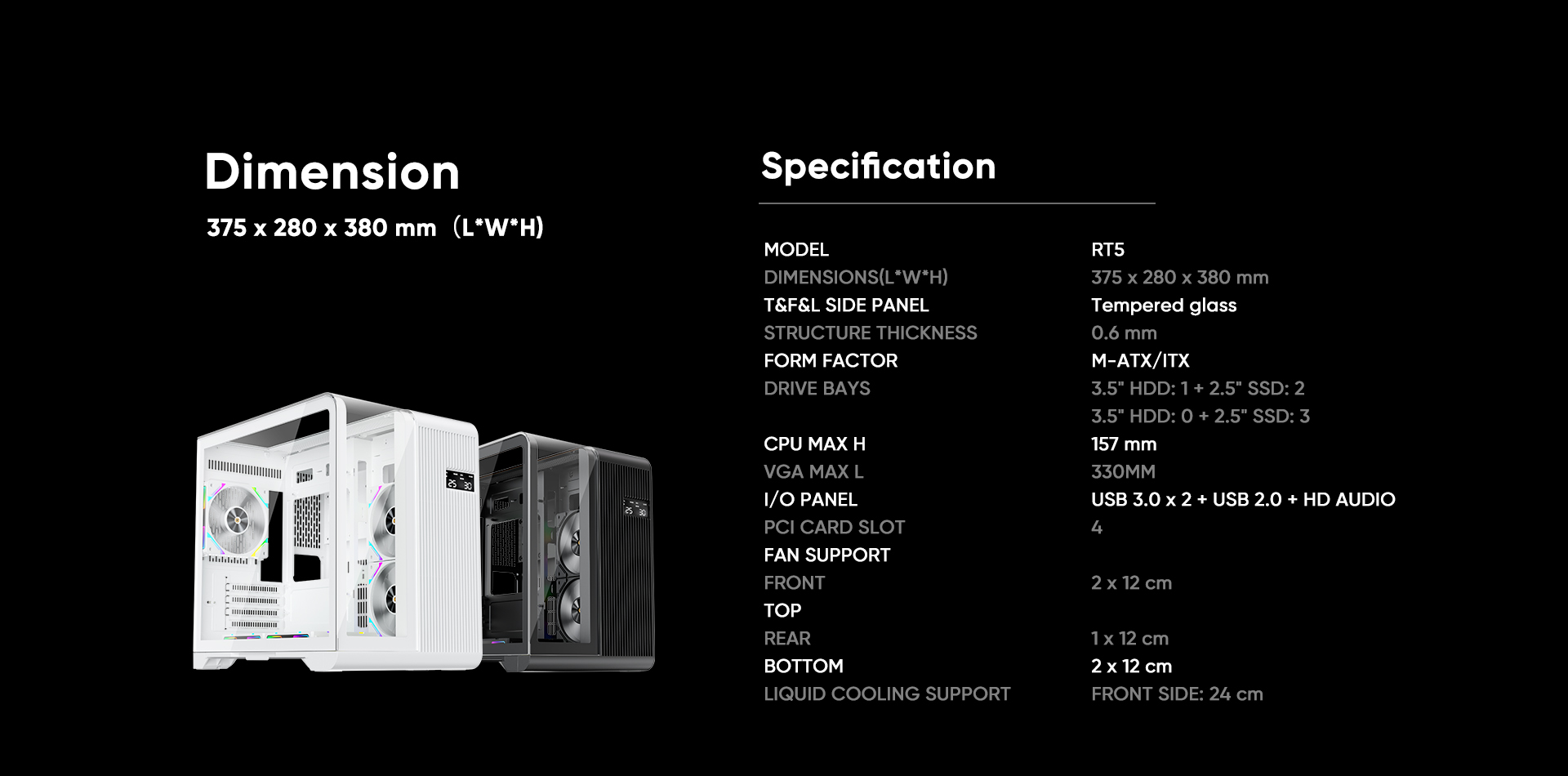

MODEL

RT5

STRUCTURE DIMENSIONS (L x W x H)

345 x 280 x 355 mm

PRODUCT DIMENSIONS (L x W x H)

375 x 280 x 380 mm

PACKAGE DIMENSIONS (L x W x H)

445 x 345 x 450 mm

STRUCTURE THICKNESS

0.6 mm

MATERIALS

SPCC 0.6 mm

Top / Front / Left Panel: Tempered glass

FORM FACTOR

M-ATX/ITX

DRIVE BAYS

3.5" HDD: 1 + 2.5" SSD: 2

CPU MAX HEIGHT

157 mm

GPU MAX LENGTH

330 mm

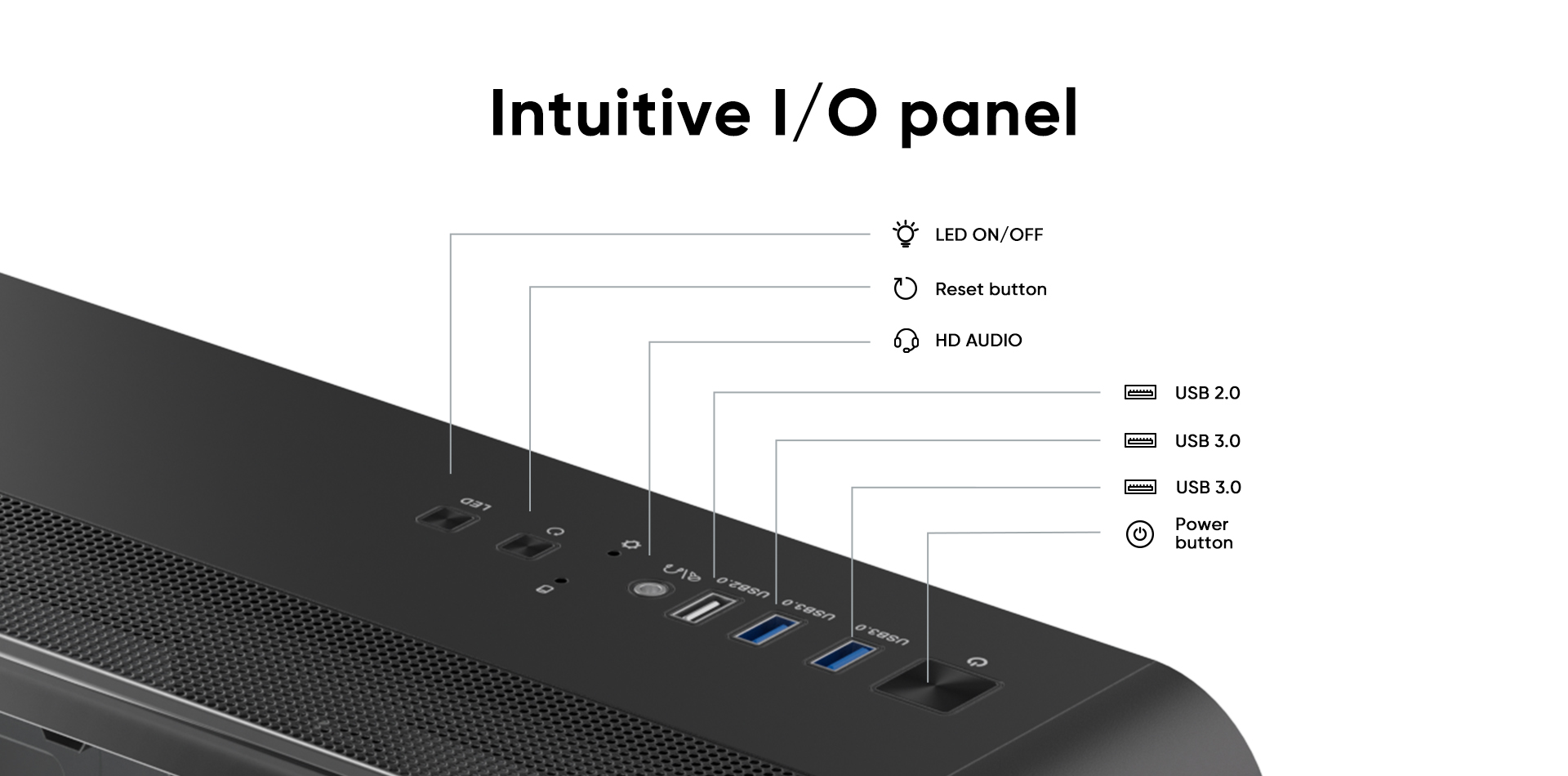

I/O PANEL

USB 3.0 x 2 + HD AUDIO

PCI CARD SLOT

4

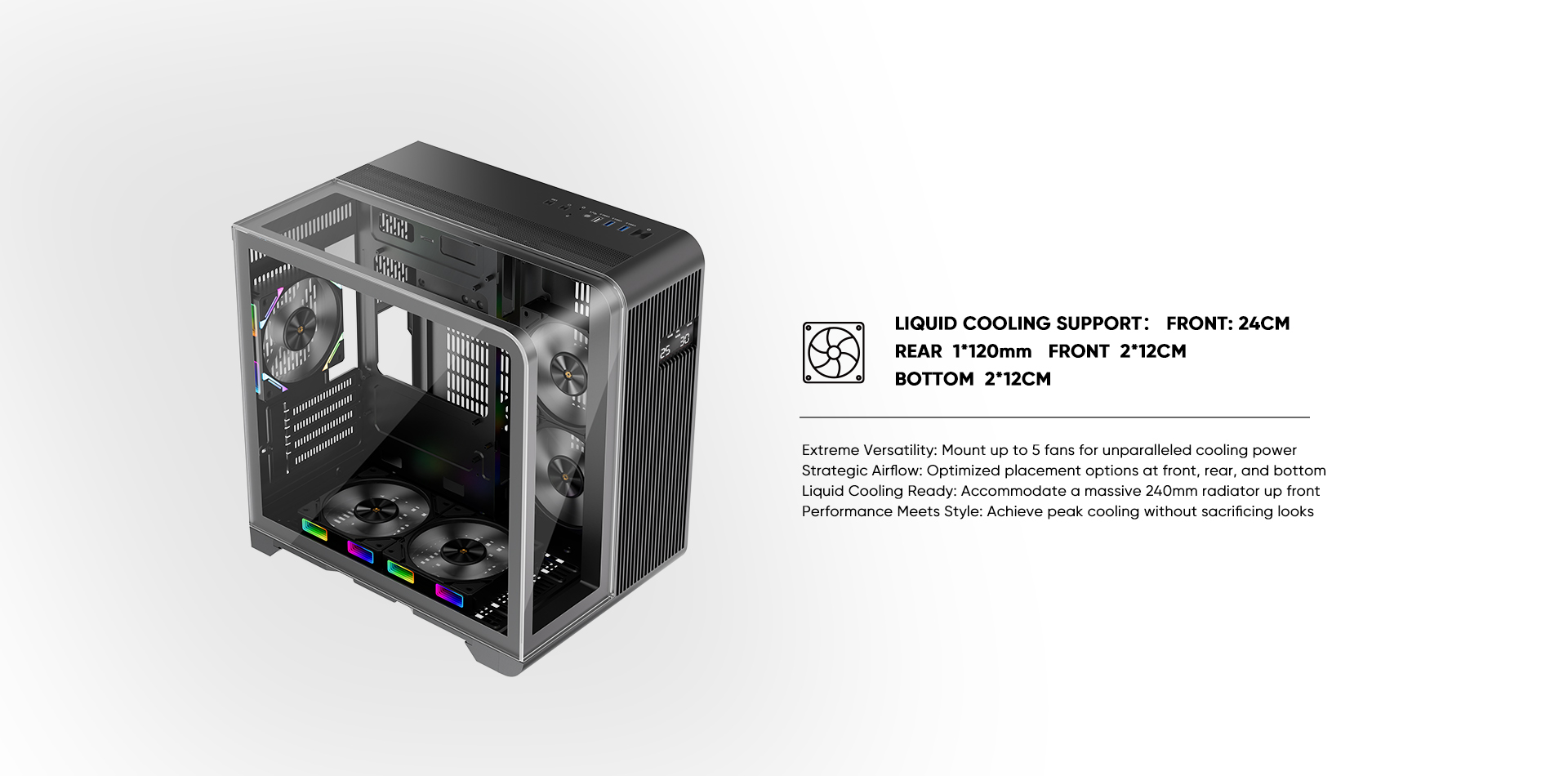

FAN SUPPORT

Front: 2 x 12 cm

Rear: 1 x 12 cm

Bottom: 2 x 12 cm

LIQUID COOLING SUPPORT

Front: 24 cm

POWER SUPPLY SUPPORT

Bottom mount

WEIGHT

N.W.: 4.87 kg

G.W.: 6.1 kg
