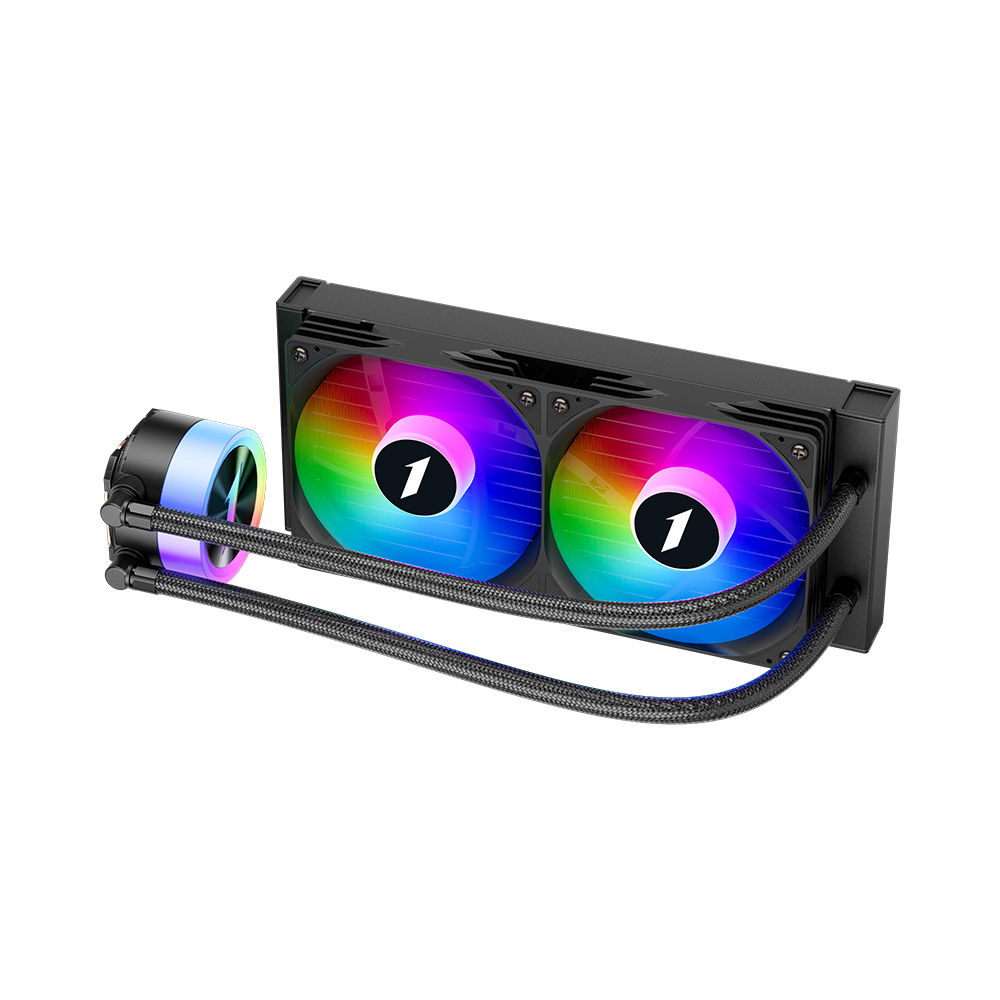

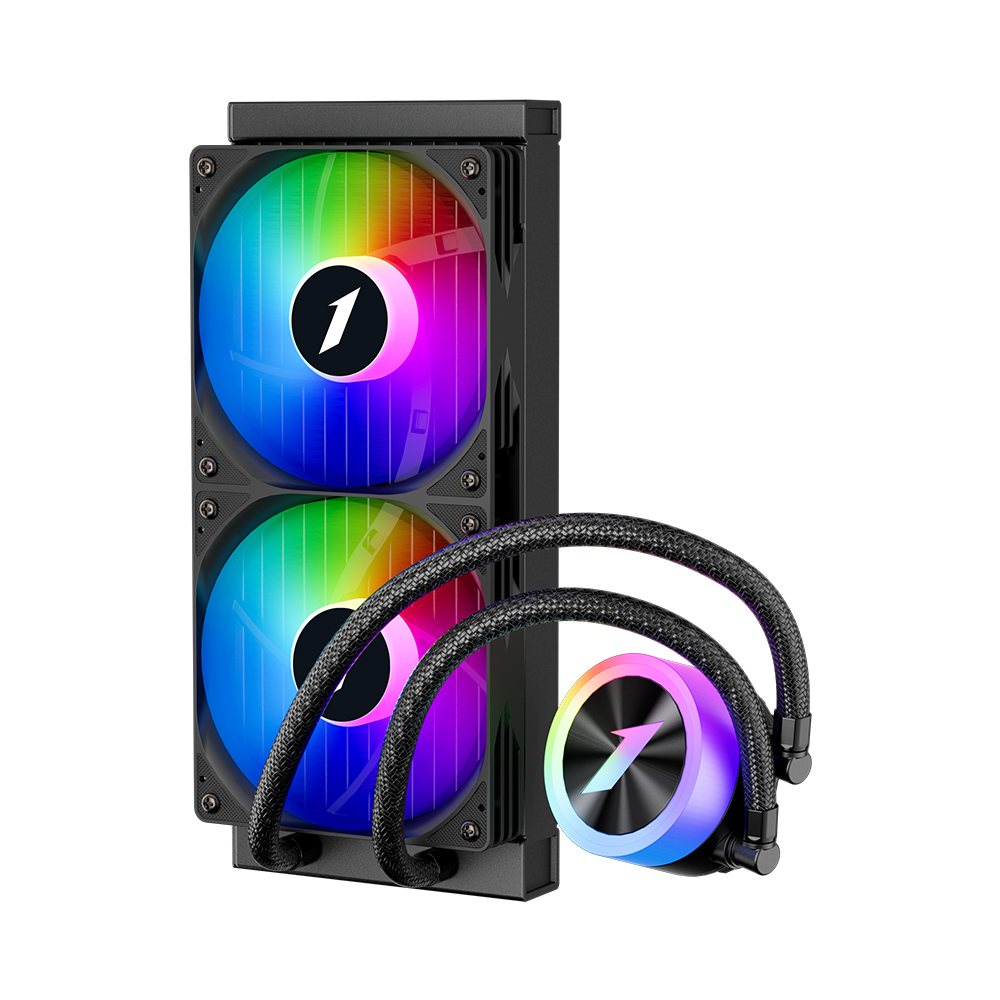

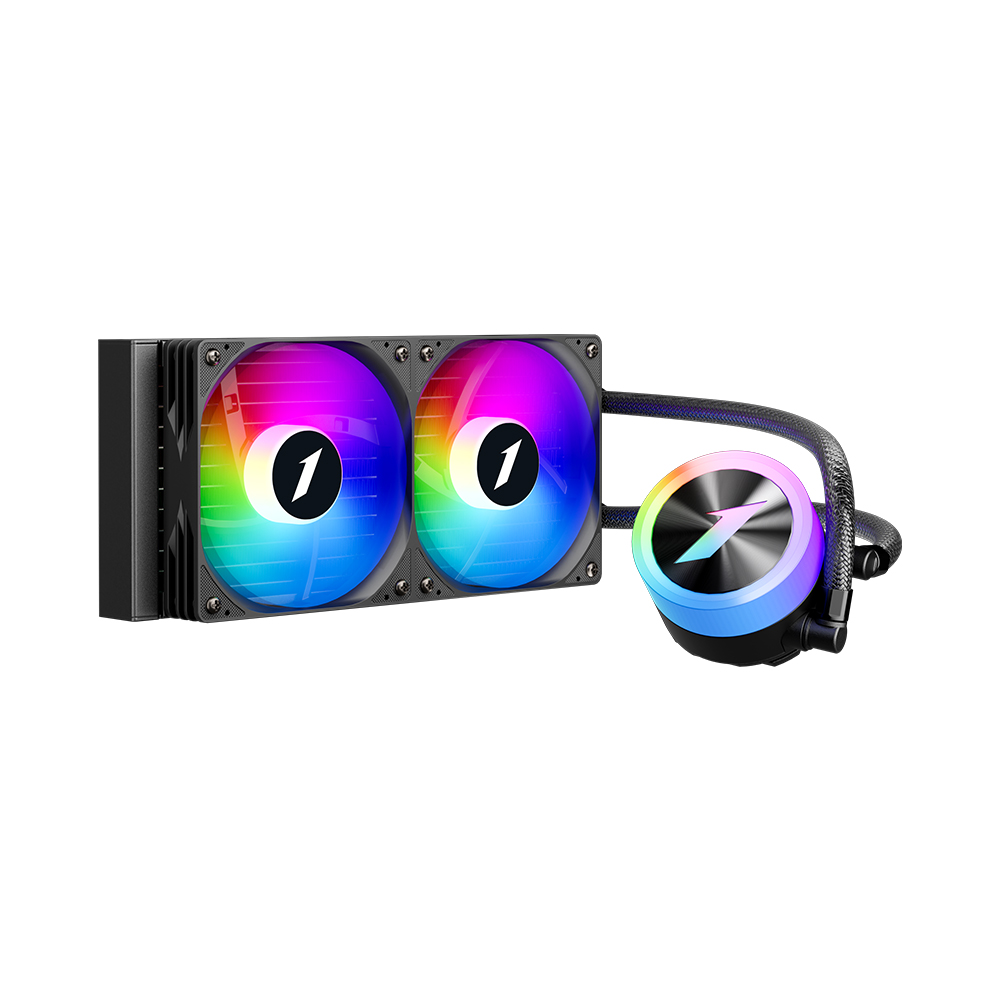

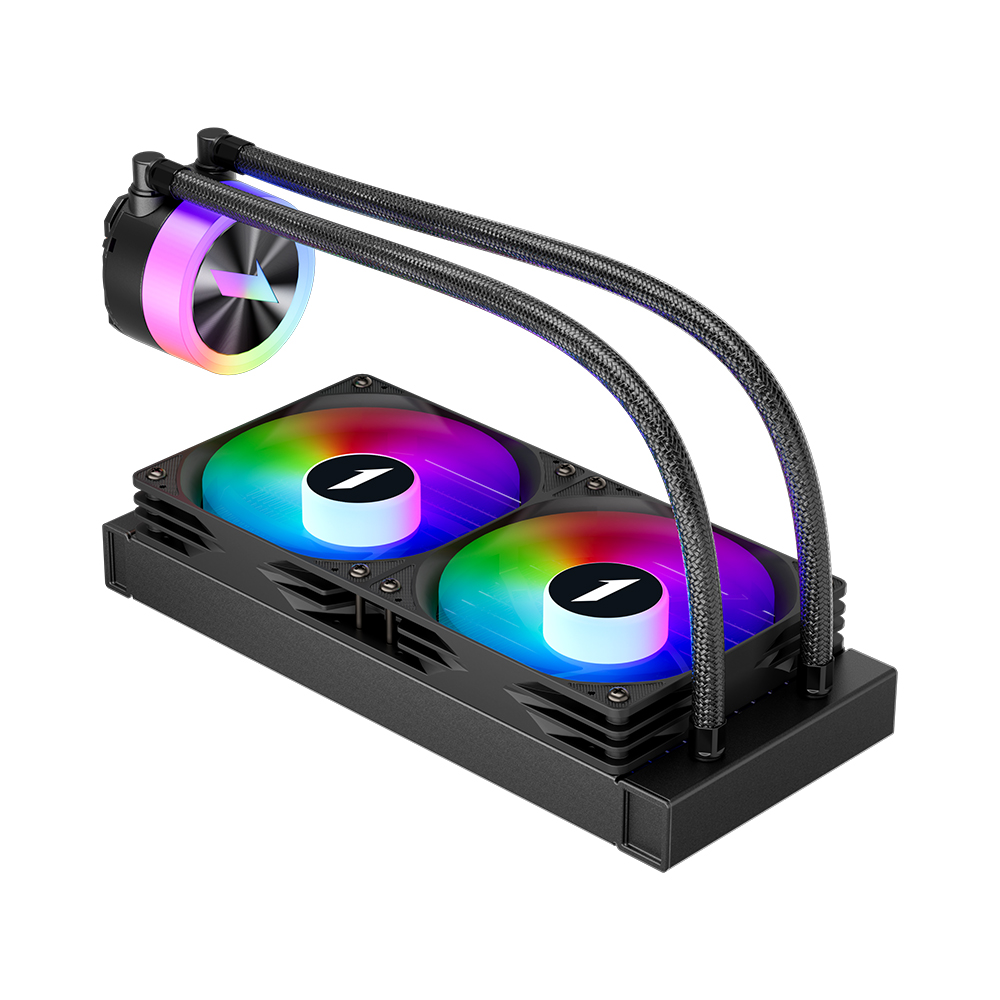

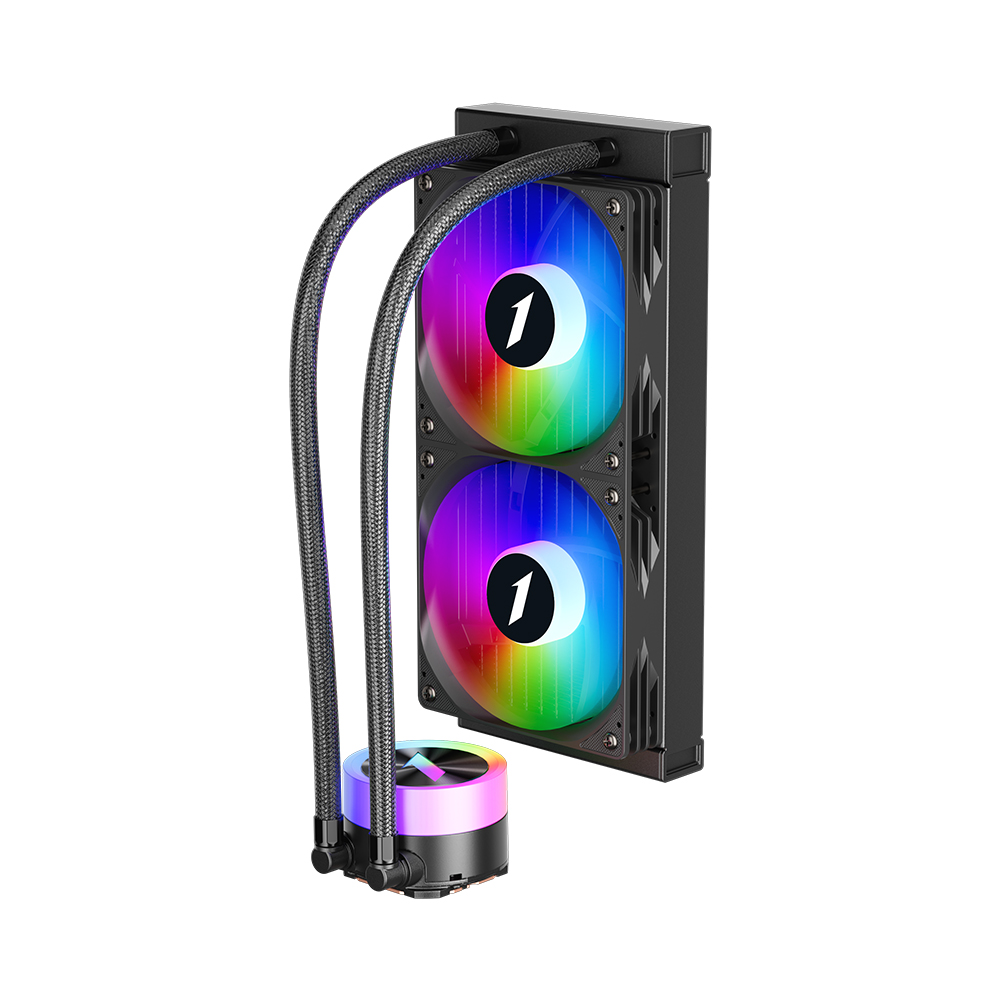

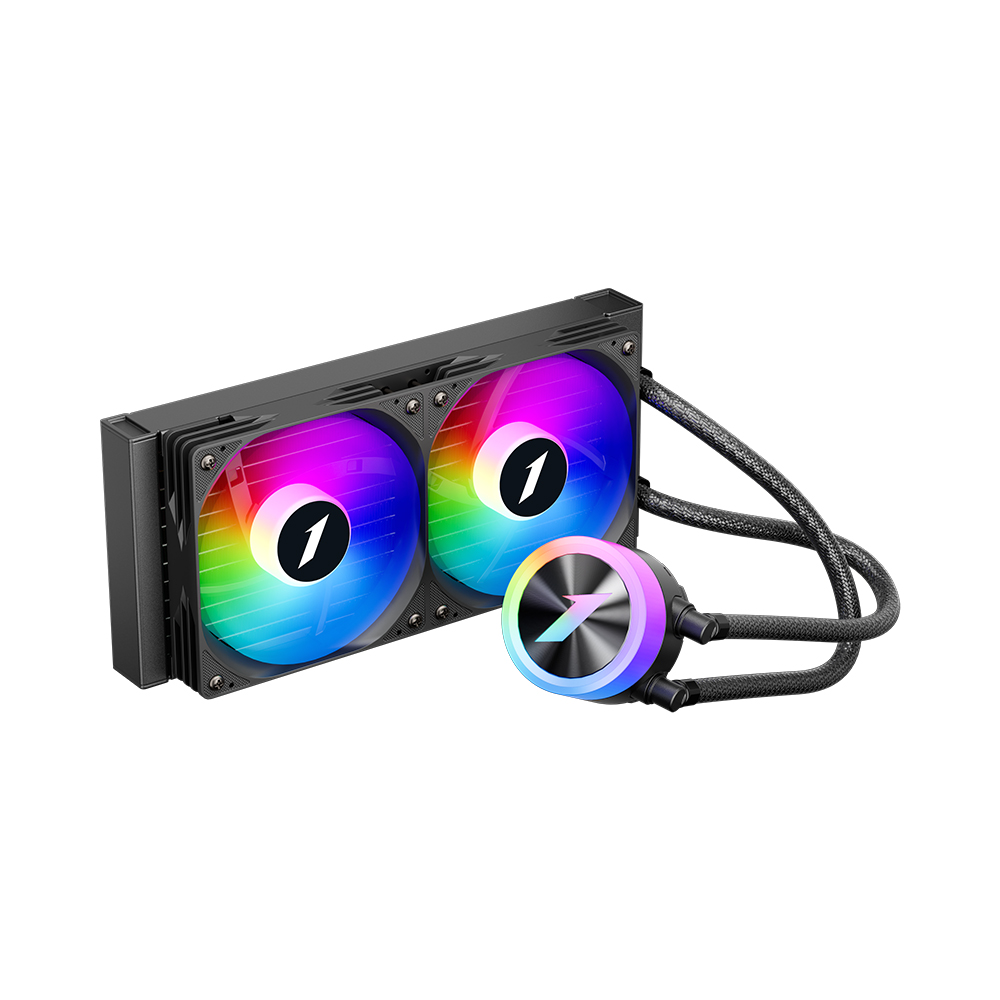

TS1 240
1. Pure Copper Endothermic Block
2. Support 5v RGB Sync with Motherboard (ARGB)on Pump Head& Cooling Fan
3. Temperature Controlled 9 Blades Fan (600-1800RPM)with Noise Reduction Feature
4. Long Life Bearing Water Pump (600-3000±10%RPM)/40,000hrs
5. High-density Fin Heat Sink
6. High-performance silicone grease
7.High-performance all-in-one piece fans
ARGB Lighting aesthetics
Pure Copper Endothermic Block

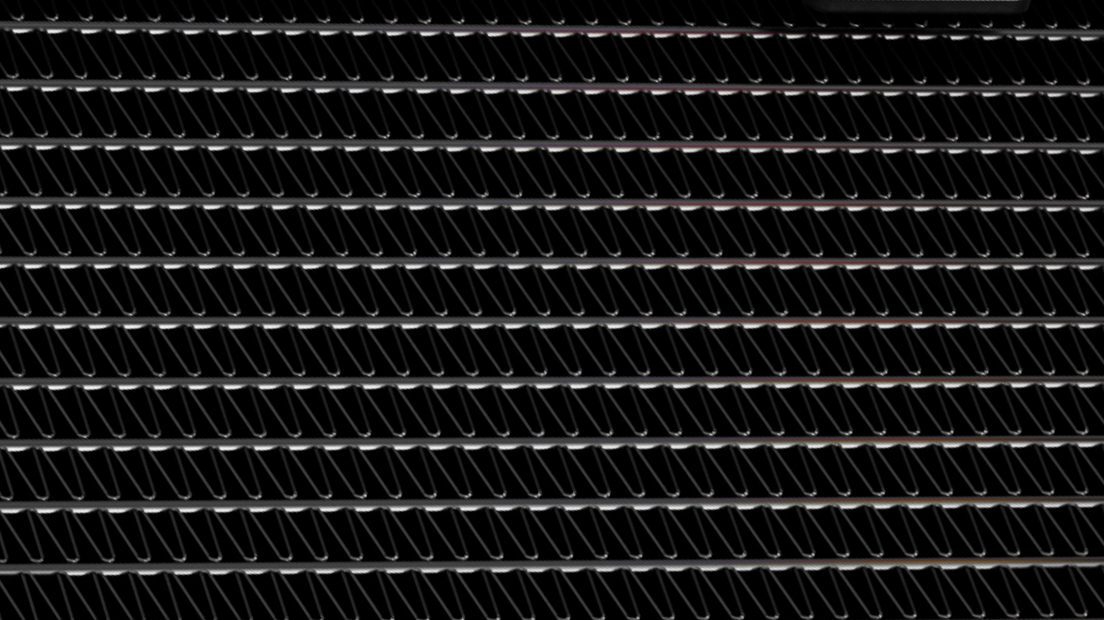

High-density Fin Cooling Row

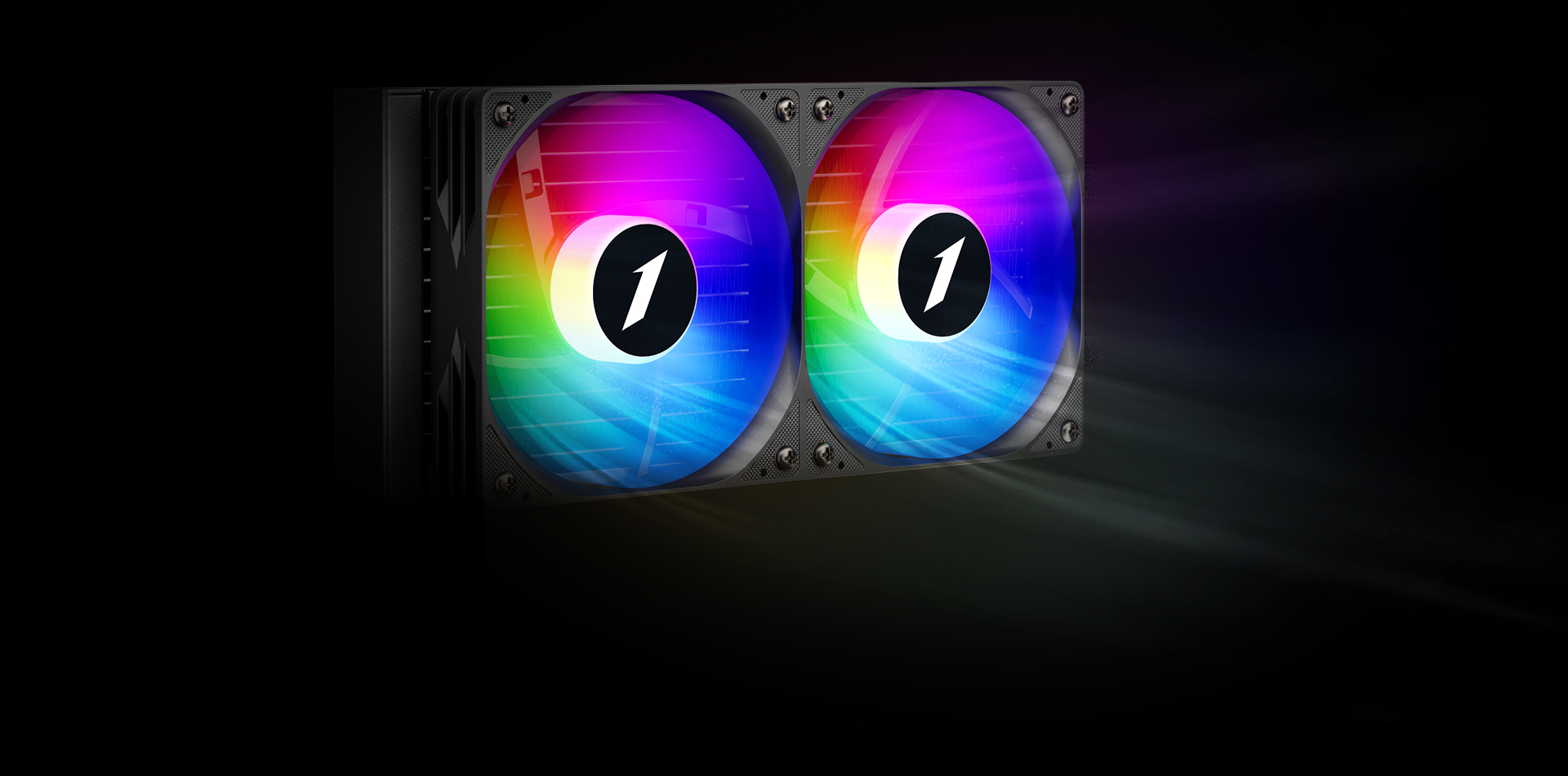

High-performance All-in-one Piece Fans
Excellent Cooling performance

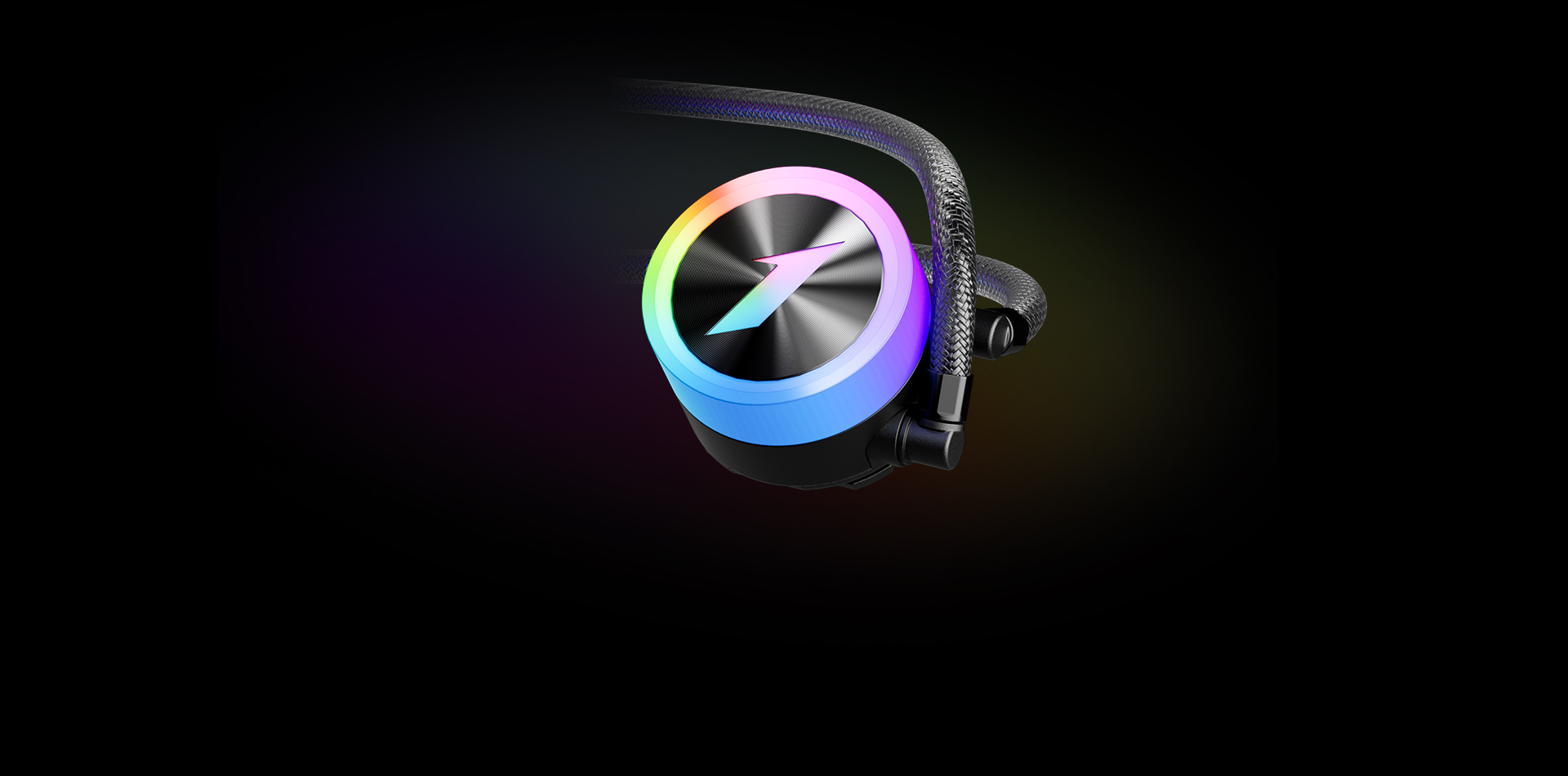

Low noise water pump

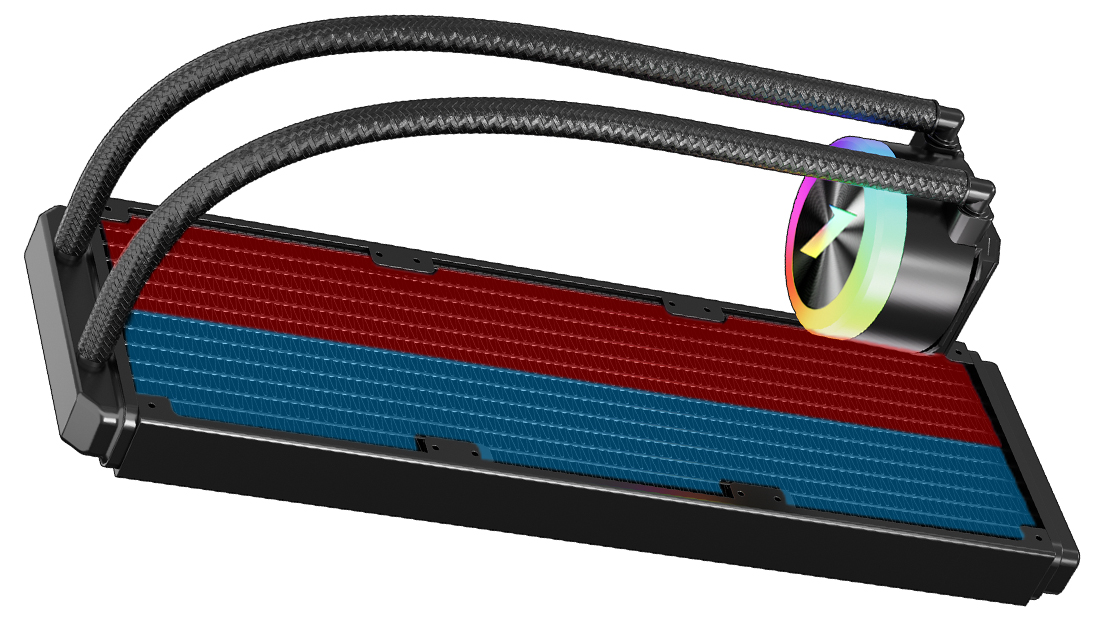

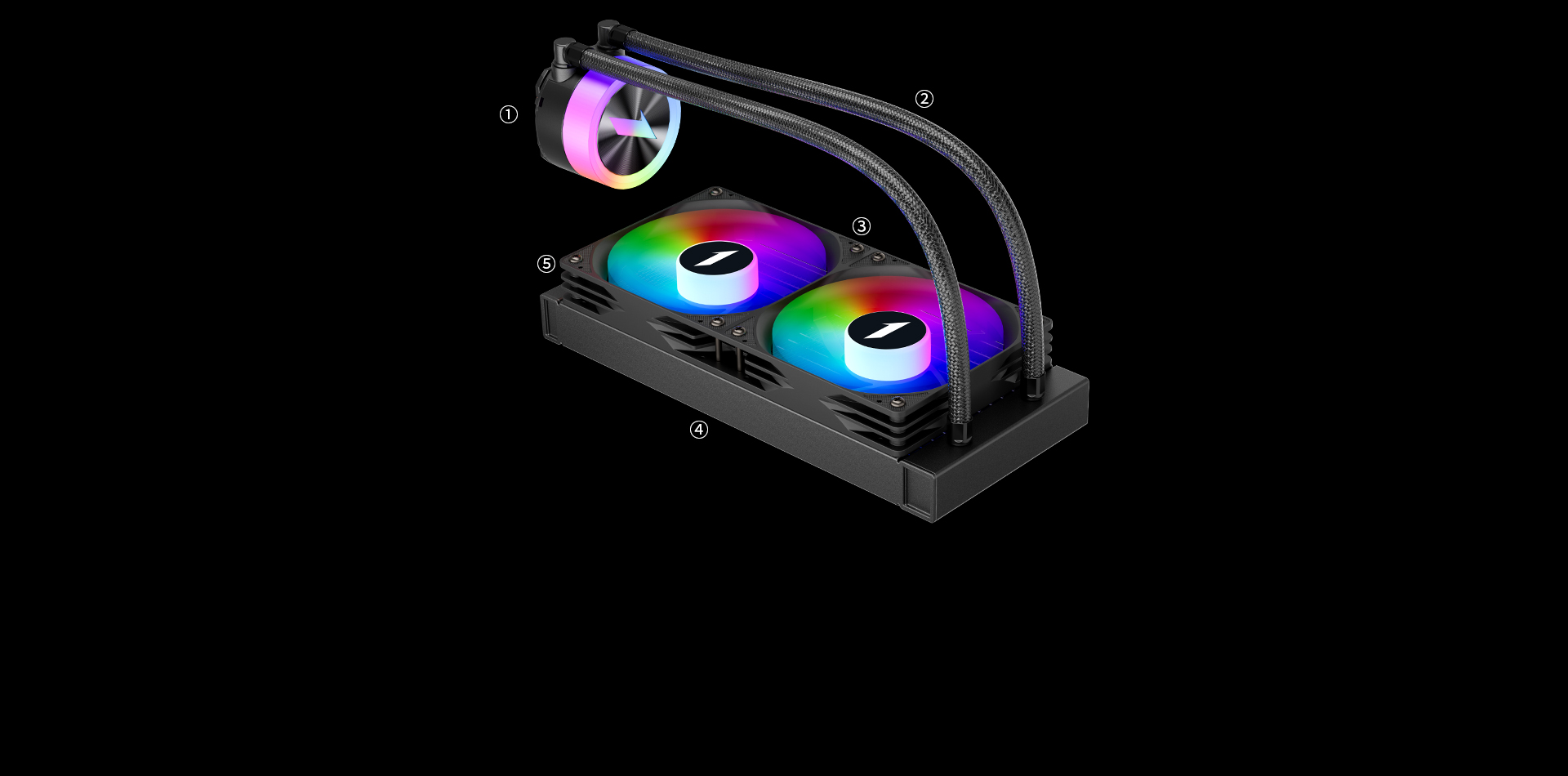

①TS double cold row system ②Bidirectional channel design ③2.2 pump lift ④6 ways cooling cycle ⑤High precision fin group base

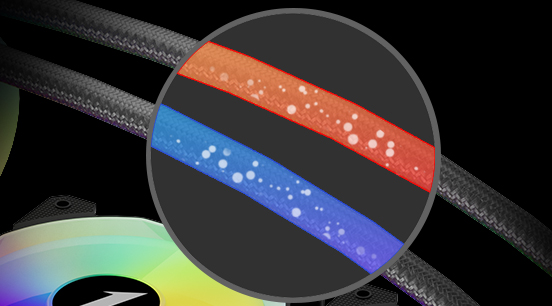

Anti-flocculation coolant + low noise motor
Coldness exhaust is equiped with PWM(600-1800RPM) intelligent speed control fan.Thinner frame,more heat heat dissipation area.
High precision fin group copper seat with 0.15mm thickness and 0.2mm spacing.
Thin waterways are designed to form high-density fins that absorb heat over large areas and enhance cooling performance.

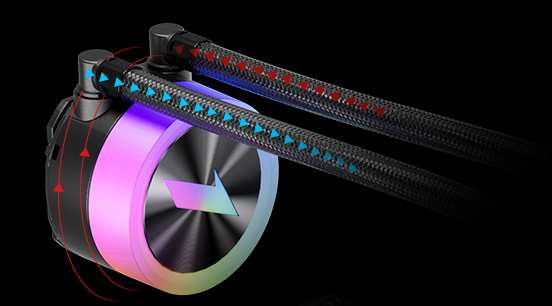

Different from the traditional water pump single waterway design, TS1 can form a bidirectional waterway and fully cover the entire heat dissipation surface.
Six-way heat dissipation cycle can make the heat dissipation effect reach 1 to 2 times the one-way effect.It accelerates heat dissipation for better cooling effect.
*Boiling point: 150 ° C, freezing point: -20 ° C prevent the coolant flocculation.*which result in cooling effect decline,blocking waterways and other problems.
Anti-flocculation coolant + low noise motor
TS1 is powerful and has a concise appearance,showing the spirit of 1stplayer’s continuous innovation.We create excellent gaming equipment for gamers.
Model

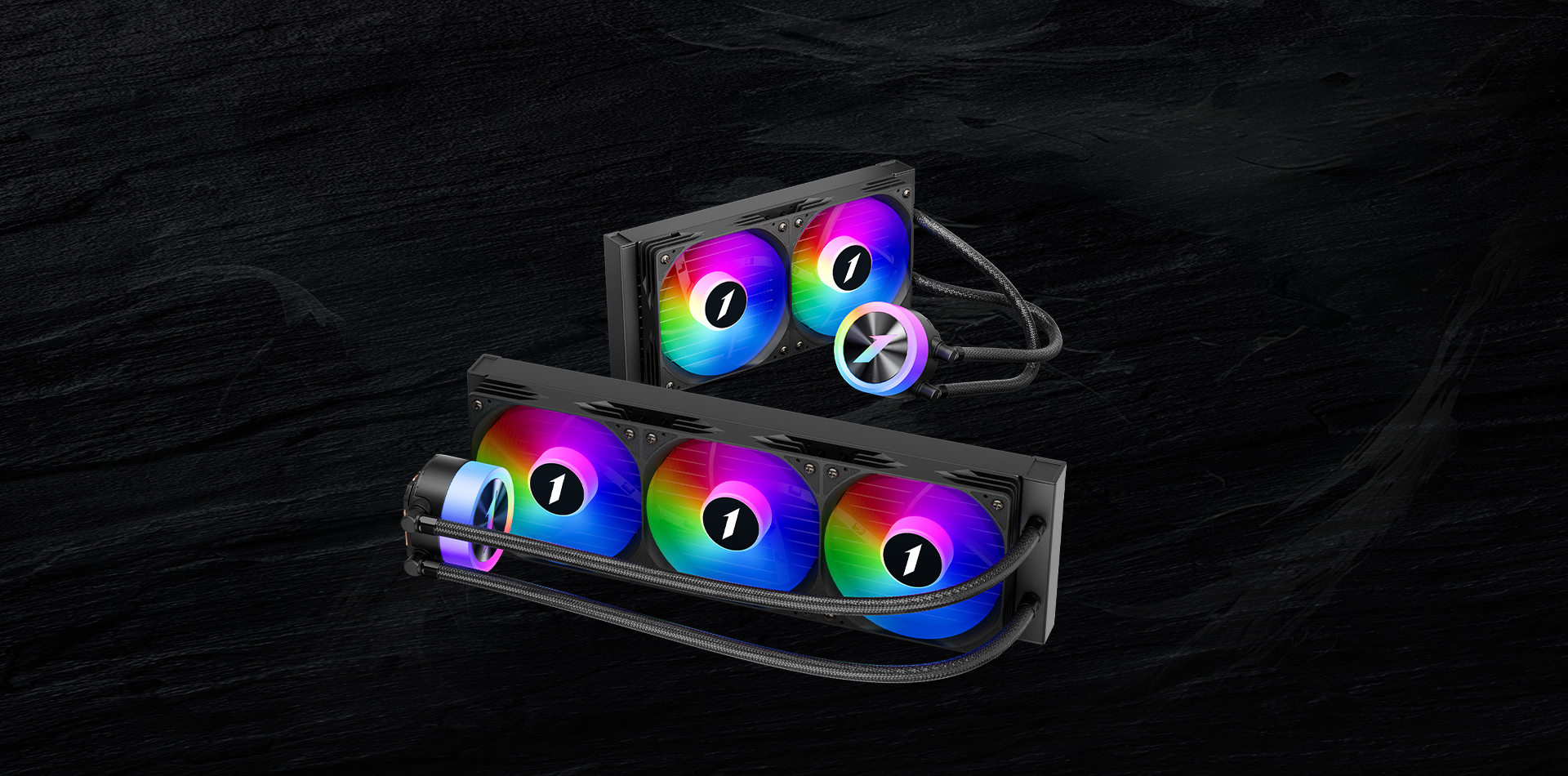

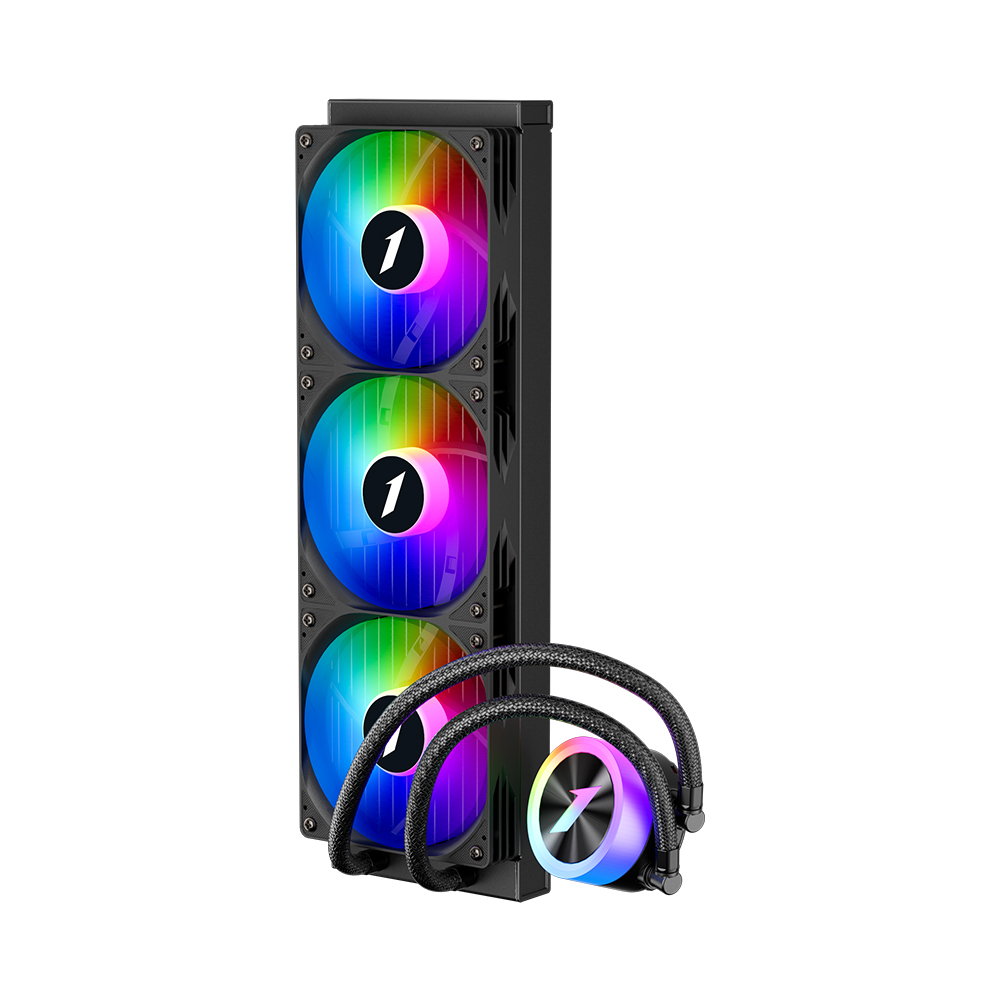

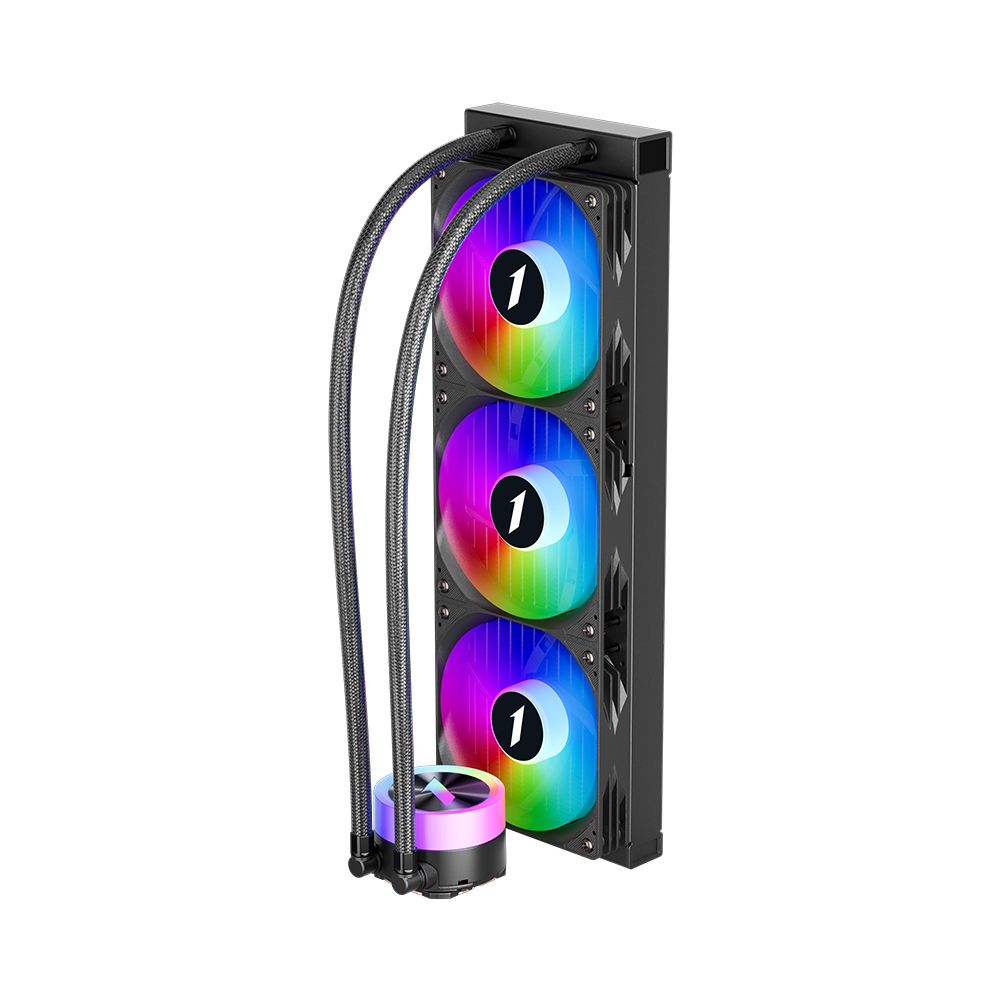

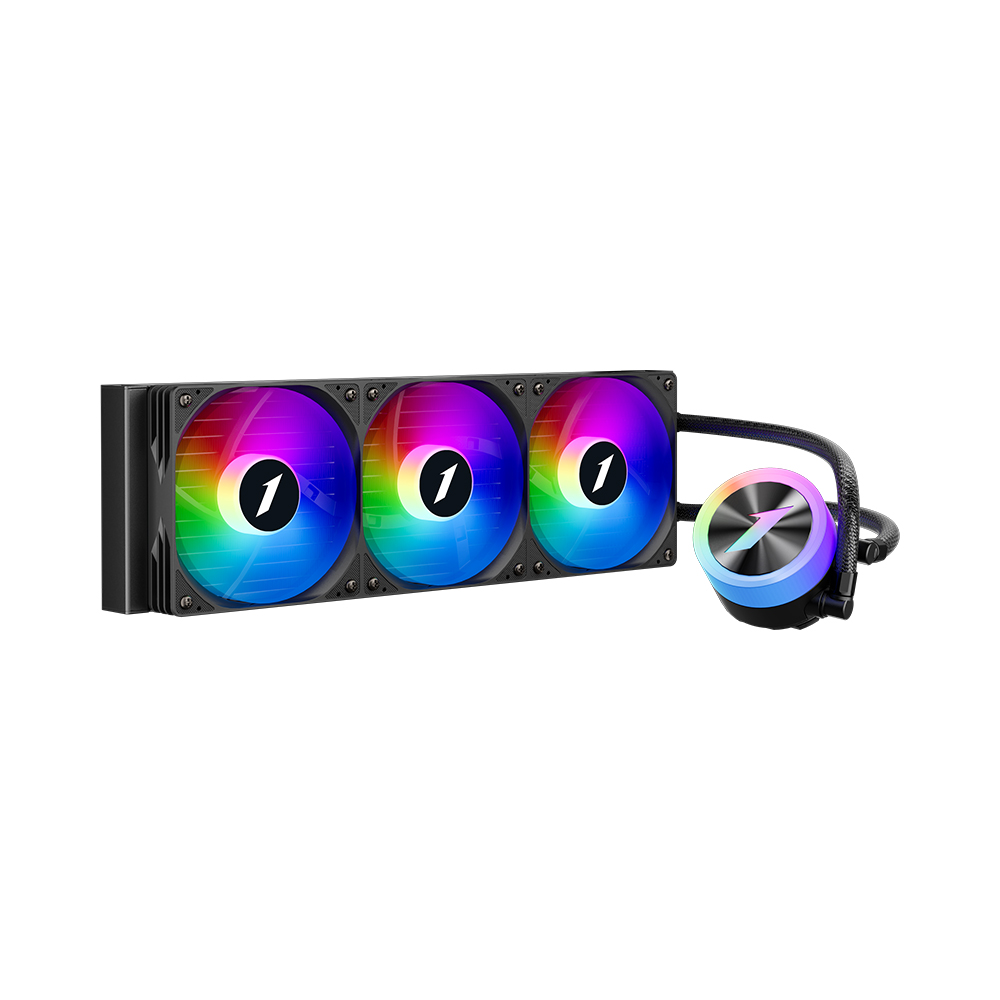

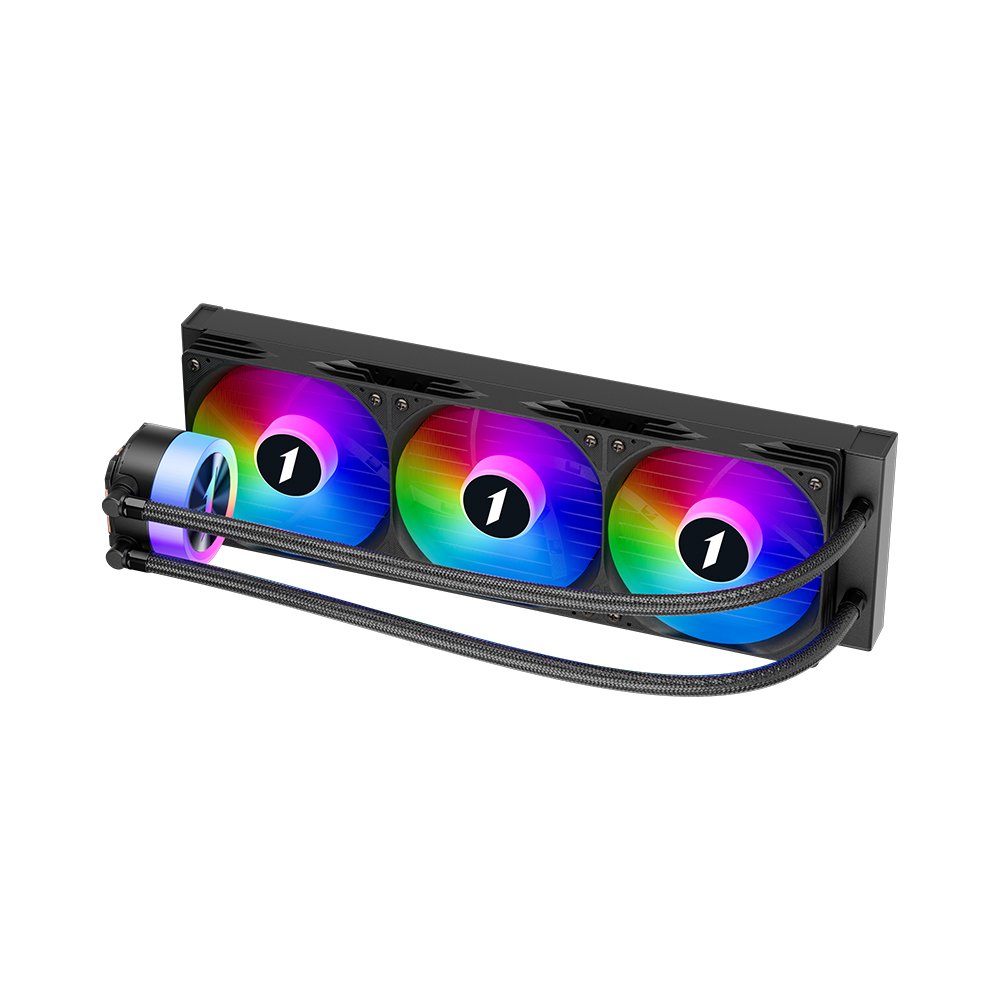

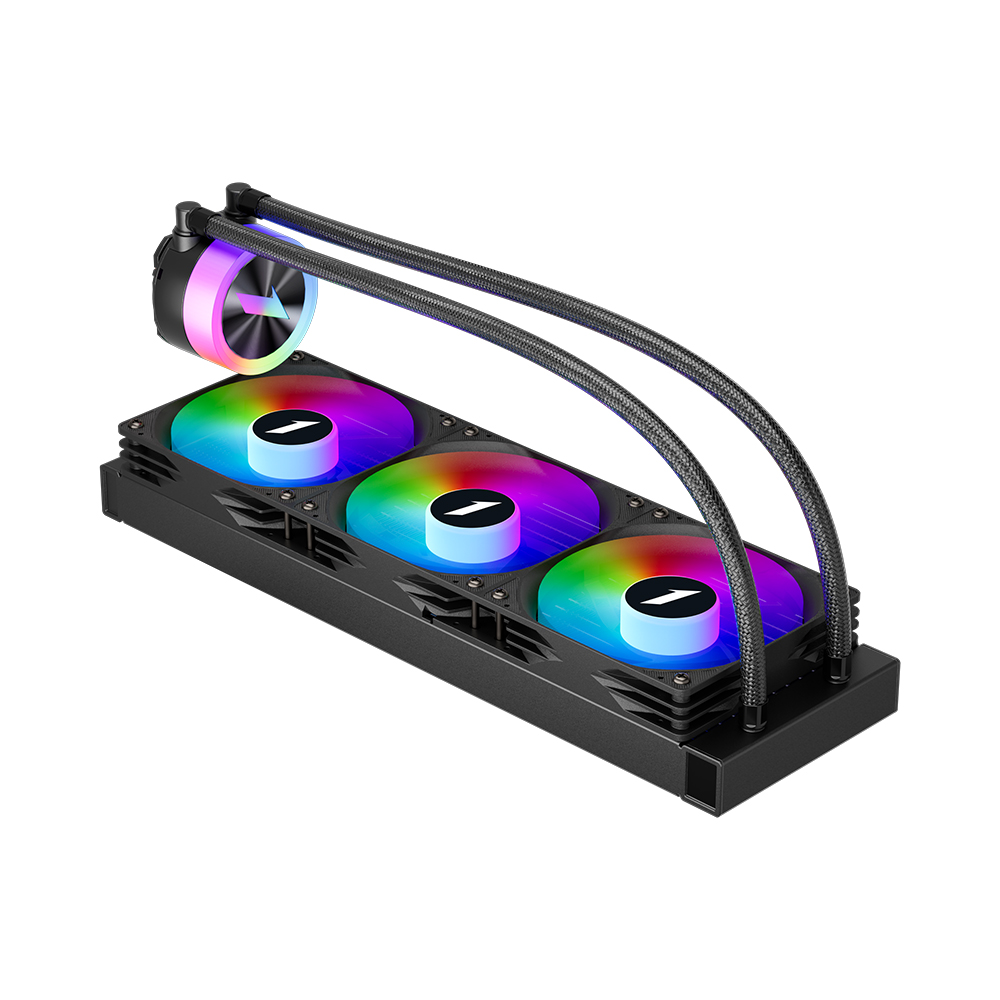

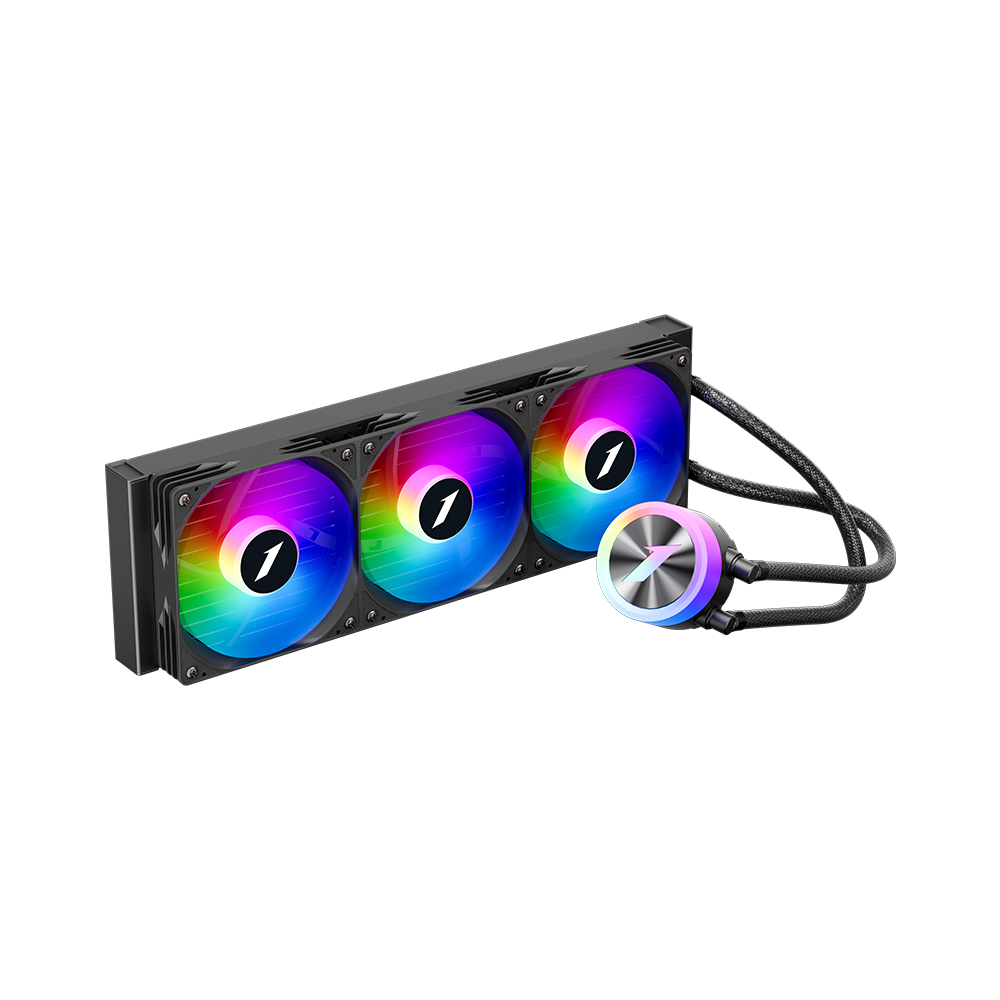

TS1 240 / TS1 360
Scope of Application
Intel(LGA1700/1200/1151/1150/1155/1156)&
AMD(AM5/AM4)
Dimensions
277× 120× 27mm （TS1 240） / 394×120× 27mm （TS1 360）
Material
Aluminum
Length
Dimensions
84.5 x 70 x 47.2 mm
Speed
600-3000 RPM±10%
Noise
15dB(A)
Connector
Rated Voltage
12V DC
Rated Current
≤0.33A
Power Consumption
≤3.96W
Fan
QTY
1pcs
240 x120 x25.4 mm/ 360 x120 x25.4 mm
600-1800 RPM±10%
Airflow
82.7CFM*2/ 82.7CFM*3
2.72 mmAq
Noise
≤36dB(A)/≤39dB(A)
Connector
4 Pin(PWM)
Bearing Type
Sleeve Bearing
1.8 W(PUMP )/1.44 W*2(FAN*2)/
1.8 W(PUMP )/1.44 W*2(FAN*3)
