SP 6.5/7.5

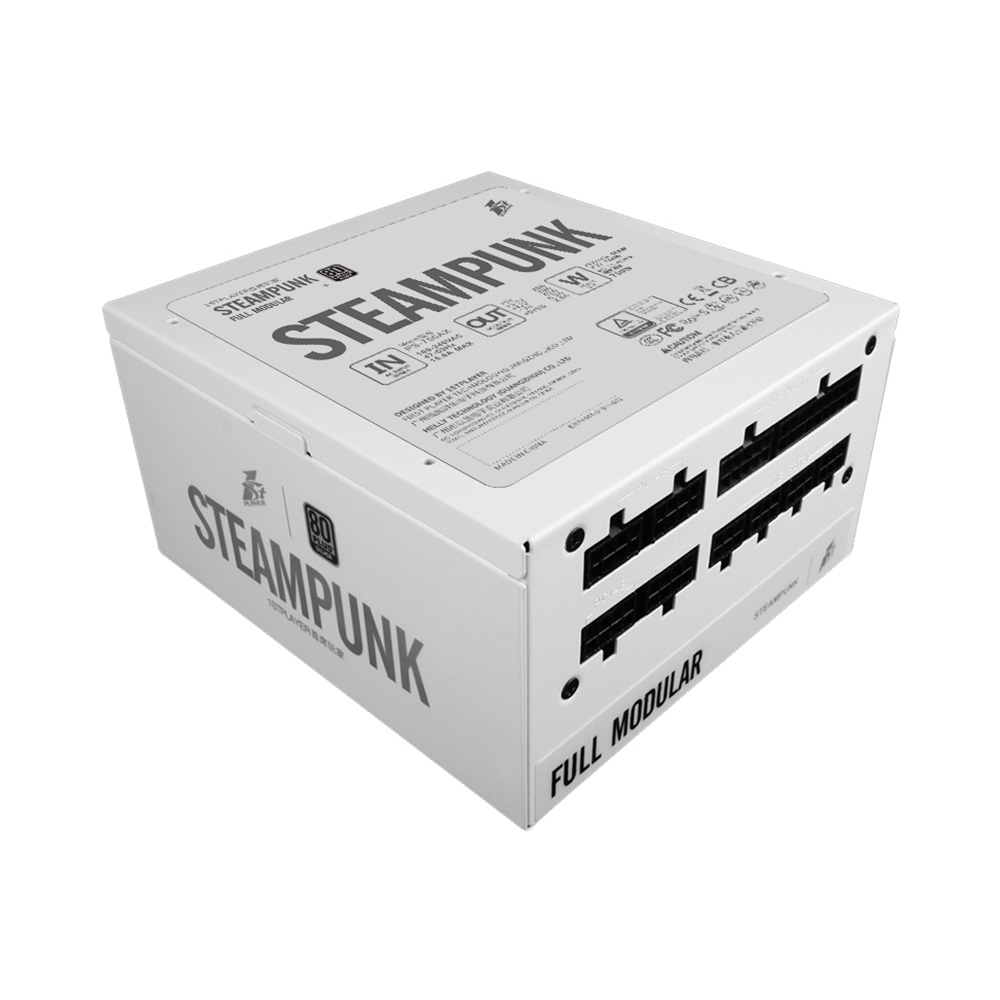

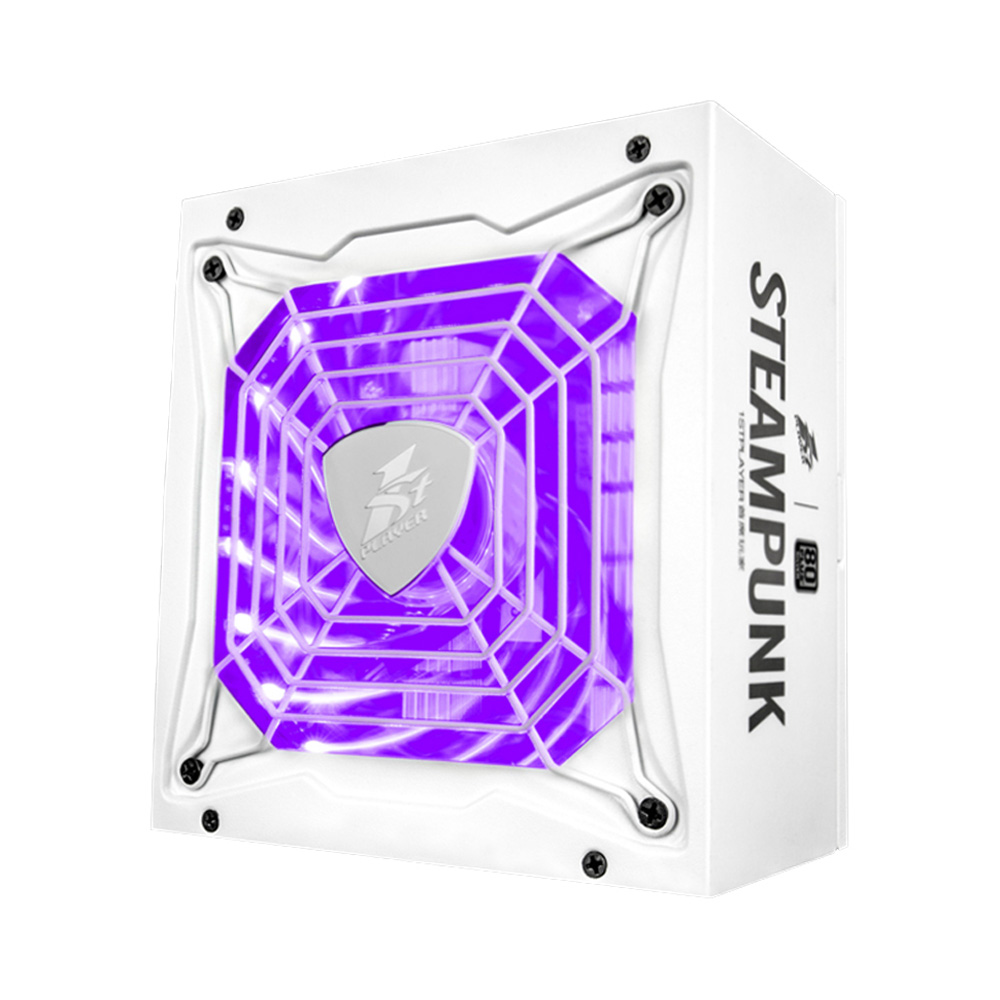

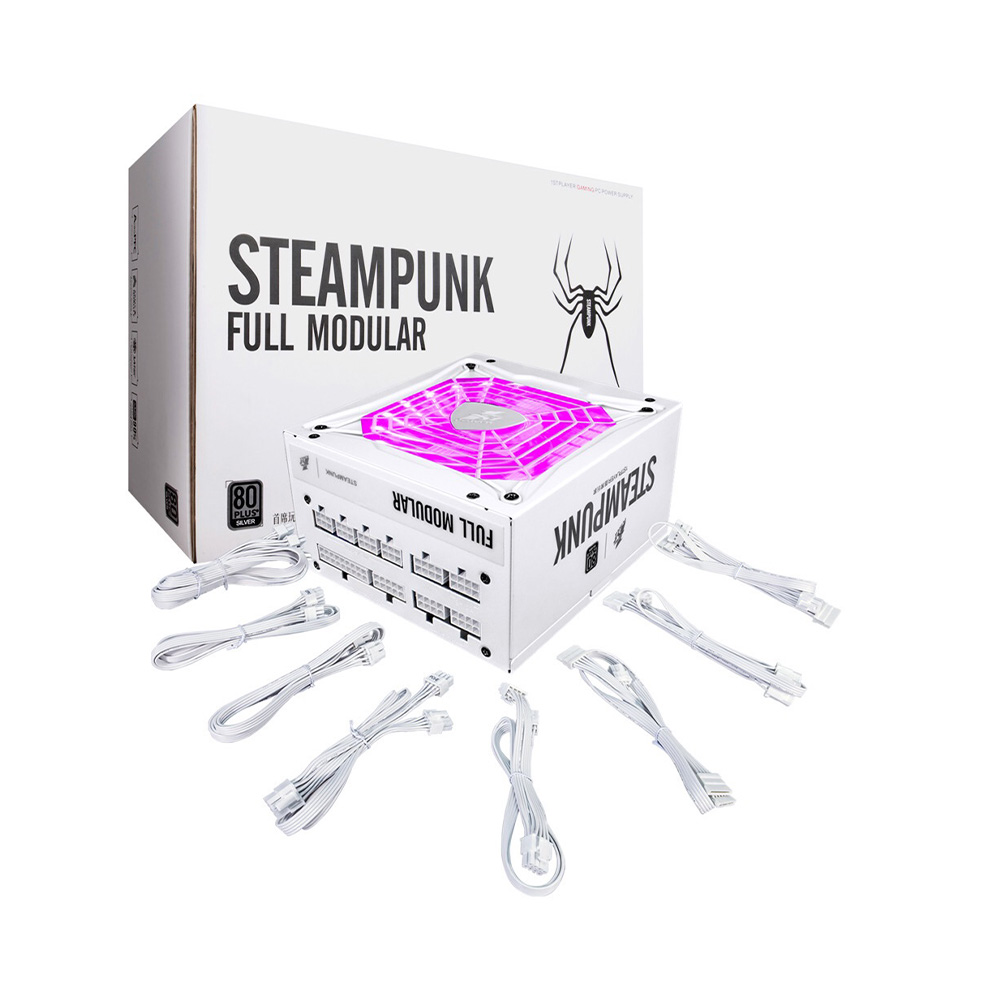

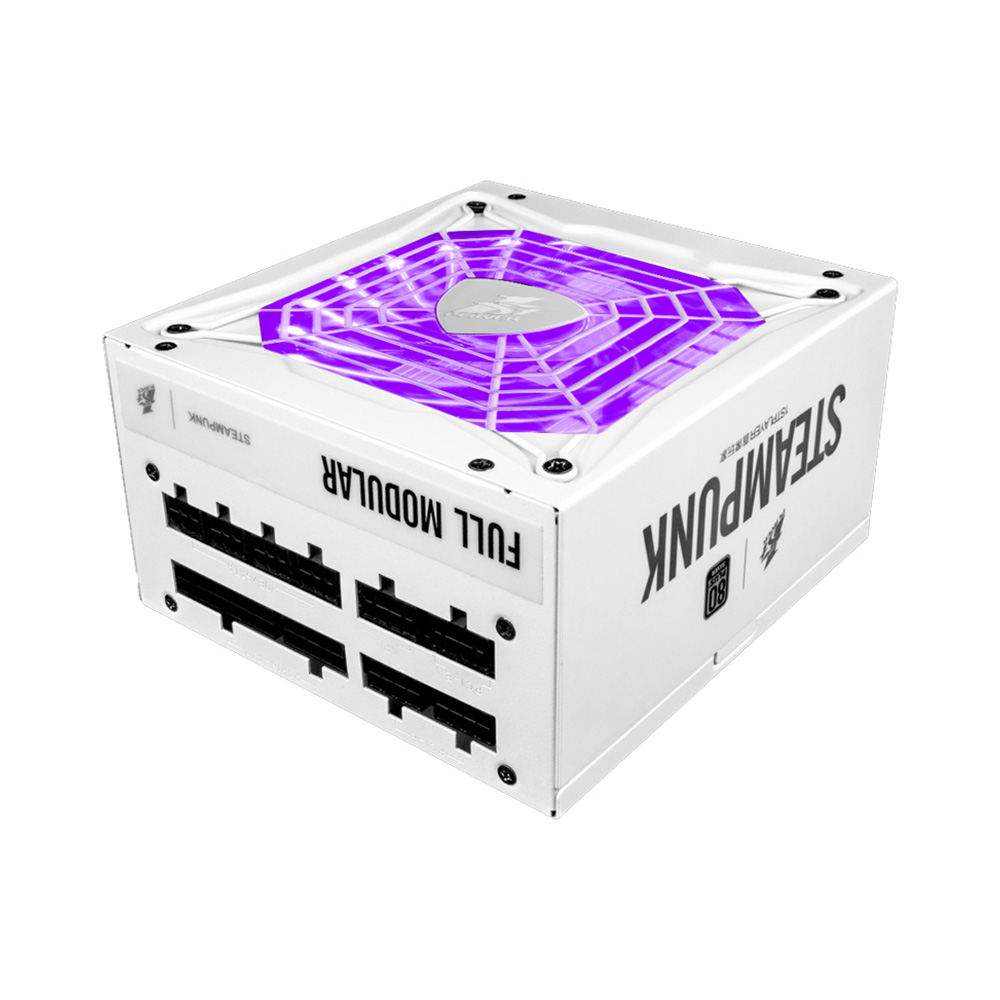

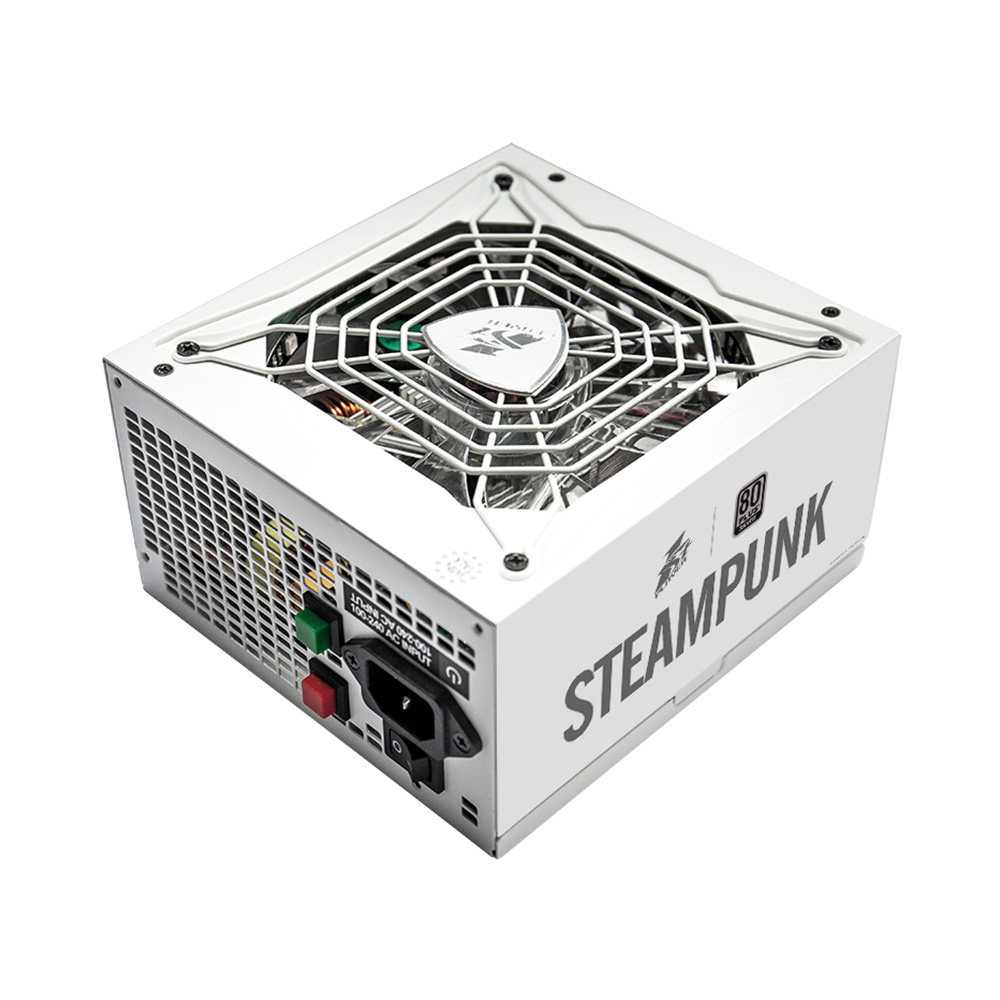

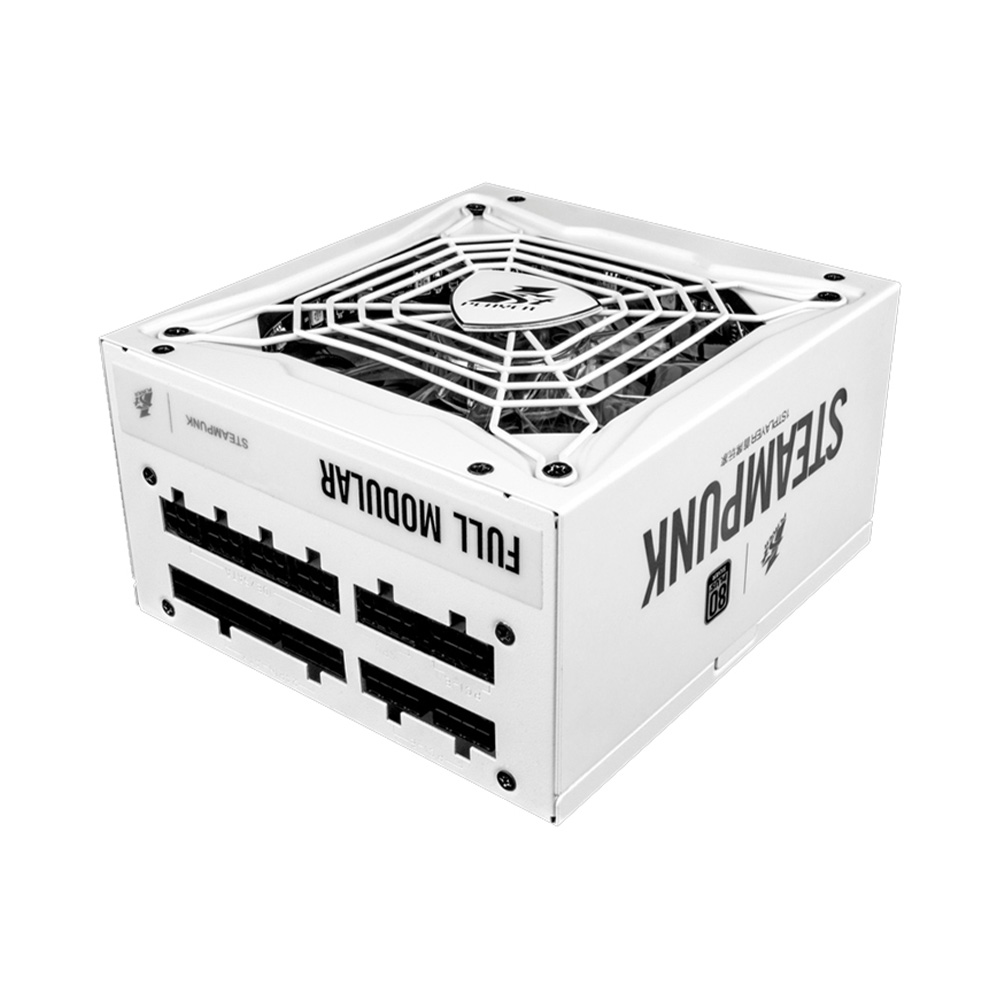

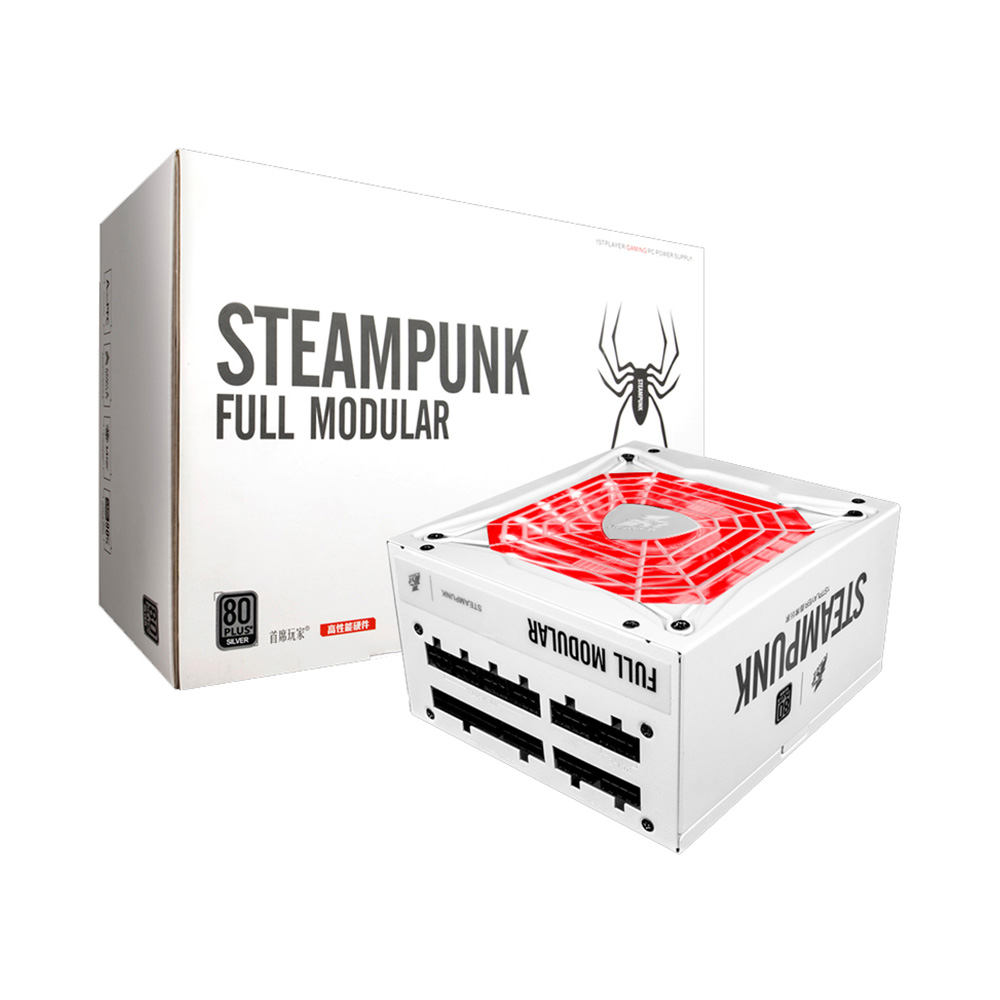

STEAMPUNK 650W / 750W SILVER Power Supply

Rated 650W

80PLUS Silver

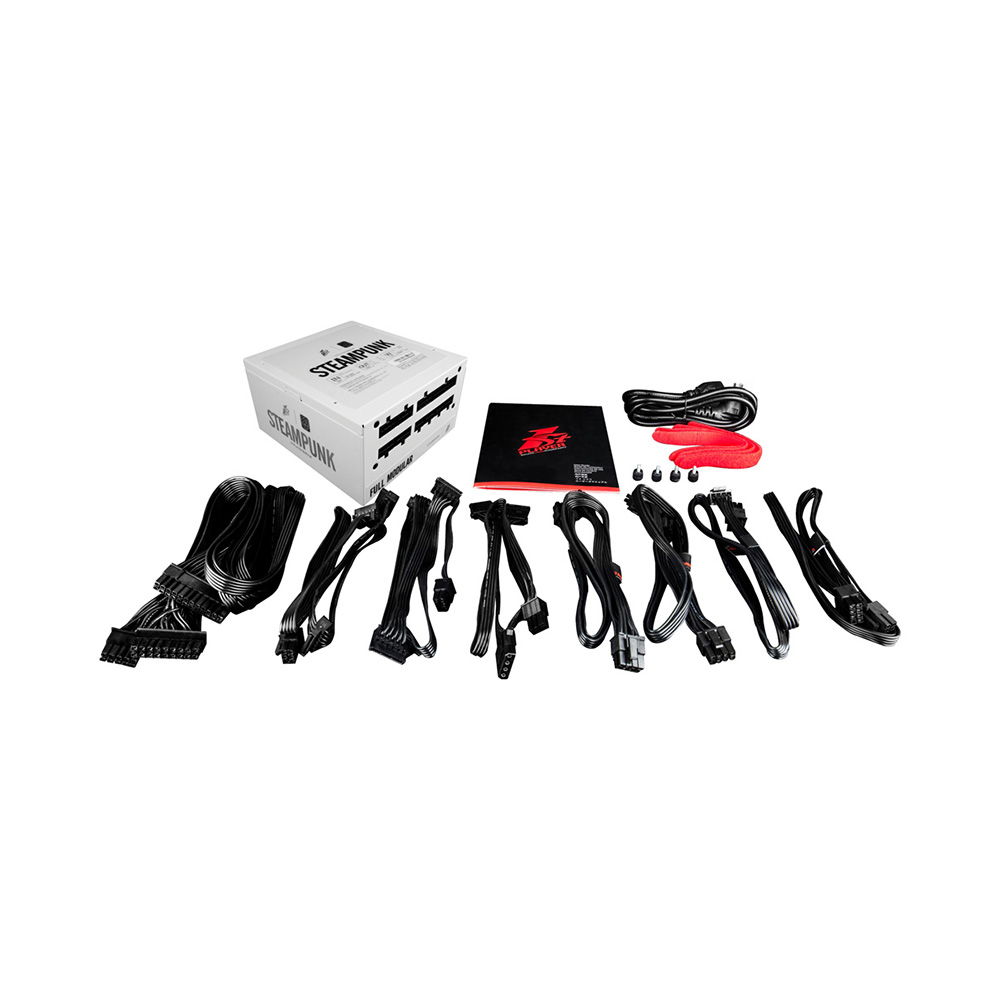

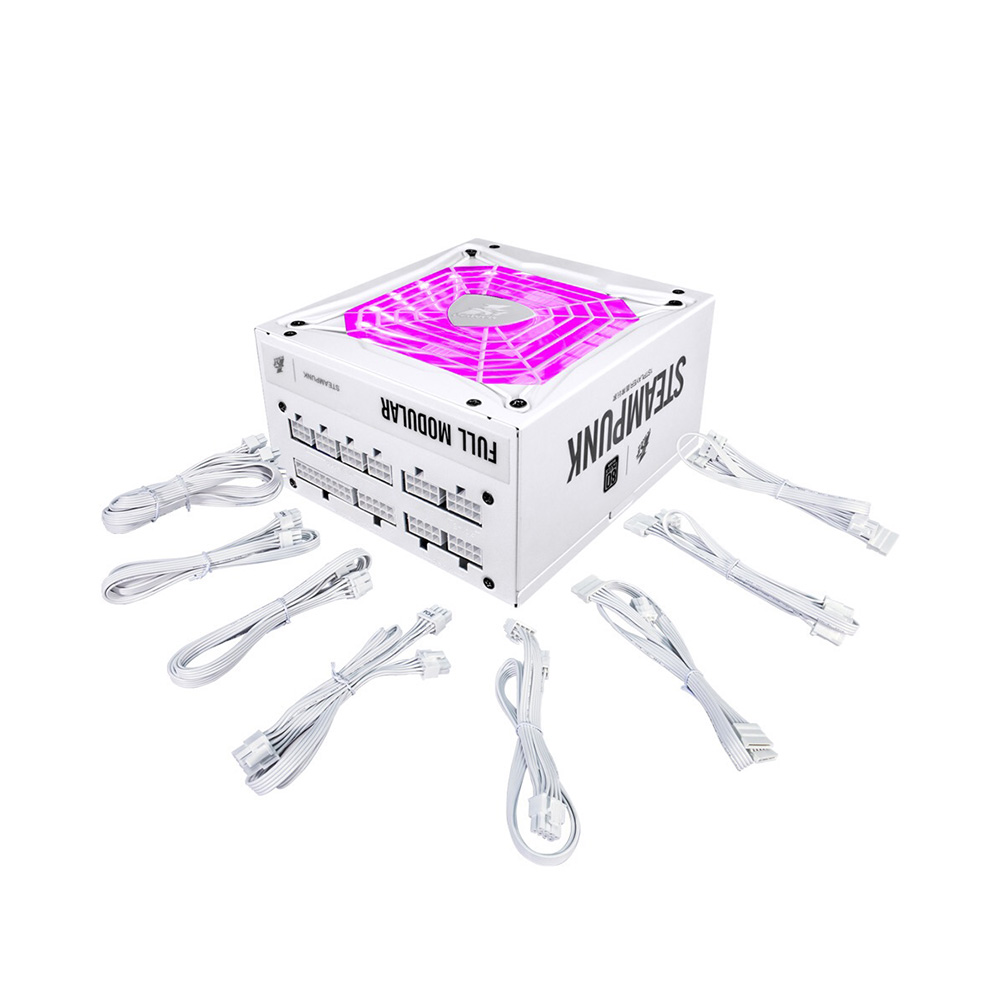

Full modular design
14CM fan
Flat noodle line
Full voltage
Dual CPU cable
LLC resonant circuit

Overview
Tech Specs
User Manual

Watch Video

Model

STEAMPUNK :PS-650AX/PS-750AX SILVER FULL MODUALR

Dimensions(L*W*H)

160*150*86 MM

Modular

FULL-Modular

Certifications

80 PLUS SILVER

Warranty

3 years

Input Voltage

100-240 VAC

Input Current

10A MAX

Efficiency

80 PLUS SILVER,88.26% at typical loading/88.92% at typical loading

Output Capacity

650/750 W

Input Frequency

50-60Hz

PFC

Active PFC

Net Weight

2.3kg

Gross Weight

2.73kg

Fan Size

140MM Hydraulic Bearing

Protections

UVP, OVP, OPP, SCP, Lightning Protection，OTP

Operation Temperature

0~40℃

MTBF

100,000 hours

Circuit Structure

LLC + DC-DC

Regulatory

CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC
