*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

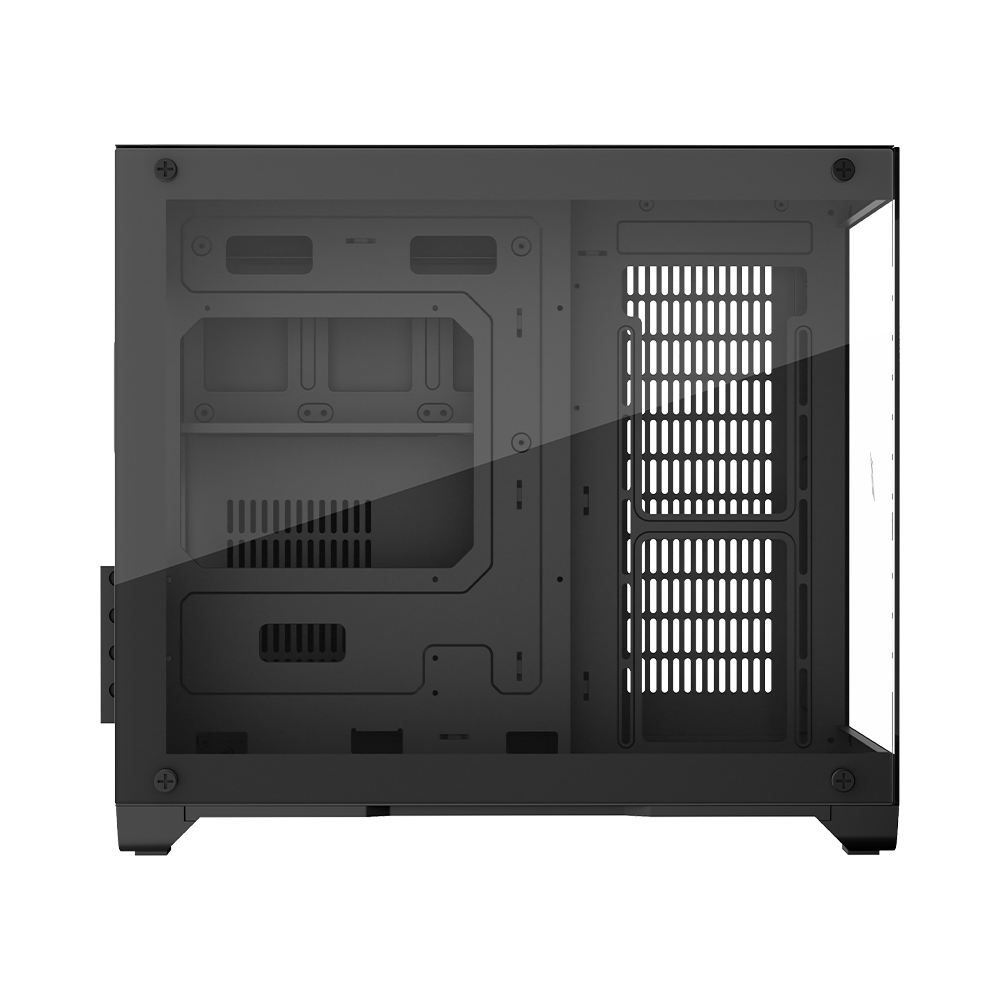

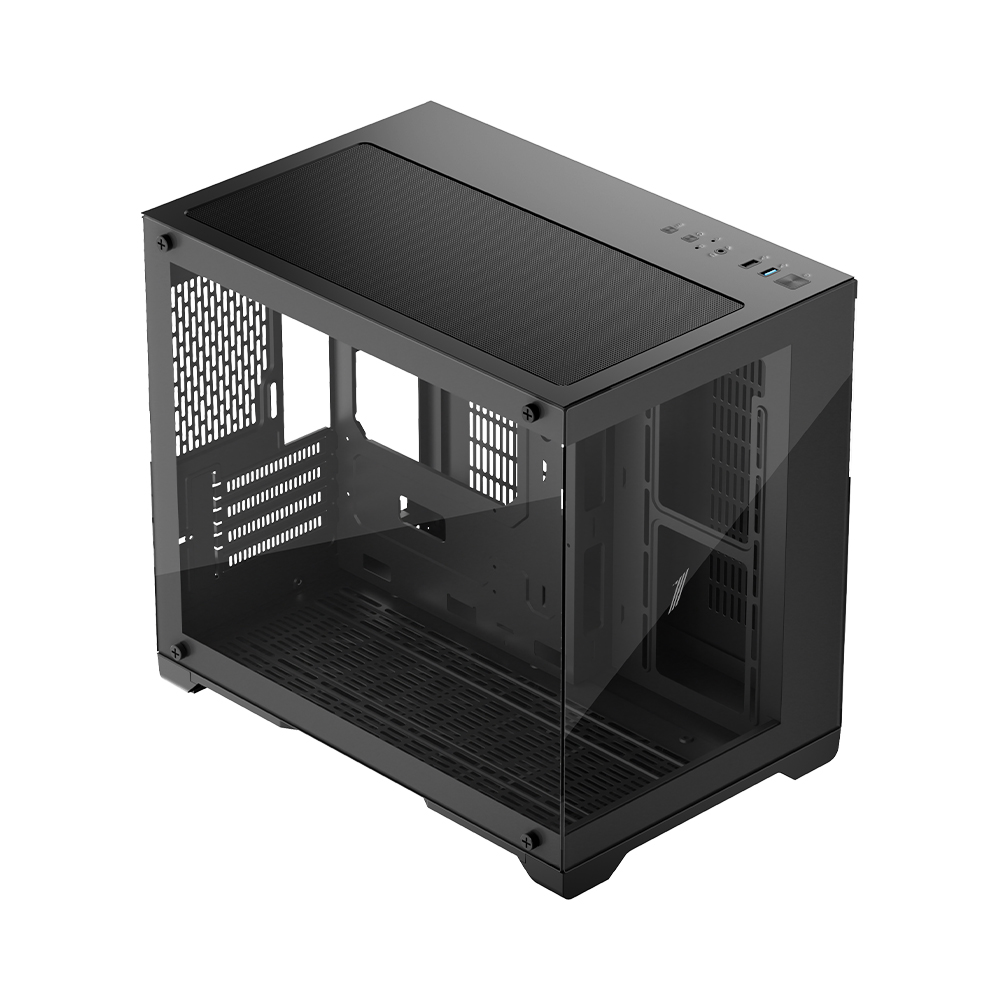

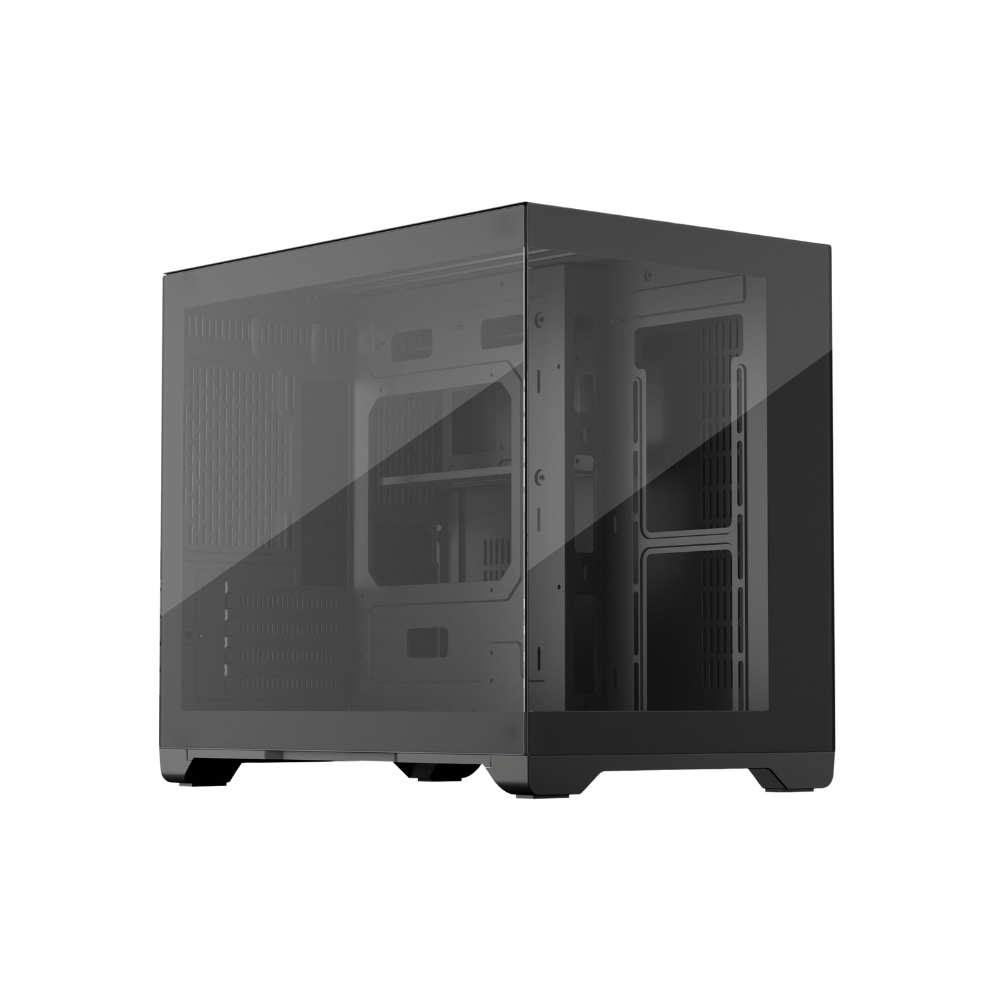

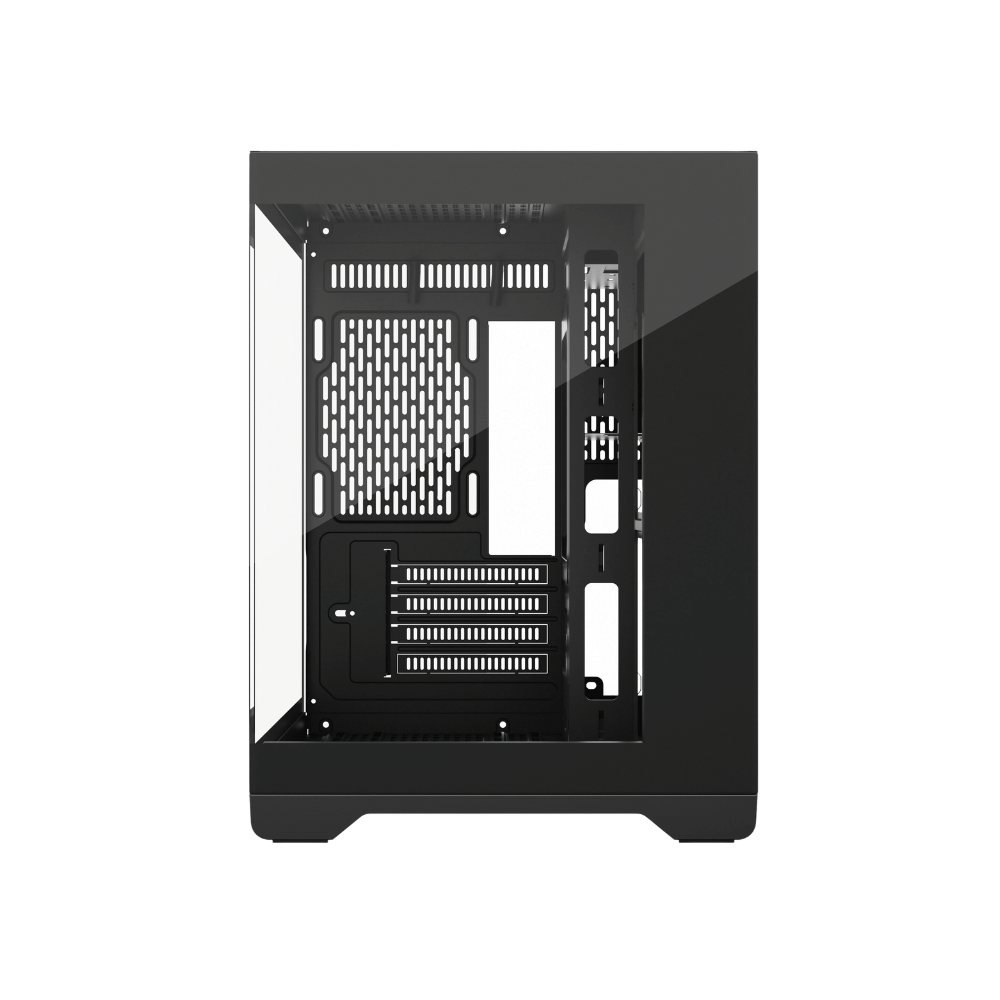

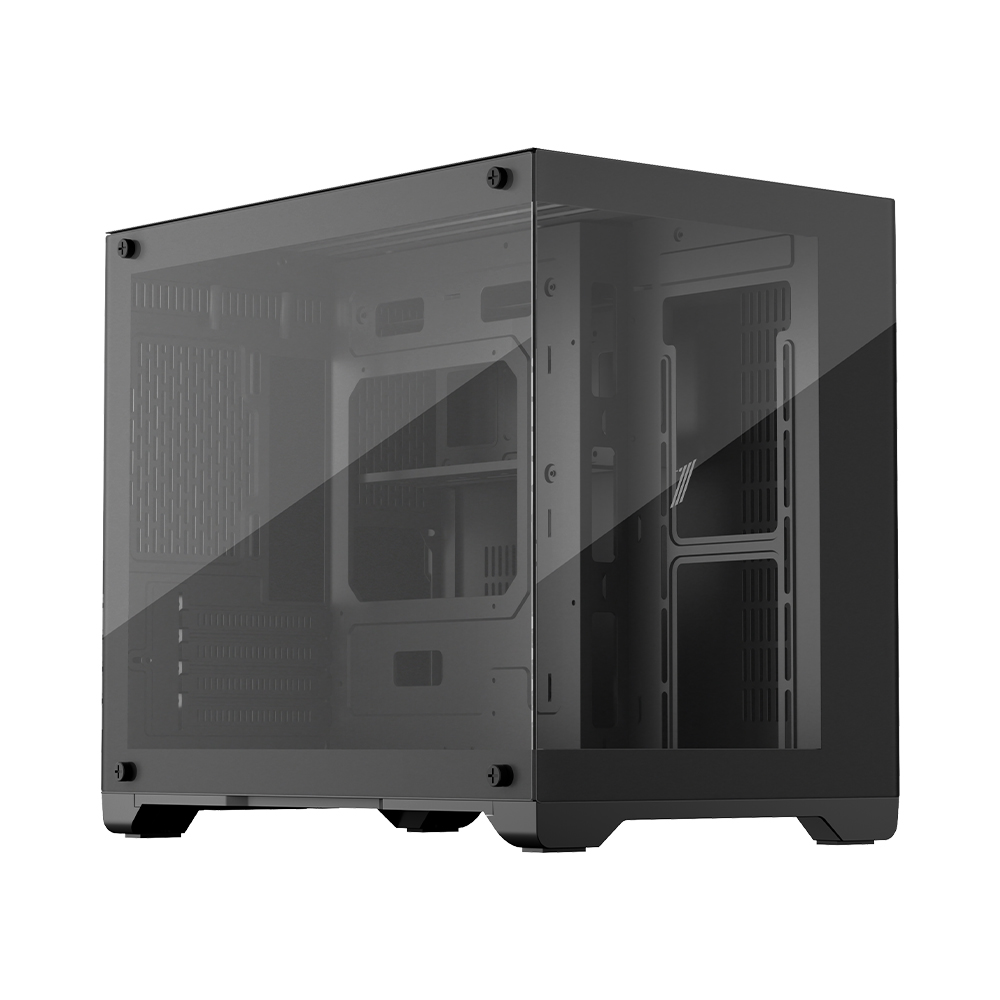

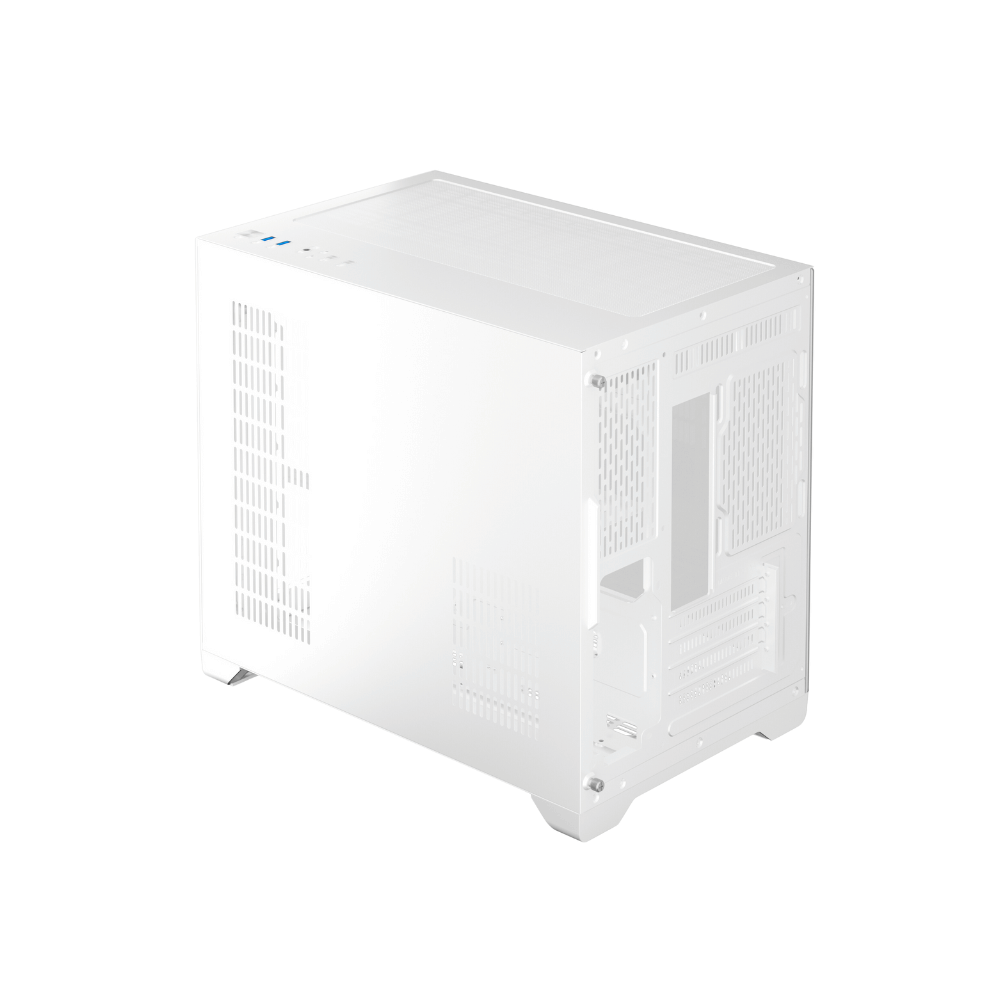

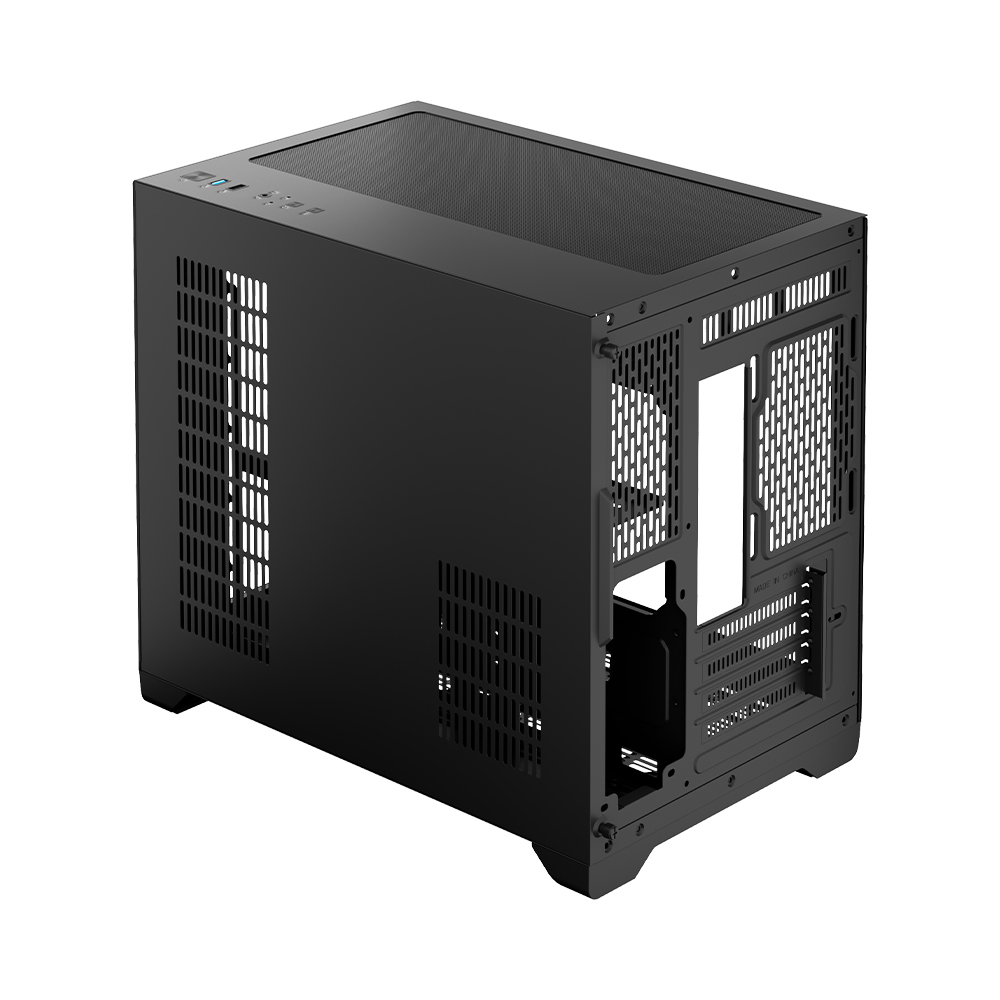

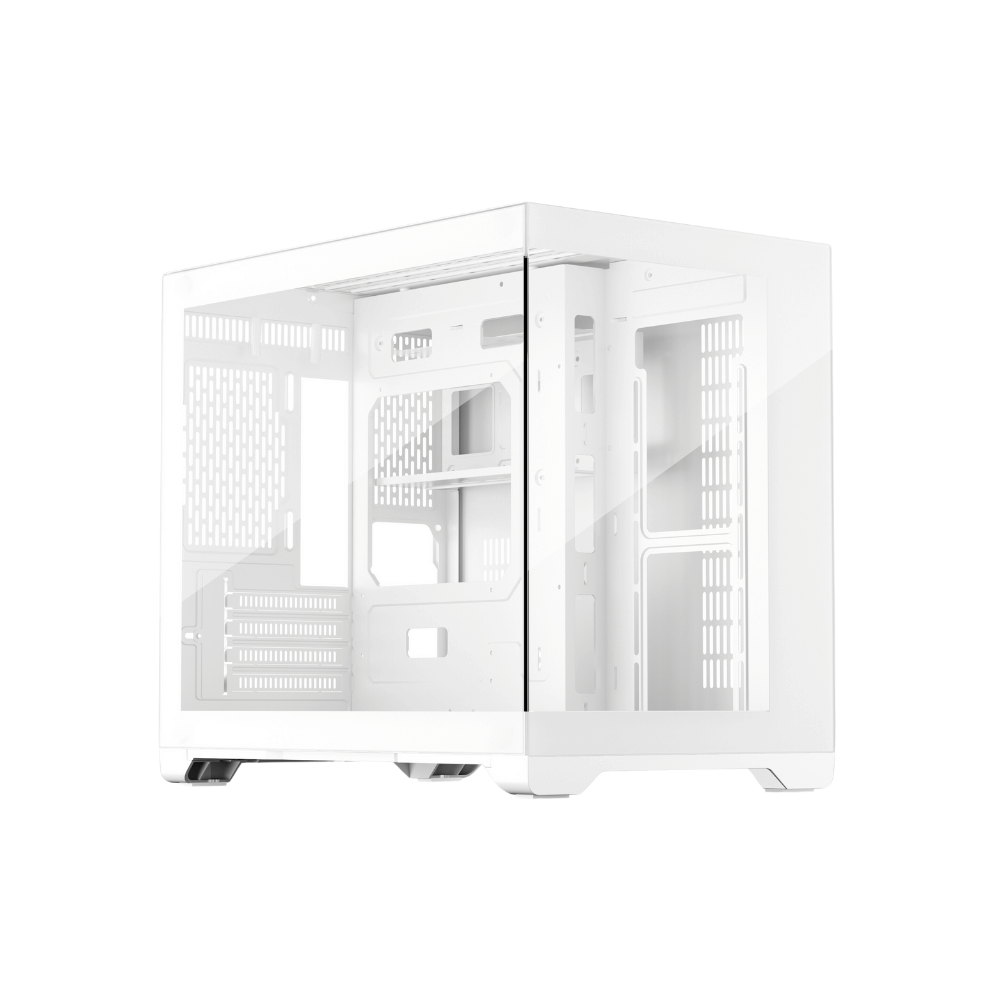

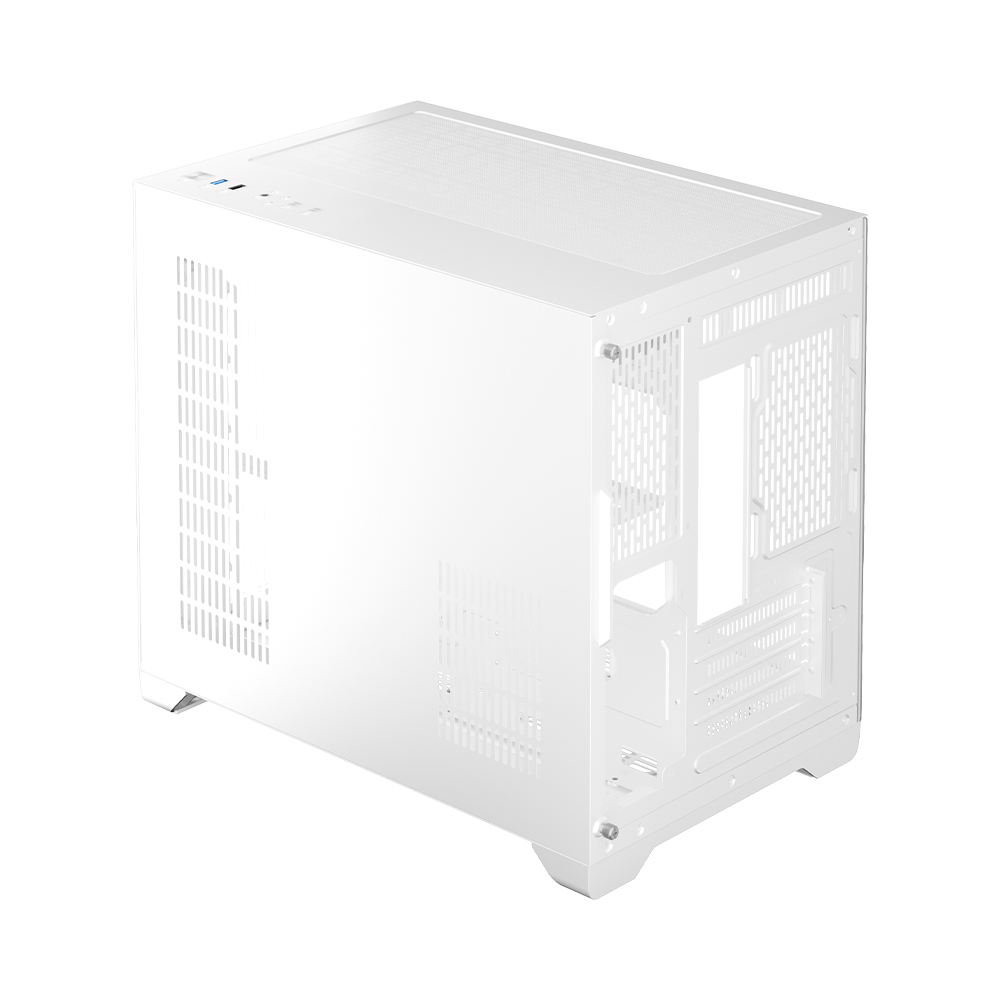

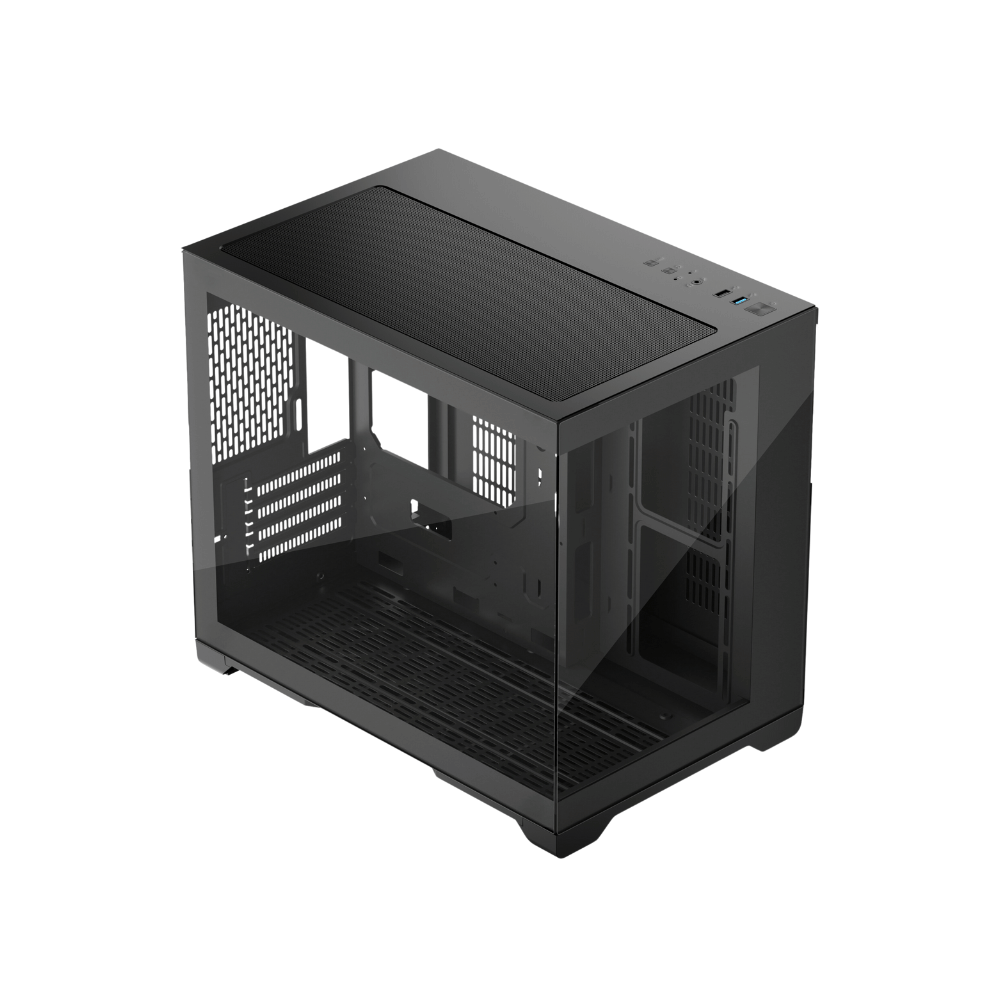

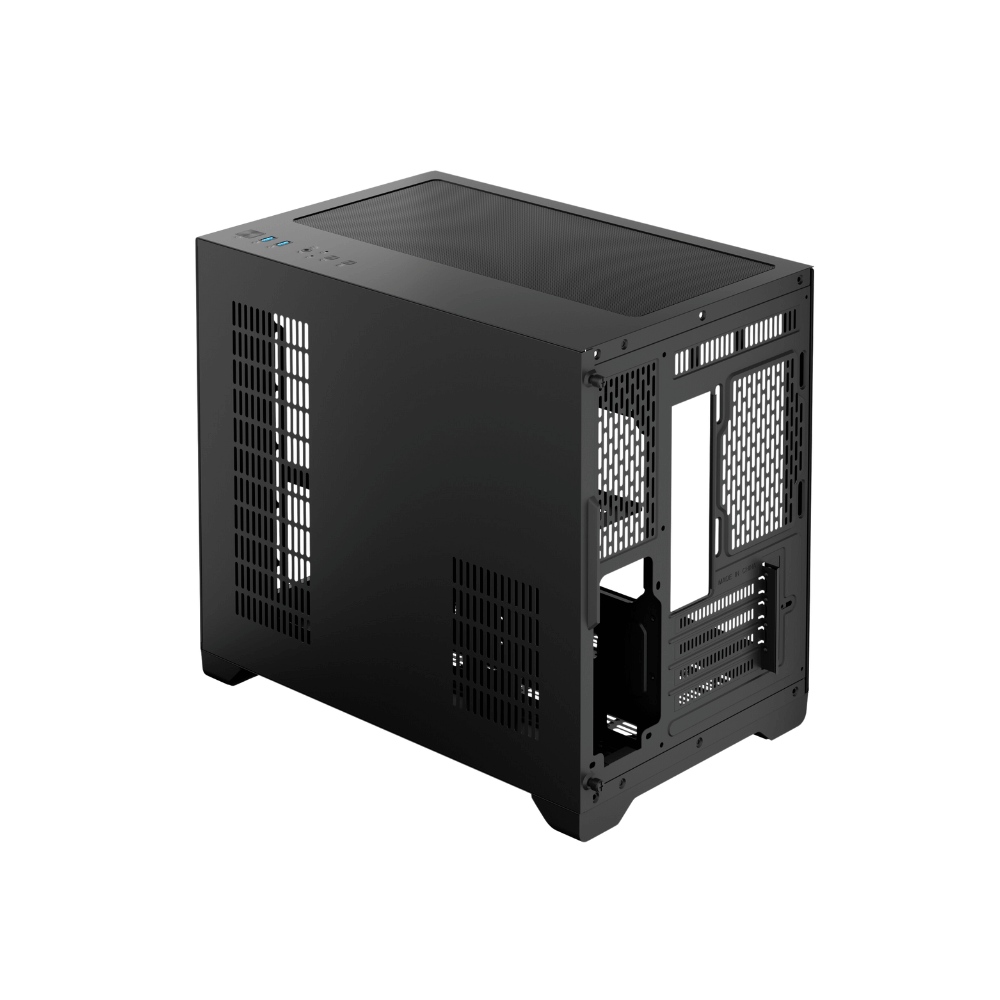

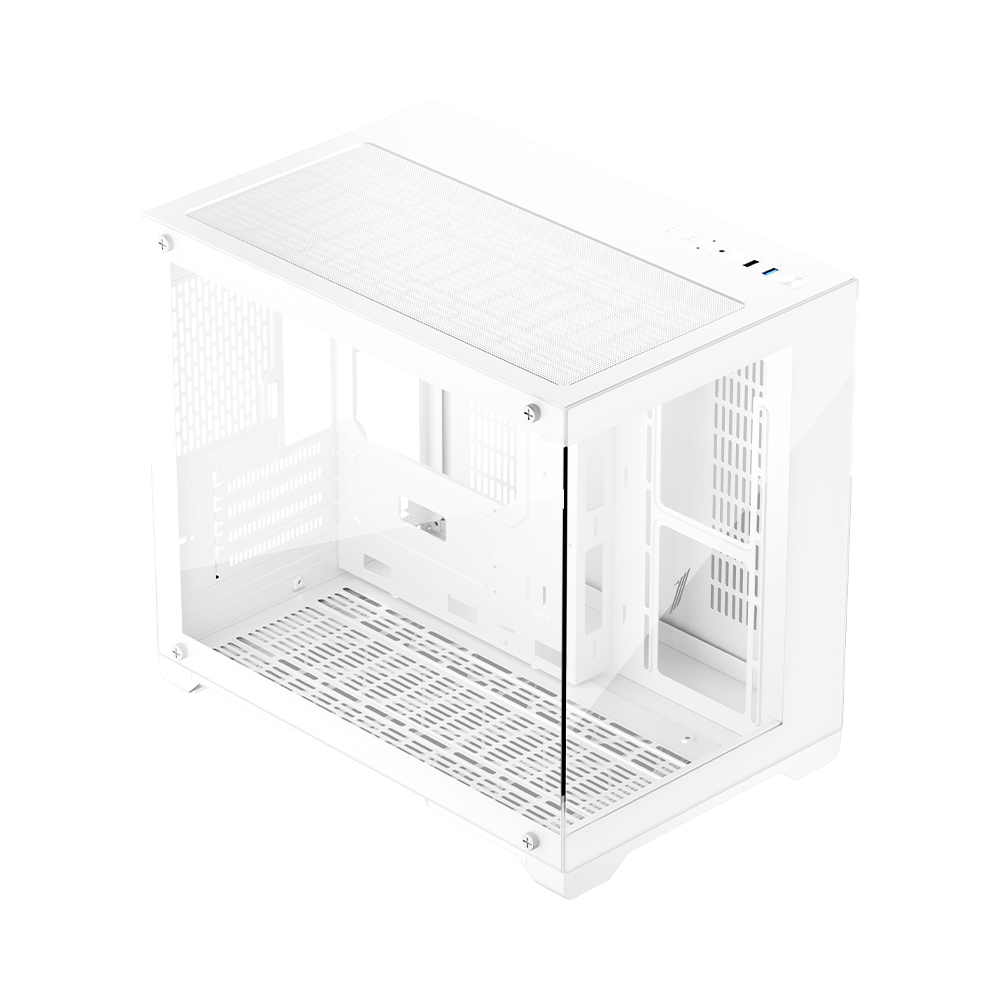

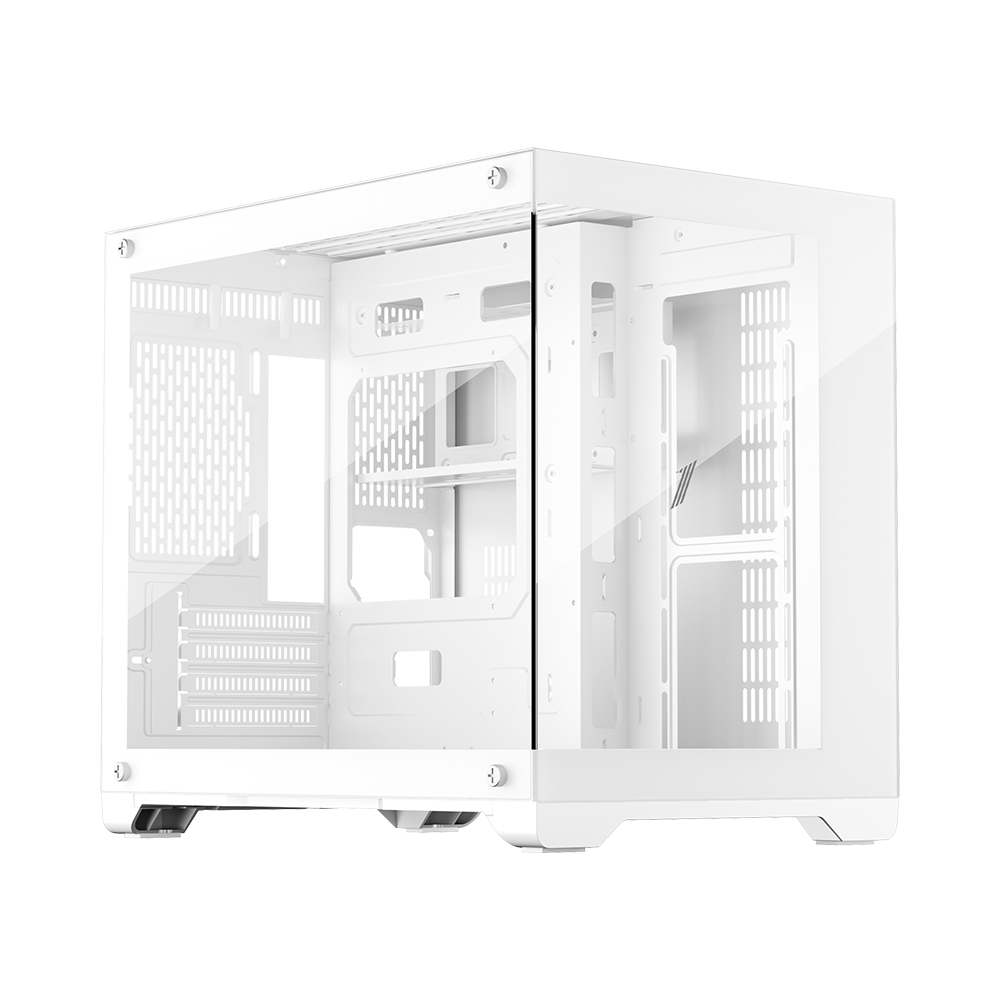

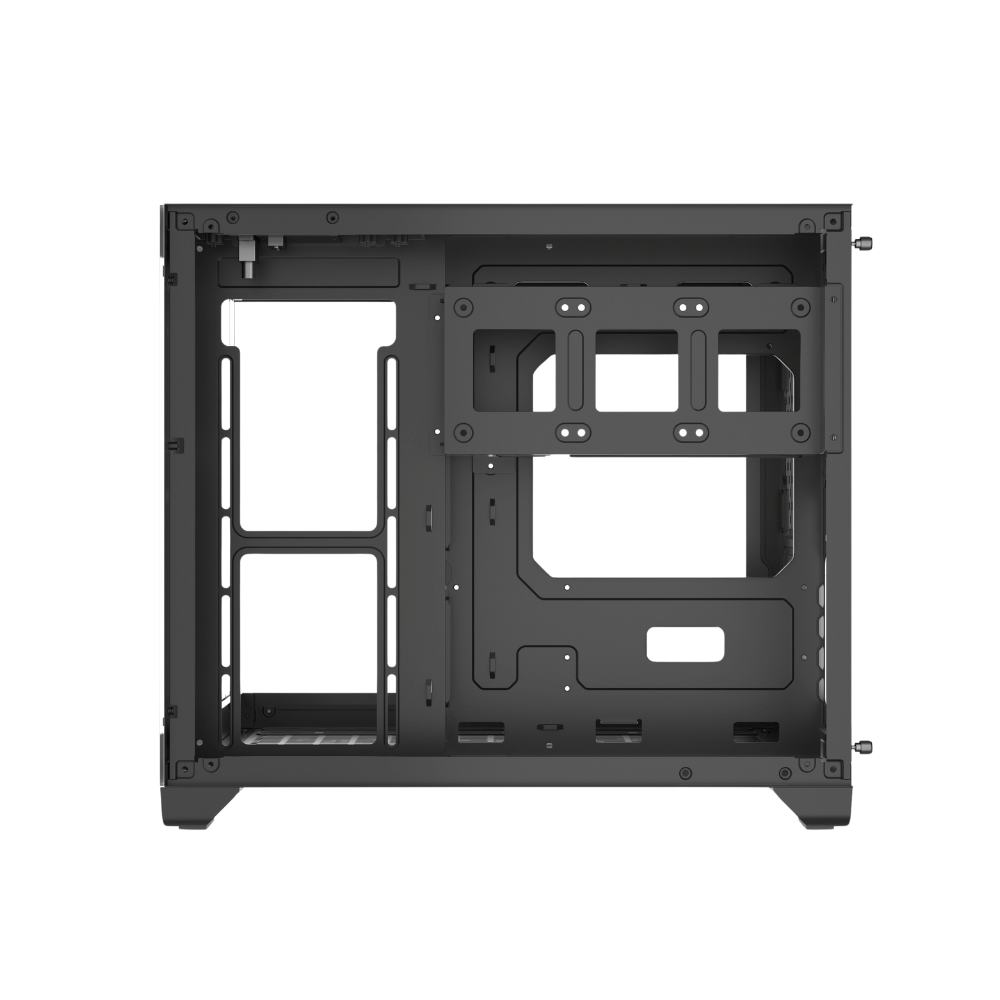

MV6-TP(Black)

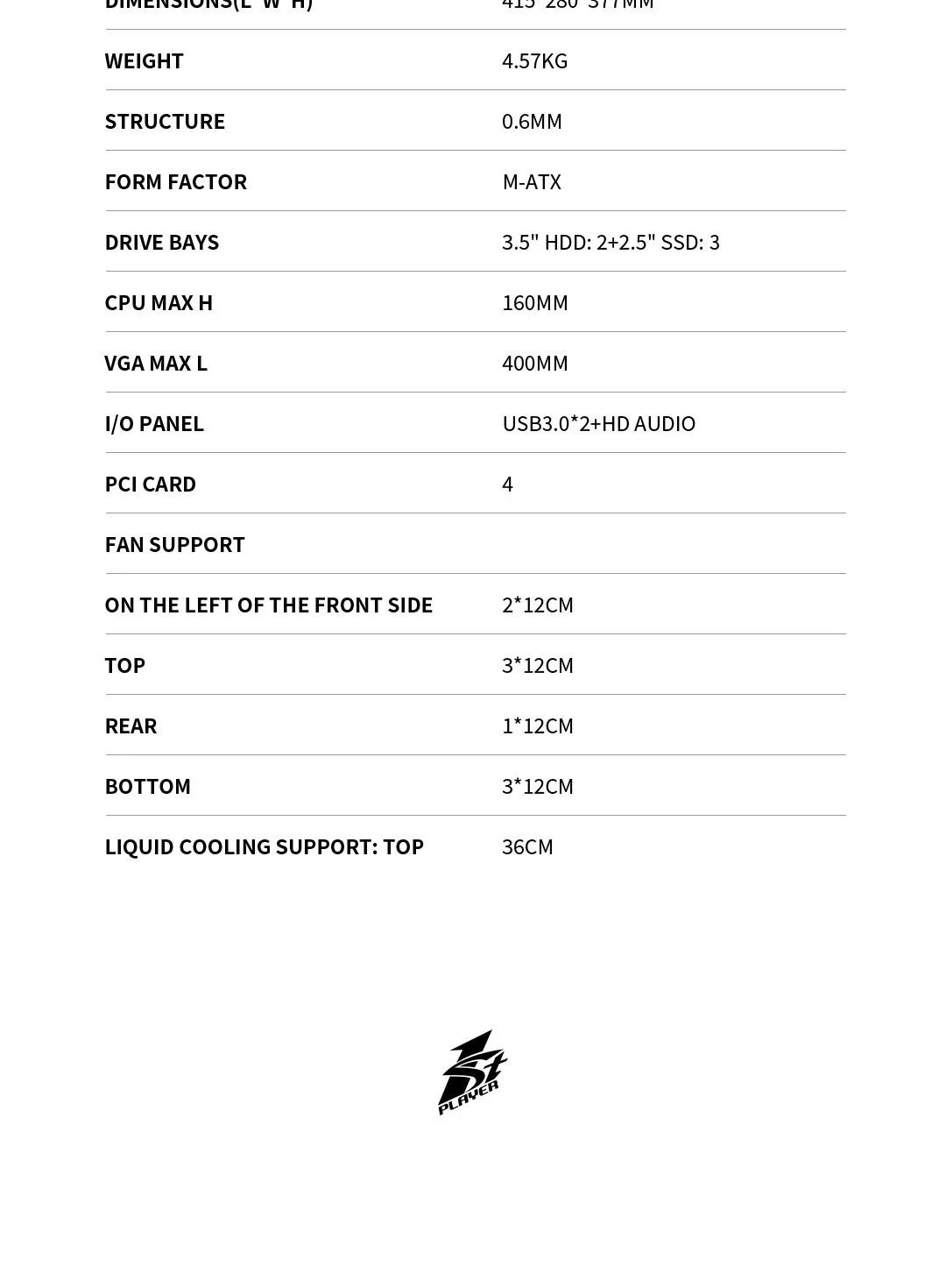

MODEL
MV6-TP
STRUCTURE DIMENSIONS (L x W x H)
412 x 280 x 350 mm

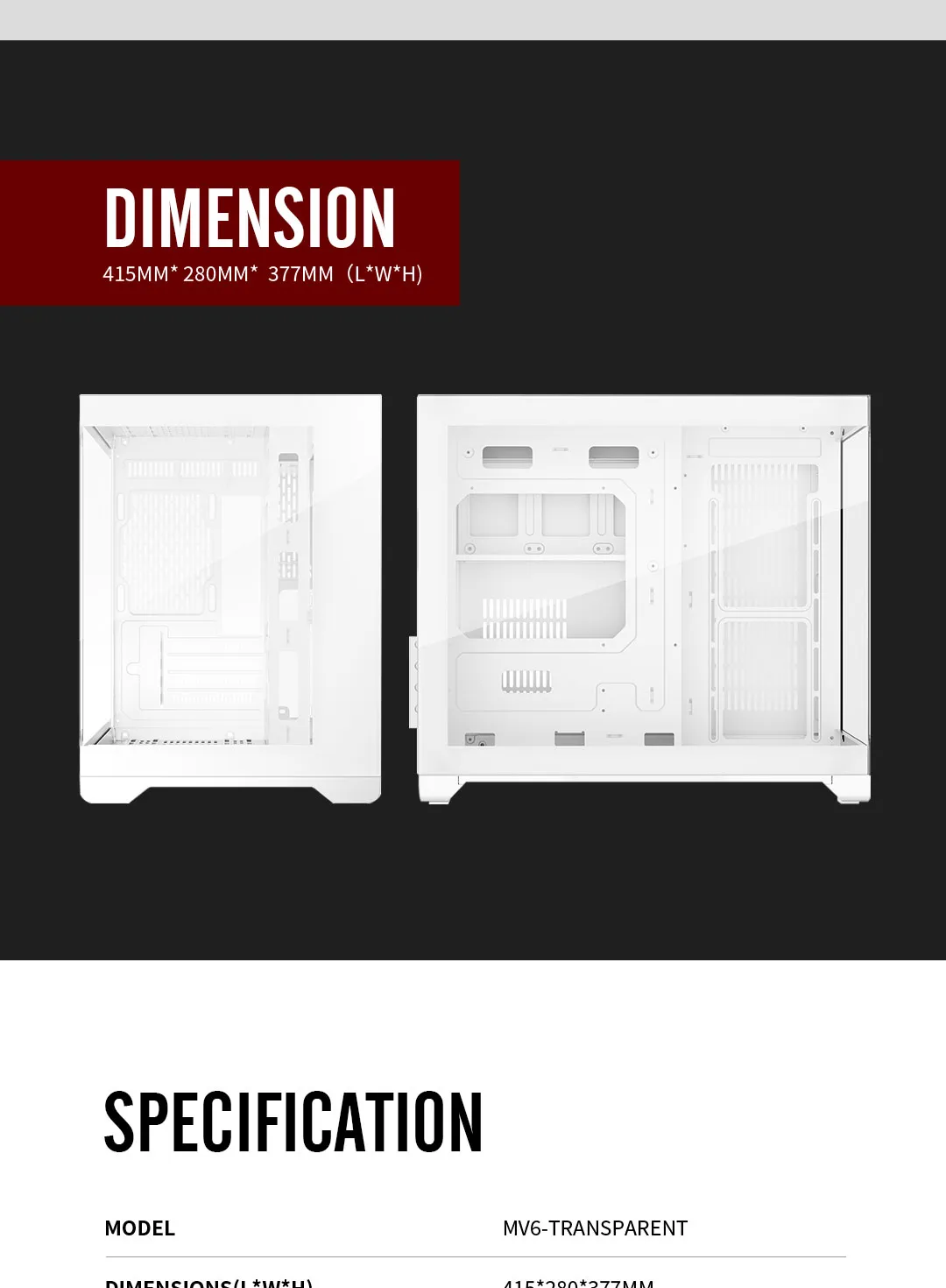

PRODUCT DIMENSIONS (L x W x H)
415 x 280 x 377 mm
PACKAGE DIMENSIONS (L x W x H)
435 x 340 x 490 mm

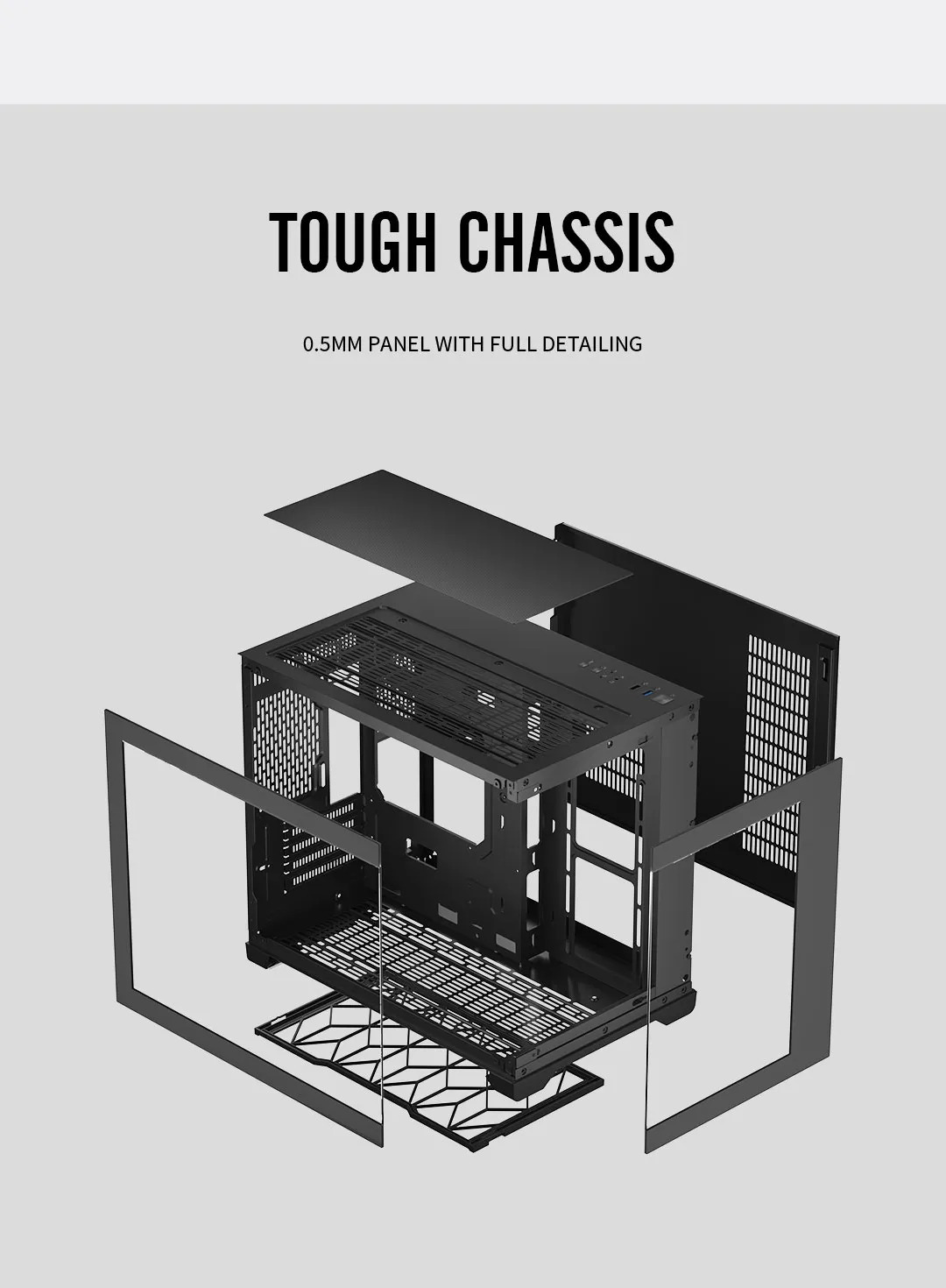

STRUCTURE THICKNESS
0.6 mm
MATERIALS
SPCC 0.6 mm

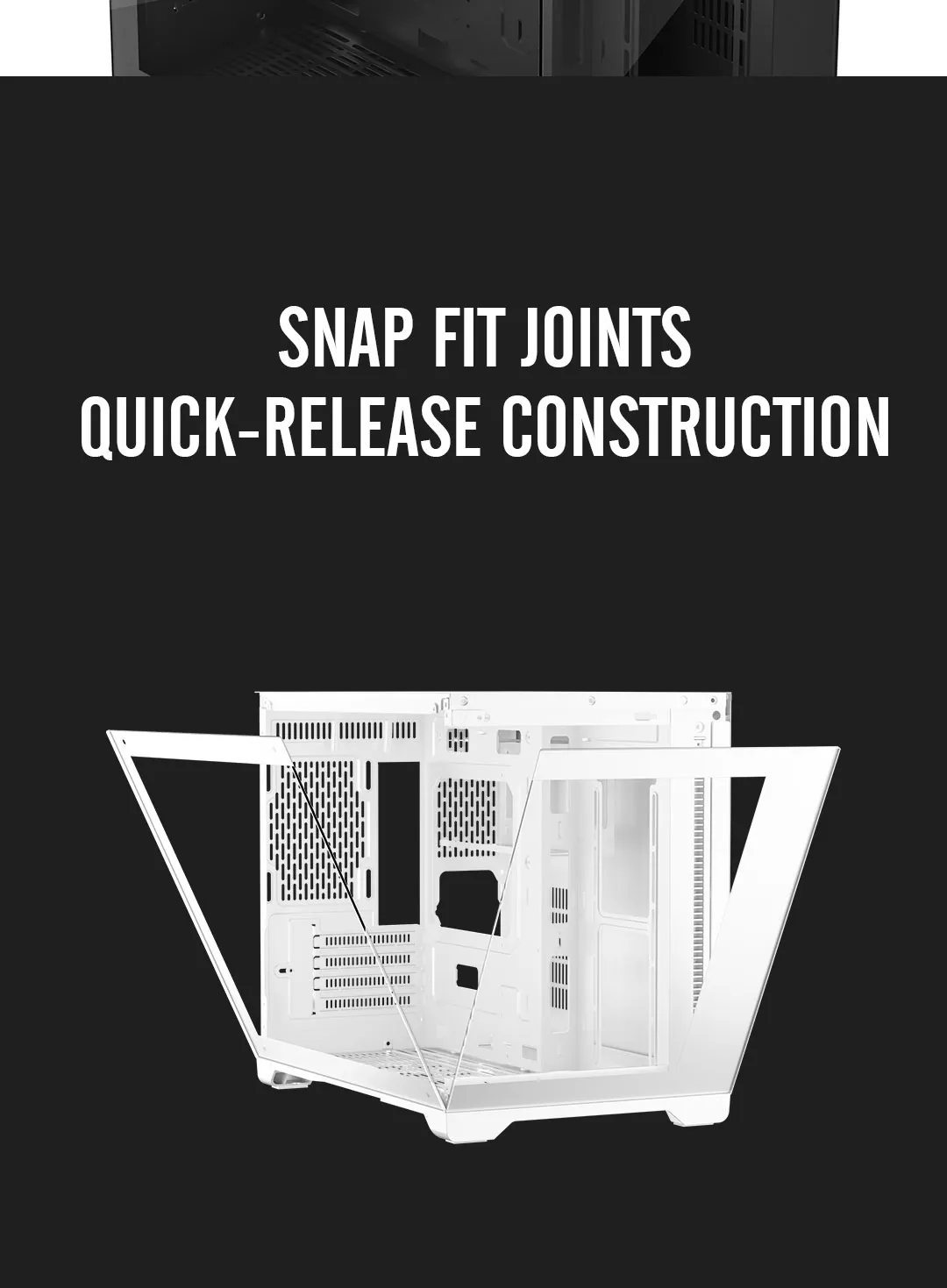

Front / Left Panel：Tempered glass
FORM FACTOR
M-ATX / Mini-ITX
5.25" CD ROM: 0

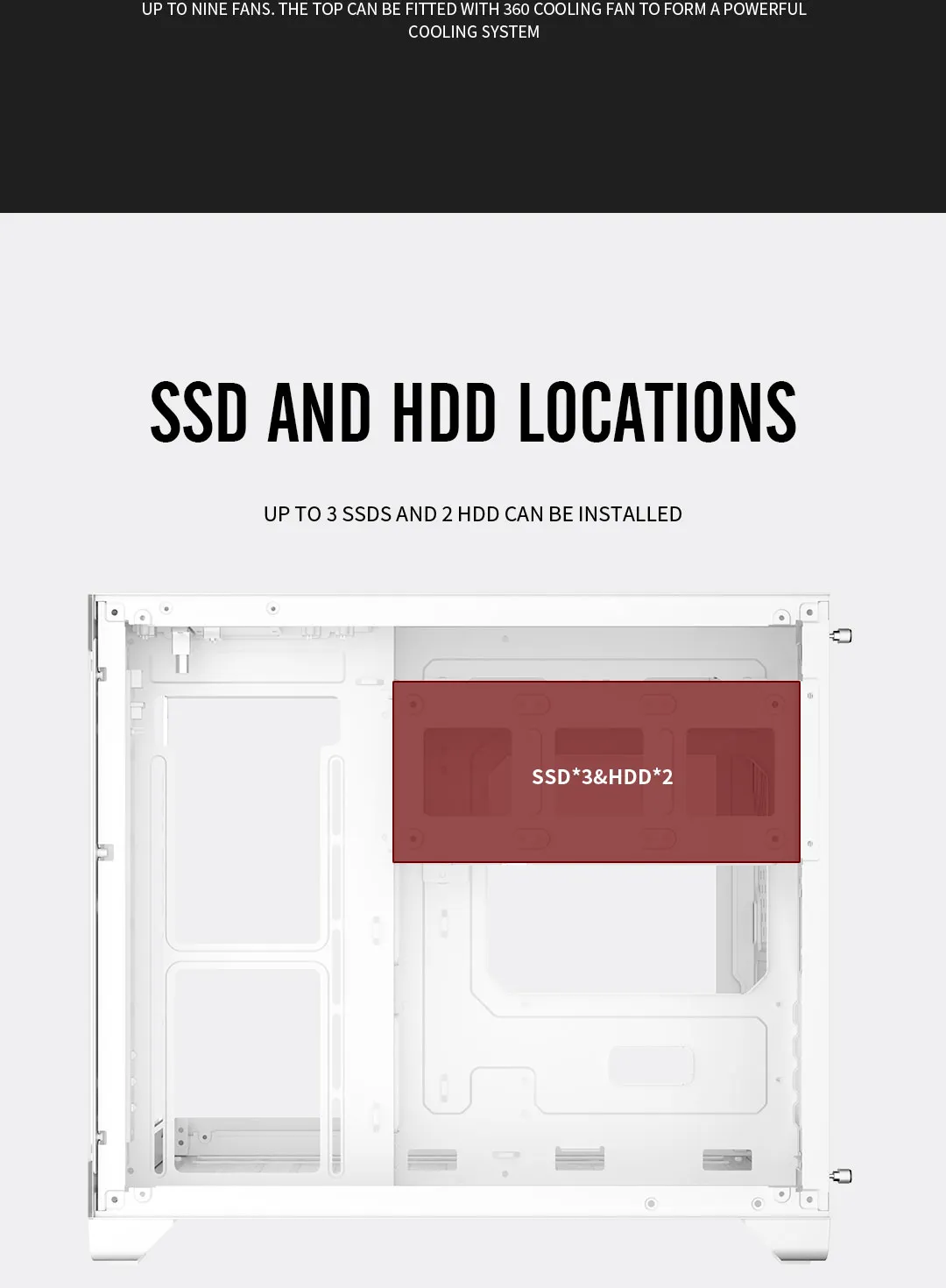

3.5" HDD: 2+2.5" SSD: 3

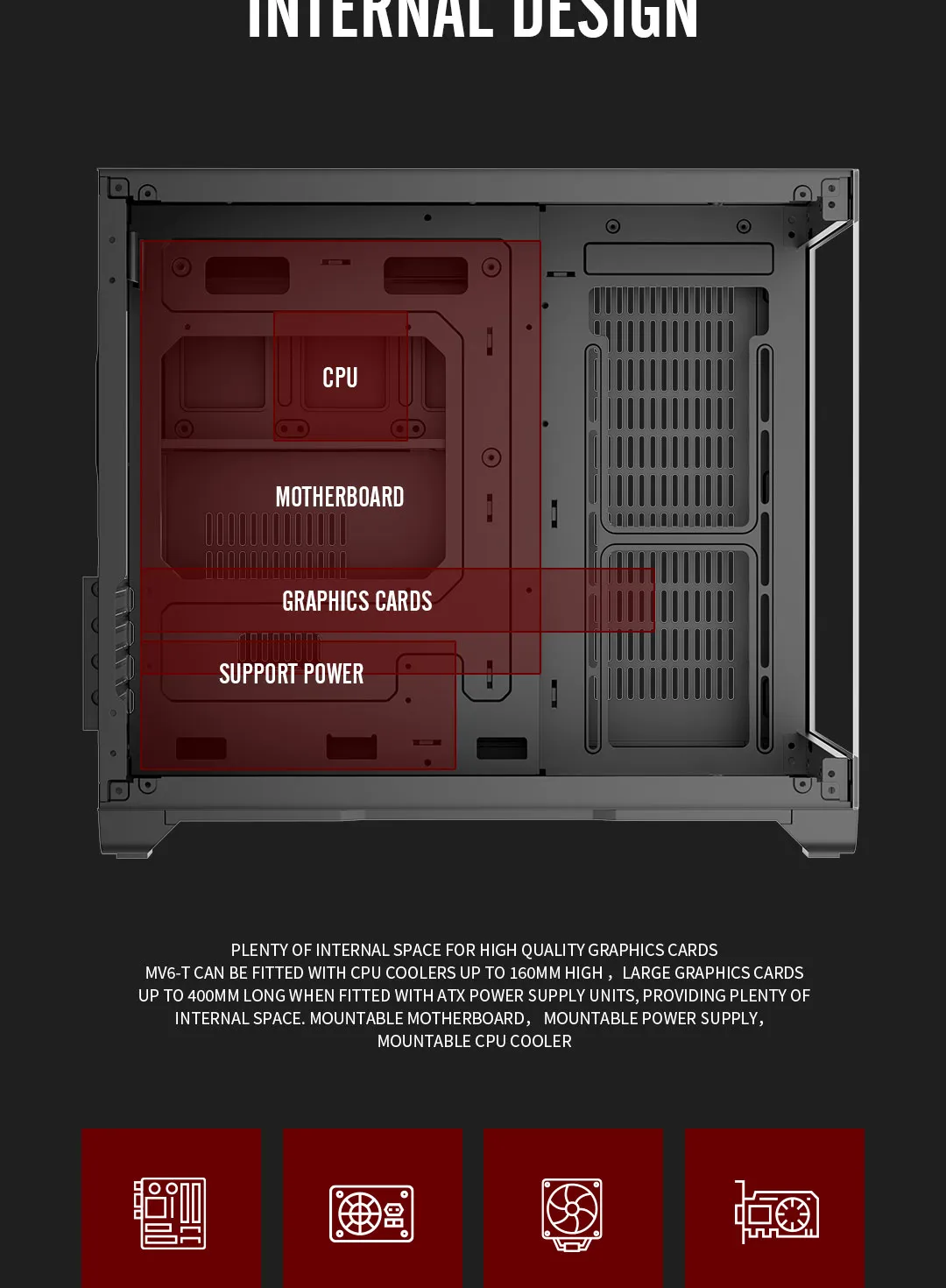

CPU MAX HEIGHT
160 mm
VGA MAX LENGTH
400 mm

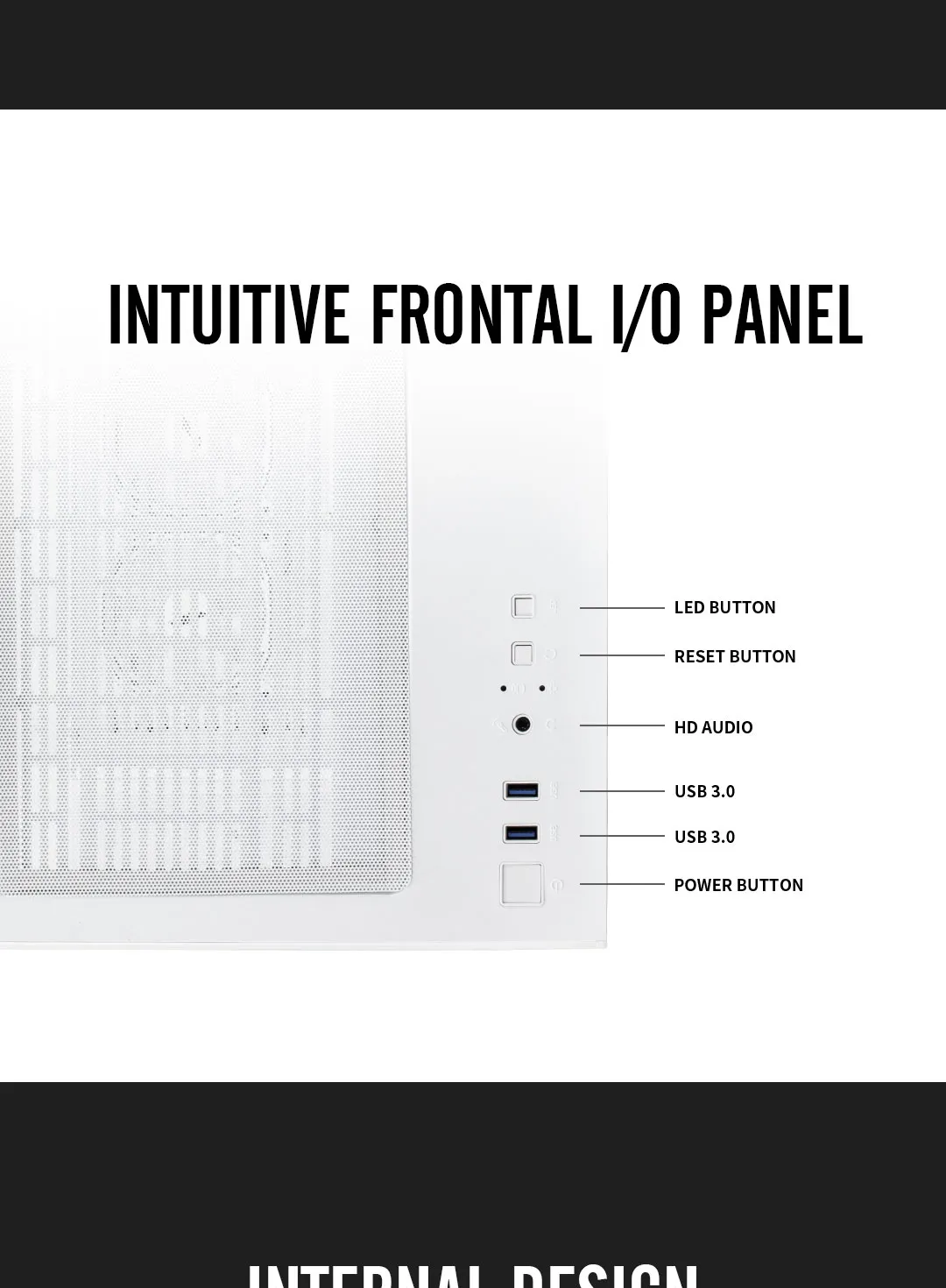

I/O PANEL
USB 3.0 x 2 + HD AUDIO
PCI CARD SLOT
4

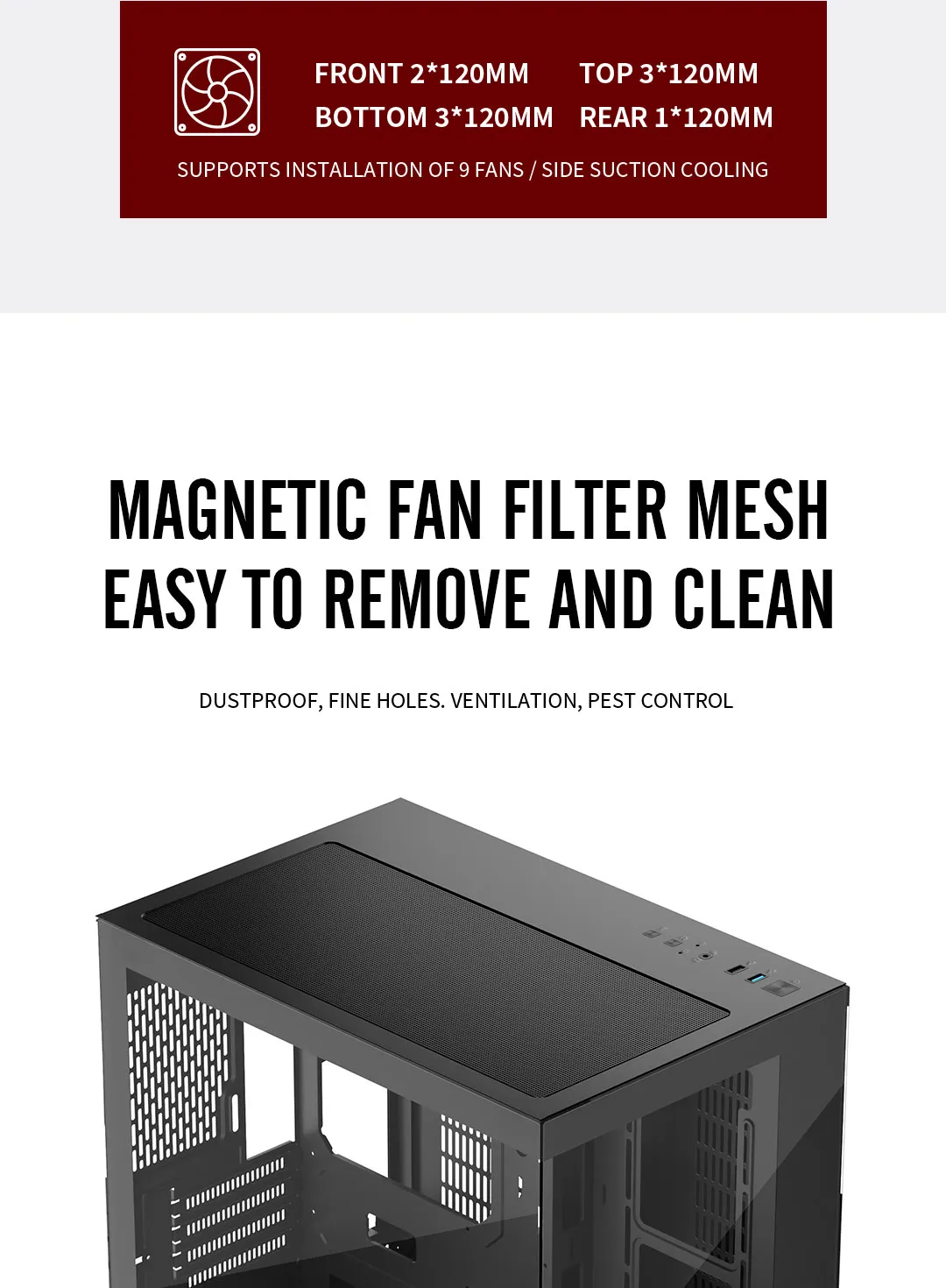

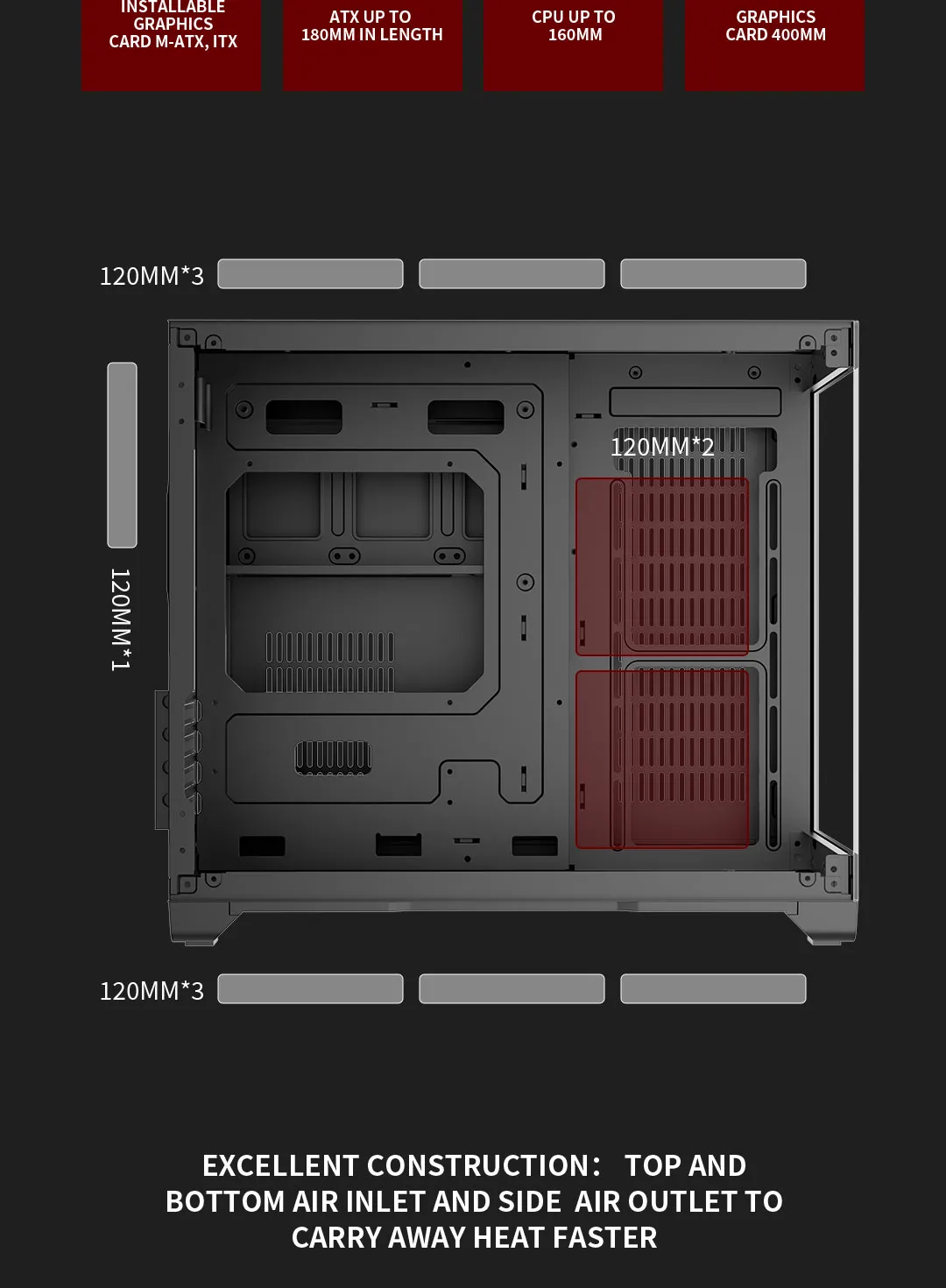

FAN SUPPORT
Front: 2 x 12 cm
Top: 3 x 12 cm
Rear: 1 x 12 cm
Bottom: 3 x 12 cm

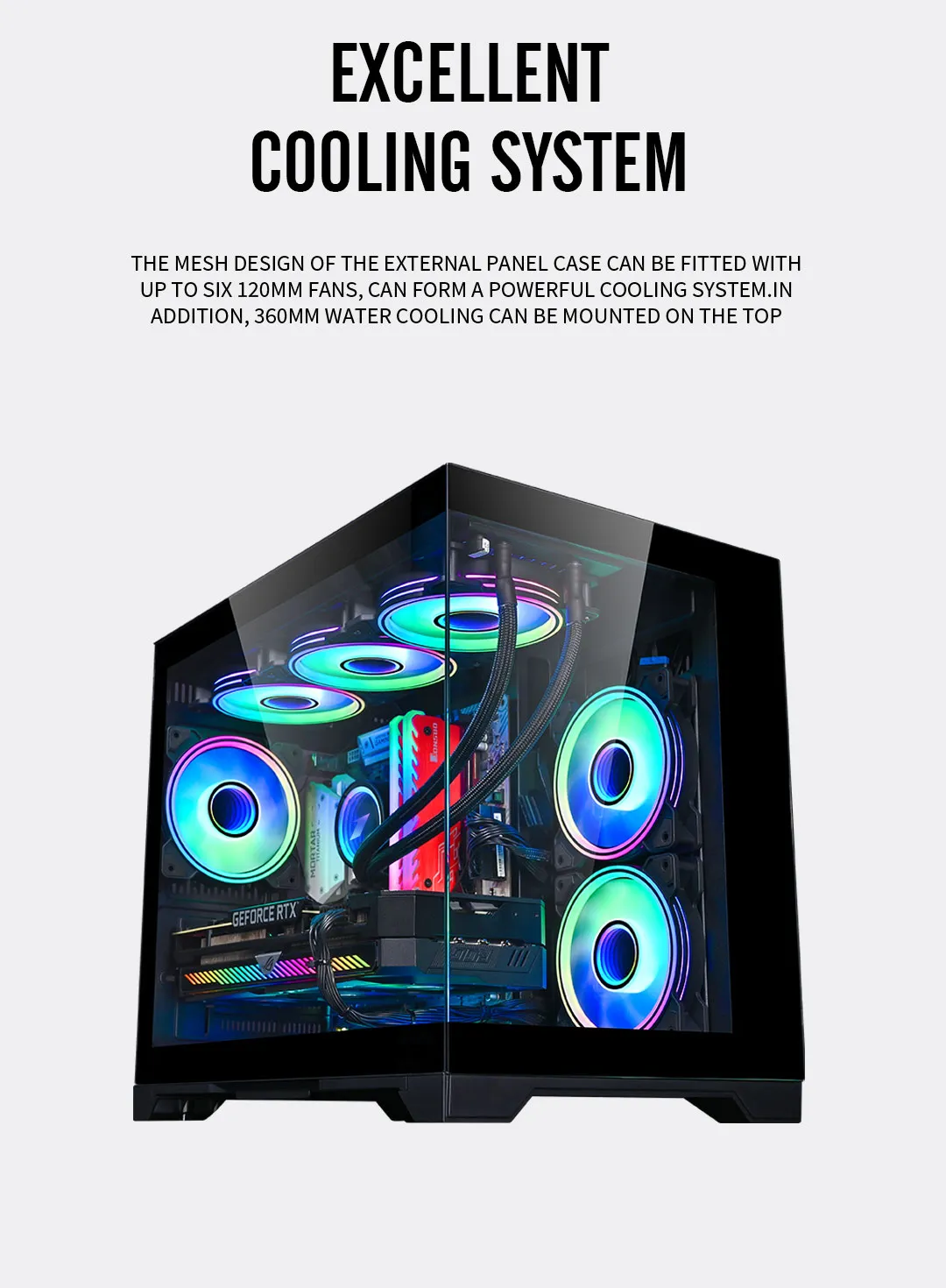

LIQUID COOLING SUPPORT
Top: 36 cm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
N.W.: 4.57 kg
G.W.: 5.37 kg
