Dimension : 330*192*435mm
CPUMaxL : 165mm
VGAMaxL : 320mm
Case Drive Bays : 5.25" CD ROM: 0
①3.5" HDD: 2 + 2.5" SSD: 2
②3.5" HDD: 1 + 2.5" SSD: 3

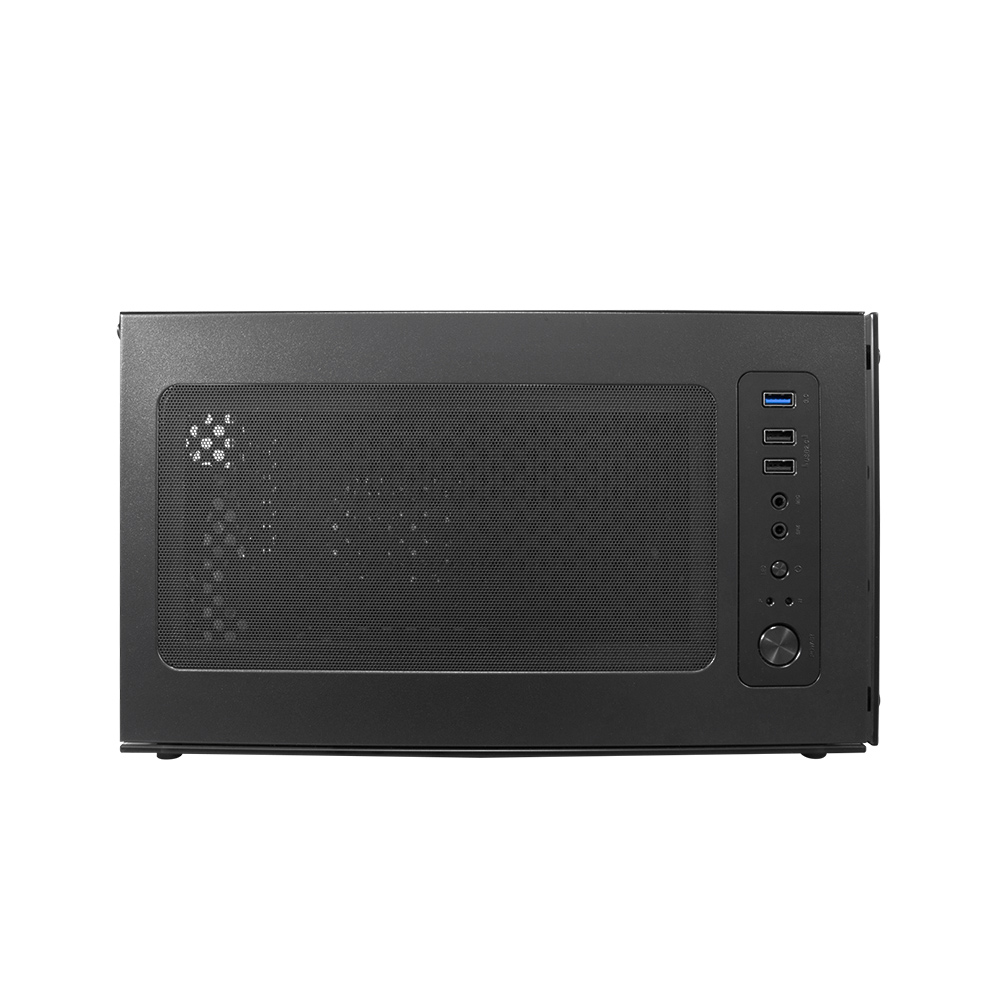

I/O Panel : USB3.0*1+USB2.0*2+HD AUDIO
Fan Support : Front:3*12cm/Rear:1*12cm / Top:2*12cm/Bottom:2*12cm
Liquid Cooling Support: N/A
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MODEL
V3-B
STRUCTURE DIMENSIONS (L x W x H)
330 x 192 x 435 mm
PRODUCT DIMENSIONS (L x W x H)
340 x 192 x 450 mm
PACKAGE DIMENSIONS (L x W x H)
495 x 250 x 425 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Front / Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3
CPU MAX HEIGHT
165 mm
GPU MAX LENGTH
320 mm
I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 2 x 12cm
LIQUID COOLING SUPPORT
N/A
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
4.2 kg / 9.26 lb
5.0 kg / 11.02 lb
