*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

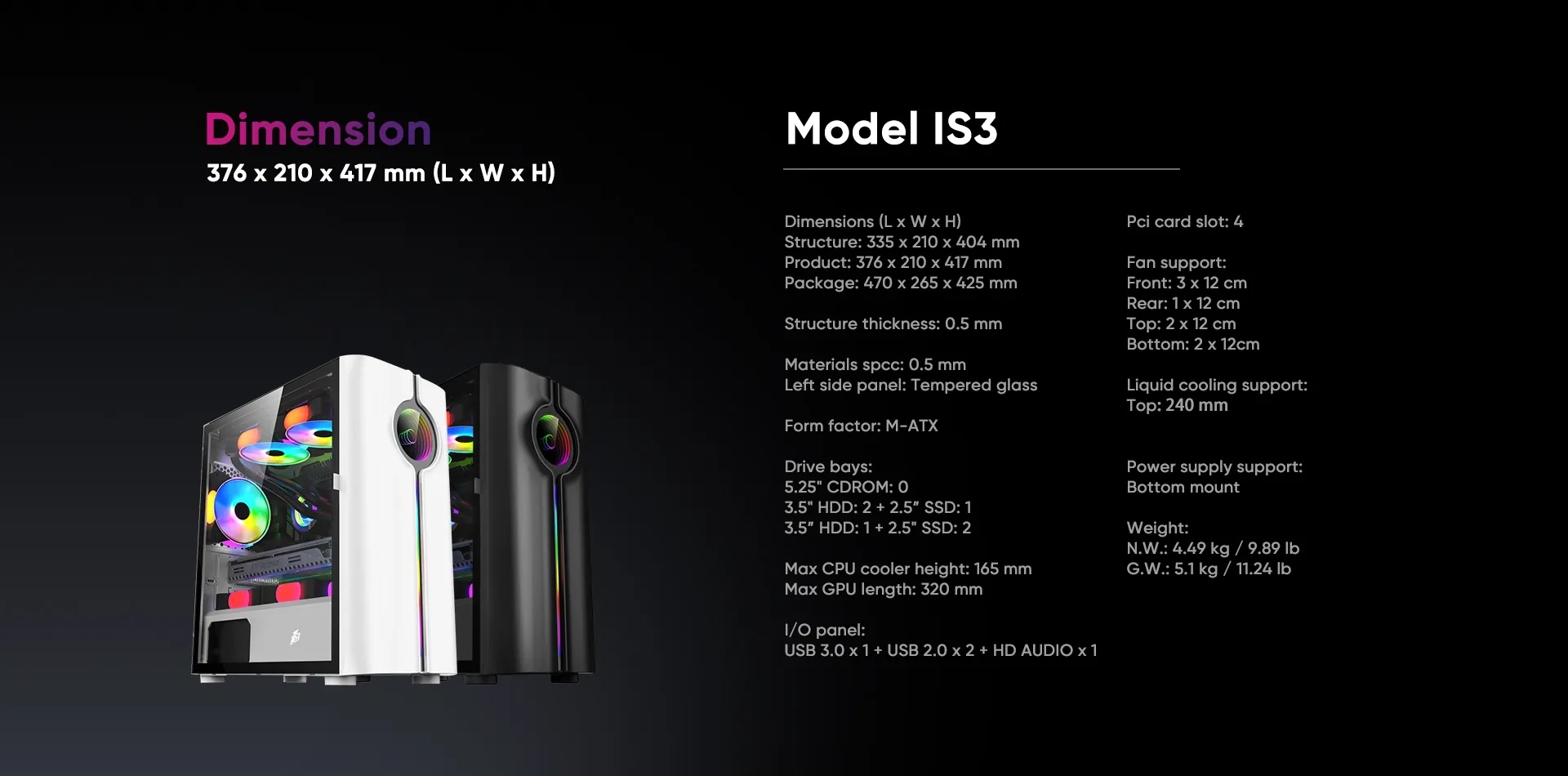

Model

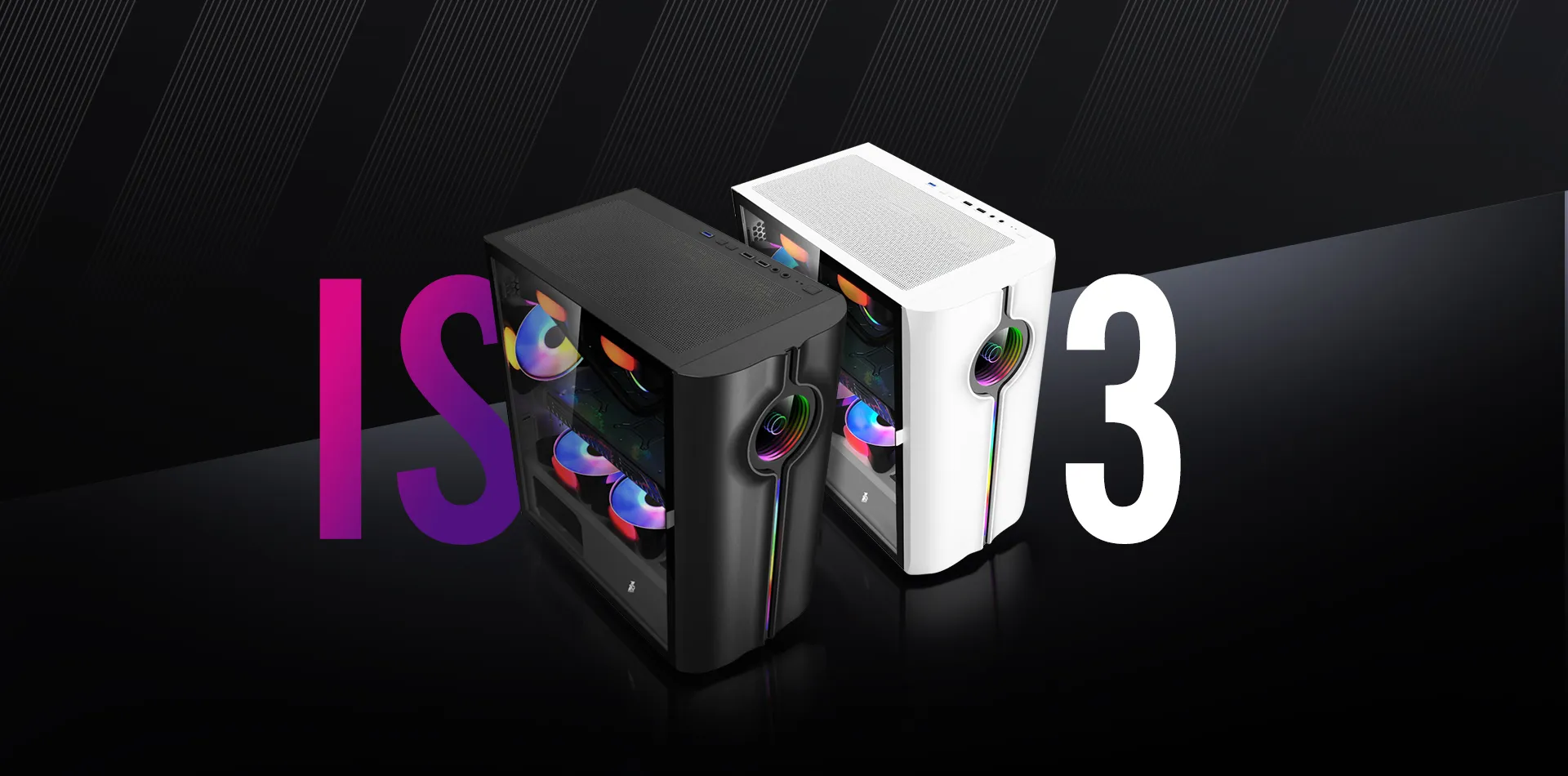

IS3
Structure Dimensions(L*W*H)
335*210*404MM
Product Dimensions(L*W*H)
376*210*417MM
Package Dimensions(L*W*H)
470*265*425MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM

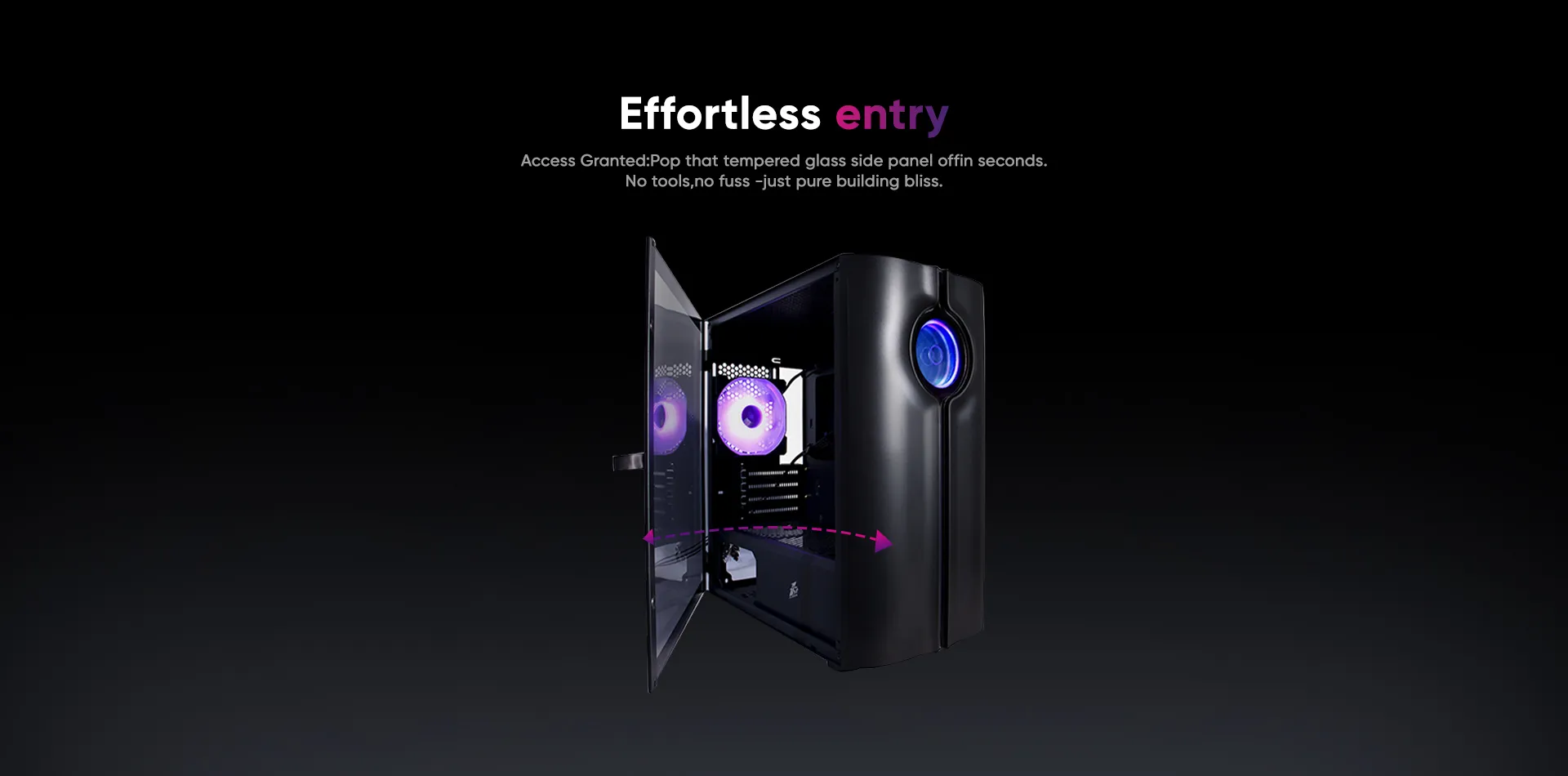

LEFT SIDE PANEL：TEMPERED GLASS

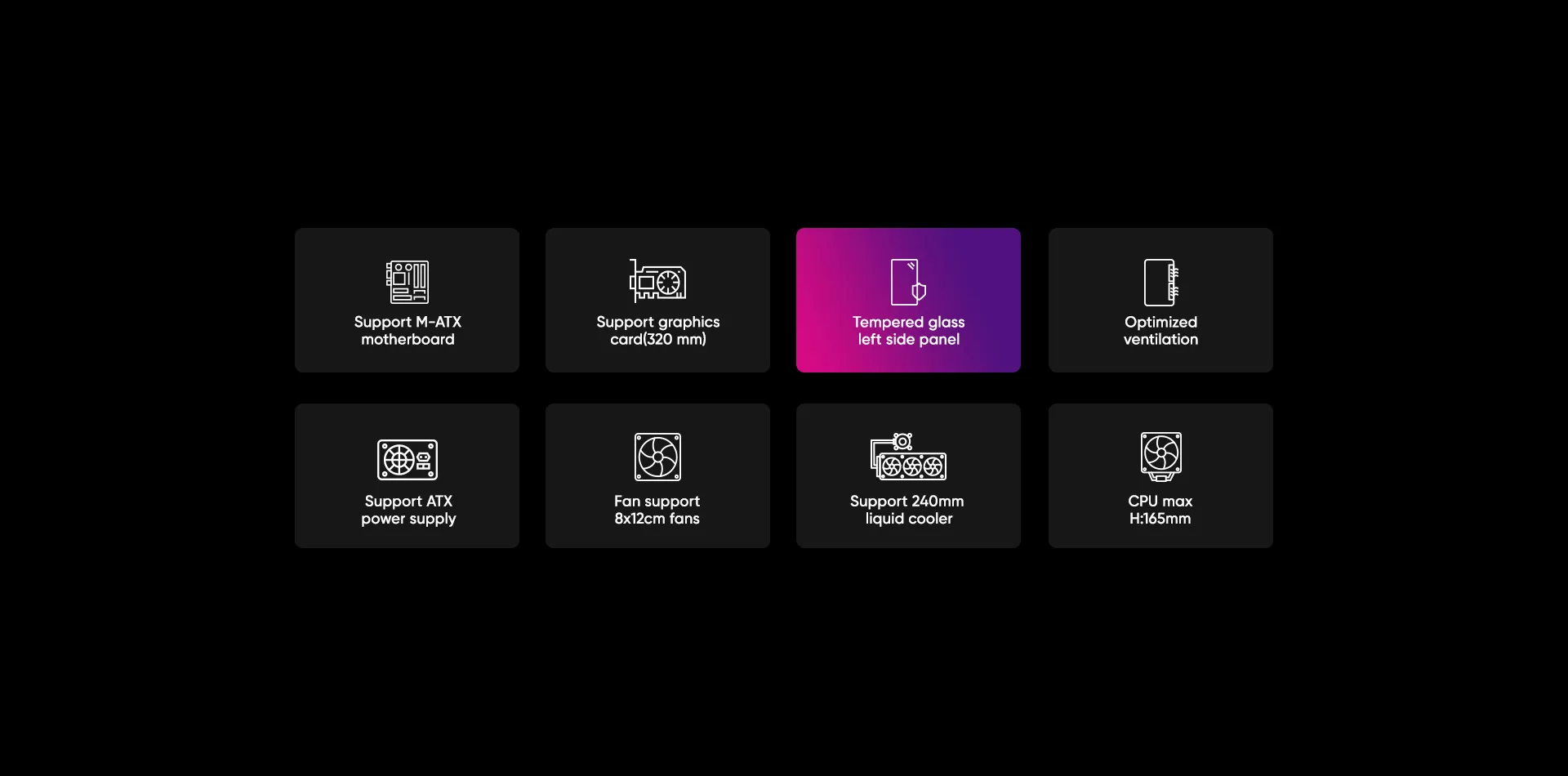

Form Factor
M-ATX

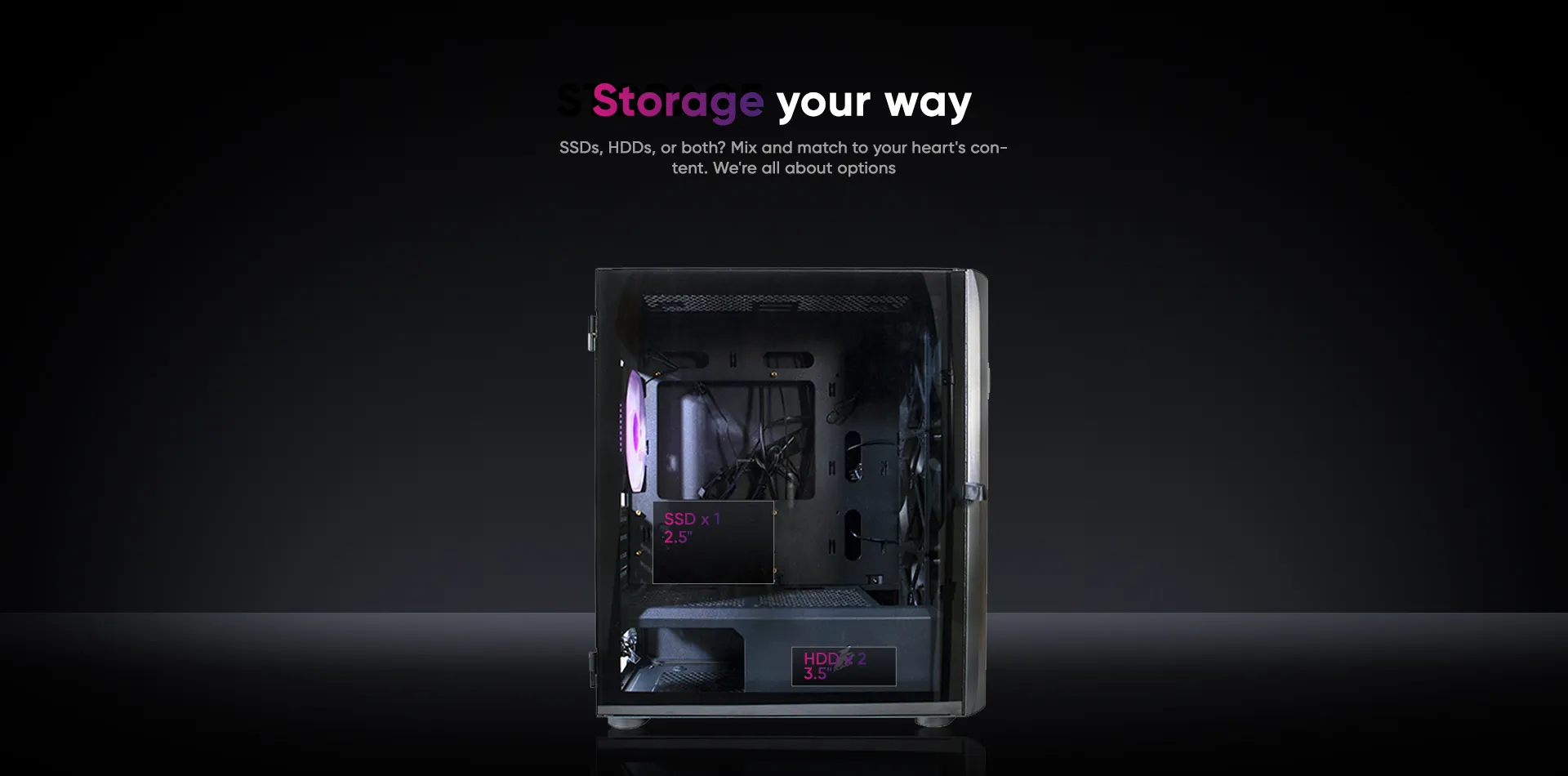

5.25""CD ROM:0
① 3.5""HDD:2 + 2.5""SSD:1
② 3.5""HDD:1 + 2.5""SSD:2

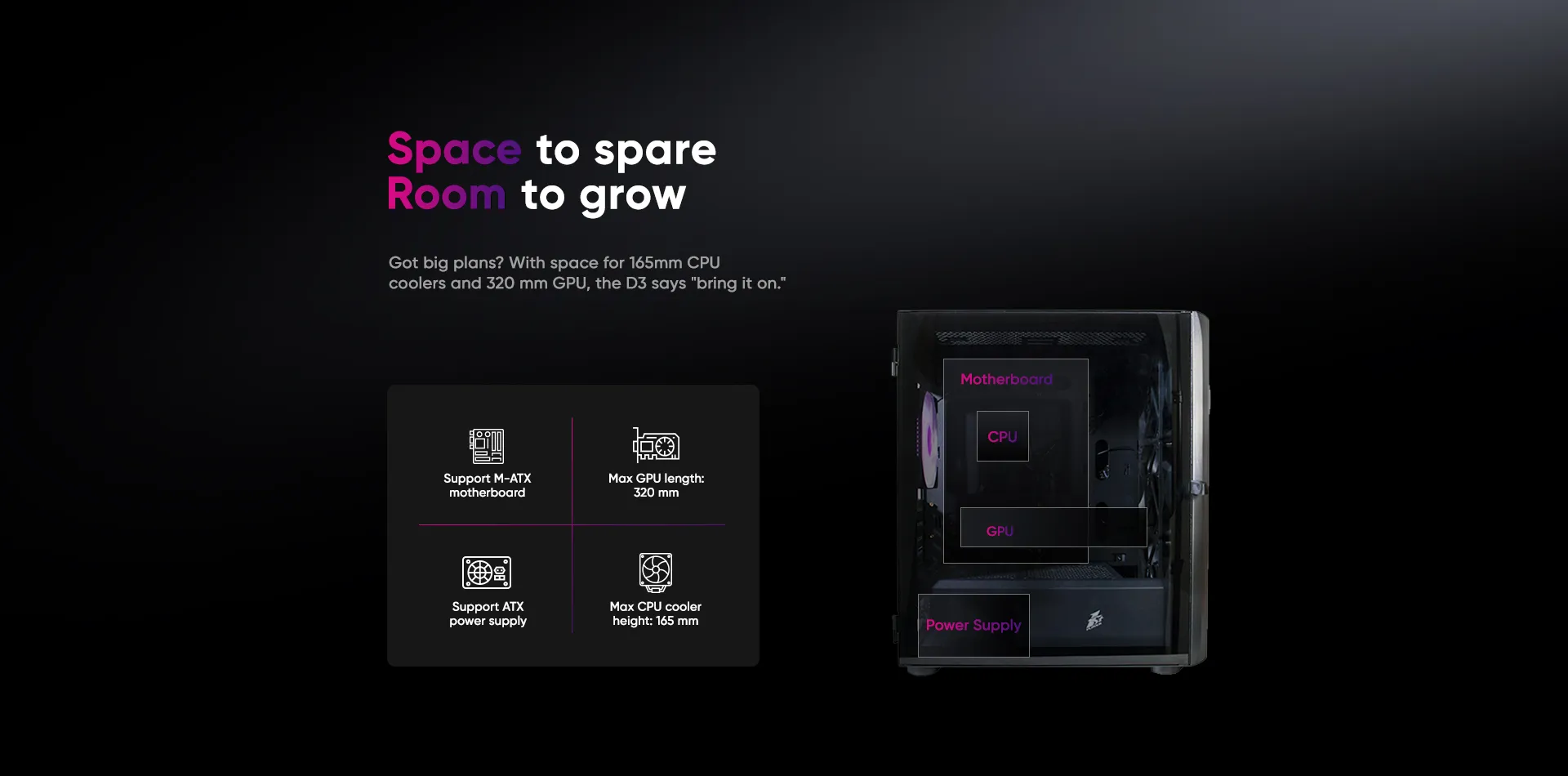

CPU MAX Height
165MM
VGA MAX Length
320MM

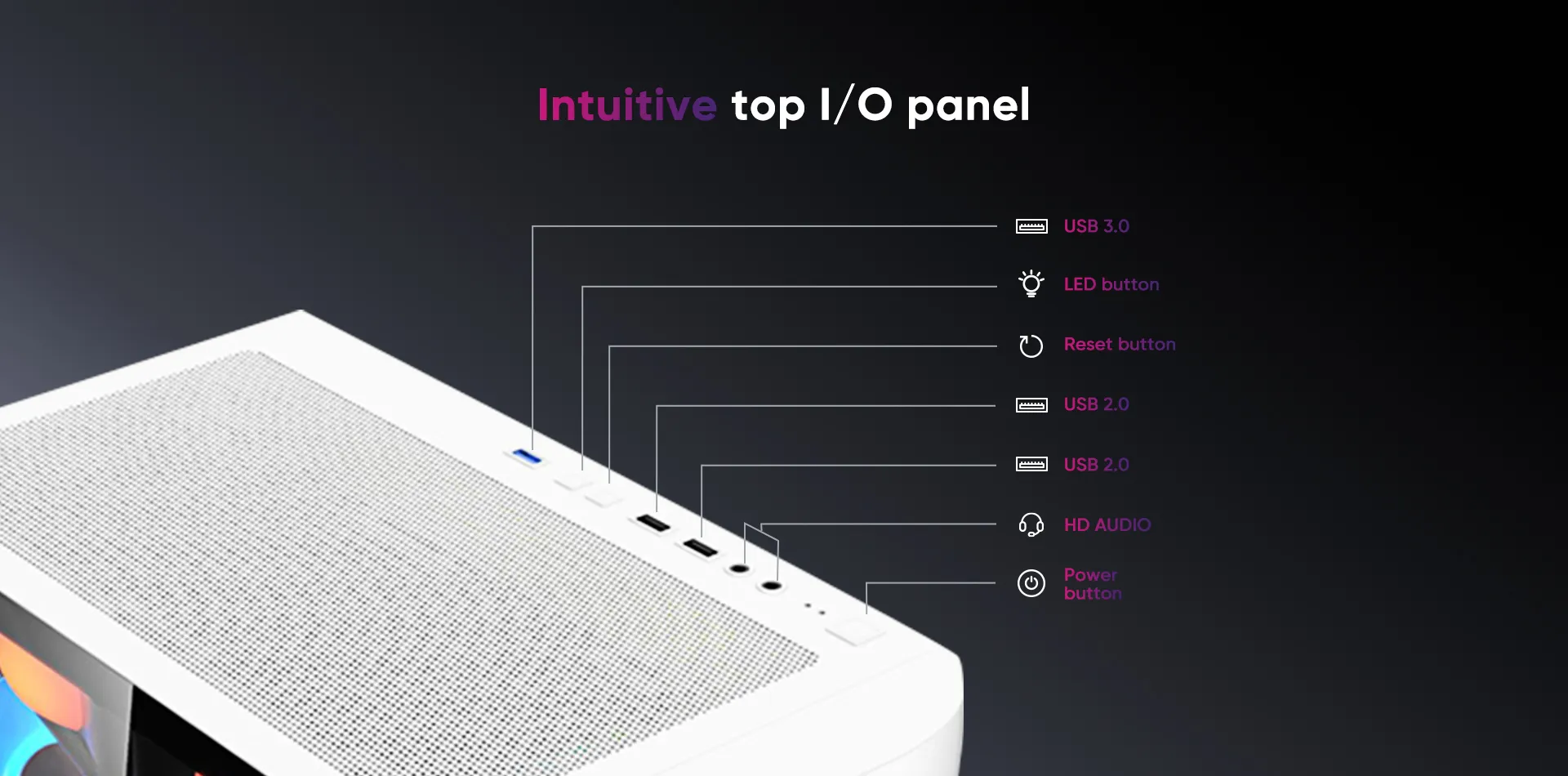

I/O Panel
USB3.0*1+USB2.0*2+HD AUDIO
PCI Card Slot
4

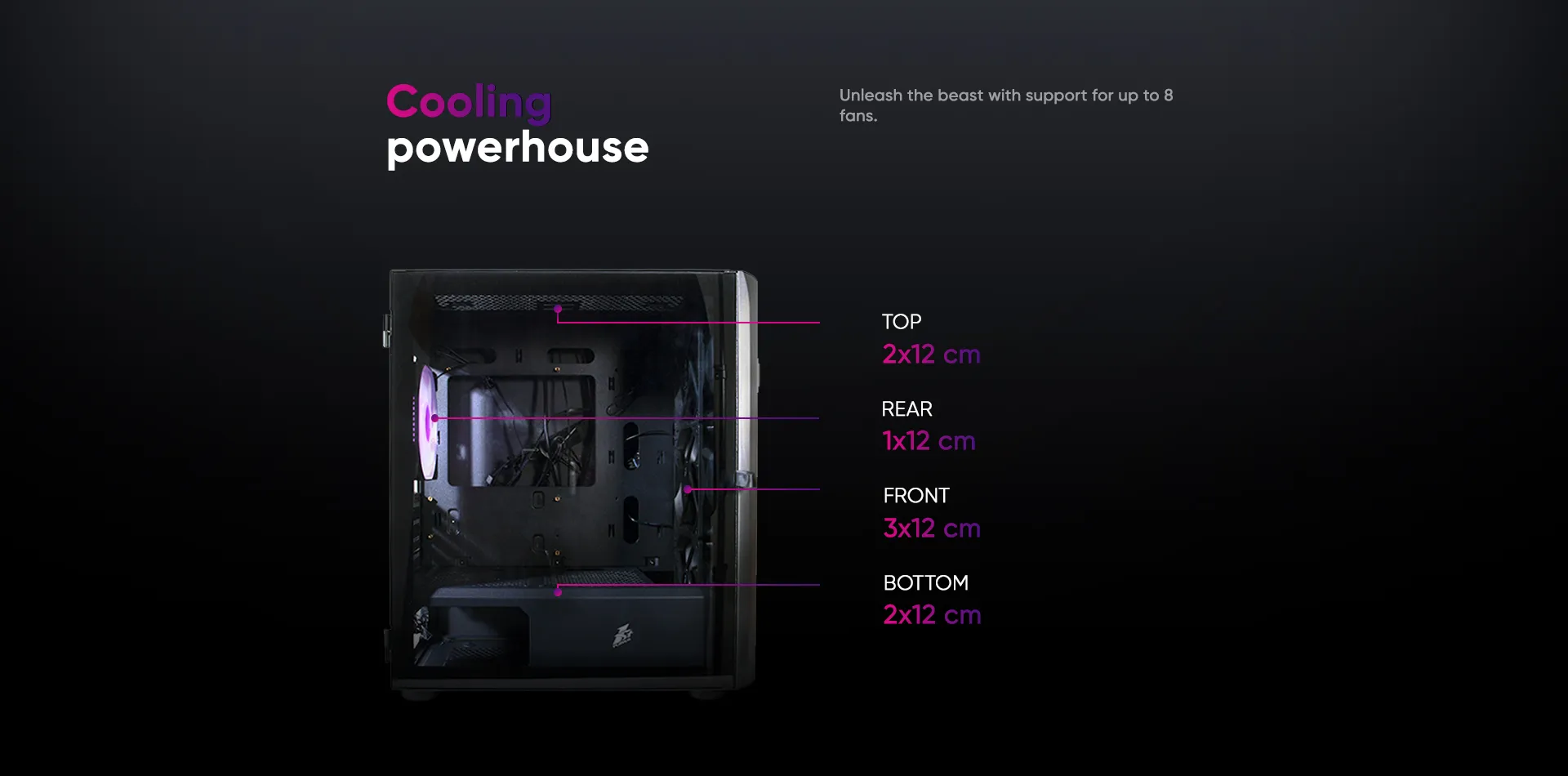

Fan Support
FRONT:3*12CM
TOP:2*12CM
REAR:1*12CM
BOTTOM:2*12CM
Liquid Cooling Support
TOP:240MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
4.49 KG / 9.89lb
5.1 KG / 11.24lb
