ITX MOTHERBOARD SUPPORT(17CM*17CM)
COMPATIBLE WITH SFX&ATX PSU
ATX-SFXPSUADAPTER

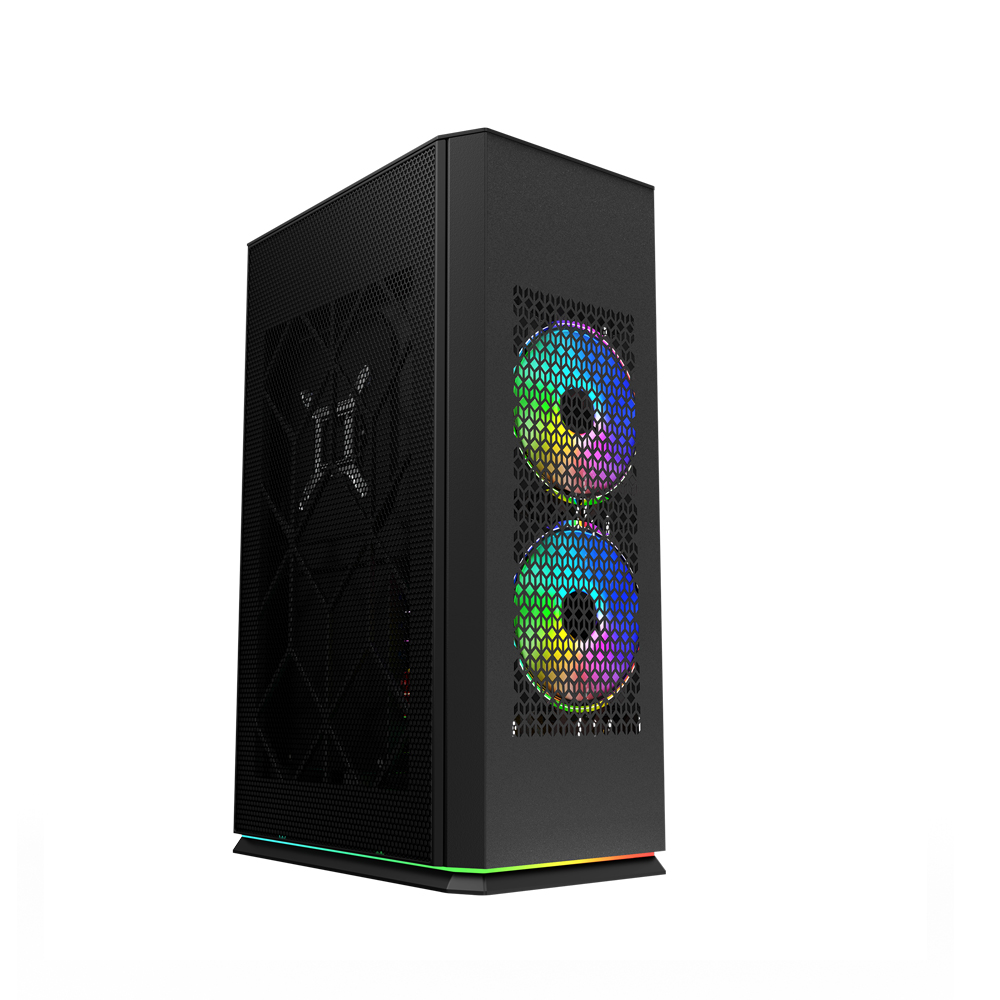

CASE BOTTOM WITH ARGB LIGHTING
240MM LIQUID COOLER SUPPORT
SUPPORT TYPE-C*1,USB3.0*2
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

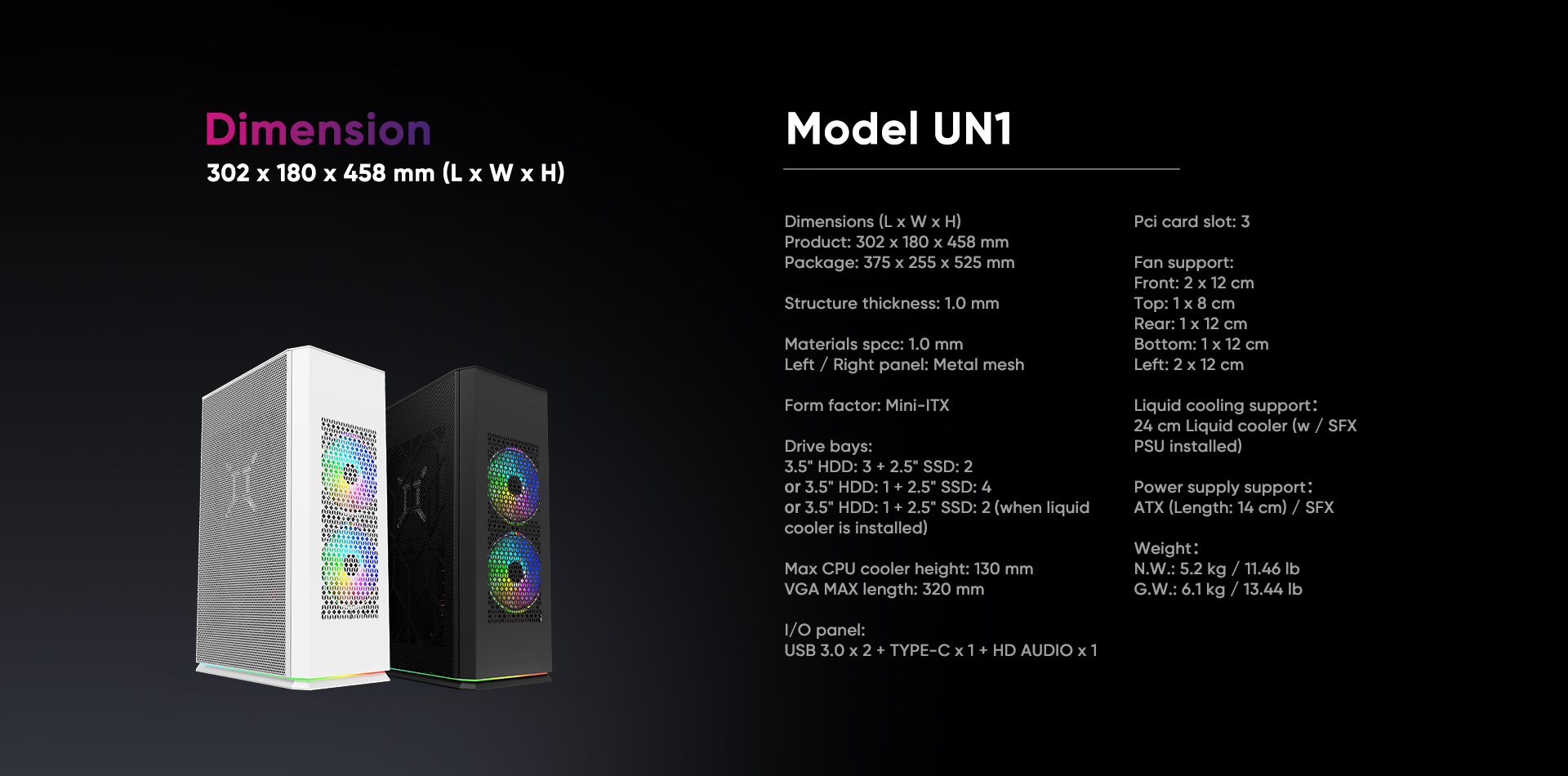

Model
UN1
Product Dimensions(L*W*H)
302*180*458MM
Package Dimensions(L*W*H)
375*255*525MM
Structure Thickness
1.0MM
Materials
SPCC 1.0MM

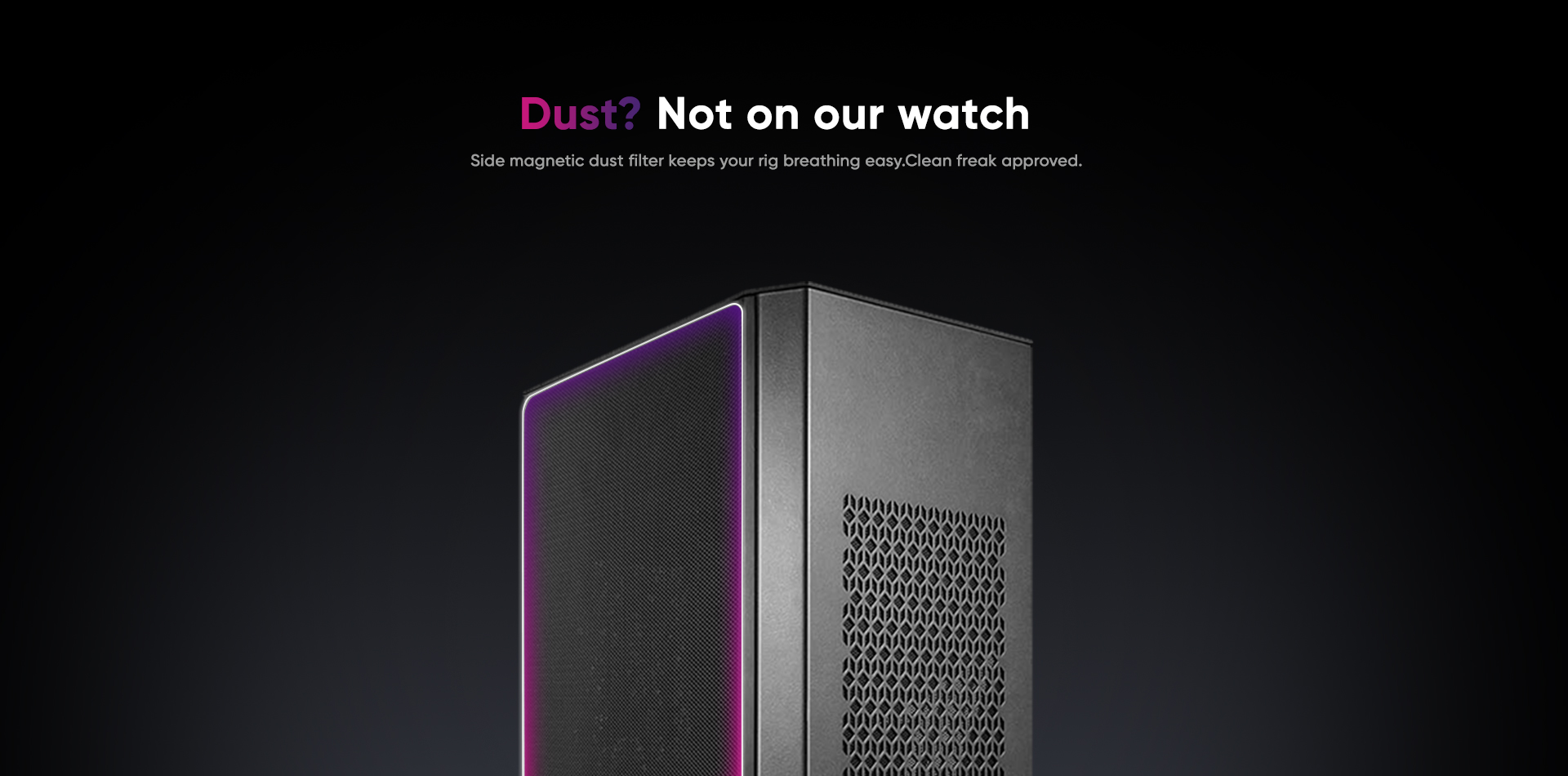

L&R SIDE PANEL: METAL MESH
Form Factor
ITX

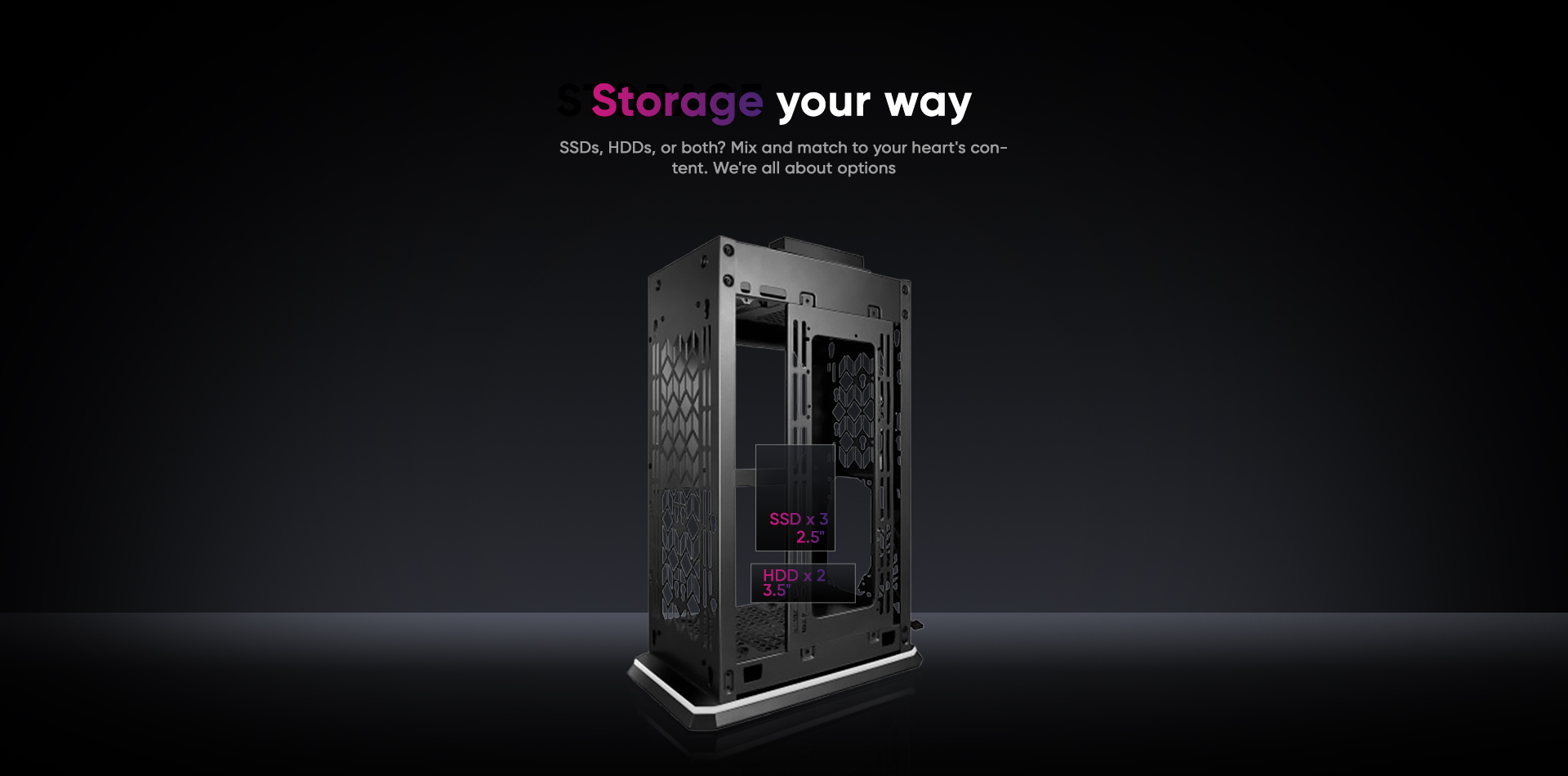

①3.5"" HDD: 1+2.5"" SSD: 2
②3.5"" HDD: 1+2.5"" SSD: 4
③3.5"" HDD: 1+2.5"" SSD: 2(Liquid cooler support)

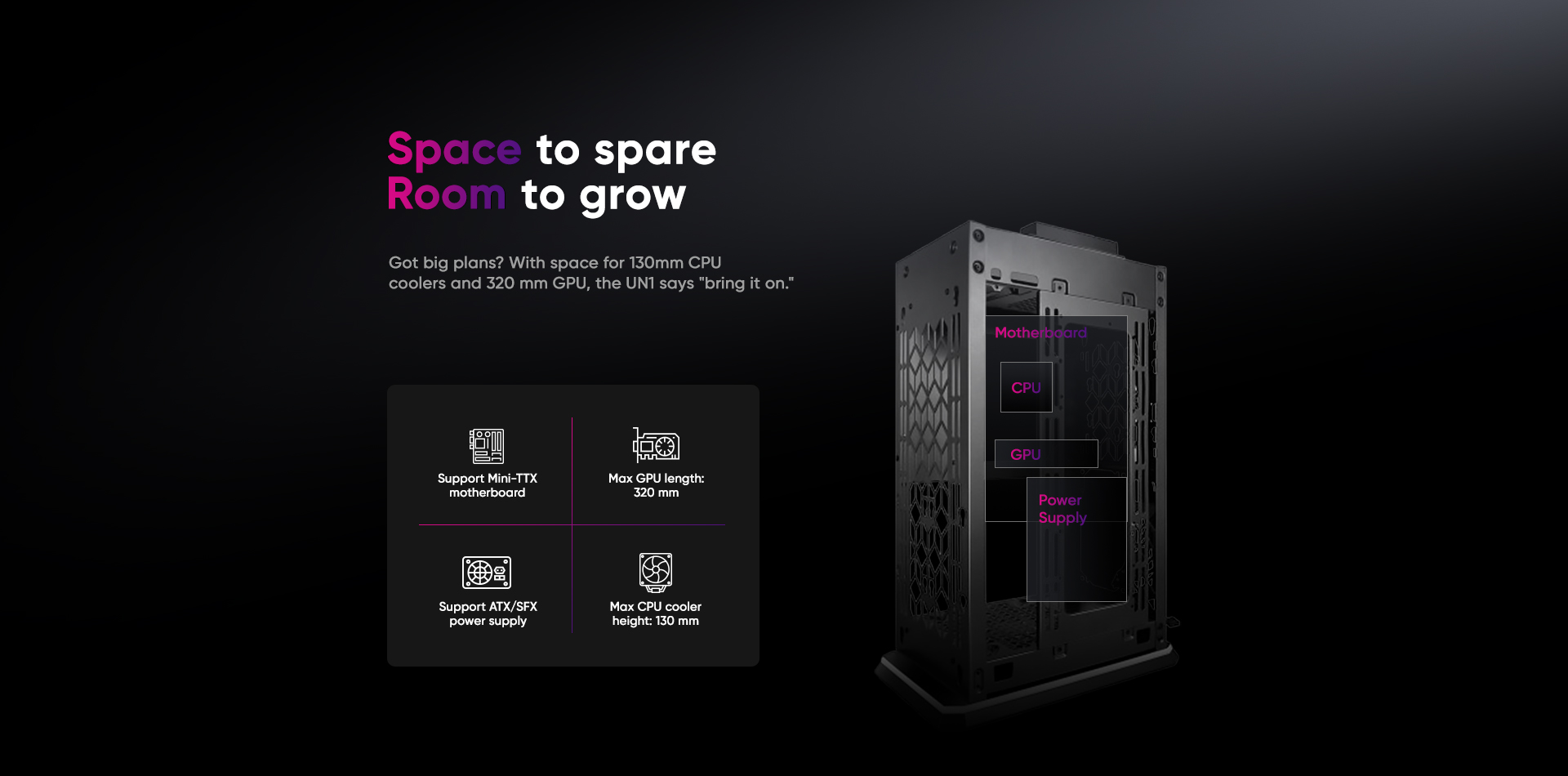

CPU MAX Height
130MM
VGA MAX Length
320MM
I/O Panel
HD AUDIO+USB3.0*2+TYPE-C*1
PCI Card Slot
3

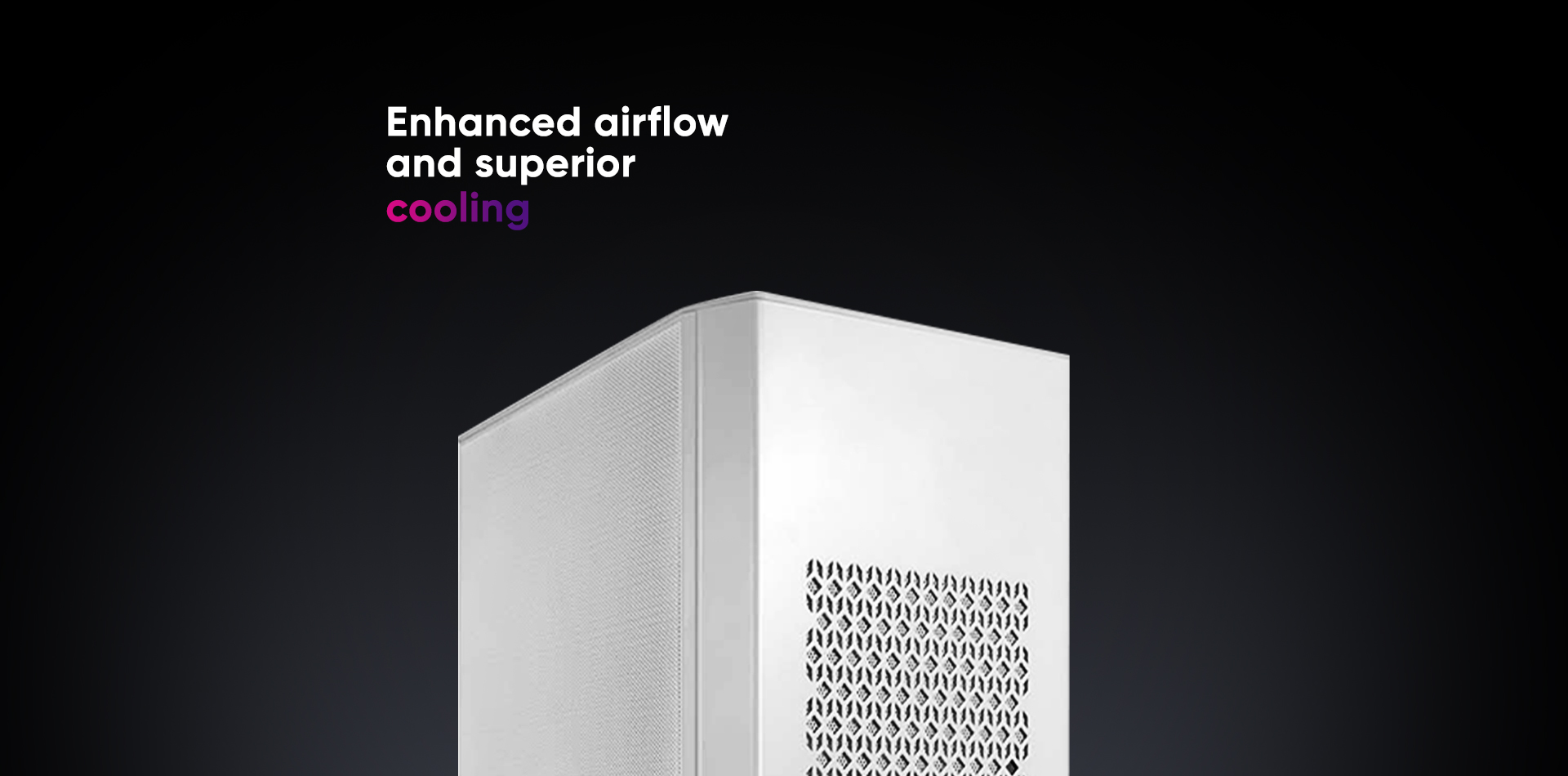

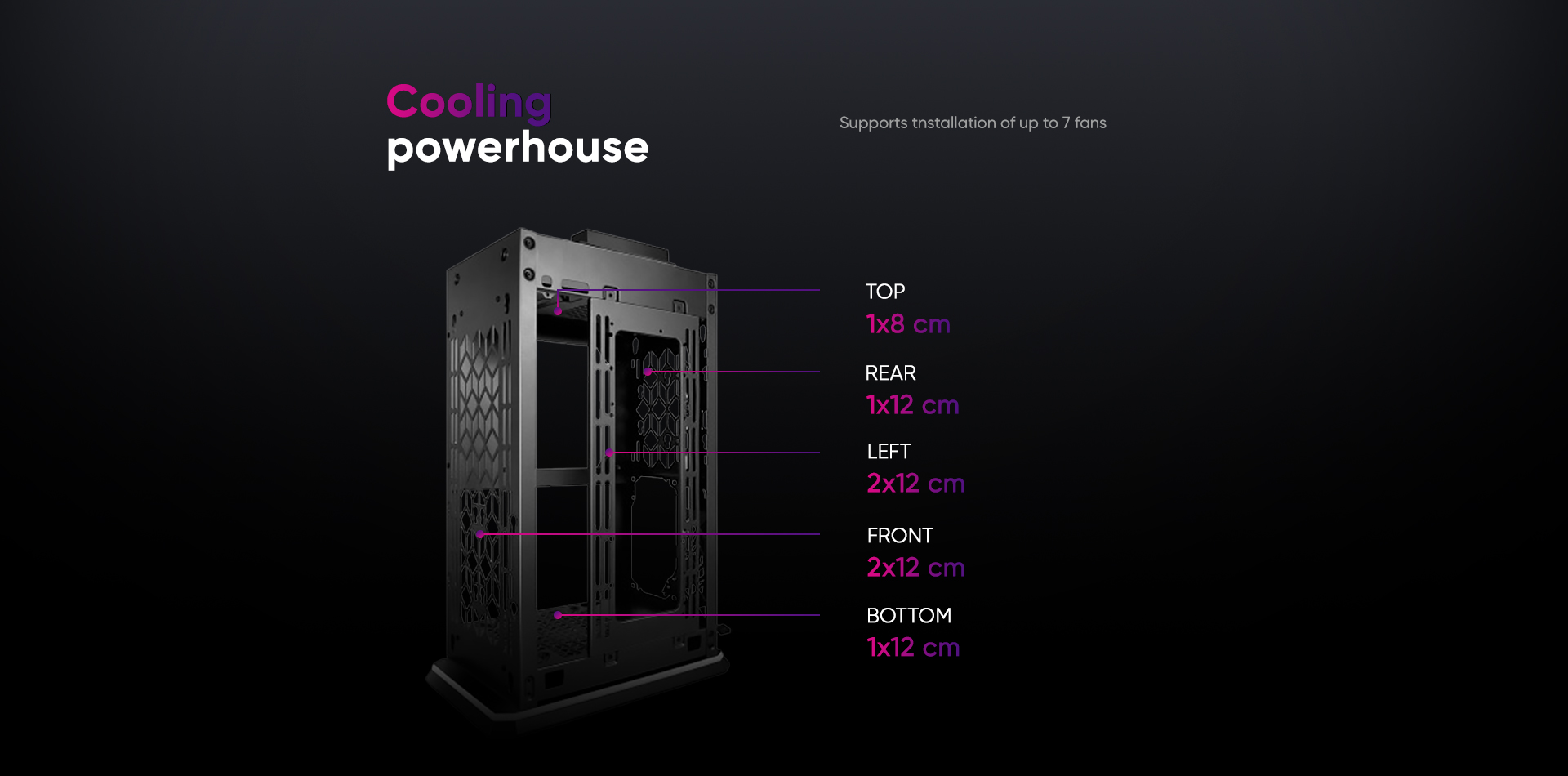

Fan Support

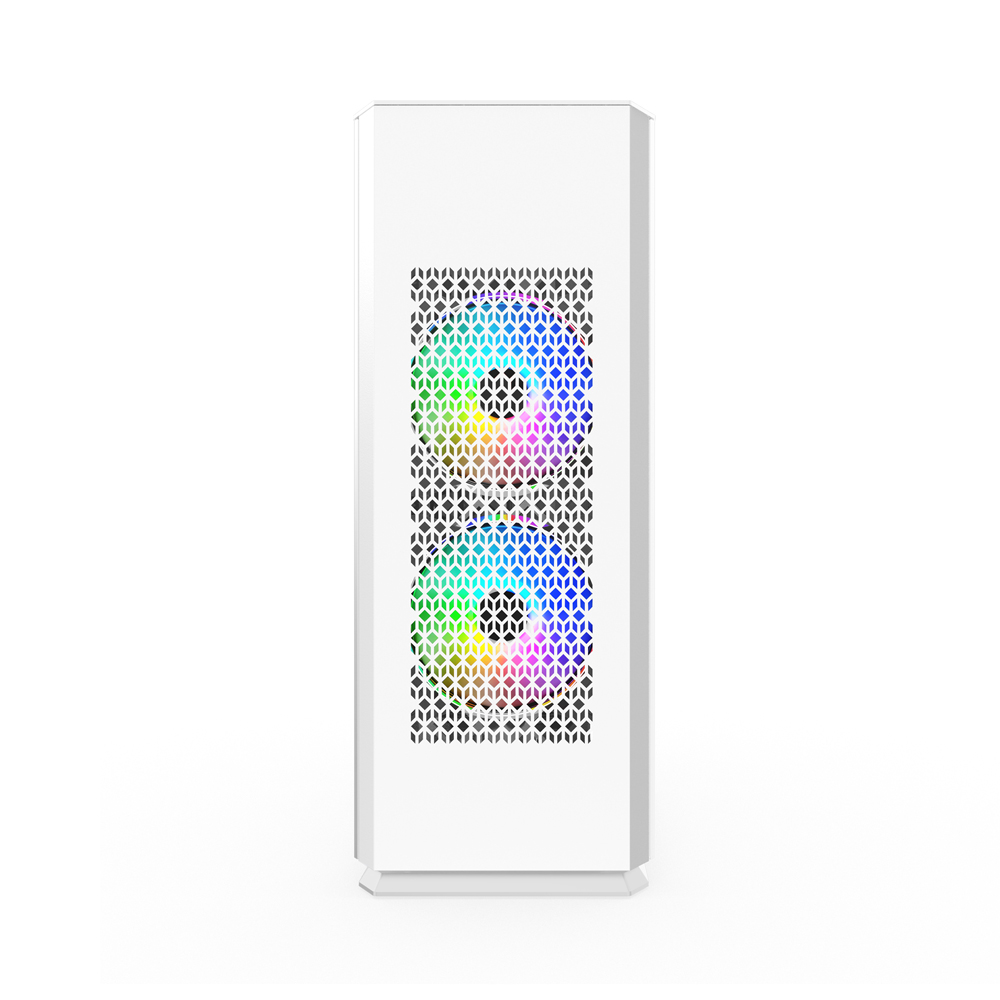

FRONT: 2*120 MM
REAR: 1*120 MM
LEFT: 2*120MM
BOTTOM: 1*120MM
TOP: 1*80MM
Liquid Cooling Support

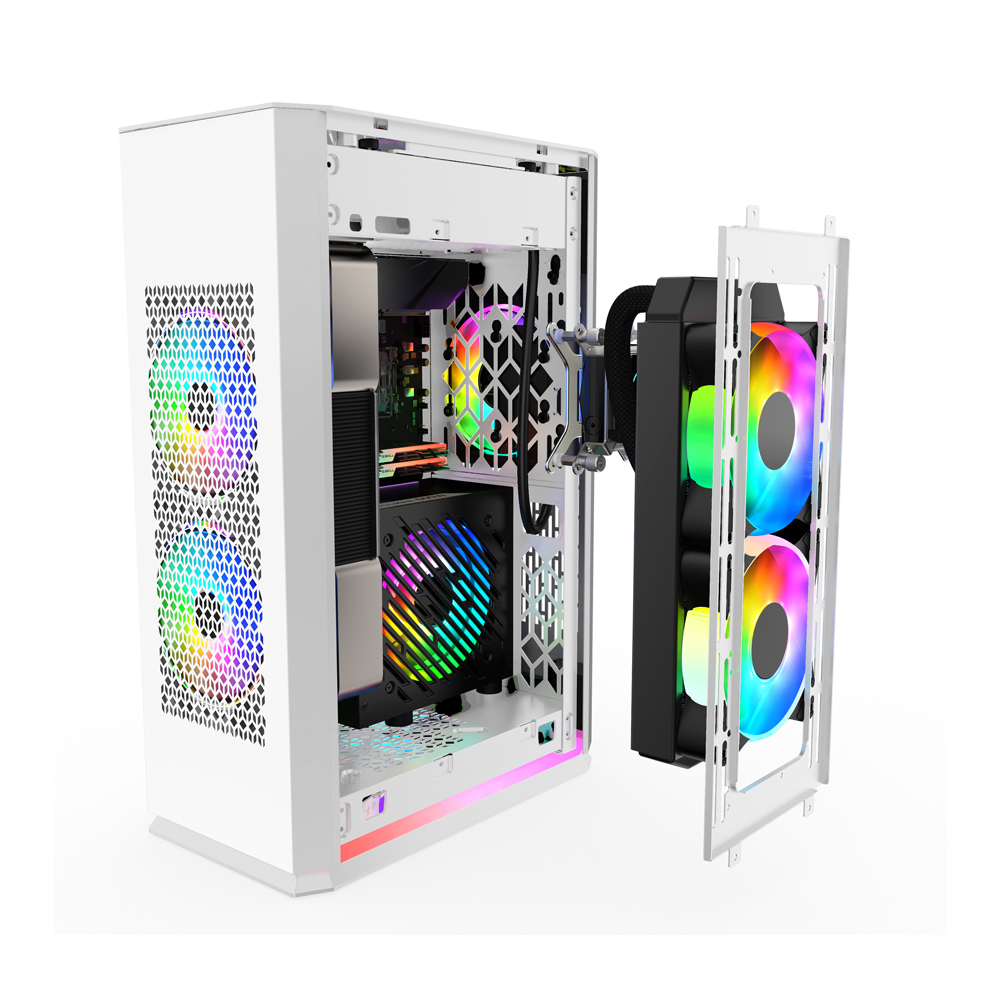

When installed SFX PSU, the LEFT side can support 240 liquid cooler.
Power Supply Support
ATX(Length: 140mm) / SFX
Net Weight
5.2KG / 11.46lb
6.1KG / 13.44lb
