B6

1STPLAYER Gaming Case

ATX

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD: 2     2.5" SSD: 2

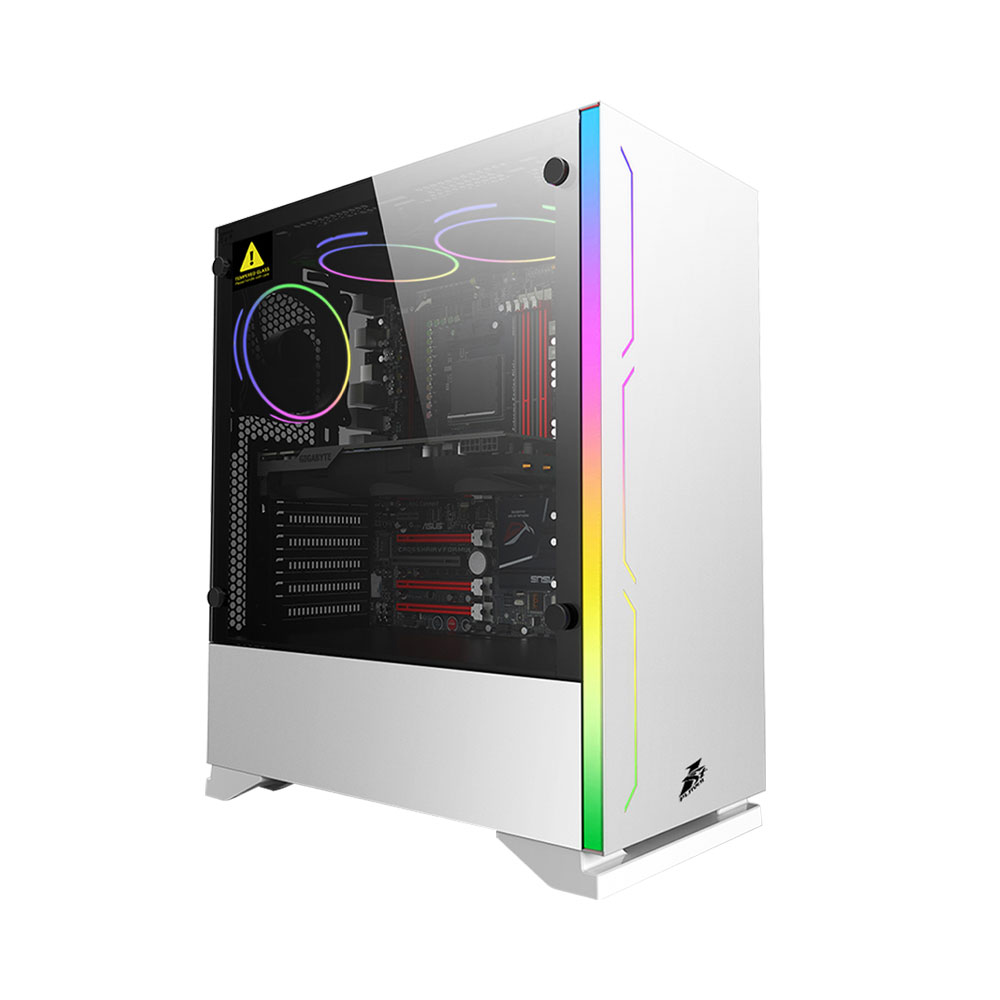

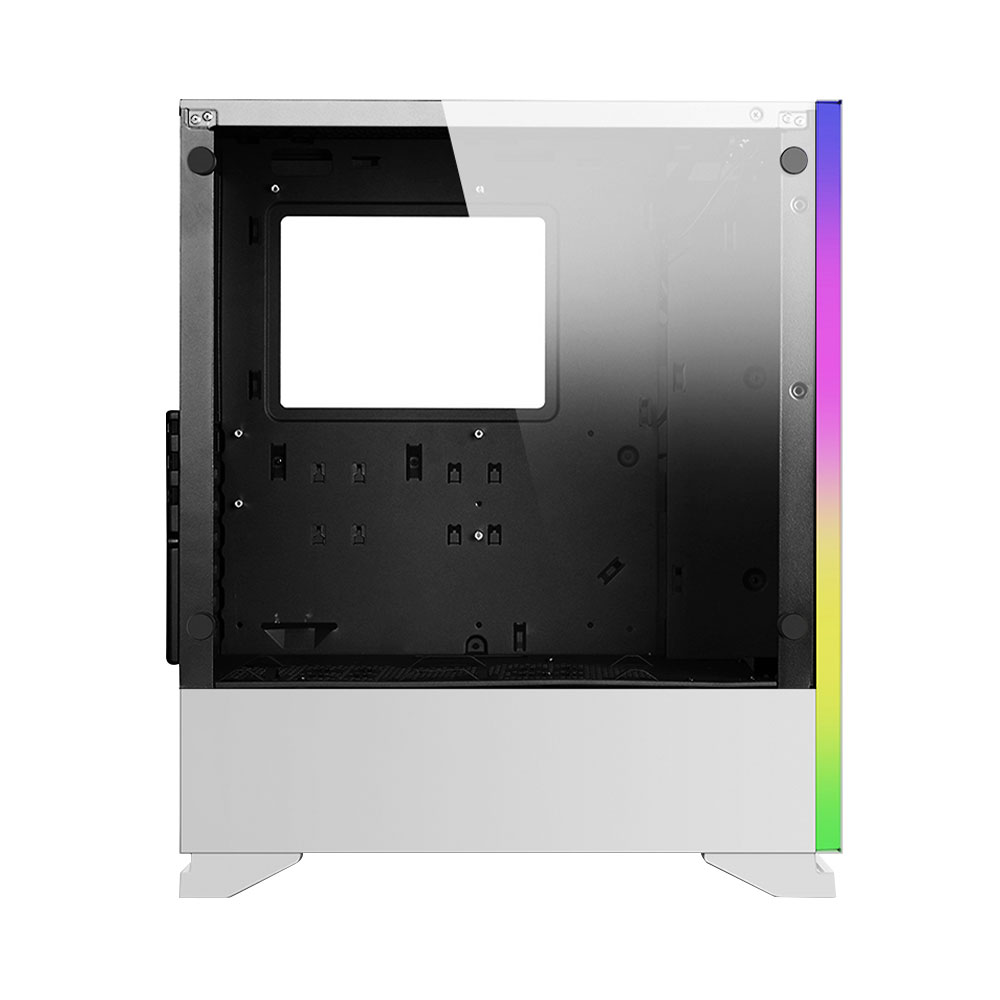

· Left Side Panel: Tempered Glass

· CPU Max H / GPU Max L: 175MM / 360MM




B6

1STPLAYER Gaming Case

ASSEMBLY

SHOWCASE

Model

B6

Structure Dimensions(L*W*H)

370*205*438MM

Product Dimensions(L*W*H)

385*205*465MM

Package Dimensions(L*W*H)

505*270*453MM

Structure Thickness

0.6MM

Materials

SPCC 0.6MM

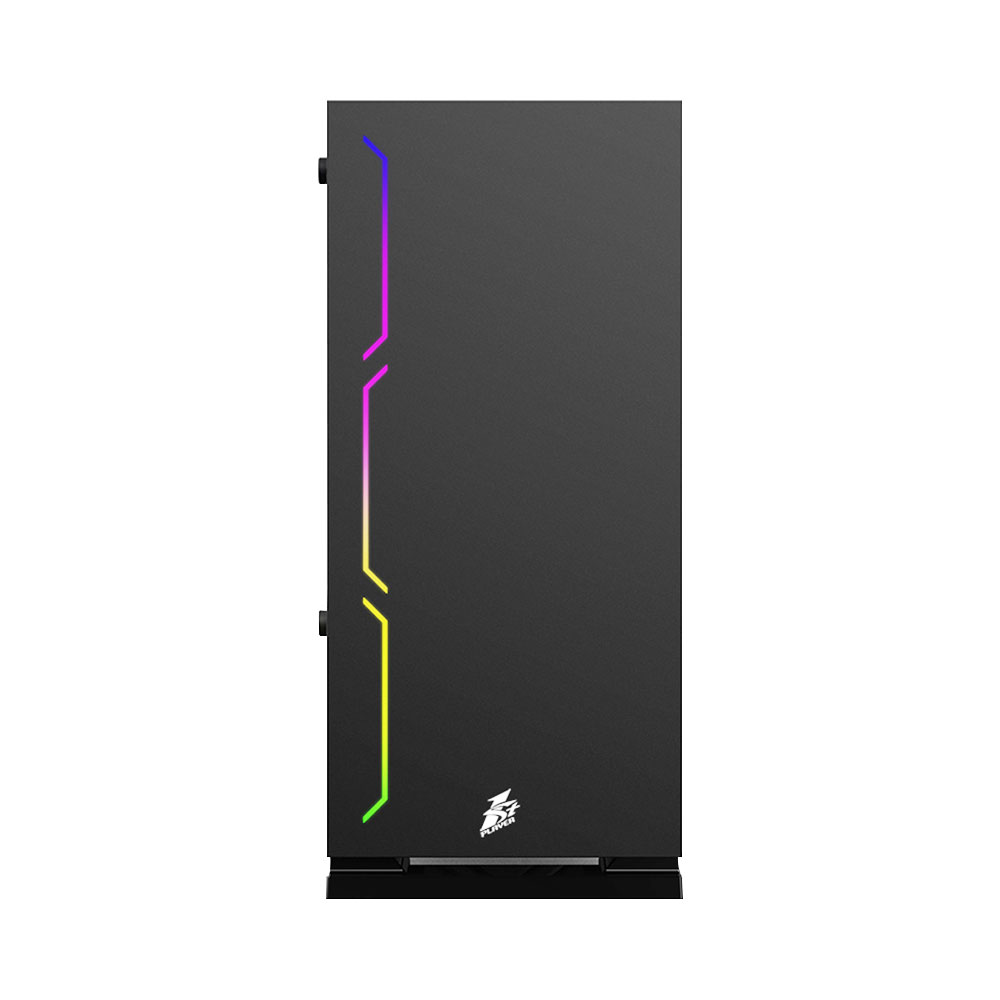

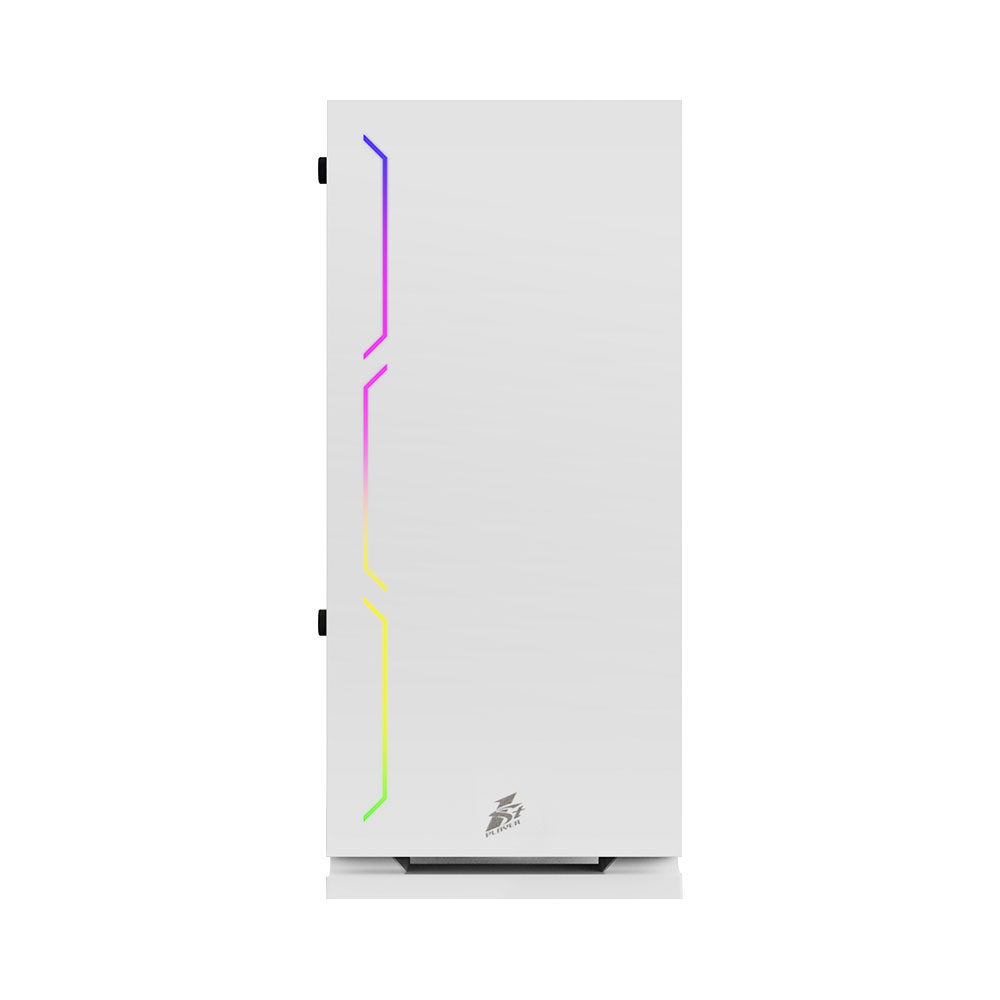

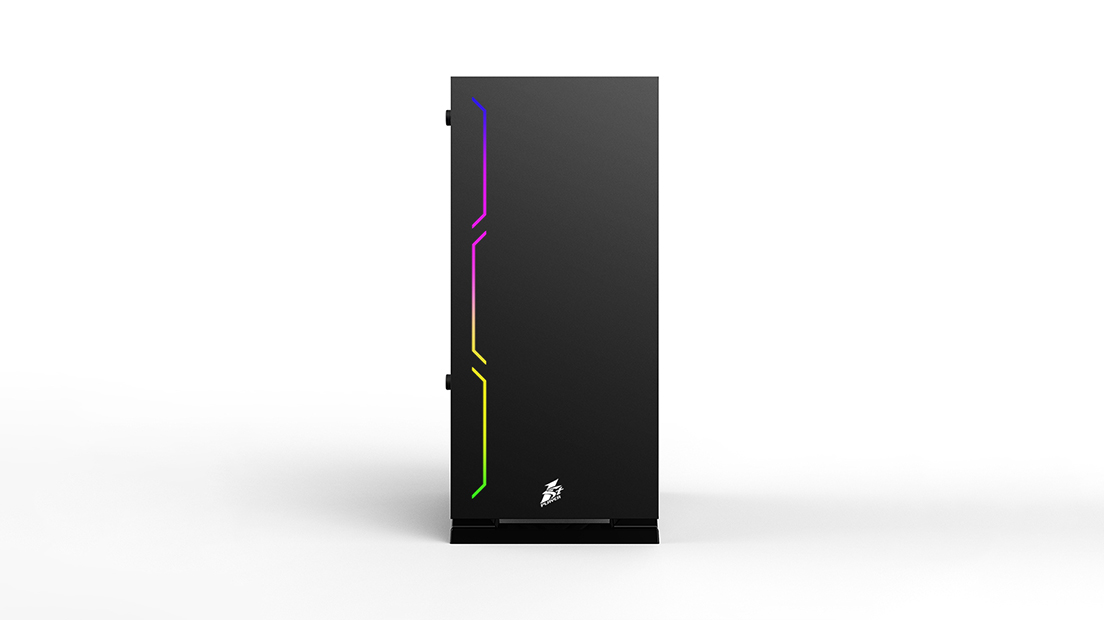

FRONT PANEL:METAL PLATE+LIGHT GUIDE PLATE

LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

M-ATX/ATX

Drive Bays

5.25""Cd ROM:0

3.5""HDD:2

2.5""SSD:2

CPU MAX Height

175MM

VGA MAX Length

360MM

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

PCI Card Slot

7

Fan Support

FRONT:3*120 MM

BOTTOM:2*120 /2*140 MM

REAR:1*120 MM

Liquid Cooling Support

N/A

Power Supply Support

BOTTOM MOUNT

Net Weight

5.23KG / 11.53lb

Gross Weight

6.04KG / 13.31lb
