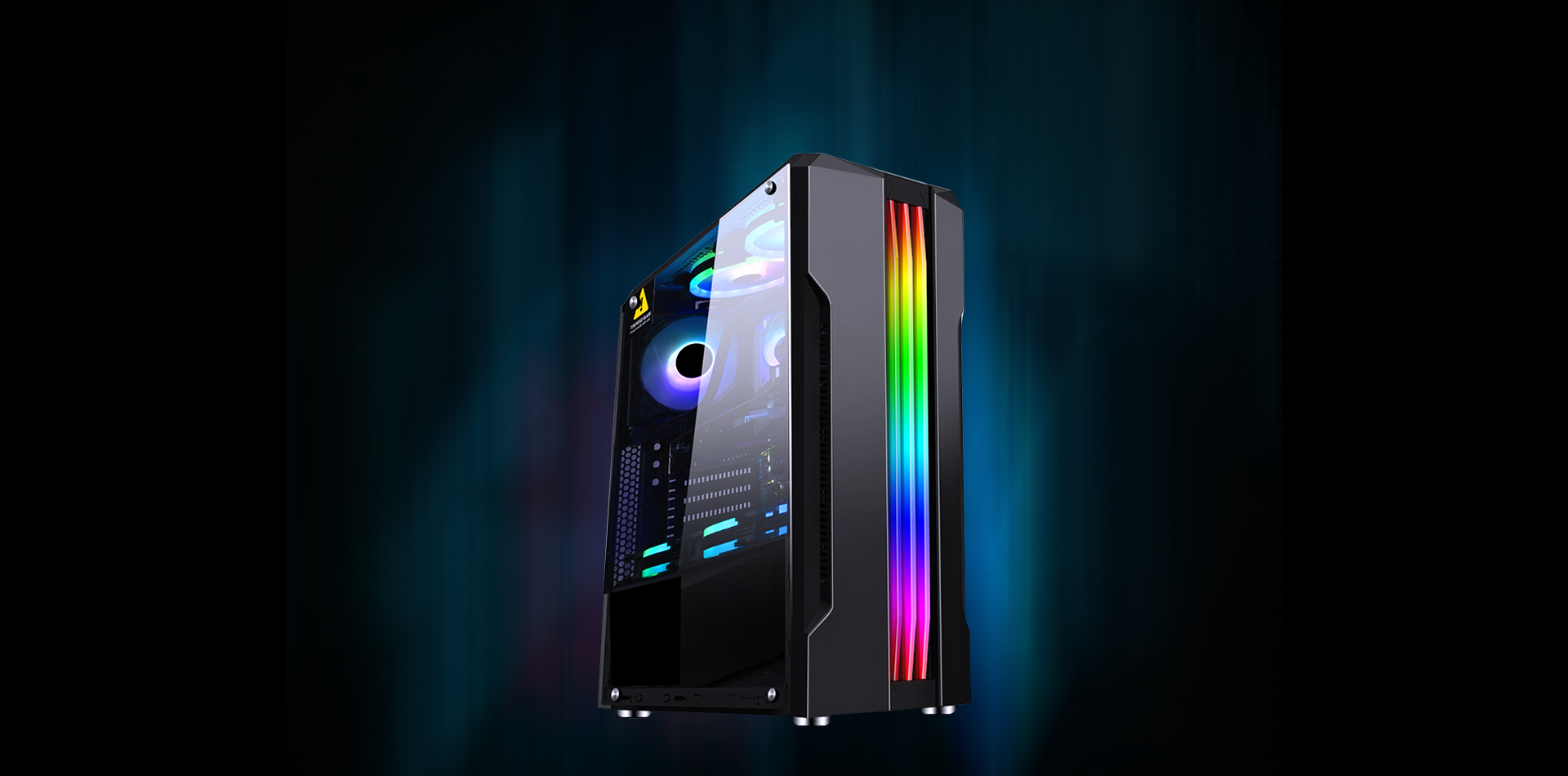

R3-A

1STPLAYER Gaming Case

ATX

· USB3.0*1+USB2.0*1+HD AUDIO

· 3.5" HDD: 2     2.5" SSD: 2

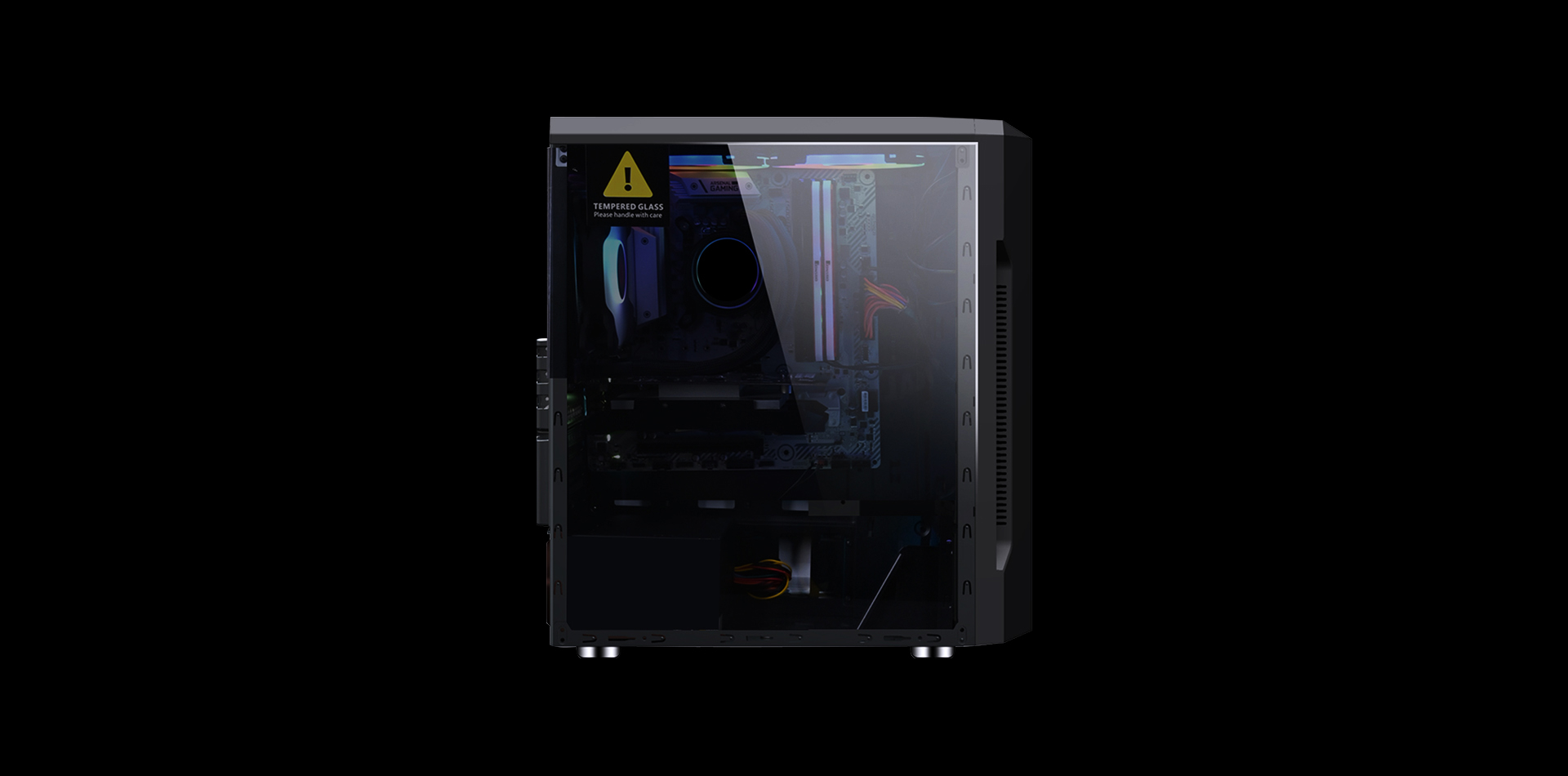

· Left Side Panel: Tempered Glass

· CPU Max H / GPU Max L: 160MM / 300MM




R3-A

1STPLAYER Gaming Case

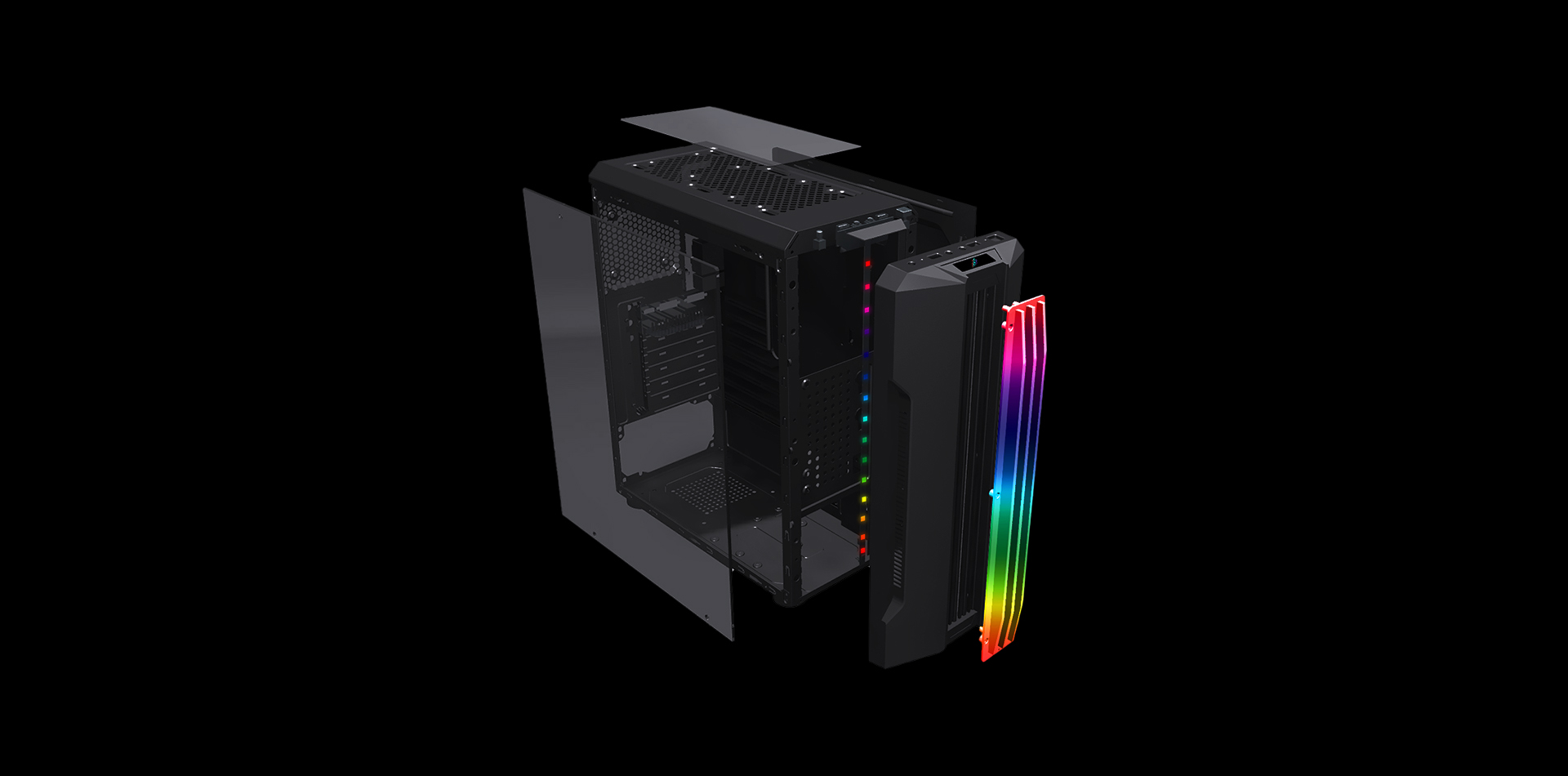

ASSEMBLY

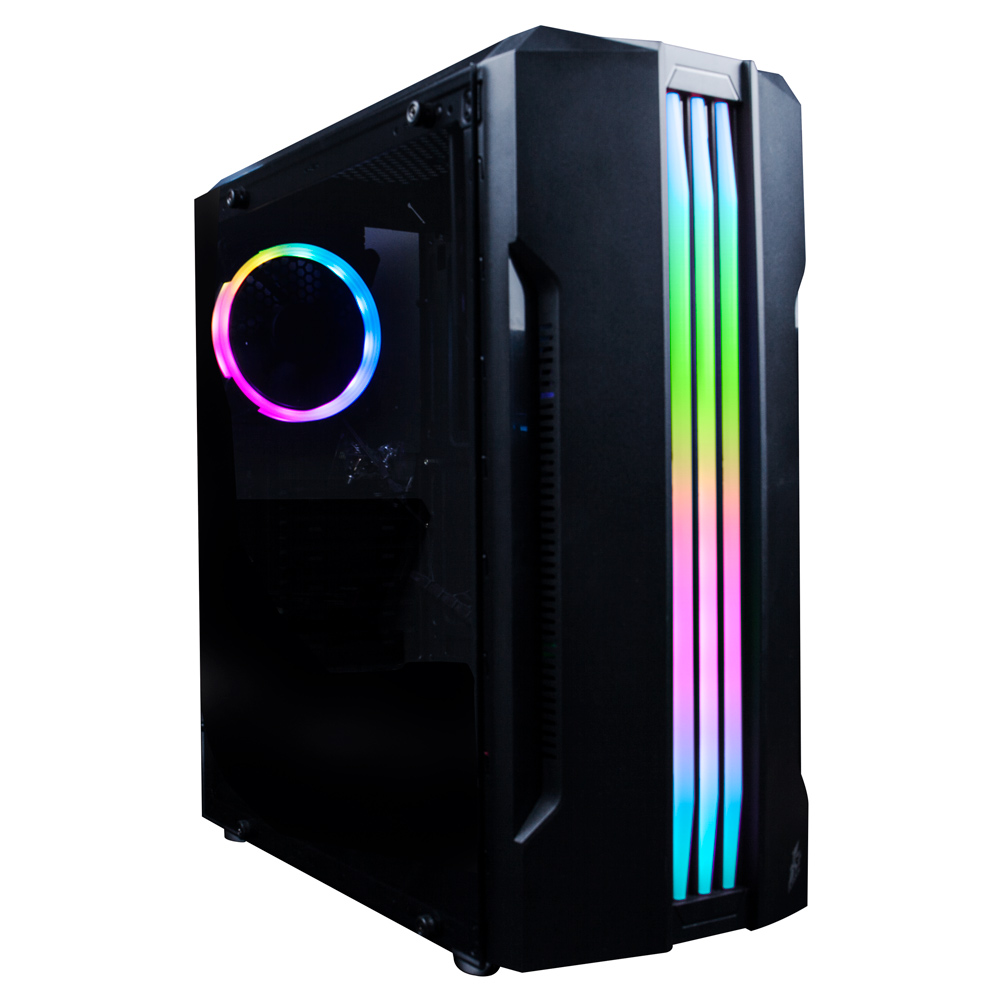

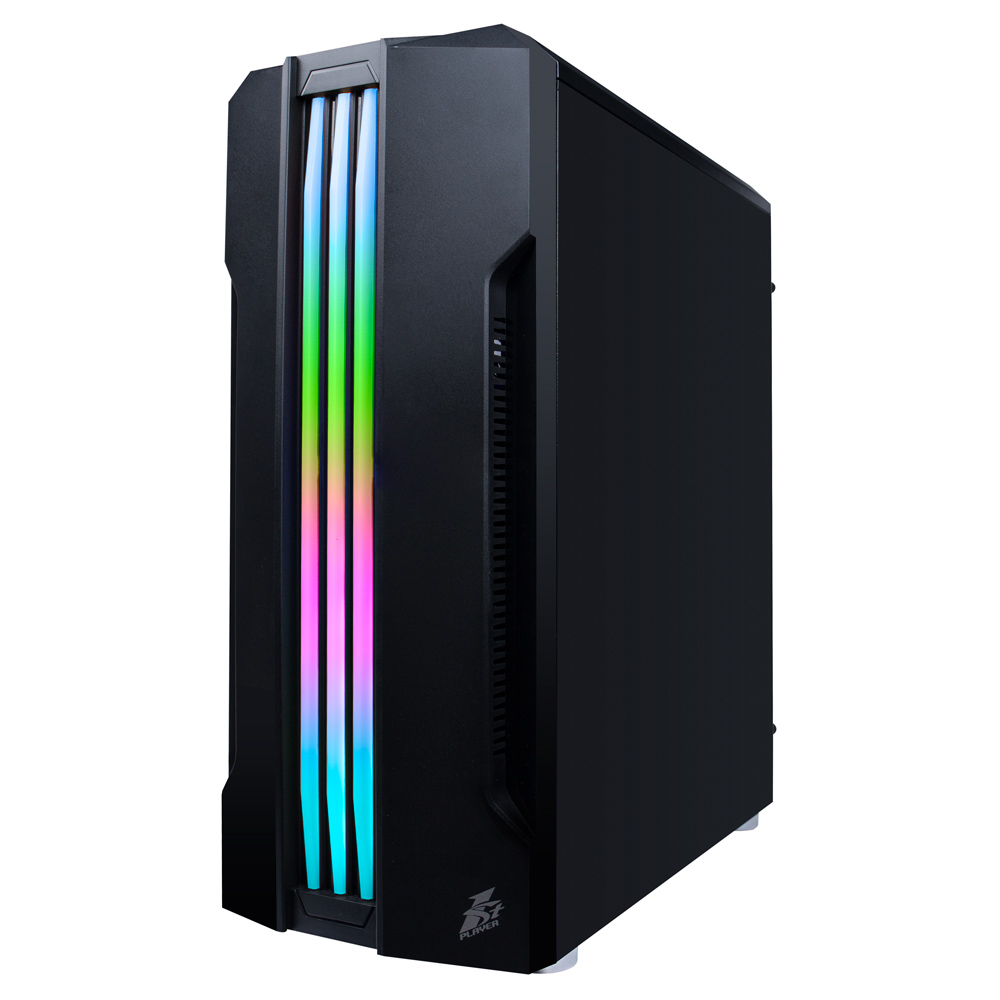

SHOWCASE

Model

R3-A

Structure Dimensions(L*W*H)

340*180*425MM

Product Dimensions(L*W*H)

390*180*435MM

Package Dimensions(L*W*H)

480*245*460MM

Structure Thickness

0.5MM

Materials

LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

ATX/M-ATX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 2

CPU MAX Height

160MM

VGA MAX Length

300MM

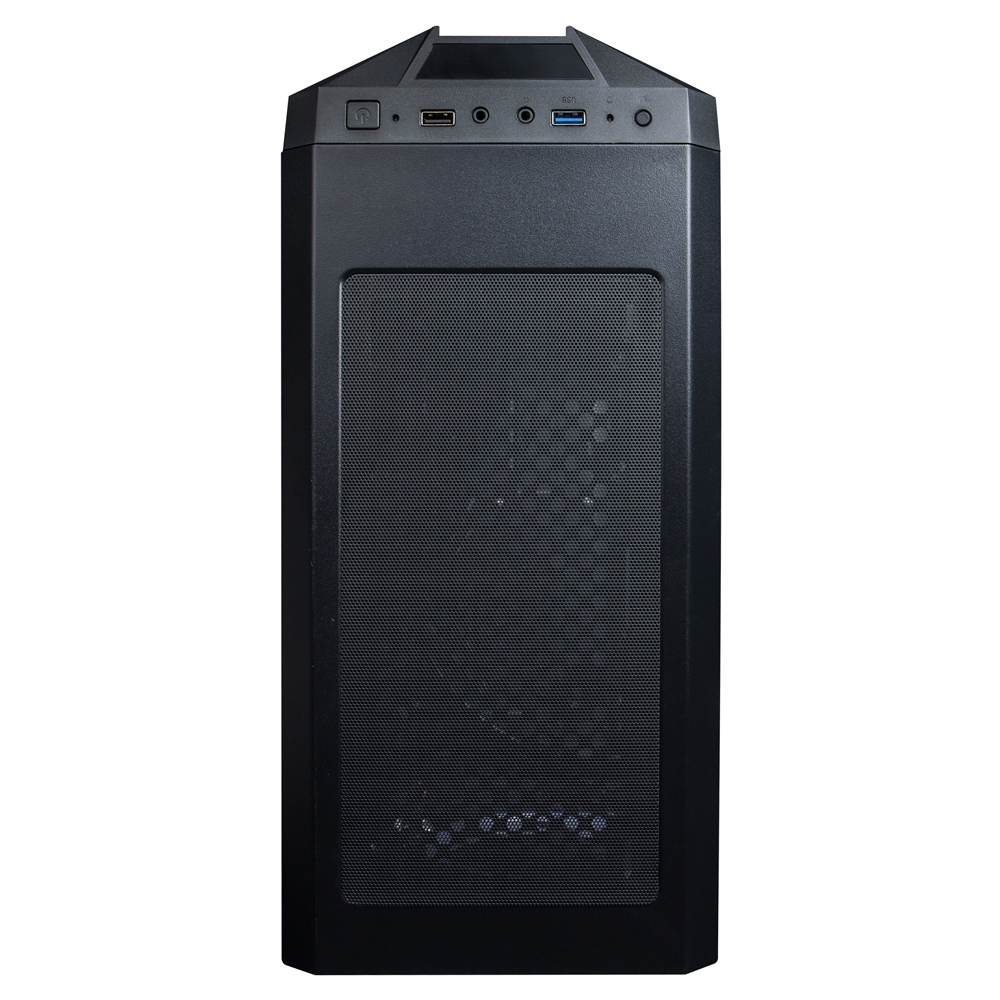

I/O Panel

USB3.0*1+USB2.0*1+HD AUDIO

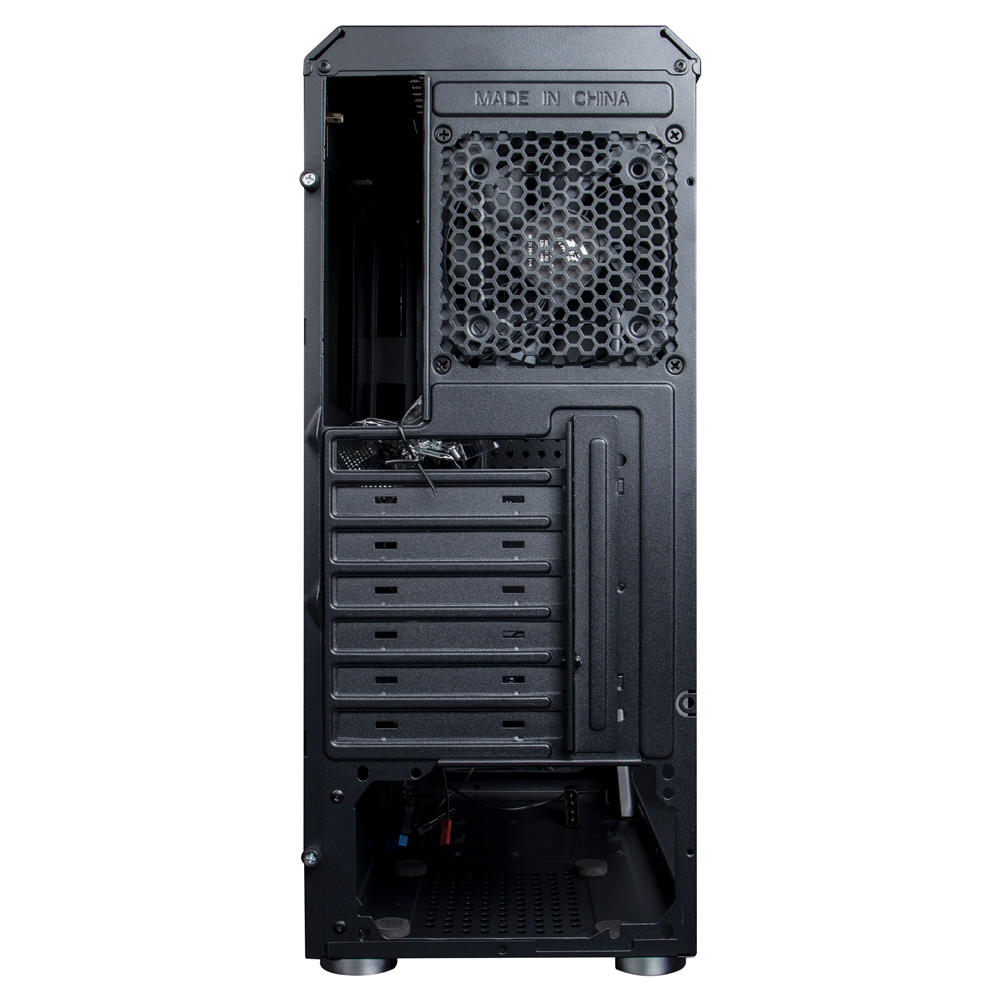

PCI Card Slot

7

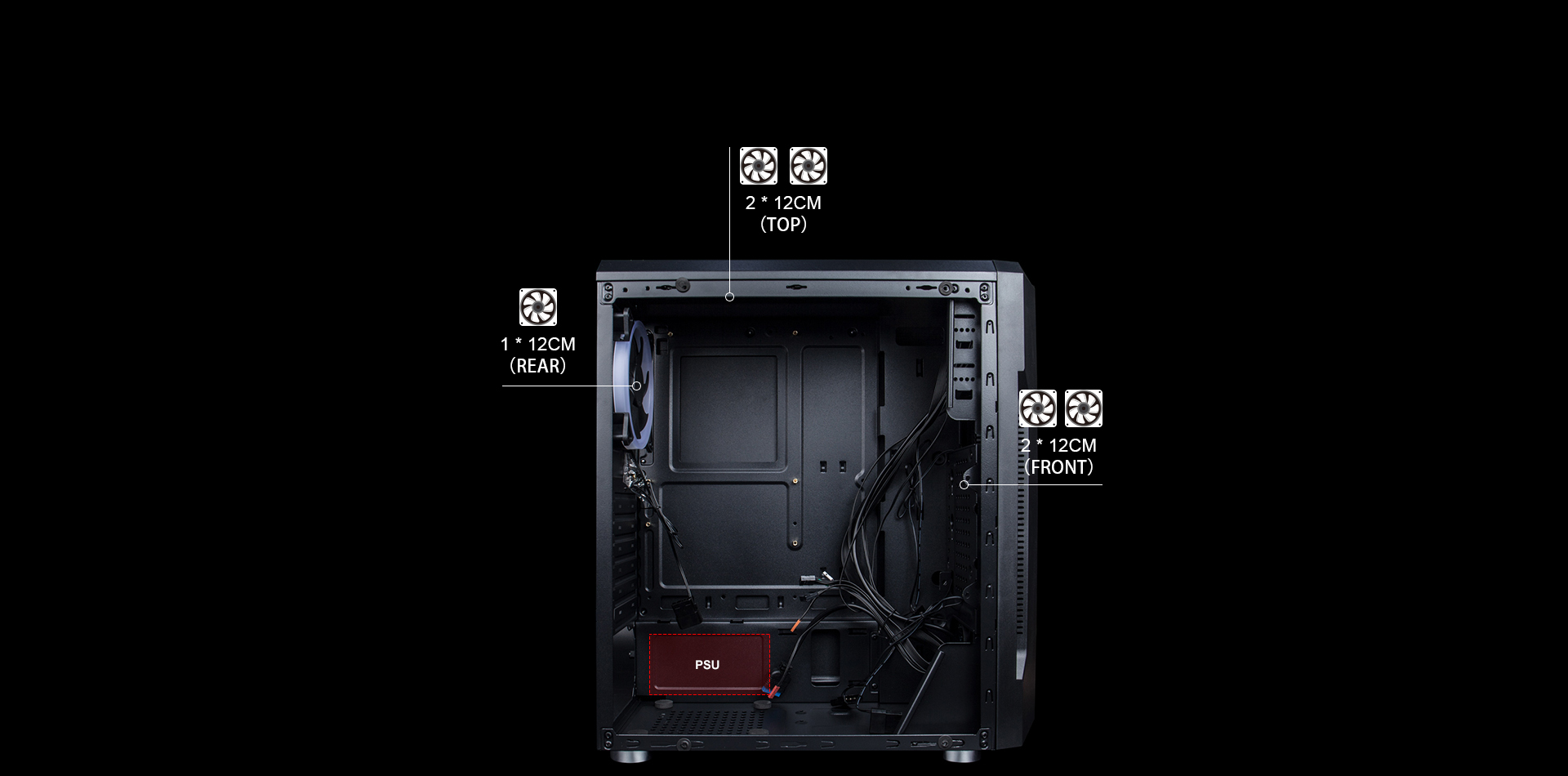

Fan Support

FRONT: 2*120 MM

TOP: 2*120 MM

REAR: 1*120 MM

Liquid Cooling Support

N/A

Power Supply Support

BOTTOM MOUNT

Net Weight

3.90KG / 8.59lb

Gross Weight

4.62KG / 10.18lb
