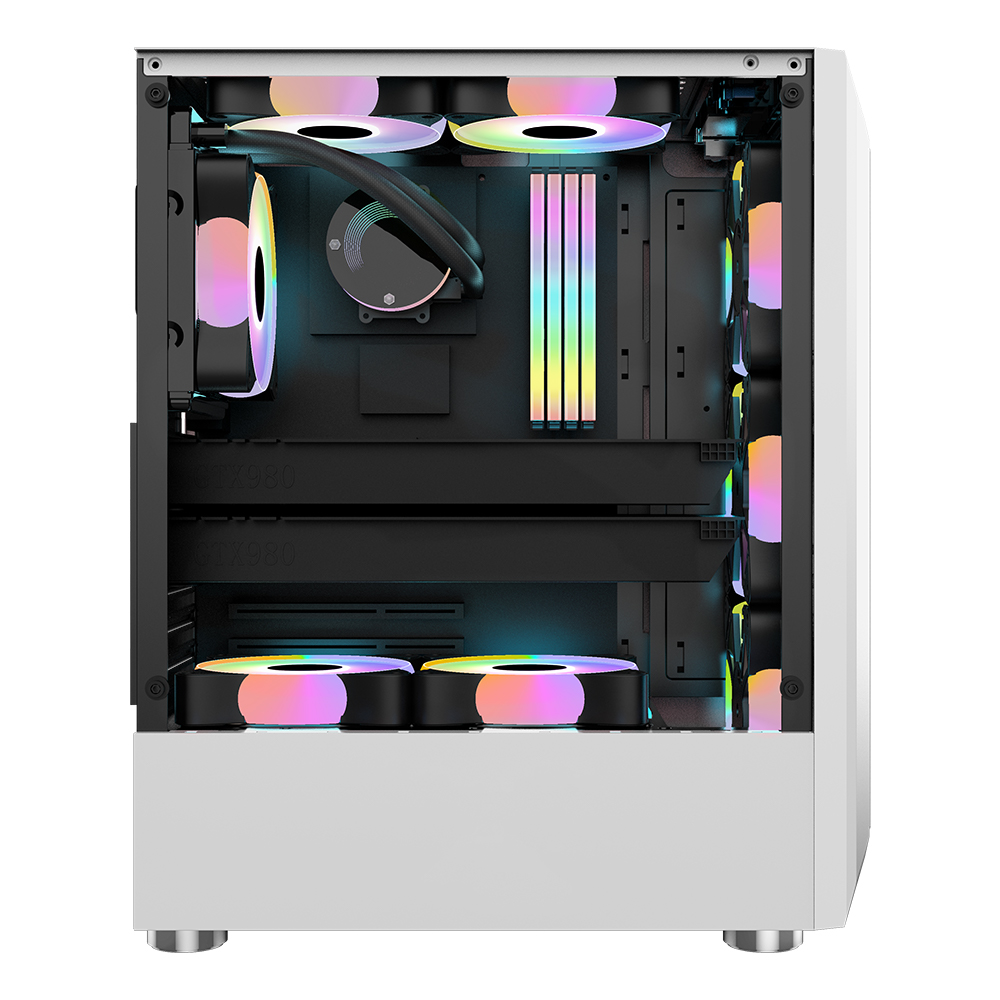

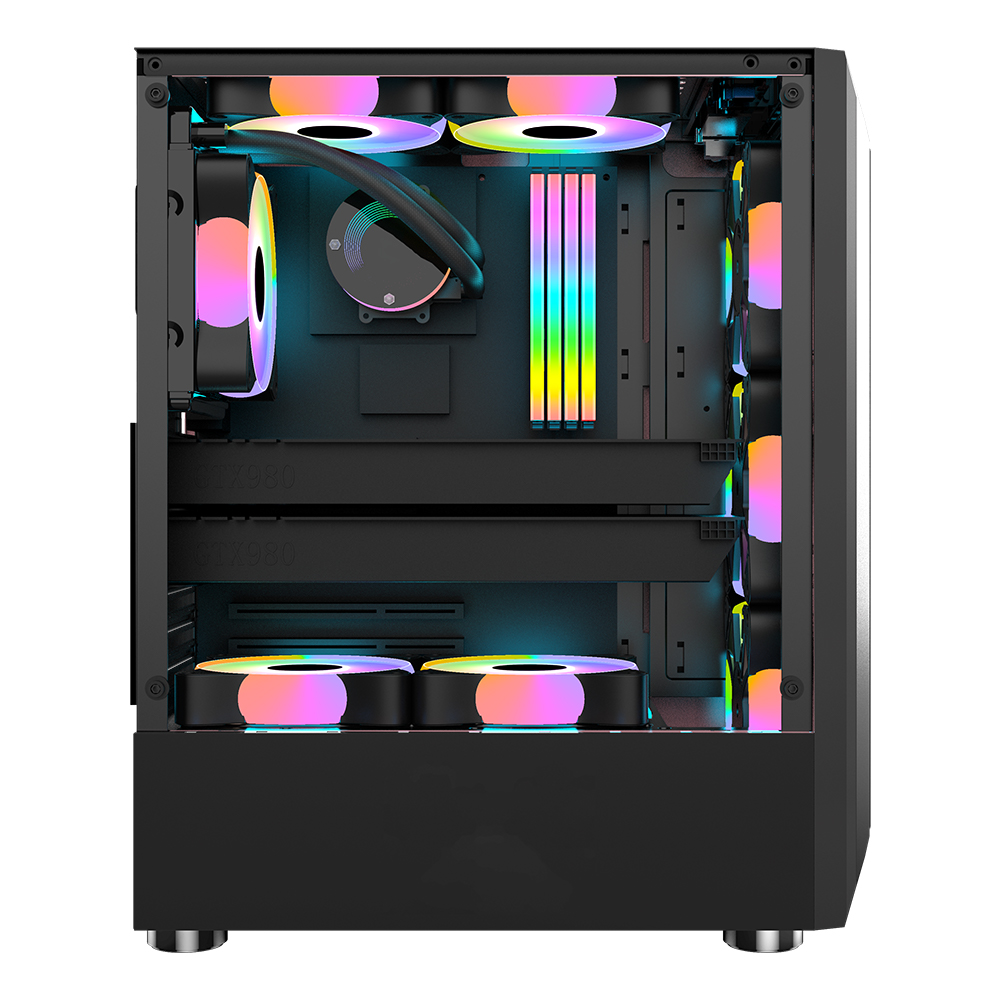

Support installation of up to 8 fans

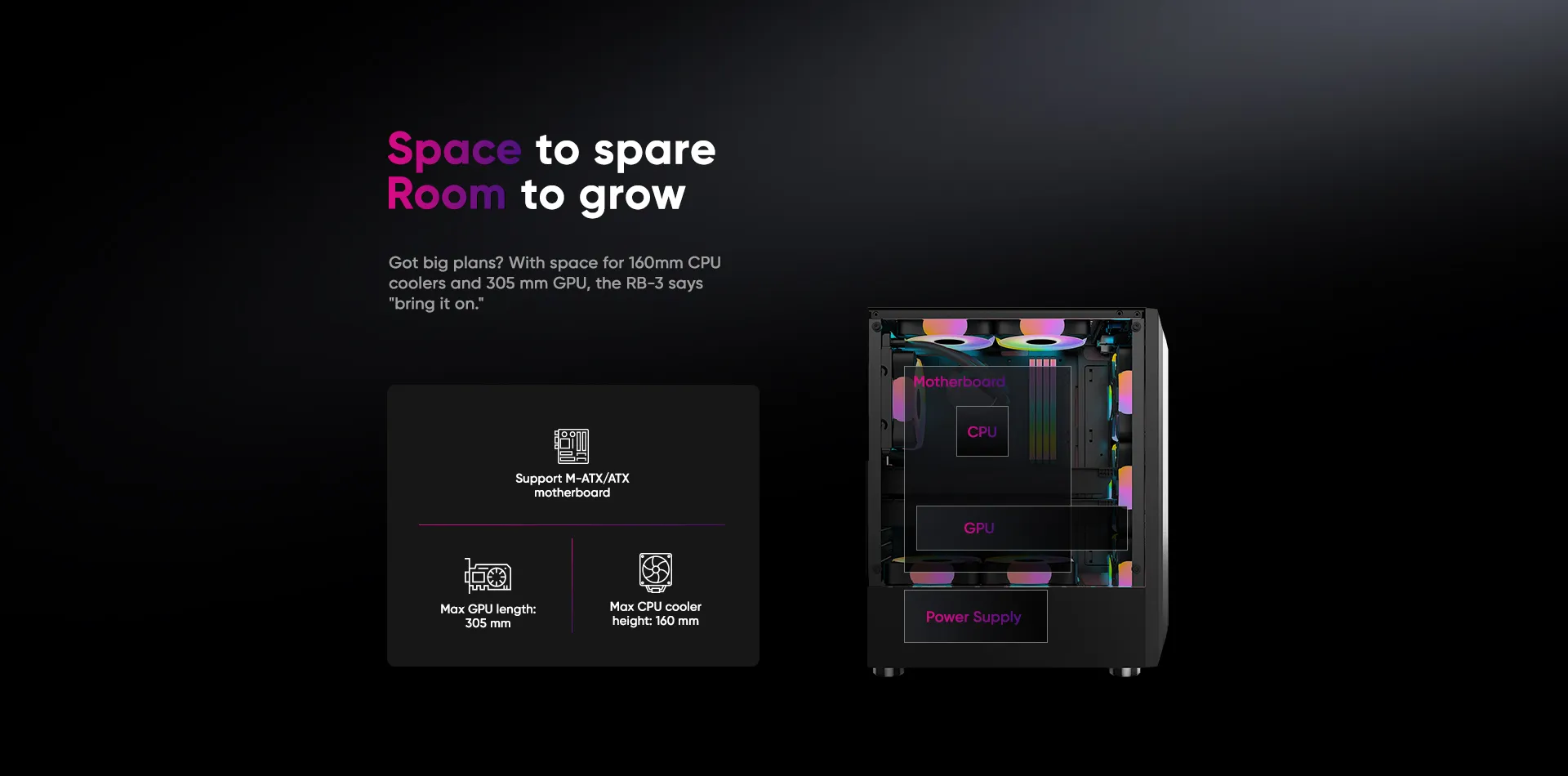

Support CPU cooler height up to 160 mm
Support GPU length up to 305 mm
Support a 240 mm radiator at the top and a 240 mm radiator at the bottom

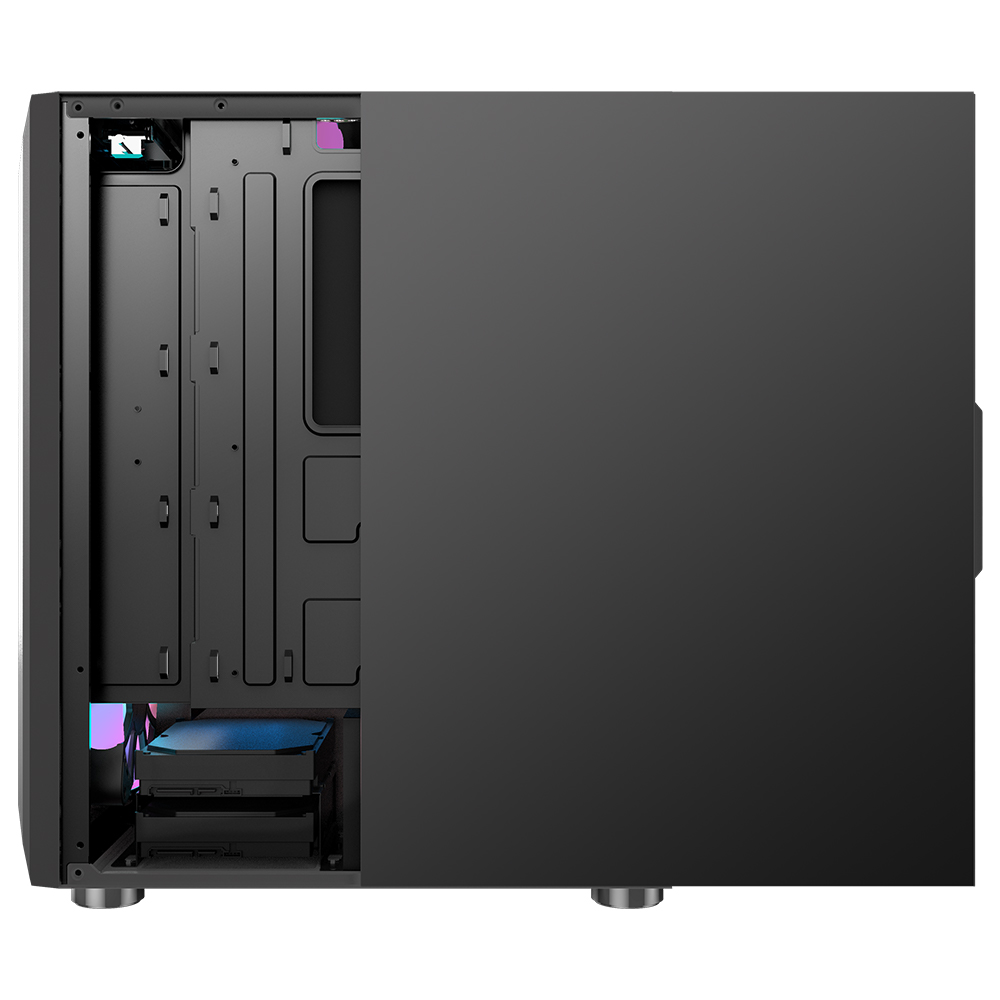

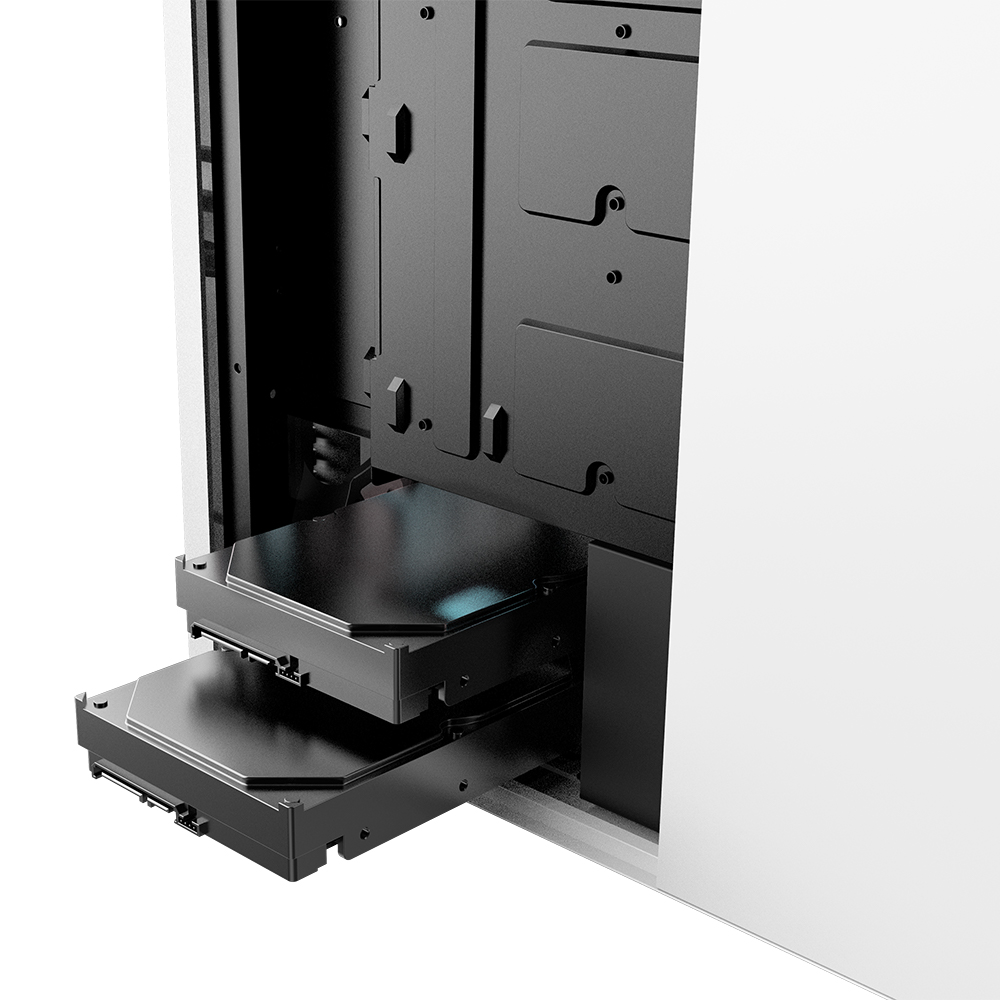

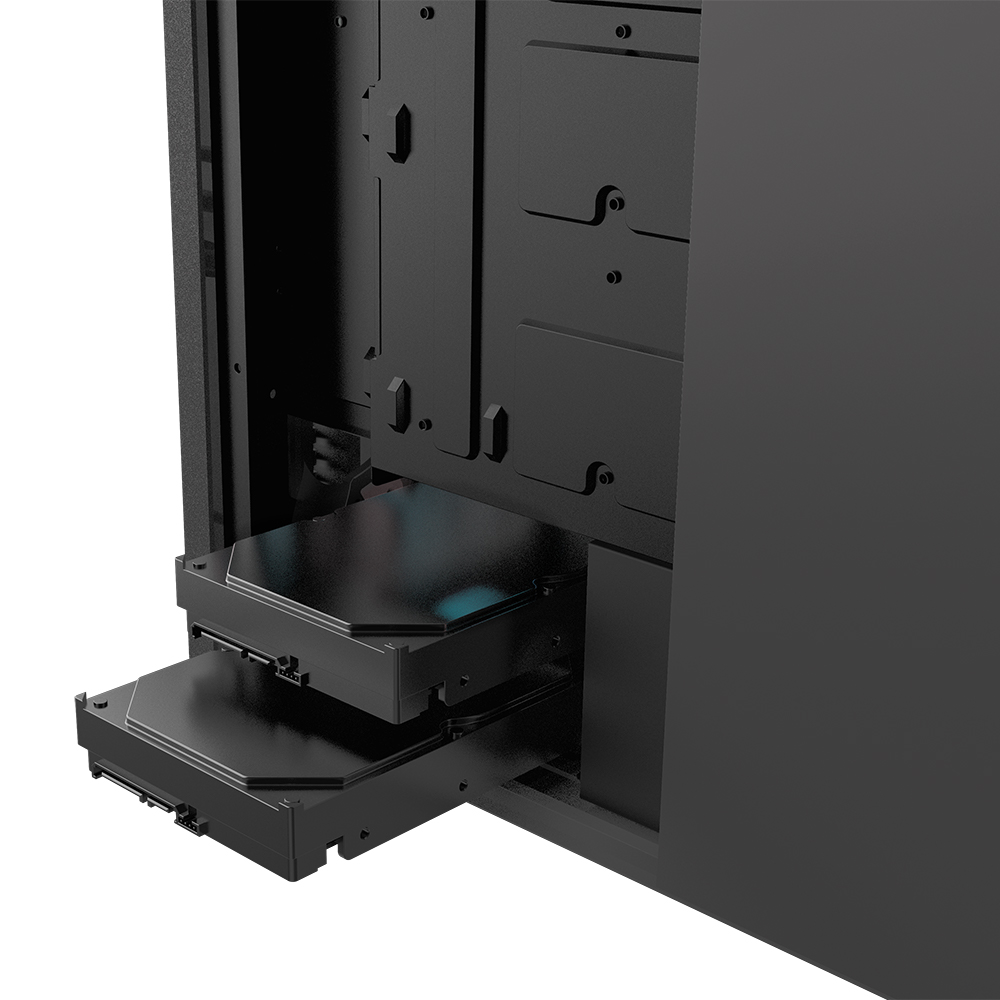

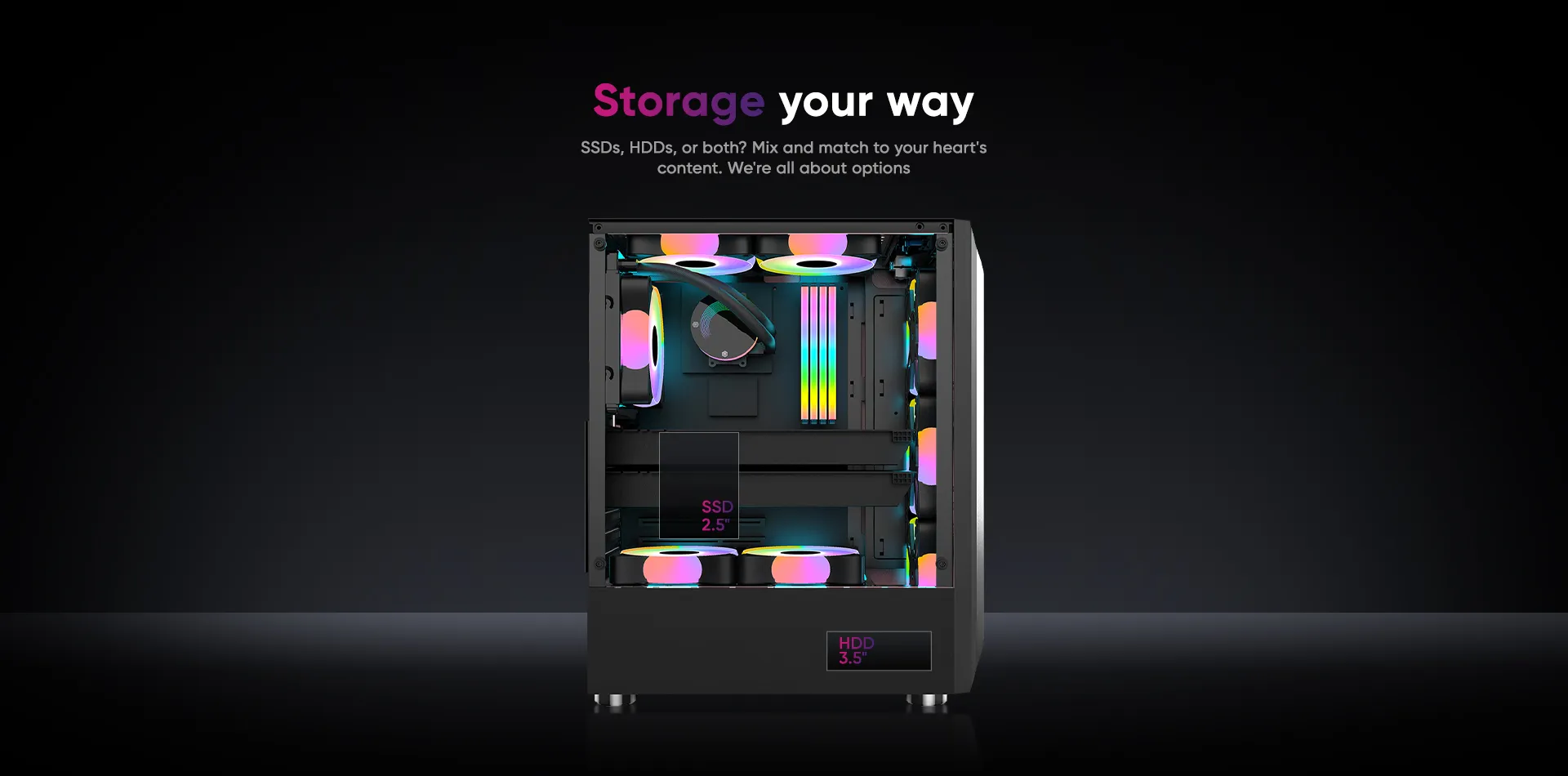

Support up to 3 drive bays: 2 x 3.5" HDD + 1 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black

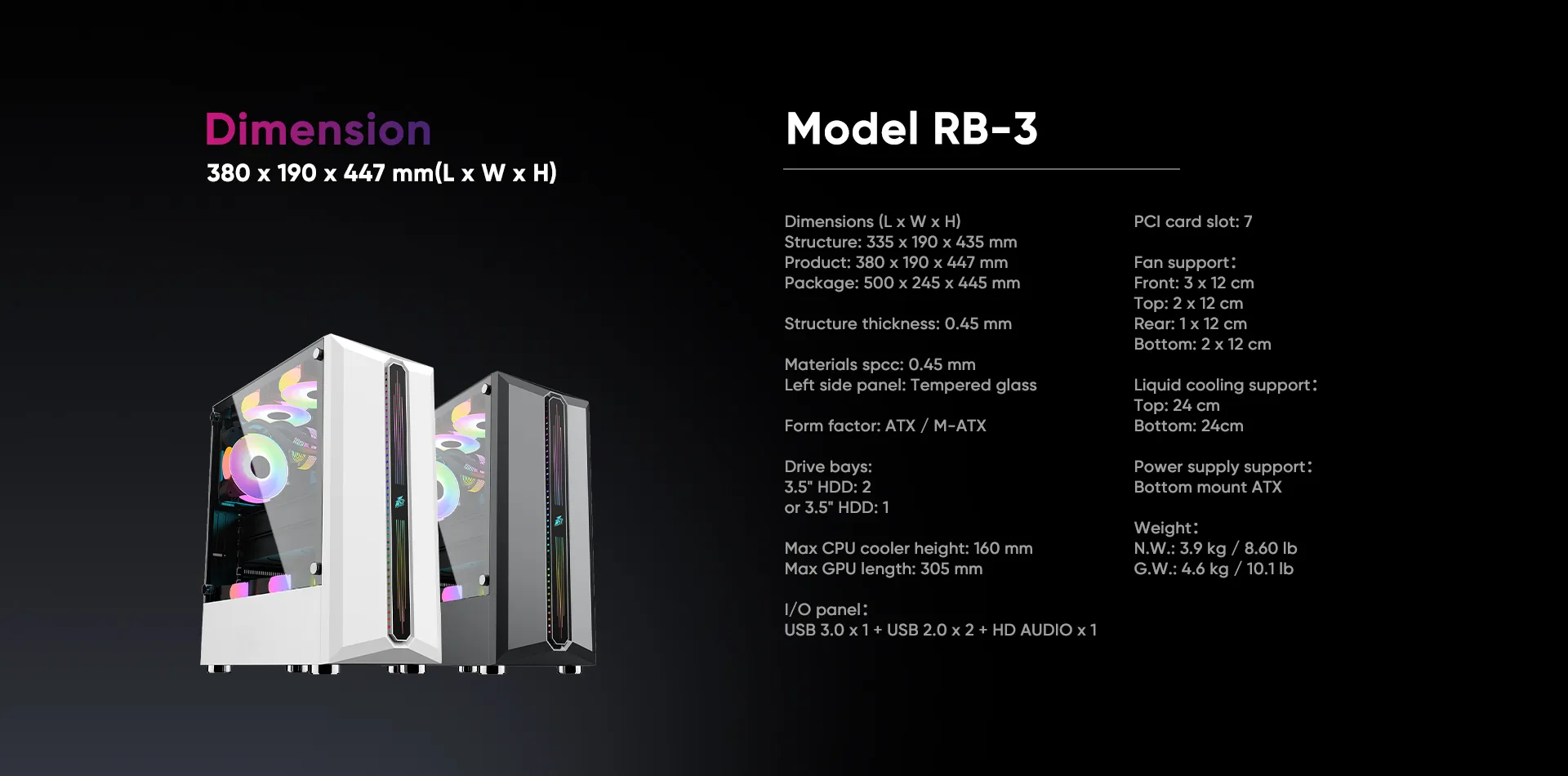

MODEL
RB-3
STRUCTURE DIMENSIONS (L x W x H)
335 x 190 x 435 mm
PRODUCT DIMENSIONS (L x W x H)
380 x 190 x 447 mm
PACKAGE DIMENSIONS (L x W x H)
500 x 245 x 445 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm

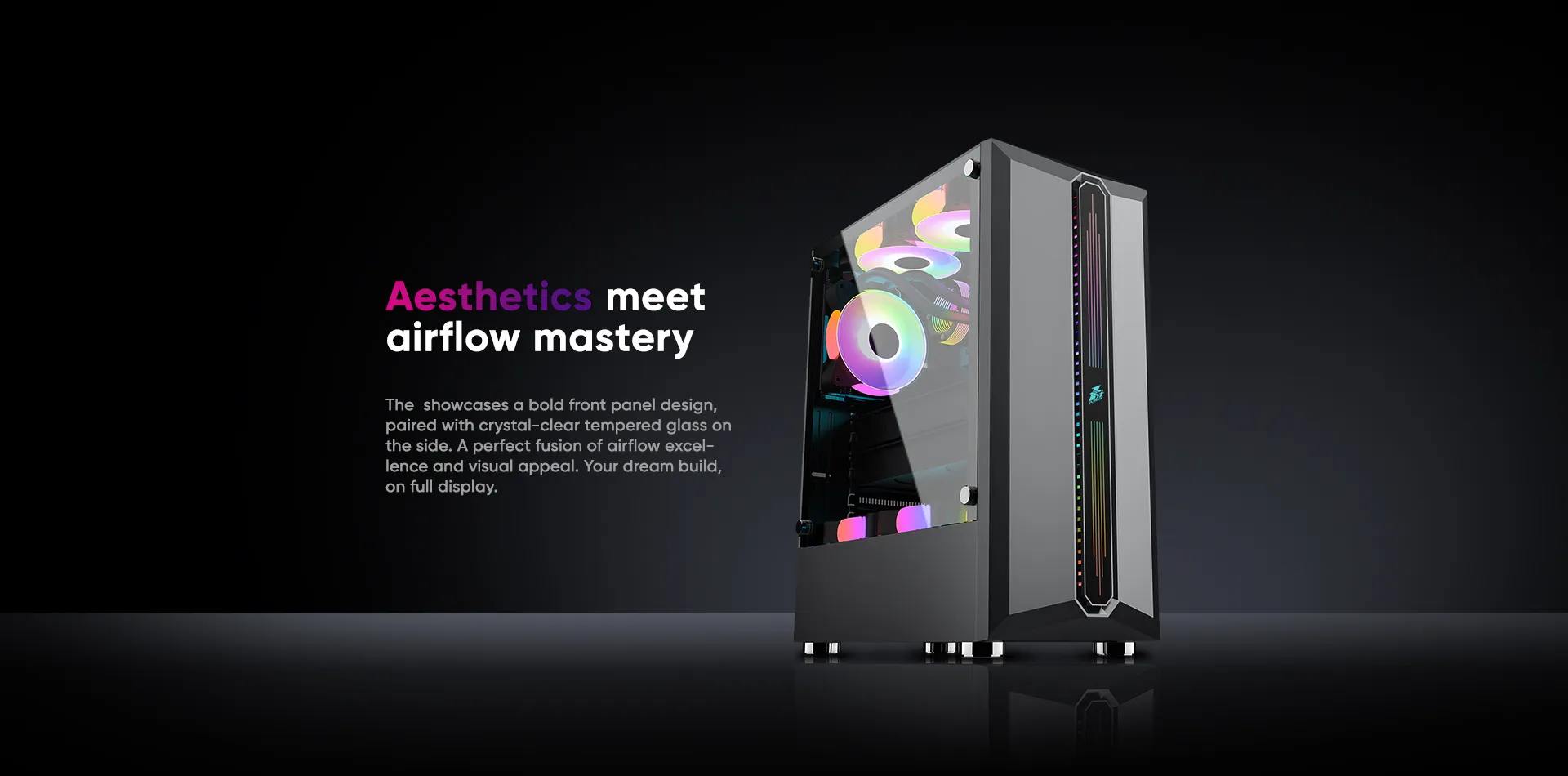

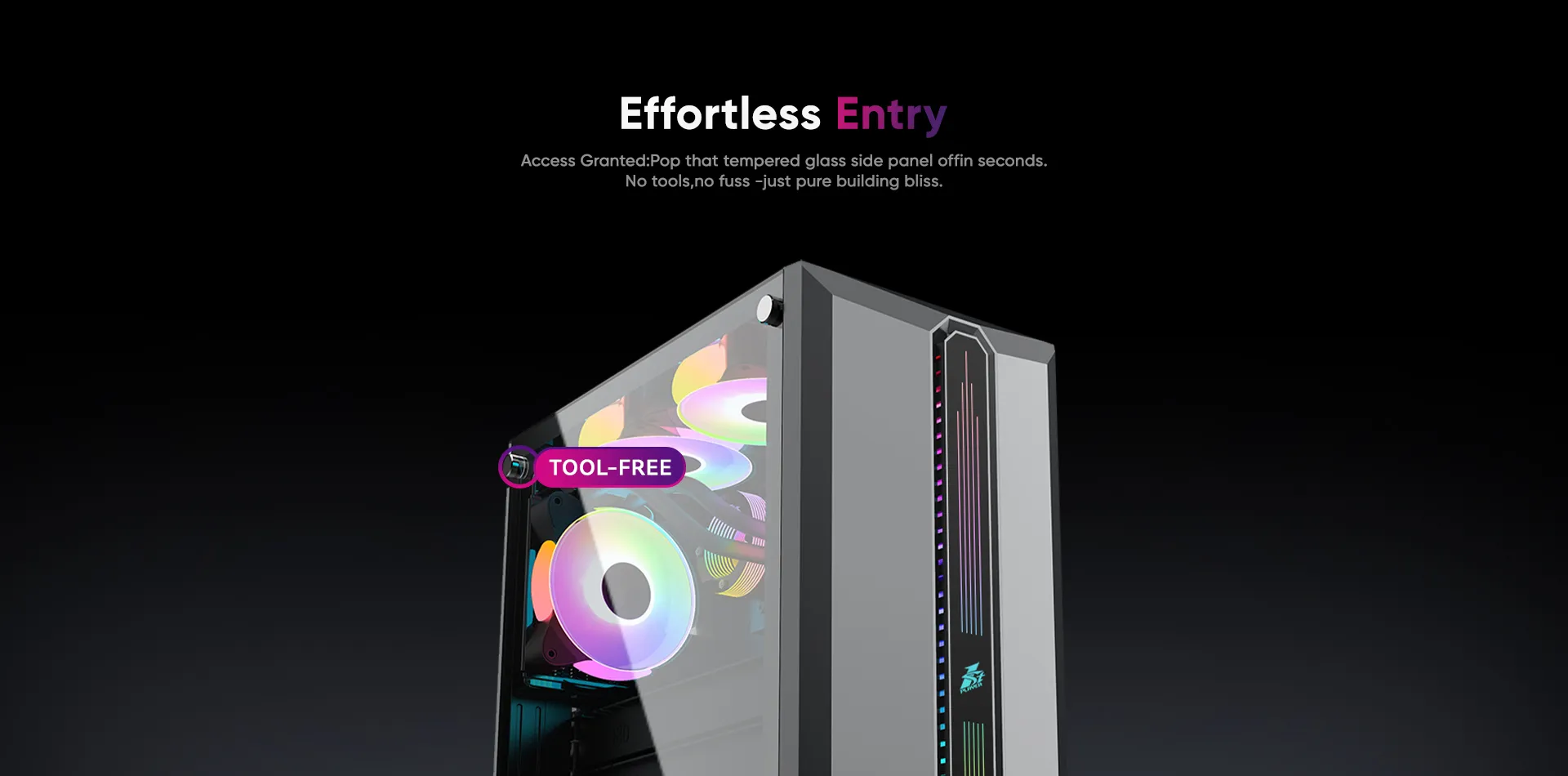

Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX
5.25" CD ROM: 0
3.5" HDD: 2
2.5" SSD: 1
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
305 mm

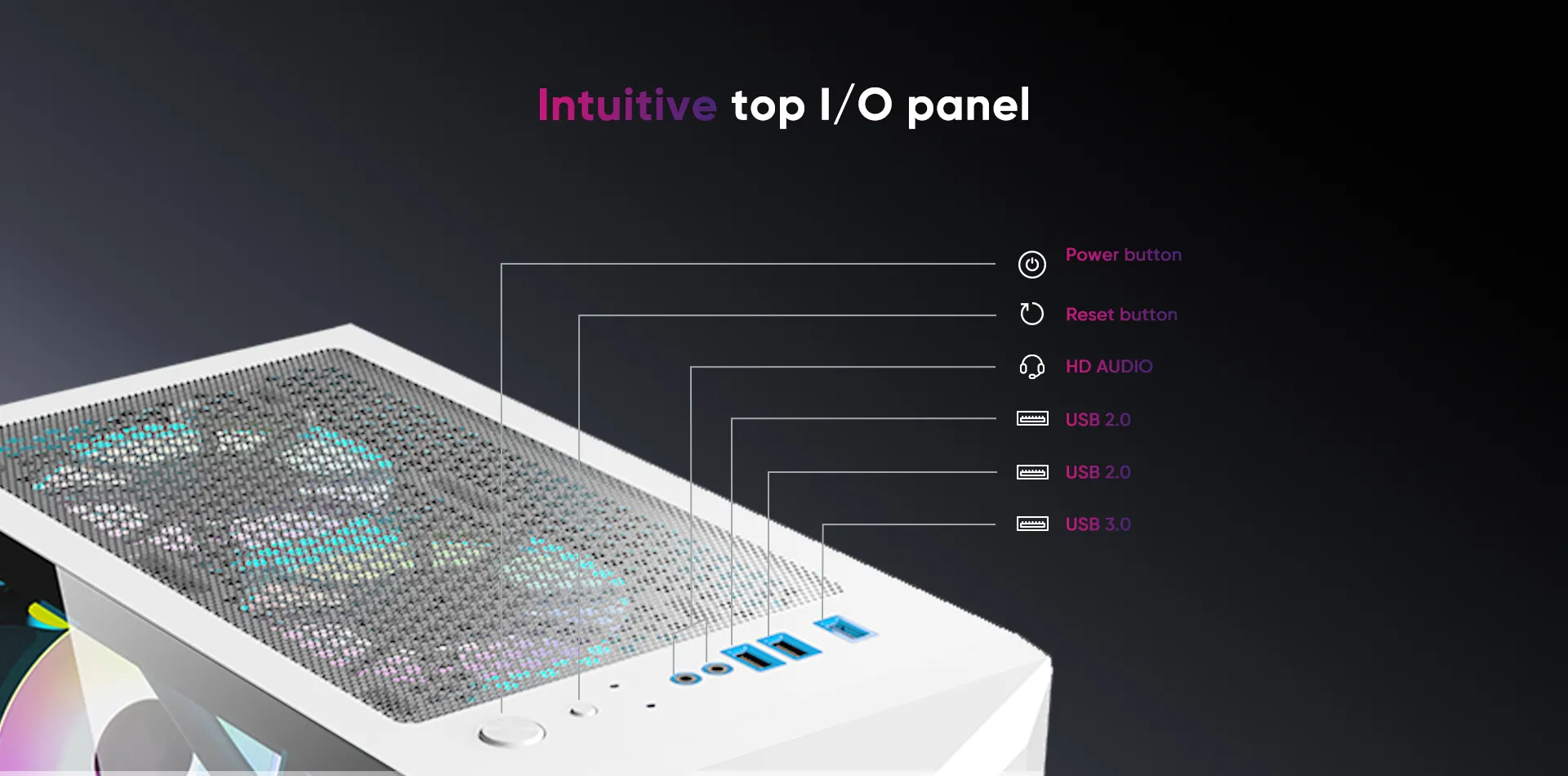

I/O PANEL
USB 3.0 + USB 2.0 x 2 + HD AUDIO

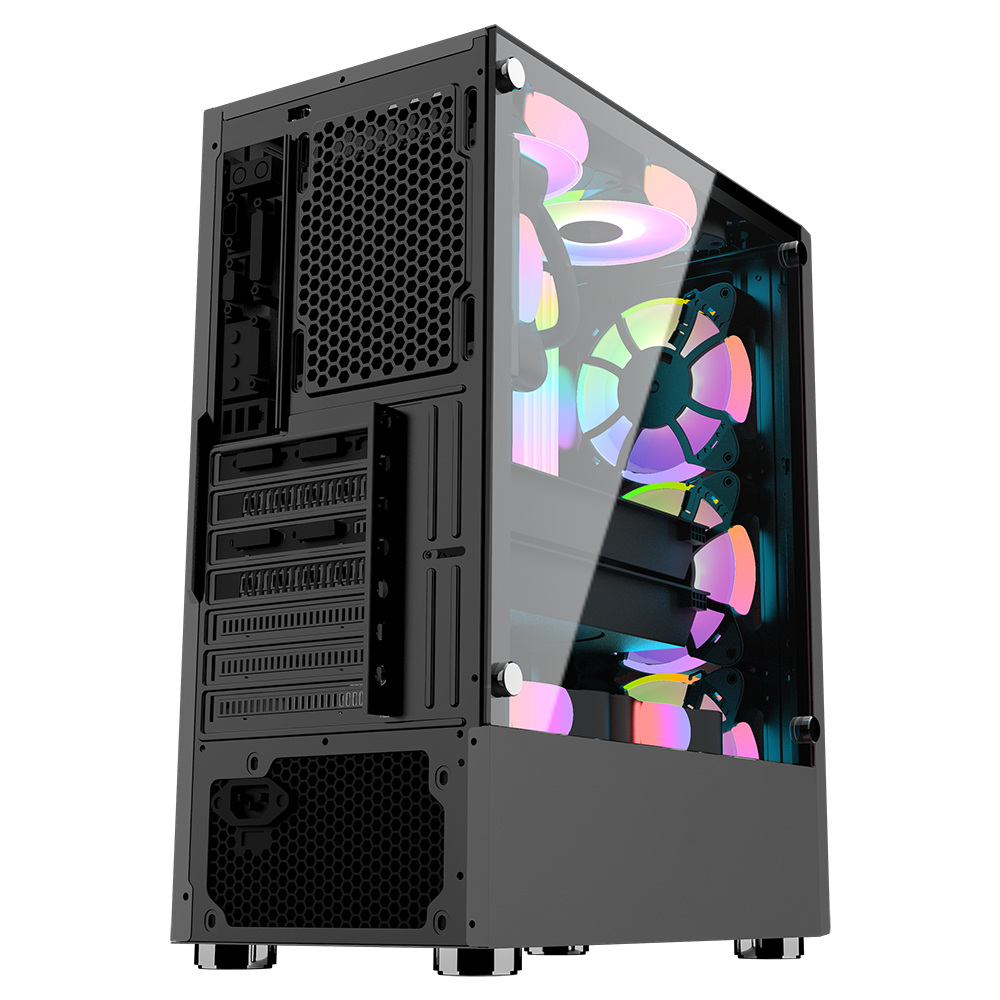

PCI CARD SLOT
7

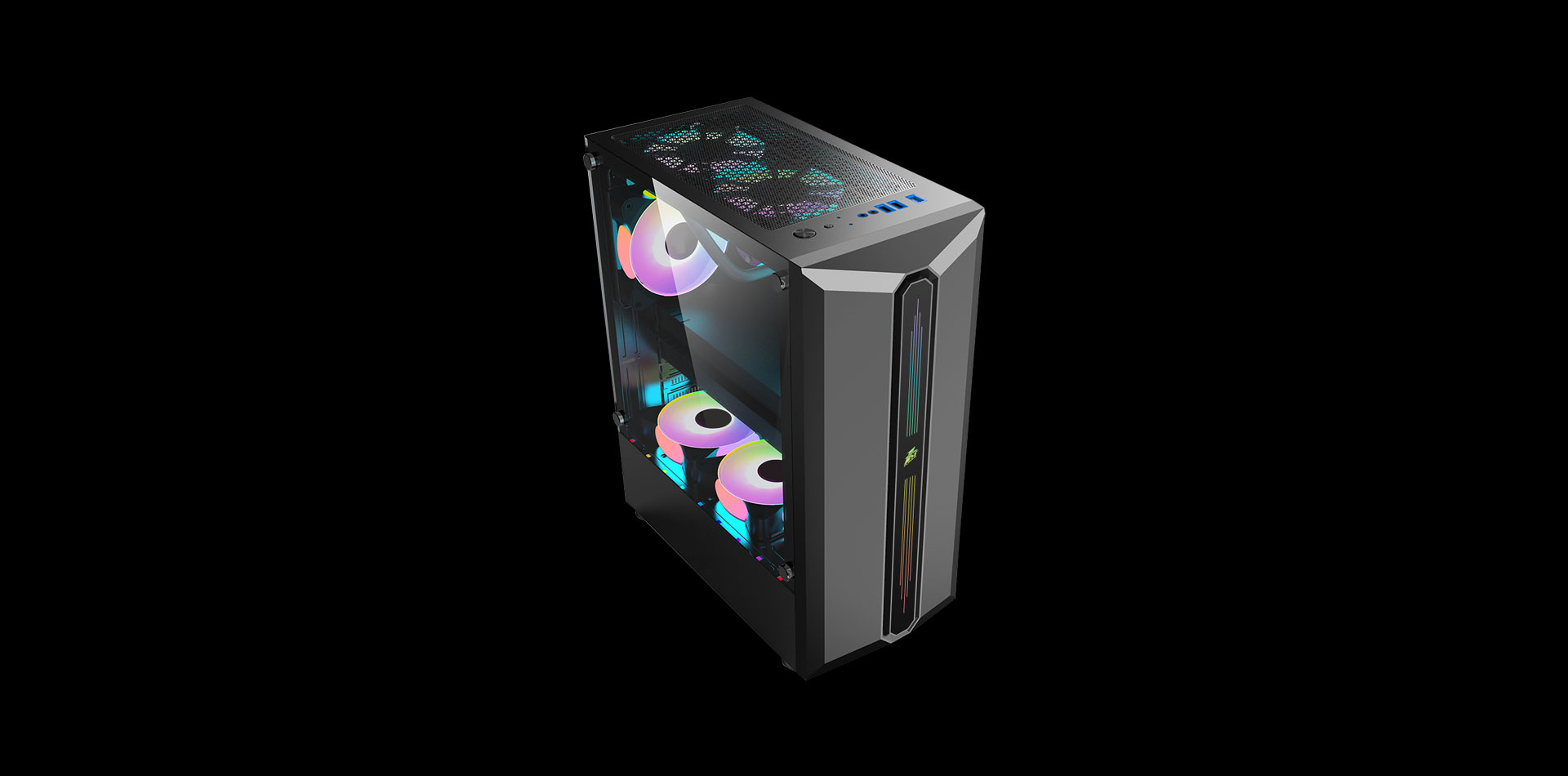

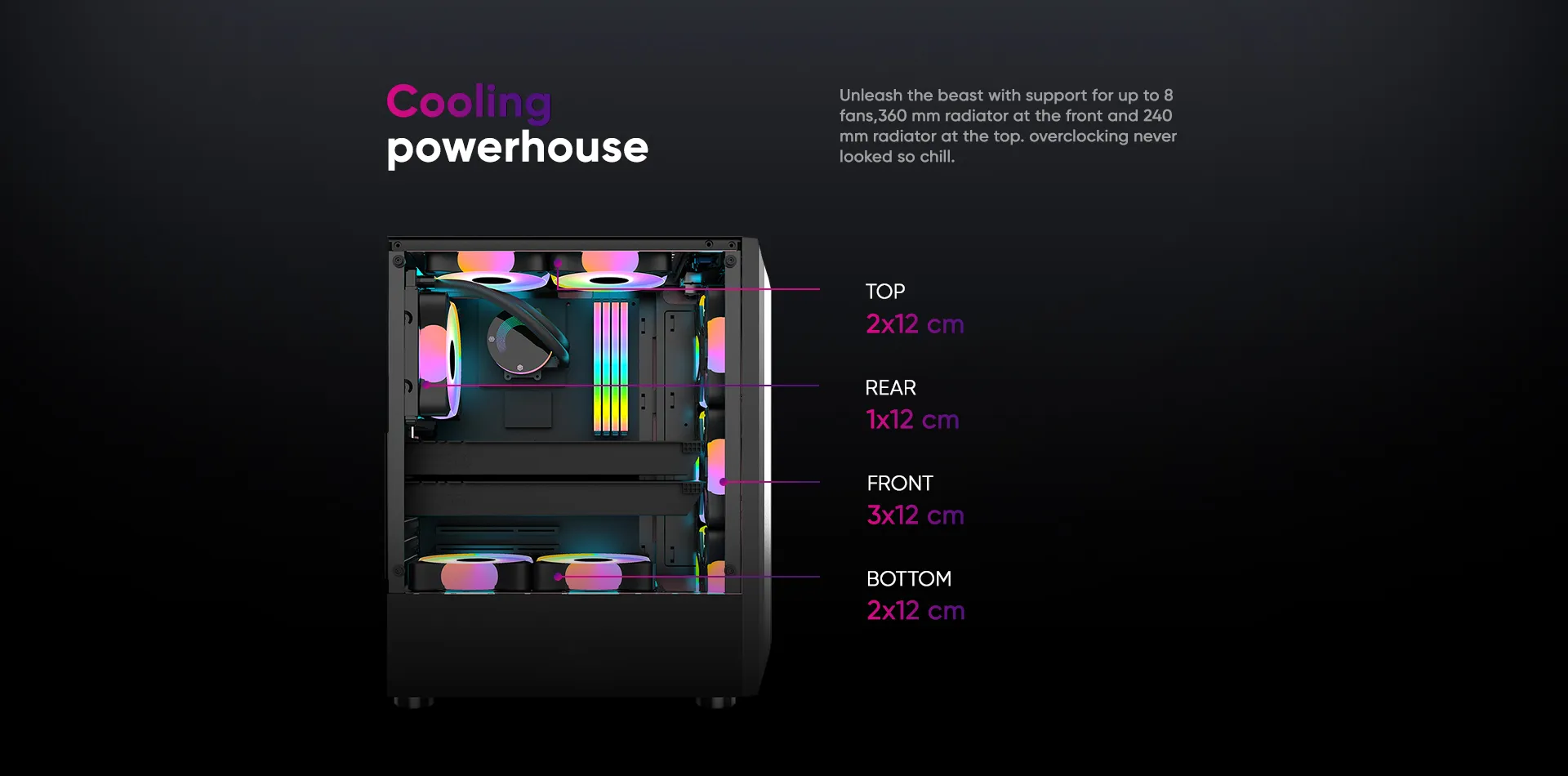

FAN SUPPORT
Front: 3 x 120 mm
Rear: 1 x 120 mm
Top: 2 x 120 mm
Bottom: 2 x 120 mm
LIQUID COOLING SUPPORT
Top: 240 mm
Bottom: 240 mm
POWER SUPPLY SUPPORT
Bottom mount ATX
NET WEIGHT
3.9 kg / 8.60 lb
