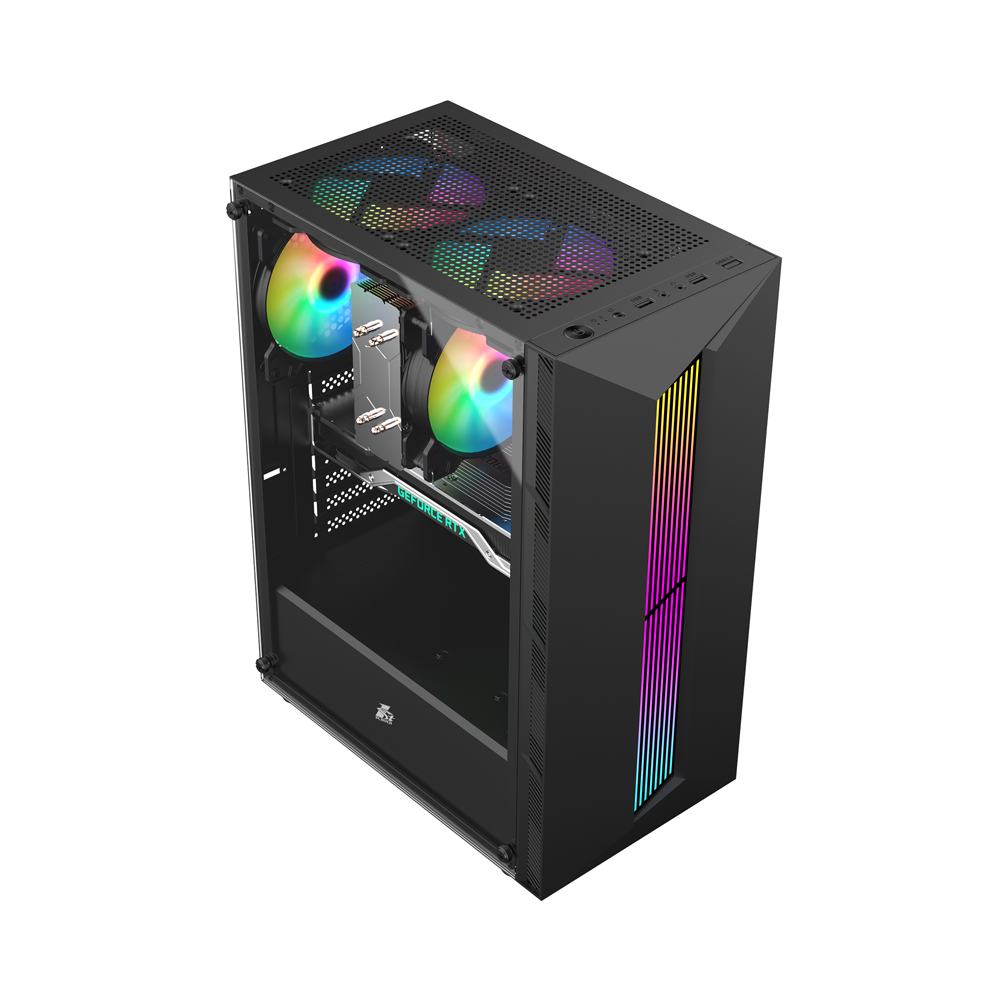

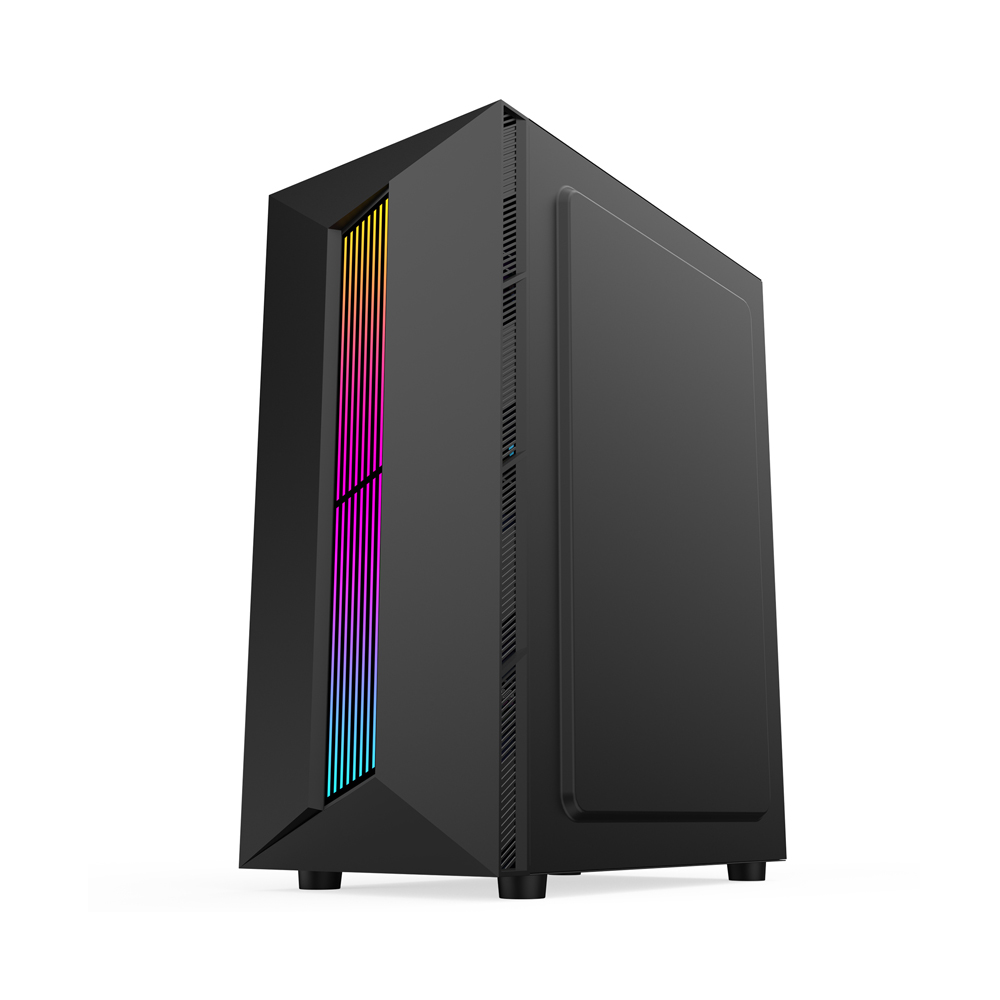

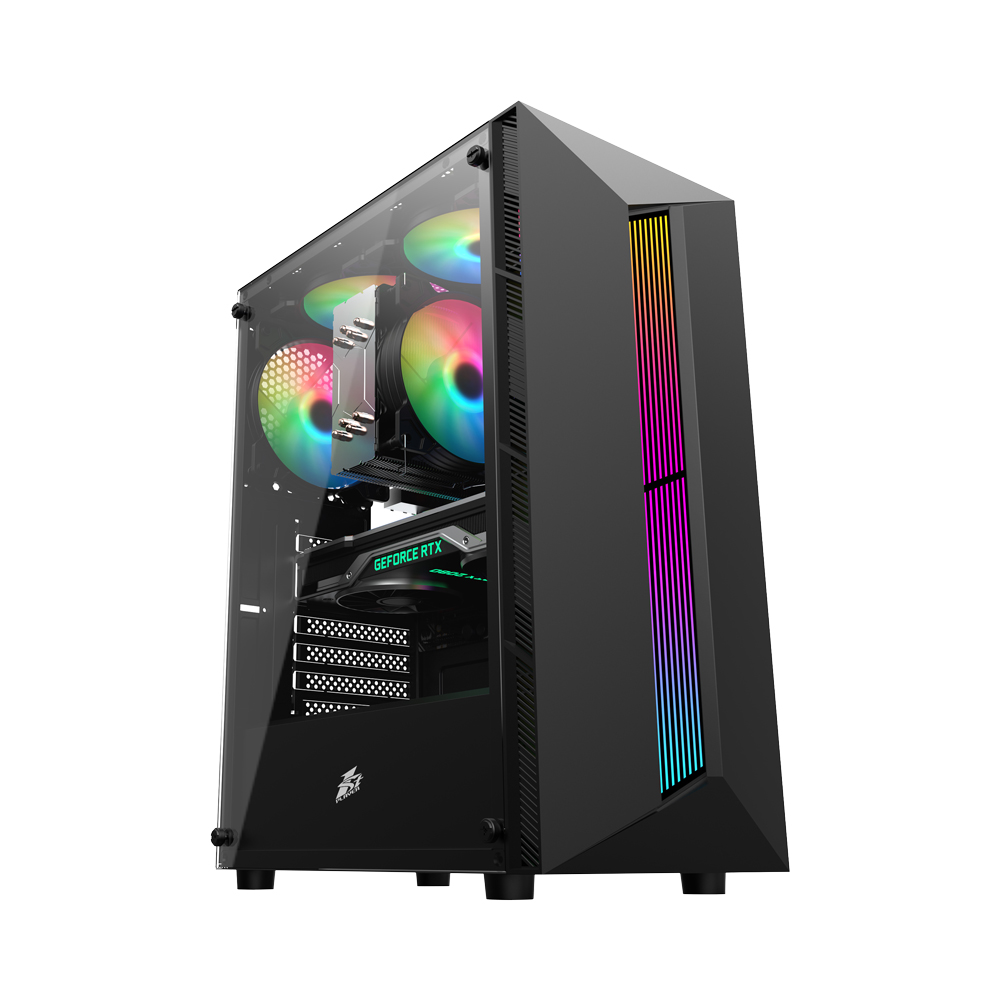

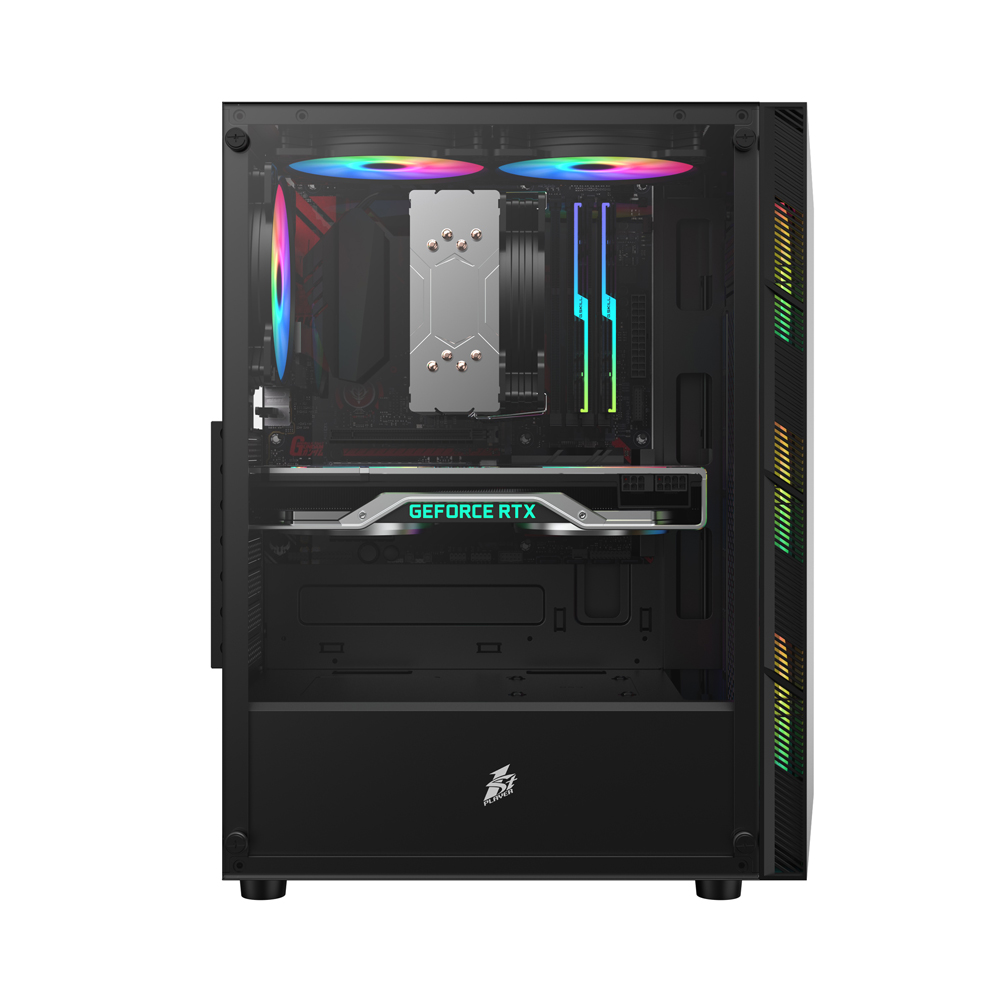

RB-5

FIREBASE

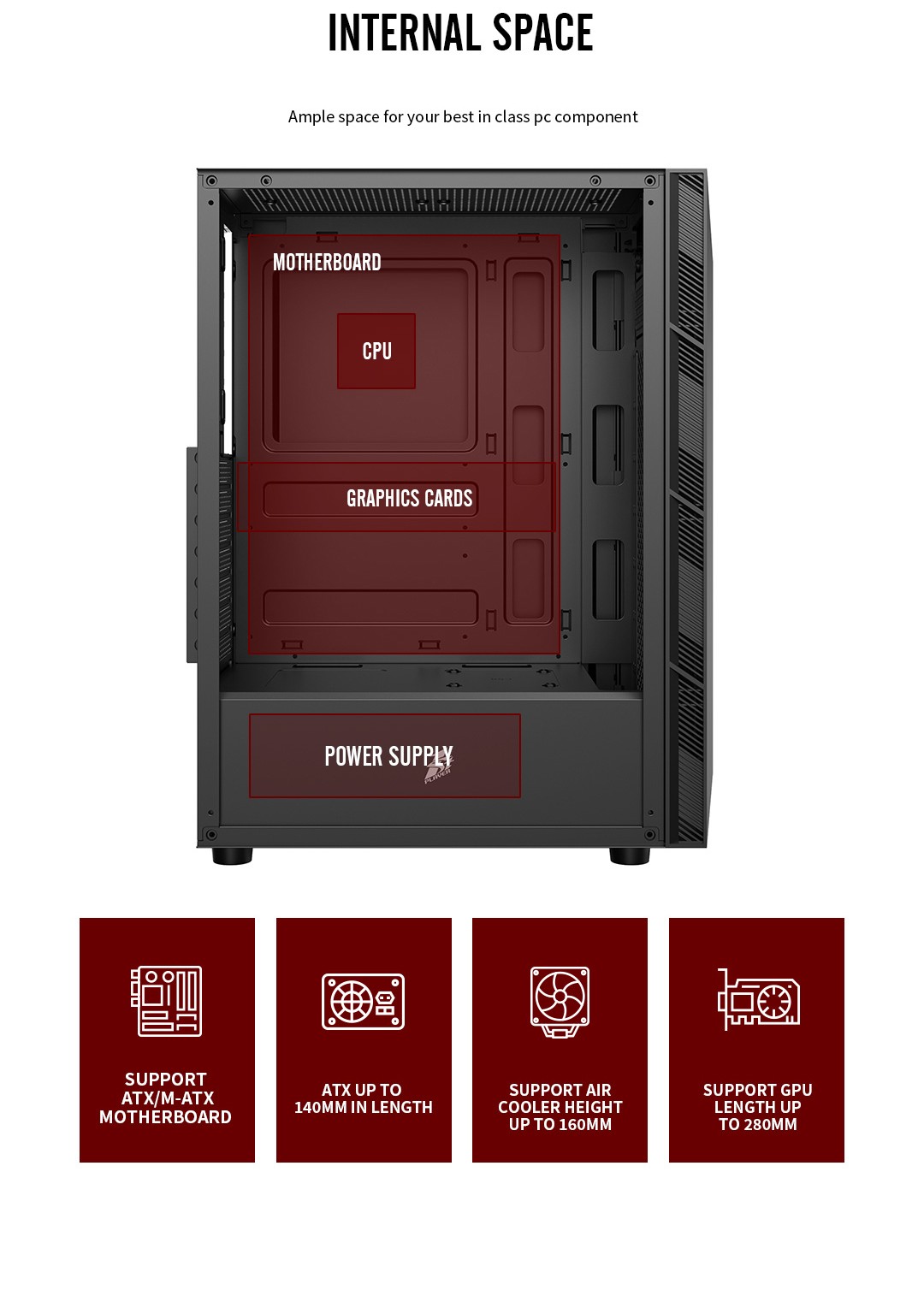

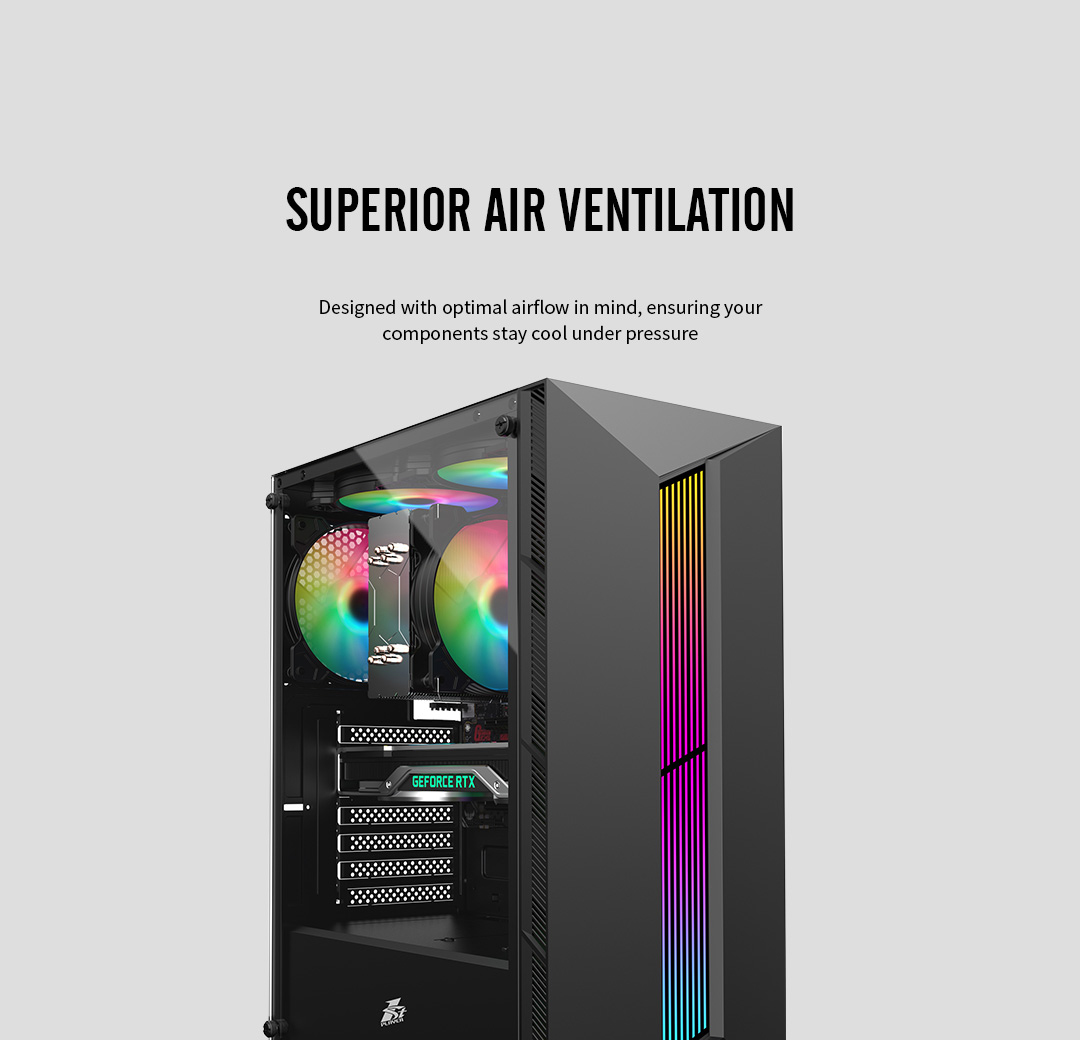

  • Support installation of up to 6 fans

  • Support CPU cooler height up to 160 mm

  • Support GPU length up to 280 mm

  • Support a 240 mm radiator at the top

  • Support up to 4 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

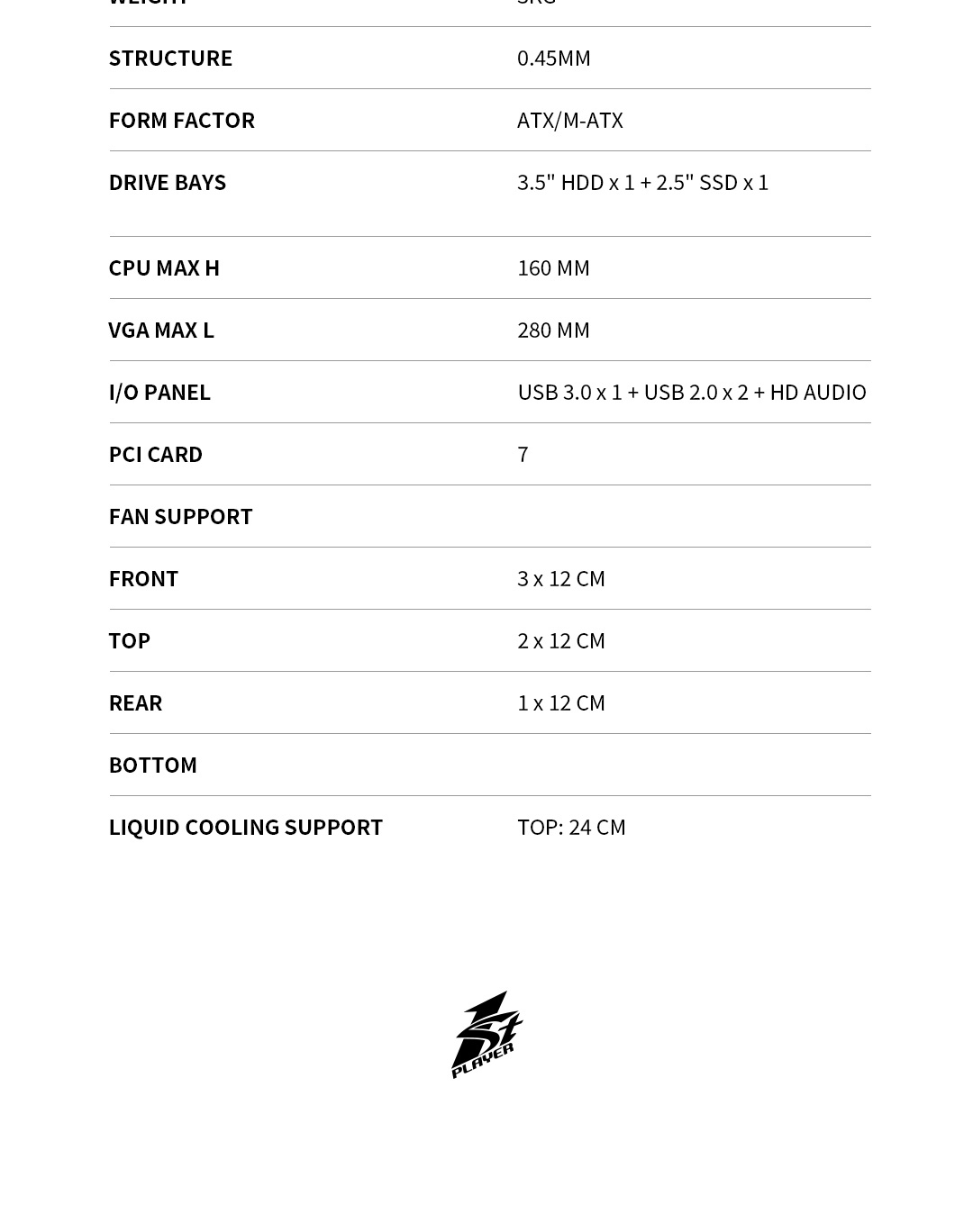

MODEL

RB-5

STRUCTURE DIMENSIONS (L x W x H)

290 x 190 x 420 mm

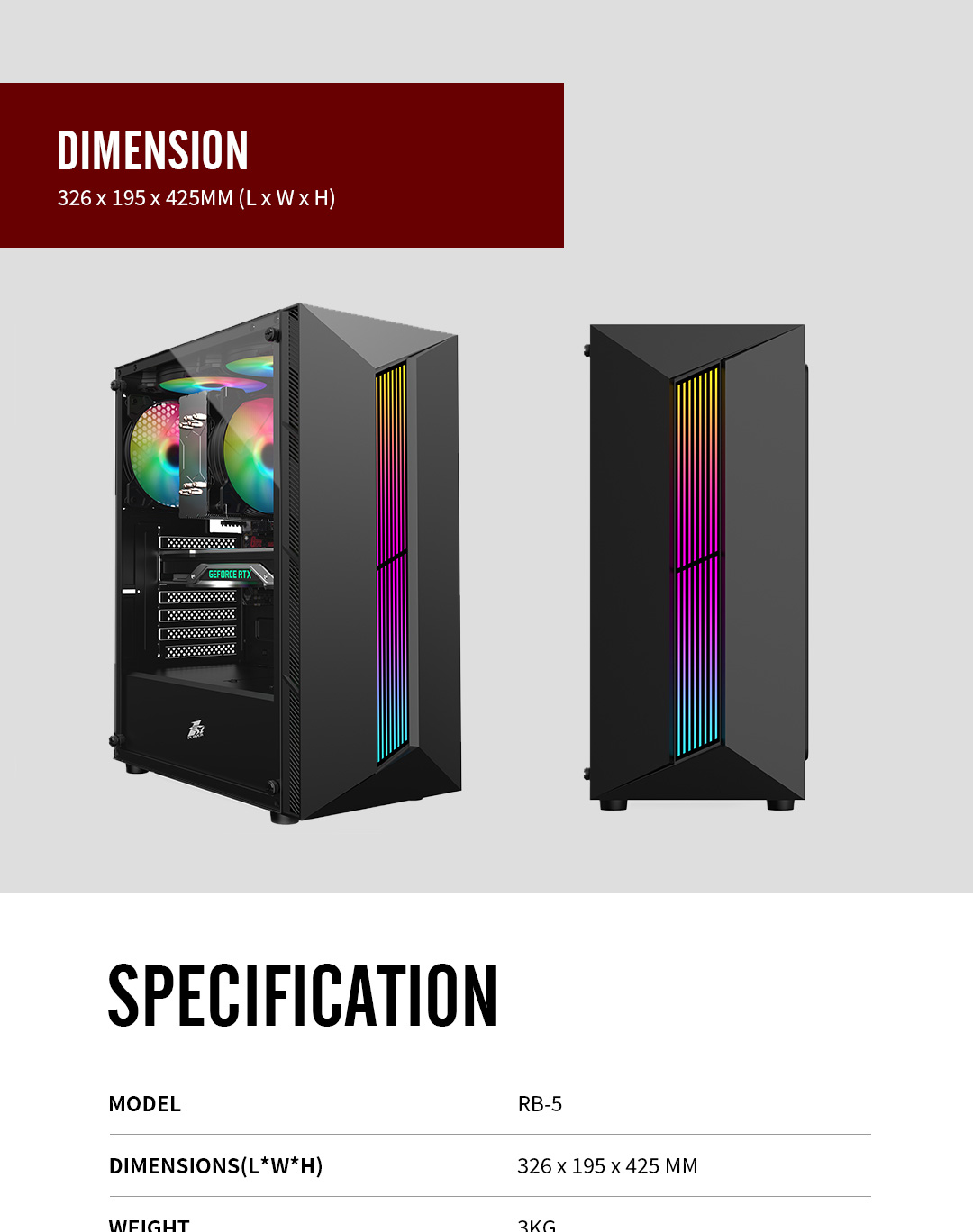

PRODUCT DIMENSIONS (L x W x H)

326 x 195 x 425 mm

PACKAGE DIMENSIONS (L x W x H)

472 x 236 x 375 mm

STRUCTURE THICKNESS

0.45 mm

MATERIALS

SPCC 0.45 mm

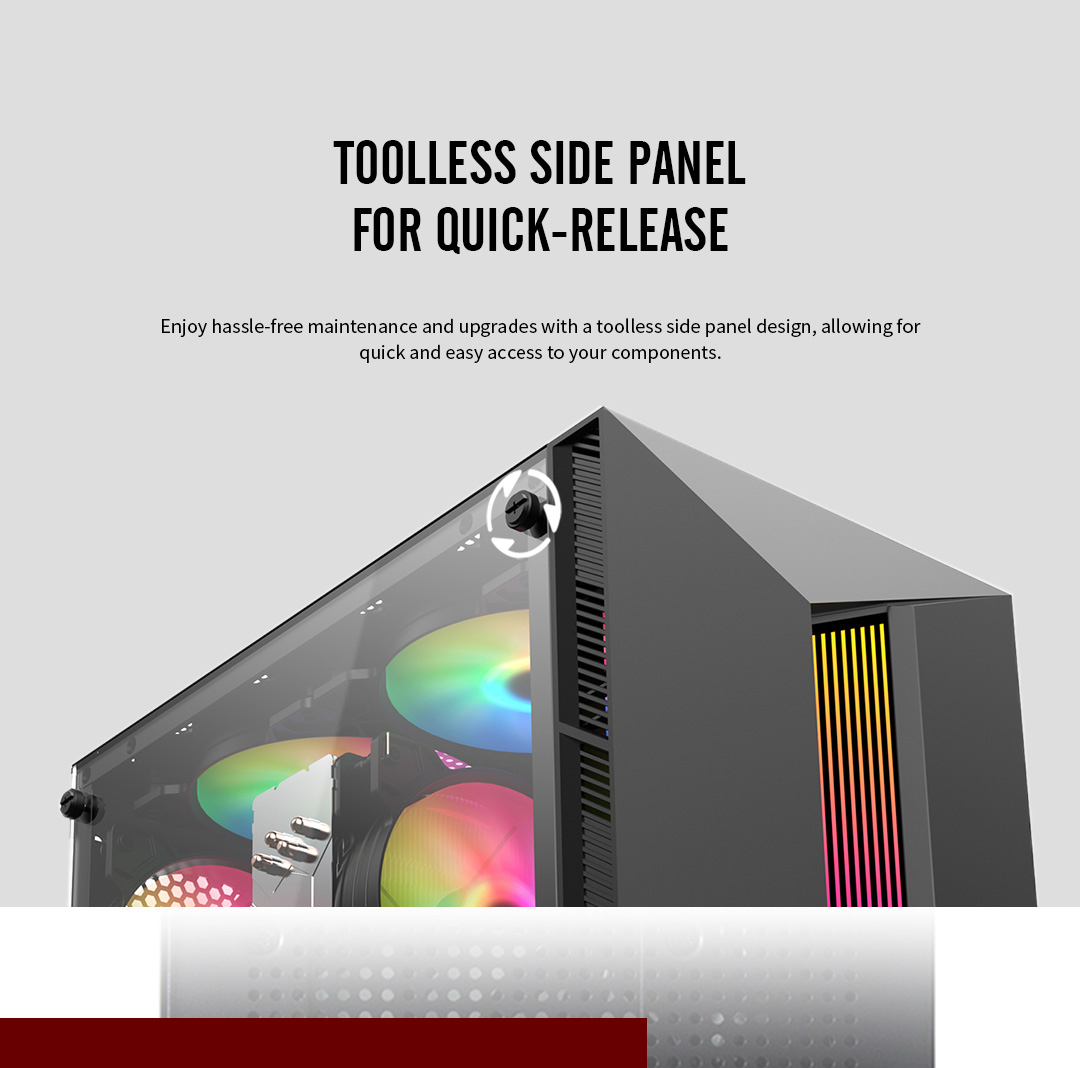

Left Panel: Tempered glass

FORM FACTOR

ATX / M-ATX

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 1 + 2.5" SSD: 1

CPU MAX HEIGHT

160 mm

GPU MAX LENGTH

280 mm

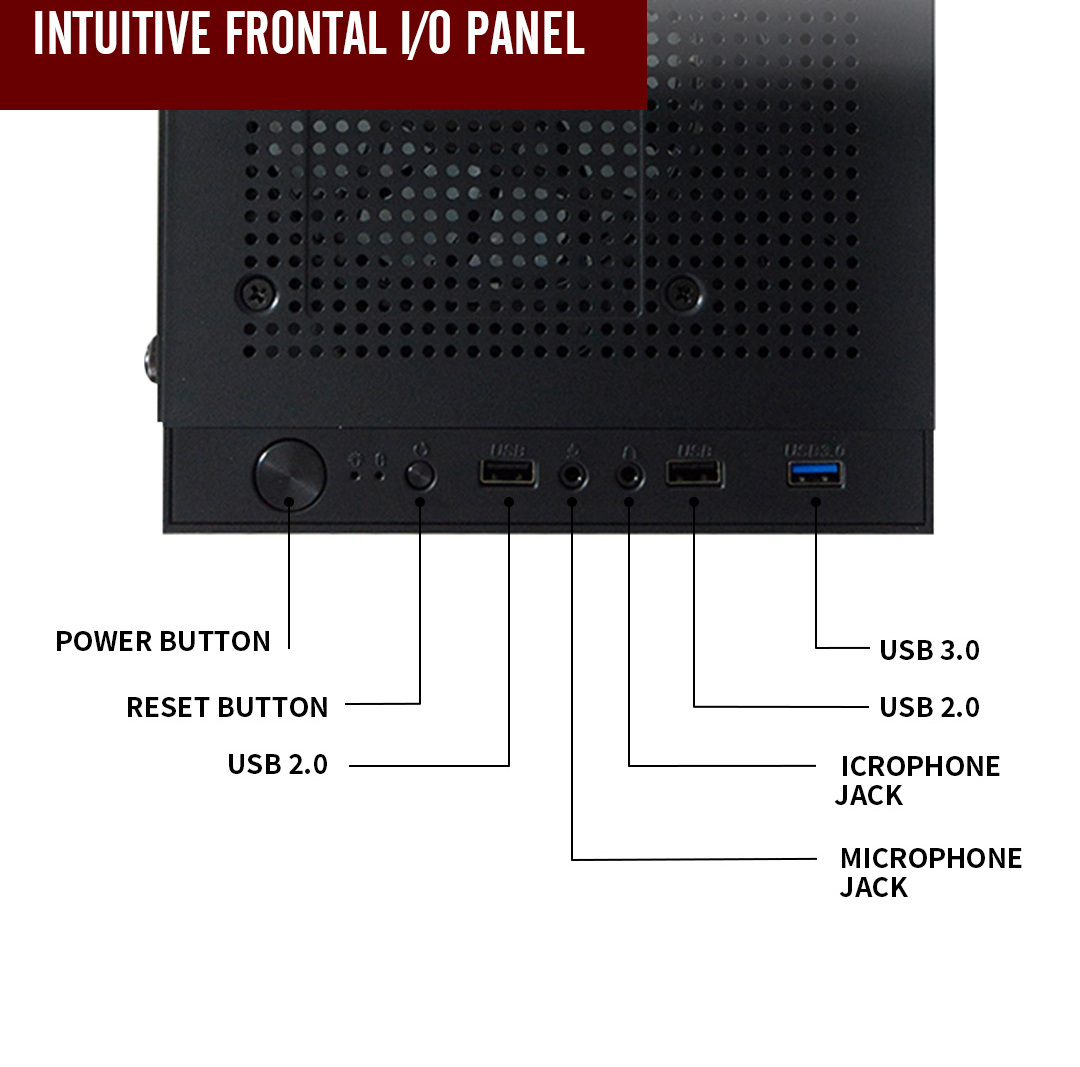

I/O PANEL

USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

PCI CARD SLOT

7

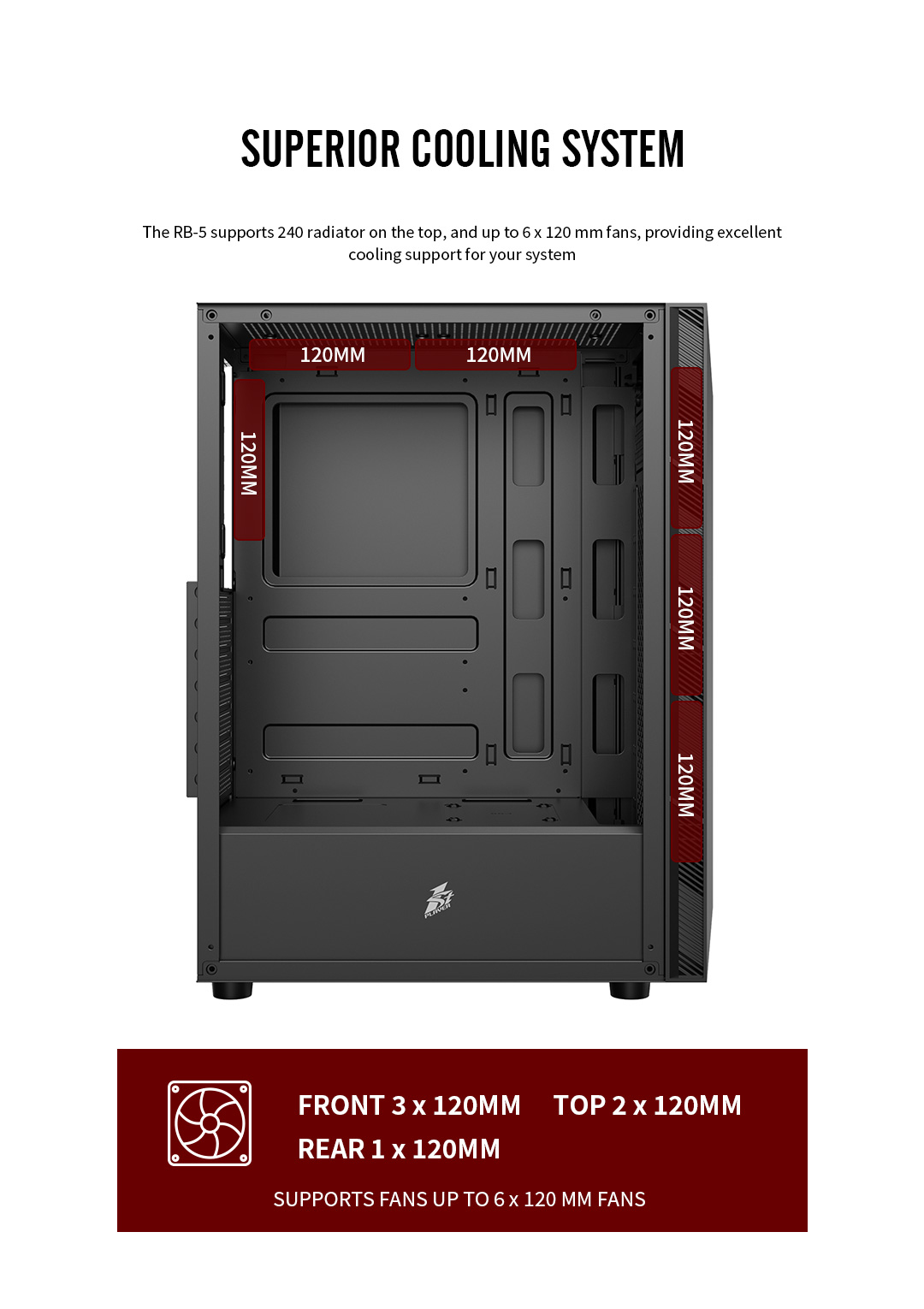

FAN SUPPORT

Front: 3 x 120 mm

Rear: 1 x 120 mm

Top: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mount

NET WEIGHT

3 kg / 6.61 lb

GROSS WEIGHT
3.7 kg / 8.15 lb
