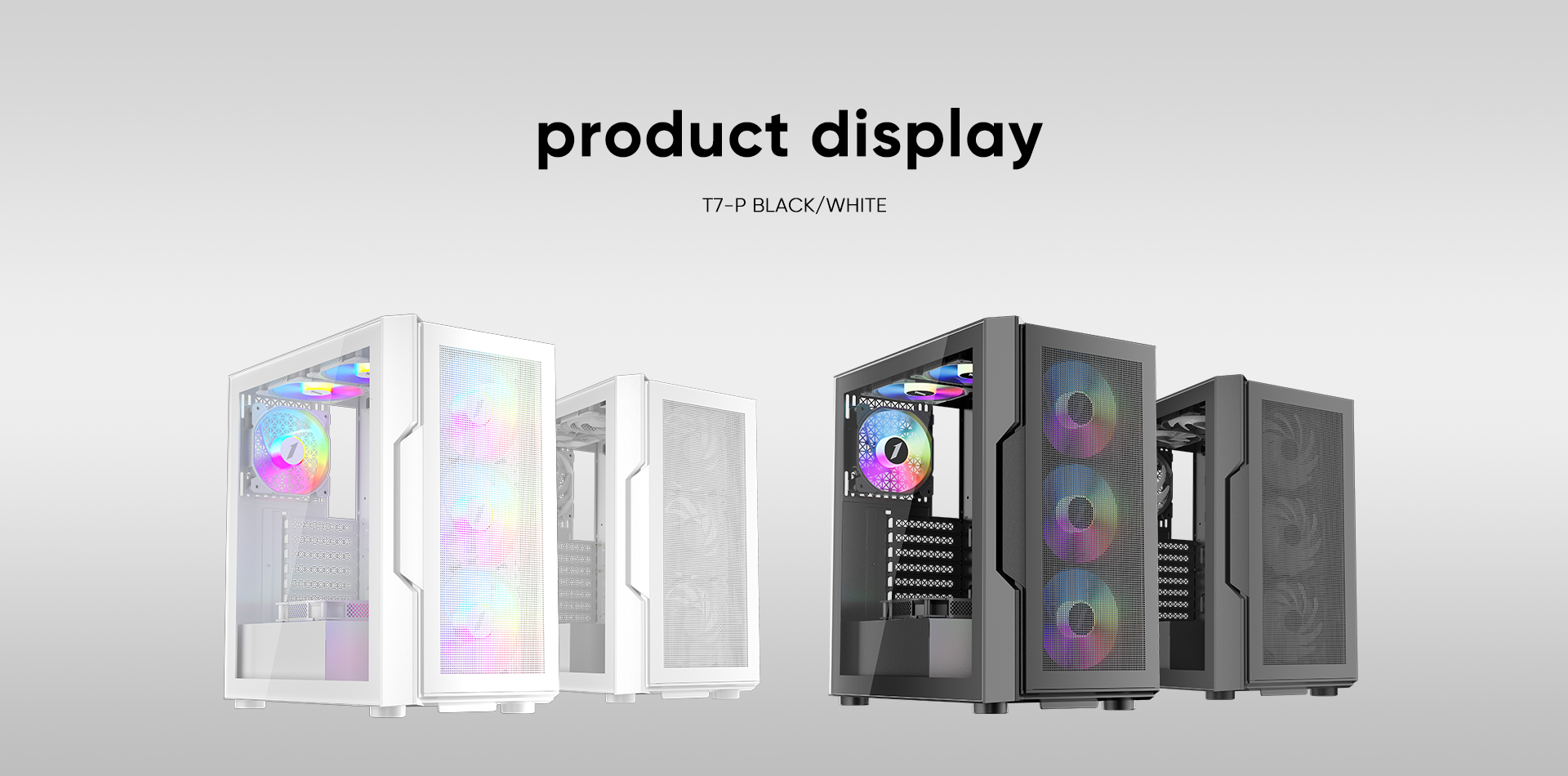

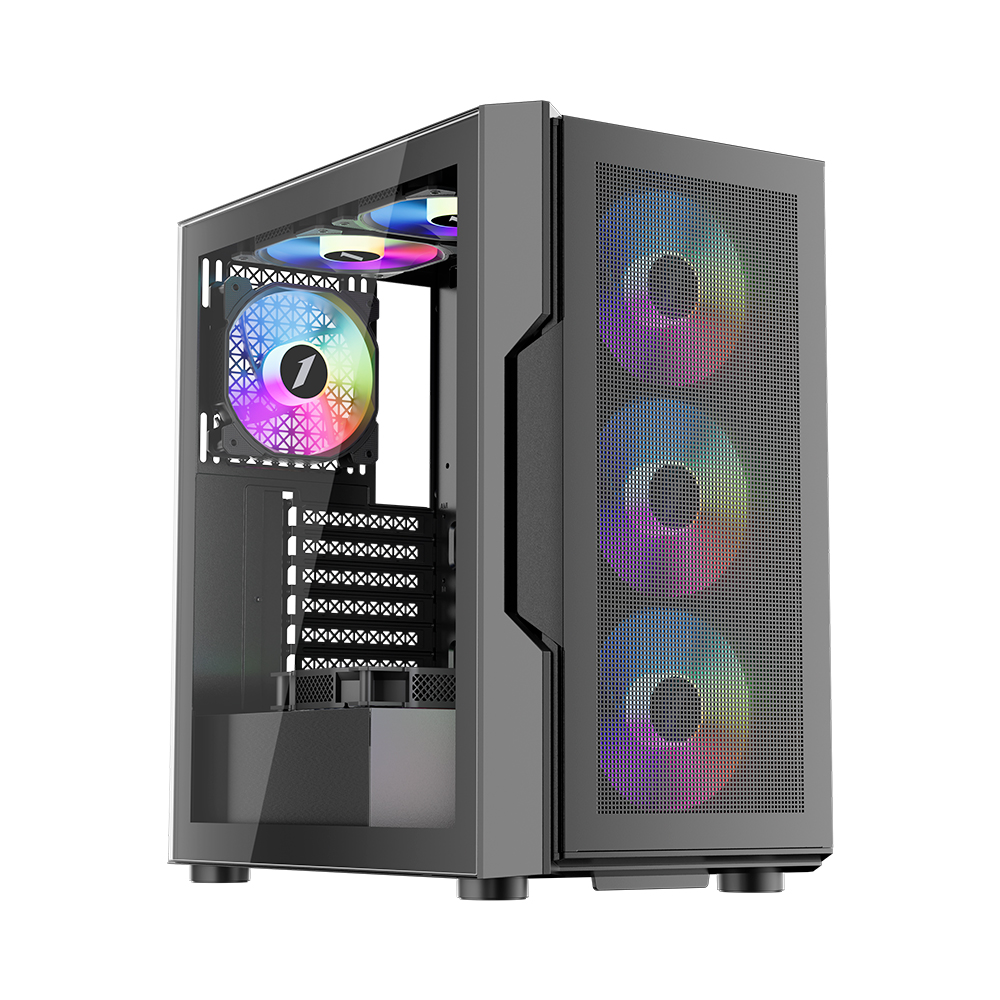

T7-P (Black)
TOP SUPPORT:24CM

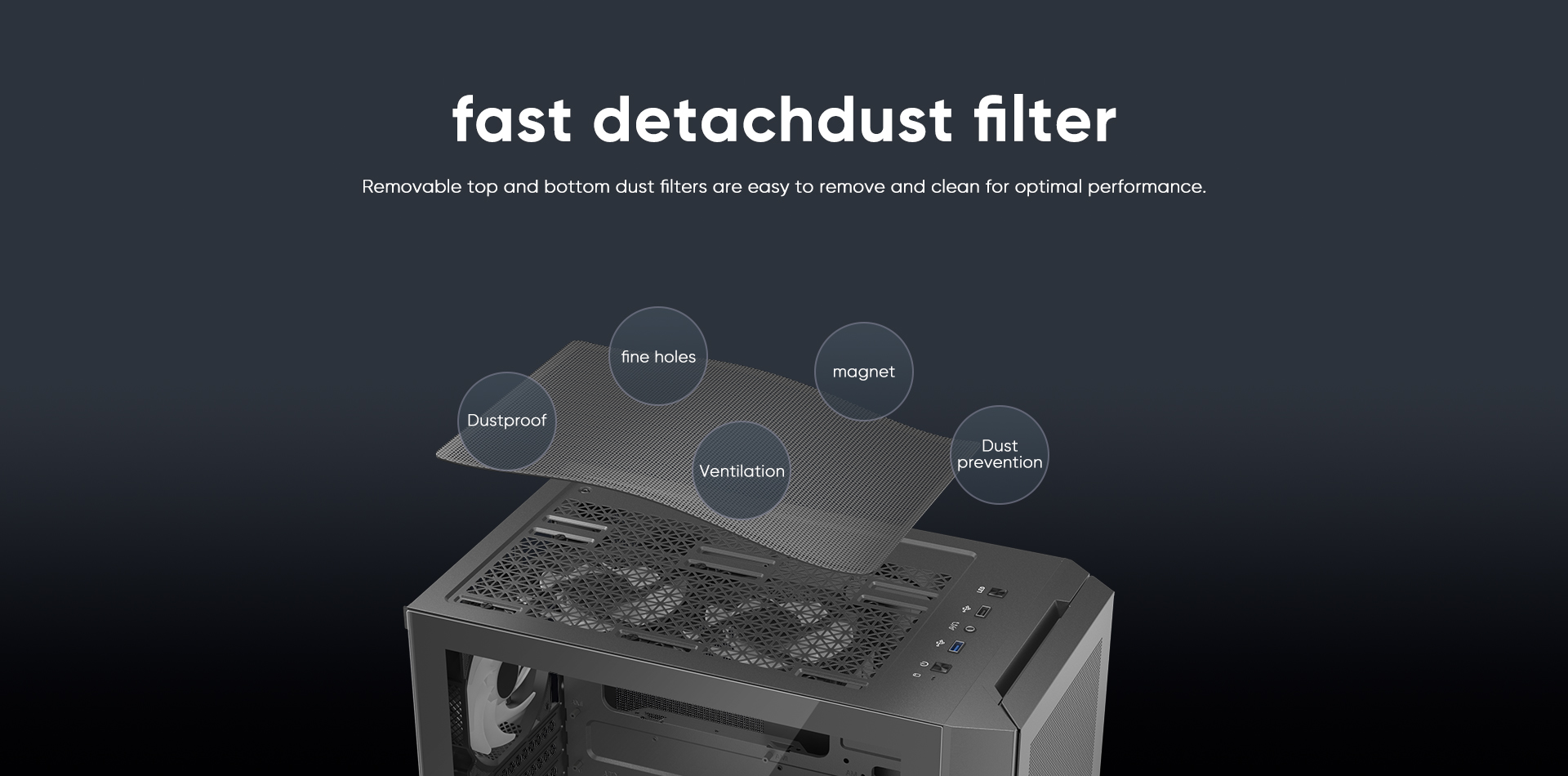

Front removable dust filter

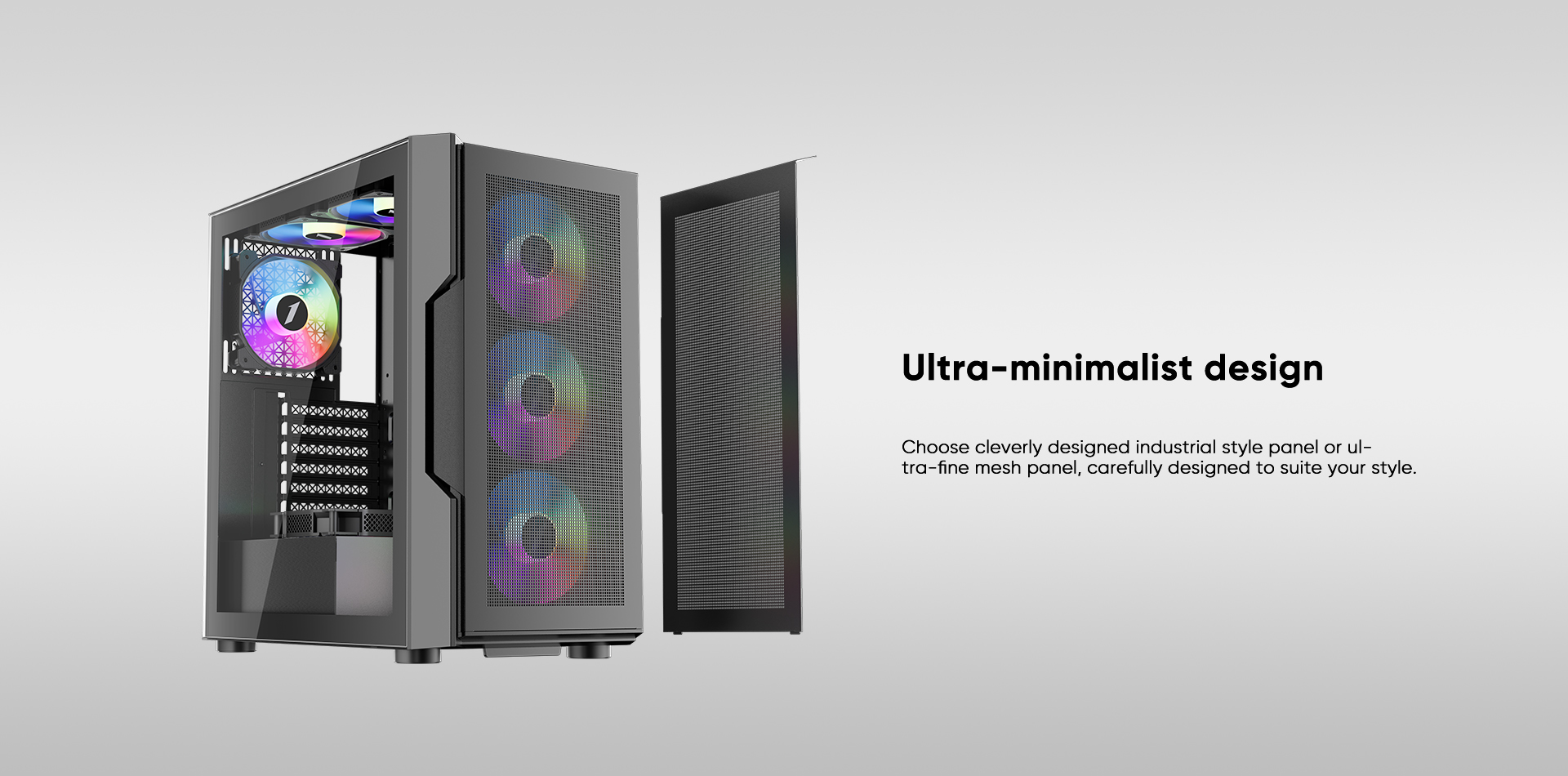

LEFT SIDE PANEL: TEMPERED GLASS FRONT PANEL: PLASTIC NET
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
CASE
Model
T7-P
Structure Dimensions(L*W*H)
370*235*430MM
Product Dimensions(L*W*H)
410*235*440MM
Package Dimensions(L*W*H)
505*298*475MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM

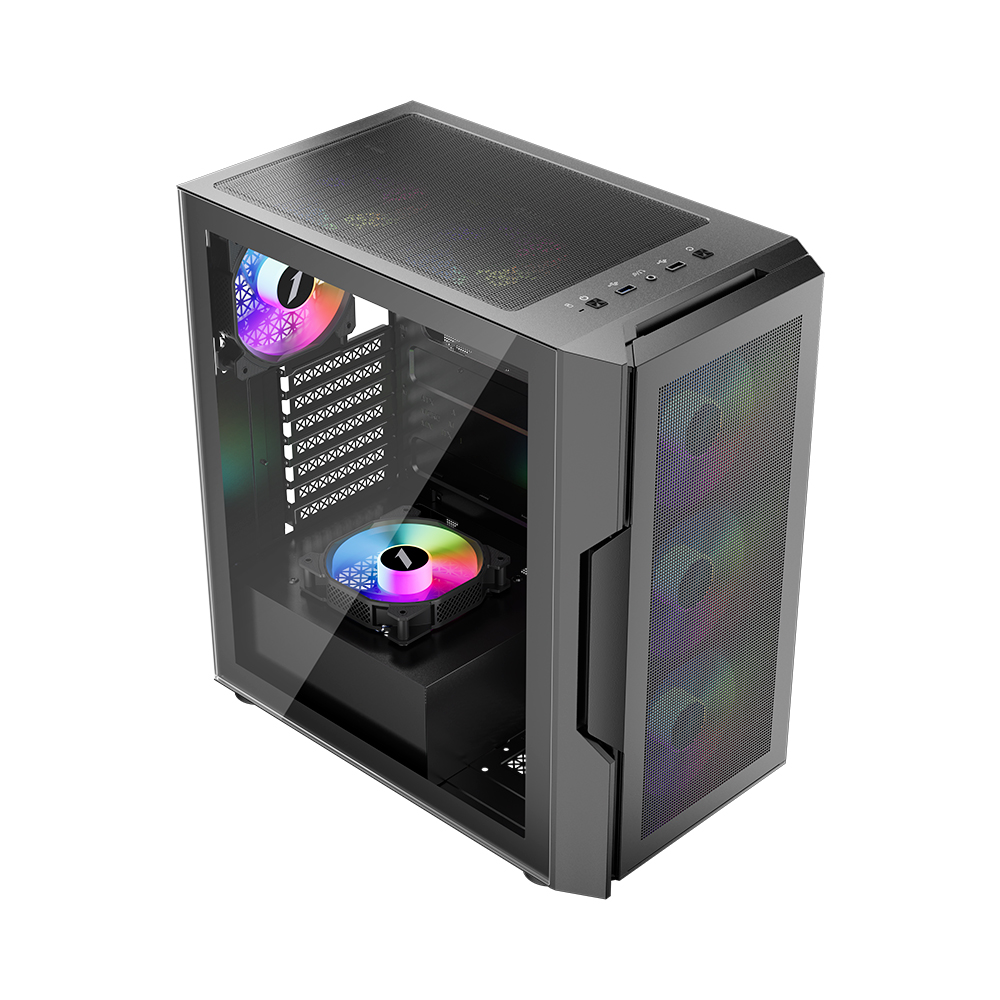

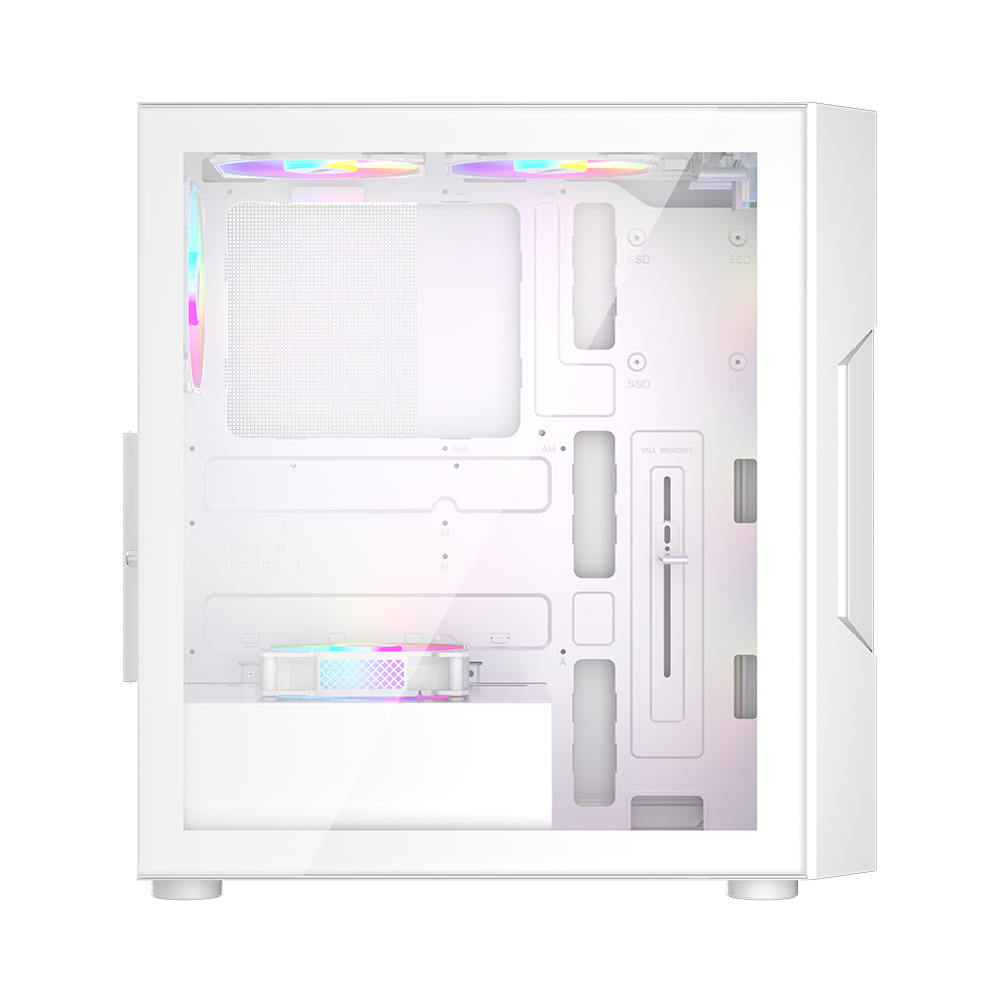

LEFT SIDE PANEL: TEMPERED GLASS

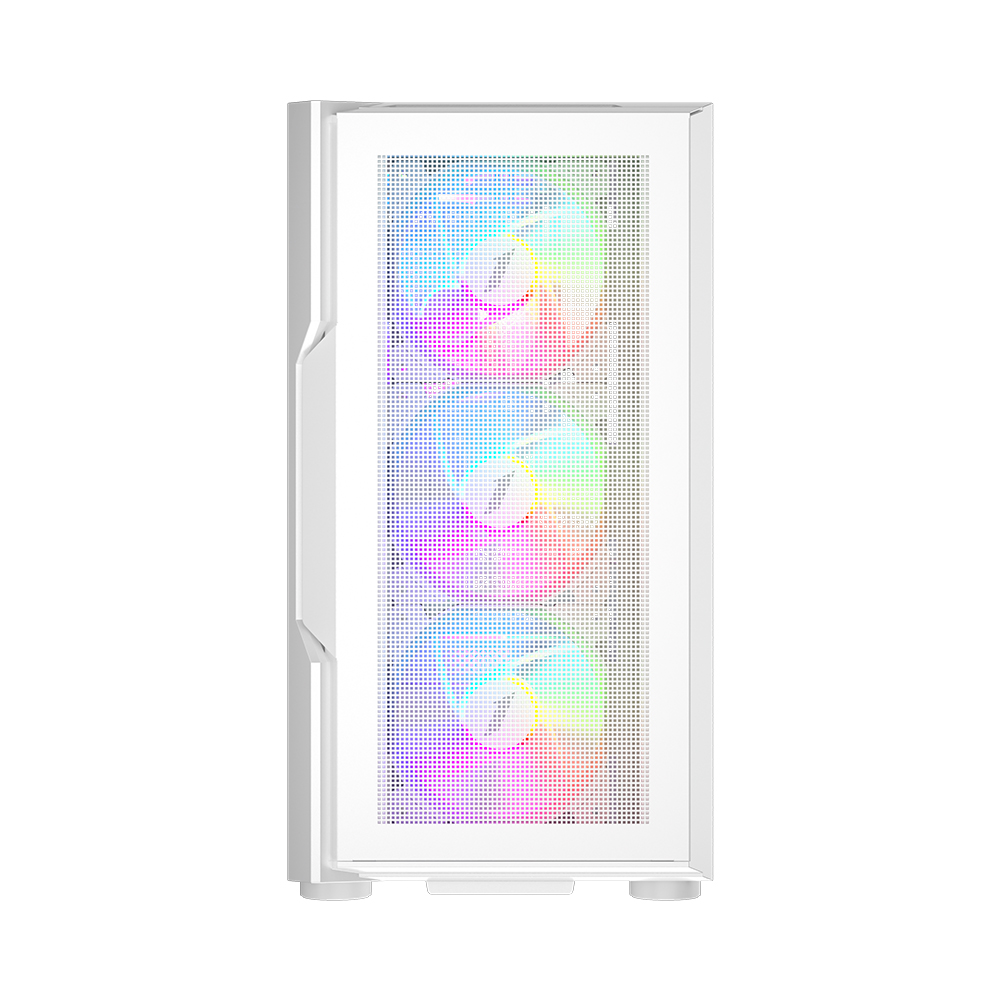

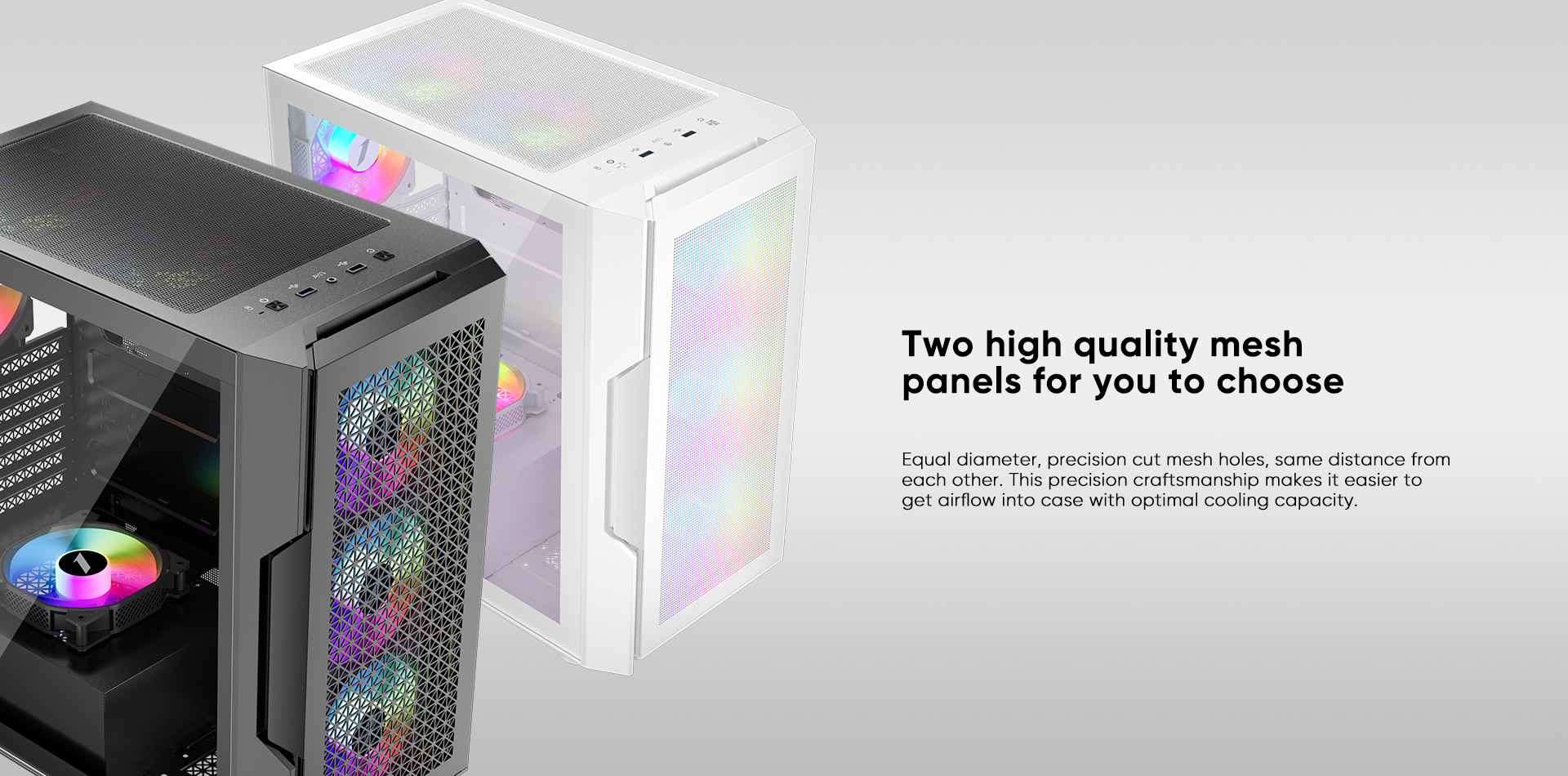

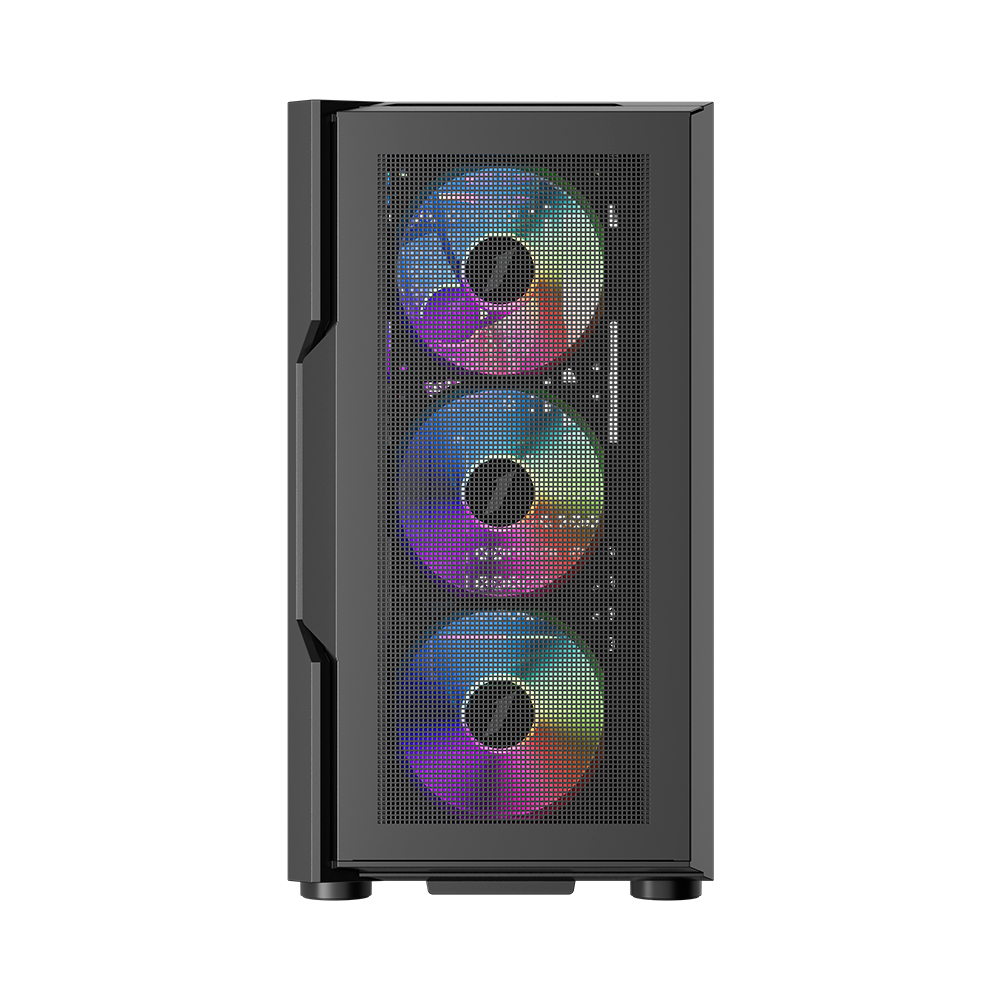

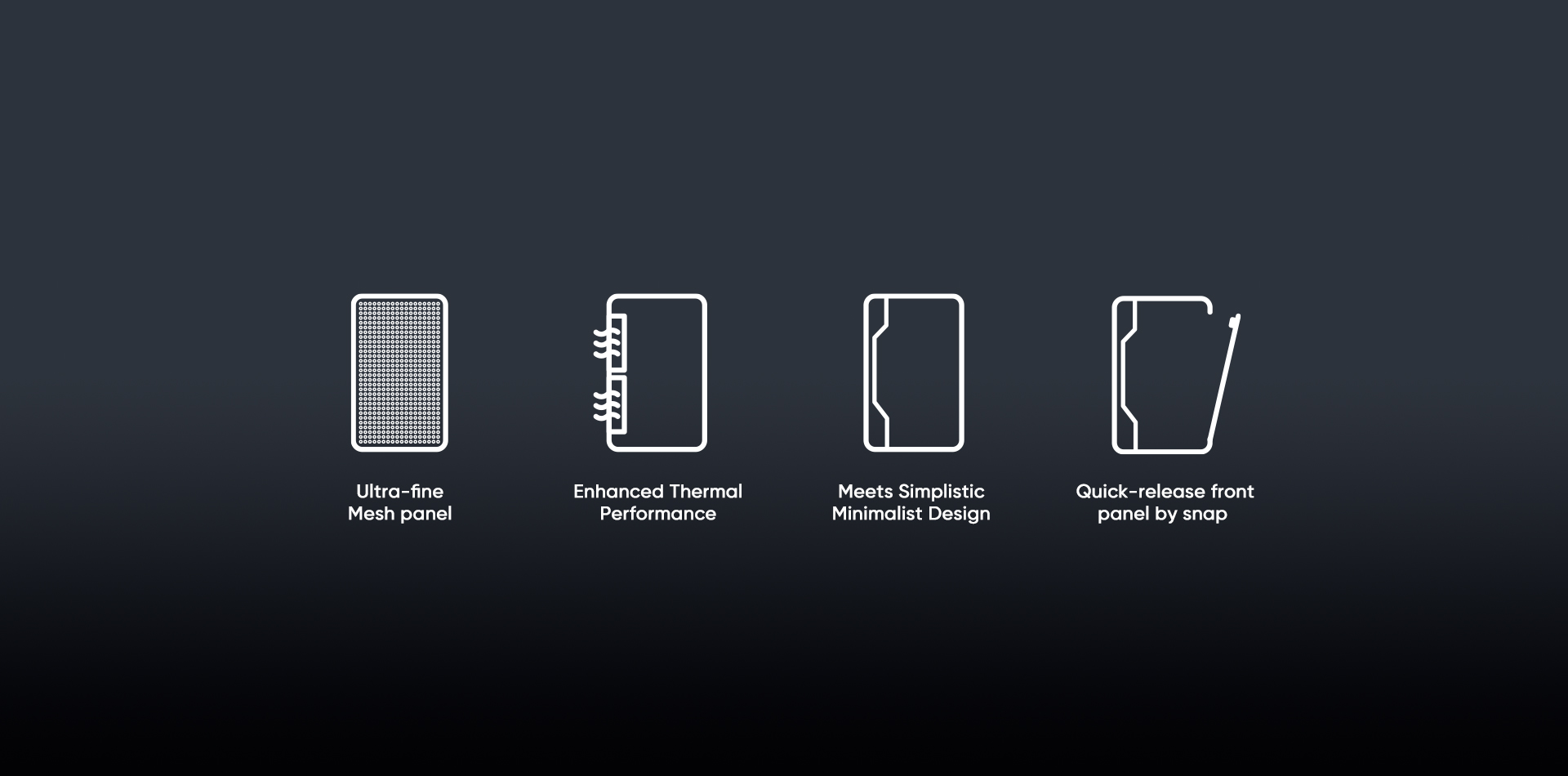

FRONT PANEL: METAL MESH
Form Factor
ATX/M-ATX/ITX
5.25" CD ROM: 0

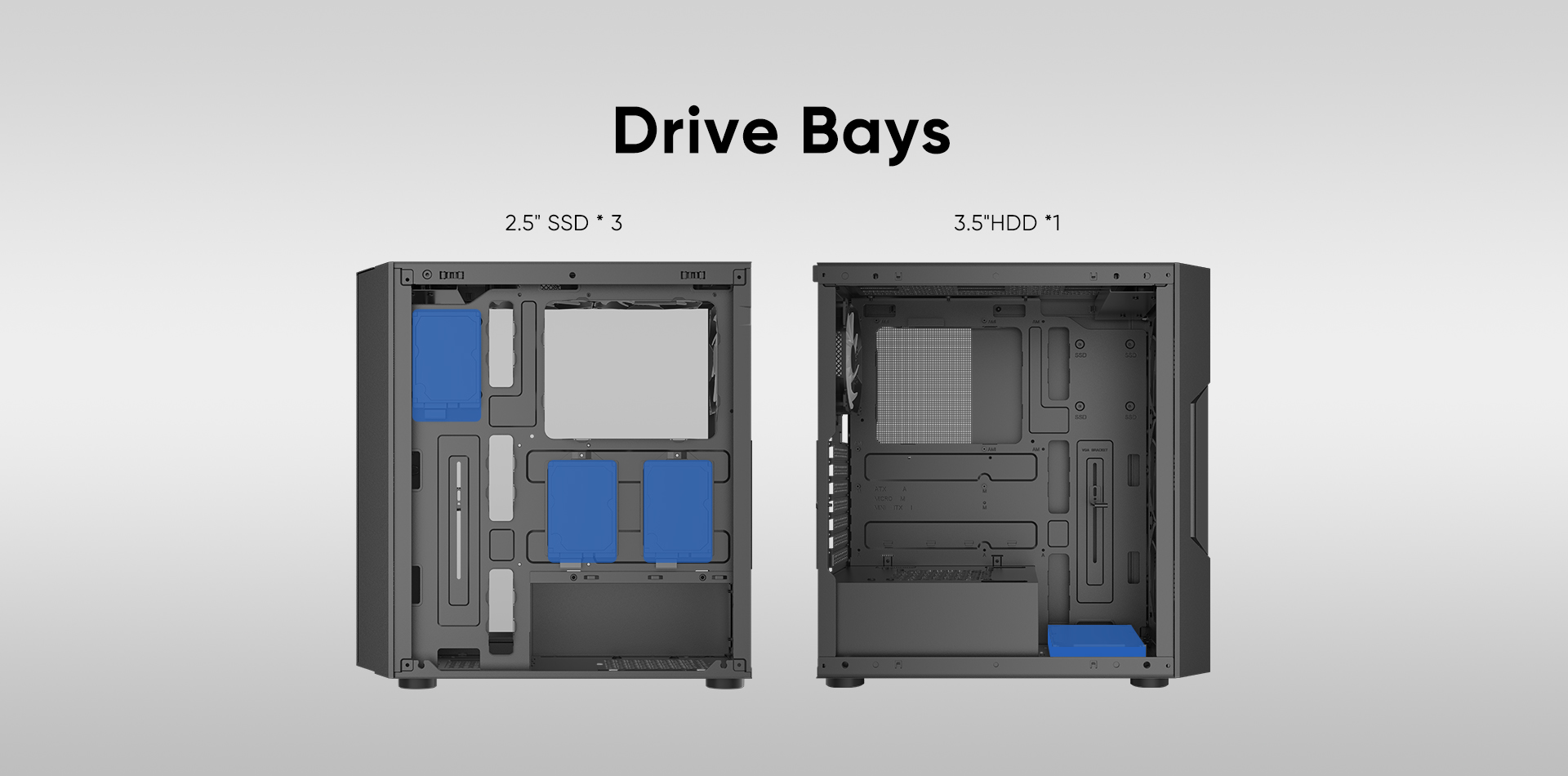

3.5" HDD:1 + 2.5" SSD: 3

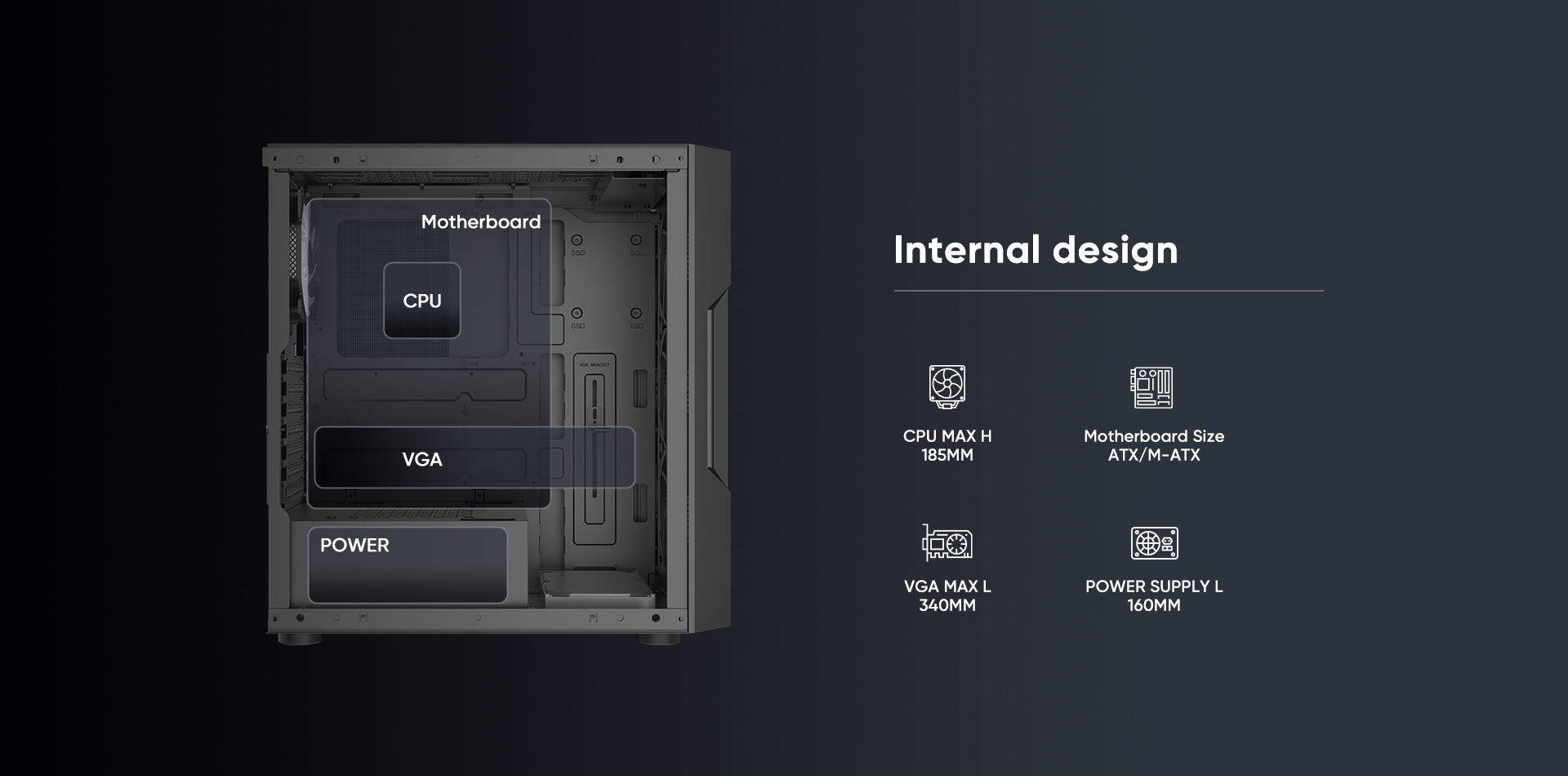

CPU MAX Height
185MM
VGA MAX Length
340MM
I/O Panel

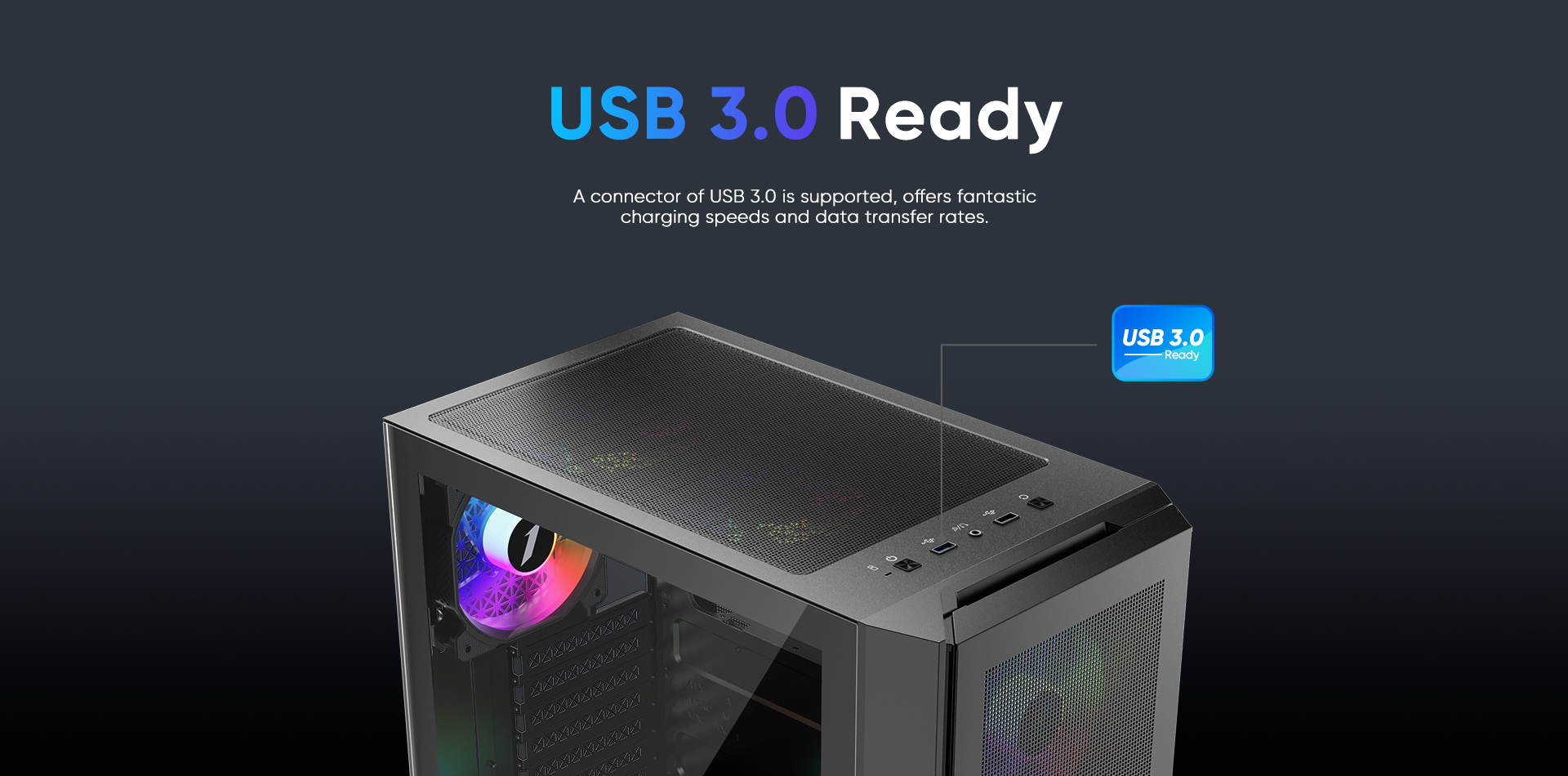

USB3.0*2+HD AUDIO
PCI Card Slot
7
Fan Support
FRONT: 3*12CM
TOP: 2*12CM
REAR: 1*12CM
BOTTOM: 1*12CM
Liquid Cooling Support
TOP: 24CM
Power Supply Support
BOTTOM MOUNT(160MM)
Net Weight
N.W.: KG
G.W.: KG
