SUPPORT 360 COOLING
SUPPORT 12CM FAN 10PCS
DOUBLE-SIDED TEMPERED GLASS

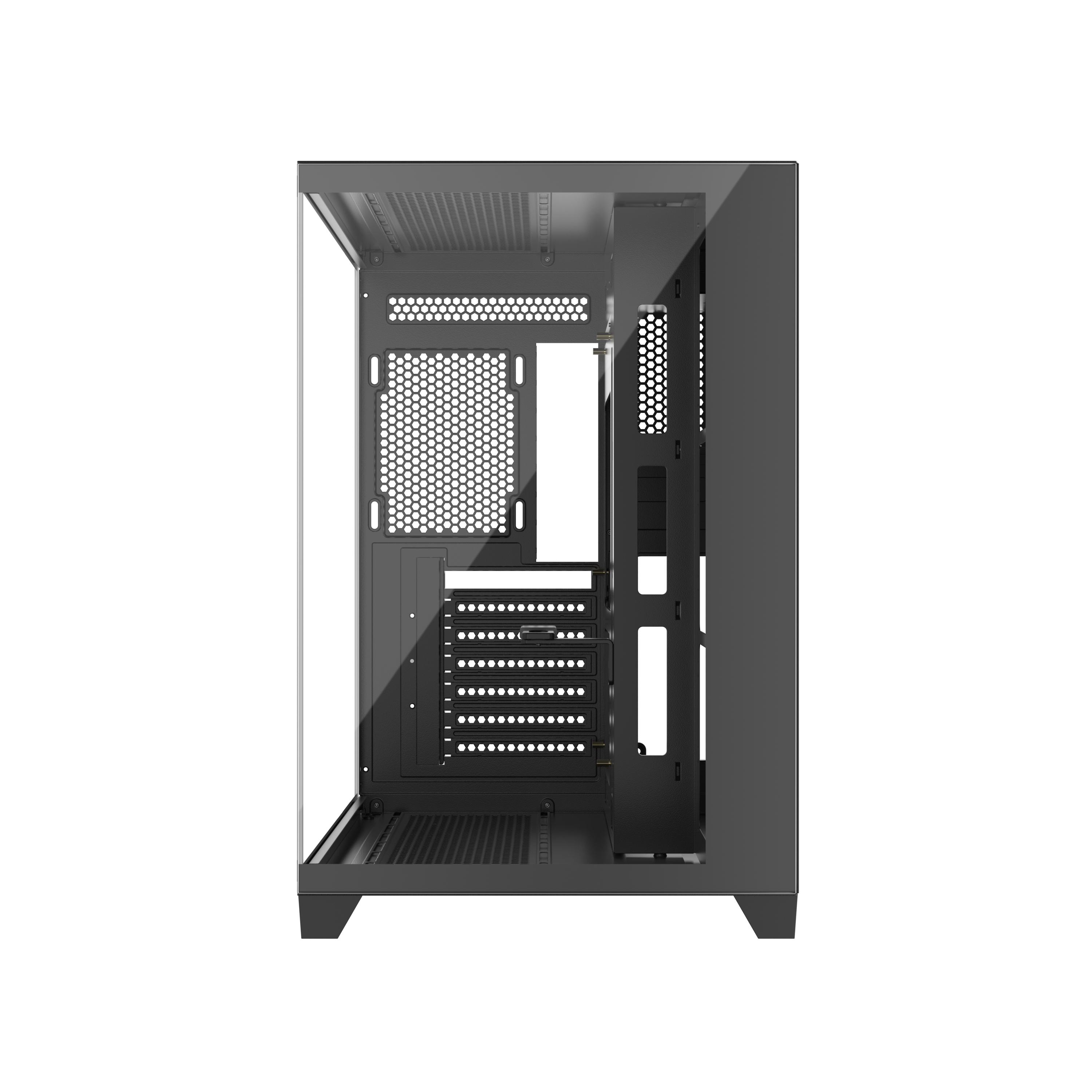

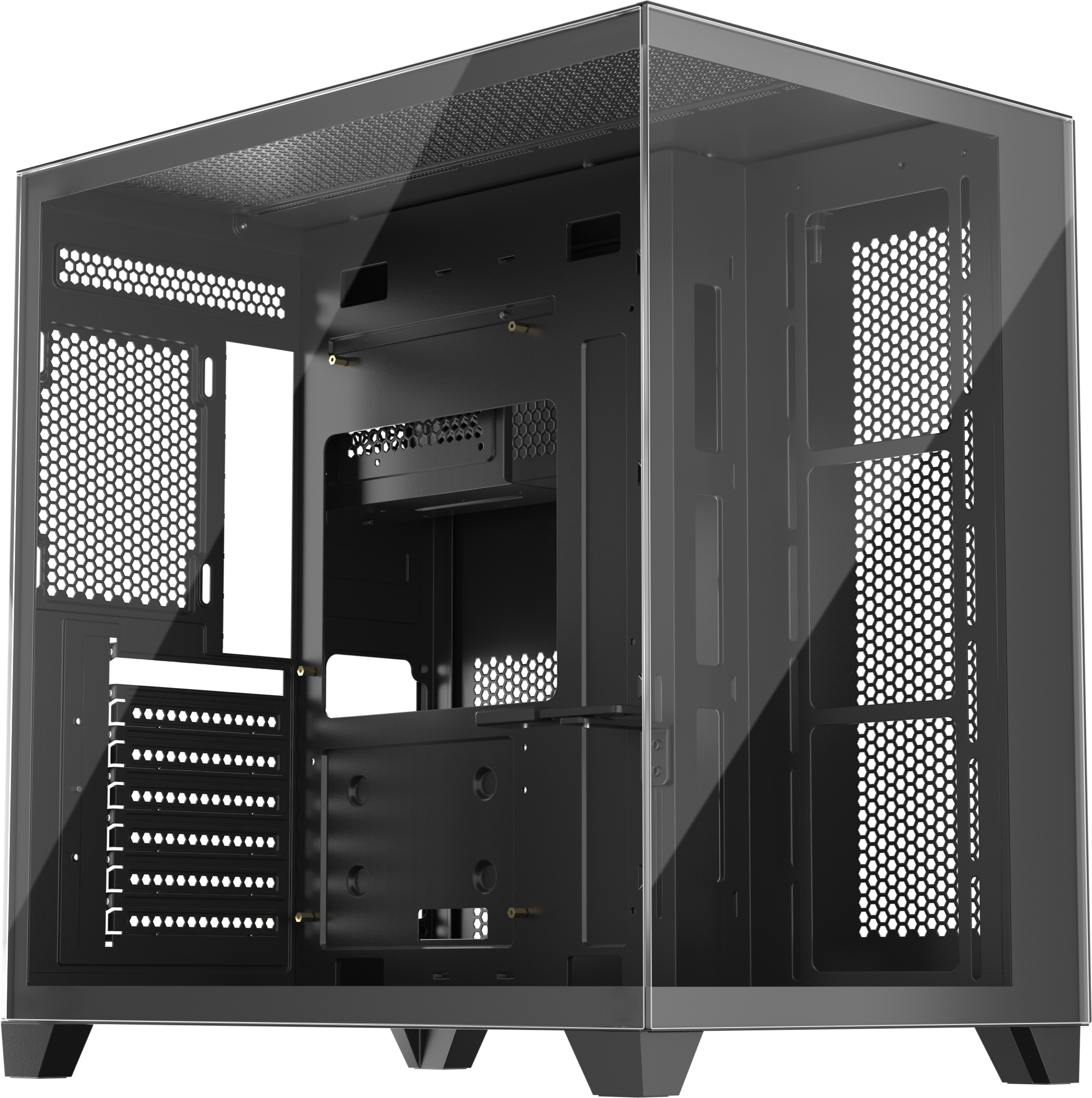

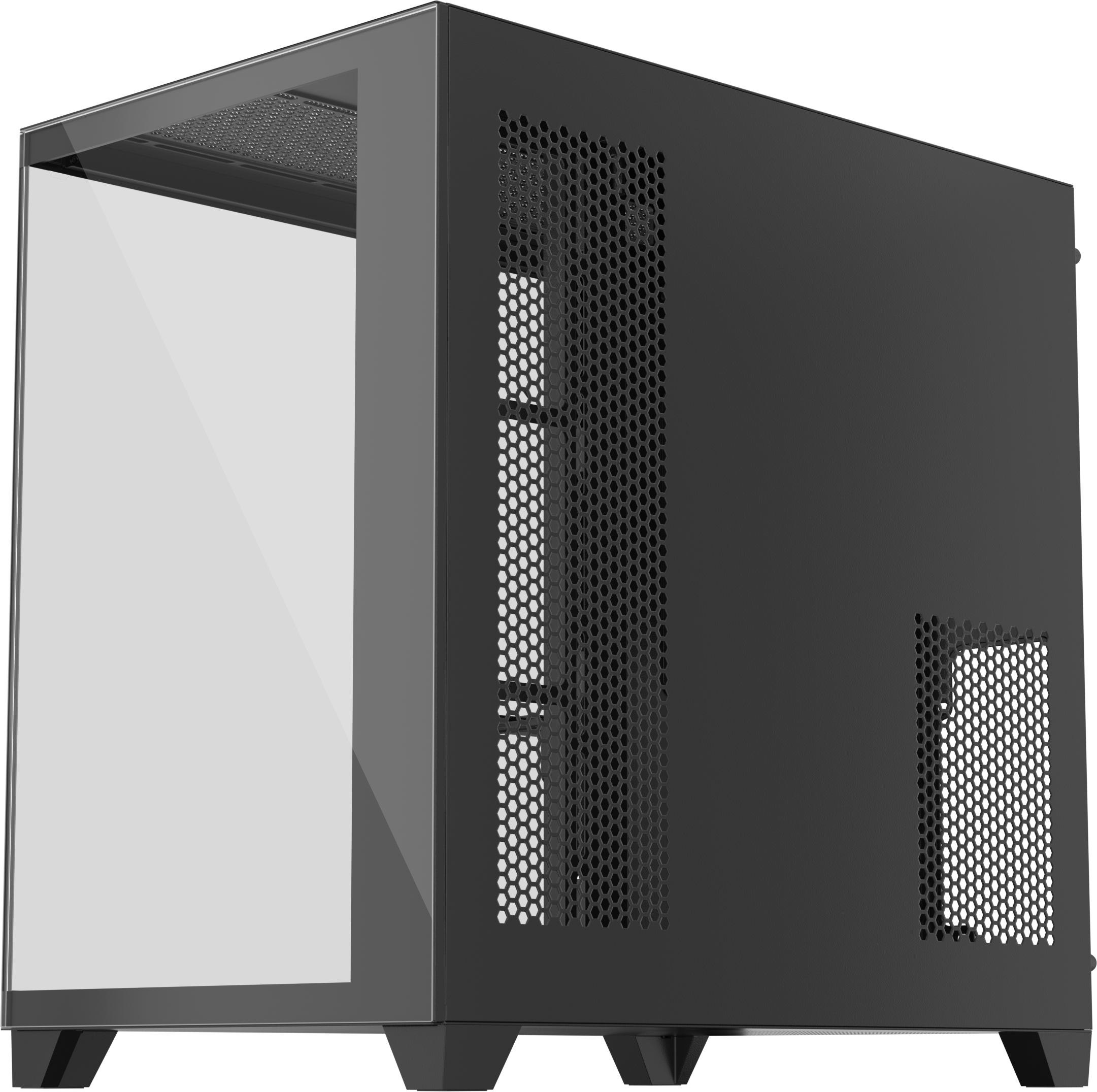

MV8-TP (Black)
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MEGAVIEW

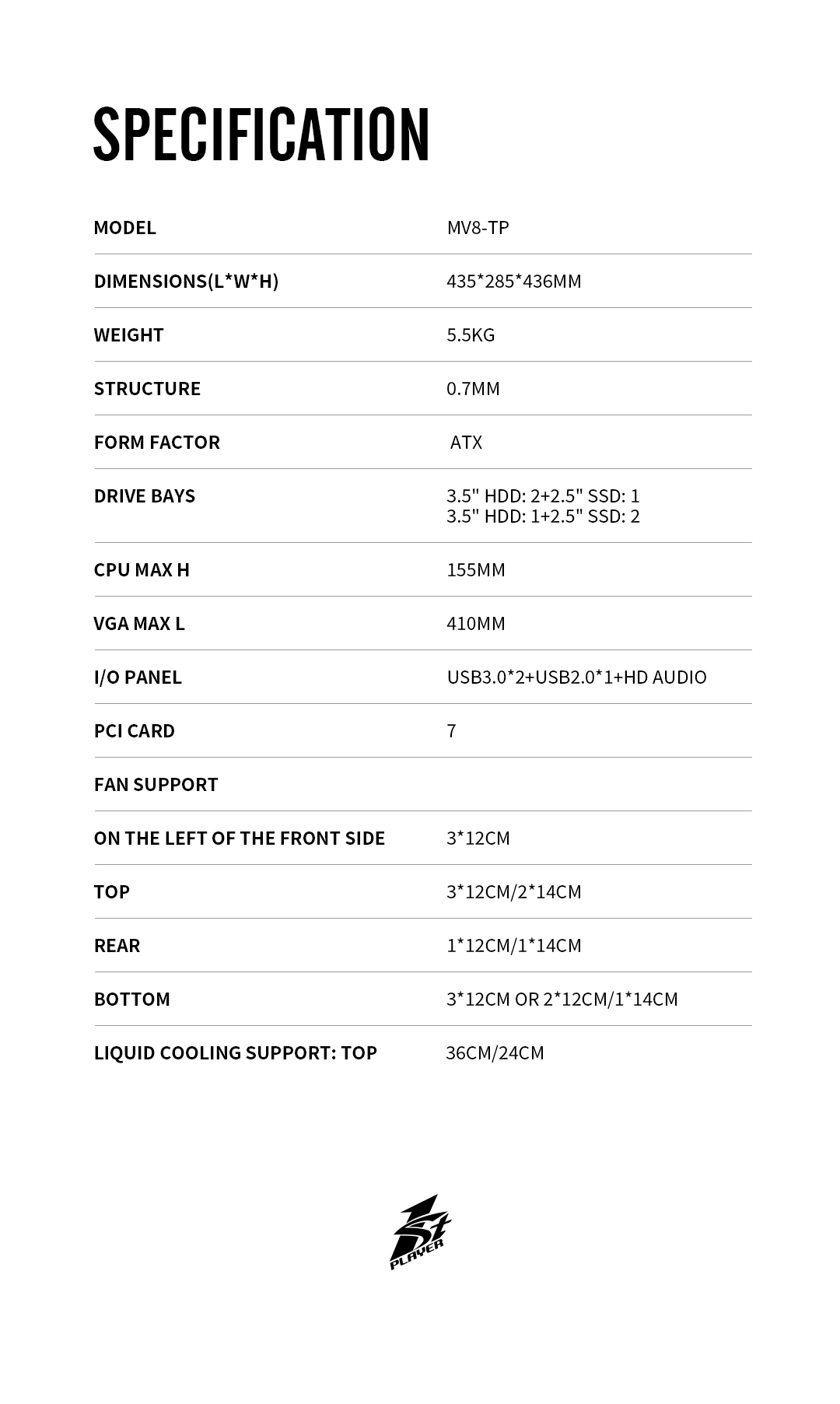

Model
MV8-TP
Structure Dimensions(L*W*H)
420*280*410MM

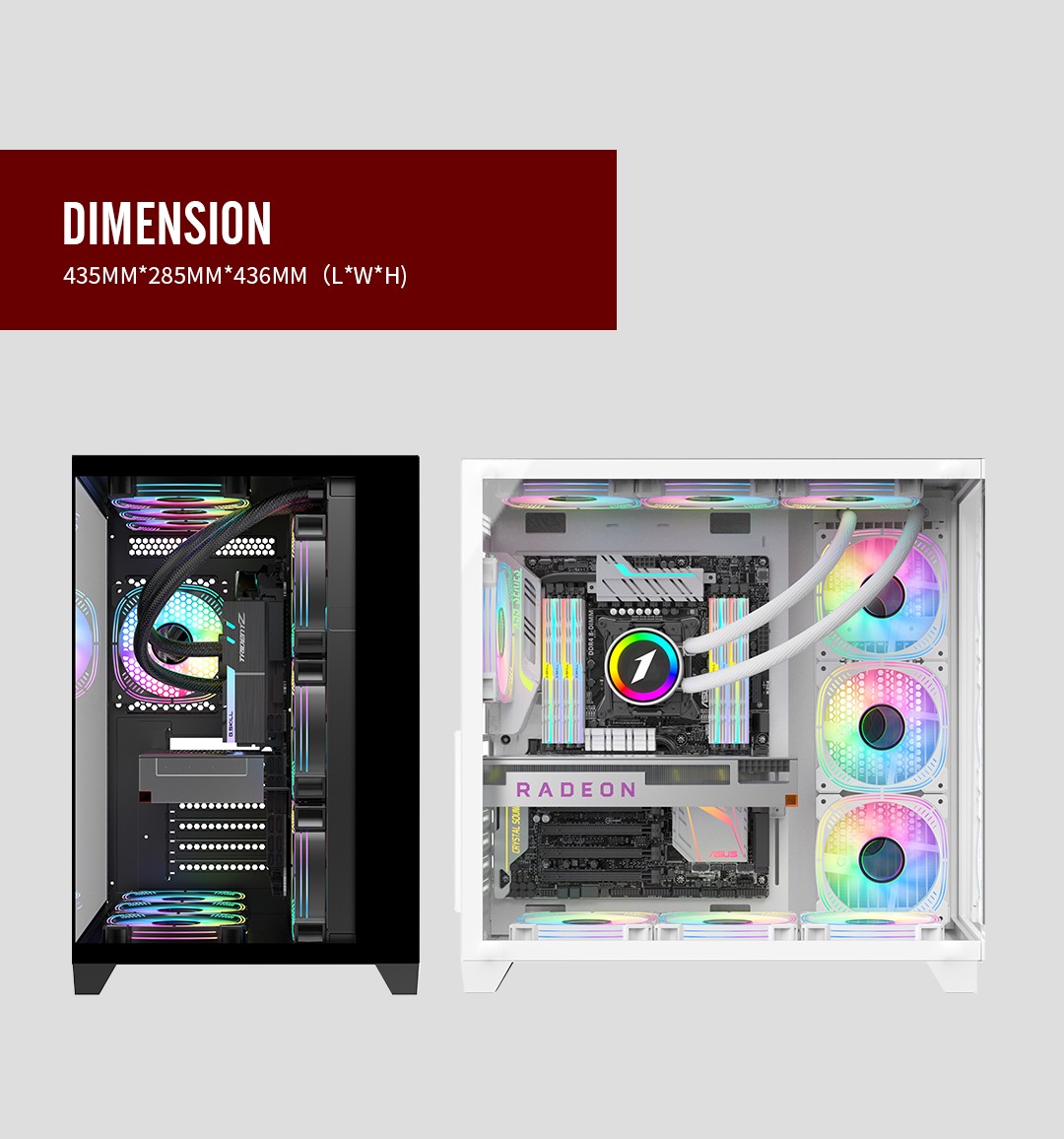

Product Dimensions(L*W*H)
435*285*436MM
Package Dimensions(L*W*H)
480*350*505MM
Structure Thickness
0.7MM
Materials
SPCC 0.7MM

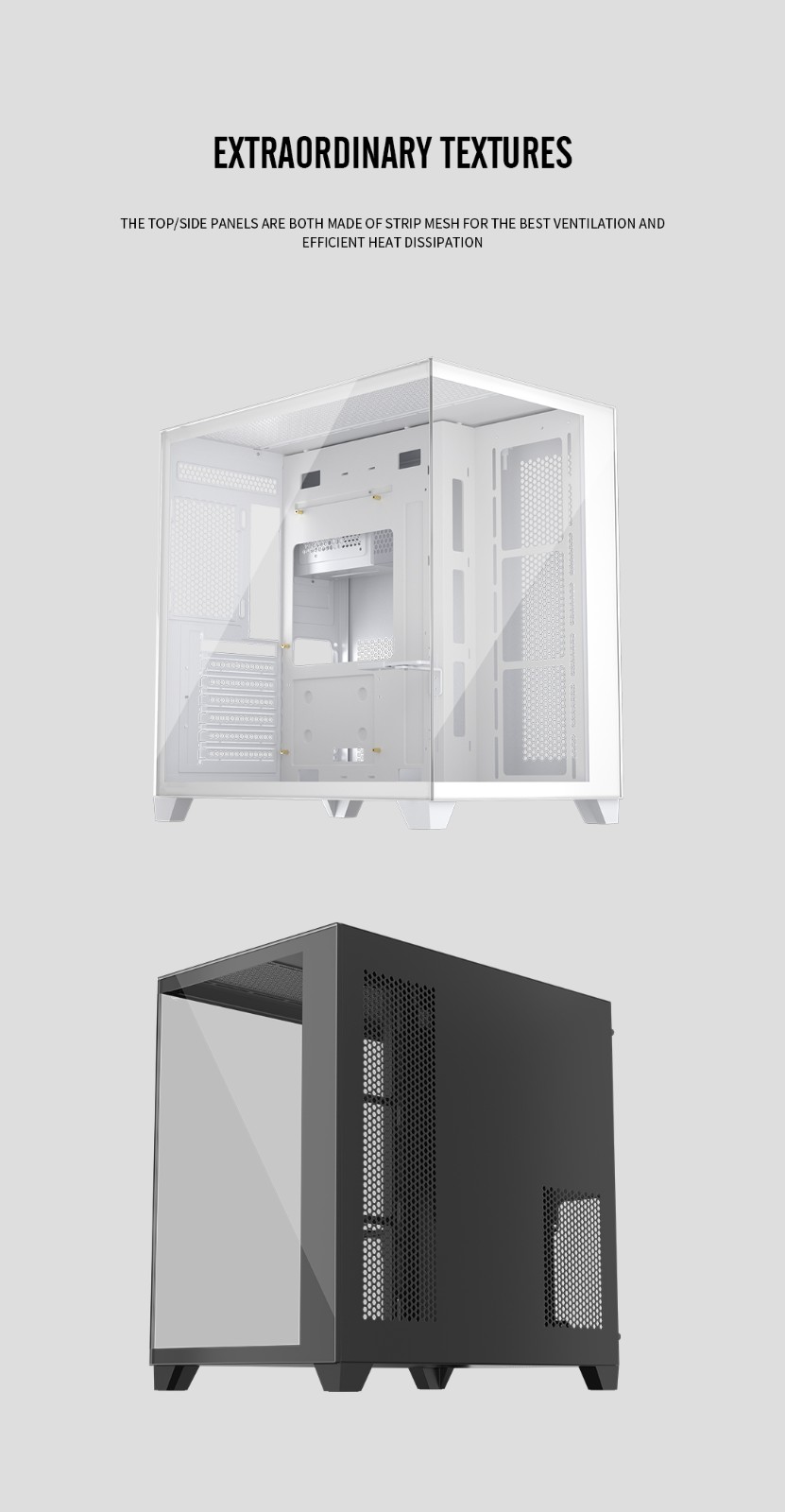

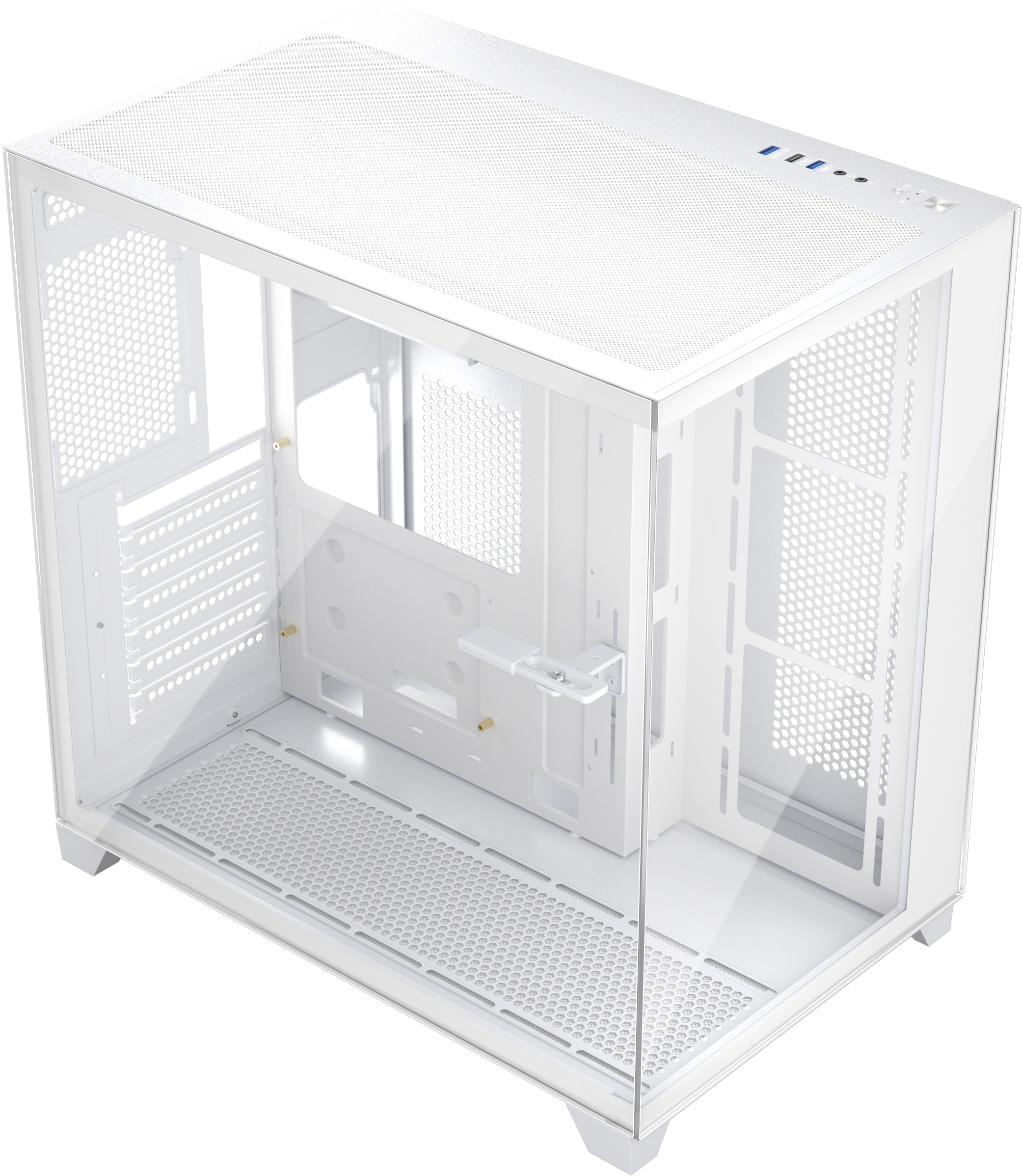

F&L SIDE PANEL: TEMPERED GLASS

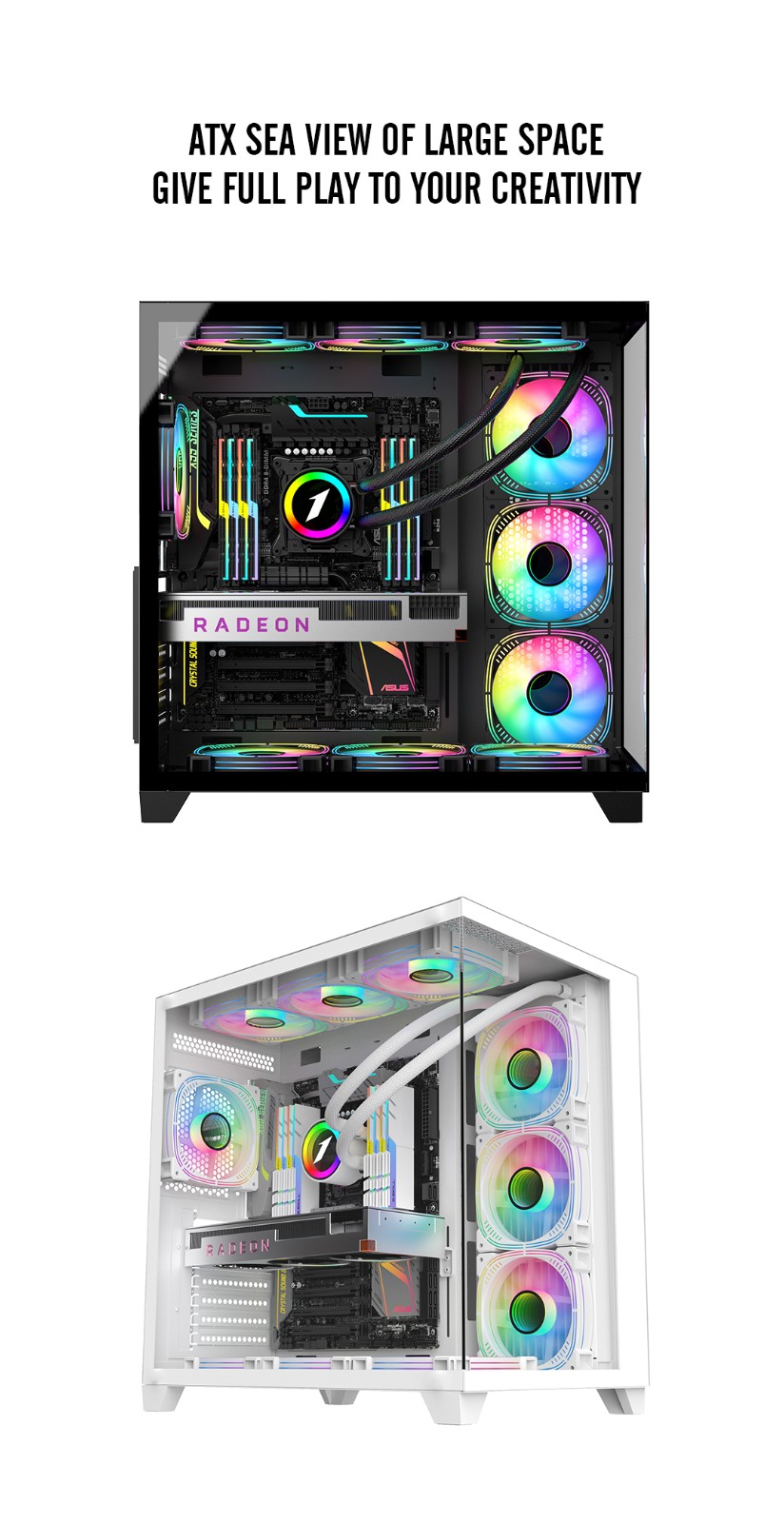

Form Factor
ATX/M-ATX/ITX
5.25" CD ROM: 0

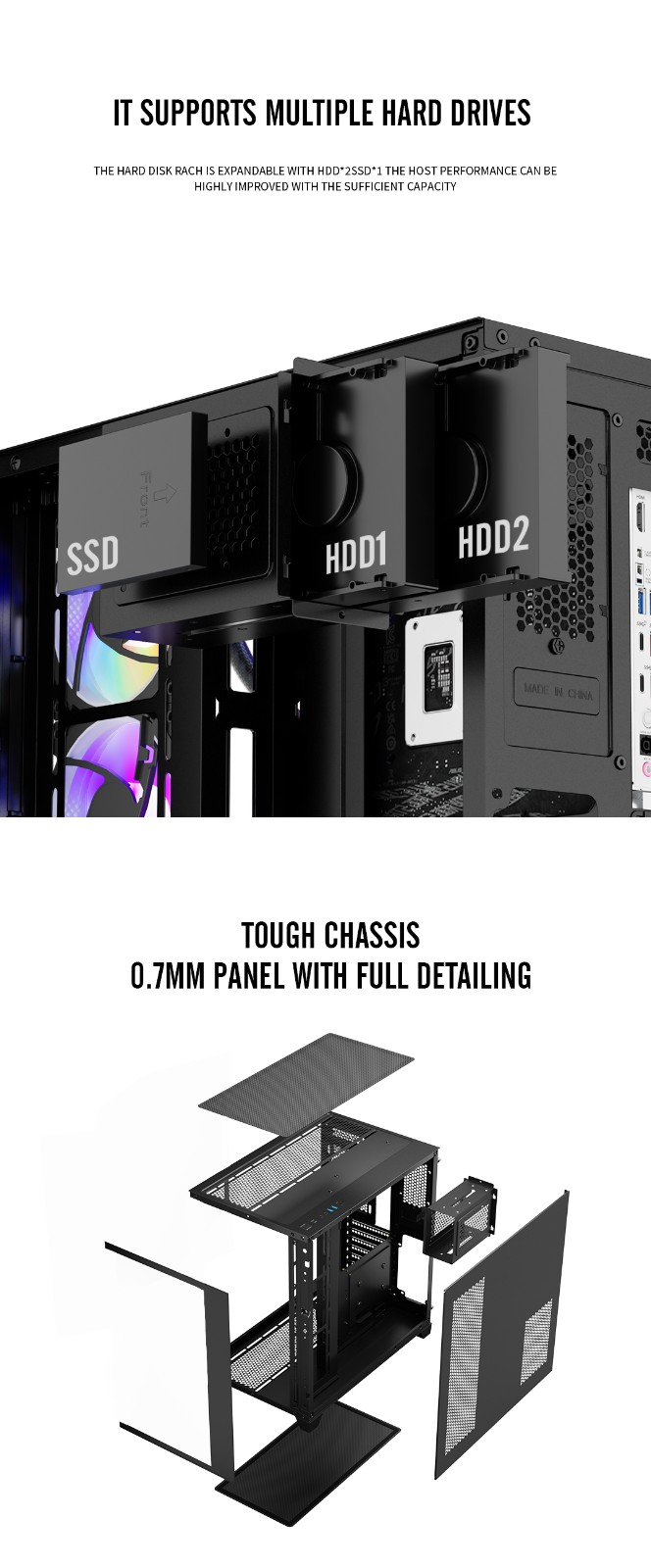

3.5" HDD: 2+2.5" SSD: 1
3.5" HDD: 1+2.5" SSD: 2
CPU MAX Height
155MM
VGA MAX Length
410MM

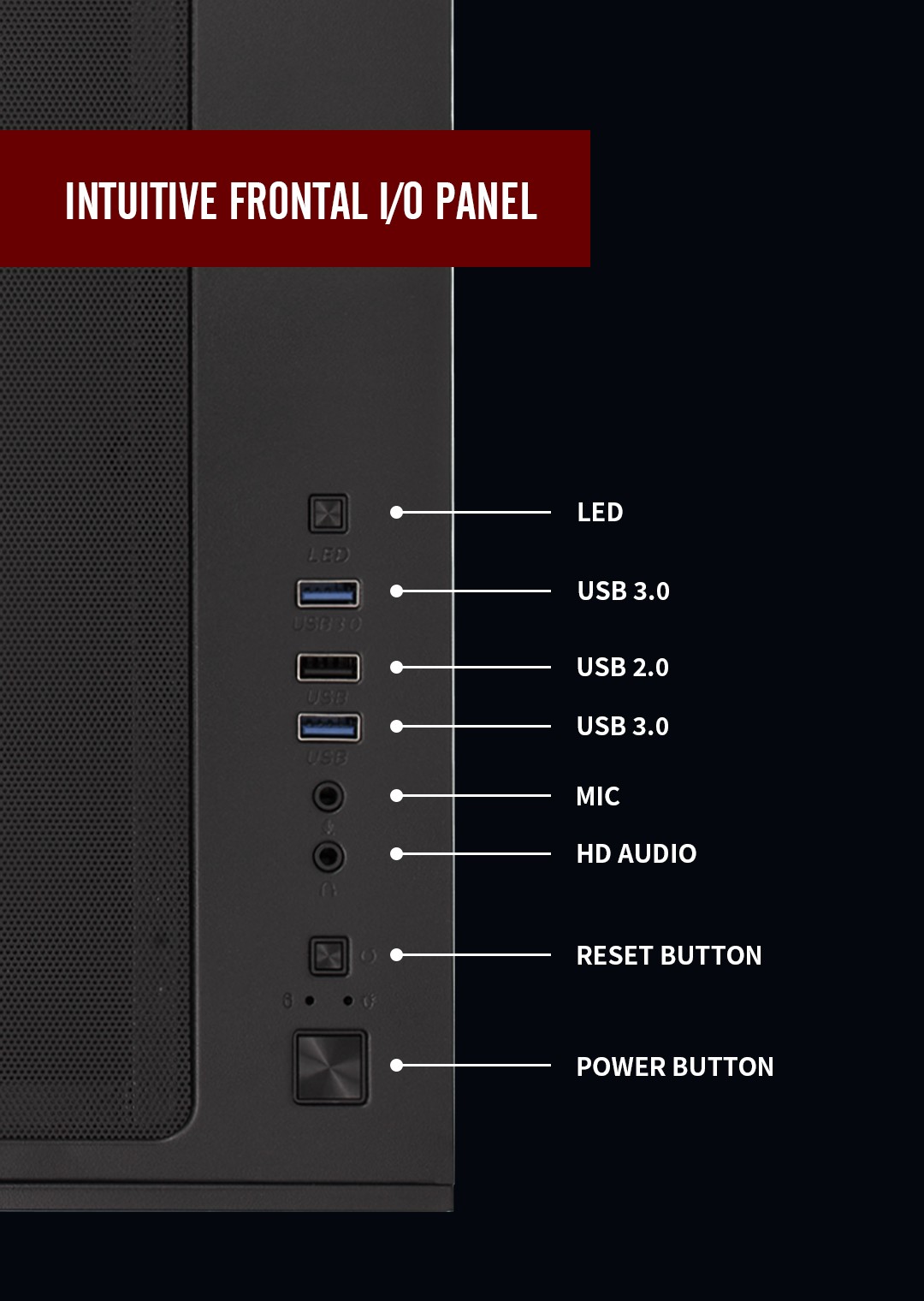

I/O Panel
USB3.0*2+USB2.0*1+HD AUDIO
PCI Card Slot
7

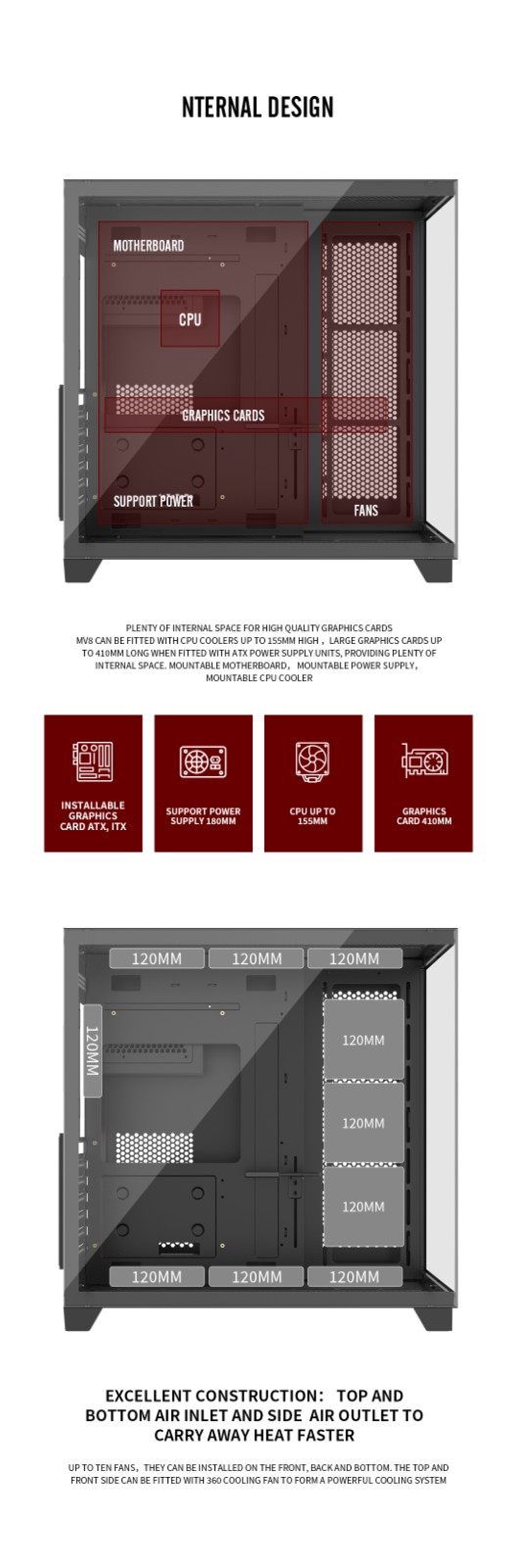

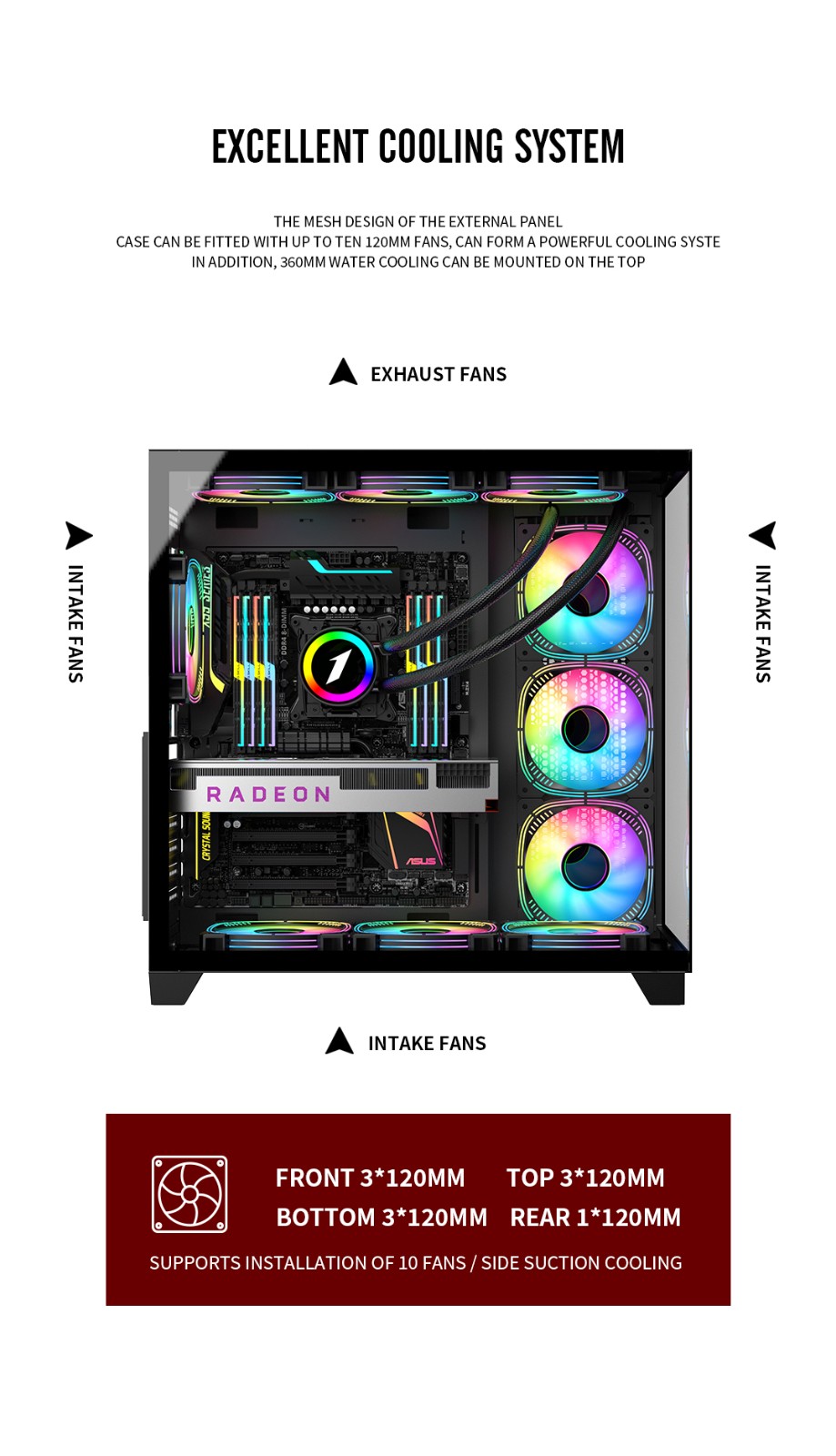

Fan Support
ON THE LEFT OF THE FRONT SIDE: 3*12CM
TOP: 3*12CM
REAR: 1*12CM
BOTTOM: 3*12CM

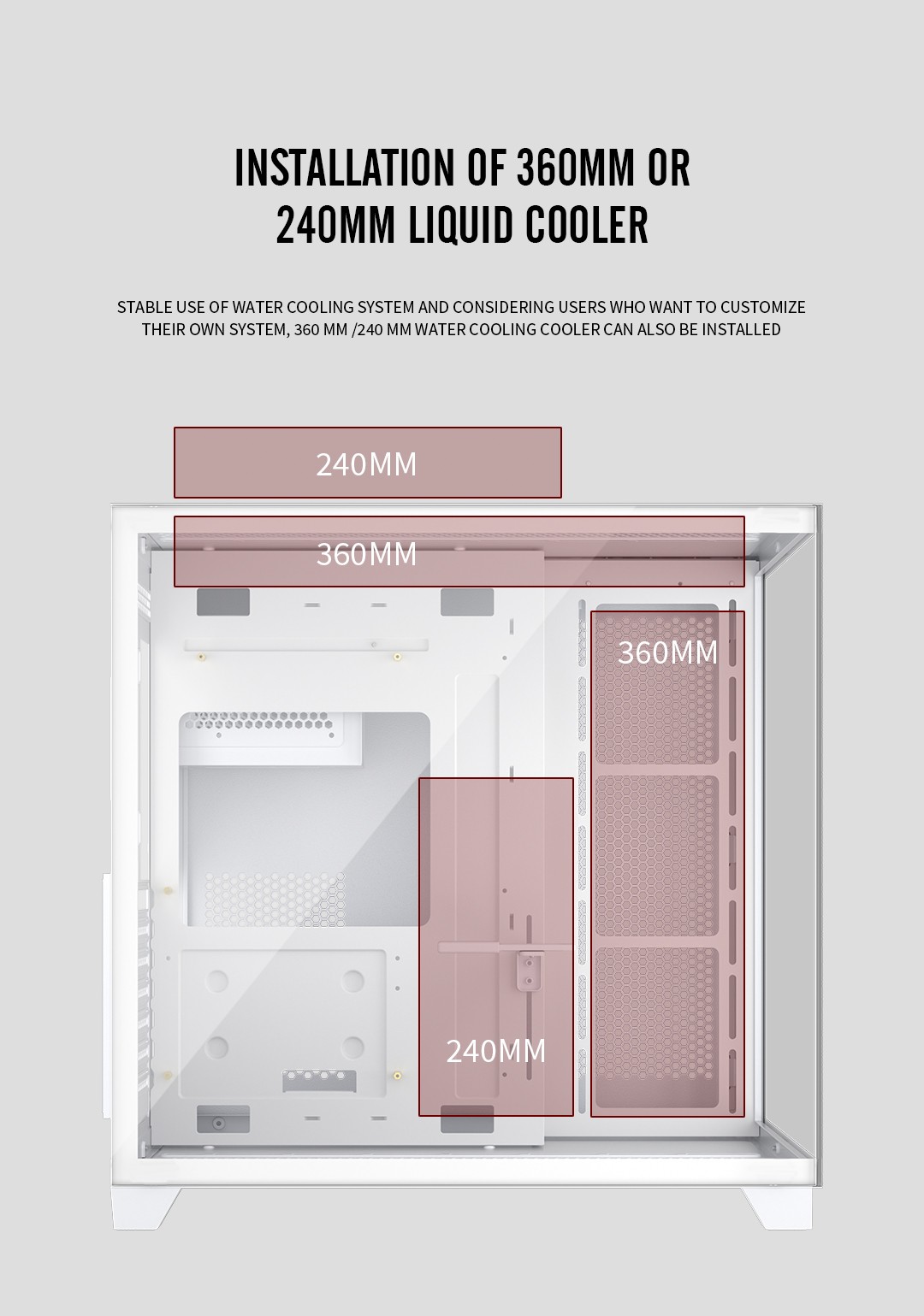

Liquid Cooling Support
FRONT: 36CM
TOP: 36CM
Power Supply Support
BOTTOM MOUNT
Net Weight
N.W.: 5.5KG
G.W.: 6.7KG
