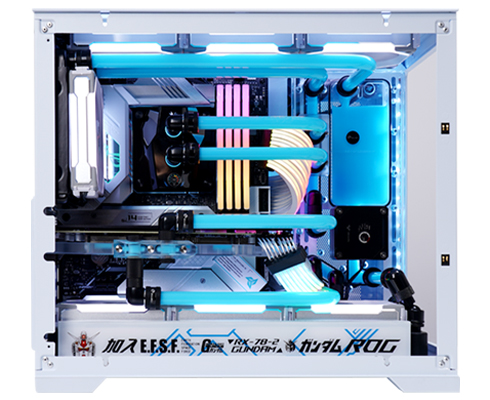

EMOTION VIEW
305MM WIDE BODY CASE
SUPPORT VGA CARD VERTICALPLUG
SUPPORT 12CM FAN 9PCS
SUPPORT 360 COOLING

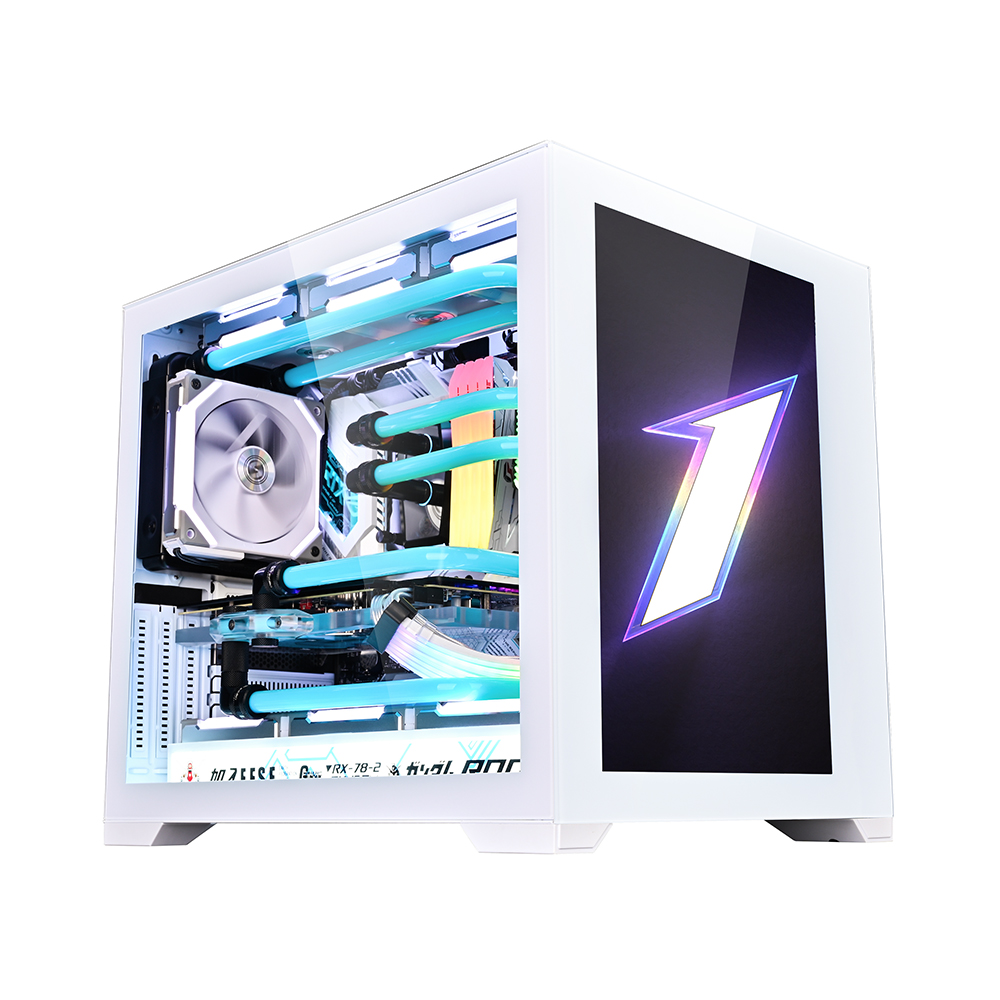

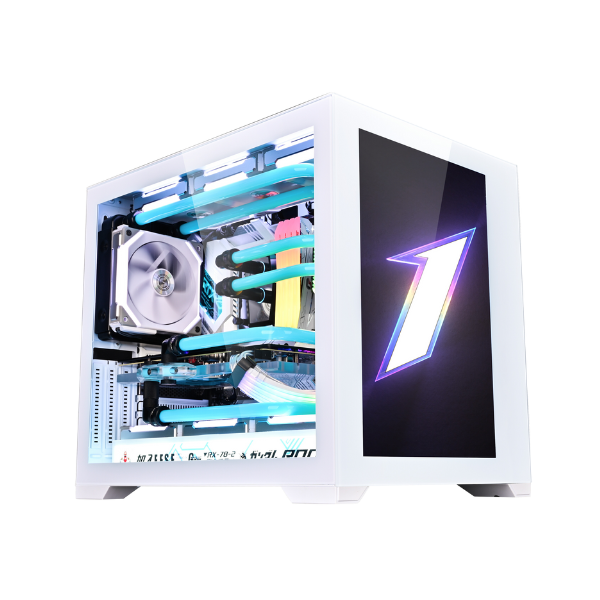

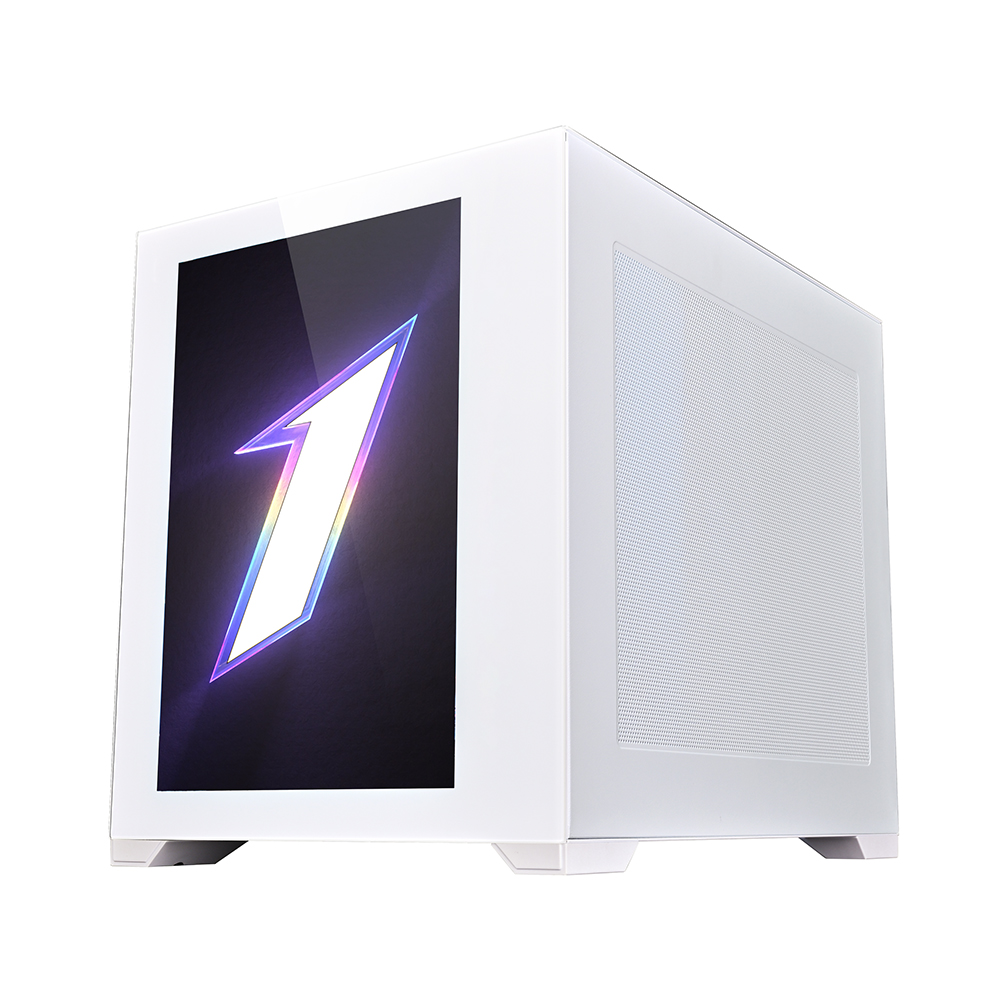

SP7-EV (White)
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
Music Rhythm Light Board

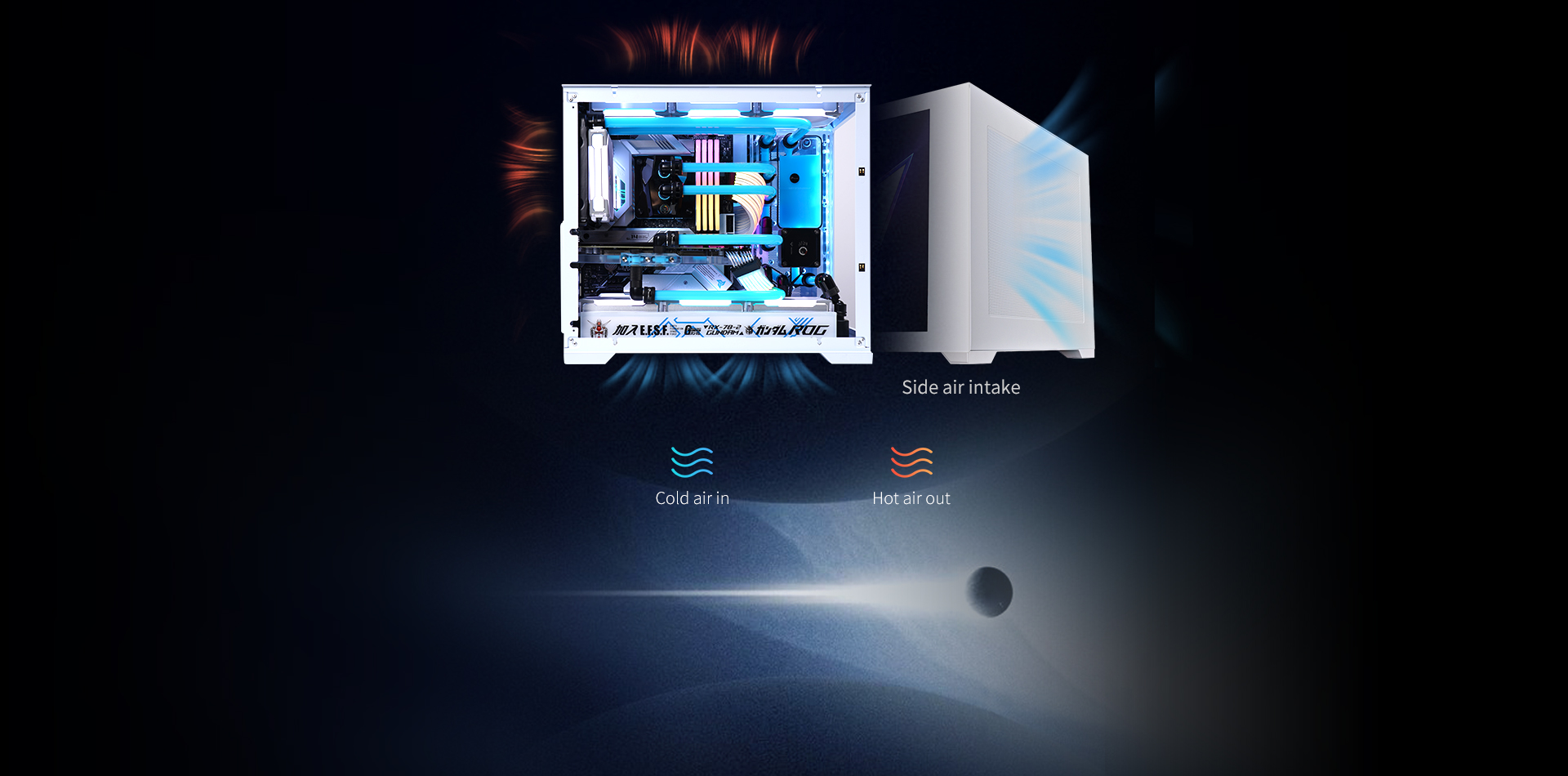

Side Suction Cooling

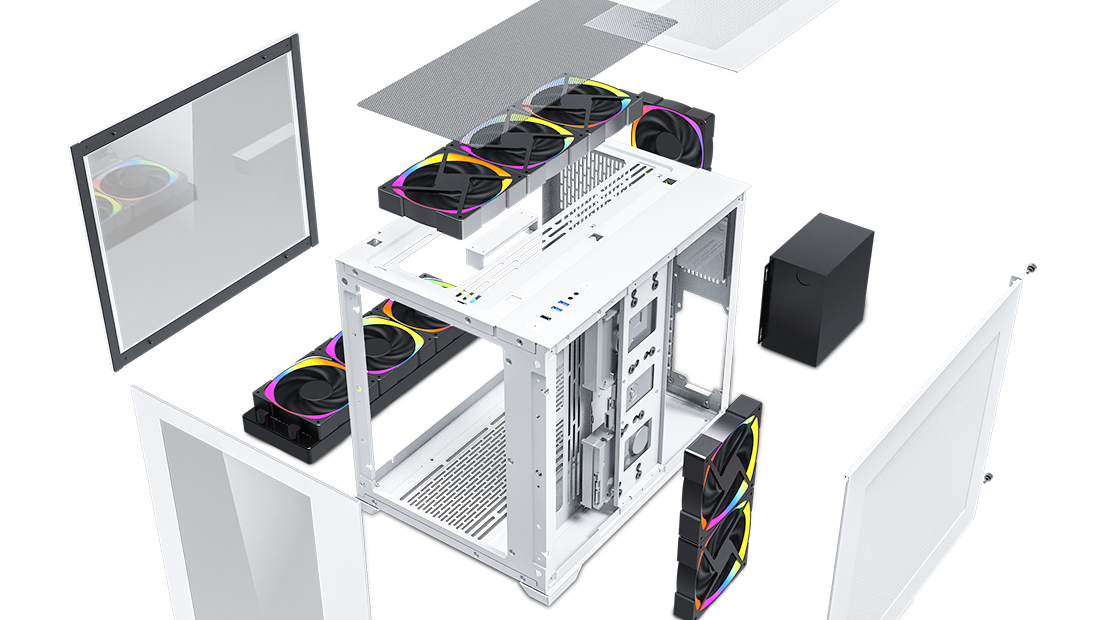

Mortise And Tenon Quick Release Structure
*The front glass and left glass side panel can only be disassembled by opening the top cover or right side panel first
Excellent inlet and outlet convection to accelerate cooling efficiency
Perfectly designed alignment

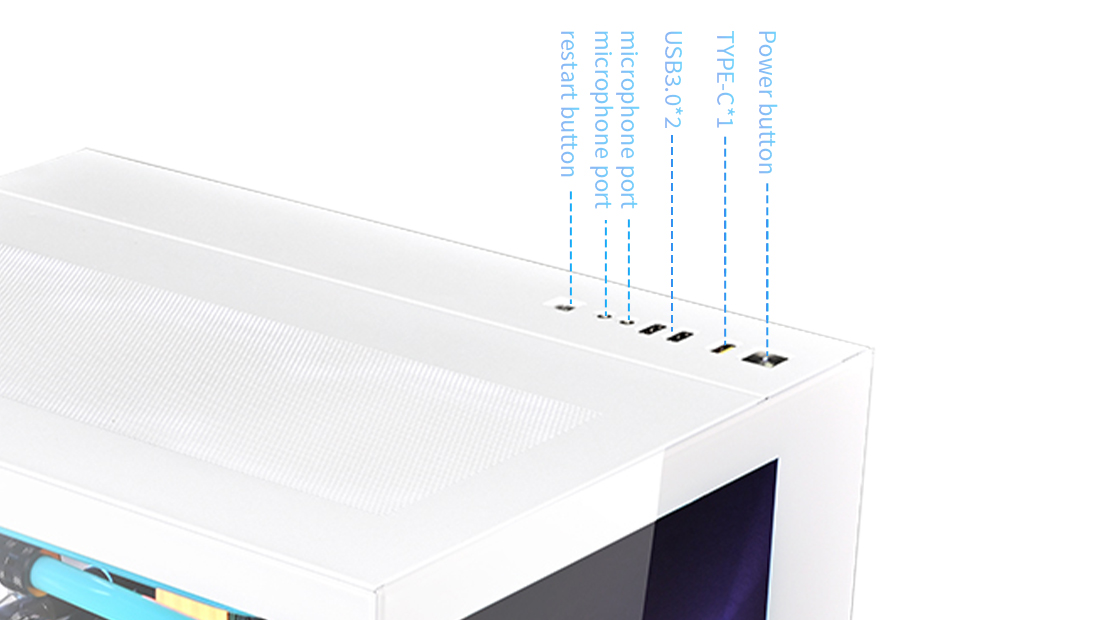

Rich top-mounted terminals to meet daily office and gaming needs

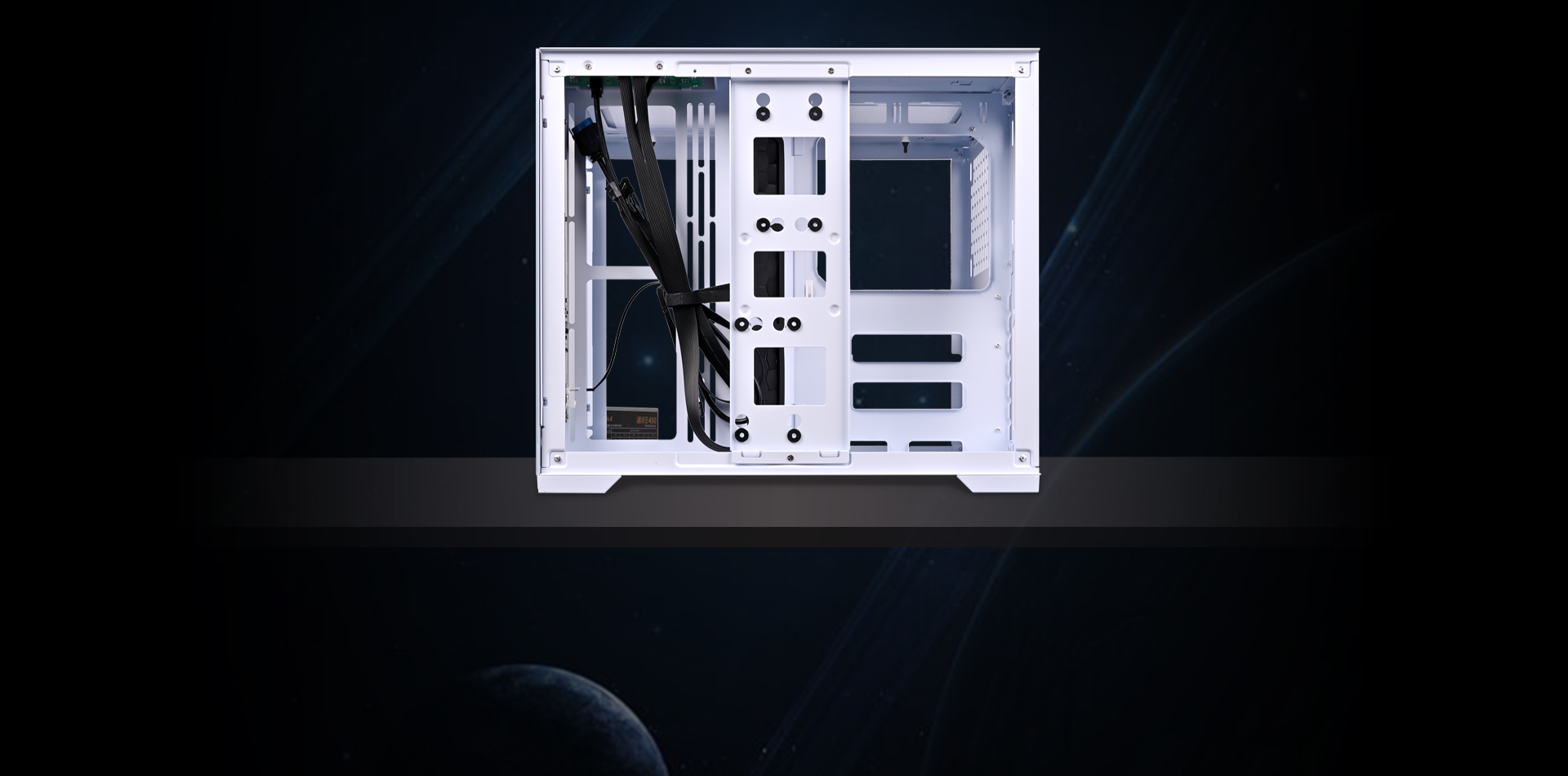

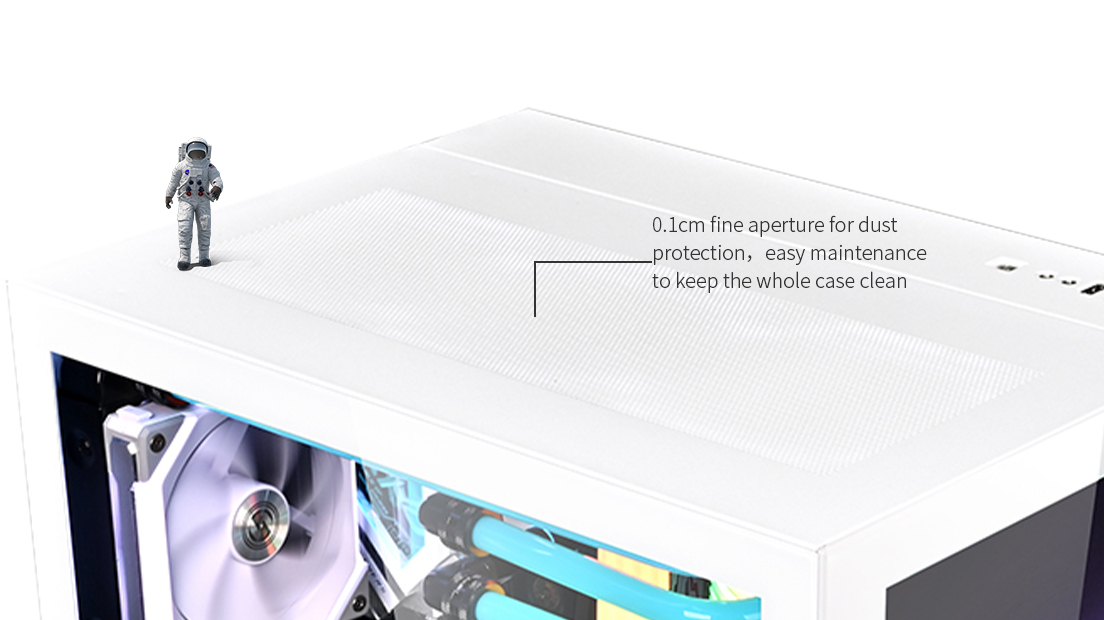

There is no room for "foreign objects"

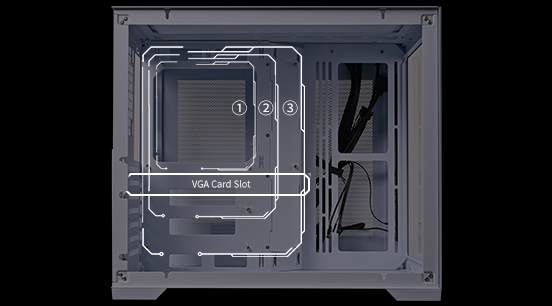

Reduced size, not capacity
①ITX Motherboard
②M-ATX Motherboard
③ATX Motherboard

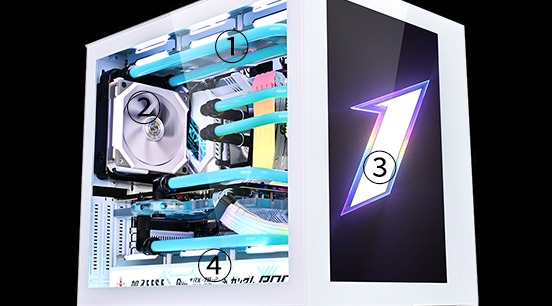

①Roof fan 120mmx3 .Support 360AIO water cooling
②Rear fan 120mmx1
③Front fan 120mmx2, supports 240AIO water cooling

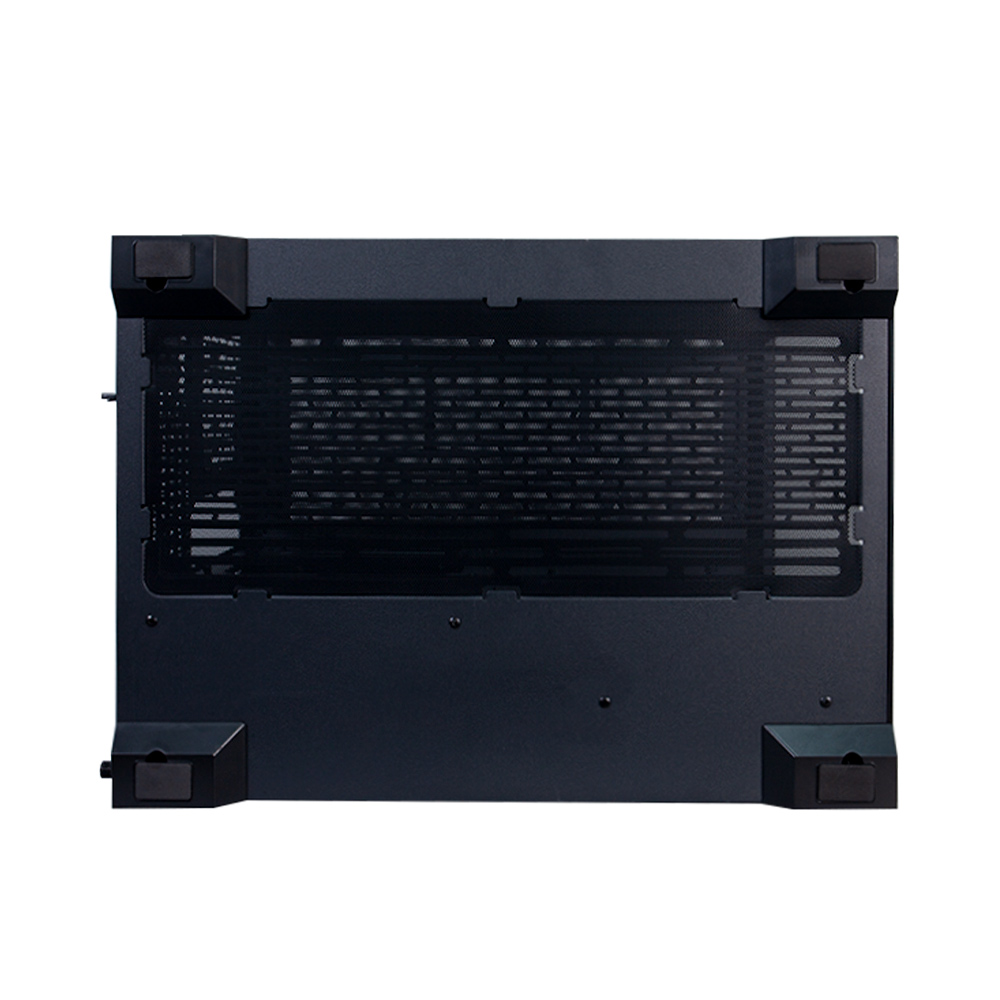

④Lower air intake fan 120mmx3, supports 360AIO water cooling
Model
SP7-EV

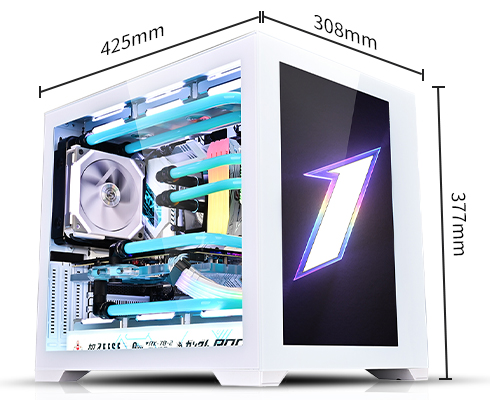

Structure Dimensions(L*W*H)
425*308*362MM
Product Dimensions(L*W*H)
425*308*380MM
Package Dimensions(L*W*H)
455*395*535MM
Structure Thickness
0.8MM
Materials
SPCC 0.8MM
LEFT SIDE PANEL：TEMPERED GLASS

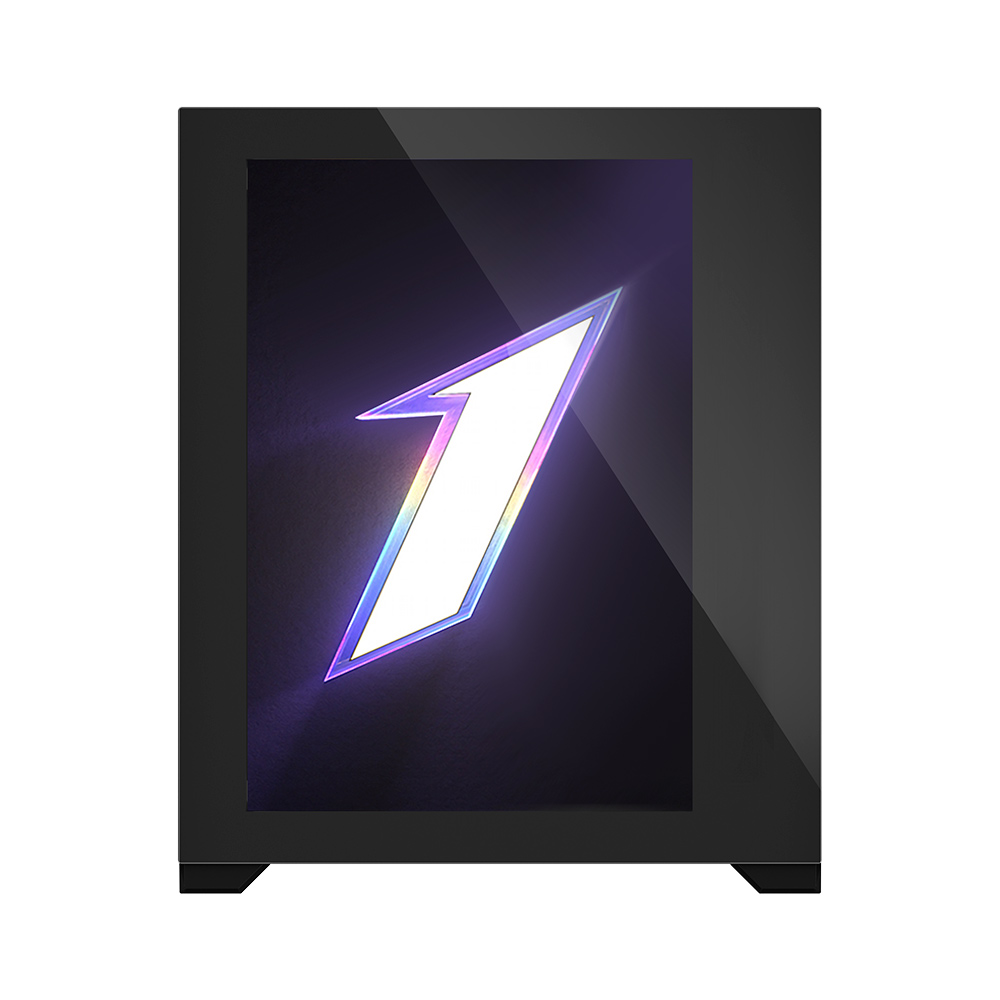

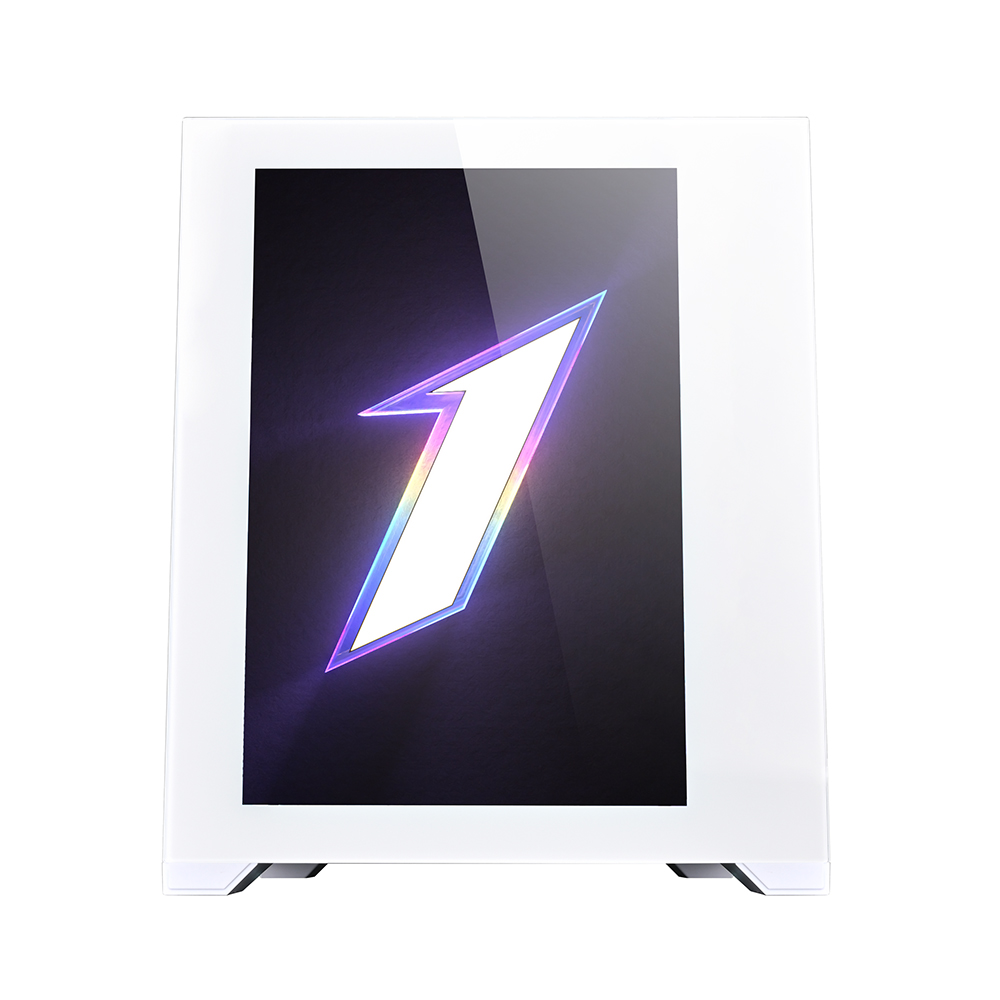

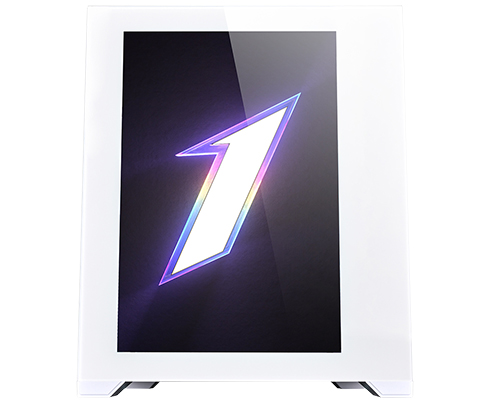

FRONT PANEL: EMOTION VIEW
Form Factor
ATX/M-ATX
5.25" CD ROM: 0

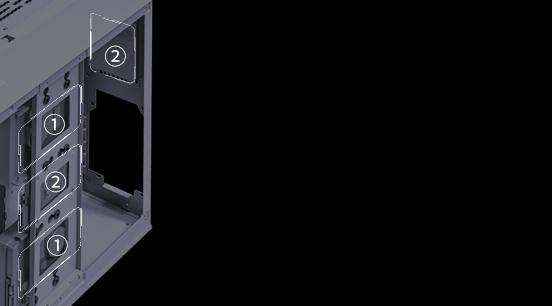

3.5" HDD: 2+2.5" SSD: 1
CPU MAX Height
185MM
VGA MAX Length
400MM(DESIGNED FOR MOUNTING GPU'S VERTICALLY)
I/O Panel
USB3.0*2+TYPE-C*1+HD AUDIO
PCI Card Slot
7+3
Fan Support
ON THE LEFT OF THE FRONT SIDE: 2*12CM/2*14CM
TOP: 3*12CM/2*14CM
REAR: 1*12CM
BOTTOM: 3*12CM/2*14CM
Liquid Cooling Support
TOP: 36CM
FRONT: 24CM /28CM
BOTTOM: 36CM
Power Supply Support
BOTTOM MOUNT(LIMIT IS 200 MM LONG)
Net Weight
N.W.: 7.9KG
G.W.: 9.4KG
