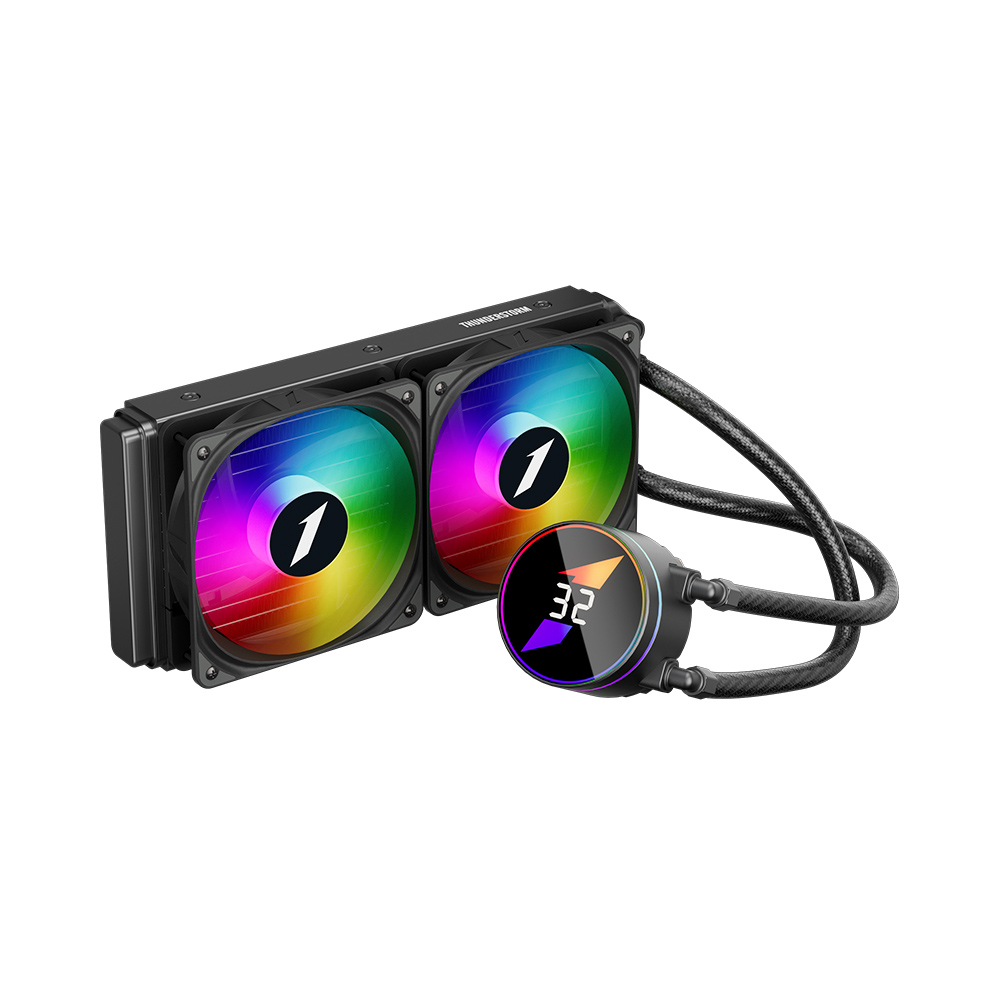

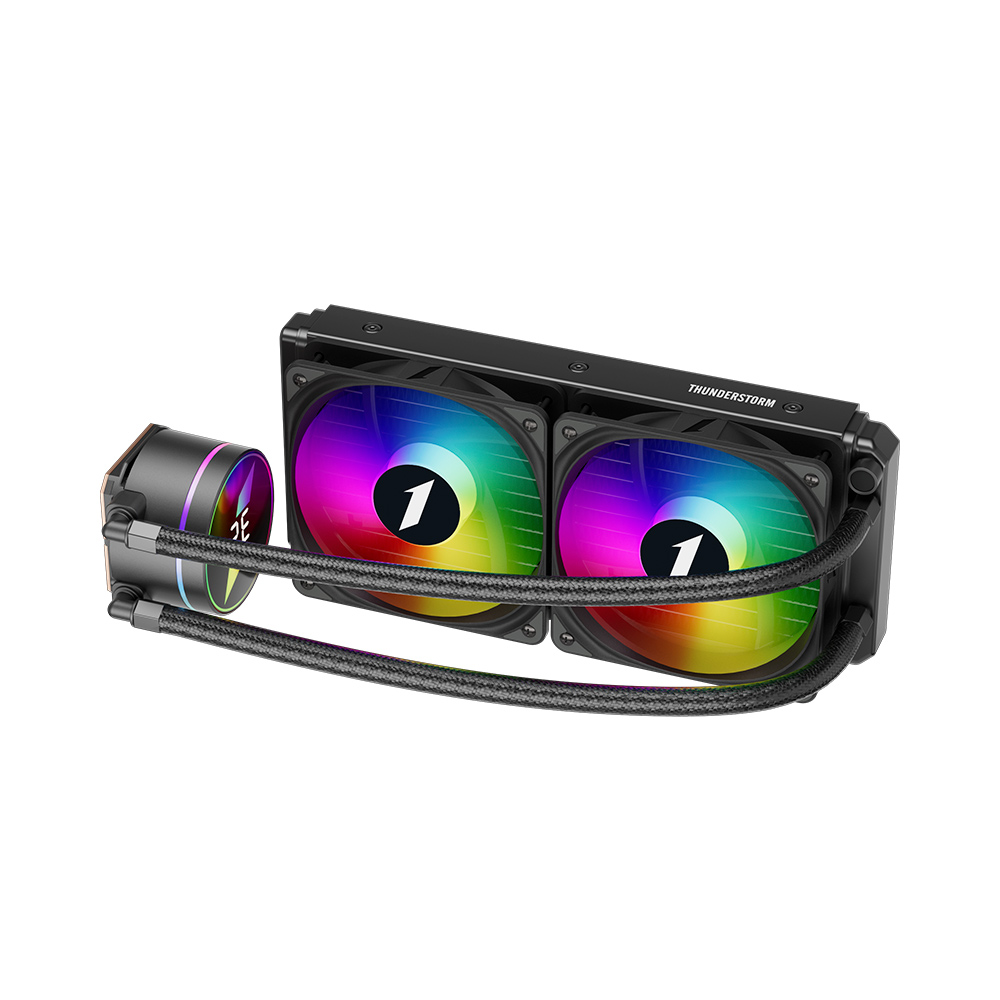

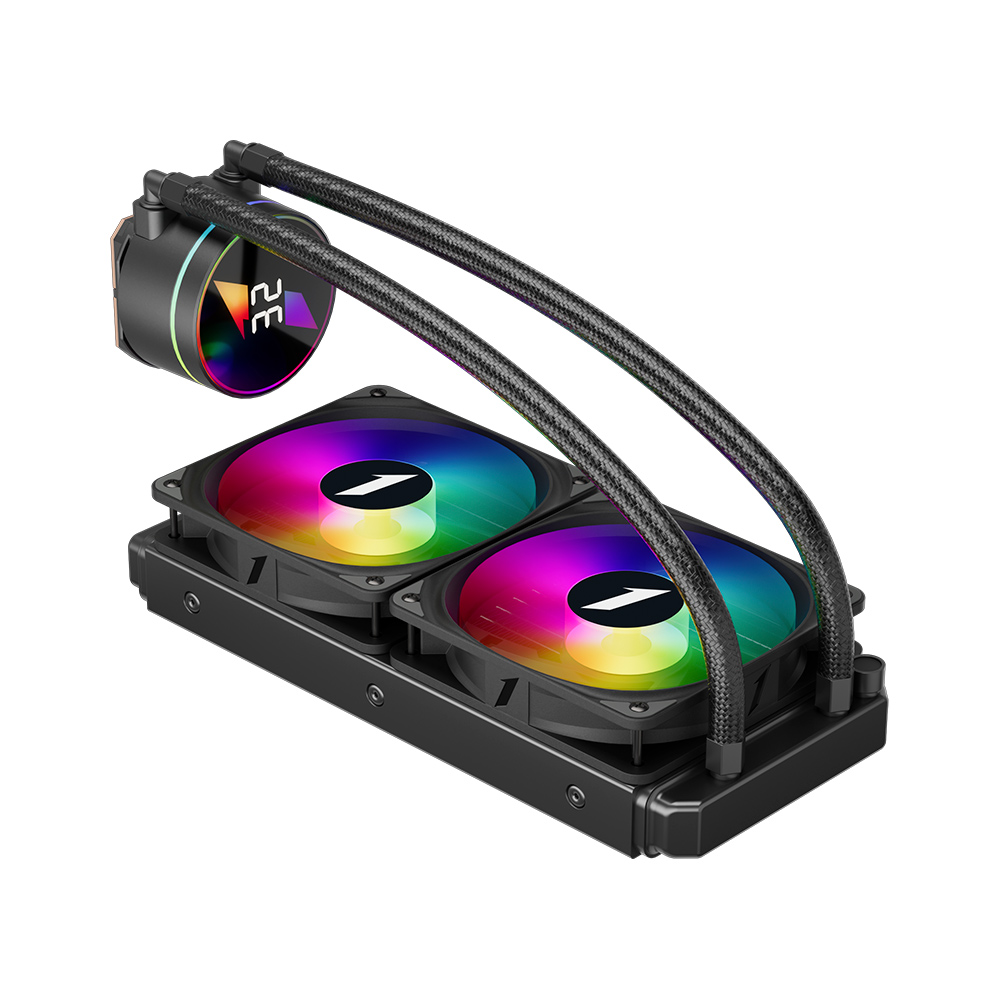

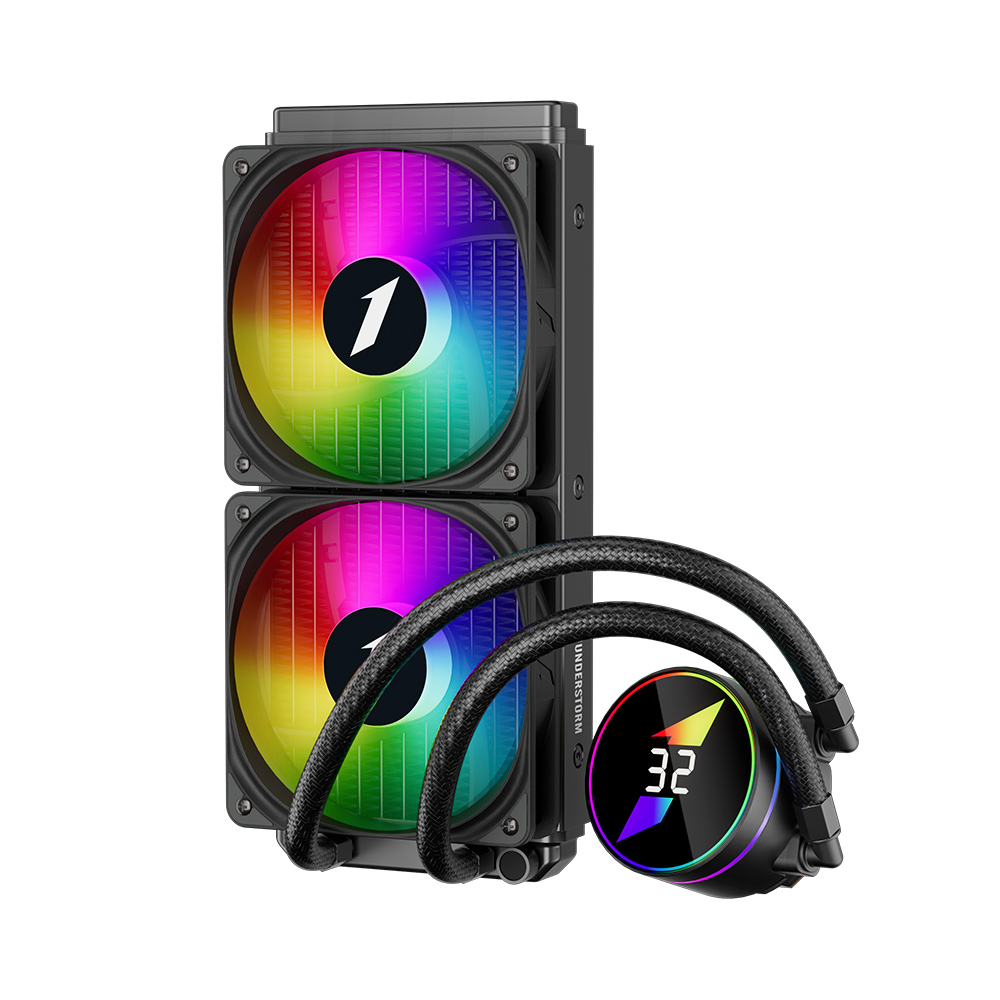

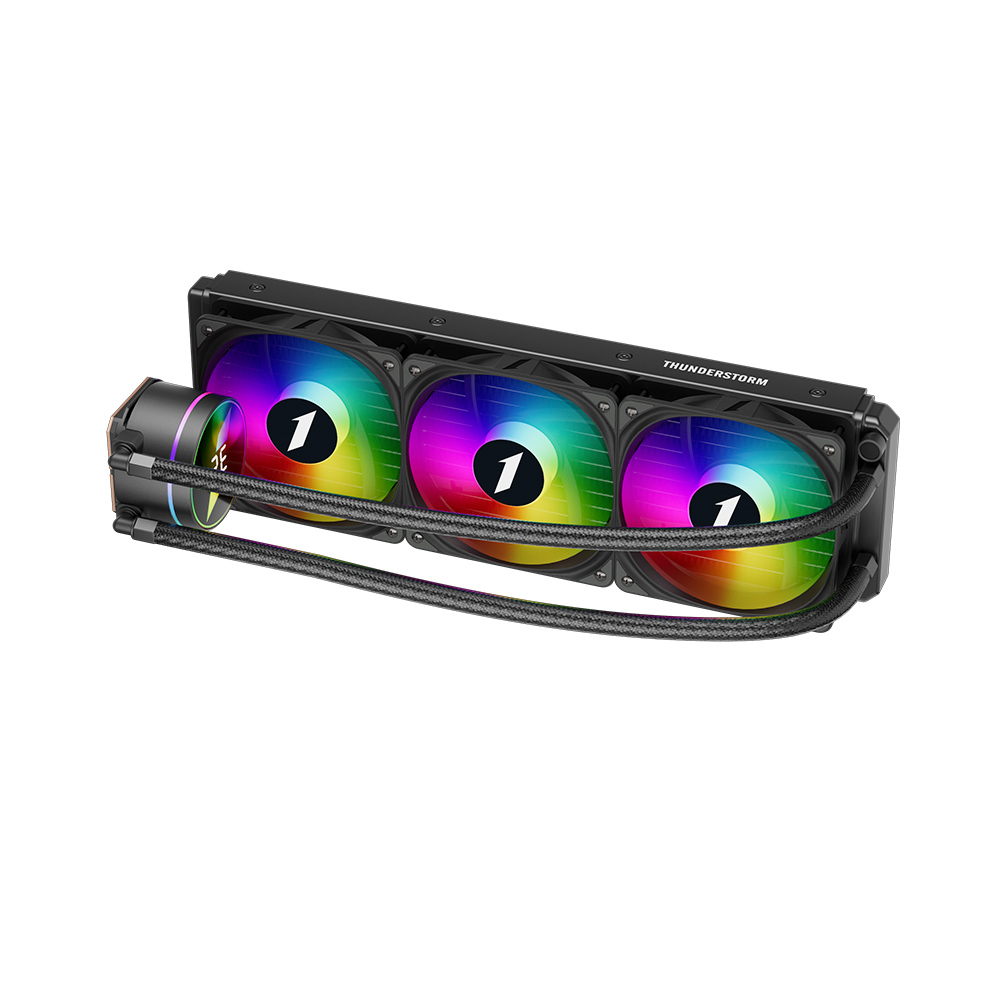

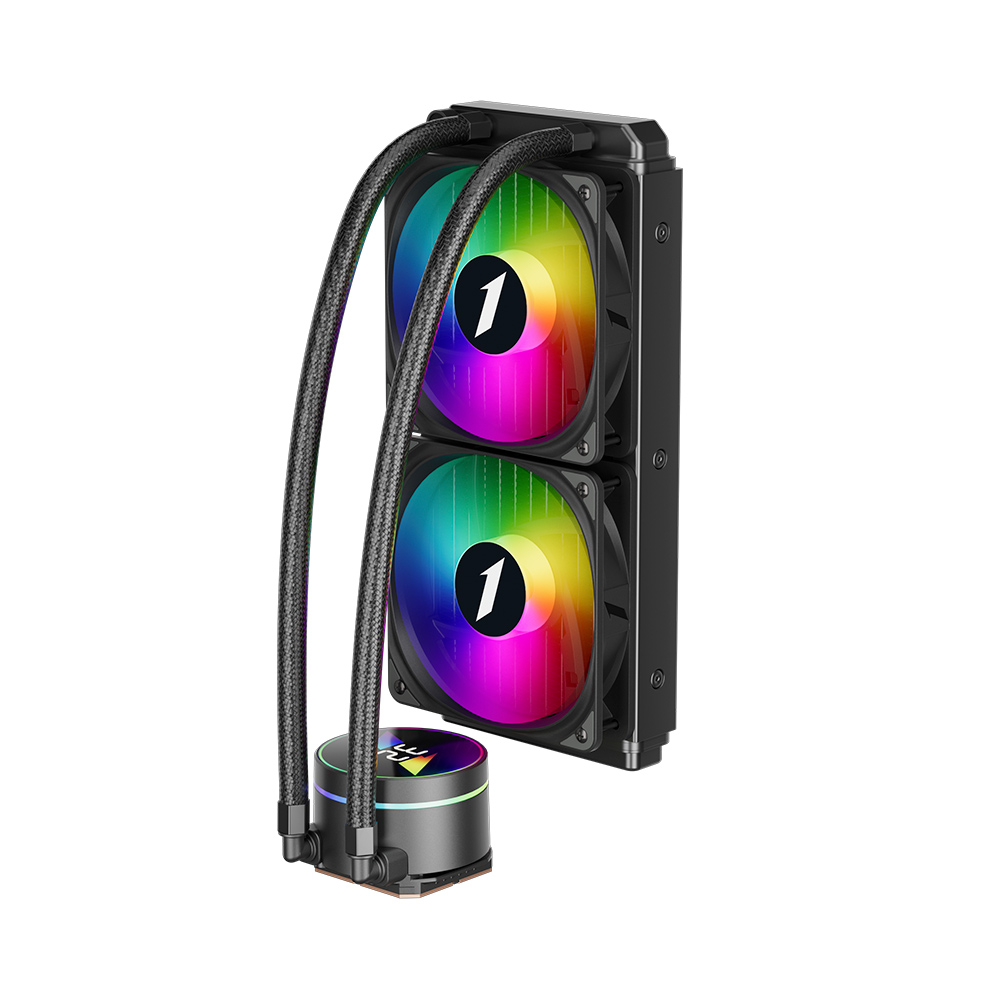

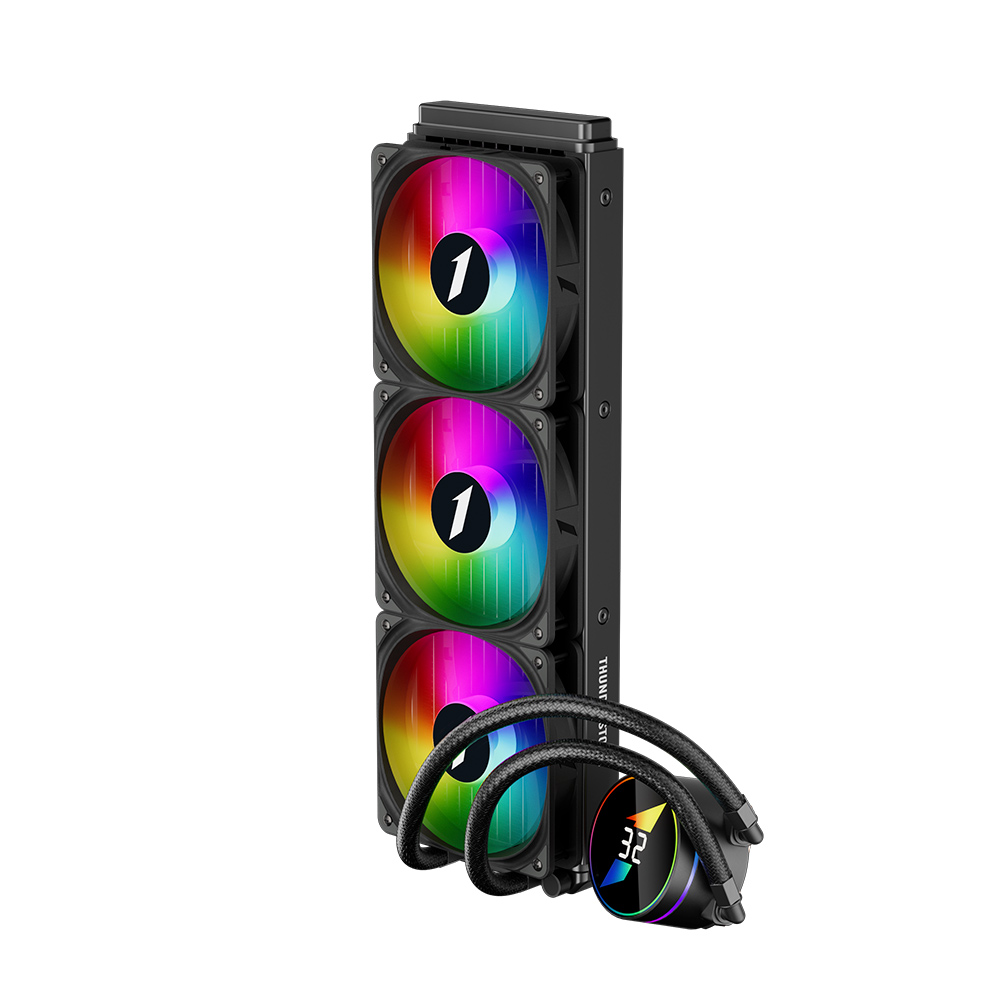

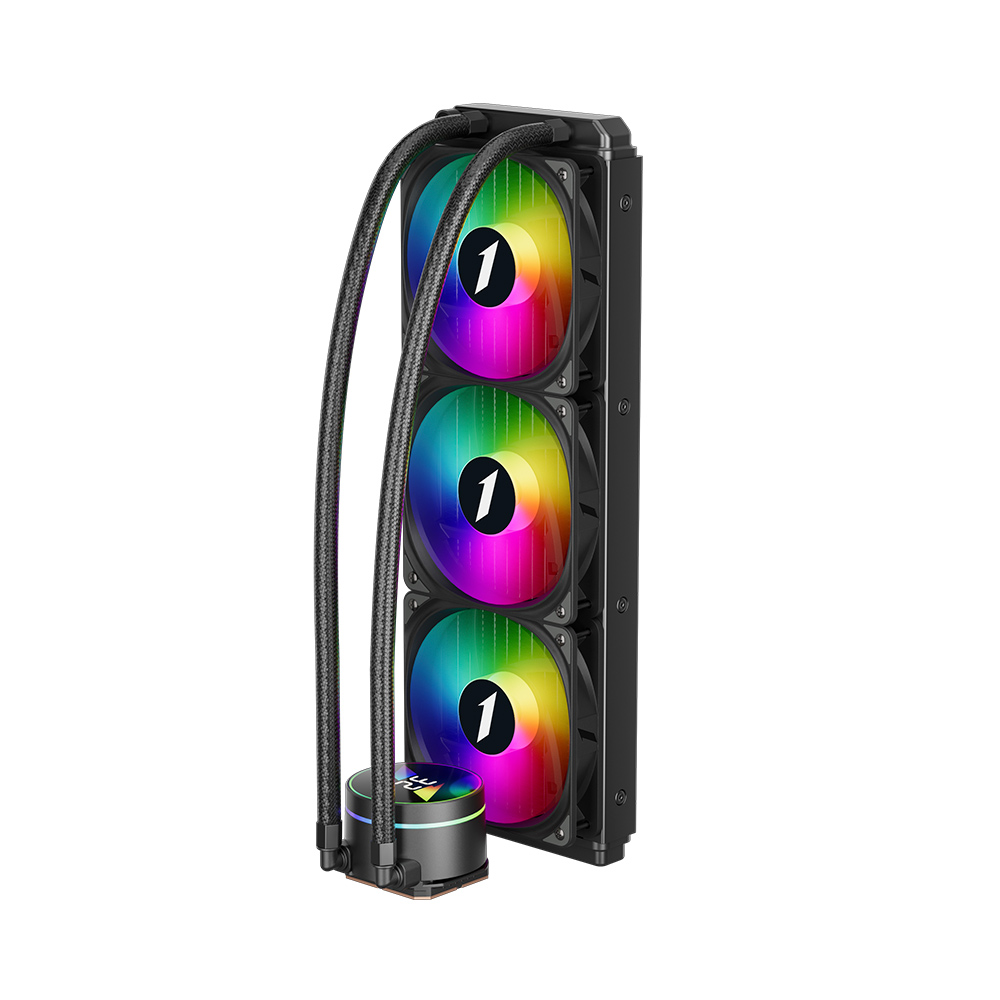

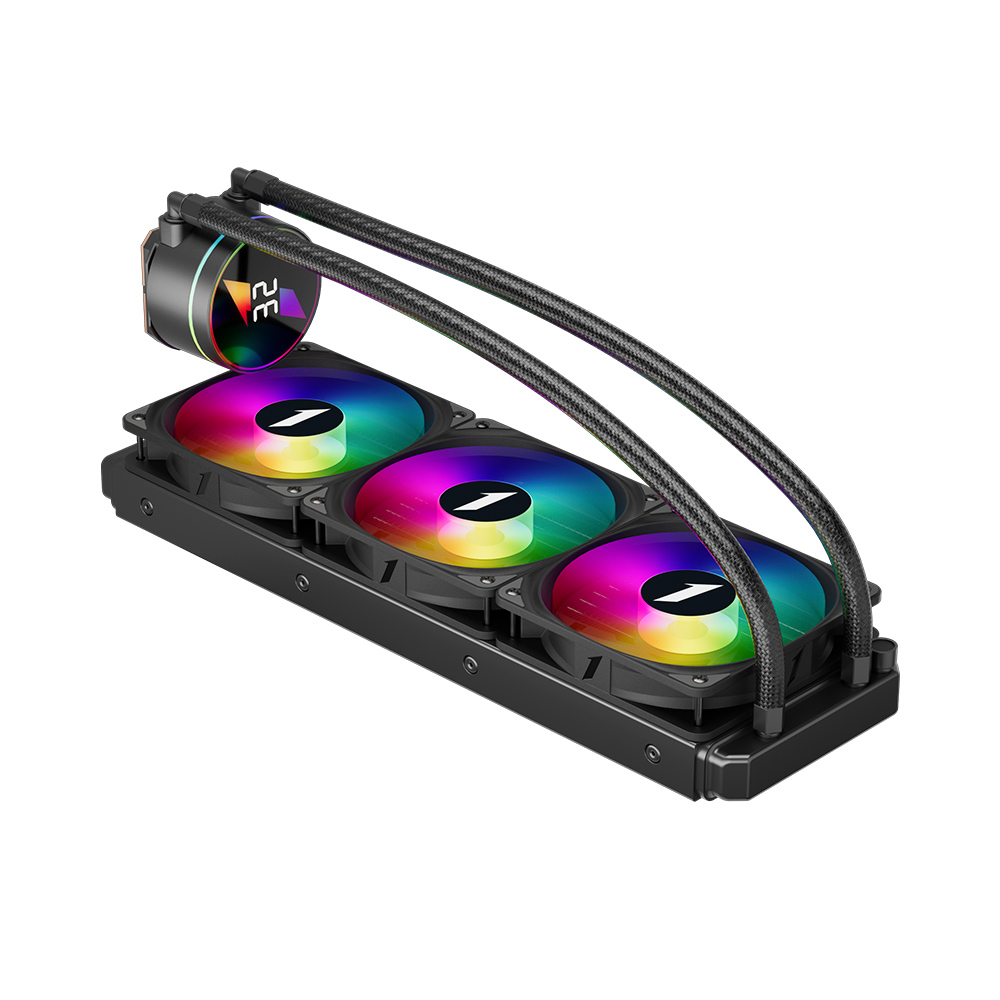

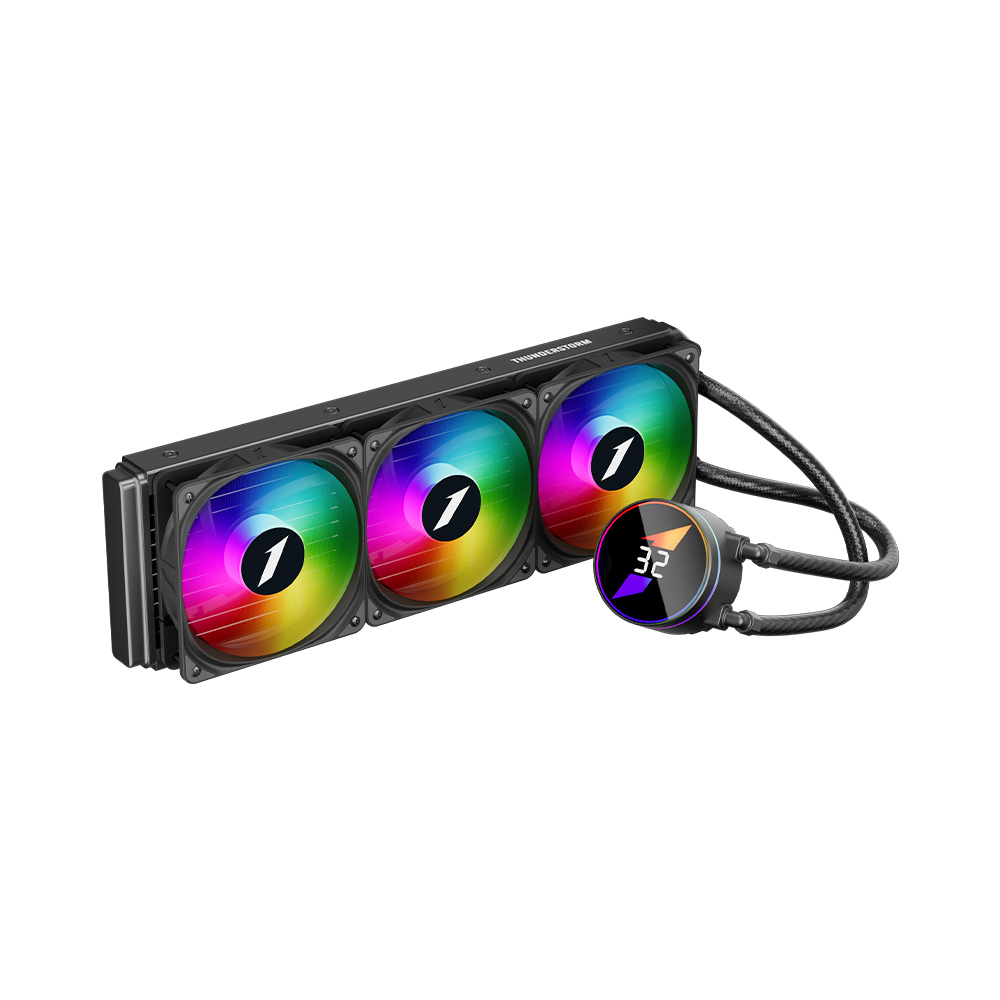

TS3 240/360

1. Pure Copper Endothermic Block

2. Support 5v RGB Sync with Motherboard (ARGB) on Pump   Head&Cooling Fan

3.Temperature Controlled 9 Blades Fan (600-1800RPM)with Noise Reduction Feature

4. Long Life Bearing Water Pump (2500±10%RPM)/40,000hrs

5. High Density Sigmoidal Pins Radiator

6. High-performance silicone grease

7. CPU core temperature display




Model

TS2 240 / TS2 360

Scope of Application

Intel(LGA1700/115x/1366/2011)&

AMD(AM5/AM4/AM3/AM2/FM3/FM2/FM1)

Radiator

Dimensions

277×119×27mm(TS240) / 397×120×27mm (TS360)

Material

Aluminum

Tube

Length

350mm(TS240)  / 380mm(TS360)
Pump

Dimensions

74×89.2×51.8mm

Speed

2500 RPM±10%

Noise

30dB(A)

Connector

3Pin+ARGB

Rated Voltage

12V DC

Rated Current

≤0.3A

Power Consumption

≤3.6W

Fan


QTY

2 pcs / 3 pcs

Dimensions

120*120*25 mm

Speed

600-1800 RPM±10%

Airflow

75.61CFM

Air Pressure

2.2 mmAq

Noise

≤36.5 dB(A)

Connector

4 Pin(PWM)+ARGB

Bearing Type

Hydraulic Bearing

Rated Voltage
12V DC
Rated Current
0.28A ±10% MAX
Power Consumption
3.36W±10%
Colour
Black
