Fans Support: Up to 3 fans
USB3.0*1+USB2.0*1+HD AUDIO
5.25" CD ROM: 0
3.5" HDD: 1+2.5" SSD: 1

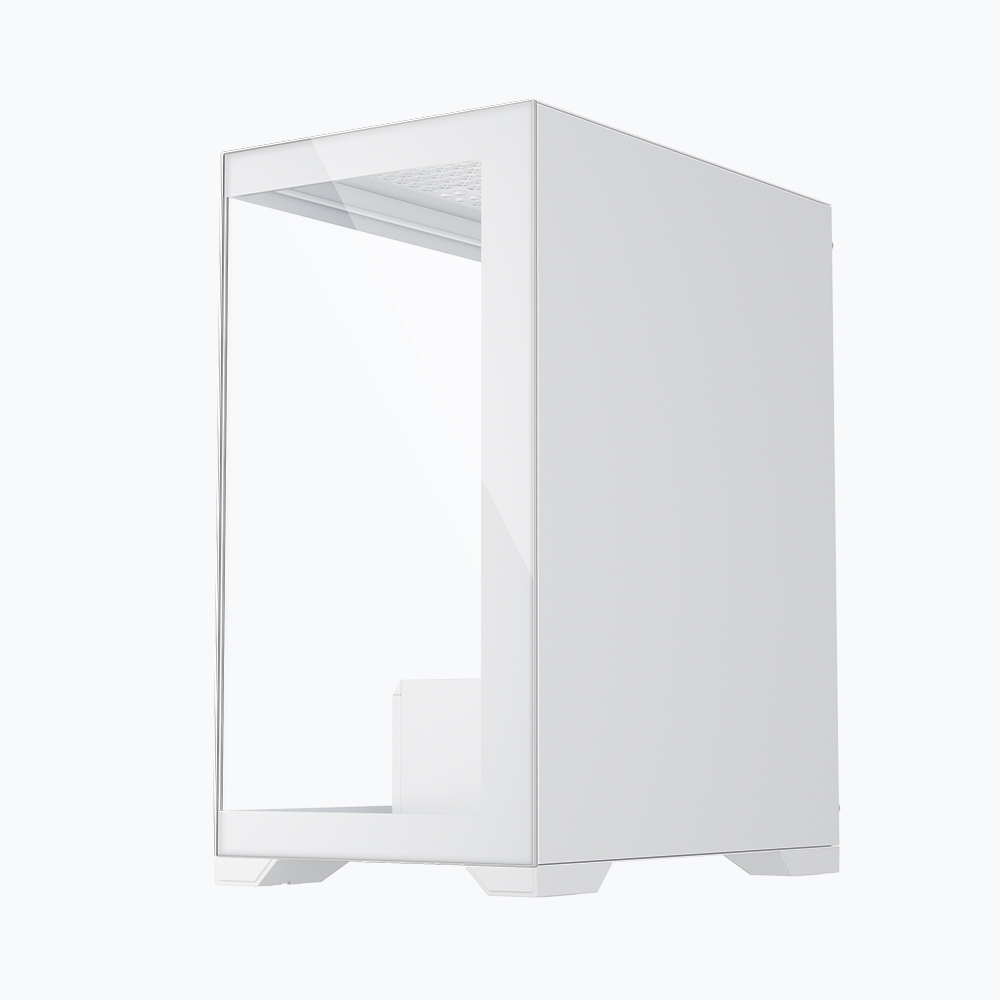

LEFT SIDE PANEL: TEMPERED GLASS
FORM FACTOR: M-ATX/ITX
LIQUID COOLING SUPPORT ：TOP: 24CM（RAM MAX H 40MM）

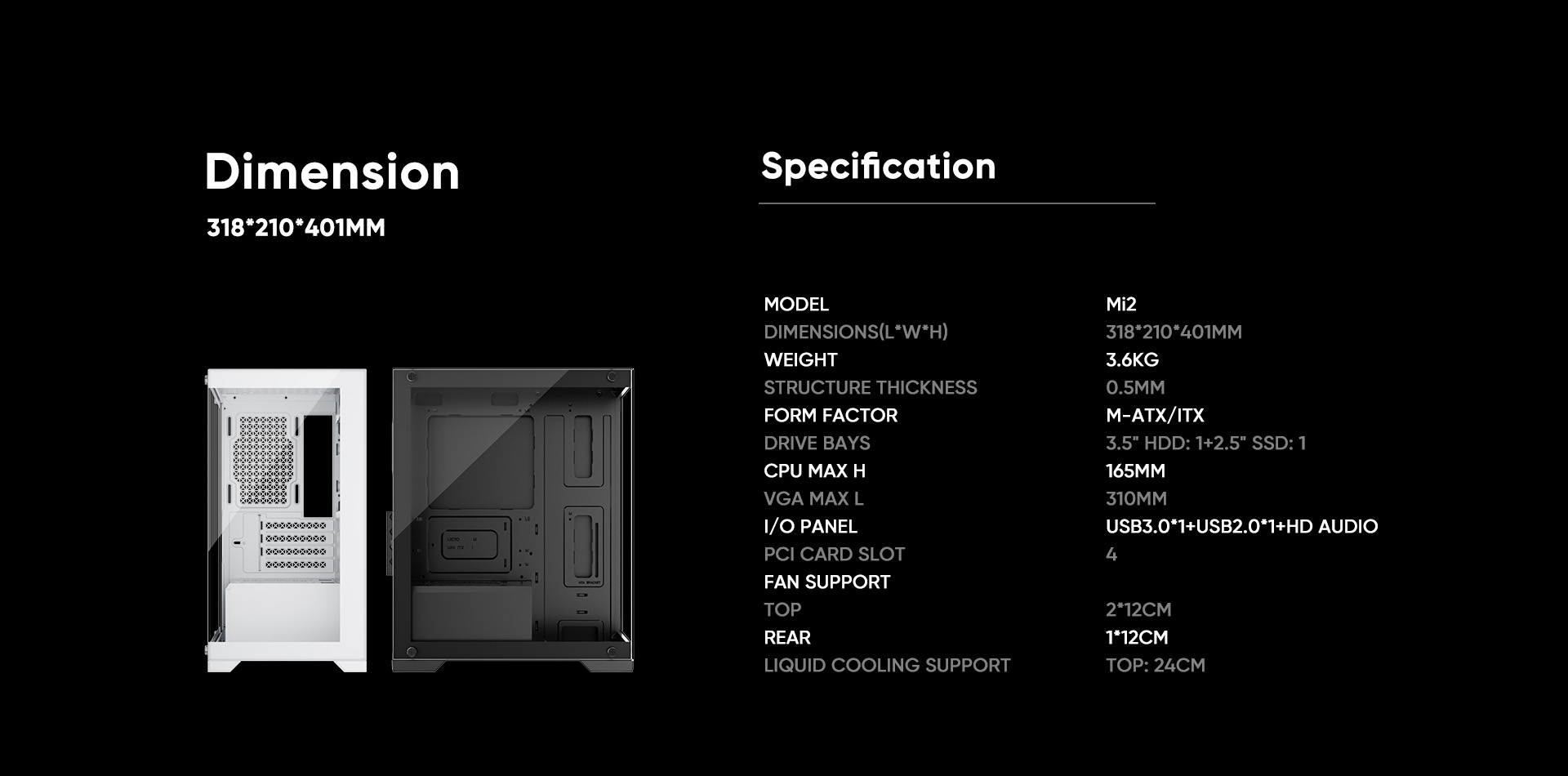

MODEL

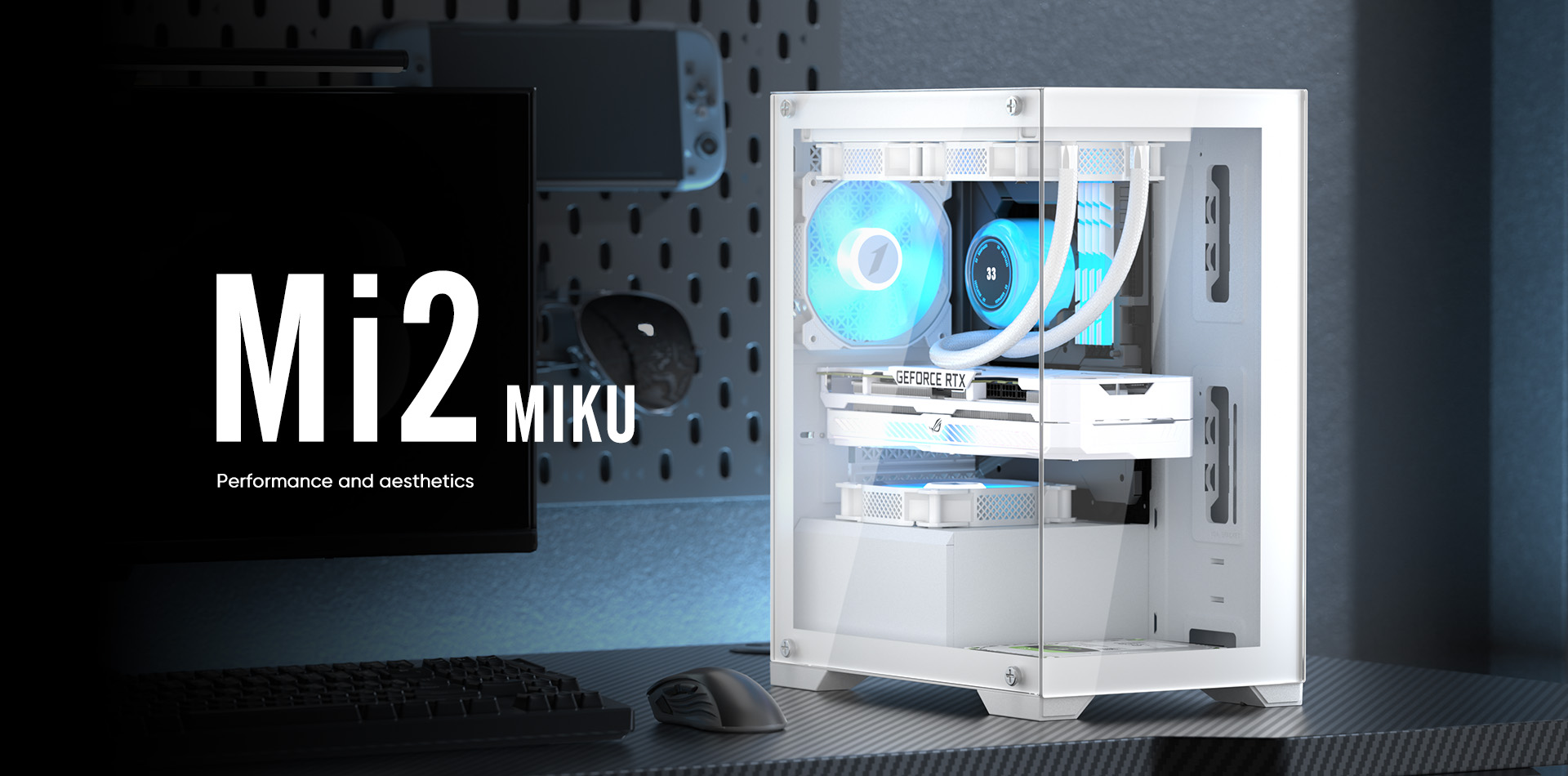

Mi2
STRUCTURE DIMENSIONS (L x W x H)
315 x 210 x 386 mm
PRODUCT DIMENSIONS (L x W x H)
318 x 210 x 401mm
PACKAGE DIMENSIONS (L x W x H)
455 x 270 x 380 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Front / Left Panel: Tempered glass
FORM FACTOR
M-ATX / Mini-ITX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 1
CPU MAX HEIGHT
165 mm
VGA MAX LENGTH
310 mm

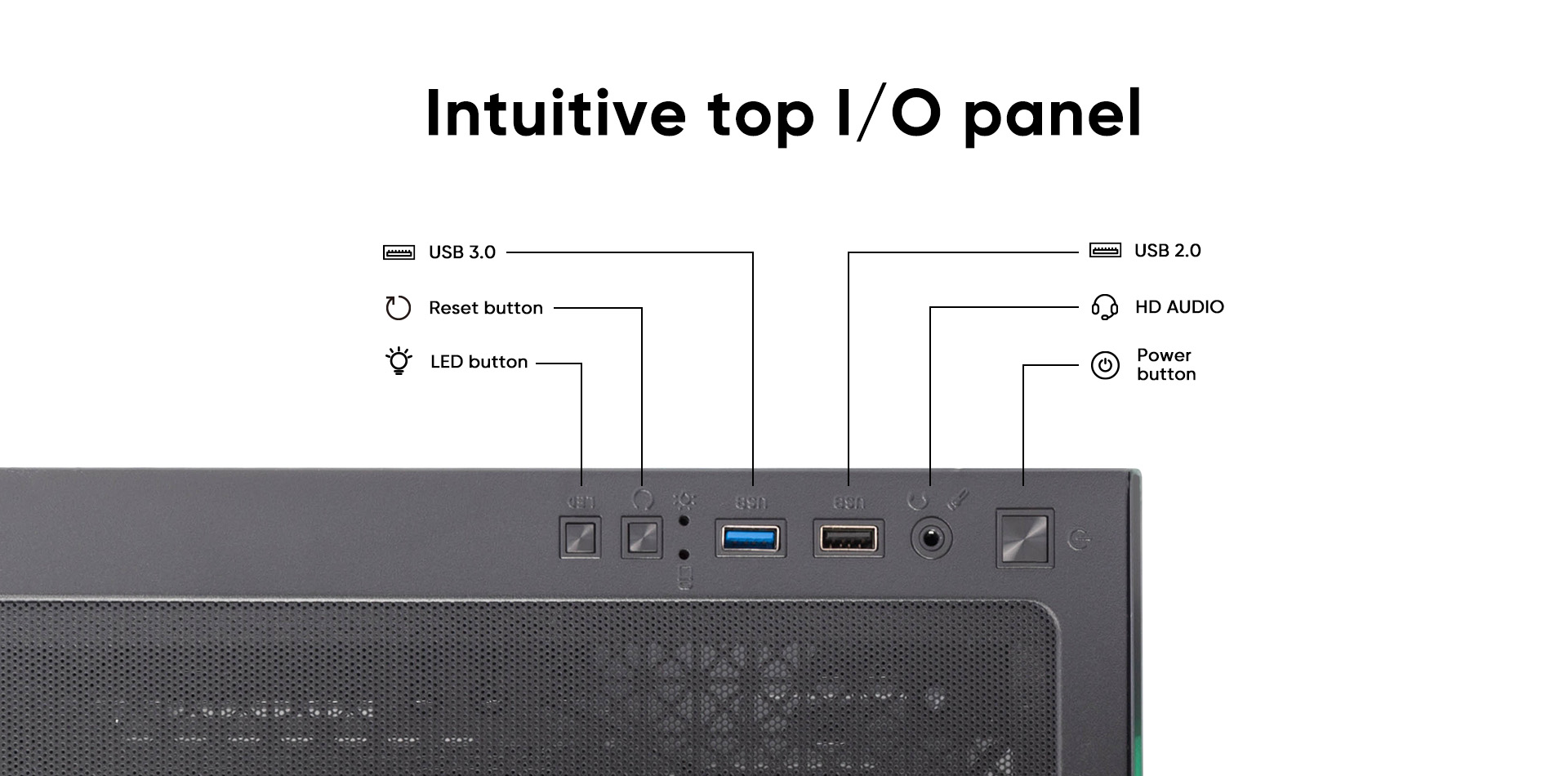

I/O PANEL

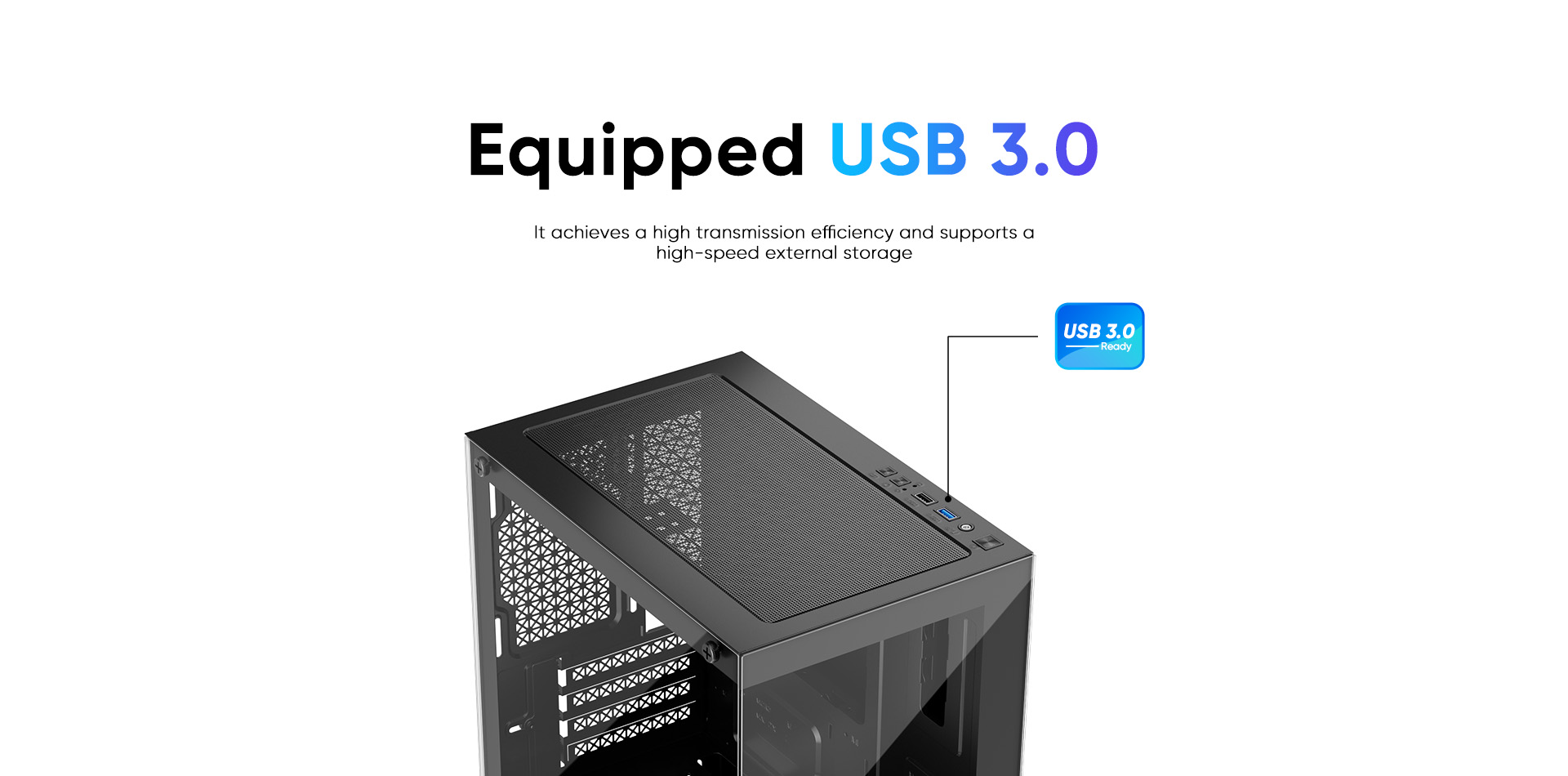

USB 3.0 x 1 + USB 2.0 x 1 + HD AUDIO
PCI CARD SLOT
4

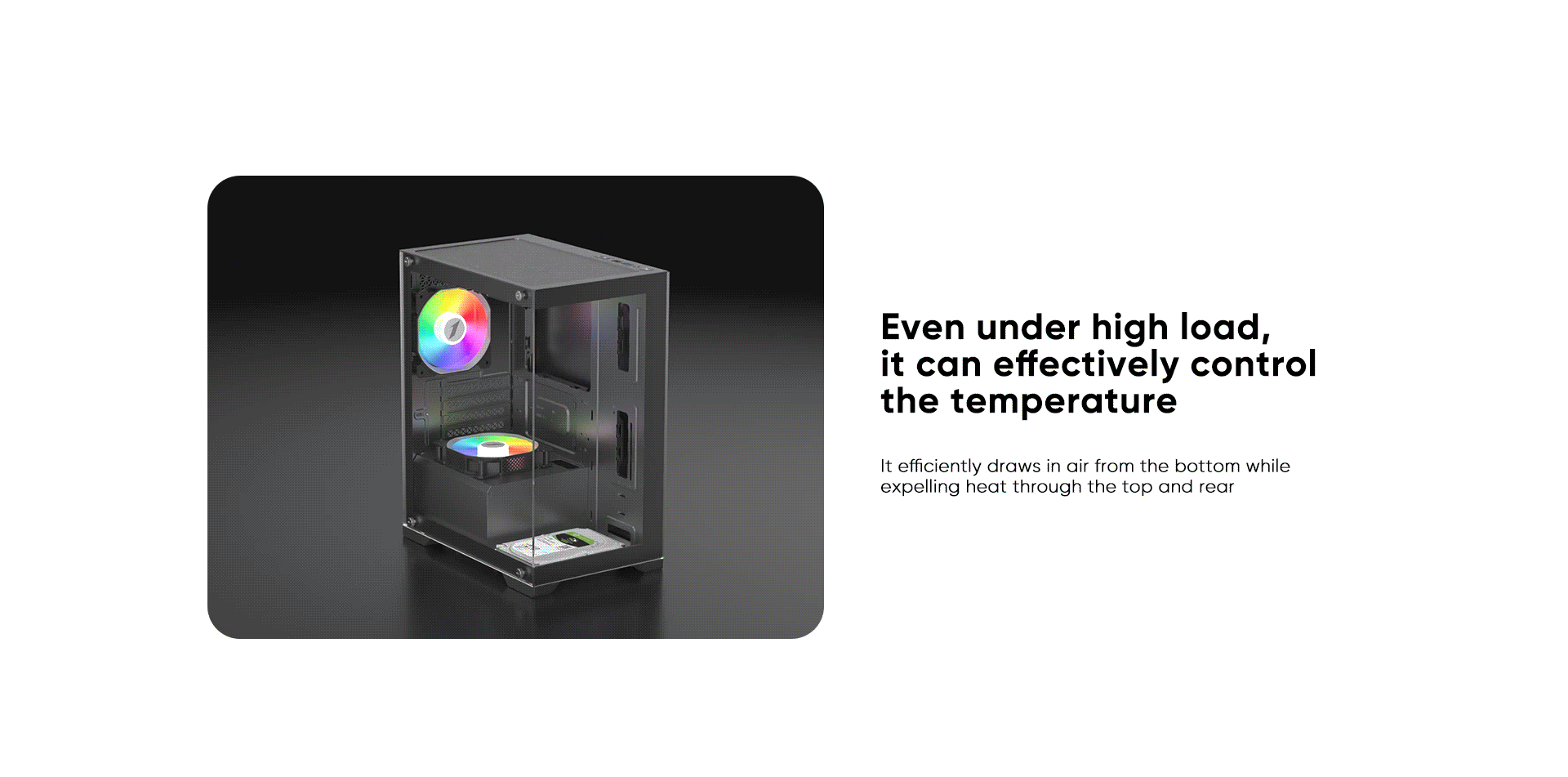

FAN SUPPORT
Top: 2 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
Top: 24 cm（Ram Max H 40 mm）
POWER SUPPLY SUPPORT
Bottom mount 140 mm
NET WEIGHT
N.W.: 3.6 kg
G.W.: 4.5 kg
