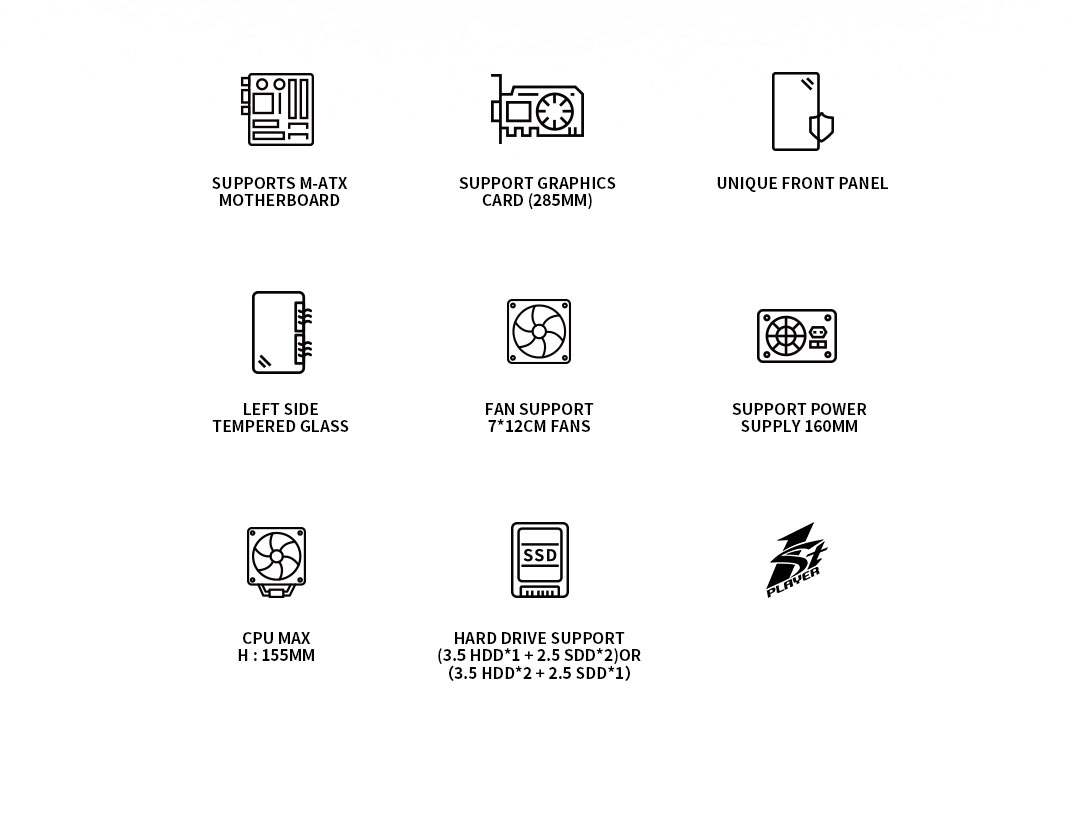

Fans Support: Up to 7 fans
USB3.0*1+USB2.0*2+HD AUDIO
5.25" CD ROM: 0
①3.5" HDD: 1 + 2.5" SSD: 2
②3.5" HDD: 2 + 2.5" SSD: 1

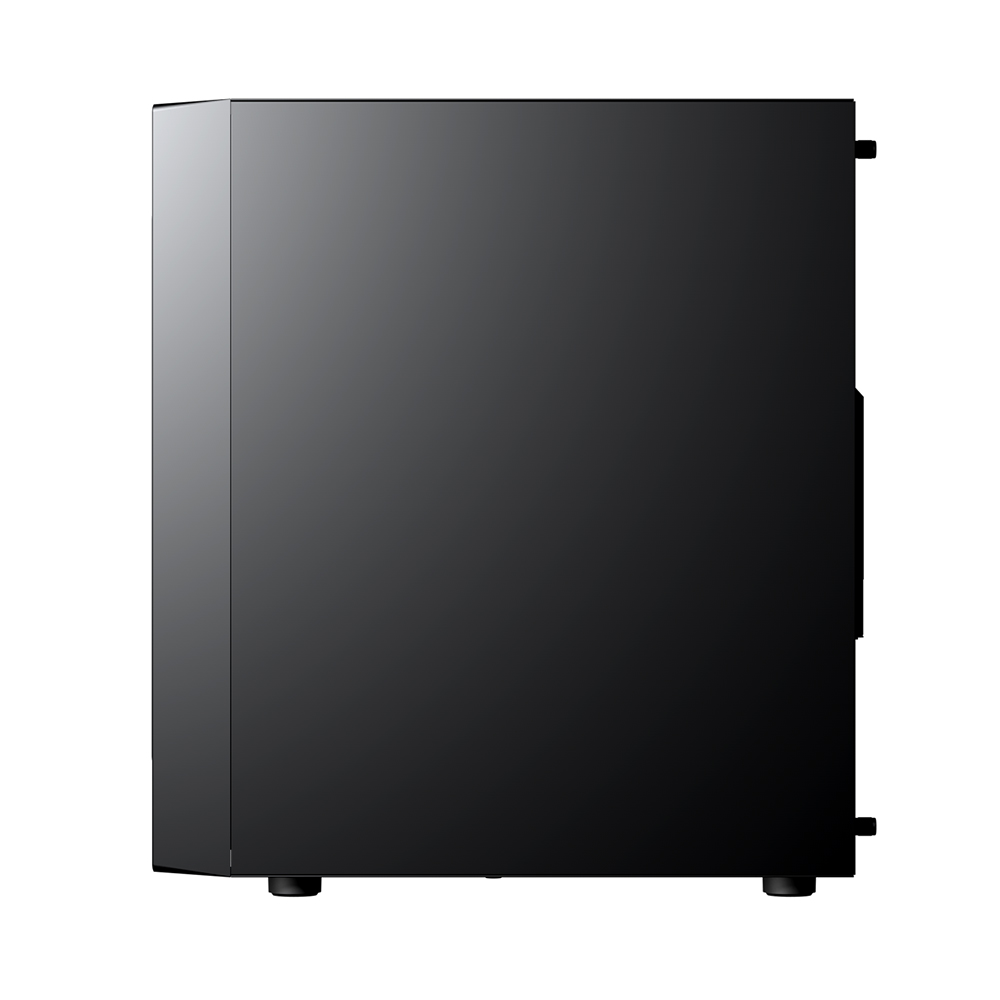

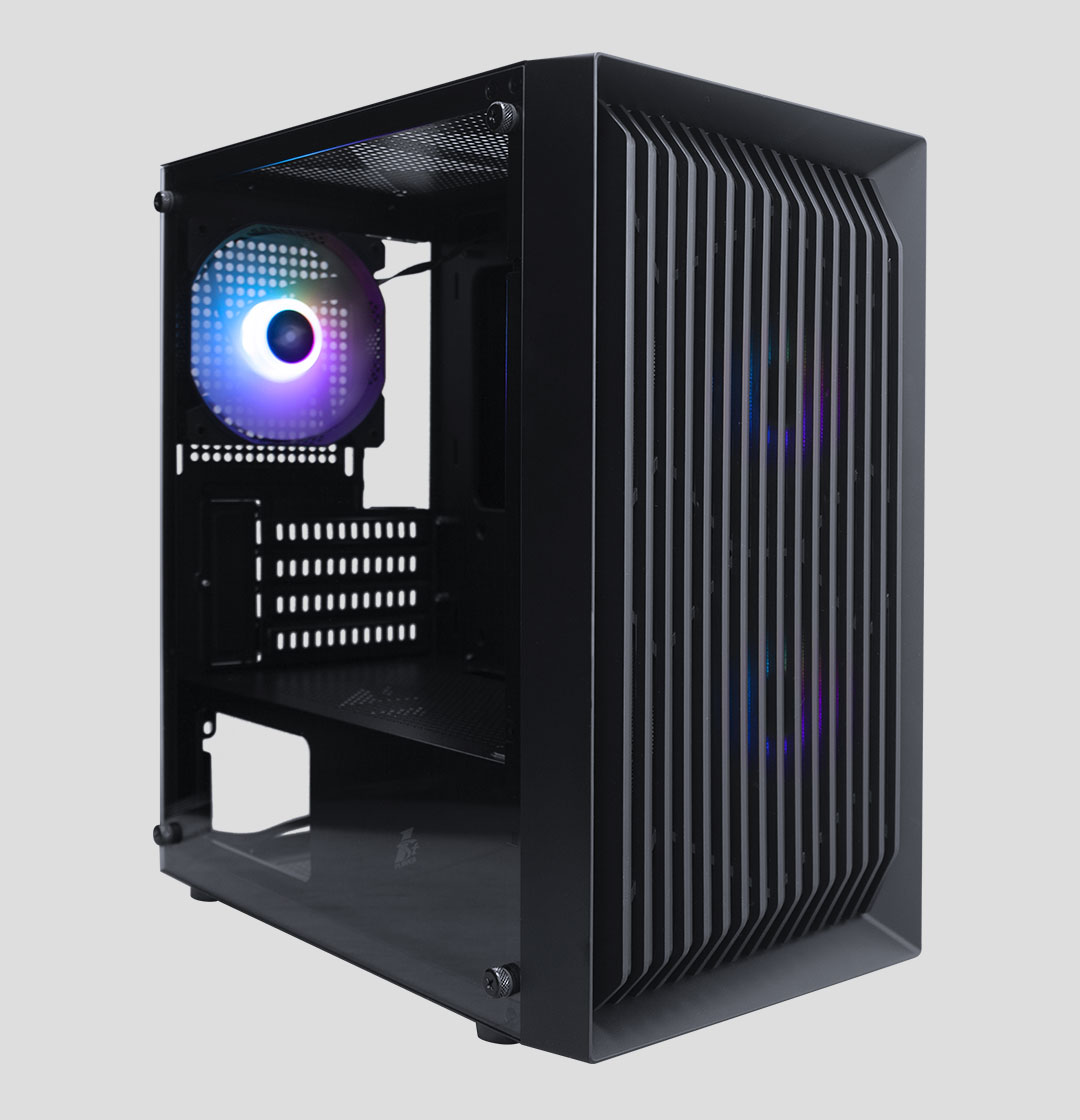

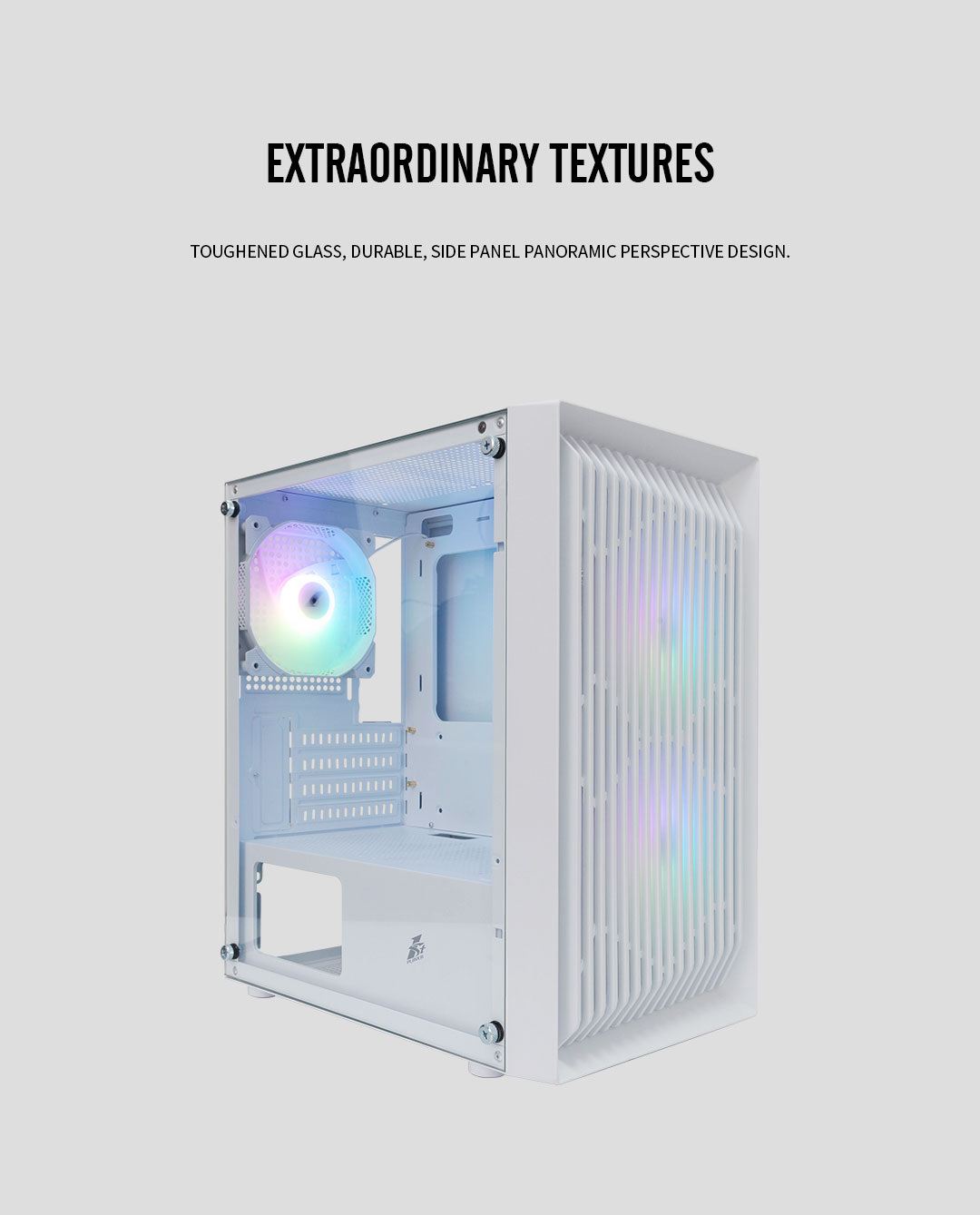

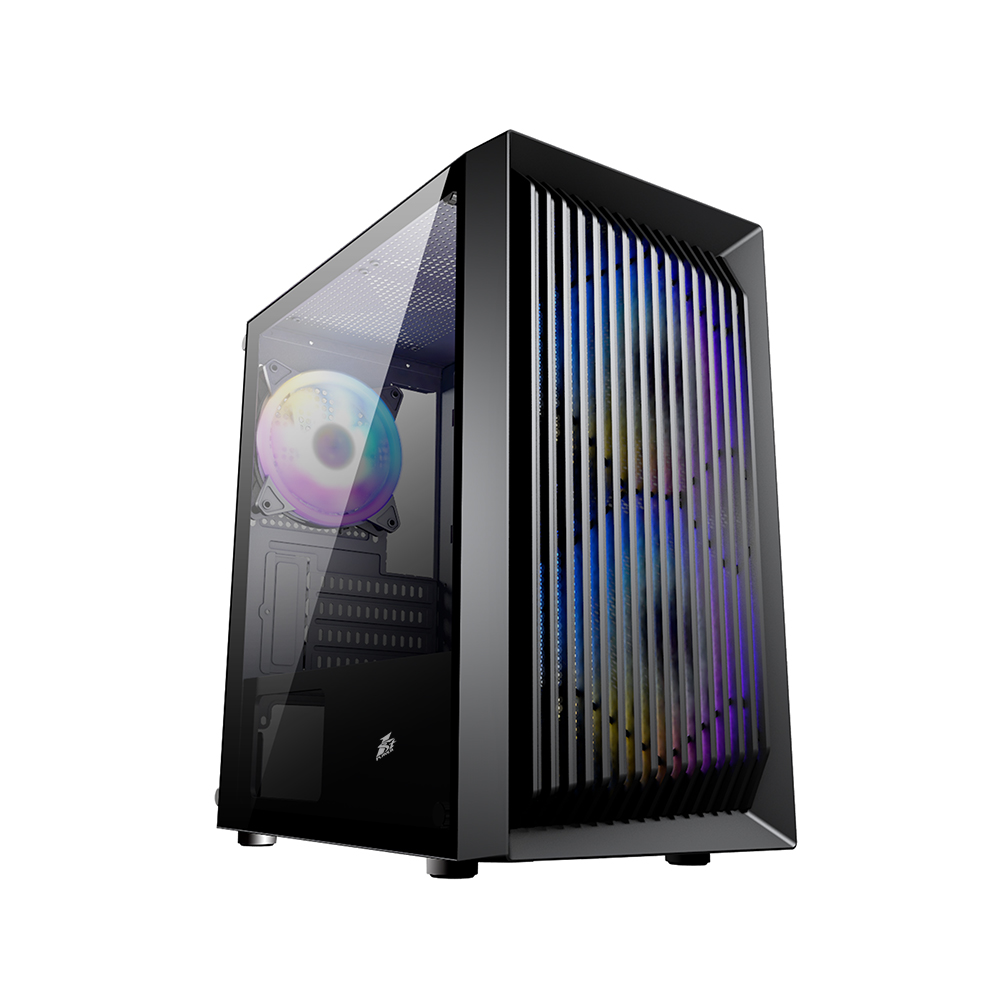

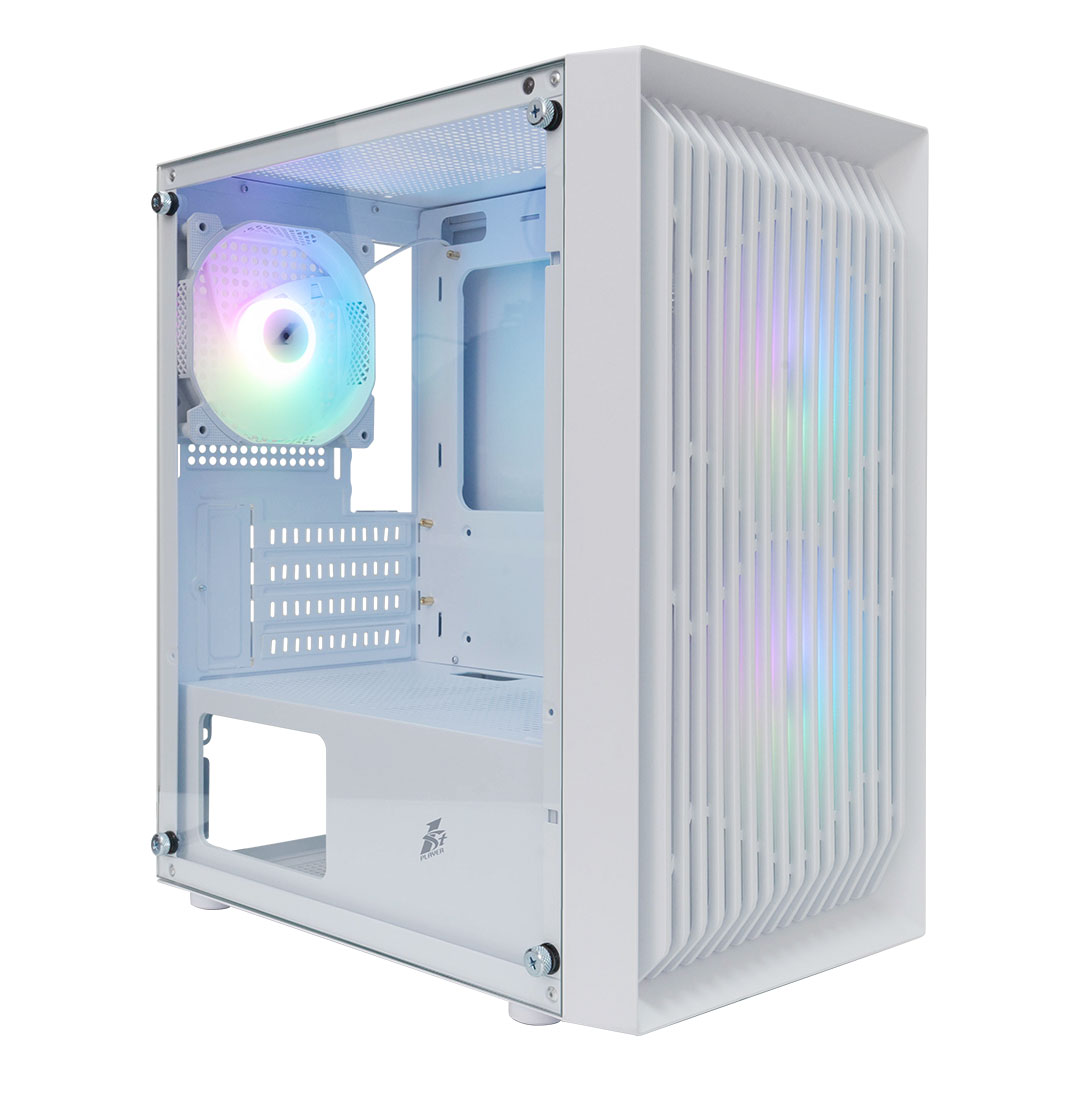

LEFT SIDE PANEL: TEMPERED GLASS

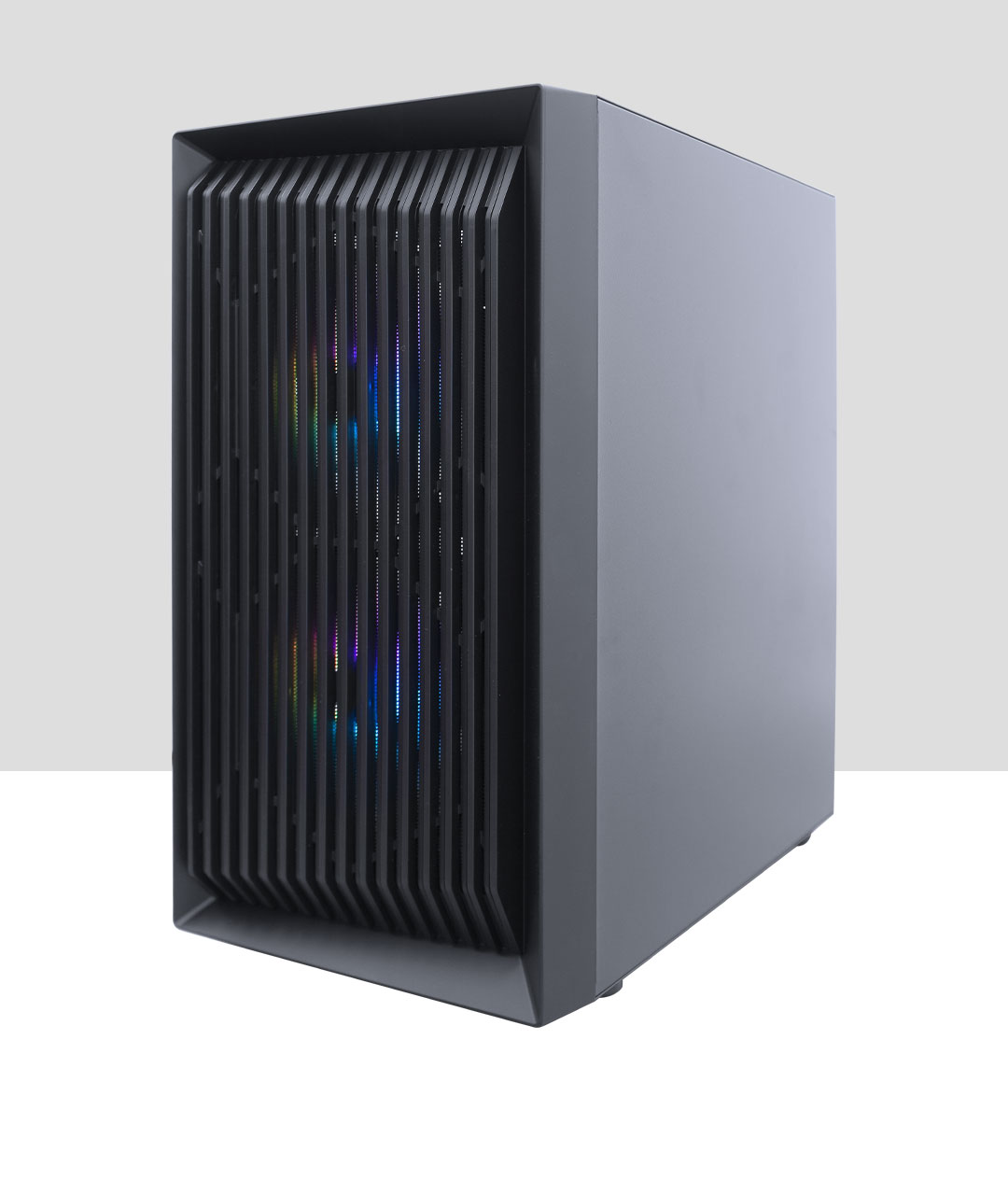

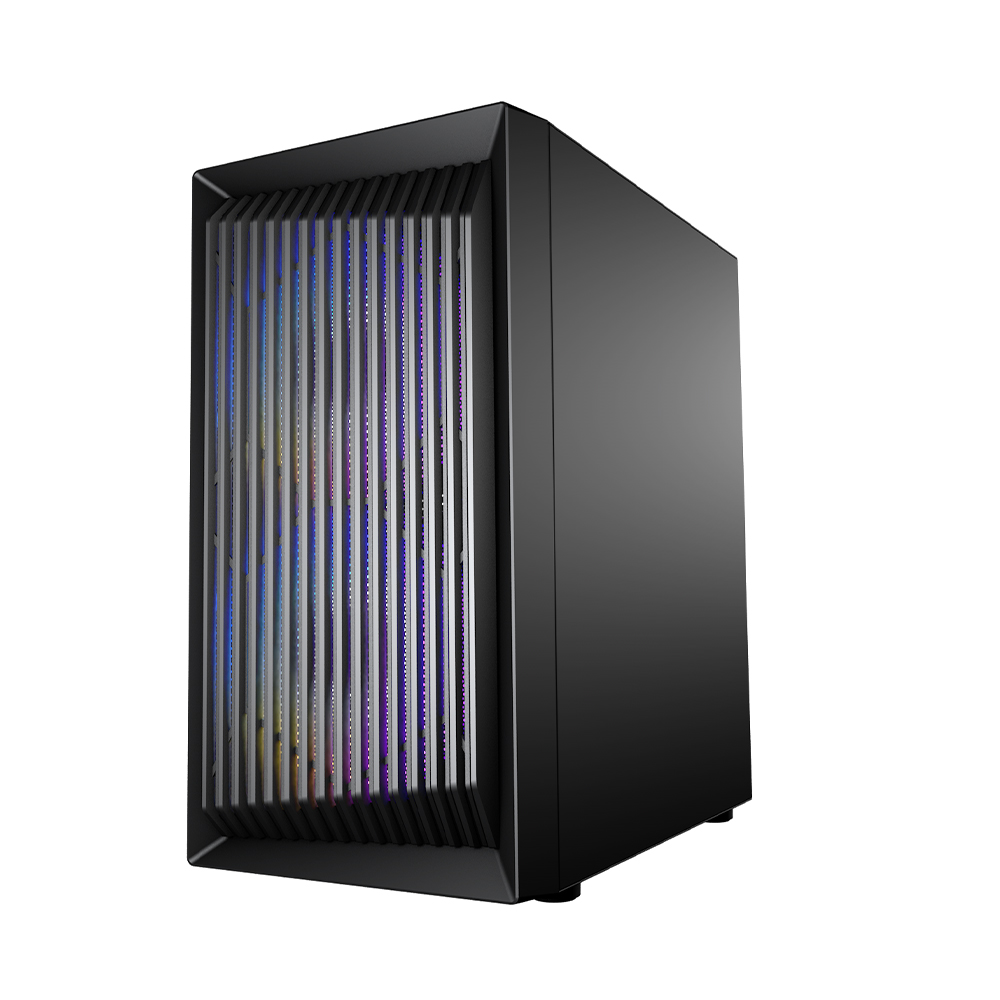

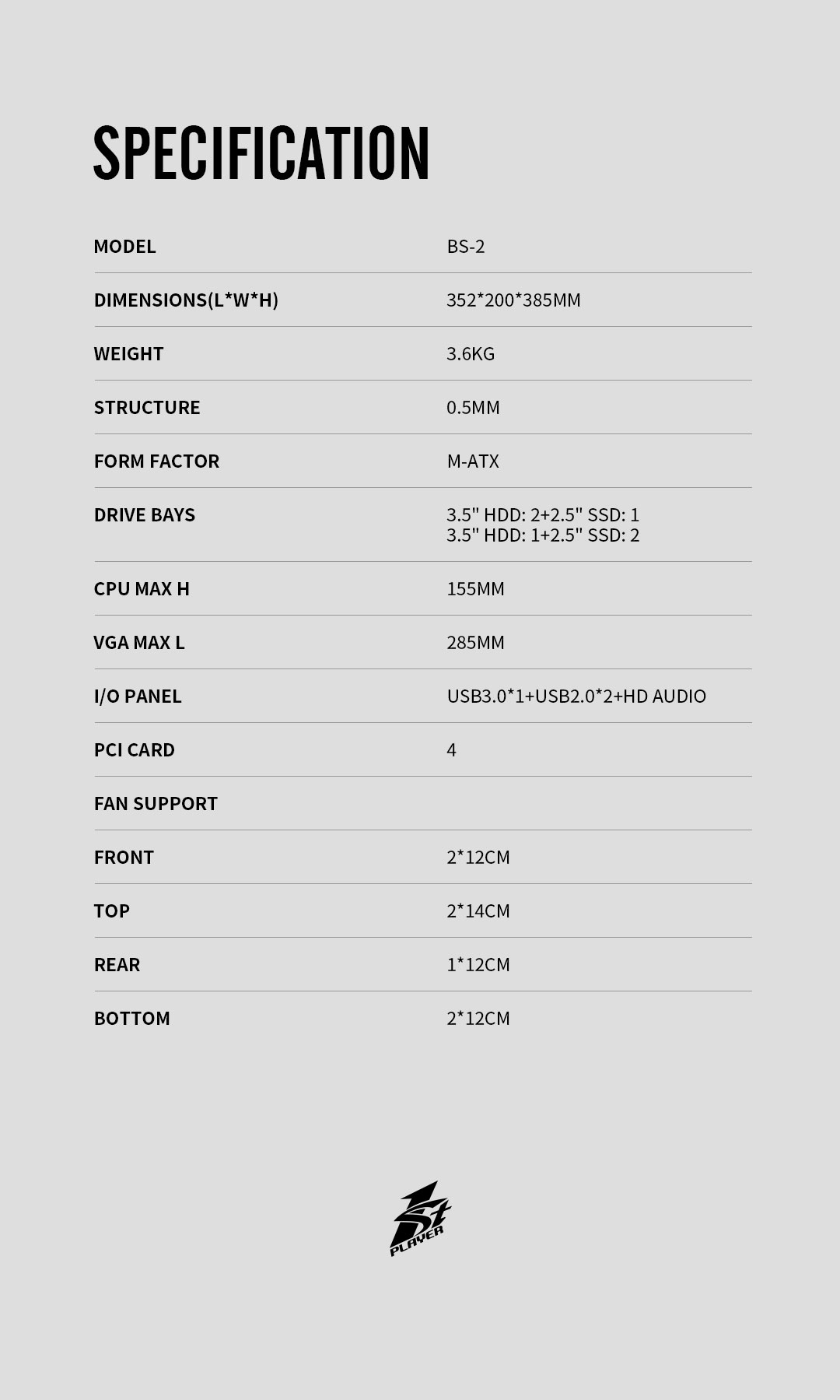

MODEL
BS-2
STRUCTURE DIMENSIONS (L x W x H)
300 x 200 x 375 mm
PRODUCT DIMENSIONS (L x W x H)
352 x 200 x 385 mm
PACKAGE DIMENSIONS (L x W x H)
250 x 430 x 397 mm

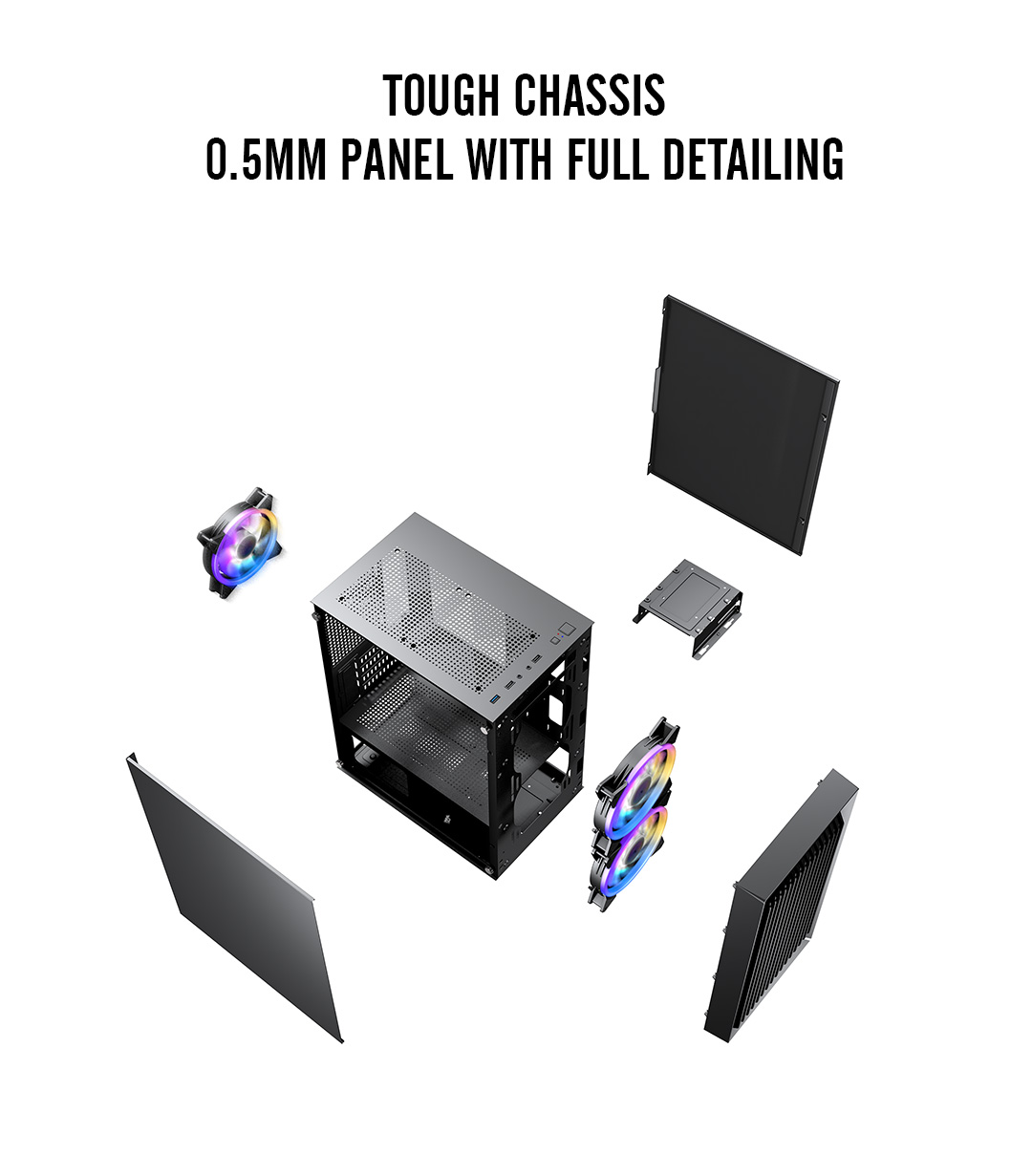

STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm

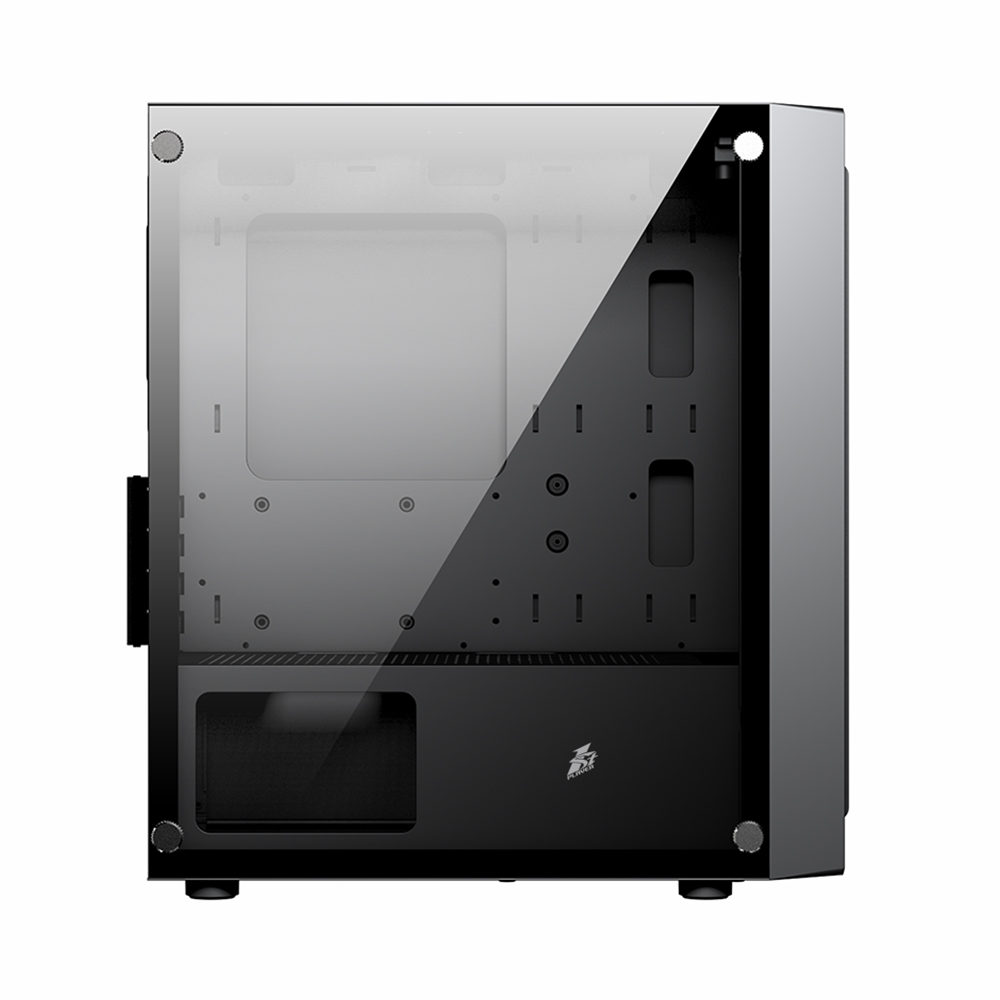

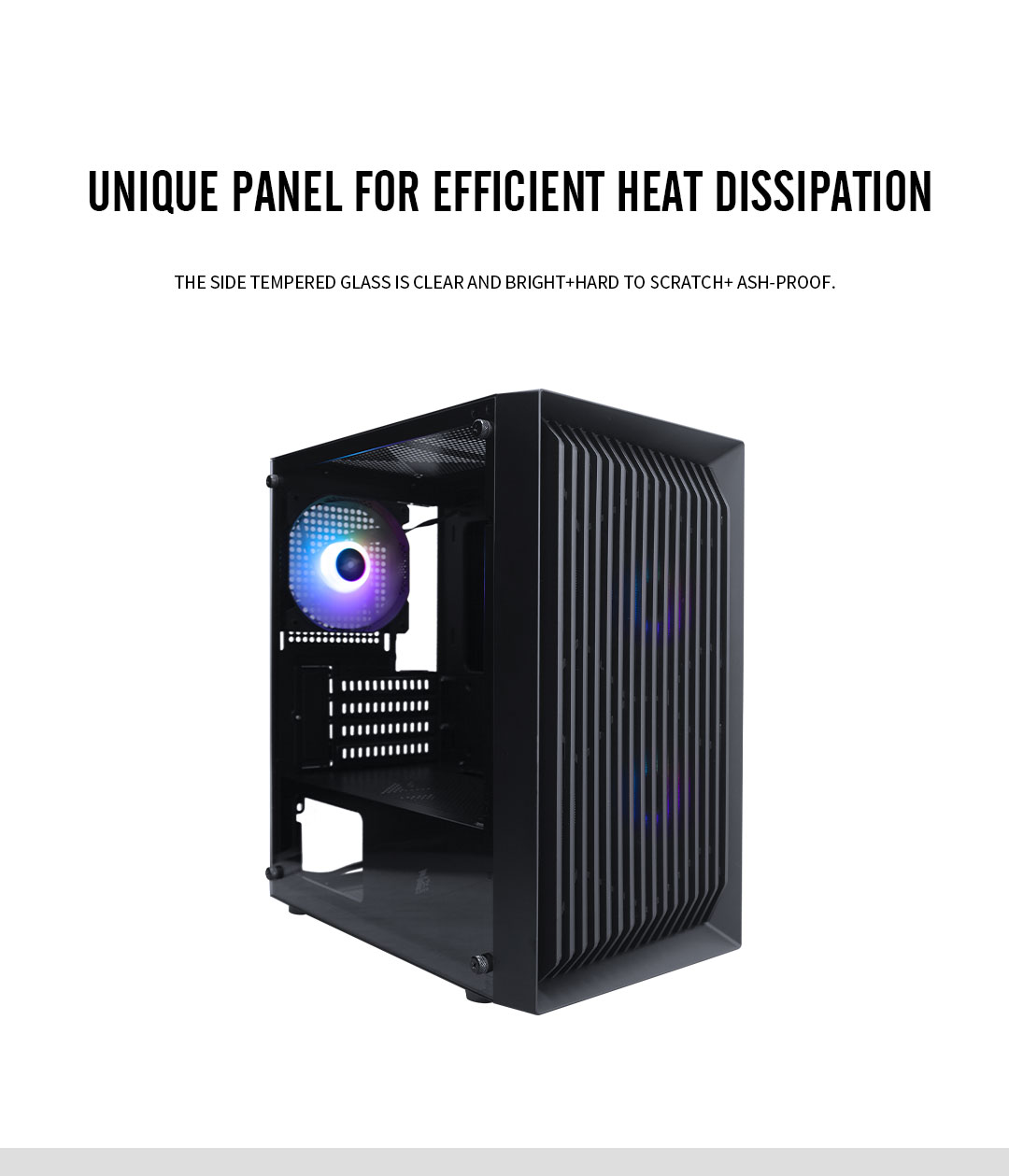

Left Panel: Tempered glass

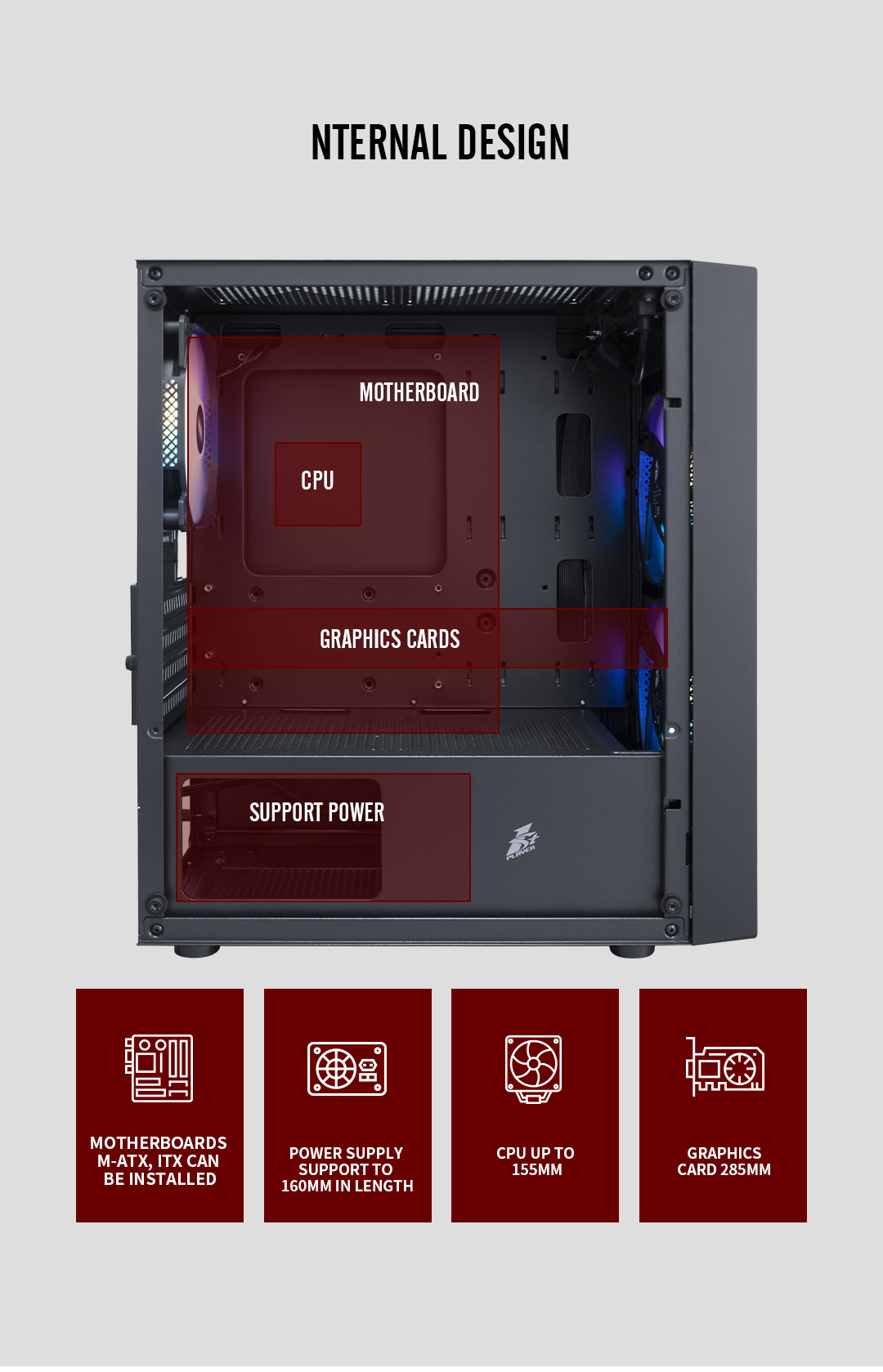

FORM FACTOR
M-ATX / Mini-ITX
5.25" CD ROM: 0

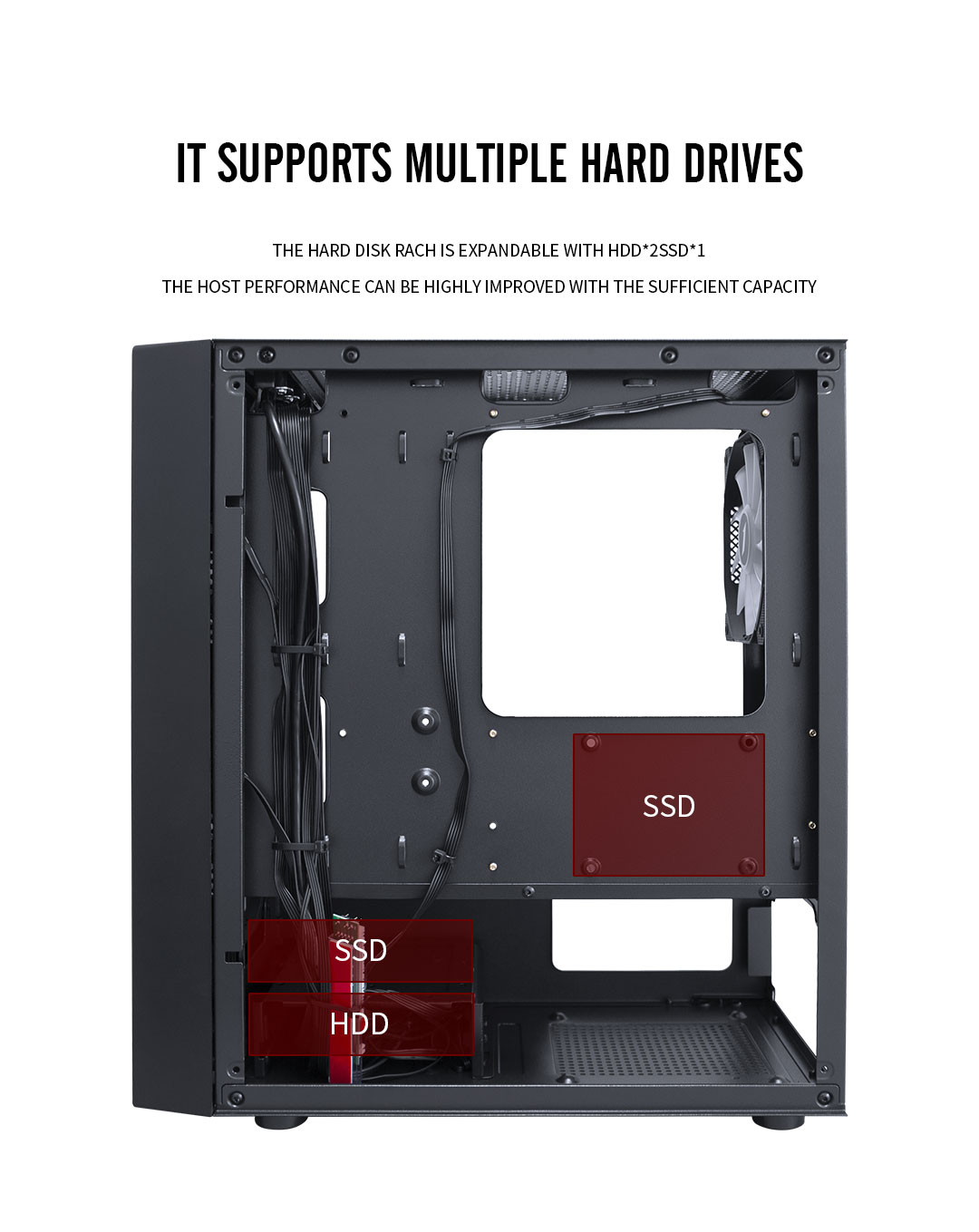

3.5" HDD: 1 + 2.5" SSD: 2
3.5" HDD: 2 + 2.5" SSD: 1
CPU MAX HEIGHT
155 mm
GPU MAX LENGTH
285 mm

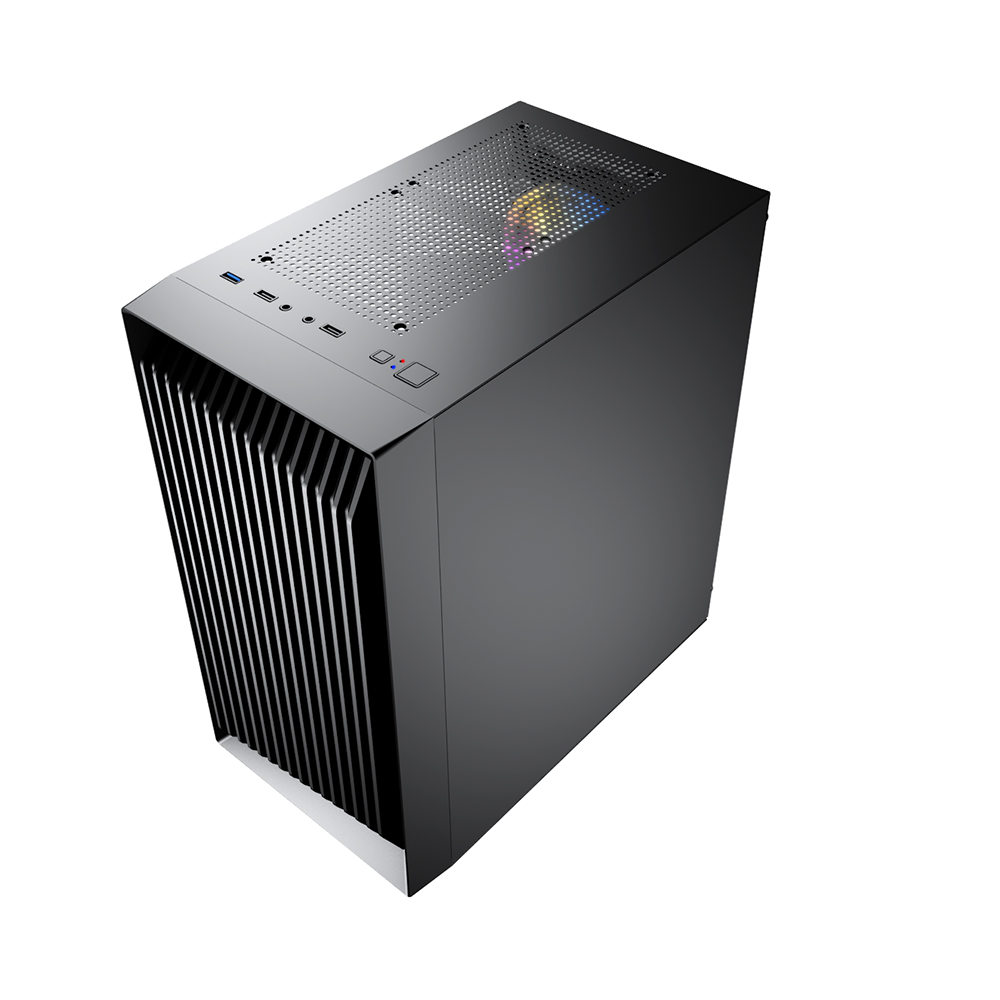

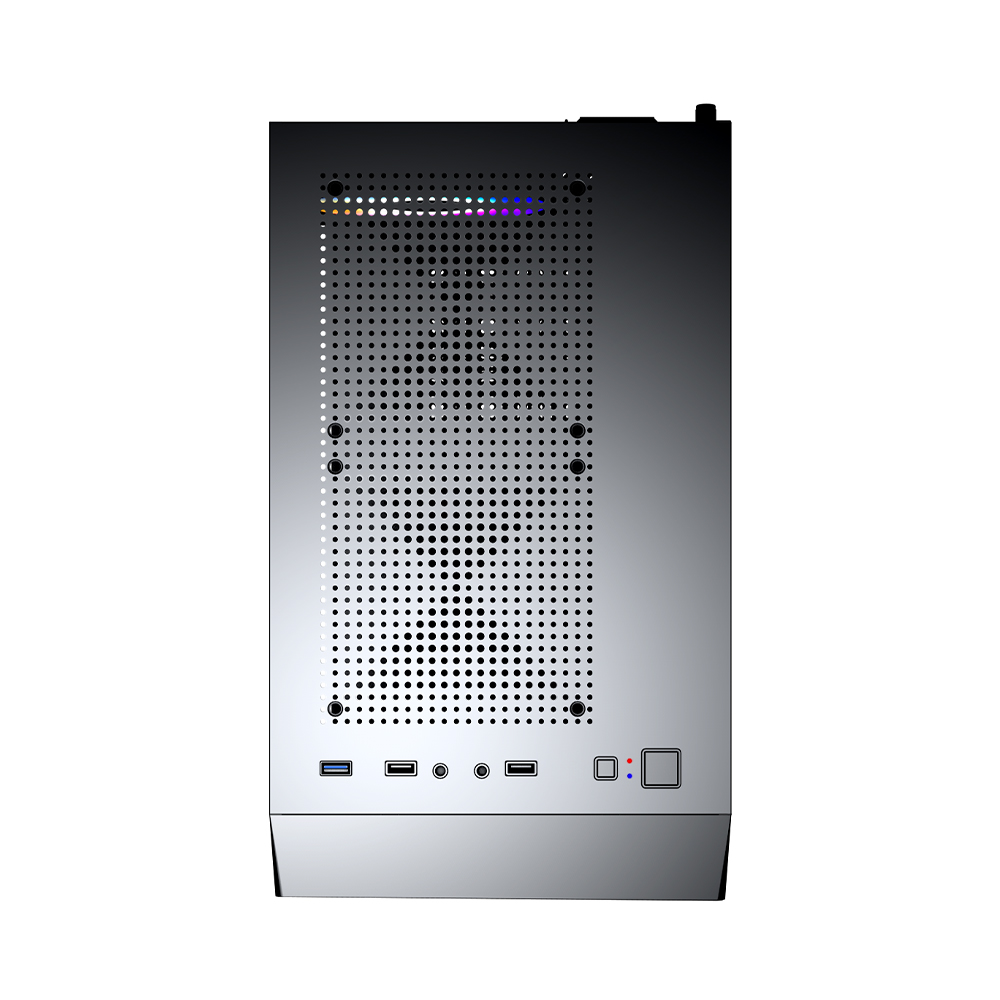

I/O PANEL

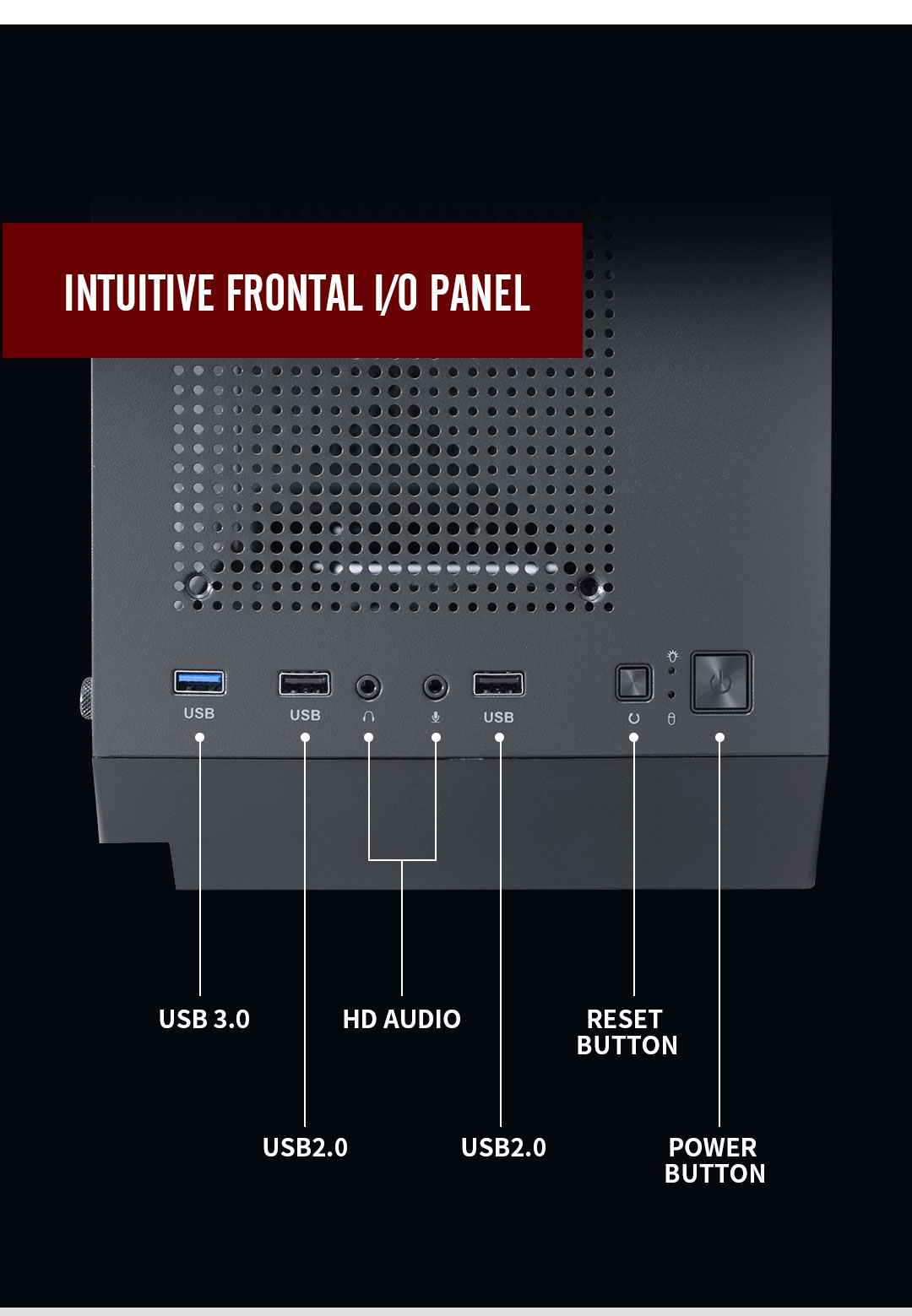

USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

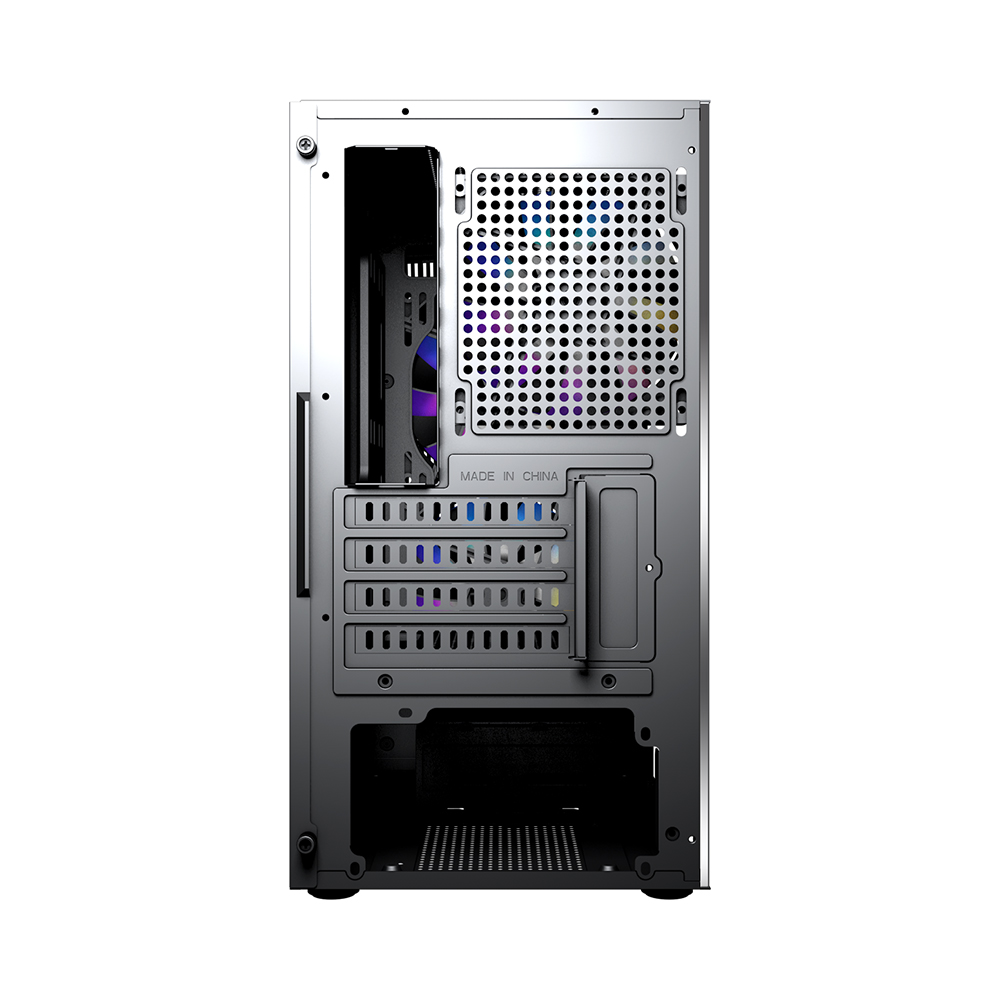

PCI CARD SLOT
4

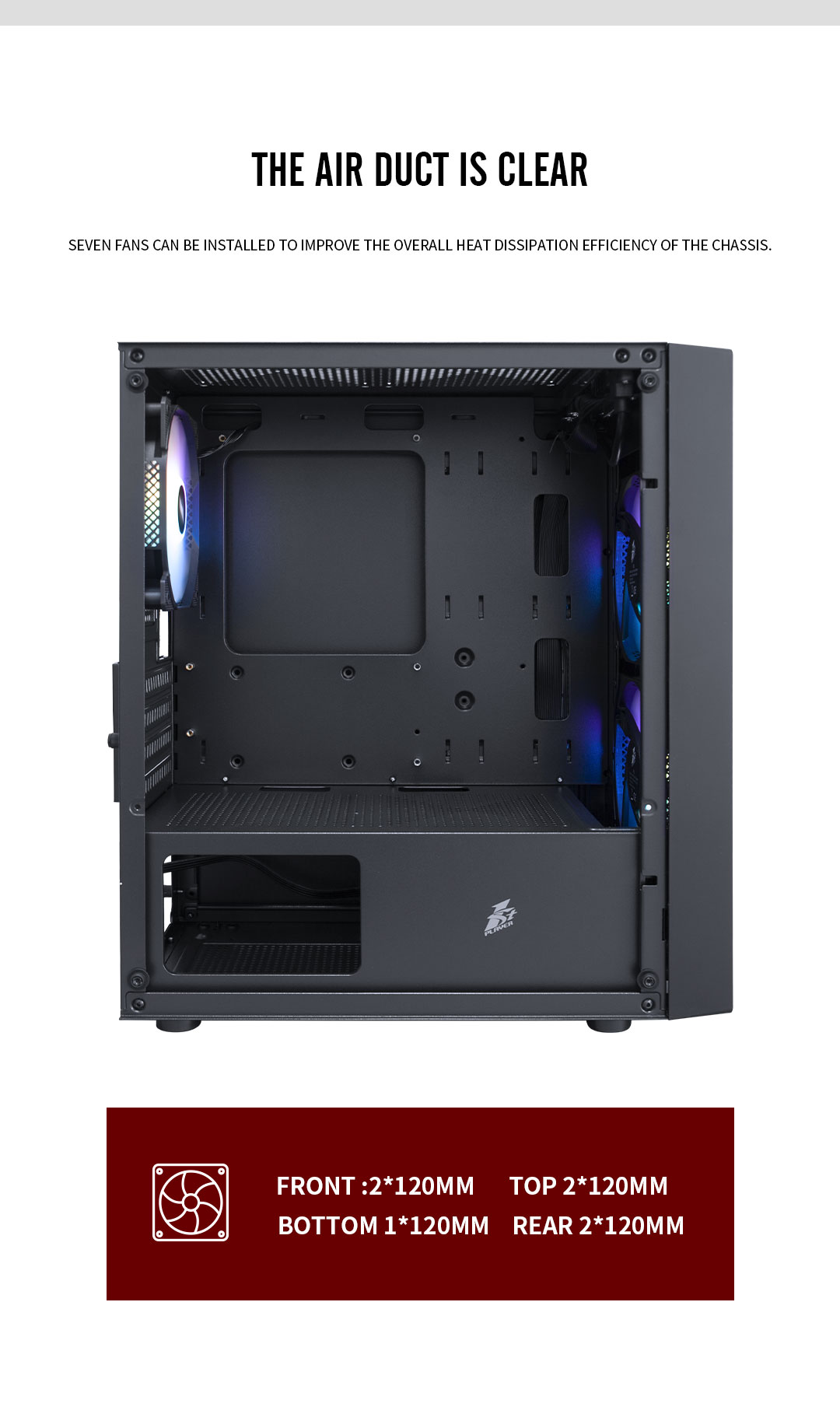

FAN SUPPORT

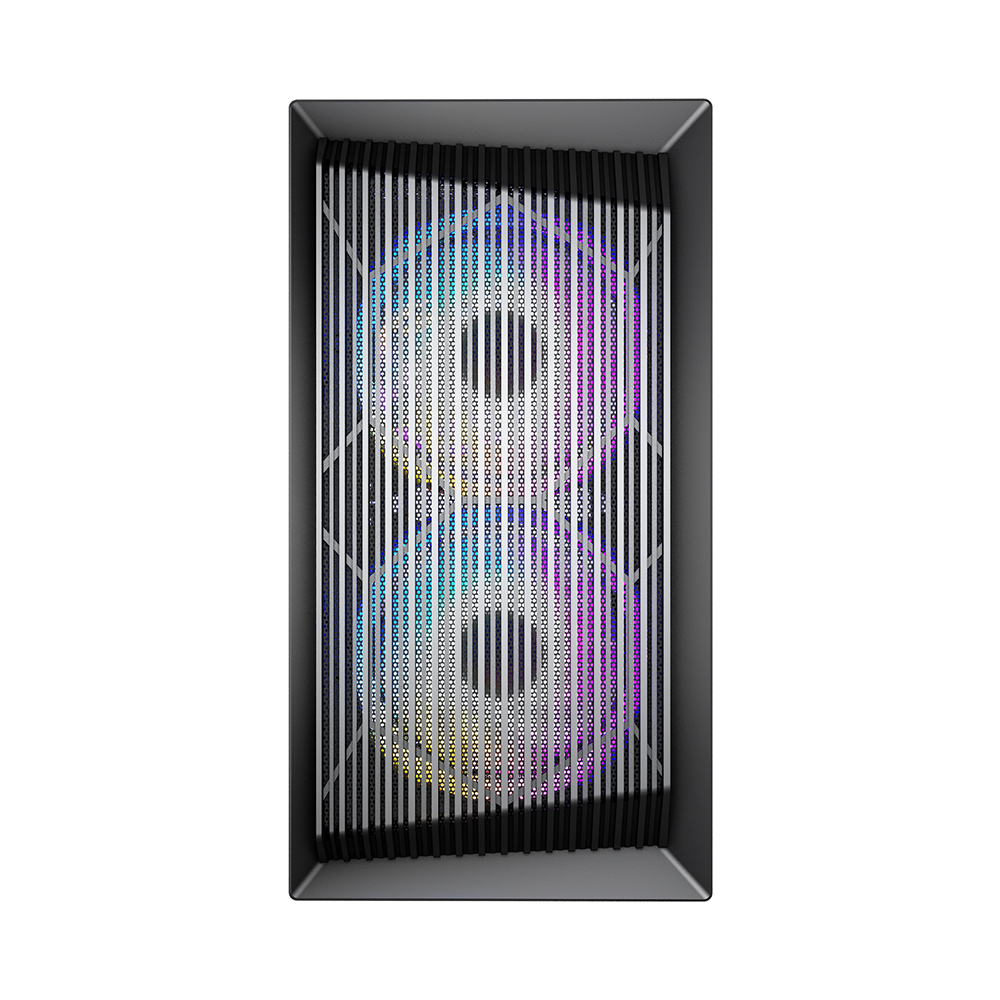

Front: 2 x 12 cm
Rear: 1 x 12 cm
Top: 2 x 12 cm

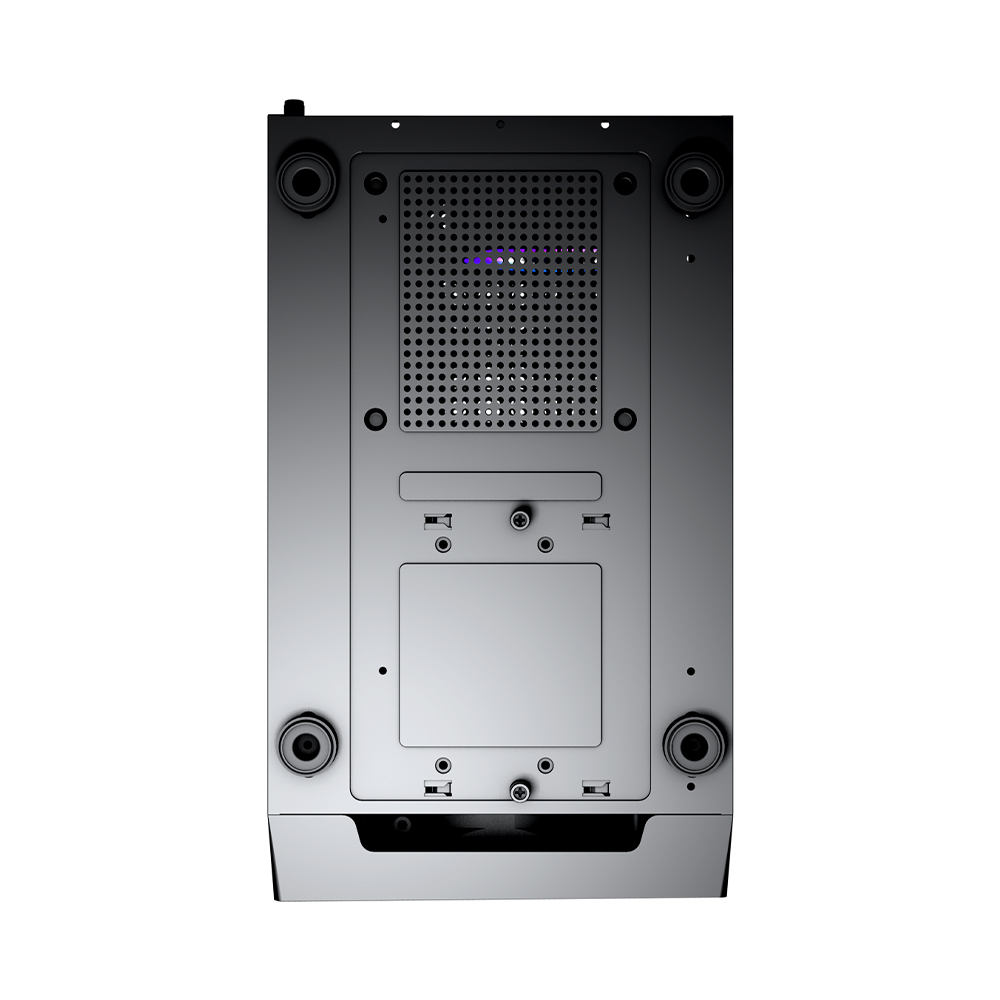

Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
N/A
POWER SUPPLY SUPPORT
NET WEIGHT
3.6 kg
4.9 kg
