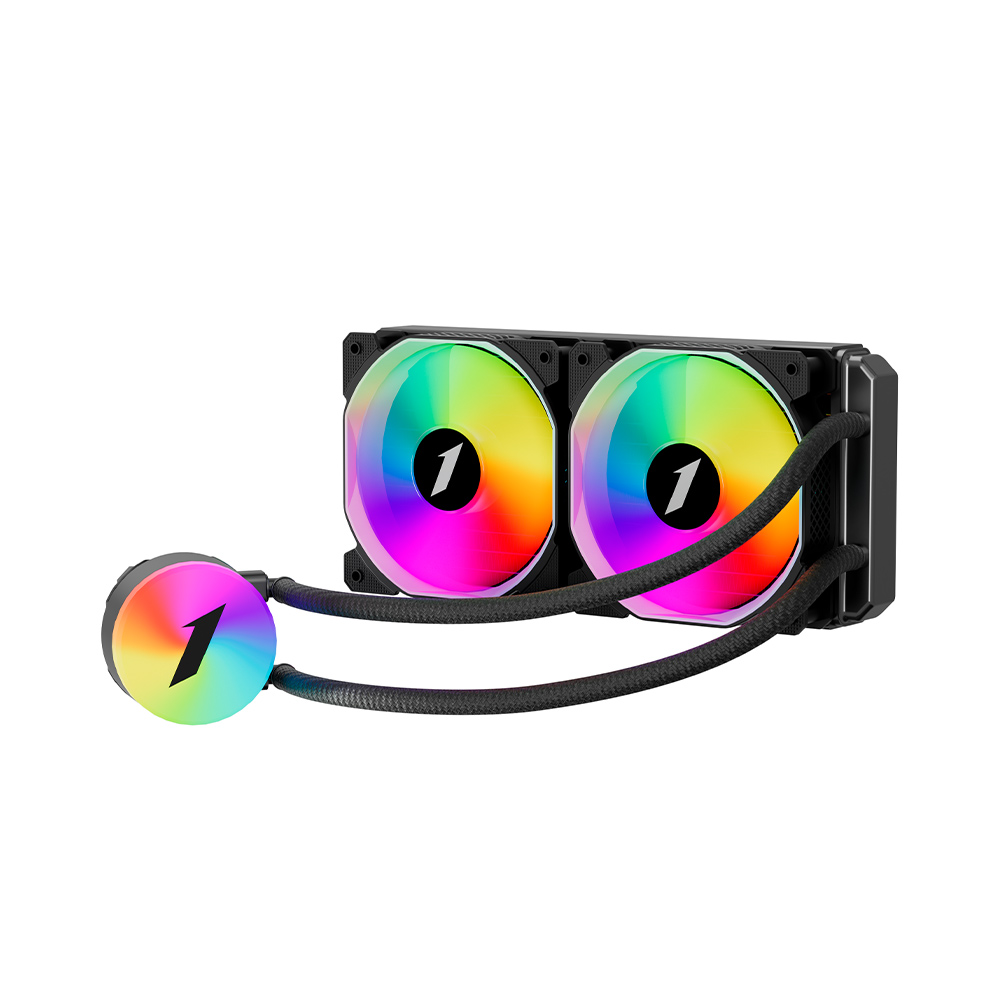

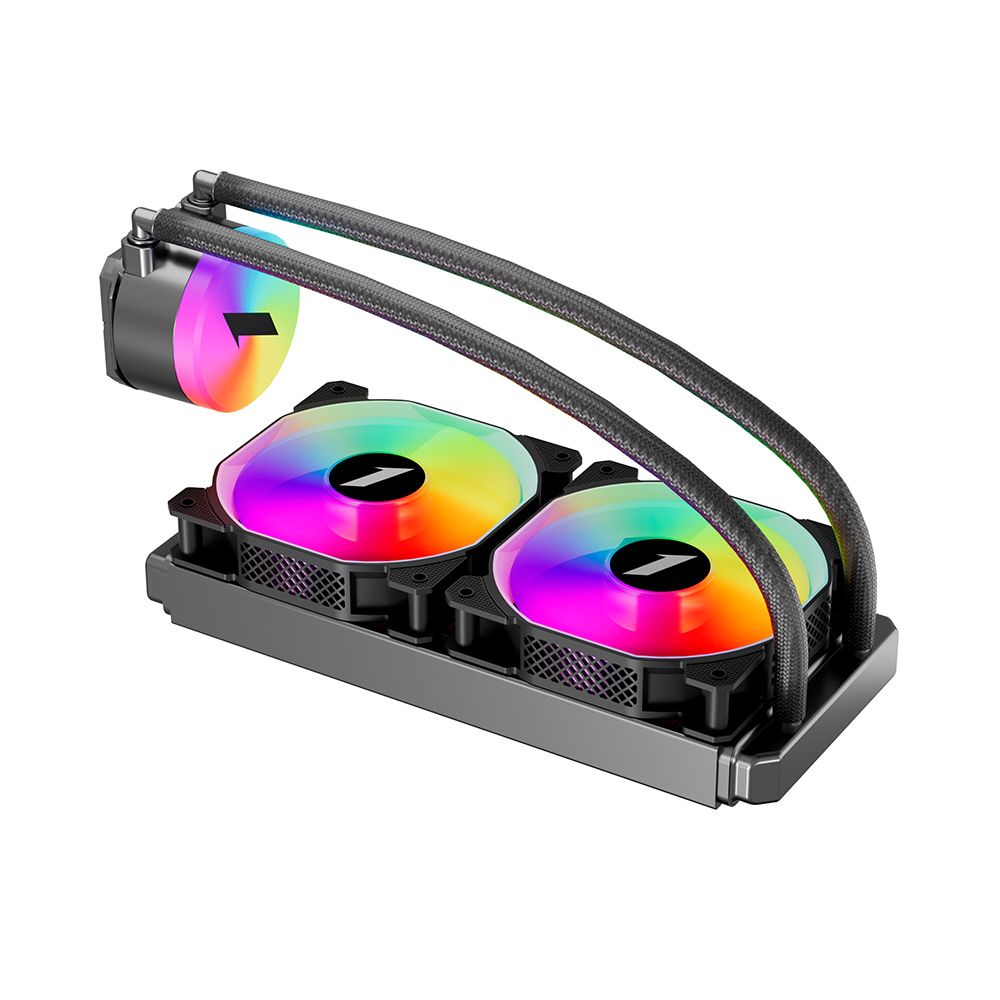

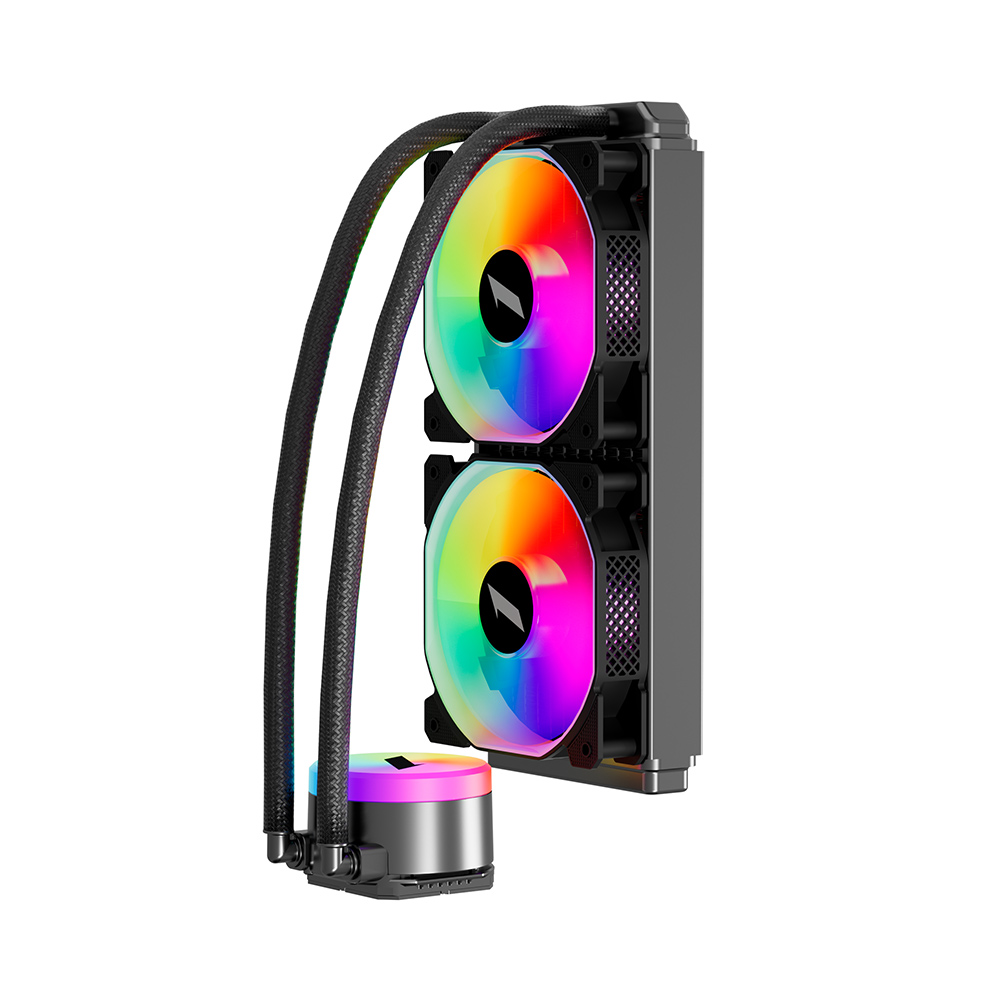

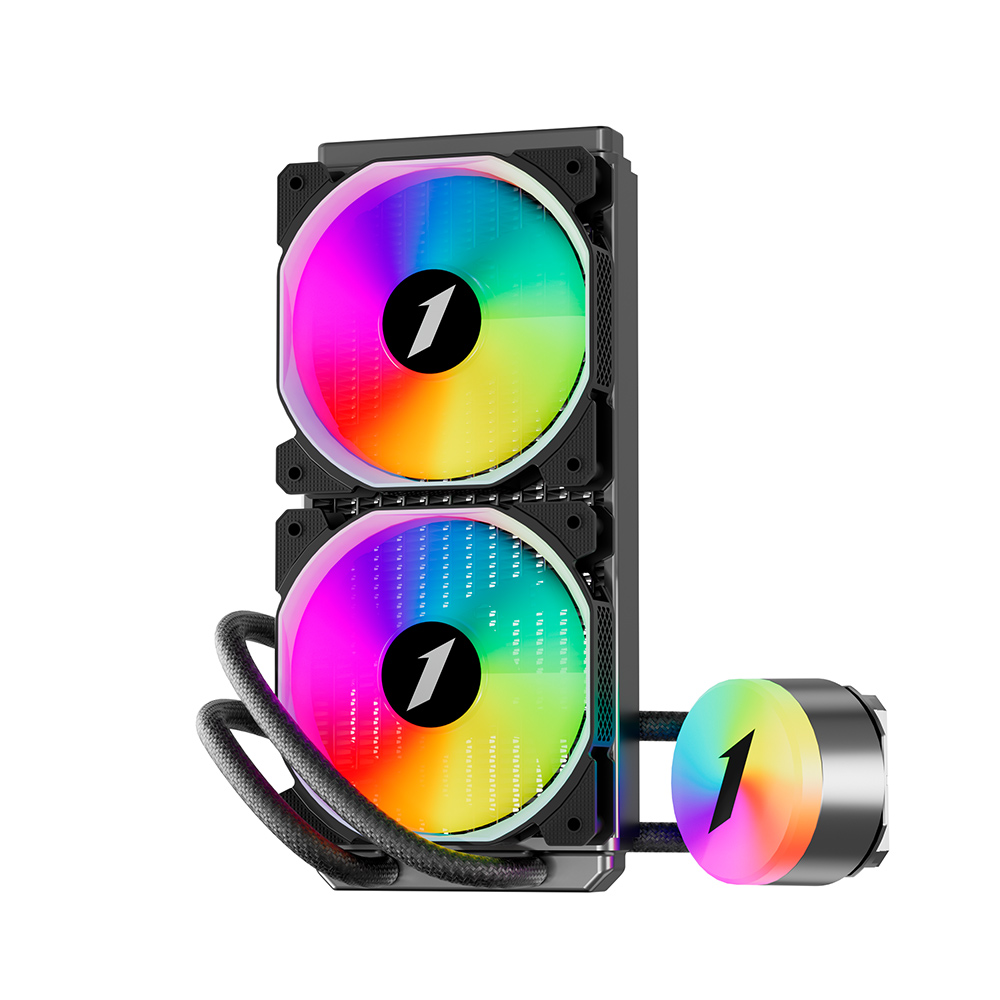

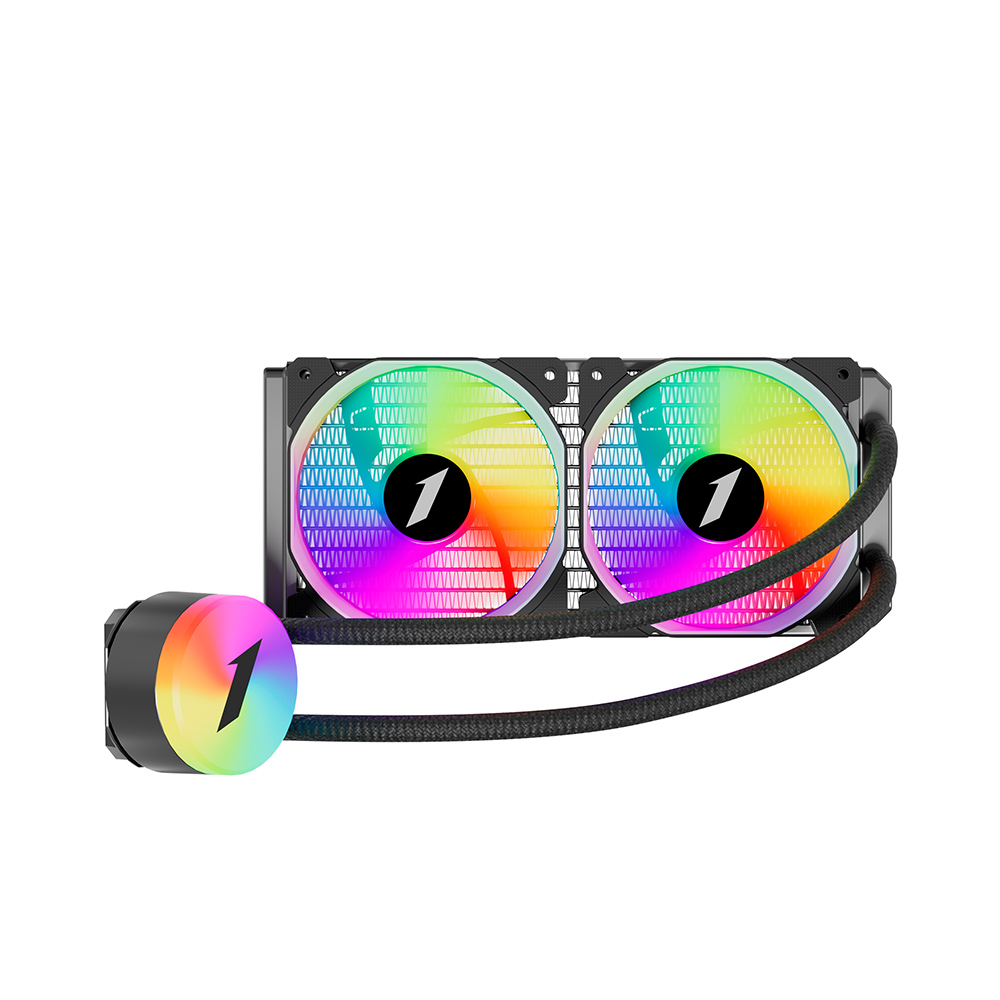

TS2 240（Black）
Pure Copper Endothermic Block
Support 5v RGB Sync with Motherboard (ARGB)on Pump Head&Cooling Fan
Temperature Controlled 9 Blades Fan (600-1800RPM)with Noise Reduction Feature
Long Life Bearing Water Pump (2500±10%RPM)/40,000hrs

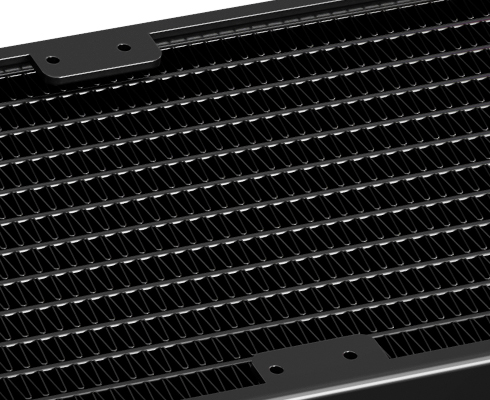

High Density Sigmoidal Pins Radiator
High-performance silicone grease
LIQUID COOLER
Distinguishing the structural beauty of the Yan series of water cooloing,the new Che series of water cooling not only provides the beauty of ARGB lighting,but also increases the fan speed and silicone heat dissipation performance,more comprehensive compatibility and the same powerful construction.For the professional players who pursue rareness and high-quality,Che can satisfy your love.
ARGB Motherboard Synchronization
Multi-Platform Compatible Design
White Jade Layer Water Cooling System
Integrated Water Cooling
Long-Acting Bearing Water Pump
High Density Inverted Fin Heat Dissipation
Pure Copper Heat Absorbing Block
Noise-Reduction Temperature Control 9 Blade Fan
①Water Cooling : TS dual coldness exhaust system + 2.2 lift injection + six-in six-out cooling cycle + high-precision fin group base.
②Stability : 1.3mm thicker liquid pipe + anti-flocculation coolant + low-noise motor.
③Appearance Suitable : ARGB lighting system + white jade layer water cooling system.

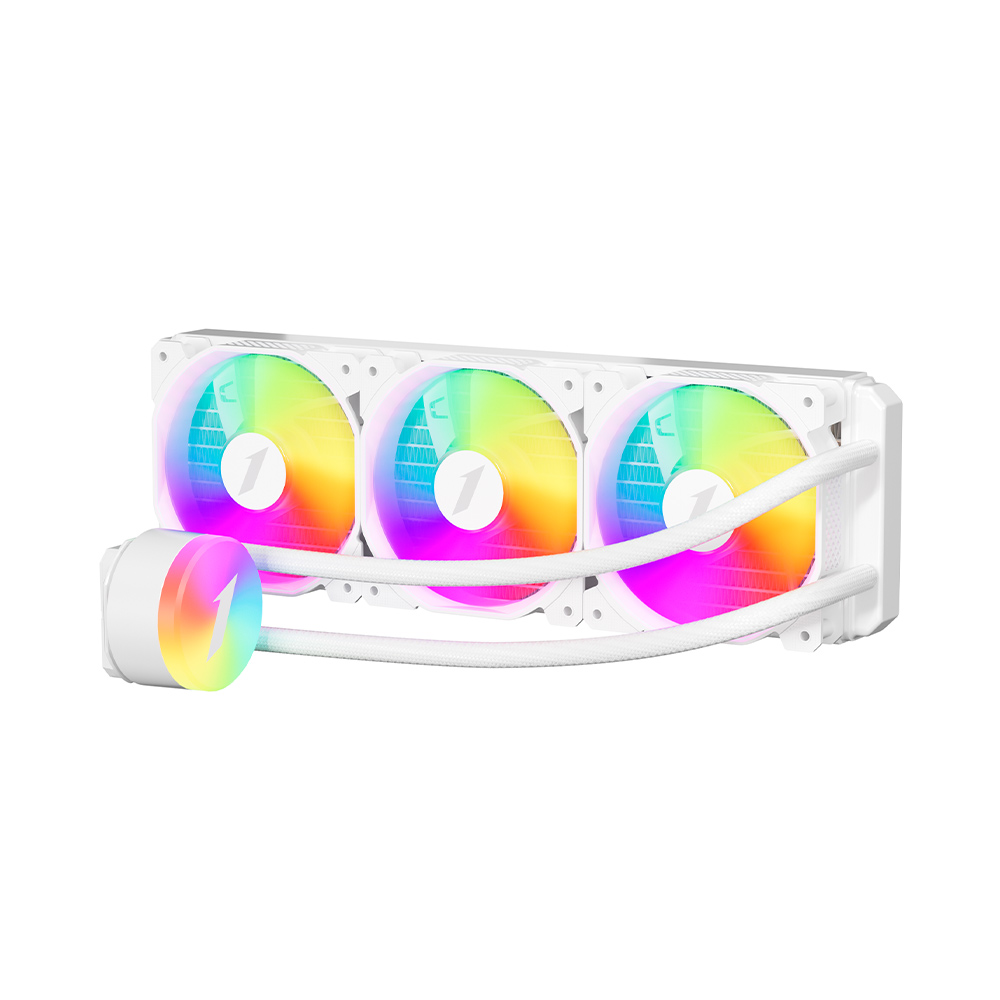

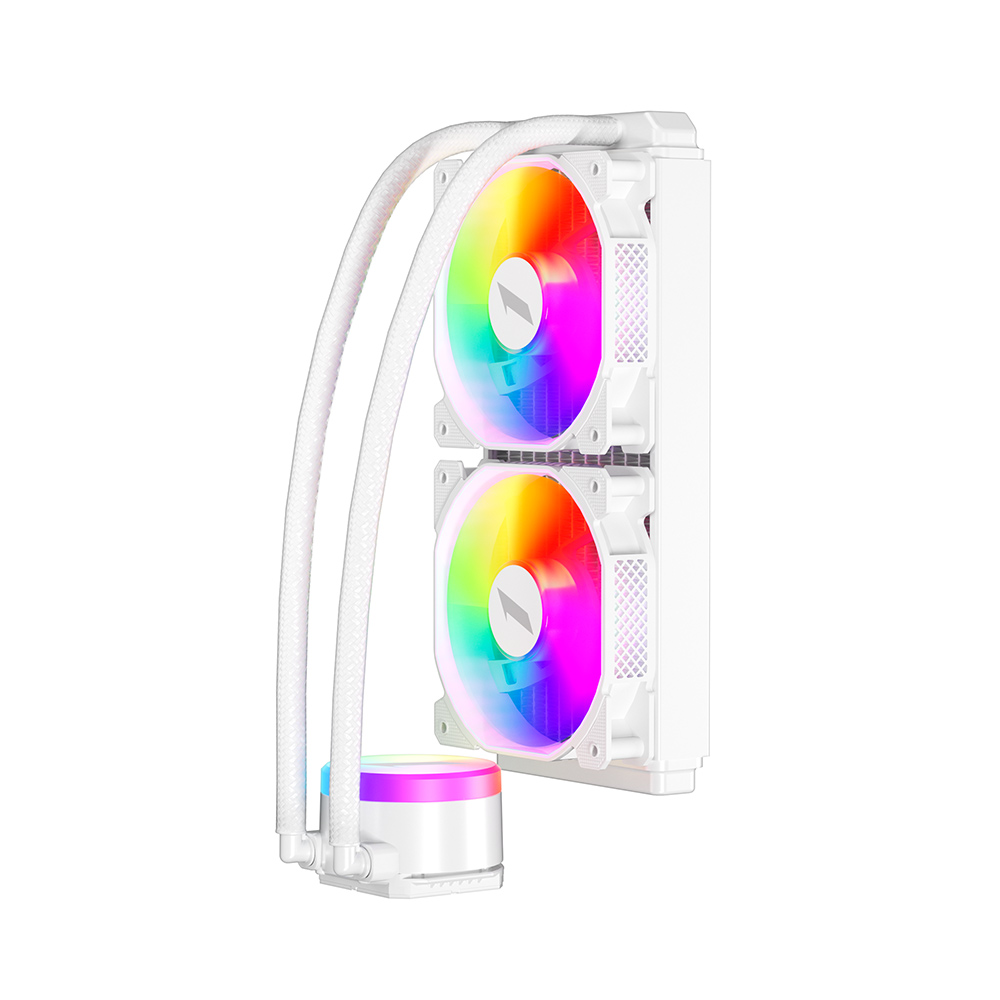

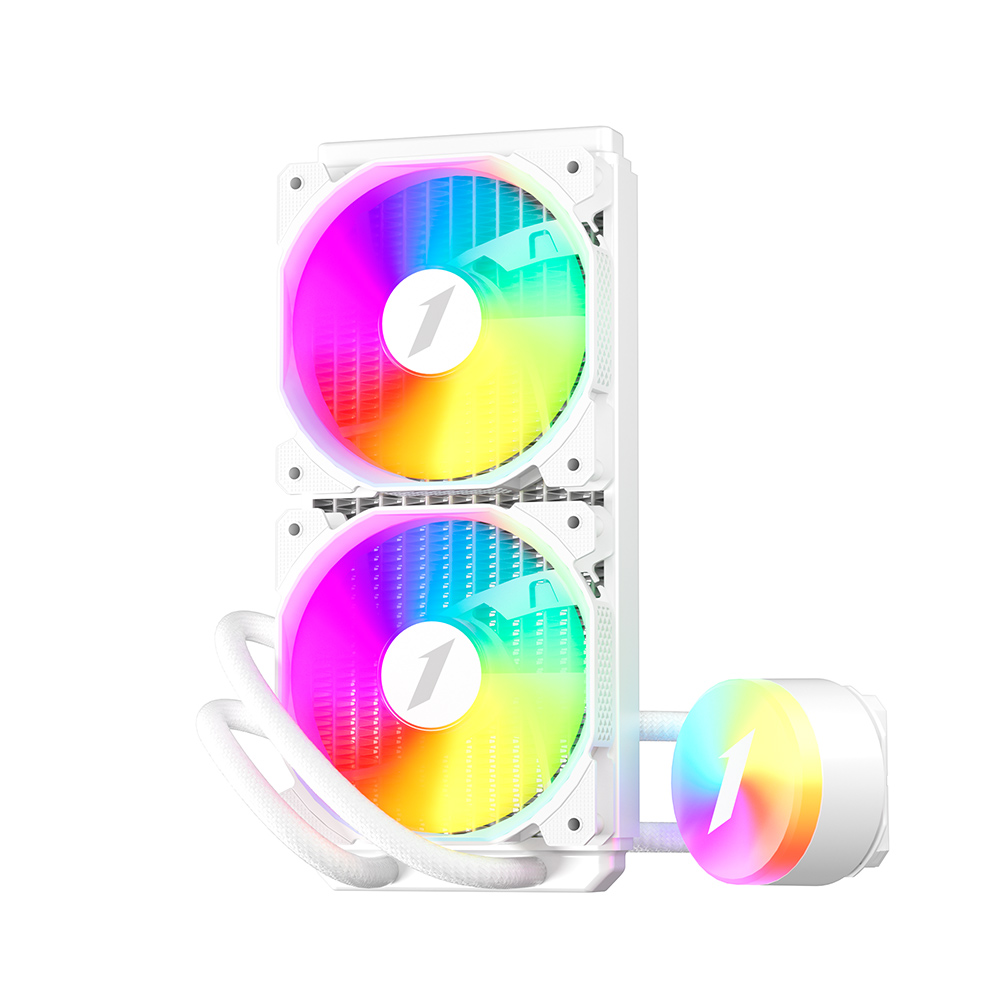

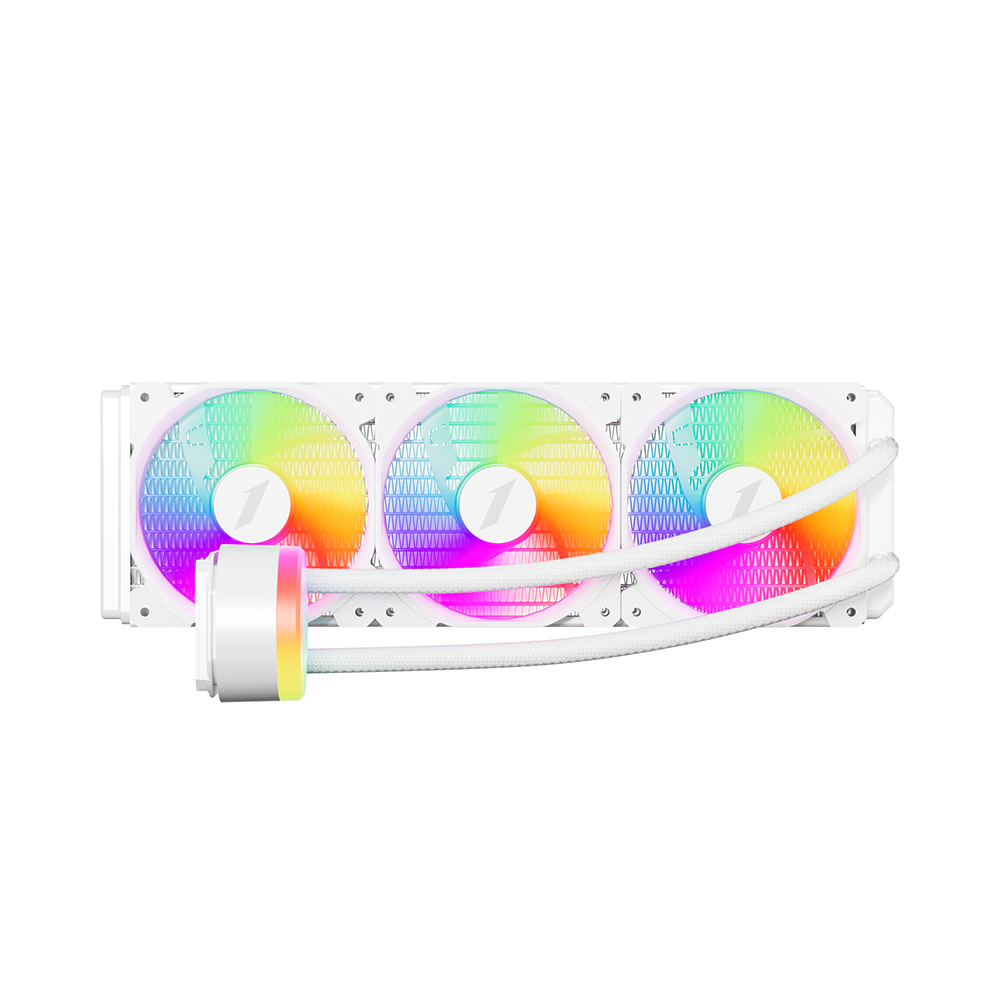

White jade layer water cooling with ARGB light effect (5V interface)
The main board ARGB with light effects such as breathing and color can be fully displayed one by one.
coldness exhaust is equiped with PWM(600-1800RPM) intelligent speed control fan.Thinner frame,more heat heat dissipation area.Soft light fans with ARGB show their powerful function,beautiful appearance.
Up to 2400RPM solid bearing water pump,with smooth start,low noice and vibration-proof performance.
1,3mm pipe wall can withstand even 45kg tension,reduce liquid volatilization and prevent leakage with wear resistance.
Boiling point:150℃,freezing point:-20℃,physical parameters is to prevent the flocculation.after the use of coolant for a long time,which will block waterways,resulting in cooling effect decline and other problems.
High-precision fin group copper seat with 0.15mm thickness and 0.2mm spacing

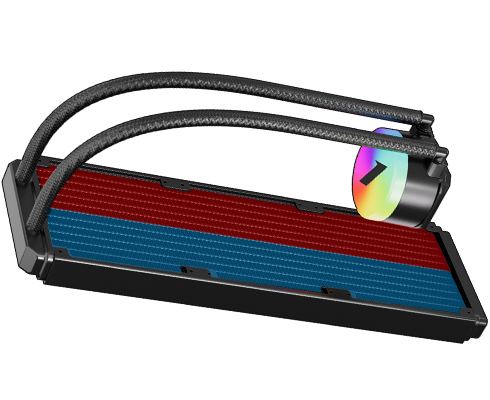

The thin waterway design forms high-density fins that absorb heat over a large area.Being different from the traditional water pump single-channel design,the TS2 240 can form a two-way water channel and fully cover the entire heat dissipation area.With six-into six-out heat circulation,heat dissipation effect can reach 1 to 2 times the one-way effect.
Model
TS2 240 / TS2 360
Scope of Application
Intel(LGA1700/115x/1366/2011)&
AMD(AM5/AM4/AM3/AM2/FM3/FM2/FM1)
Dimensions
277×119×27mm（TS240） / 397×120×27mm （TS360）
Material
Aluminum
Length
Dimensions
74×89.2×51.8mm
Speed
2500 RPM±10%
Noise
30dB(A)
Connector
Rated Voltage
12V DC
Rated Current
≤0.3A
Power Consumption
≤3.6W
Fan
QTY
2 pcs / 3 pcs
120*120*25 mm
600-1800 RPM±10%
Airflow
75.61CMF
2.2 mmAq
Noise
≤36.5 dB(A)
Connector
4 Pin（PWM）+ARGB
Bearing Type
Hydraulic Bearing
