Fans Support: Up to 6 fans
USB3.0*1+USB2.0*2+HD AUDIO
5.25" CD ROM: 0
①3.5" HDD: 1 + 2.5" SSD: 1
②3.5" HDD: 0 + 2.5" SSD: 2
③3.5" HDD: 2 + 2.5" SSD: 0

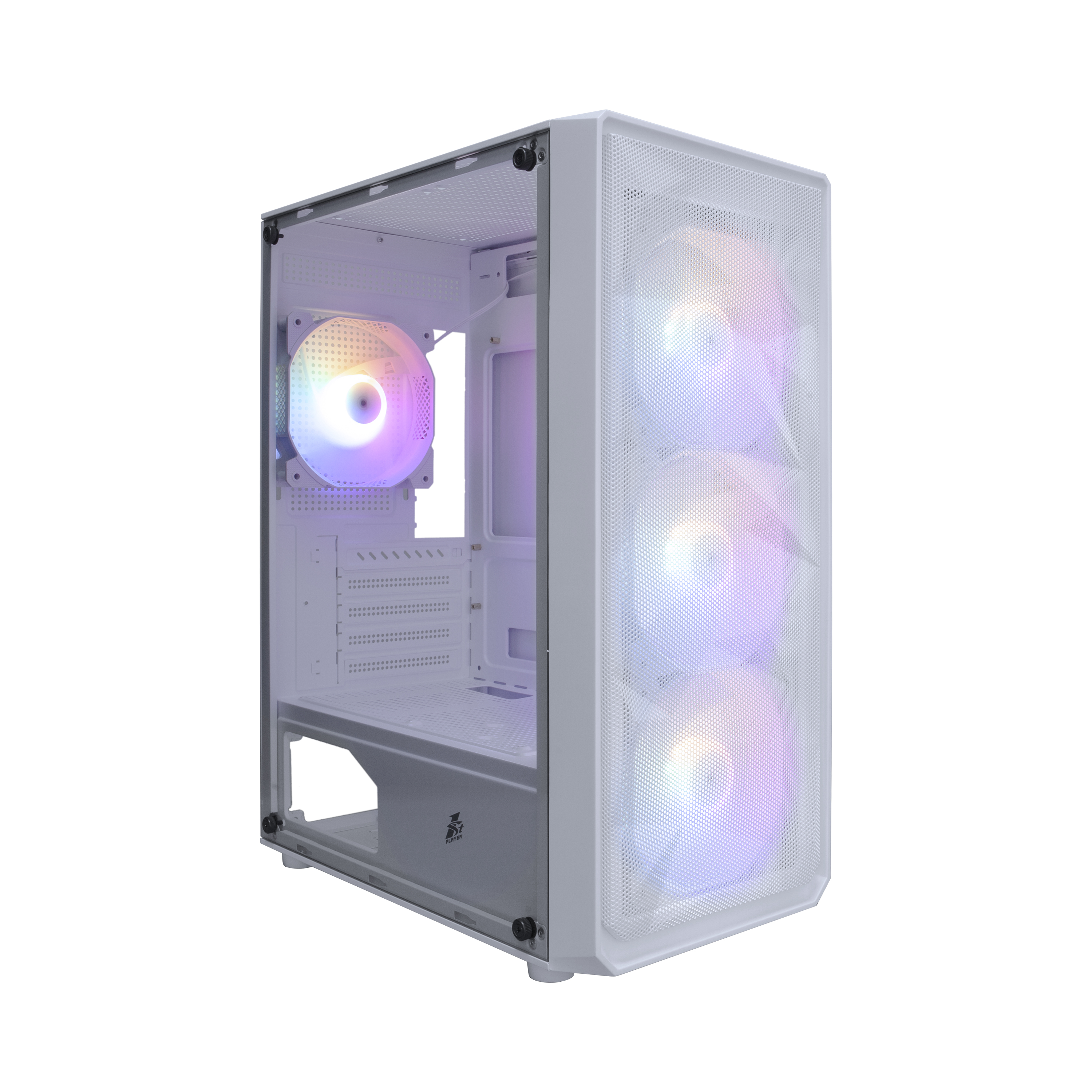

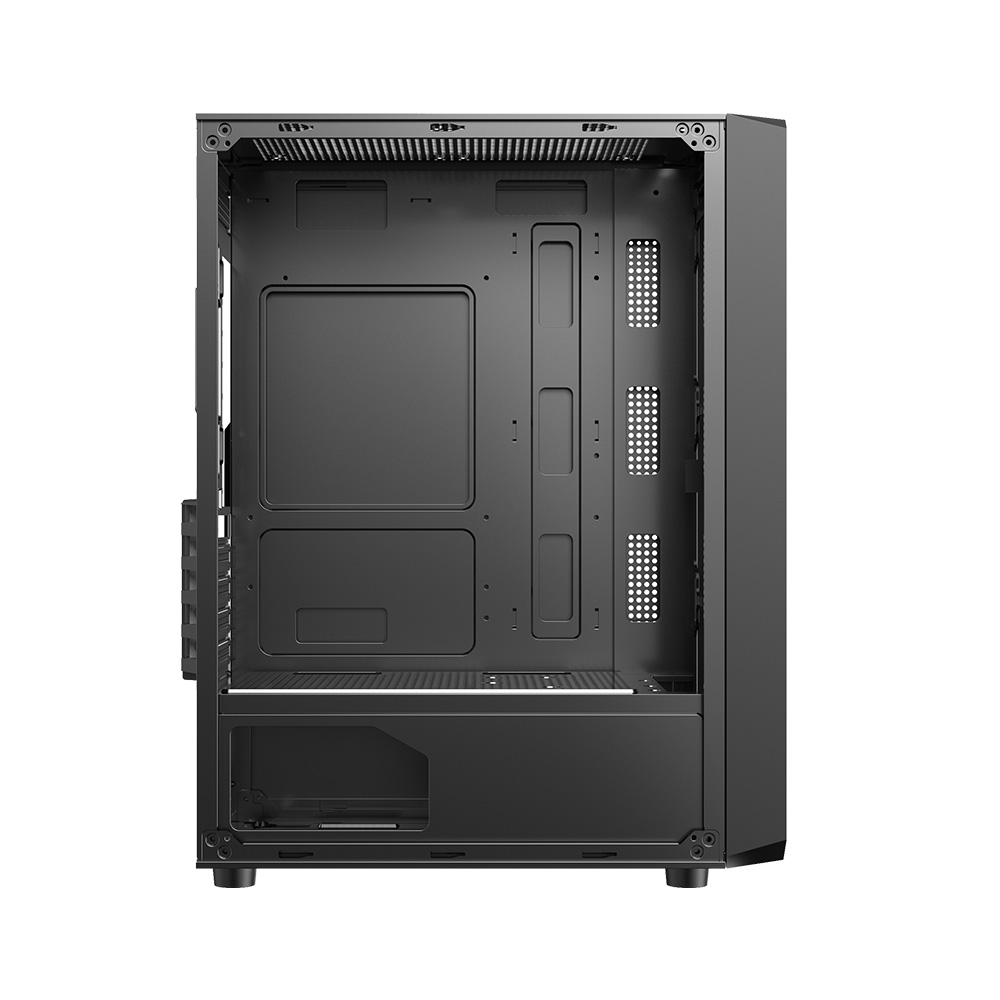

LEFT SIDE PANEL: TEMPERED GLASS

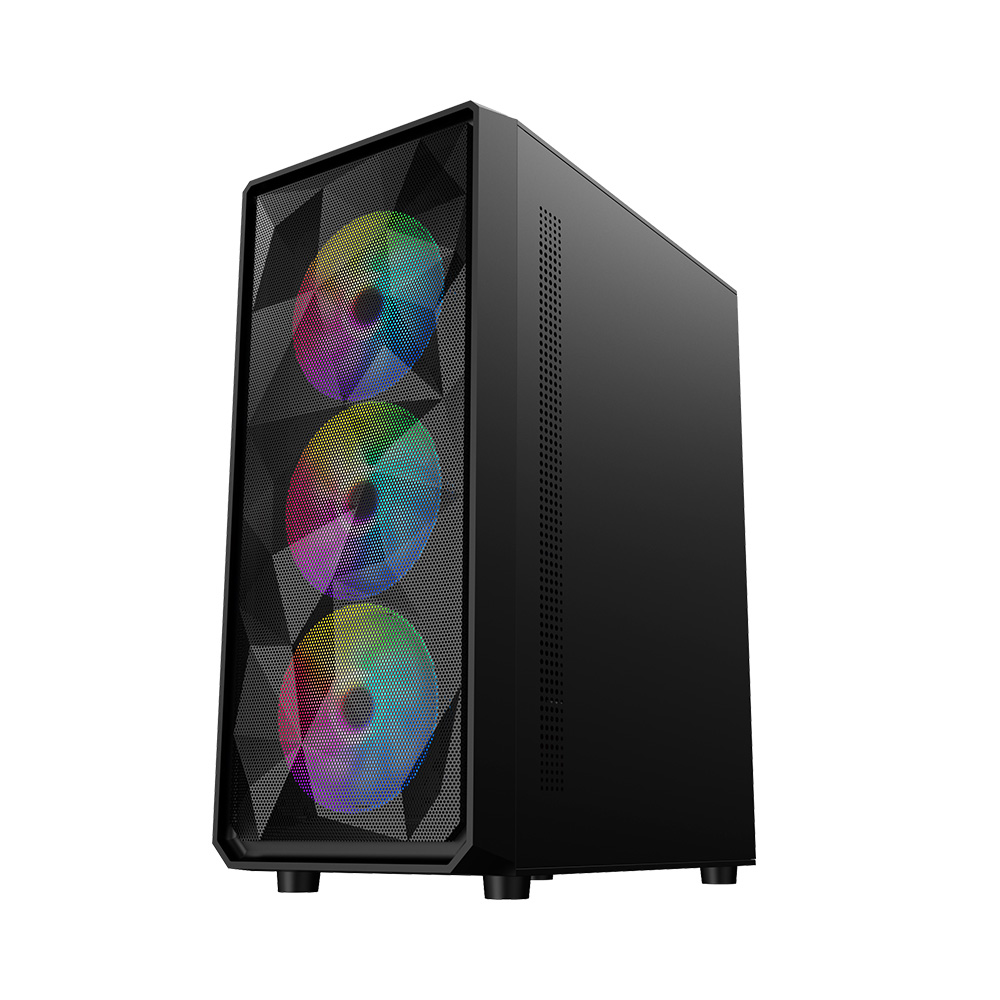

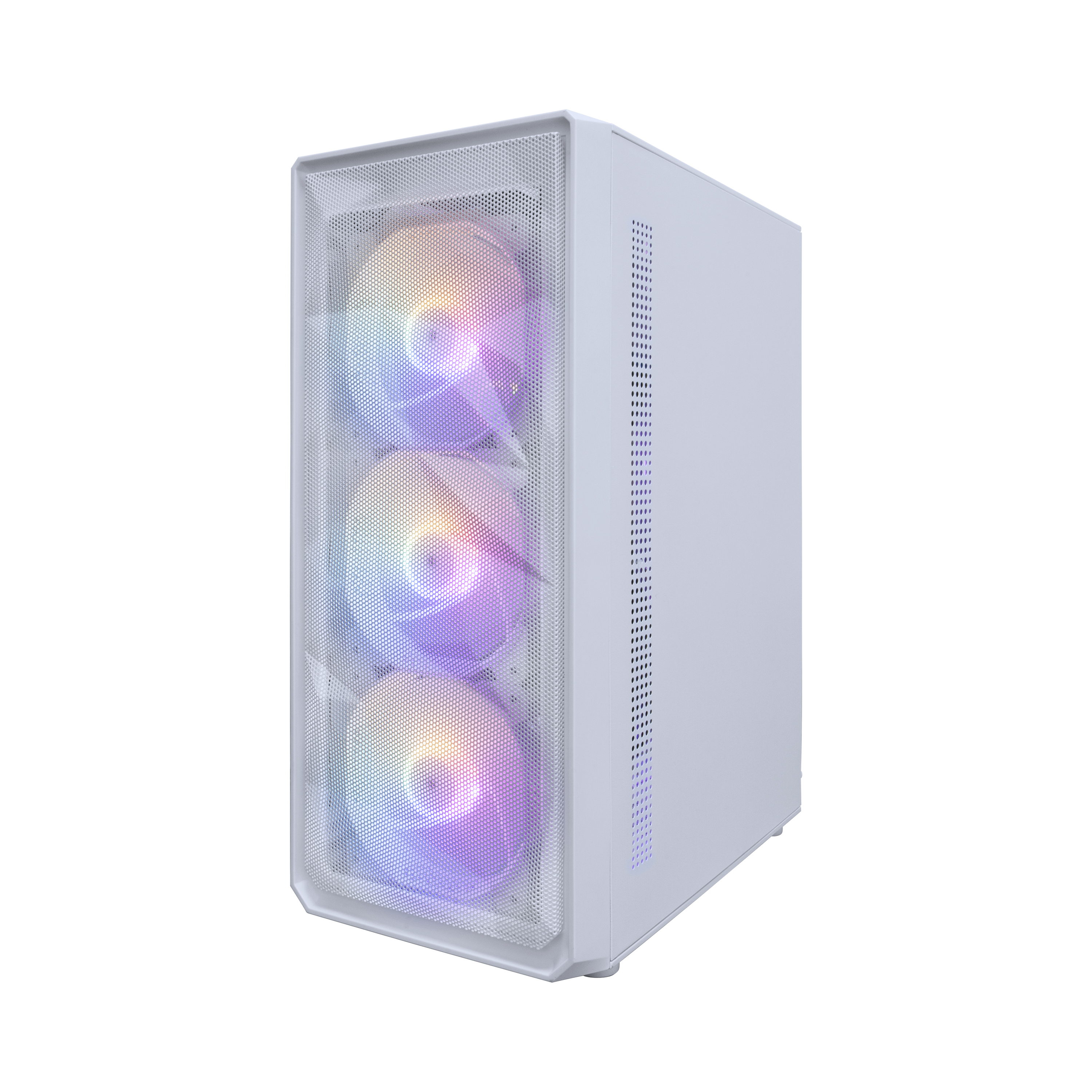

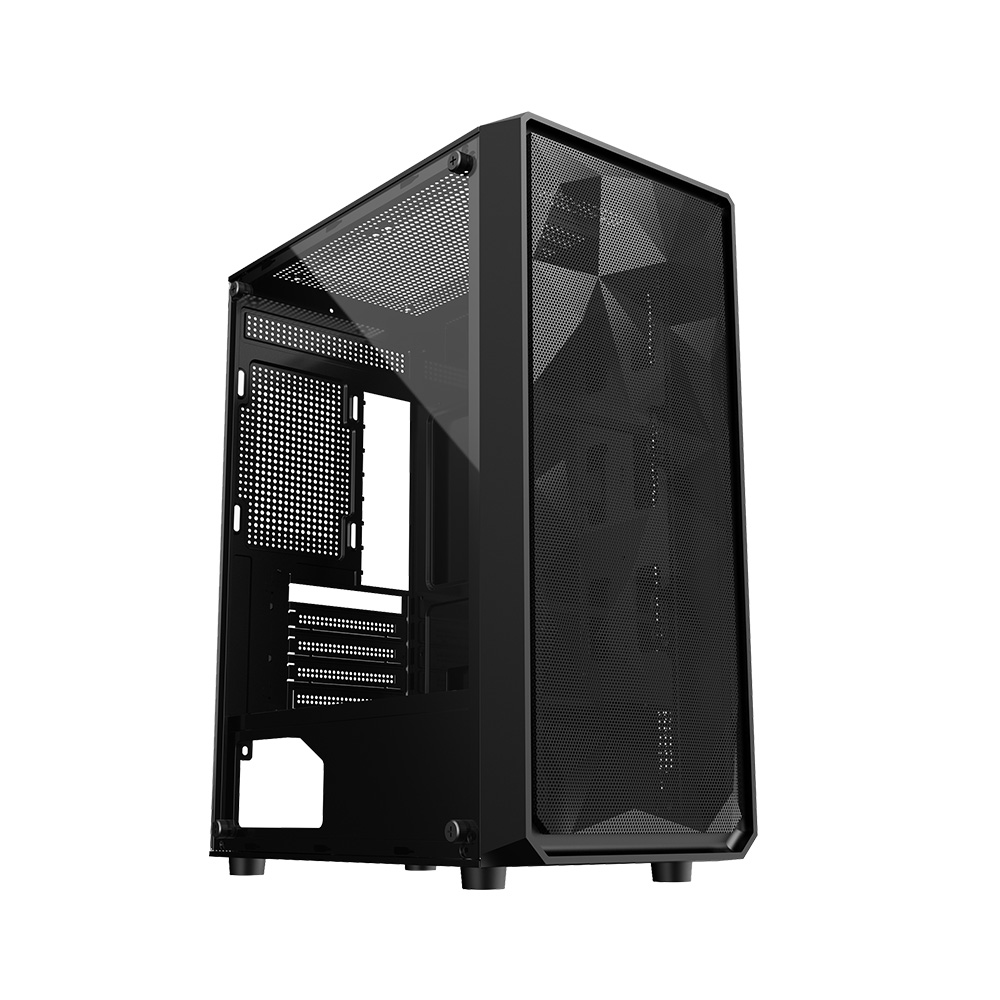

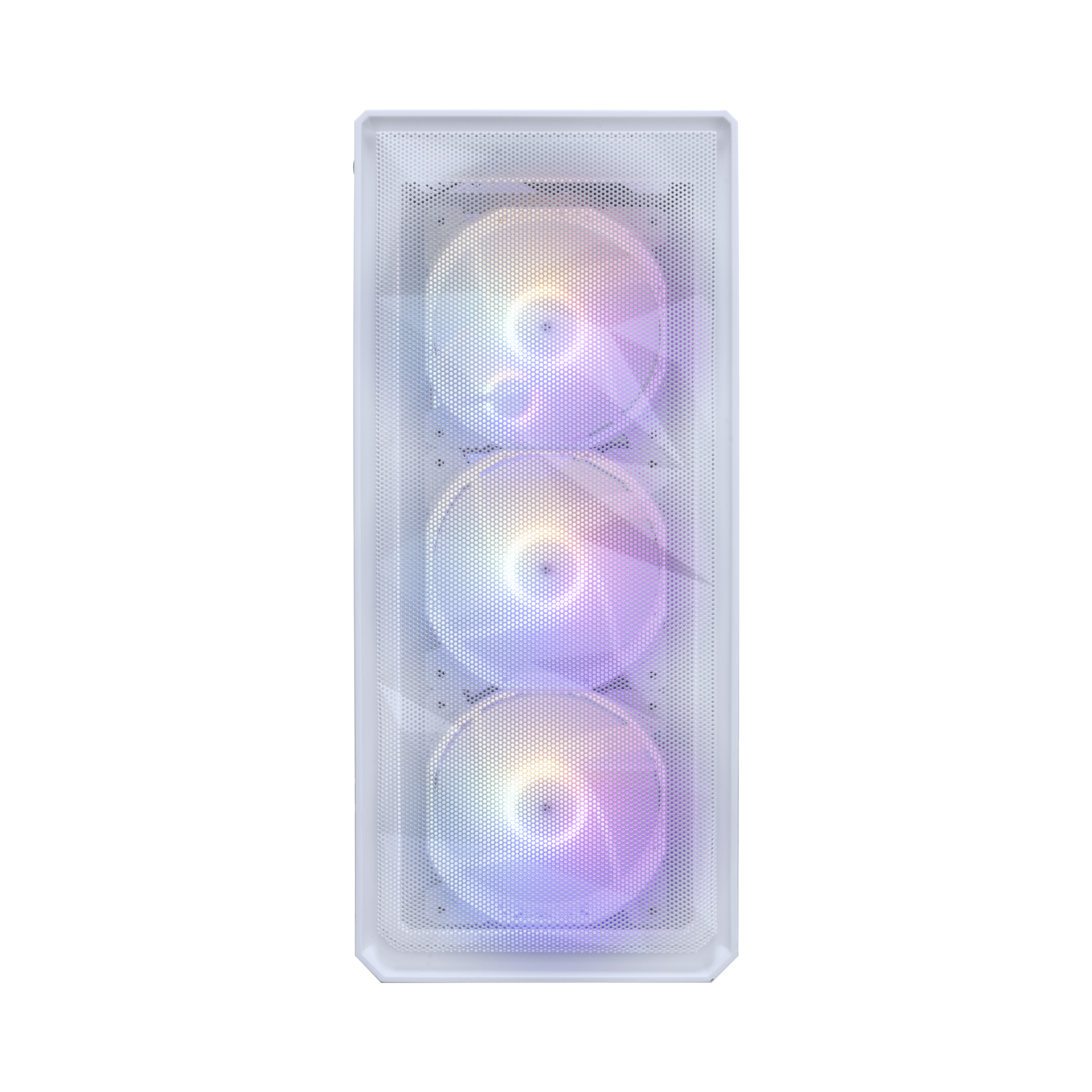

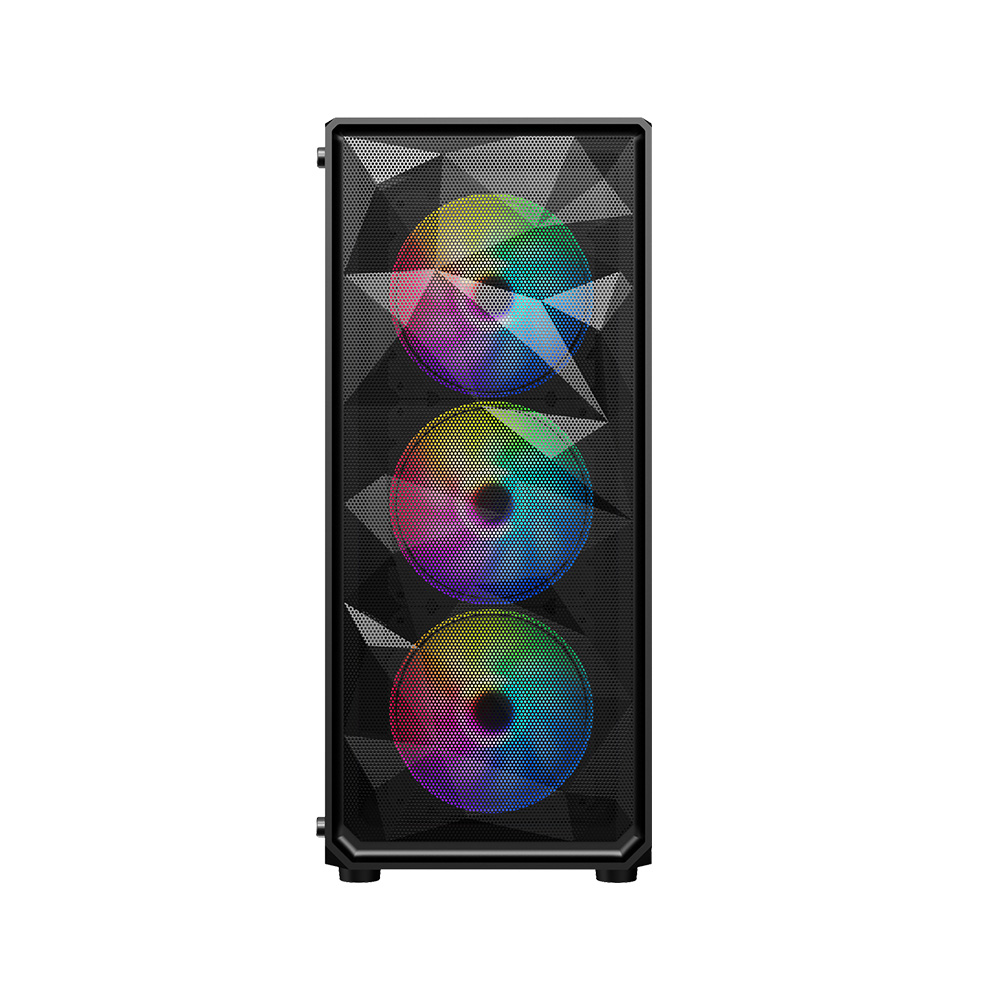

FRONT PANEL: METAL MESH
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MODEL
FD3-M
STRUCTURE DIMENSIONS(L*W*H)
305 x 192 x 435 mm
PRODUCT DIMENSIONS(L*W*H)
338 x 192 x 447 mm
PACKAGE DIMENSIONS(L*W*H)
480 x 237 x 393 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm
Left Panel: Tempered glass
Front Panel: Metal mesh
FORM FACTOR
M-ATX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5''SSD: 1
3.5" HDD: 0 + 2.5''SSD: 2
3.5" HDD: 2 + 2.5''SSD: 0
CPU MAX HEIGHT
155 mm
VGA MAX LENGTH
290 mm
I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
5
FAN SUPPORT
Front: 3 x 12 cm
Rear: 1 x 12 cm

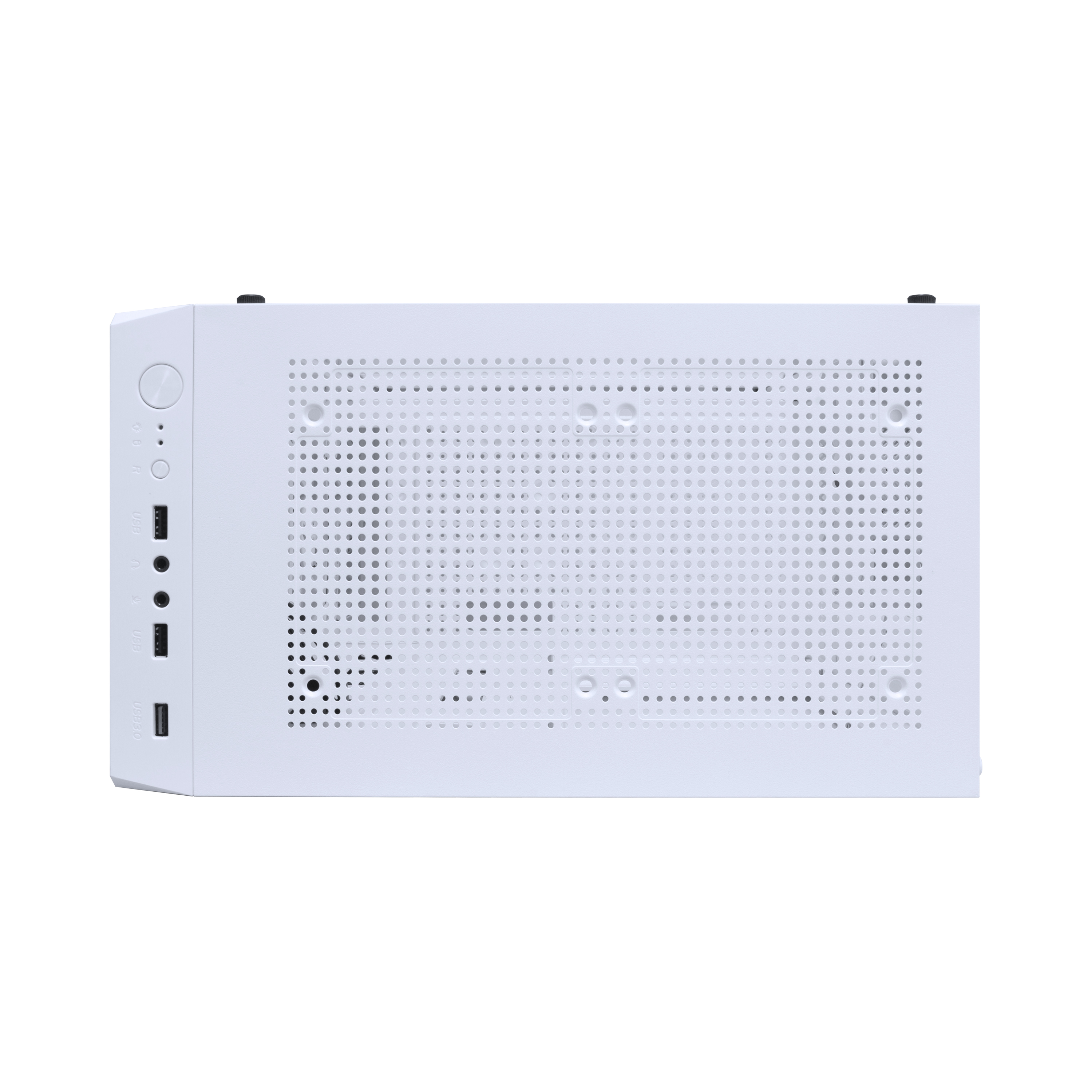

Top: 2 x 12 cm
LIQUID COOLING SUPPORT
Top: 24 cm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
N.W.: 3.4 kg
G.W.: 3.75 kg
