Liquid Cooling Support(Fans are Optional) Top:24cm / Front:24cm
Fans Support: Up to 5 fans
USB3.0*1+USB2.0*2+HD AUDIO
5.25" CD ROM: 0
①3.5" HDD: 1 + 2.5" SSD: 2
②3.5" HDD: 2 + 2.5" SSD: 1
Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

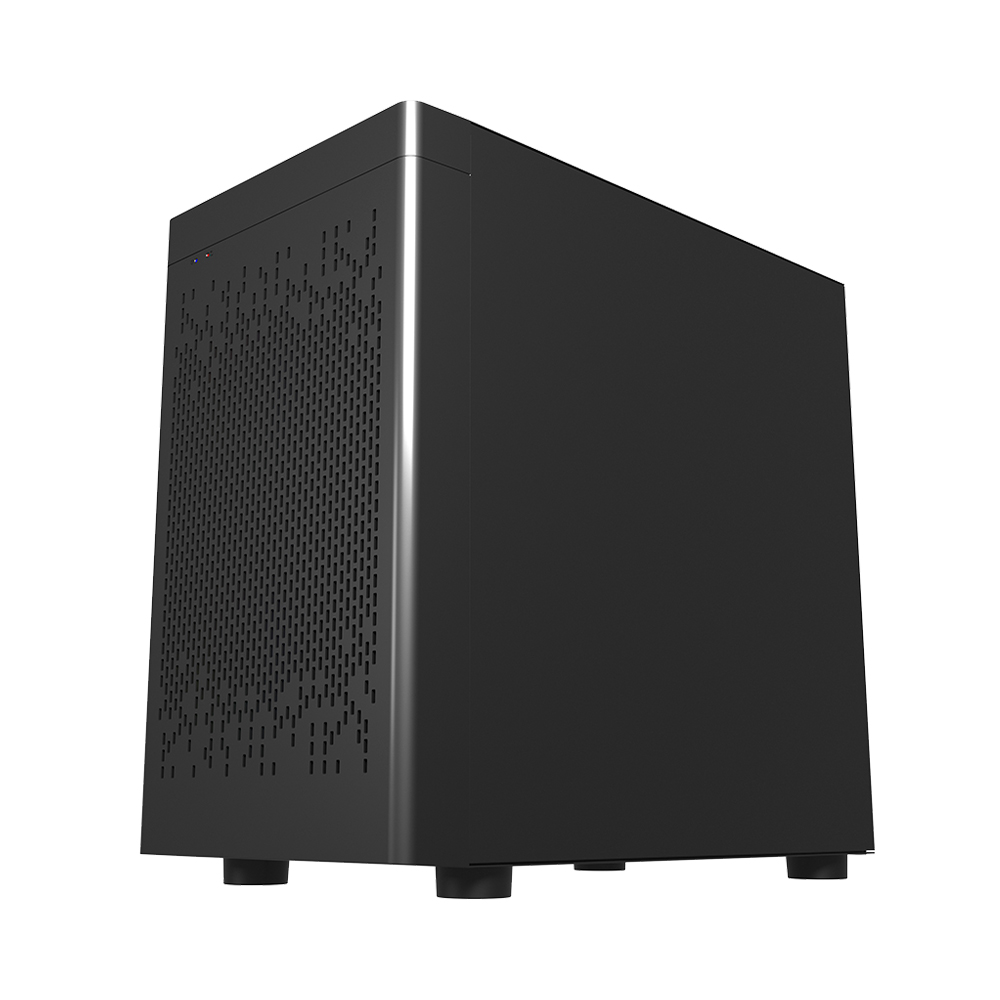

MODEL
D3-B
STRUCTURE DIMENSIONS (L x W x H)
350 x 230 x 375 mm
PRODUCT DIMENSIONS (L x W x H)
391 x 230 x 404 mm
PACKAGE DIMENSIONS (L x W x H)
430 x 280 x 465 mm
STRUCTURE THICKNESS
0.6 mm
MATERIALS
SPCC 0.6 mm
Left Panel: Tempered glass

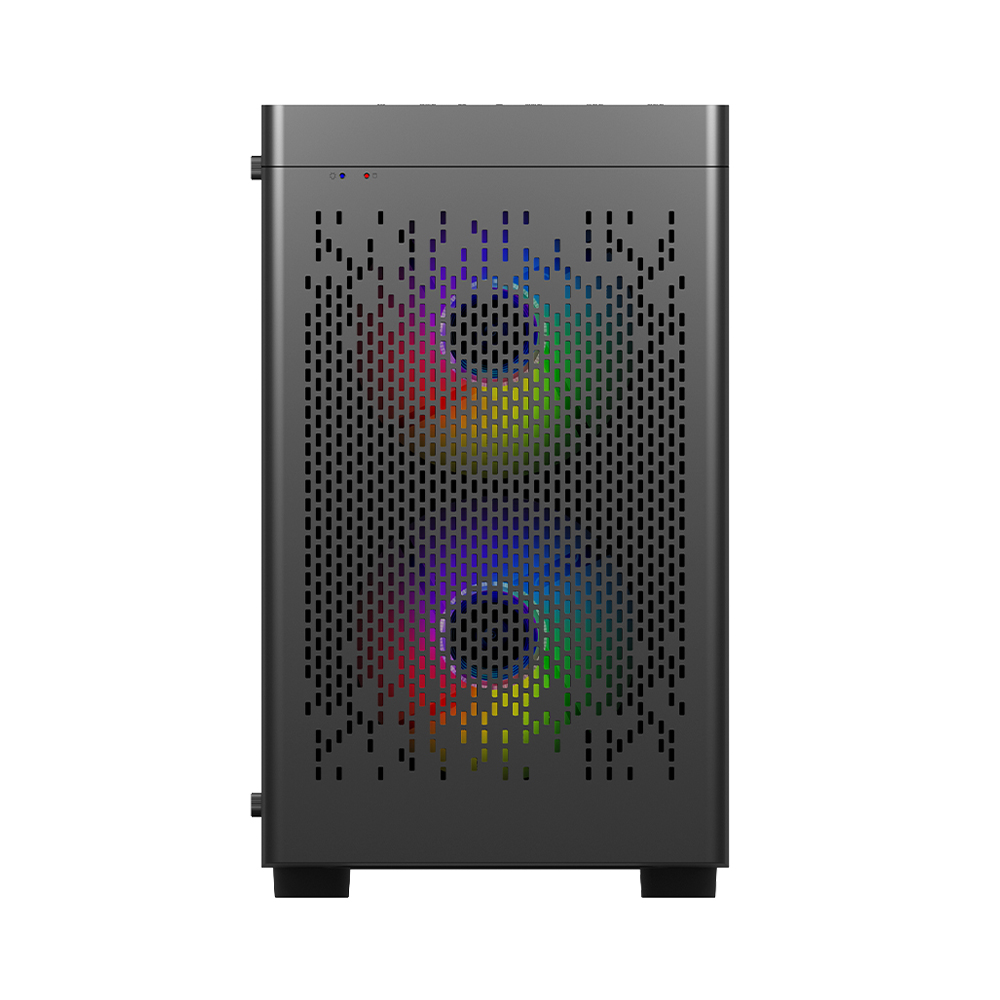

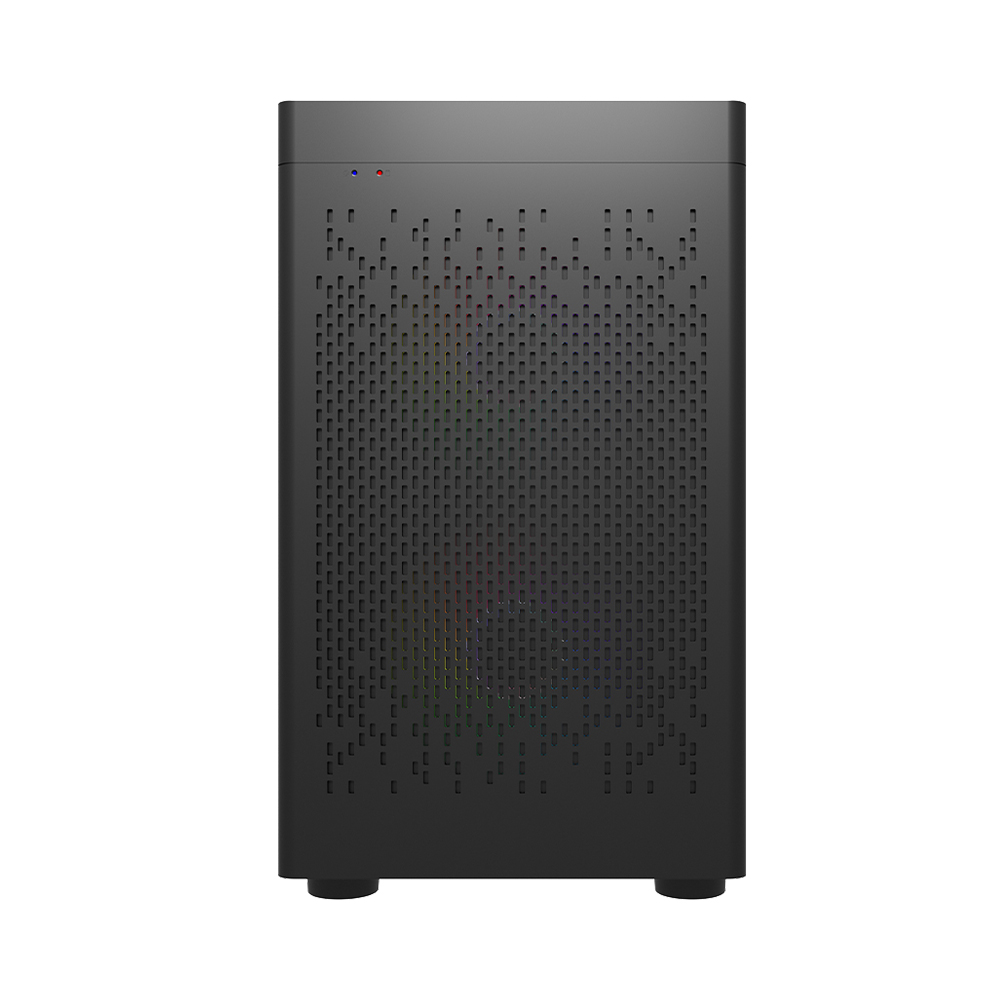

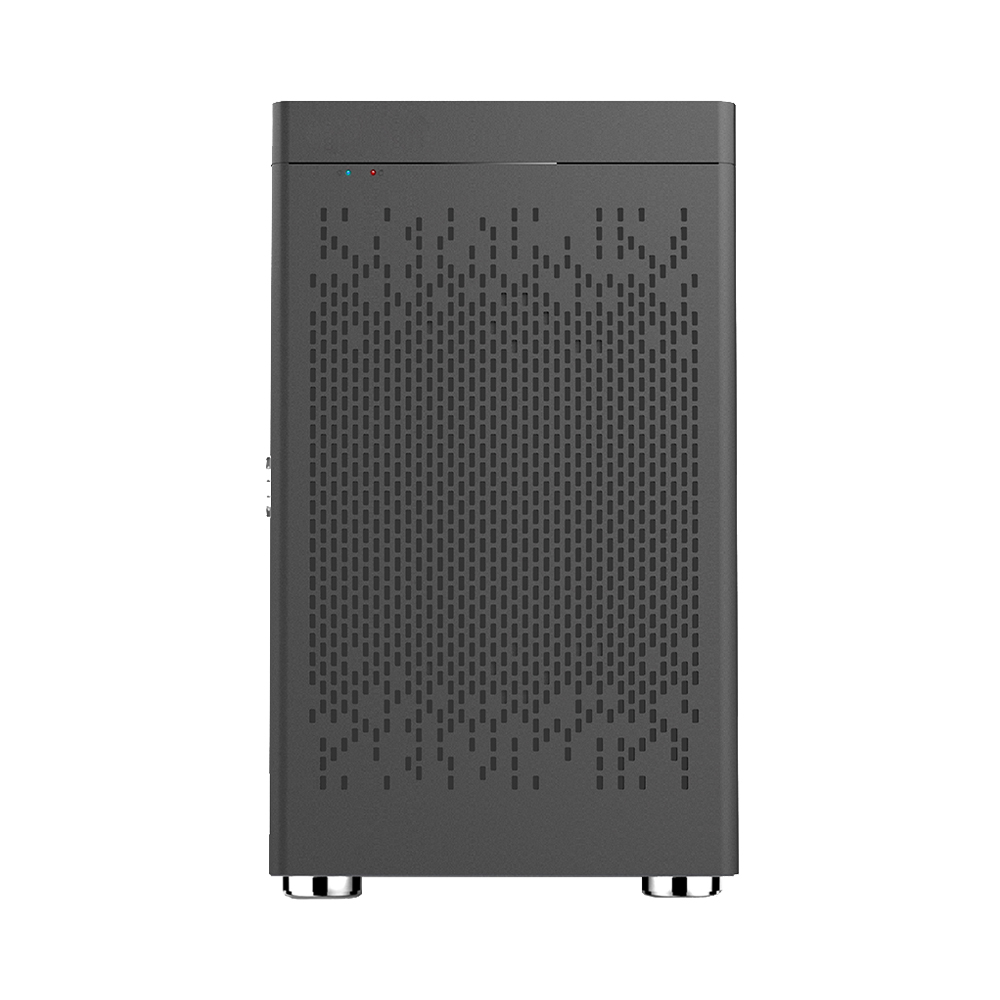

Front Panel: Metal mesh
FORM FACTOR
M-ATX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 2
3.5" HDD: 2 + 2.5" SSD: 1
CPU MAX HEIGHT
175 mm
GPU MAX LENGTH
335 mm
I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
4 + 2
FAN SUPPORT
Front: 2 x 12 cm / 2 x 14 cm
Top: 2 x 12cm / 2 x 14 cm
Rear: 1 x 12cm / 14 cm
LIQUID COOLING SUPPORT
Top: 24 cm
Front: 24 cm
POWER SUPPLY SUPPORT
Bottom mount 150mm
NET WEIGHT
4.2 kg
5.0 kg
