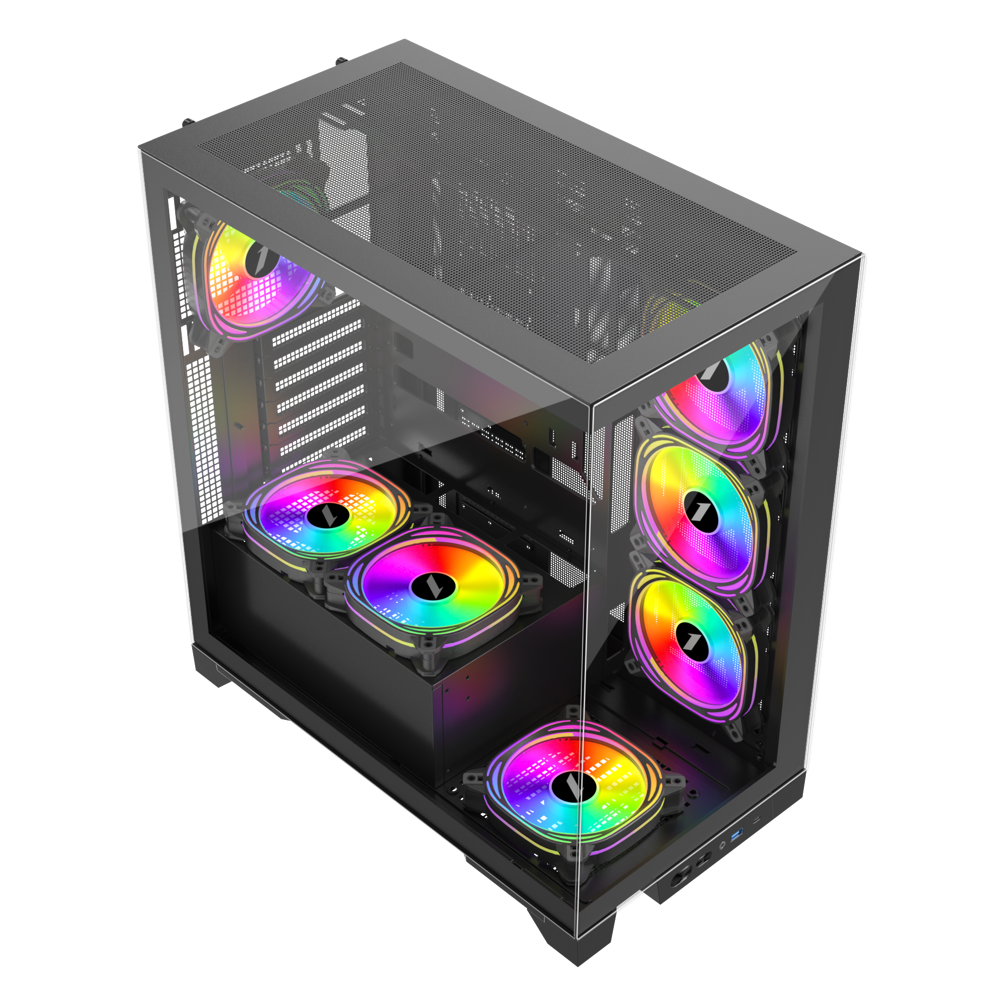

Support installation of up to 10 fans
Support CPU cooler height up to 180 mm
Support GPU length up to 425 mm
Support a 360 mm radiator at the front
Support up to 3 drive bays: 2 x 3.5" HDD + 1 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.

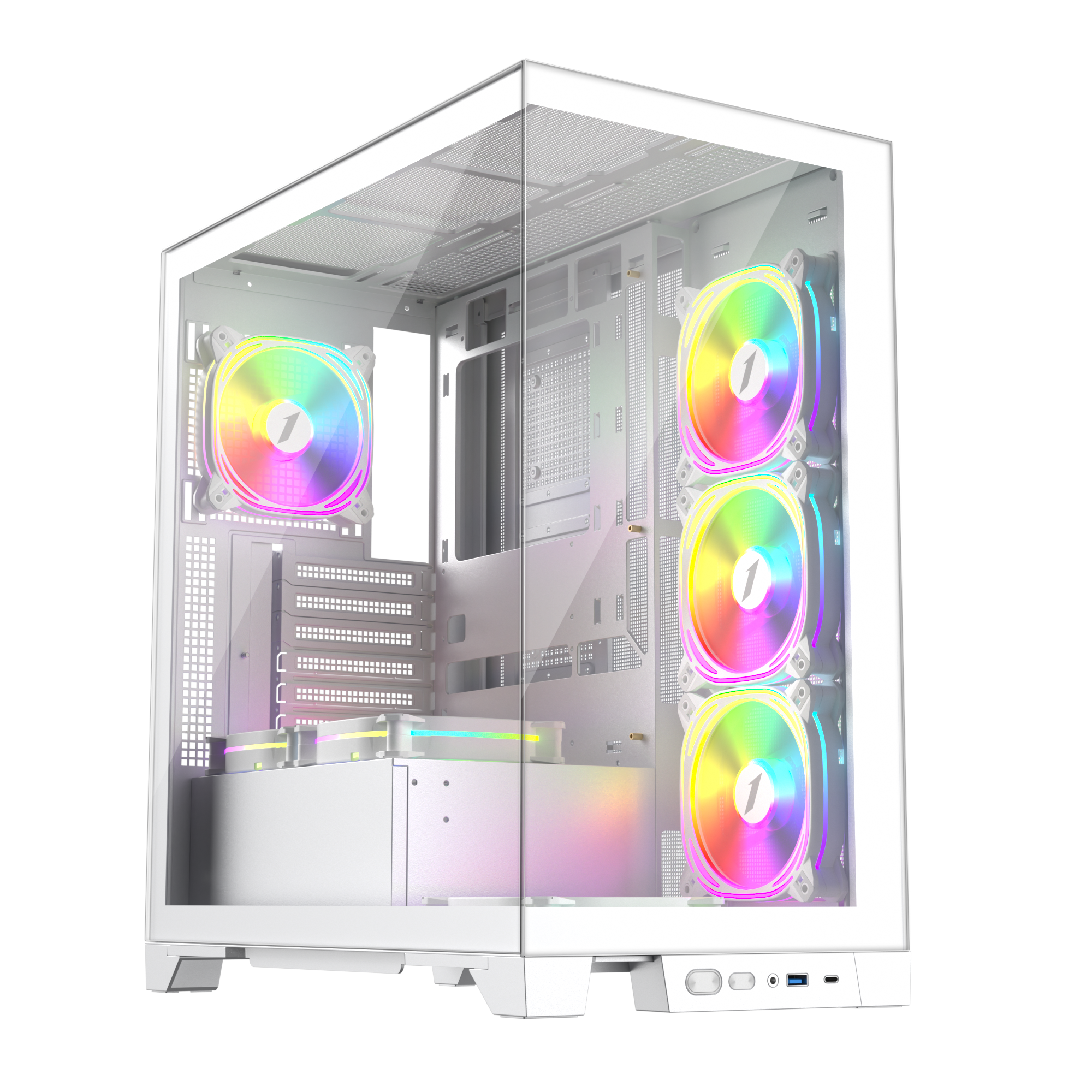

White
MIKU
1STPLAYER was founded in Guangzhou in 2010 with the sole purpose of creating a unique and ultimate "gaming" experience for gamers worldwide. 1STPLAYER are known by global players for high-performance and high-quality PC peripherals, we are growing as a supplier of high performance and high quality computer peripherals.

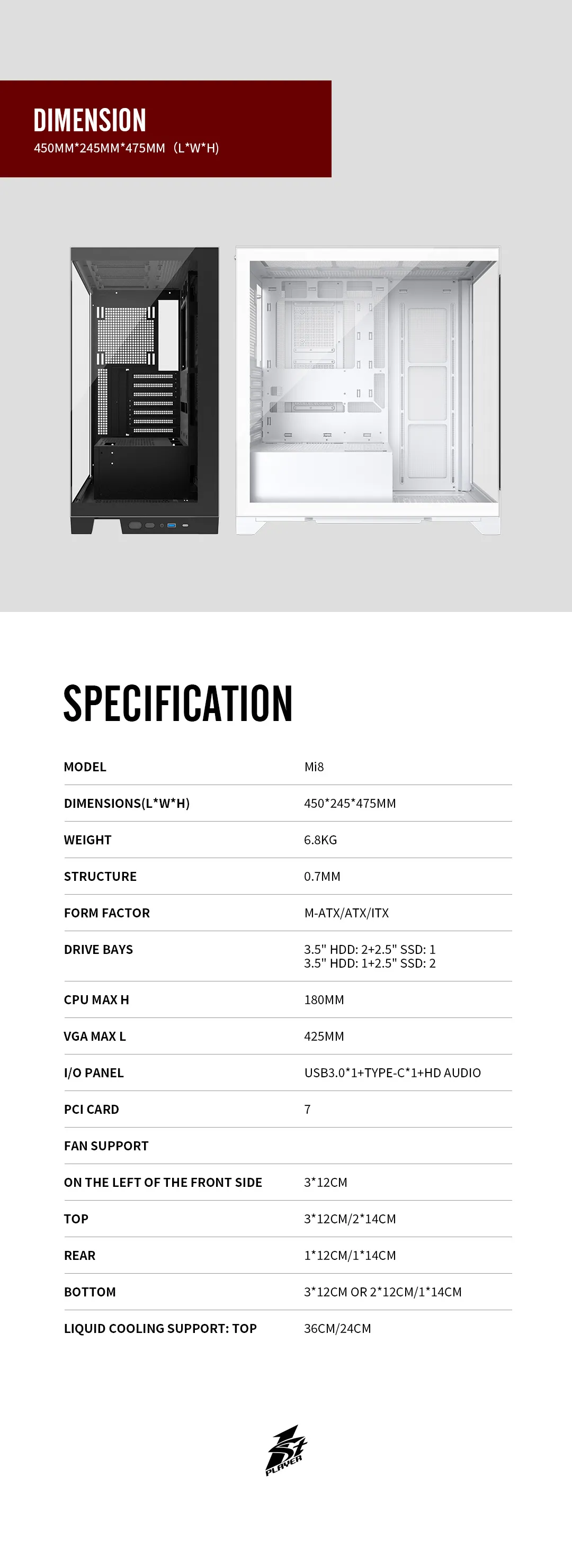

MODEL
Mi8
STRUCTURE DIMENSIONS (L x W x H)
431 x 245 x 445 mm

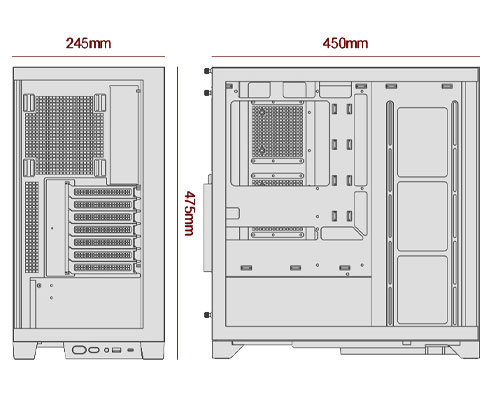

PRODUCT DIMENSIONS (L x W x H)
450 x 245 x 475 mm
PACKAGE DIMENSIONS (L x W x H)
540 x 310 x 505 mm
STRUCTURE THICKNESS
0.7 mm
MATERIALS
SPCC 0.7 mm
Front / Left Panel：Tempered glass
FORM FACTOR
ATX/M-ATX/Mini-ITX
5.25" CD ROM: 0

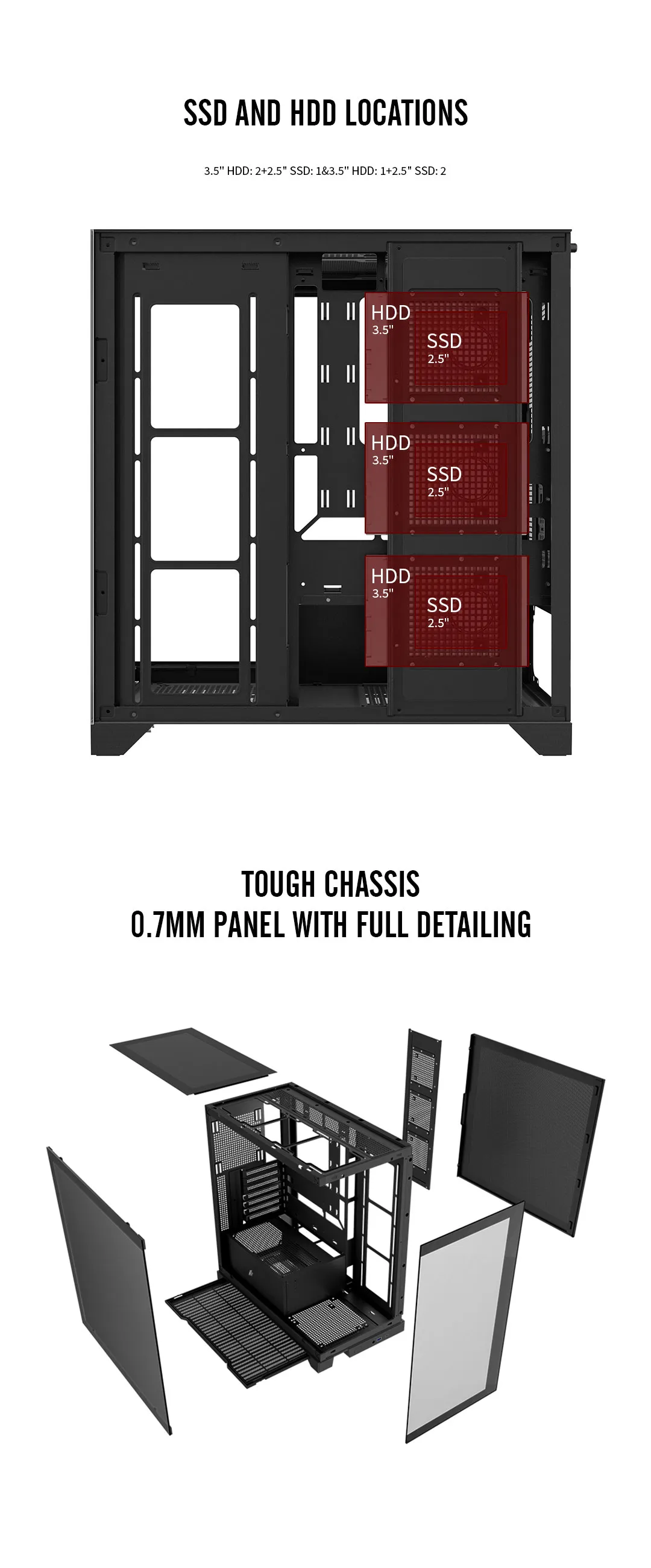

3.5" HDD: 0+ 2.5" SSD: 3 / 3.5" HDD: 1 + 2.5" SSD: 2
3.5" HDD: 2+ 2.5" SSD: 1 / 3.5" HDD: 3 + 2.5" SSD: 0
CPU MAX HEIGHT
180 mm
GPU MAX LENGTH
425 mm

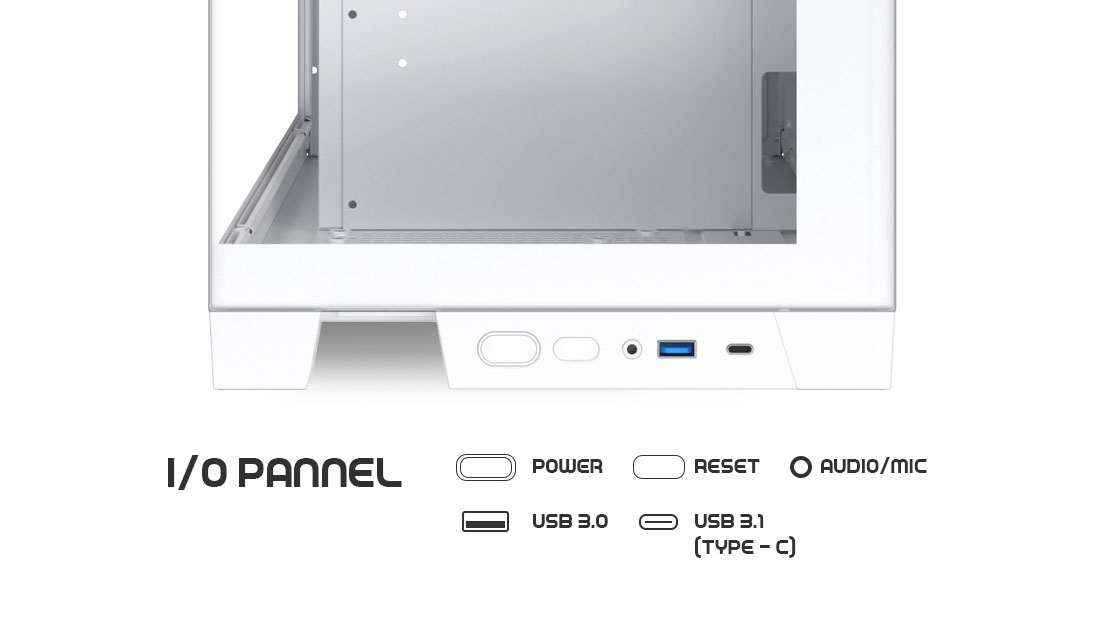

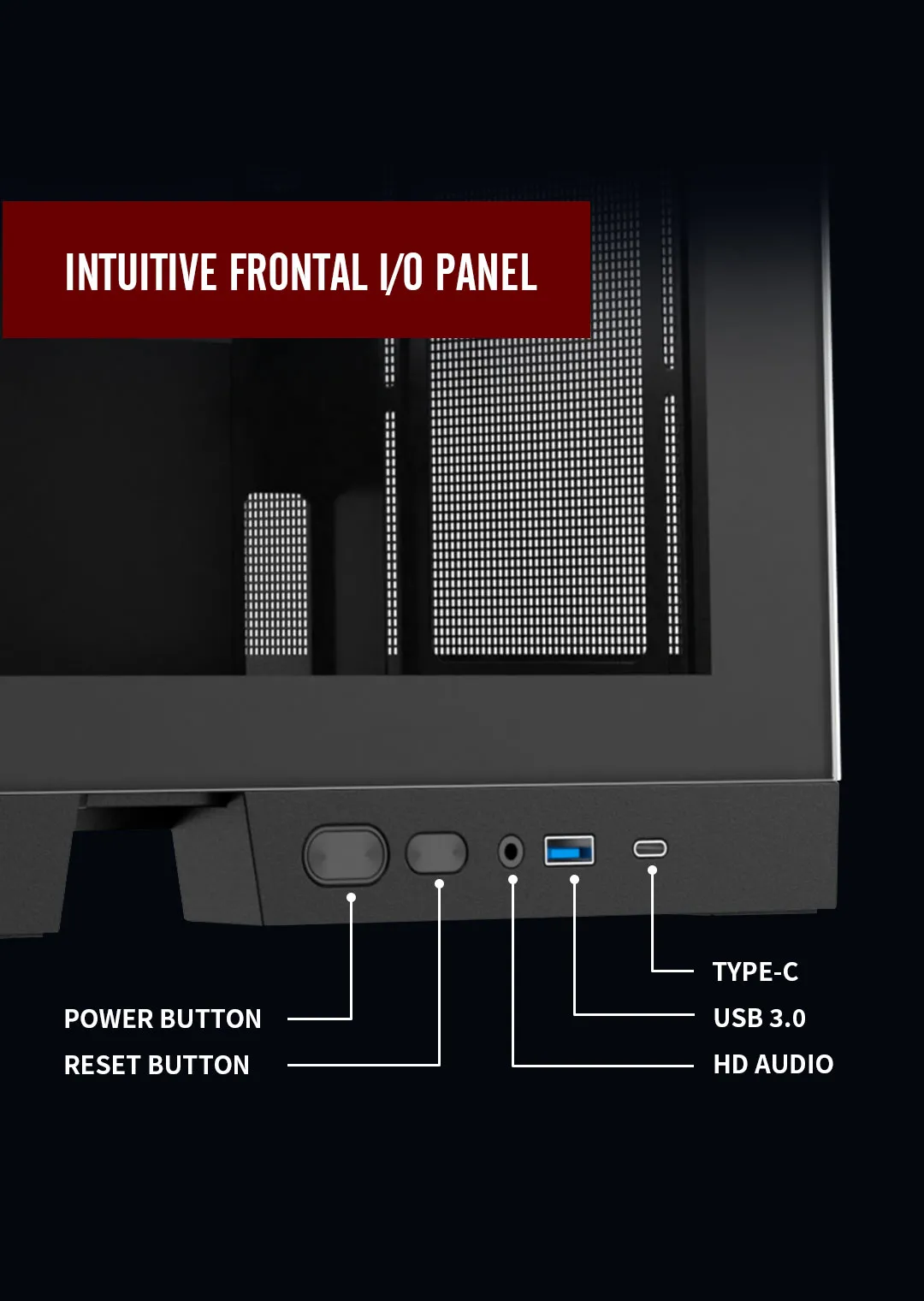

I/O PANEL
USB 3.0 x 1 + TYPE-C x 1 + HD AUDIO
PCI CARD SLOT
7

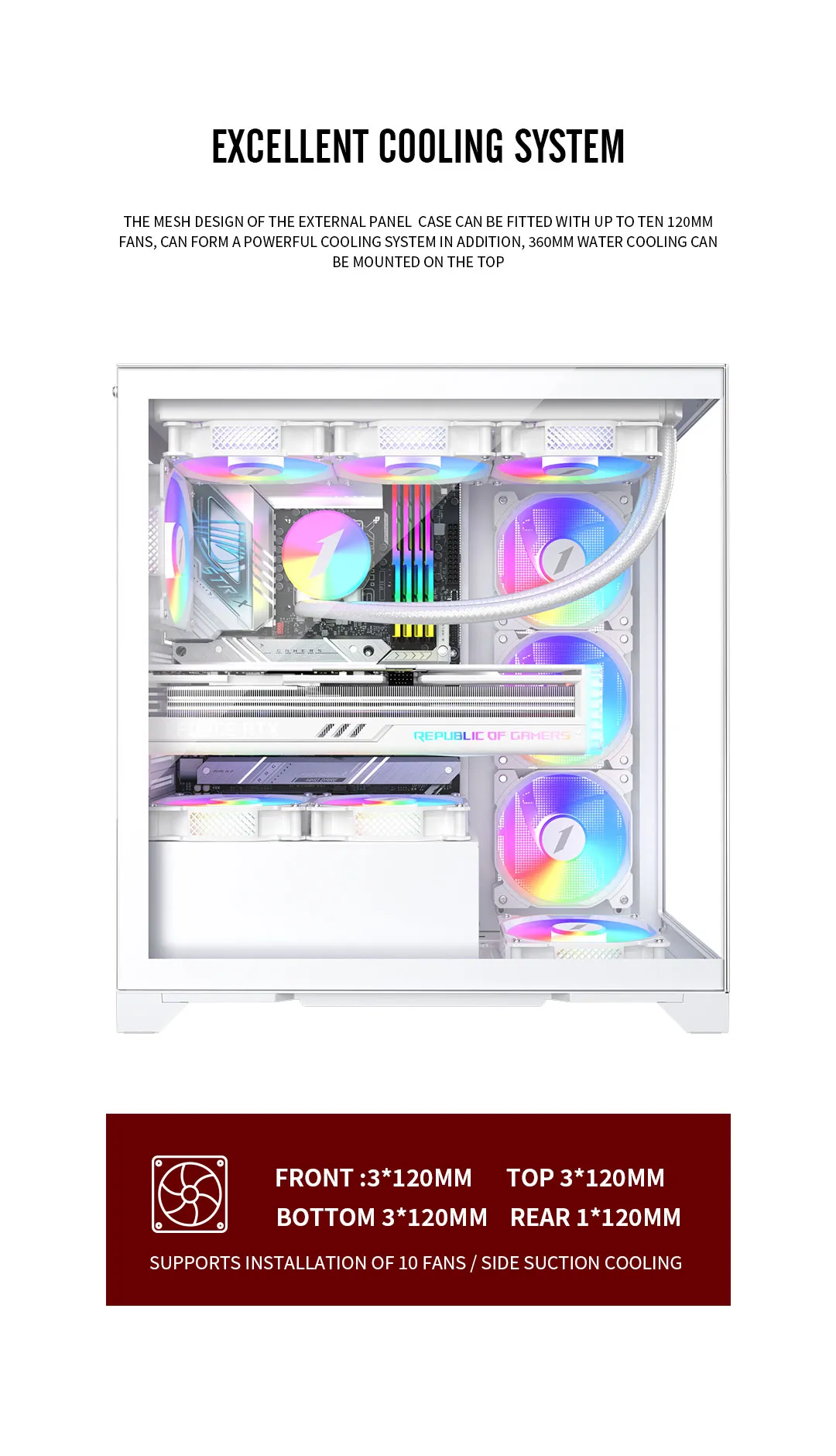

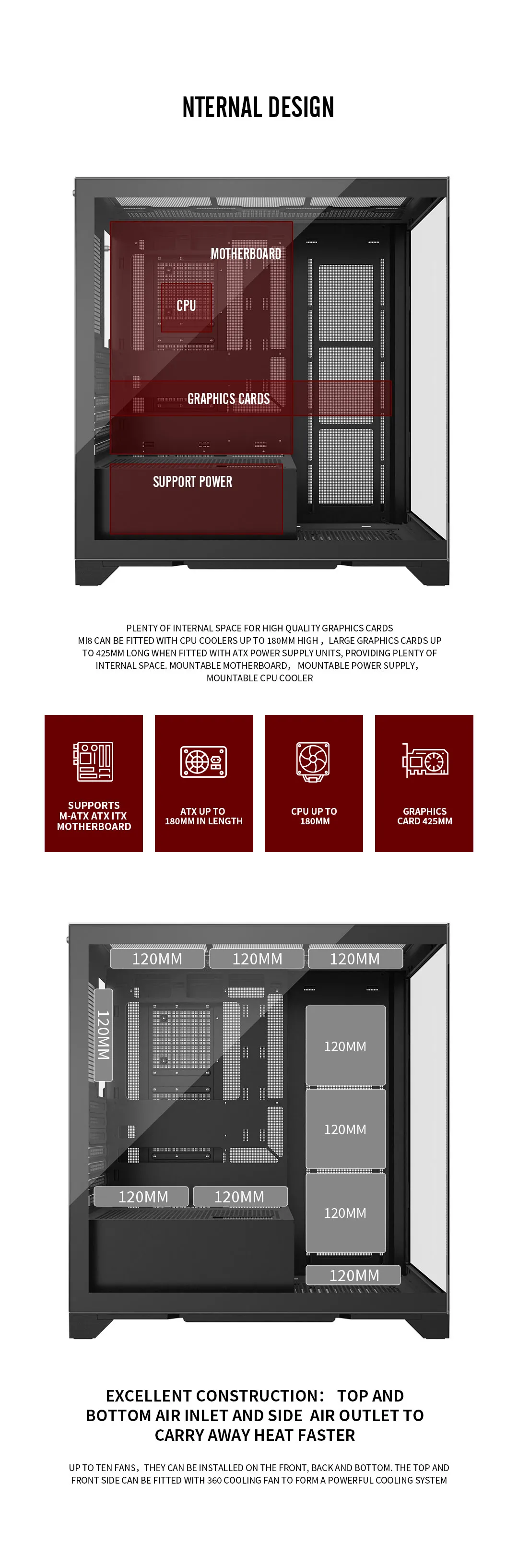

FAN SUPPORT
Front Side: 3 x 12 cm
Top: 3 x 12 cm / 2 x 14 cm
Rear: 1 x 12 cm / 1 x 14 cm
Bottom: 3 x 12 cm / 1 x 14 cm

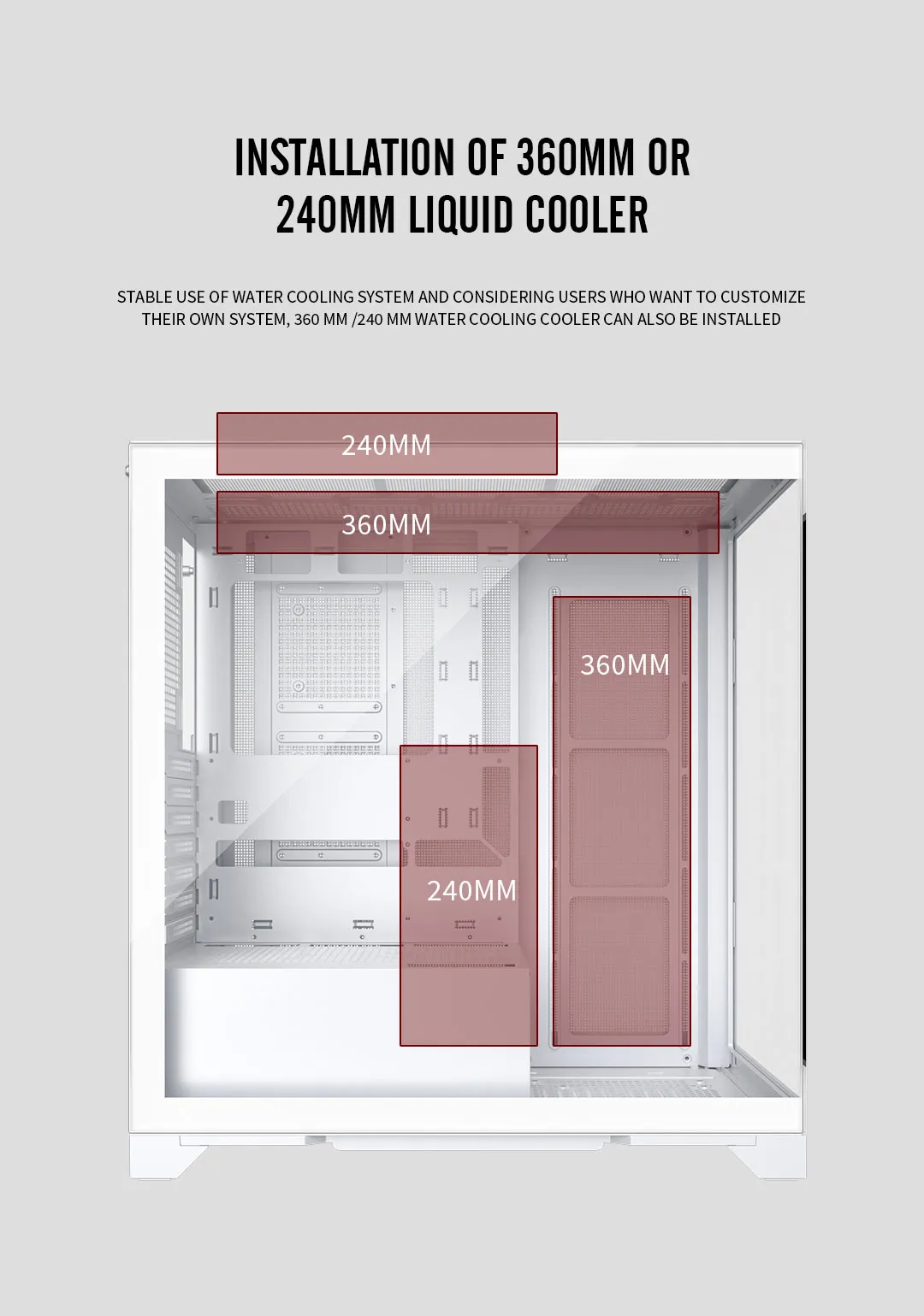

LIQUID COOLING SUPPORT
Front / Top: 24 cm / 28 cm / 36 cm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
N.W.: 6.8 kg
G.W.: 8 kg
