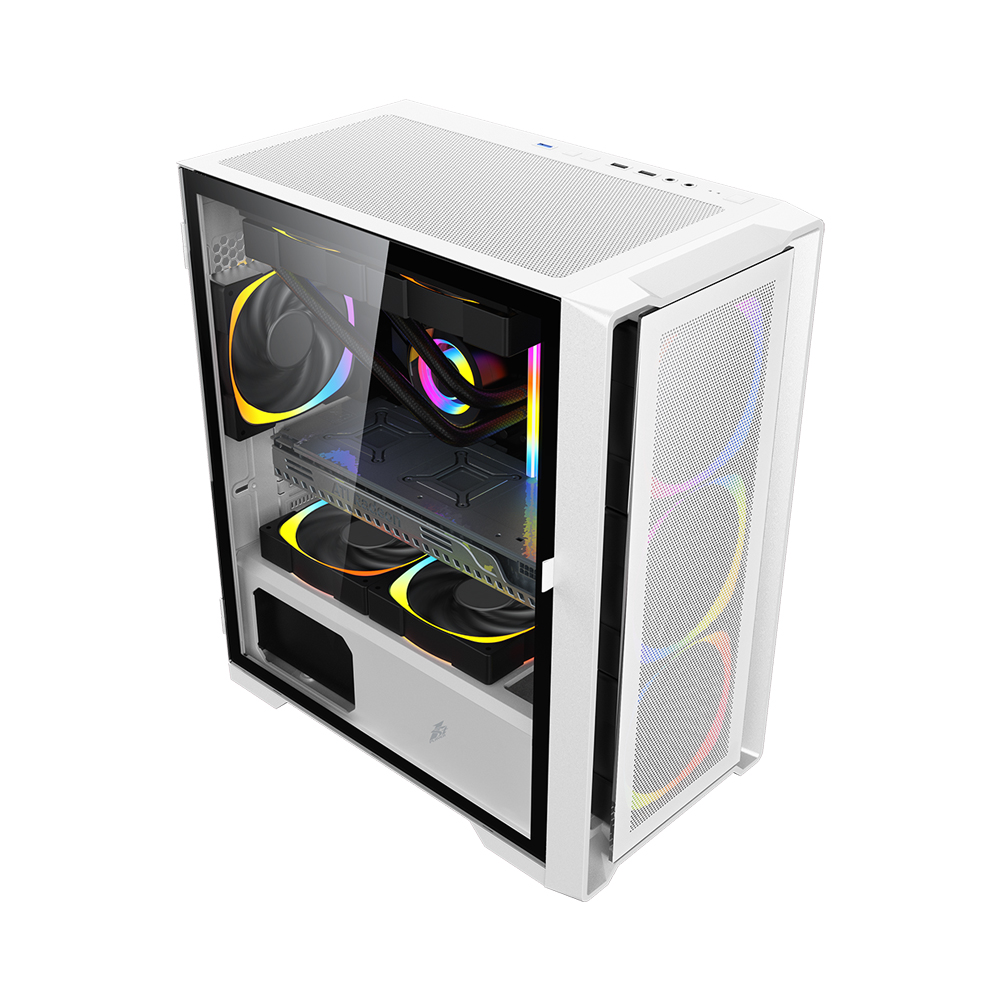

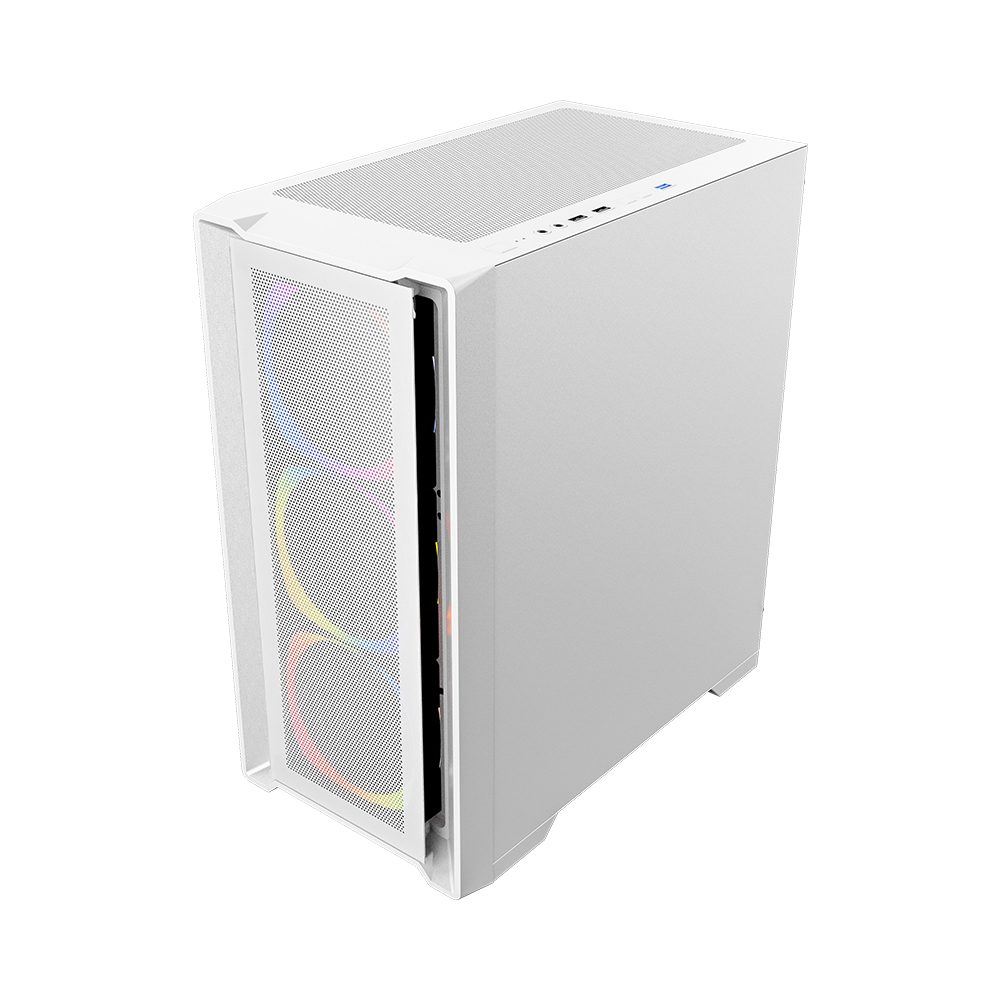

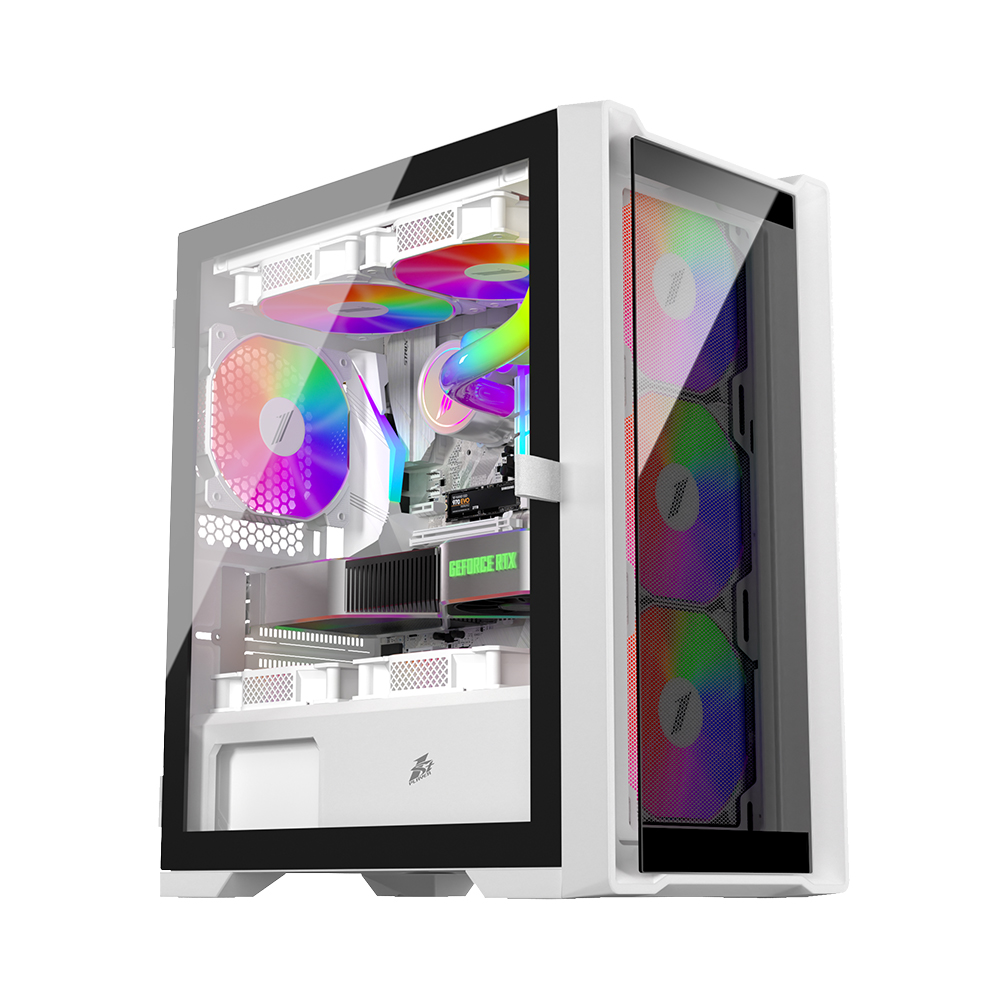

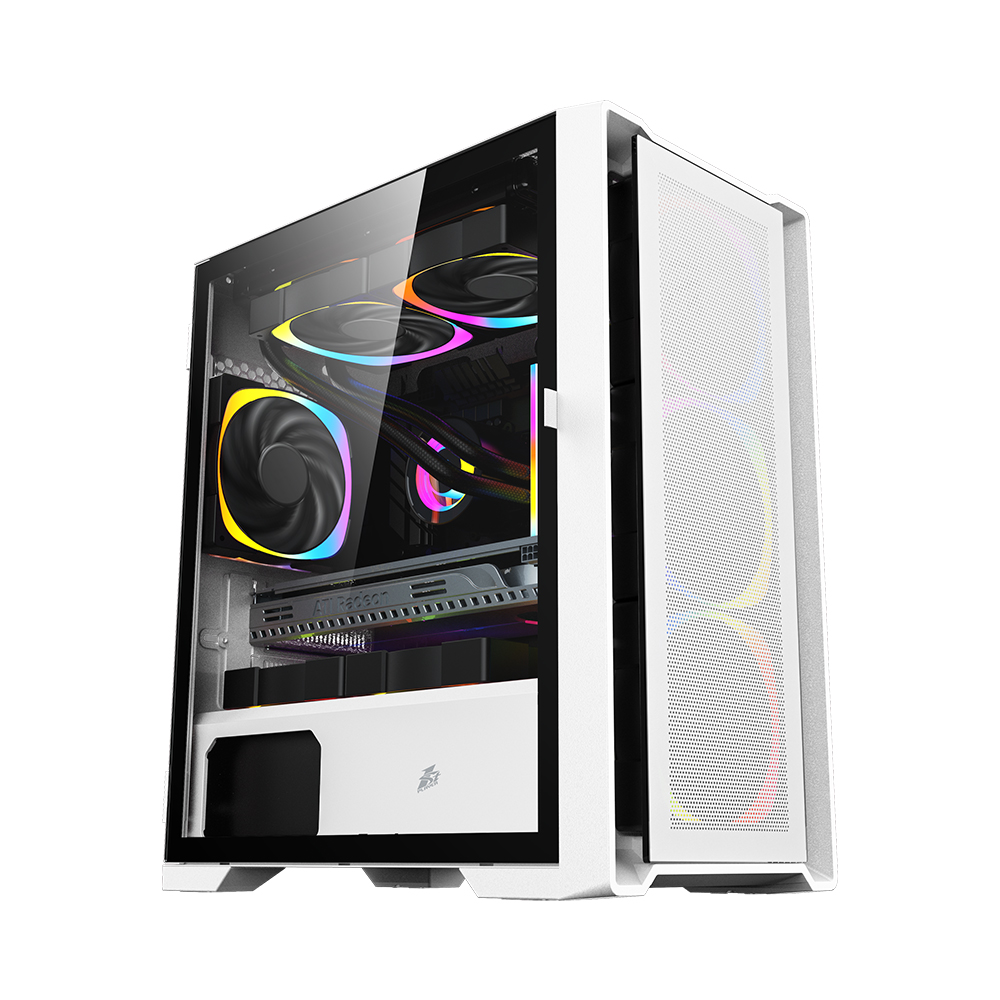

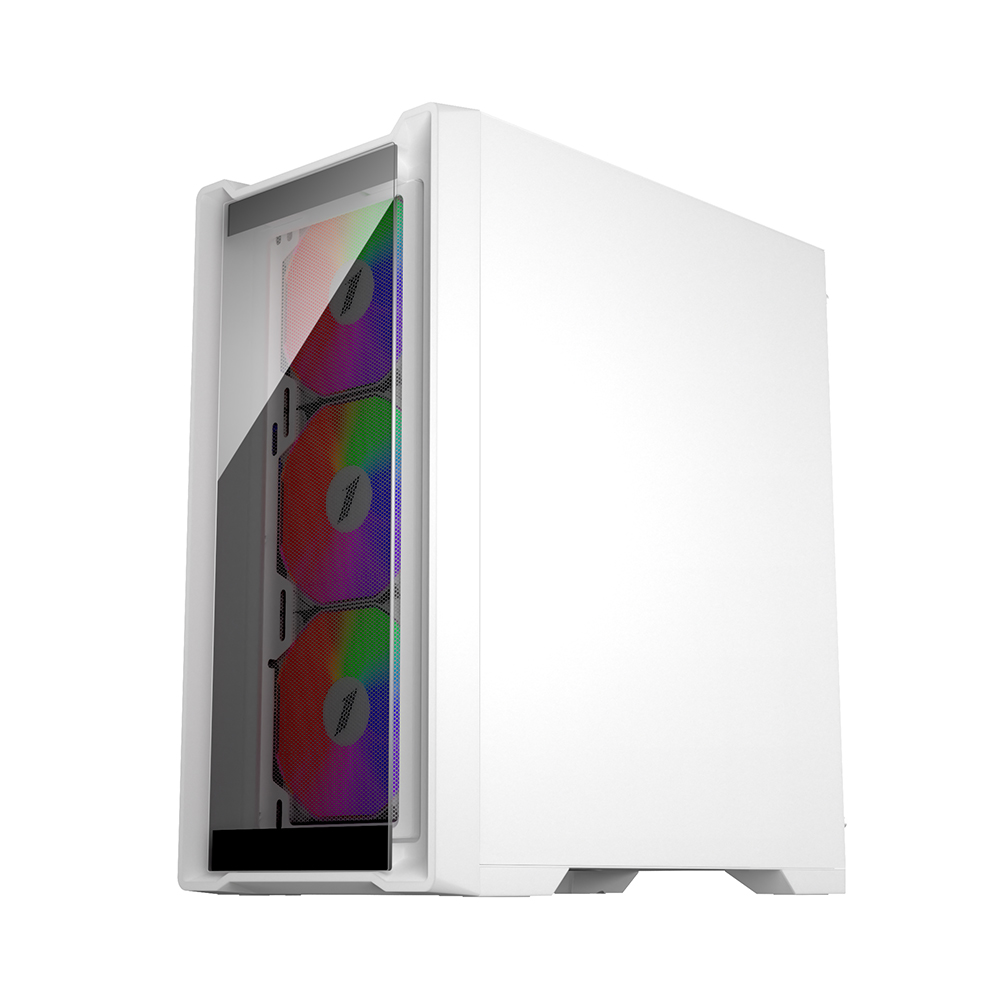

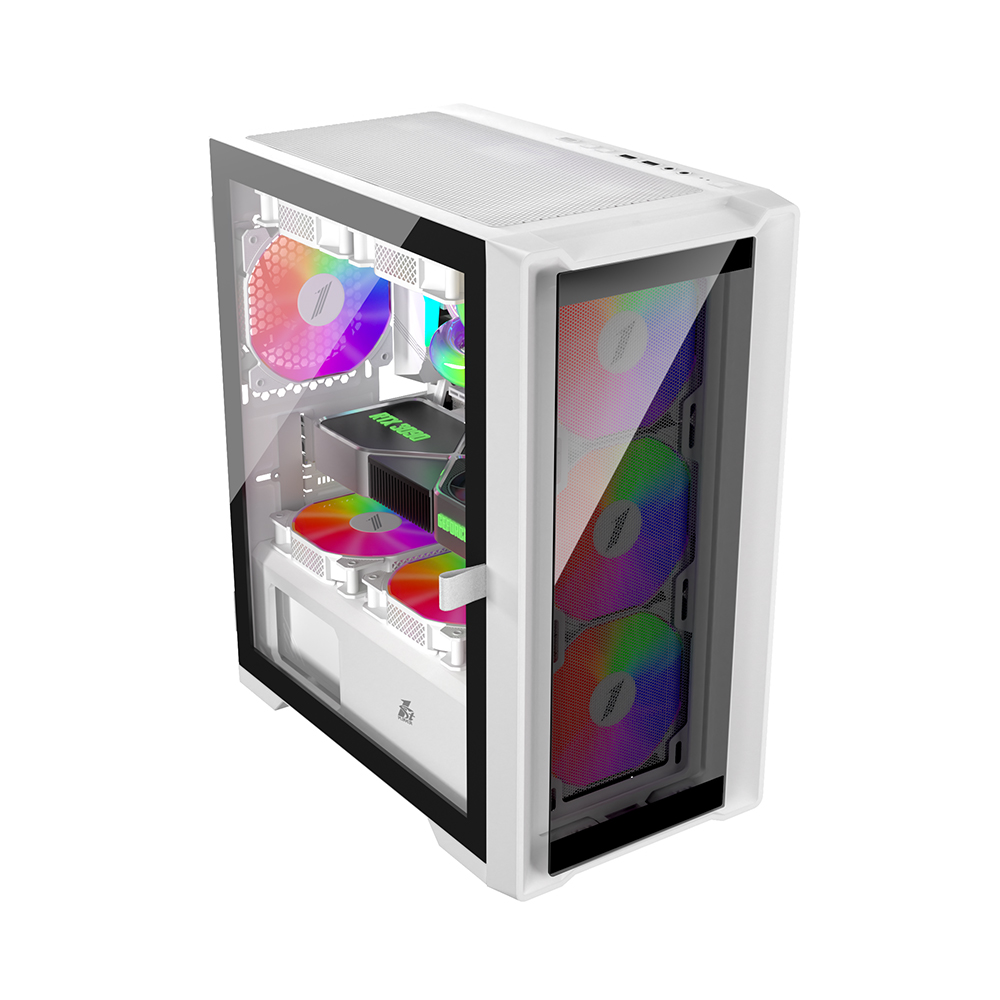

T4 (White)

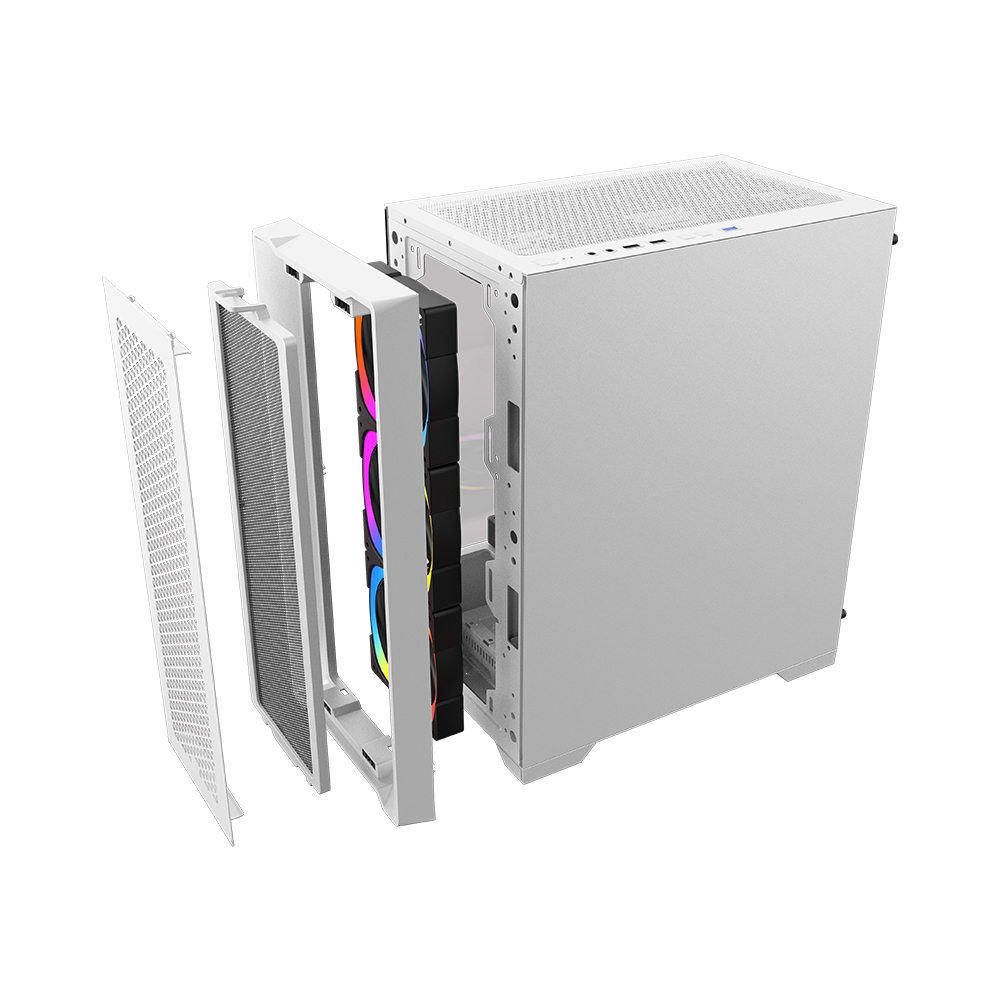

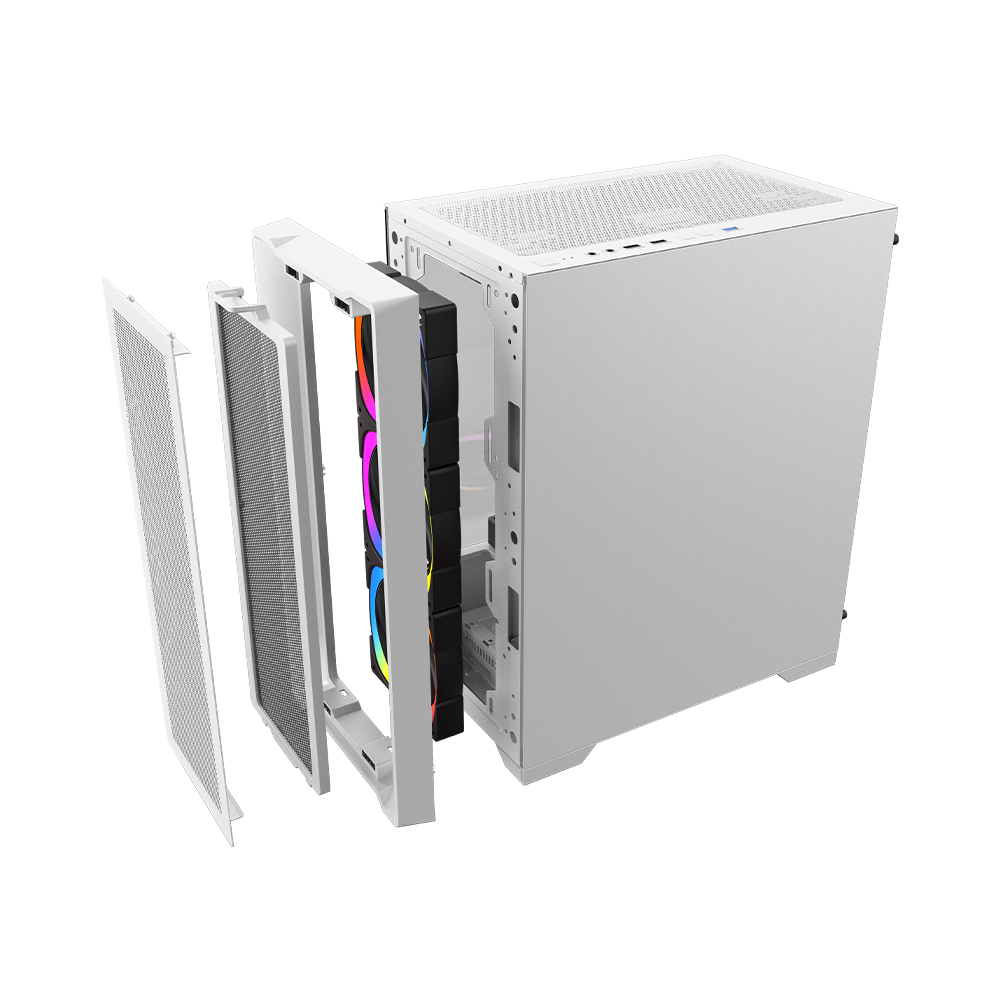

Removable panel metal

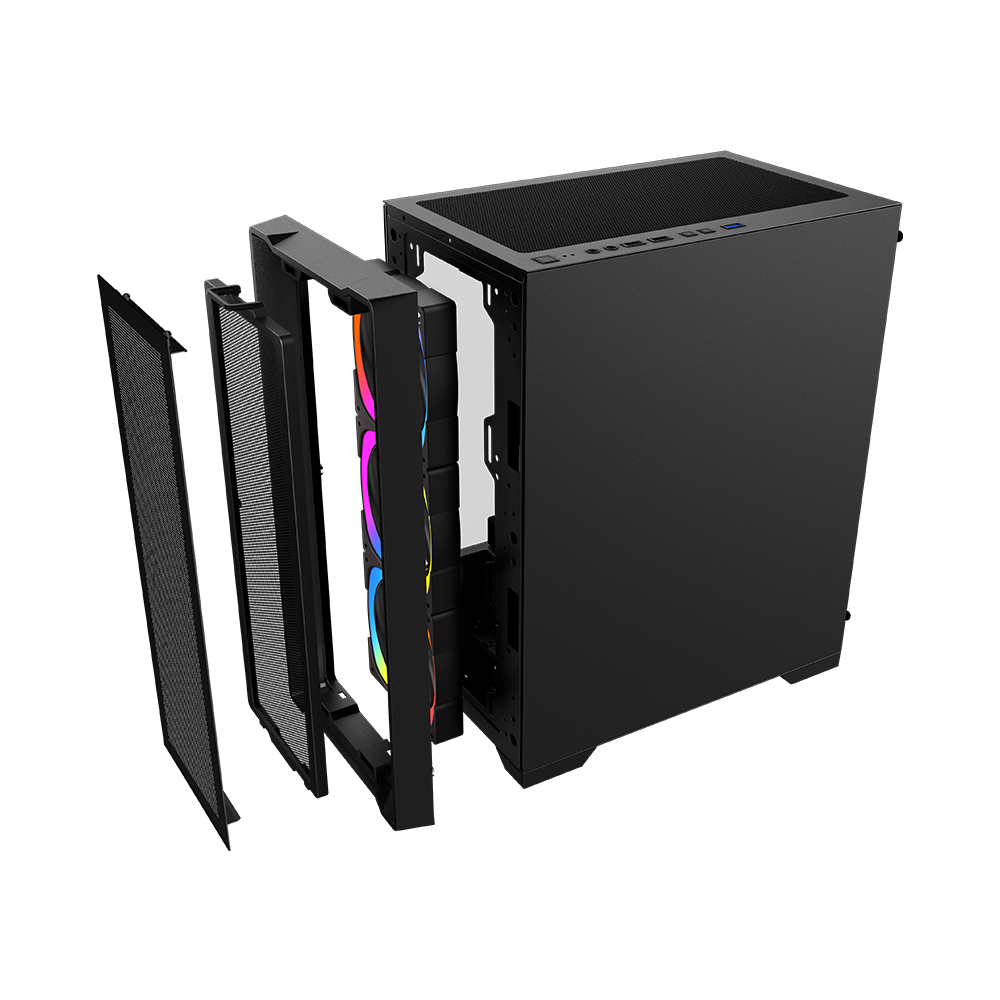

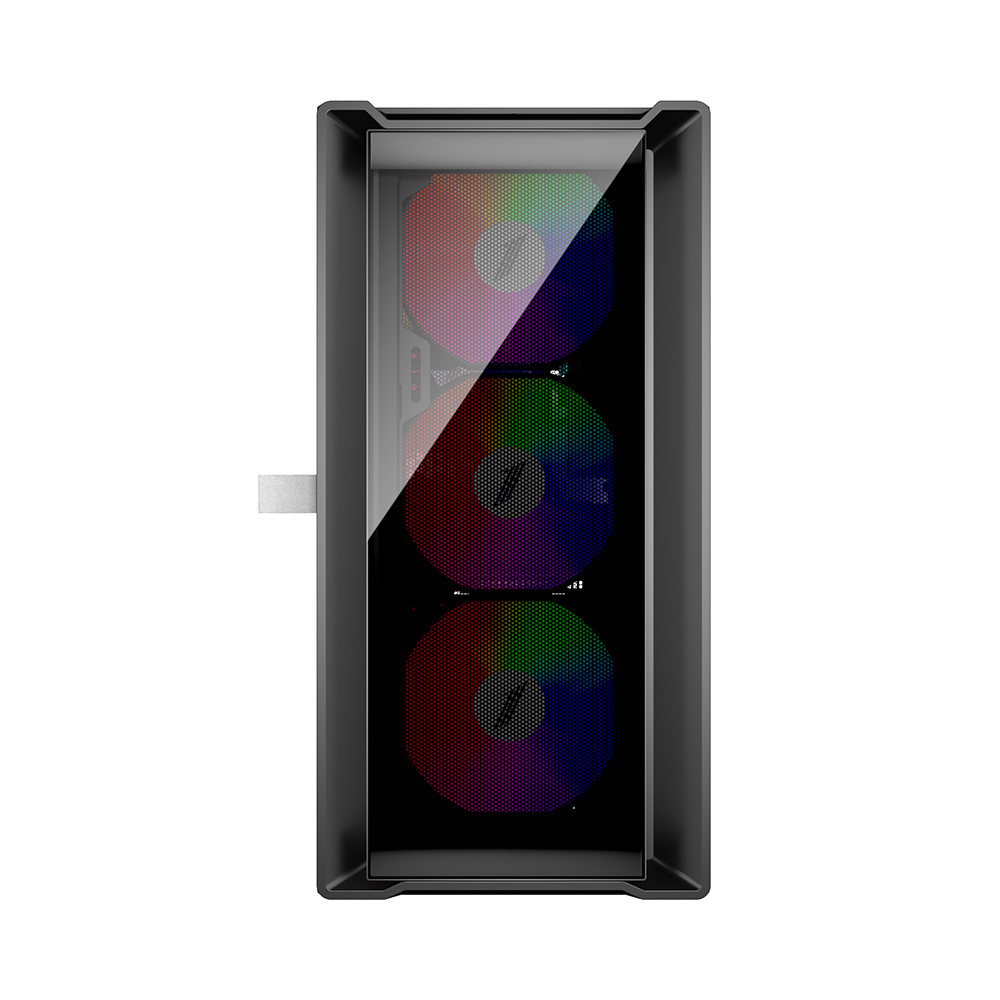

Front removable dust filter

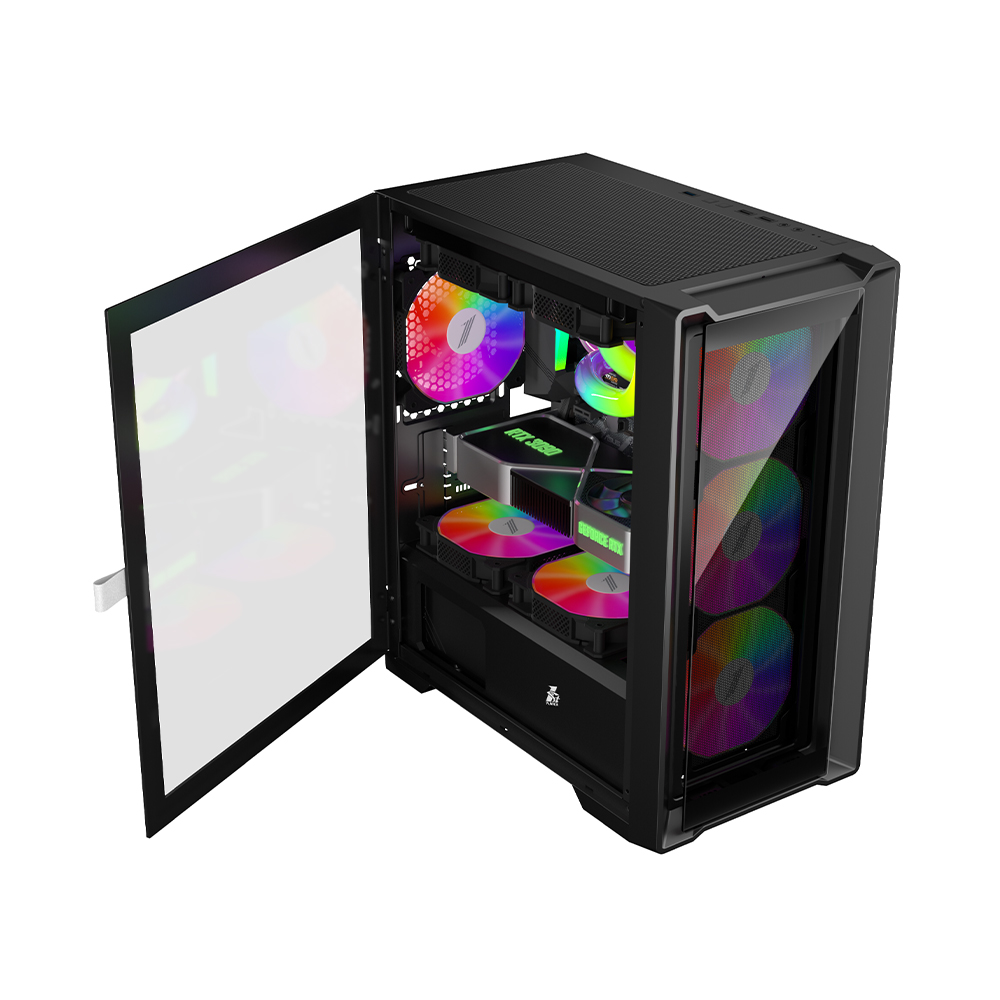

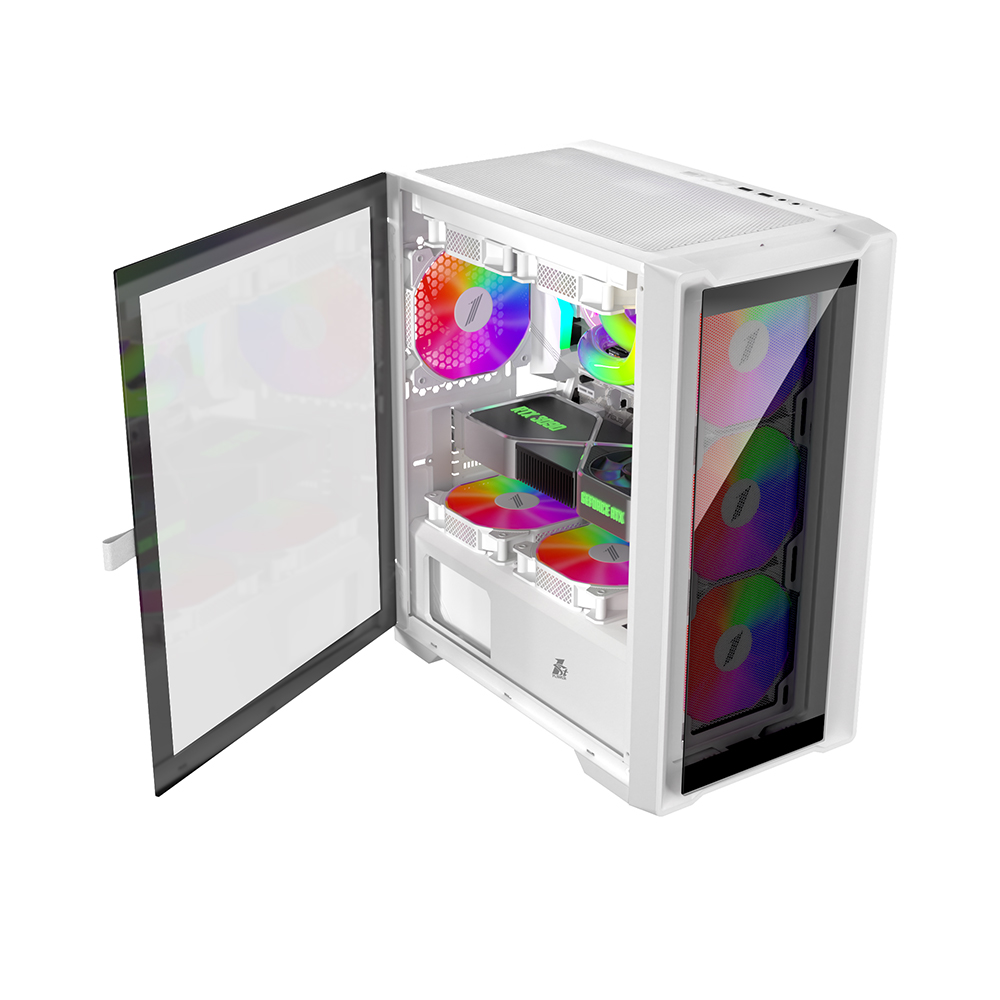

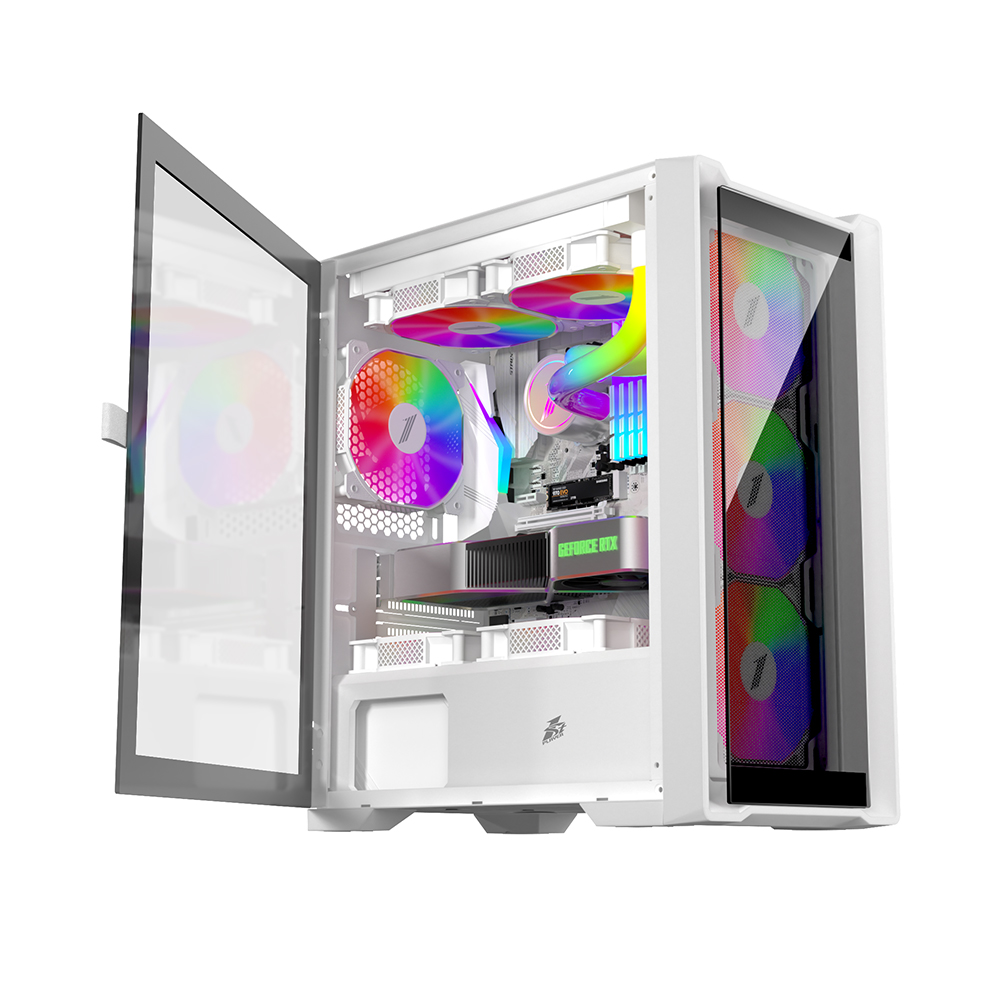

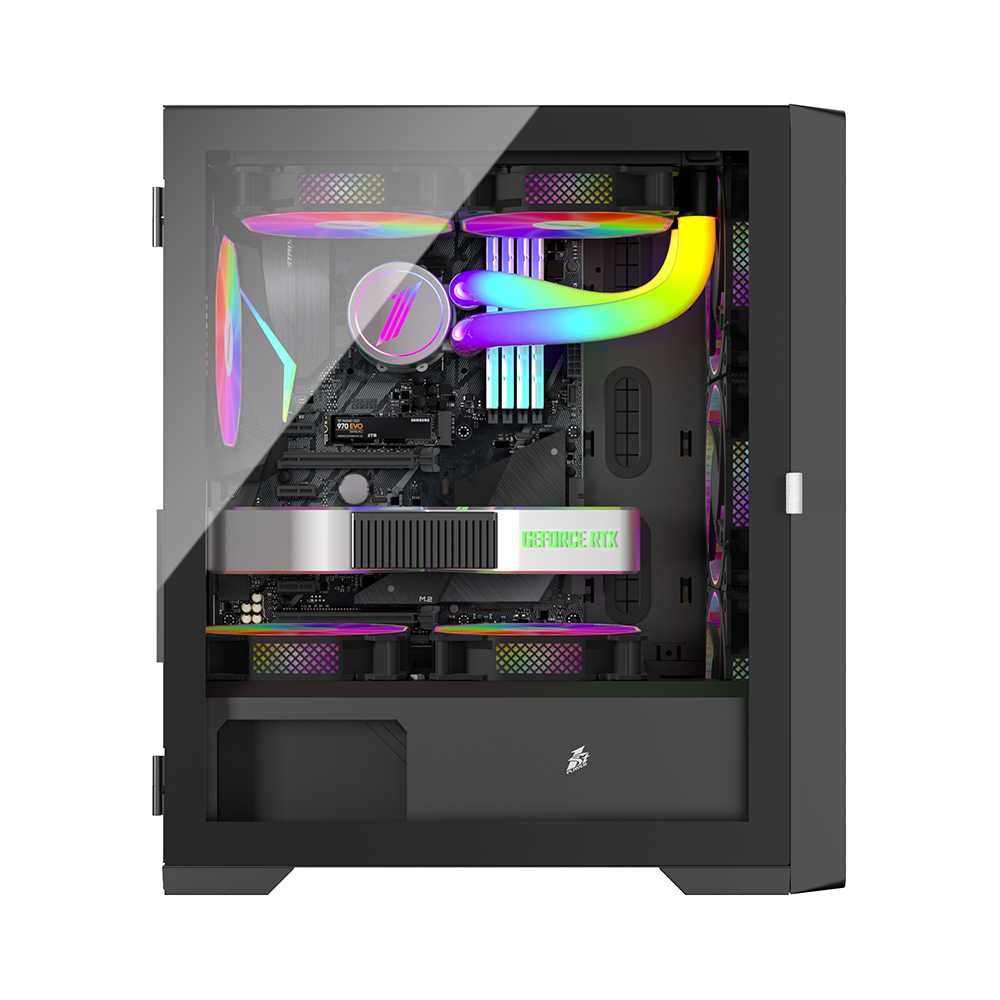

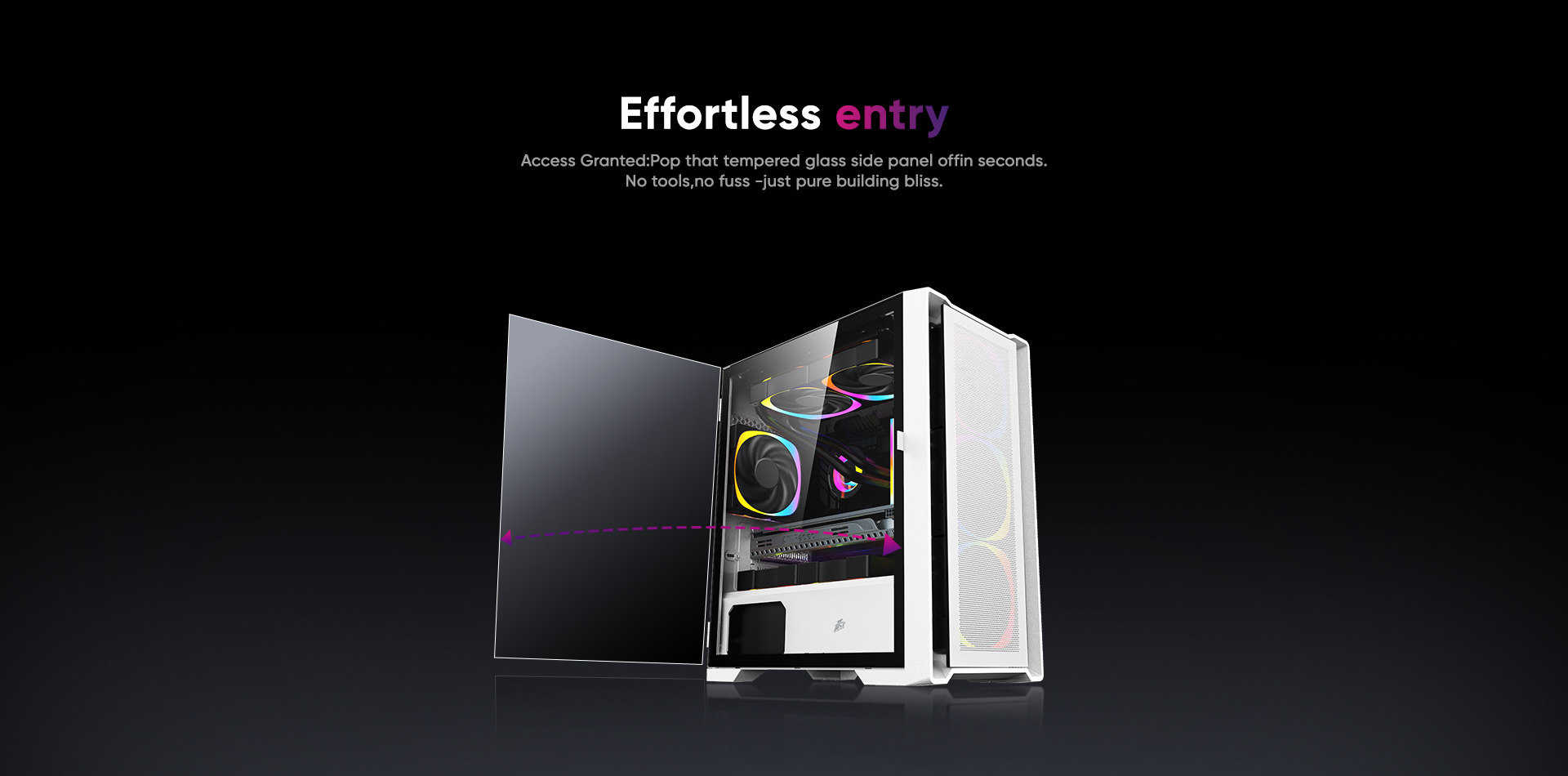

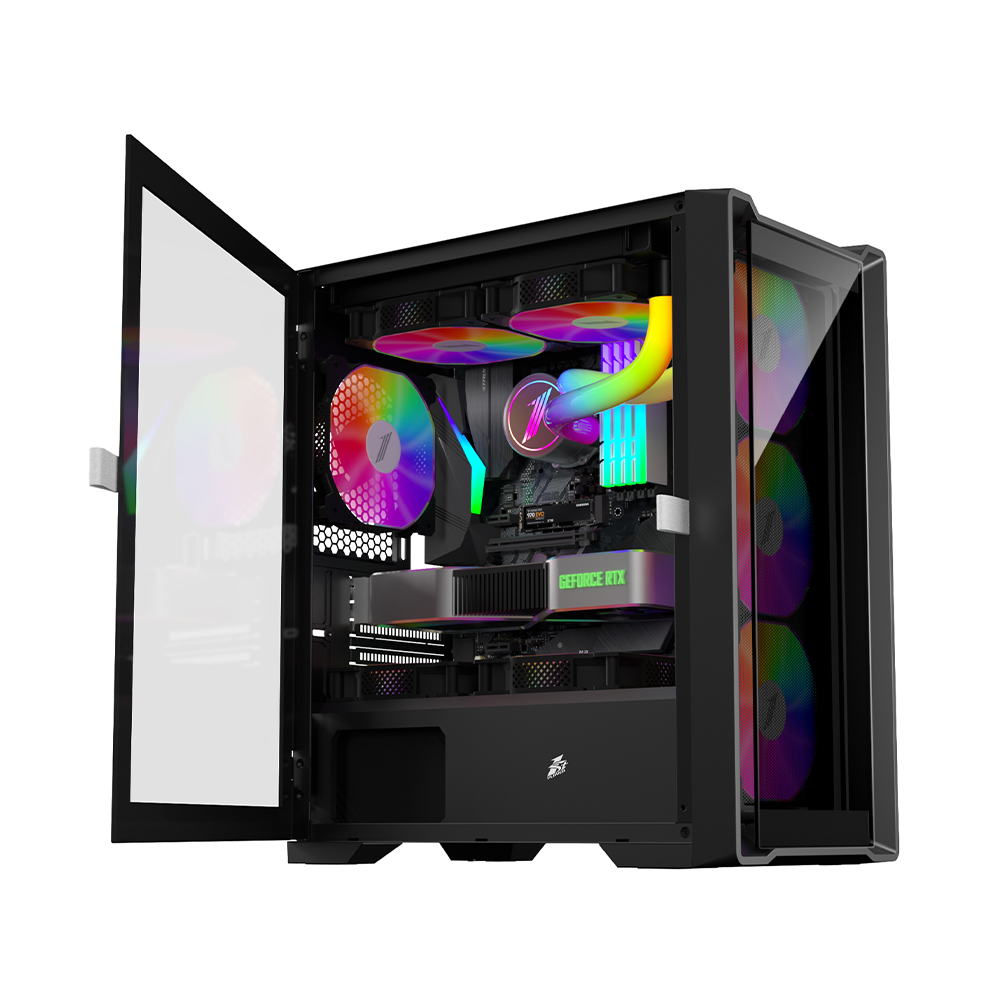

Hinge glass side panels
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

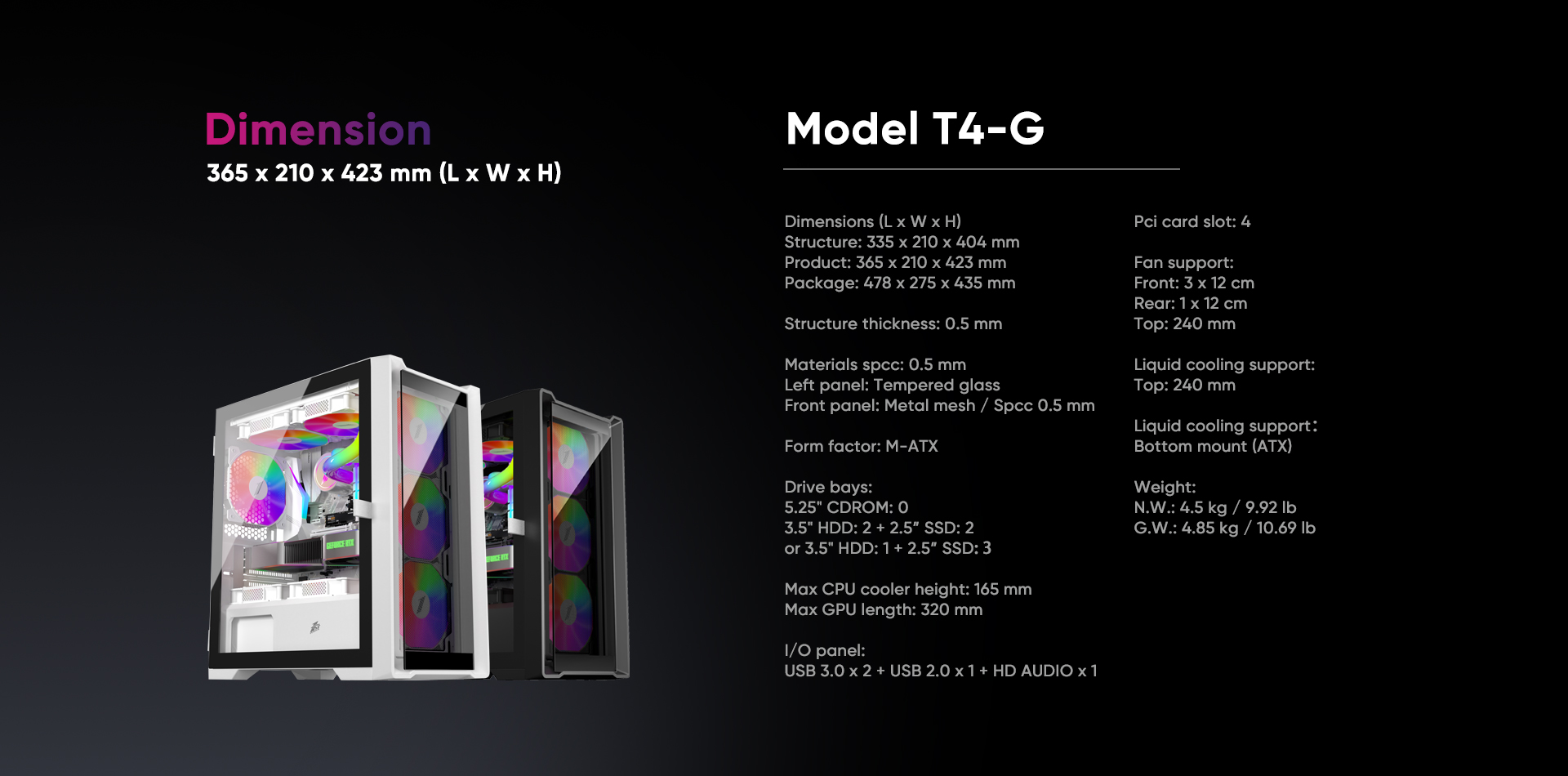

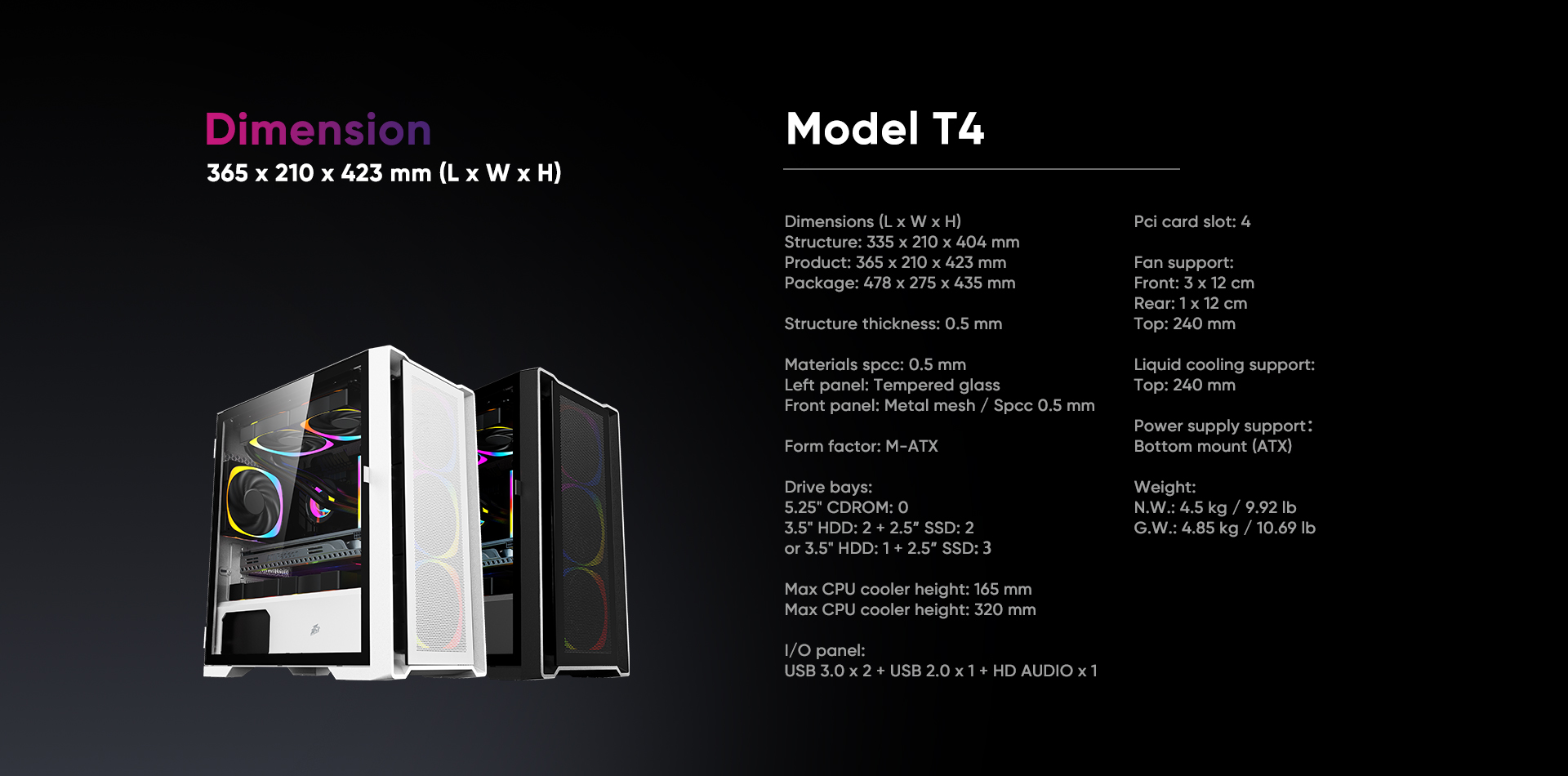

MODEL
T4/T4-G
STRUCTURE DIMENSIONS (L x W x H)
335 x 210 x 404 mm
PRODUCT DIMENSIONS (L x W x H)
365 x 210 x 423 mm
PACKAGE DIMENSIONS (L x W x H)
478 x 275 x 435 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Left Panel：Tempered glass
Front Panel: Metal mesh / SPCC 0.5 mm
Left Panel：Tempered glass
FORM FACTOR
M-ATX
5.25" CD ROM: 0

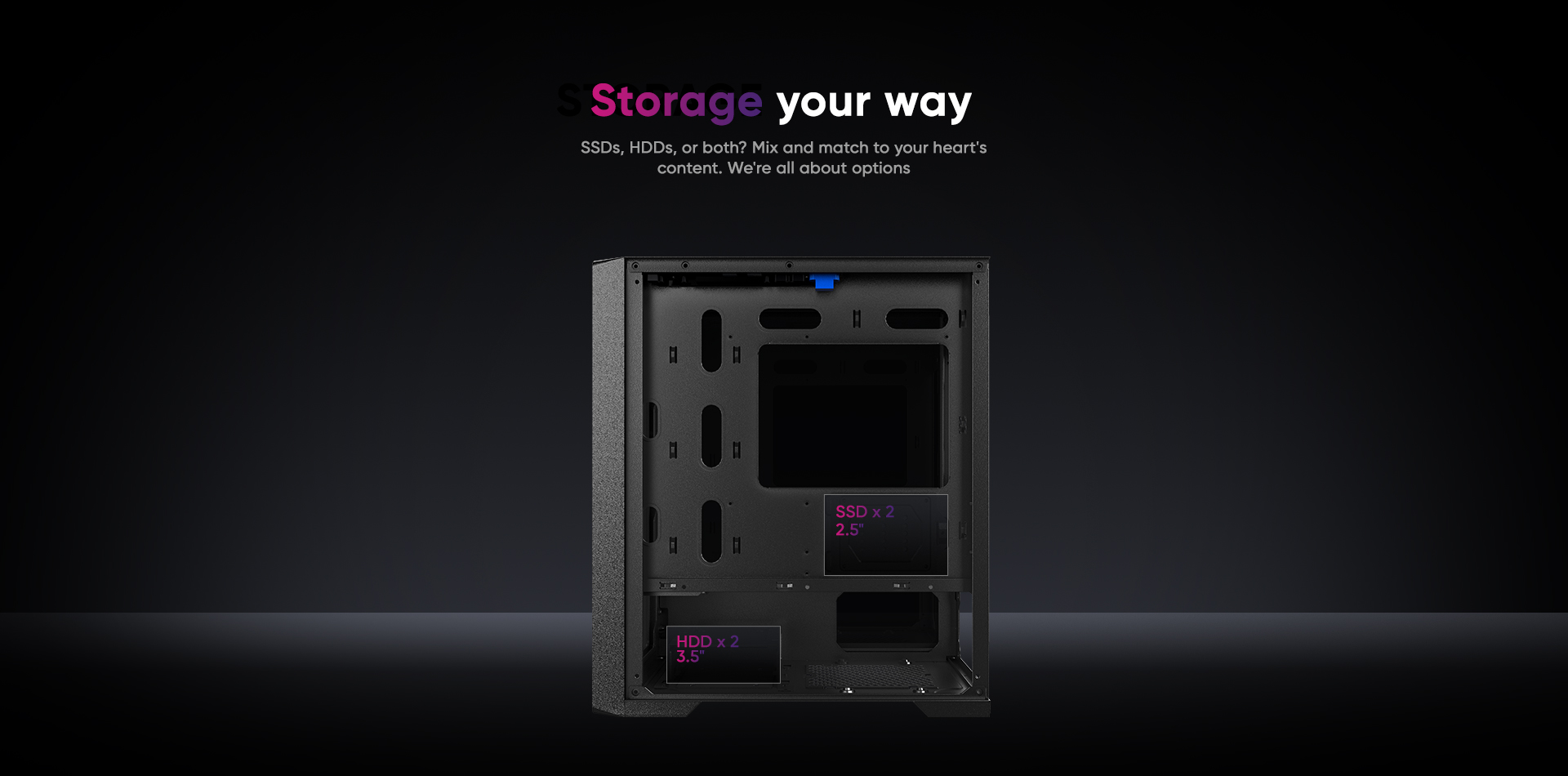

3.5" HDD: 2 + 2.5"SSD: 2
3.5" HDD: 1 + 2.5"SSD: 3

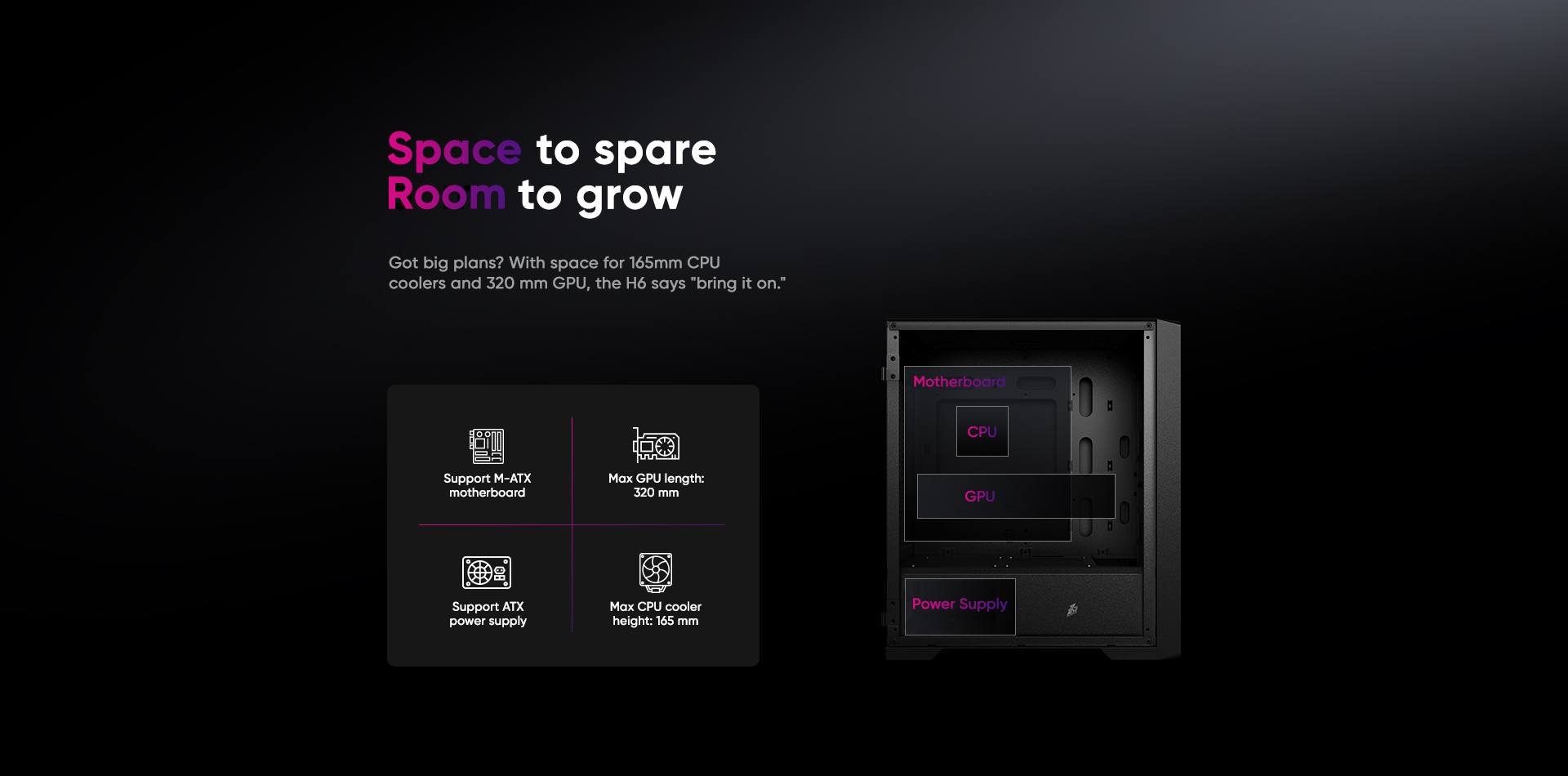

CPU MAX HEIGHT
165 mm
VGA MAX LENGTH
320 mm

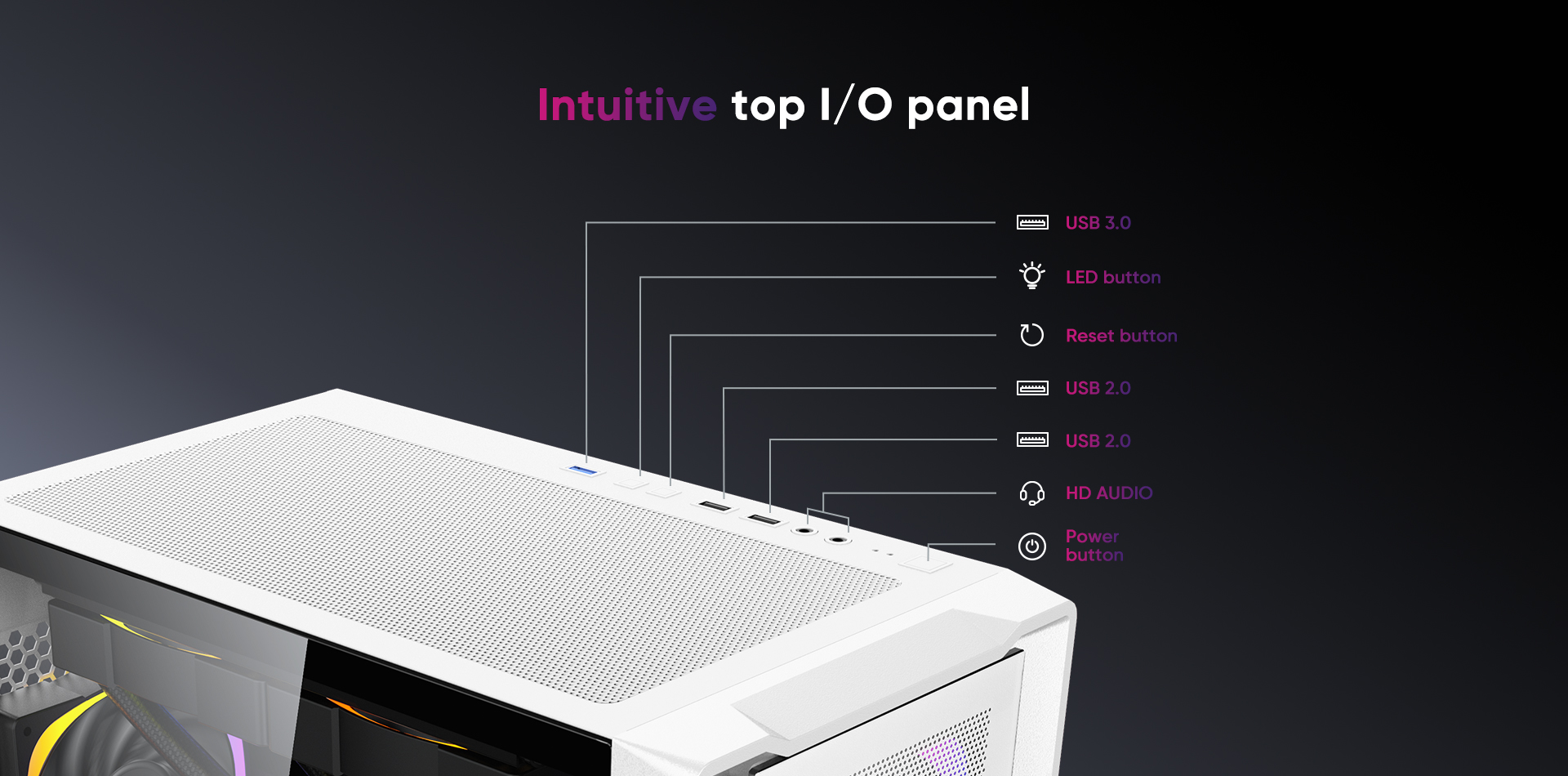

I/O PANEL
USB 3.0 x 2 + USB 2.0 x 1 + HD AUDIO x 1
PCI CARD SLOT
4

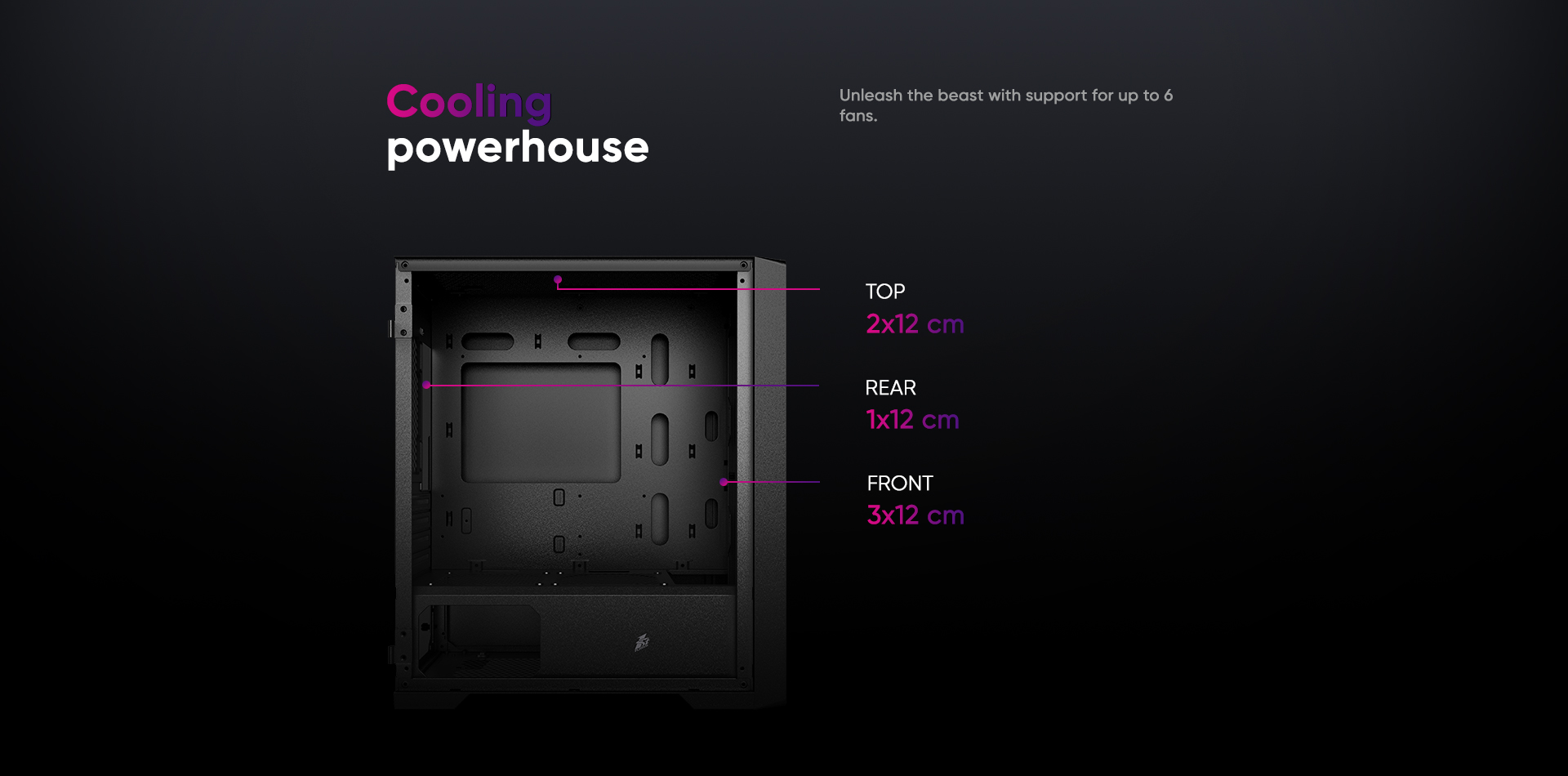

FAN SUPPORT
Front: 3 x 120 mm
Top: 2 x 120 mm
Rear: 1 x 120 mm
LIQUID COOLING SUPPORT
Top: 240 mm
POWER SUPPLY SUPPORT
Bottom mount ATX
NET WEIGHT
4.5 kg / 9.92 lb
4.85KG / 10.69lb
