Support installation of up to 6 fans

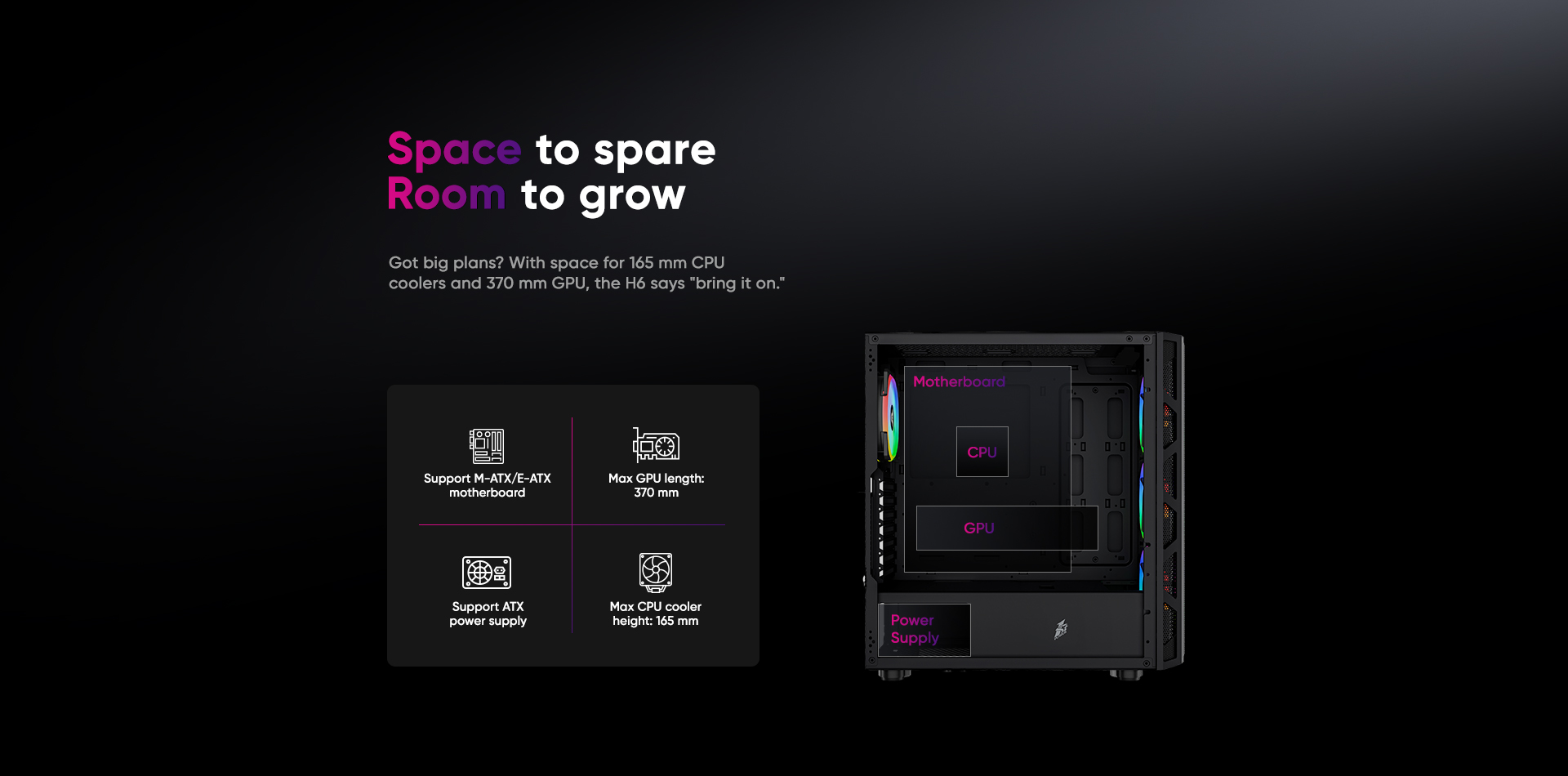

Support CPU cooler height up to 165 mm
Support GPU length up to 370 mm
Support a 240 mm radiator at the top and a 360 mm radiator at the front

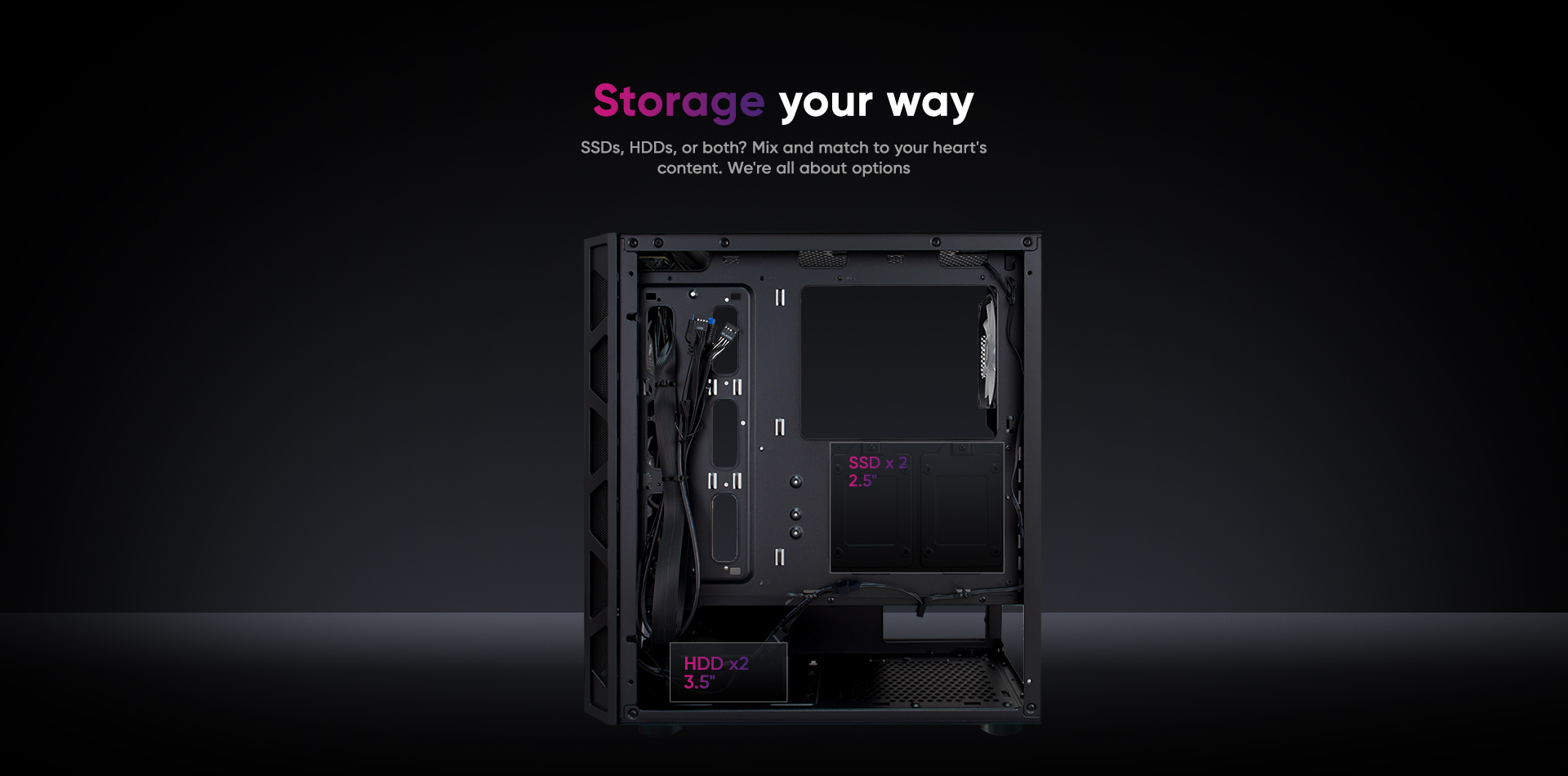

Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.

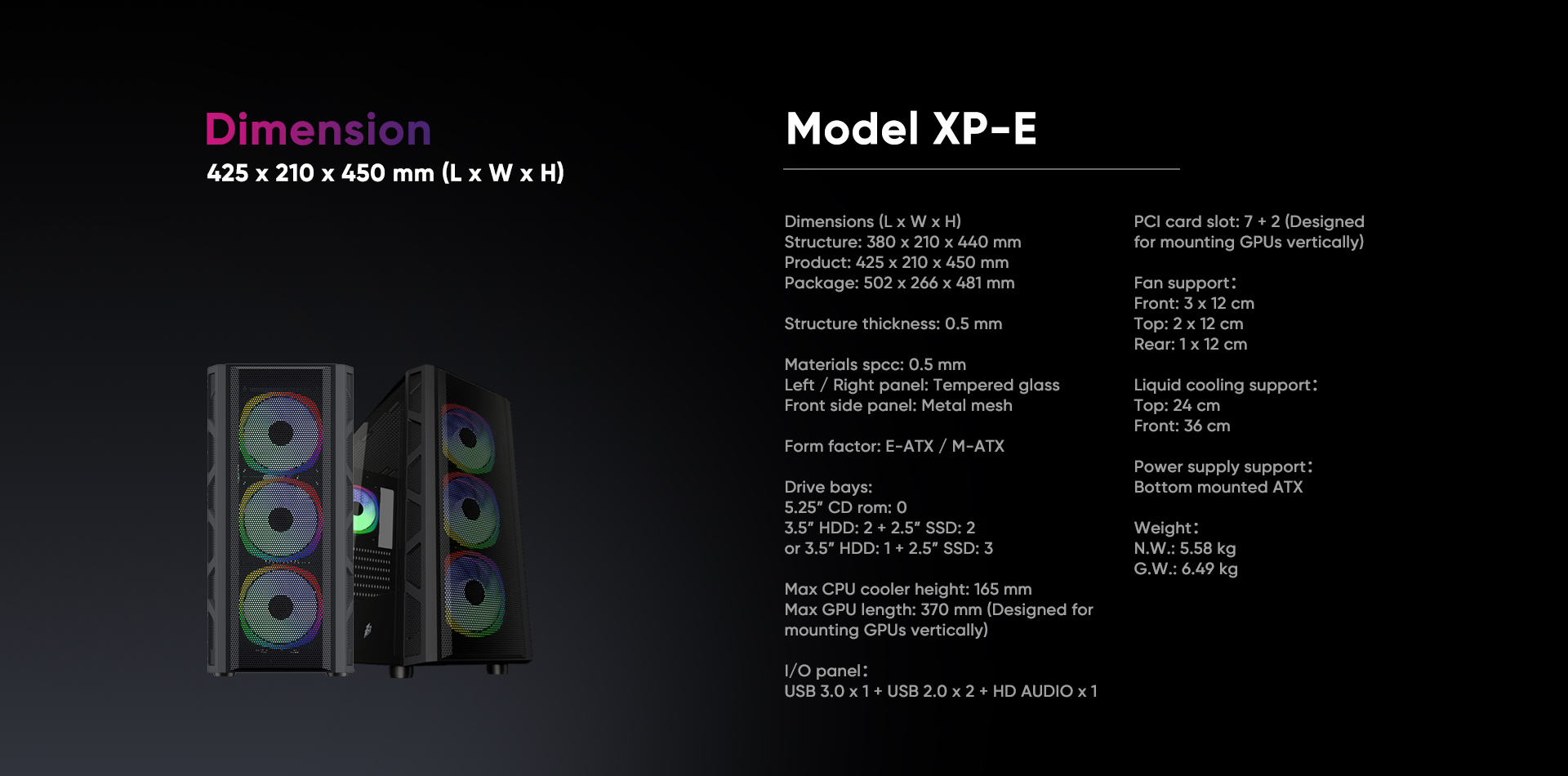

Model
XP-E
Structure Dimensions(L*W*H)
380*210*440 mm
Product Dimensions(L*W*H)
425*210*450 mm
Package Dimensions(L*W*H)
502*266*481 mm
Structure Thickness
0.5 mm
Materials
SPCC 0.5 mm

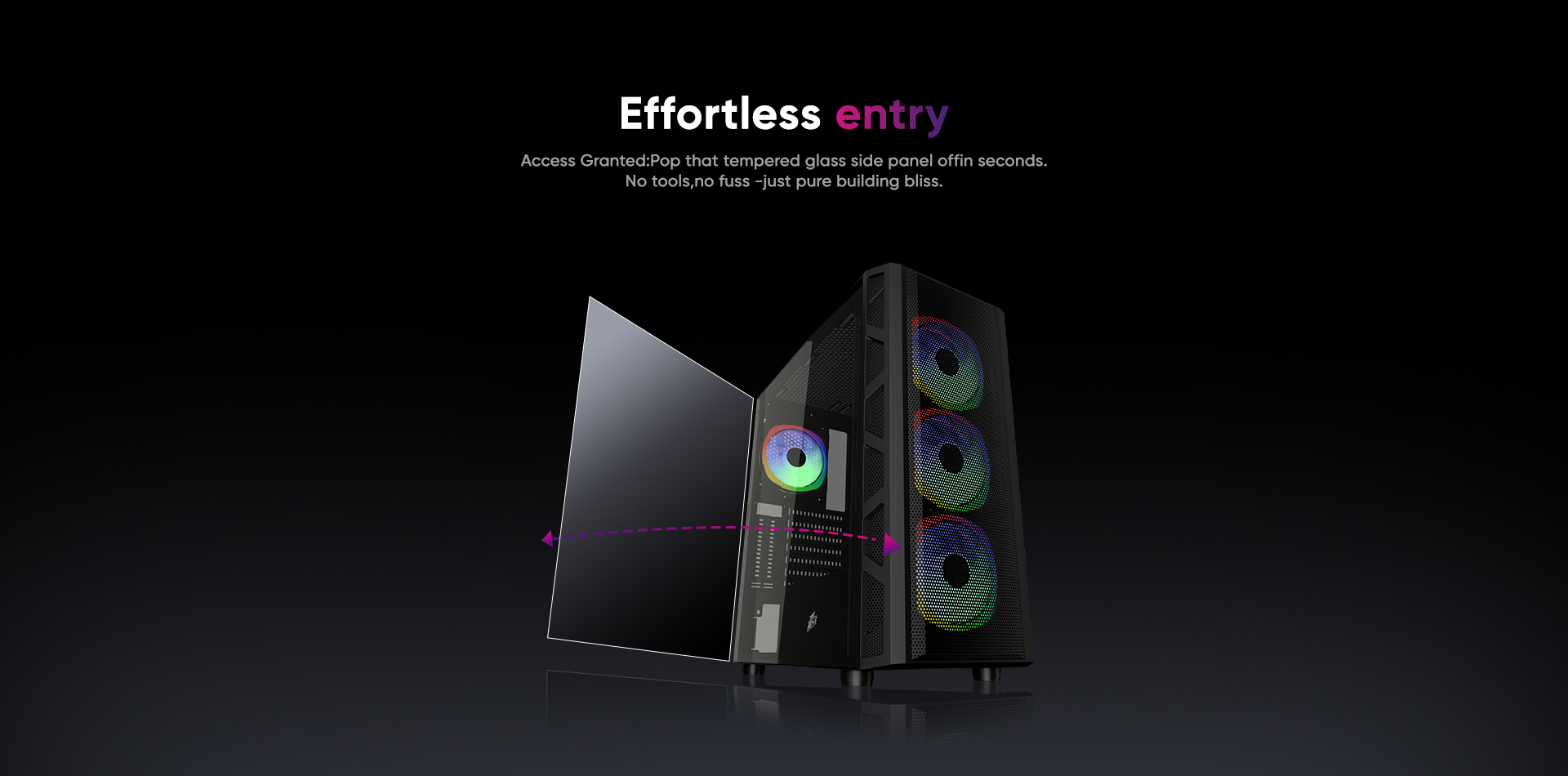

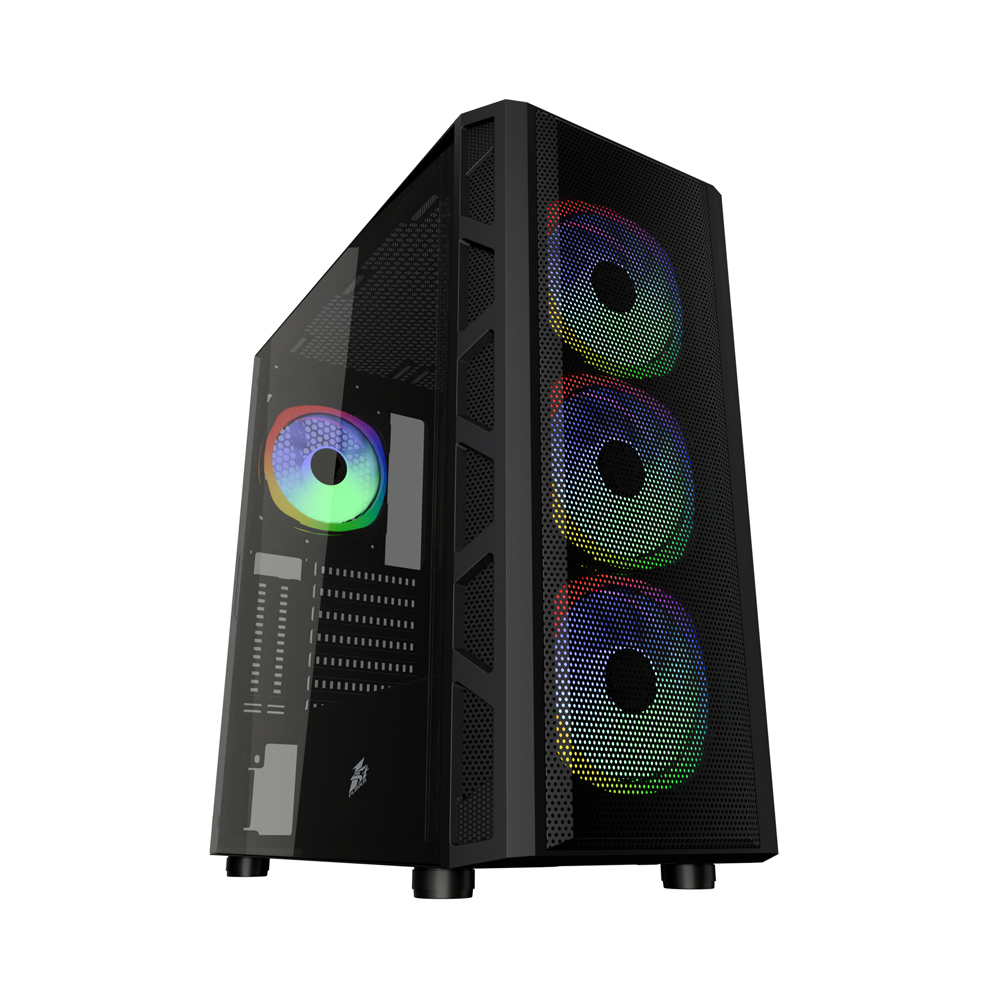

Left side panel: Tempered glass

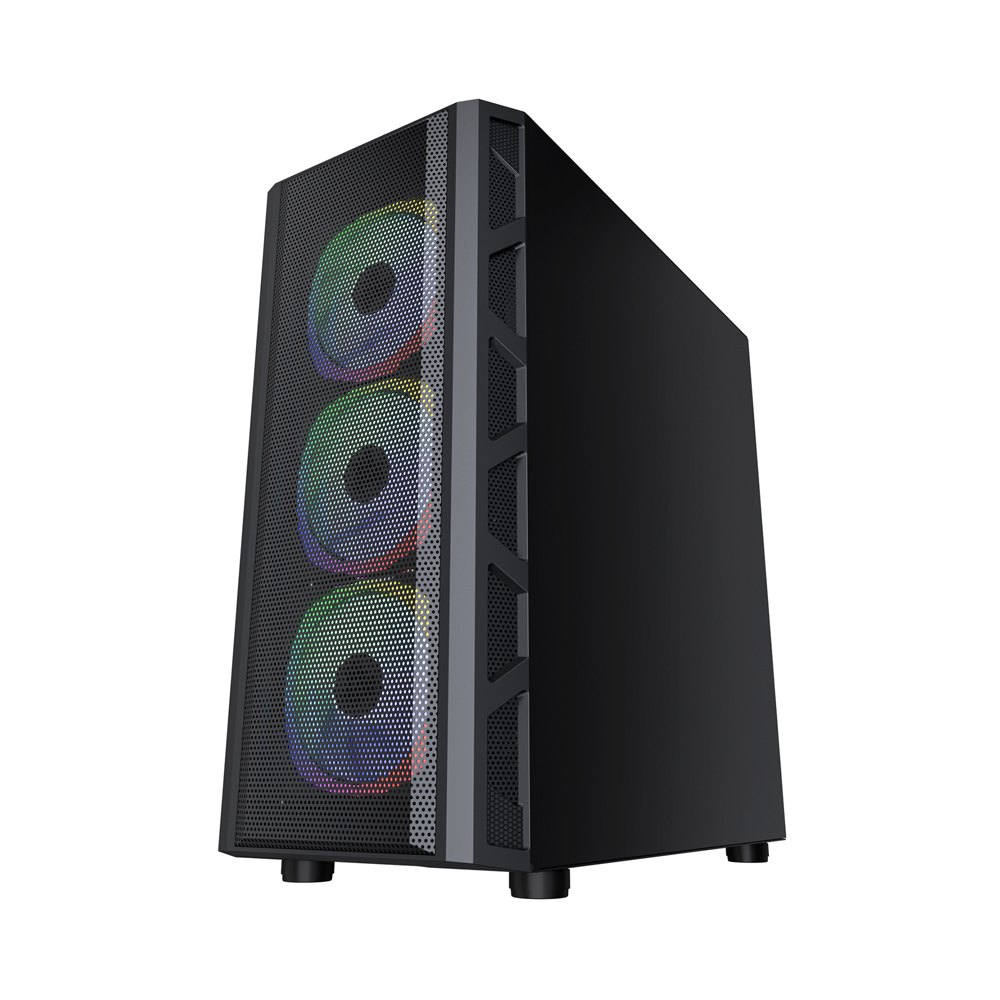

Front panel: Metal mesh
Form Factor
E-ATX/M-ATX
5.25" CD ROM: 0
3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3
MAX CPU Cooler Height
165 mm
MAX GPU Length
370 mm (Designed for mounting GPUs vertically)

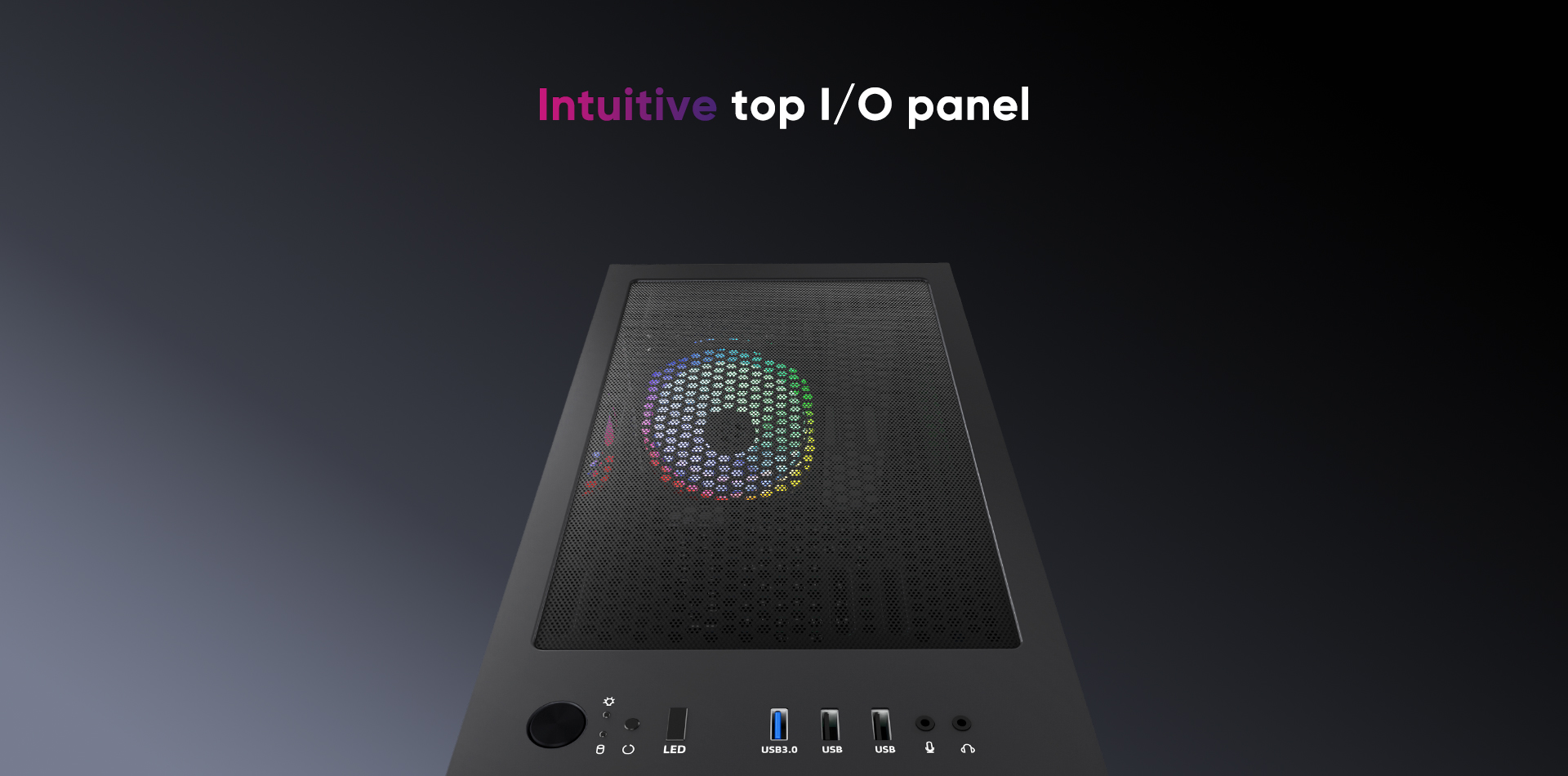

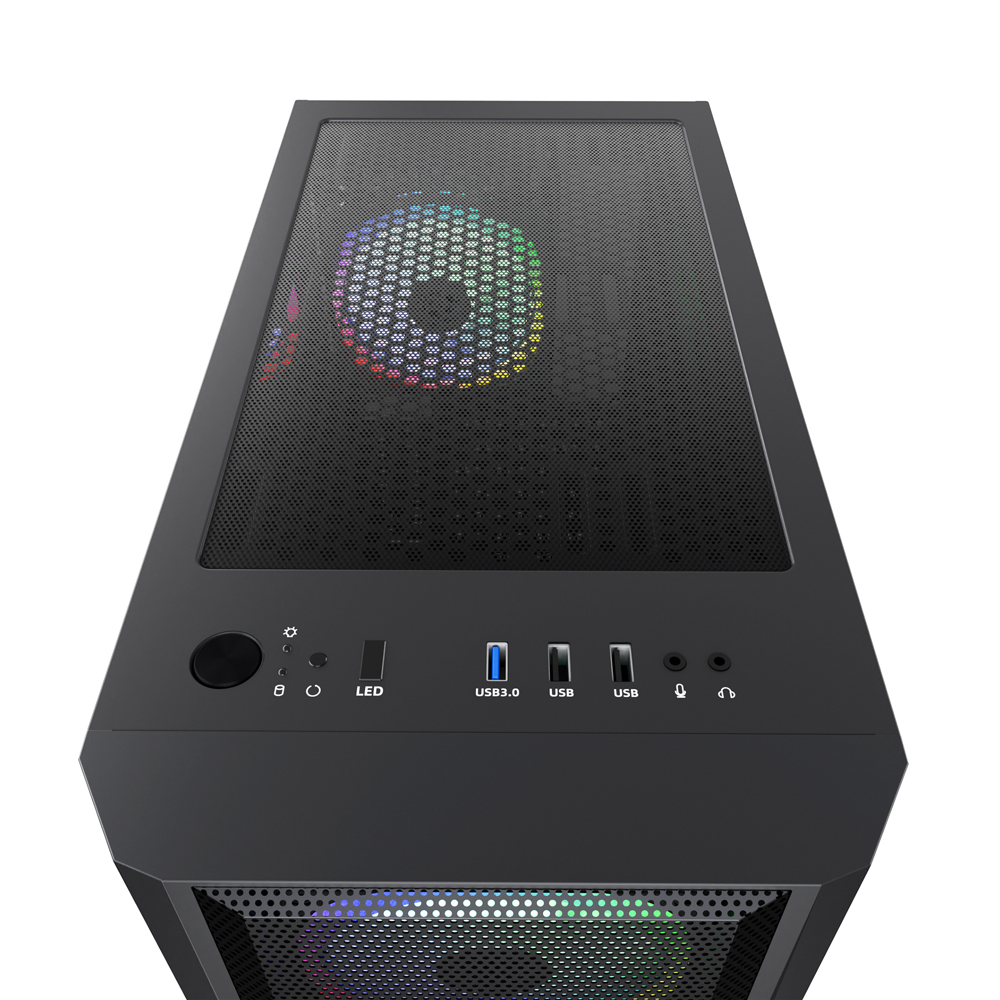

I/O Panel
USB 3.0*1+USB 2.0*2+HD AUDIO*1
PCI Card Slot

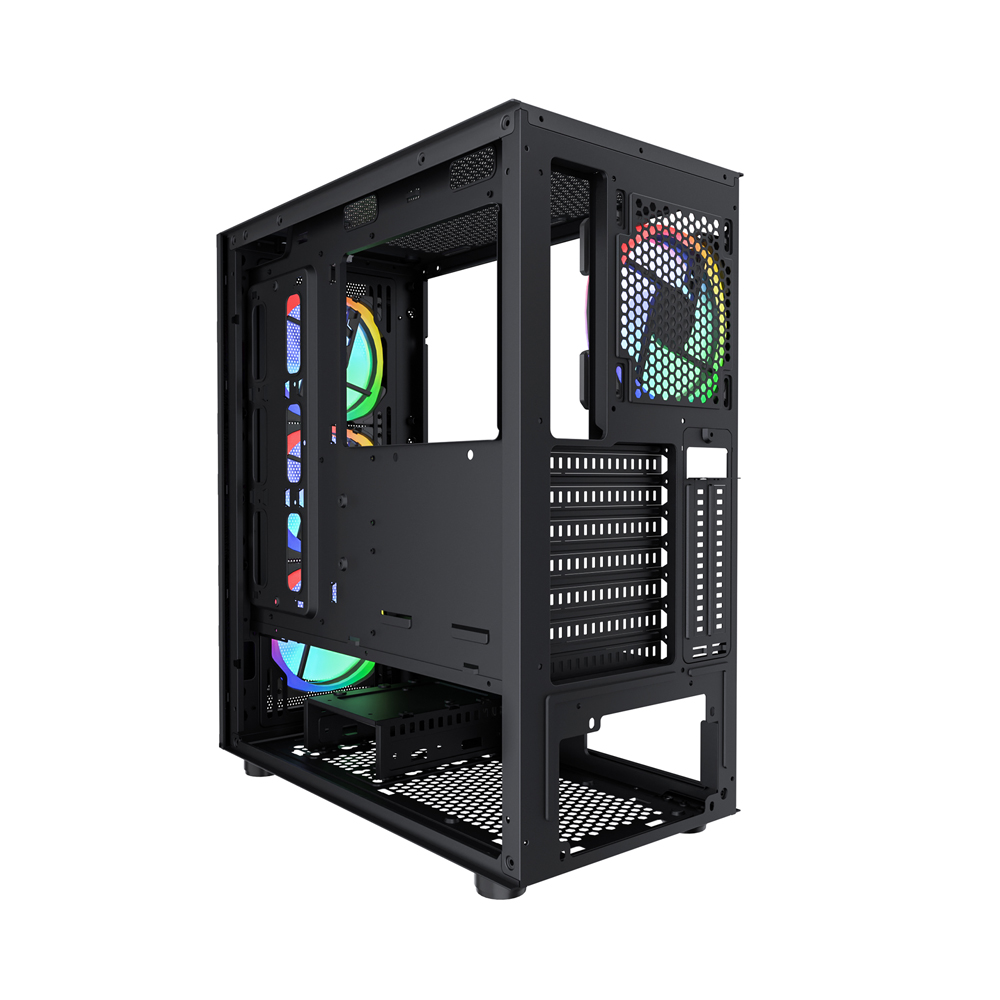

7+2(Designed for mounting GPUs vertically)

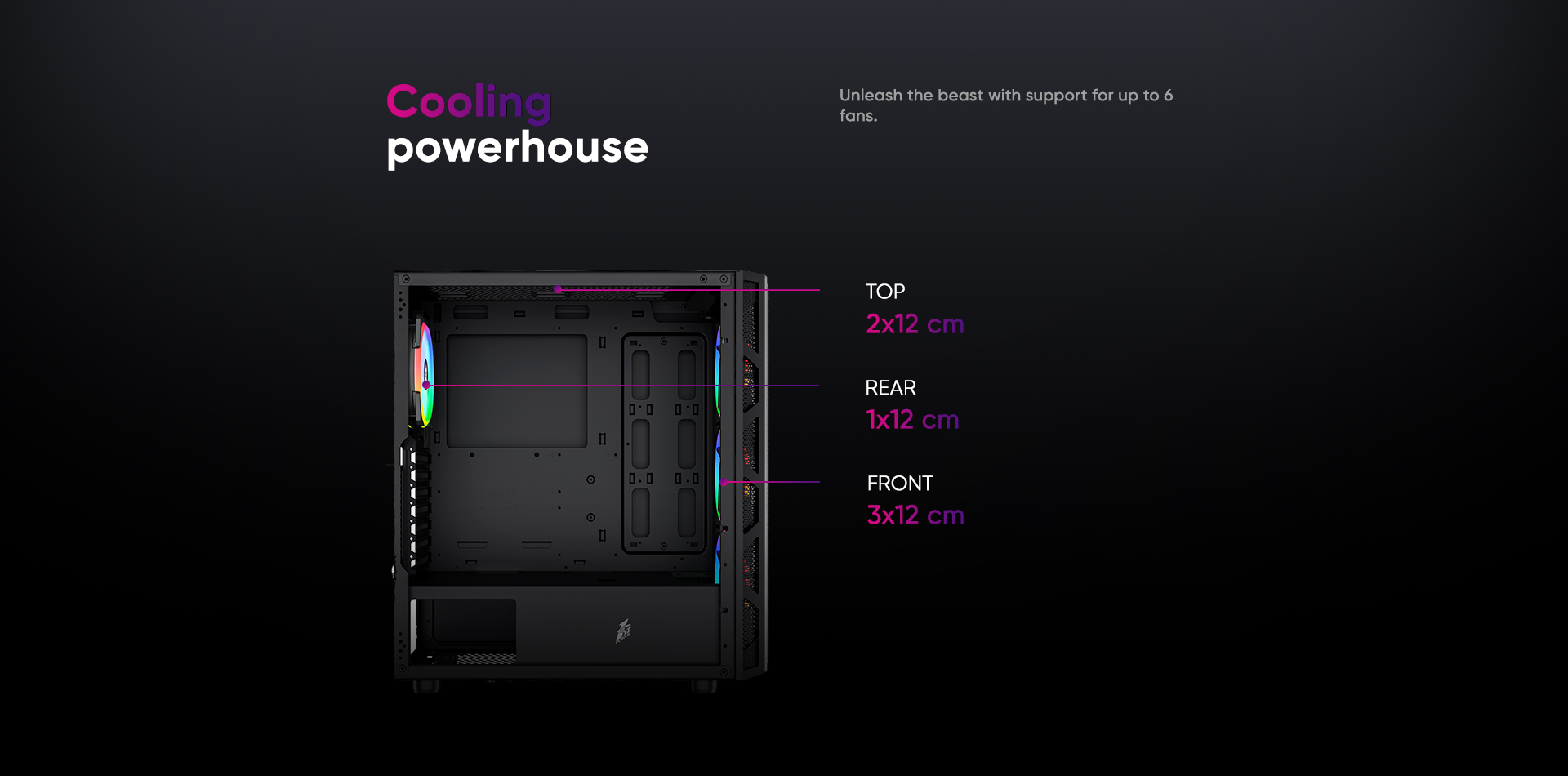

Fan Support

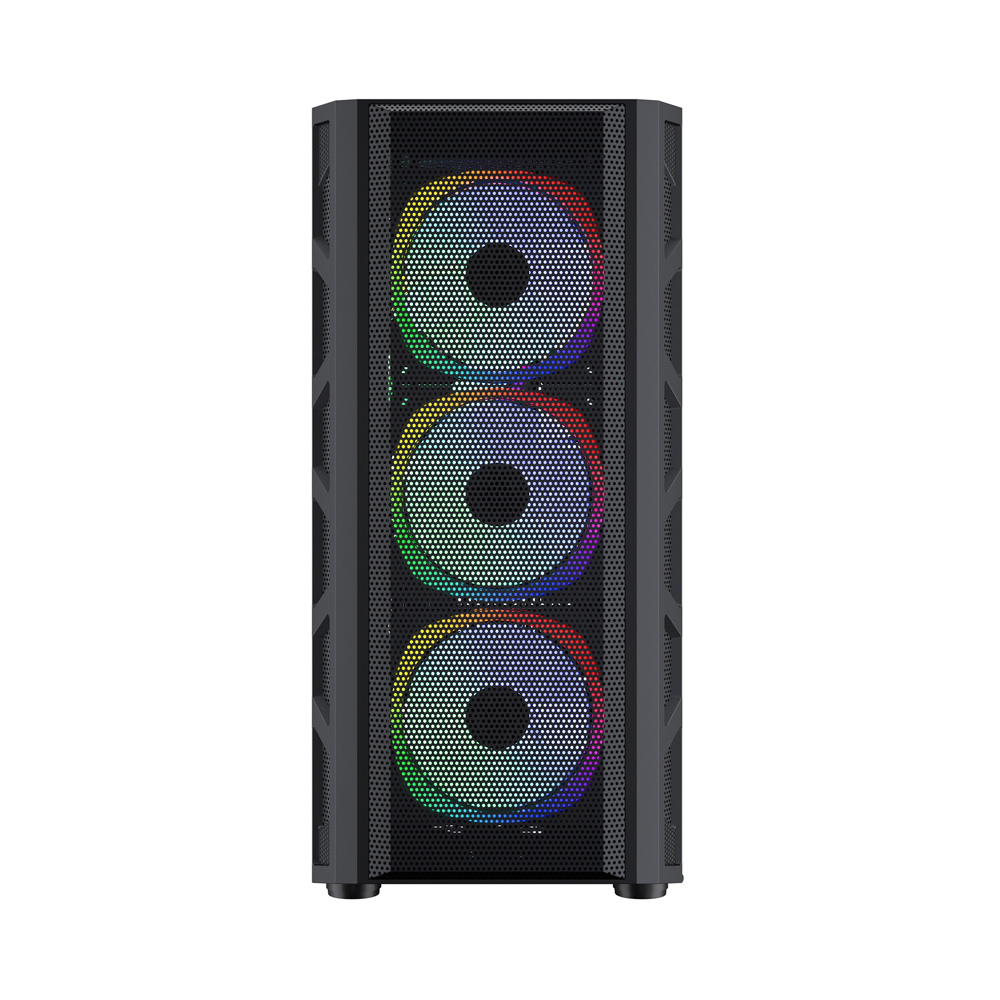

Front：3*12 cm
Top：2*12 cm
Rear：1*12 cm
Liquid Cooling Support
Front：240 mm
Top: 360 mm
Power Supply Support
Bottom mounted ATX
Weight
N.W.: 5.58 kg
G.W.: 6.49 kg
