*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

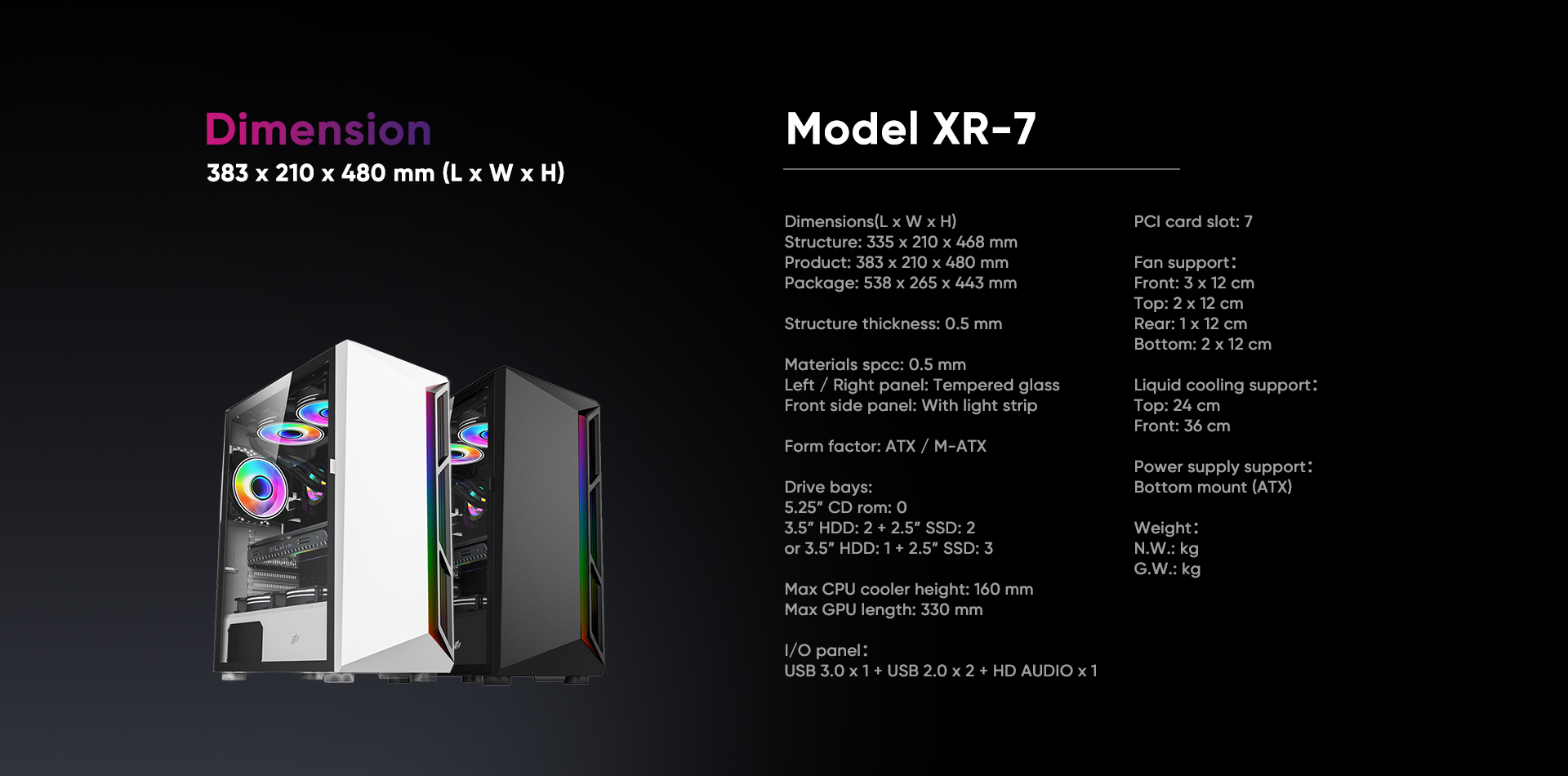

Model
XR-7
Structure Dimensions(L*W*H)
335*210*468MM
Product Dimensions(L*W*H)
383*210*480MM
Package Dimensions(L*W*H)
538*265*443MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM

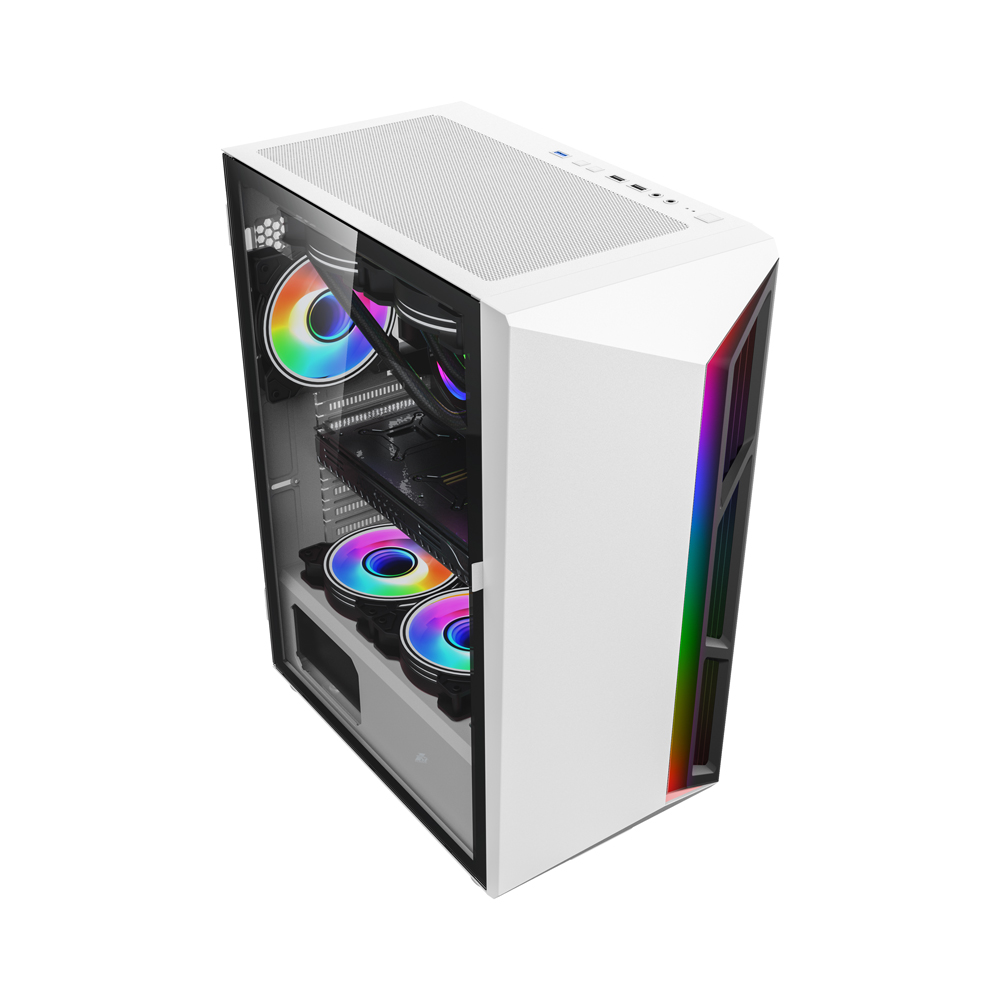

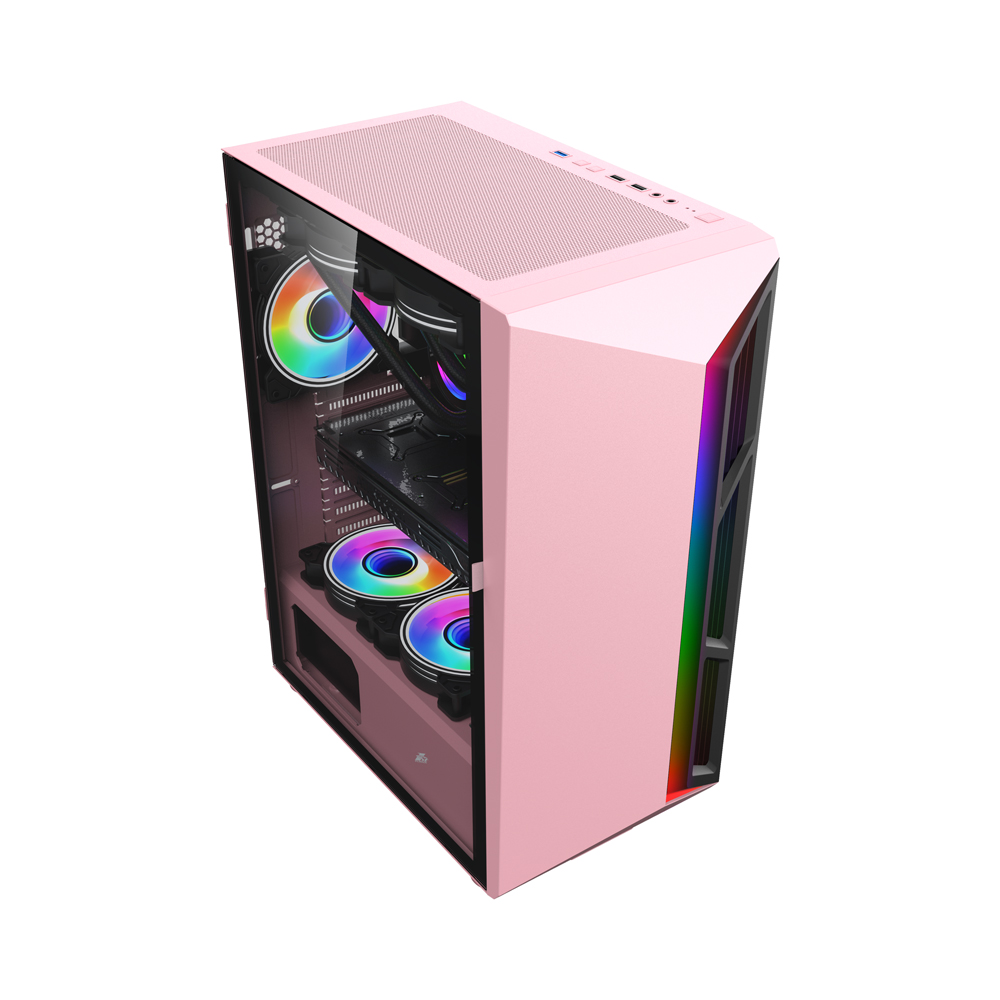

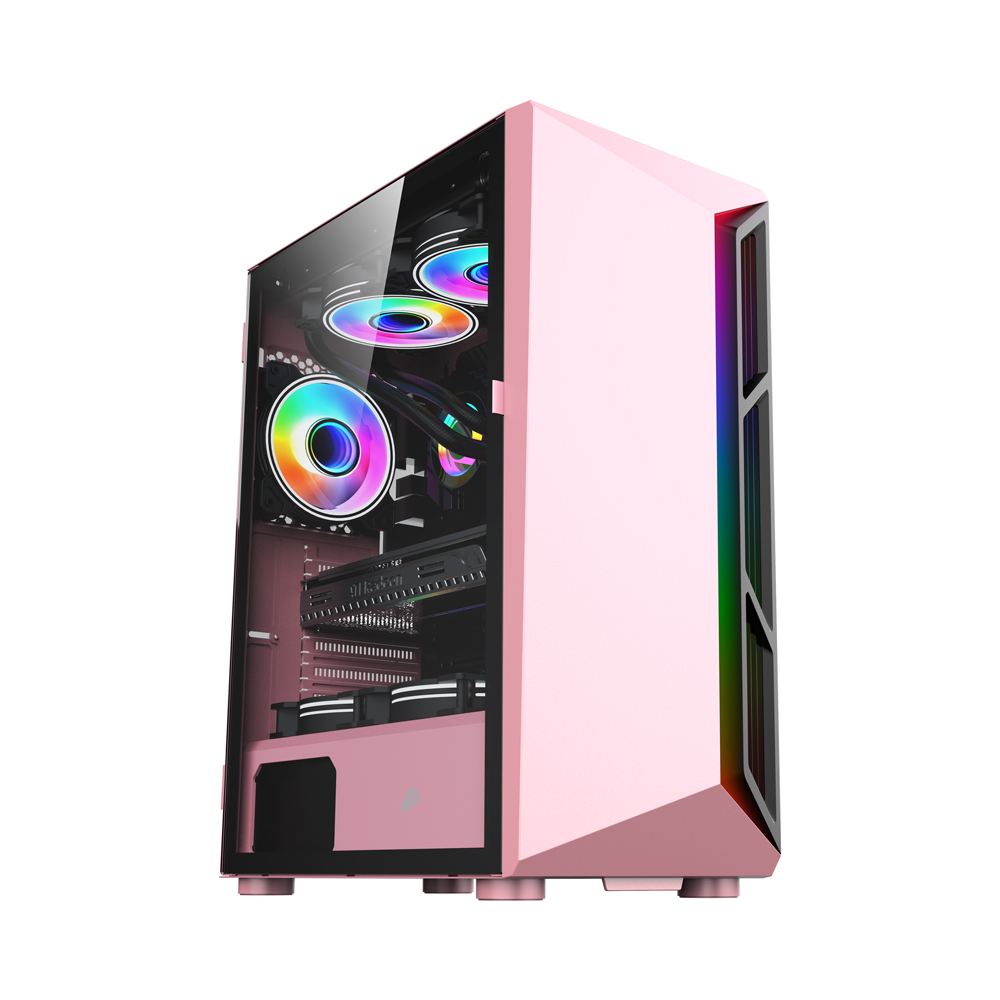

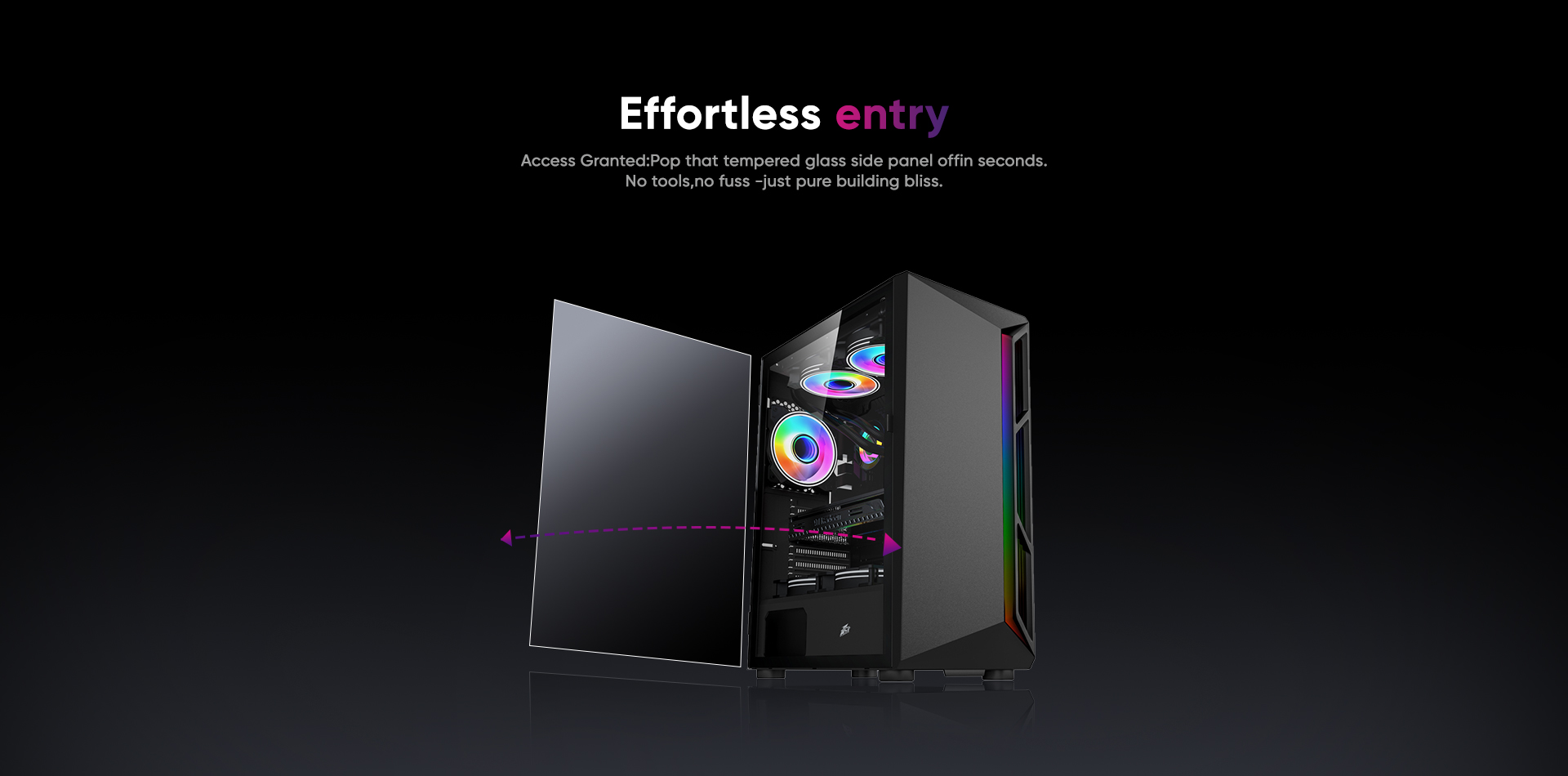

LEFT SIDE PANEL：TEMPERED GLASS
FRONT SIDE PANEL：With Light Strip
Form Factor
ATX/M-ATX
5.25""CD ROM:0

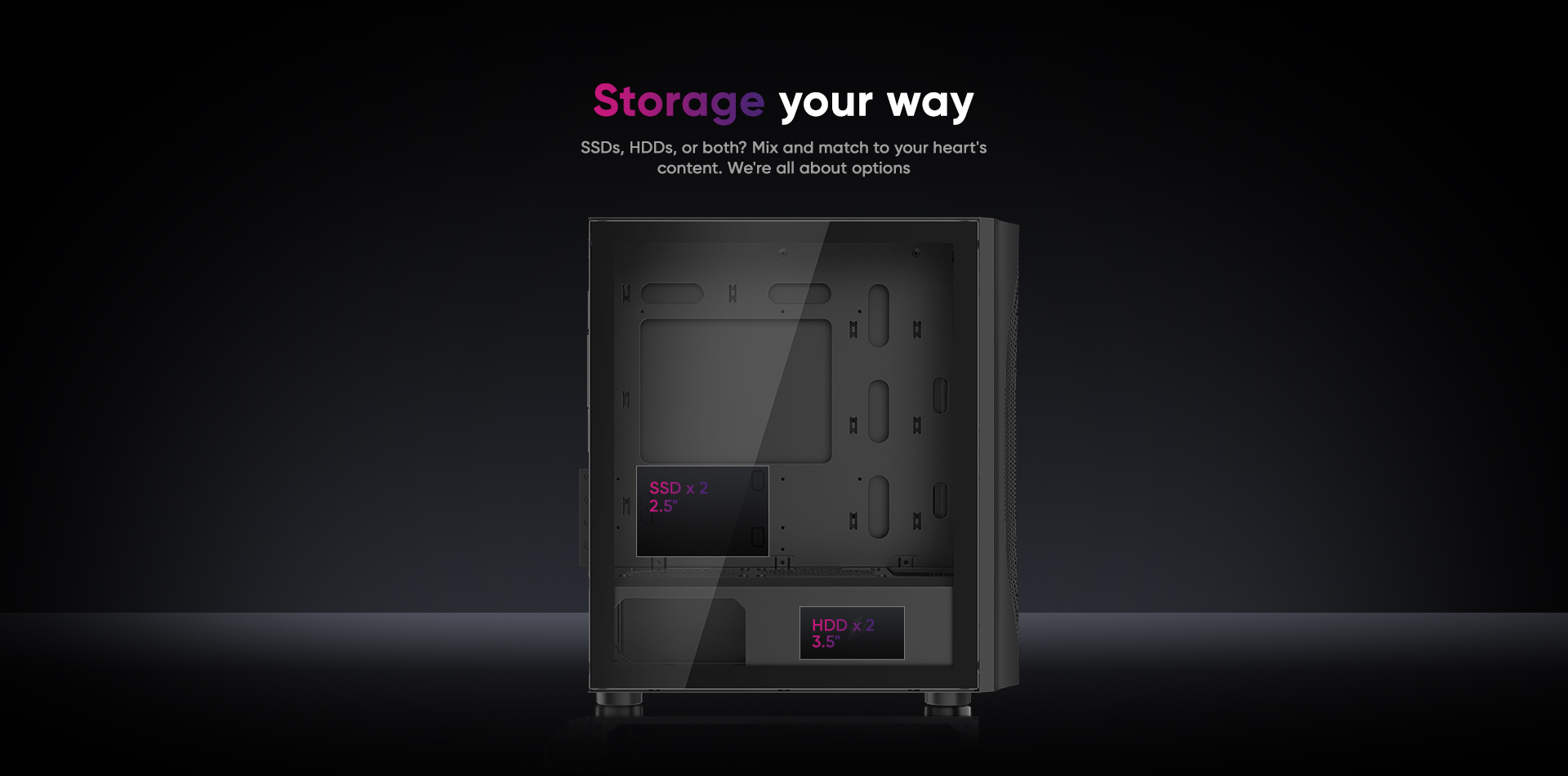

①3.5""HDD:2 + 2.5""SSD:2
②3.5""HDD:1 + 2.5""SSD:3

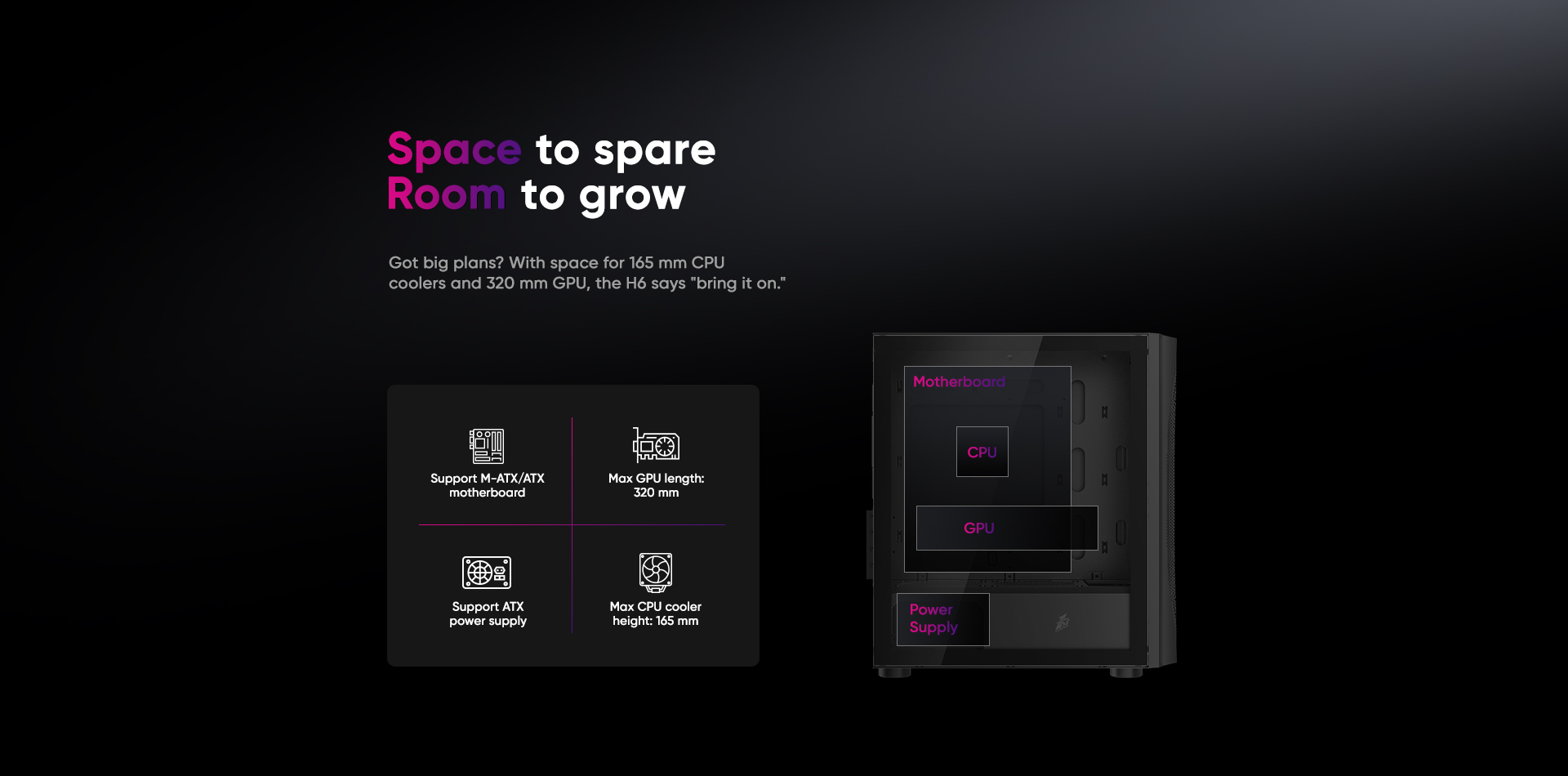

CPU MAX Height
165MM
VGA MAX Length
320MM

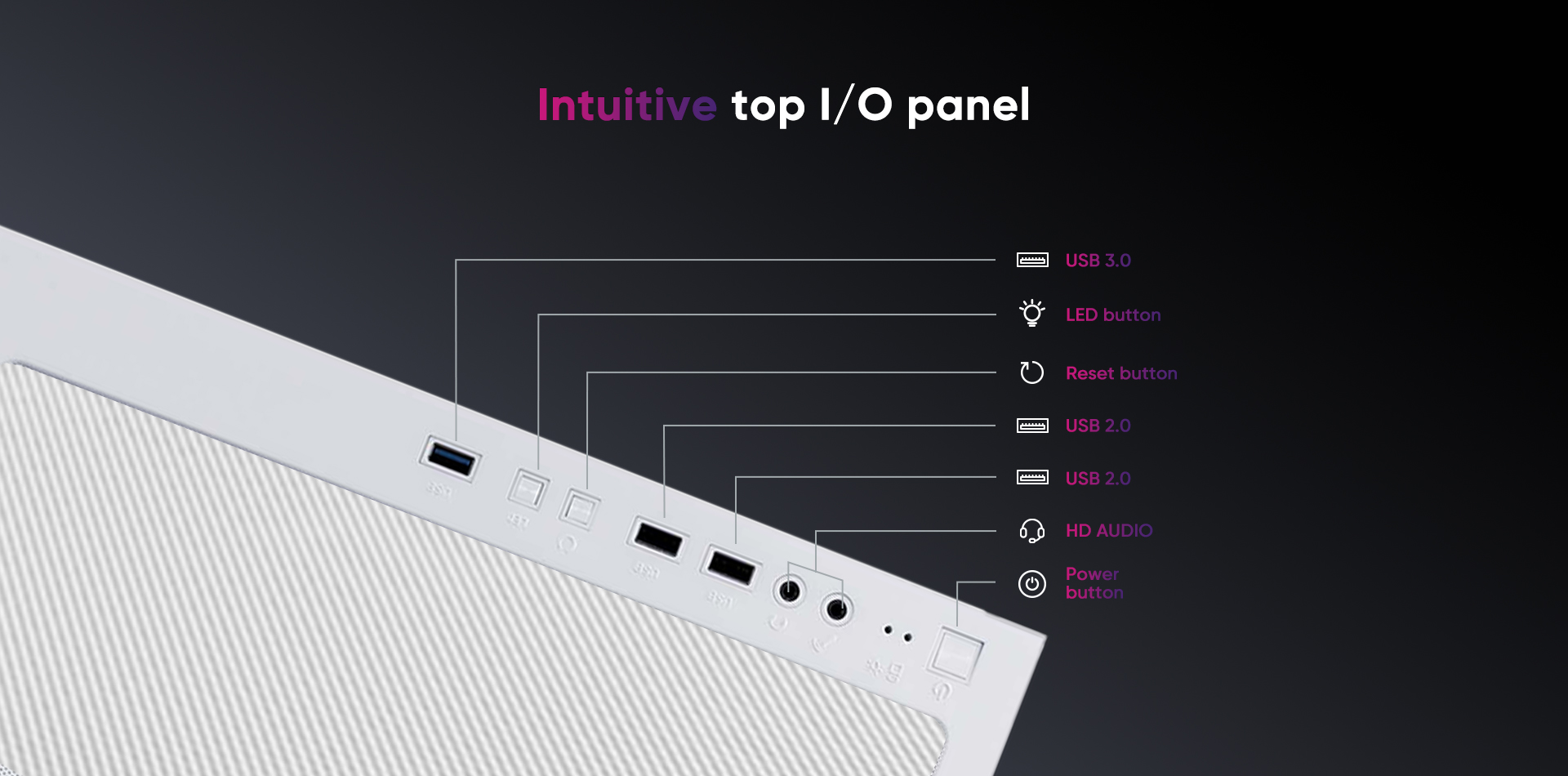

I/O Panel
USB3.0*1+USB2.0*2+HD AUDIO
PCI Card Slot
7

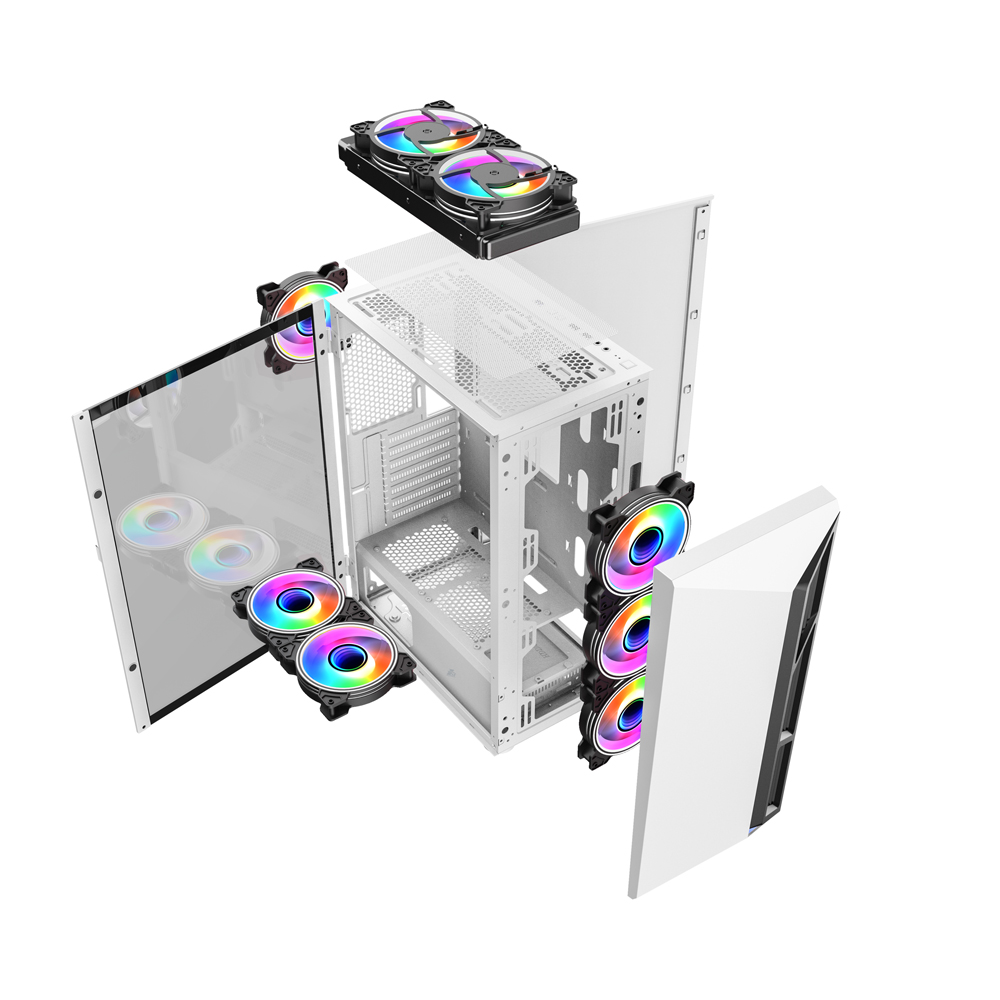

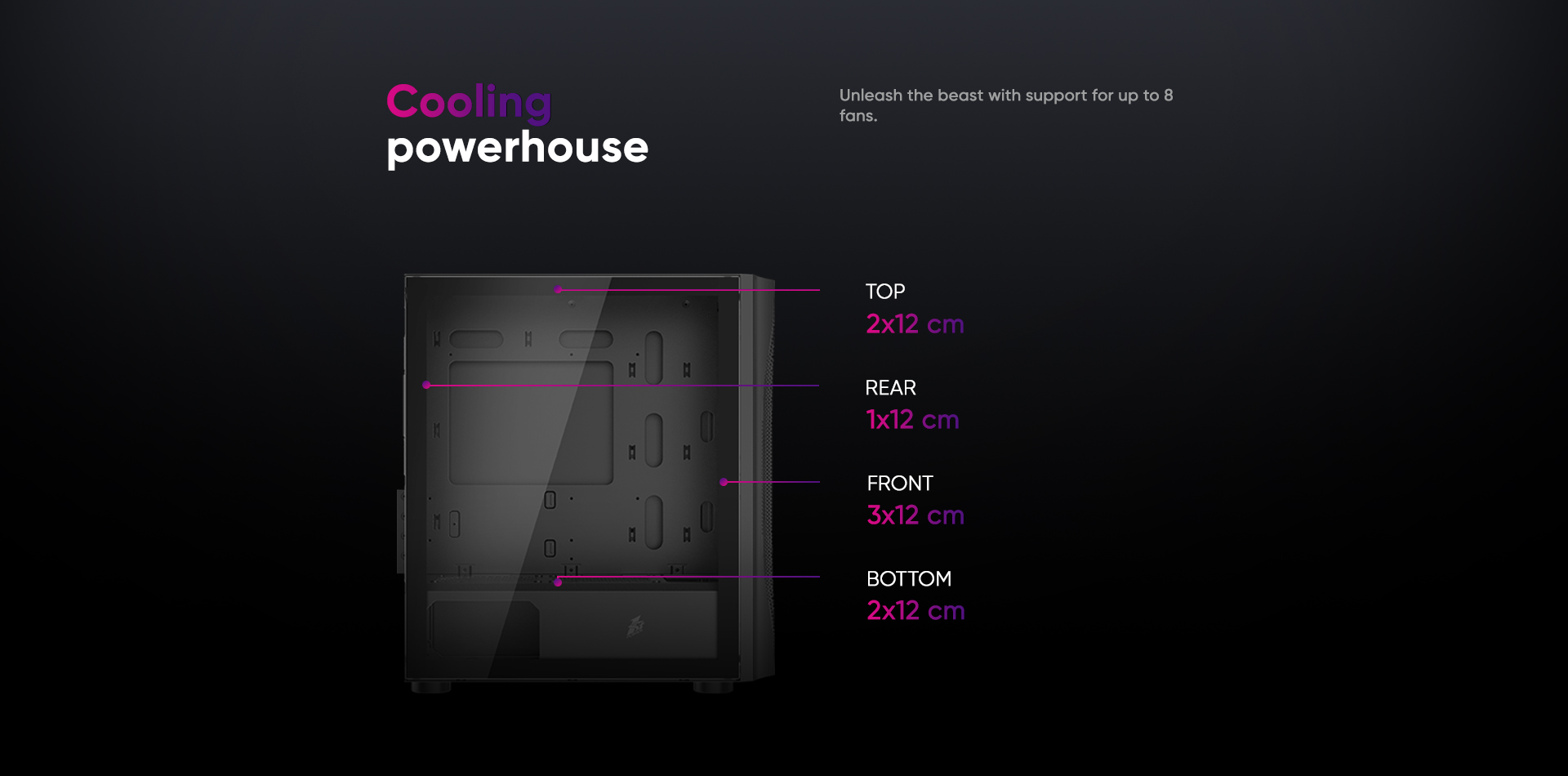

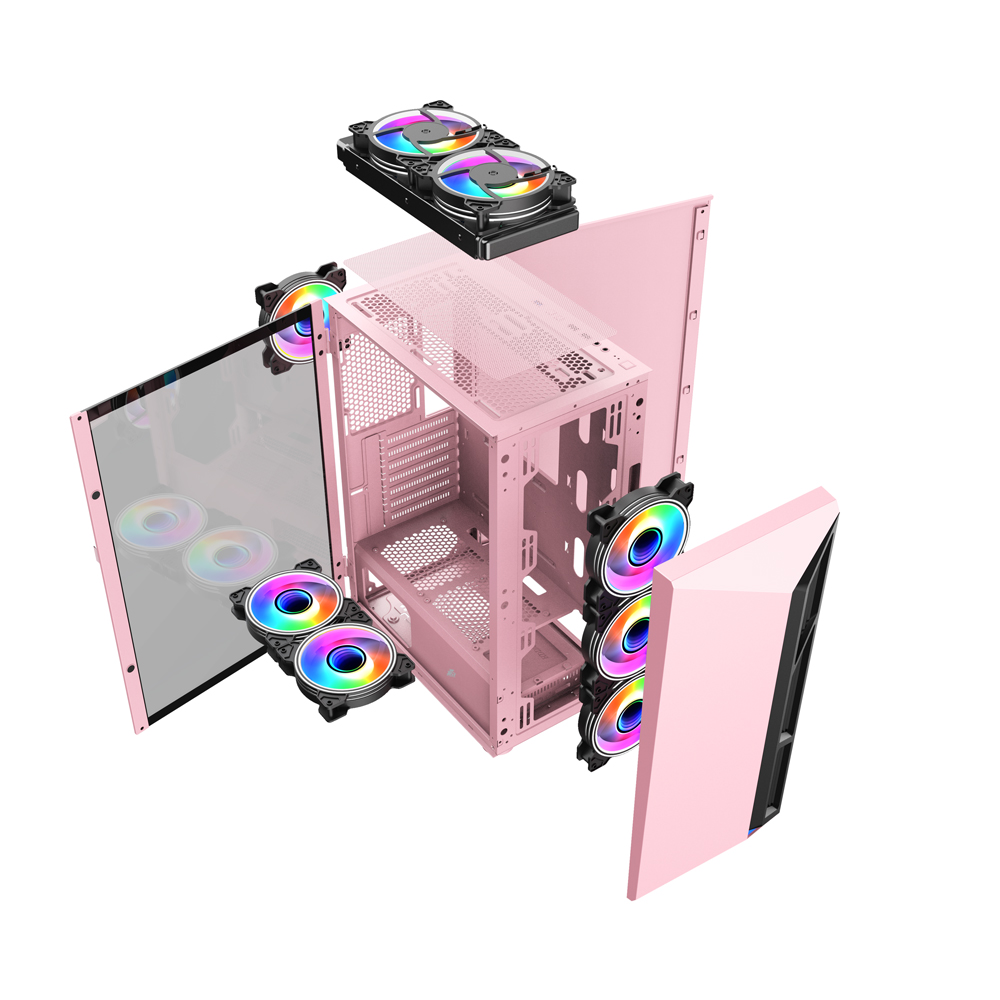

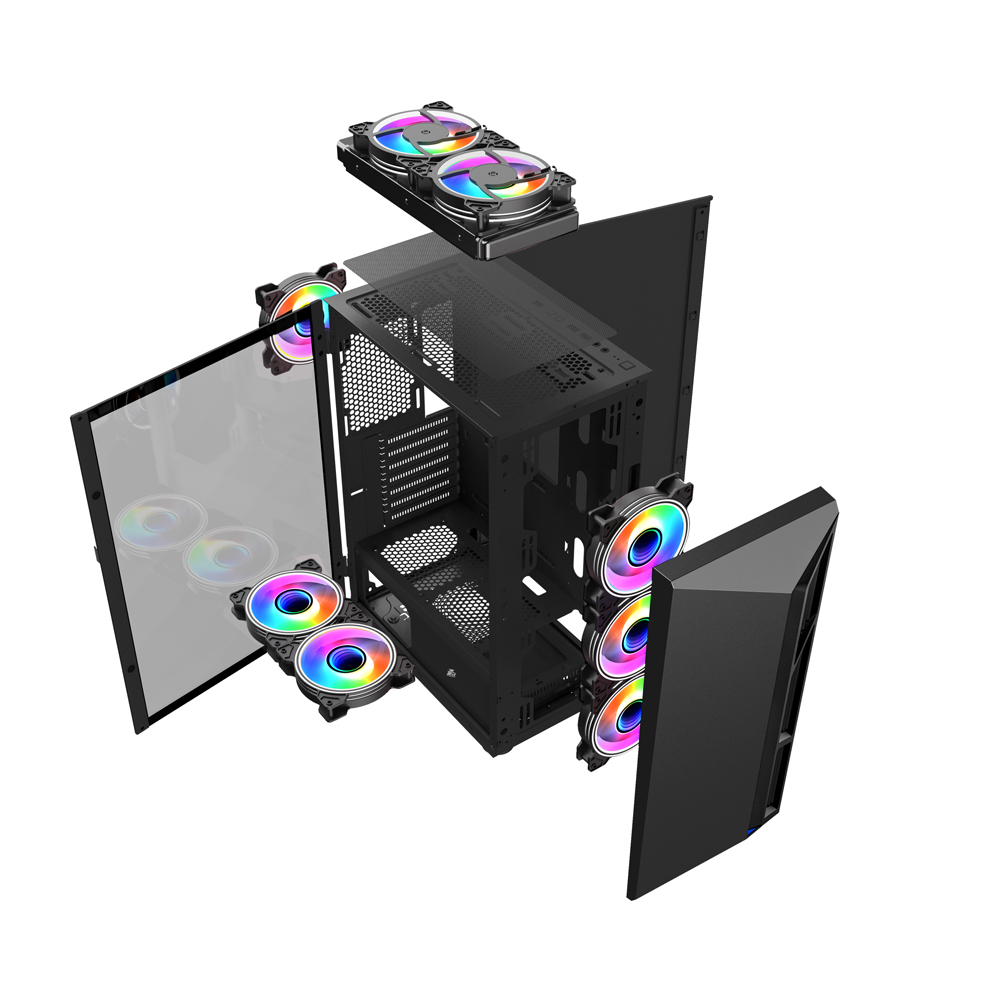

Fan Support
FRONT:3*12CM
TOP:2*12CM
REAR:1*12CM
BOTTOM: 2*12CM
Liquid Cooling Support
TOP:240MM
FRONT:360MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
