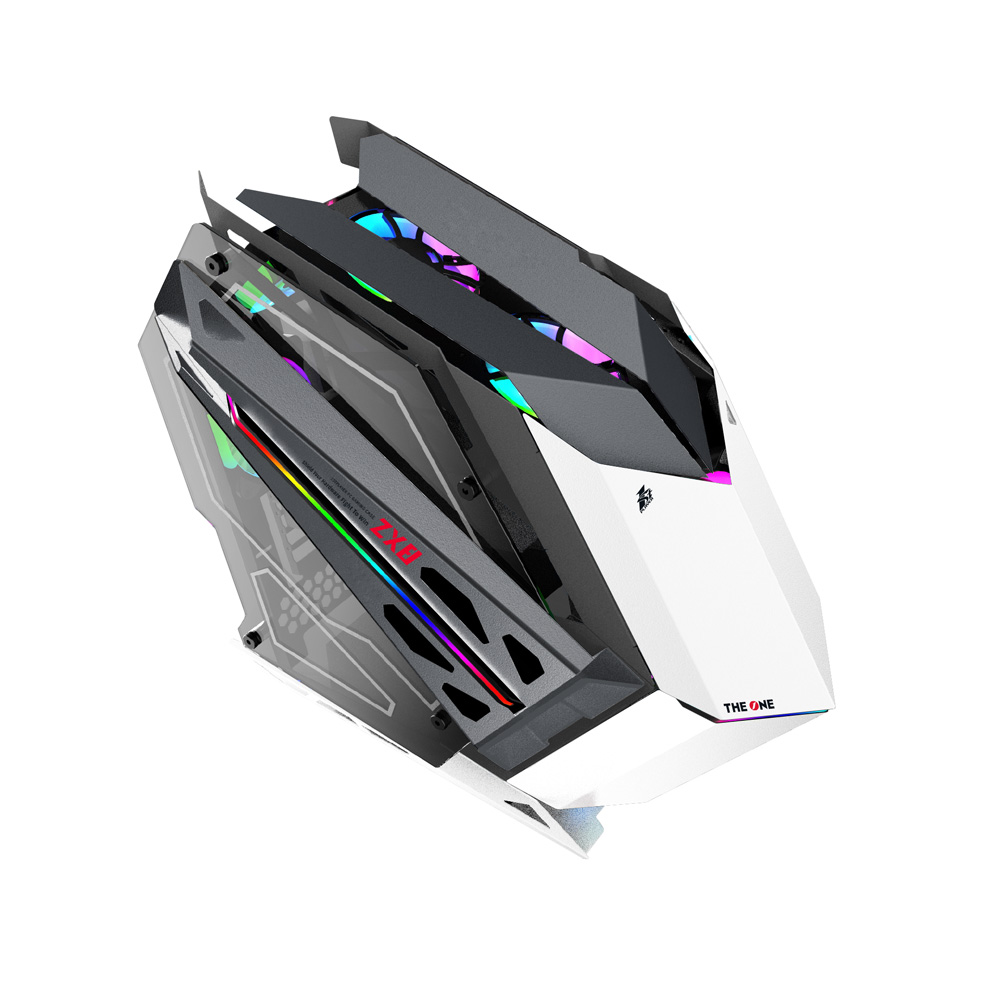

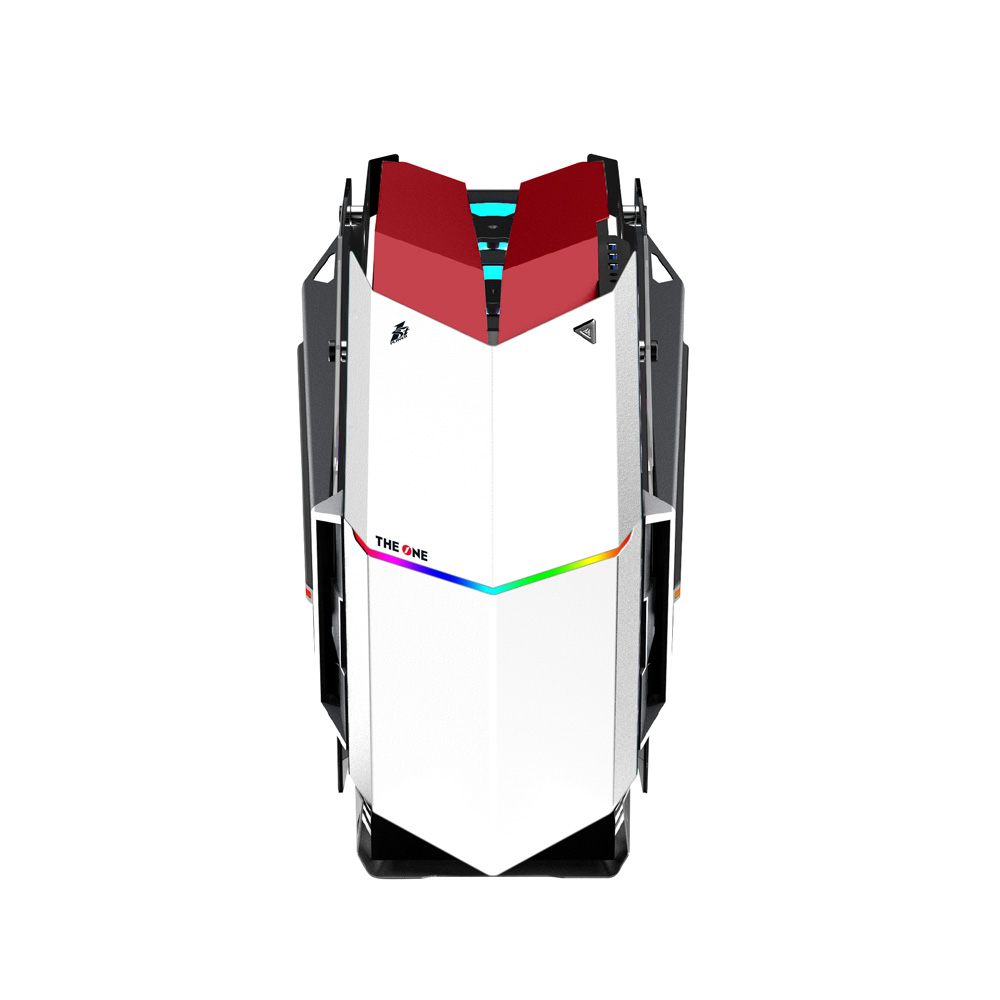

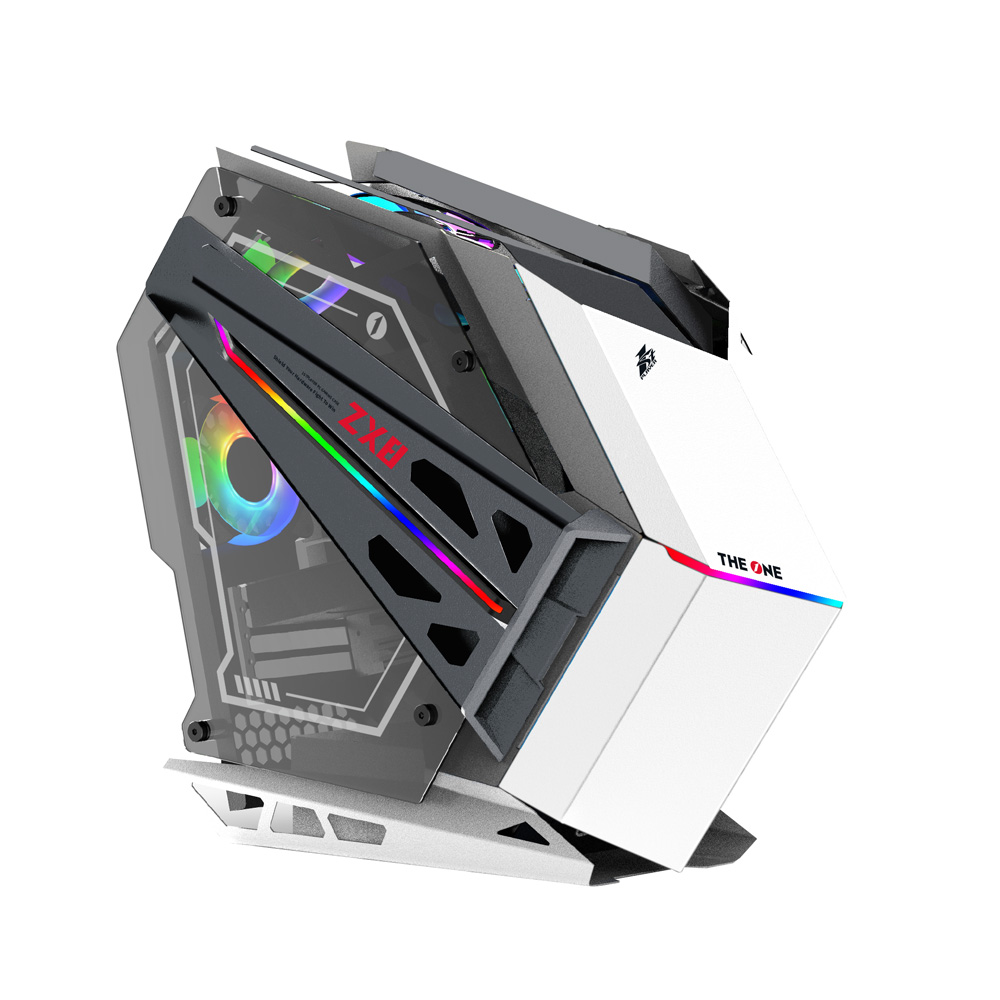

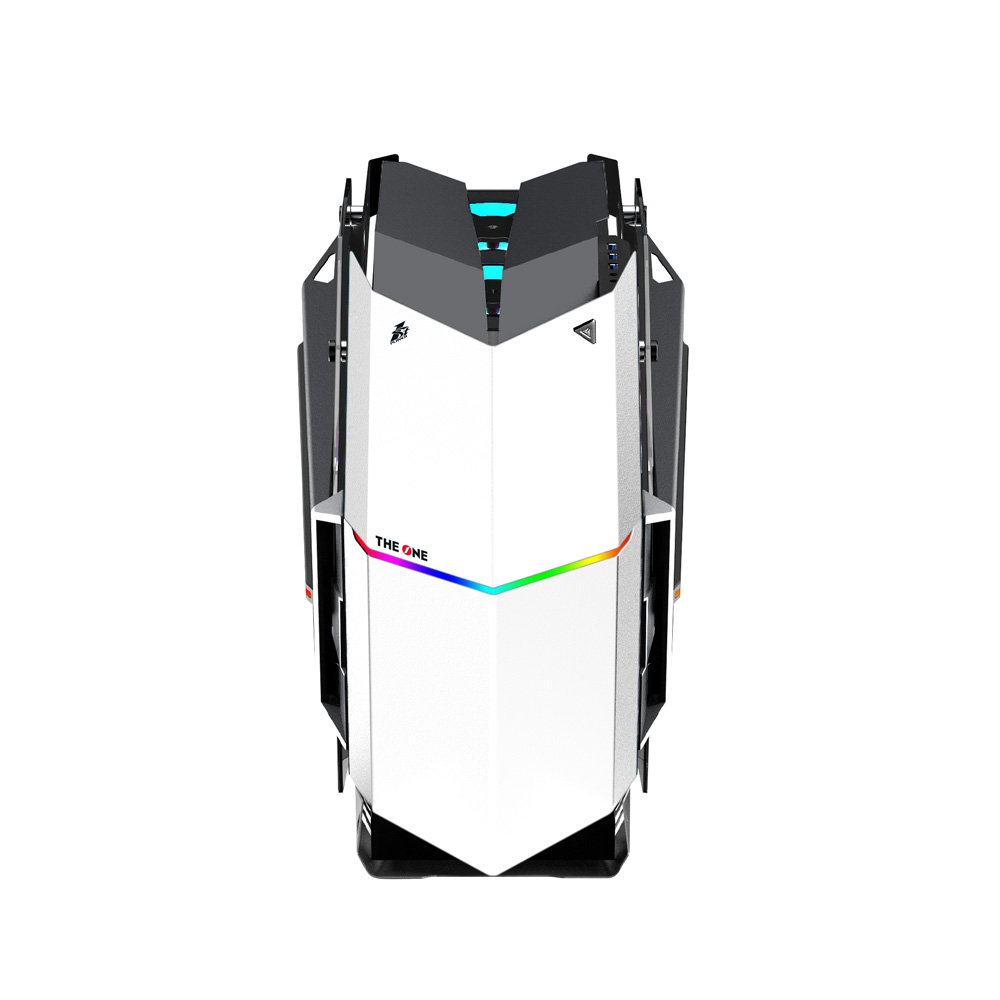

ZX8

1STPLAYER Gaming case

· Special-shaped

· ARGB/With hub and controller

· ATX / M-ATX Support

· SPCC 1.2MM

· 240MM liquid Cooler Support

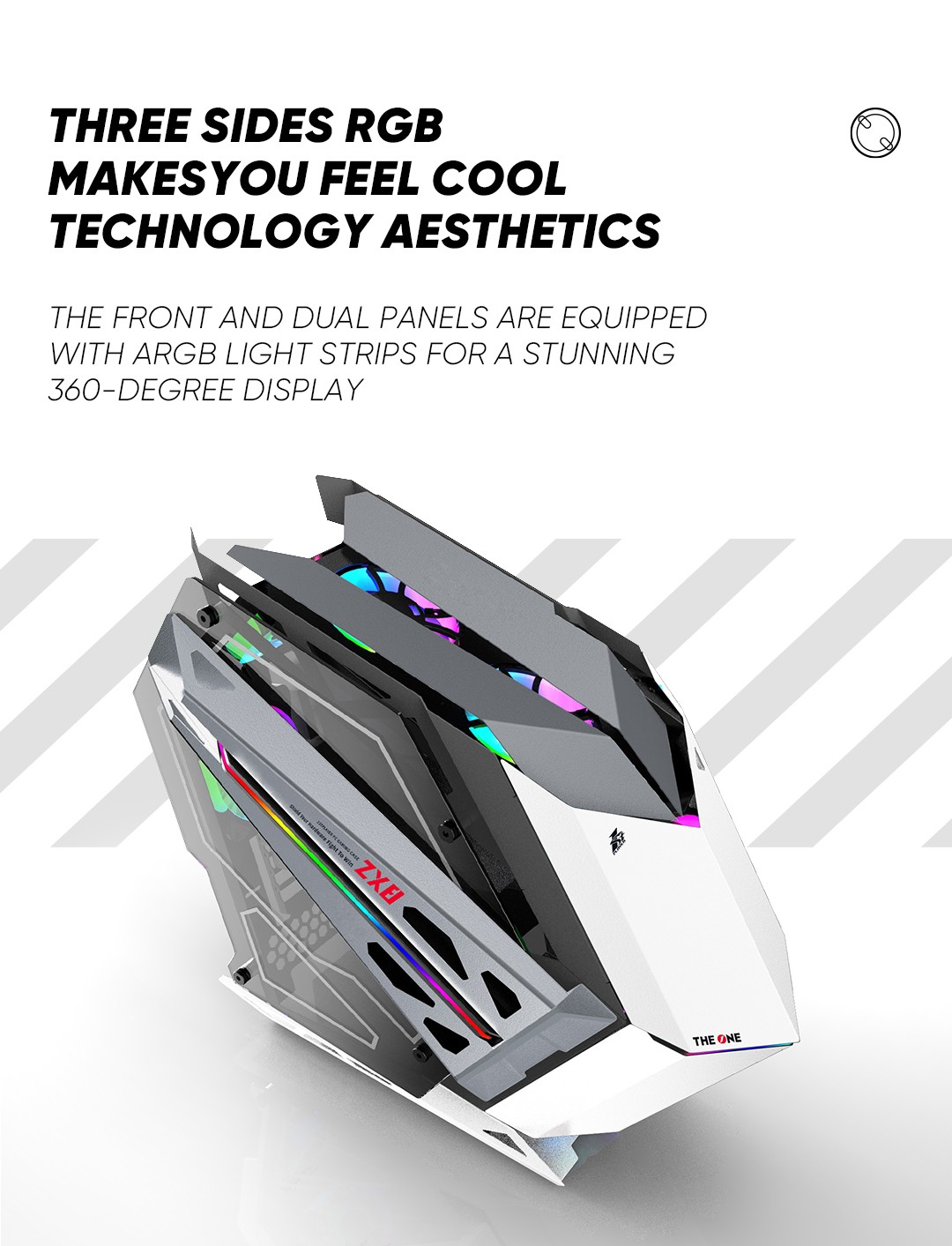

· L&R Side version of toughened glass wireless connection RGB lamp effect


*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

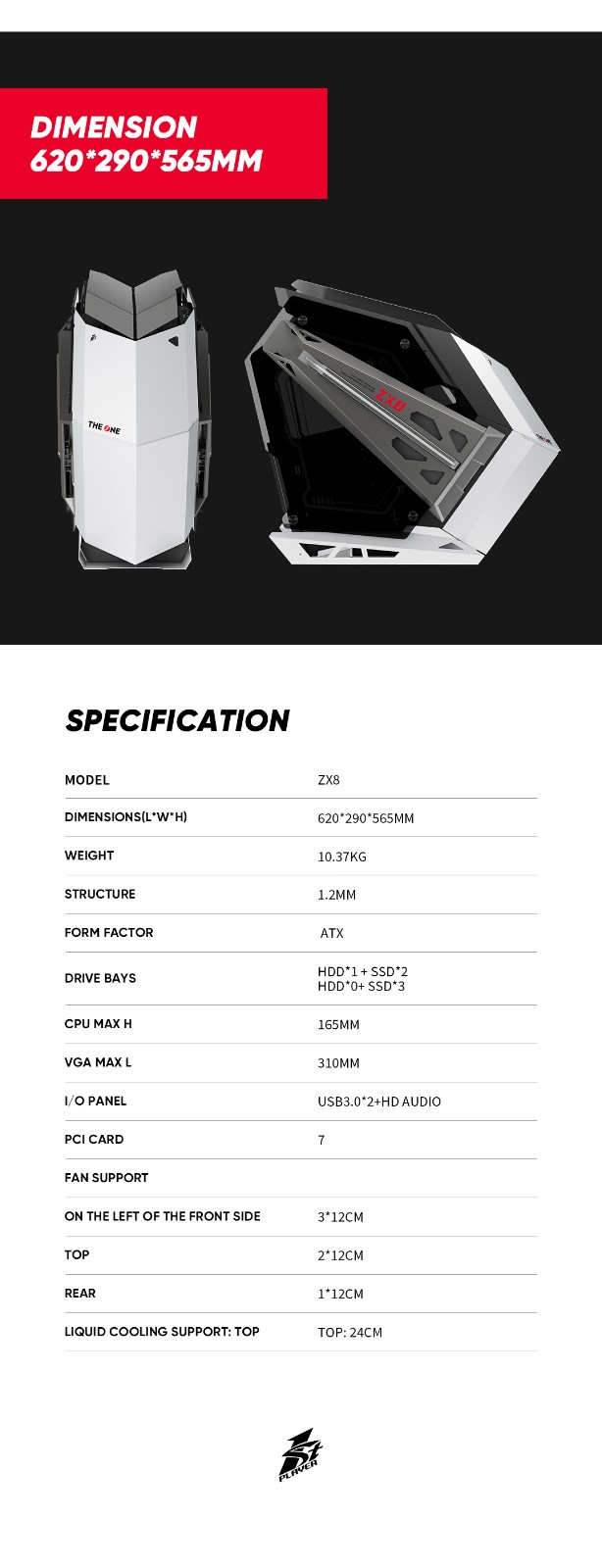

Model

ZX8

Structure Dimensions(L*W*H)

N/A

Product Dimensions(L*W*H)

620*290*565MM

Package Dimensions(L*W*H)

710*645*355MM

Structure Thickness

1.2MM

Materials

SPCC 1.2MM

L&R SIDE PANEL: TEMPERED GLASS

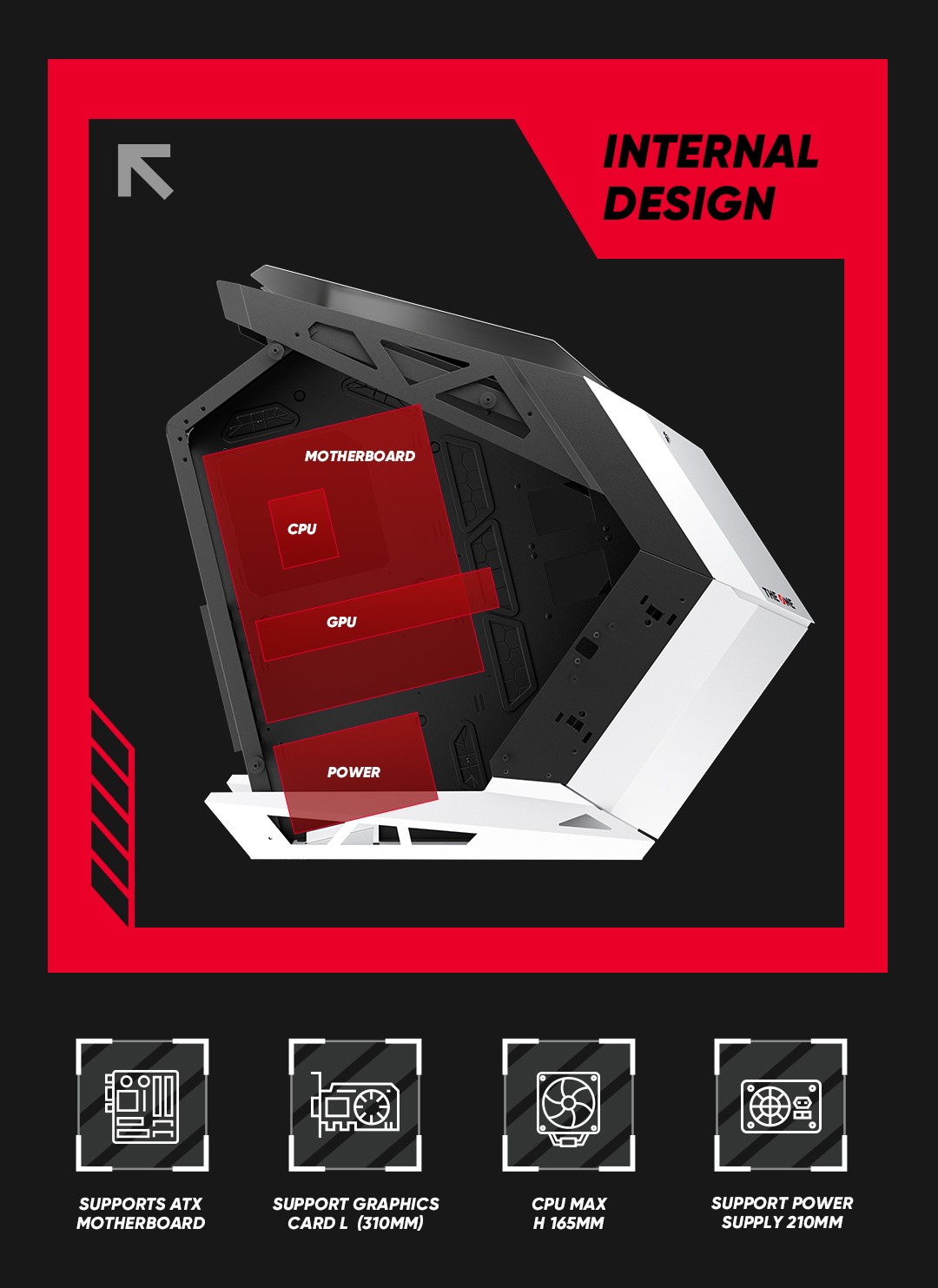

Form Factor

ATX/M-ATX

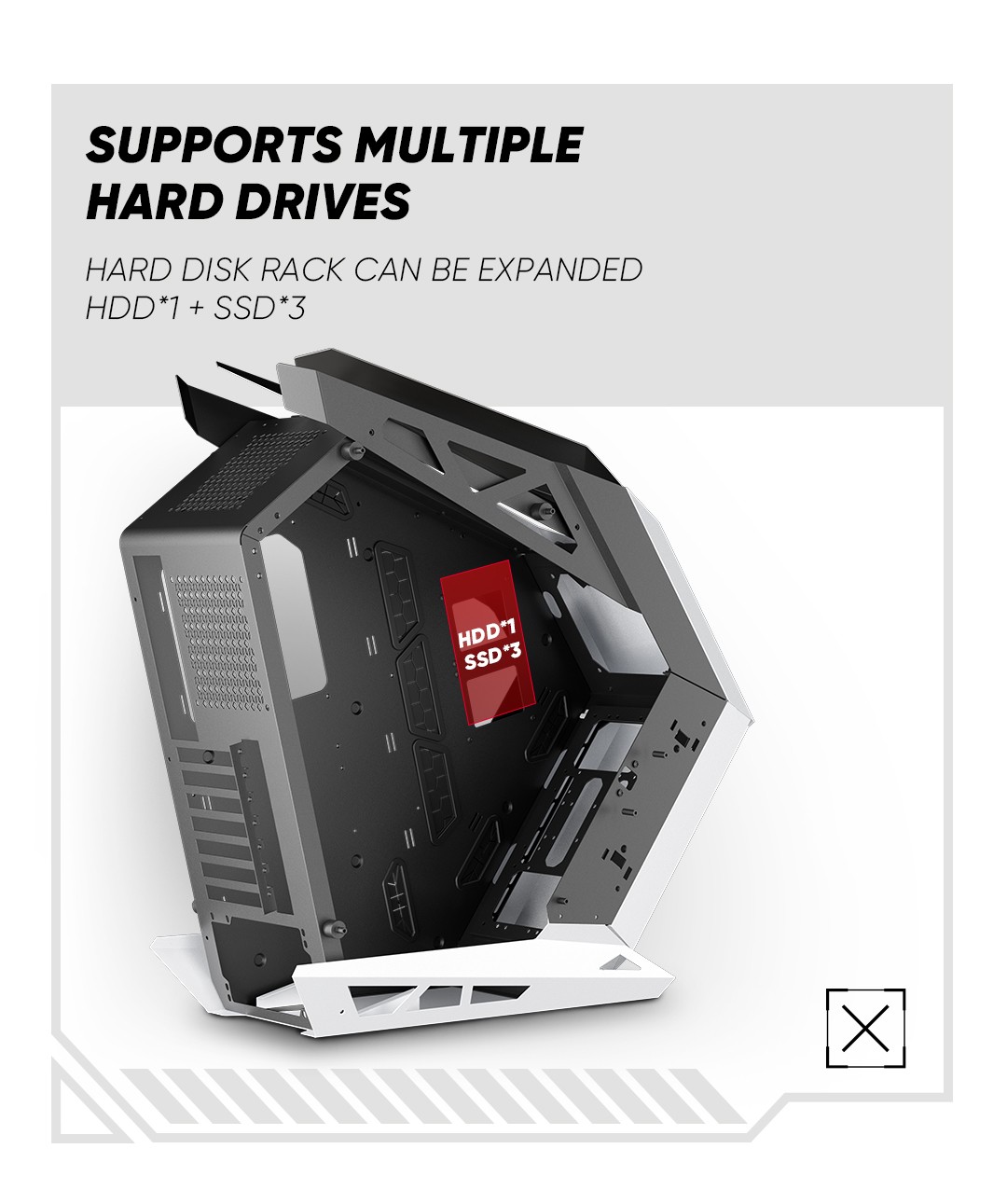

Drive Bays

①3.5"" HDD: 1+2.5"" SSD: 2

②3.5"" HDD: 0+2.5"" SSD: 3


CPU MAX Height

165MM

VGA MAX Length

310MM

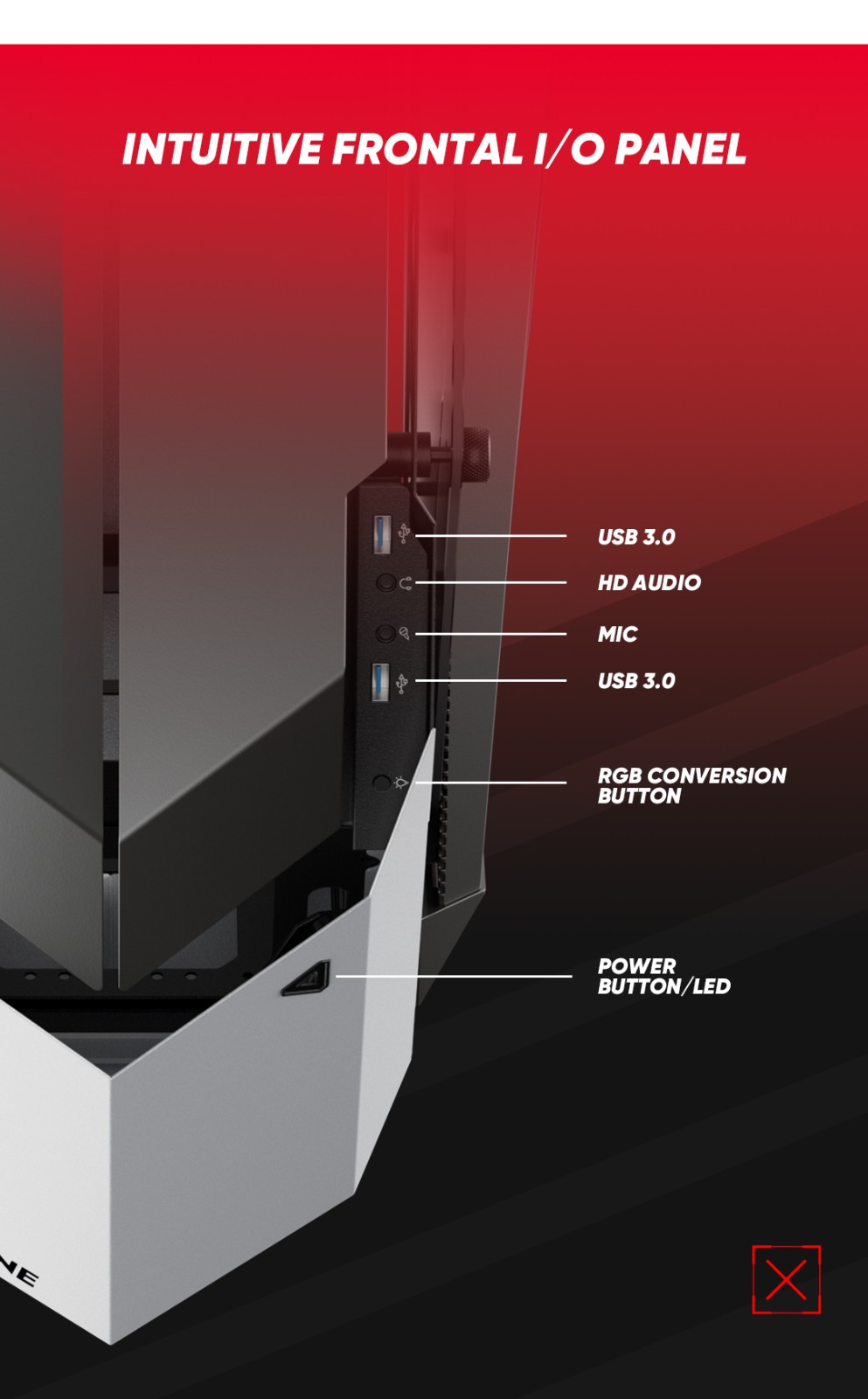

I/O Panel

HD AUDIO+USB3.0*2

PCI Card Slot

7

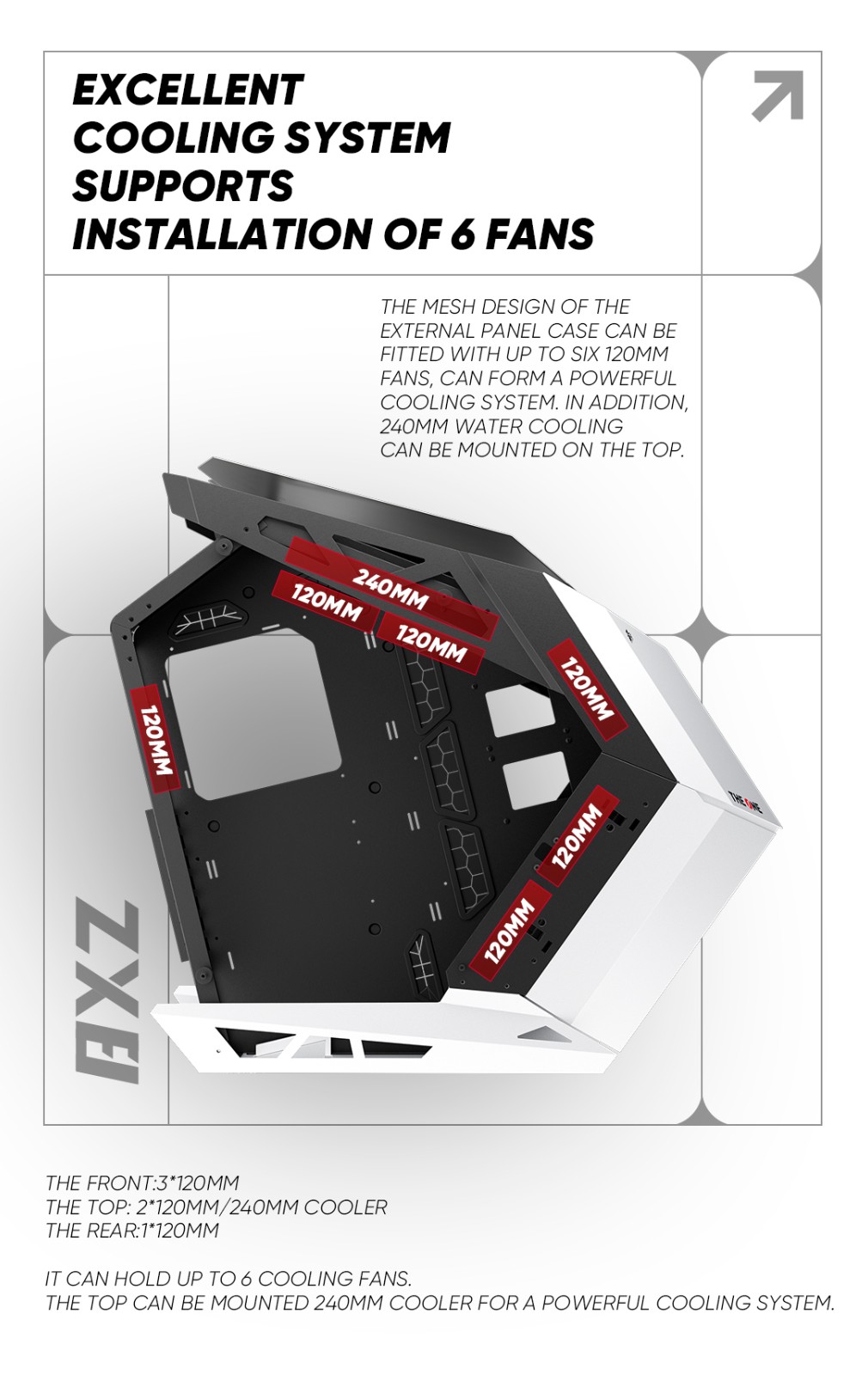

Fan Support

FRONT: 3*120 MM

REAR: 2*120 MM

Liquid Cooling Support

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

10.37KG / 22.86lb

Gross Weight

12.57KG / 27.71lb
