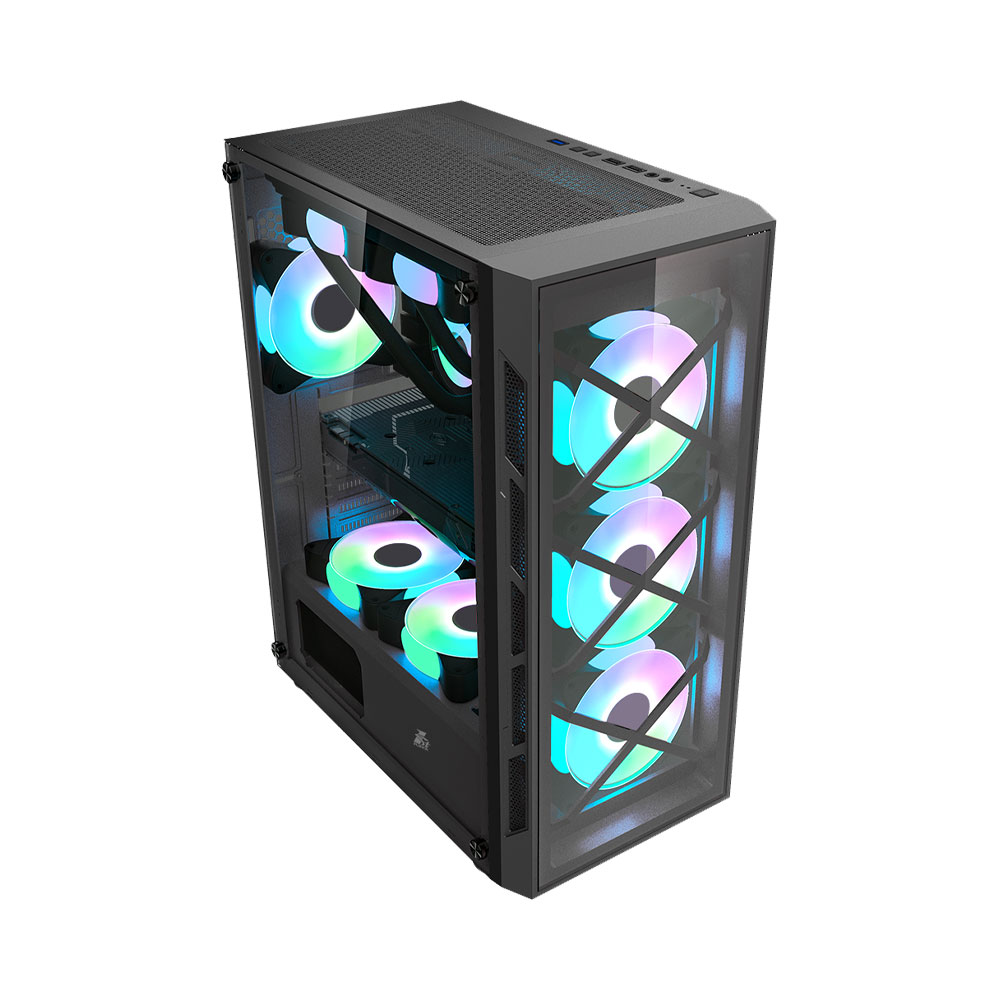

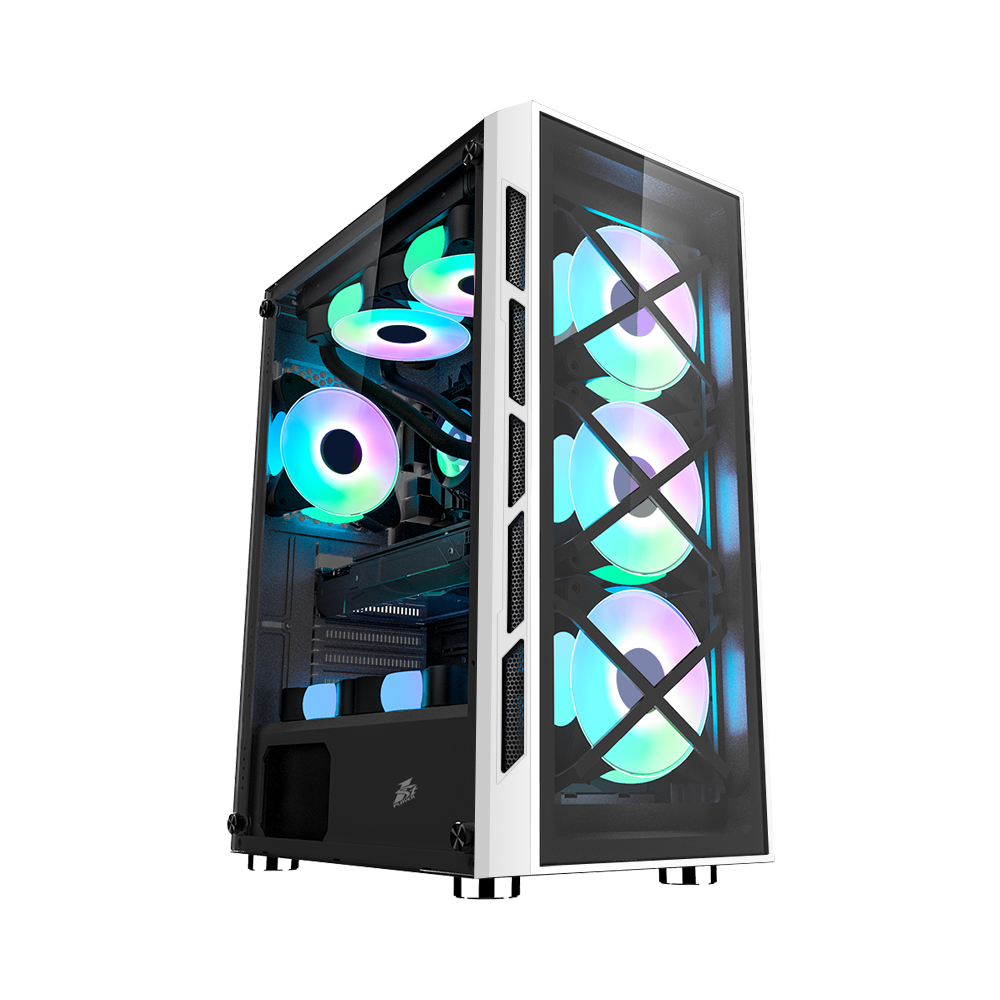

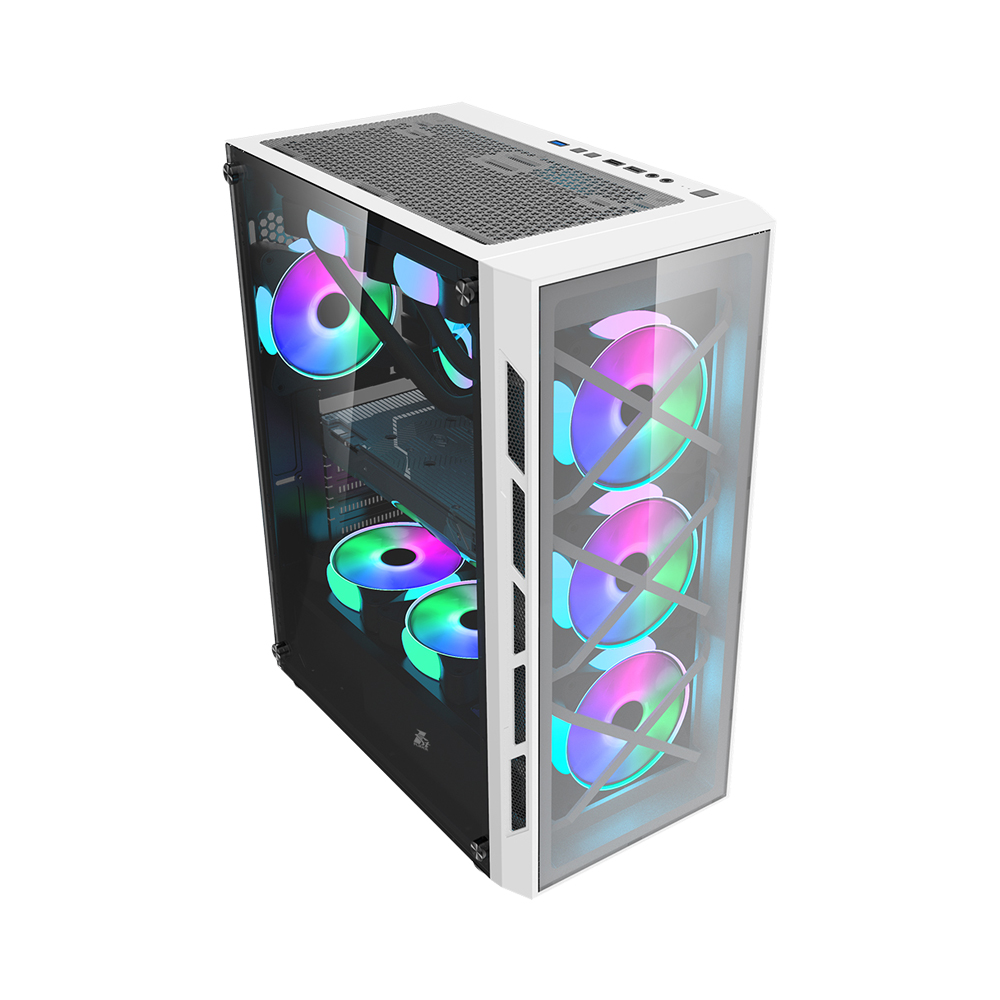

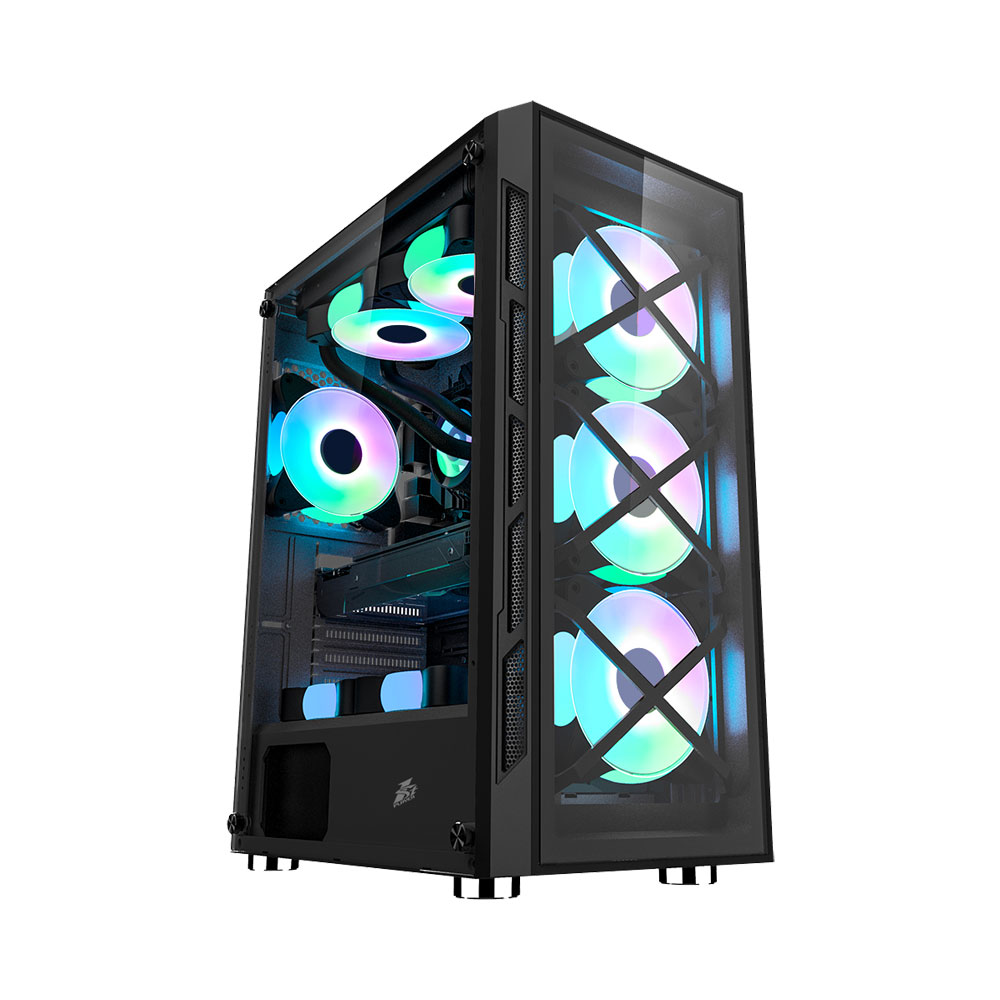

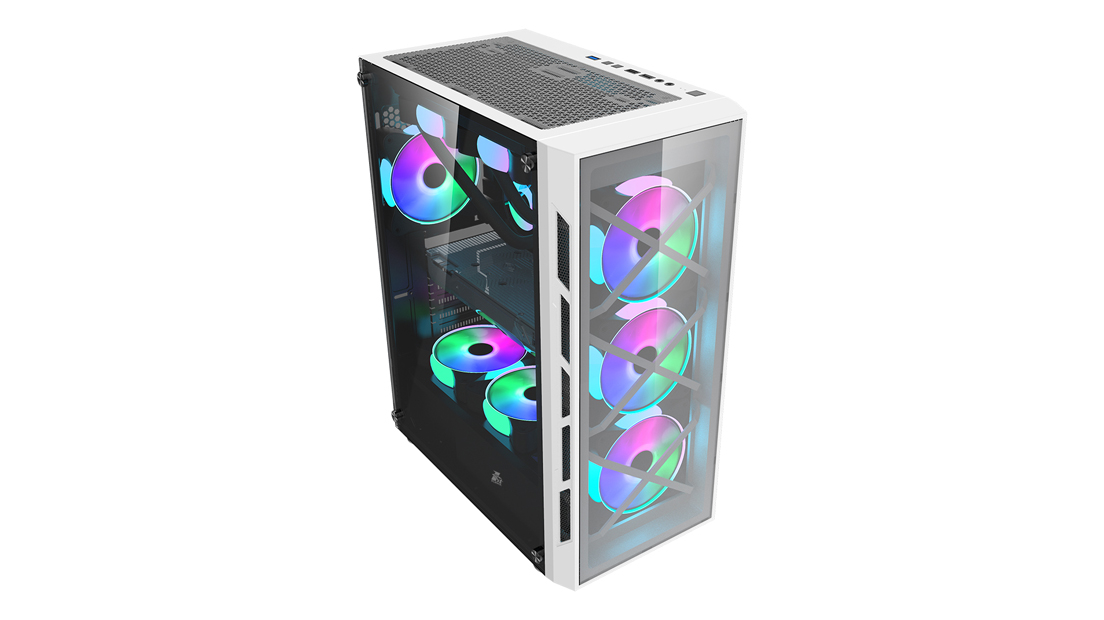

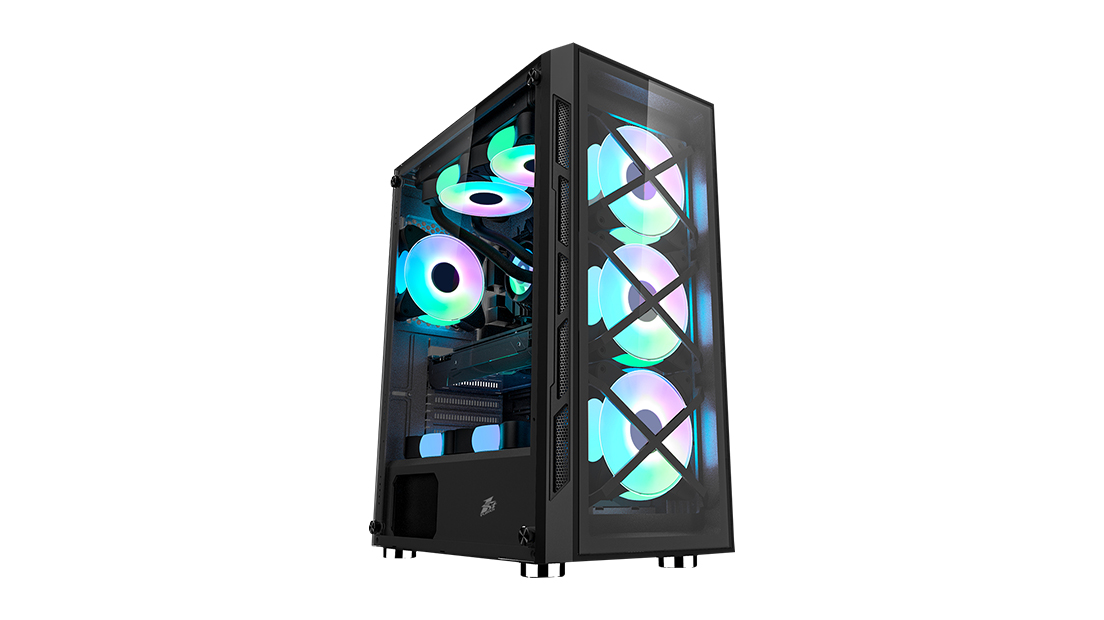

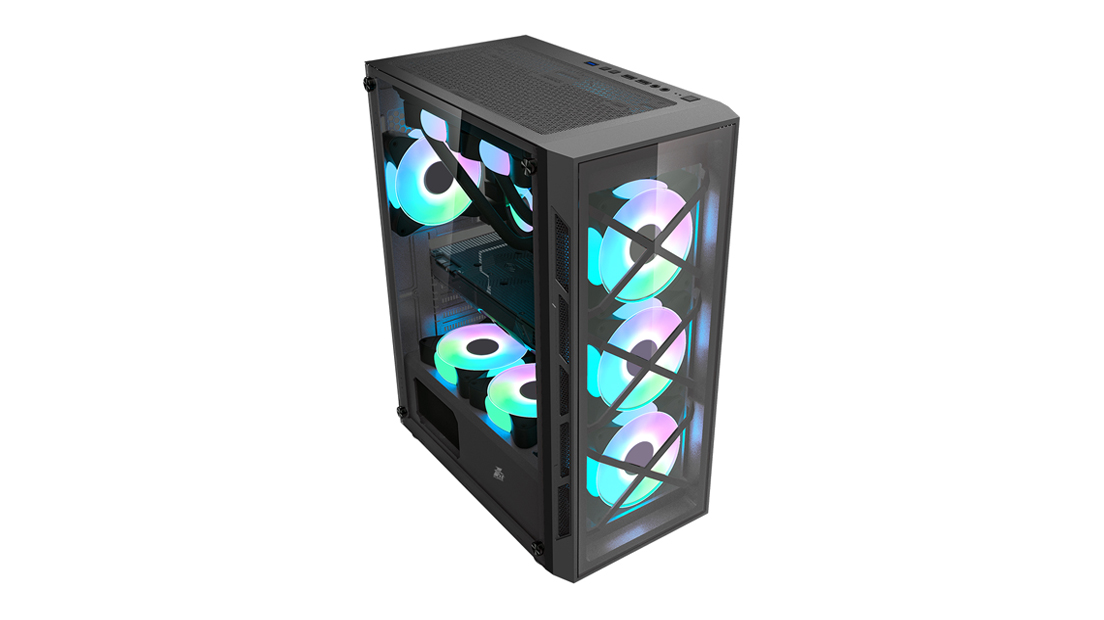

Support installation of up to 8 fans
Support CPU cooler height up to 165 mm
Support GPU length up to 320 mm
Support a 240 mm radiator at the top and a 360 mm radiator at the front
Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions
Black
MODEL
XP-G
STRUCTURE DIMENSIONS (L x W x H)
335 x 210 x 468 mm
PRODUCT DIMENSIONS (L x W x H)
368 x 210 x 480 mm
PACKAGE DIMENSIONS (L x W x H)
530 x 265 x 425 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Front / Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 1
3.5" HDD: 2 + 2.5" SSD: 0
CPU MAX HEIGHT
165 mm
VGA MAX LENGTH
320 mm
I/O PANEL
HD AUDIO + USB 3.0 x 1 + USB 2.0 x 2
PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 120 mm
Top: 2 x 120 mm
Rear: 1 x 120 mm
LIQUID COOLING SUPPORT
Top: 240 mm
Front: 360 mm
POWER SUPPLY SUPPORT
Bottom mount ATX
NET WEIGHT
5.45 kg / 12.01 lb
6.05 kg / 13.33 lb
