X7

1STPLAYER Gaming Case

  • Support installation of up to 8 fans

  • Support CPU cooler height up to 165 mm

  • Support GPU length up to 320 mm

  • Support a 240 mm radiator at the top and a 360 mm radiator at the front

  • Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

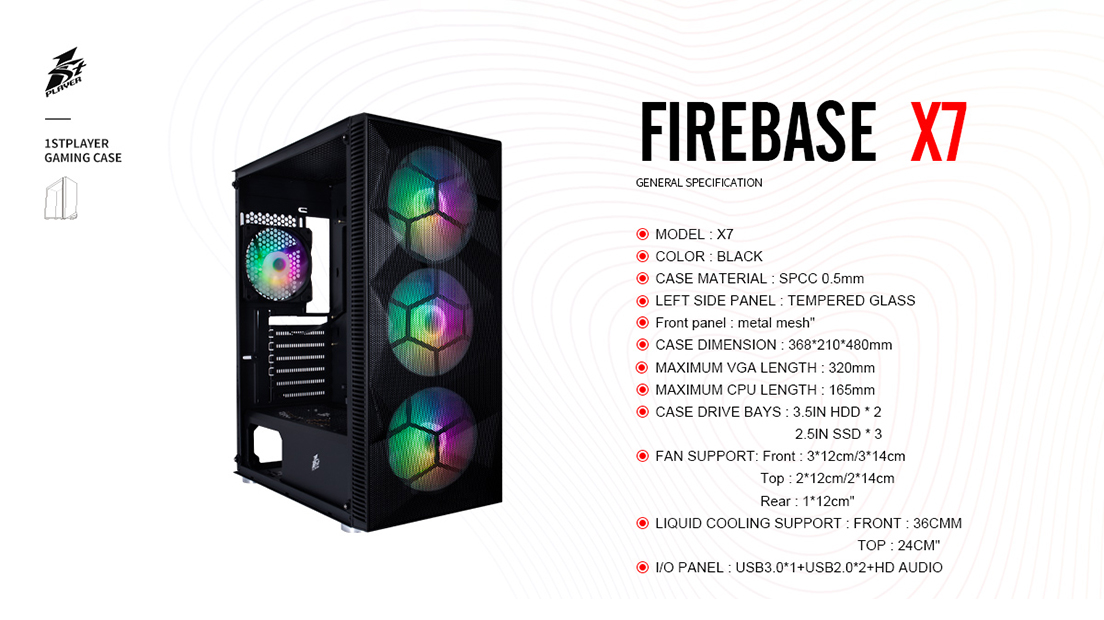

MODEL

X7

STRUCTURE DIMENSIONS (L x W x H)

335 x 210 x 468 mm

PRODUCT DIMENSIONS (L x W x H)

368 x 210 x 480 mm

PACKAGE DIMENSIONS (L x W x H)

530 x 265 x 425 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC 0.5 mm

Left Panel: Tempered glass

Front Panel: Metal mesh

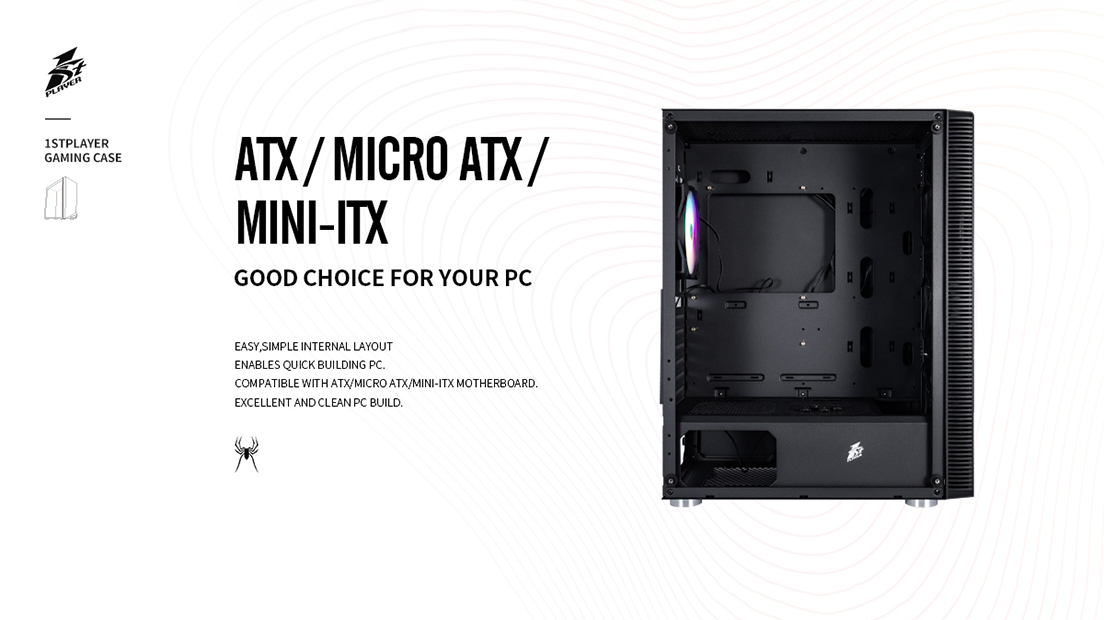

FORM FACTOR

ATX / M-ATX

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 2

2.5" SSD: 3

CPU MAX HEIGHT

165 mm

VGA MAX LENGTH

320 mm

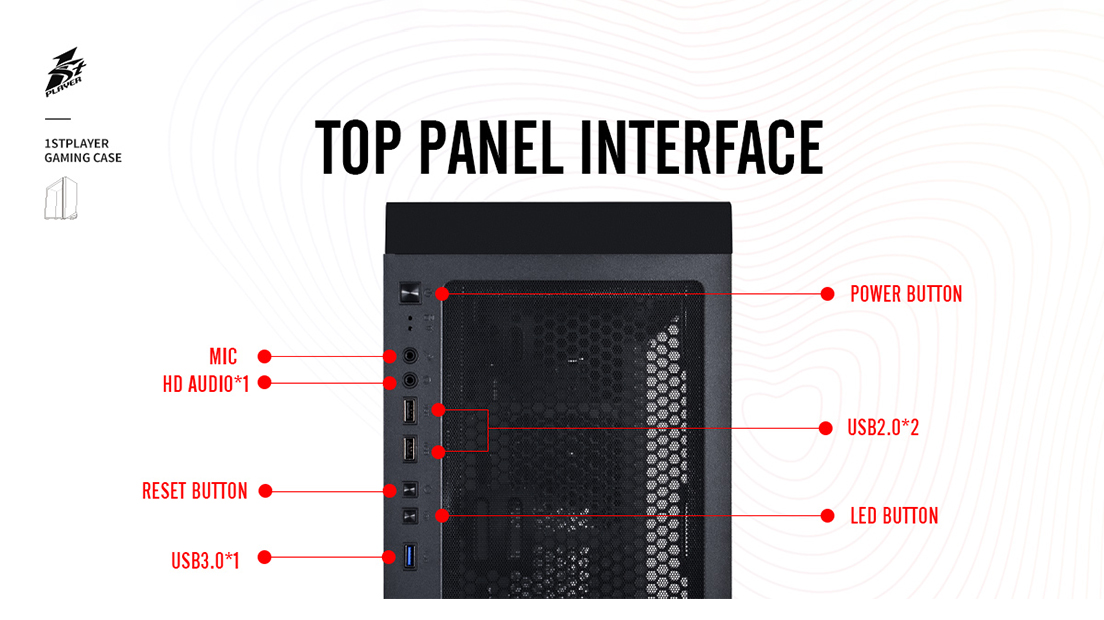

I/O PANEL

USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

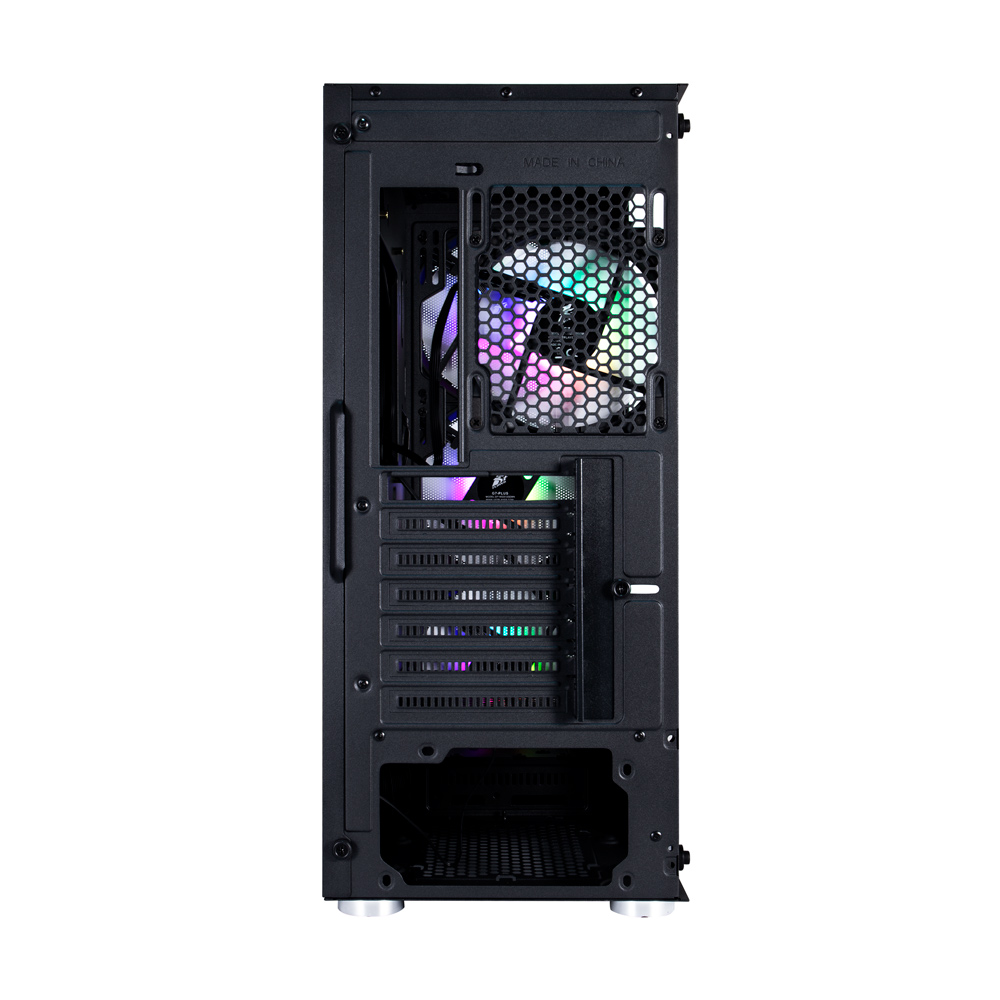

PCI CARD SLOT

7

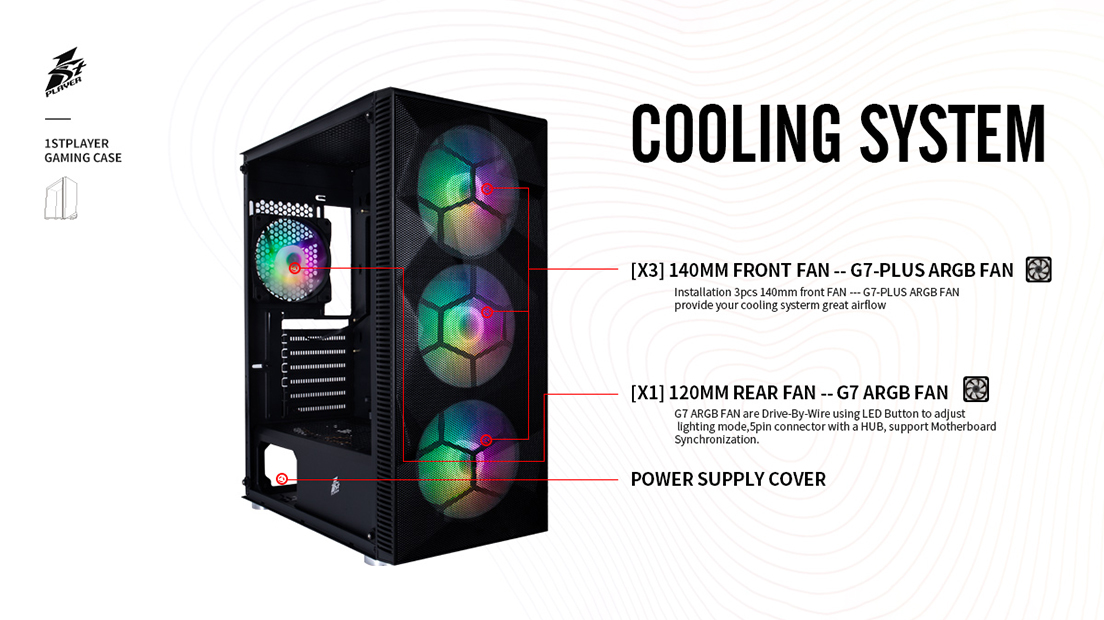

FAN SUPPORT

Front: 3 x 12 cm / 3 x 14 cm

Top: 2 x 12 cm / 2 x 14 cm

Rear: 1 x 12 cm

LIQUID COOLING SUPPORT

Top: 240 mm

Front: 360 mm

POWER SUPPLY SUPPORT

Bottom mount ATX

NET WEIGHT

5.0 kg / 11.02 lb

GROSS WEIGHT

5.6 kg / 12.34 lb
