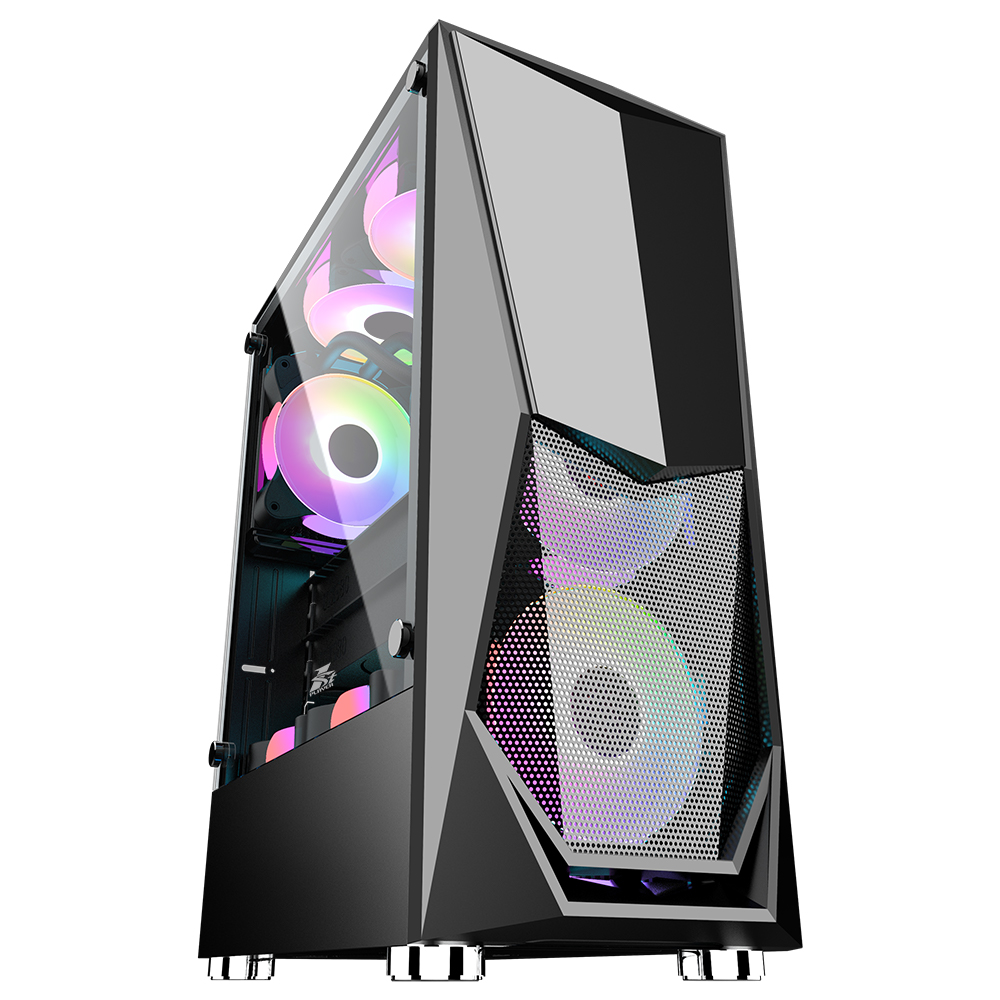

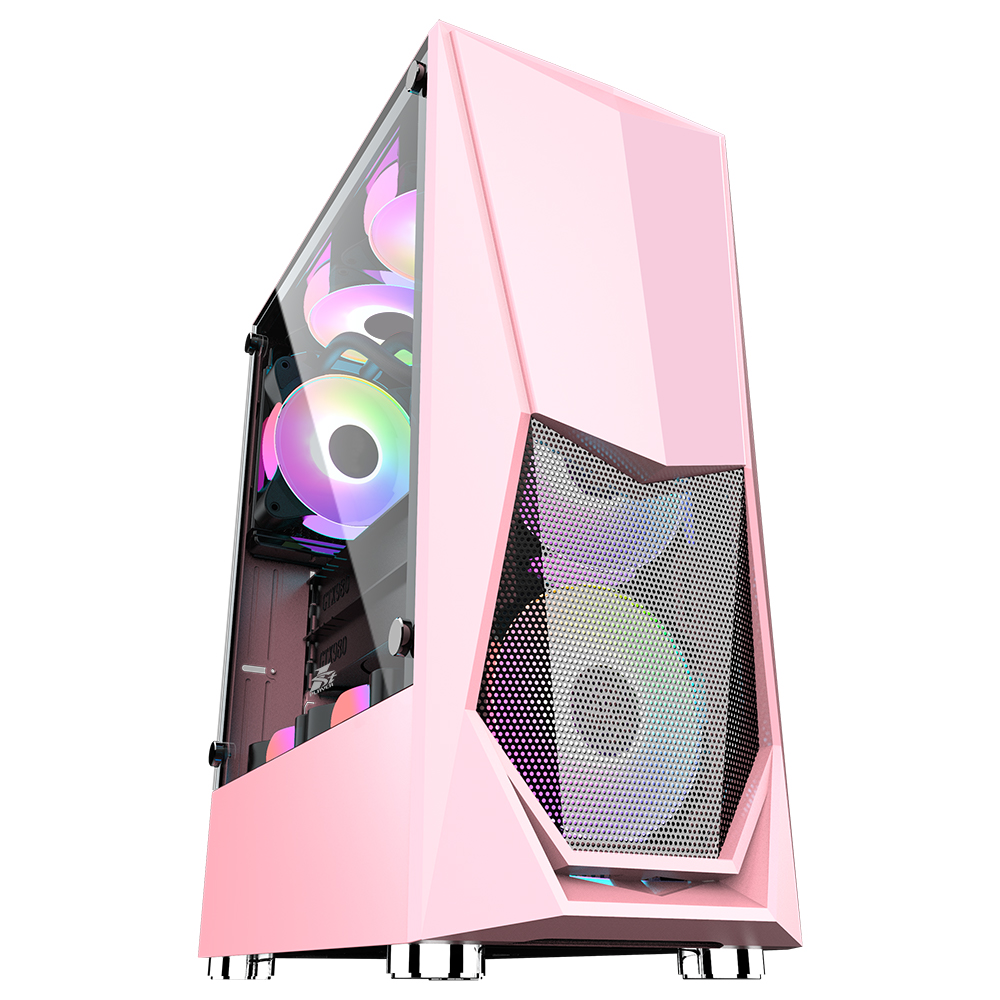

DK-3

1STPLAYER Gaming Case

ATX

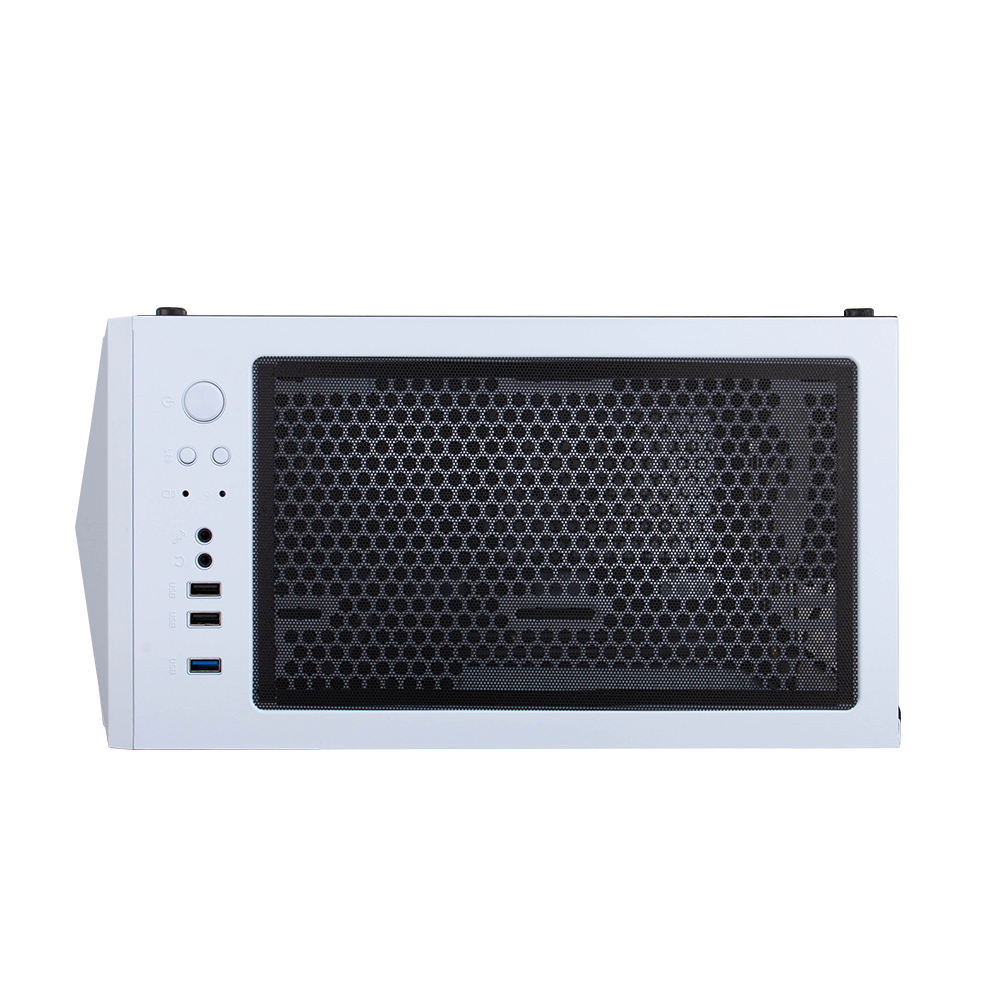

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD: 2     2.5" SSD: 1

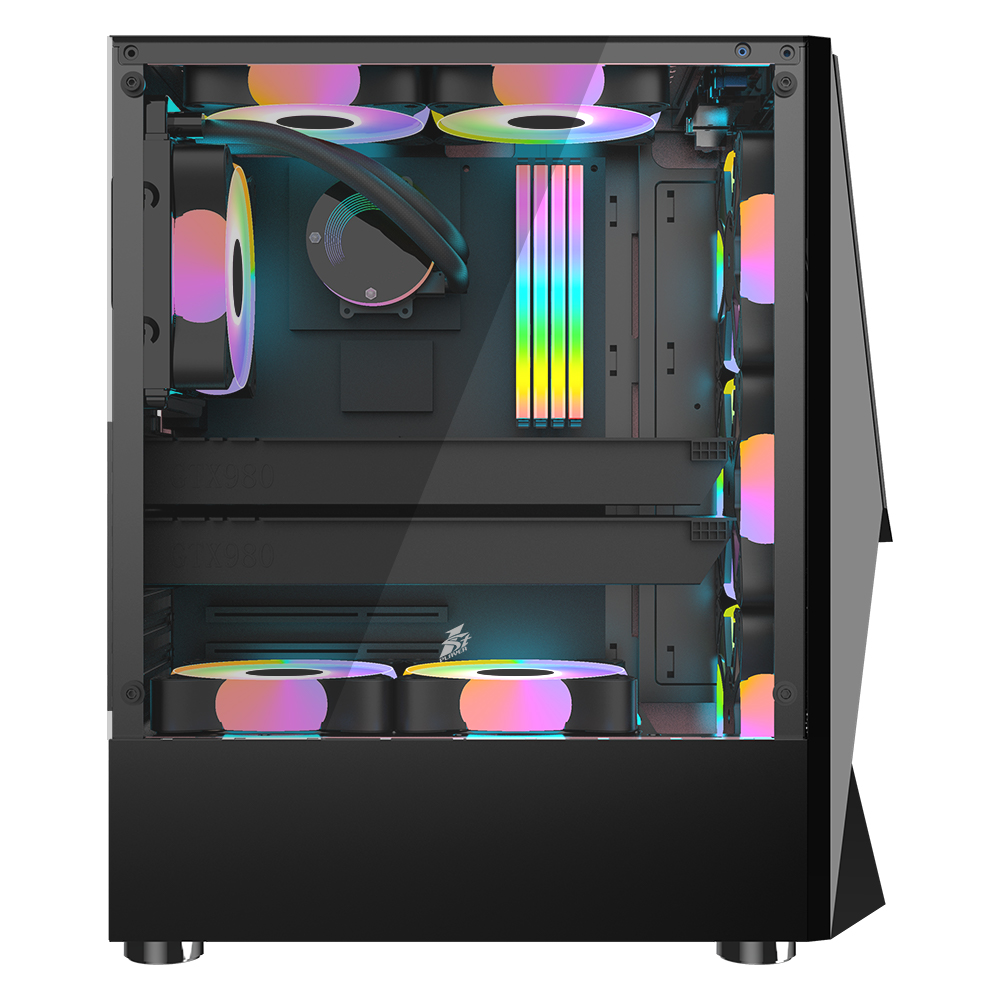

· Left Side Panel: Tempered Glass

· CPU Max H / GPU Max L: 160MM / 305MM

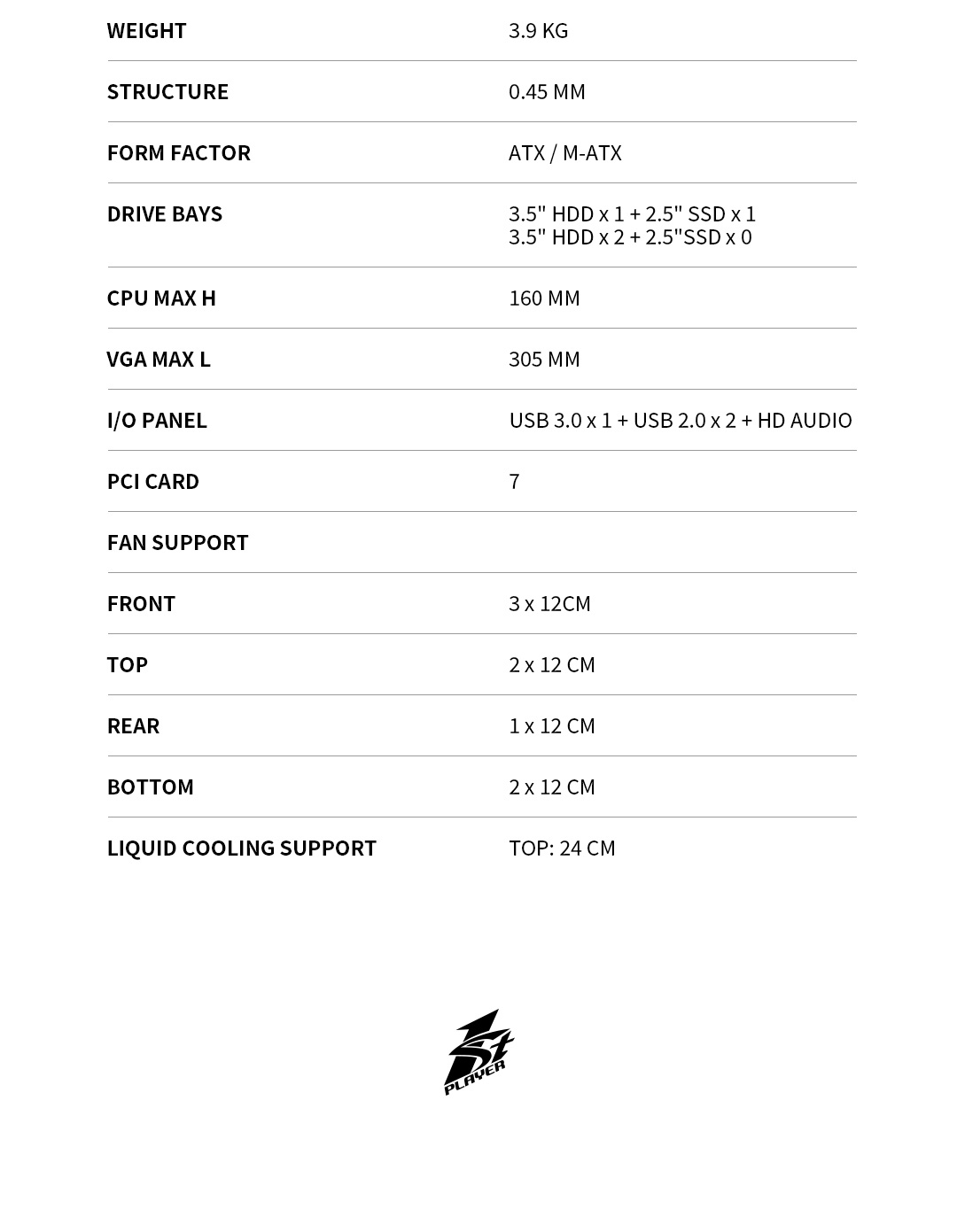

Model

DK-3

Structure Dimensions(L*W*H)

335*190*435MM

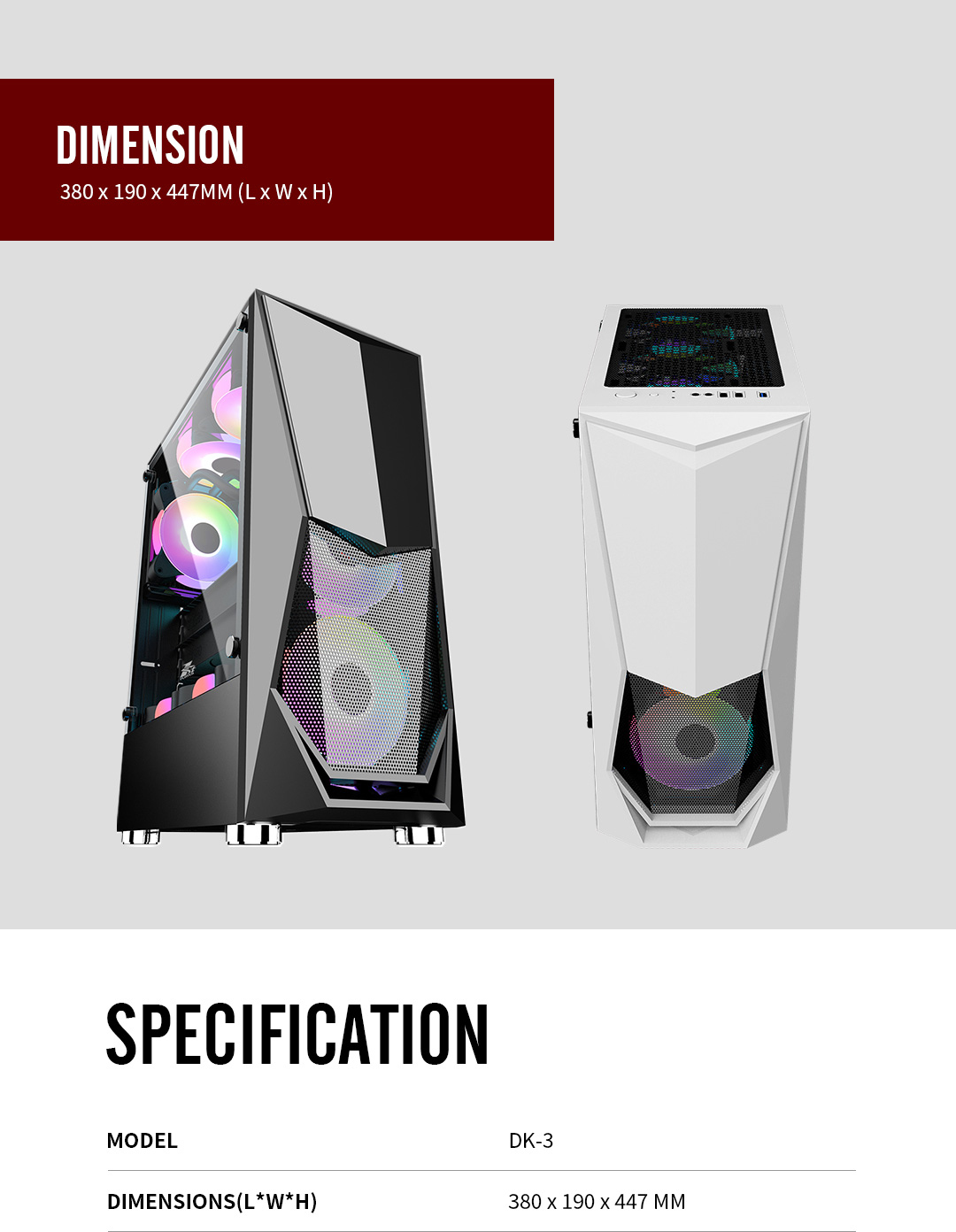

Product Dimensions(L*W*H)

380*190*447MM

Package Dimensions(L*W*H)

500*245*445MM

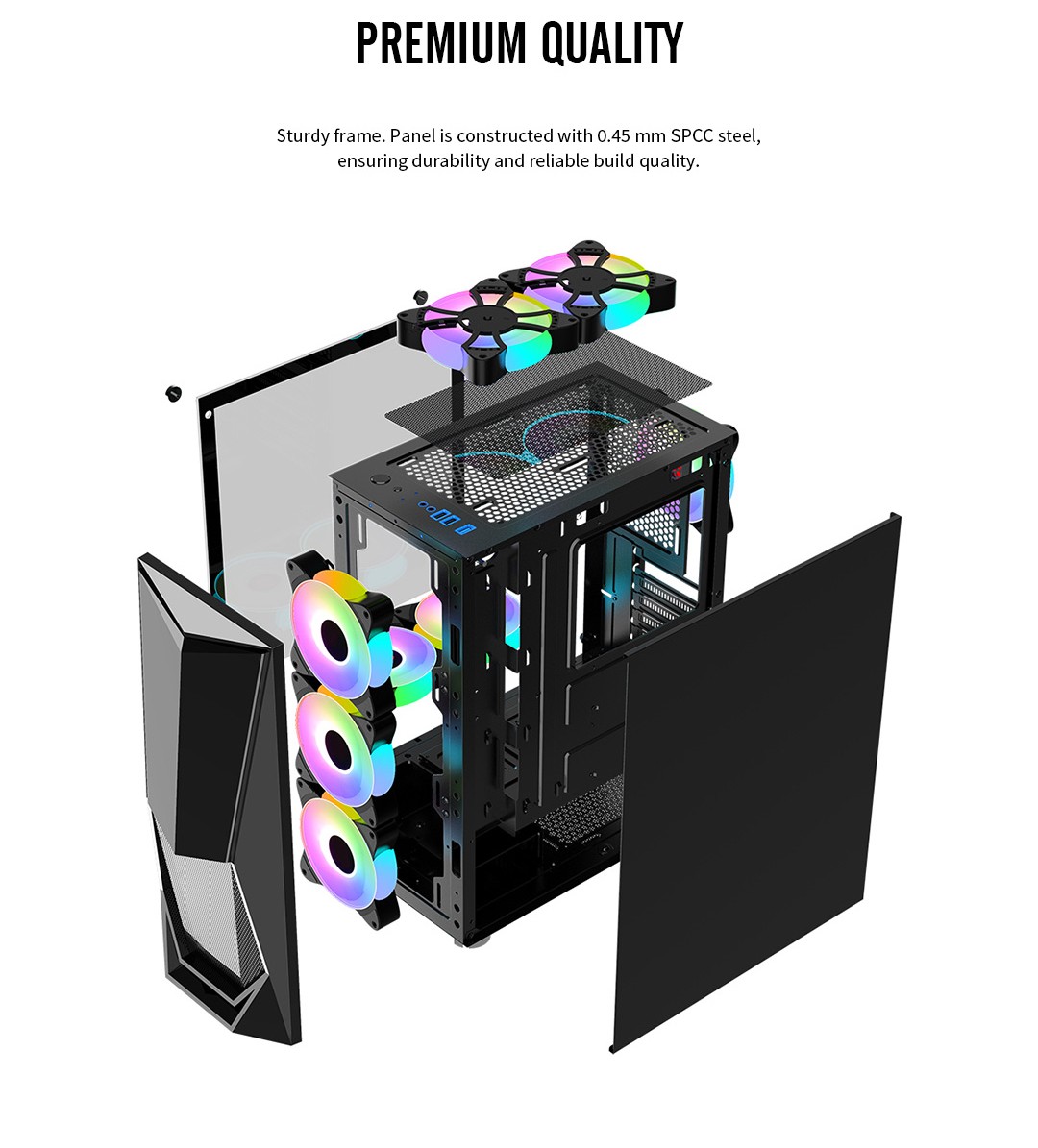

Structure Thickness

0.45MM

Materials

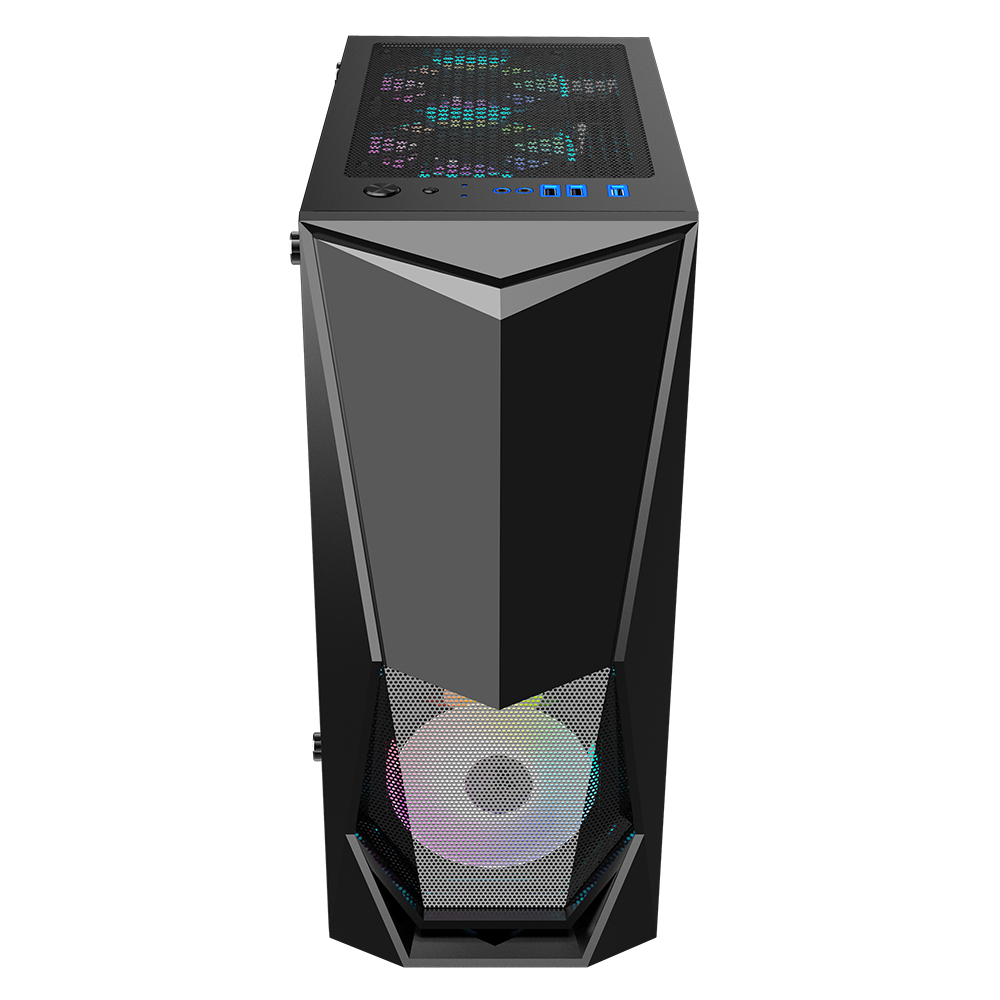

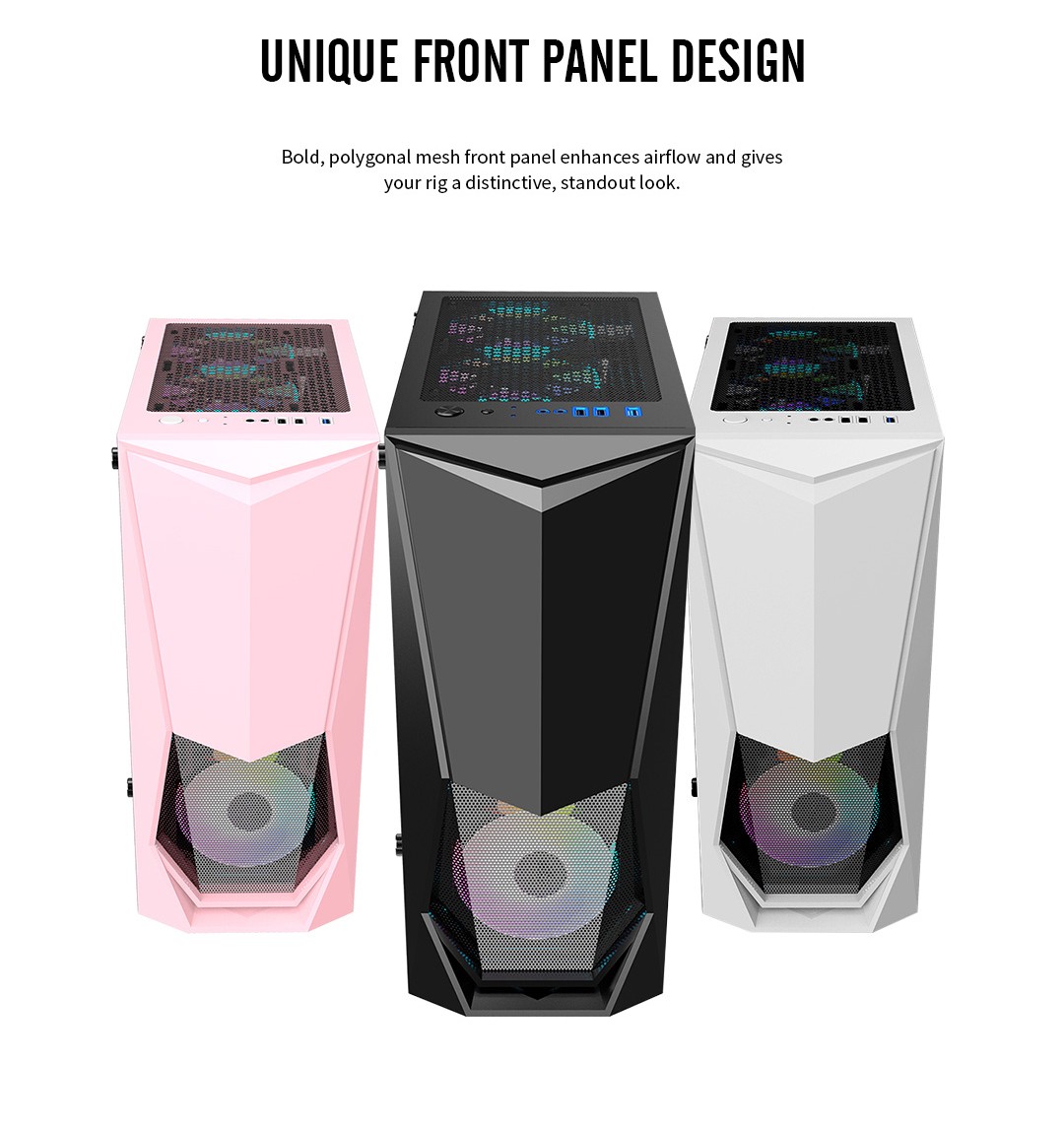

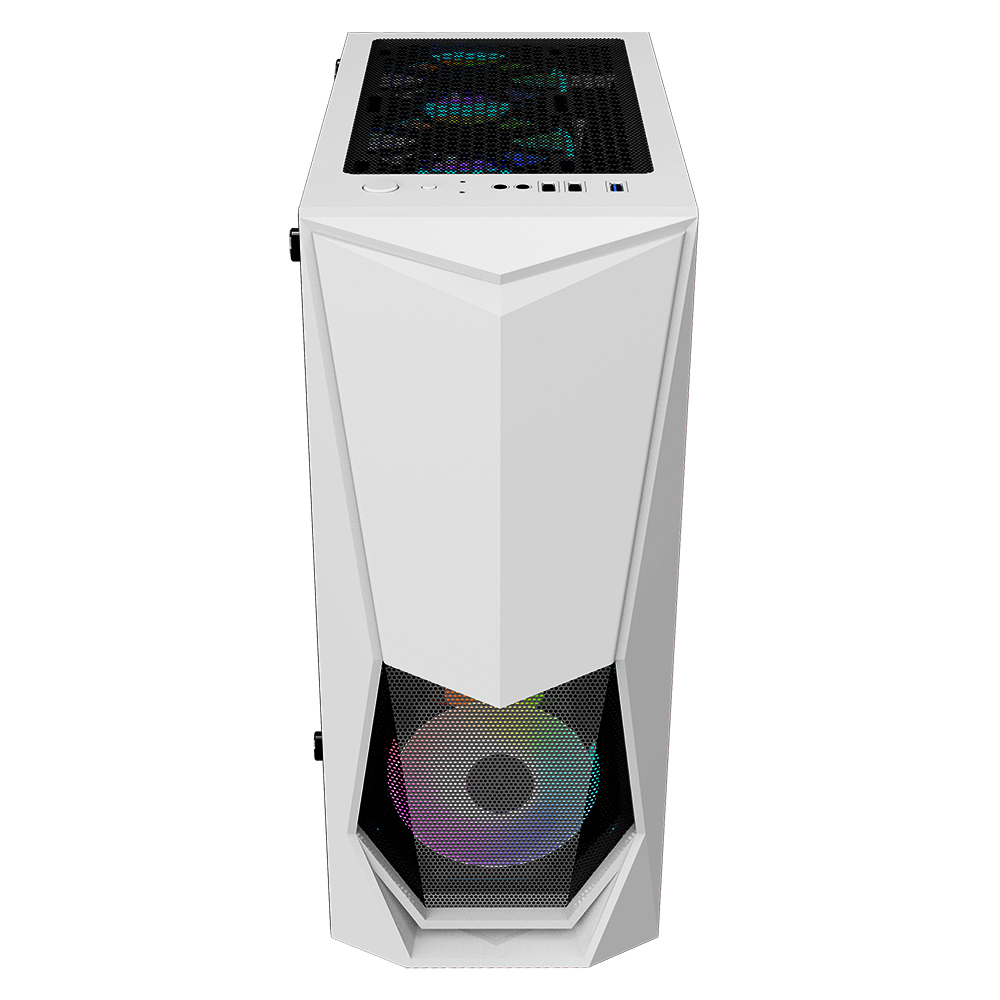

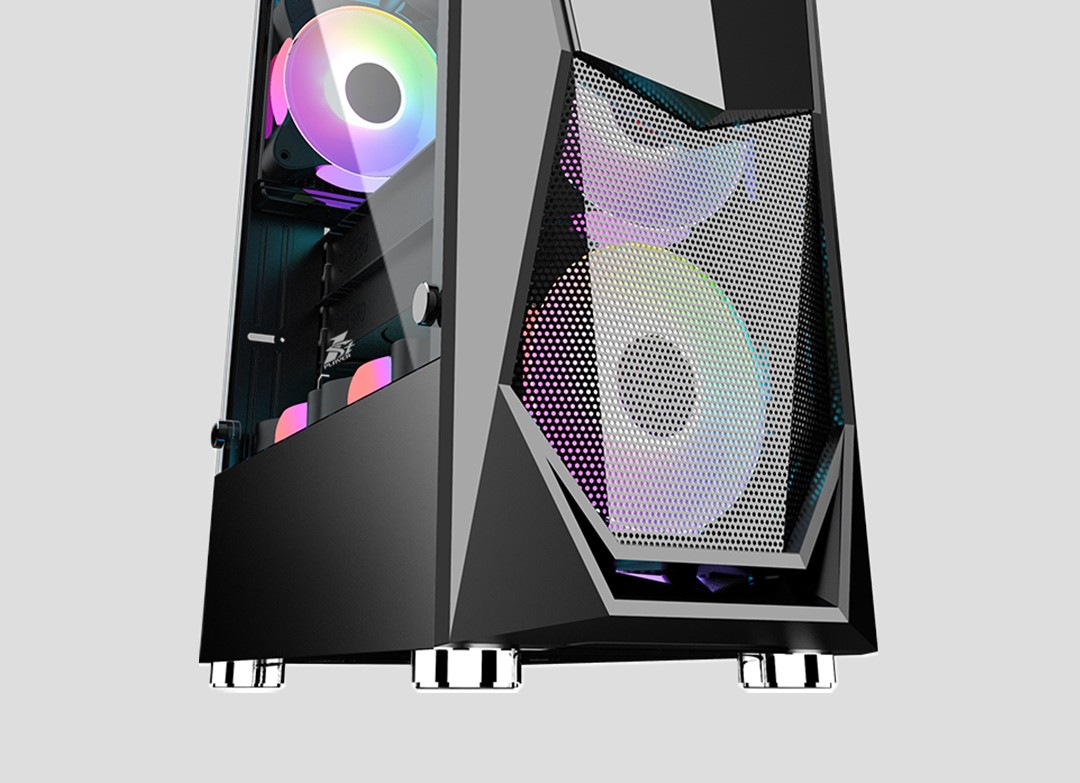

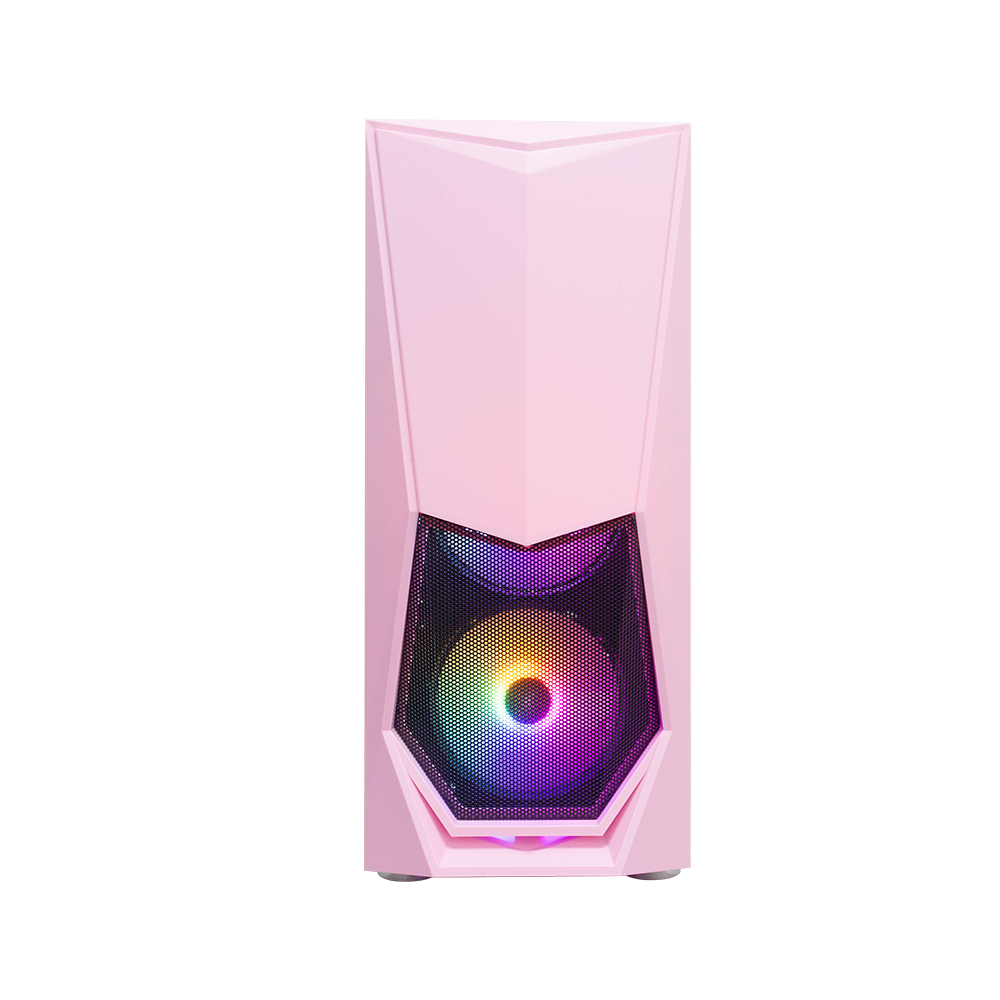

FRONT PANEL: METAL MESH COVER

LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

ATX/M-ATX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 1

CPU MAX Height

160MM

VGA MAX Length

305MM

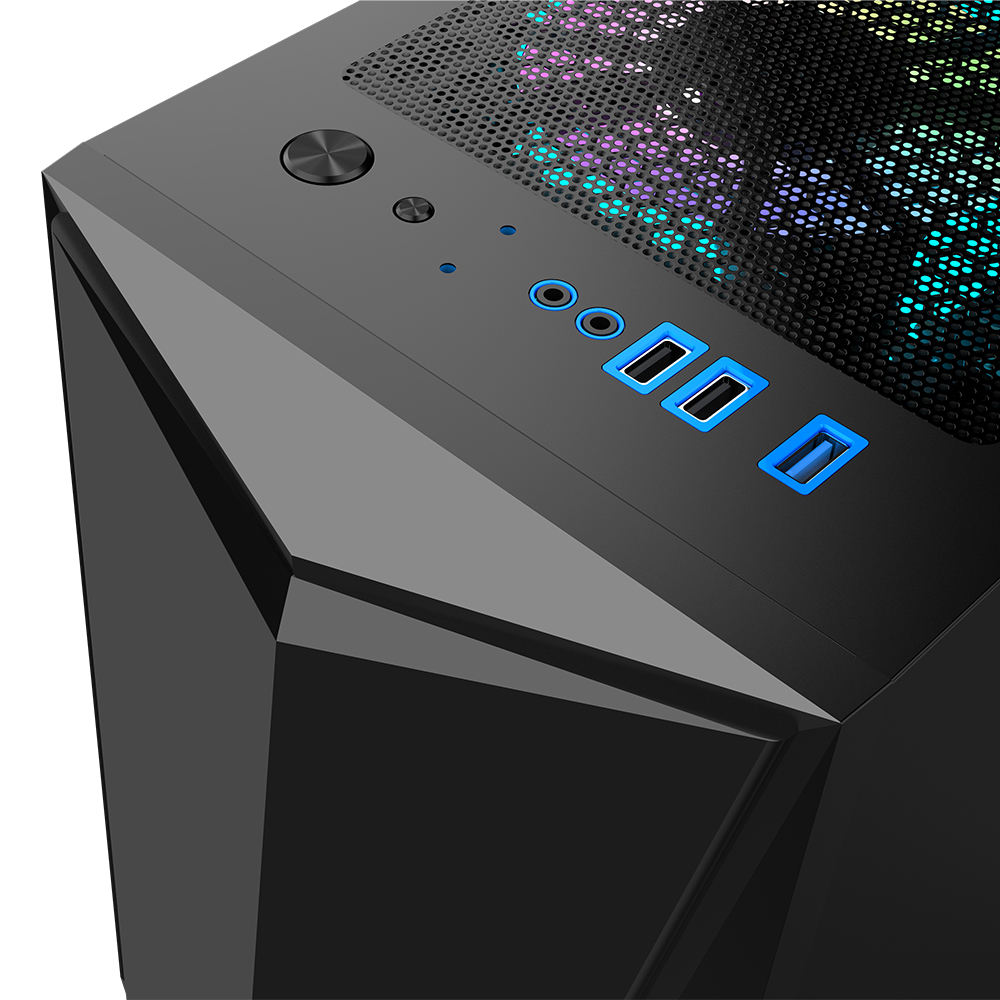

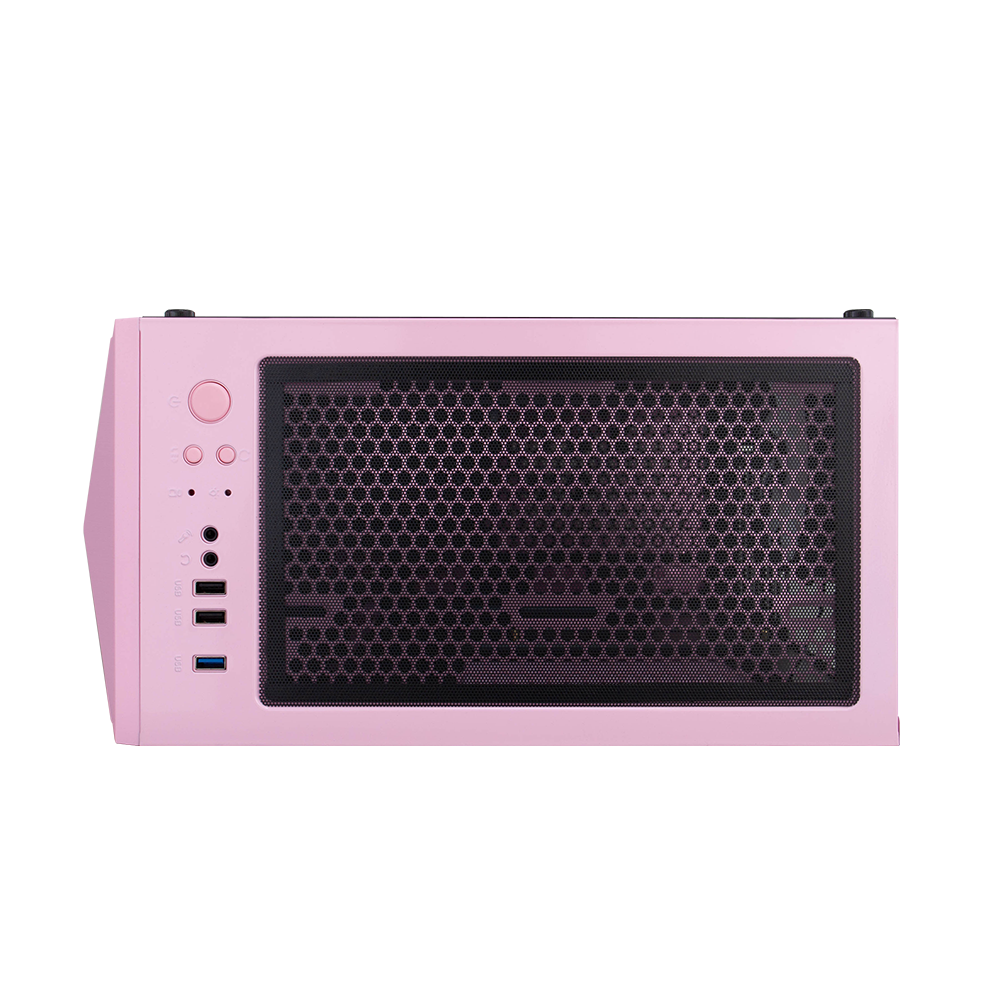

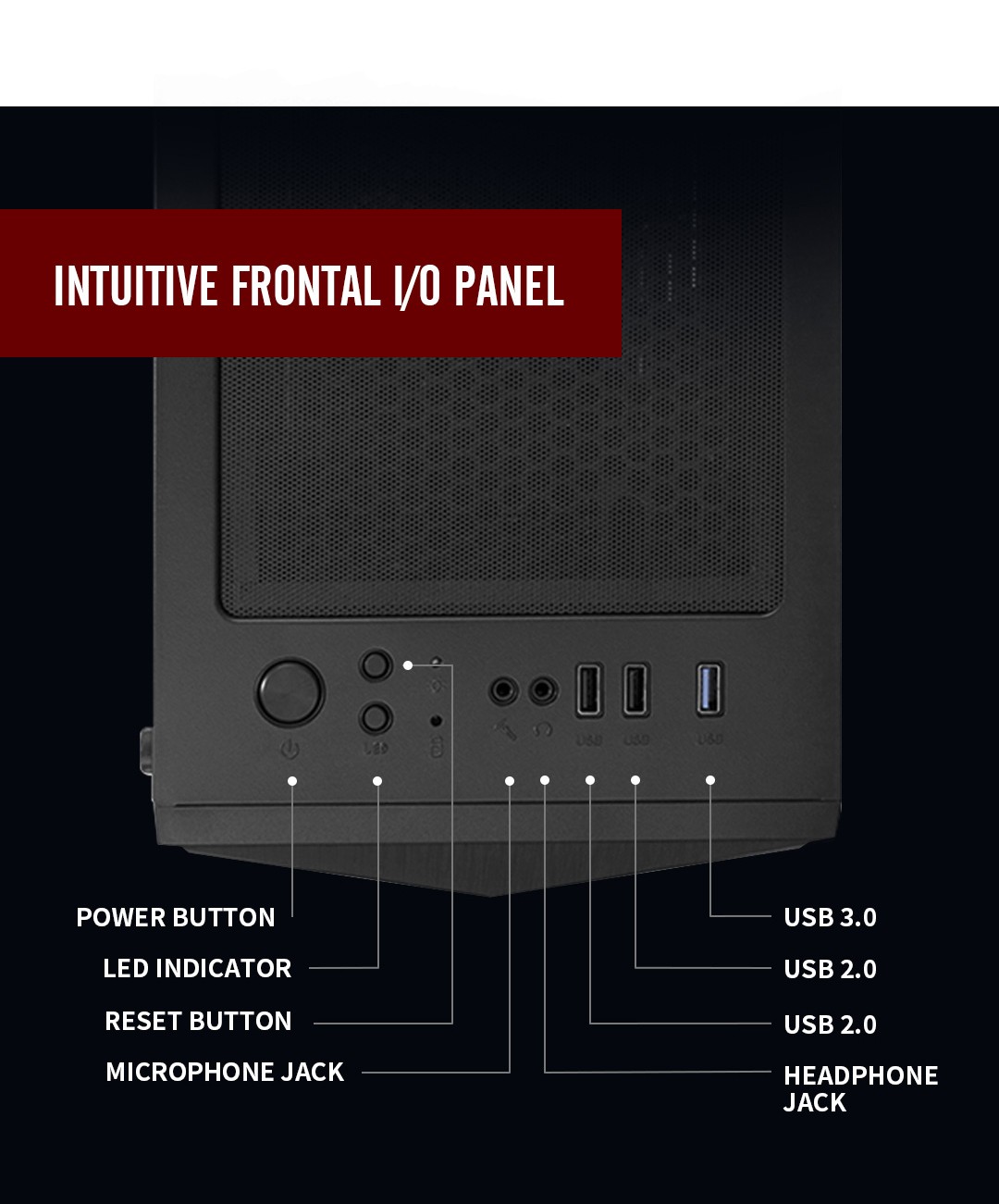

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

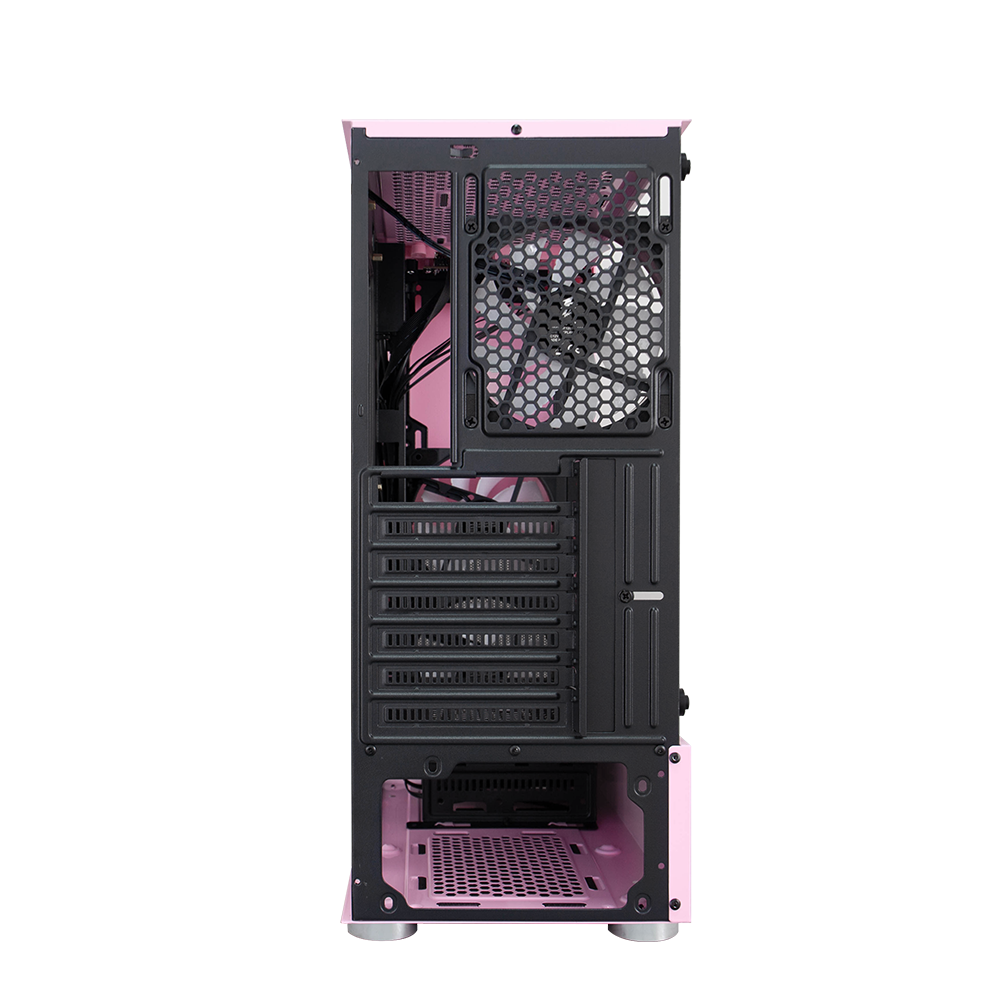

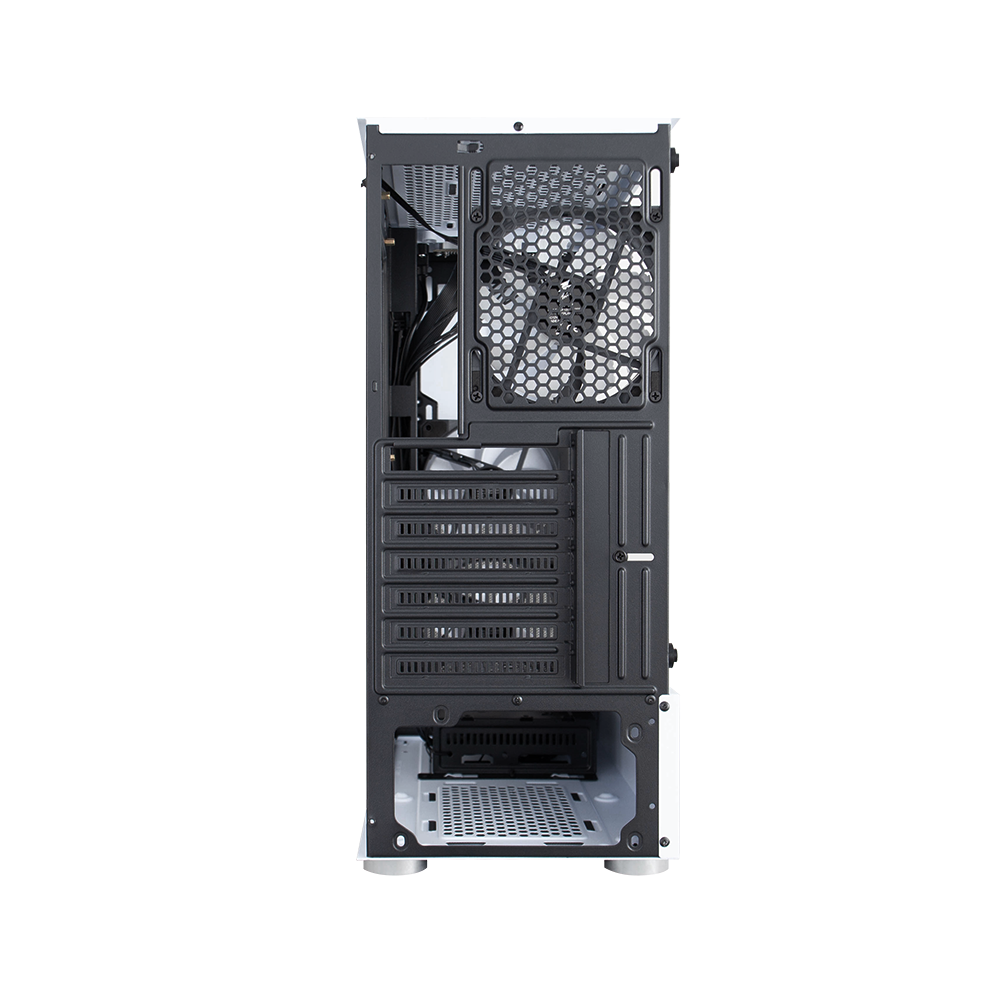

PCI Card Slot

7

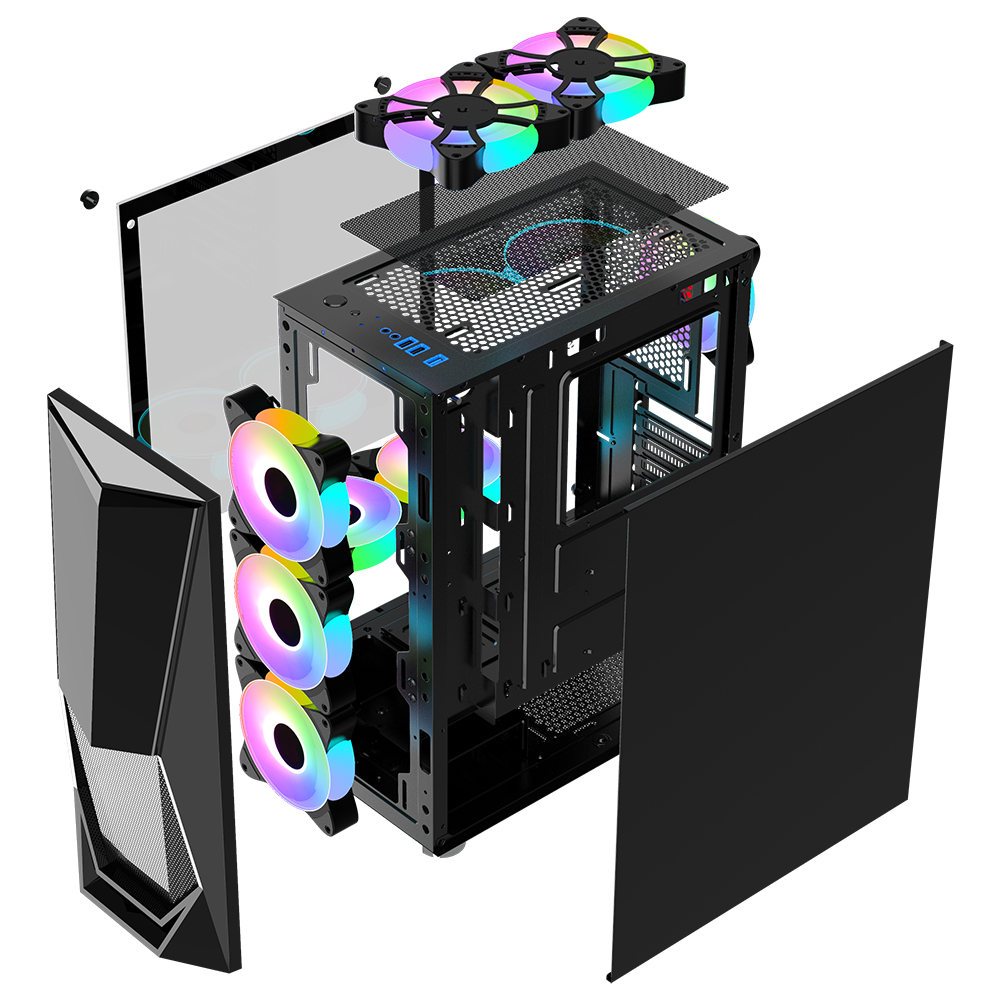

Fan Support

FRONT: 3*120 MM

TOP: 2*120 MM

REAR: 1*120 MM

BOTTOM: 2*120MM

Liquid Cooling Support

TOP: 240MM

Power Supply Support

BOTTOM MOUNT

Net Weight

3.9KG / 8.59lb

Gross Weight

4.6KG / 10.14lb
