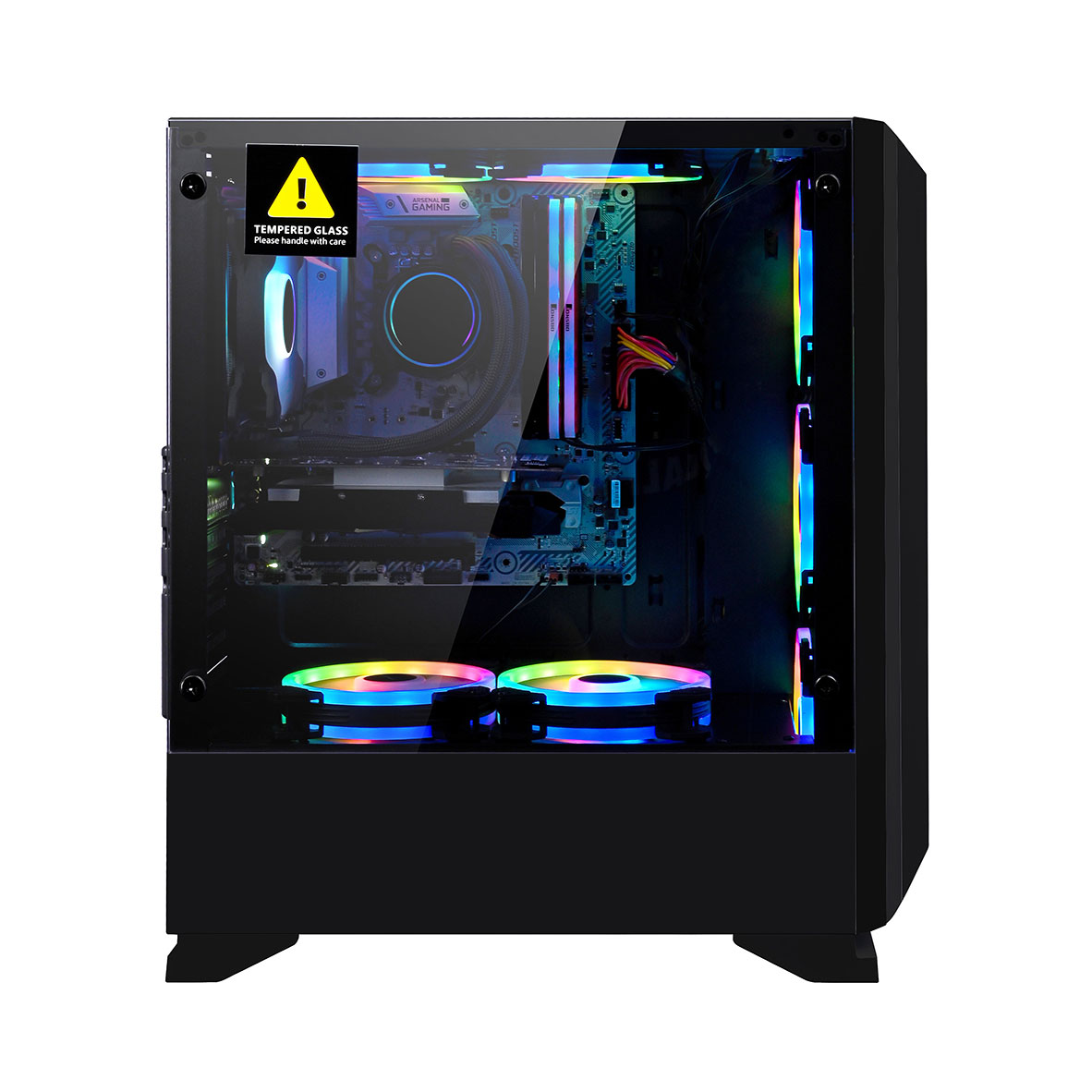

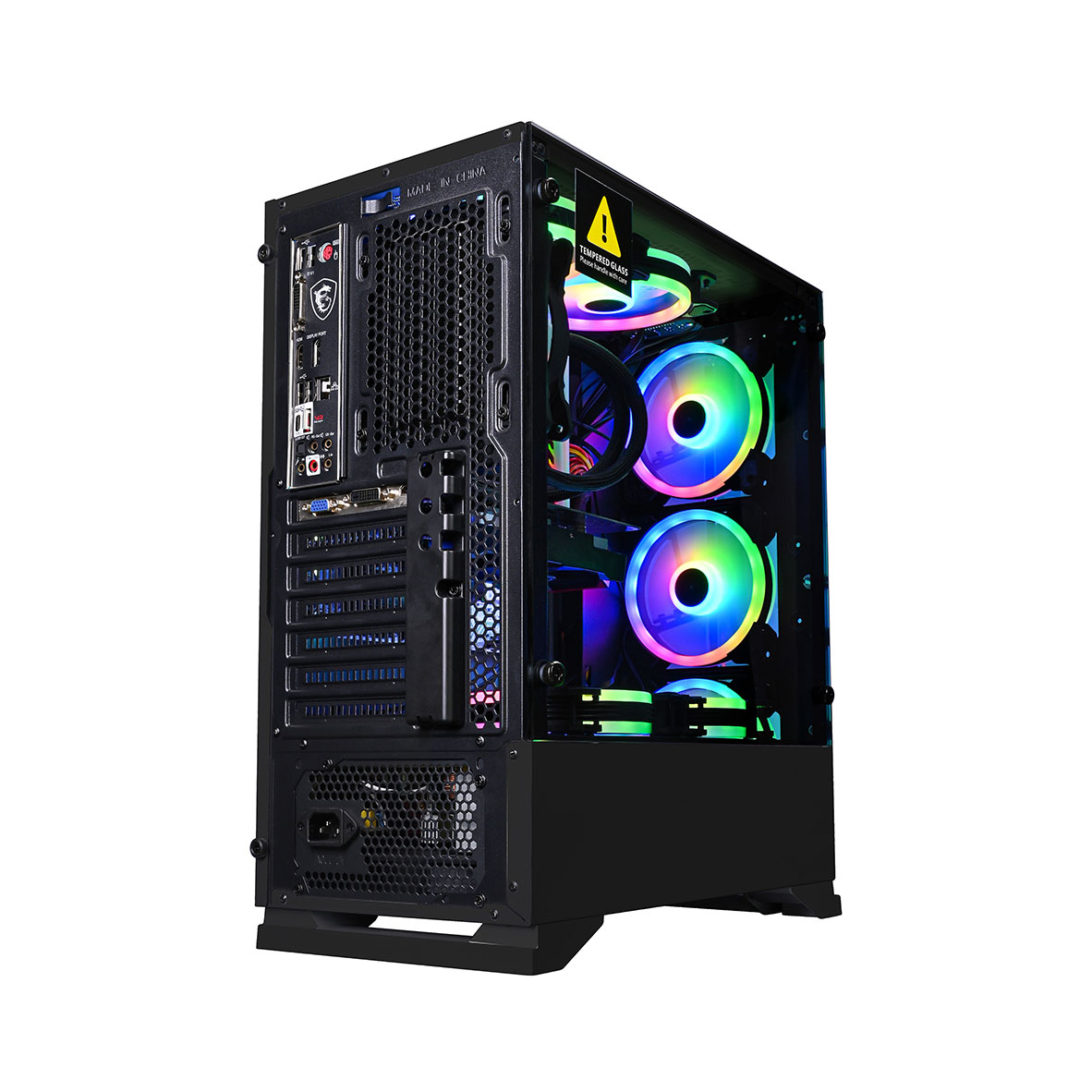

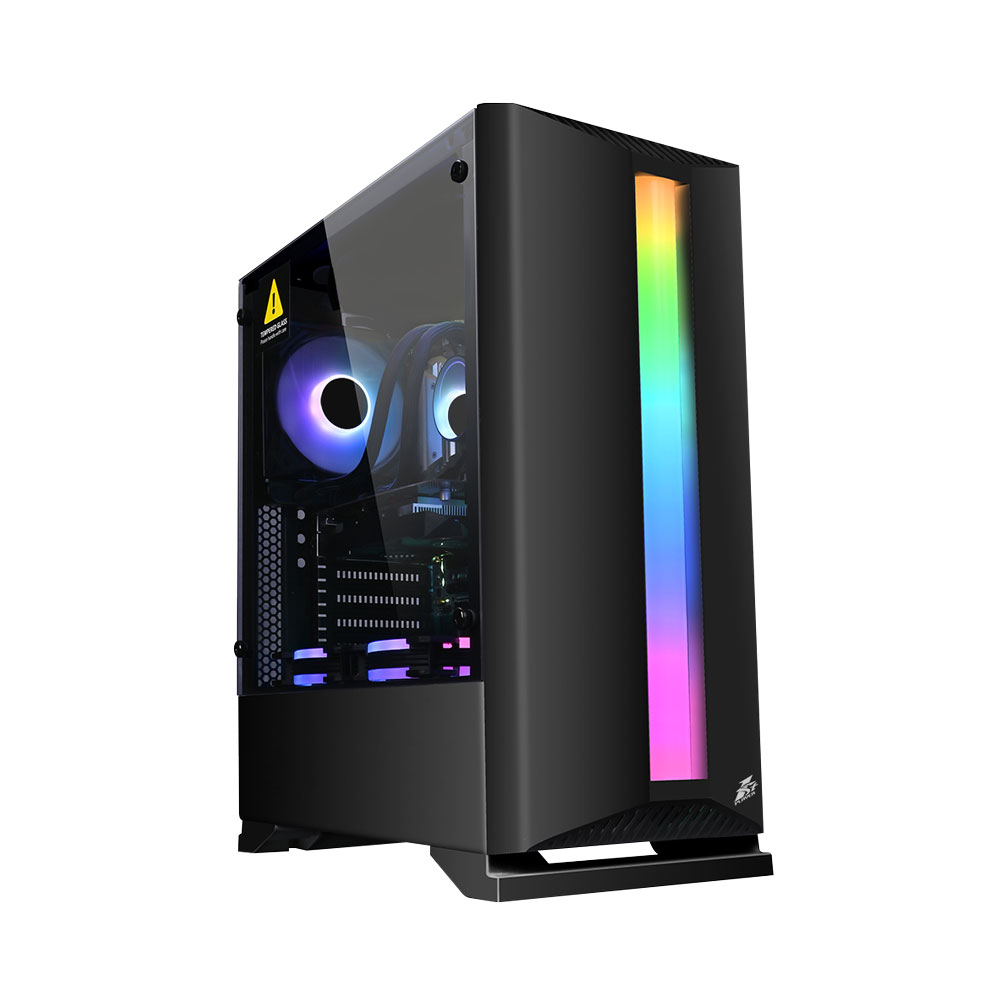

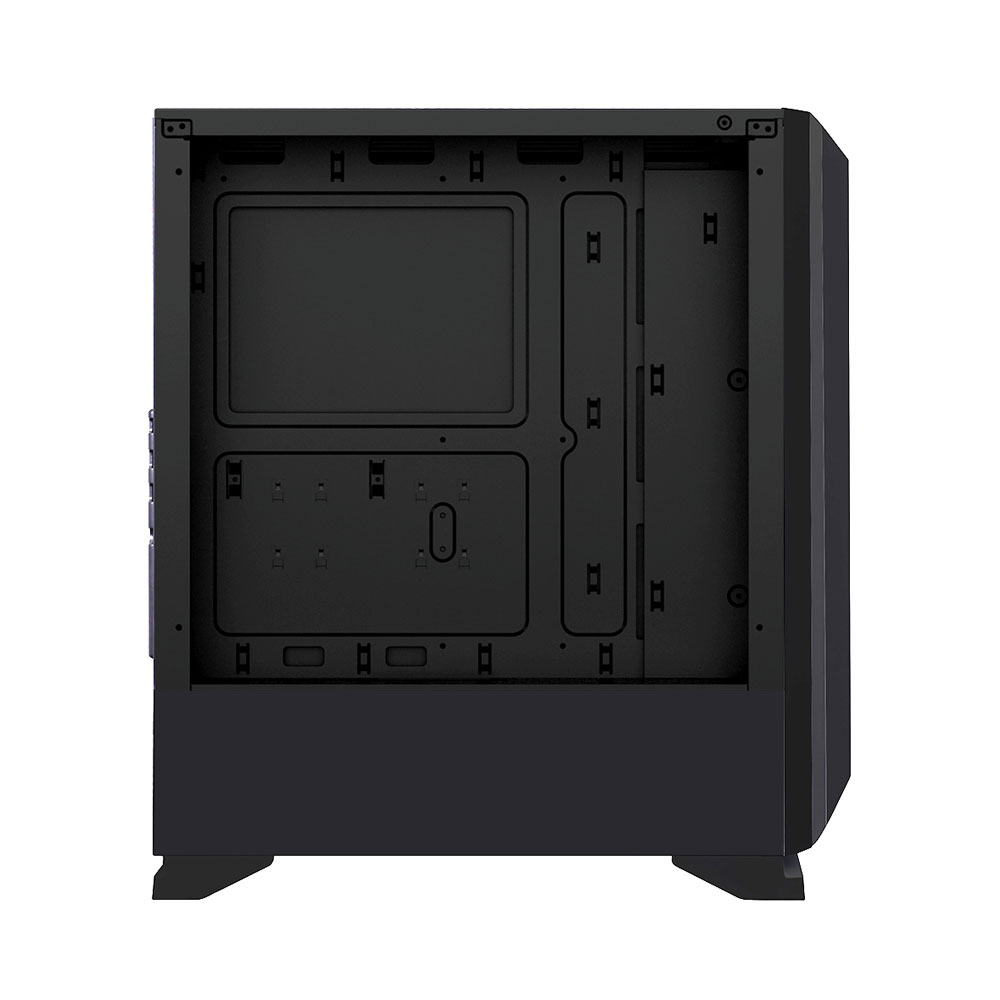

R6

1STPLAYER Gaming Case

ATX

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD: 2     2.5" SSD: 1

· Left Side Panel: Tempered Glass

· CPU Max H / GPU Max L: 175MM / 360MM




R6

1STPLAYER Gaming Case

ASSEMBLY

SHOWCASE +

Model

R6

Structure Dimensions(L*W*H)

370*205*438MM

Product Dimensions(L*W*H)

415*205*465MM

Package Dimensions(L*W*H)

515*270*480MM

Structure Thickness

0.6MM

Materials

LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

ATX/M-ATX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 1

CPU MAX Height

175MM

VGA MAX Length

360MM

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

PCI Card Slot

7

Fan Support

FRONT: 3*120 MM

TOP: 2*120 MM

REAR: 1*120 MM

BOTTOM: 1*120MM

Liquid Cooling Support

N/A

Power Supply Support

BOTTOM MOUNT

Net Weight

5.23KG / 11.53lb

Gross Weight

6.04KG / 13.31lb
