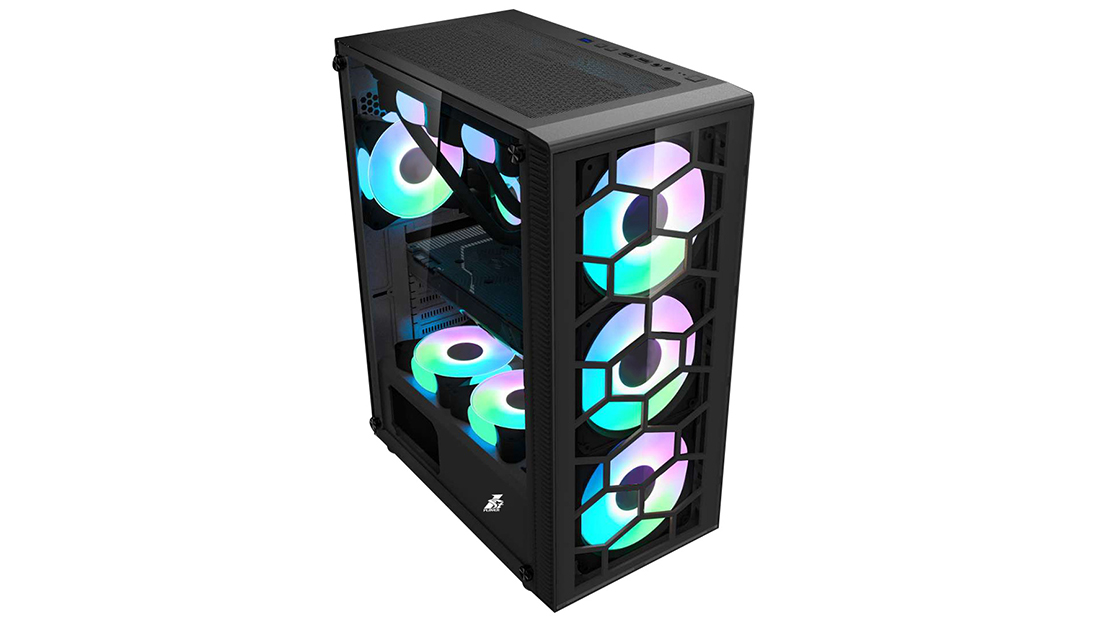

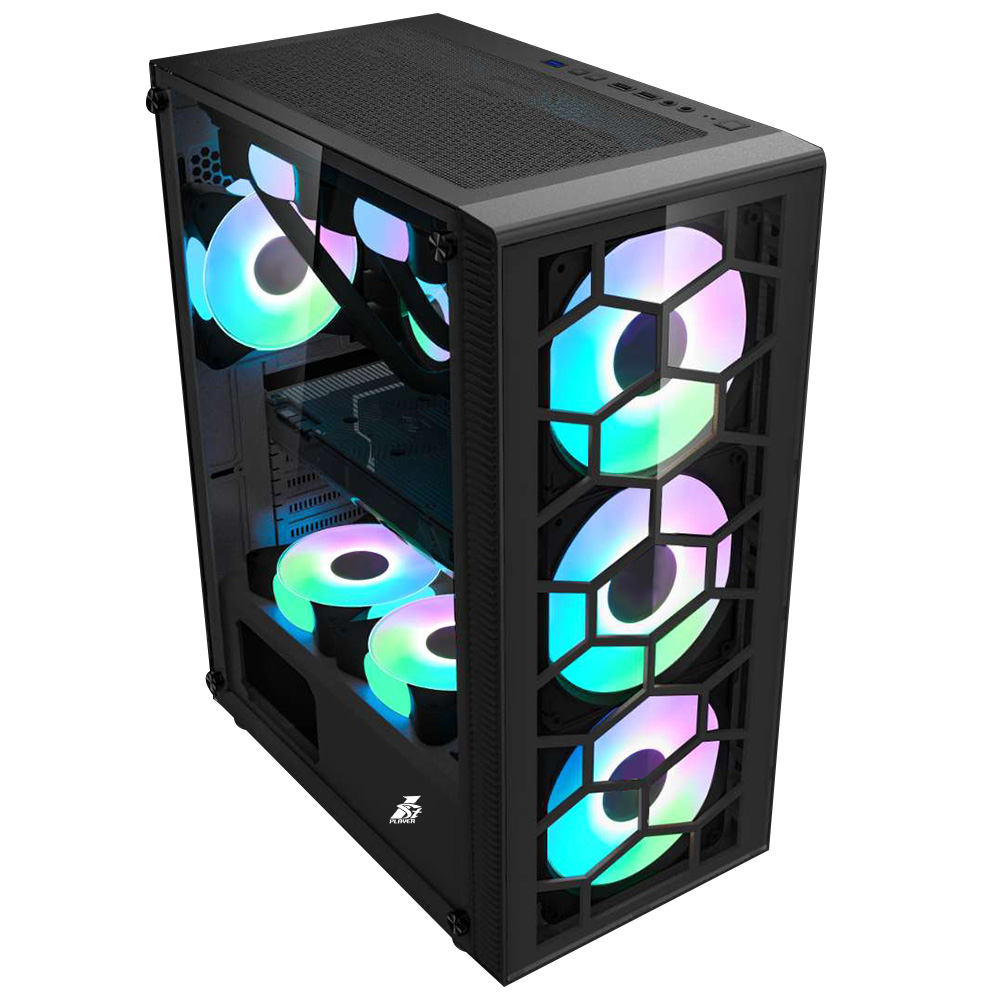

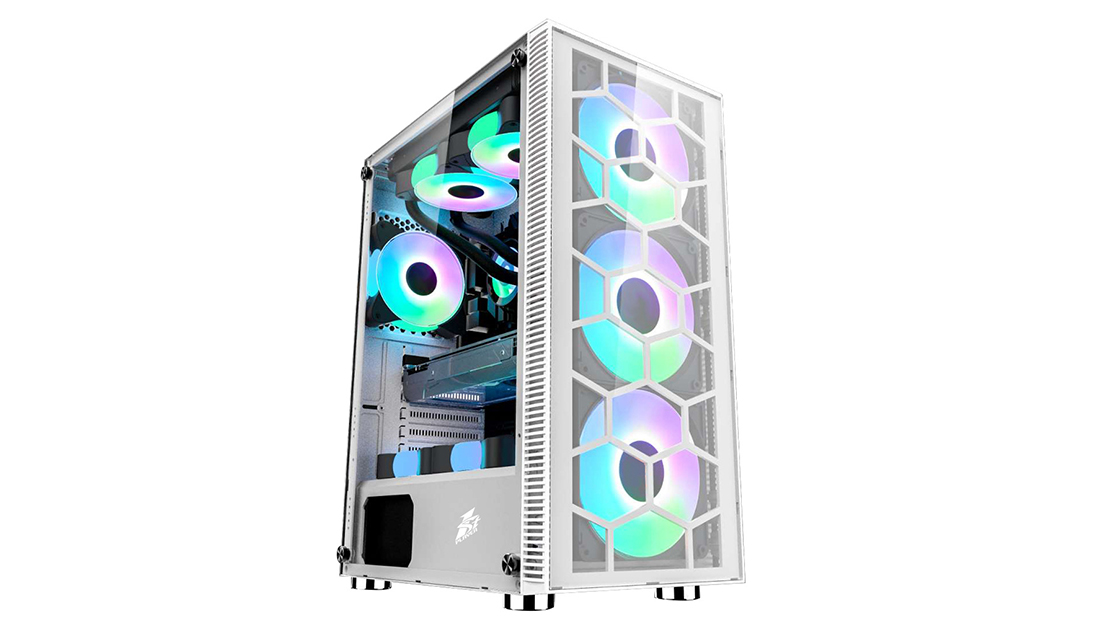

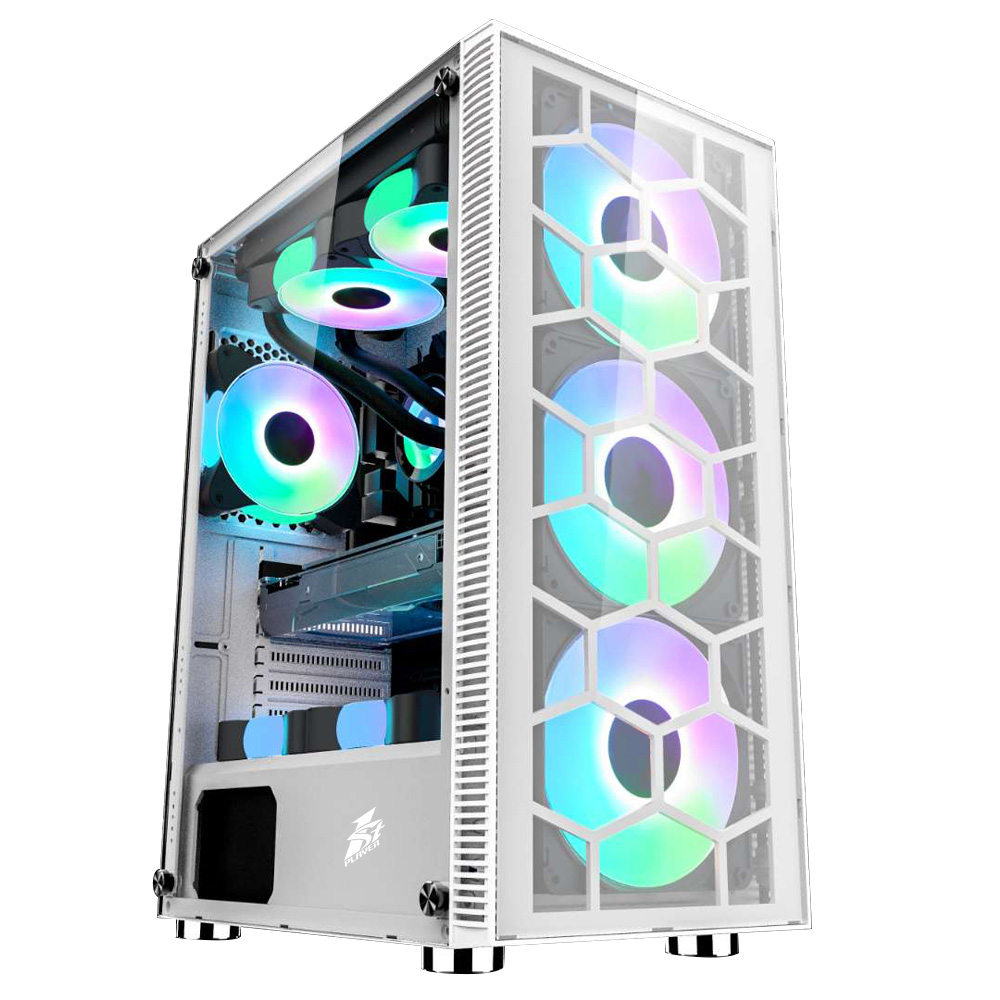

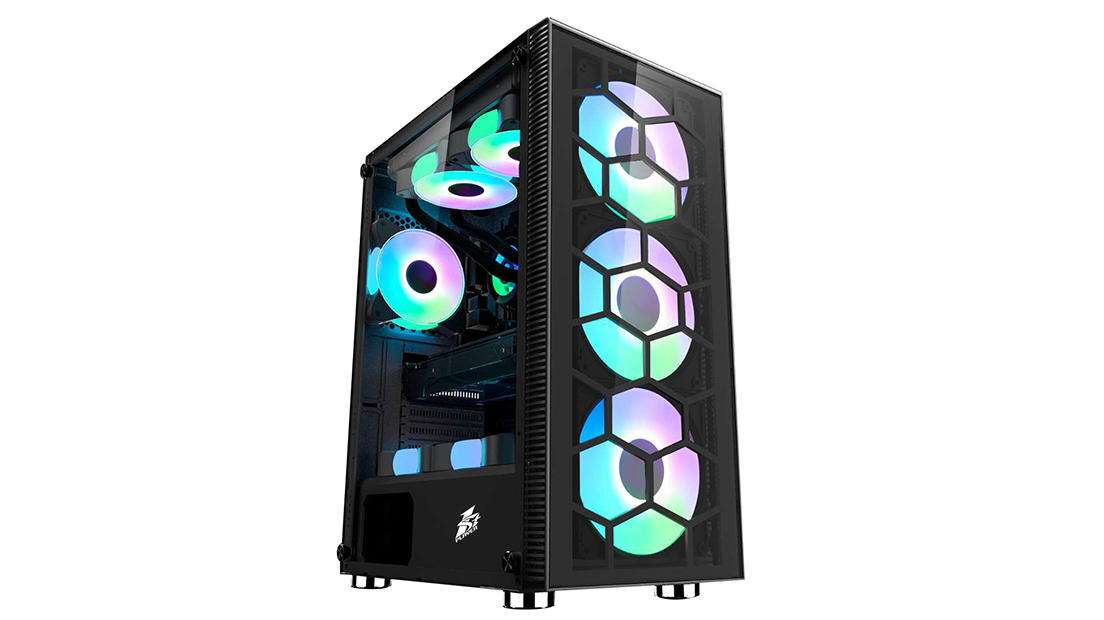

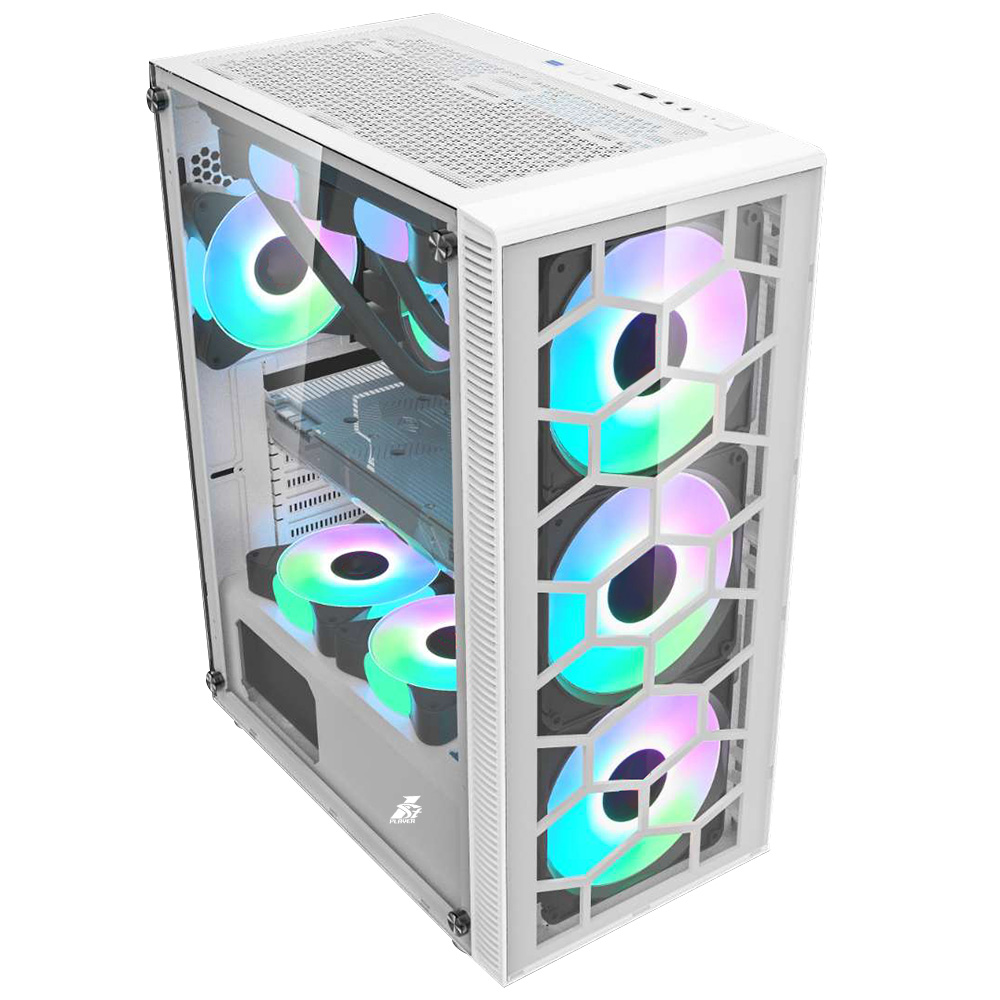

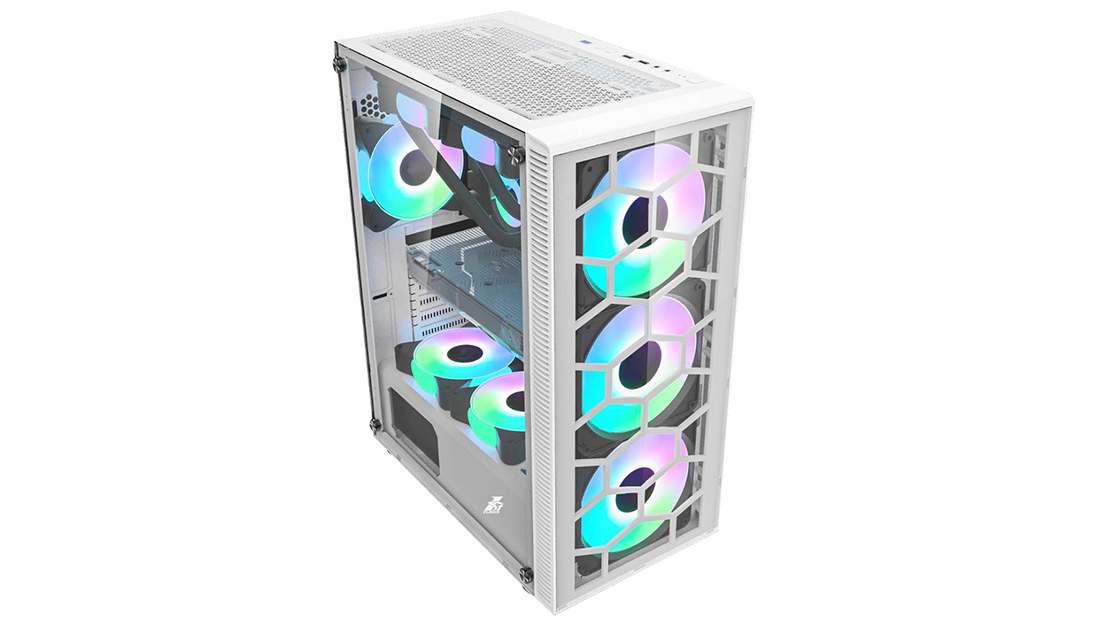

X7-G

1STPLAYER Gaming Case

ATX

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD: 2     2.5" SSD: 3

· Left Side Panel: Tempered Glass

· CPU Max H / GPU Max L: 165MM / 320MM




X7-G

1STPLAYER Gaming Case

ASSEMBLY

SHOWCASE

Model

X7-G

Structure Dimensions(L*W*H)

335*210*468MM

Product Dimensions(L*W*H)

368*210*480MM

Package Dimensions(L*W*H)

530*265*425MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM

FRONT&LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

ATX/M-ATX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 3

CPU MAX Height

165MM

VGA MAX Length

320MM

I/O Panel

HD AUDIO+USB3.0*1+USB2.0*2

PCI Card Slot

7

Fan Support

FRONT: 3*120 MM/3*140MM

TOP: 2*120 MM/2*140MM

REAR: 1*120 MM

Liquid Cooling Support

TOP: 240 MM

FRONT: 360MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

5.6KG / 12.34lb

Gross Weight

7KG / 15.43lb
