WP9

Your Rig. Your Canvas.

Support GPU length up to 430 mm
Support CPU cooler height up to 180 mm
Support installing of up to 9 fans
Support Top: 240 mm / 360 mm Side: 240 mm / 360 mm radiator
Optional pre-installed 140 mm fans.
RGB underglow accent strip along the bottom edge.
Support BTF motherboards for a flawless, zero-cable aesthetic.
Dual-orientation PSU mounting enables for optimized, flexible power cable placement.

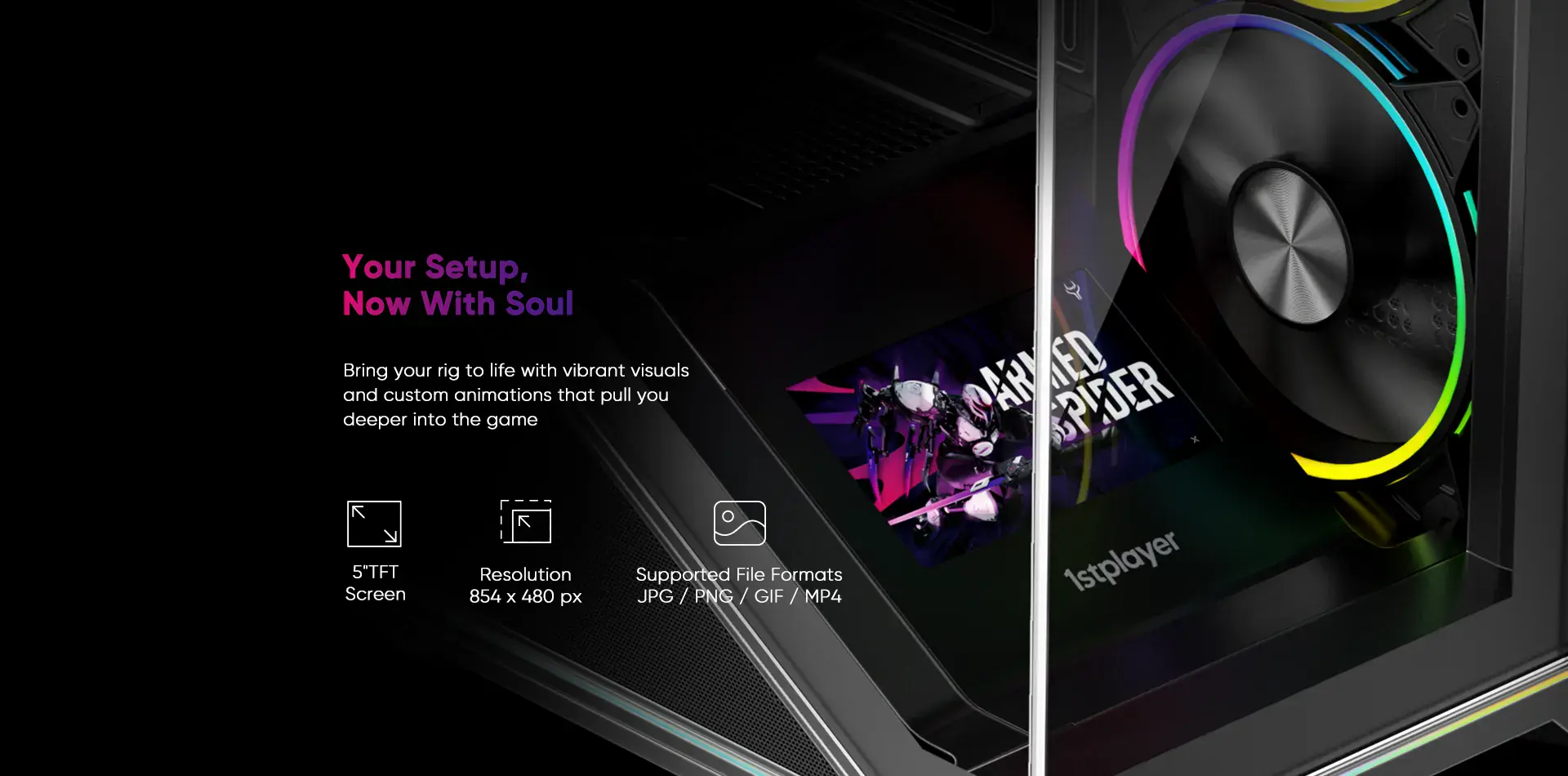

5" Built-in display on the angled lower shroud, ideal for showcasing custom content or system monitoring stats.

Color

WP9

WP9 Black PC case

WP9 White PC case

Specifications

MODEL:: WP9
PRODUCT DIMENSIONS (L × W × H):: 495 x 245 x 502 mm
P/N AND PRE-INSTALLED FANS:: WP9-BK No fans included (N/A) WP9-WH No fans included (N/A) WP9-BK-3FO7R-14-1FO7-14-HUB3 Front - 3 x FO7R-14-BK; Rear - 1 x FO7-14-BK; HUB3 WP9-WH-3FO7R-14-W-1FO7-14-W-HUB3 Front - 3 x FO7R-14-WH; Rear - 1 x FO7-14-WH; HUB3
MATERIALS:: SPCC, tempered glass, plastic
FORM FACTOR:: ATX / M-ATX / ITX
DRIVE BAYS:: 3.5" HDD: 1, 2.5" SSD: 2 or
3.5" HDD: 2, 2.5" SSD: 1
CPU COOLER MAX H:: 180 mm
GPU MAX L:: 430 mm
I/O PANEL:: USB 3.0 x 2, Type-C x 1, HD Audio
PCI CARD SLOT:: 7
FAN SUPPORT:: Top: 3 x 120 mm / 3 x 140 mm
Side: 3 x 120 mm / 3 x 140 mm
Rear: 1 x 120 mm / 1 x 140 mm
Bottom: 2 x 120 mm
LIQUID COOLER SUPPORT:: Top: 240 mm / 360 mm Side: 240 mm / 360 mm
POWER SUPPLY SUPPORT:: Bottom mounted ATX (Max length 230 mm)
COLOR:: White / Black

MODEL

WP9

STRUCTURE DIMENSIONS (L x W x H)

495 x 245 x 473 mm

PRODUCT DIMENSIONS (L x W x H)

495 x 245 x 502 mm

PACKAGE DIMENSIONS (L x W x H)

583 x 315 x 594 mm

STRUCTURE THICKNESS

0.7 mm

MATERIALS

SPCC, tempered glass, plastic

FORM FACTOR

ATX / M-ATX / ITX

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 2 or
3.5" HDD: 2, 2.5" SSD: 1

PN AND PRE-INSTALLED FANS

WP9-BK: No fans included (N/A)
WP9-WH: No fans included (N/A)
WP9-BK-3FO7R-14-1FO7-14-HUB3: Front - 3 x FO7R-14-BK; Rear - 1 x FO7-14-BK; HUB3
WP9-WH-3FO7R-14-W-1FO7-14-W-HUB3: Front - 3 x FO7R-14-WH; Rear - 1 x FO7-14-WH; HUB3

CPU MAX HEIGHT

180 mm

GPU MAX LENGTH

430 mm

I/O PANEL

USB 3.0 x 2, Type-C x 1, HD Audio

PCI CARD SLOT

7

FAN SUPPORT

Top: 3 x 120 mm / 3 x 140 mm
Side: 3 x 120 mm / 3 x 140 mm
Rear: 1 x 120 mm / 1 x 140 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm / 360 mm Side: 240 mm / 360 mm

POWER SUPPLY SUPPORT

Bottom mounted ATX (Max length 230 mm)

WEIGHT

N.W.: 9.62 kg
G.W.: 11.29 kg

Product Comparison

Compare this product with other models in our lineup to find the perfect fit for your needs.

WP9 Specification
