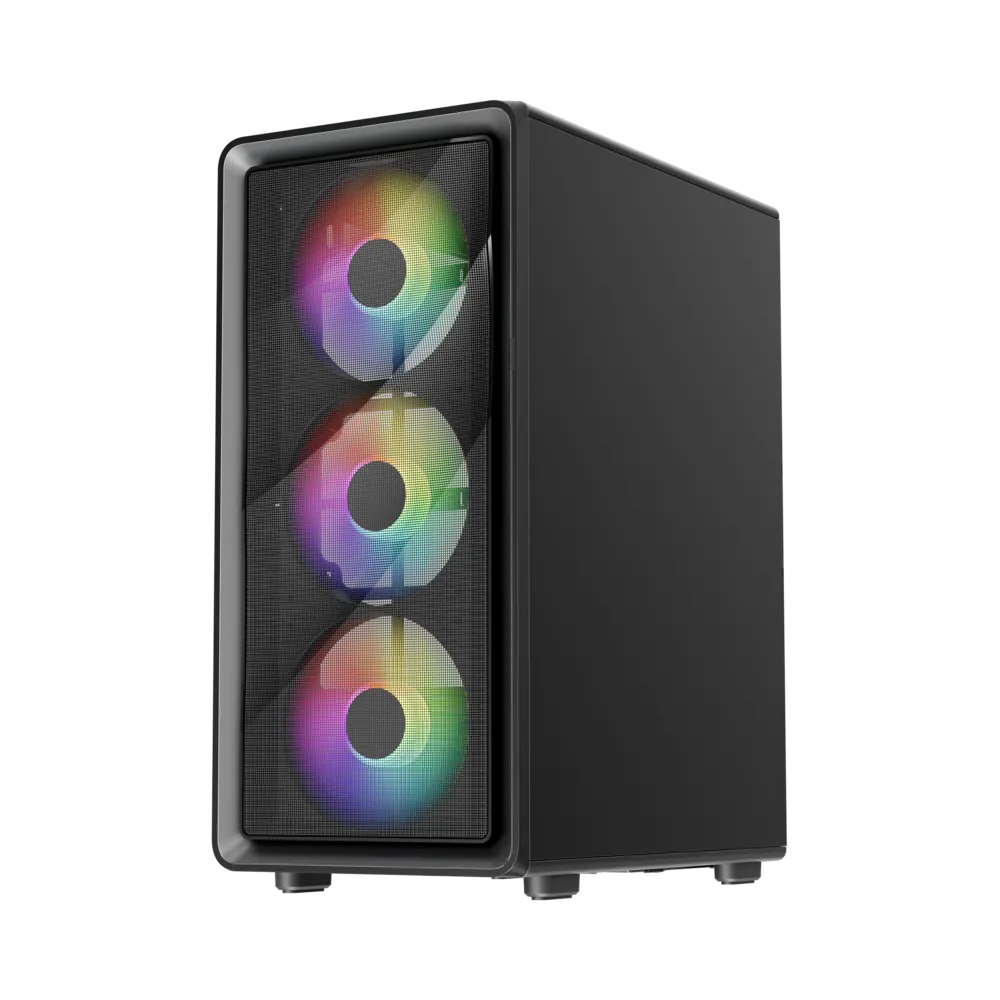

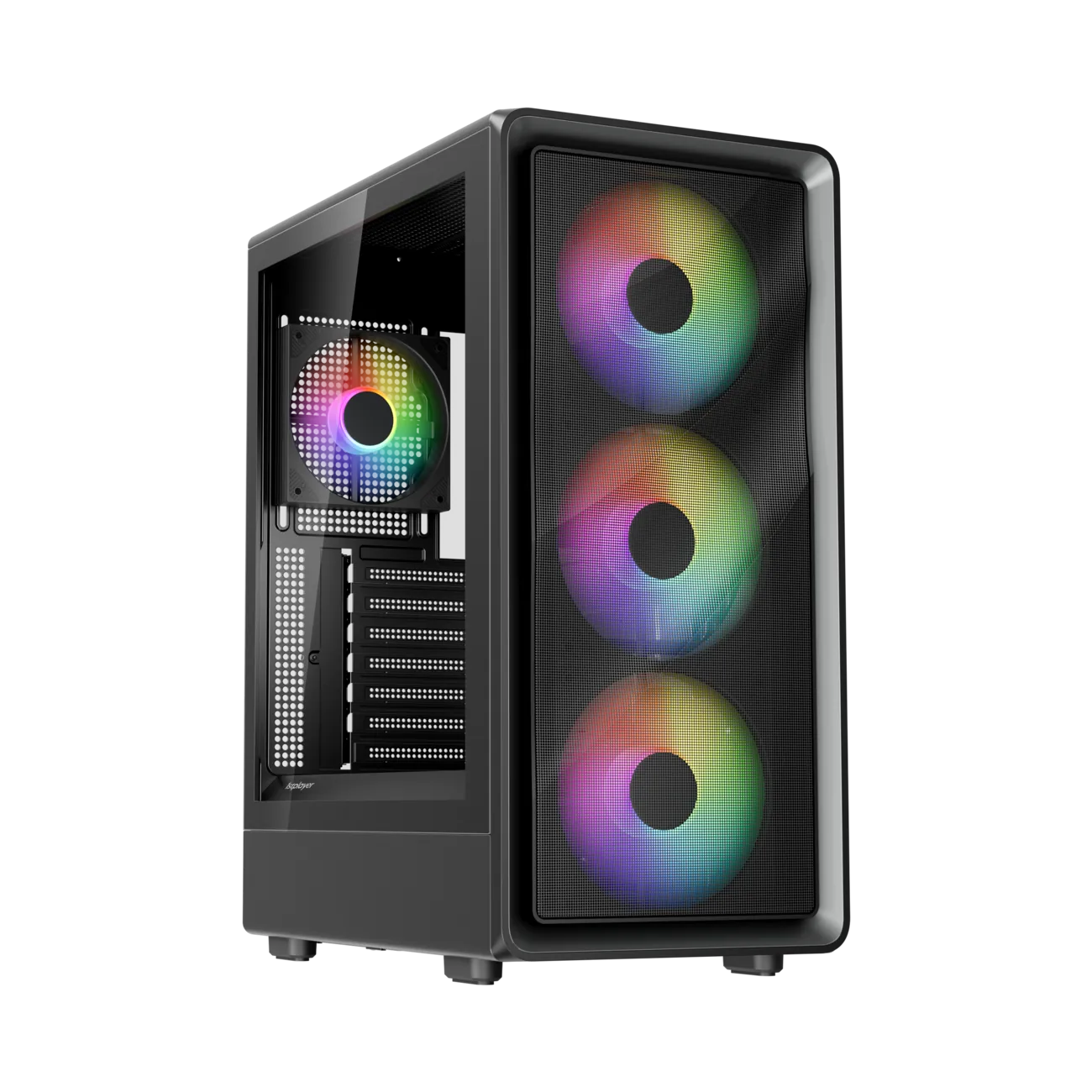

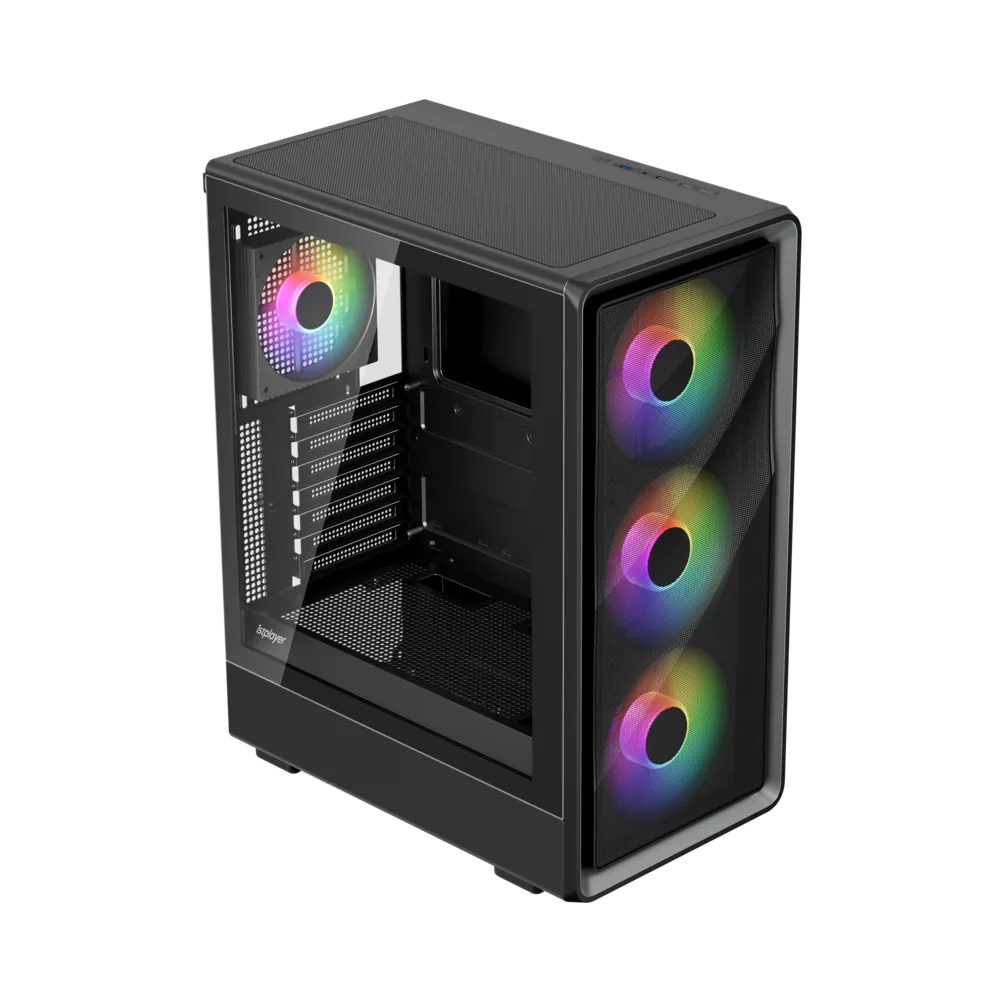

WA7-K

Support GPU length up to 310 mm
Support CPU cooler height up to 170 mm

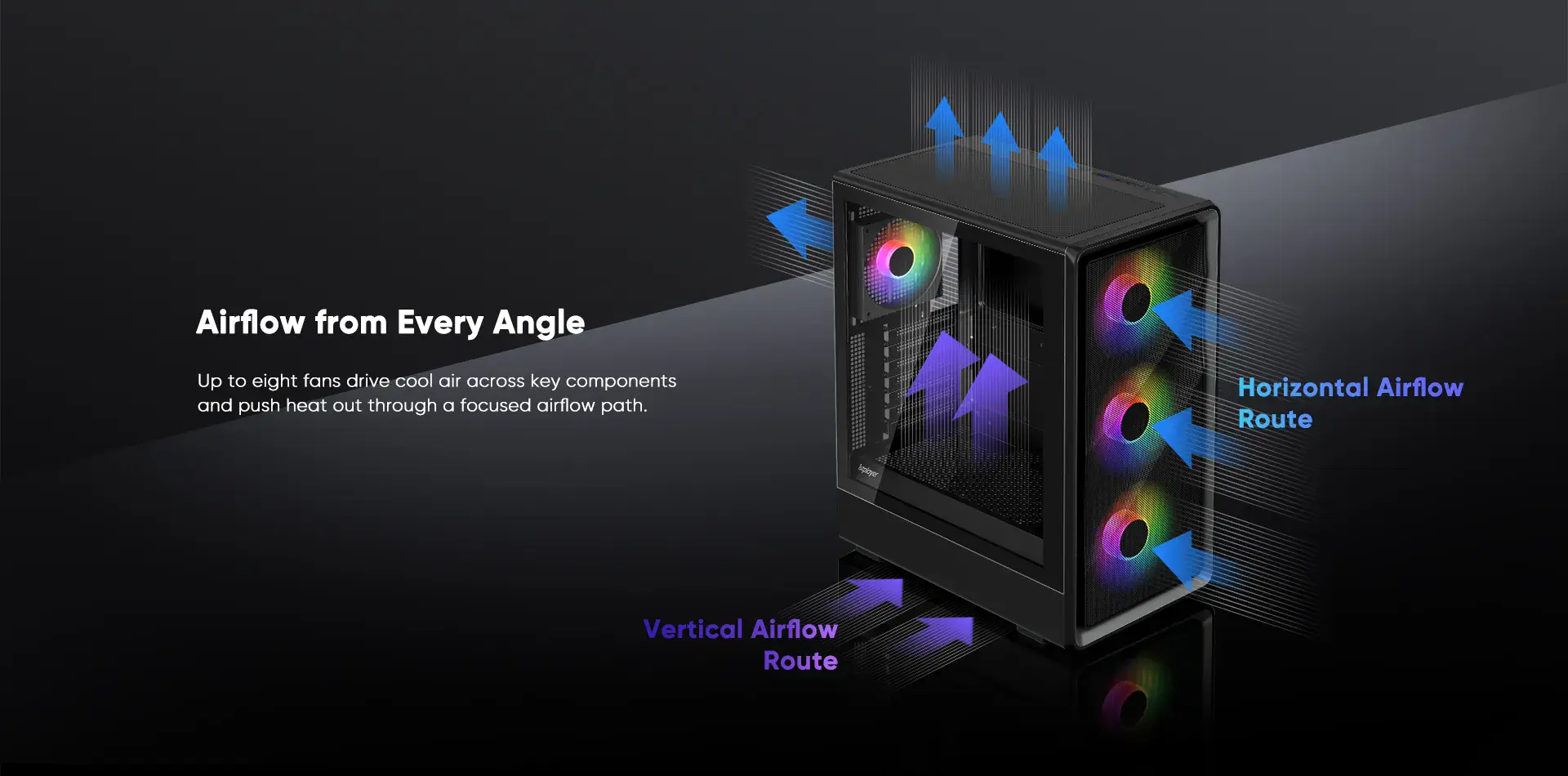

Support installing of up to 8 fans
Support Top: 240 mm radiator

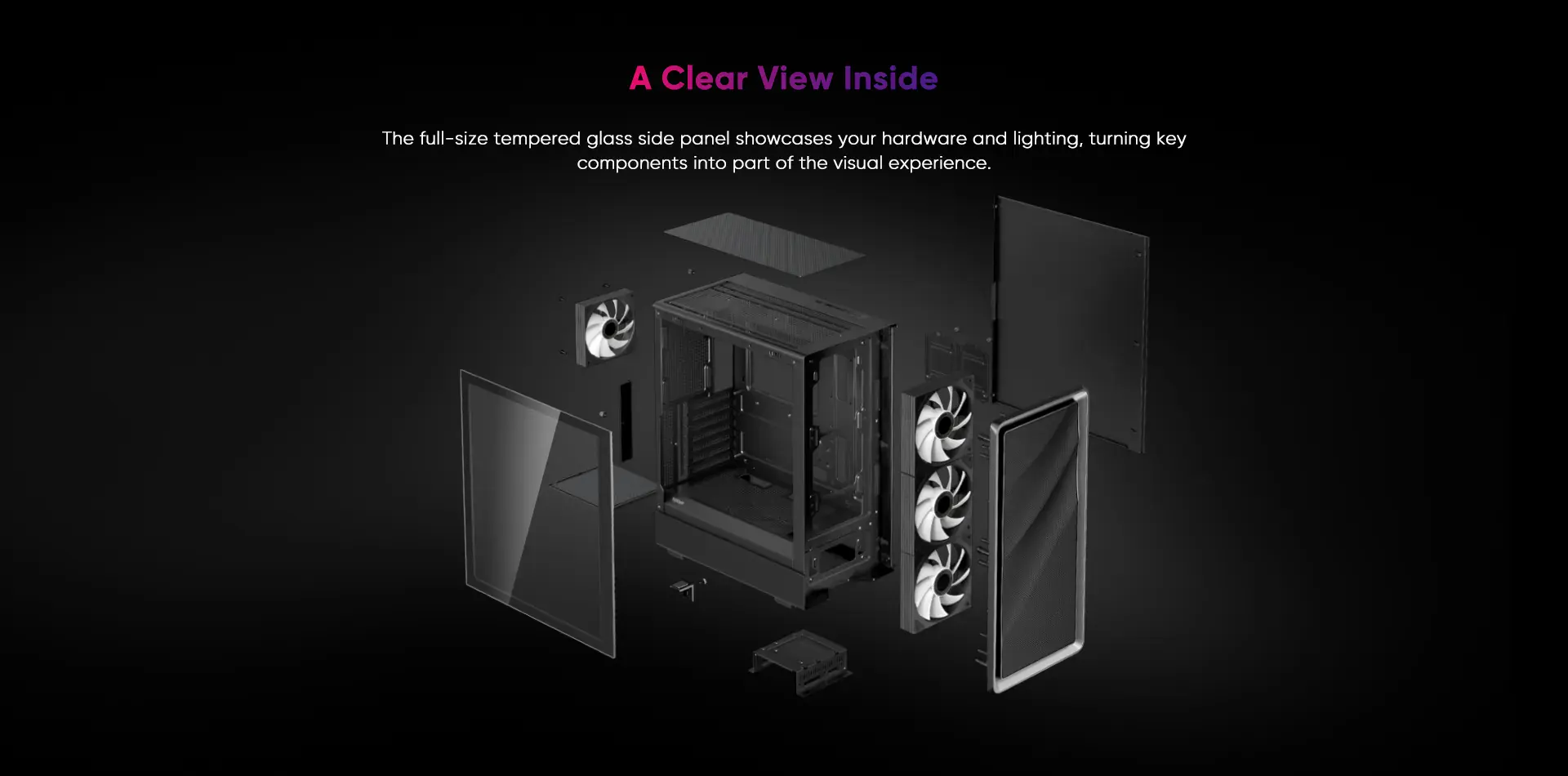

Curved tempered glass panels deliver a seamless, panoramic hardware view.

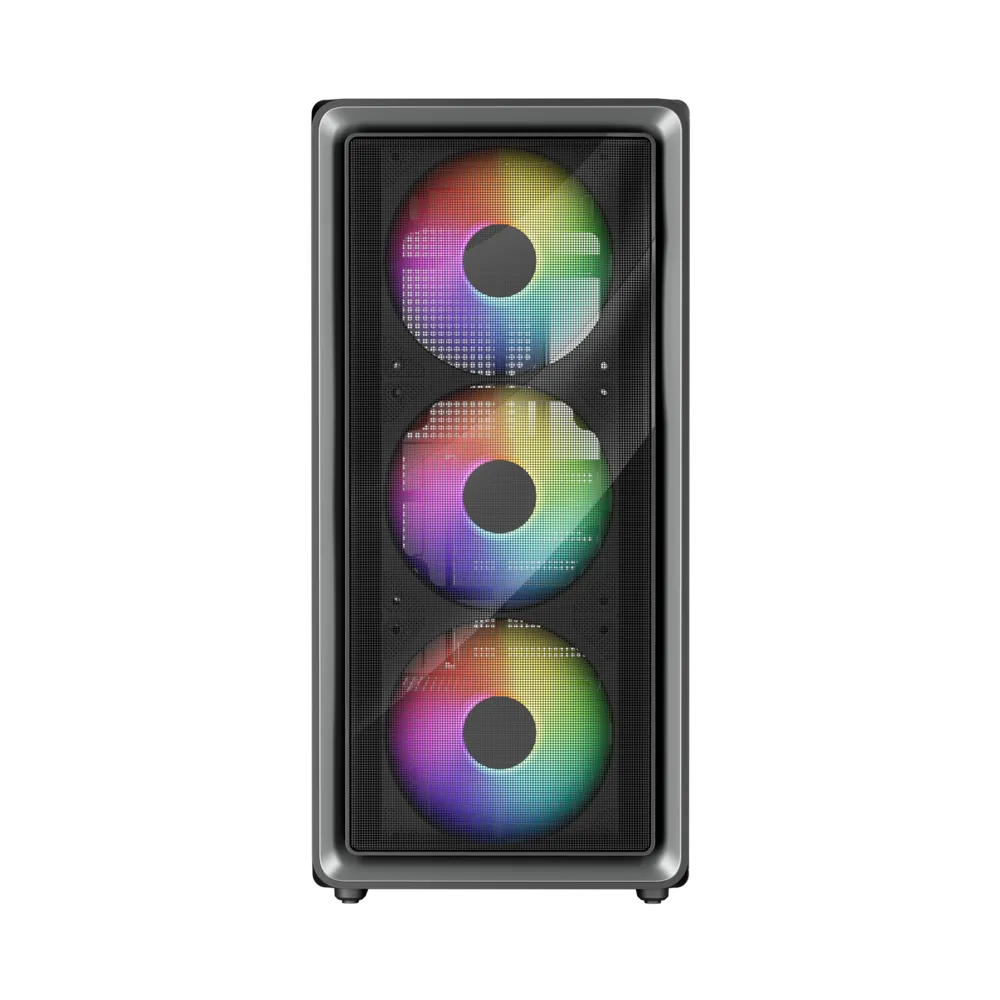

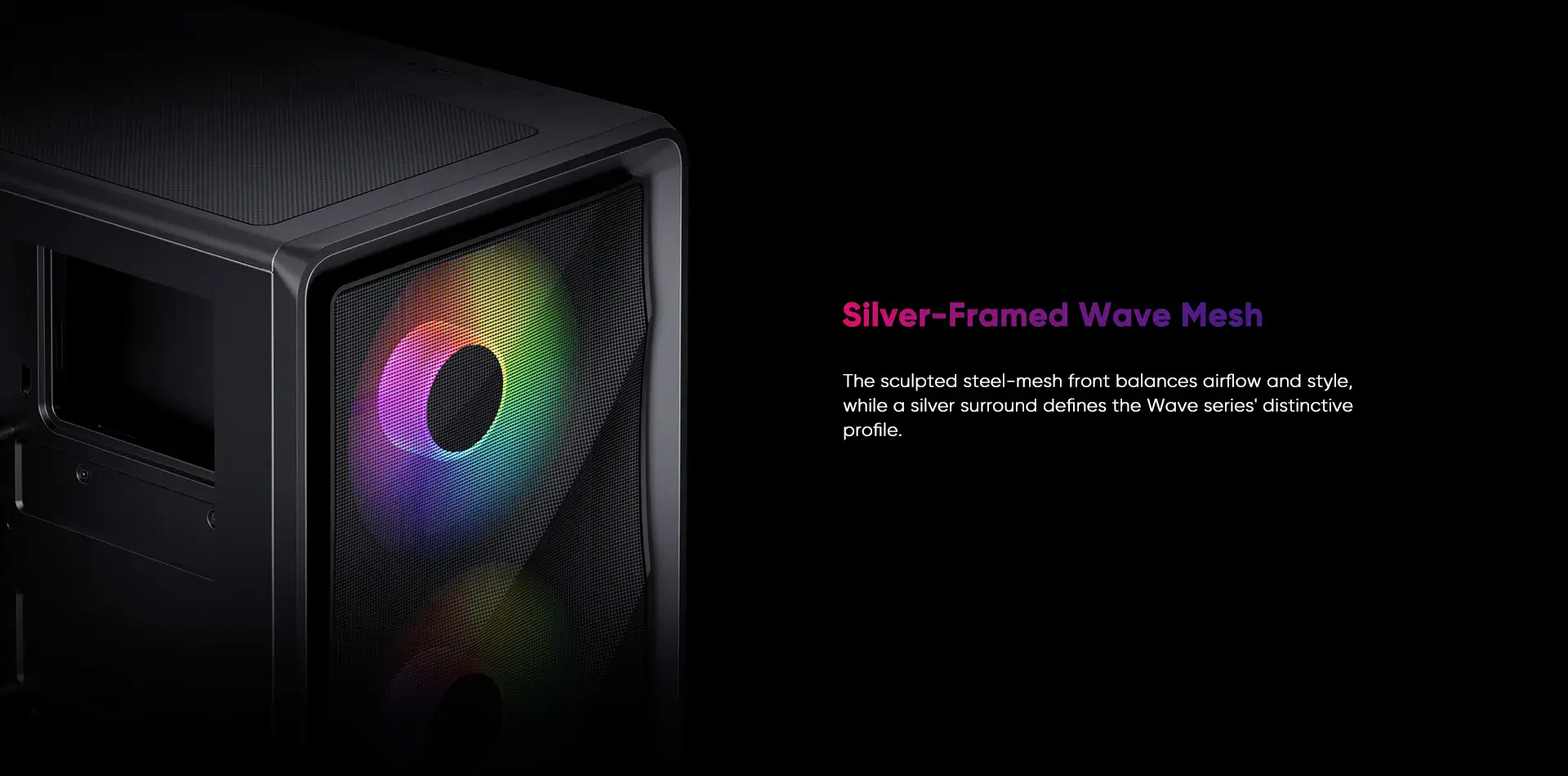

Front panel accommodates up to three high-airflow 140mm cooling fans.

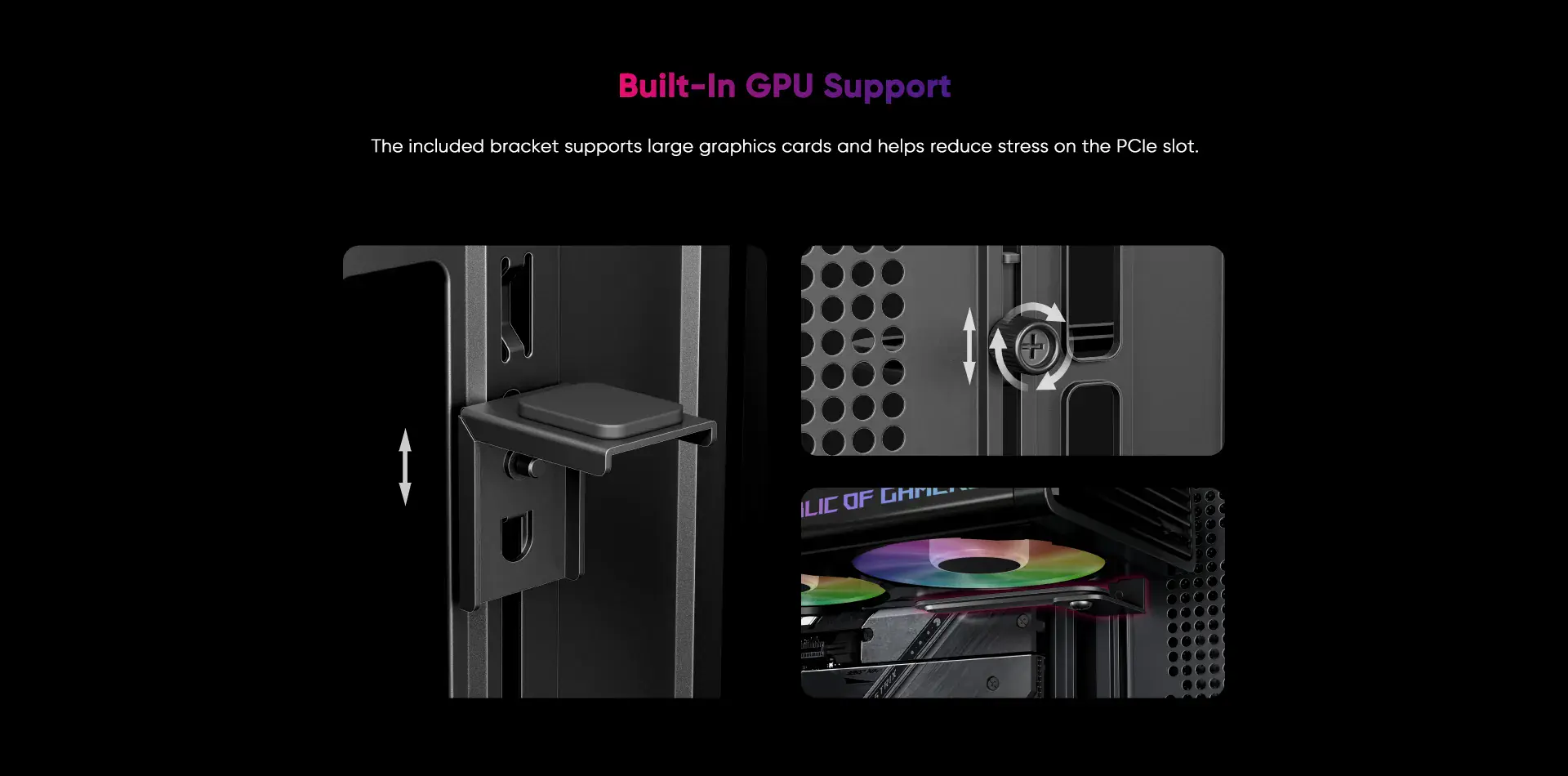

Built-in standard GPU bracket provides secure, heavy-duty graphics card support.

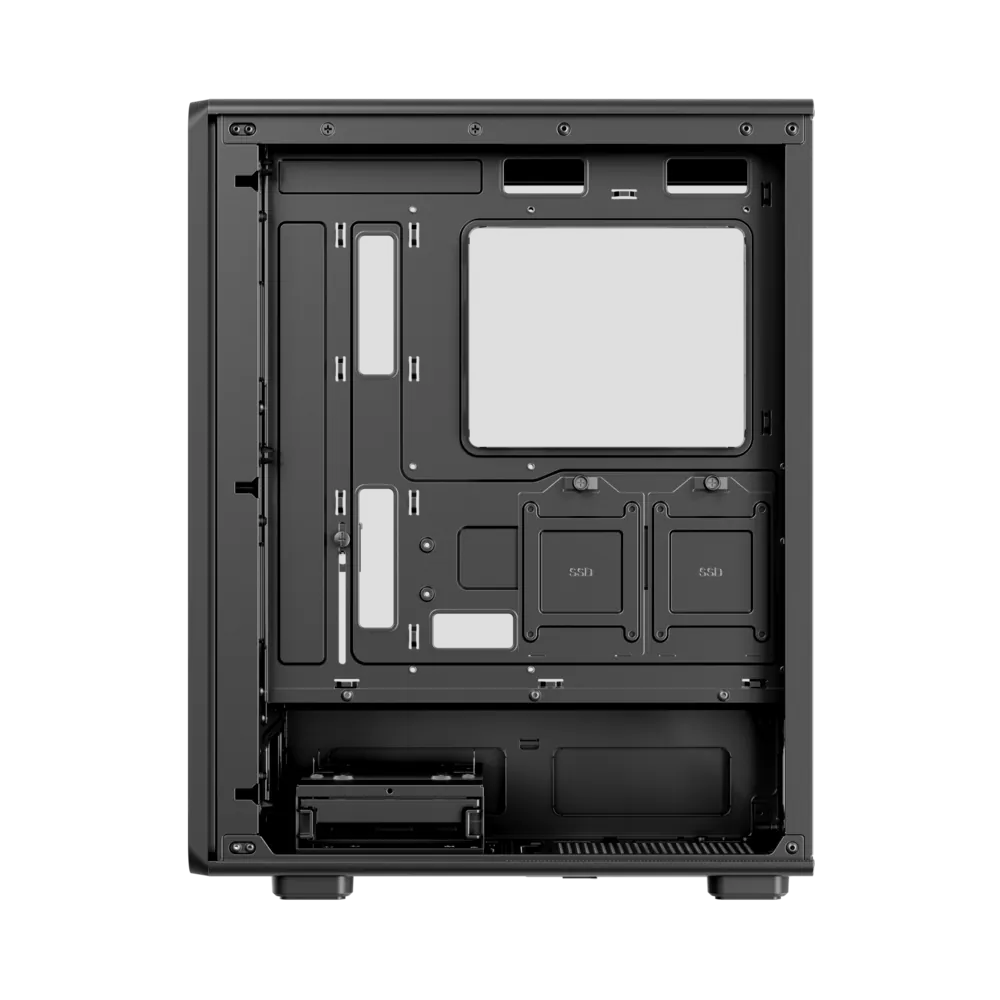

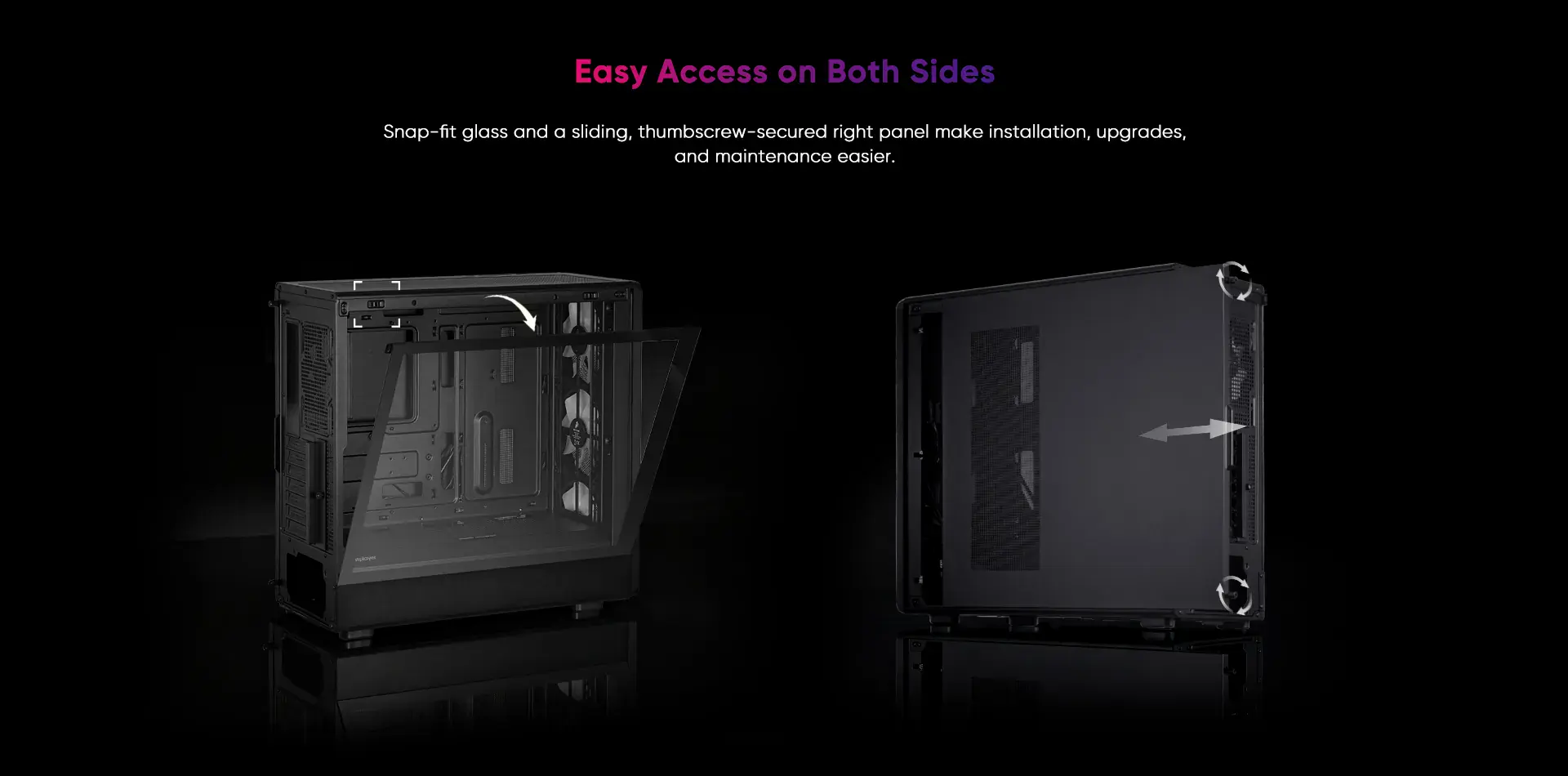

Optimized back-cable routing space enables clean and effortless system management.

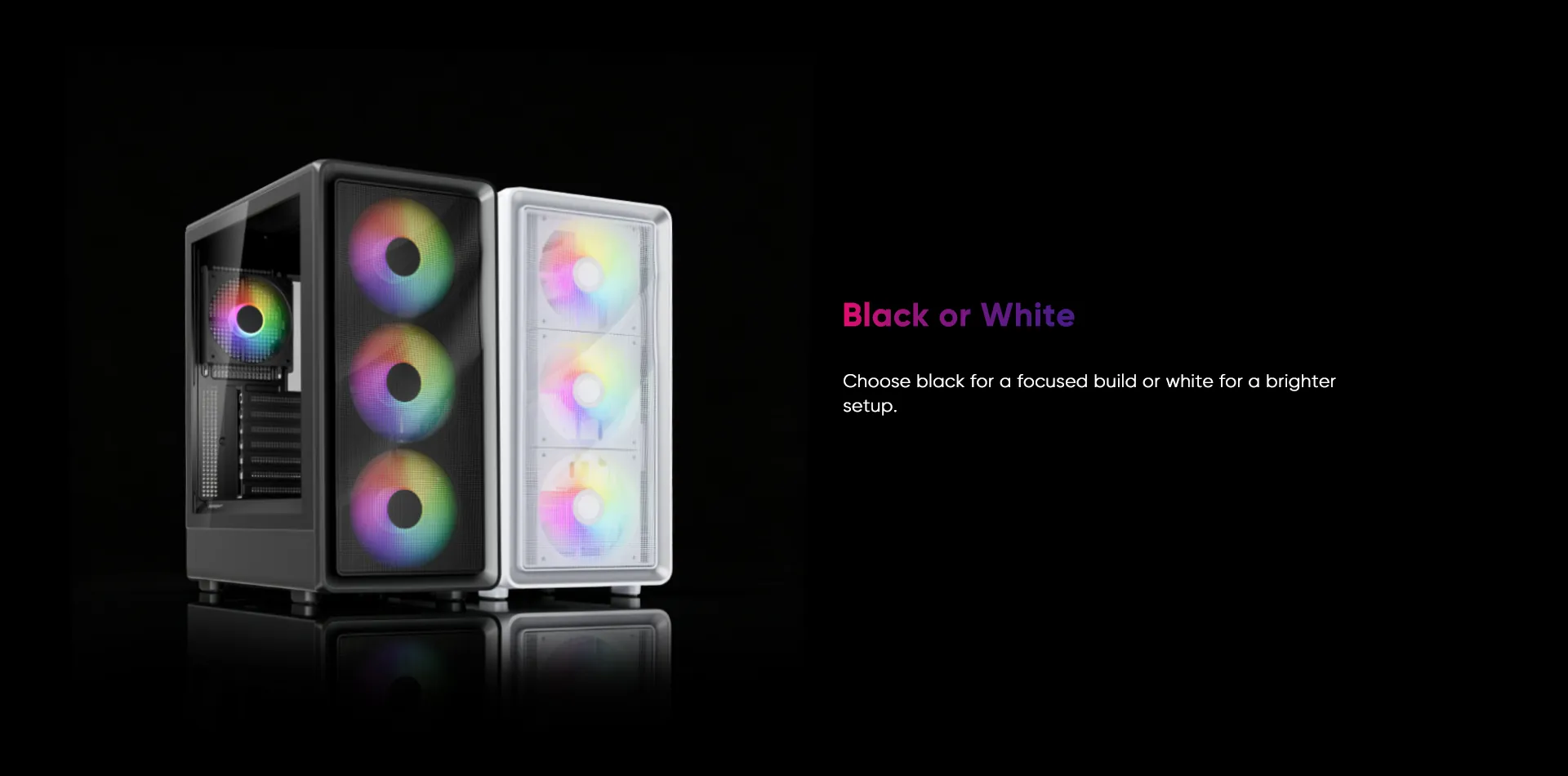

Color

MODEL

WA7-K

STRUCTURE DIMENSIONS (L x W x H)

365 x 225 x 470 mm

PRODUCT DIMENSIONS (L x W x H)

380 x 225 x 485 mm

PACKAGE DIMENSIONS (L x W x H)

447 x 286 x 546 mm

STRUCTURE THICKNESS

0.6 mm

MATERIALS

SPCC, tempered glass, plastic

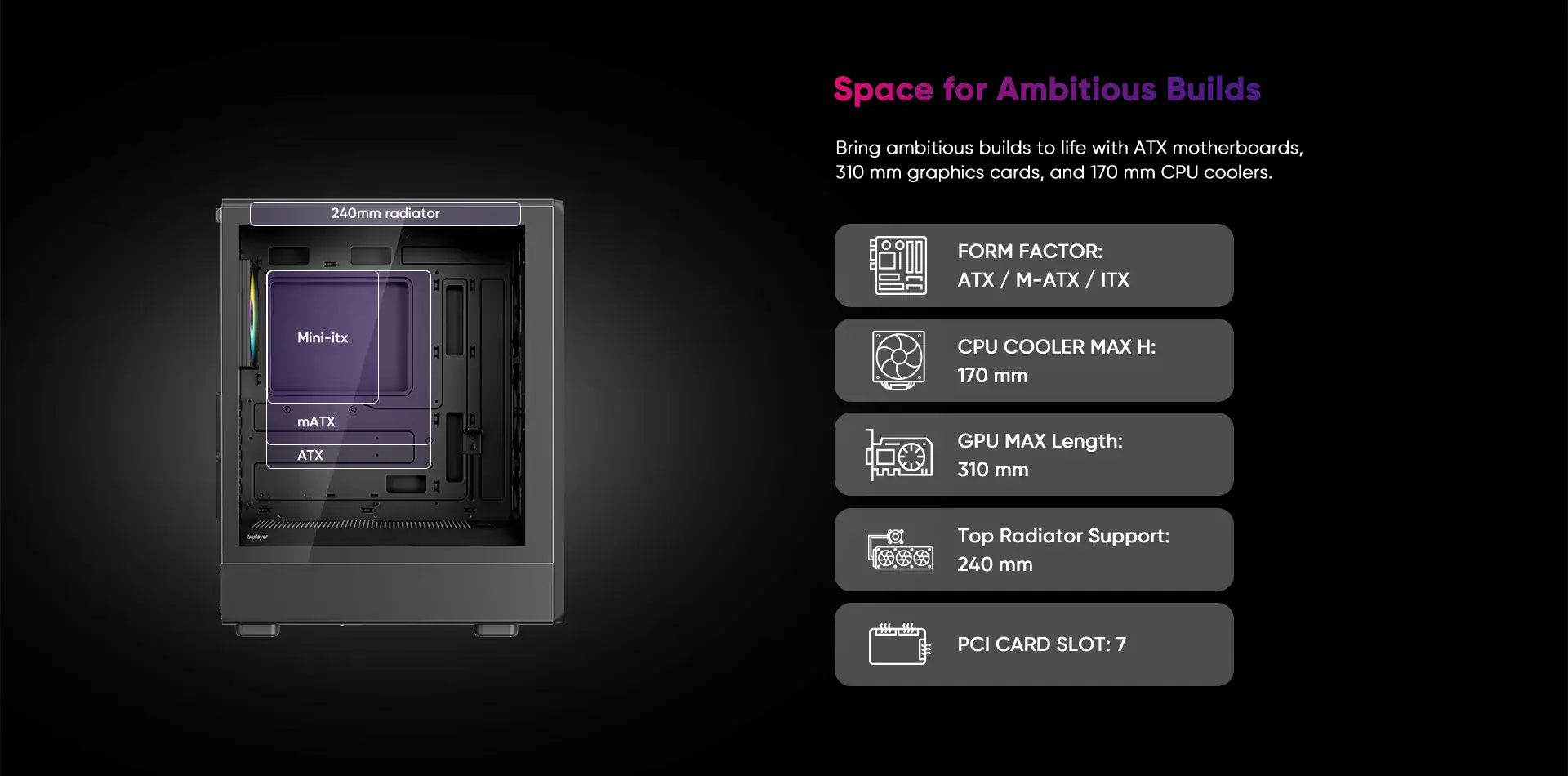

FORM FACTOR

ATX / M-ATX / ITX

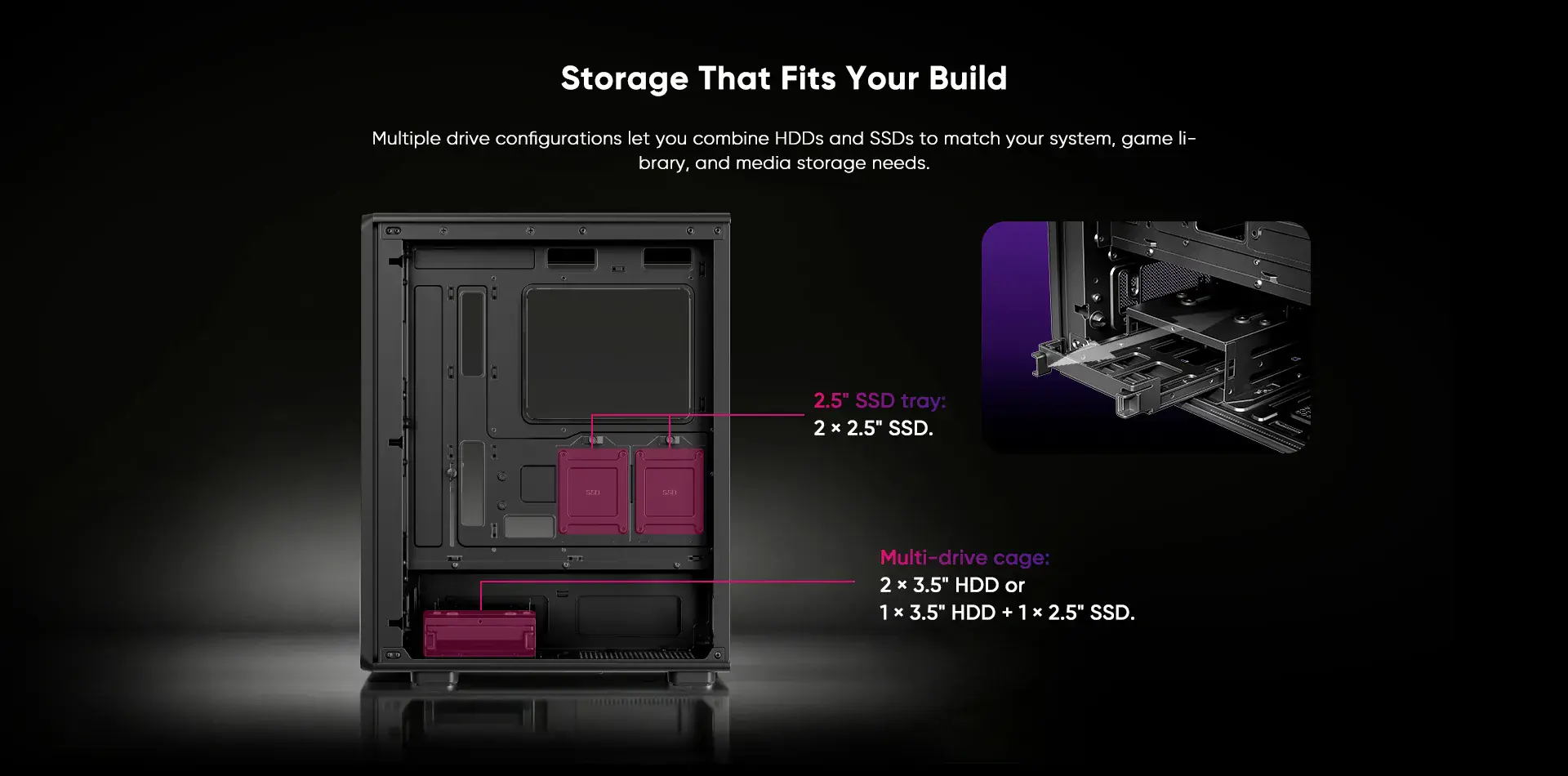

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 3 or
3.5" HDD: 2, 2.5" SSD: 2

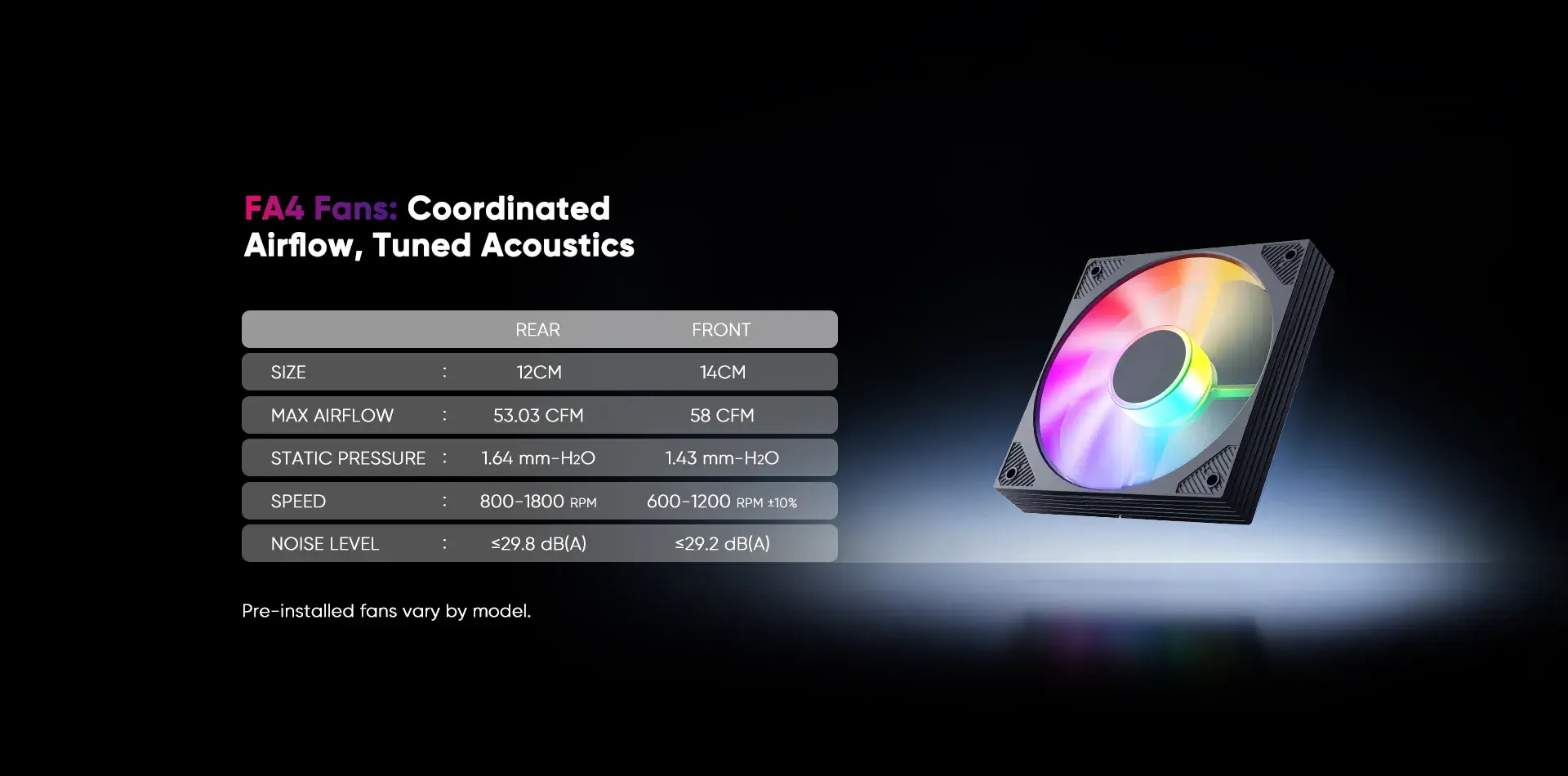

PN AND PRE-INSTALLED FANS

WA7-K-BK: No fans included (N/A)

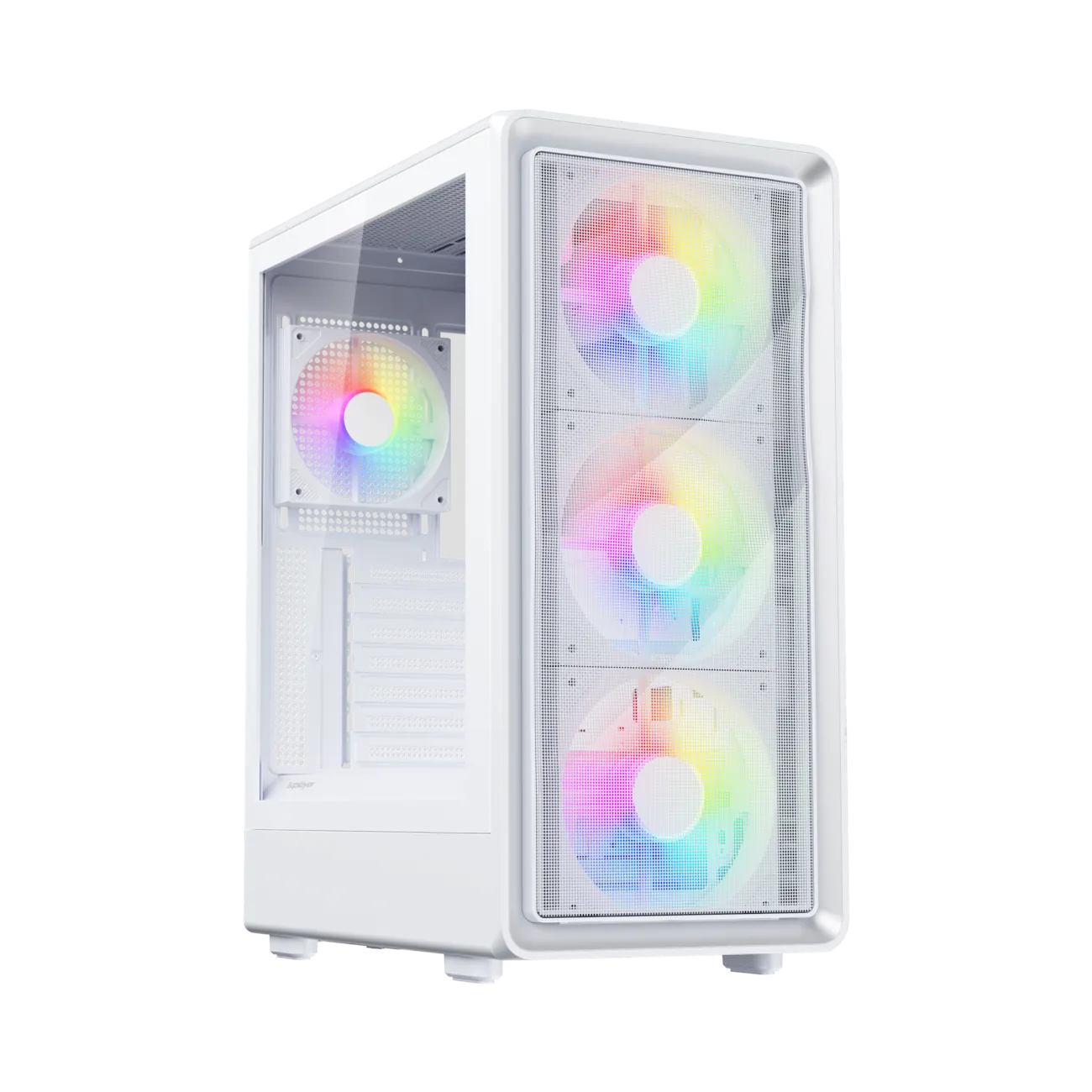

WA7-K-WH: No fans included (N/A)
WA7-K-BK-3FA4S-14-1FA4M: Front - 3 x FA4S-14-BK; Rear - 1 x FA4M-BK
WA7-K-WH-3FA4S-14-W-1FA4M-W: Front - 3 x FA4S-14-WH; Rear - 1 x FA4M-WH

CPU MAX HEIGHT

170 mm

GPU MAX LENGTH

310 mm

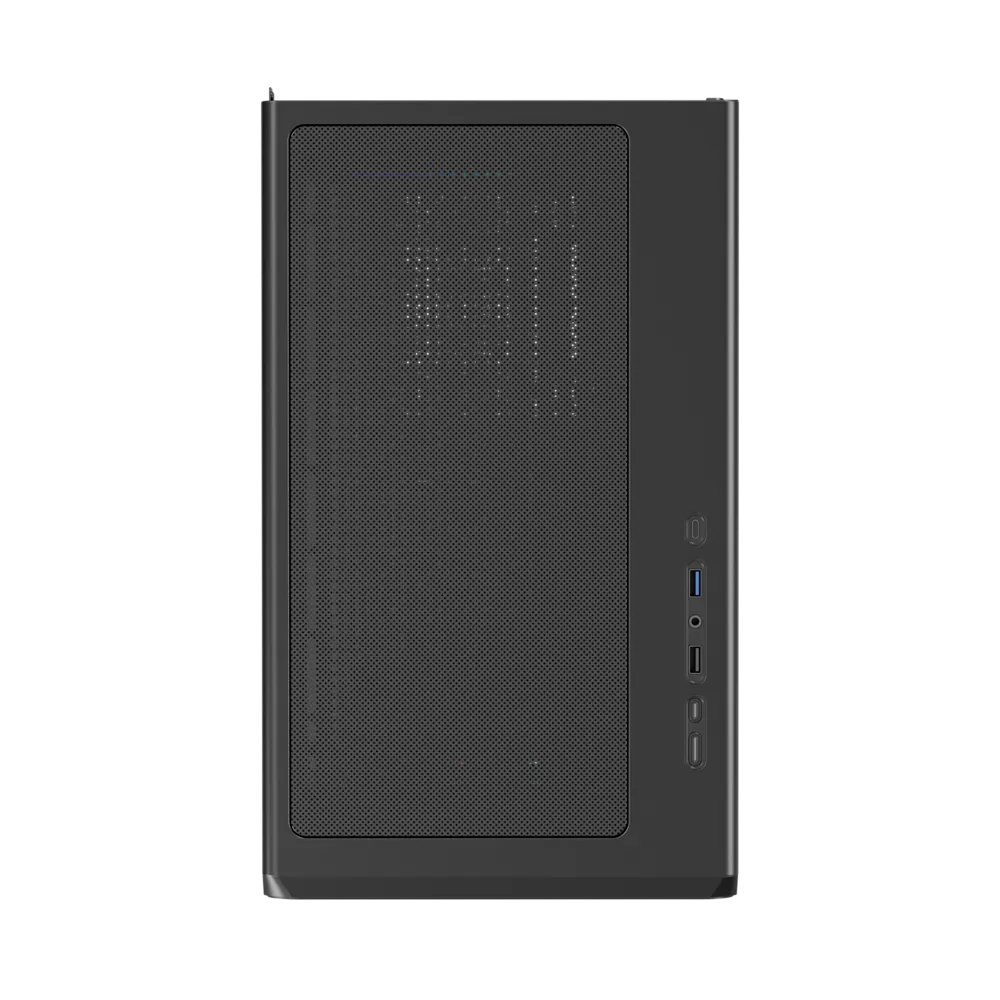

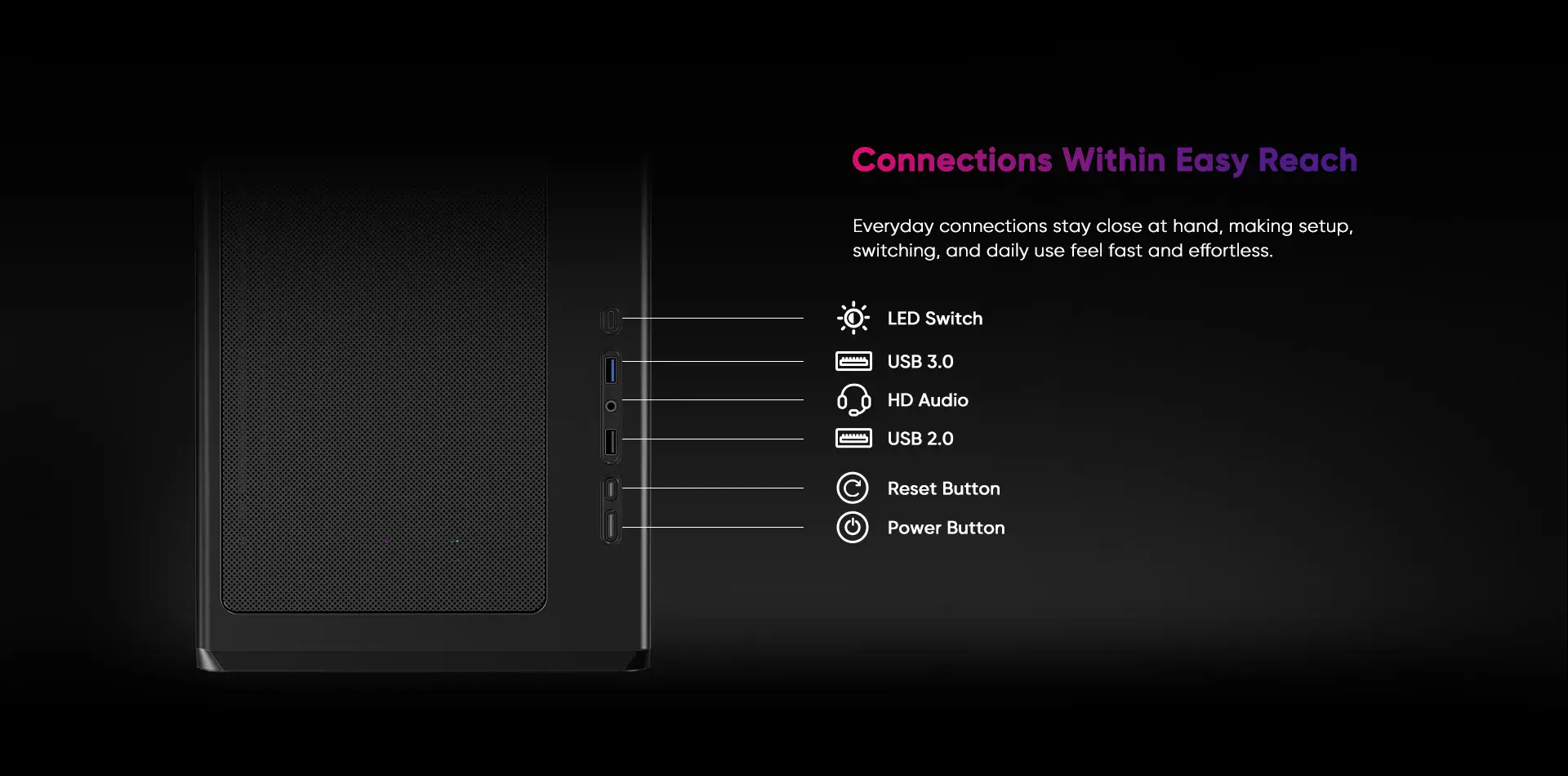

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, HD Audio

PCI CARD SLOT

7

FAN SUPPORT

Front: 3 x 120 mm / 3 x 140 mm
Top: 2 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted ATX (Max length 150 mm)

WEIGHT

N.W.: 5.7 kg
G.W.: 6.93 kg
