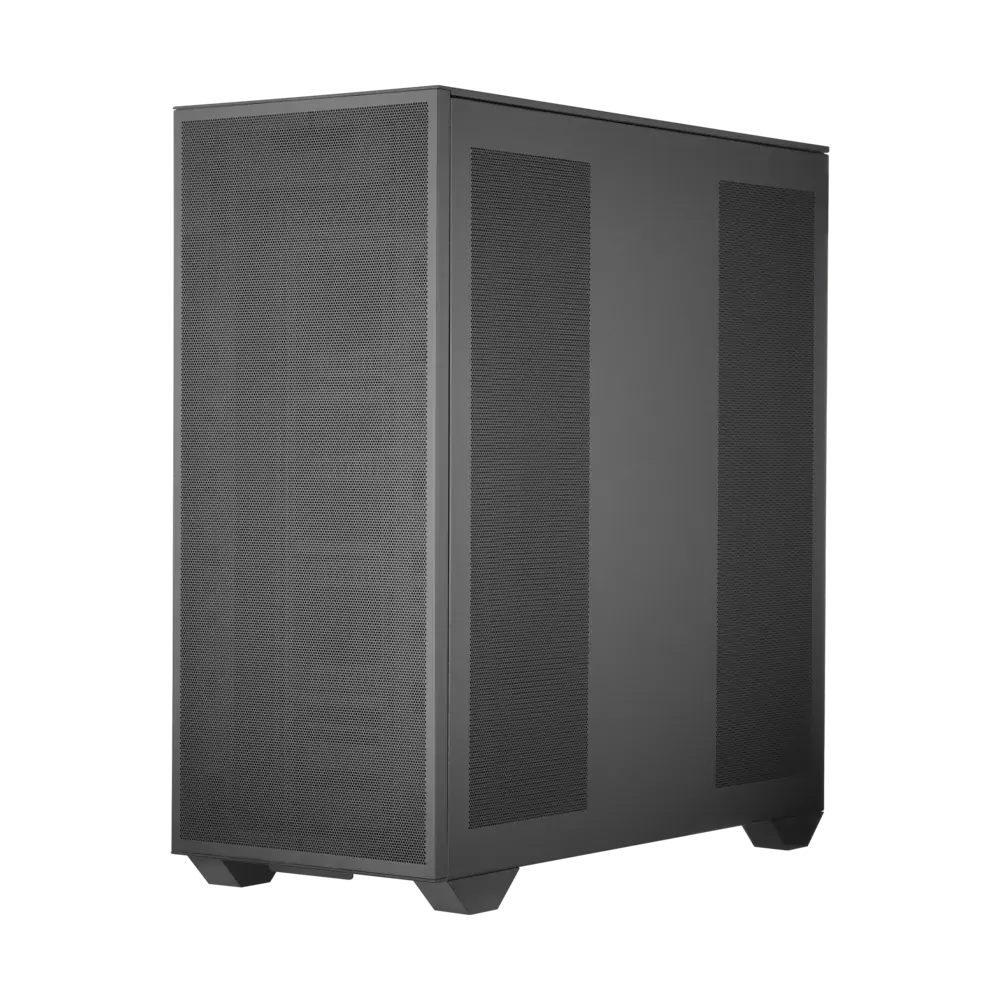

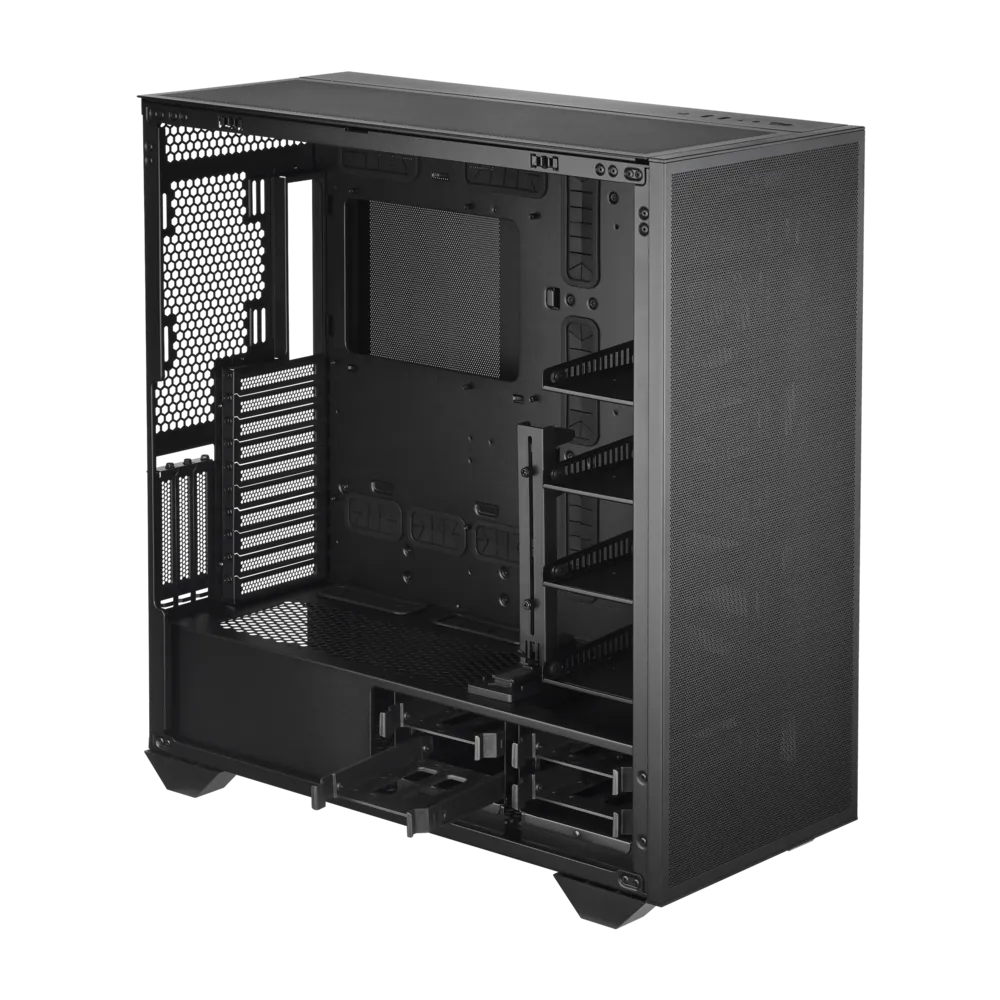

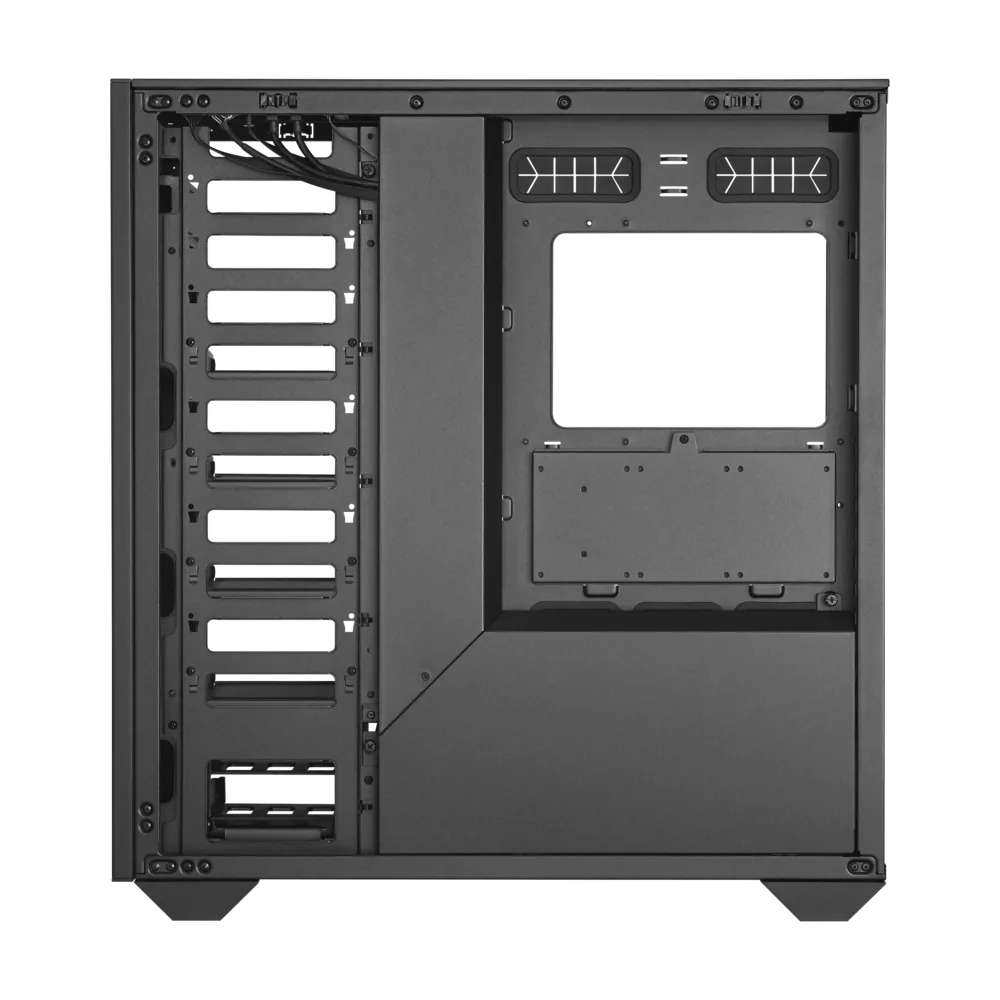

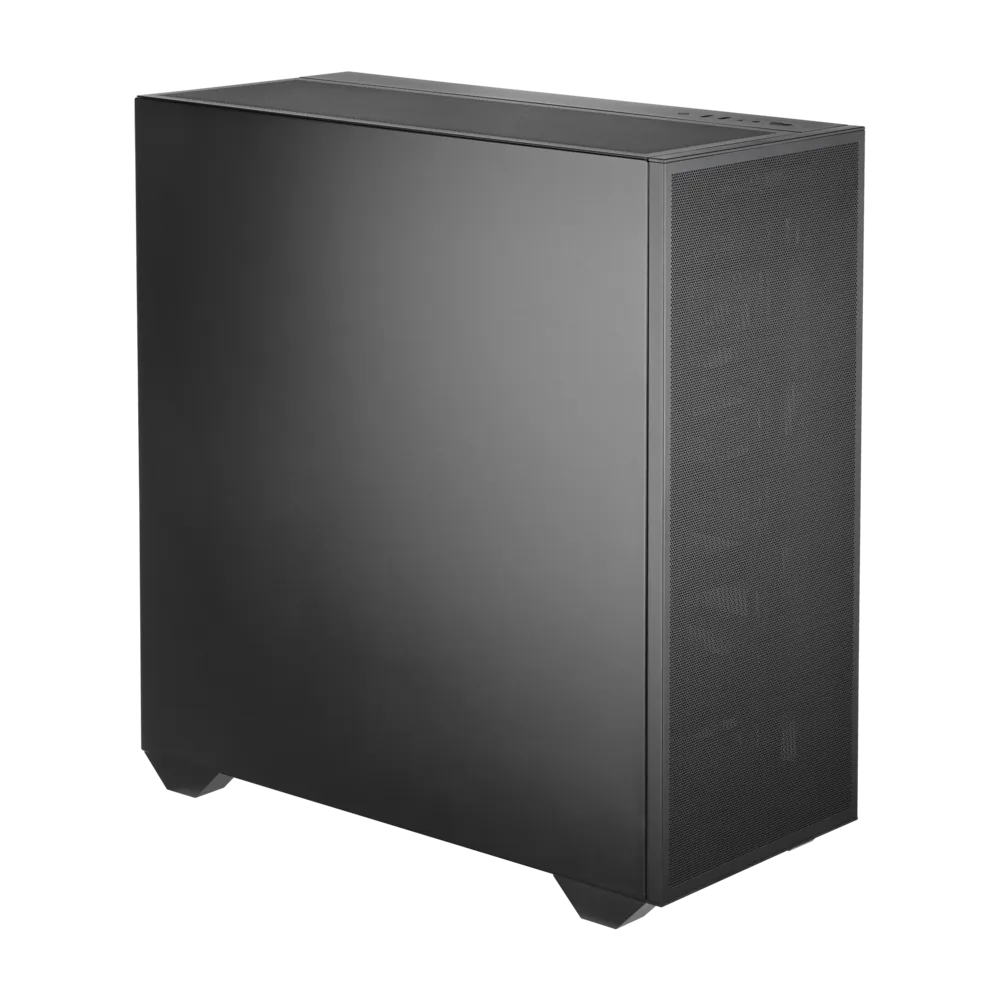

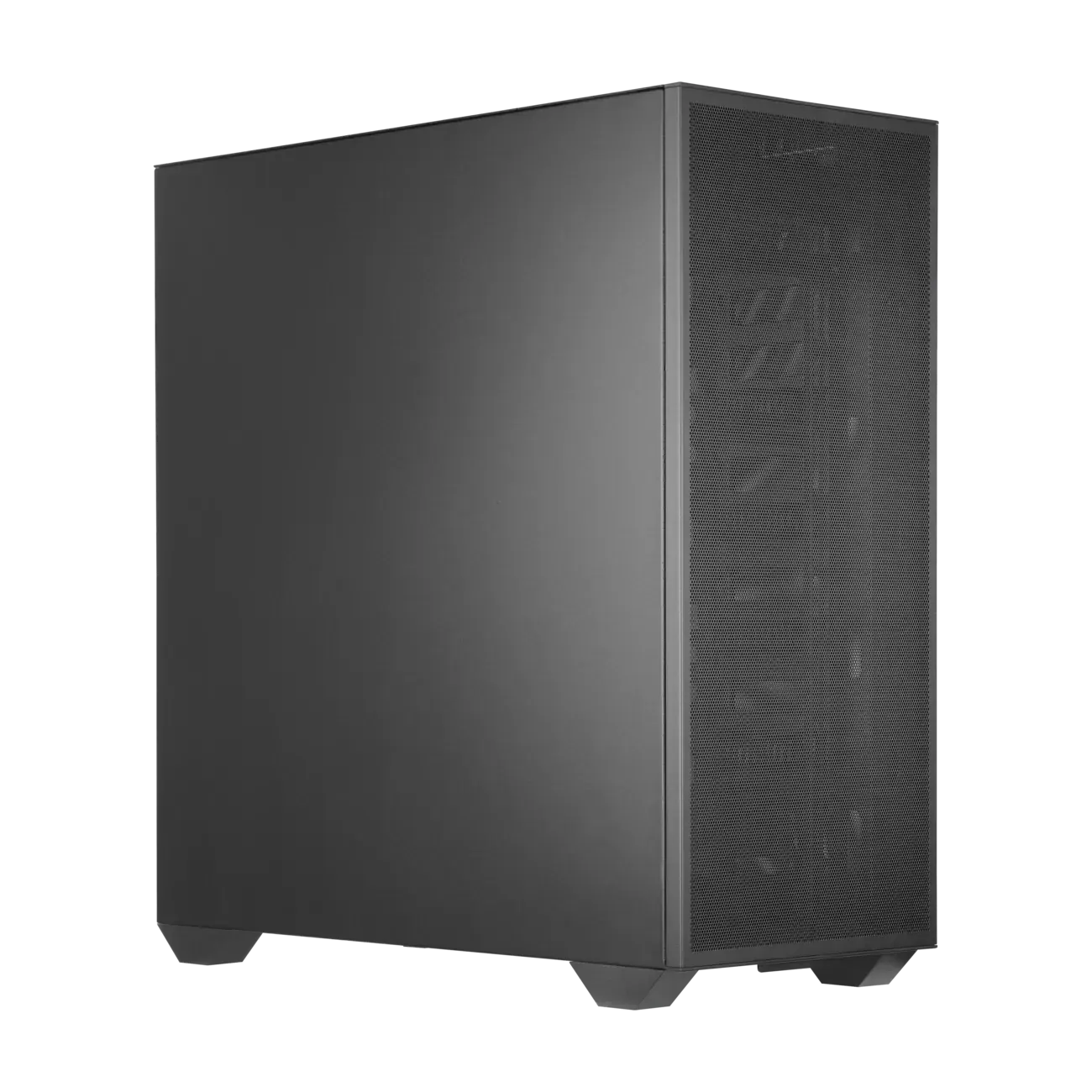

PS10S

ProStation for AI

10 PCI expansion slots and 400 mm GPU clearance for up to 4 high-end GPU cards.
Accommodates dual-socket SSI-EEB and large EATX motherboards.
Houses up to 8 x 3.5" HDD + 3 x 2.5" SSD.
Supports up to 13 x 120 mm fans and huge 480 mm top/front/side radiators.
Spacious chassis constructed with SPCC steel.

MODEL

PS10S

STRUCTURE DIMENSIONS (L x W x H)

535 x 247 x 570 mm

PRODUCT DIMENSIONS (L x W x H)

550 x 255 x 597 mm

PACKAGE DIMENSIONS (L x W x H)

705 x 360 x 700 mm

MATERIALS

0.8 ~ 1.1 mm SPCC, plastic

FORM FACTOR

SSI-EEB / EATX / ATX / M-ATX / ITX

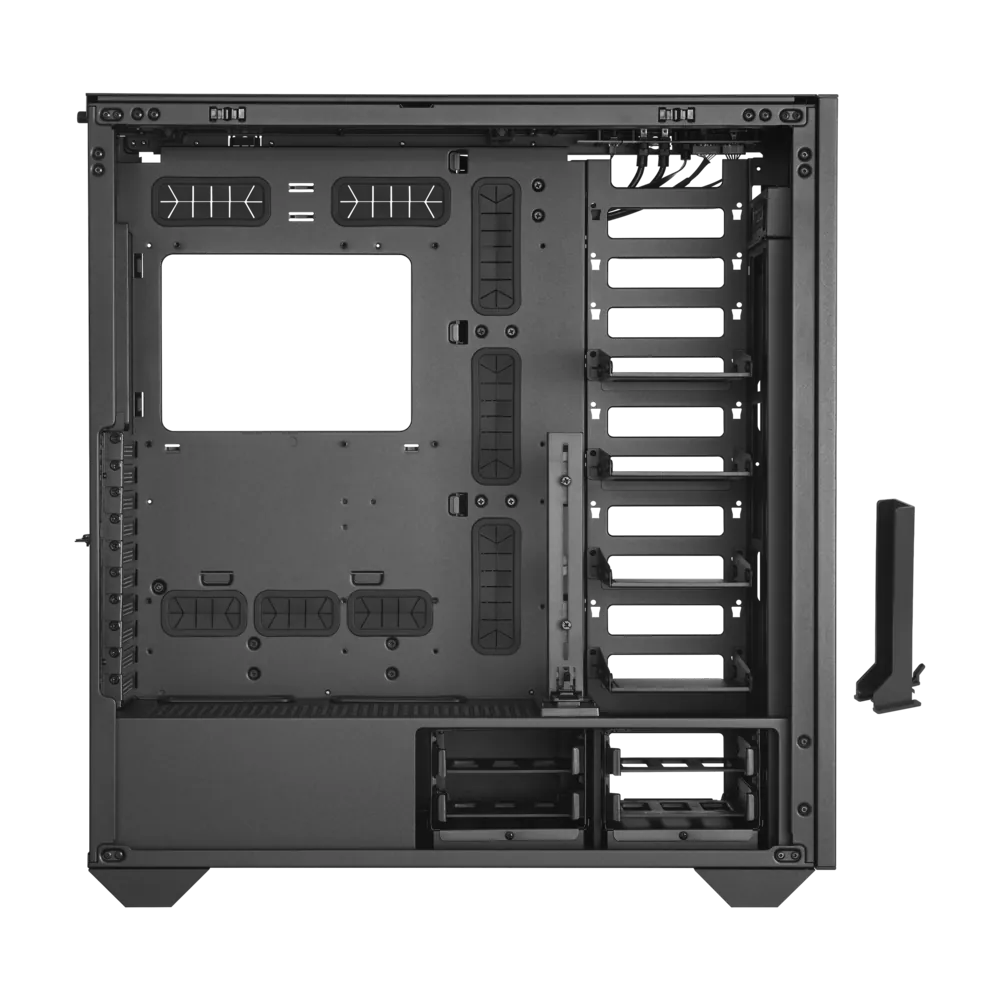

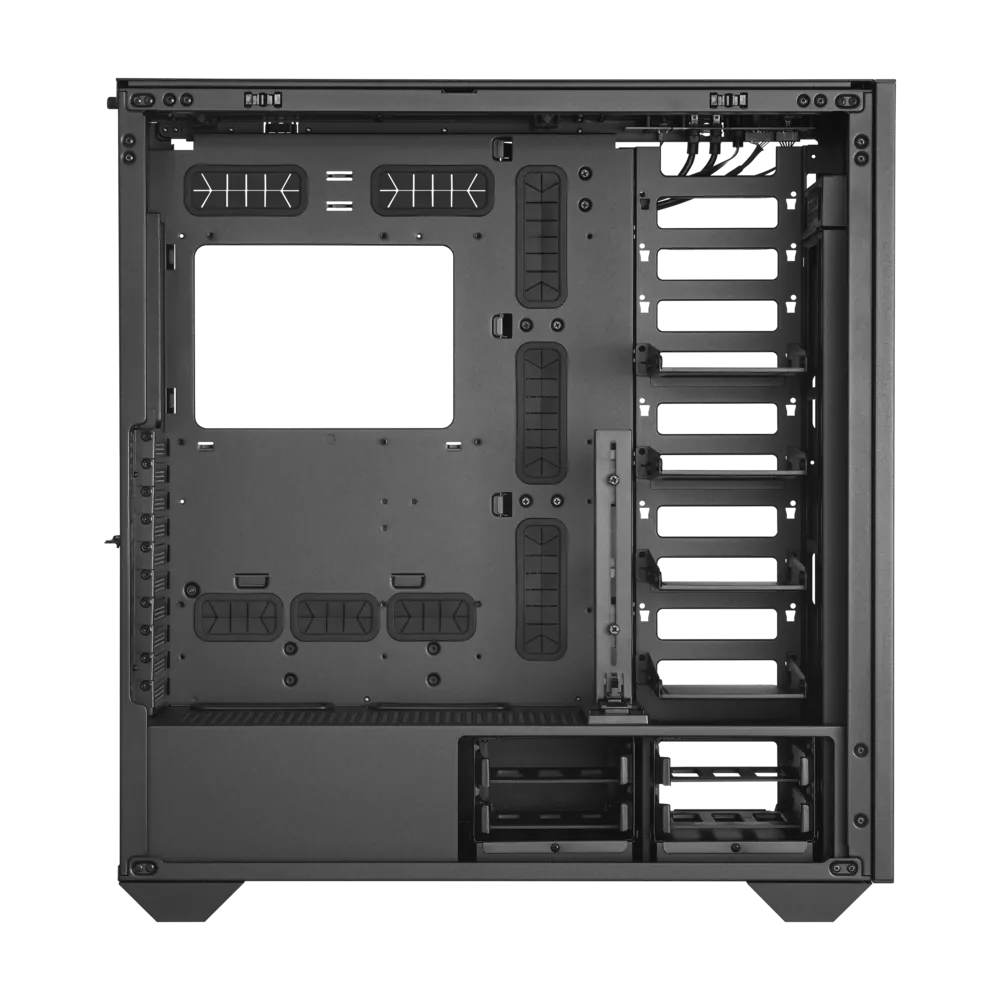

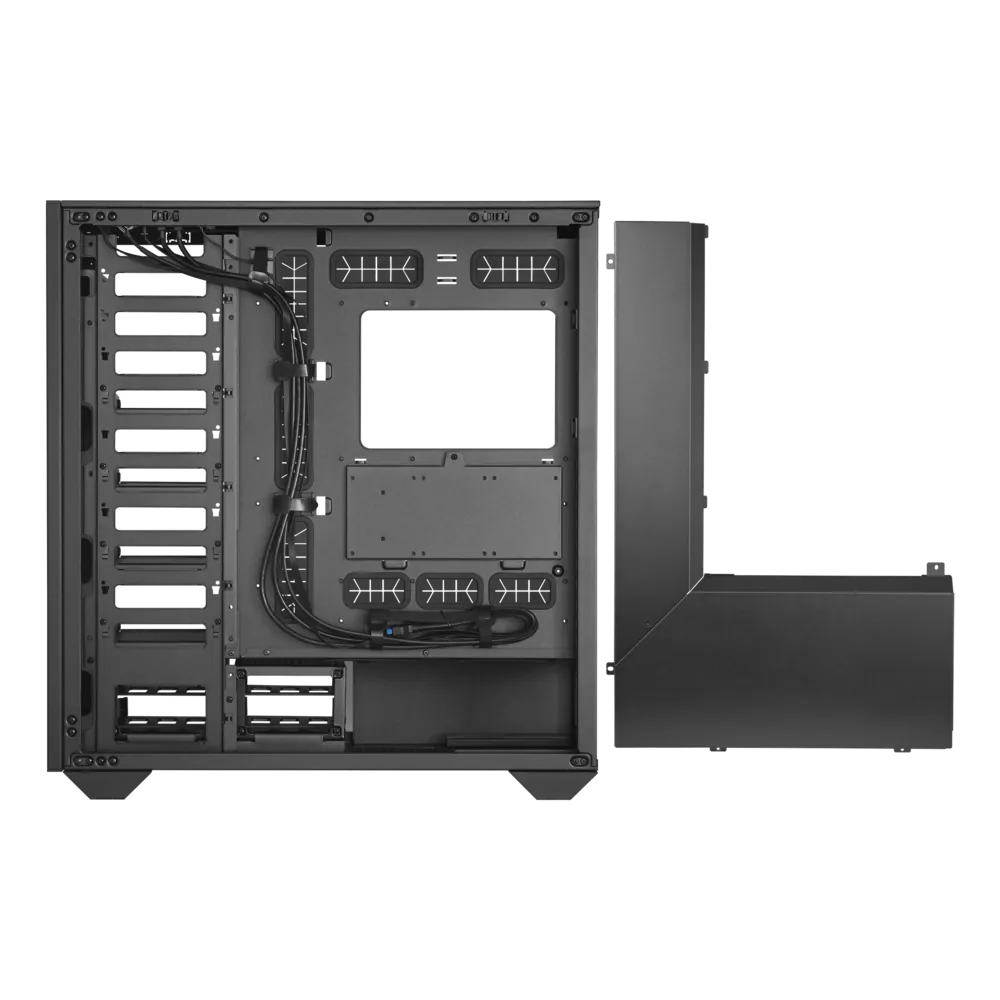

DRIVE BAYS

3.5" HDD: 8, 2.5" SSD: 3

CPU MAX HEIGHT

185 mm

GPU MAX LENGTH

350 mm (with a side AIO or HDD brackets installed)
410 mm (with a front AIO and the side brackets removed)

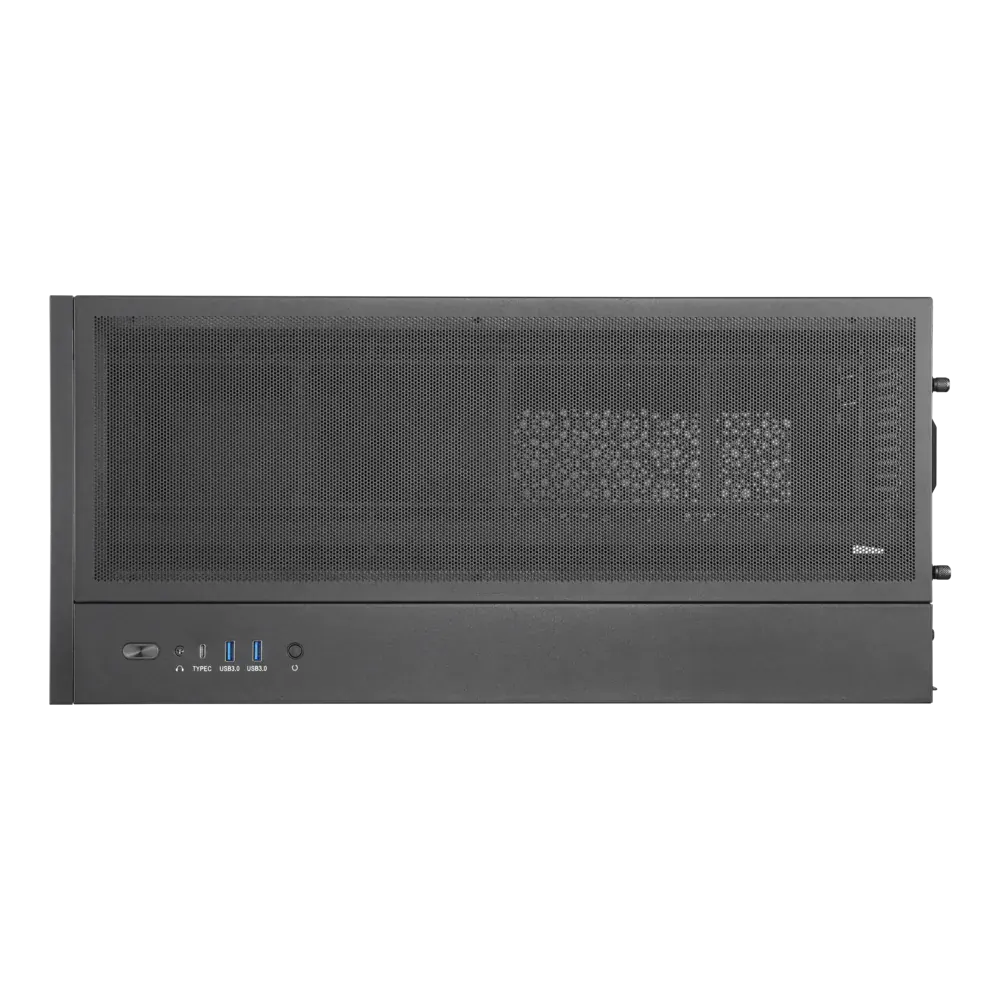

I/O PANEL

USB 3.0 x 2, Type-C x 1, HD Audio

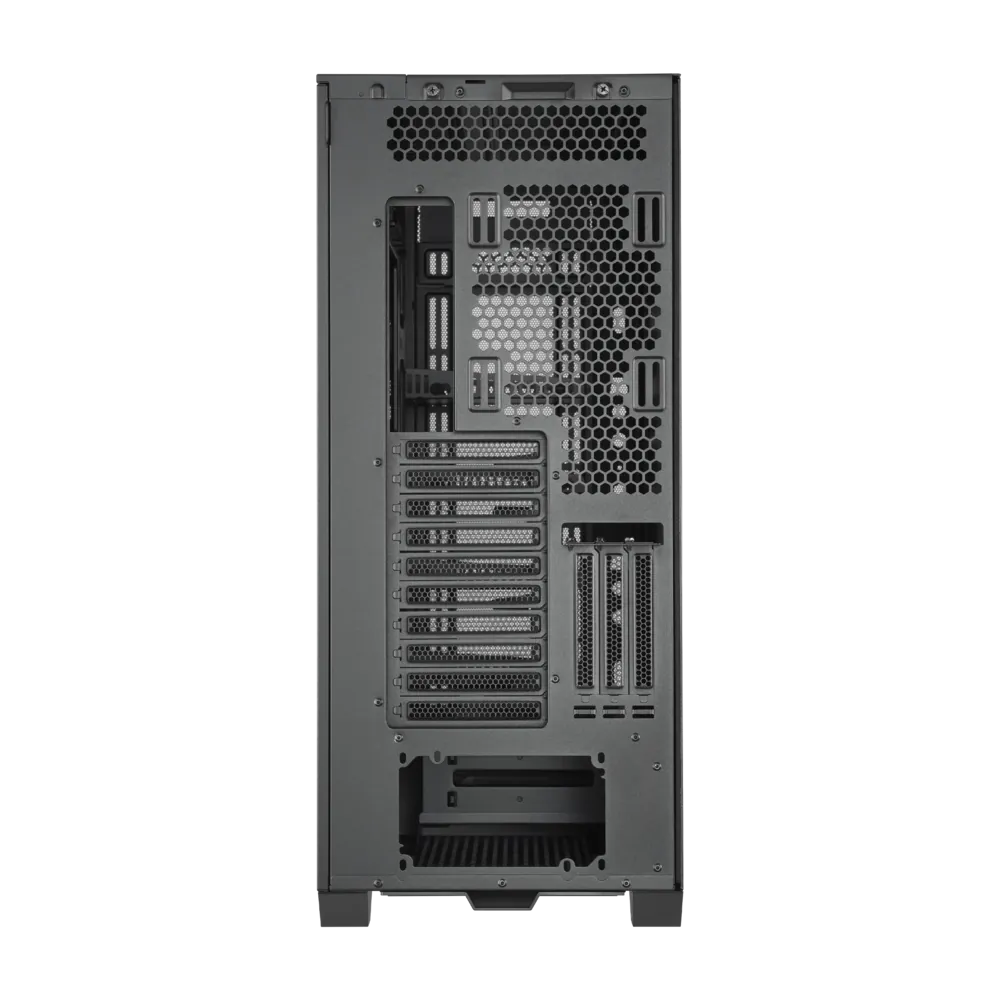

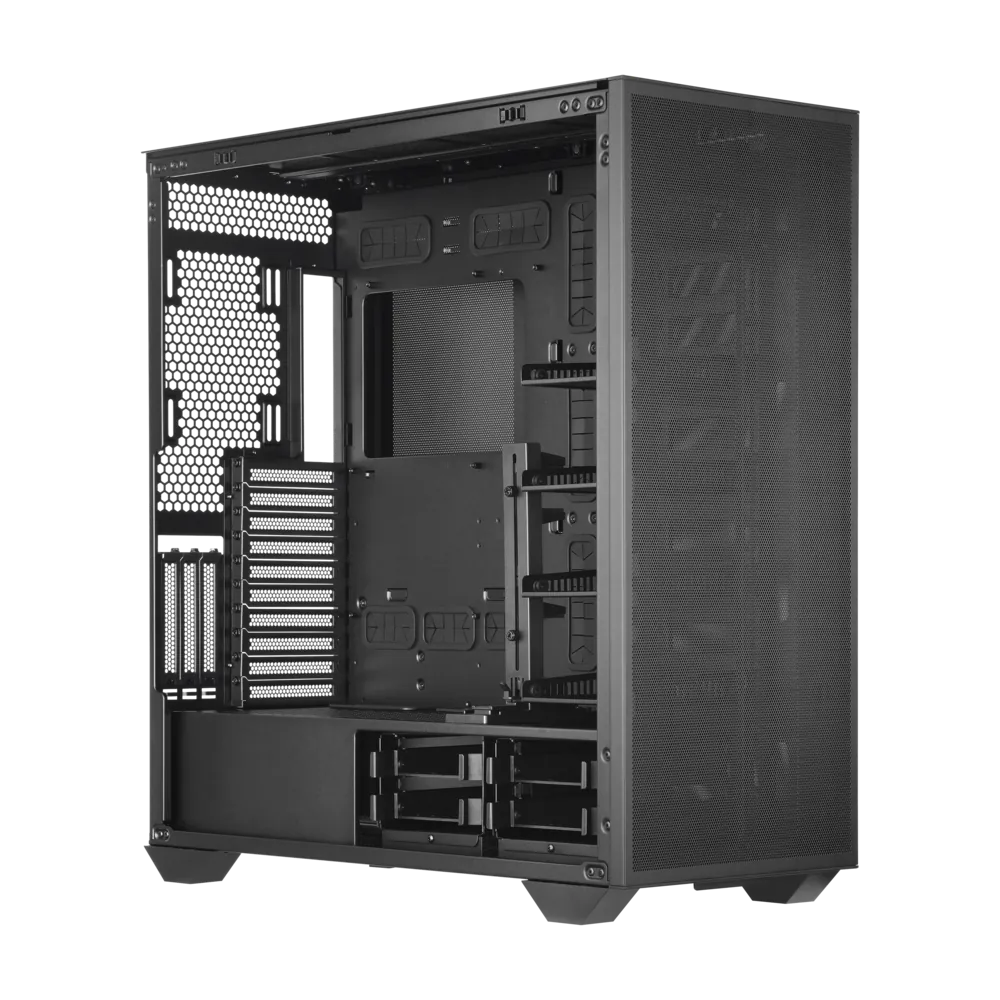

PCI CARD SLOT

10

FAN SUPPORT

Front: 4 x 120 mm / 3 x 140 mm
Top: 4 x 120 mm / 3 x 140 mm
Side: 4 x 120 mm**
Rear: 1 x 140 mm / 1 x 120 mm

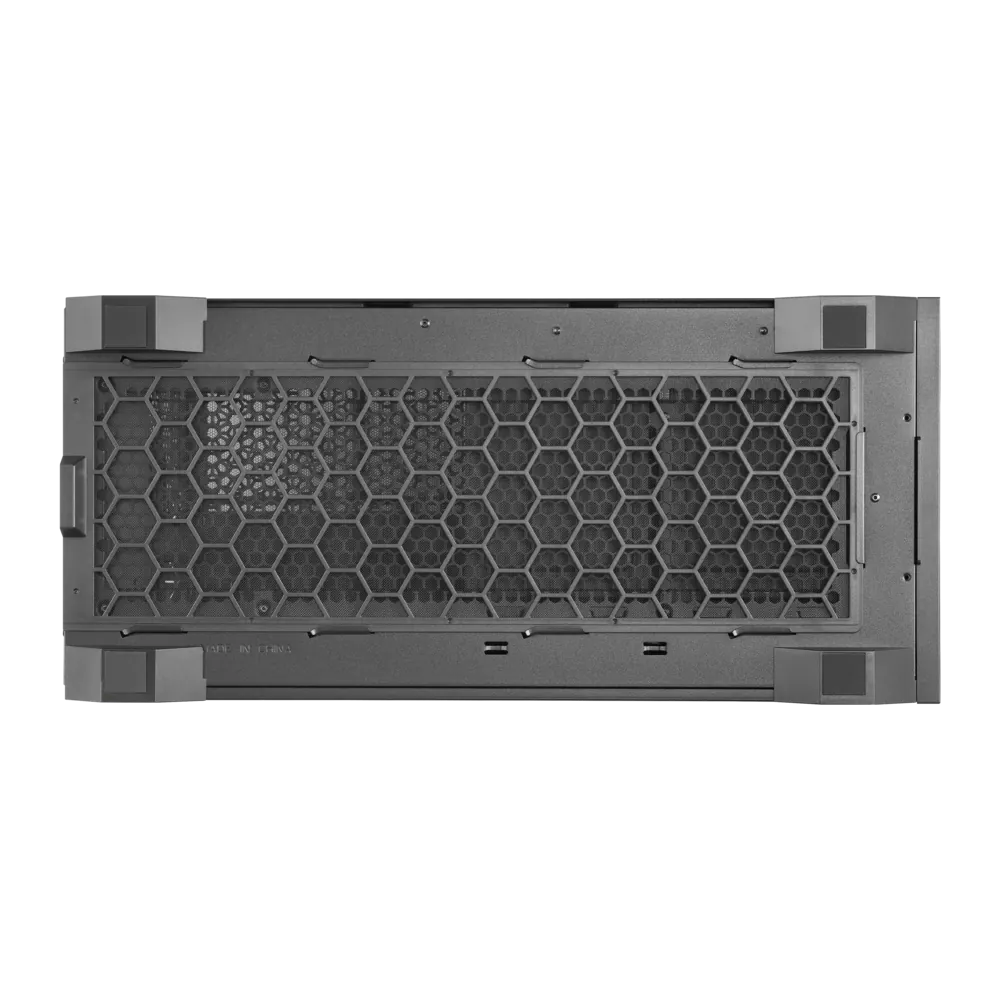

Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Front: 480 mm Top: 480 mm Side: 480 mm**
**Side position supports either 4 x 120 mm fans OR 4 x 3.5" HDDs (mutually exclusive). Required brackets are included.

POWER SUPPLY SUPPORT

Bottom mounted ATX (Max length 220 mm)

WEIGHT

N.W.: 15.4 kg
G.W.: 19.33 kg
