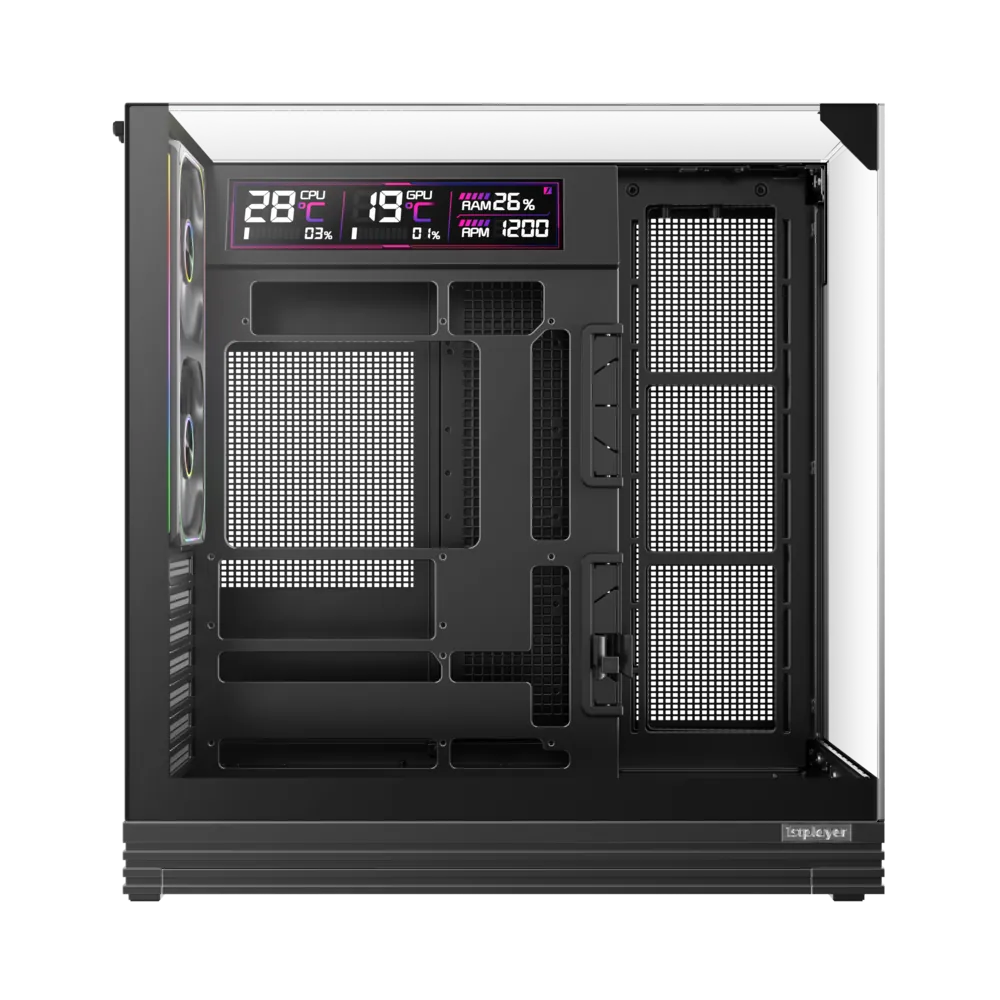

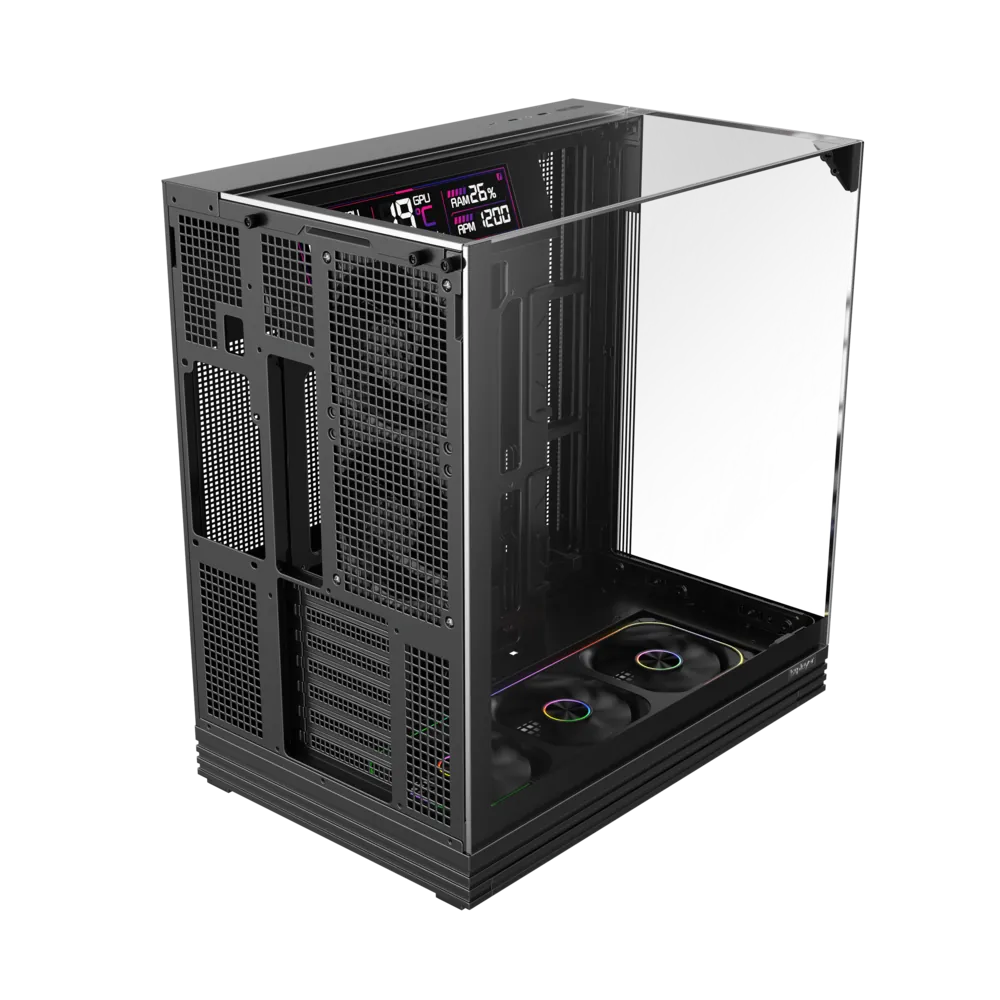

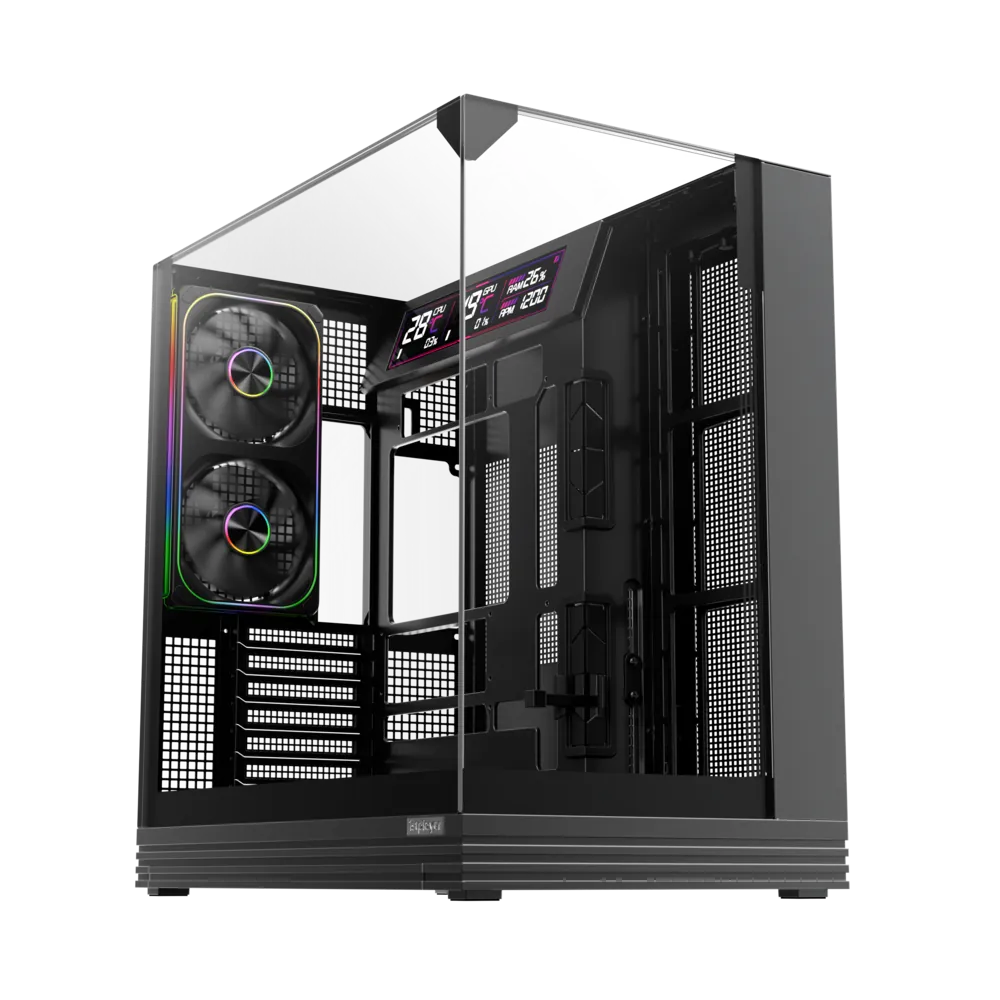

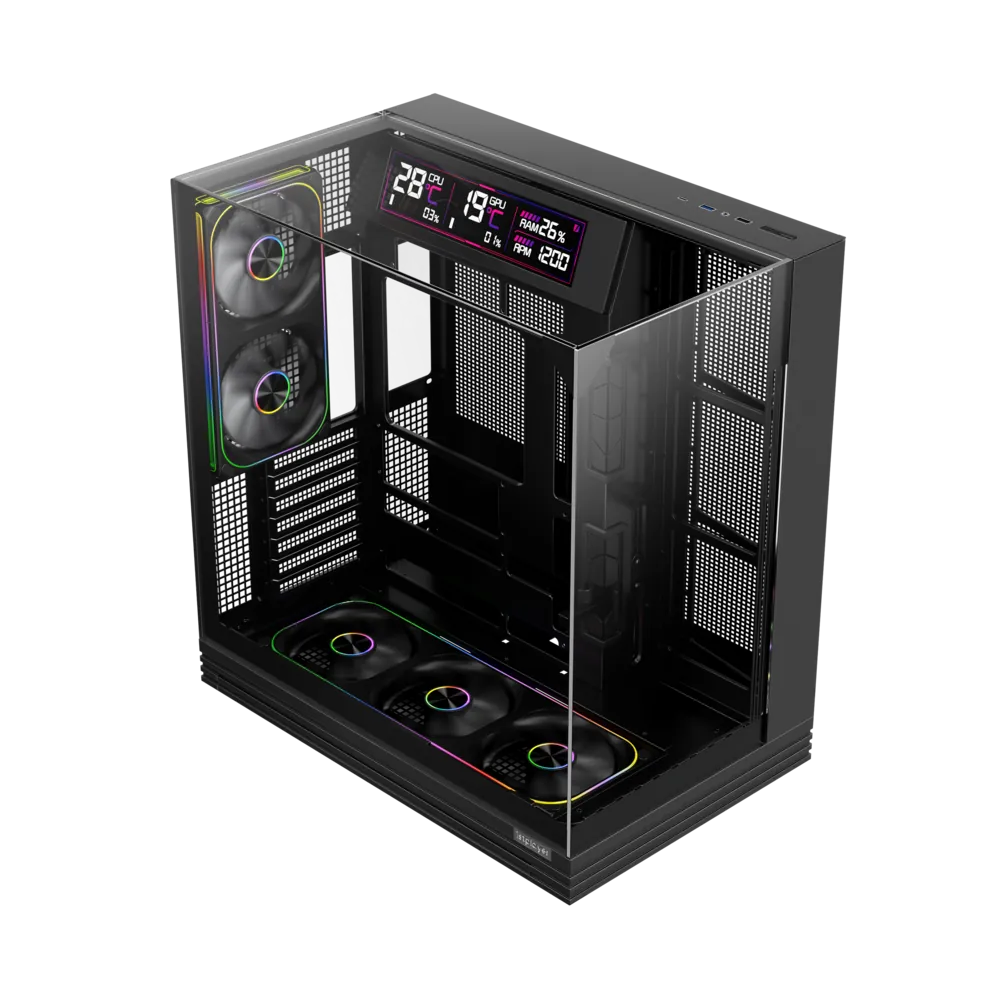

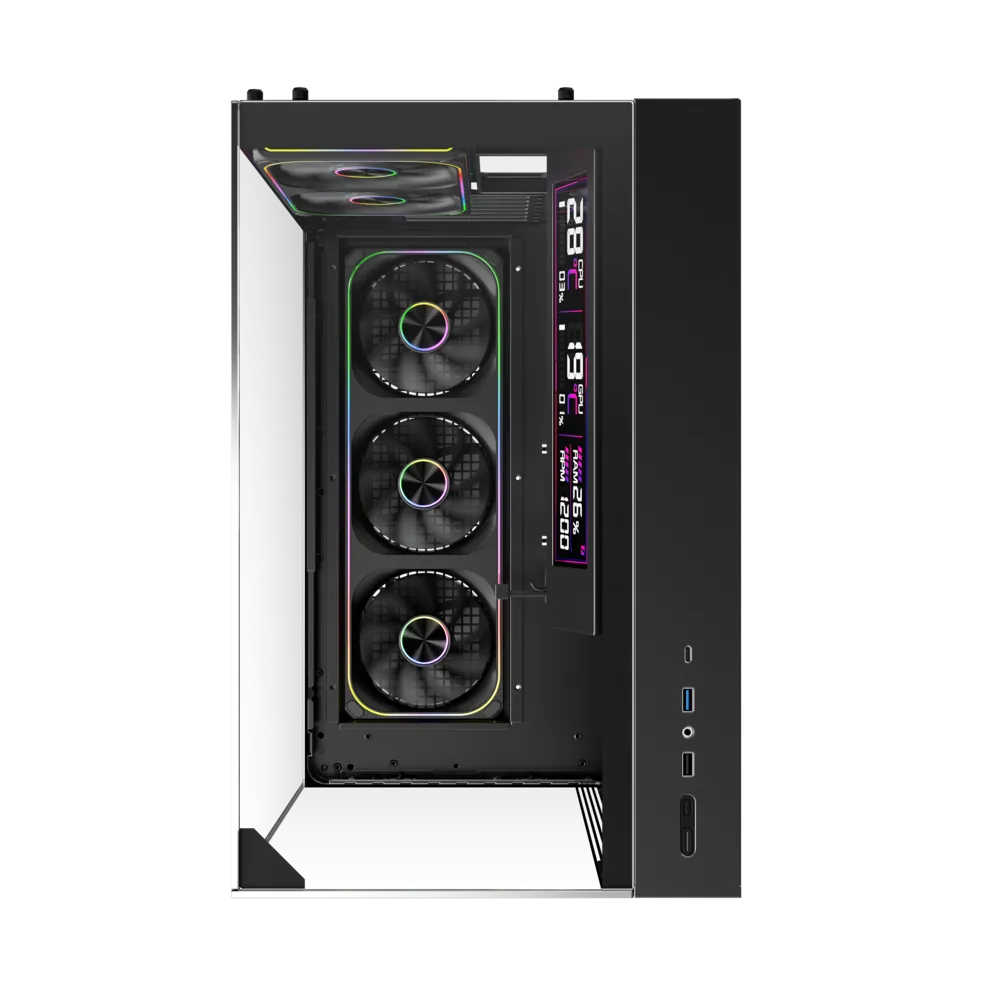

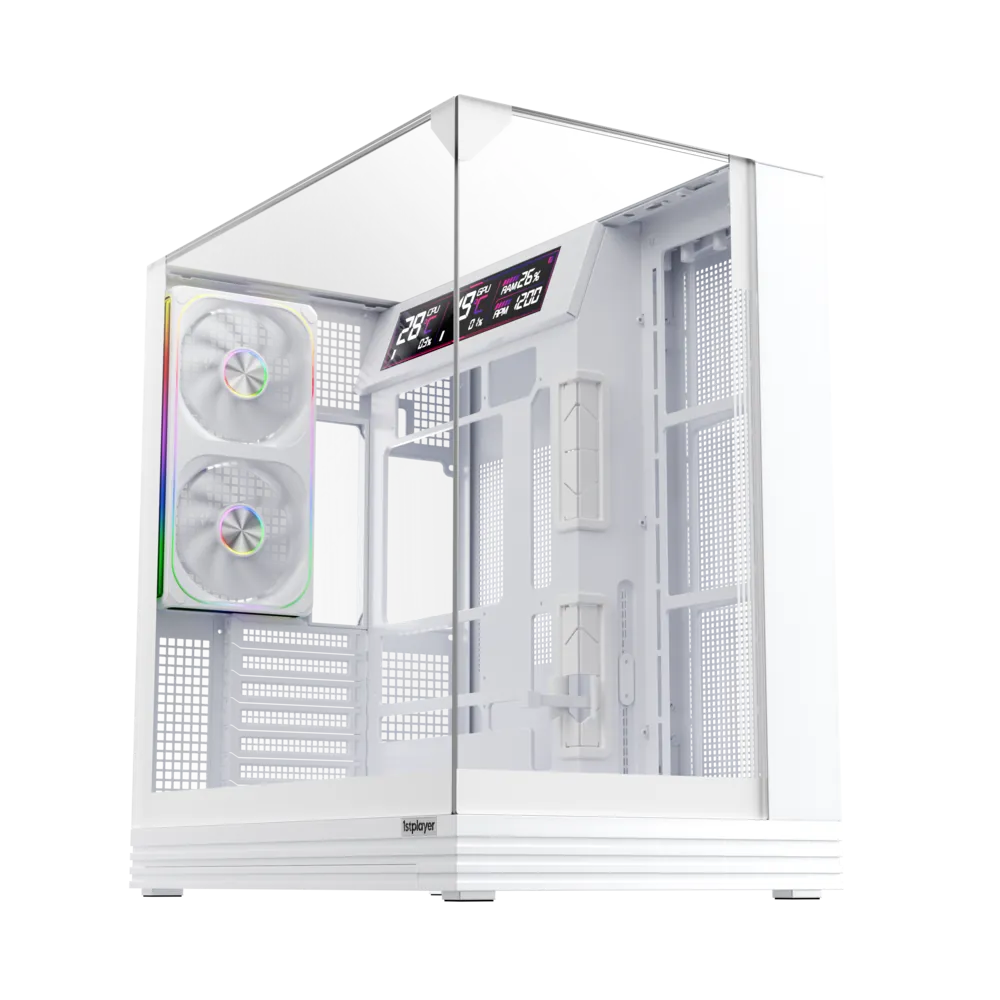

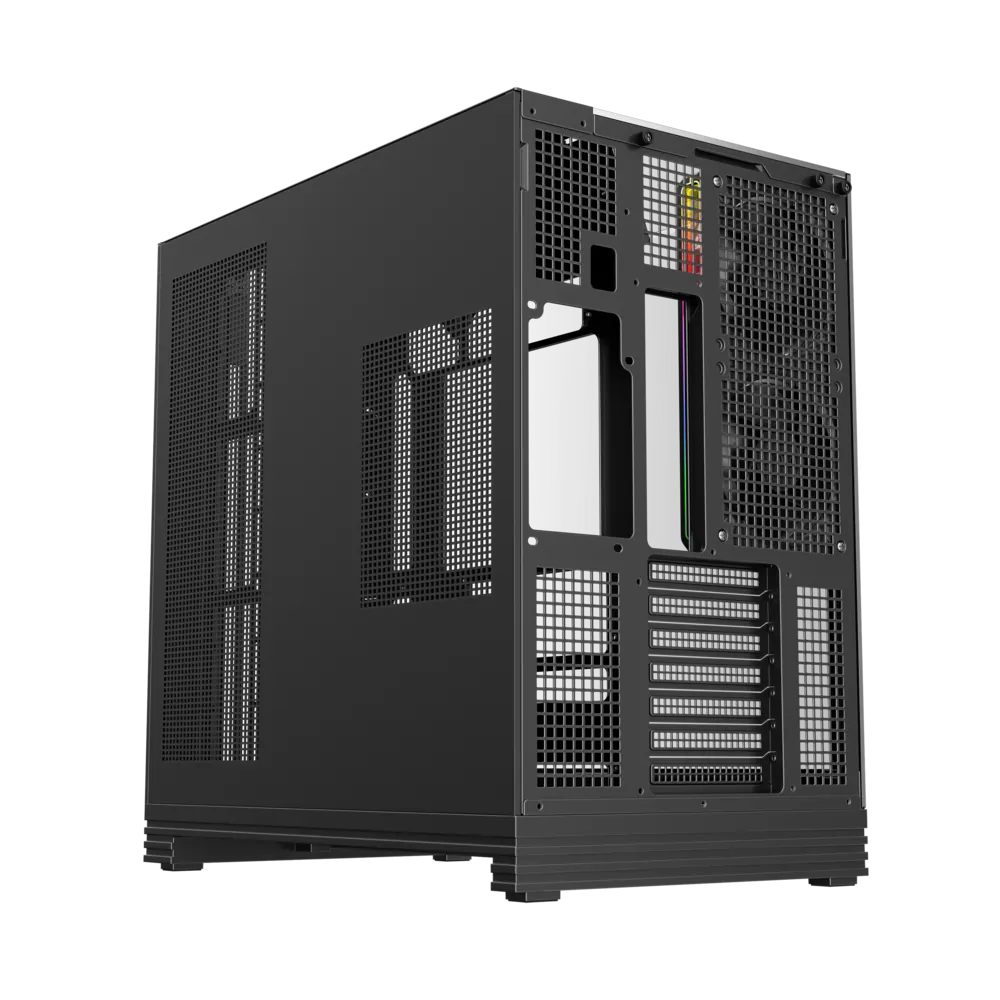

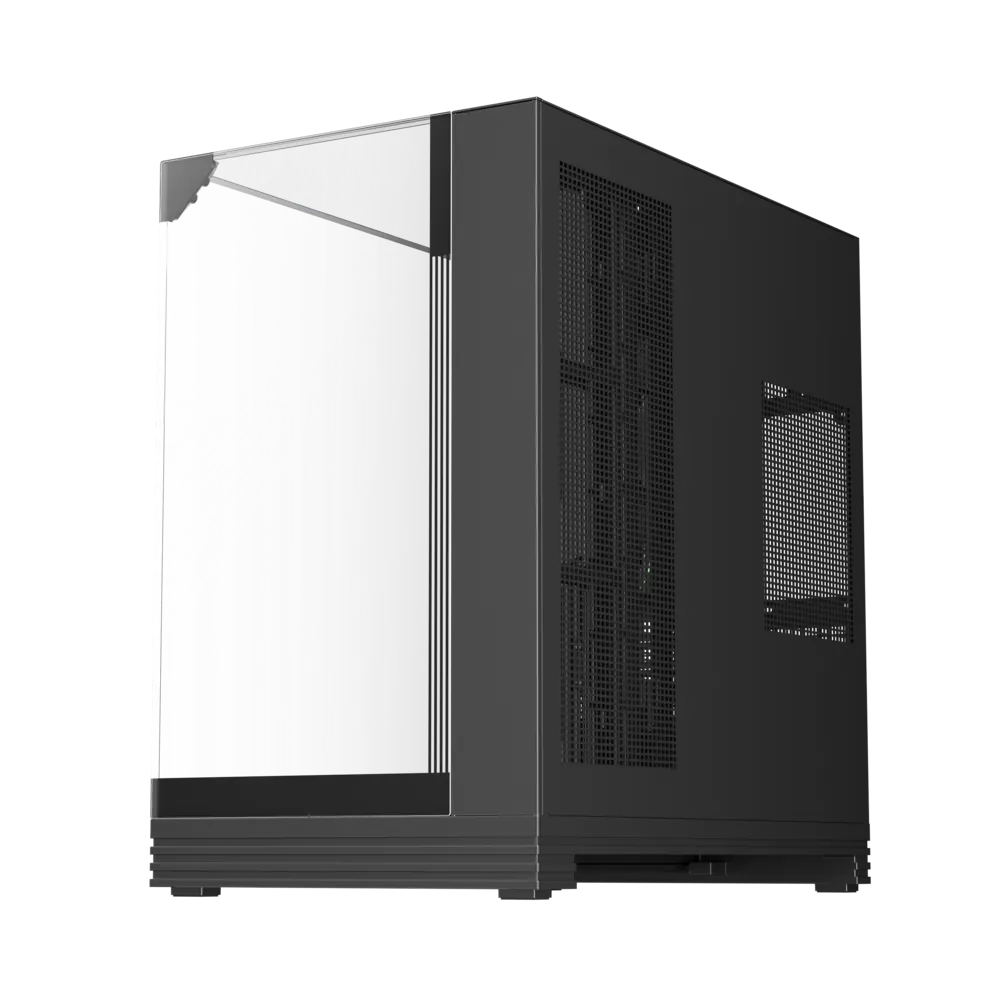

OV8E

BUILT TO BE SEEN

Support GPU length up to 400 mm
Support CPU cooler height up to 165 mm
Support installing of up to 8 fans
Support Side: 360 mm radiator
Optional pre-installed 240mm single-frame rear fan.
Optional pre-installed recessed 360mm single-frame bottom fan.
Supporting BTF motherboard for a completely cable-free aesthetic.
Integrated 9.16" 7-segment LED screen displays real-time system status.
Three-sided panoramic tempered glass provides an unhindered hardware showcase.

Color

MODEL

OV8E

STRUCTURE DIMENSIONS (L x W x H)

447 x 285 x 420 mm

PRODUCT DIMENSIONS (L x W x H)

447 x 285 x 470 mm

PACKAGE DIMENSIONS (L x W x H)

533 x 366 x 533 mm

STRUCTURE THICKNESS

0.8 mm

MATERIALS

SPCC, tempered glass, plastic

FORM FACTOR

ATX / M-ATX / ITX

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 1 or
3.5" HDD: 1, 2.5" SSD: 2 or
2.5" SSD: 3

PN AND PRE-INSTALLED FANS

OV8E-BK: No fans included (N/A)
OV8E-WH: No fans included (N/A)
OV8E-BK-1FP7R-3-1FP7-2-HUB3: Bottom - 1 x FP7R-3-BK; Rear - 1 x FP7-2-BK
OV8E-WH-1FP7R-3-W-1FP7-2-W-HUB3: Bottom - 1 x FP7R-3-WH; Rear - 1 x FP7-2-WH

CPU MAX HEIGHT

165 mm

GPU MAX LENGTH

400 mm

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, Type-C x 1, HD Audio

PCI CARD SLOT

7

FAN SUPPORT

Side: 3 x 120 mm
Rear: 2 x 120 mm
Bottom: 3 x 120 mm

LIQUID COOLING SUPPORT

Side: 360 mm

POWER SUPPLY SUPPORT

Max 140 mm (with middle drive installed)
Max 180 mm (w/o middle drive installed)

WEIGHT

N.W.: 9.96 kg
G.W.: 11.75 kg
