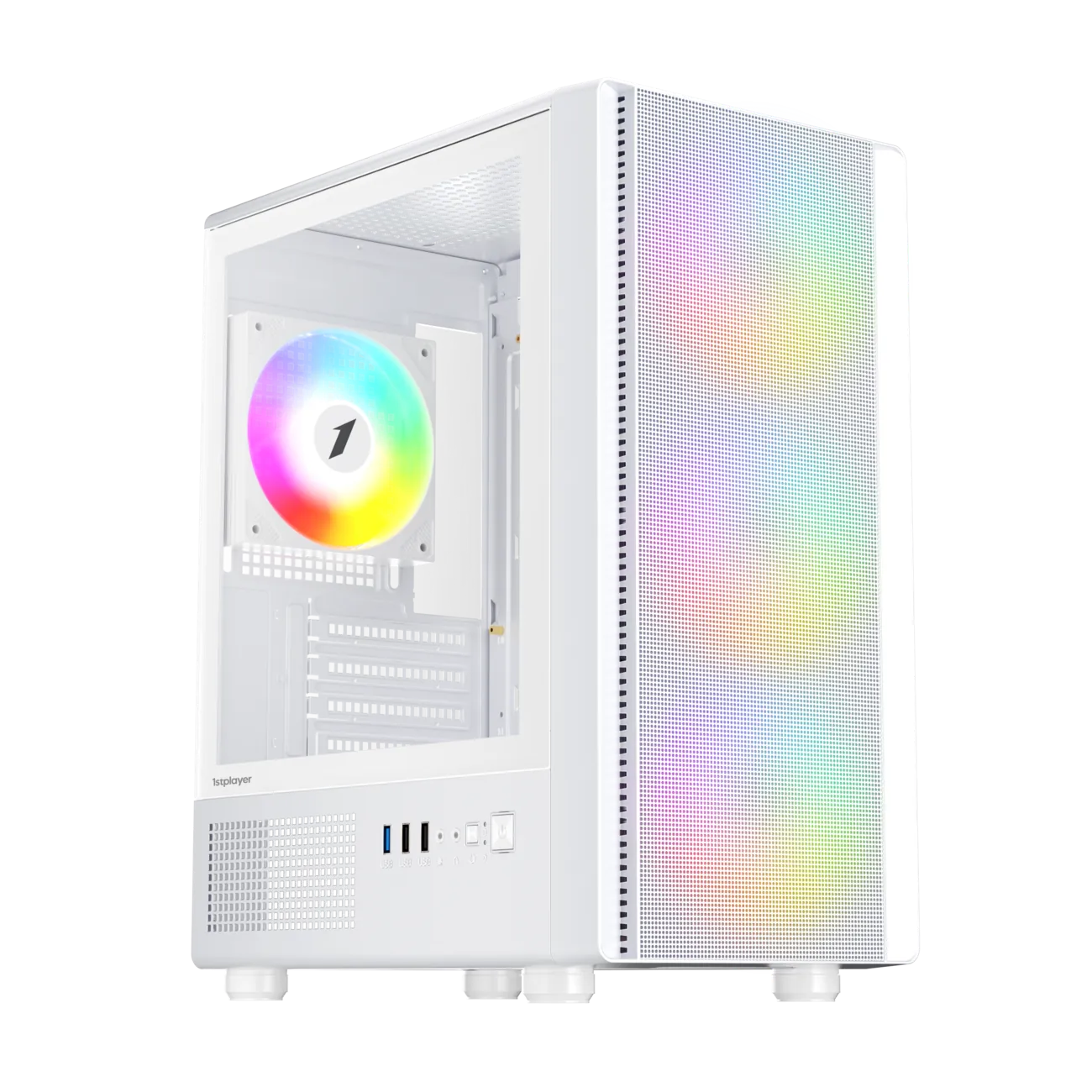

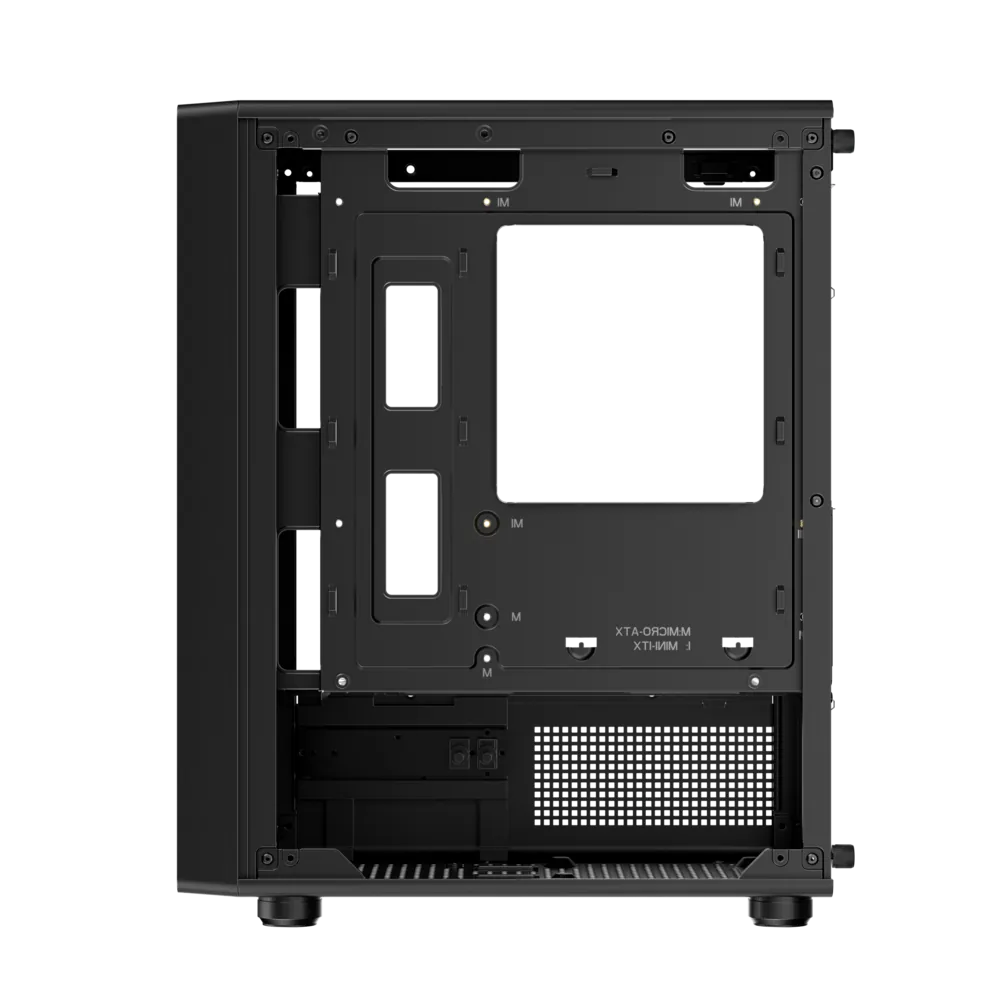

FD2

Support GPU length up to 260 mm
Support CPU cooler height up to 160 mm
Support installing of up to 8 fans

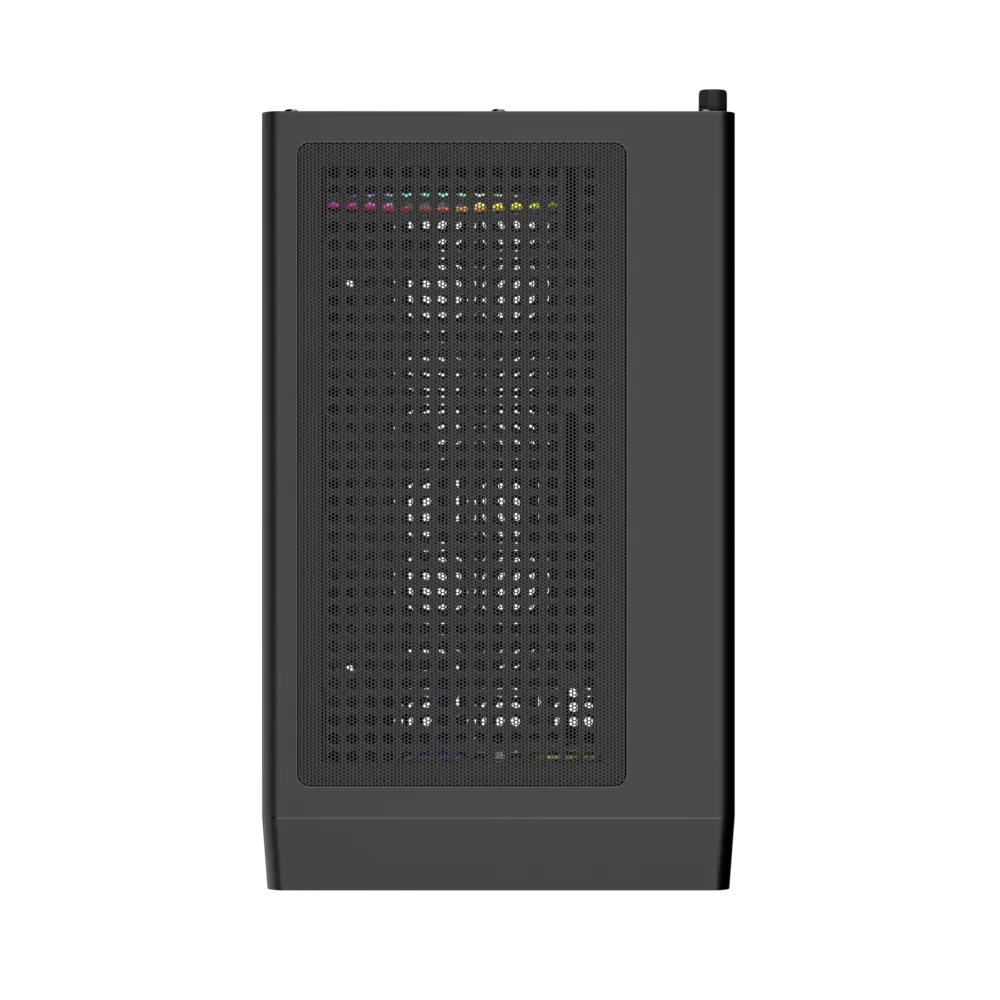

Support Top: 240 mm radiator
High-density chassis optimized to house up to eight standard 120mm ventilation fans.
Compact M-ATX form factor engineered to accommodate 240mm liquid cooling radiator.

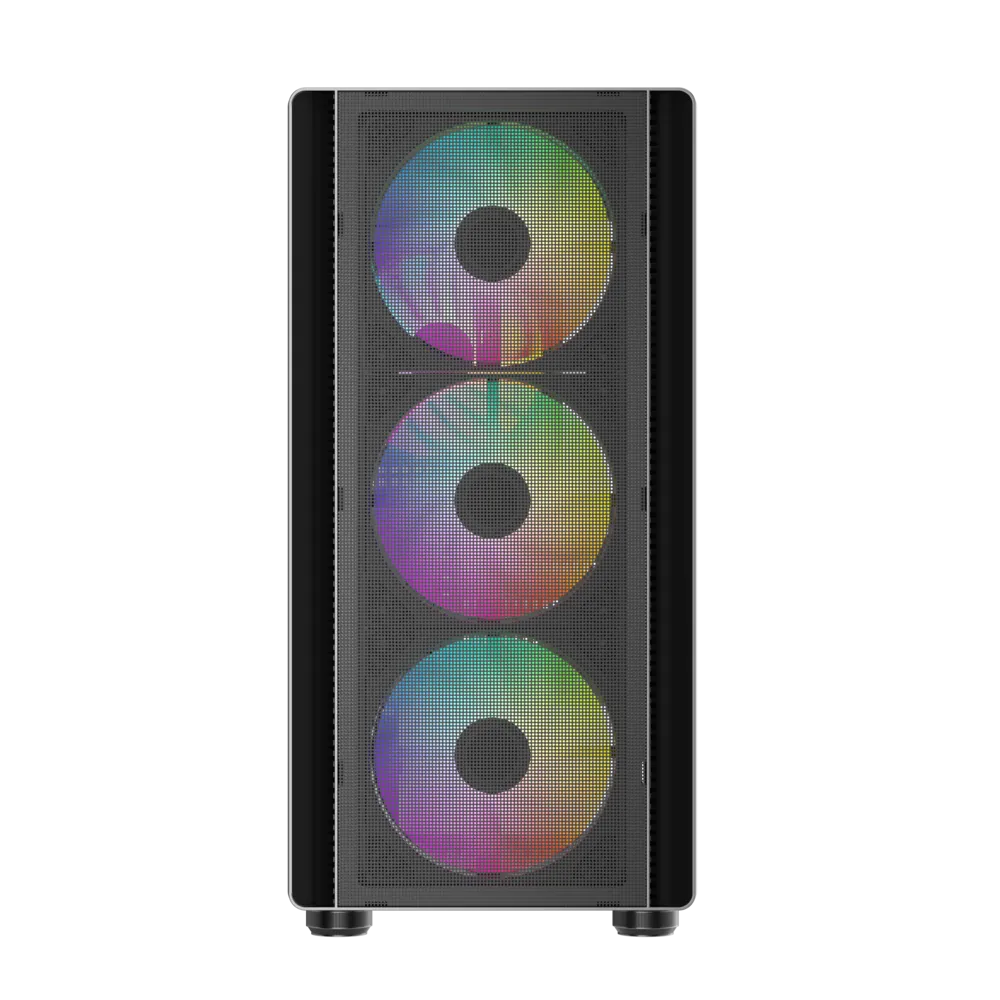

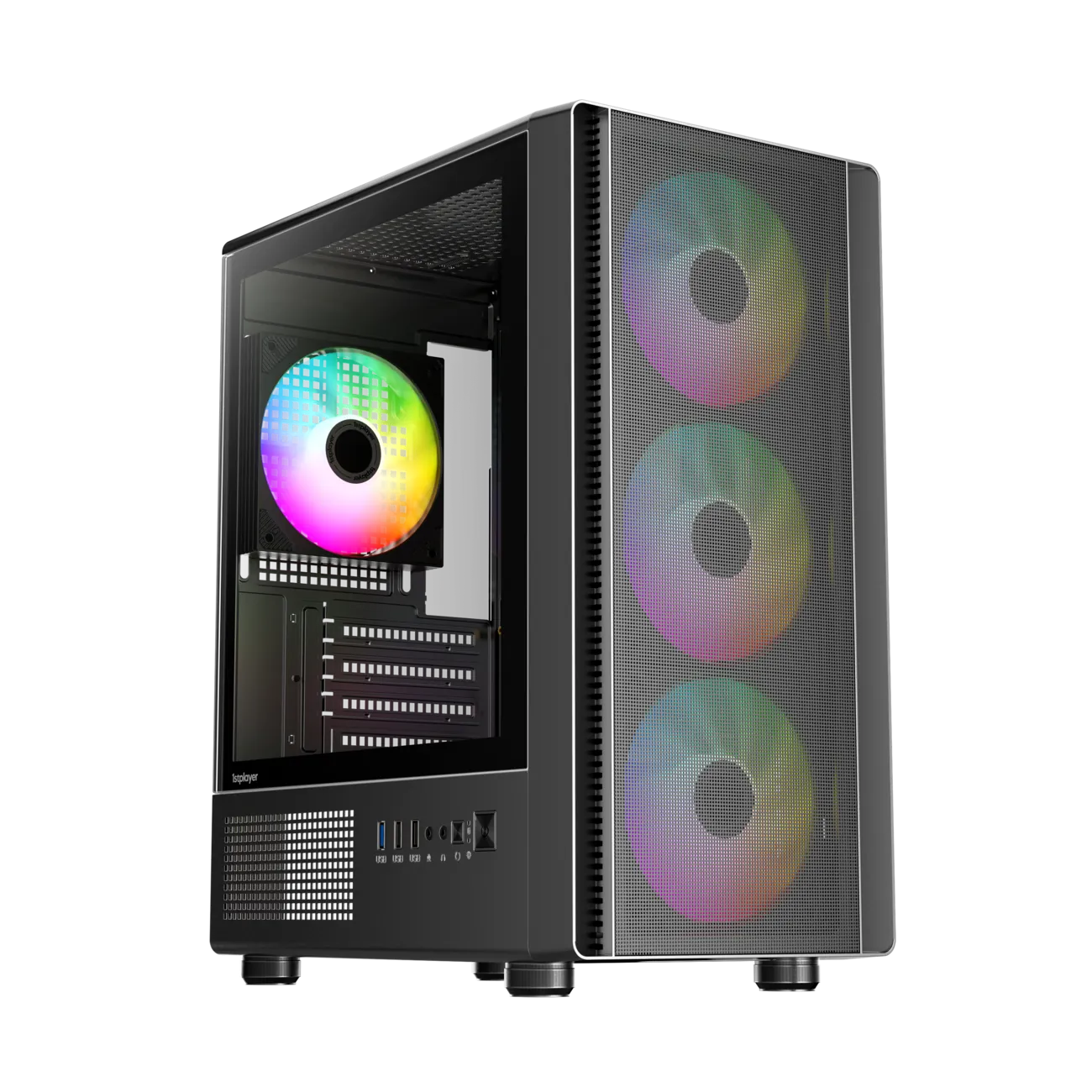

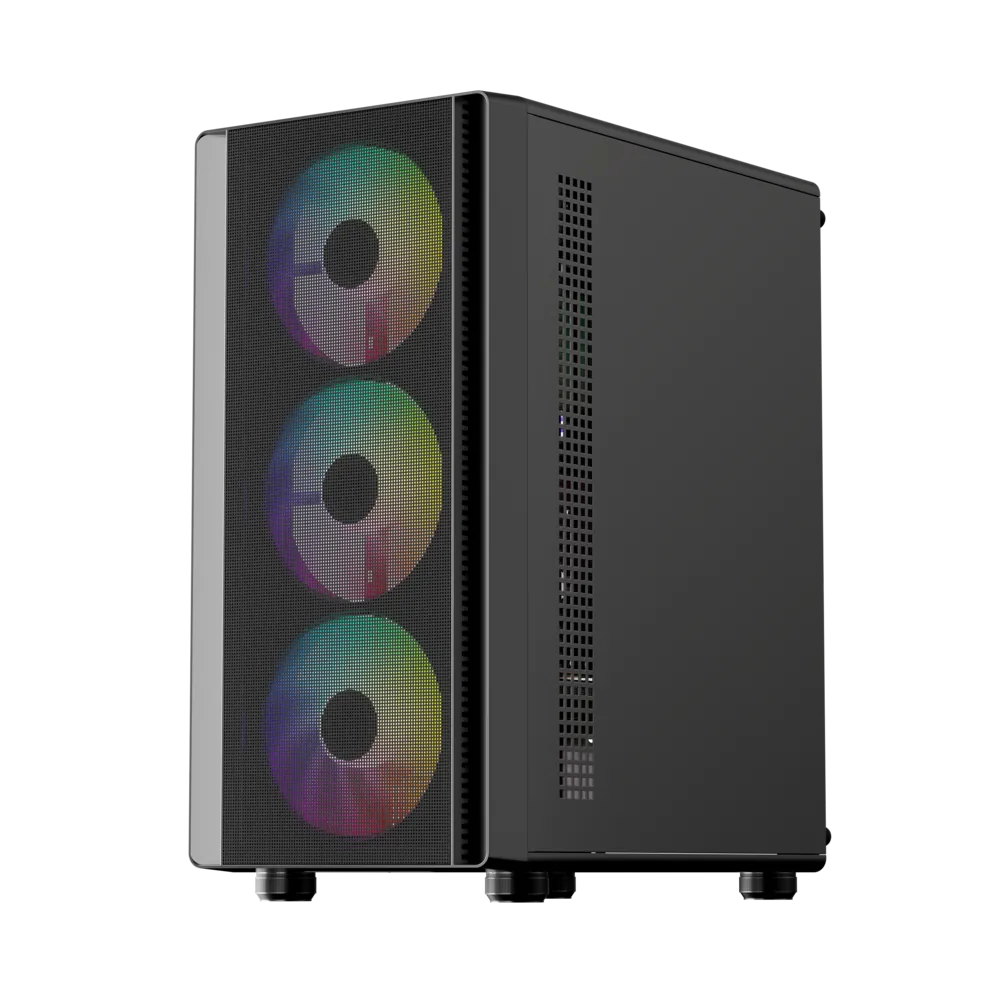

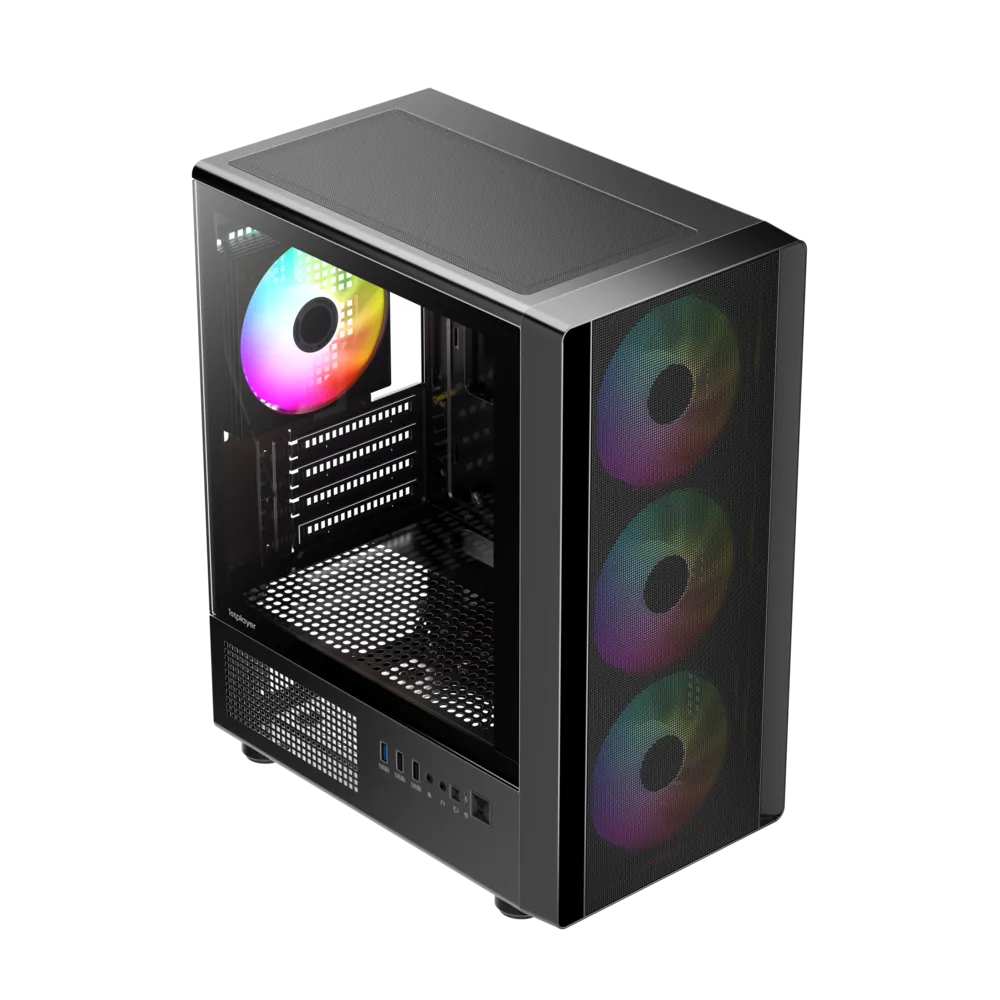

Mesh front and tempered glass side panels combine stable cooling with clear hardware visibility.
Versatile hybrid storage configuration supports dual-drive layouts for high-capacity SSD and HDD installation.

Color

MODEL

FD2

STRUCTURE DIMENSIONS (L x W x H)

290 x 195 x 390 mm

PRODUCT DIMENSIONS (L x W x H)

320 x 195 x 405 mm

PACKAGE DIMENSIONS (L x W x H)

455 x 240 x 375 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC, tempered glass, plastic

FORM FACTOR

M-ATX / ITX

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 1
3.5" HDD: 1, 2.5" SSD: 2

CPU MAX HEIGHT

160 mm

GPU MAX LENGTH

260 mm

I/O PANEL

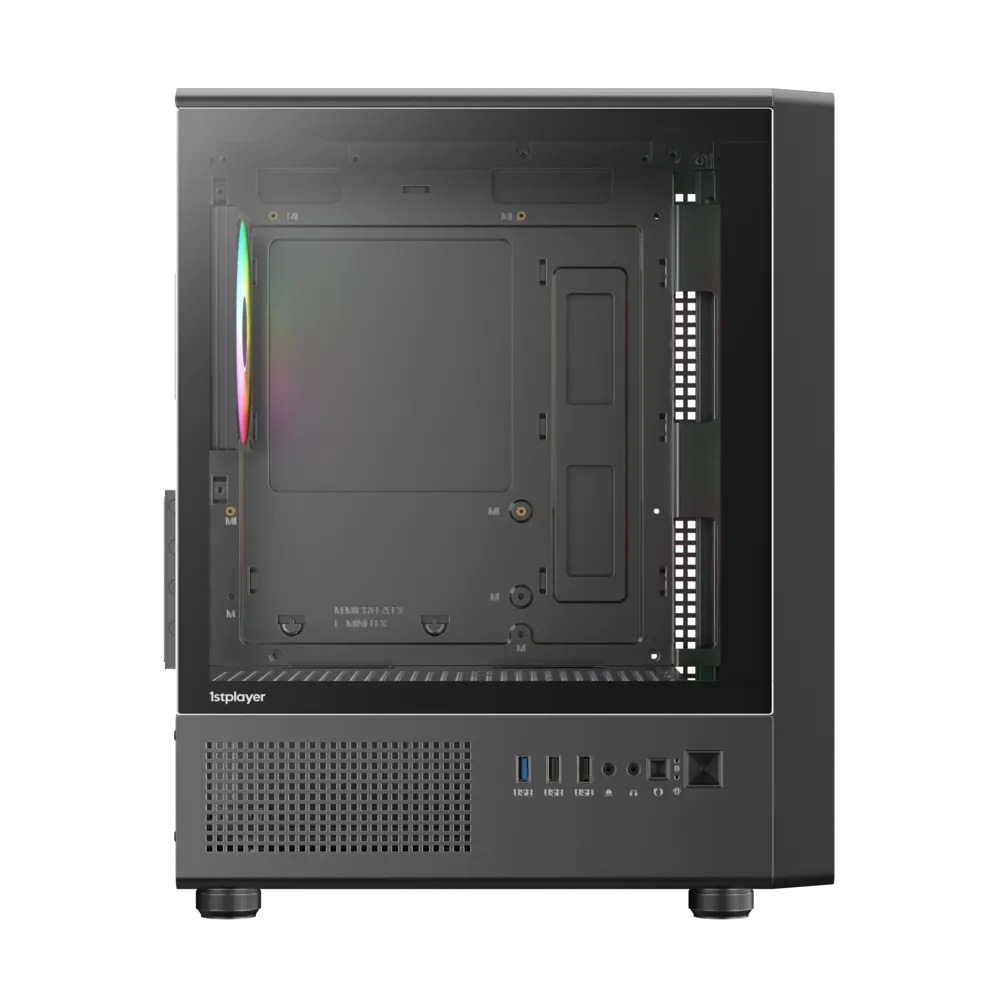

USB 3.0 x 1, USB 2.0 x 2, HD Audio

PCI CARD SLOT

4

FAN SUPPORT

Front: 3 x 120 mm
Top: 2 x 120 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted ATX (Max length 140 mm)
