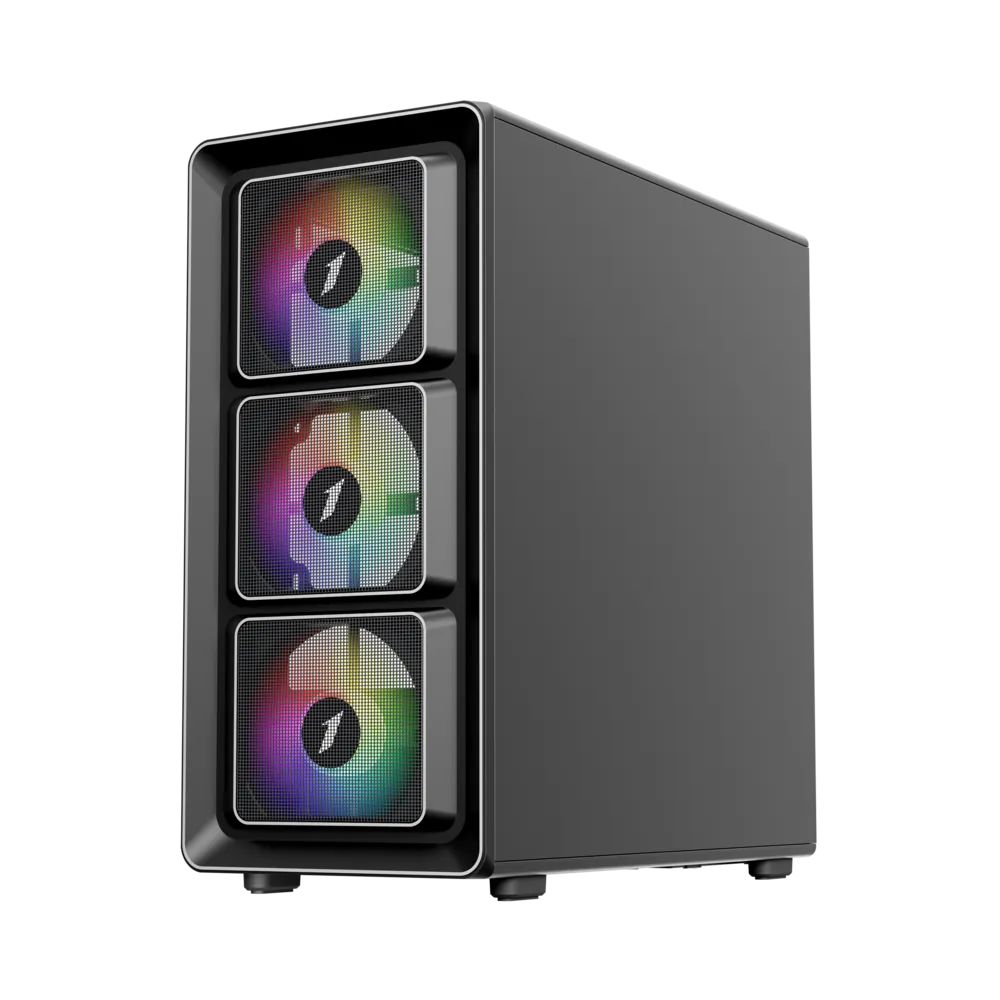

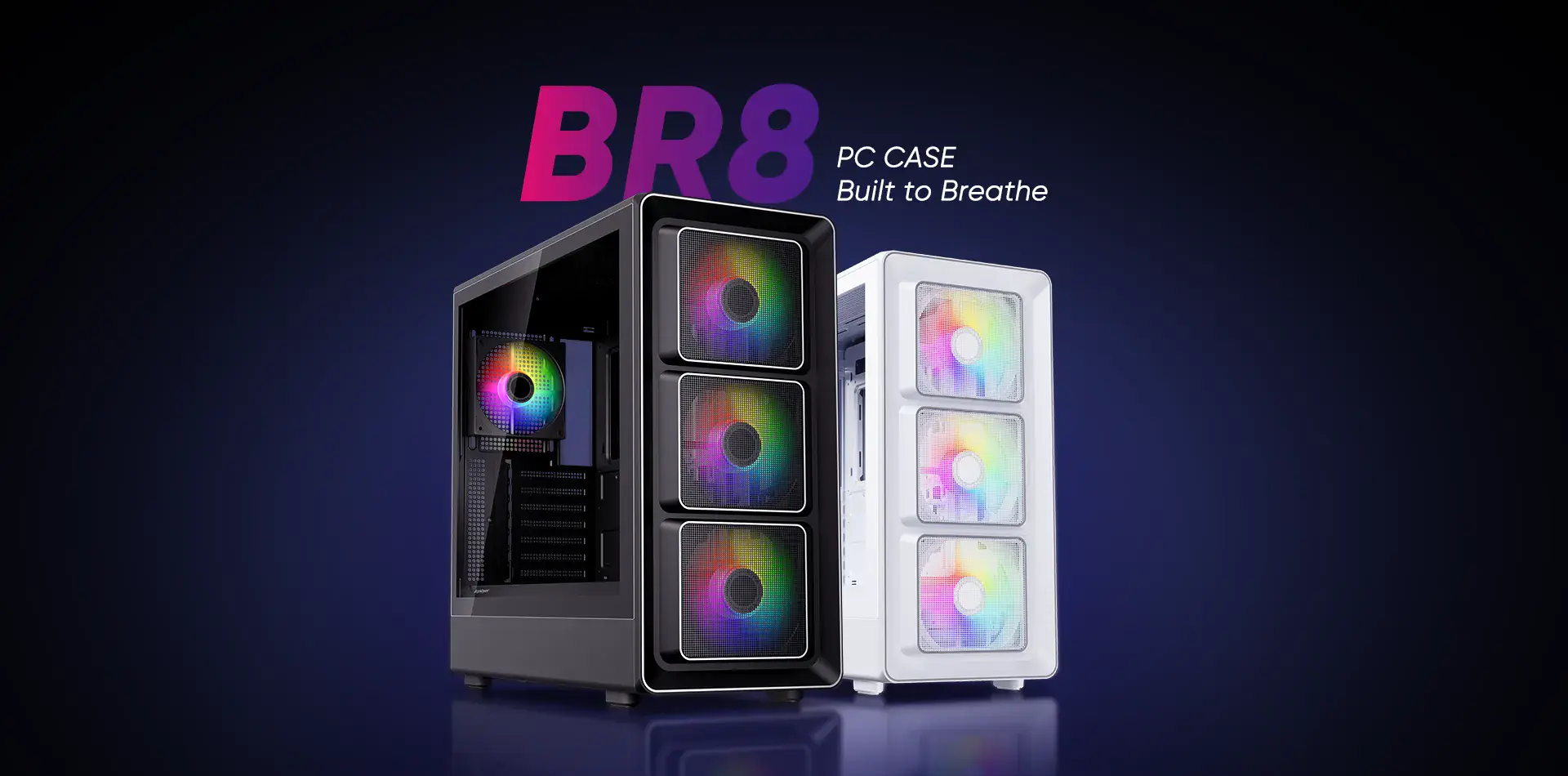

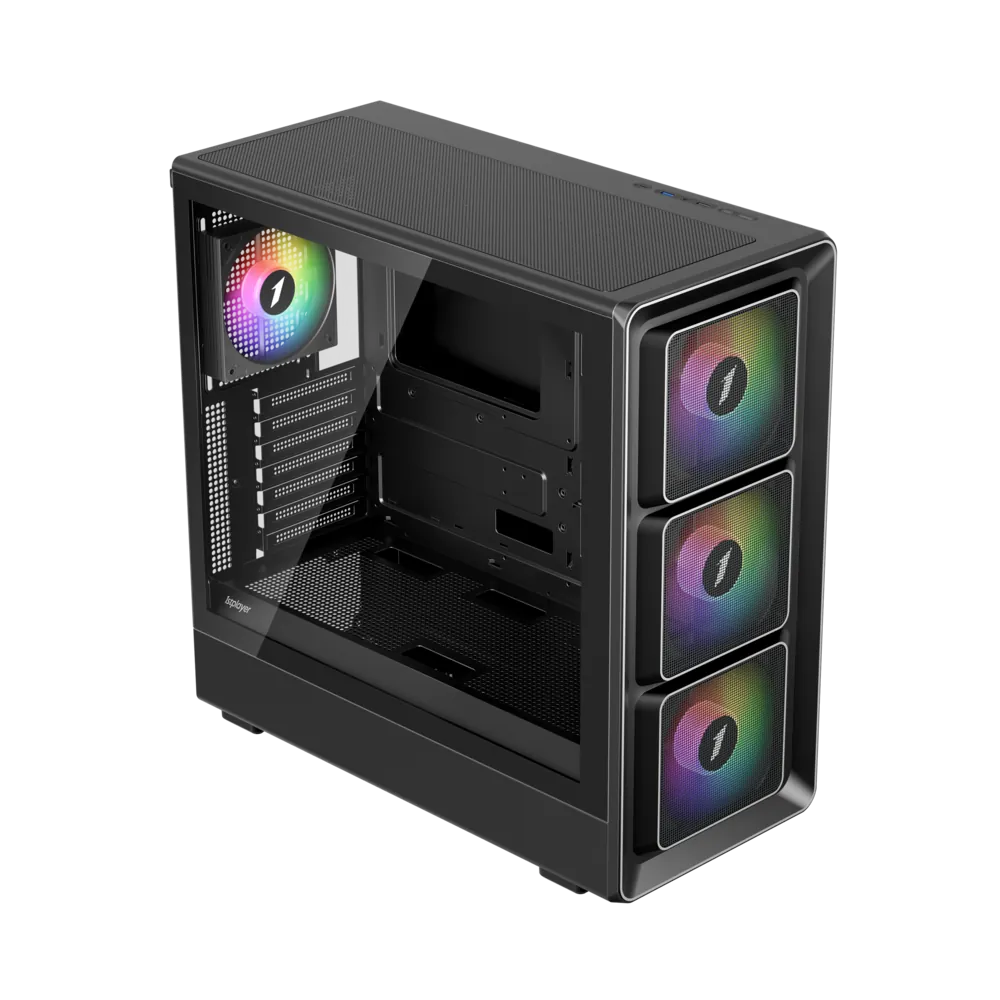

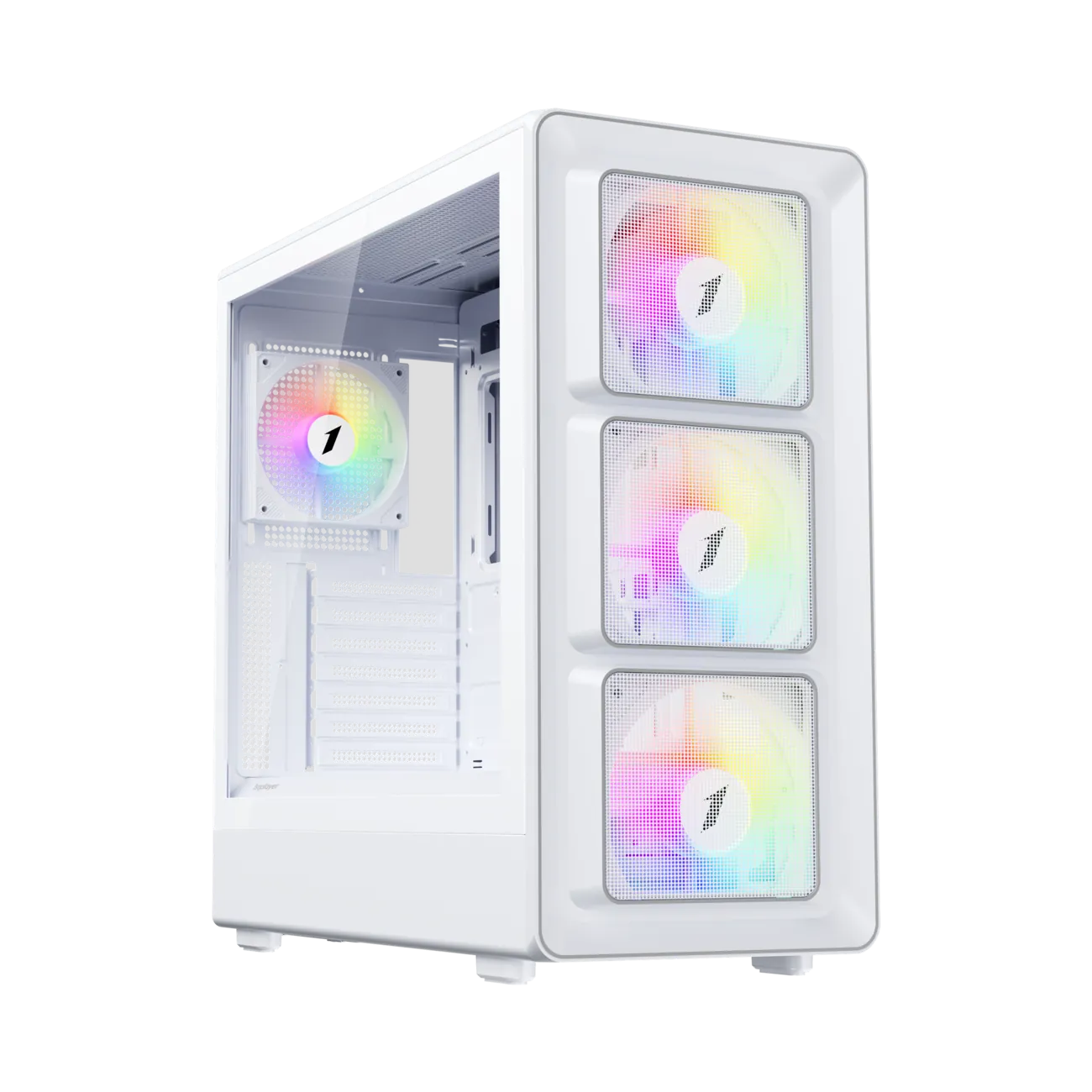

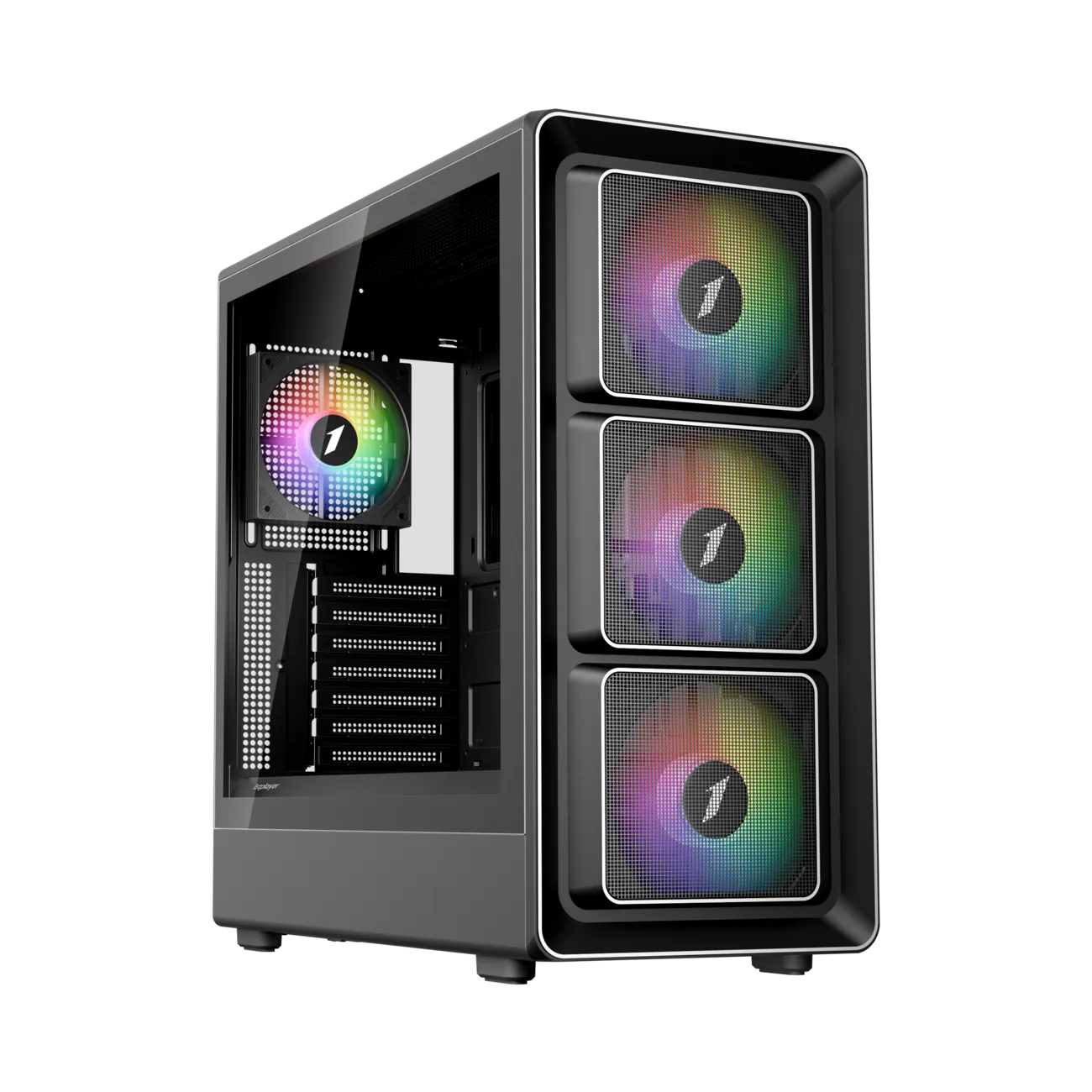

BR8

Striking Panel with Silver Accents

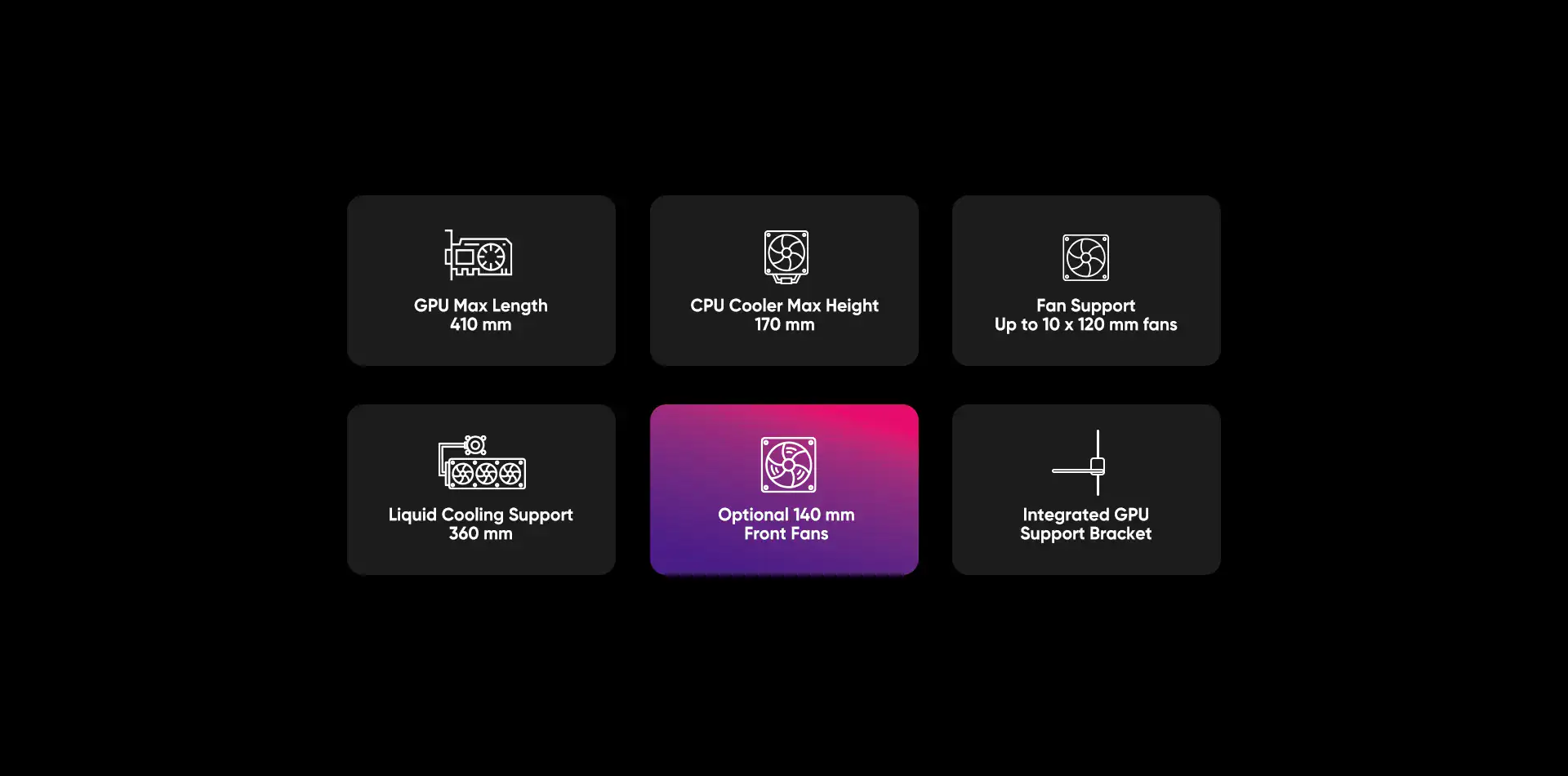

Support GPU length up to 410 mm
Support CPU cooler height up to 170 mm
Support installing of up to 10 fans
Support Top: 240 mm / 280 mm / 360 mm radiator

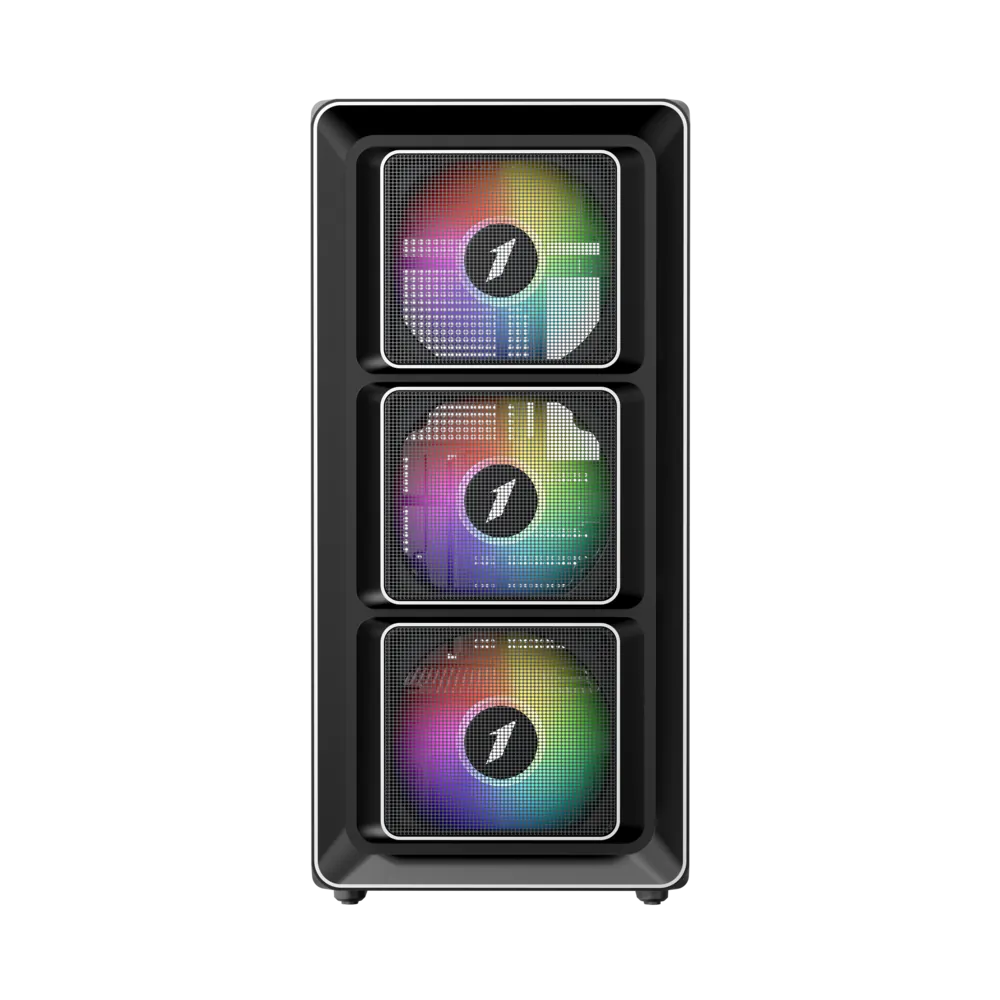

Front panel accommodates up to three high-airflow 140mm cooling fans.
Striking front panel with silver accents deliver premium metallic elegances.

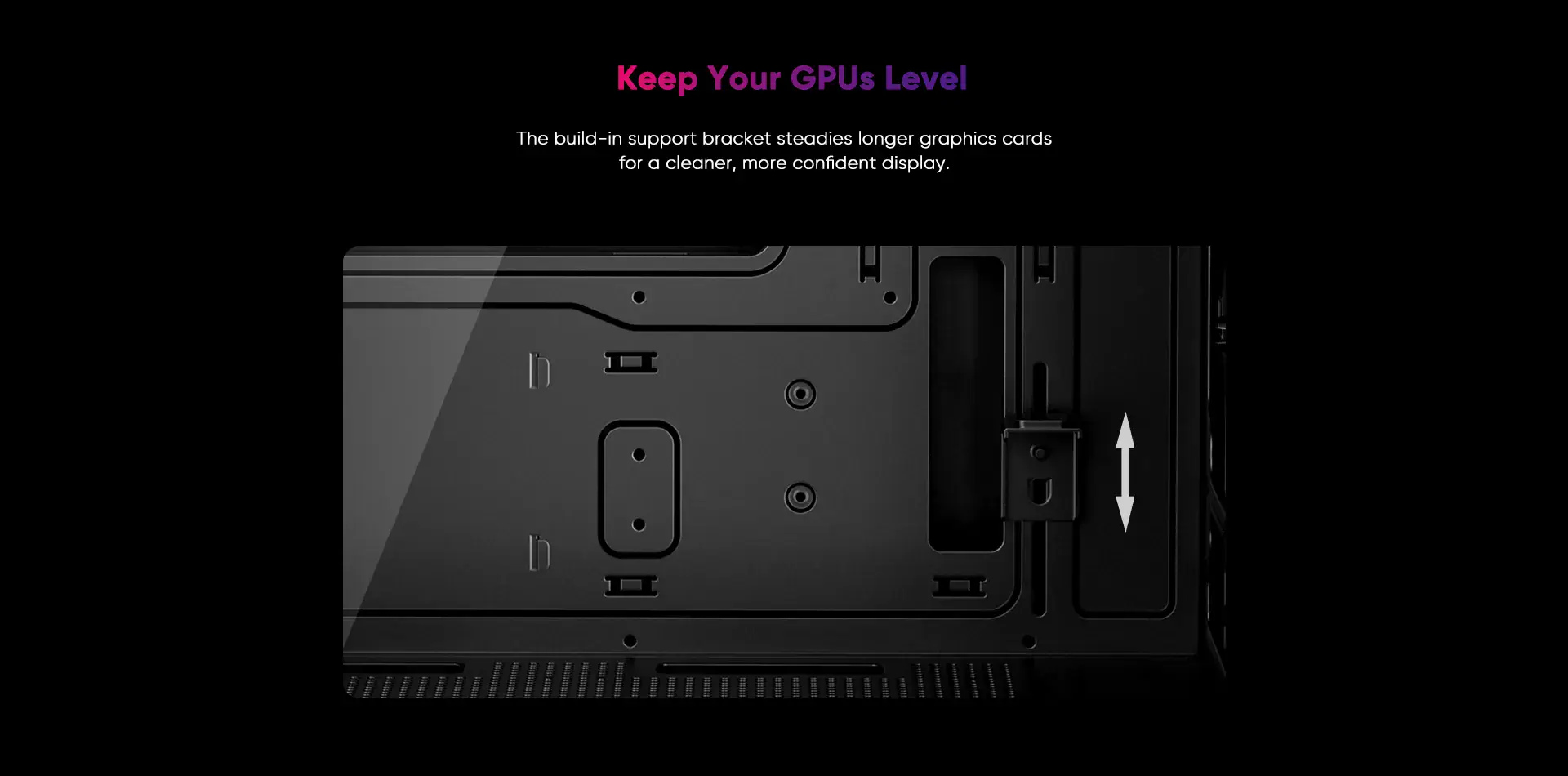

Built-in standard GPU bracket provides secure, heavy-duty graphics card support.

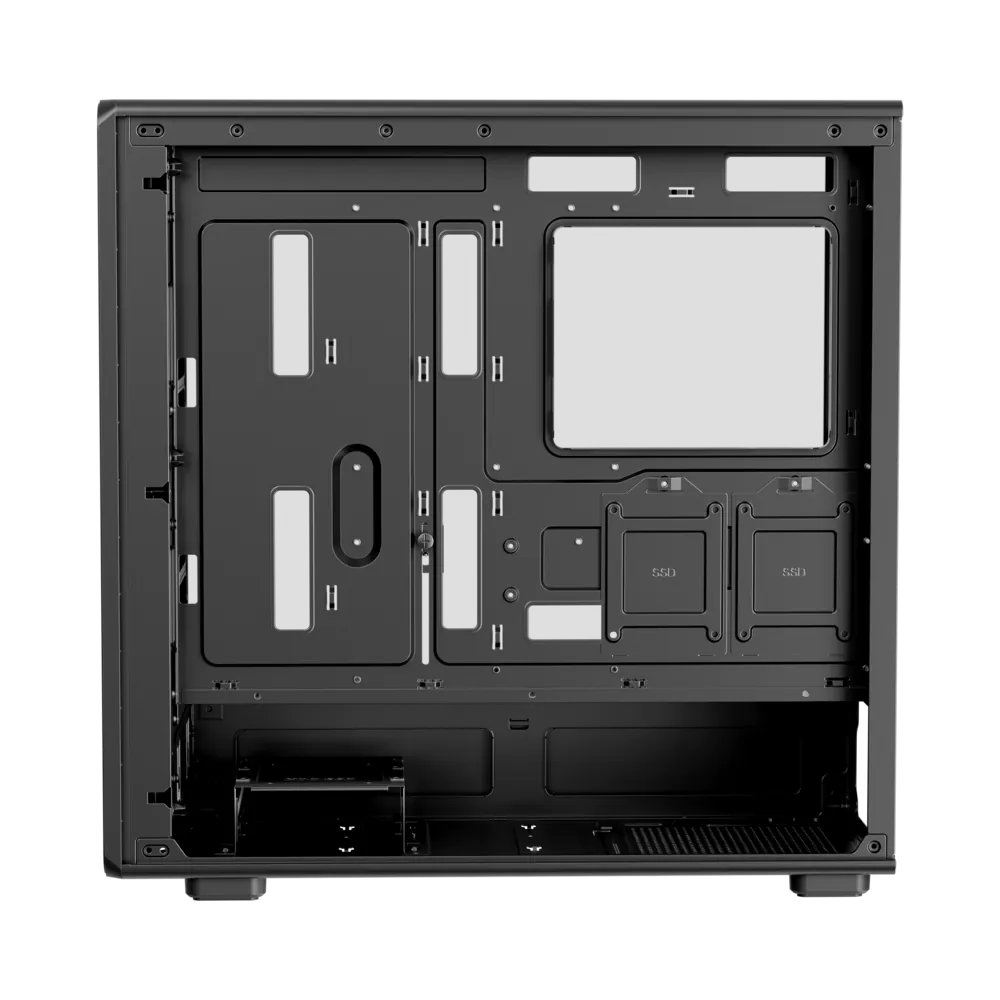

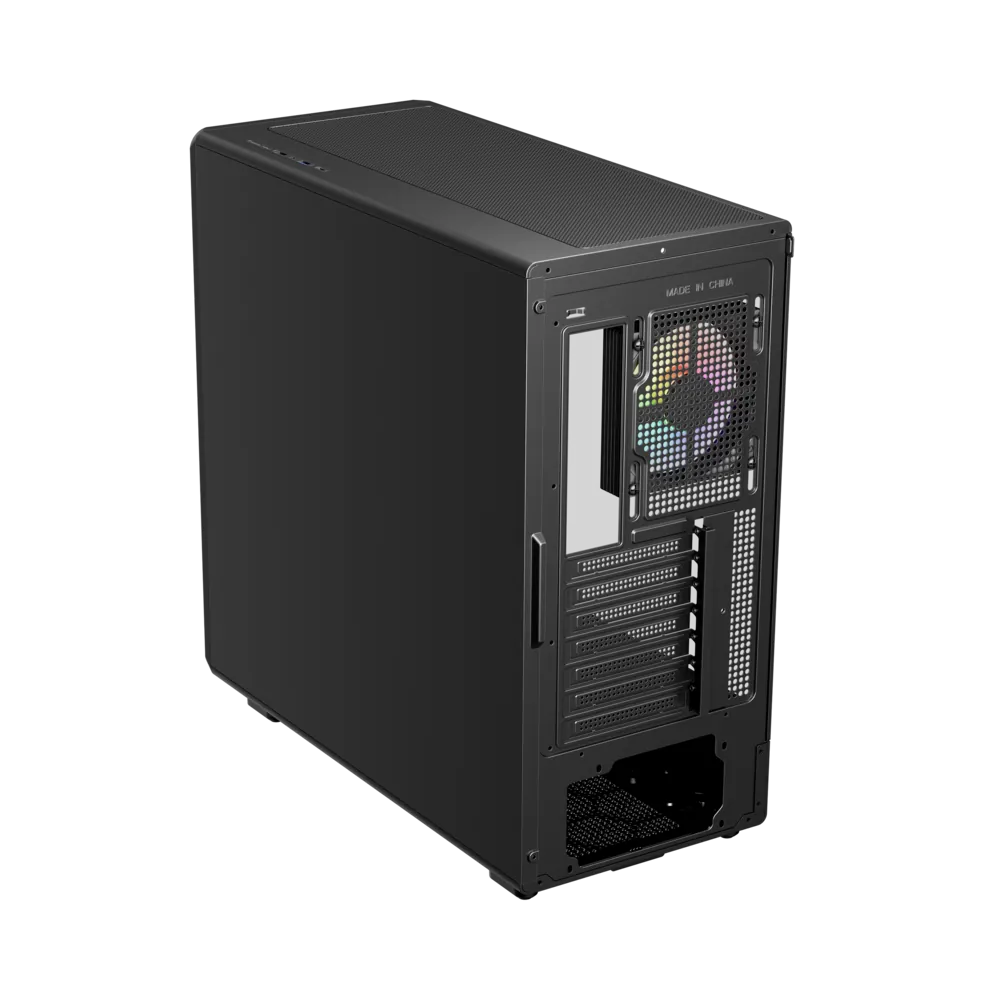

Optimized back-cable routing space enables clean and effortless system management.

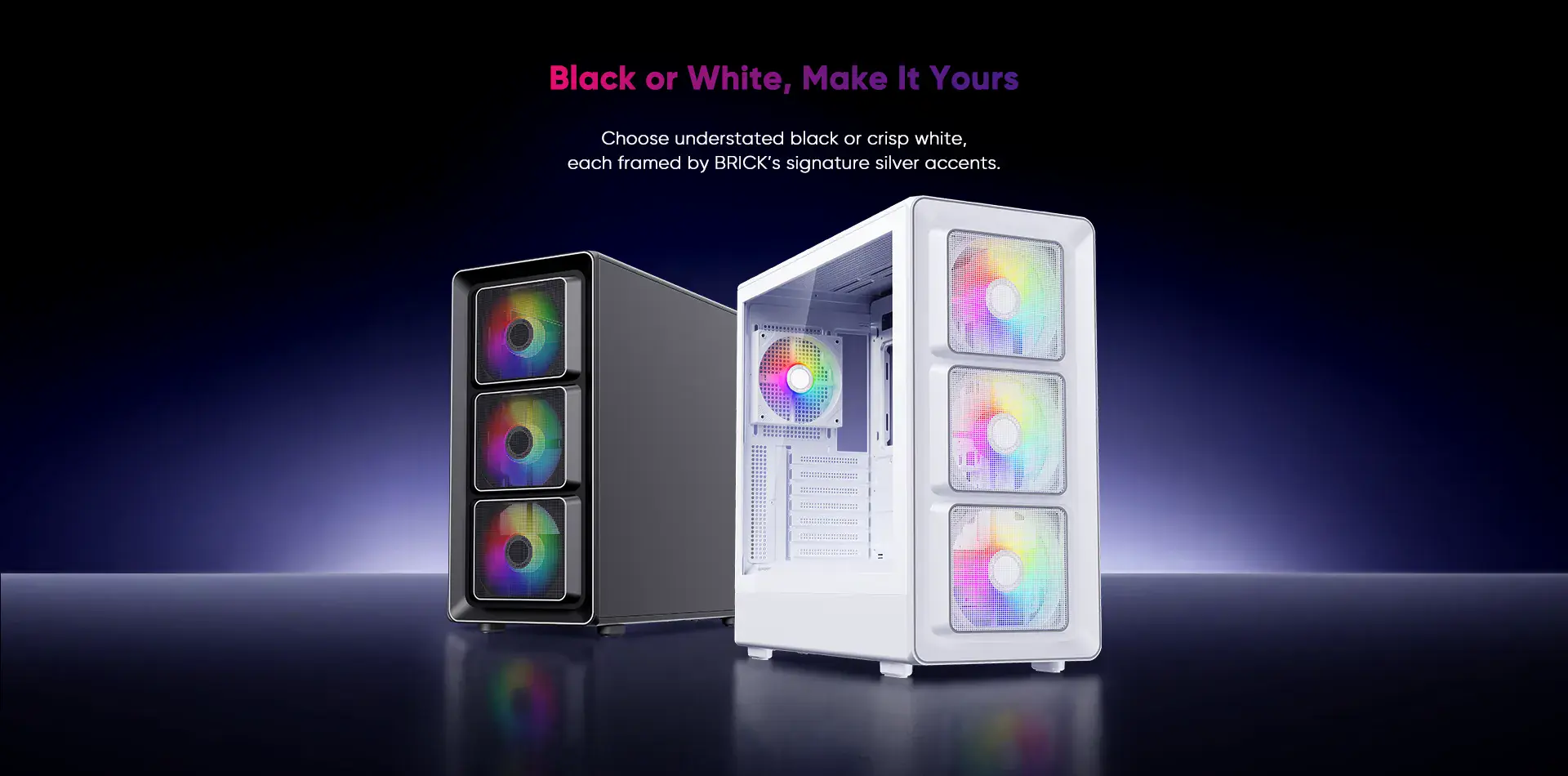

Color

MODEL

BR8

STRUCTURE DIMENSIONS (L x W x H)

470 x 225 x 470 mm

PRODUCT DIMENSIONS (L x W x H)

485 x 225 x 485 mm

PACKAGE DIMENSIONS (L x W x H)

555 x 286 x 546 mm

STRUCTURE THICKNESS

0.6 mm

MATERIALS

SPCC, tempered glass, plastic

FORM FACTOR

ATX / M-ATX / ITX

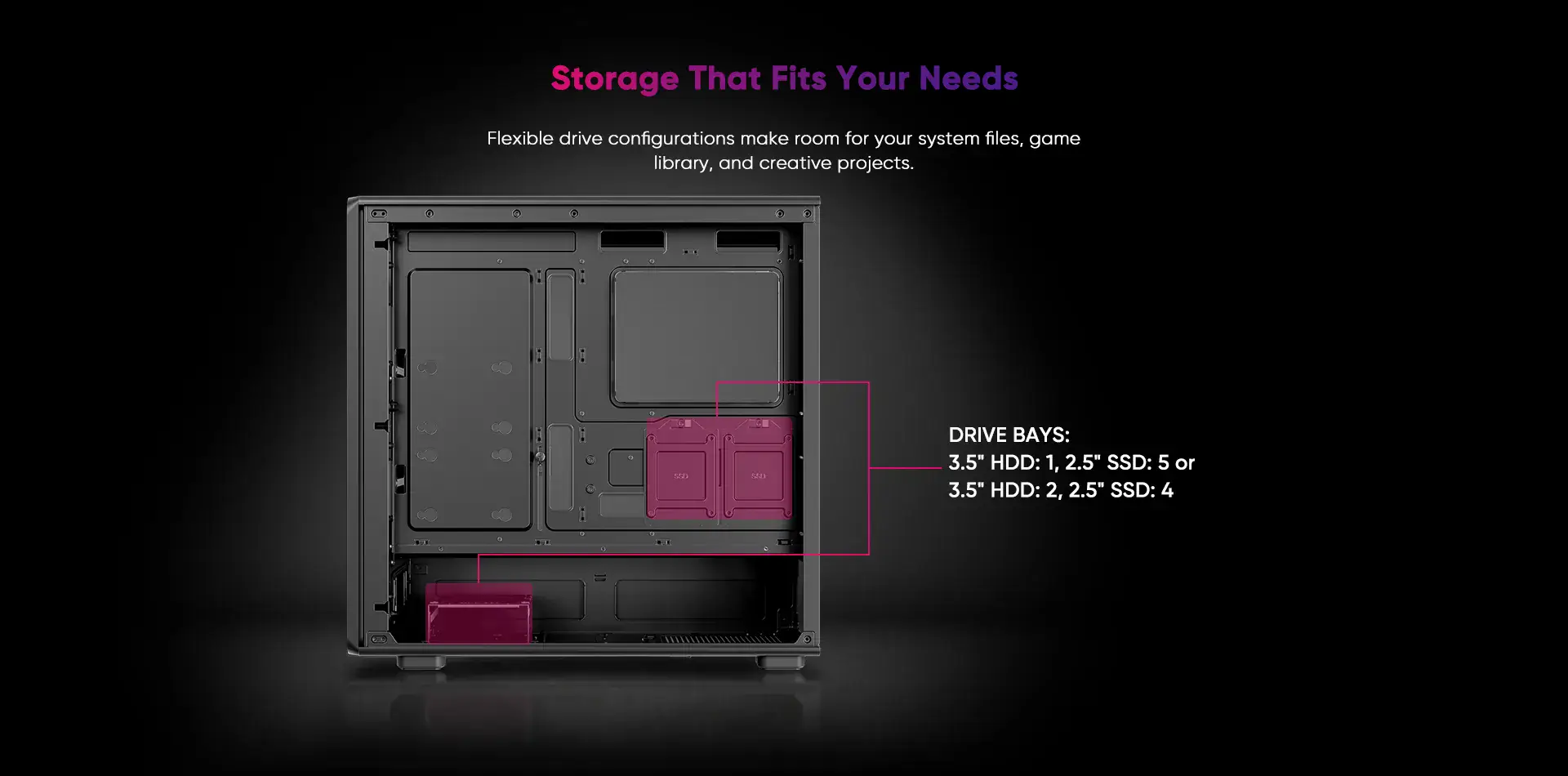

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 5 or
3.5" HDD: 2, 2.5" SSD: 4

PN AND PRE-INSTALLED FANS

BR8-BK: No fans included (N/A)
BR8-WH: No fans included (N/A)
BR8-BK-3FA7-14-1FA7: Front - 3 x FA7-14-BK; Rear - 1 x FA7-BK
BR8-WH-3FA7-14-W-1FA7-W: Front - 3 x FA7-14-WH; Rear - 1 x FA7-WH

CPU MAX HEIGHT

170 mm

GPU MAX LENGTH

410 mm

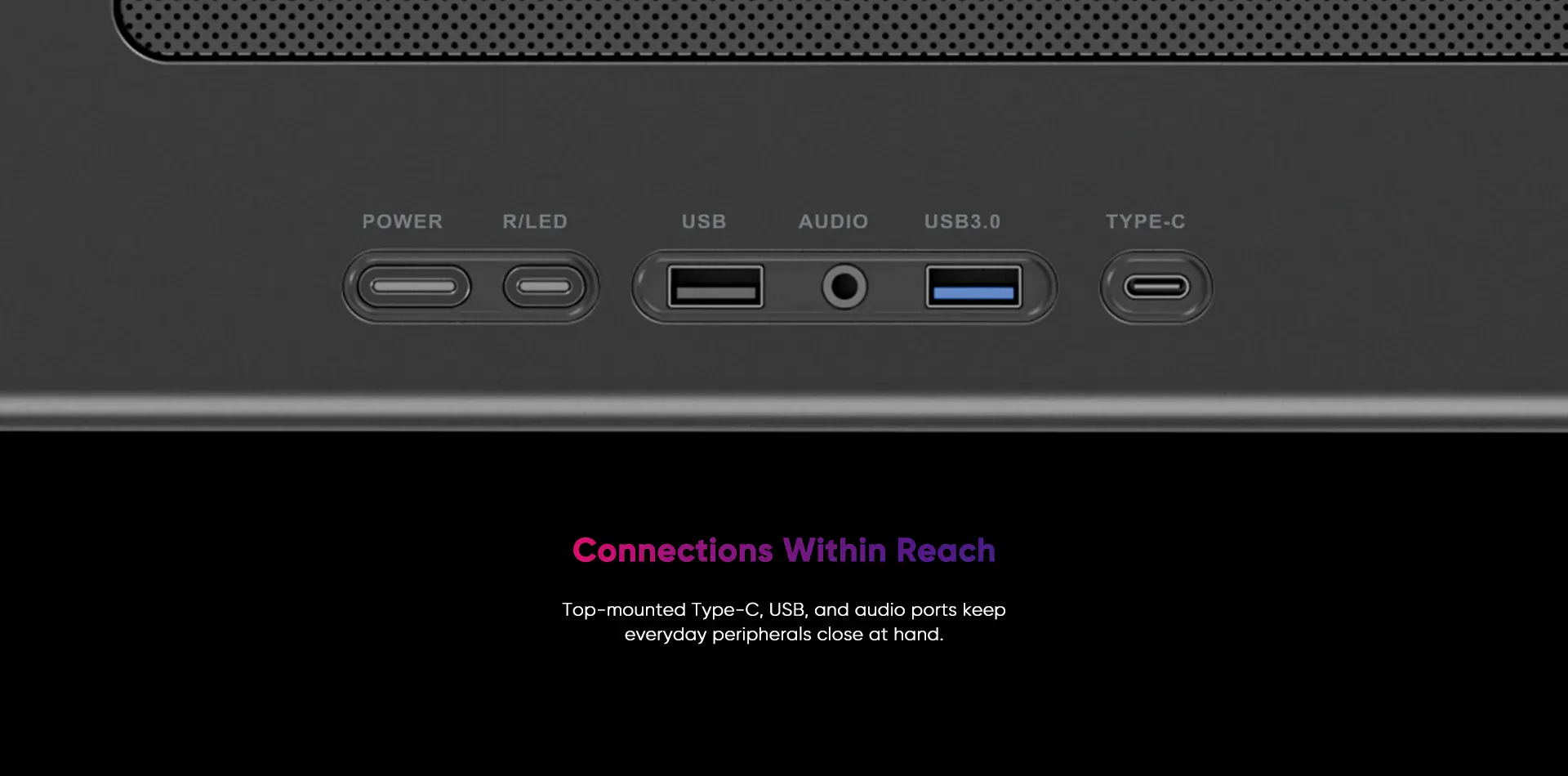

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1,Type-C x 1, HD Audio

PCI CARD SLOT

7

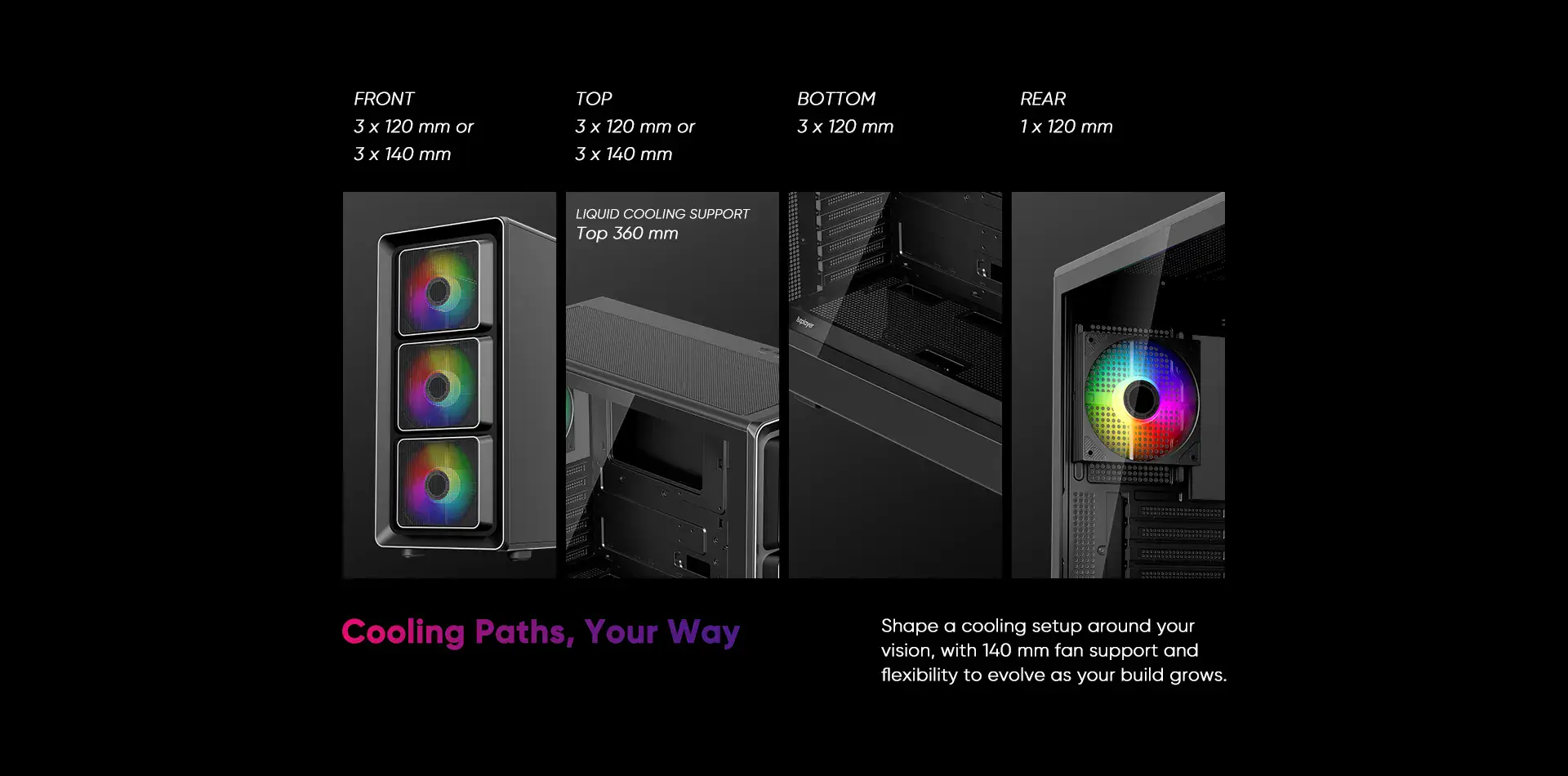

FAN SUPPORT

Front: 3 x 120 mm / 3 x 140 mm
Top: 3 x 120 mm / 3 x 140 mm
Rear: 1 x 120 mm
Bottom: 3 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm / 280 mm / 360 mm

POWER SUPPLY SUPPORT

220 mm

WEIGHT

N.W.: 6.6 kg
G.W.: 8.0 kg

Product Comparison

Compare this product with other models in our lineup to find the perfect fit for your needs.

BR8 Specification
