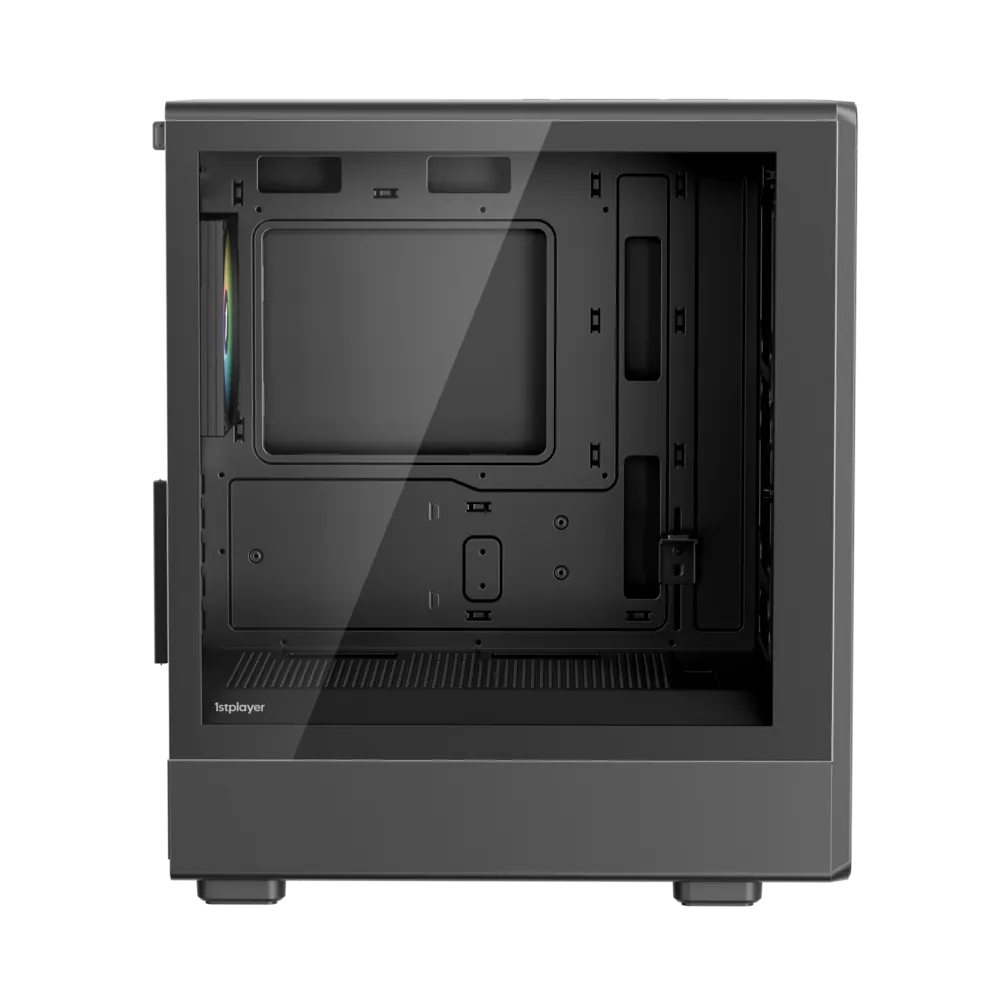

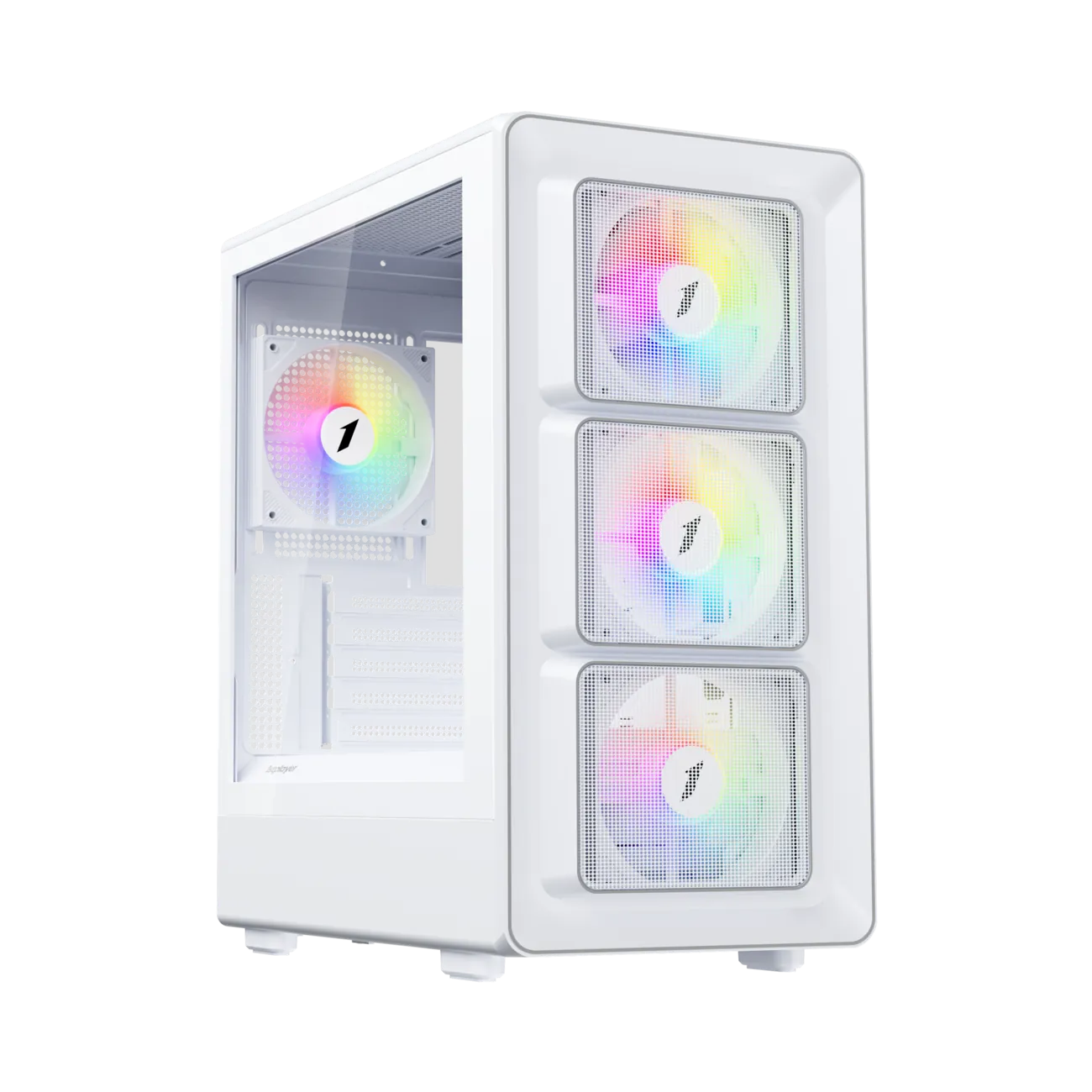

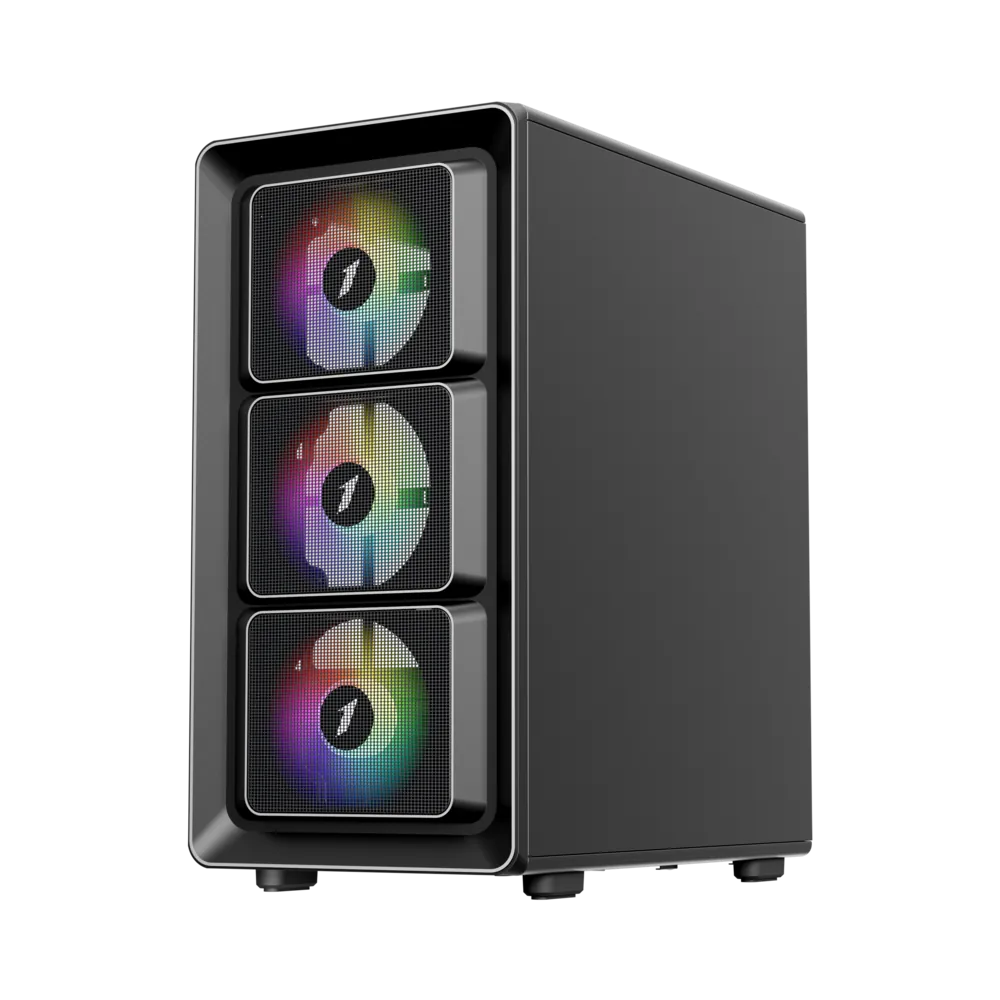

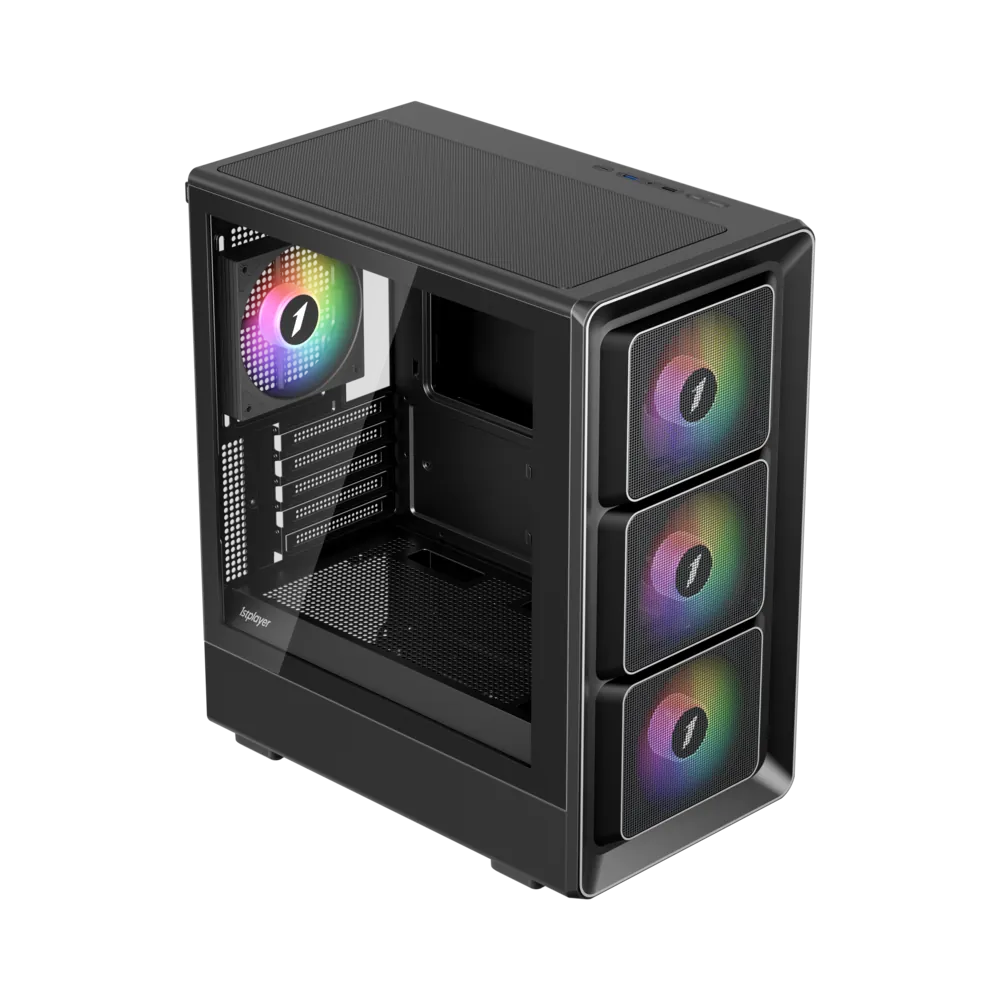

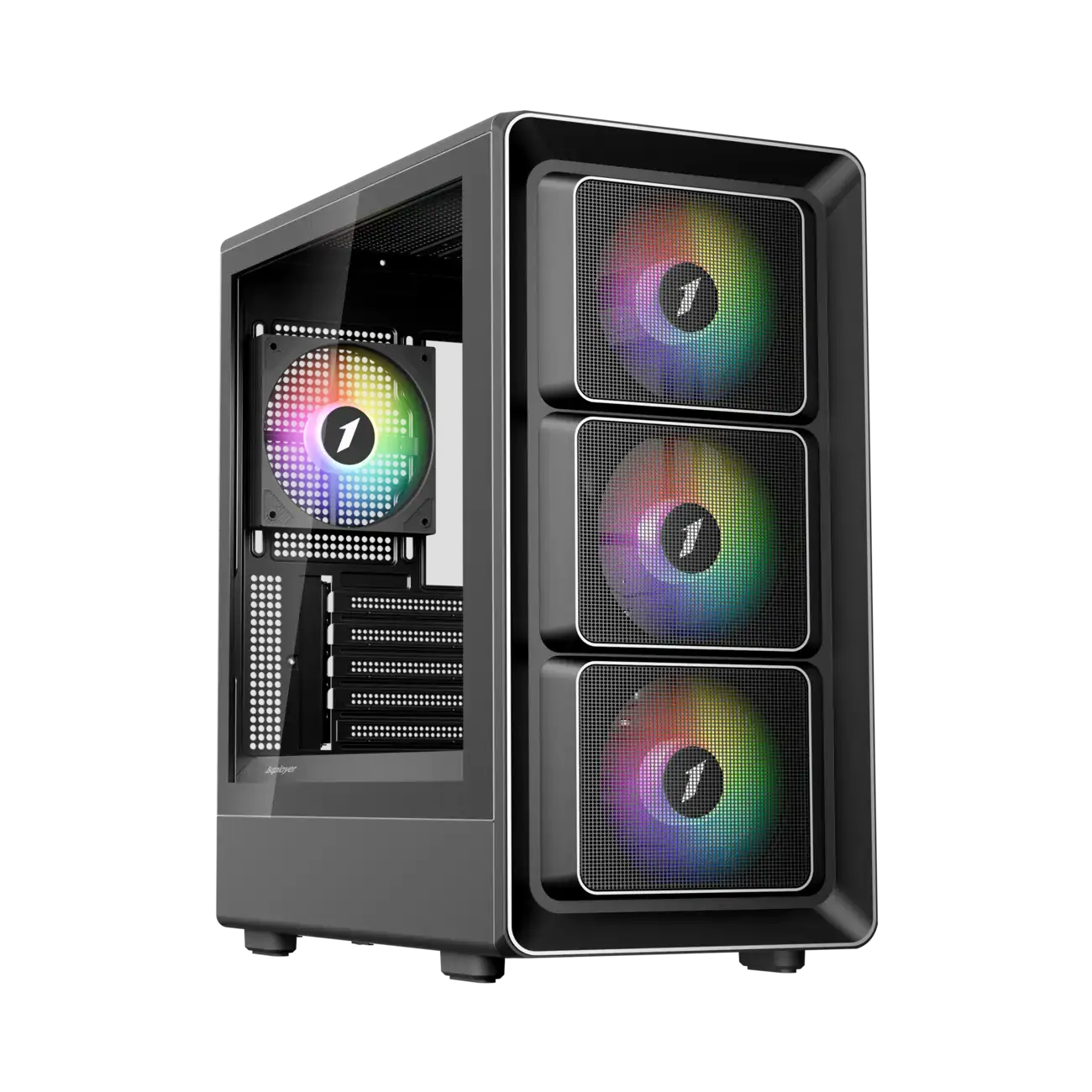

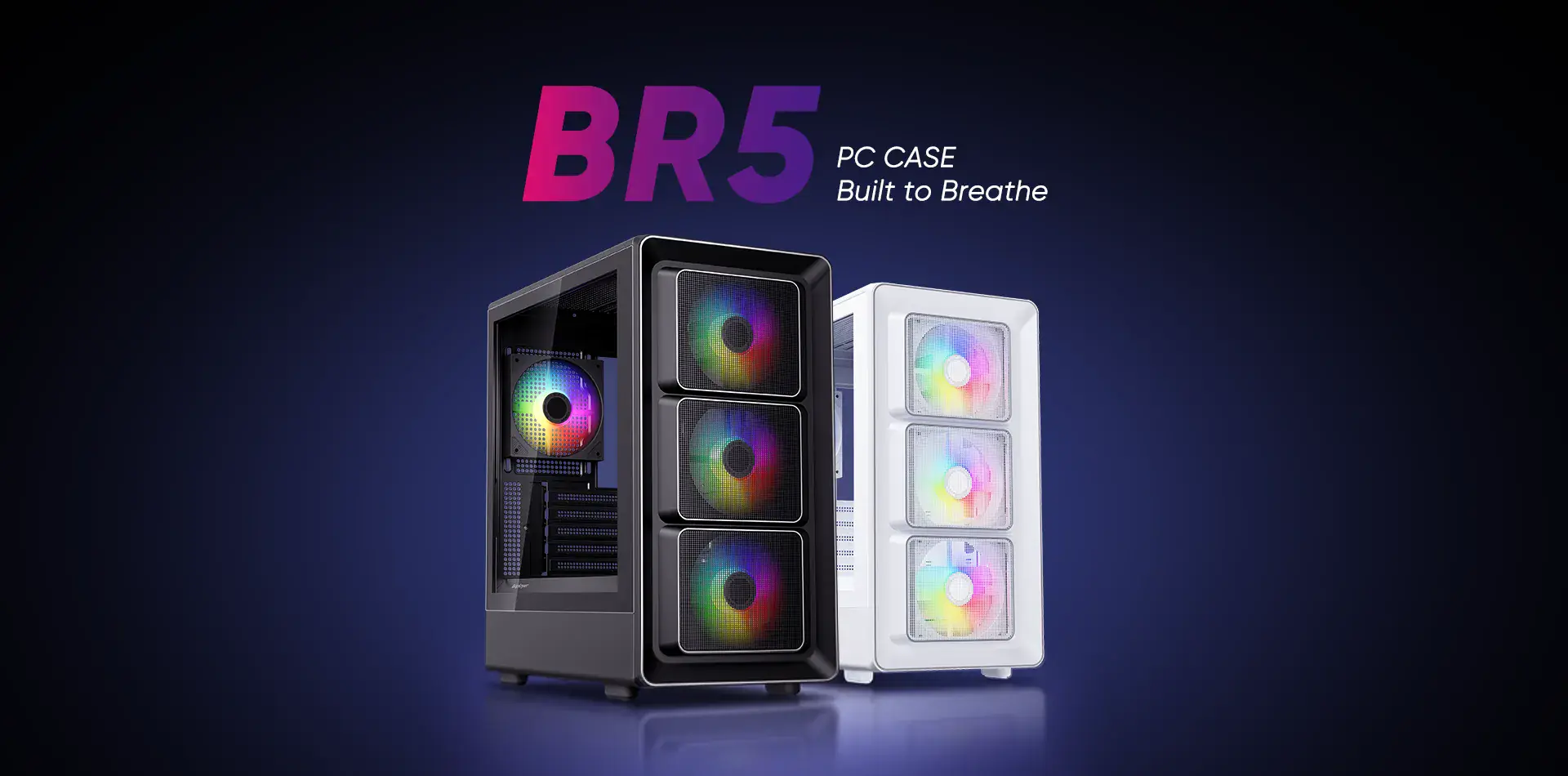

BR5

Striking Panel with Silver Accents

Support GPU length up to 310 mm
Support CPU cooler height up to 170 mm
Support installing of up to 8 fans
Support Top: 240 mm radiator

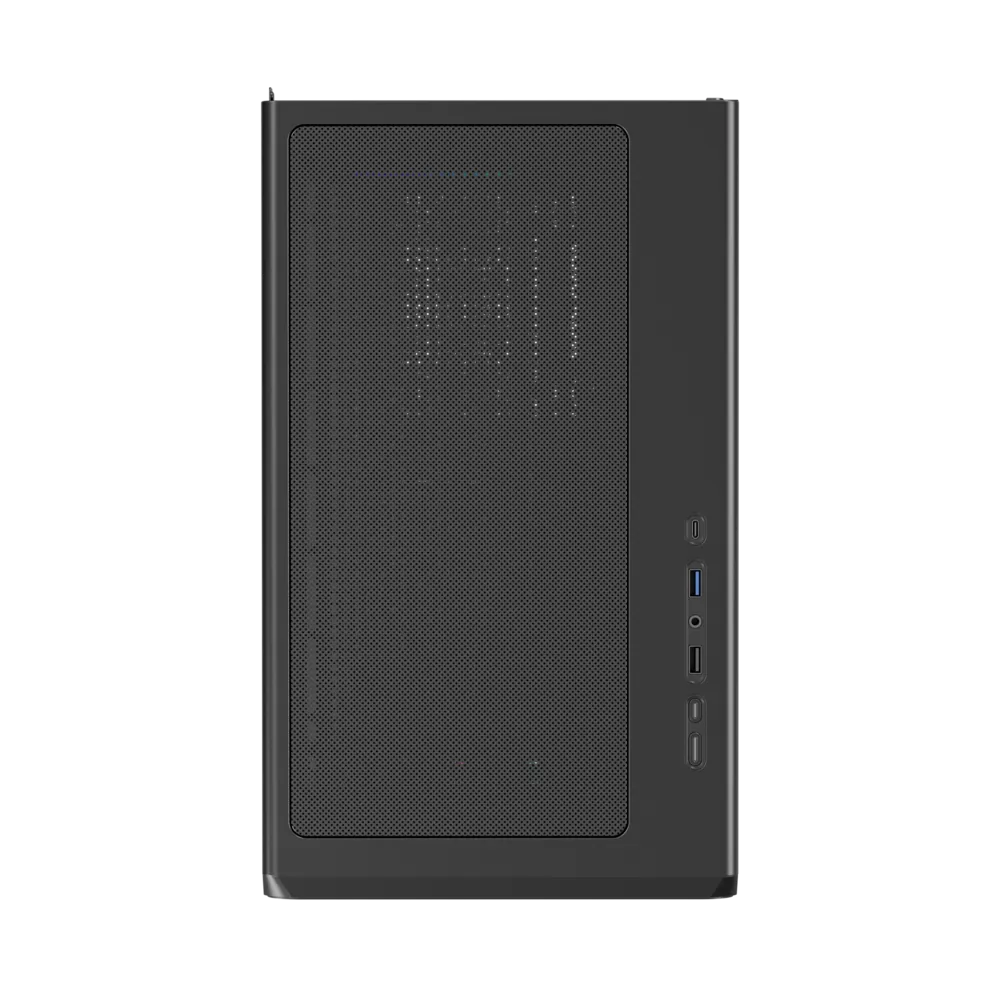

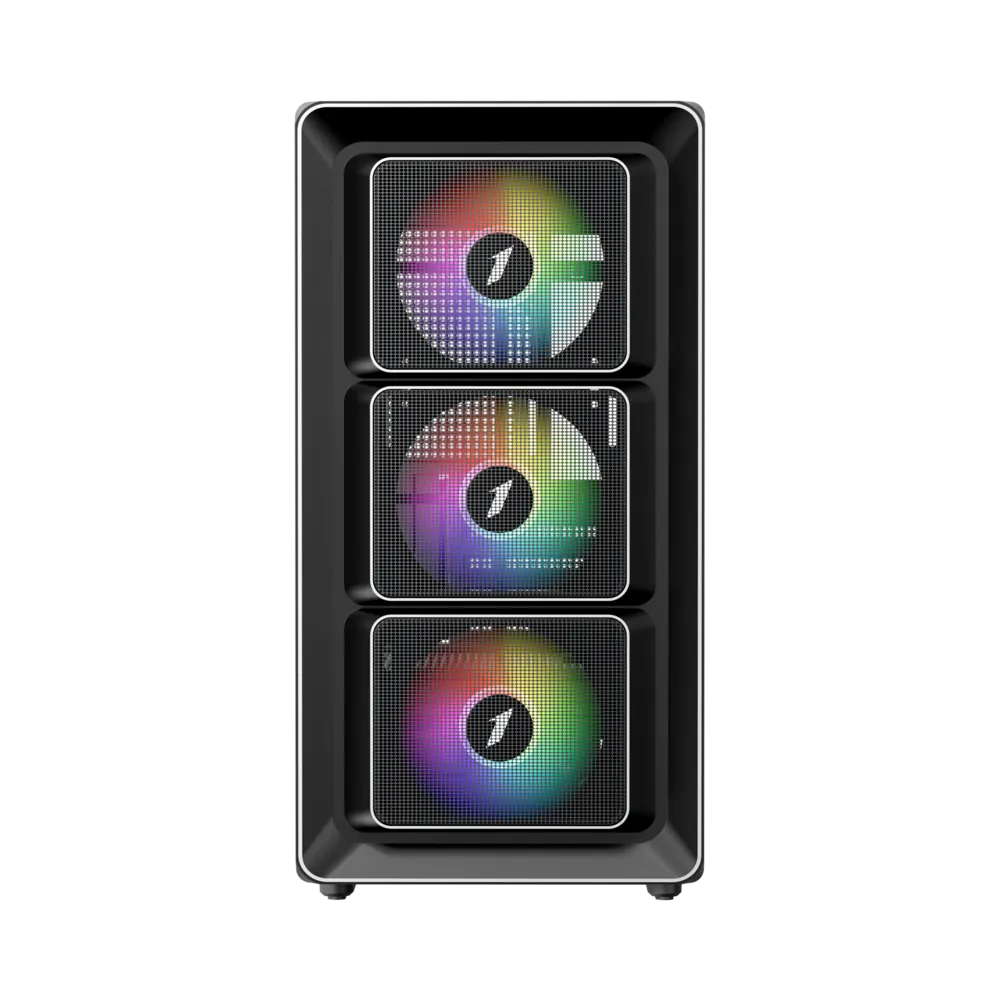

Striking front panel with silver accents deliver premium metallic elegances.

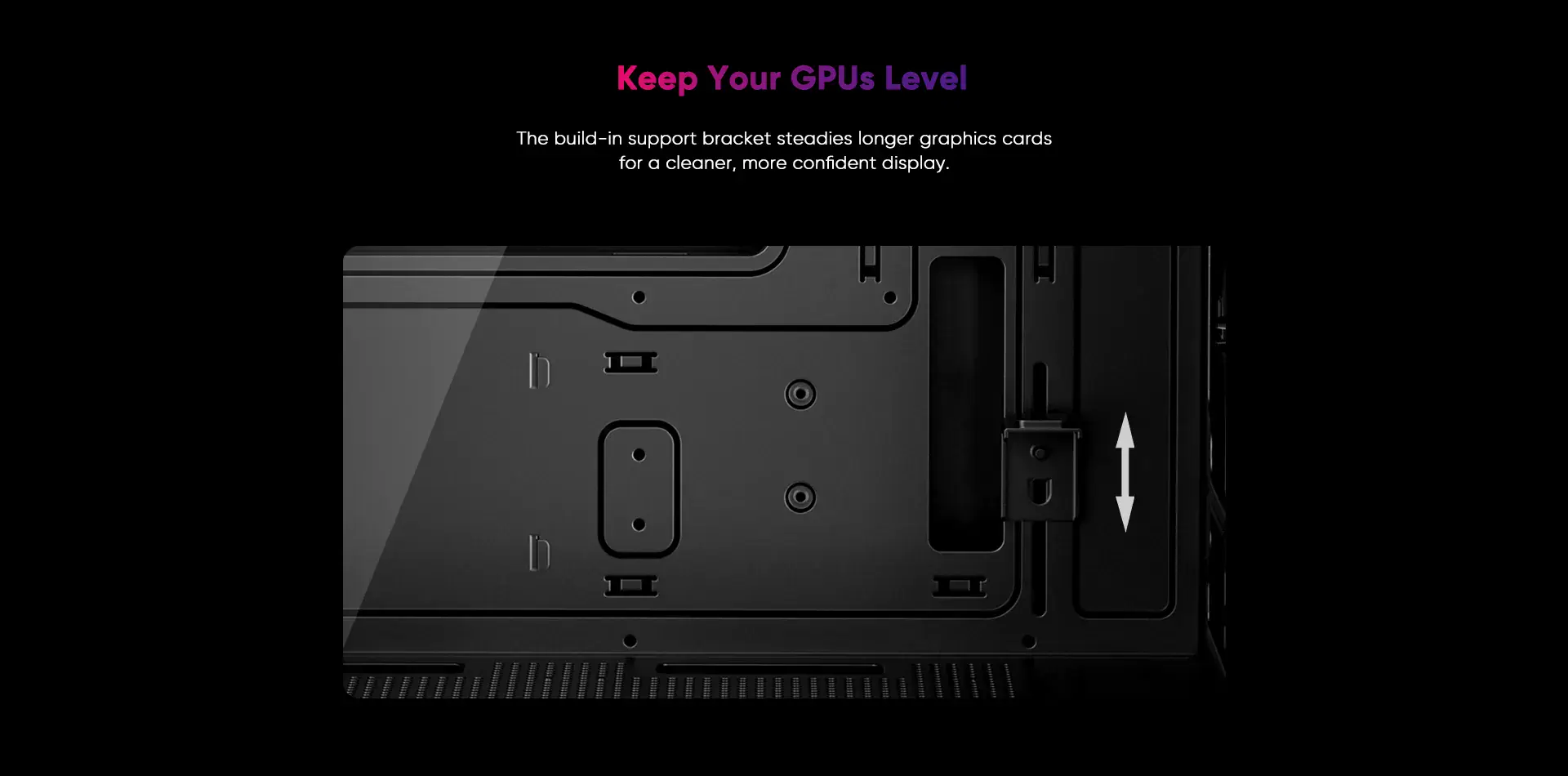

Built-in standard GPU bracket provides secure, heavy-duty graphics card support.

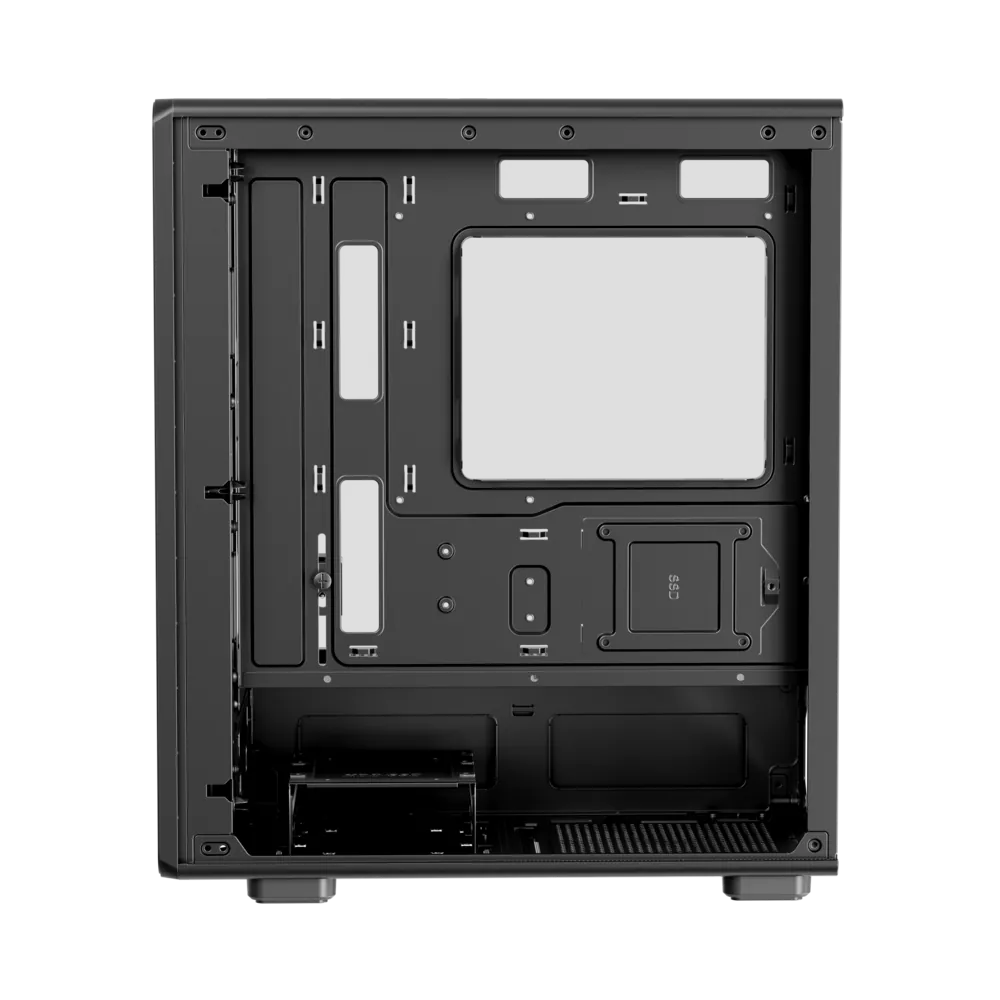

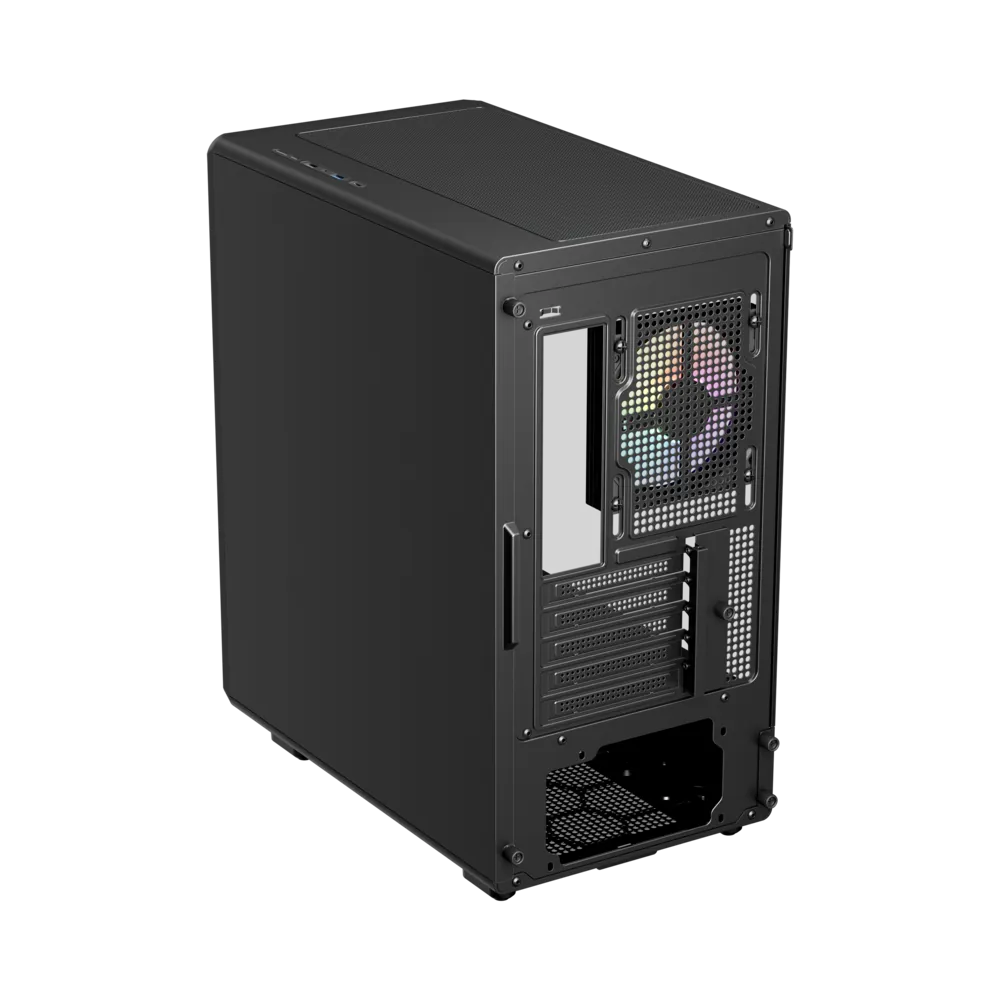

Optimized back-cable routing space enables clean and effortless system management.

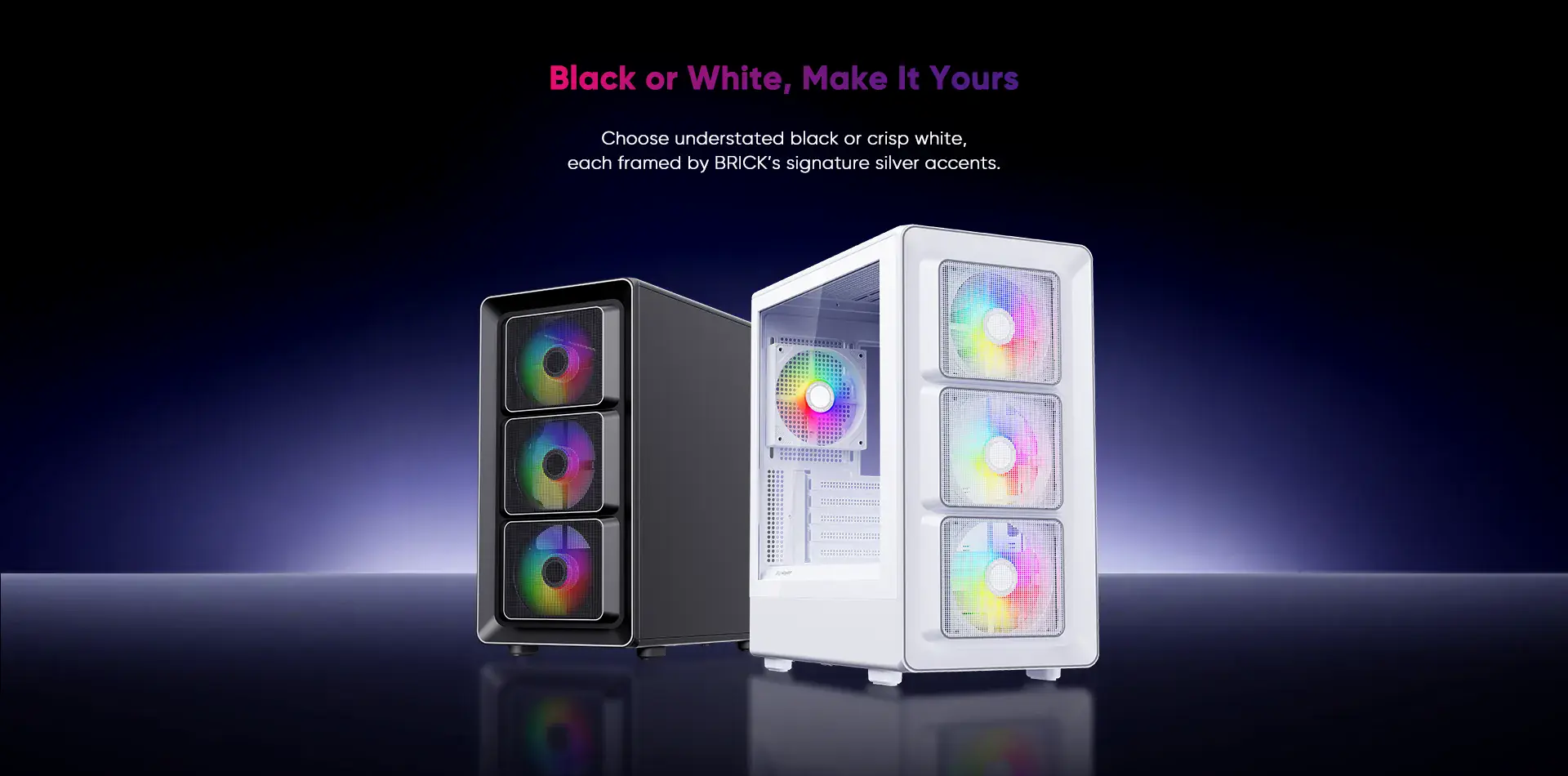

Color

MODEL

BR5

STRUCTURE DIMENSIONS (L x W x H)

365 x 225 x 430 mm

PRODUCT DIMENSIONS (L x W x H)

380 x 225 x 445 mm

PACKAGE DIMENSIONS (L x W x H)

450 x 286 x 506 mm

STRUCTURE THICKNESS

0.6 mm

MATERIALS

SPCC, tempered glass, plastic

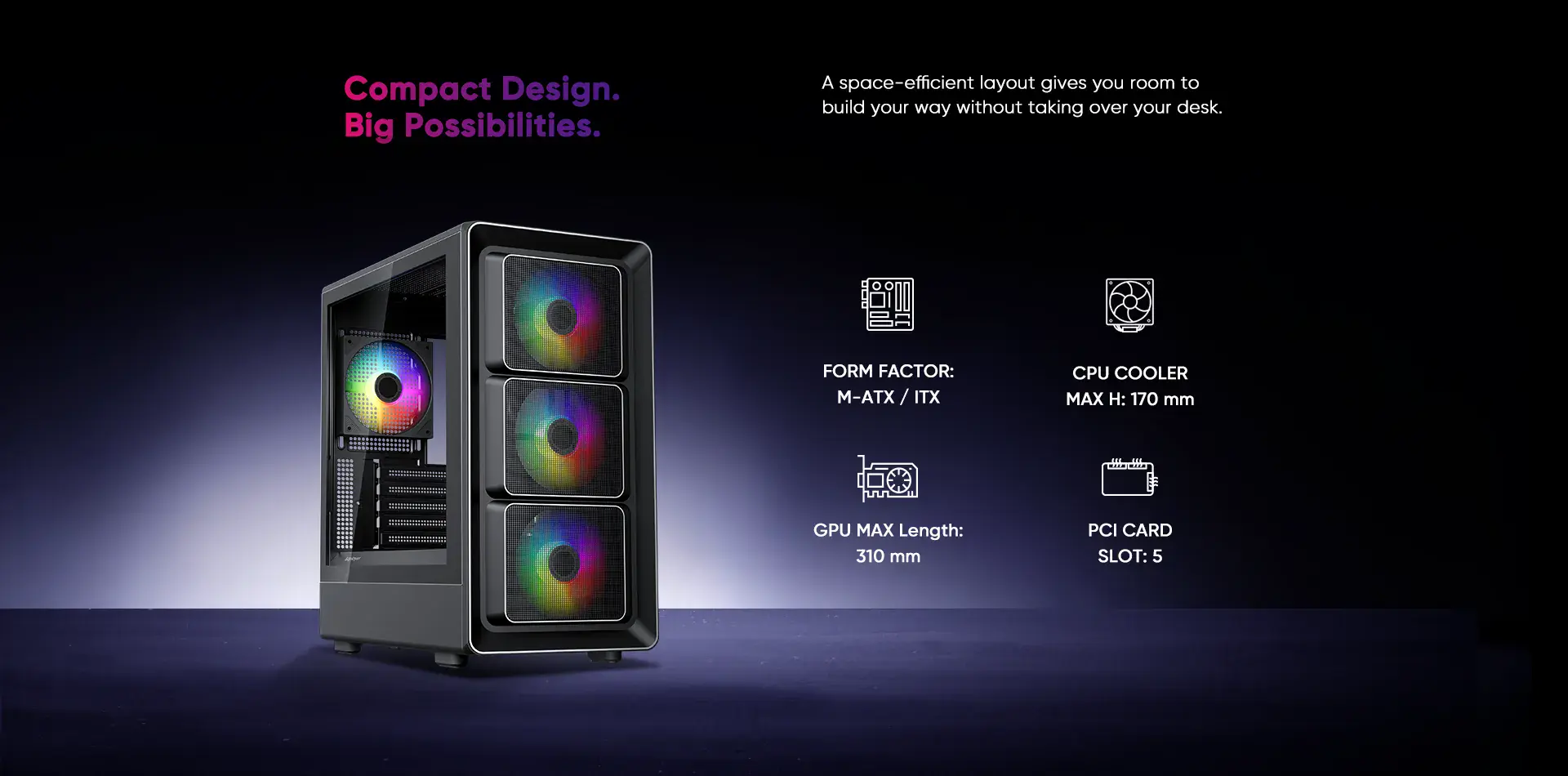

FORM FACTOR

M-ATX / ITX

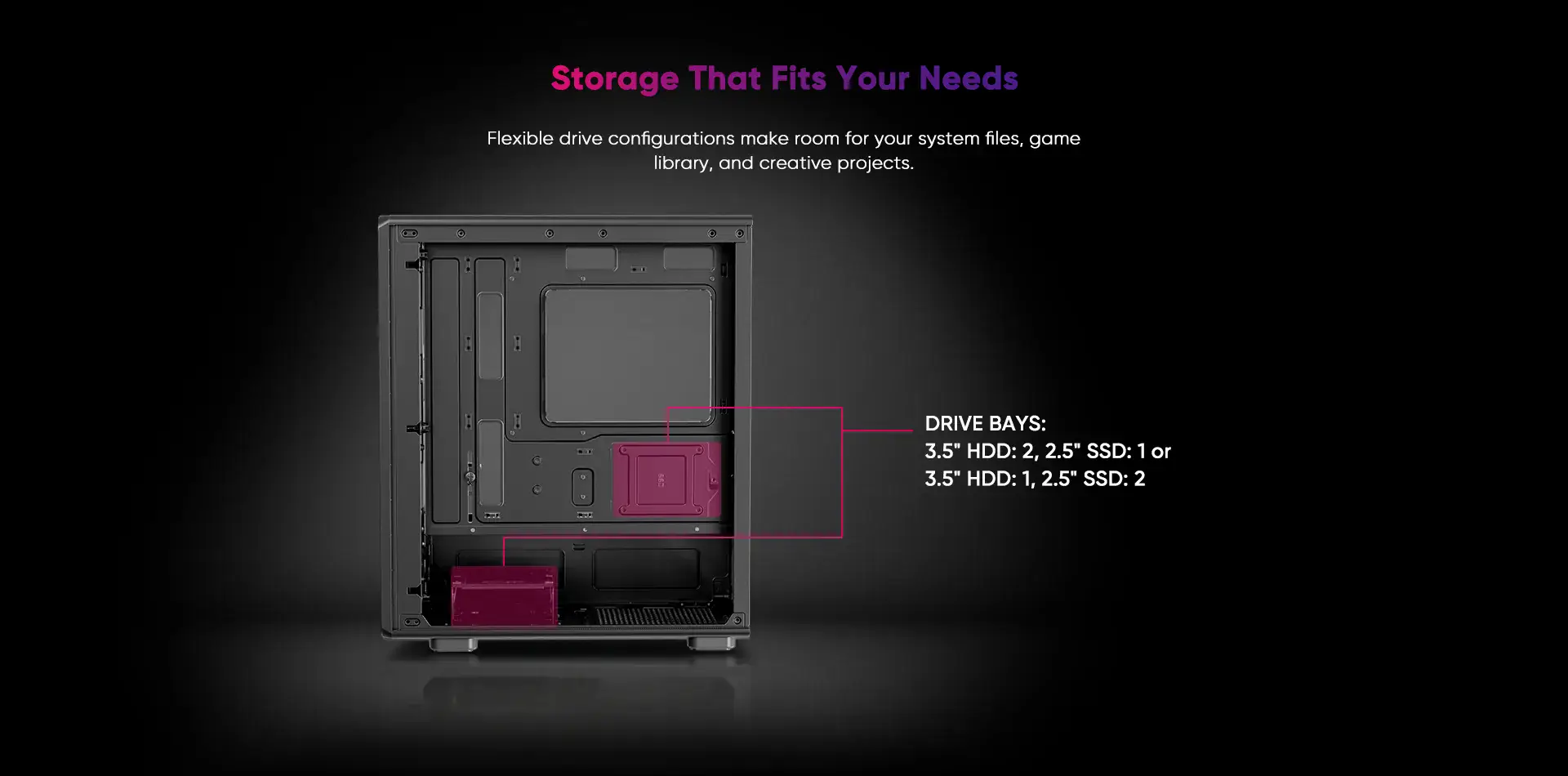

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 1 or
3.5" HDD: 1, 2.5" SSD: 2

PN AND PRE-INSTALLED FANS

BR5-BK: No fans included (N/A)
BR5-WH: No fans included (N/A)

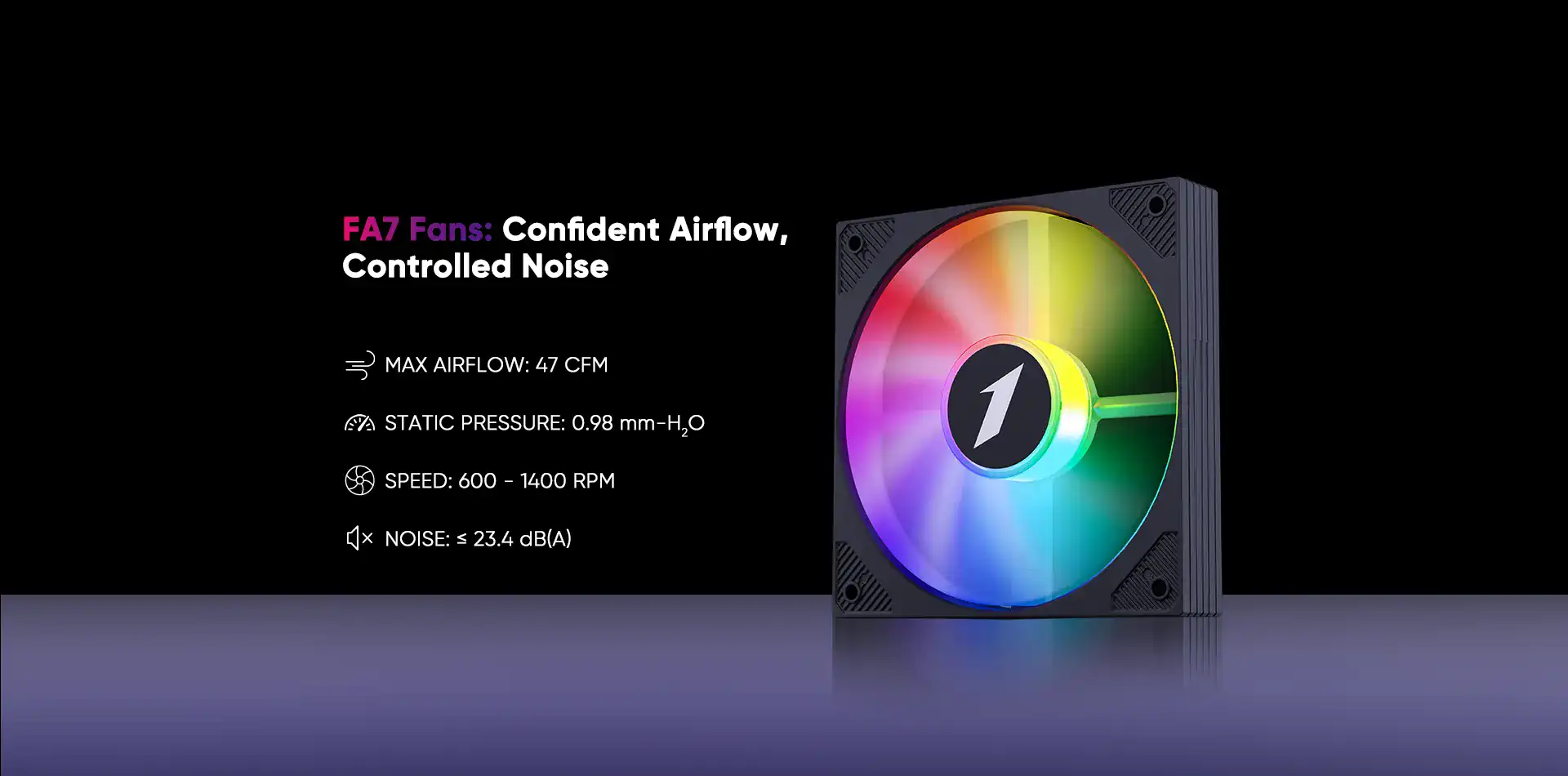

BR5-BK-4FA7: Front - 3 x FA7-BK; Rear - 1 x FA7-BK
BR5-WH-4FA7-W: Front - 3 x FA7-BK; Rear - 1 x FA7-BK

CPU MAX HEIGHT

170 mm

GPU MAX LENGTH

310 mm

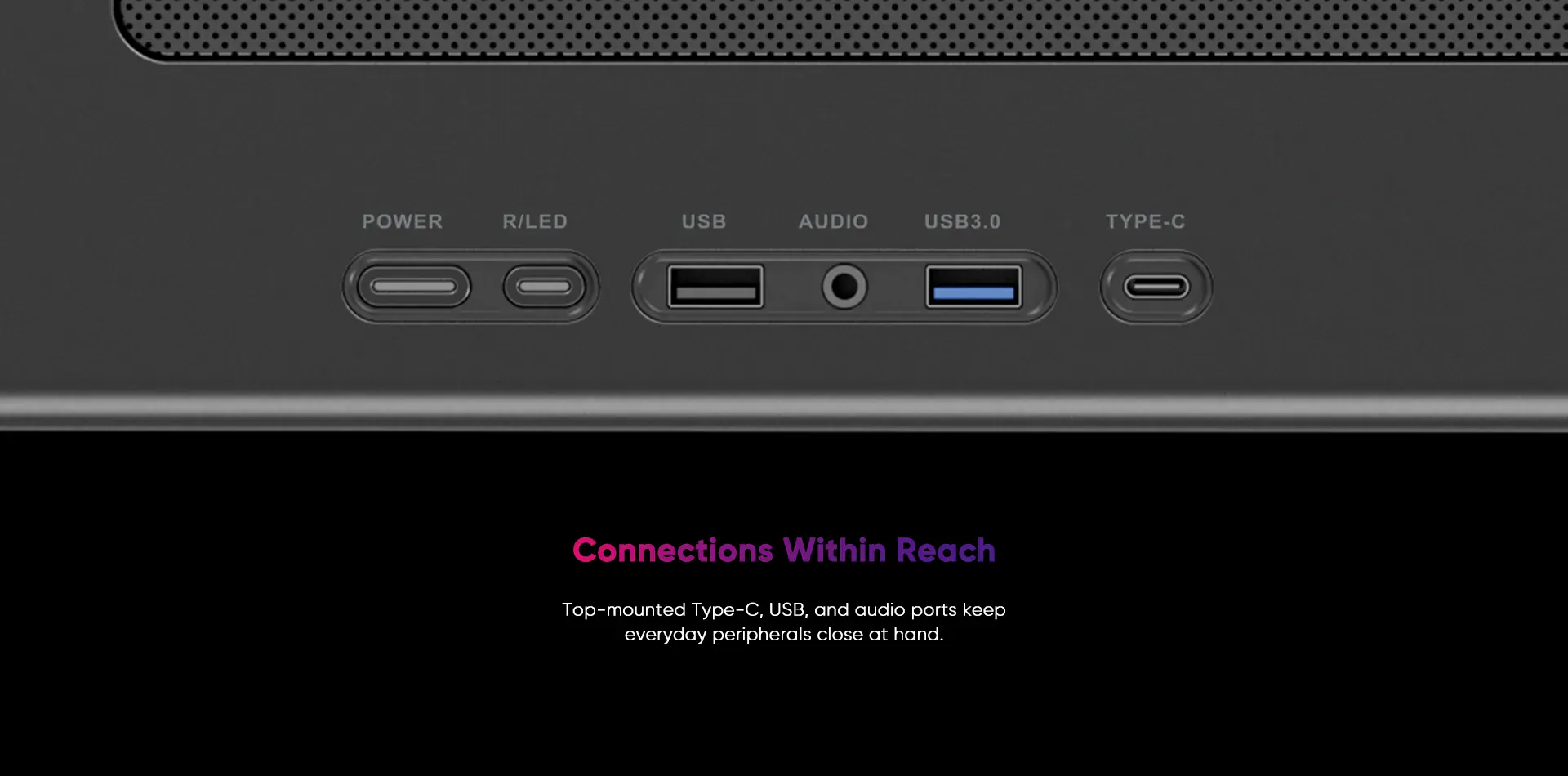

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, Type-C x 1, HD Audio

PCI CARD SLOT

5

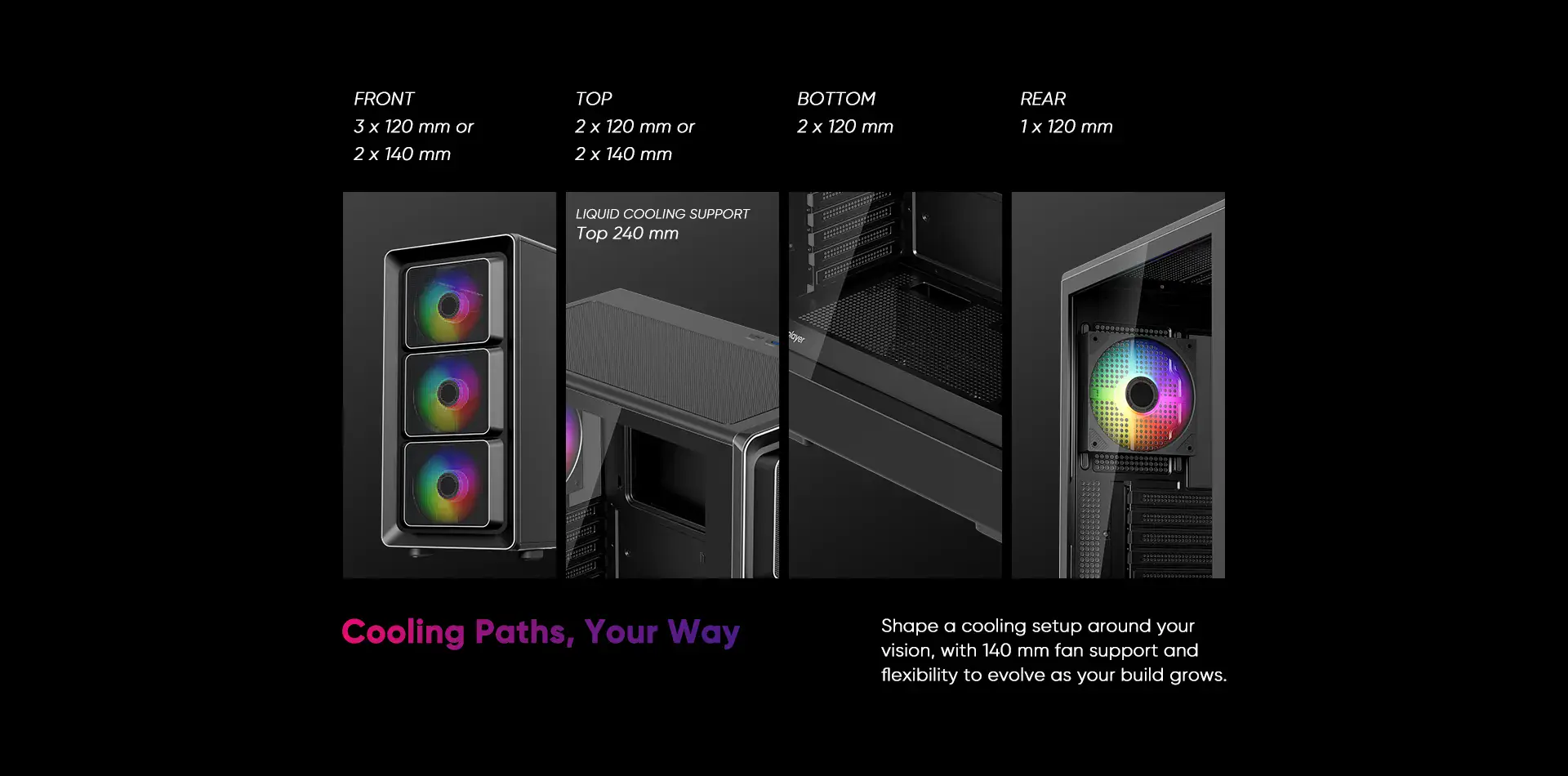

FAN SUPPORT

Front: 3 x 120 mm / 2 x 140 mm
Top: 2 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

150 mm

WEIGHT

N.W.: 5.26 kg
G.W.: 6.43 kg

Product Comparison

Compare this product with other models in our lineup to find the perfect fit for your needs.

BR5 Specification
