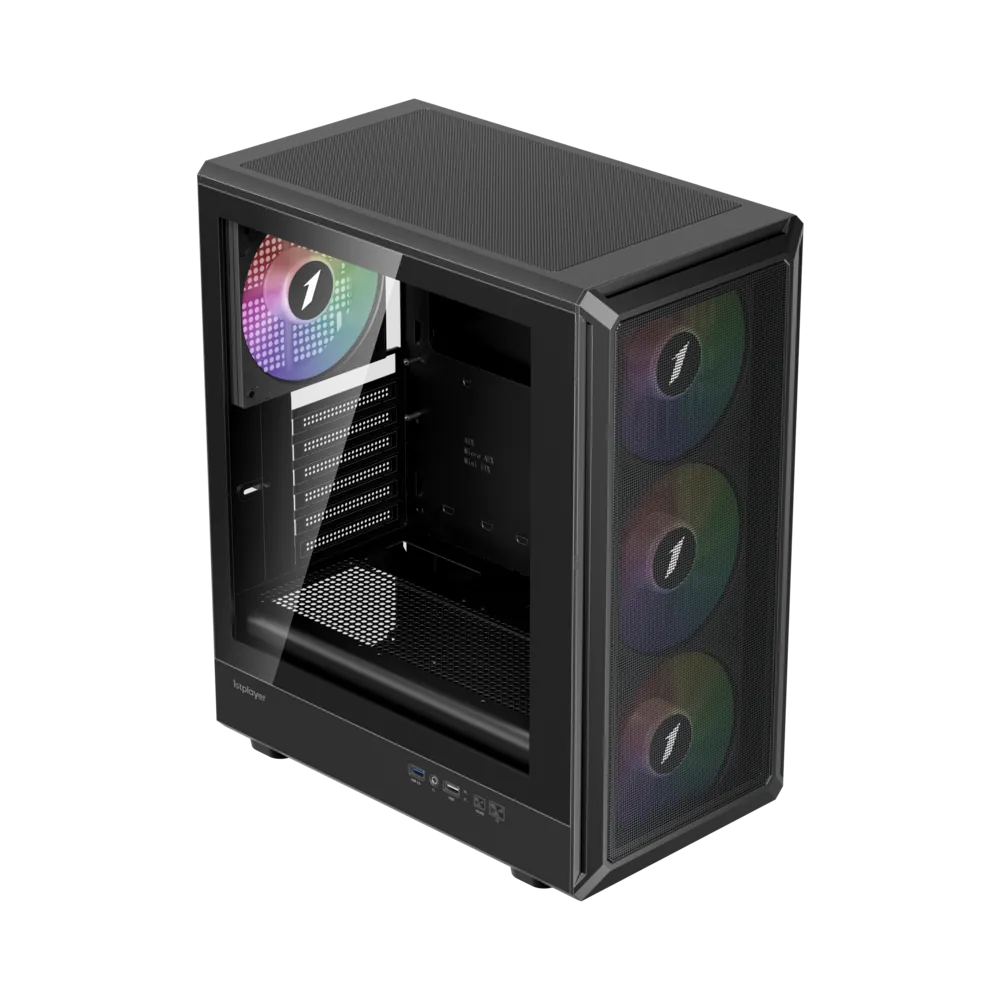

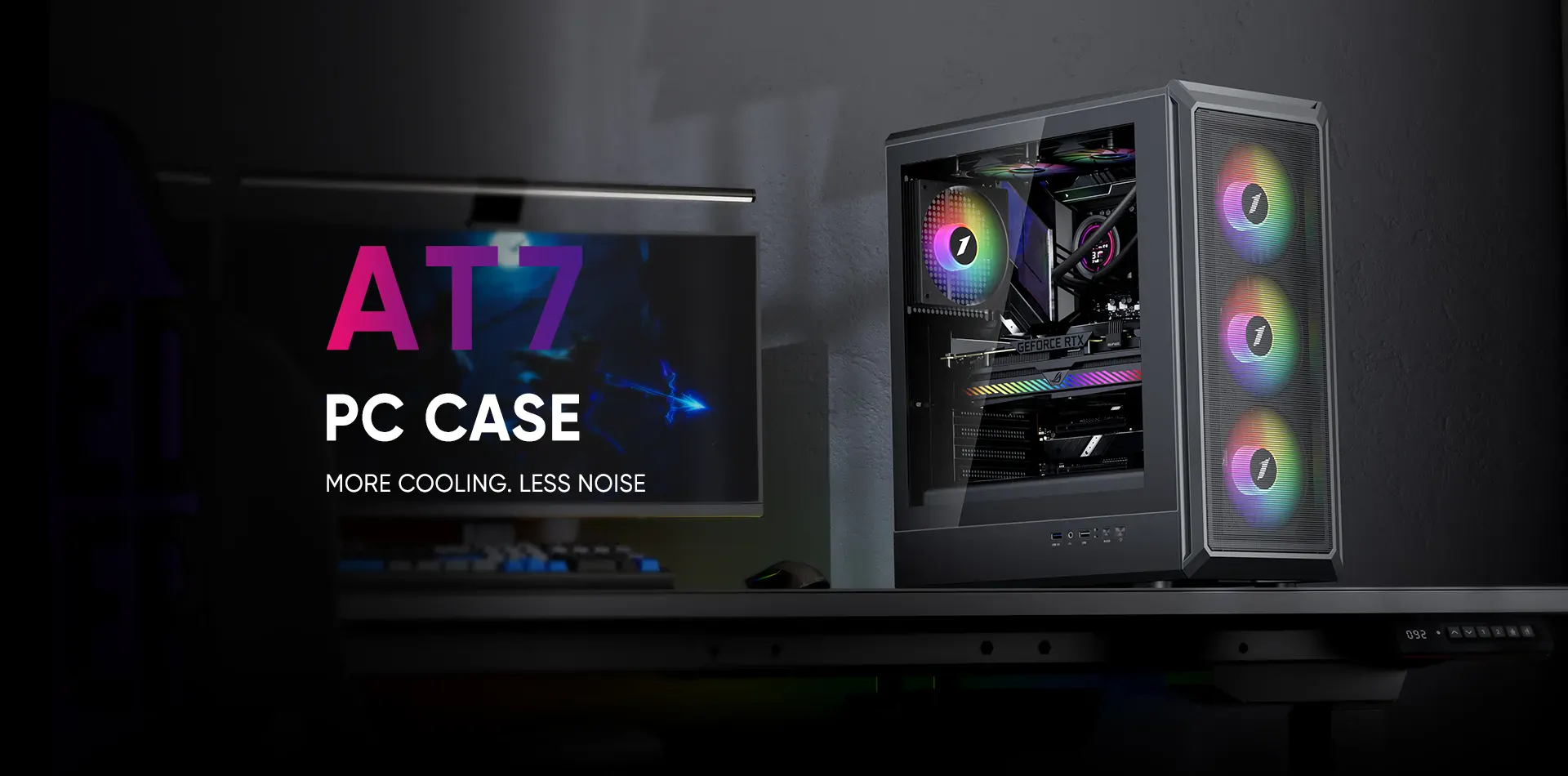

AT7

PC CASE

Support GPU length up to 310 mm
Support CPU cooler height up to 174 mm
Support installing of up to 8 x 120 mm fans
Support Top: 240 mm radiator
The integrated GPU bracket keeps your graphics card perfectly level and locked in place.

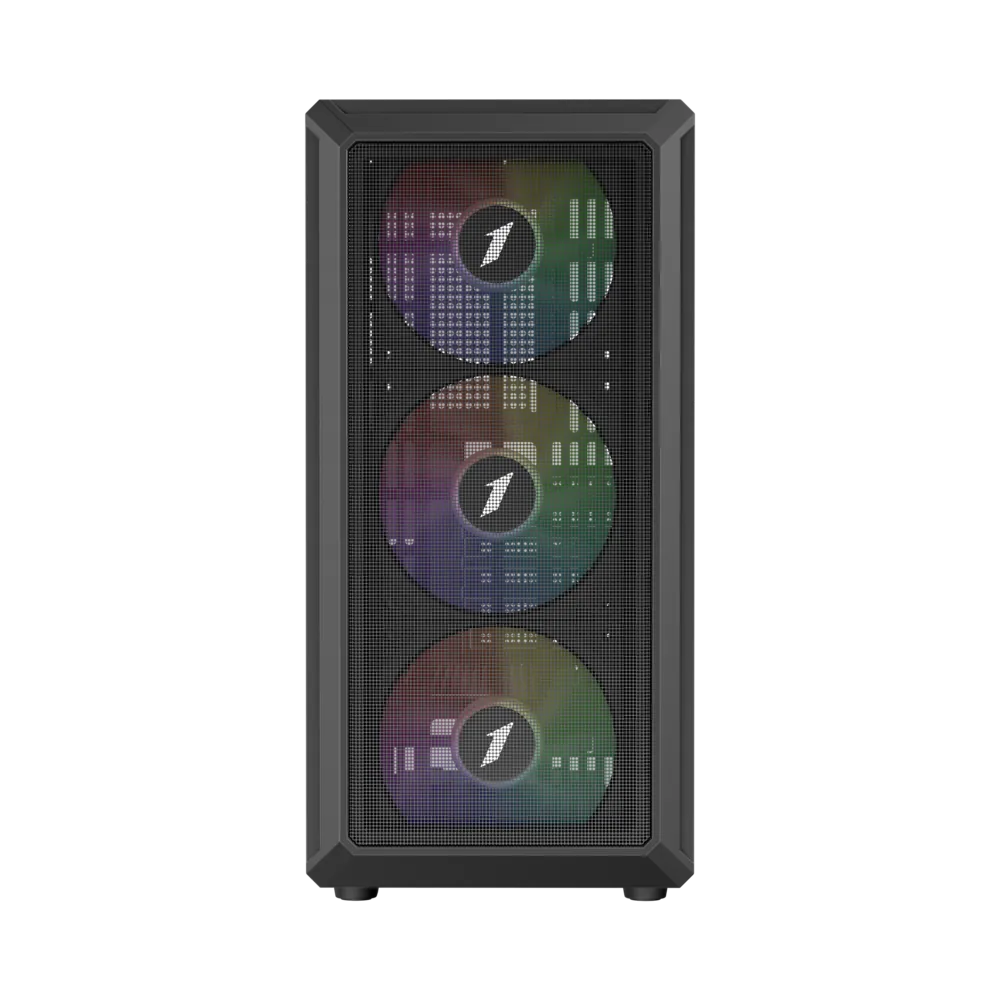

High-density mesh maximizes intake efficiency for consistent, peak thermal stability.

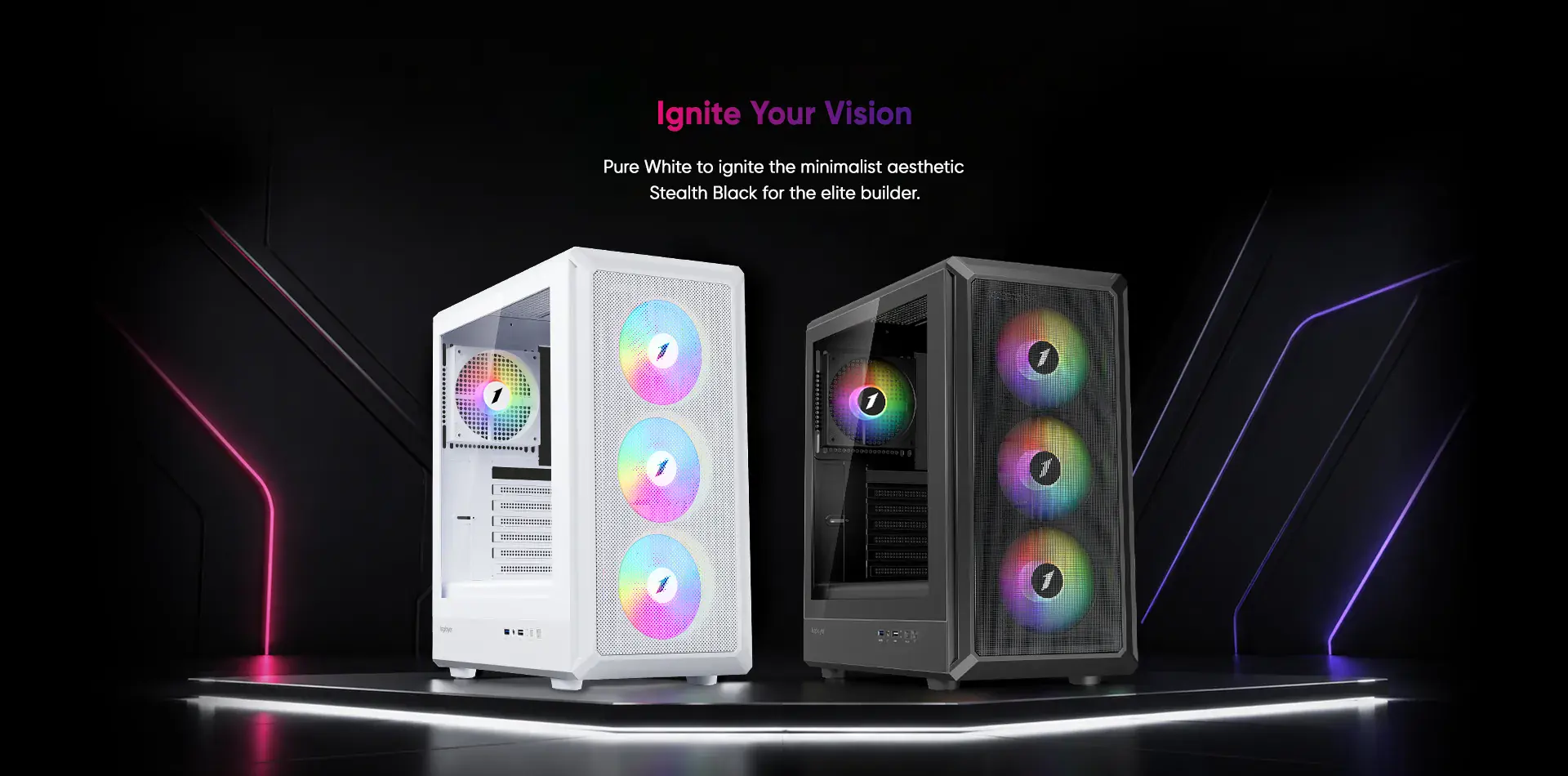

Color

MODEL

AT7

STRUCTURE DIMENSIONS (L x W x H)

365 x 220 x 446 mm

PRODUCT DIMENSIONS (L x W x H)

377 x 220 x 460 mm

PACKAGE DIMENSIONS (L x W x H)

500 x 270 x 436 mm

STRUCTURE THICKNESS

0.45 mm

MATERIALS

0.45 mm SPCC, tempered glass, plastic

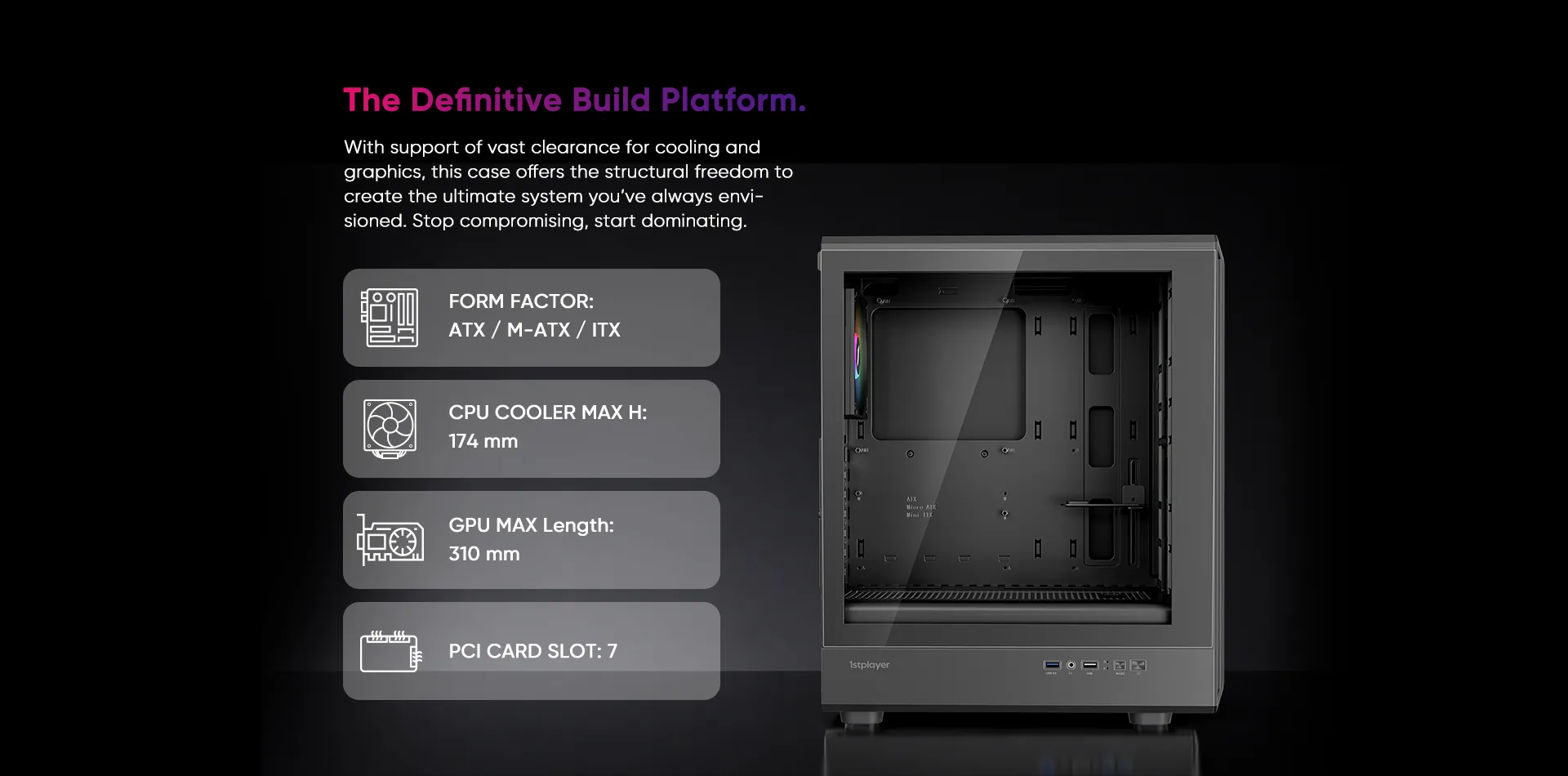

FORM FACTOR

ATX / M-ATX / ITX

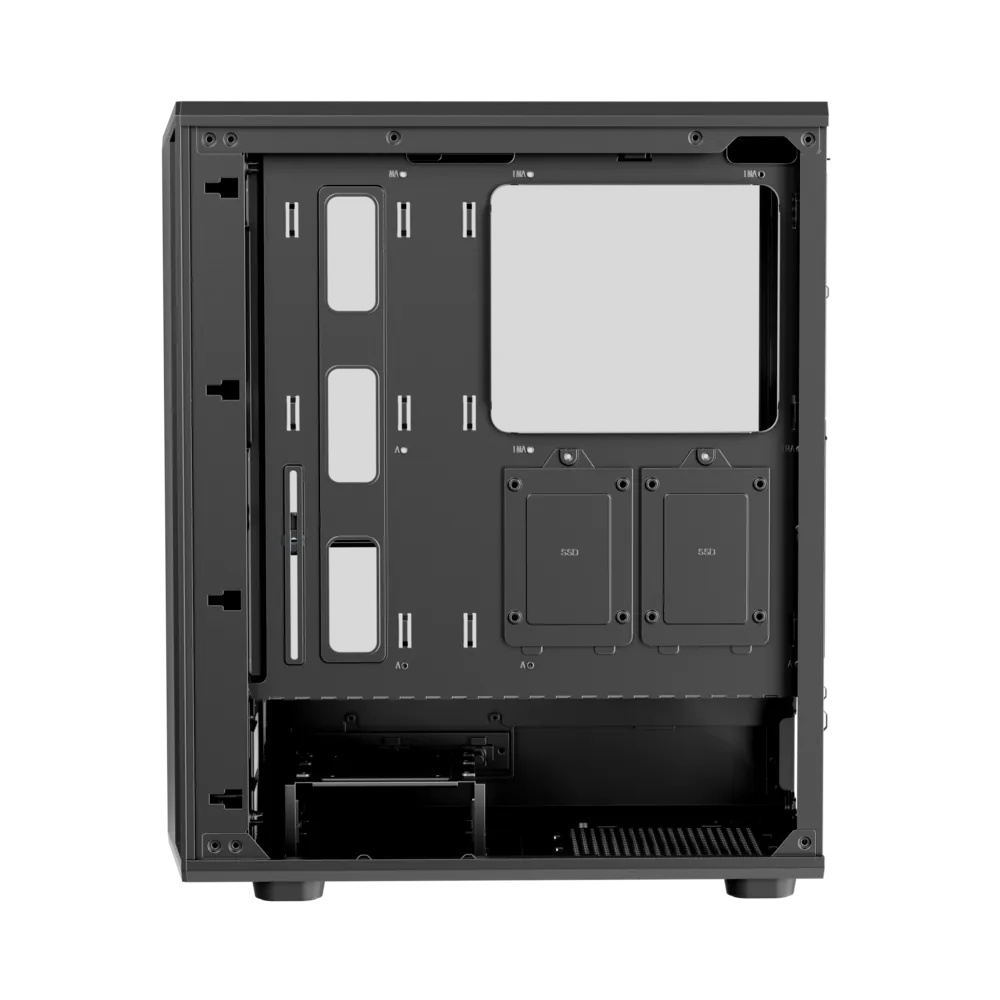

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 2 or
3.5" HDD: 1, 2.5" SSD: 3

PN AND PRE-INSTALLED FANS

AT7-BK: No fans included (N/A)
AT7-WH: No fans included (N/A)

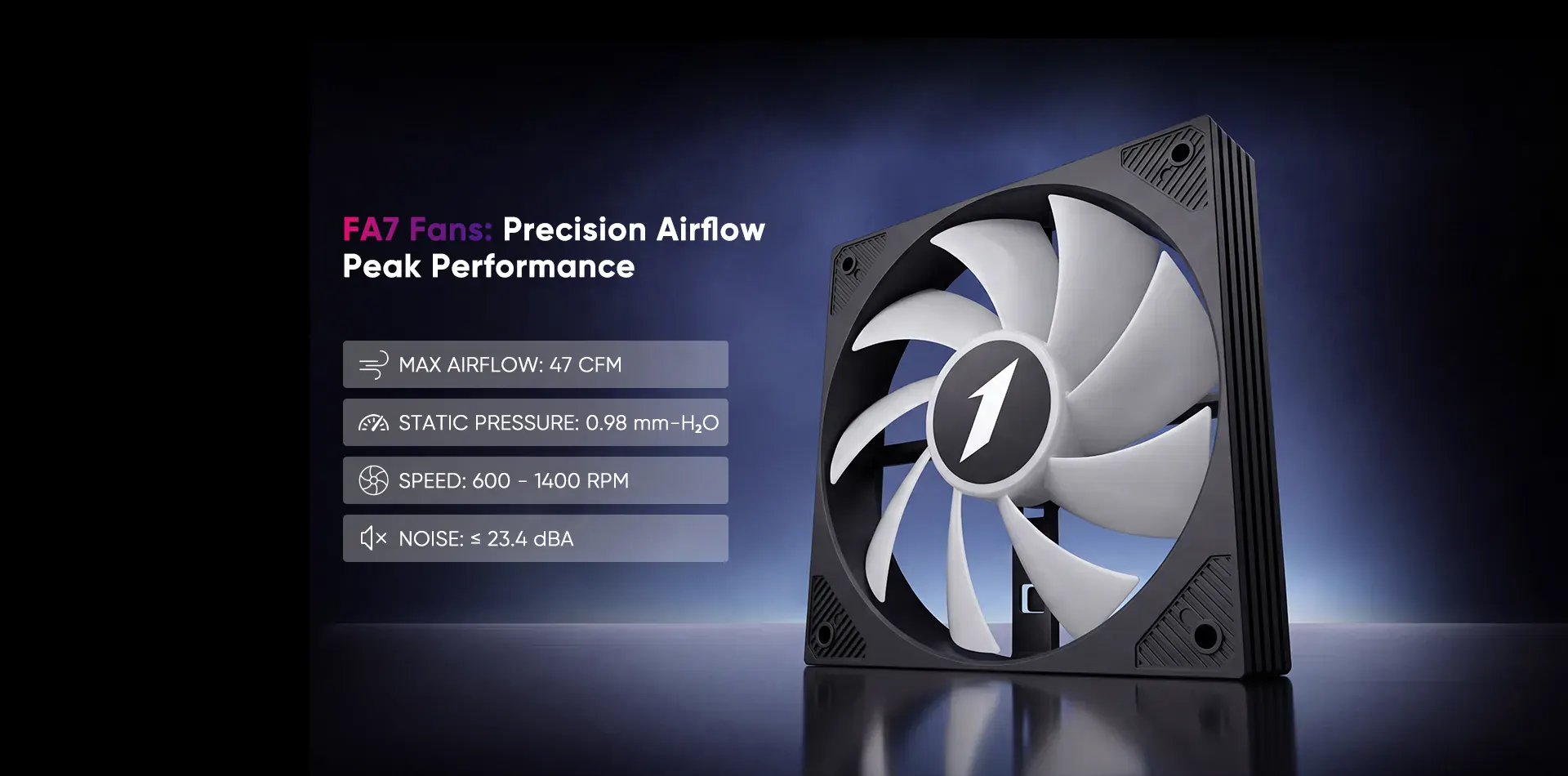

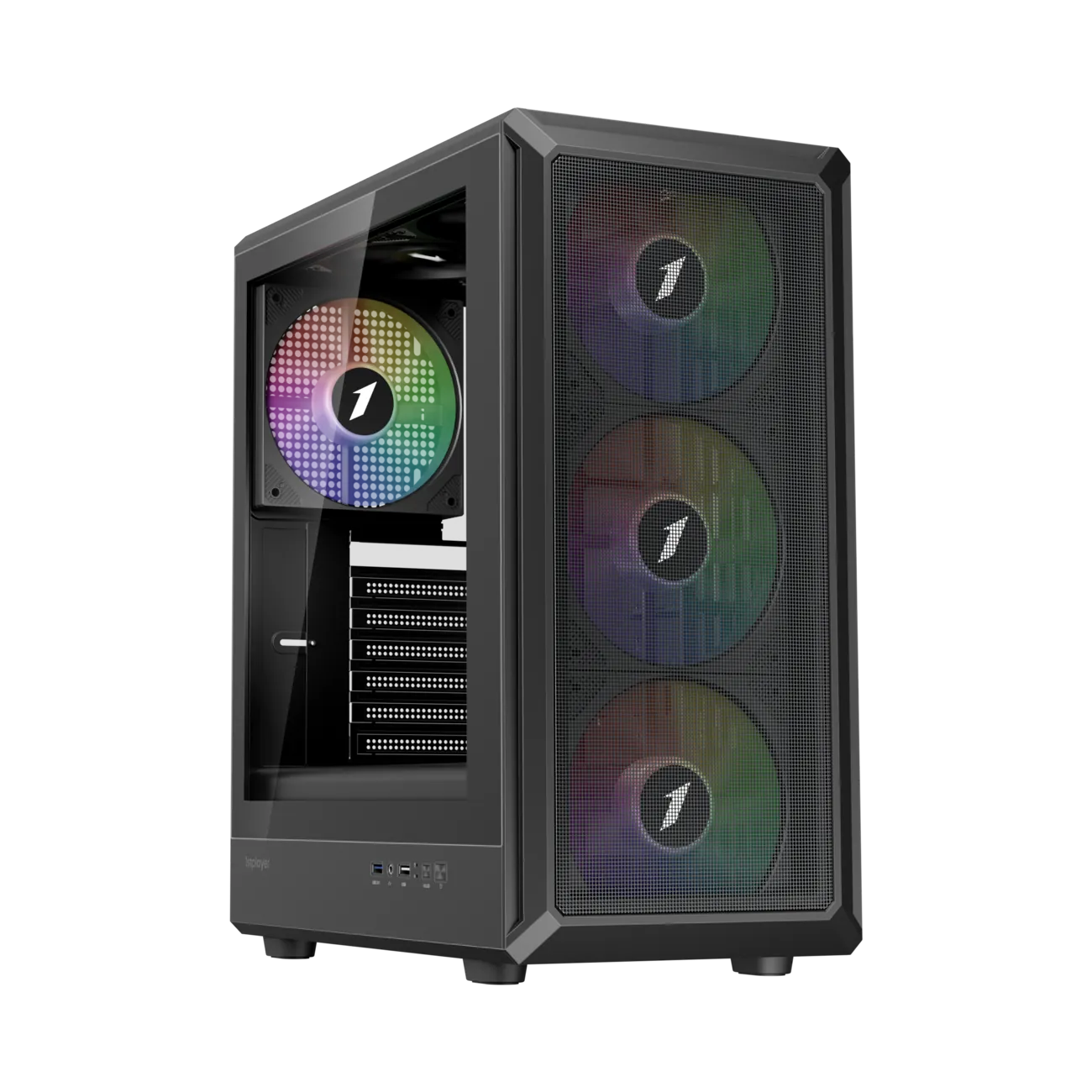

AT7-BK-4FA7-14: Front - 3 x FA1-BK; Rear - 1 x FA1-BK

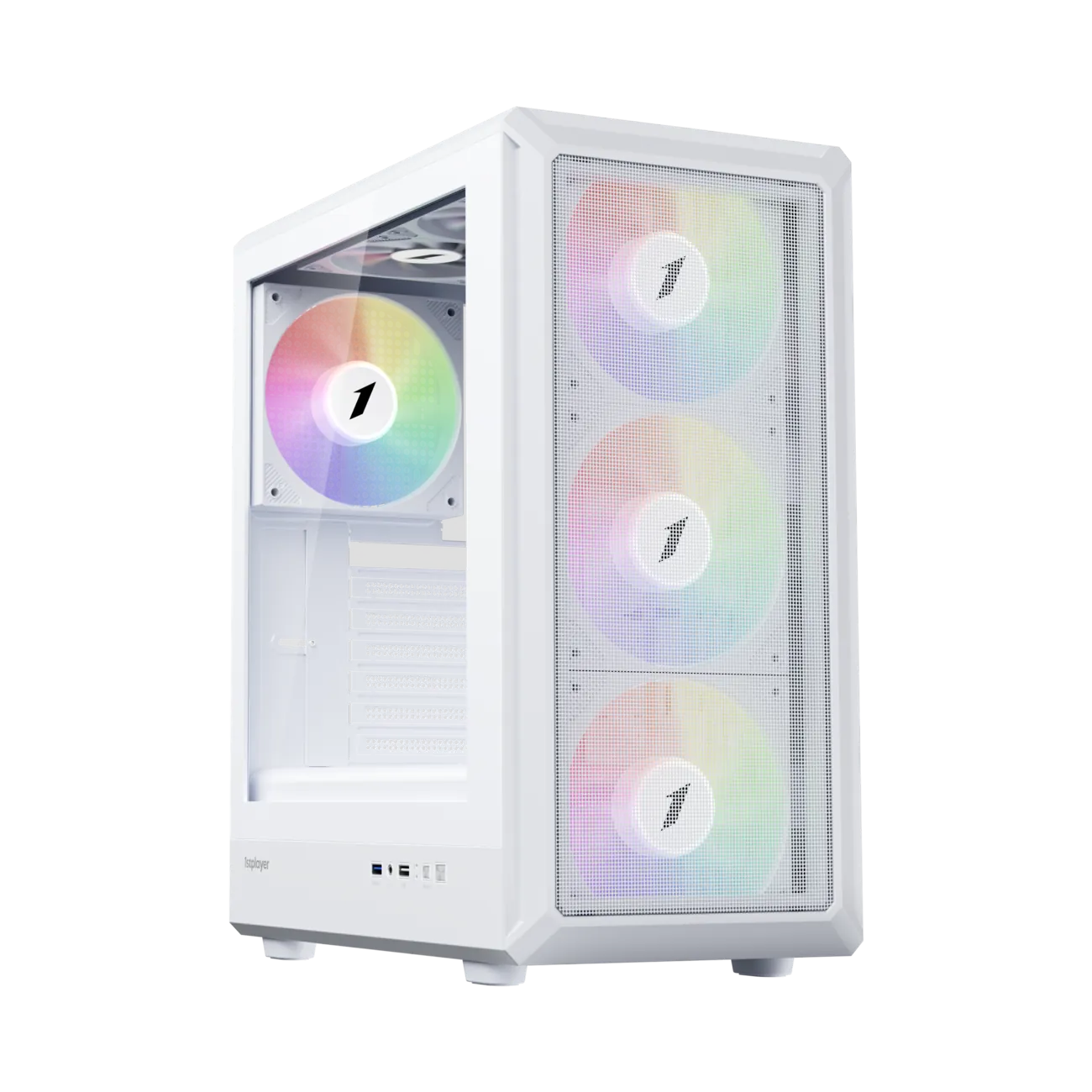

AT7-WH-4FA7-14-W Front - 3 x FA1-WH; Rear - 1 x FA1-WH

CPU COOLER MAX HEIGHT

174 mm

GPU MAX LENGTH

310 mm

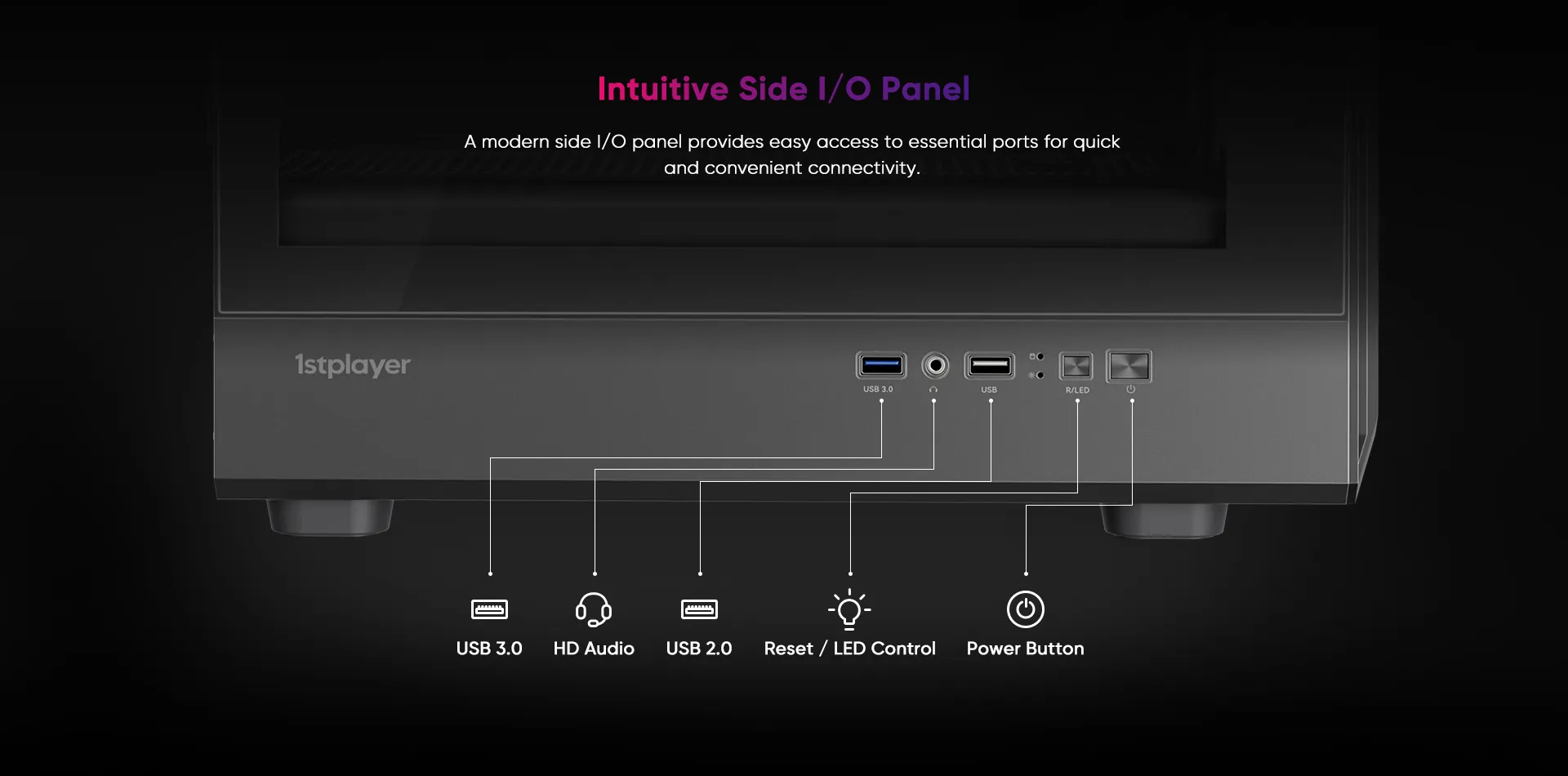

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, HD Audio

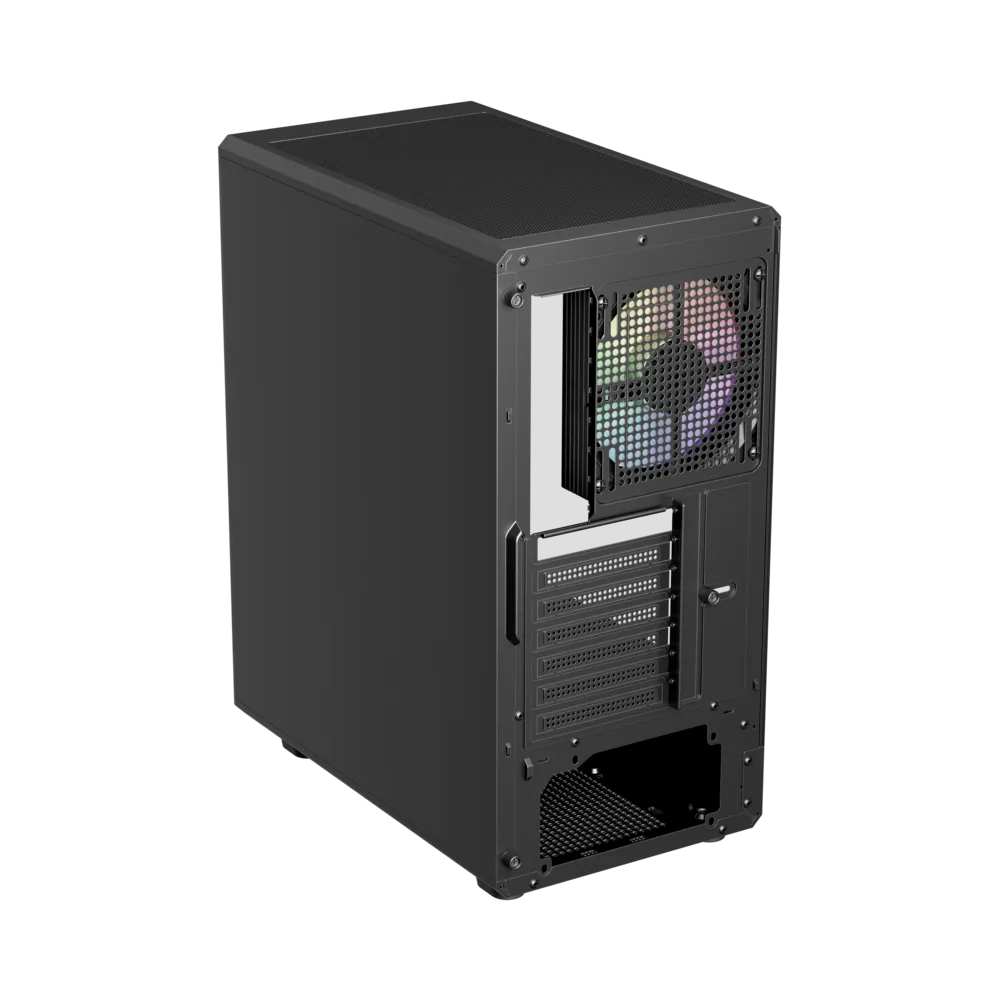

PCI CARD SLOT

7

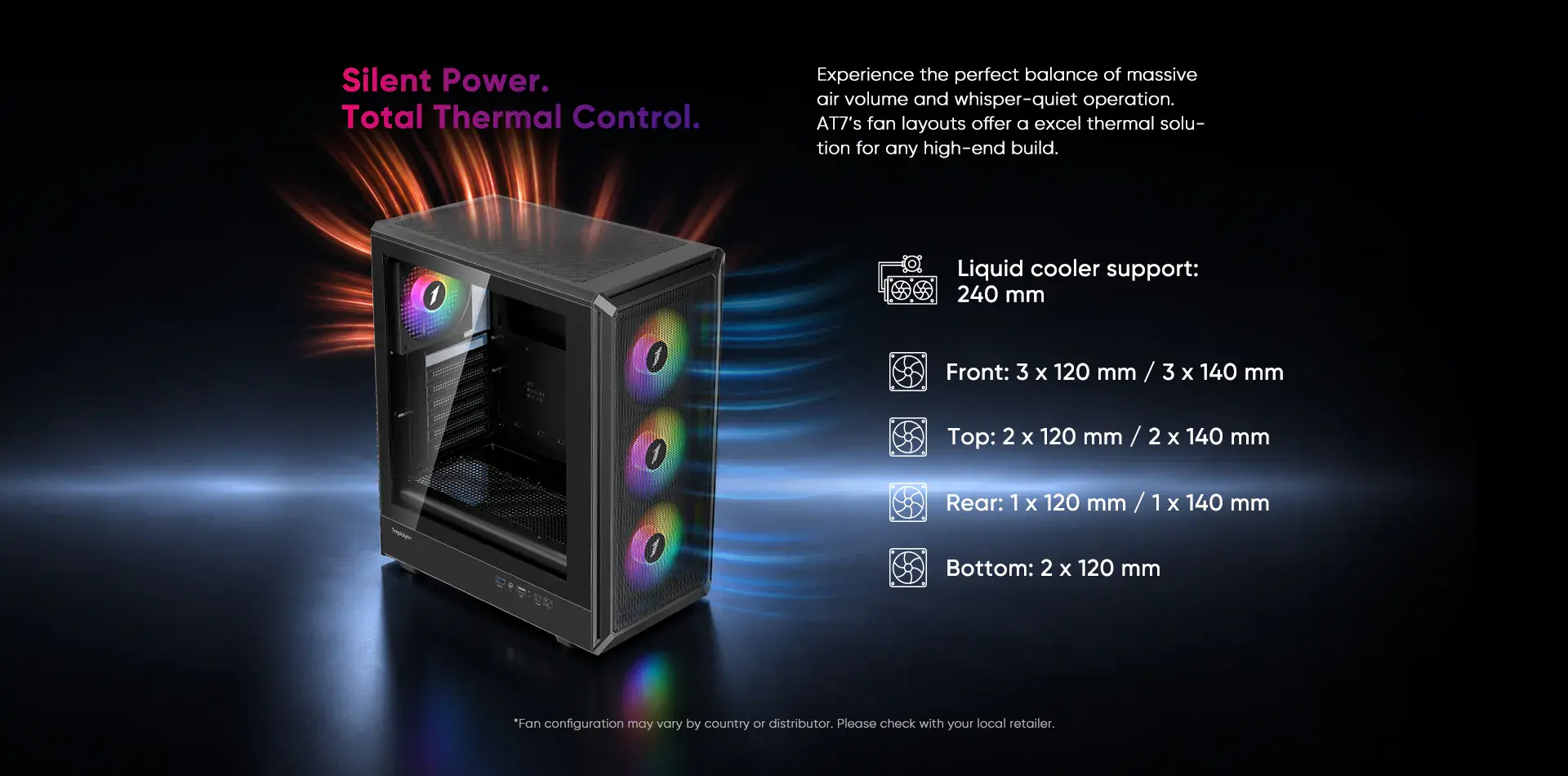

FAN SUPPORT

Front: 3 x 120 mm / 3 x 140 mm
Top: 2 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm / 2 x 140 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted ATX (Max length 160 mm)

WEIGHT

N.W.: 4.45 kg
G.W.: 5.42 kg
